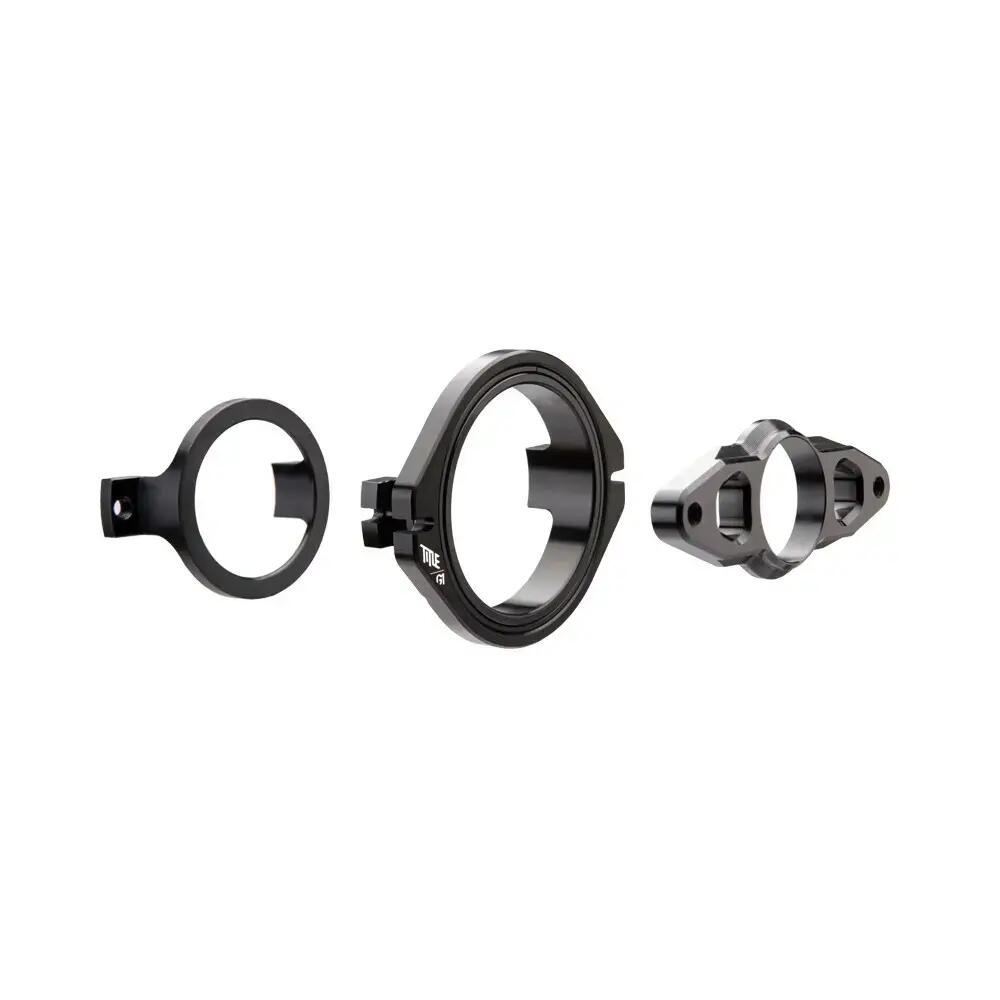

Rotor - large Title Gyro 1

Product Description

DIMENSIONS AND COMPATIBILITY SMALL SIZE (head tube outer diameter less than 54mm) The outer diameter of the head tube should be at least 54mm We recommend using frames with head tubes with a semi-integrated headset (ZS) on the top part to avoid compatibility with the G1 rotor and various gyro tabs. If your frame does not use a semi-integrated headset (ZS) on the top you can use gyro tabs that line up with the bottom of the G1 gyro in the small version (69mm). However, the gyro tabs are not included and will have to be adapted to align with the width of the bottom of the gyro. The best way to measure is to use a caliper to measure.The steerer tube of your fork must have at least 20mm extra length LARGE (head tube outer diameter greater than 54mm)The head tube outer diameter must be greater than 54mmWe recommend using frames with head tubes with a semi integrated headset (ZS) on the top part. If your frame does not use a semi-integrated headset (ZS) on the top you can use gyro tabs that line up with the bottom of the G1 gyro in small version (74mm). However, the gyro tabs are not included and will have to be adapted to align with the width of the bottom of the gyro. The best way to measure is to use a caliper to measure.the pivot of your fork must have at least 20mm of extra length Before ordering the rotor:Be sure to view the entire installation video of the rotor (available below), have a 20mm spacer available (not supplied with 20mm), this will allow the rotor to work properly.Check the pivot of your fork must have at least 20mm of extra length.Measure with a caliper the outer diameter of your head tube to select the rotor size compatible with your frame.FEATURESMTB specific rotor Made in Canada from 6061 T6 machined aluminumLow friction / high wear resistance bearingTwo sizes available (depending on the outer diameter of the head tube) INTENDED USEJump / SlopestyleSkatepark / Street
