Product Description

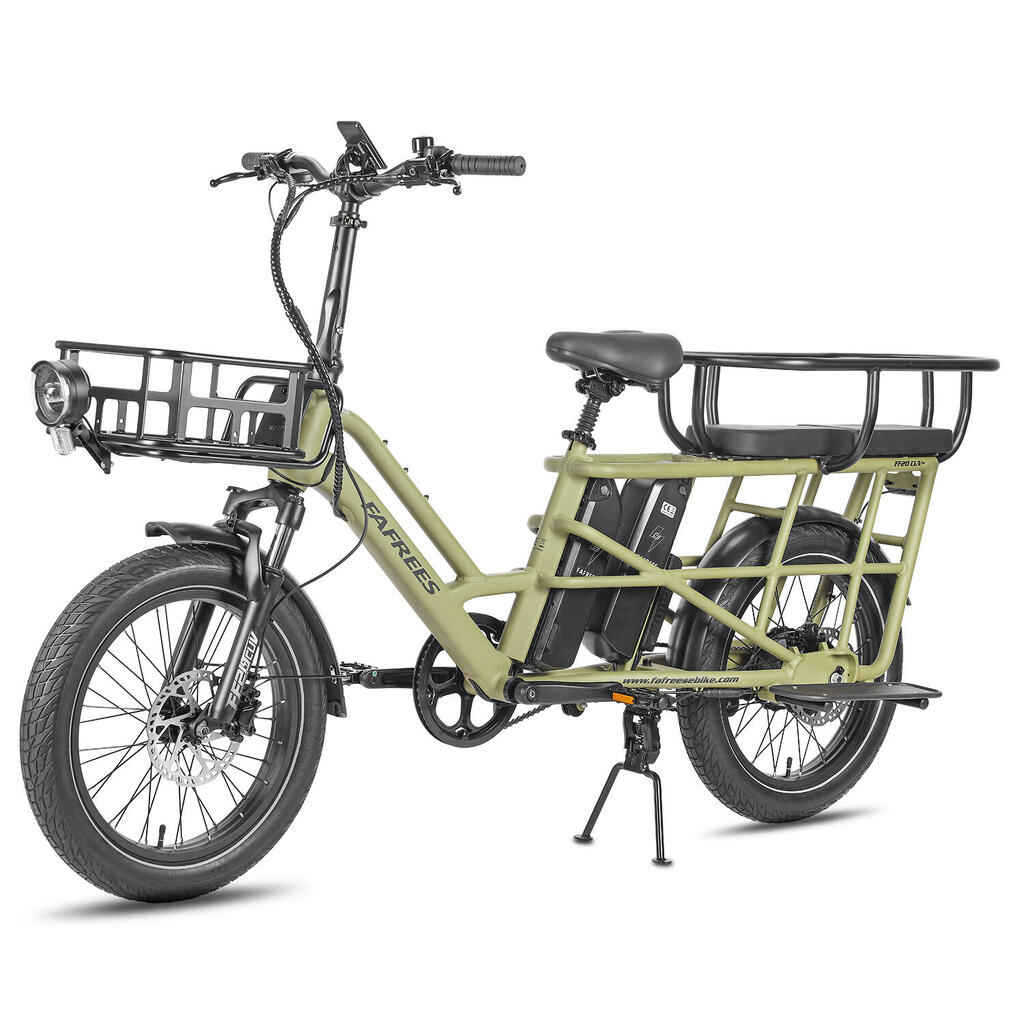

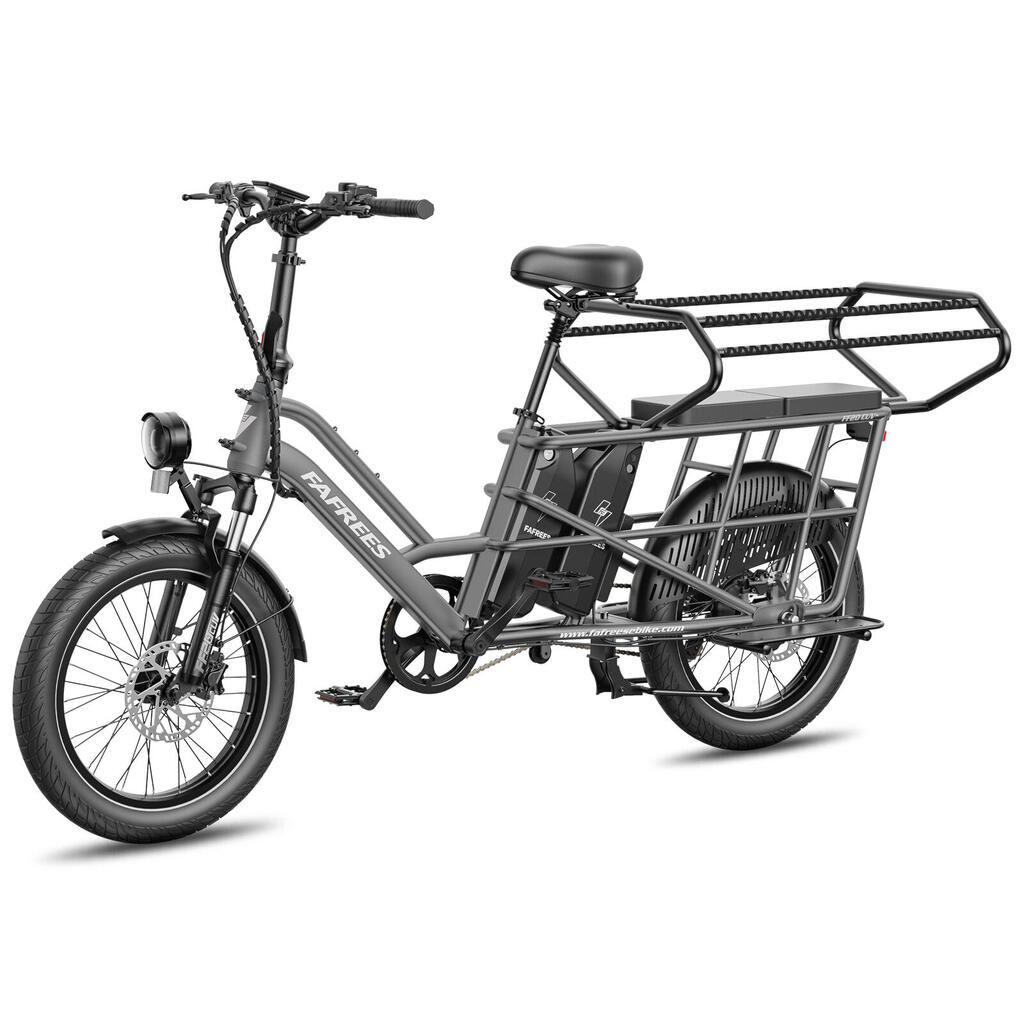

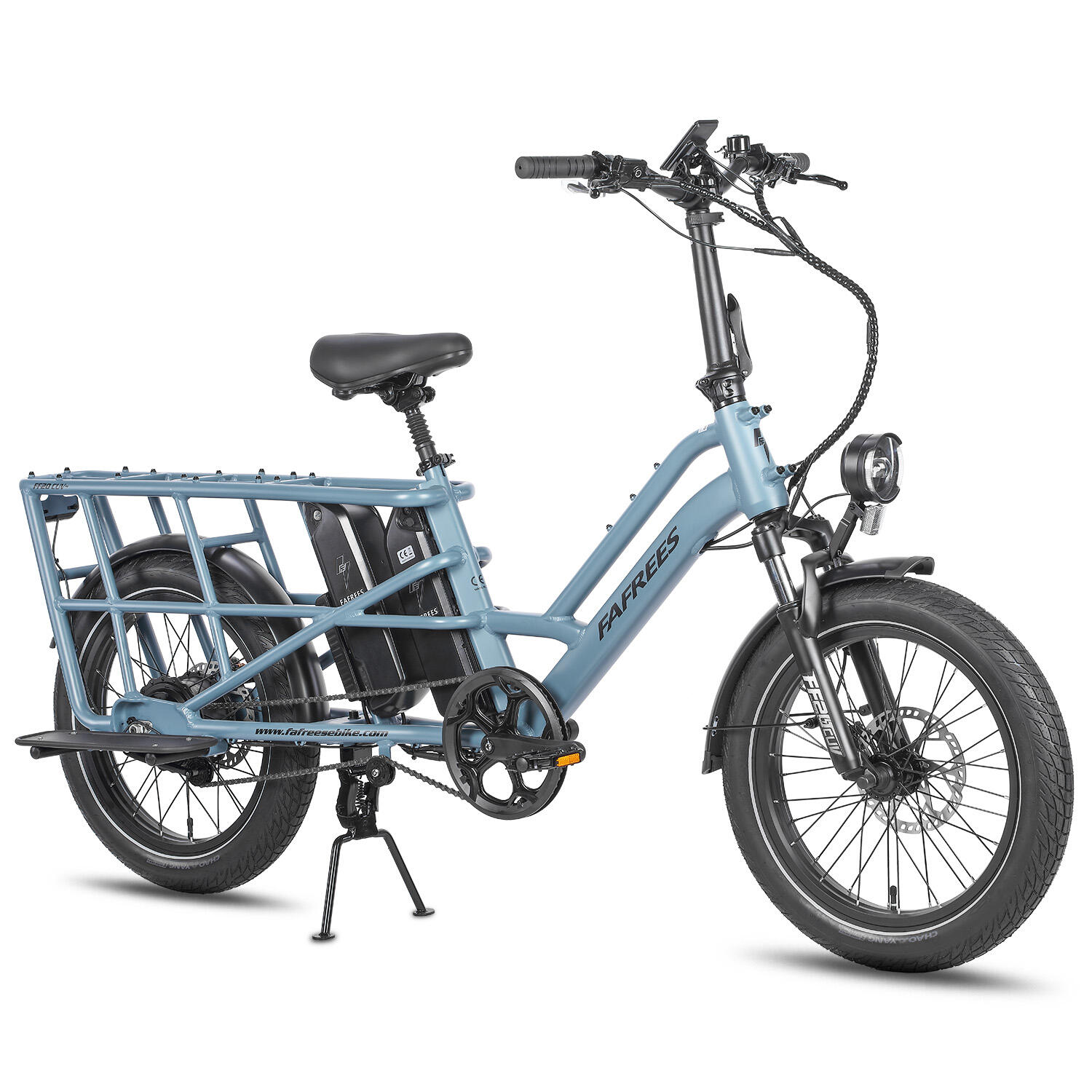

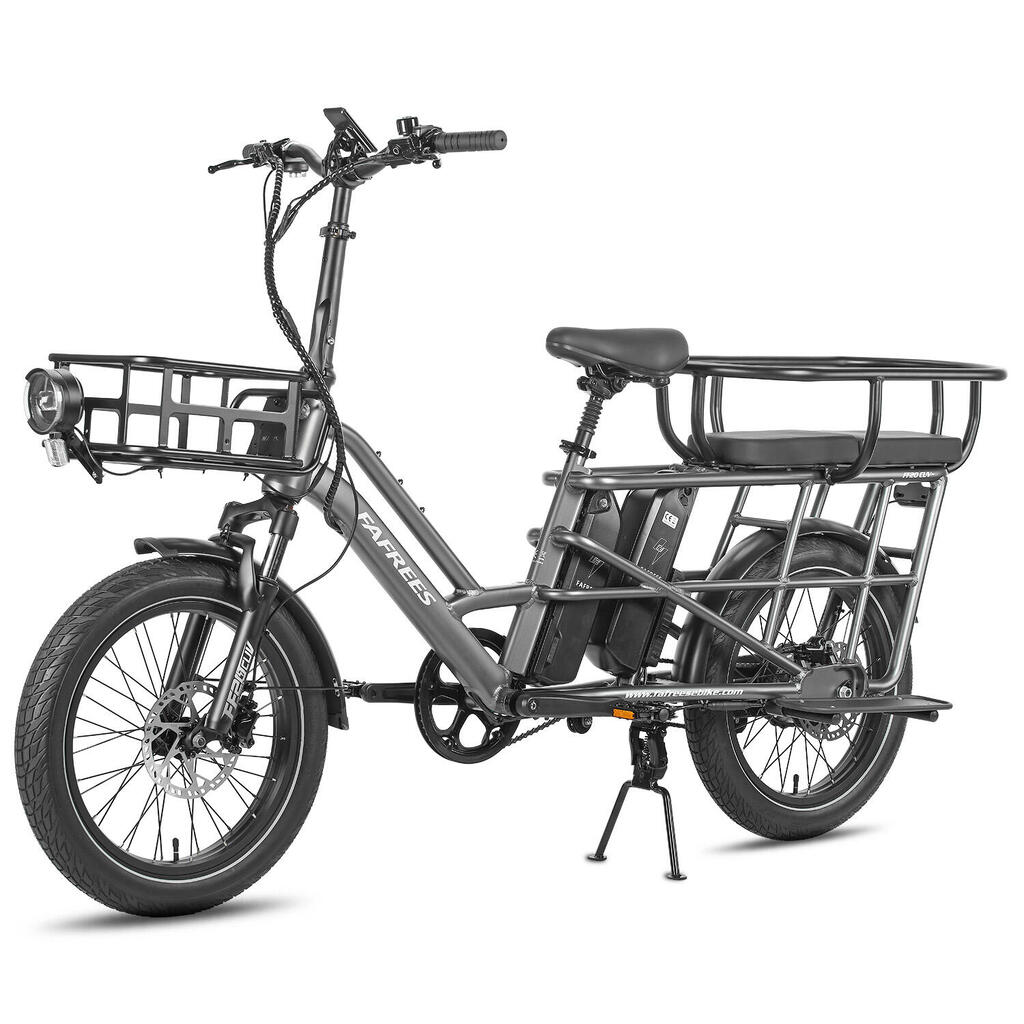

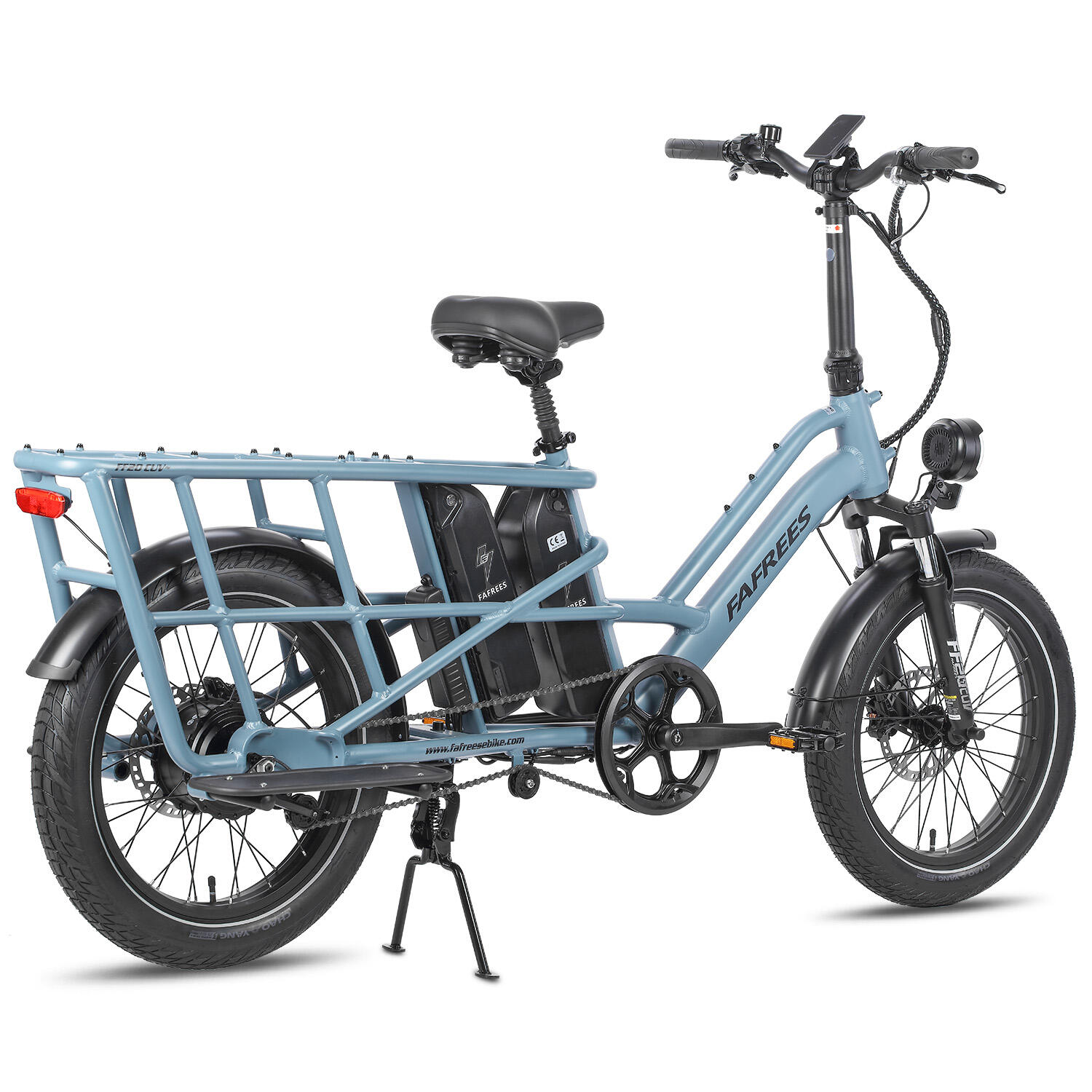

Modular long tail e-bike

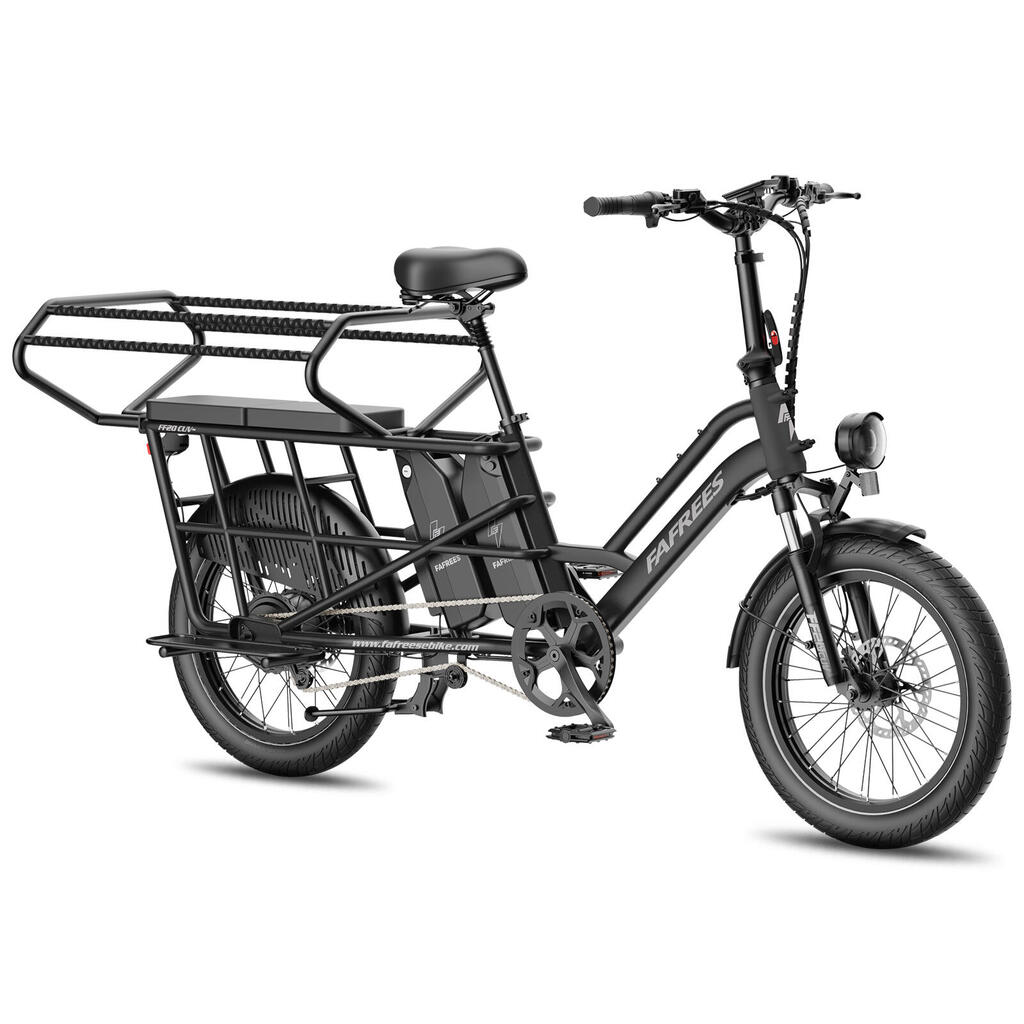

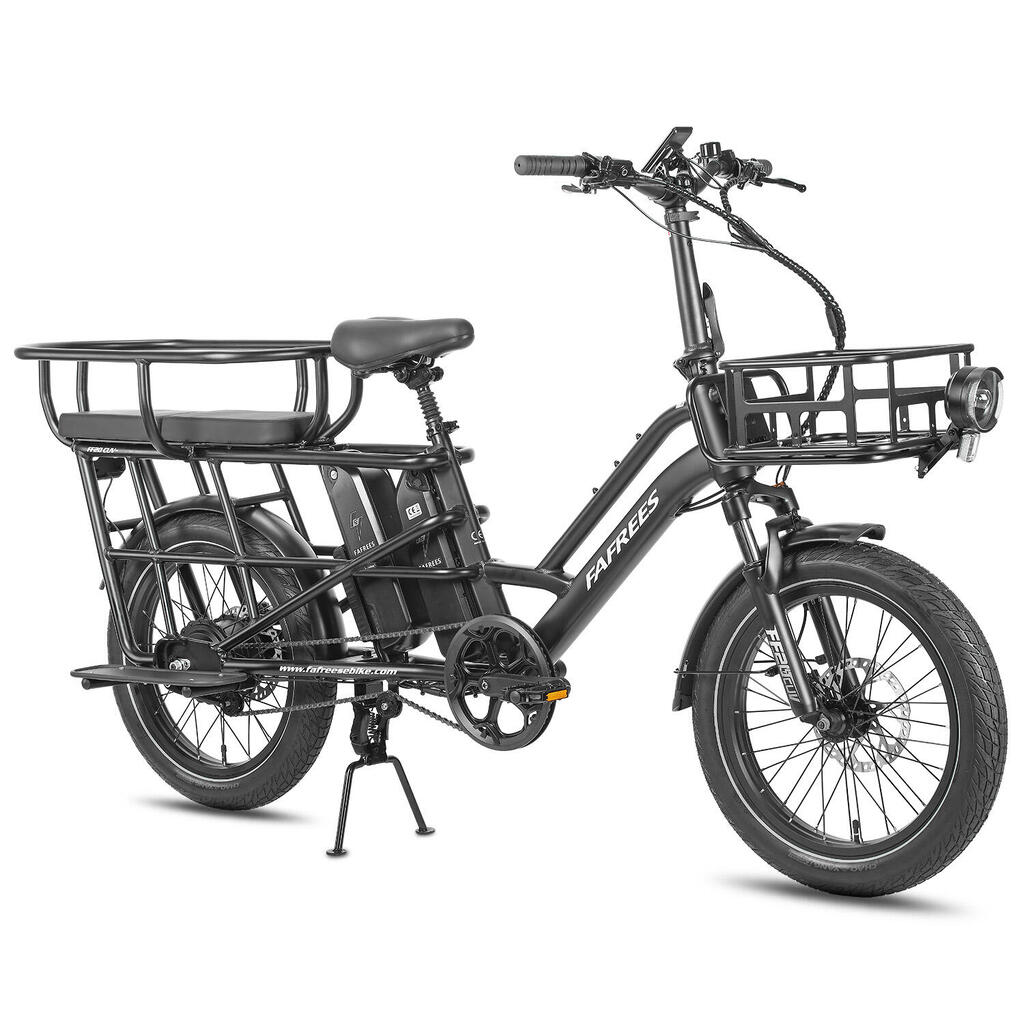

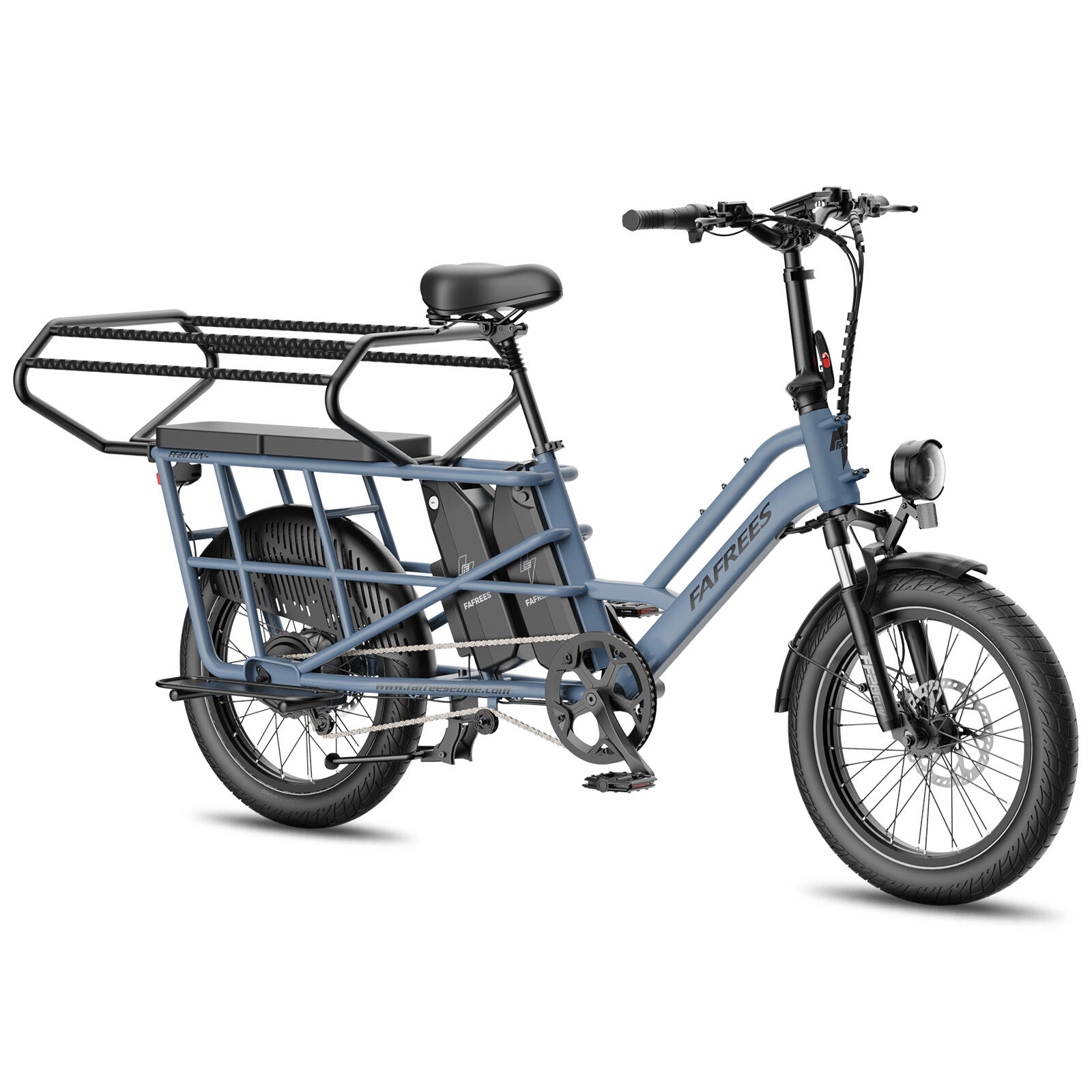

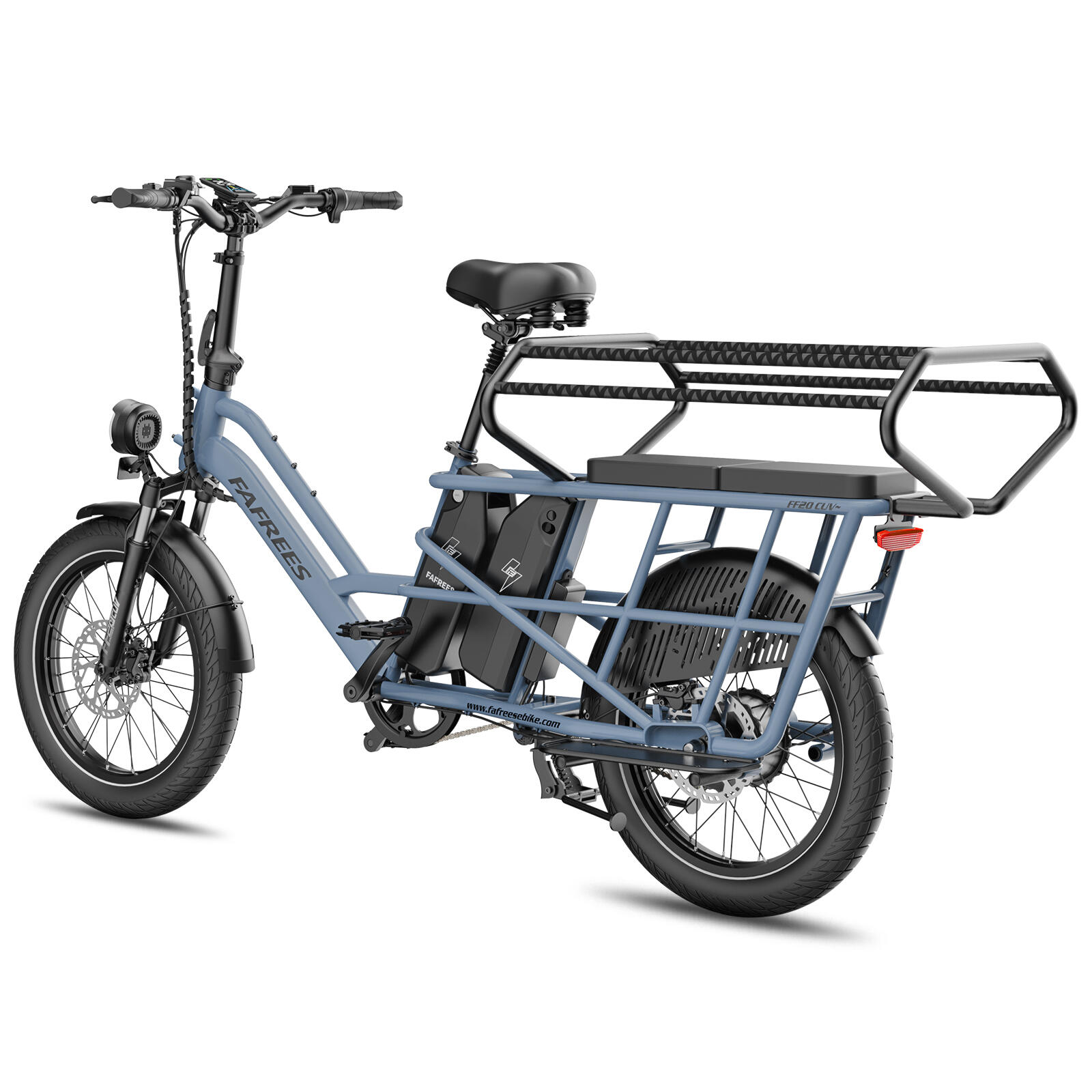

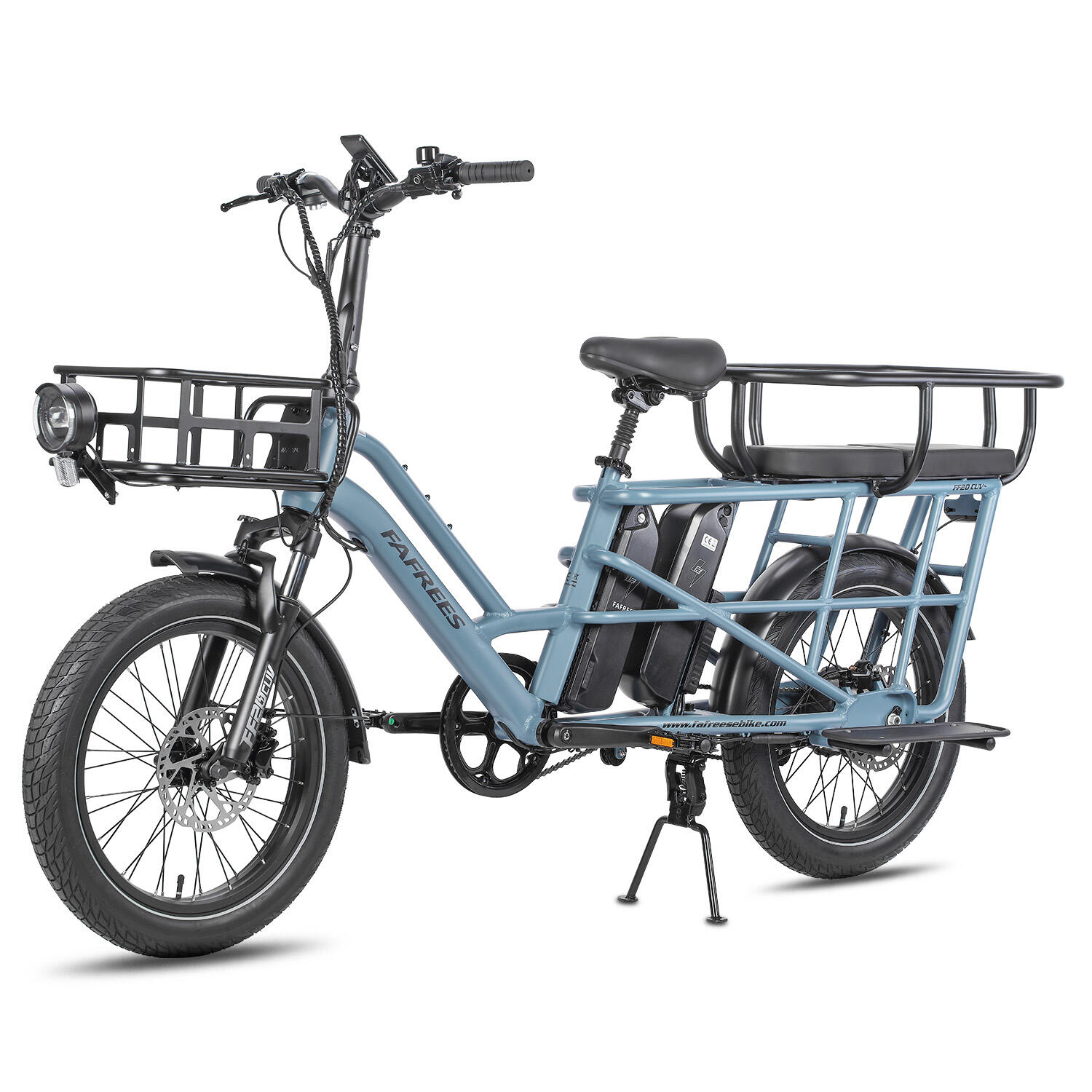

Designed for family trips, daily errands and everything in between. The Fafrees FF20 CUV electric cargo bike is a modular long-tail electric bike designed to handle family outings and transport daily loads with the same safety. Its frame is designed to seamlessly transition from child transport to cargo transportation, so a bike can take you from school classes to the supermarket without compromise.
Double batteries, dual battery life

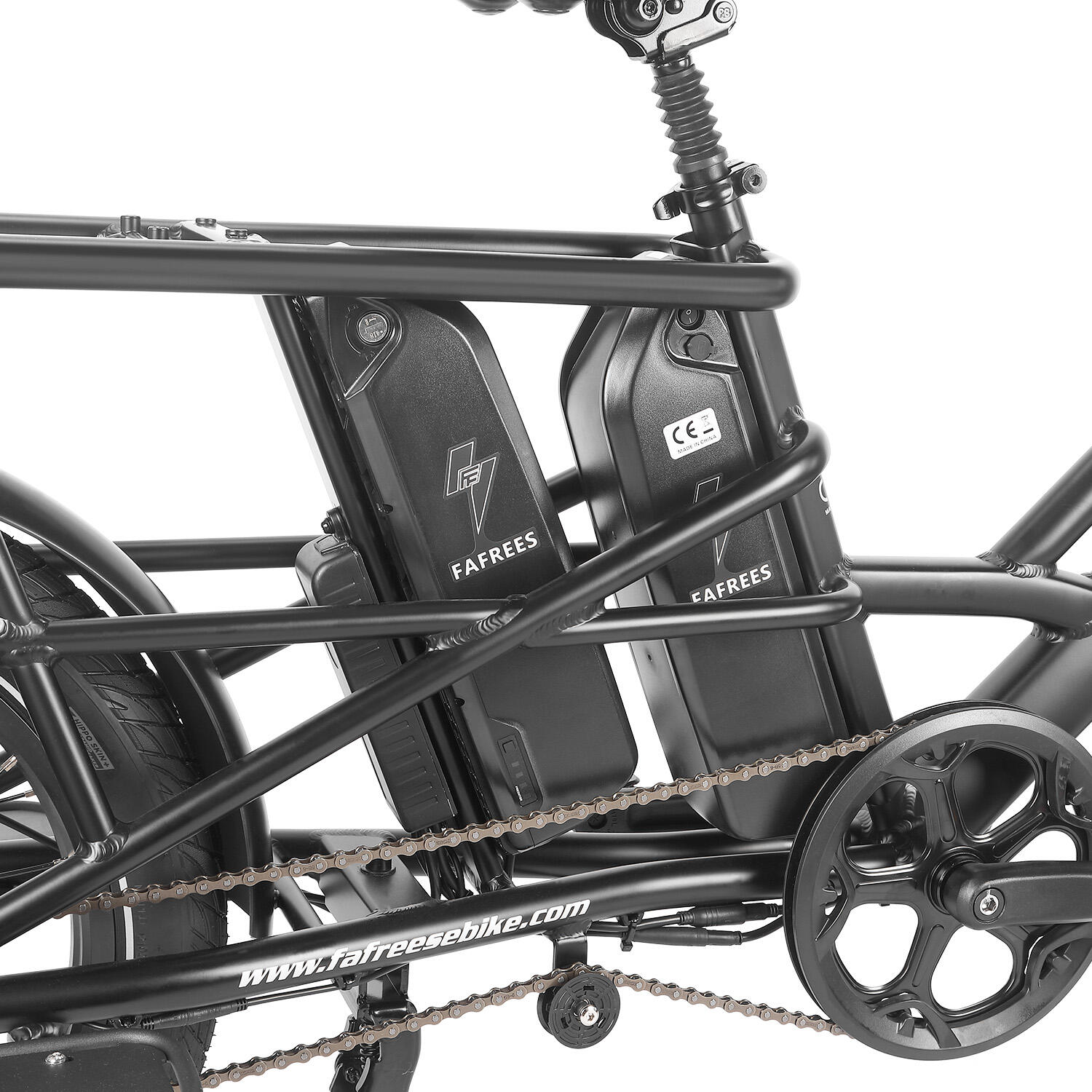

The dual 48V 12Ah batteries work together via a built-in balancer, ensuring uniform discharge for stable and efficient power supply. This system offers a range of 100 to 140 km on a single charge, with each battery recharging in approximately 4.5 hours. Removable design makes charging simple and convenient wherever you are.
Rugged Everyday Use

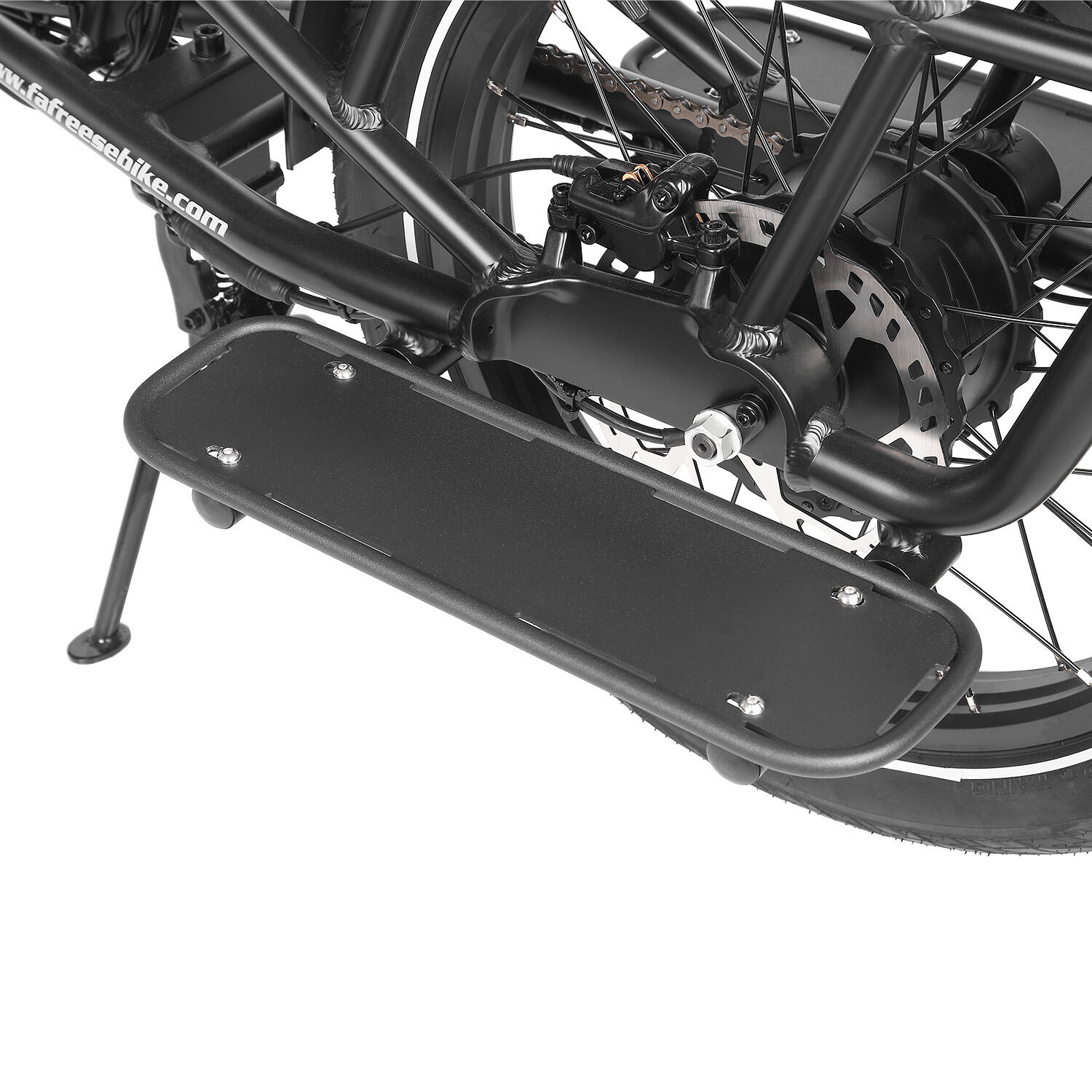

This Electric Load Bike for Adults is designed to handle heavy loads while remaining practical for everyday use. With a total maximum load capacity of 200kg (150kg for the cyclist, 20kg for the front basket and 100kg for the rear rack), it is ideal for everything from shopping to sports equipment.
Smarter Pedal Assistance
Equipped with a 250W rear hub motor and torque sensor, the FF20 CUV offers smooth and intuitive pedaling assistance. The system responds instantly to your effort, offering up to 75Nm of torque for safe starts and ascents. With its rated power of 250 W, compliant with EU standards, it is fully approved for road use throughout Europe.
Comfort and stability under load
The double suspension keeps your ride comfortable even at full load. The front fork absorbs shocks and potholes, while the cushioned seatpost adds extra comfort on bumpy roads, reducing fatigue on longer journeys.
Reliable braking in all weather conditions
The hydraulic disc brakes at the front and rear offer a high and consistent braking power in all conditions. Whether it's rain, mud or descent, you can count on safe and responsive braking, even under heavy loads.
Specification:
Brand:Fafrees
Model:FF20 CUV
Motor:250W 48V rear drive
Maximum Torque:75 N·m
Battery:48V, 12Ah ×2 (576Wh ×2), total 24Ah / 1152Wh
Charger:48V 3A charger, charging time 4.5h ×2

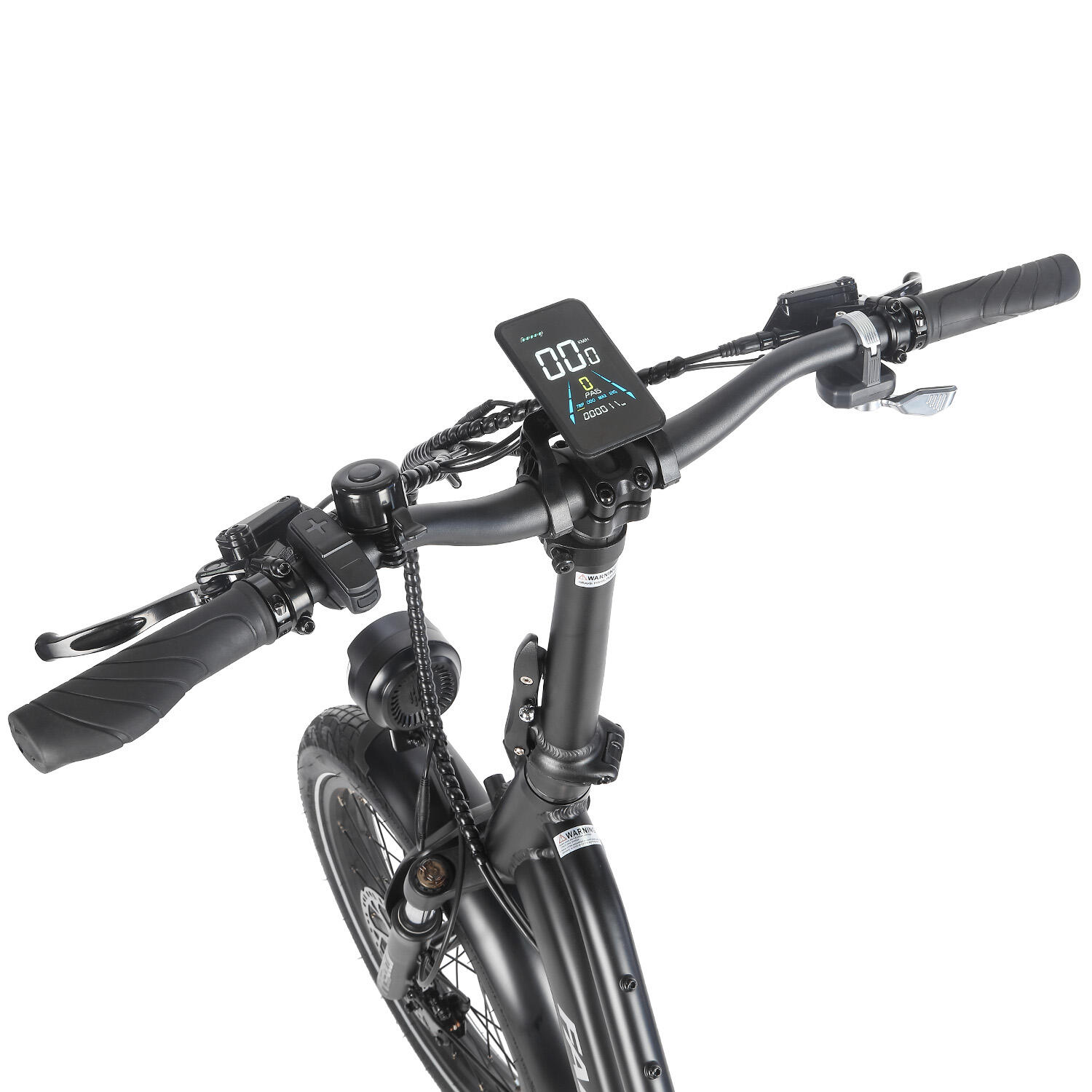

Display:LCD display
Sensor:Torque sensor
Range:100-140km Range
Speed:Default 25 KM/H
Pedal Assist:3 levels
Suspension:Shock fork (60mm travel) & Seat shock tube (15mm travel)
Transmission:N/A
Tires:20 × 3.0 inch air tires
Folding parts:Folding handlebar
Bike Weight:38KG
Weight Capacity:200KG
Rider Height:160-200CM
Frame:Aluminum alloy
Handlebars:Aluminum 31.8mm, 660mm
Fork:Spring suspension, 60mm travel
Brakes:Hydraulic disc brakes
Wheels:Aluminum 36h Front & Rear
Tubes:Butyl Rubber, Schrader Valve
Headlight:LED Light
Taillight:Brake Light
Chain Ring:1/2*1/8"*52T
Pedals:Platform Pedals
Seat:Leather Seat
Seatpost:Aluminum alloy, 27.2 mm×350 mmx2.4T, with shock absorption

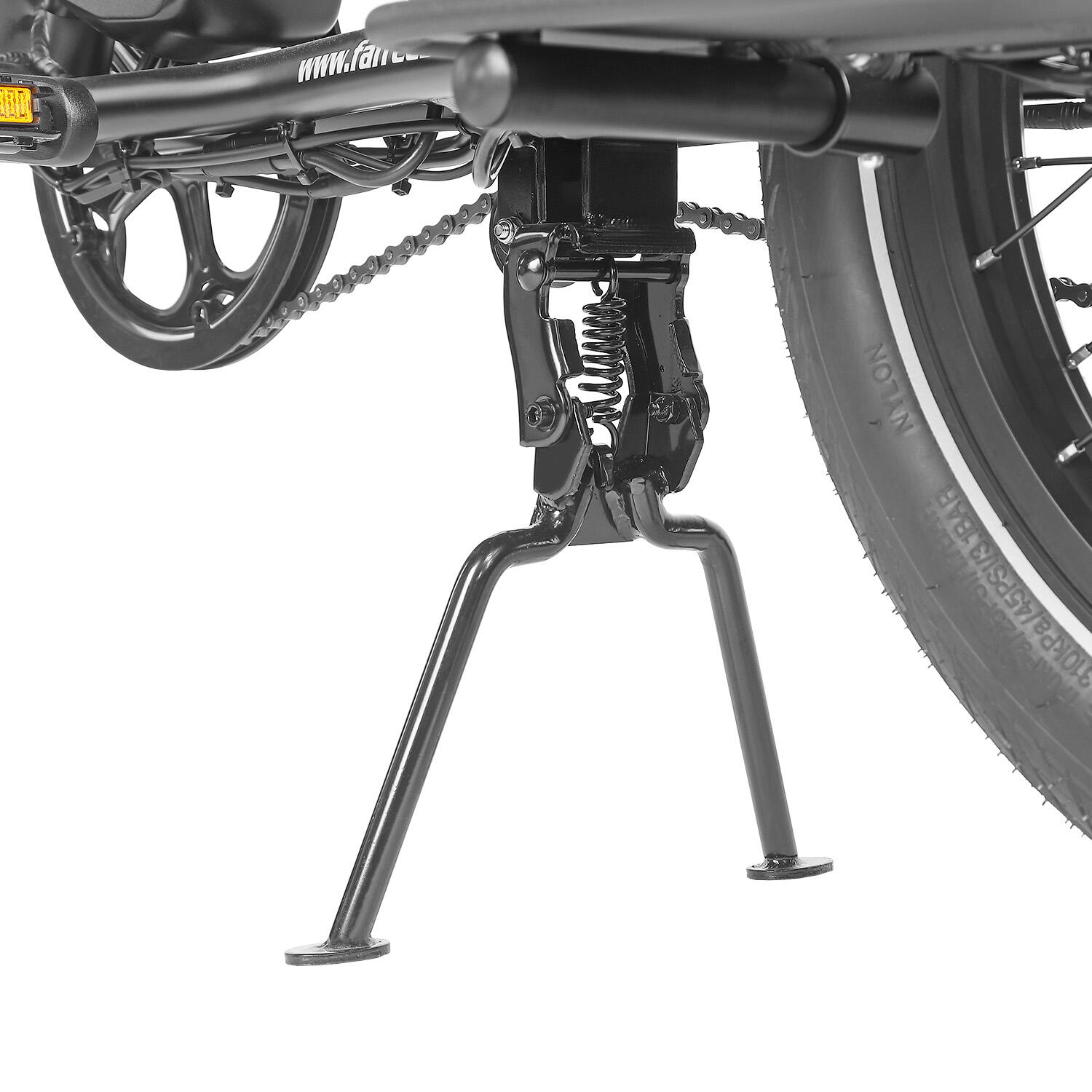

Kickstand:Included, Ladder Kickstand
