Product Description

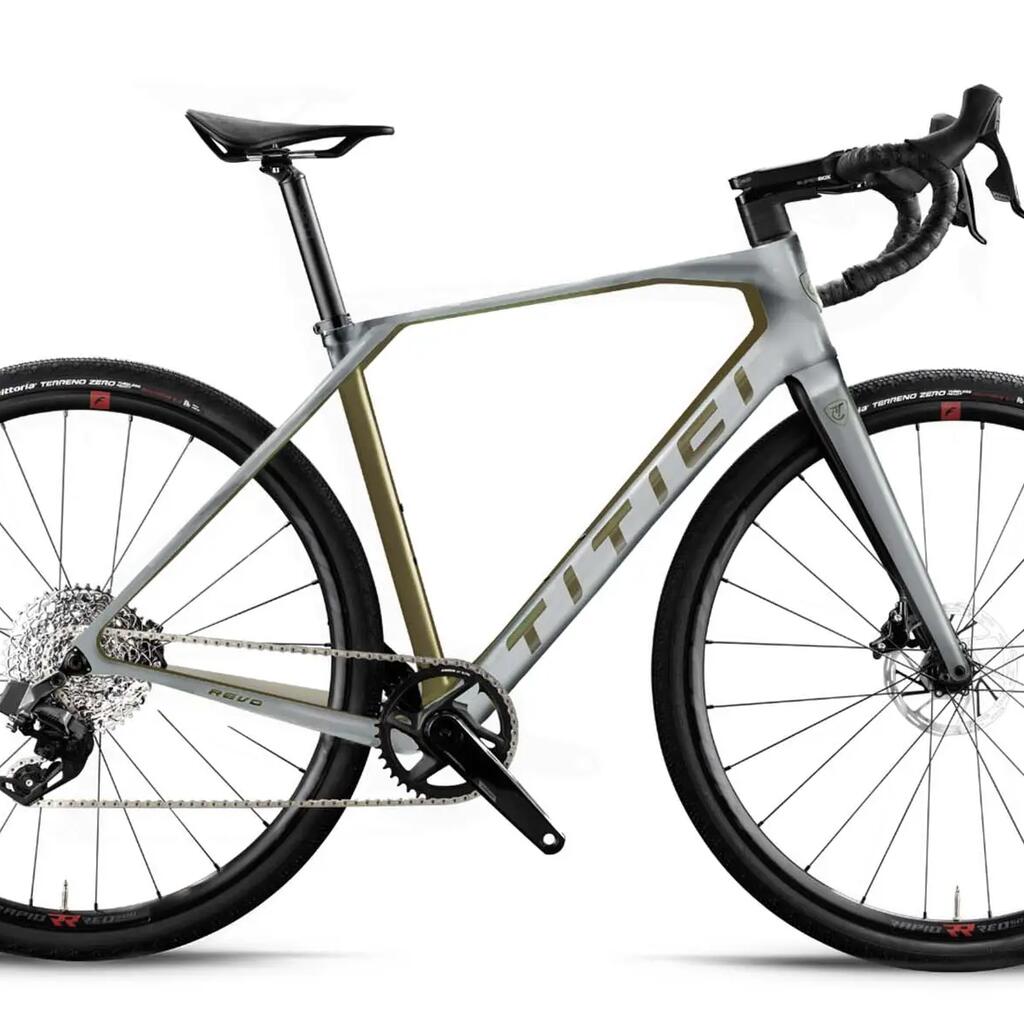

REVO – the All-Round Gravel Carbon Bike designed to handle every challenge, from intense training sessions and competitive rides to solo adventures or relaxed rides with friends. Combining sleek Italian design with advanced engineering, the REVO performs brilliantly on gravel, dirt, and asphalt alike.
The frame is made from monocoque carbon and accommodates both single chainring and double crankset groupsets, electronic or mechanical. Built for performance, it delivers a perfect balance of stiffness, comfort, and durability, ensuring smooth handling in the toughest conditions.
From the first ride, the REVO impresses. Fully integrated internal cable routing enhances its clean aesthetics while reducing aerodynamic drag. The 1.5” head tube ensures precise steering, giving confidence on high-speed descents and technical corners. The asymmetrical fork design stabilizes braking forces for better control on uneven terrain.
Constructed using the EPS system (Expanded Polystyrene), the carbon frame is free from air bubbles and imperfections, resulting in a strong, resilient structure. The revolutionary PAT10 monocoque tube, only 10mm thick, absorbs up to 18% more vibrations than standard frames, improving comfort without compromising responsiveness or power transfer.
For bikepacking and long-distance expeditions, REVO is fully equipped with multiple attachment points, including a water bottle holder under the down tube near the bottom bracket.
Frame & Fork
Frame: Monocoque Carbon
Fork: TITICI Gravel Fork
Cable Routing: Fully Integrated
Headset: 1.5” Integrated
Bottom Bracket: Press Fit 30
Brake Mount: Flat Mount
Front Axle: 12×100 mm
Rear Axle: 12×142 mm
Maximum Tire Size: 700c x 50 / 650B x 2.1
Drivetrain & Transmission
Rear Derailleur: Shimano GRX RD-RX810, 2x11-speed (max 34T)
Front Derailleur: Shimano GRX FD-RX810, braze-on double
Cassette: Shimano CS-HG700, 11-speed, 11–34T
Chain: Shimano CN-HG601, 116 links (11-speed)
Crankset: Shimano GRX FC-RX600, 46/30T
Brakes & Cockpit
Front Brake Kit: Shimano ST-RX600 + BR-RX400 + Hose
Rear Brake Kit: Shimano ST-RX600 + BR-RX400 + Hose
Rotor: Shimano SM-RT70 Ice-Tech, 160 mm Center Lock
Handlebar: TITICI Gravel Bar
Stem: TITICI Gravel Stem
Seatpost: Deda ZERO100 Carbon, Ø27.2
Handlebar Tape: Night Black
Wheels & Tires
Wheels: Fulcrum Rapid Red 900
Tires: Vittoria Terreno Dry 700x38c
Weight
Weight (without pedals): ~9.5 kg
