Ceramic bottom bracket SD Components SD BB386 Threaded Lock

Product Description

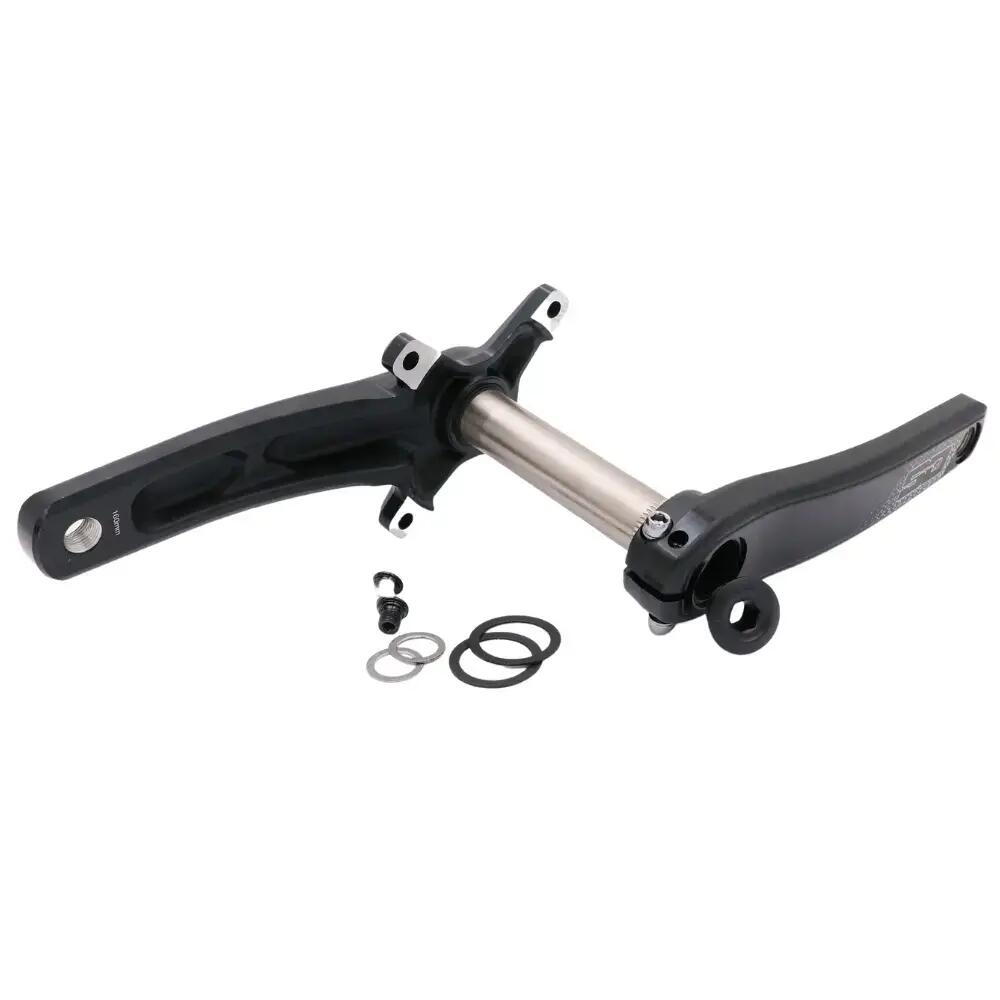

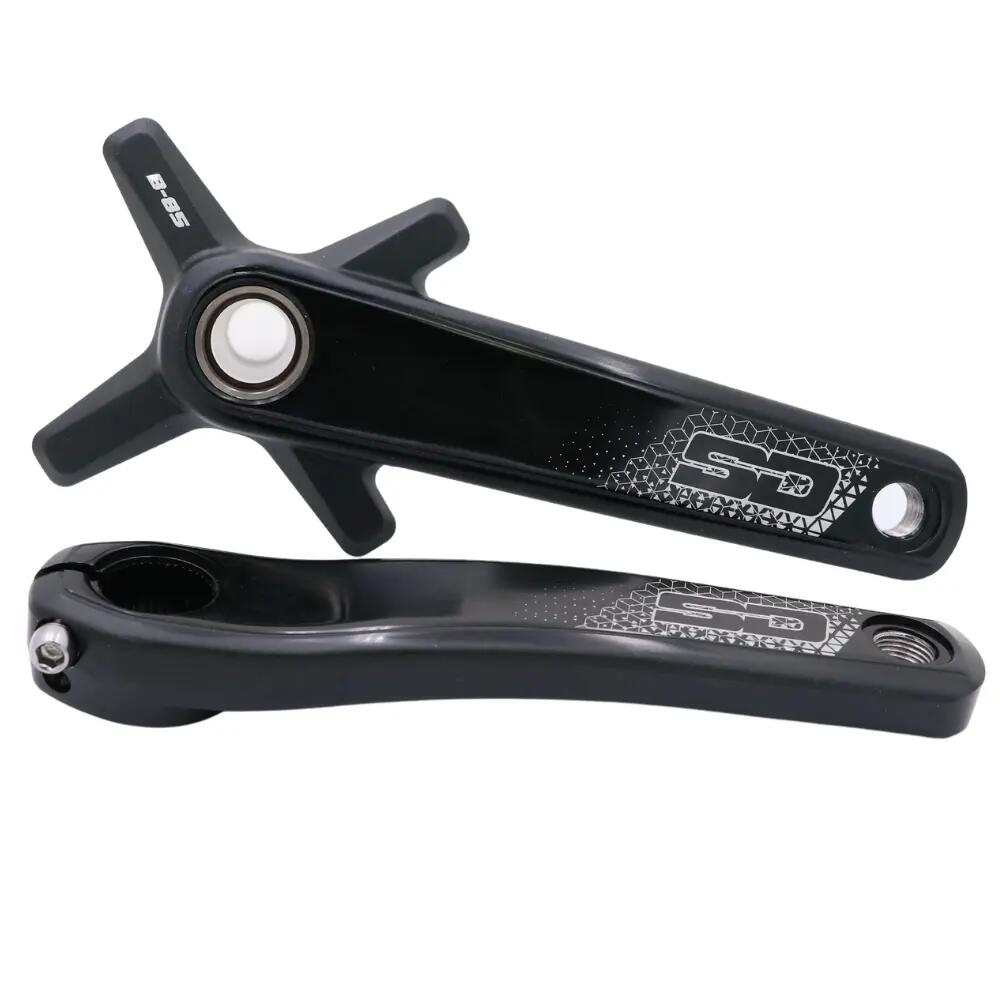

PEDALIER SD COMPONENTS B-85 SD Components is a top-of-the-range parts brand from BMX Race. This is a 2-piece crankset with a 24 mm axle, offering increased rigidity during pedaling. Lightweight and efficient, it facilitates acceleration at the start and when exiting the gate. The B-85 crankset is beautifully finished, with concealed clamping screws and a sober, elegant spider design. On the B-85 crankset, the sprocket can only be fitted from the inside of the crankset. All you need are your 4 chimney screws (the chimneys / screw threads are integrated into the crankset spider). Installing and replacing your crown is therefore simpler and more rapide. Available in several sizes: 160mm / 165mm / 170mm / 175mm IN DETAIL : Crank design: Forged aluminum / CNC-surfaced - Anodized finish Crank lengths: 160mm - 165mm - 170mm - 175mm Axle: 24mm constant - Chromoly steel Axle length: 112mm Bolt Circle Diameter (BCD) : 104mm BCD Pedal inserts : 9/16' - CrMo Q-Factor : NC Chain line : NC Color : Black

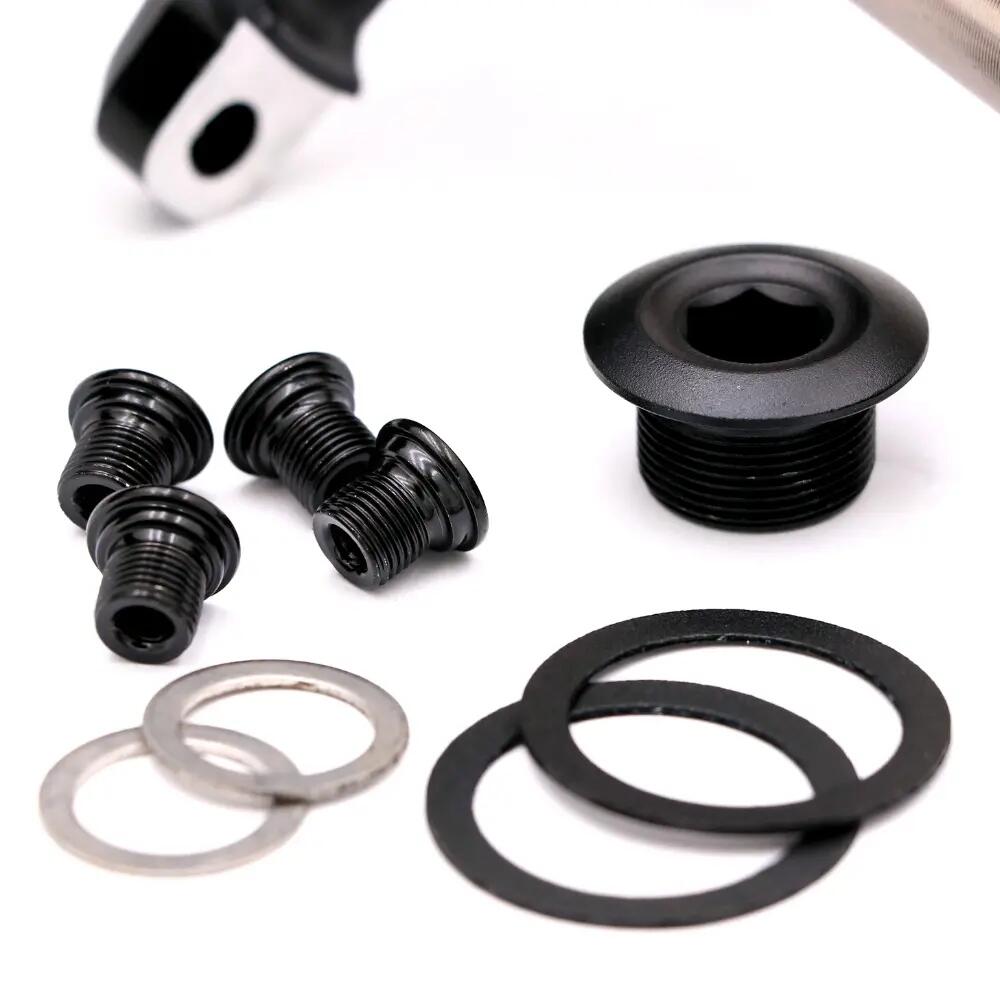

• Specific spider clamping screws - Supplied with crankset
• 2 spacers for compression adjustment
• 1 gasket for crankset compression screw
• 1 compression screw to tighten cranks together Weight: 772g (165mm) Case compatibility: BB86 (PF86) / BSA 68mm
