Product Description

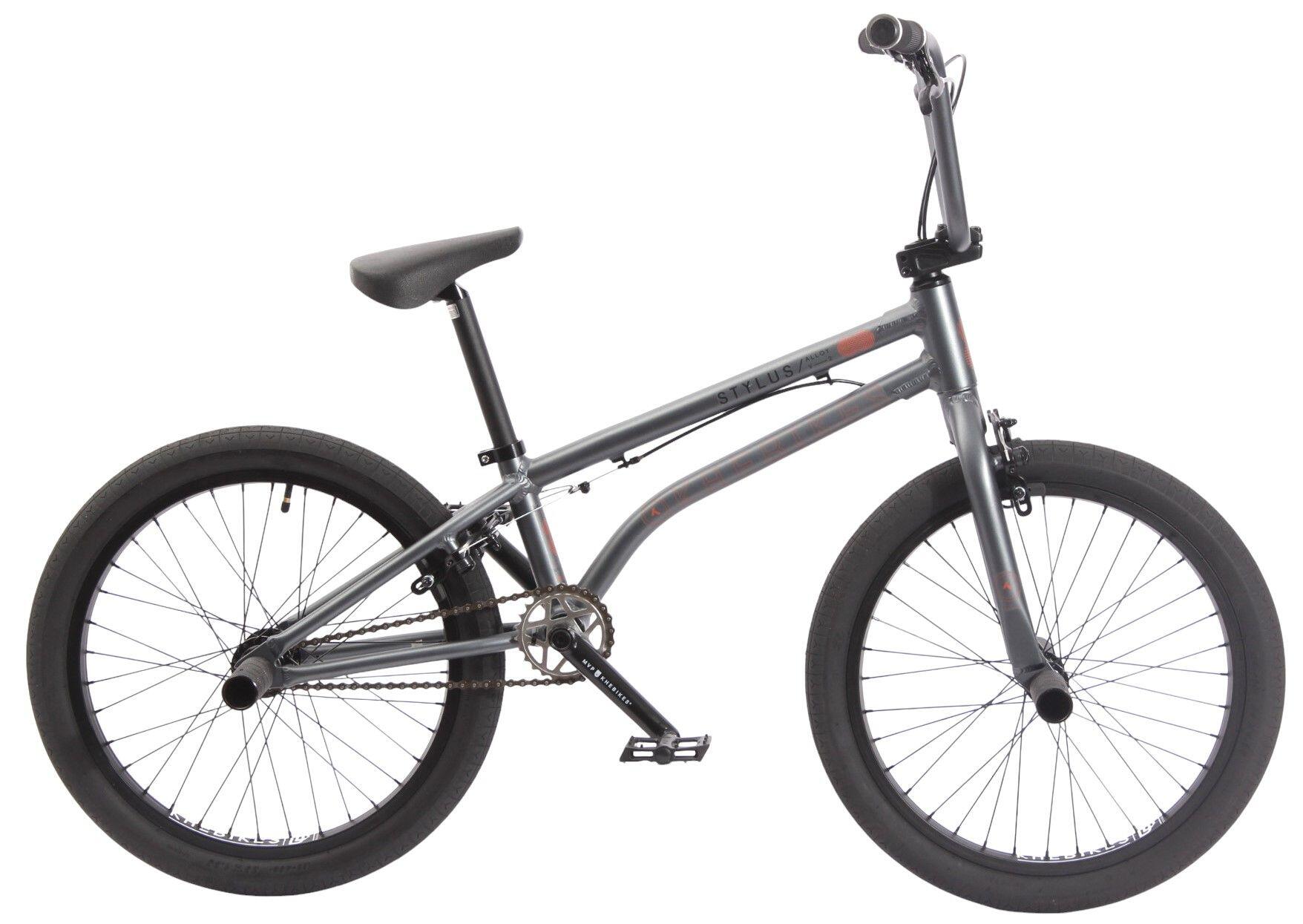

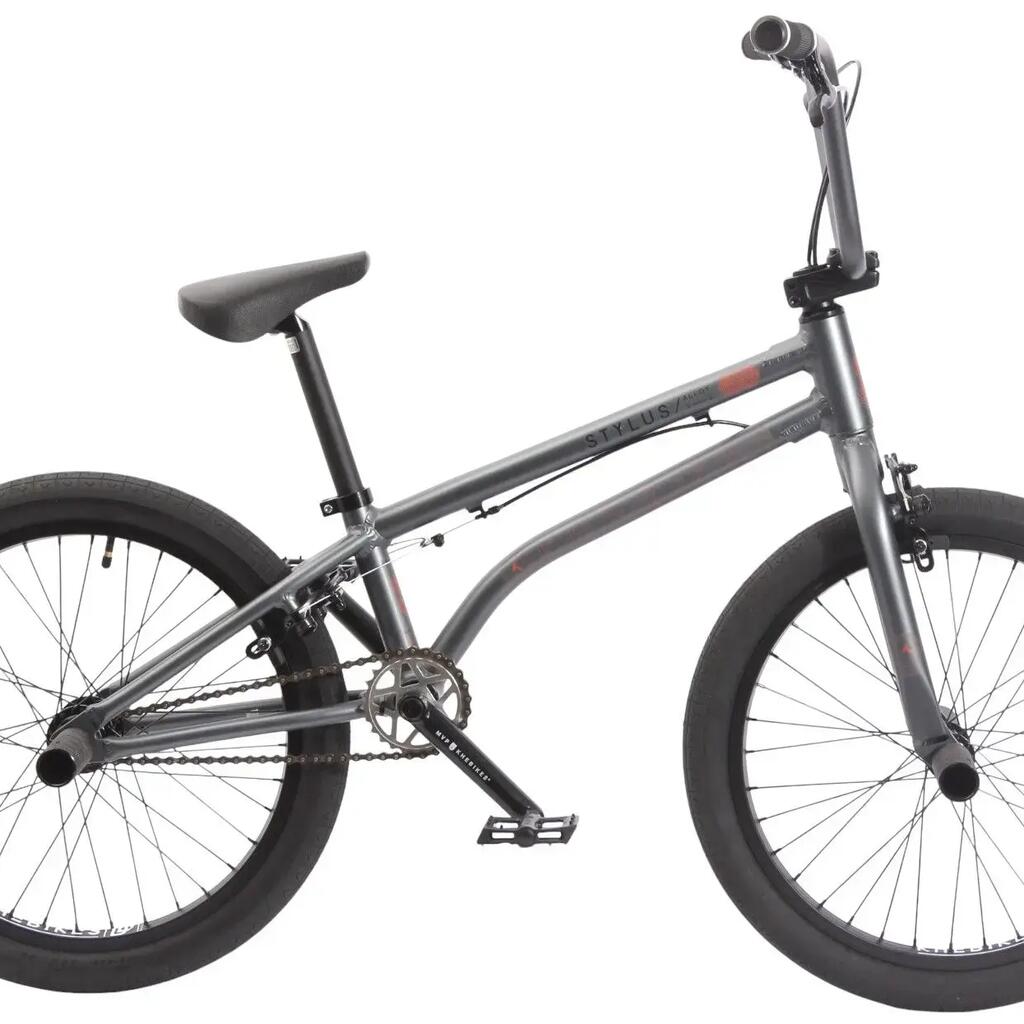

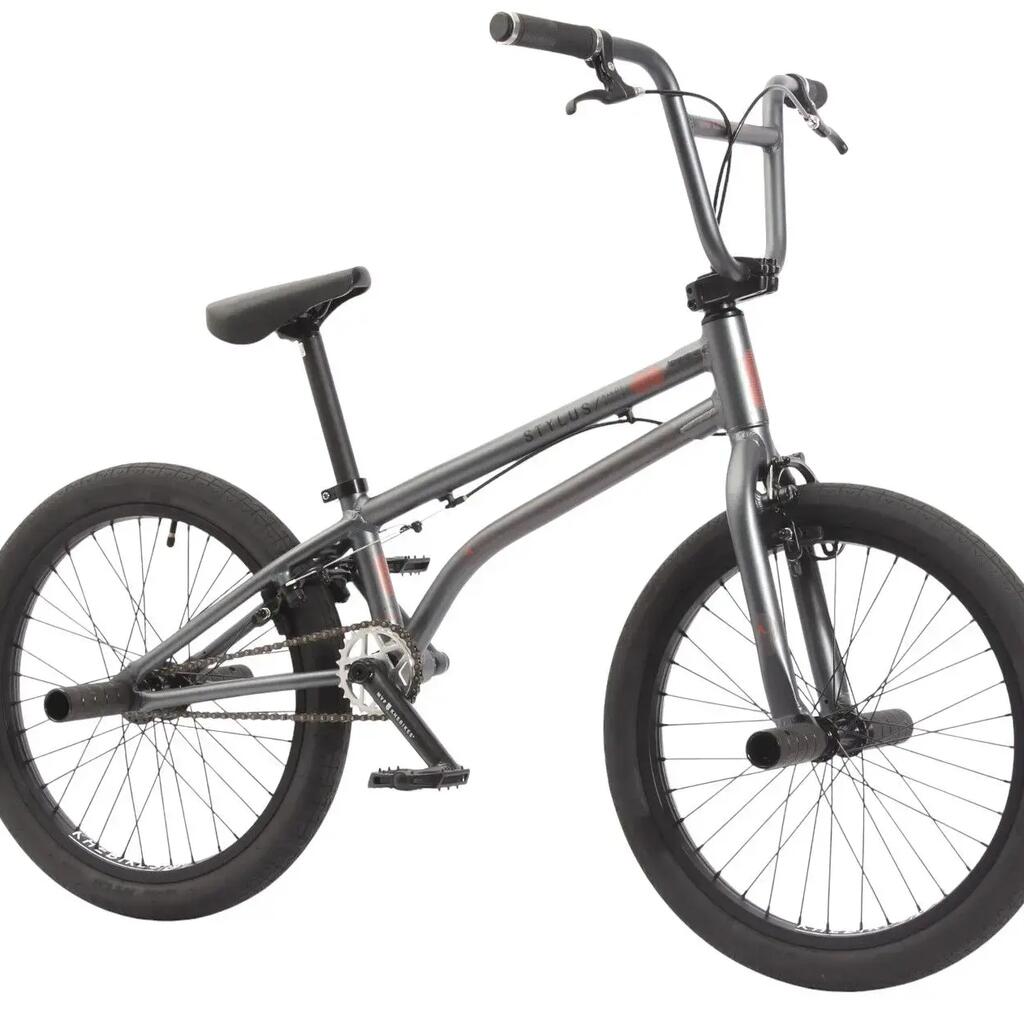

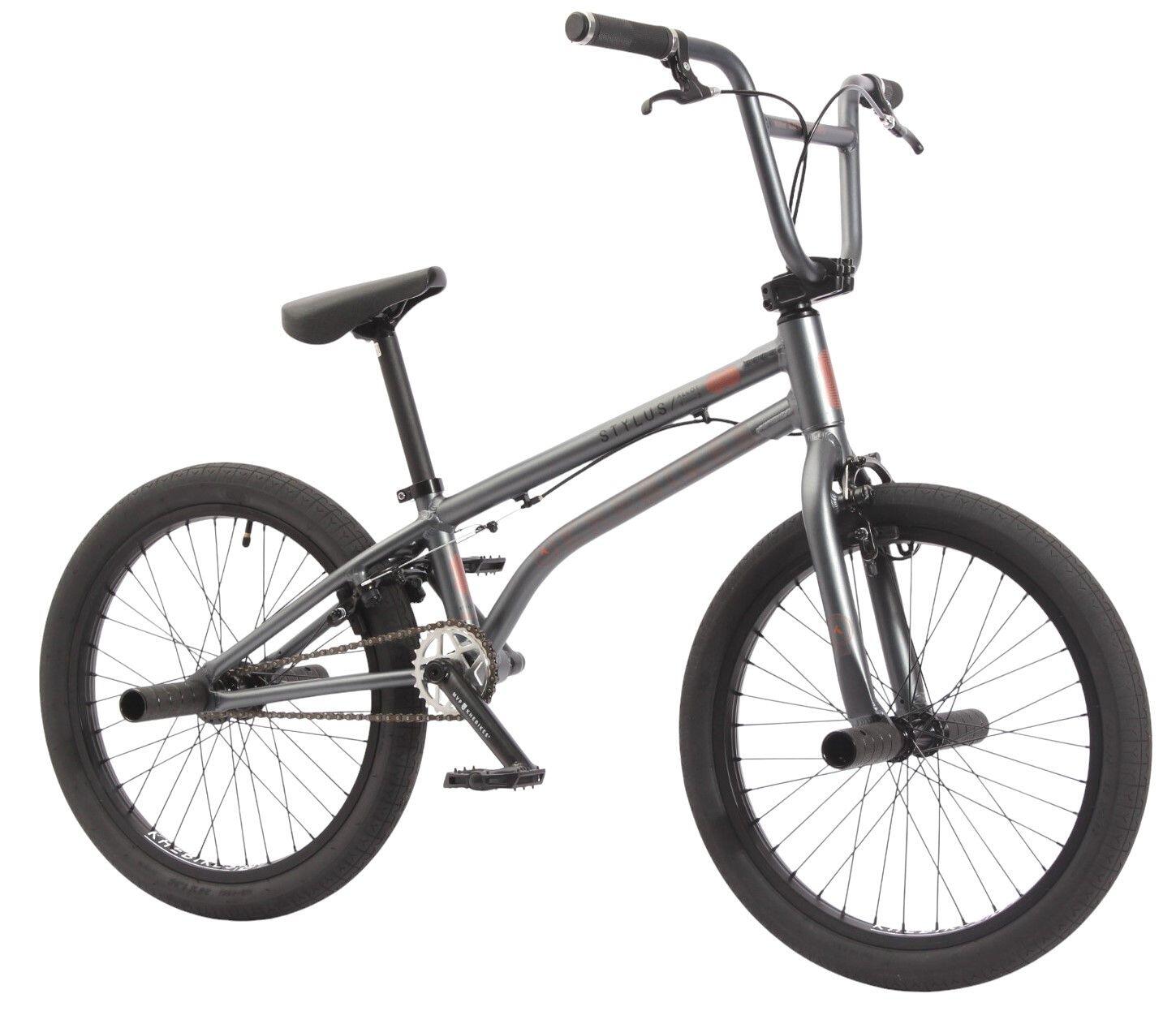

KHE STYLUS V2 20" Flatland BMX 2025 with Freecoaster
The KHE STYLUS V2 20" is an exceptionally lightweight Flatland BMX for ambitious riders and experienced Flatland riders. The 6061 aluminium frame, aluminium handlebar and specially developed aluminium fork with CrMo steerer keep the overall weight low while providing geometry specifically designed for Flatland. At just 19.6 lbs in the brakeless configuration including pegs, the STYLUS V2 offers agile handling for technical tricks and complex combinations.
Equipment

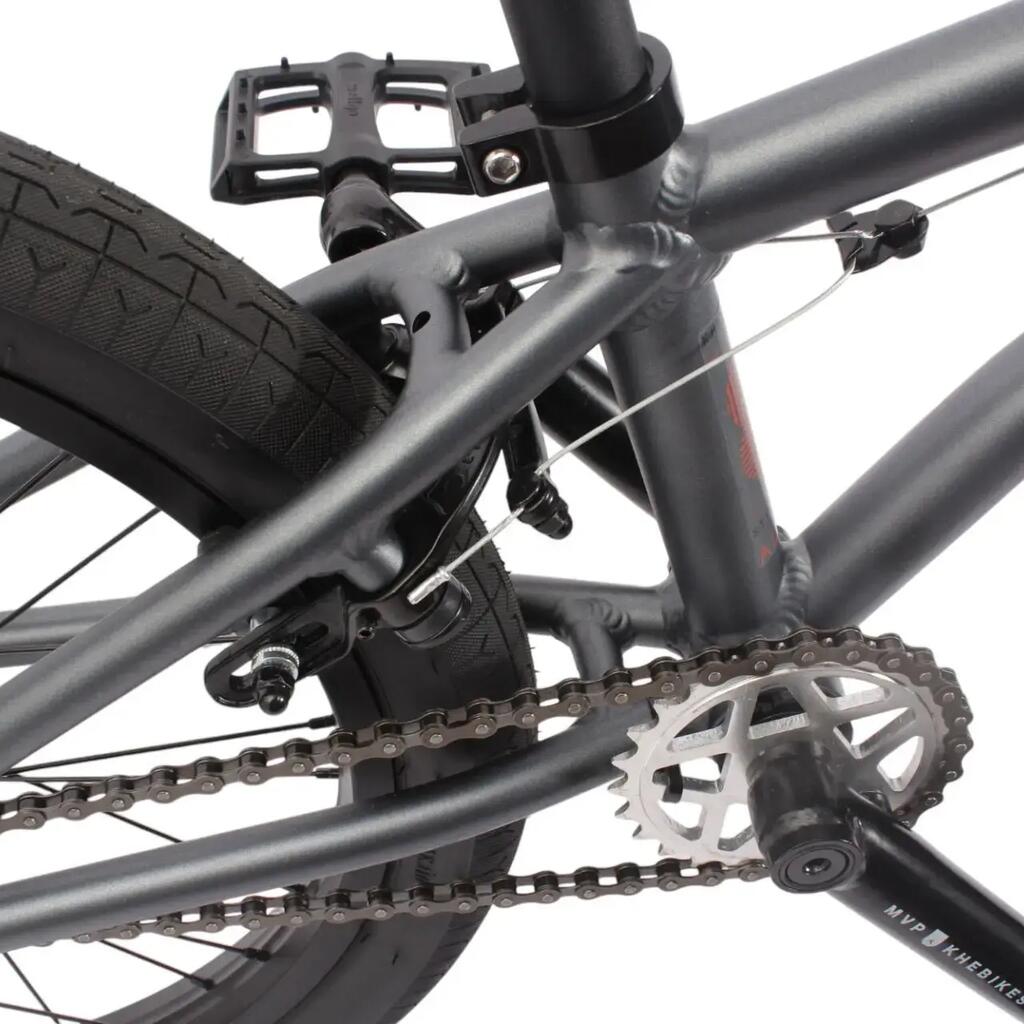

Drivetrain:
• KHE Greyhound Freecoaster

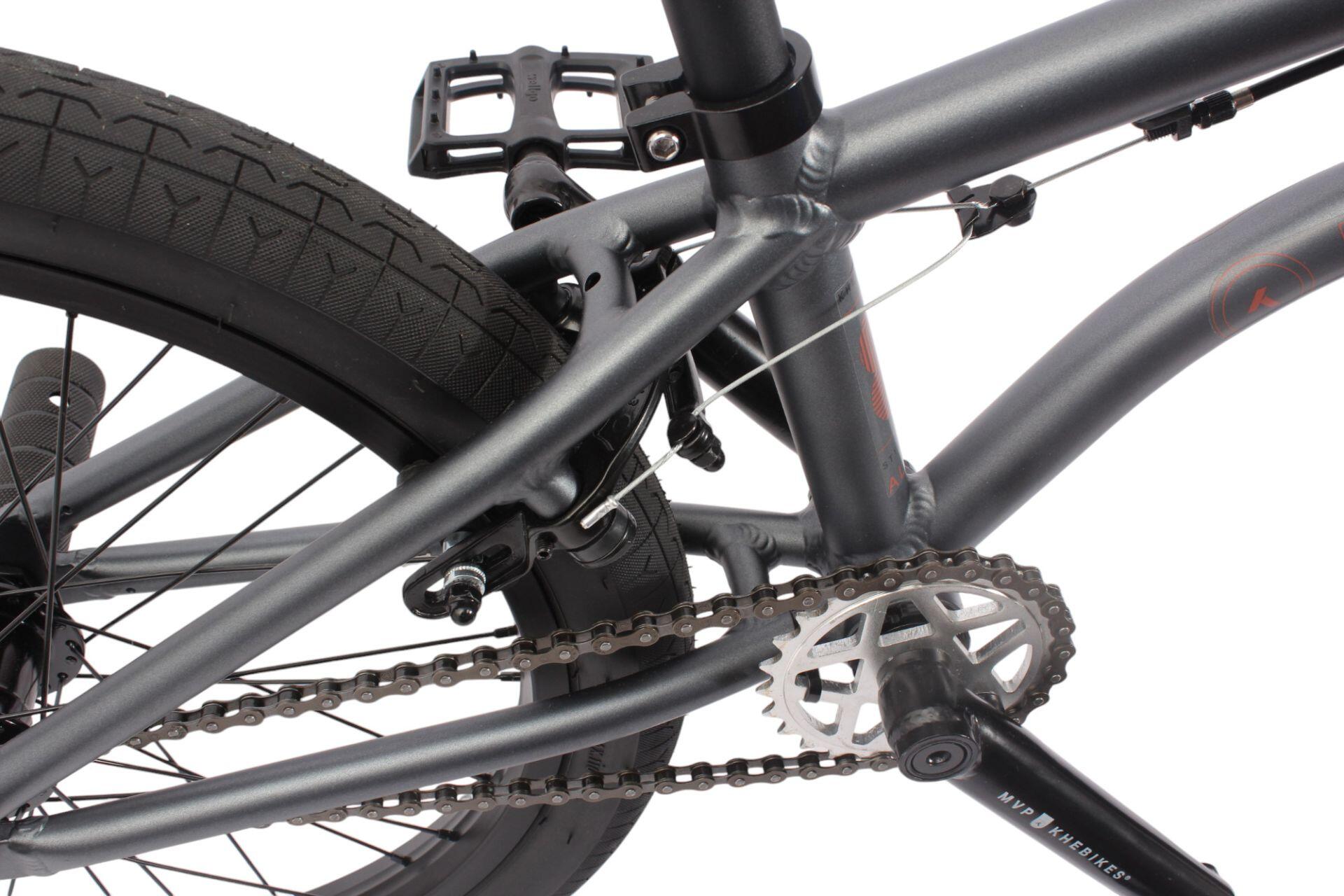

• 3-piece 5.98" CrMo hollow crank
• 25T aluminium chainring
• YBN chain
• Industrial bearings

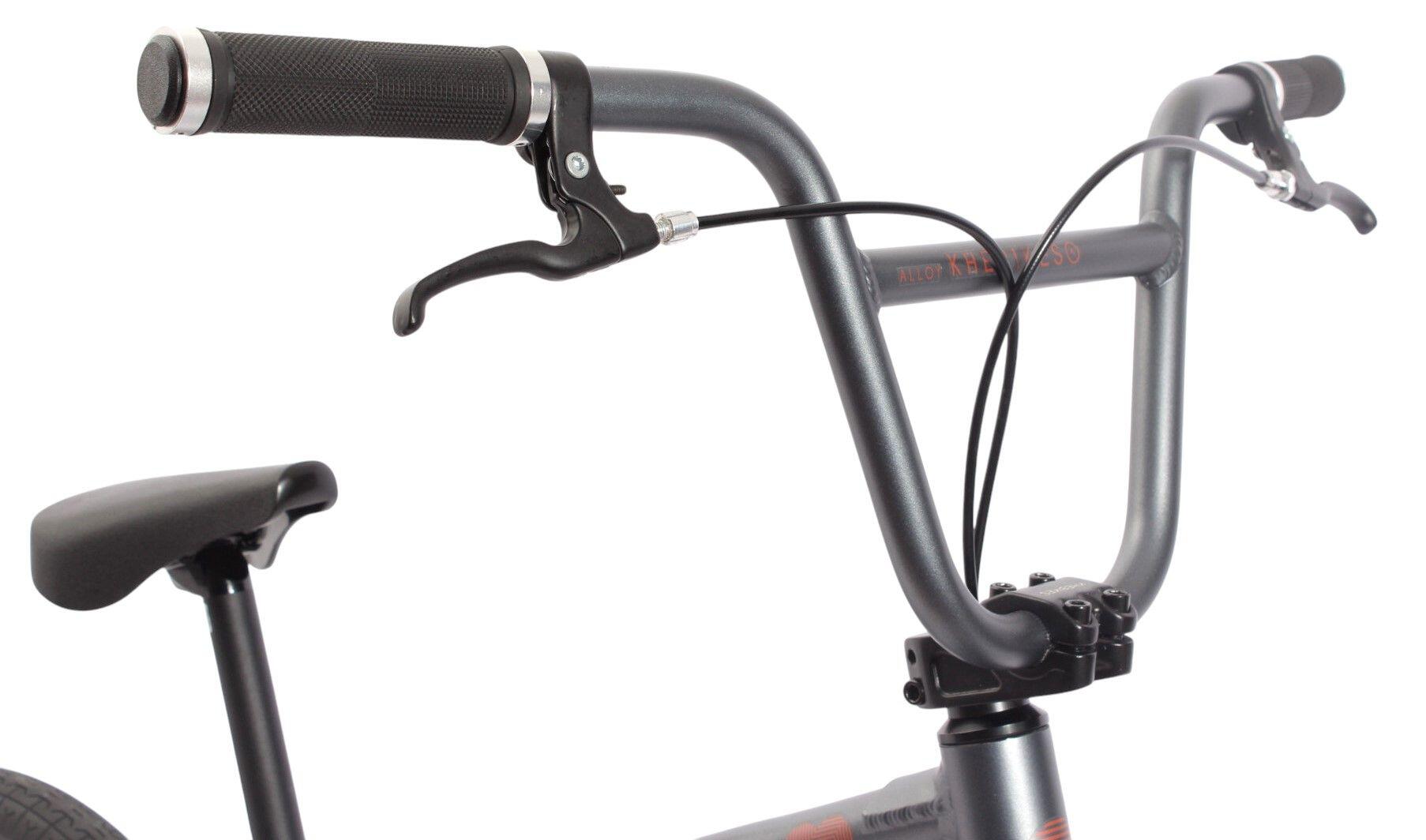

Cockpit:

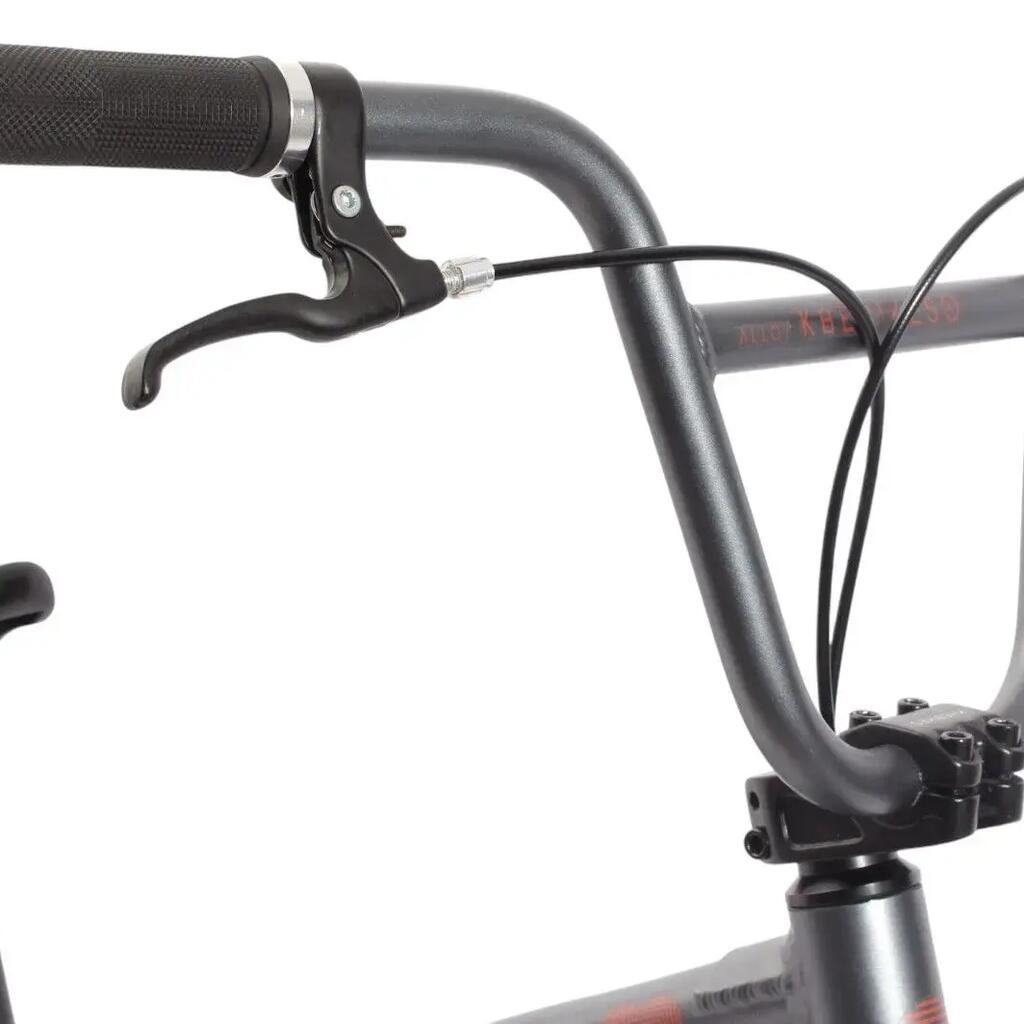

• KHE 6061 aluminium handlebar, 28.98" wide with 9" rise
• KHE Top Loader stem (1.57")
• Patented KHE AFFIX 360-degree rotor
• Lock-On grips with aluminium clamps
• Integrated headset with industrial bearings
Brakes & Wheels:
• KHE RADIUS aluminium U-Brake front and rear
• 20" double-wall aluminium rims
• Hubs with industrial bearings
• KHE ACME tyres 20 × 1.95"

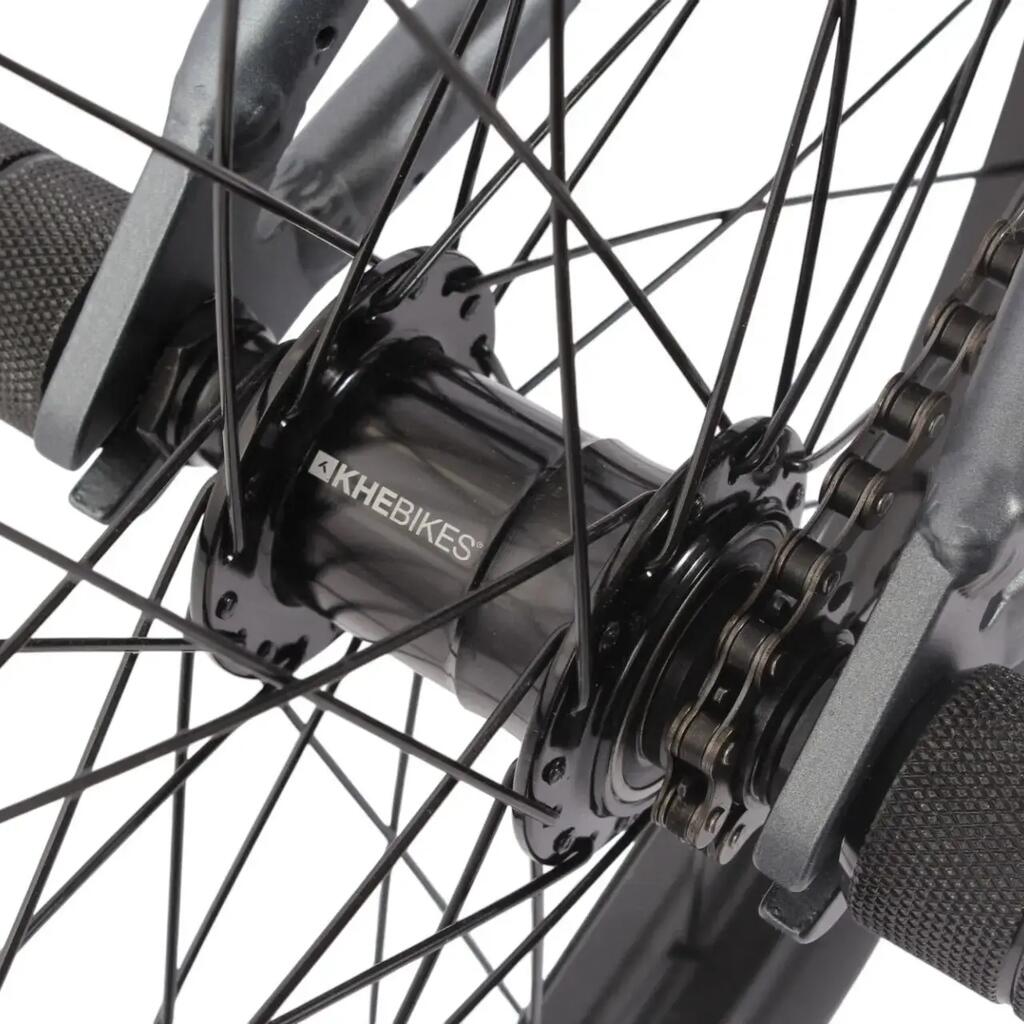

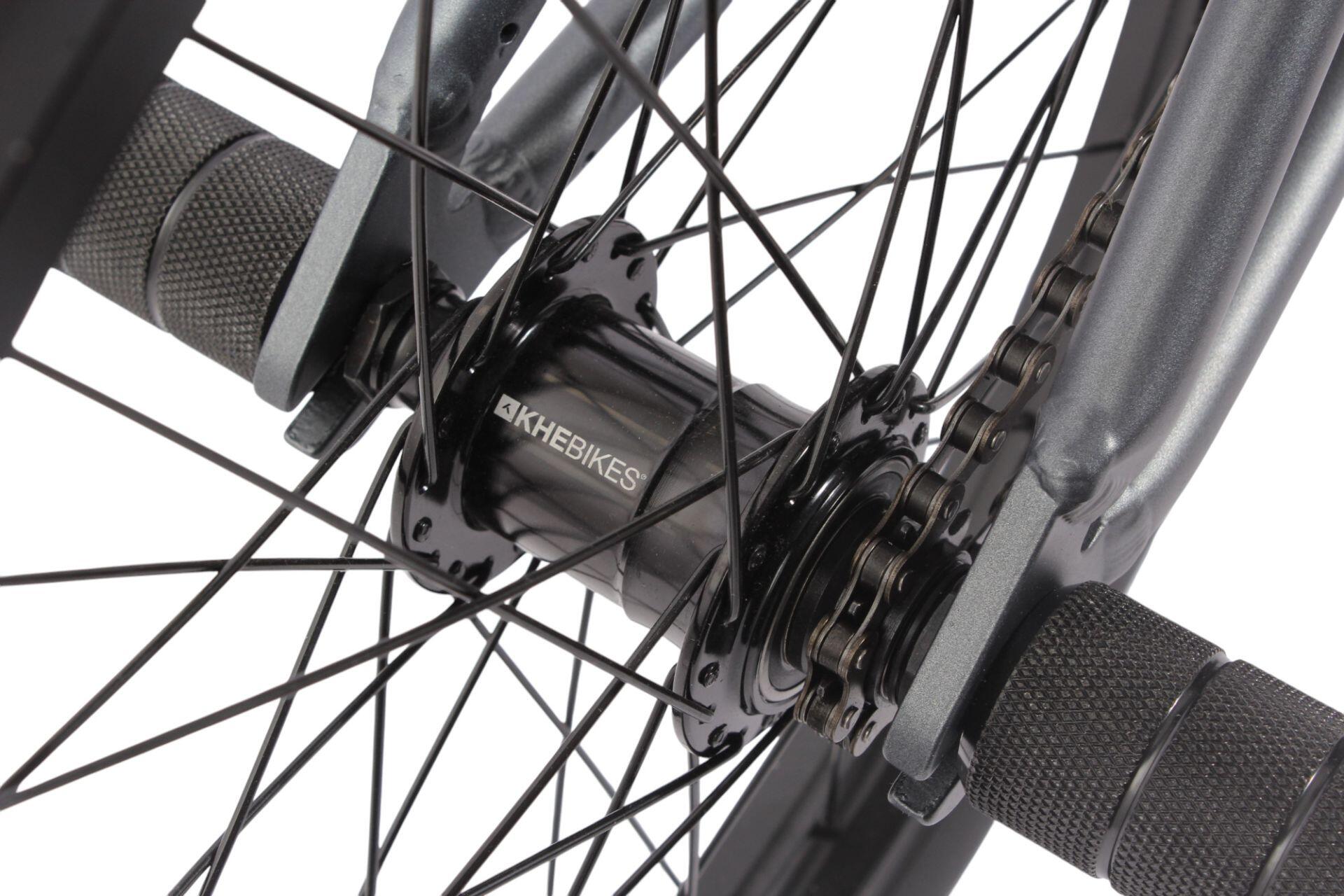

• KHE Greyhound Freecoaster rear
Flatland Equipment:
• Two pairs of CNC-machined aluminium pegs included
• Knurled peg surface
• Removable brakes, brake mounts and cable guides
• Brakeless-ready
Technical Data
• Model: KHE STYLUS V2
• Model year: 2025

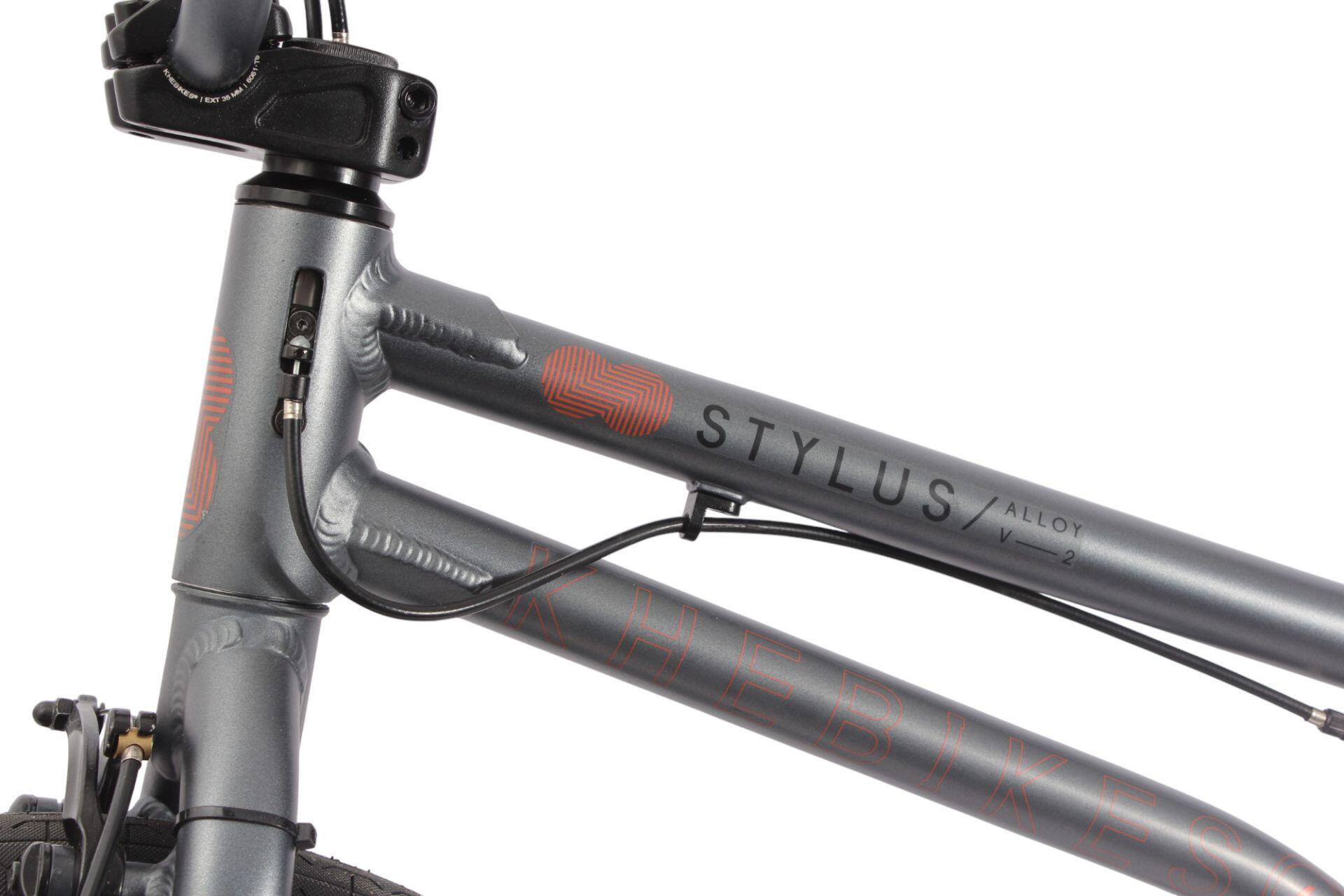

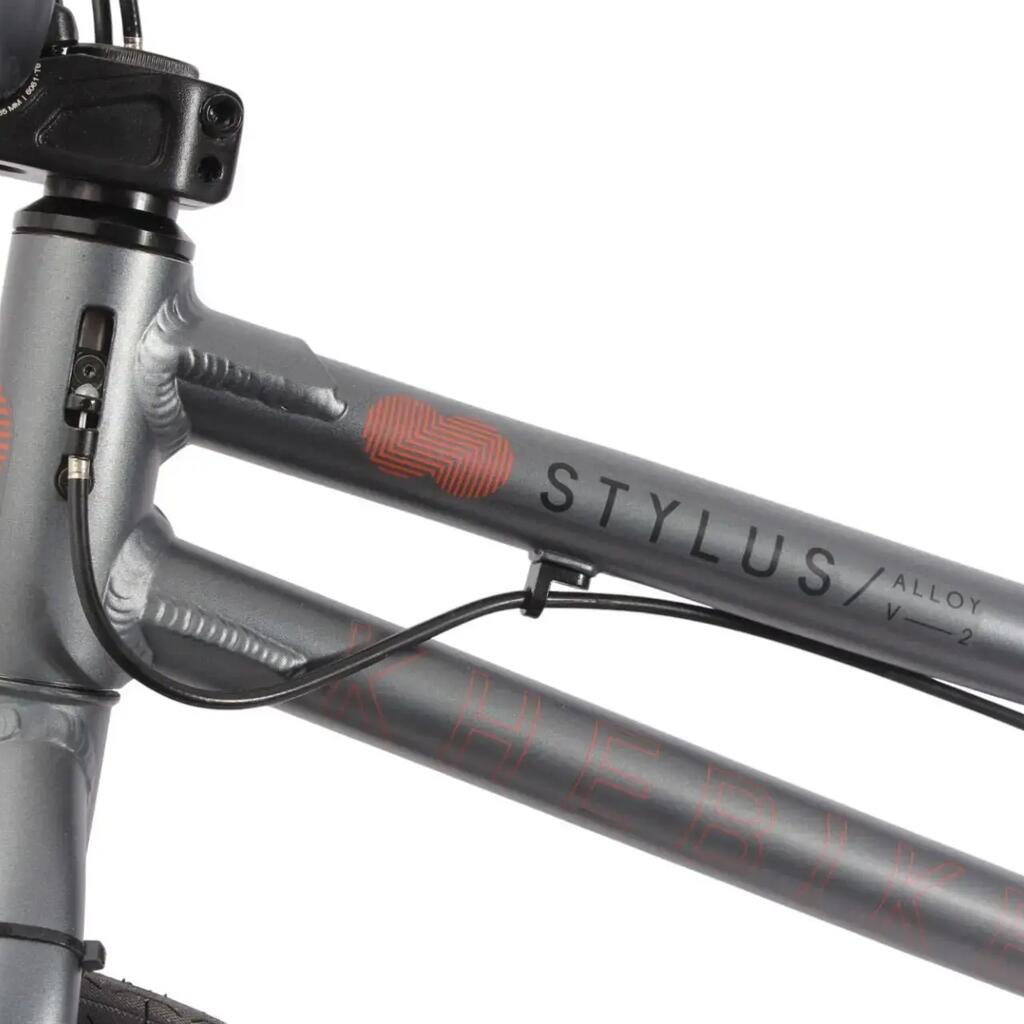

• Frame: KHE 6061 aluminium
• Fork: KHE 6061 aluminium with CrMo 1 1/8" steerer tube
• Top tube: 18.9" (480 mm)
• Chainstay: 12.75" (324 mm)
• Head angle: 75 degrees
• Seat angle: 71.5 degrees
• Fork offset: 15 mm
• Handlebar: KHE 6061 aluminium, 28.98" × 9"
• Stem: KHE Top Loader (1.57")
• Rotor: KHE AFFIX 360 degrees
• Crank: 5.98" 3-piece CrMo hollow crank
• Chainring: 25T aluminium
• Headset: Integrated with industrial bearings
• Hub type: Freecoaster
• Rims: 20" double-wall aluminium, 36 hole
• Tyres: KHE ACME 20 × 1.95"
• Material: 6061 T6 aluminium
• Brakeless weight: 19.6 lbs including pegs
• Complete weight: 21.8 lbs including rotor, brakes, cables and pegs
Suitable for:
• Rider height: 4'9"–6'3"
• Maximum rider weight: 265 lbs
• Use: Flatland
Why choose the KHE STYLUS V2 from KHEbikes:
✓ Exceptionally light at 19.6 lbs in the brakeless configuration including pegs
✓ Lightweight 6061 aluminium frame with dedicated Flatland geometry
✓ KHE Greyhound Freecoaster hub for technical Flatland tricks
✓ Patented KHE AFFIX 360-degree rotor for unrestricted handlebar rotations
✓ Short 12.75" chainstay and 18.9" top tube for high agility
✓ Brakeless-ready with removable brakes, brake mounts and cable guides
✓ Two pairs of CNC-machined, knurled aluminium pegs already included
Pegs & Flatland Compatibility
• Pegs: Two pairs of CNC-machined aluminium pegs included
• Front axle: 0.39"
• Rear axle: 0.55"
• Brakeless: Brakes, brake mounts and cable guides can be removed
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Brakes: The STYLUS V2 is equipped with KHE RADIUS aluminium U-Brakes front and rear as well as the KHE AFFIX 360-degree rotor system. For a brakeless configuration, the brakes, brake mounts and cable guides can be removed.
