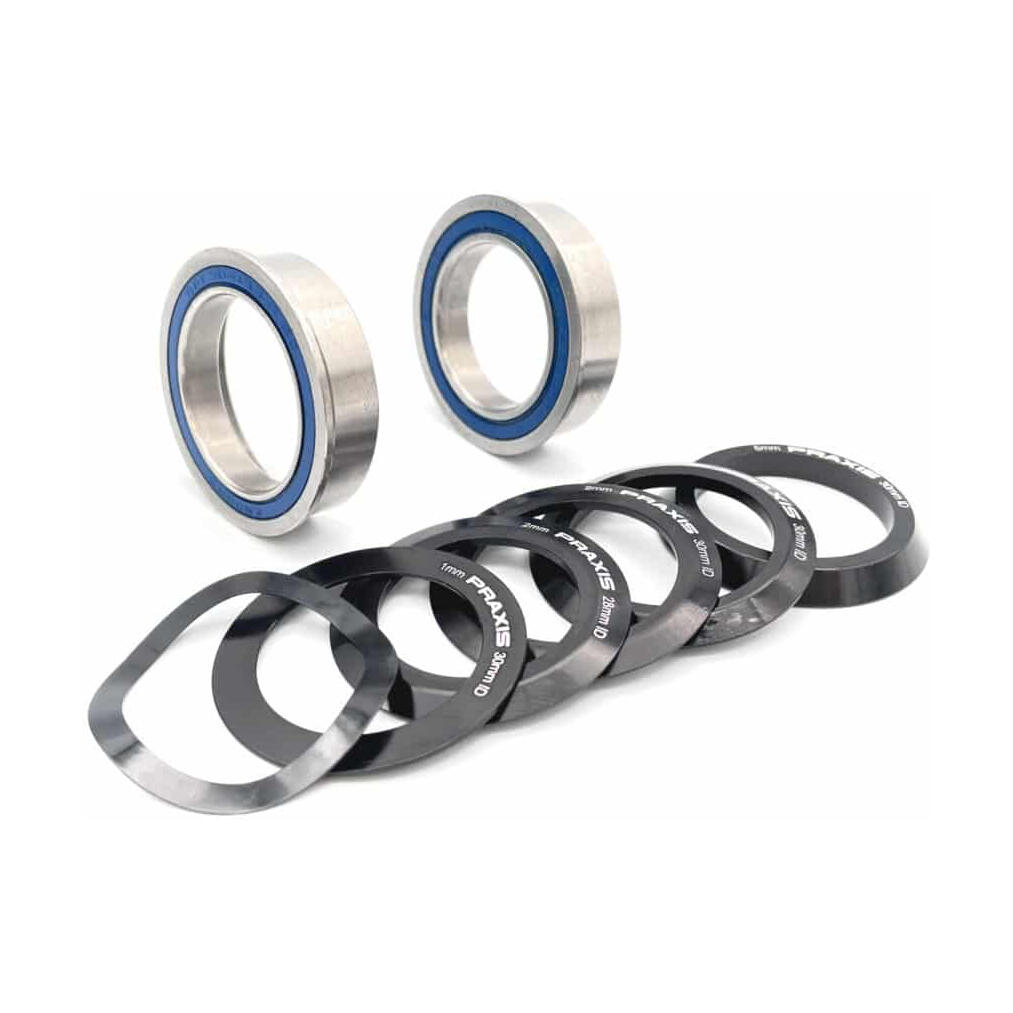

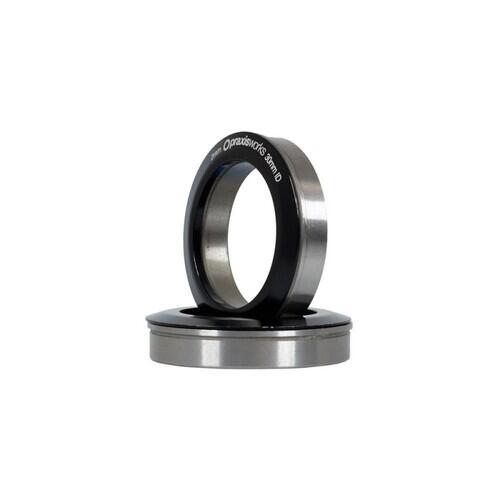

Bottom bracket Praxis M30 BB86 Road BB92 MTB

Product Description

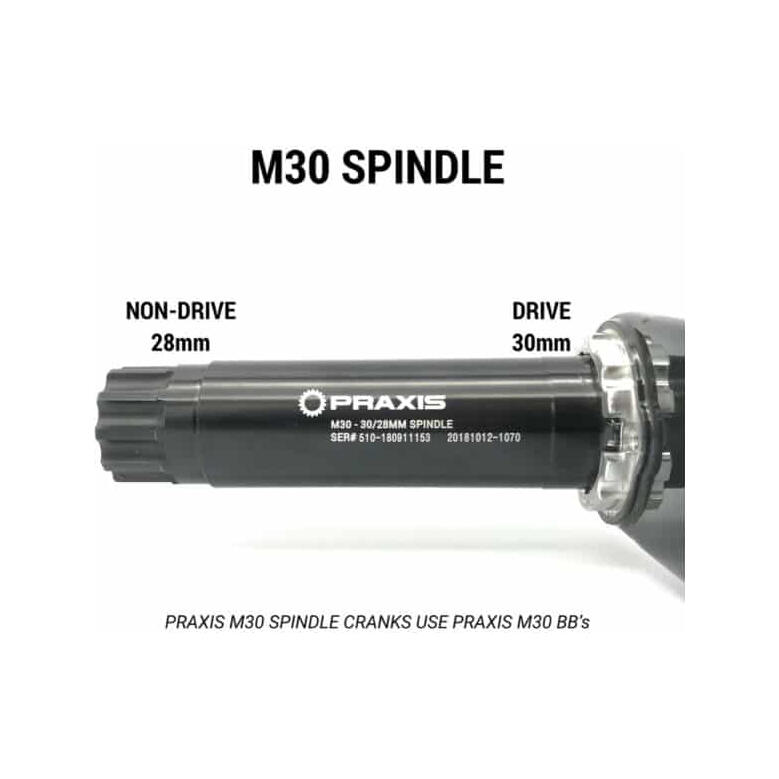

Press-in bottom bracket for 86.5 / 89.5 and 92 mm / DH 104.5 and DH 107 frames. - Compatible with BB86 86.5mm / BB90 89.5mm / BB92 92mm bottom bracket - Compatible with Praxis M30 30 - 28mm cranksets - More information PDF at the bottom of the page. - Order number: 86-4001W - Praxis M30 Road crank into BB86 ROAD. (86.5mm W) - Praxis M30 MTB crank into BB90 (89.5mm W) or BB92 (92mm W) - Praxis M30 DH crank into 104.5mm W or 107mm W DH frame - BOX M30 BMX crank into BB86 BMX frame (86.5mm W) - BB86 Road/BMX = 86.5mm width x 41mm diameter - BB90 MTB = 89.5mm width x 41mm diameter (*NOT Trek Road BB90!) - BB92 MTB = 92mm width x 41mm diameter Does your bike creak when you press hard on the pedals, has the crankset movement lost its smoothness or become loose? The symptoms are clear: it's time to change your bottom bracket. Like all the parts that make up your bike, the bottom bracket and especially its bearings are subject to wear. Its replacement is a simple operation if it is well prepared, indeed the multiplication of the standards of bearings, bottom bracket and frame will discourage some. We will try to guide you through this jungle of standards. The bottom bracket is the interface between your crankset and your frame, so the first thing to do is to identify which crankset you want to fit in which frame ? Internal case diameter*Box width*MountingStandardRecommended bottom bracket axle**34.8 mm68 mmScrew onBSA / BSC24 mm / GXP / Dub 29 mm36 mm70 mmScrew onItalian24 mm37 mm90.5 mmPress onBB 90 (Trek)24 mm / GXP / Dub 29 mm41 mm86.5 mmPress onPF 86 (Shimano)24 mm / GXP / Dub 29 mm41 mm89,5 mmÀ PresserPF 90 (Shimano)24 mm / GXP / Dub 29 mm42 mm68 mmÀ PresserBB 3030mm / Dub 29 mm42 mm79 mmÀ PresserBB Right30mm / Dub 29 mm46 mm61 mmÀ PresserSpecialized30mm / Dub 29 mm46 mm68 mmÀ PresserPF 3030mm / Dub 29 mm46 mm79 mmÀ PresserBB Right PF 36030mm / Dub 29 mm46 mm86,5 mmÀ Presser386 EVO30mm / Dub 29 mm We advise you to disassemble your original box to measure precisely the dimensions of the bottom bracket of your frame.** This compatibility is given as an indication, there are also boxes 'adapters' that allow to mix the standards. Features: - Crate width 86.5 - 92 - 89.5 Casing standard BB86 - BB92 - BB90 Trek Cage Internal Diameter 41 Bearing Quality Stainless Steel Bottom Bracket Axle Praxis M30 30-28 mm Crankset Standard Praxis M30 30-28 mm
