Product Description

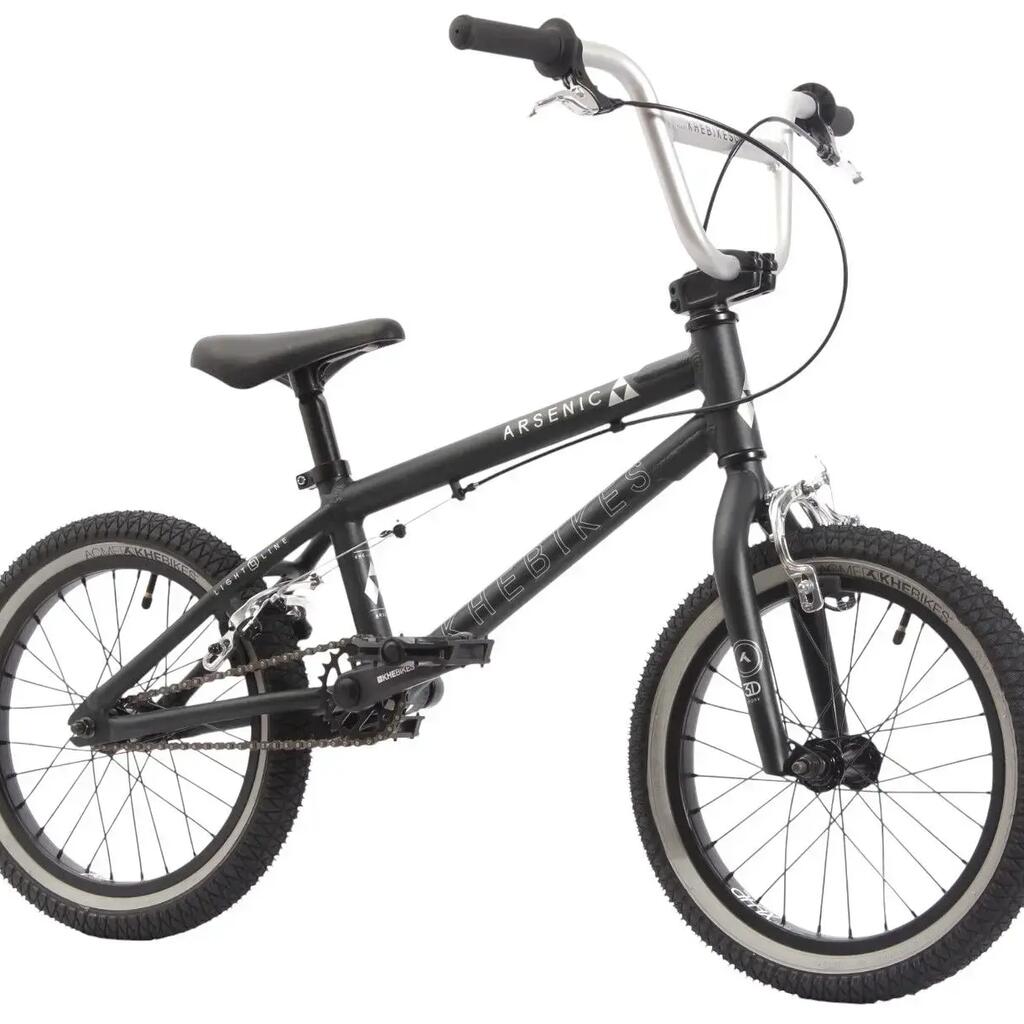

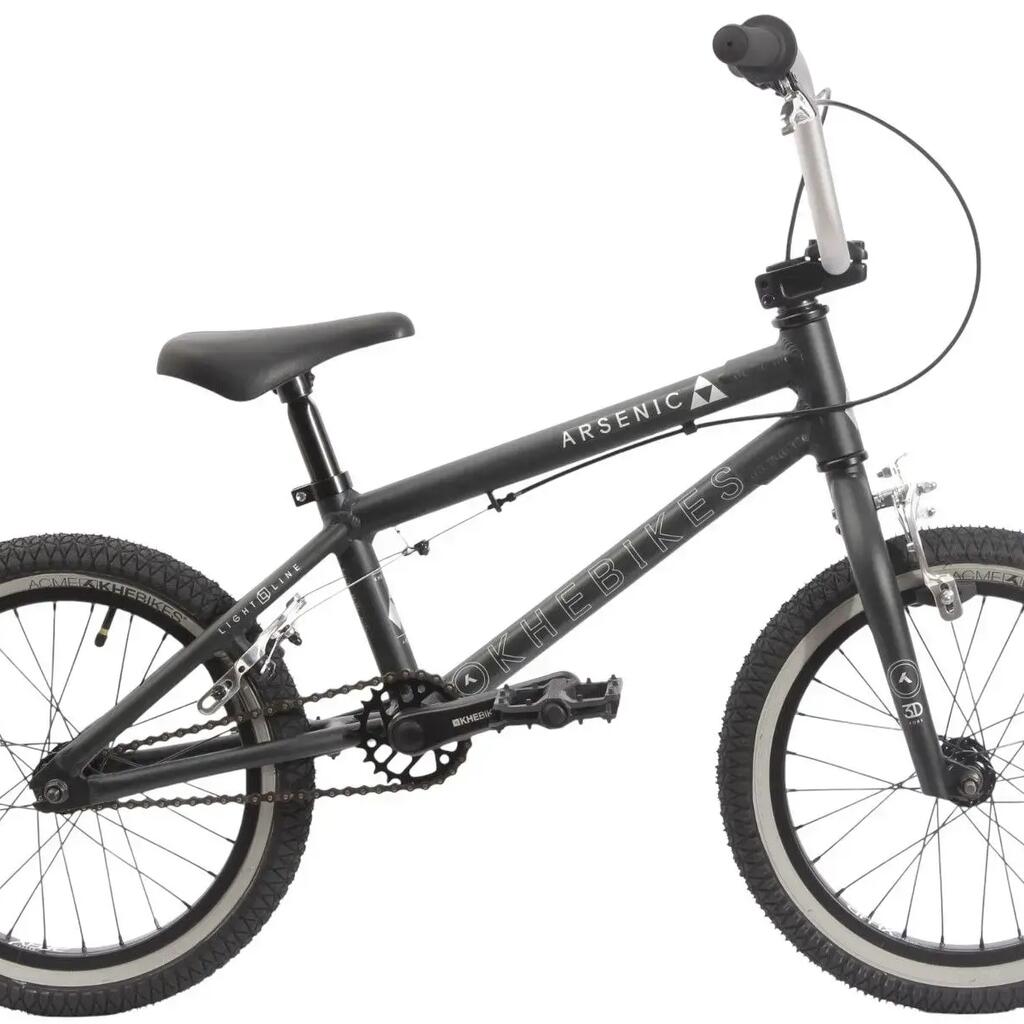

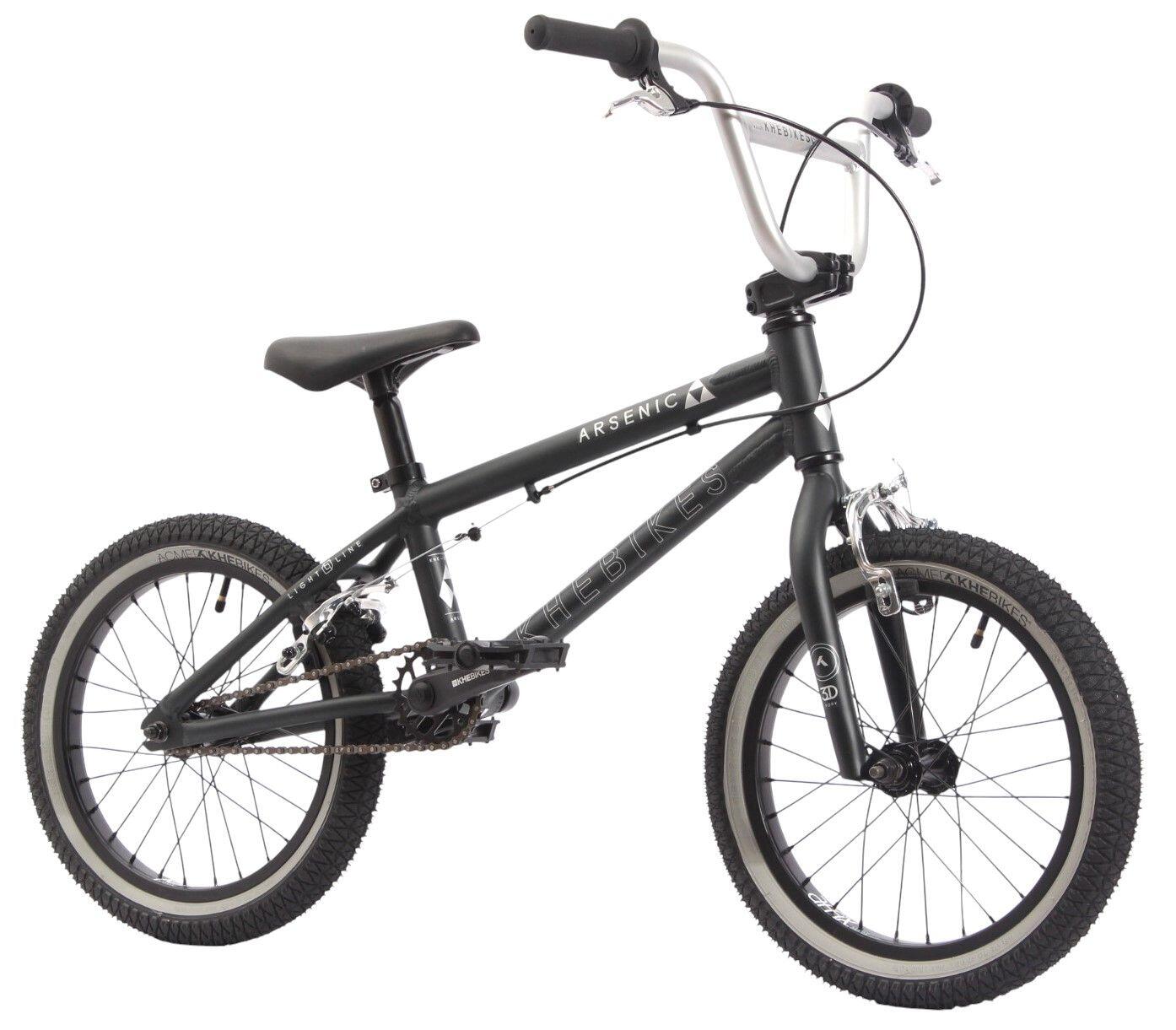

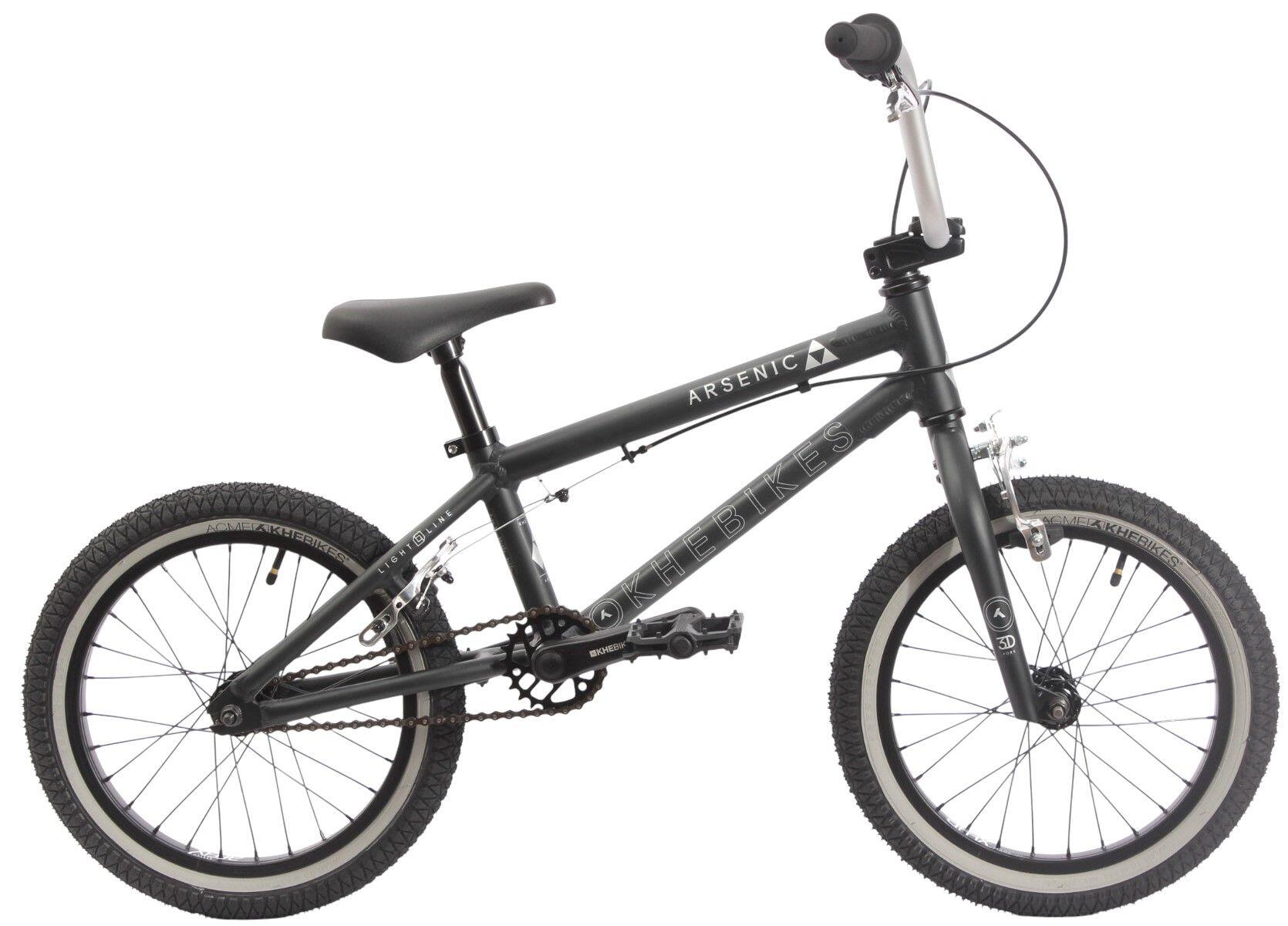

KHE ARSENIC LL 16" BMX 2025 – only 7.9 kg
The KHE ARSENIC LL 16" is an exceptionally lightweight BMX for young riders and is suitable for Park, Street, Flatland and Pumptrack. The 6061 aluminium frame with a 15.85" top tube and lightweight aluminium handlebar provide agile and controlled handling. A 3-piece aluminium crank, sealed EURO BB bottom bracket and 9T cassette hub form a reliable drivetrain. At only 7.9 kg total weight, the ARSENIC LL is particularly easy to handle.
Equipment
Drivetrain:

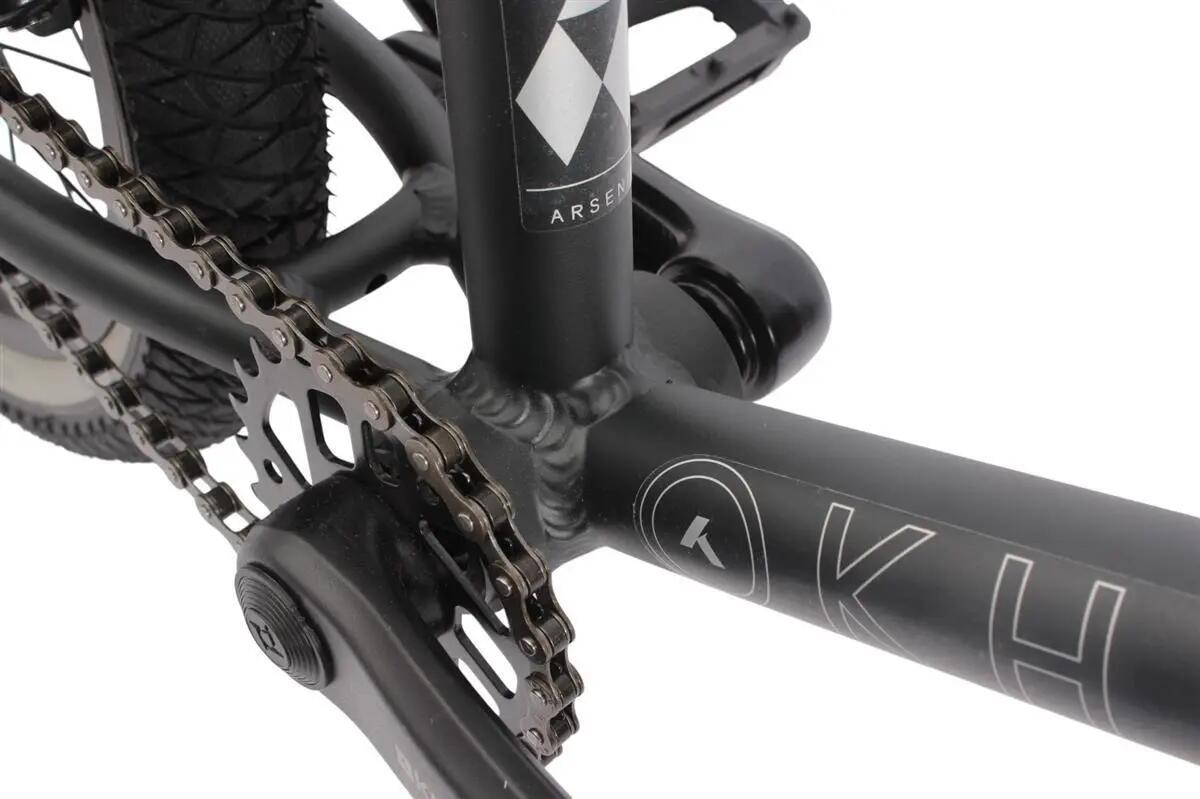

• 3-piece 127 mm aluminium crank
• 23T steel chainring
• Sealed EURO BB bottom bracket with industrial bearings
• YBN CN ST chain
• 9T cassette hub
Cockpit:

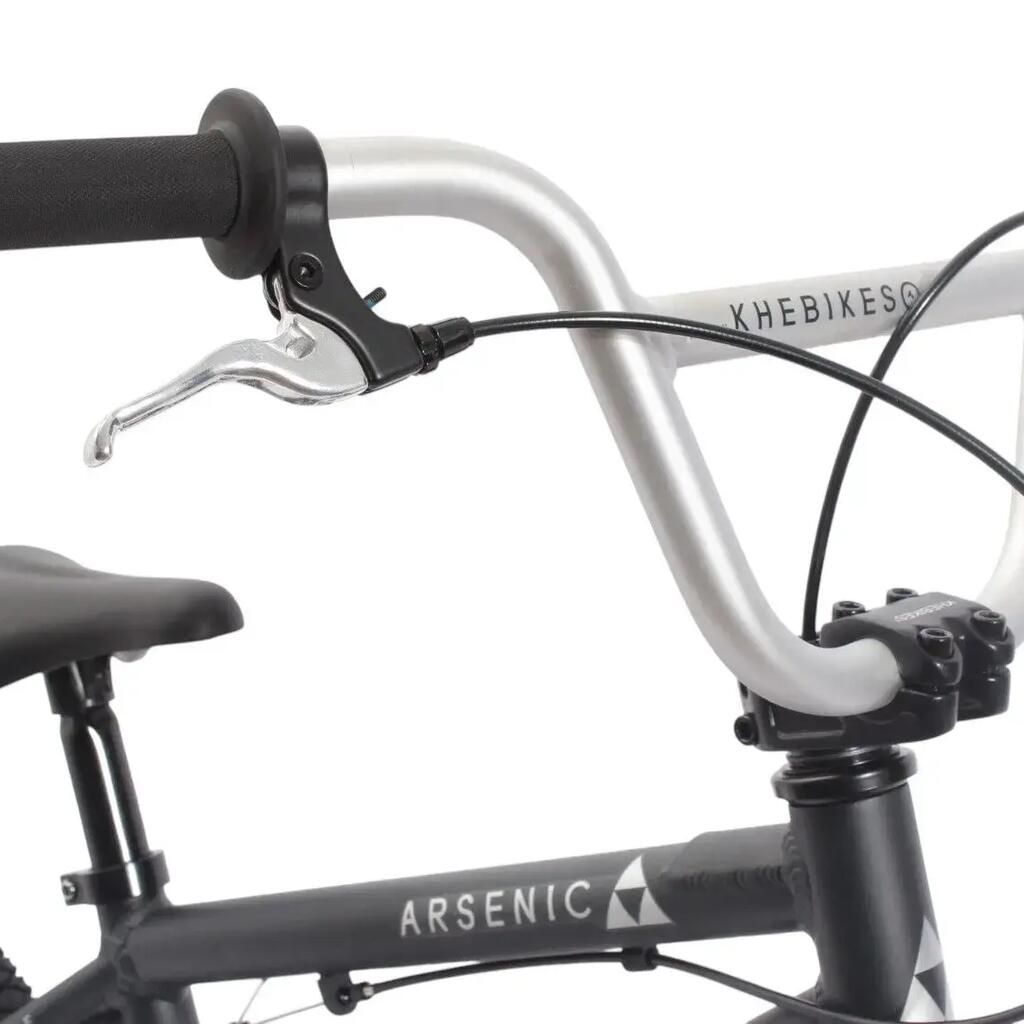

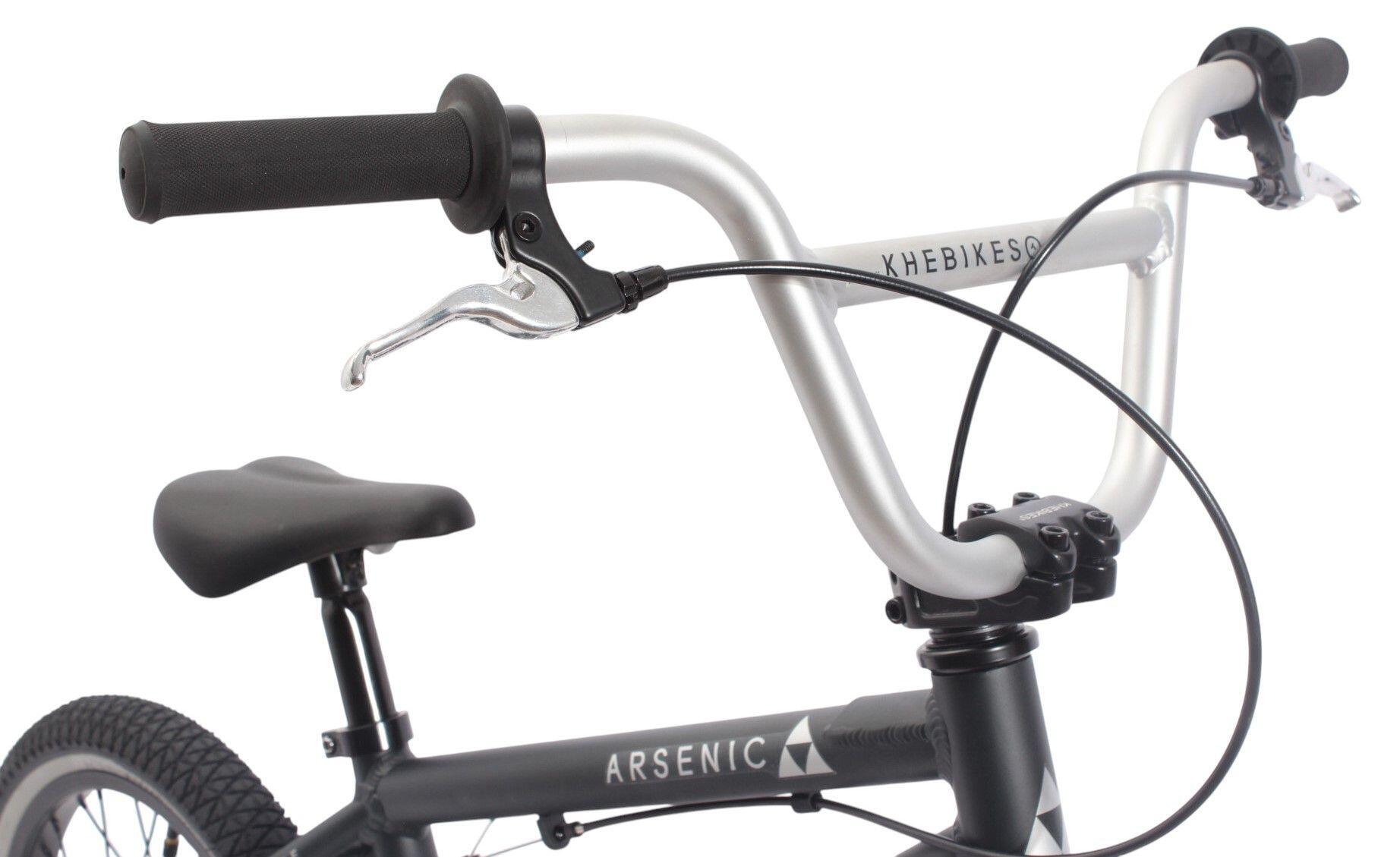

• KHE 6061 aluminium handlebar, 7" high
• 640 mm handlebar width
• KHE Top Loader stem (40 mm)

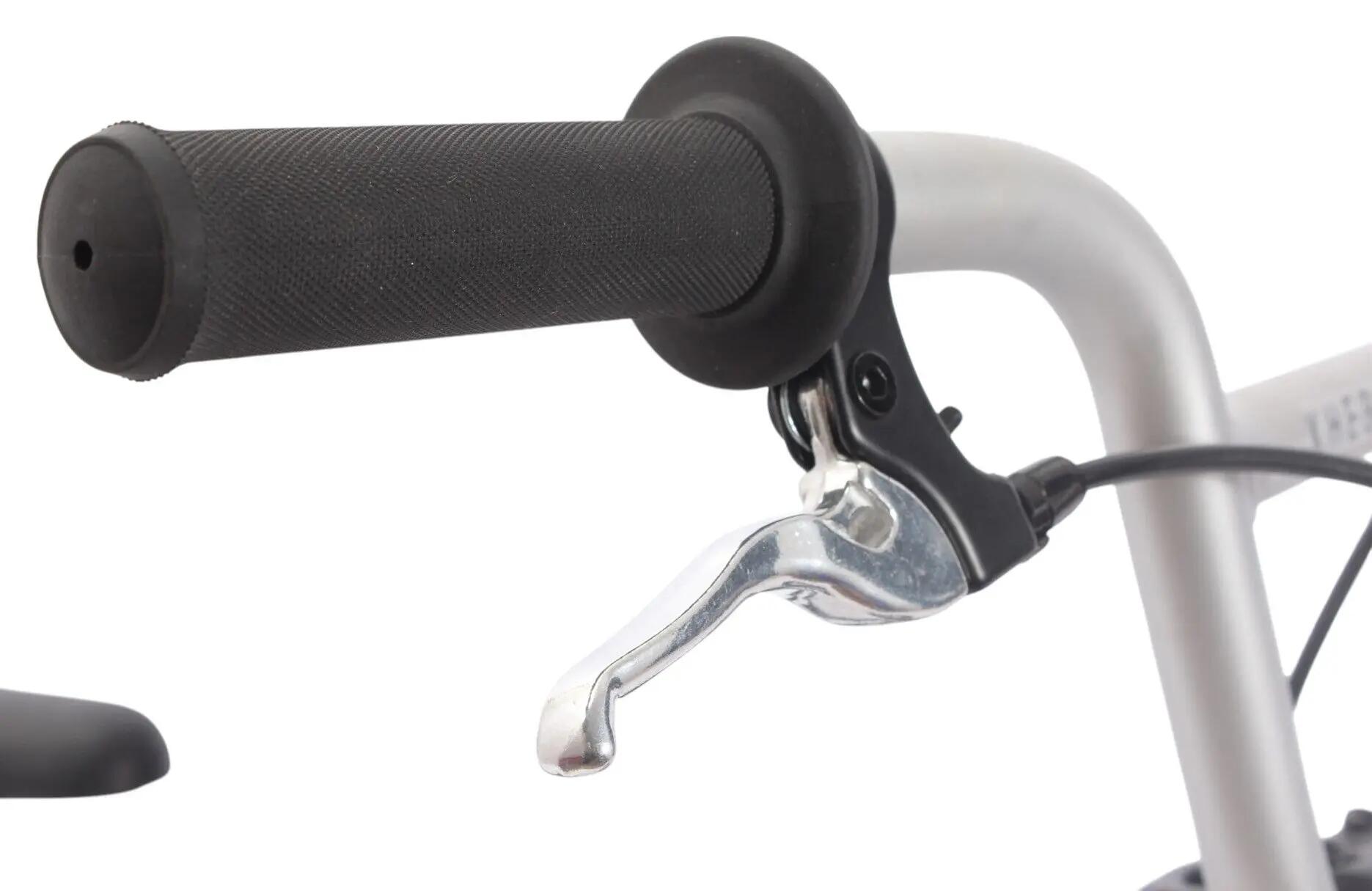

• 120 mm flanged grips with diamond pattern

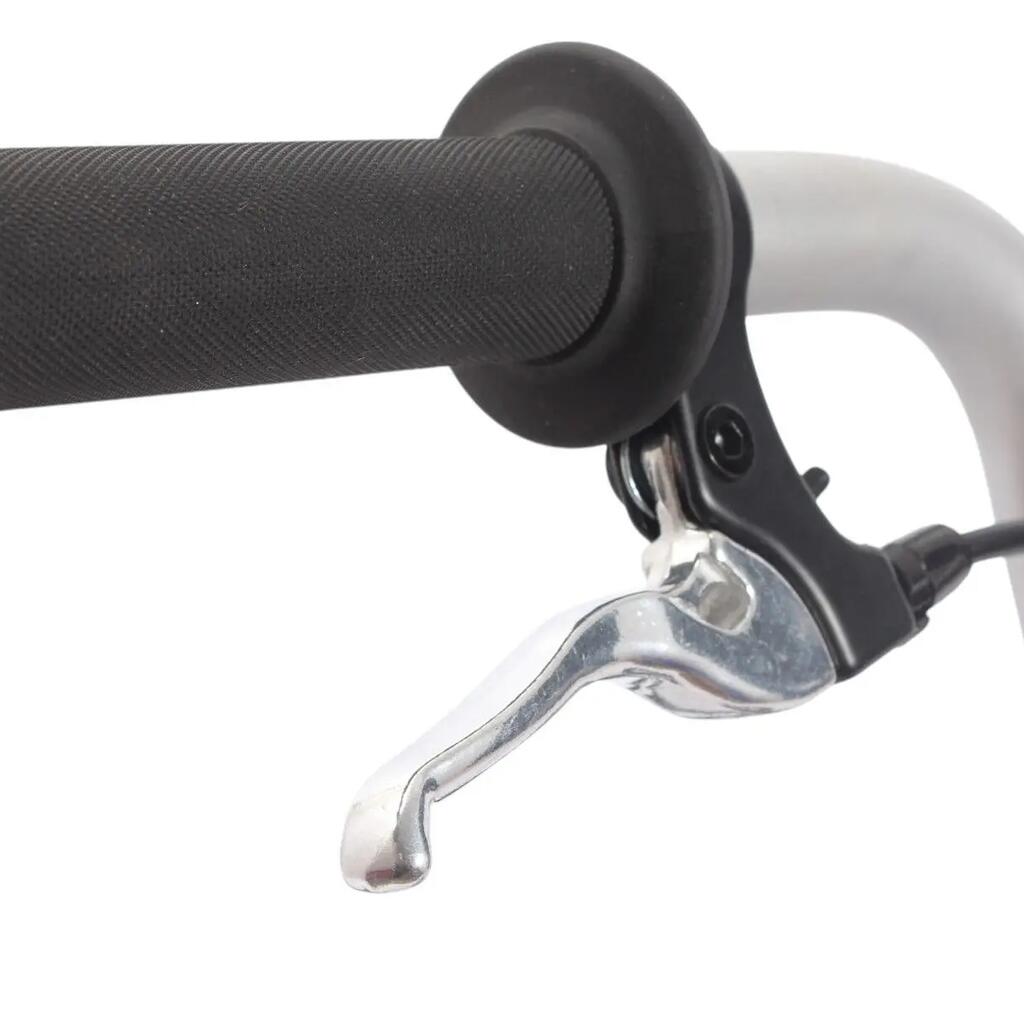

• Aluminium brake lever with adjustment screw
Brakes & Wheels:

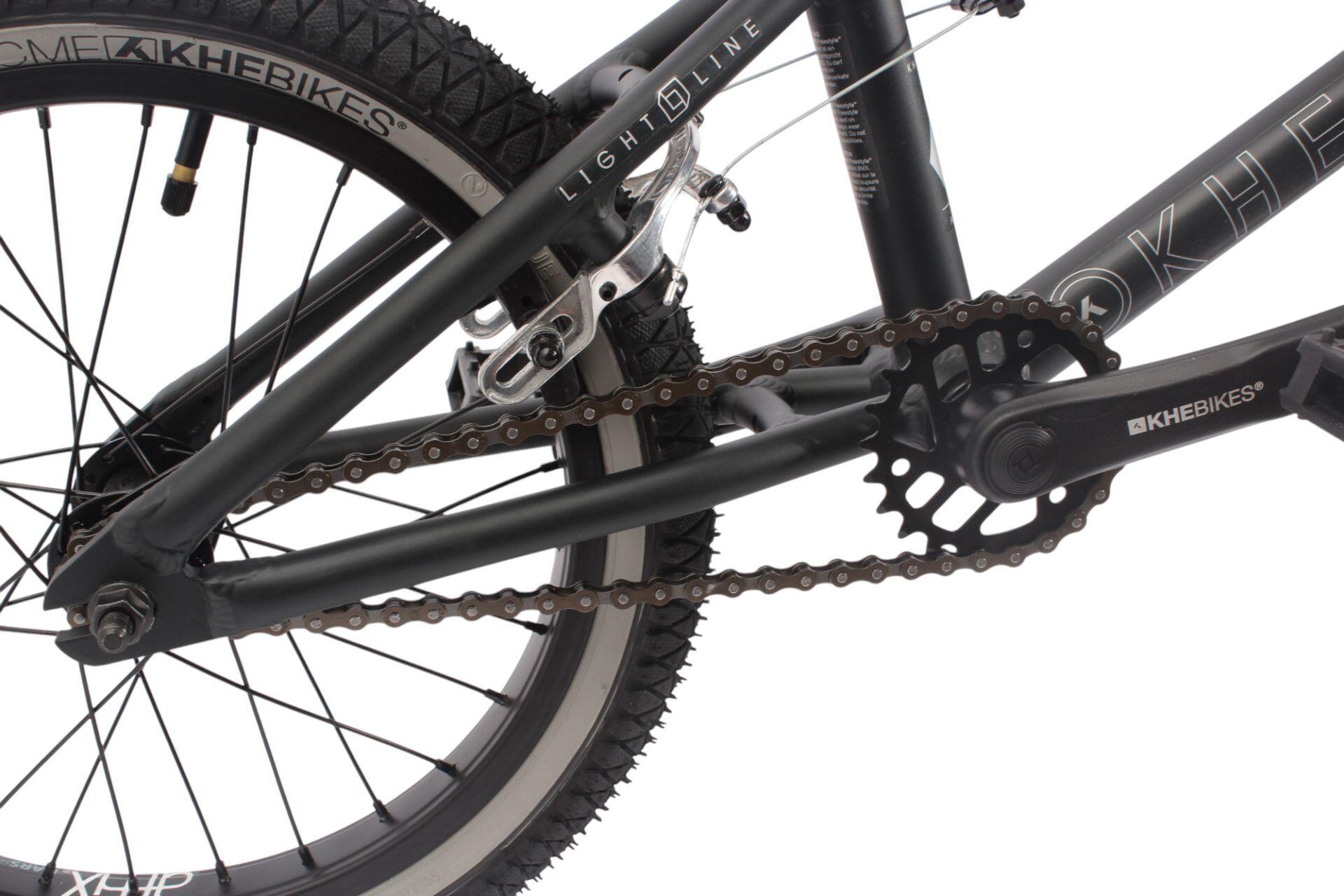

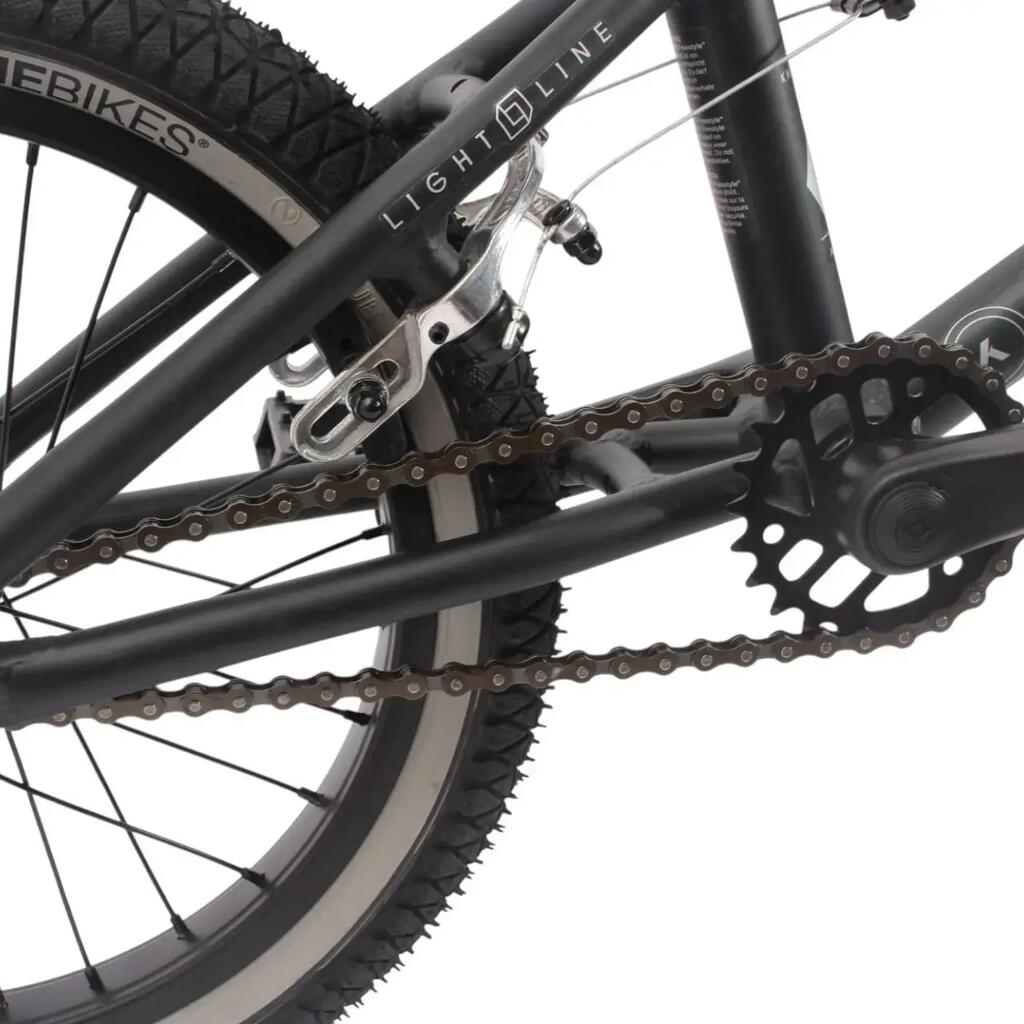

• KHE RADIUS aluminium U-Brake rear

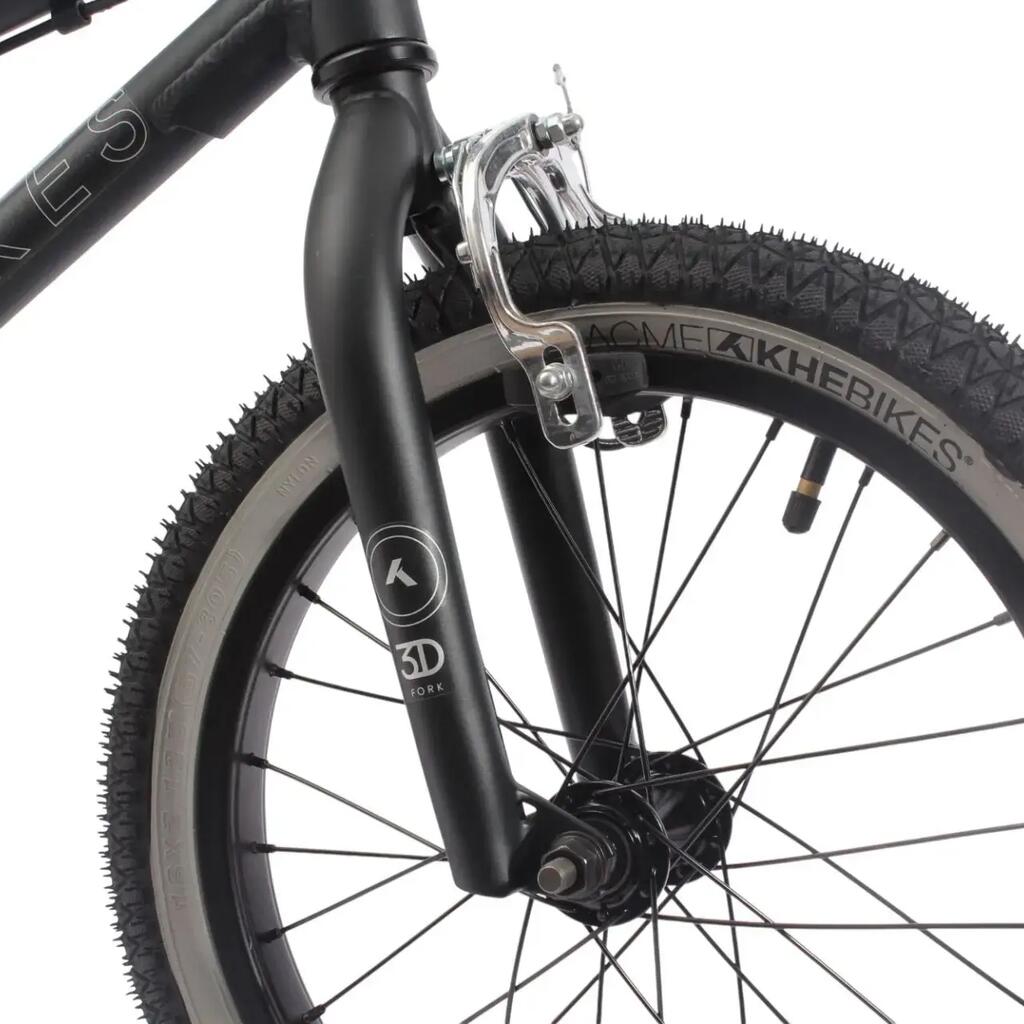

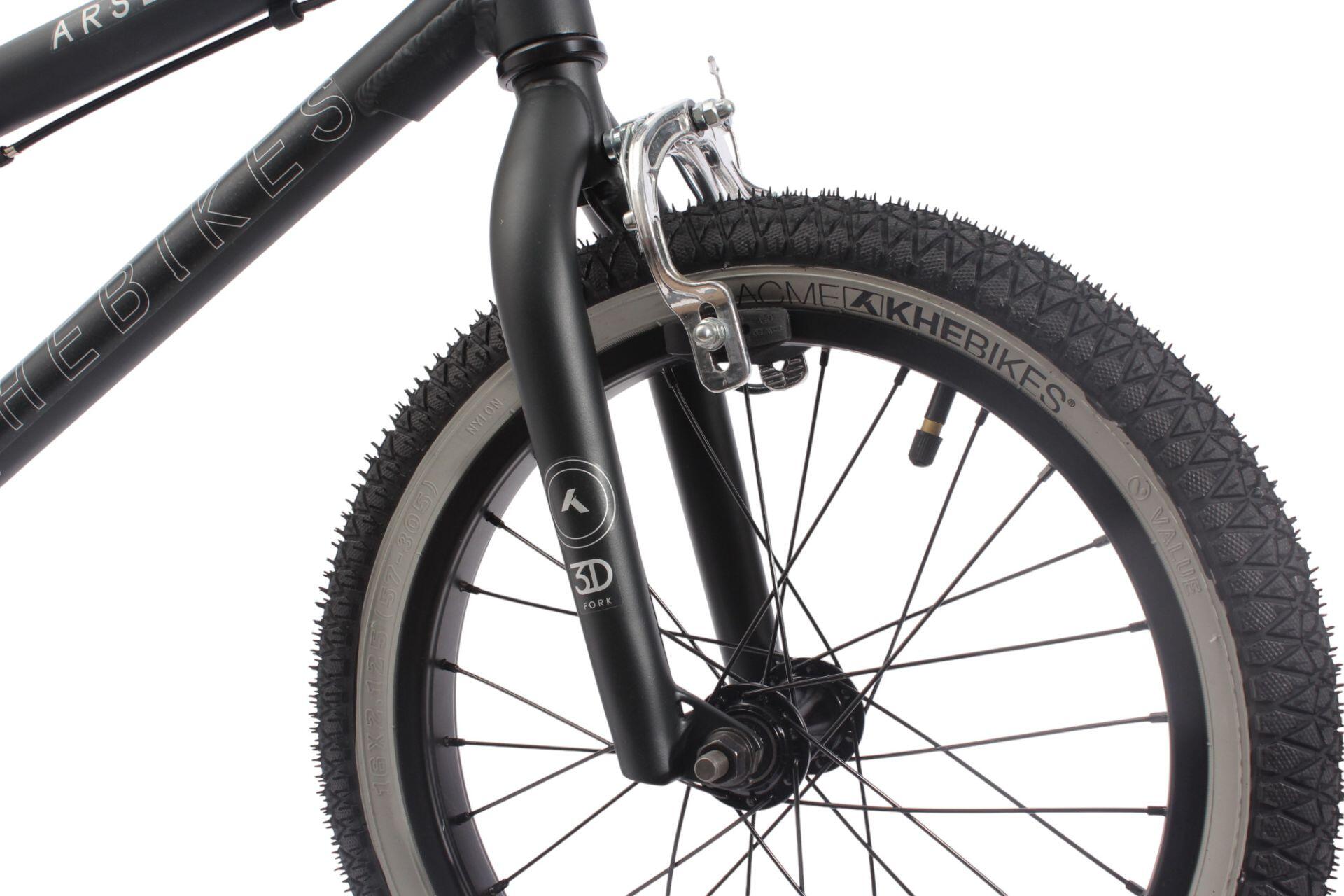

• Sidepull brake front
• 16" aluminium rims with 28 holes
• KHE ACME tyres 16 × 2.125"
• Front hub with industrial bearings
• 10 mm axles front and rear
Frame & Components:

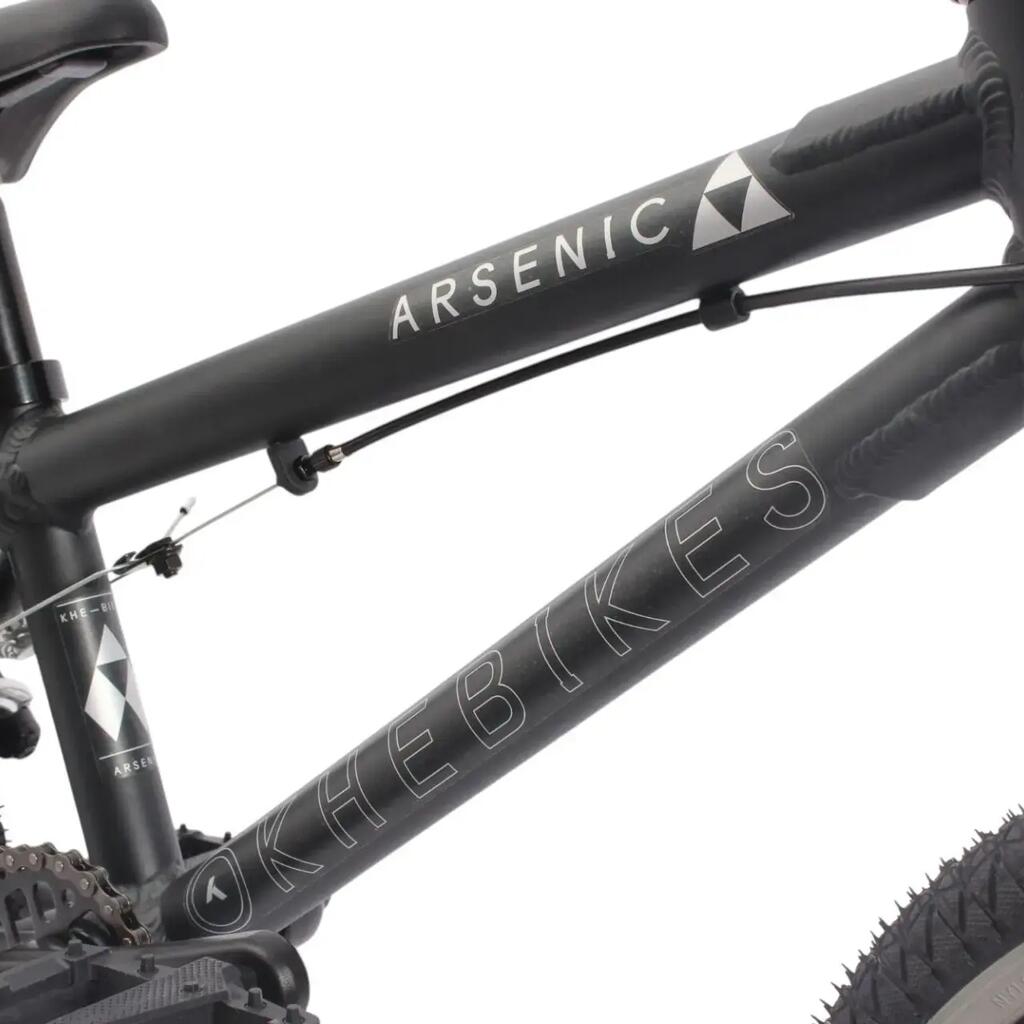

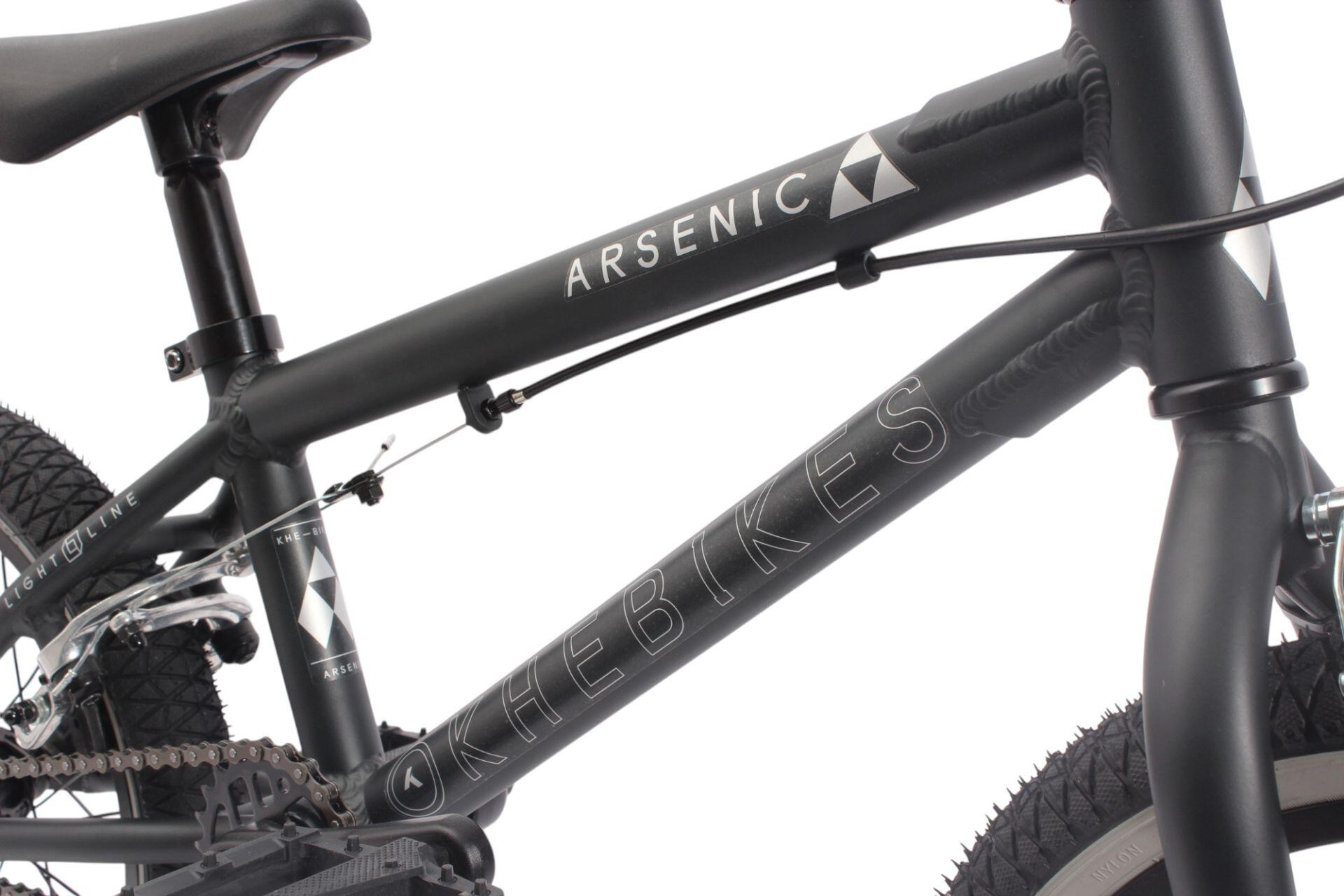

• KHE 6061 aluminium frame
• KHE 1020 HiTen steel fork
• 3D dropouts on the fork
• 10 mm frame dropouts
• FEIMIN PVC pedals with 9/16" axle

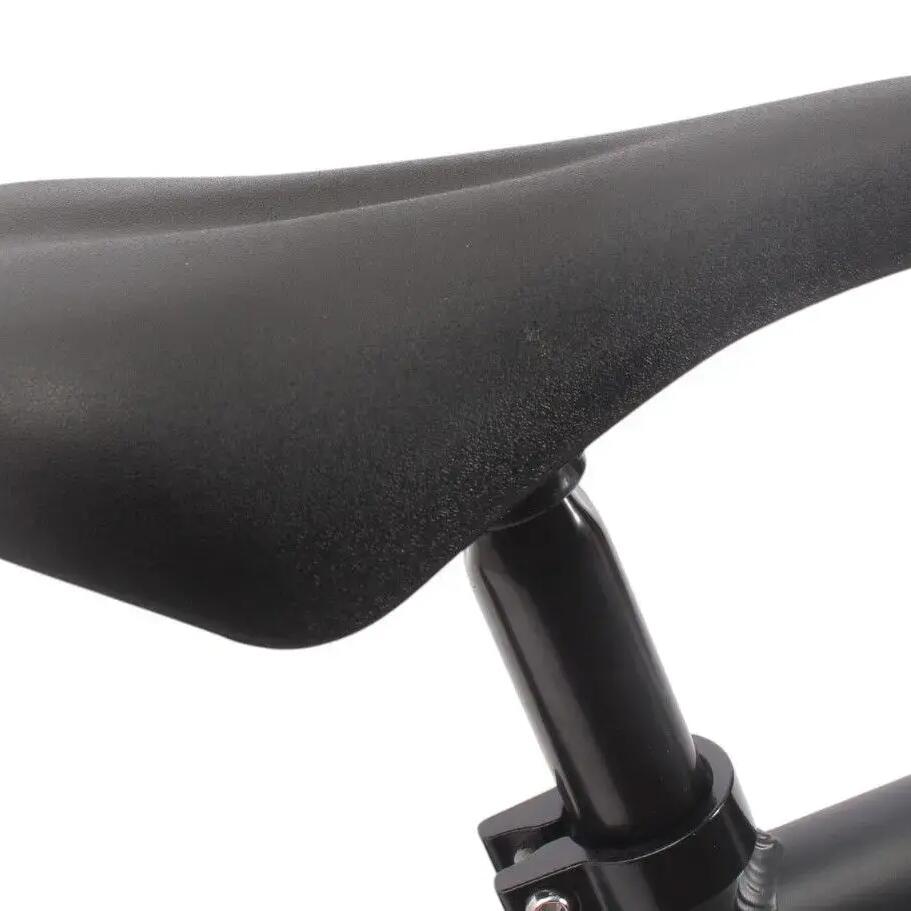

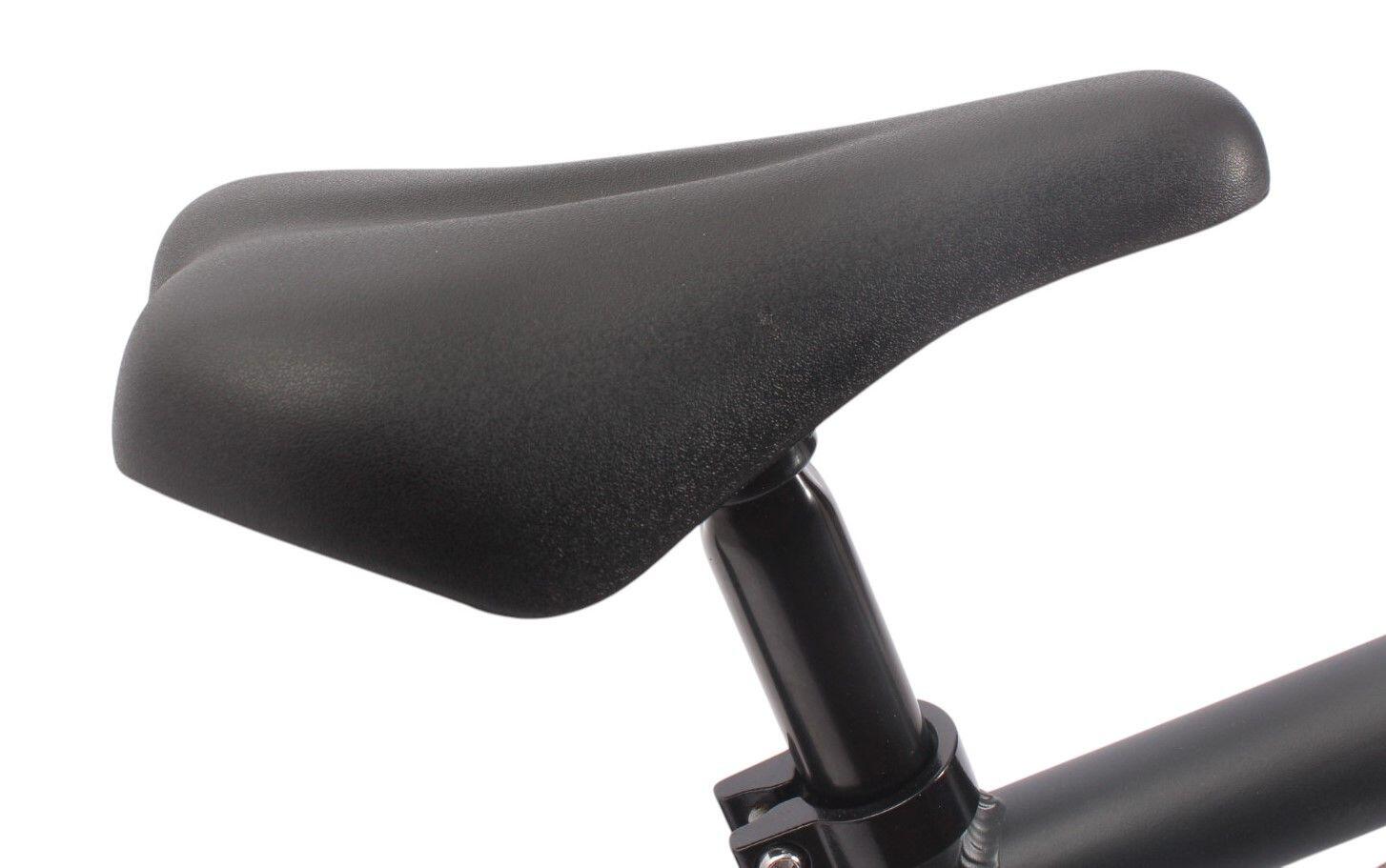

• Padded KHE saddle with integrated seat post
Technical Data
• Model: KHE ARSENIC LL
• Model year: 2025
• Frame: KHE 6061 aluminium

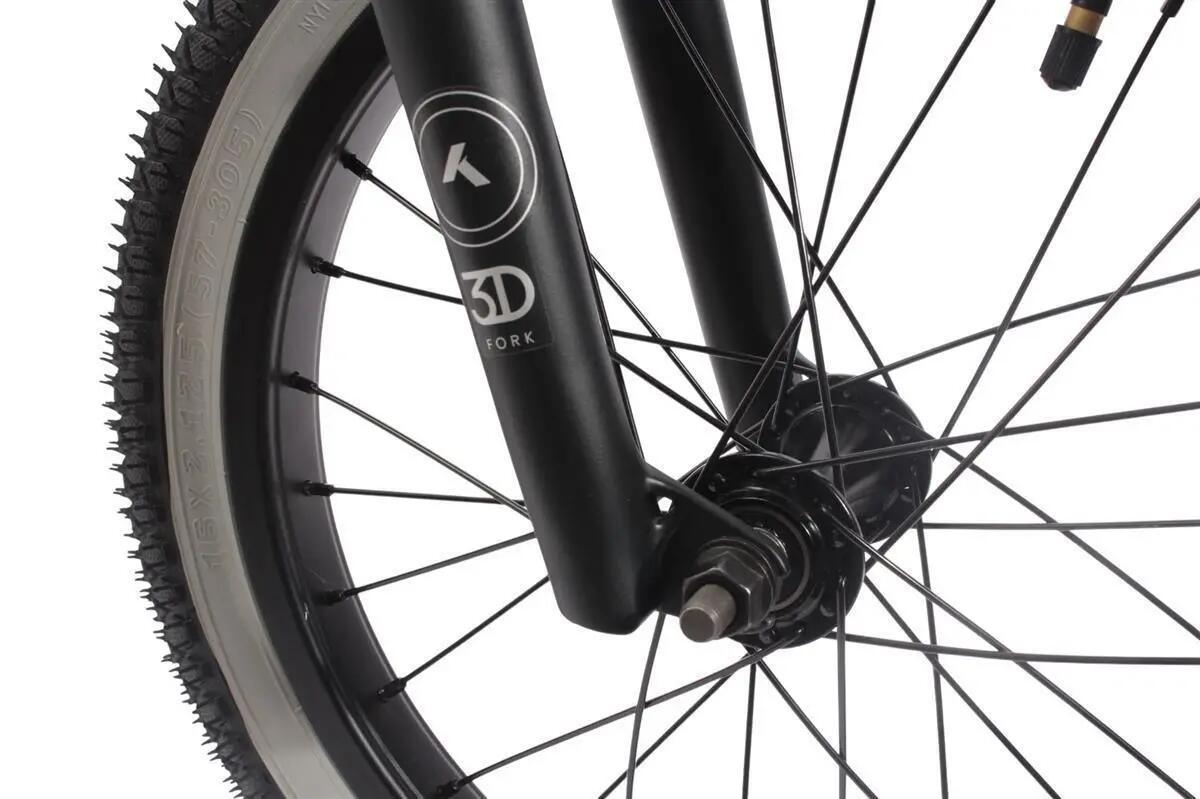

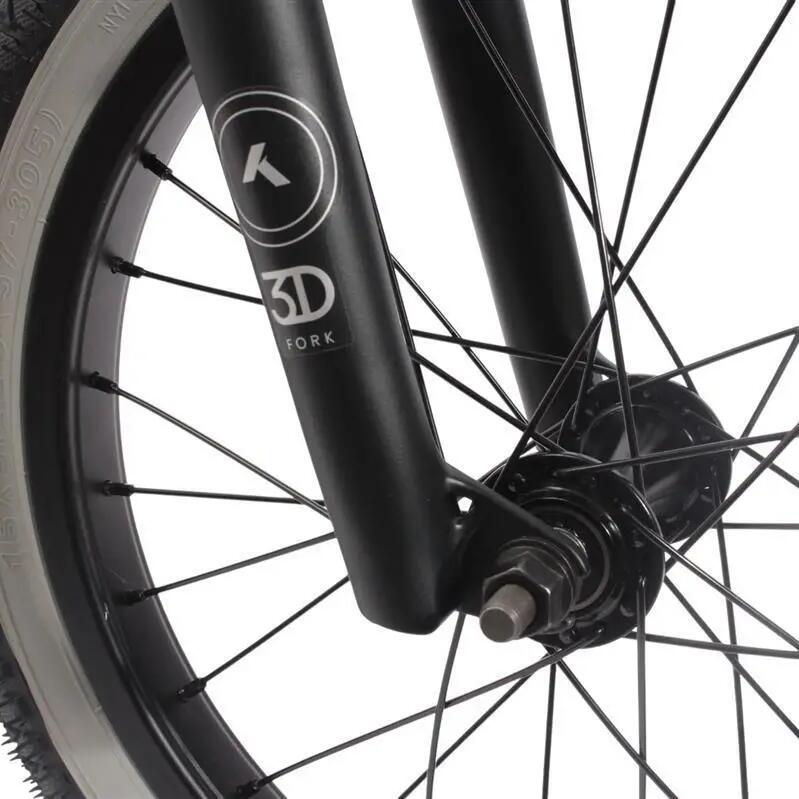

• Fork: KHE 1020 HiTen steel with 3D dropouts
• Top tube: 15.85" (403 mm)
• Chainstay: 292 mm
• Head angle: 75 degrees
• Seat angle: 72 degrees
• Fork offset: 27 mm
• Handlebar: KHE 6061 aluminium, 640 mm (25") wide × 177 mm (7") high
• Backsweep: 2 degrees
• Upsweep: 2 degrees

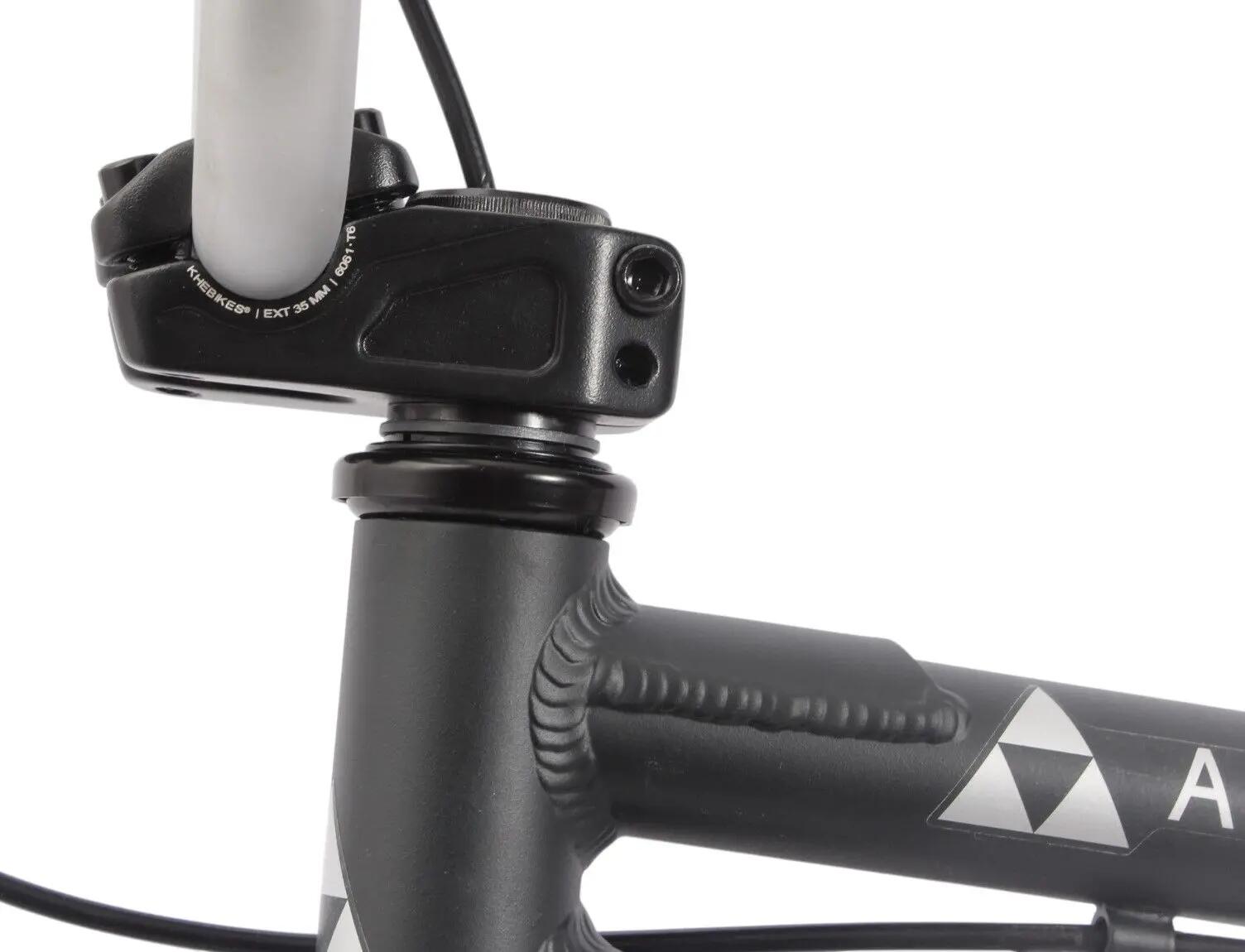

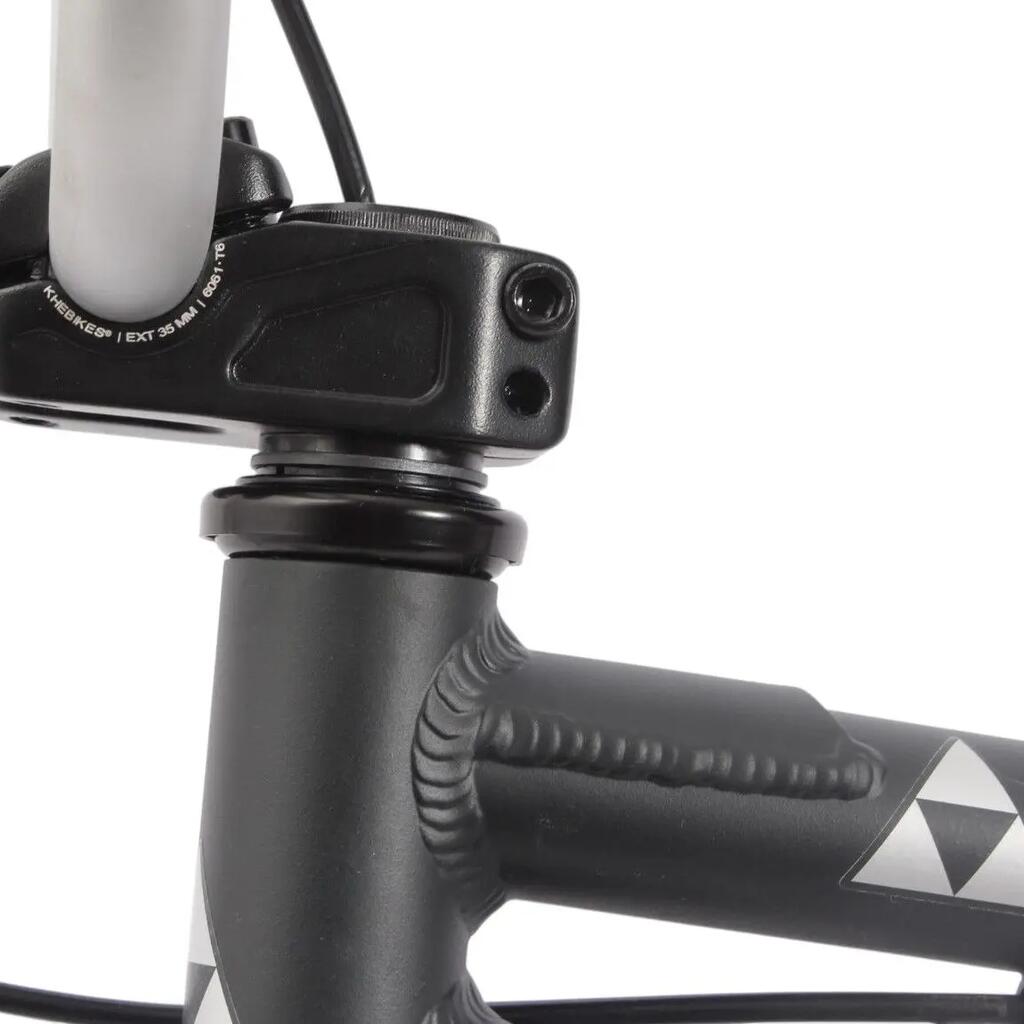

• Stem: KHE Top Loader, 40 mm
• Headset: Aheadset 38 × 34 mm, Loose Ball, 1 1/8"

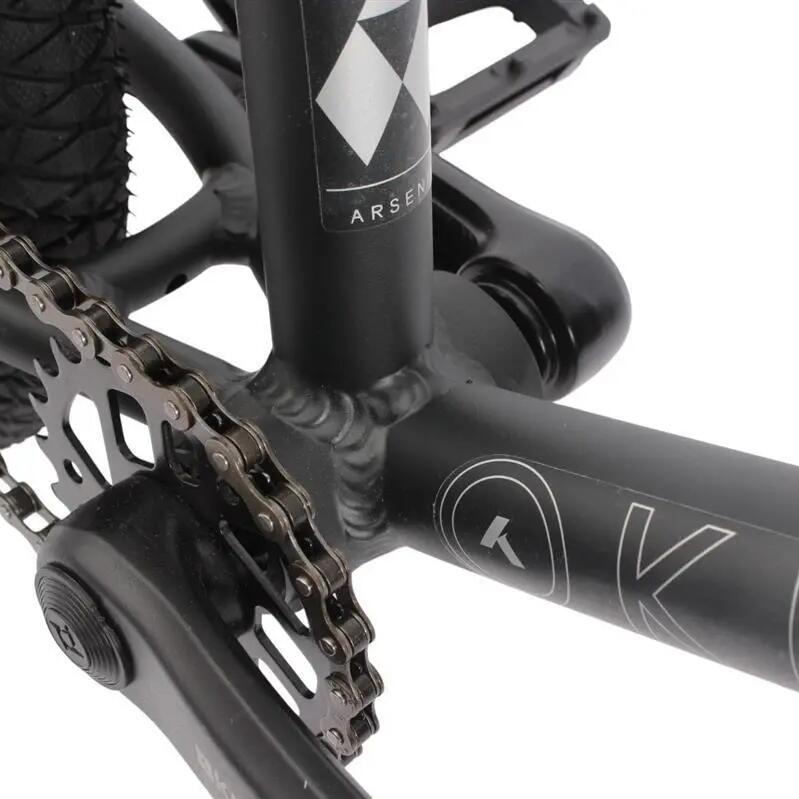

• Crank: KHE 3-piece, forged aluminium, 127 mm
• Bottom bracket: EURO BB, sealed with industrial bearings, BC1.37" × 24T, 68 / 110 mm
• Chainring: 23T steel
• Chain: YBN CN ST 1/2 × 1/8"
• Front brake: Sidepull, pre-installed

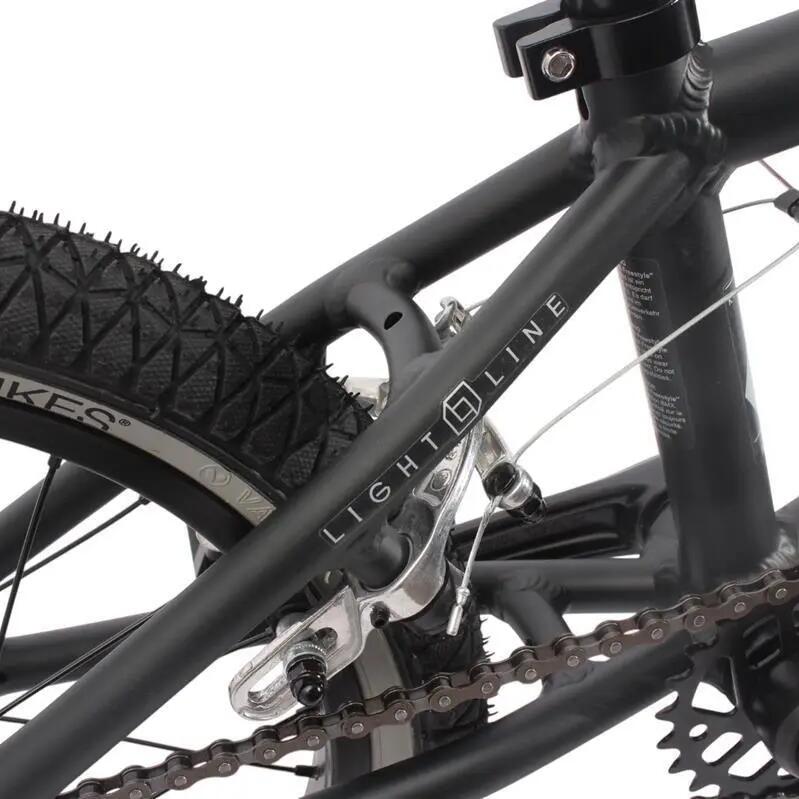

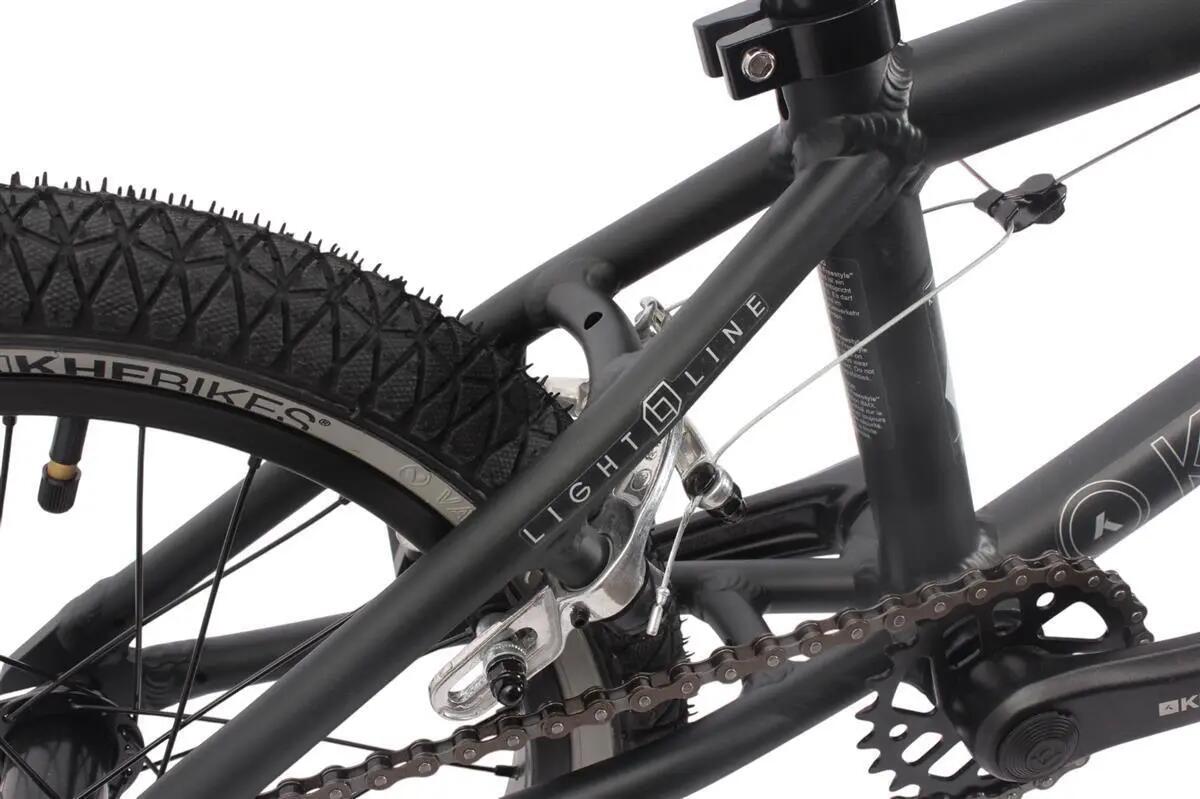

• Rear brake: KHE RADIUS aluminium U-Brake
• Front hub: Aluminium, 10 × 155 mm axle, industrial bearings
• Rear hub: Steel, 10 × 170 mm axle, 9T cassette, 28H
• Hub type: Cassette
• Rims: 16" aluminium, 28 holes, 32.5 mm wide
• Tyres: KHE ACME 16 × 2.125"
• Pedals: FEIMIN PVC, 9/16" axle
• Saddle: Padded, 210 × 120 mm
• Seat post: 27.2 × 220 mm, integrated with saddle
• Material: 6061 T6 aluminium
• Colour: Black
• Weight: 7.9 kg
Suitable for:
• Rider height: 110–130 cm
• Maximum rider weight: 60 kg
• Use: Park / Street / Flatland / Pumptrack
Why choose the KHE ARSENIC LL from KHEbikes:
✓ Only 7.9 kg total weight for exceptionally easy handling
✓ Lightweight 6061 aluminium frame with compact BMX geometry
✓ KHE aluminium handlebar with 640 mm width
✓ Forged 3-piece aluminium crank
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ 9T cassette hub for a compact BMX drivetrain
✓ KHE RADIUS U-Brake rear and Sidepull brake front
✓ Wide KHE ACME 2.125" tyres
Compatibility
• Front pegs: 10 mm
• Rear pegs: 10 mm
• Recommendation: KHE COP Aluminium Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Brake system: The KHE ARSENIC LL is supplied with a pre-installed Sidepull brake at the front and a KHE RADIUS aluminium U-Brake at the rear.
