Product Description

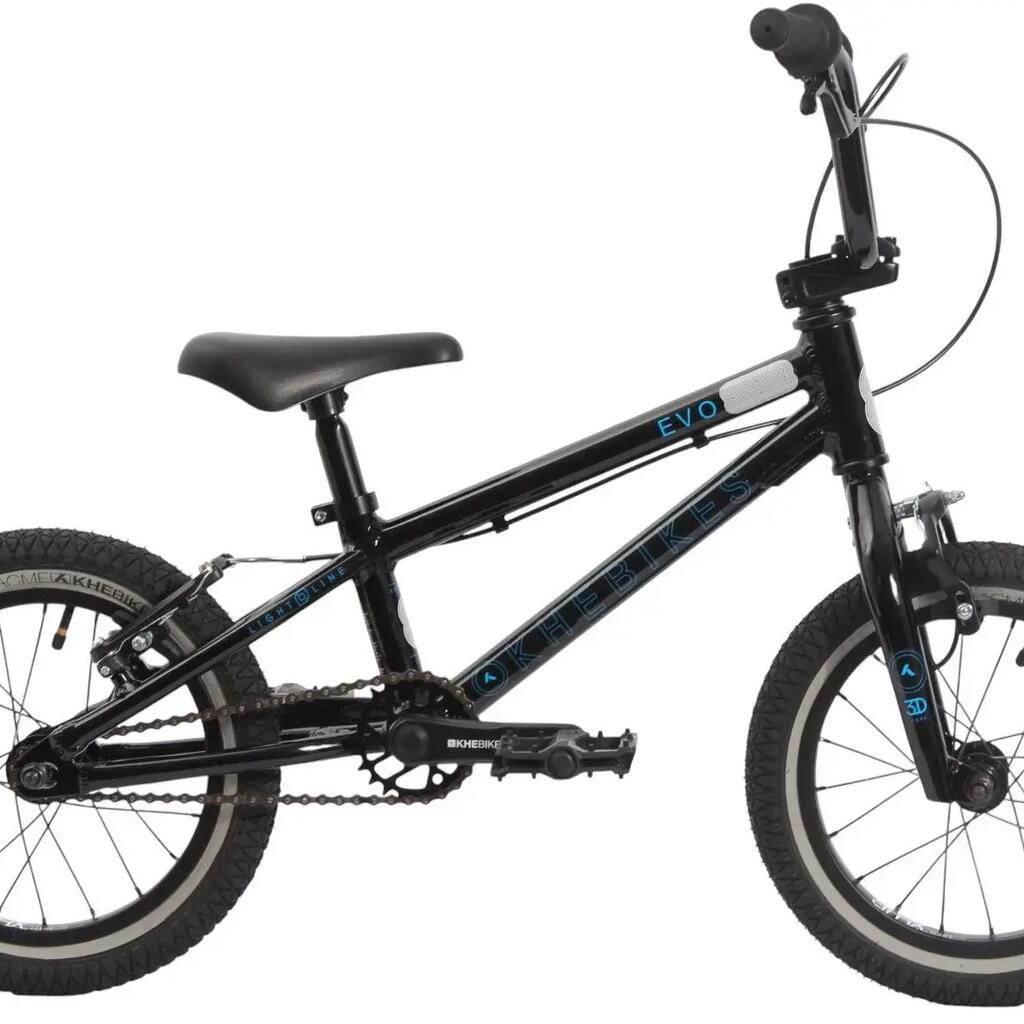

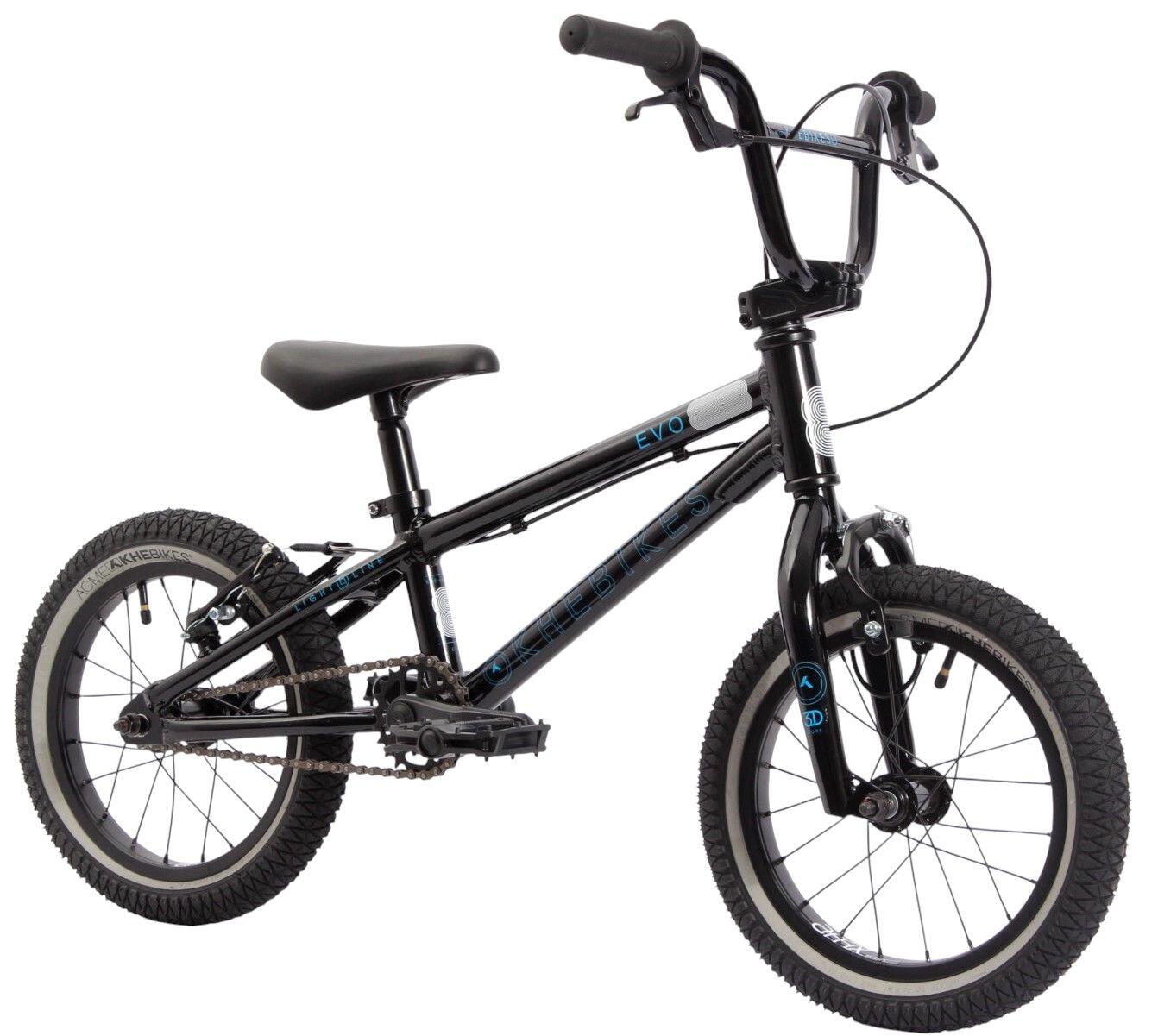

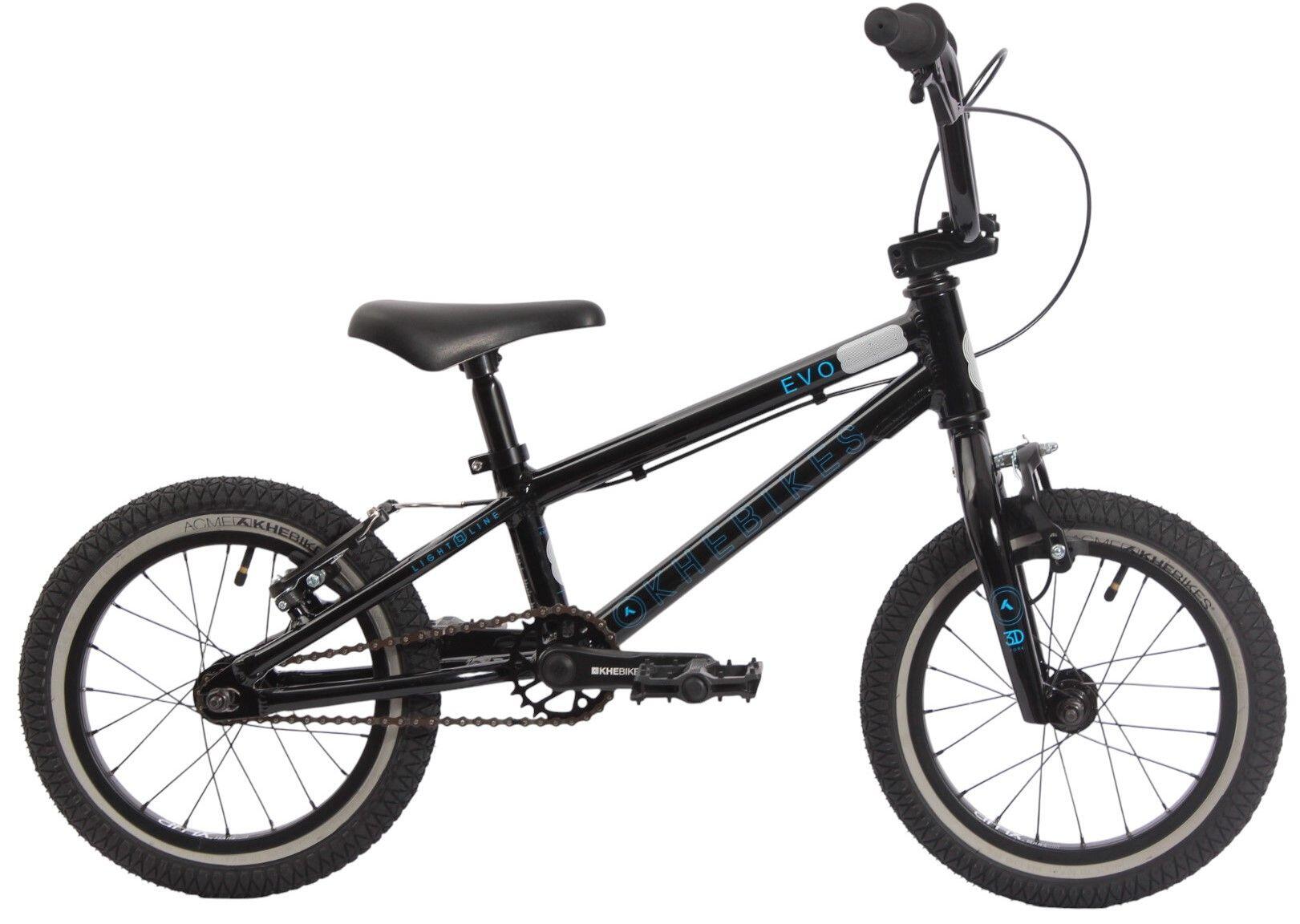

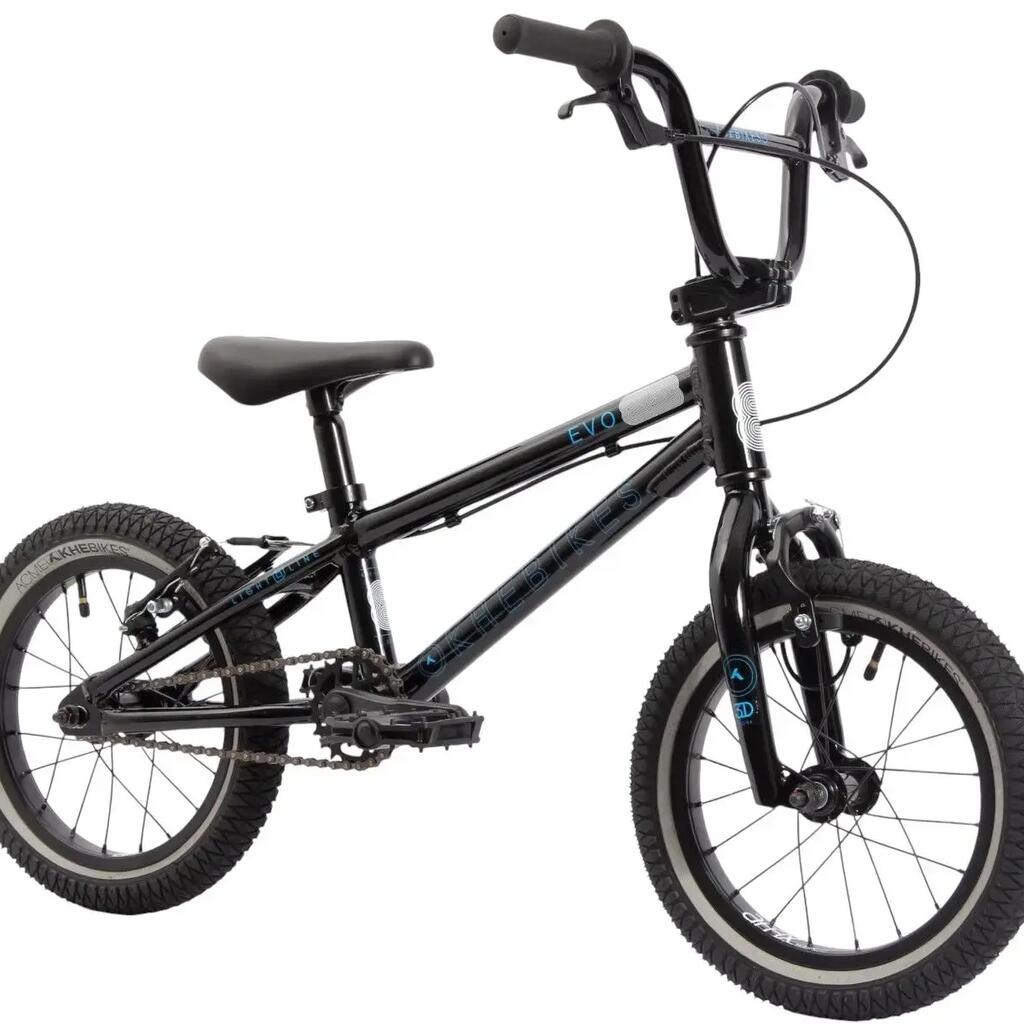

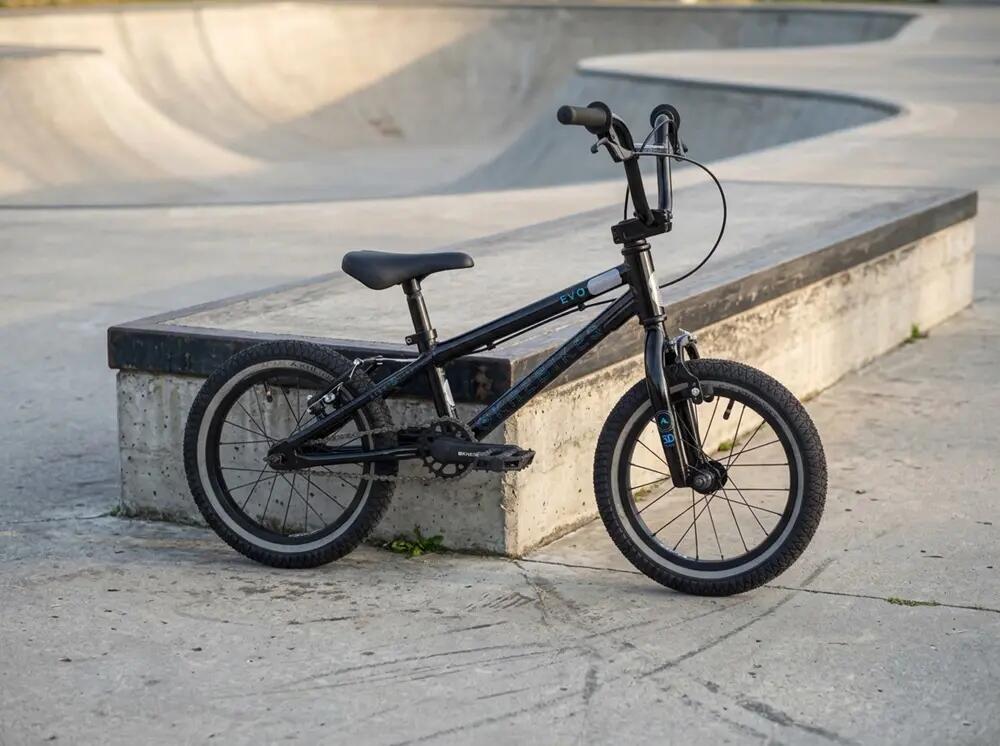

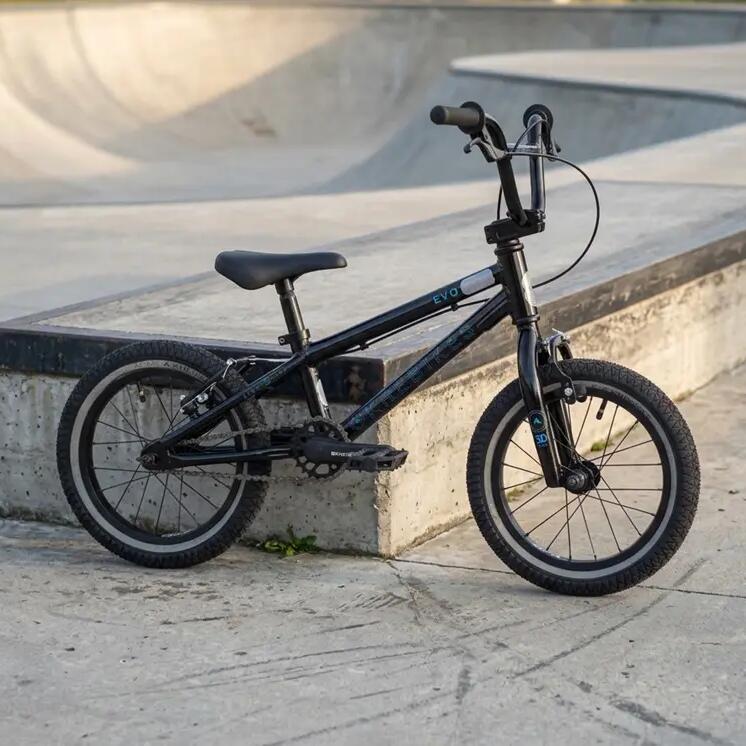

KHE EVO LL 14" BMX 2025 – Lightweight Kids BMX
The KHE EVO LL 14" is a lightweight BMX for young riders and is suitable for Pumptrack, Street, Park, Race and Flatland. The 6061 aluminium frame and aluminium handlebar provide agile and controlled handling at a weight of only 7.5 kg. The compact geometry with a 14.7" top tube is designed for smaller riders. A robust HiTen fork with 3D dropouts, a 3-piece aluminium crank and a sealed EURO BB bottom bracket complete the setup.
Equipment

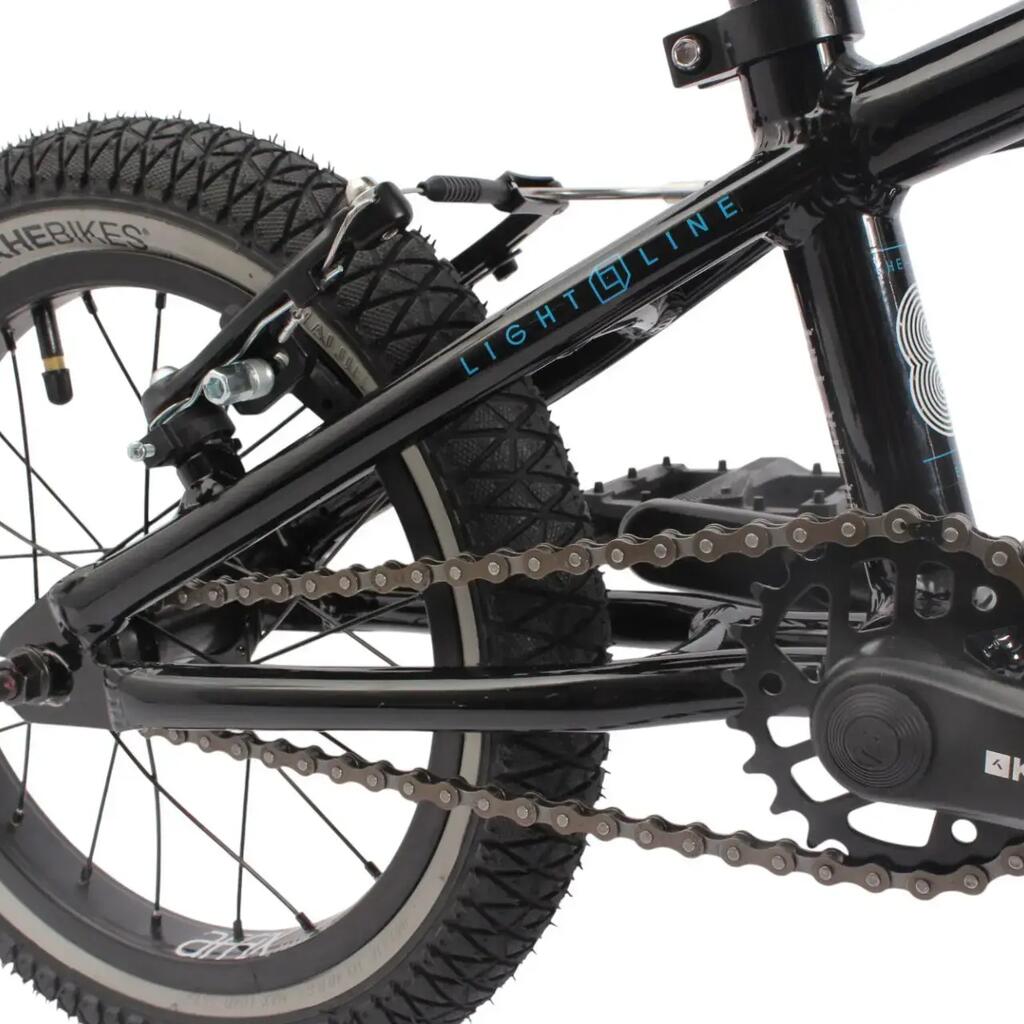

Drivetrain:
• 3-piece 110 mm aluminium crank
• 23T steel chainring
• Sealed EURO BB bottom bracket with industrial bearings
• YBN CN ST chain
• 9T cassette hub

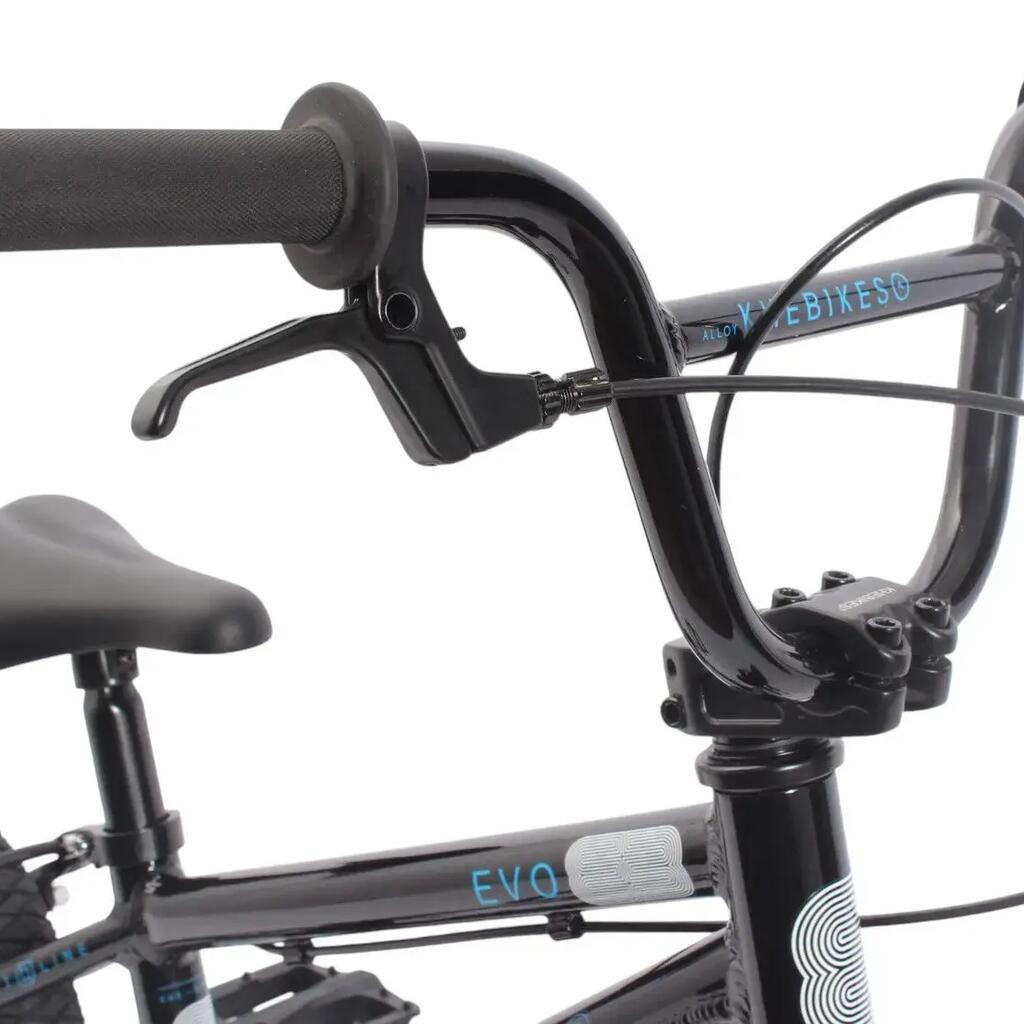

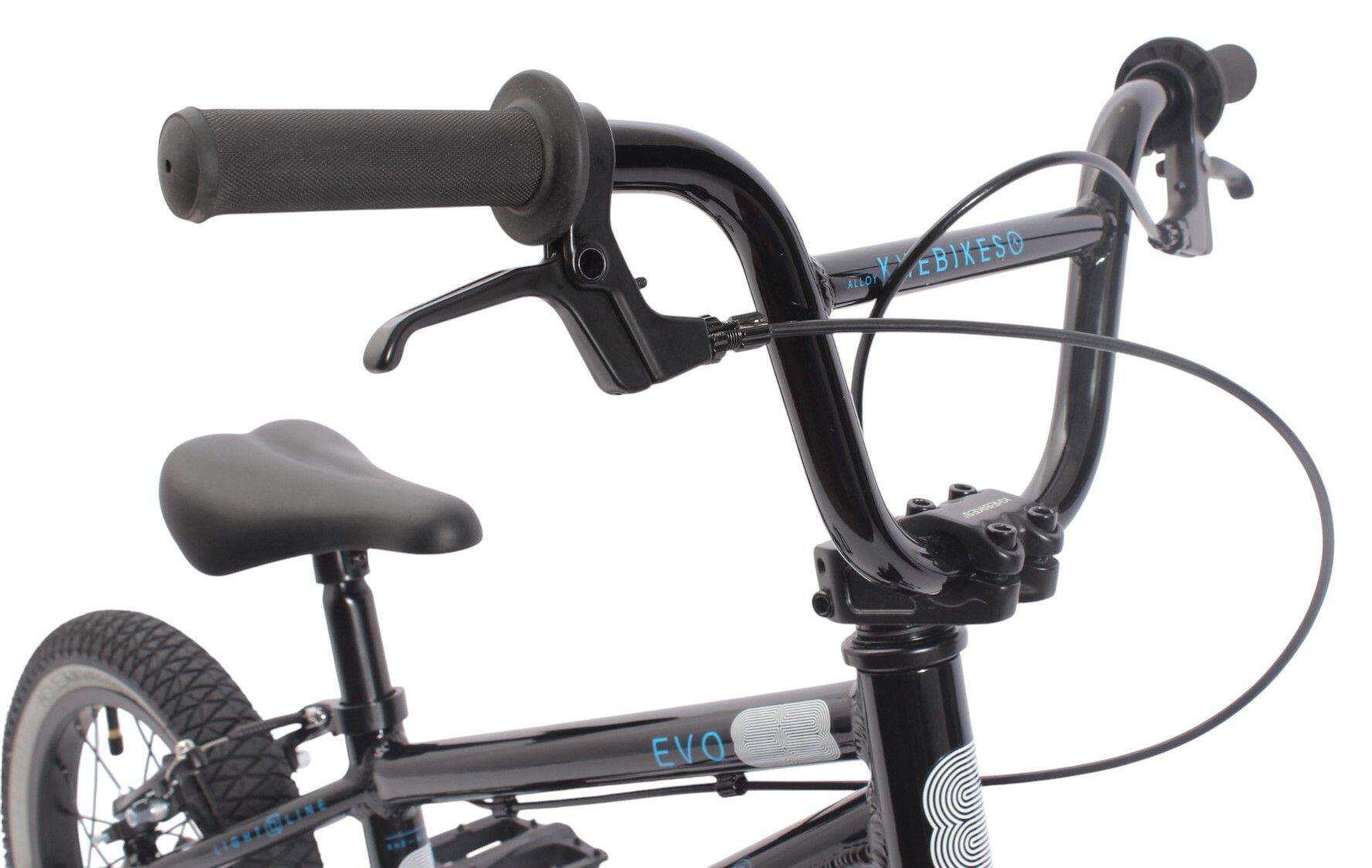

Cockpit:
• KHE aluminium handlebar, 6.5" high
• 585 mm handlebar width

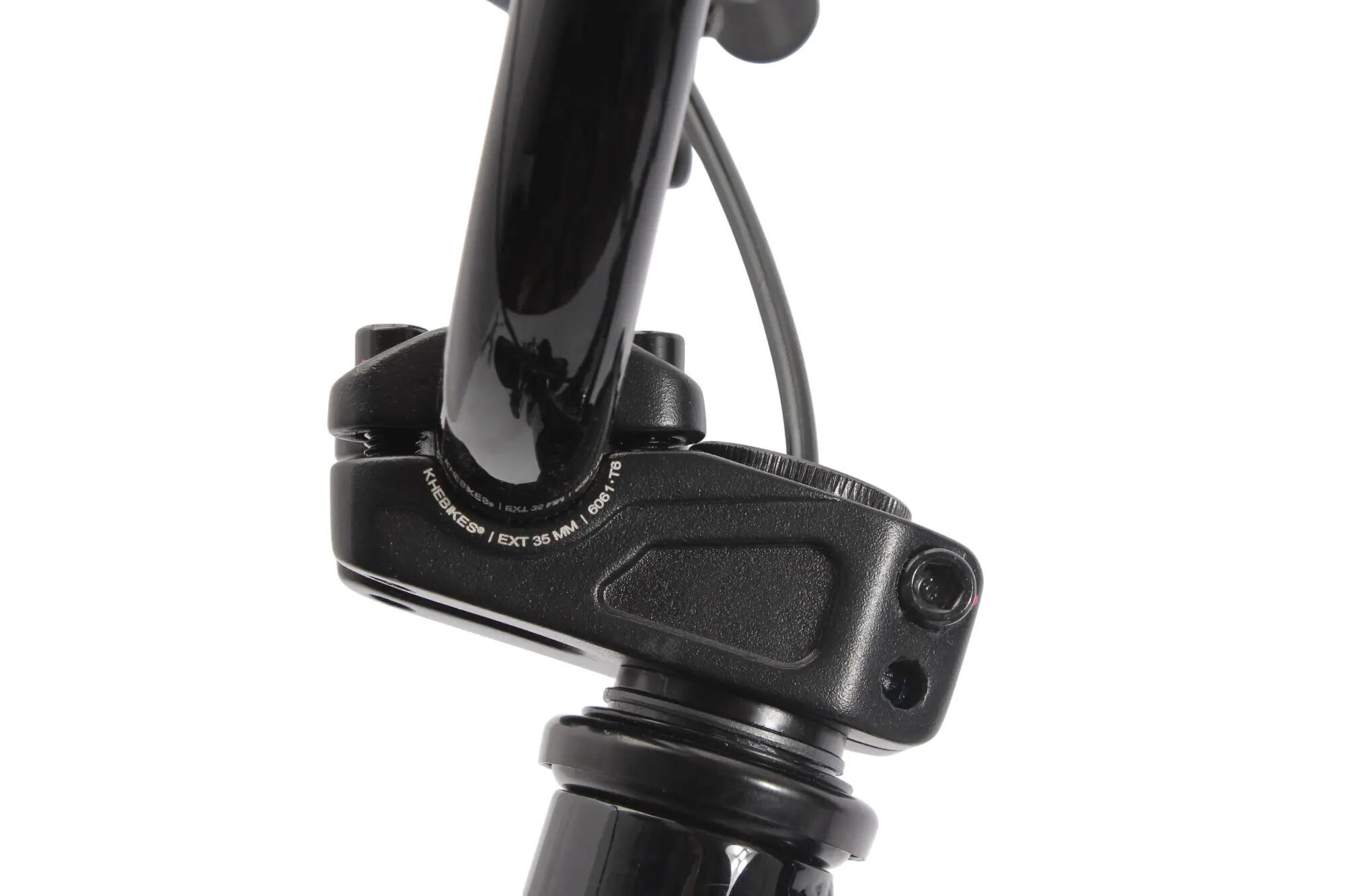

• KHE Top Loader stem (40 mm)
• 110 mm flanged grips with diamond pattern

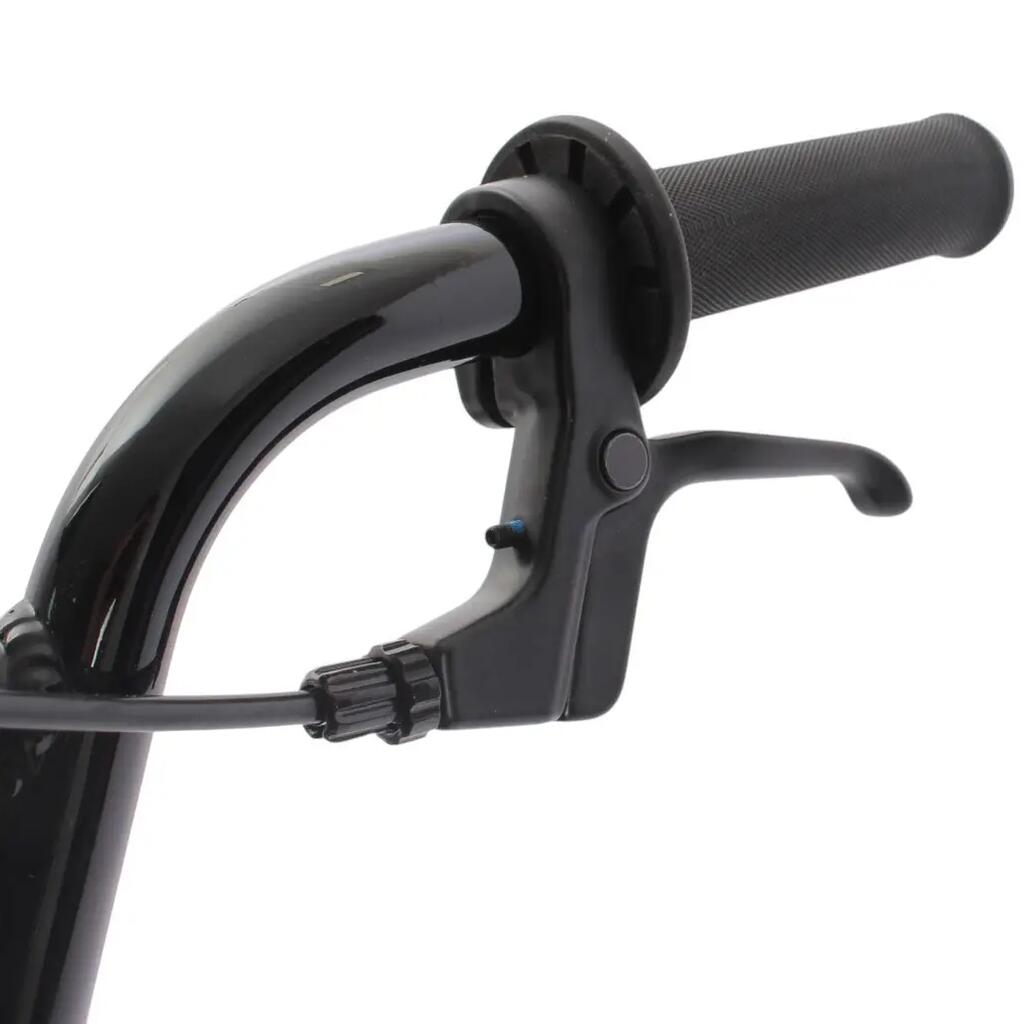

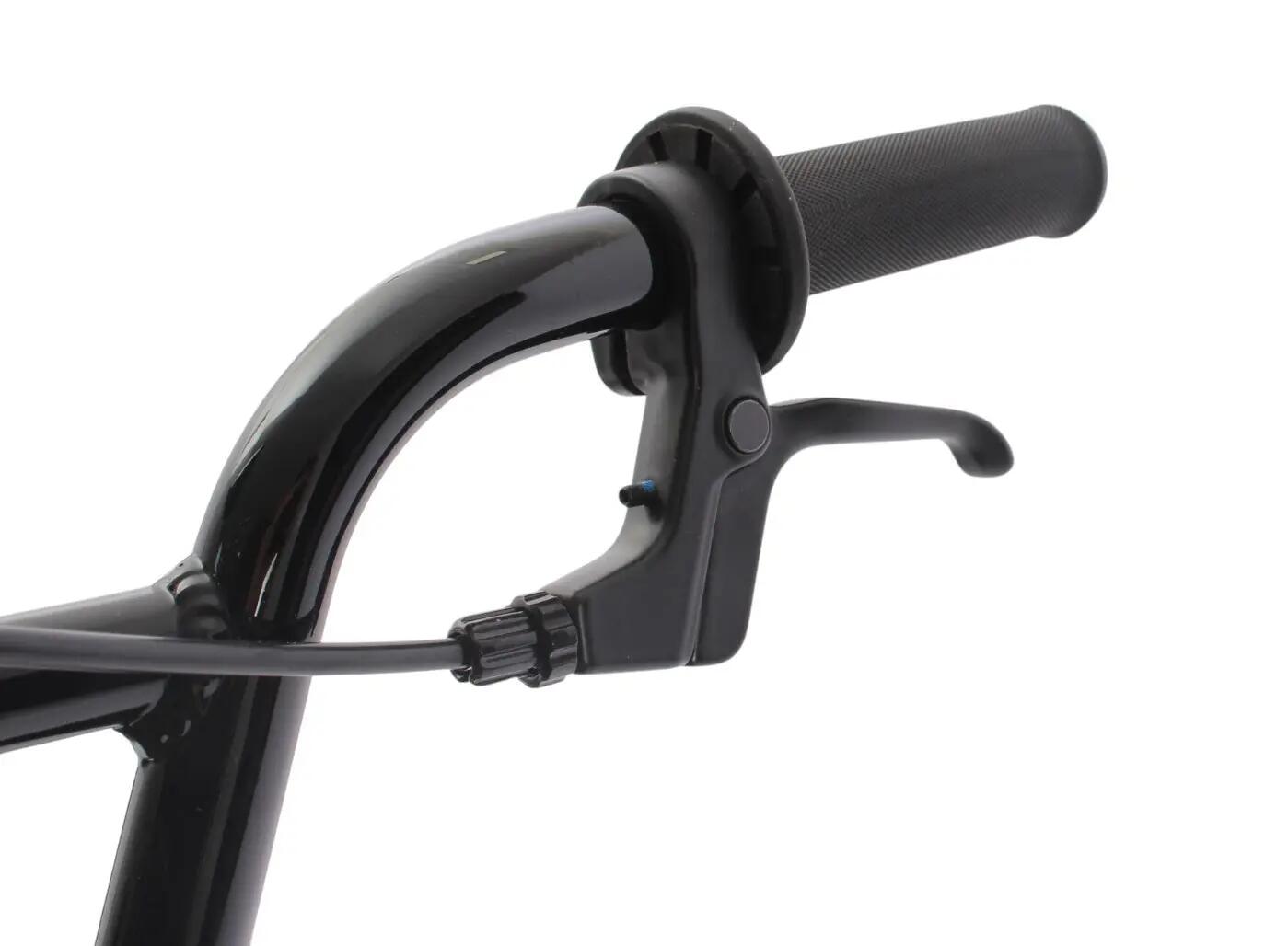

• Aluminium brake lever with adjustment screw
Brakes & Wheels:

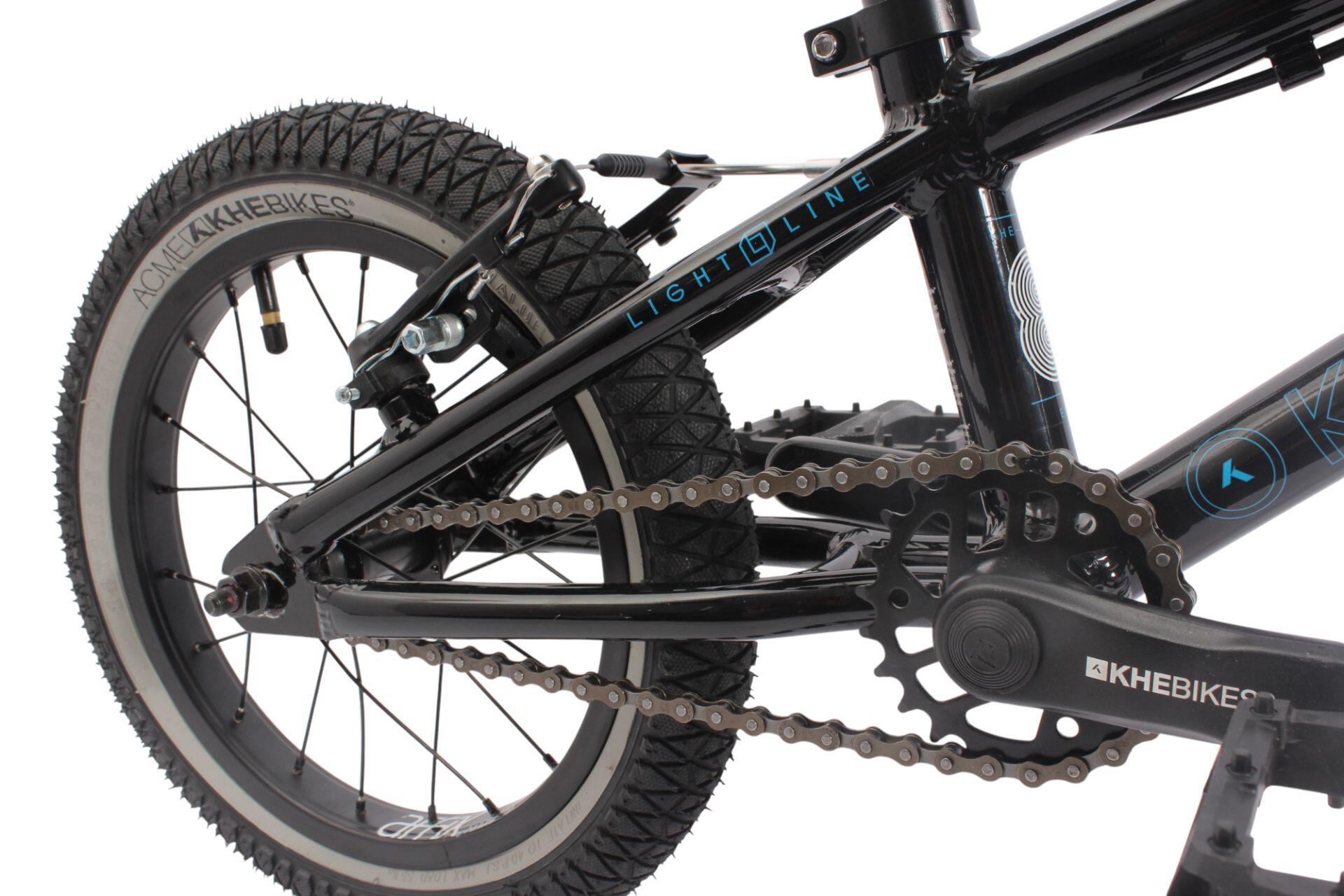

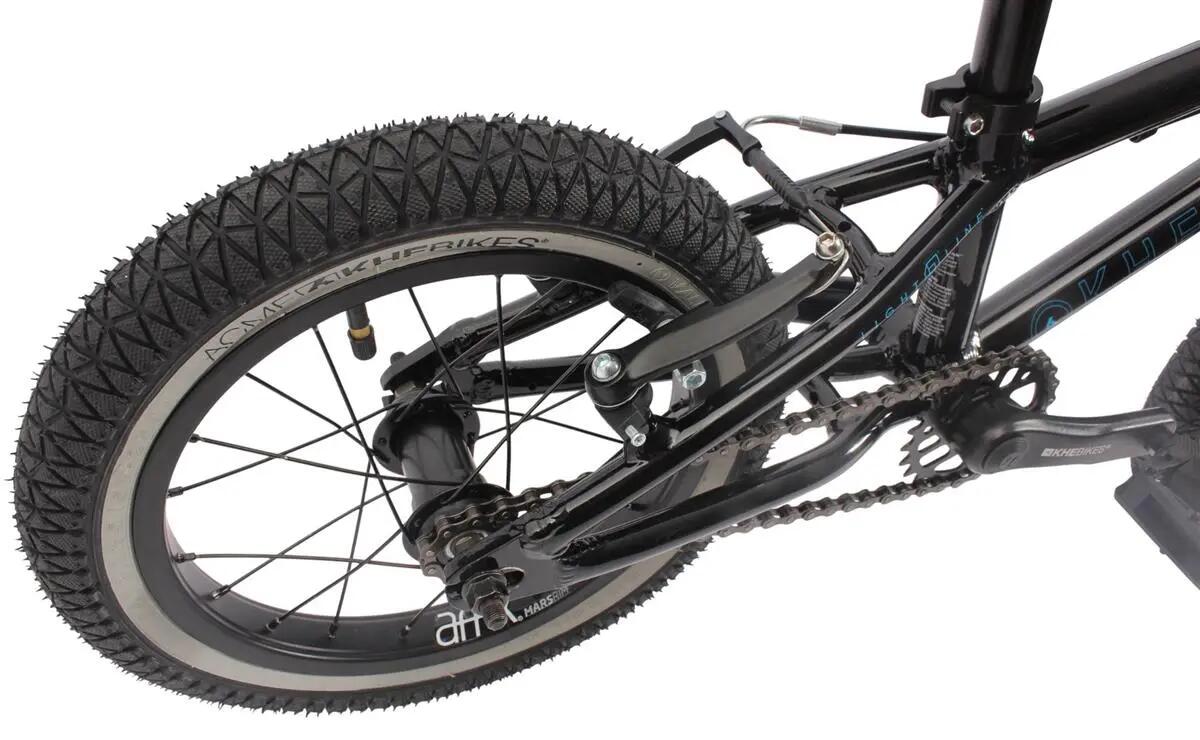

• 102 mm aluminium V-Brake rear
• Pre-installed Sidepull brake front
• 14" aluminium rims with 20 holes
• KHE tyres 14 × 2.125"
• 10 mm axles front and rear
Frame & Components:

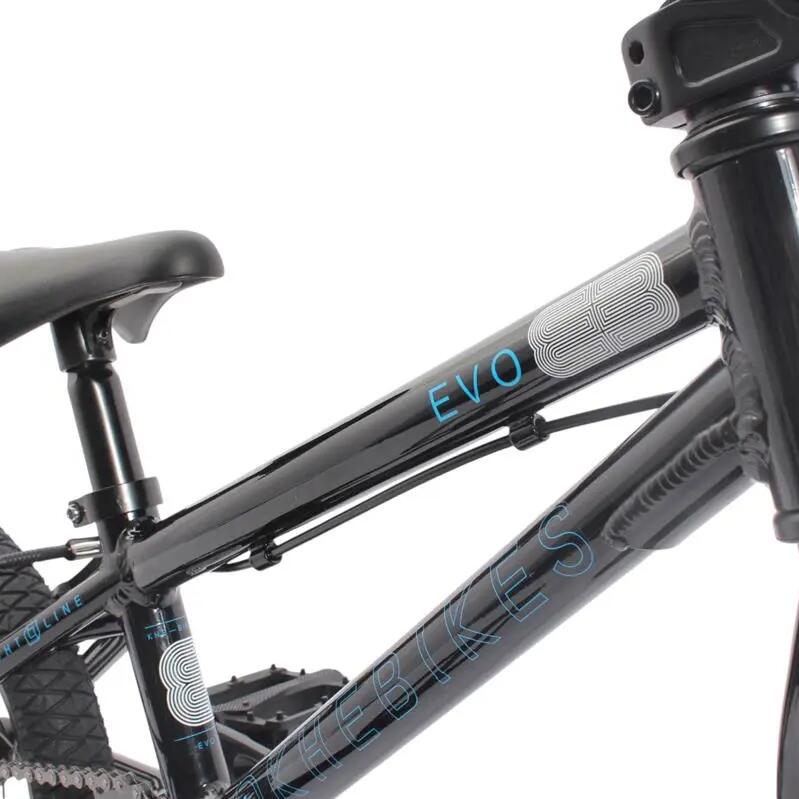

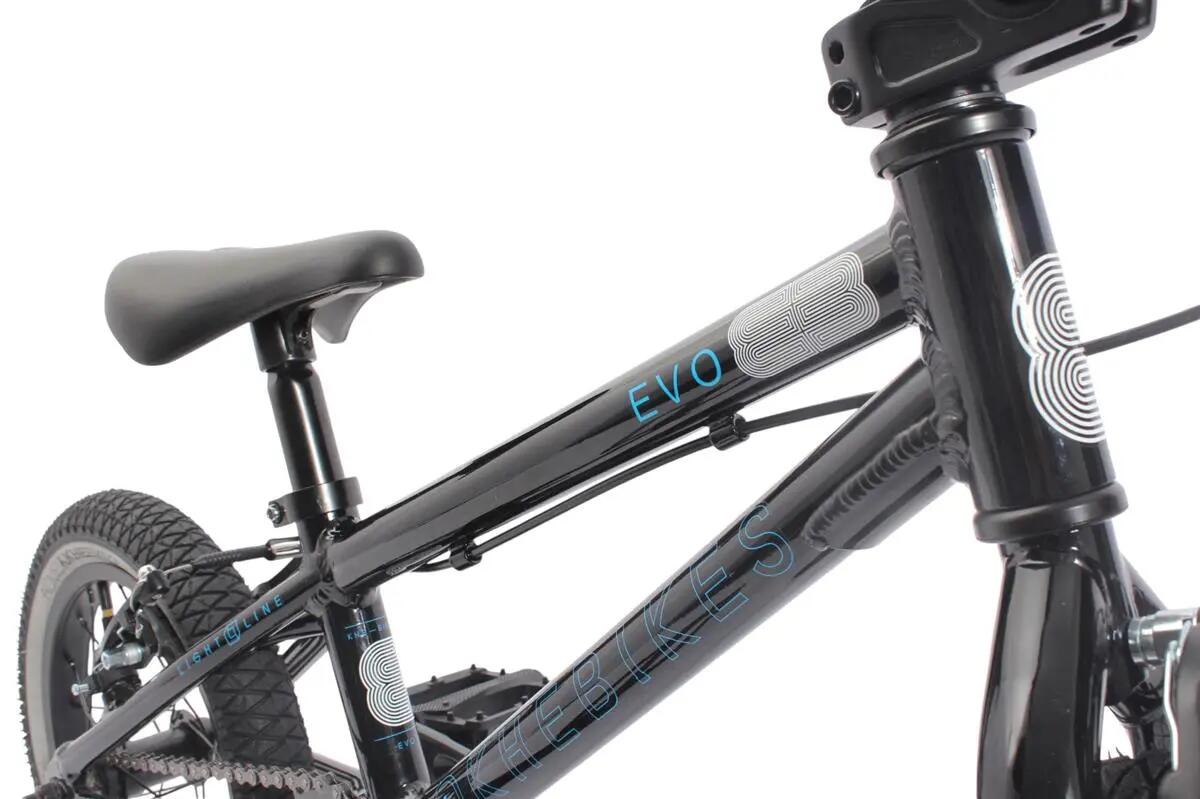

• KHE 6061 aluminium frame

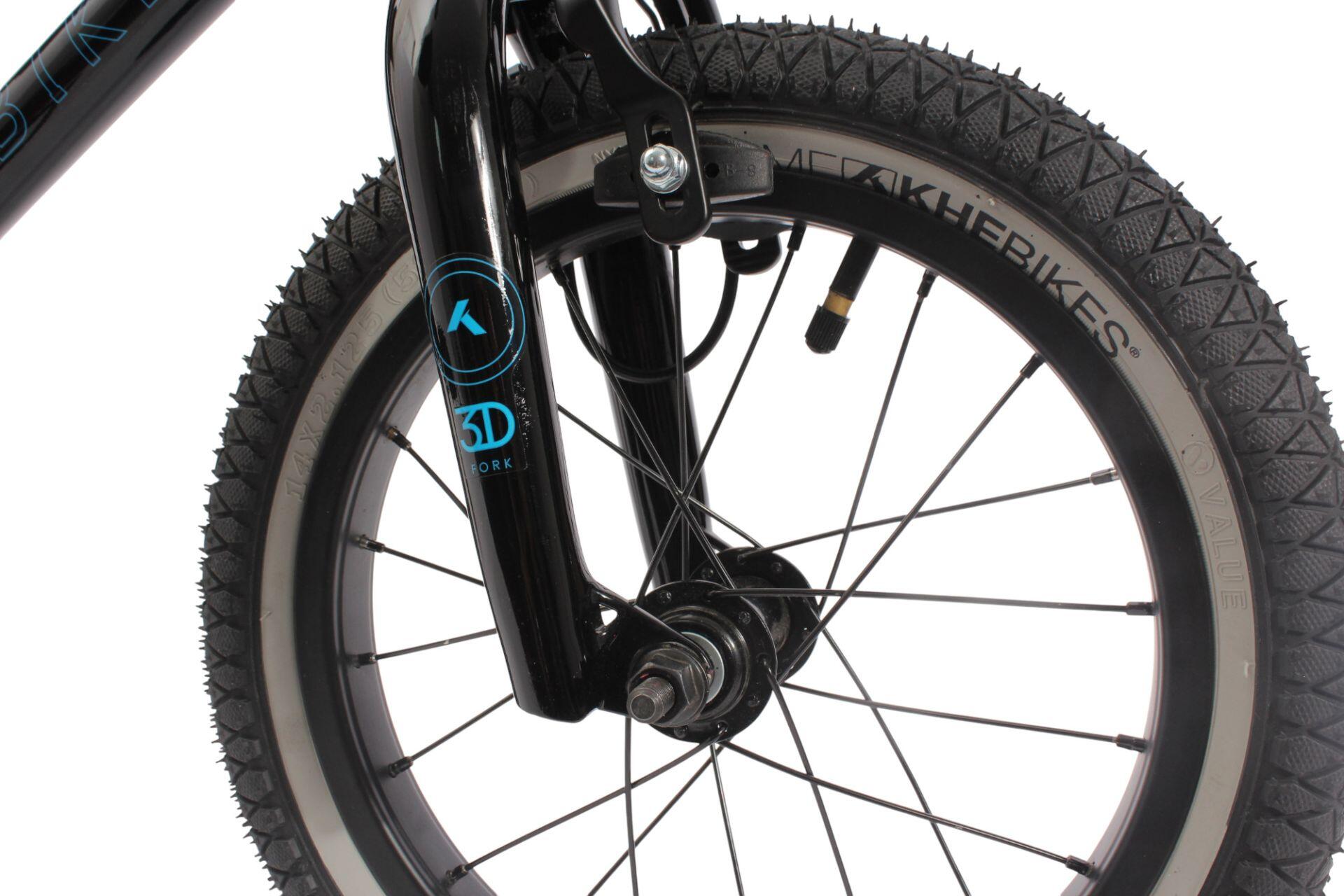

• KHE 1020 HiTen steel fork

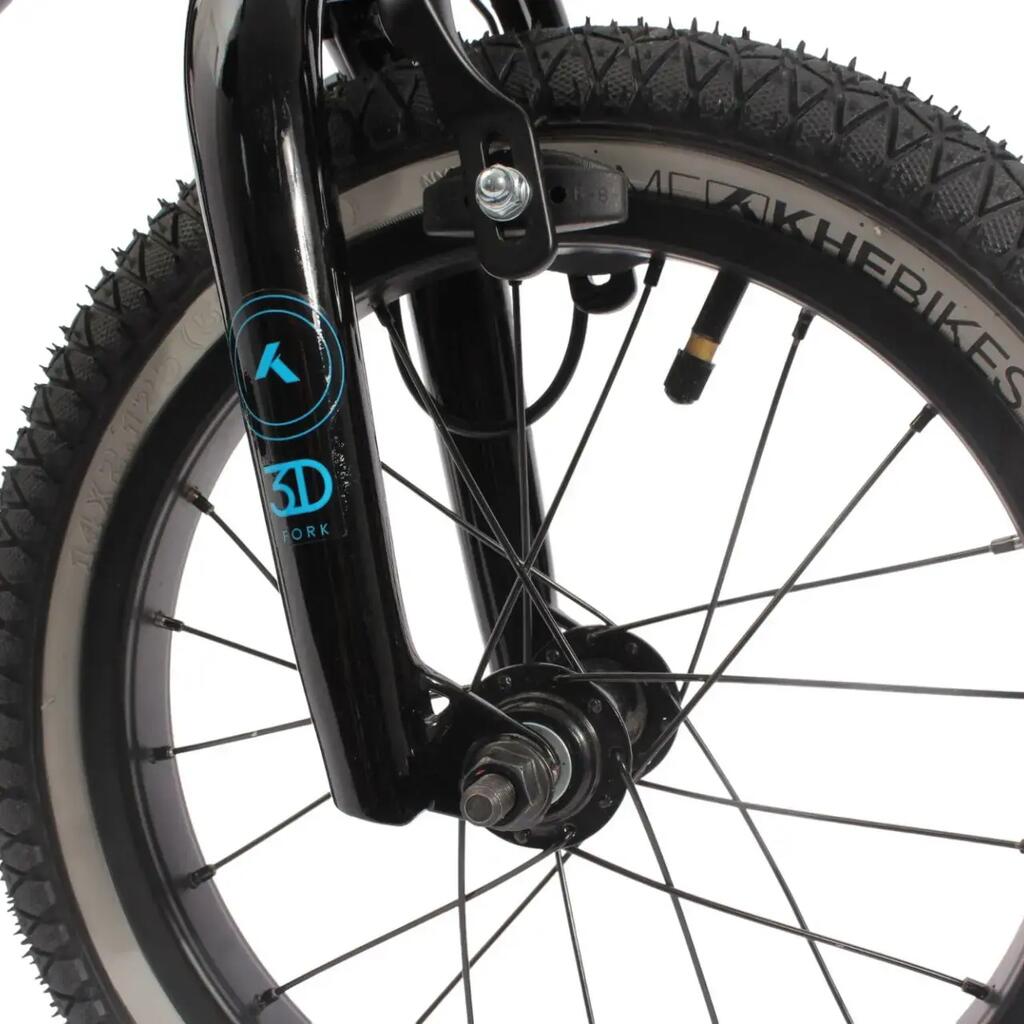

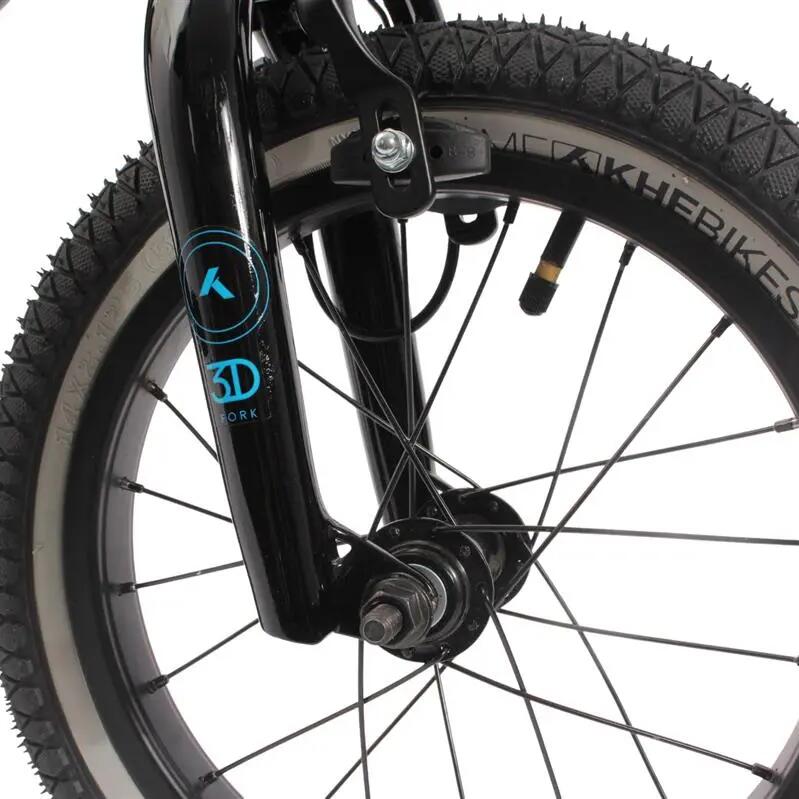

• 3D dropouts on the fork
• 10 mm frame dropouts
• FEIMIN PVC pedals with 9/16" axle

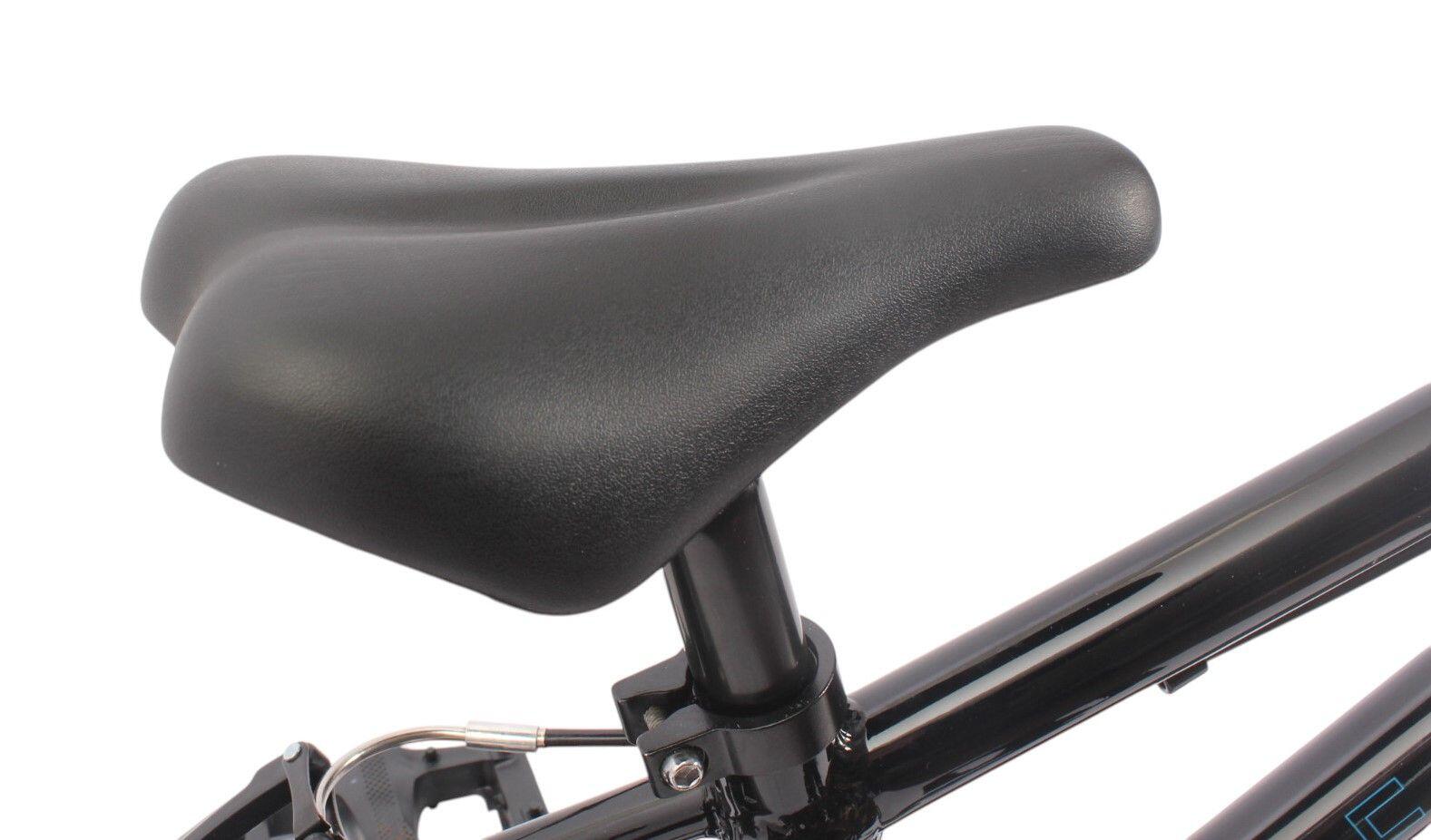

• Padded KHE saddle with integrated seat post
Technical Data
• Model: KHE EVO LL
• Model year: 2025
• Frame: KHE 6061 aluminium
• Fork: KHE 1020 HiTen steel with 3D dropouts
• Top tube: 14.7" (373 mm)
• Chainstay: 271 mm
• Head angle: 74 degrees
• Seat angle: 73 degrees
• Fork offset: 27 mm
• Handlebar: KHE aluminium, 585 mm wide × 165 mm (6.5") high
• Backsweep: 8 degrees
• Upsweep: 2.5 degrees

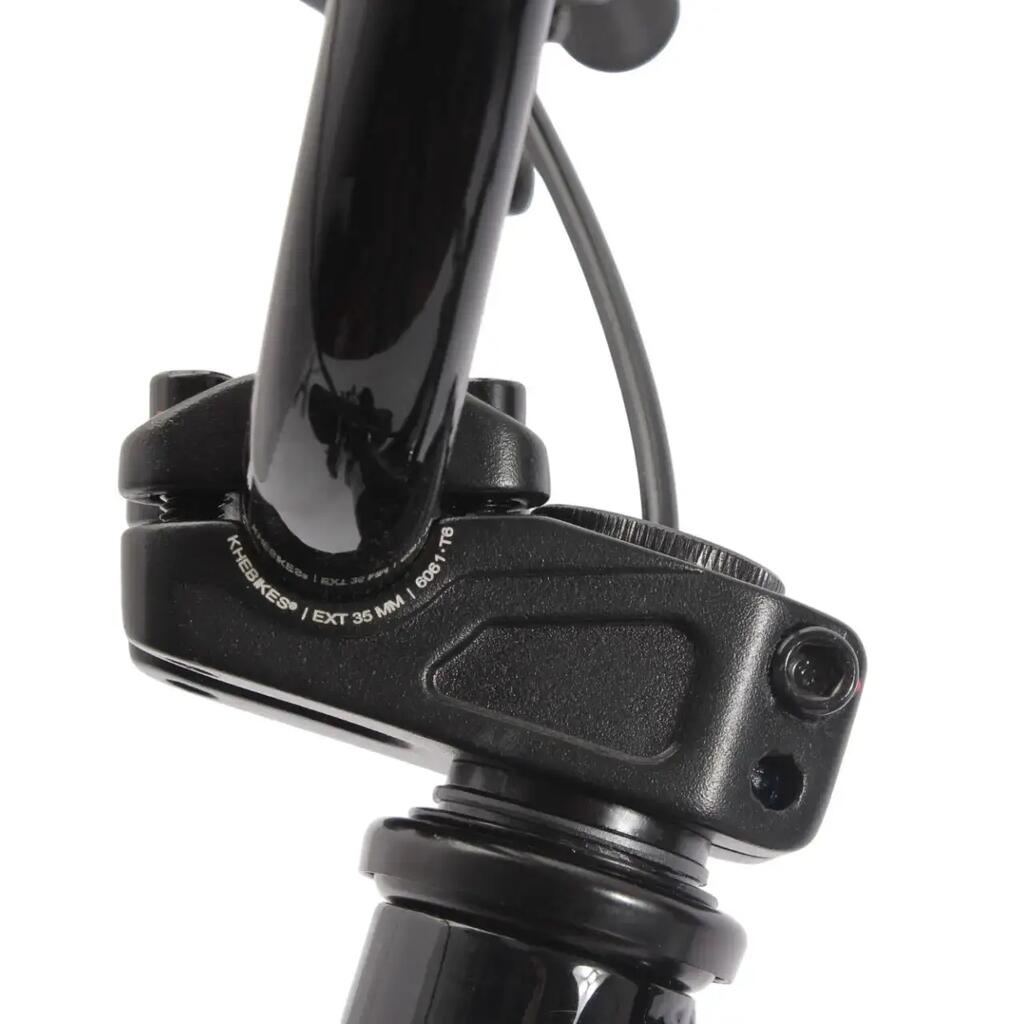

• Stem: KHE Top Loader, 40 mm
• Headset: Aheadset 38 × 34 mm, Loose Ball, 1 1/8"
• Crank: KHE 3-piece, forged aluminium, 110 mm
• Bottom bracket: EURO BB, sealed with industrial bearings, BC1.37" × 24T, 68 / 110 mm
• Chainring: 23T steel
• Chain: YBN CN ST 1/2 × 1/8"
• Front brake: Sidepull, pre-installed

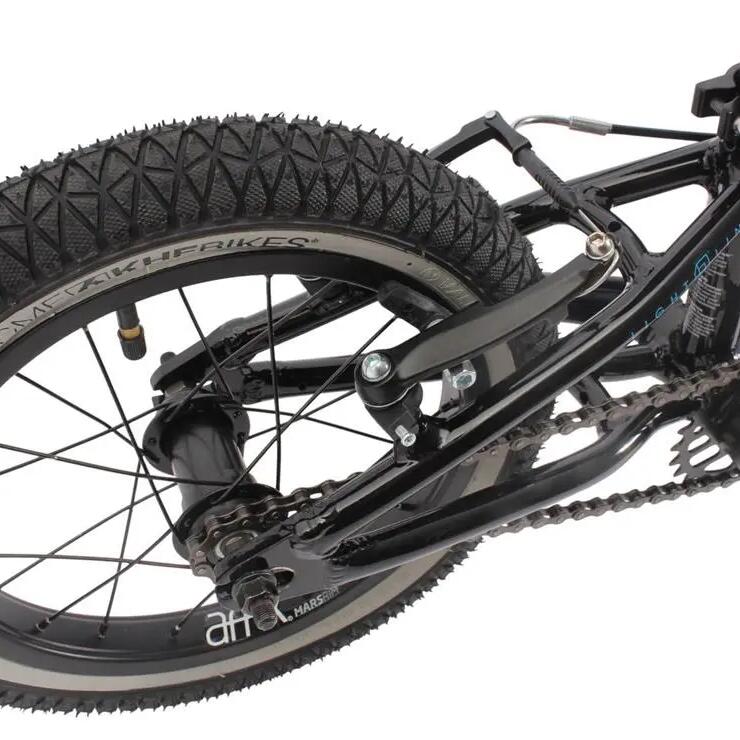

• Rear brake: 102 mm aluminium V-Brake
• Front hub: Steel, 10 × 155 mm axle, Loose Ball, 20H
• Rear hub: Steel, 10 × 170 mm axle, 9T cassette, 20H
• Hub type: Cassette
• Rims: 14" aluminium, 20 holes, 32.5 mm wide
• Tyres: KHE 14 × 2.125"
• Pedals: FEIMIN PVC, 9/16" axle

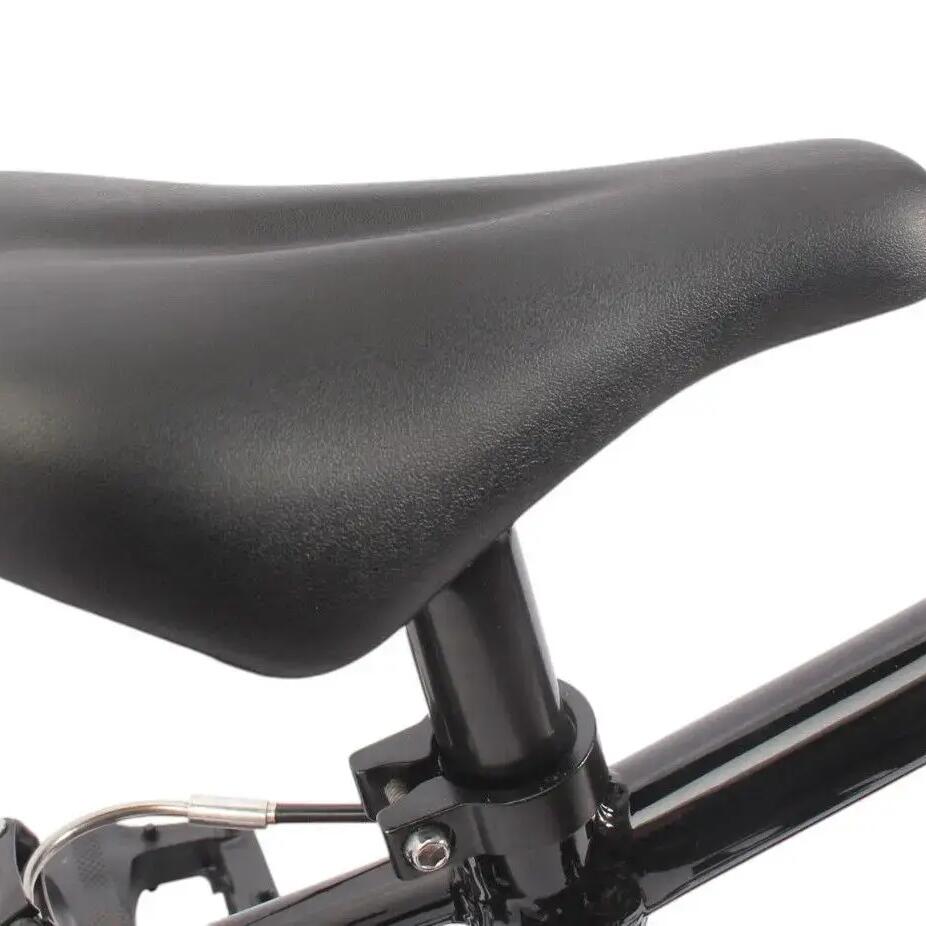

• Saddle: Padded, 210 × 120 mm
• Seat post: 27.2 × 220 mm, integrated with saddle
• Material: 6061 aluminium
• Colour: Black
• Weight: 7.5 kg without front brake
Suitable for:
• Rider height: 95–115 cm
• Maximum rider weight: 45 kg
• Use: Pumptrack / Street / Park / Race / Flatland
Why choose the KHE EVO LL from KHEbikes:
✓ Only 7.5 kg without front brake for easy handling
✓ Lightweight 6061 aluminium frame for young BMX riders
✓ Aluminium handlebar with compact 6.5" height
✓ Robust HiTen fork with 3D dropouts
✓ Forged 3-piece aluminium crank
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ Two brakes with rear V-Brake and front Sidepull brake
✓ Wide 2.125" tyres for good grip
Compatibility
• Front pegs: 10 mm
• Rear pegs: 10 mm
• Recommendation: KHE COP ALU Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Brake system: The KHE EVO LL is supplied with a pre-installed Sidepull brake at the front and a 102 mm aluminium V-Brake at the rear.
Weight information: The stated weight of 7.5 kg refers to the BMX without the front brake.
