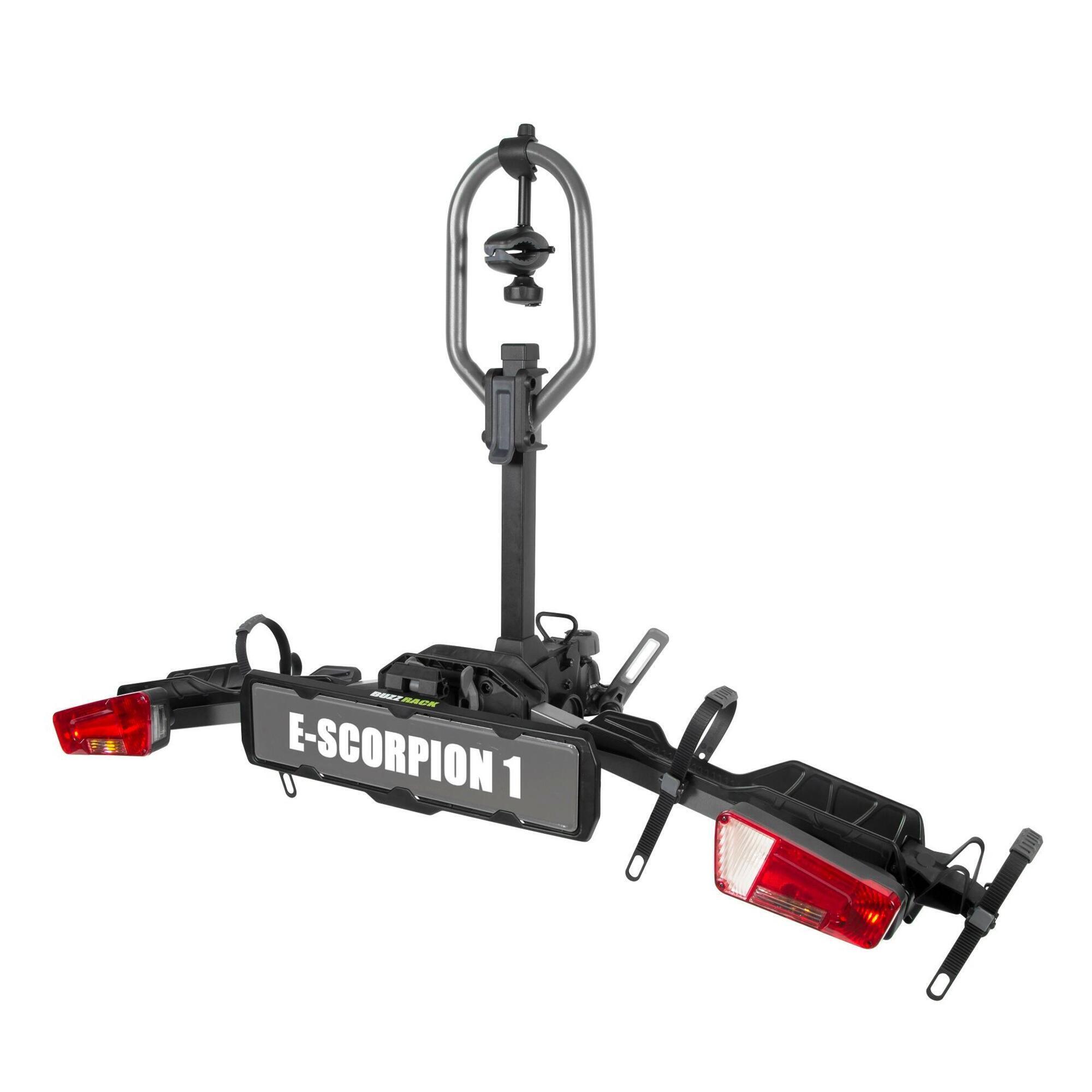

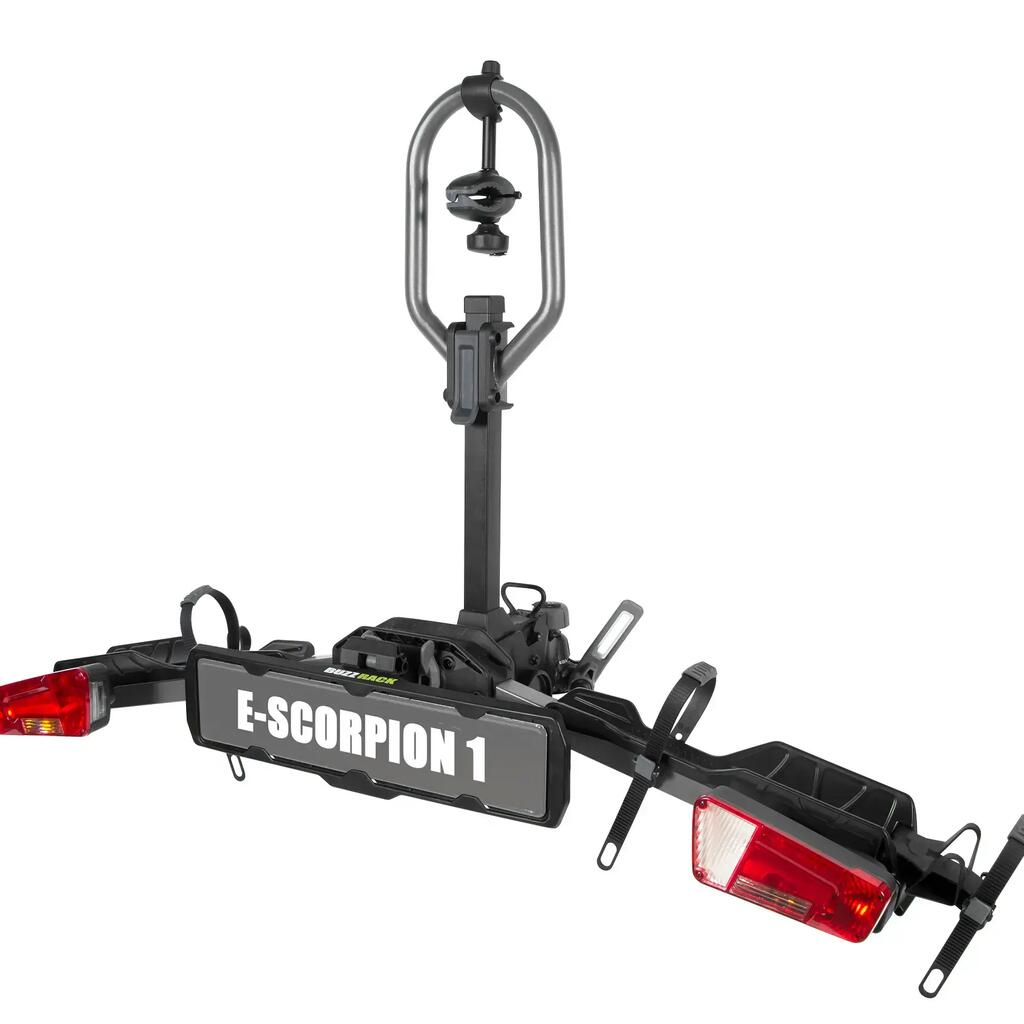

E-Scorpion 1 Towbar Bike Rack – Folding Platform for 1 E-Bike

Product Description

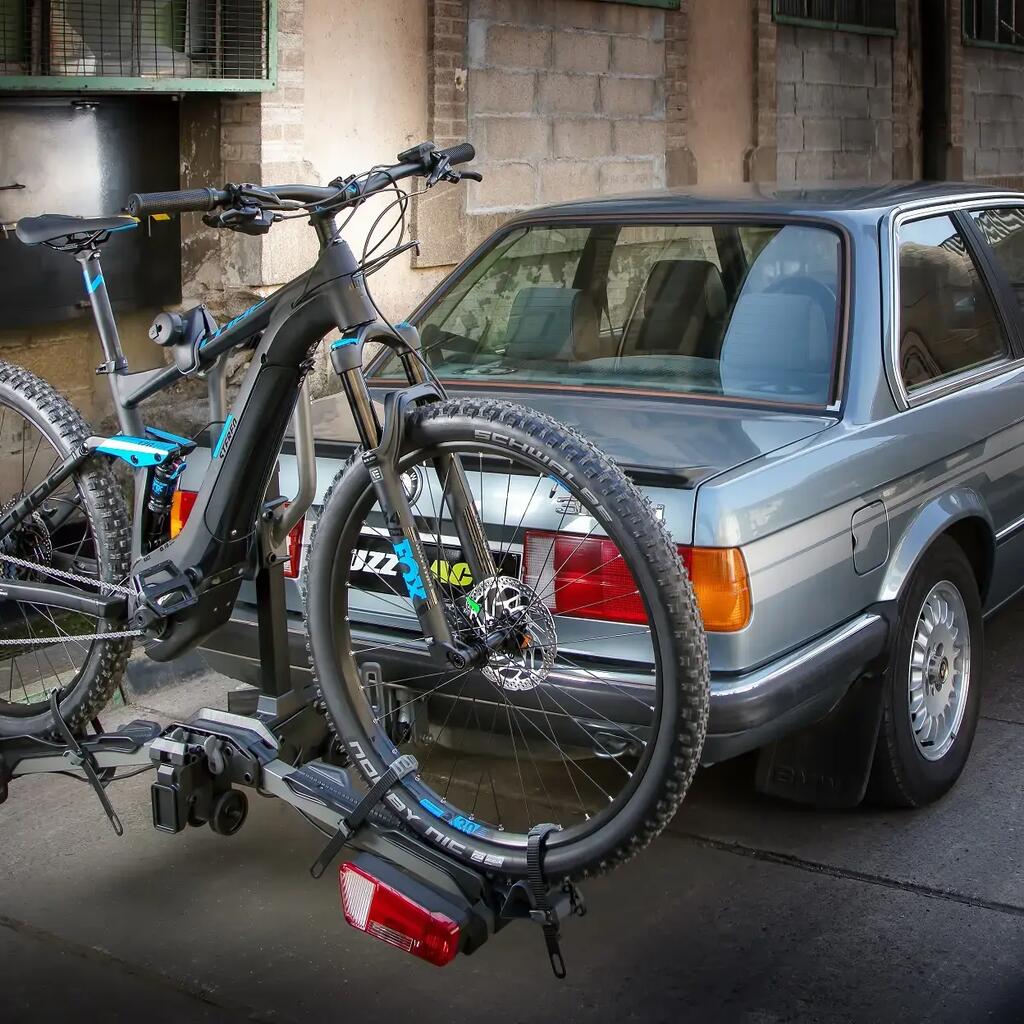

The E-Scorpion 1 is the perfect product for all electric bikes (even the largest ones), but it’s also ideal for any large or heavy bike. Easy to use and ultra-compact when folded. You don’t need to carry it – you can roll it using the integrated wheels. Its anti-corrosion treatment and high-quality welds ensure exceptional durability. Delivered fully assembled – simply attach the lights and it’s ready to use.
This model comes exclusively with the antisway system for perfect front wheel stability during travel.

FEATURES:

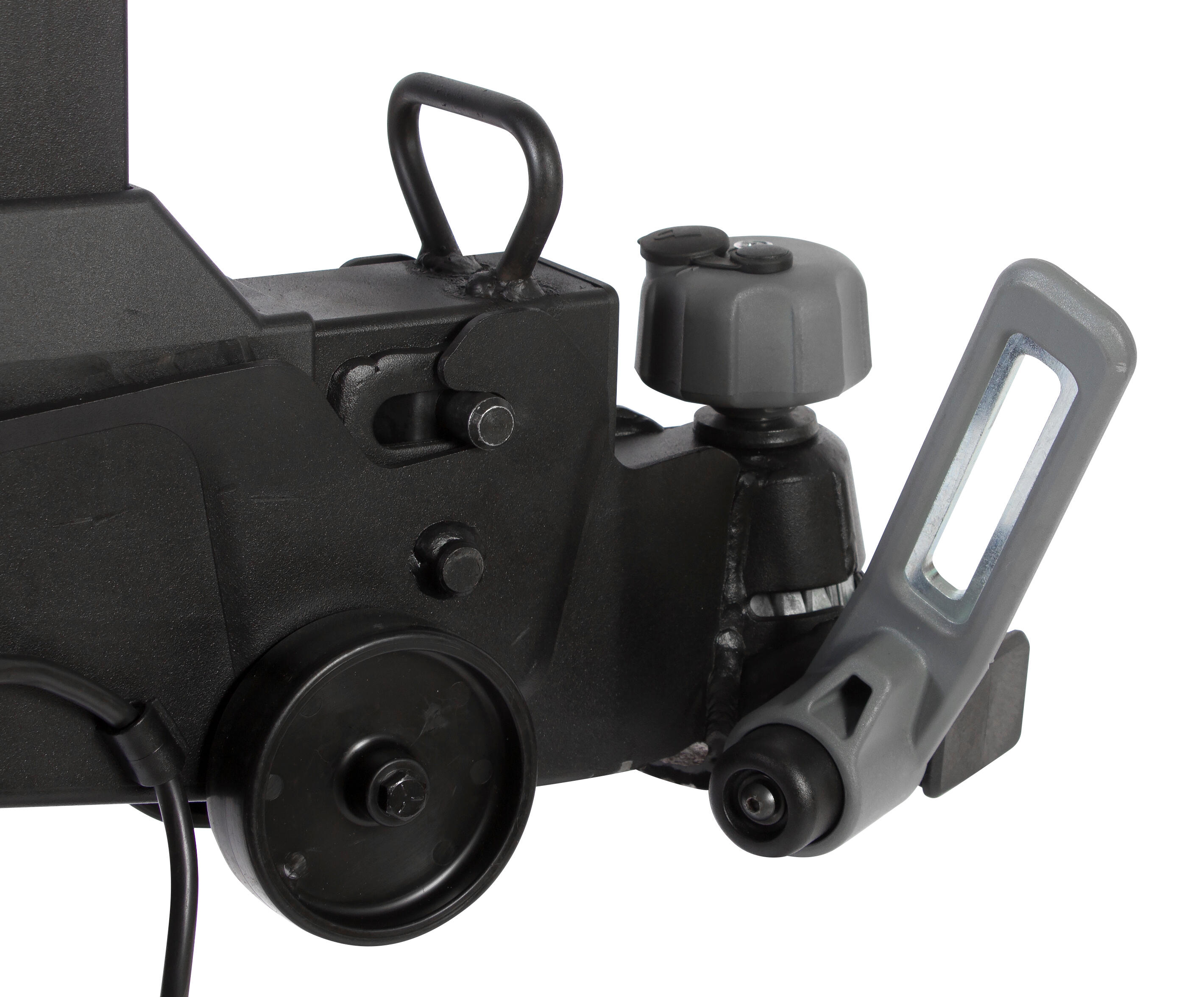

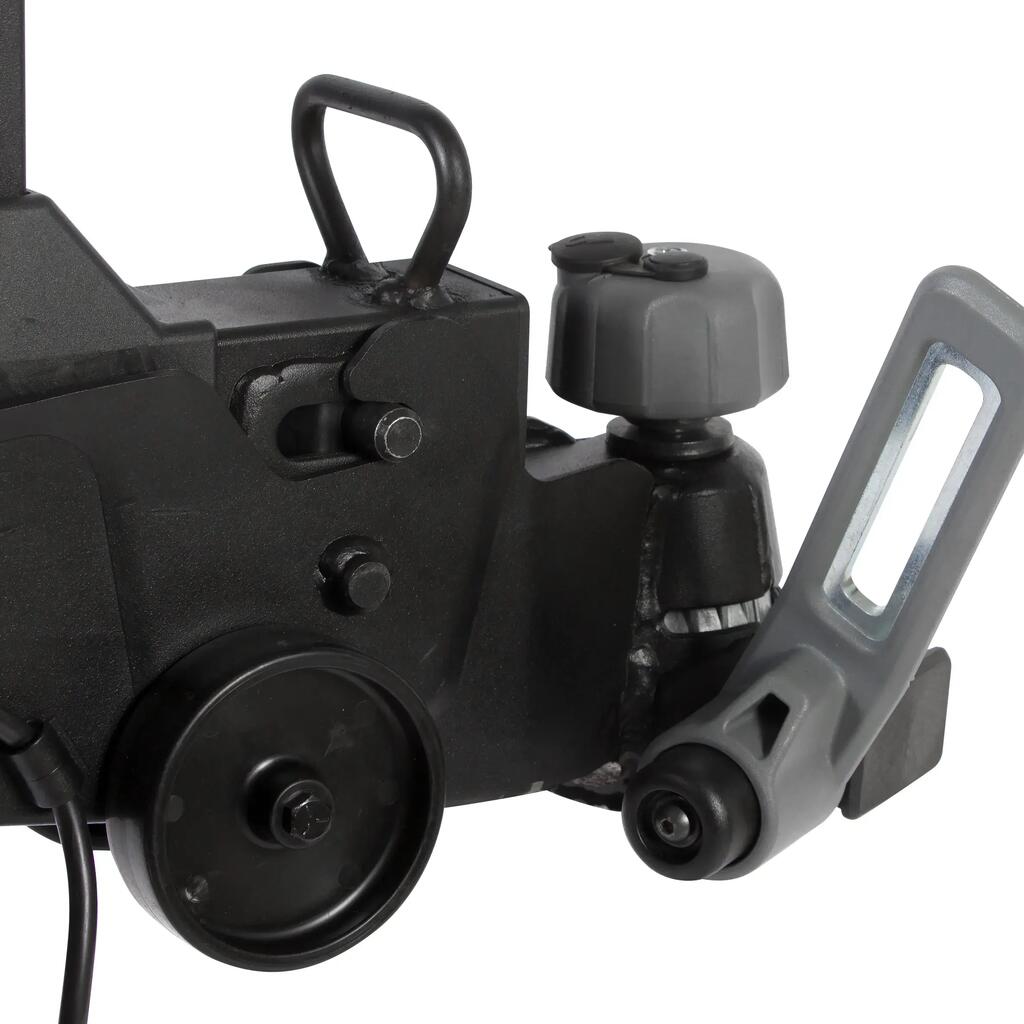

• Tow ball attachment:
  The patented conical fixing system fits all 50 mm tow balls. Simple, fast, and secure.
  The system can be locked and secured with a locking button.
  This system is one of the few that meets the highest safety standards.

• Wheel supports:
  Wheel supports fit all wheelbases, even very small children’s bikes.
  Secured with a locking button.

• Adjustable frame arm:
  Telescopic height-adjustable arm compatible with all bikes and E-Bikes.

• Lights:
  Equipped with 6-function lights and a 13-pin plug.

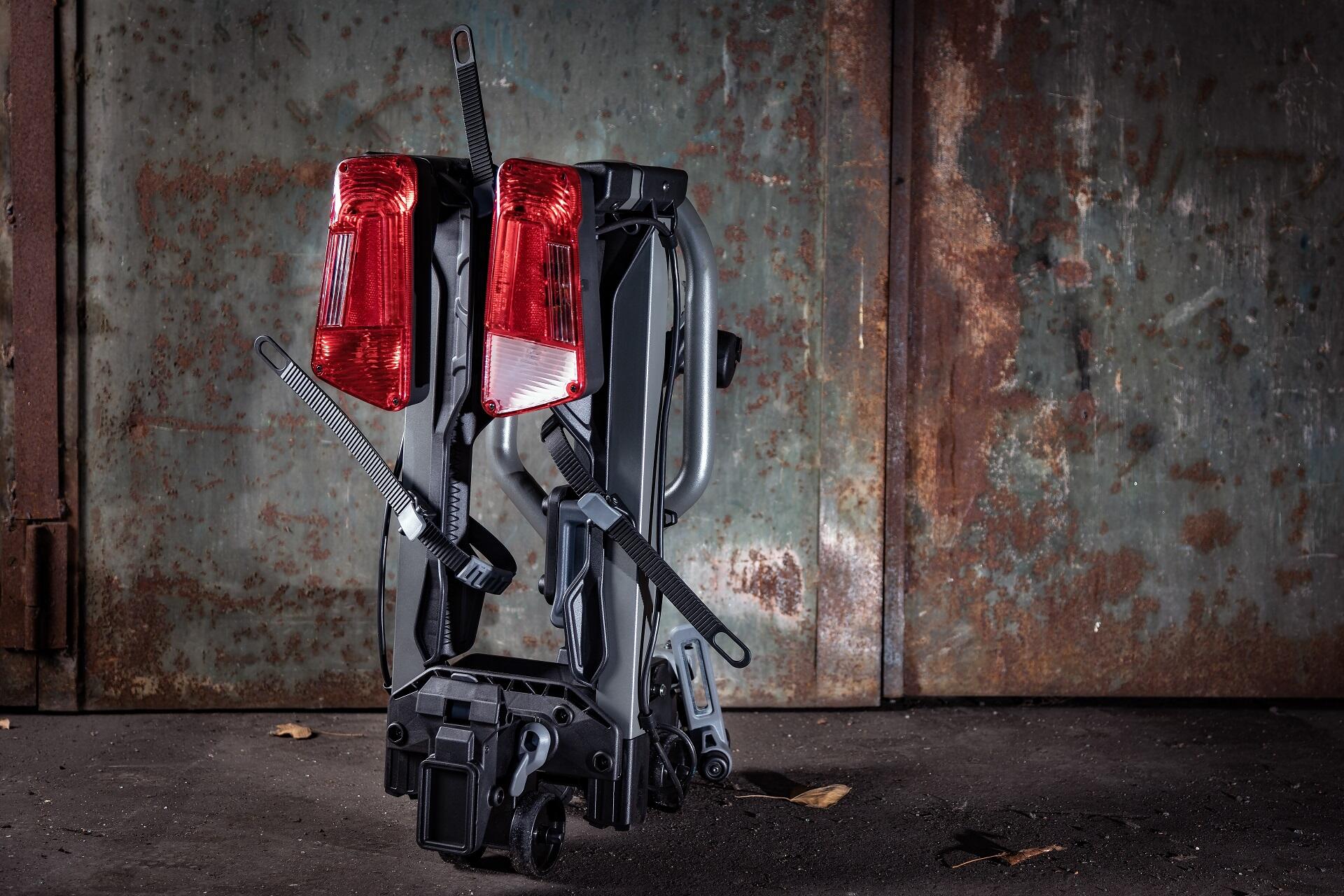

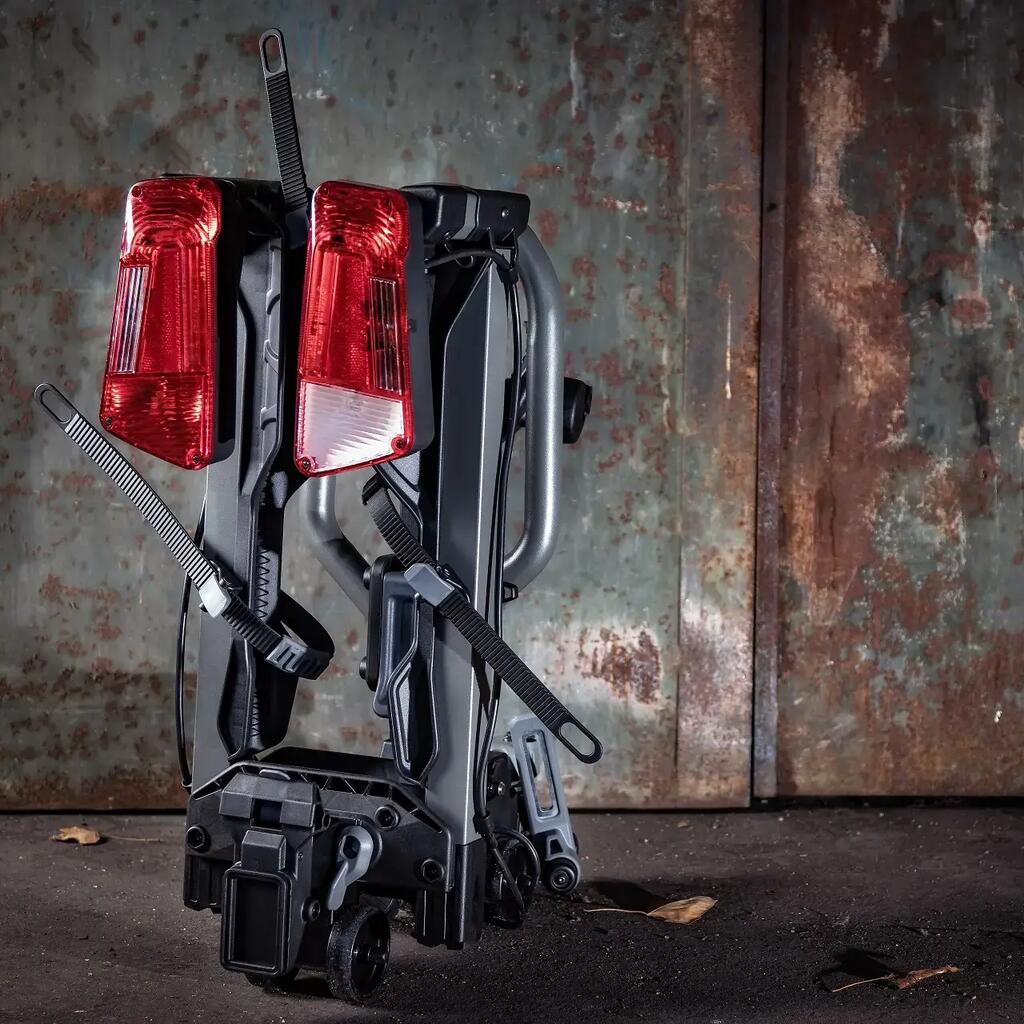

• Storage:
  The rails fold down to minimize storage space. No need to lift – you can roll it thanks to integrated wheels.

• Easy tilt:
  With its handle located at the front of the rack, it’s easy to tilt and access the car boot.

DETAILS:
Max number of bikes: 1
Towball compatible: yes
Compatible with swan neck / detachable ball: yes
Dimensions (width x depth): 109 x 44 cm
(measured from the centre of the towball to the outer edge of the number plate holder)
Folded size: 24 x 44 cm
Weight: 13.5 kg
Max load: 30 kg
Max weight per bike: 30 kg
Max bike size: up to 119 cm wheelbase in 29’’
Max frame diameter: Ø 75 mm
Max tyre width: 3.25"
Tilting: yes
Anti-corrosion protection: yes
Integrated light board: yes
Light plug type: 13-pin
Towball lock: yes
Bike lock: yes
Standards: XP R-18 904-4

The maximum load you can carry also depends on the towbar’s nose weight; ensure it’s not exceeded before use.
Requires 65 mm clearance between the towball centre and the rear of the vehicle.
Does not allow boot opening for van-type vehicles (VW Transporter, Citroën Berlingo, Peugeot Partner, Renault Master, ...).
