BMX bike aluminium kids RAVISHER LL turquoise 18 inch 19.0 lbs

Product Description

KHE RAVISHER LL 18" BMX 2025 with Aluminium Frame

The KHE RAVISHER LL 18" is an exceptionally lightweight BMX for young riders and is suitable for Park, Street and Pumptrack. The 6061-T6 aluminium frame with an 18" top tube and the lightweight aluminium handlebar provide agile and controlled handling at only 8.6 kg. The KHE fork with 3D dropouts increases stability, while the patented KHE AFFIX rotor system allows 360-degree handlebar rotations. Forged aluminium cranks, double-wall rims and industrial-bearing hubs complete the high-quality setup.

Equipment

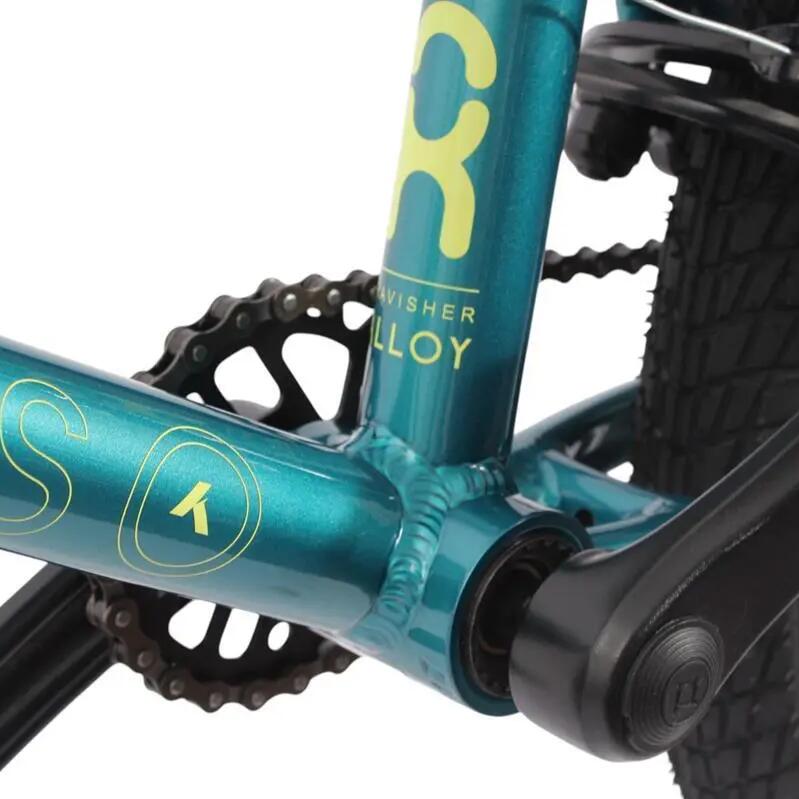

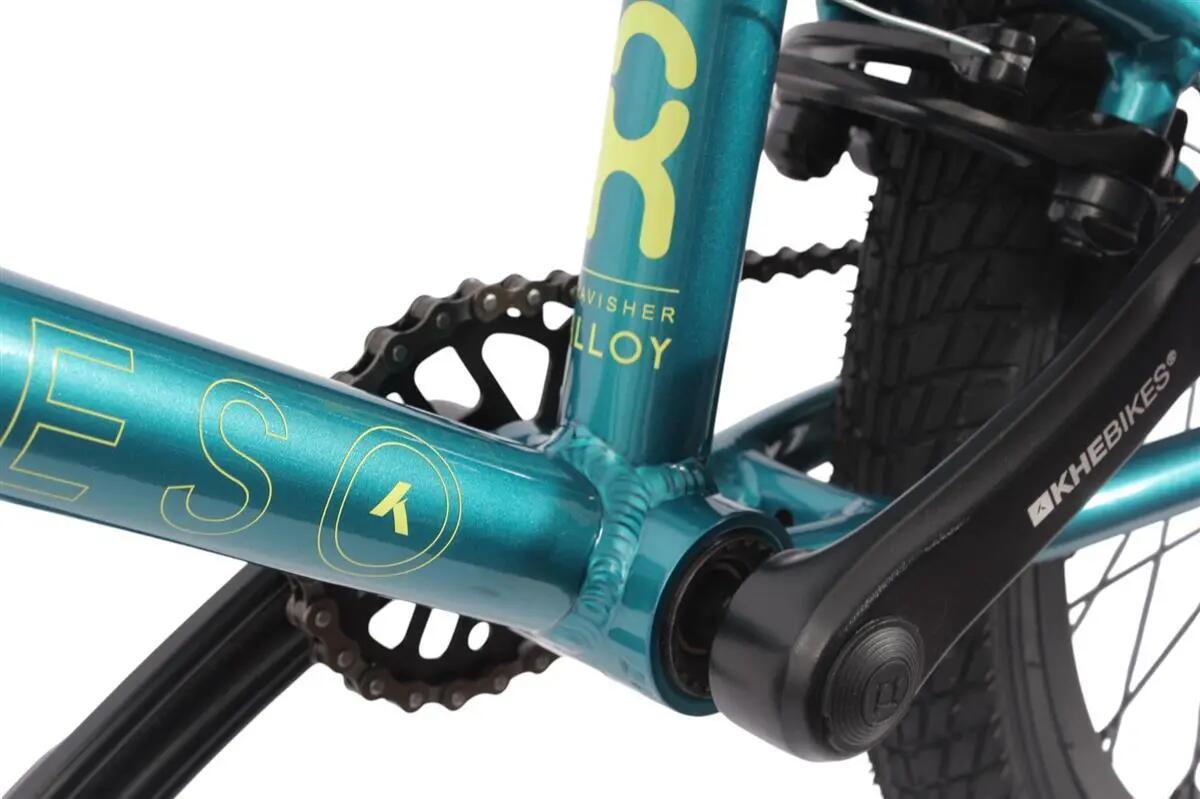

Drivetrain: • 3-piece 152 mm aluminium crank • 23T steel chainring • YBN CN ST chain • 9T cassette hub • Freewheel

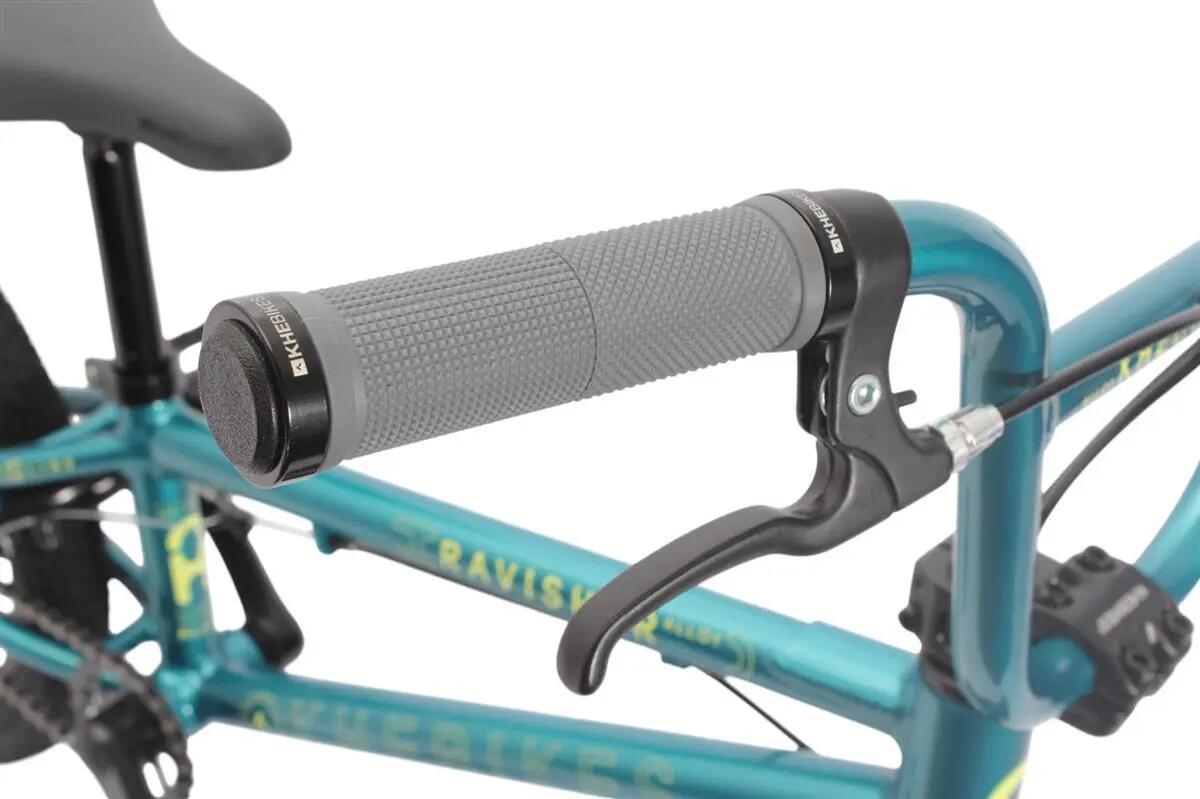

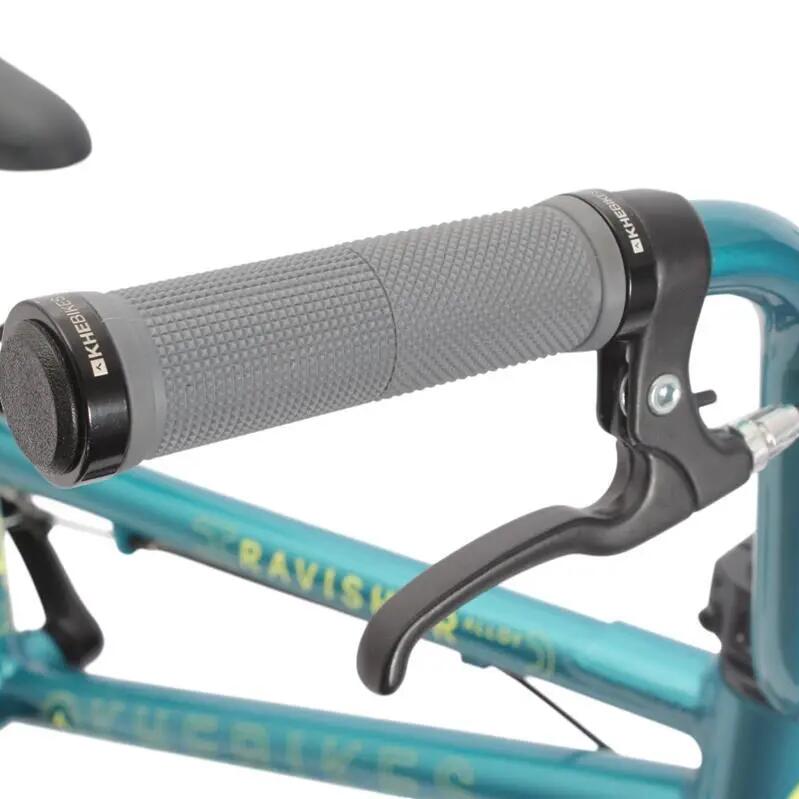

Cockpit: • KHE aluminium handlebar, 7.9" high • 640 mm handlebar width • KHE Top Loader stem (40 mm) • KHE AFFIX rotor for 360-degree handlebar rotations • Aluminium brake lever with adjustment screw

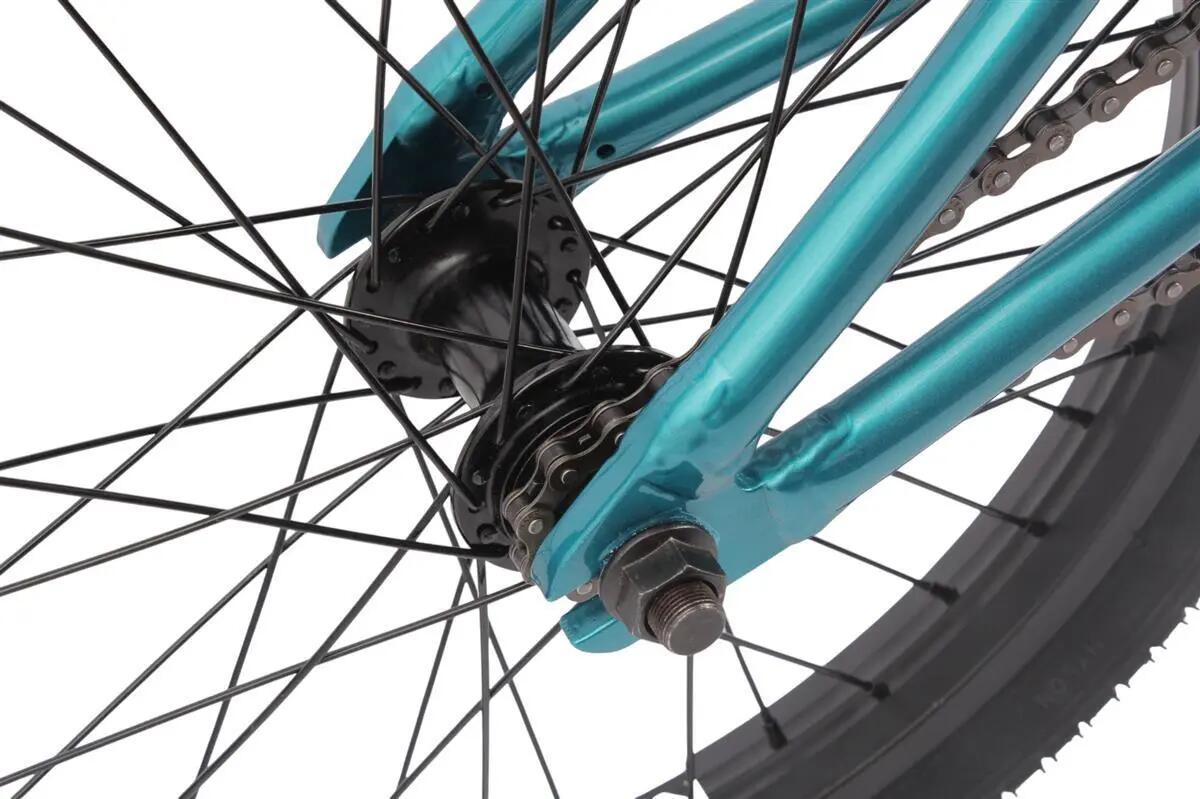

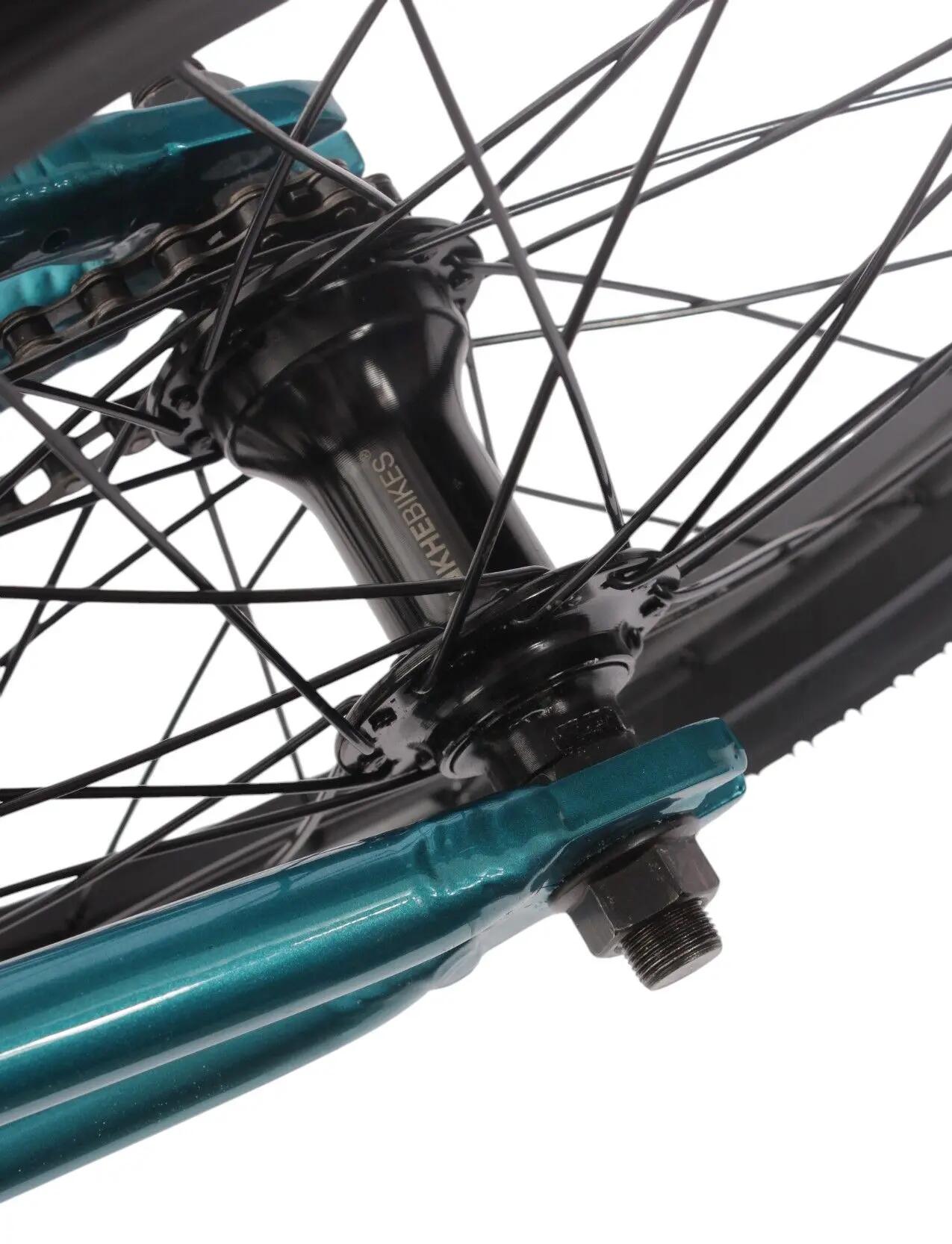

Brakes & Wheels: • KHE RADIUS aluminium U-Brake rear • Sidepull brake front • KHE DD 18" double-wall aluminium rims • Industrial-bearing hubs front and rear • KHE ACME tyres 18 × 2.125" • 10 mm front axle • 14 mm rear axle

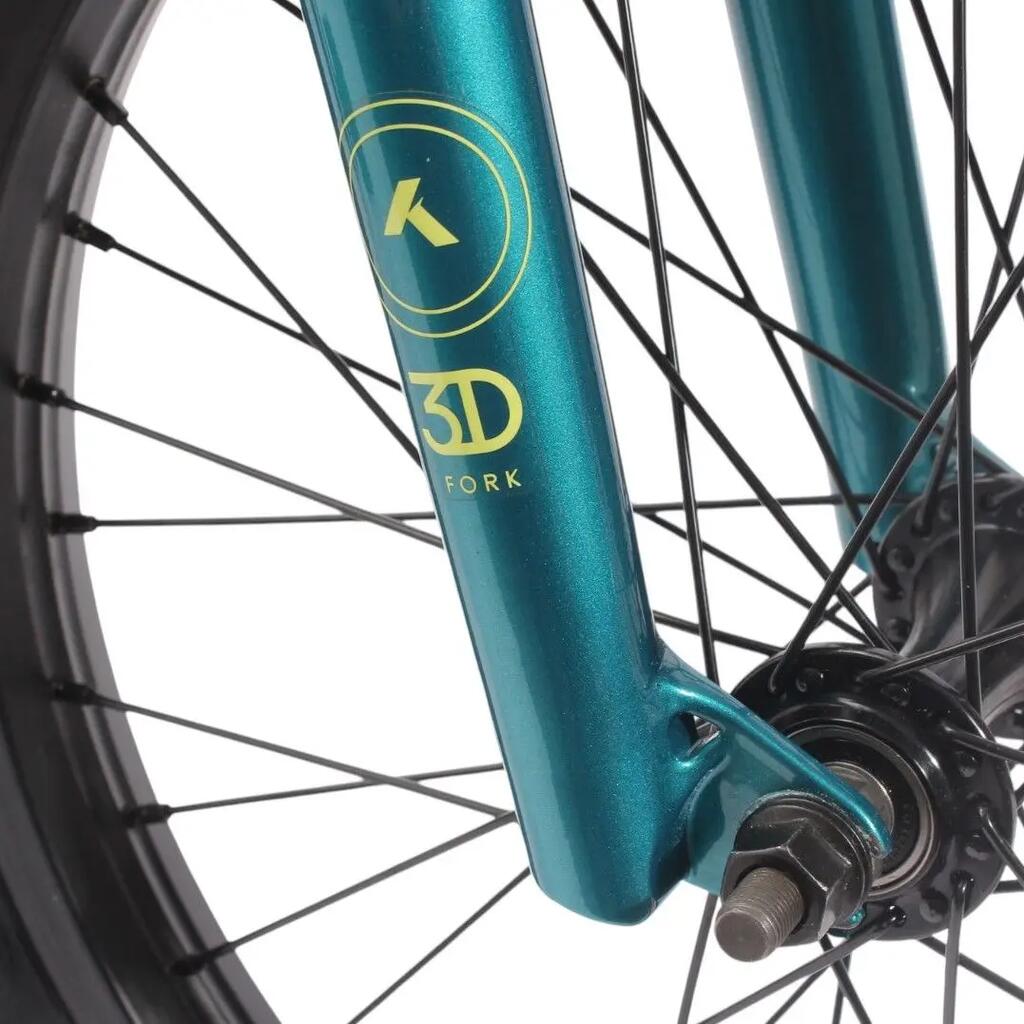

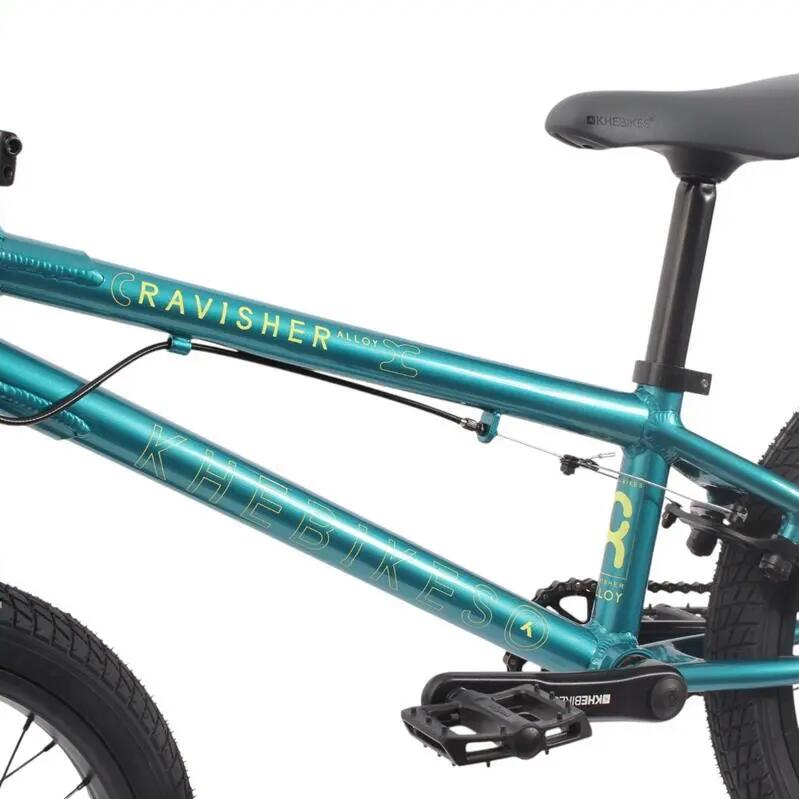

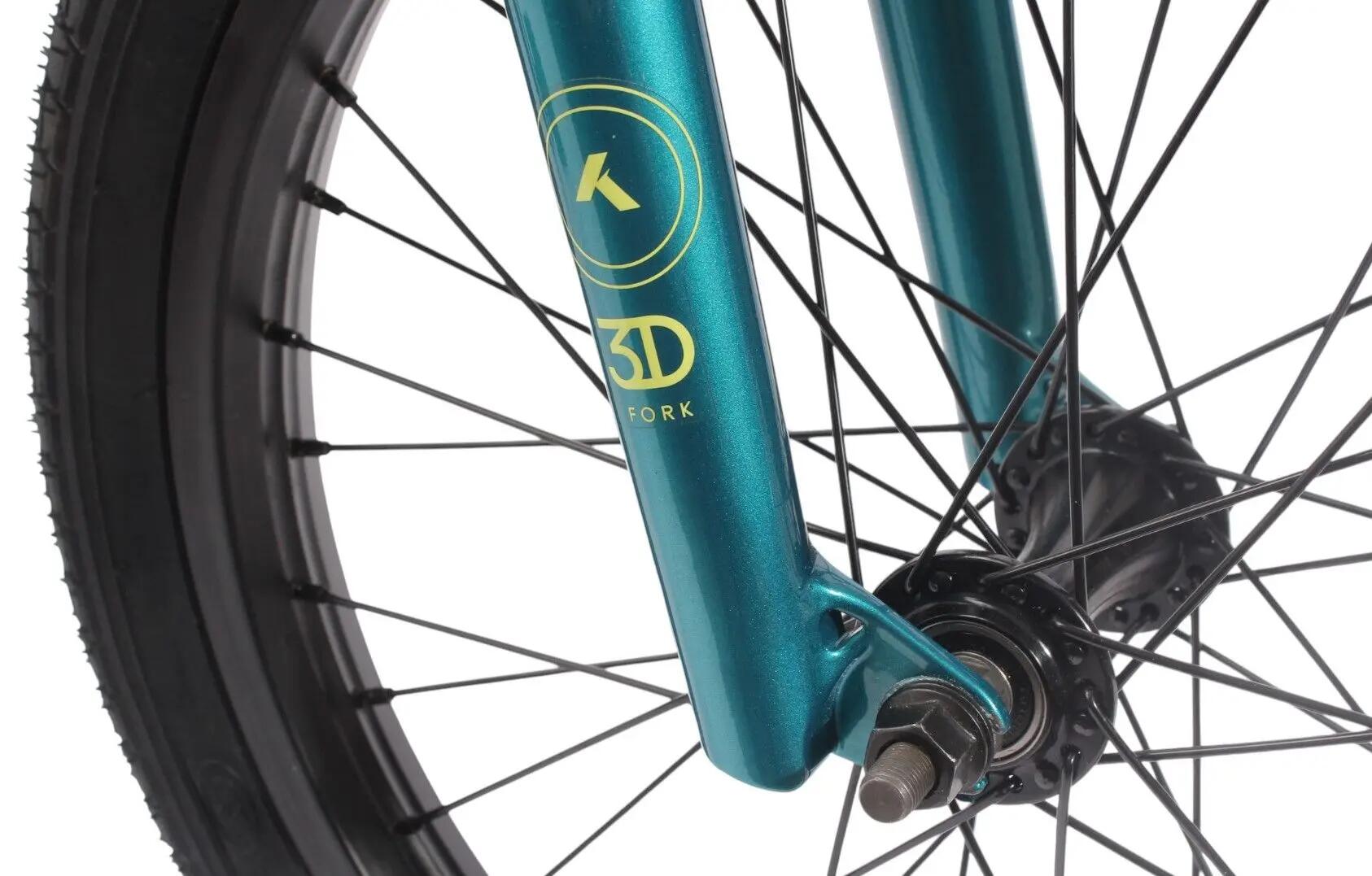

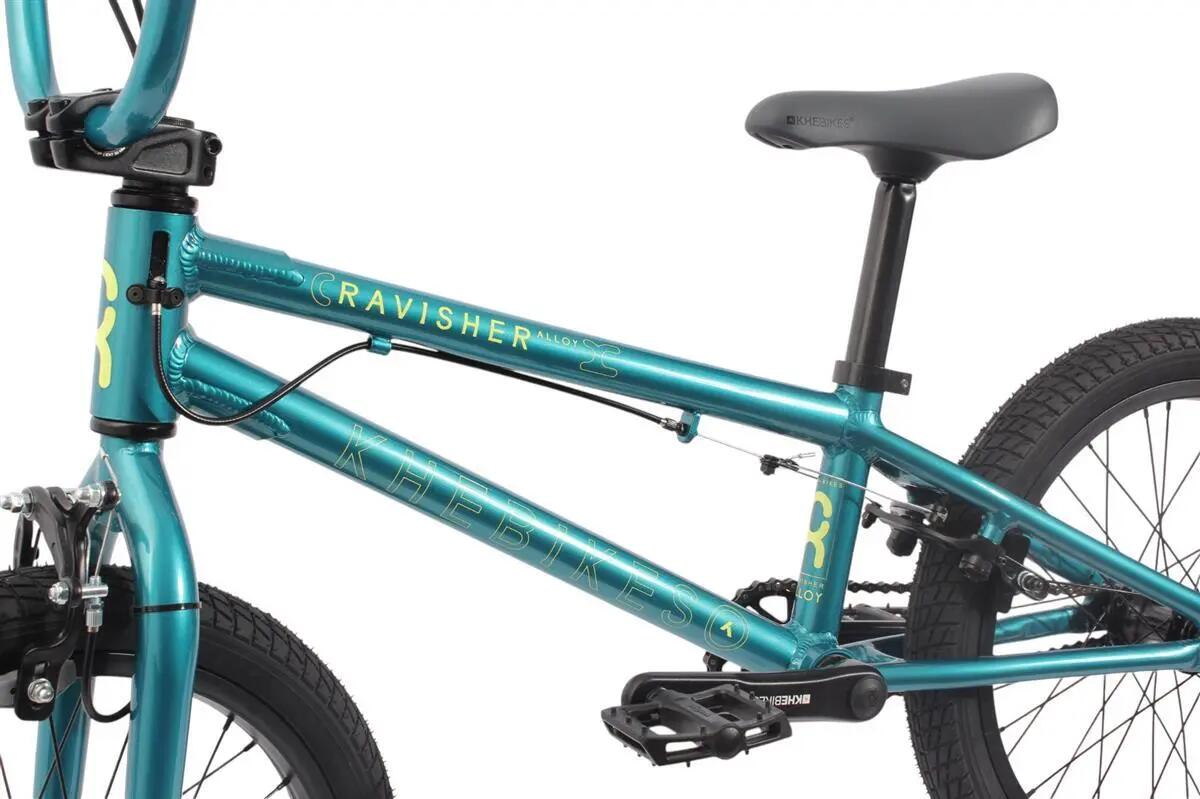

Frame & Components: • Lightweight 6061-T6 aluminium frame • KHE 1020 HiTen steel fork • 3D dropouts on the fork • Adjustable padded saddle with rails • 27.2 × 250 mm seat post

Technical Data

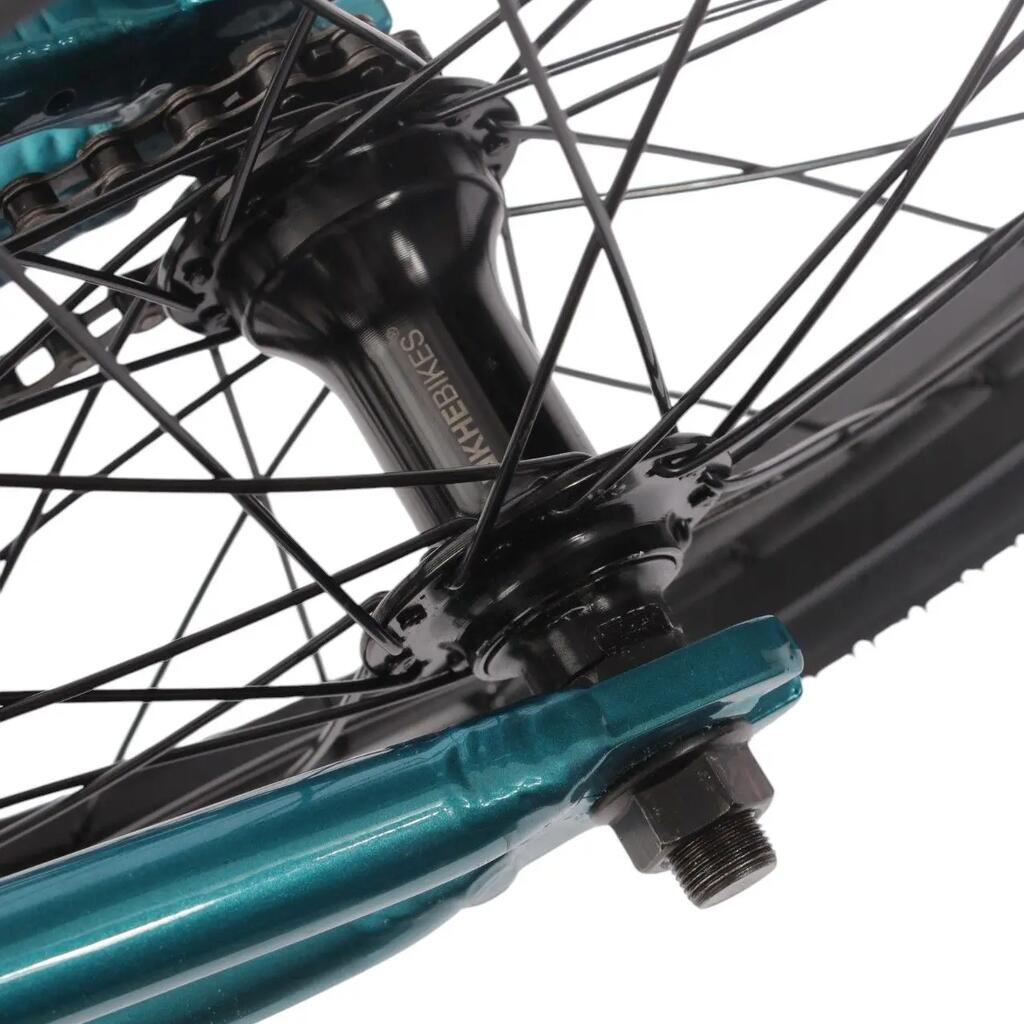

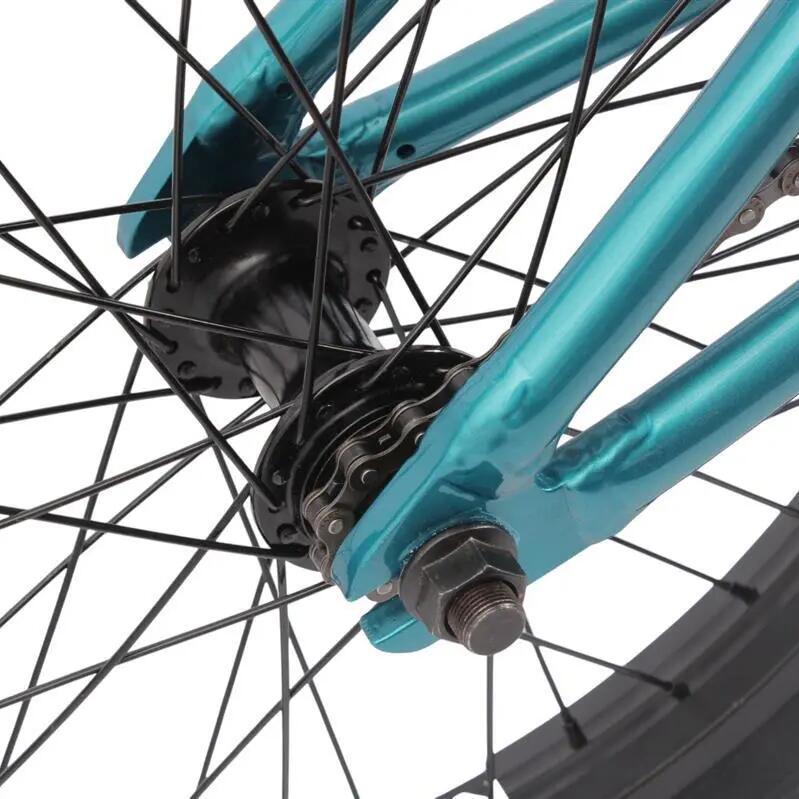

• Model: KHE RAVISHER LL • Model year: 2025 • Frame: Aluminium • Fork: KHE 1020 HiTen steel with 3D dropouts • Top tube: 18" (457 mm) • Chainstay: 311 mm • Head angle: 75 degrees • Fork offset: 27 mm • Handlebar: KHE aluminium, 640 mm wide × 200 mm (7.9") high • Backsweep: 10 degrees • Upsweep: 1 degree • Stem: KHE Top Loader, 40 mm • Headset: AFFIX Loose Ball 1 1/8" • Rotor: Patented KHE AFFIX 360-degree rotor • Crank: KHE 3-piece, forged aluminium, 152 mm • Chainring: 23T steel • Chain: YBN CN ST 1/2 × 1/8" • Front brake: Sidepull • Rear brake: KHE RADIUS aluminium U-Brake • Front hub: Aluminium, 10 × 155 mm axle, industrial bearings • Rear hub: Aluminium, 14 × 170 mm axle, industrial bearings, 9T cassette, 36 holes • Hub type: Freewheel • Rims: KHE DD 18" double-wall aluminium, 36 holes • Tyres: KHE ACME 18 × 2.125" • Saddle: Padded, 210 × 140 mm, adjustable • Seat post: 27.2 × 250 mm • Material: 6061 T6 aluminium • Colour: Turquoise • Weight: 8.6 kg

Suitable for:

• Rider height: 125–145 cm • Maximum rider weight: 75 kg • Use: Park / Street / Pumptrack

Why choose the KHE RAVISHER LL from KHEbikes:

✓ Only 8.6 kg total weight for light and agile handling ✓ Lightweight 6061-T6 aluminium frame with compact 18" geometry ✓ Aluminium handlebar for additional weight reduction ✓ Patented KHE AFFIX rotor system for 360-degree handlebar rotations ✓ Stable KHE fork with 3D dropouts ✓ Forged 3-piece aluminium crank ✓ Industrial-bearing front and rear hubs ✓ Robust KHE DD double-wall aluminium rims

Compatibility

• Front pegs: 10 mm • Rear pegs: 14 mm • Recommendation: KHE COP Aluminium Pegs

Delivery & Notes

Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.

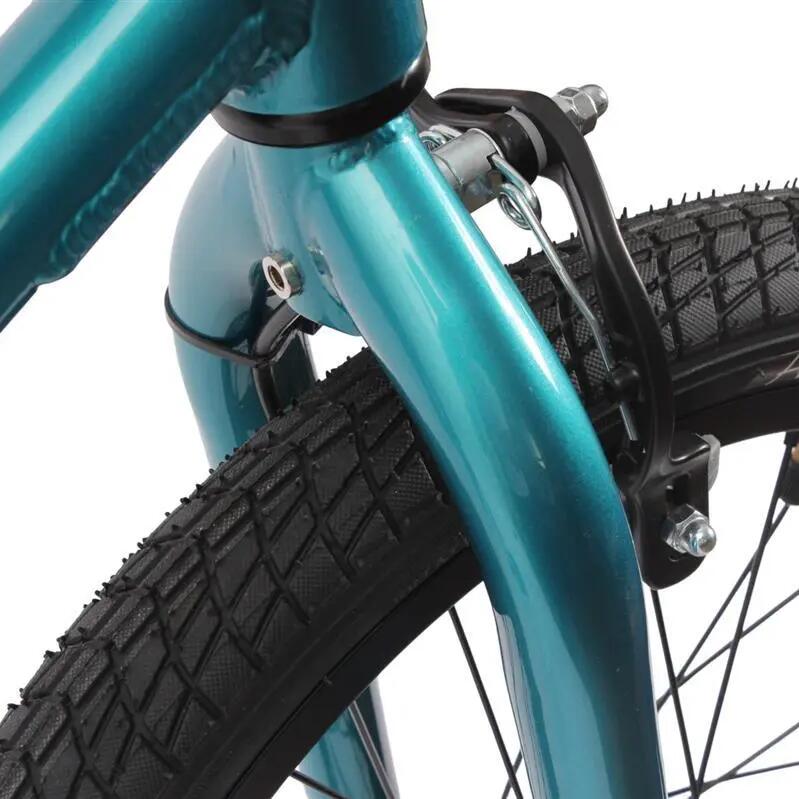

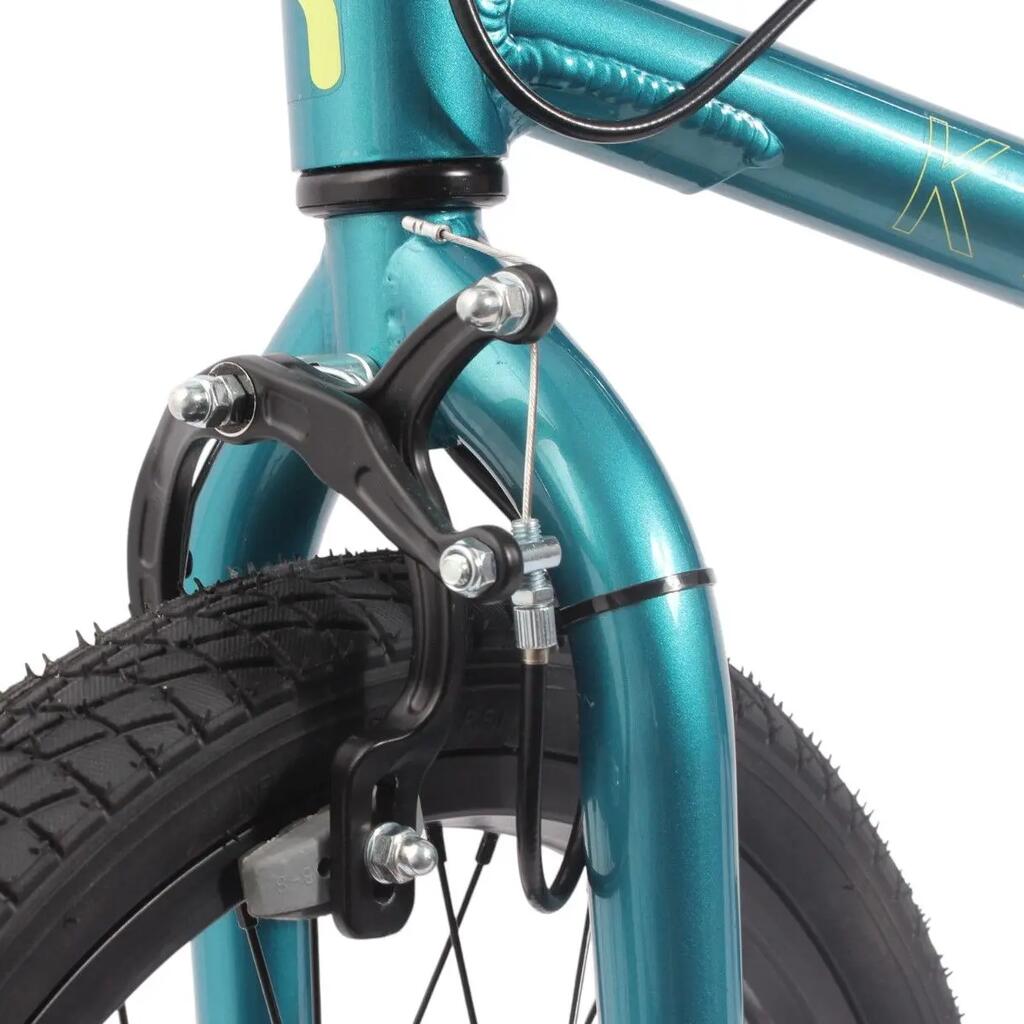

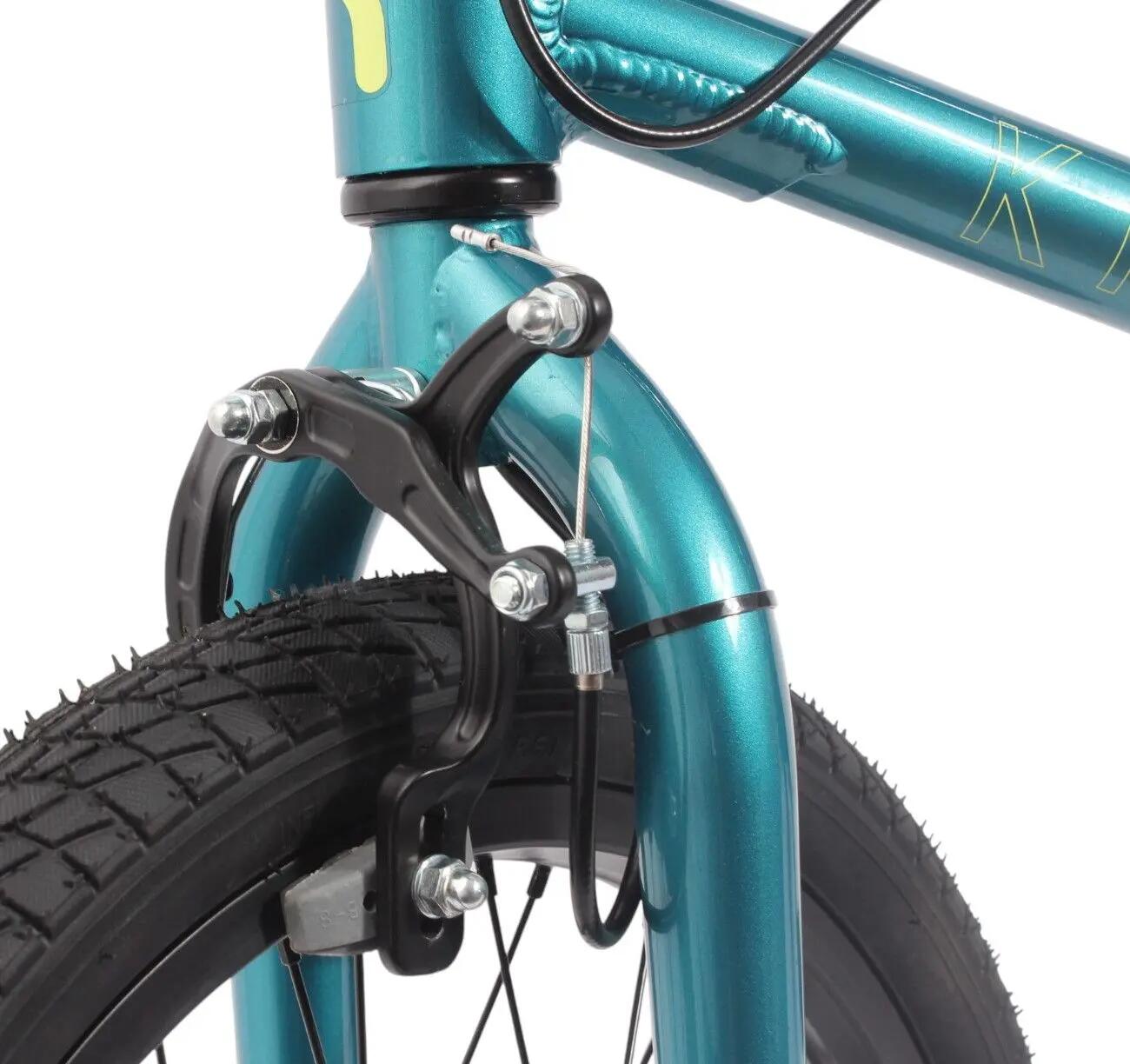

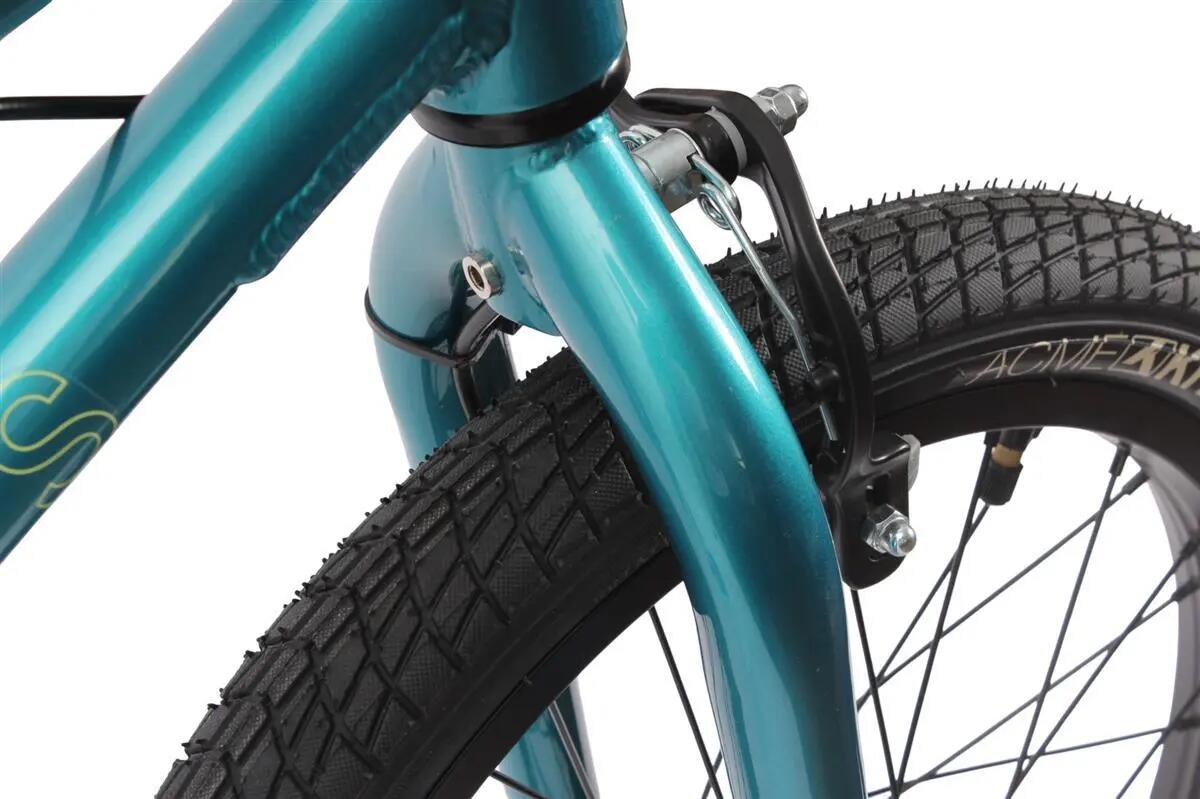

Brake system: The KHE RAVISHER LL is supplied with a KHE RADIUS aluminium U-Brake at the rear and a pre-installed Sidepull brake at the front.
