Product Description

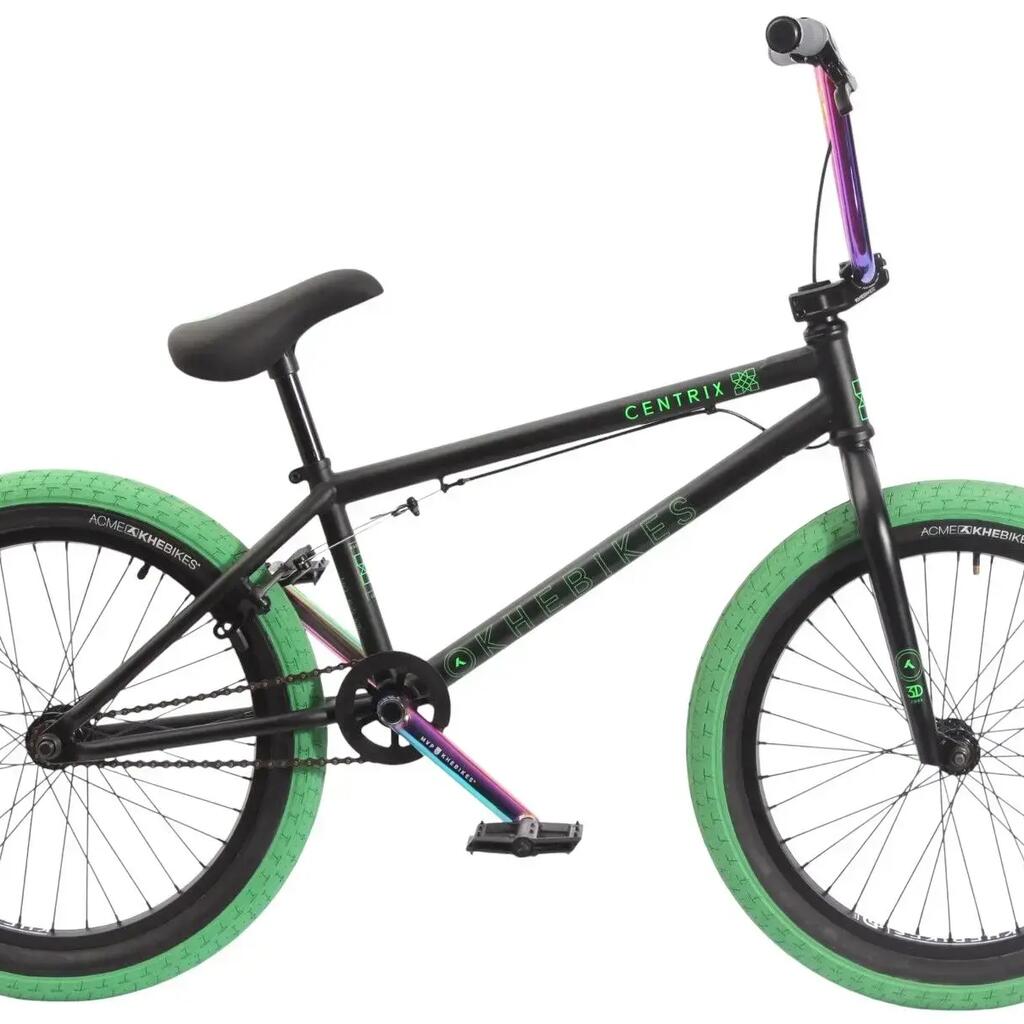

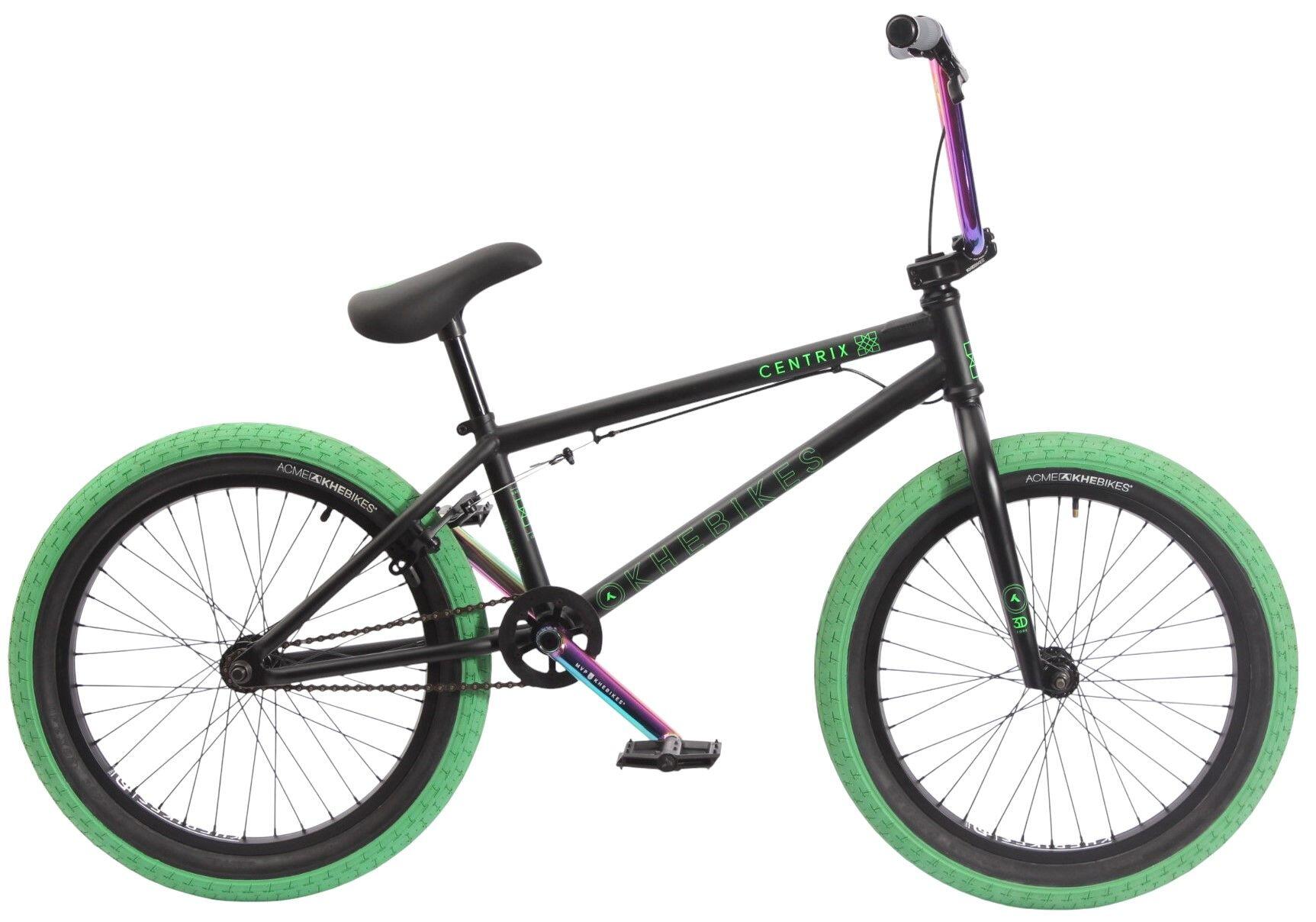

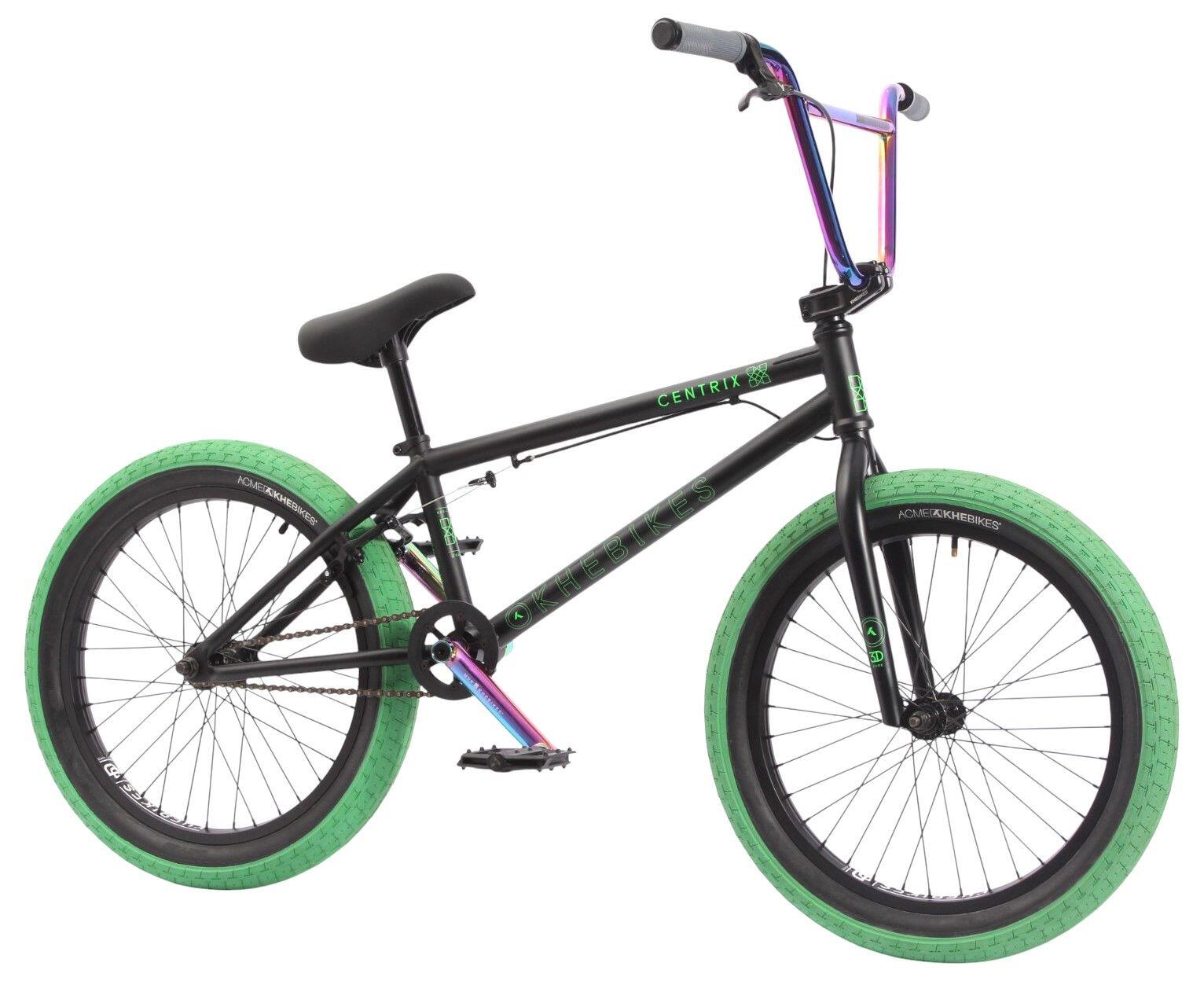

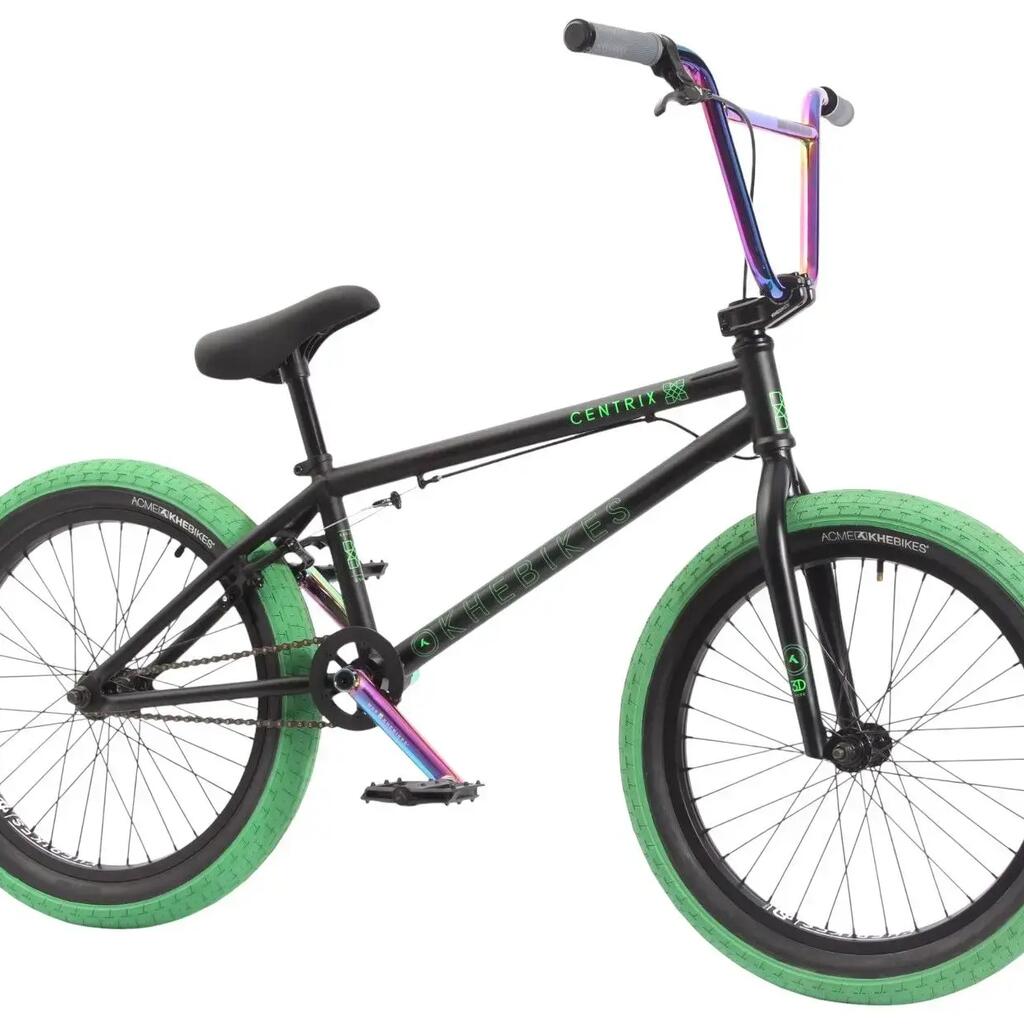

KHE CENTRIX 20" BMX Freestyle Bike 2025 – Oil Slick
The KHE CENTRIX 20" is a versatile BMX for Street, Park and Pumptrack. The strong HiTen steel frame with a 20.75" top tube, 3D dropouts and integrated headset offers balanced geometry for beginners and advanced riders. At only 10.6 kg, with the patented KHE AFFIX rotor system and striking Oil Slick components, the CENTRIX combines controlled handling with high-quality Freestyle equipment.
Equipment

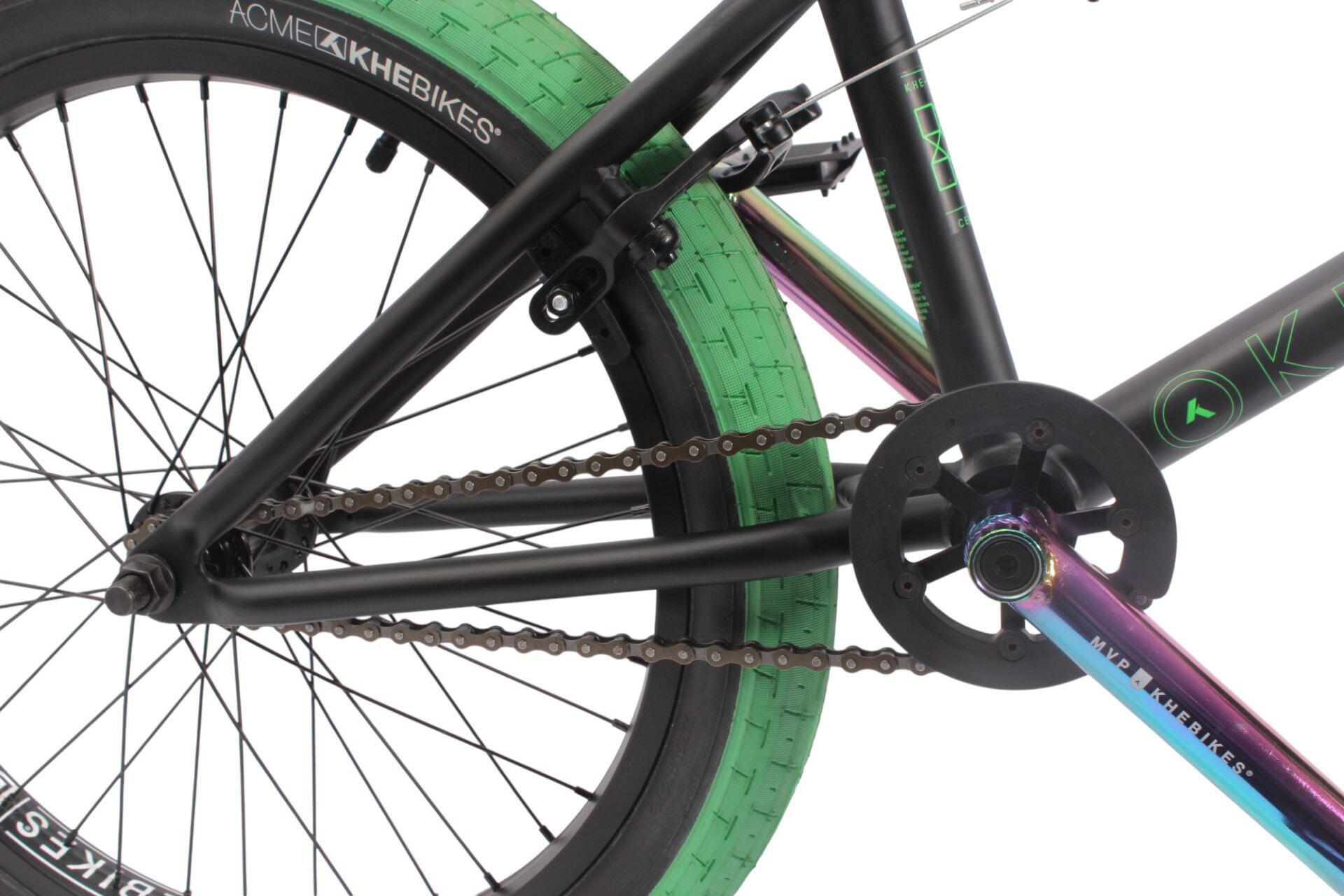

Drivetrain:
• 3-piece 170 mm CrMo hollow crank
• 25T steel chainring with nylon Grindguard
• Sealed MID BB bottom bracket with industrial bearings
• YBN chain
• 9T cassette hub

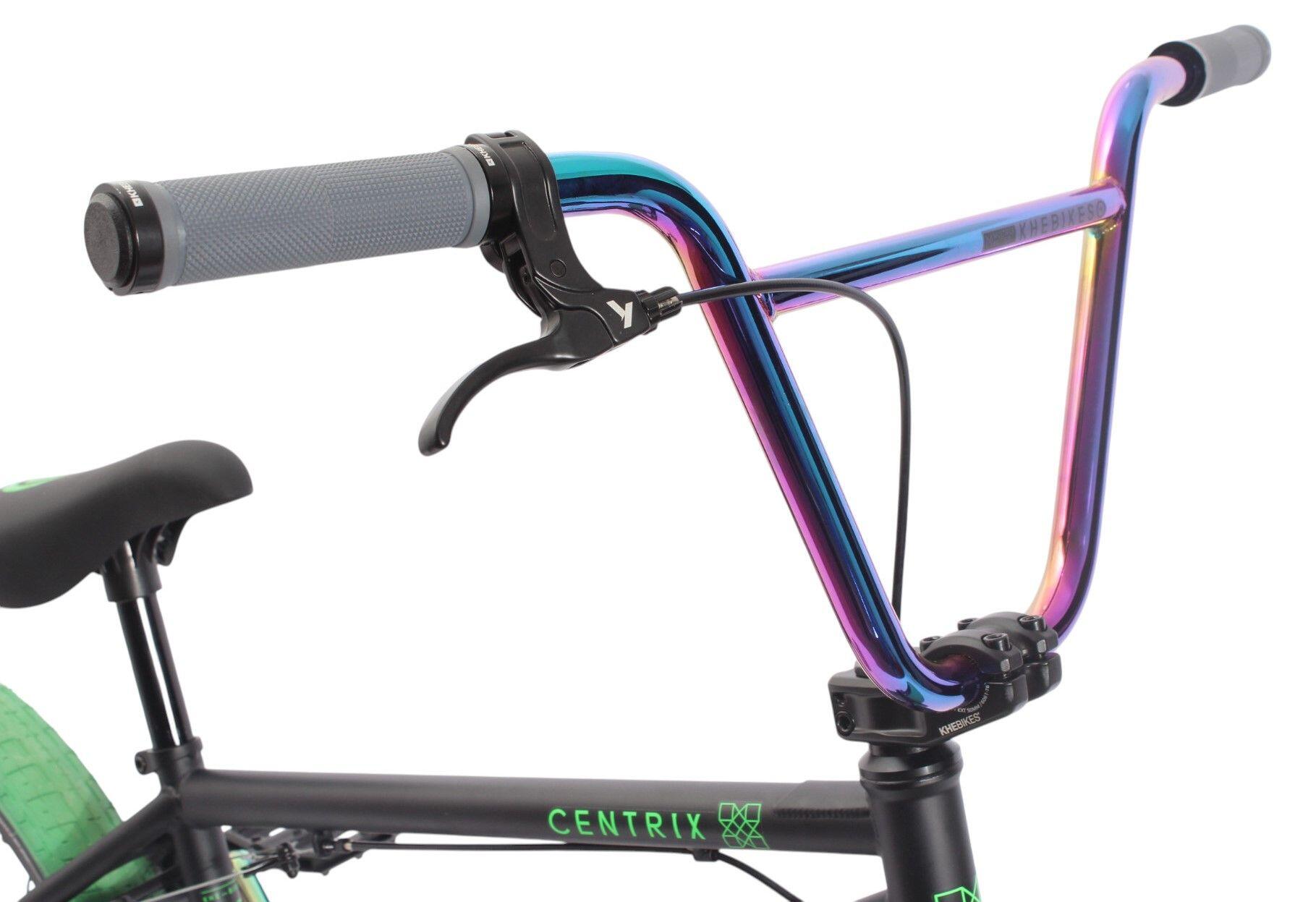

Cockpit:

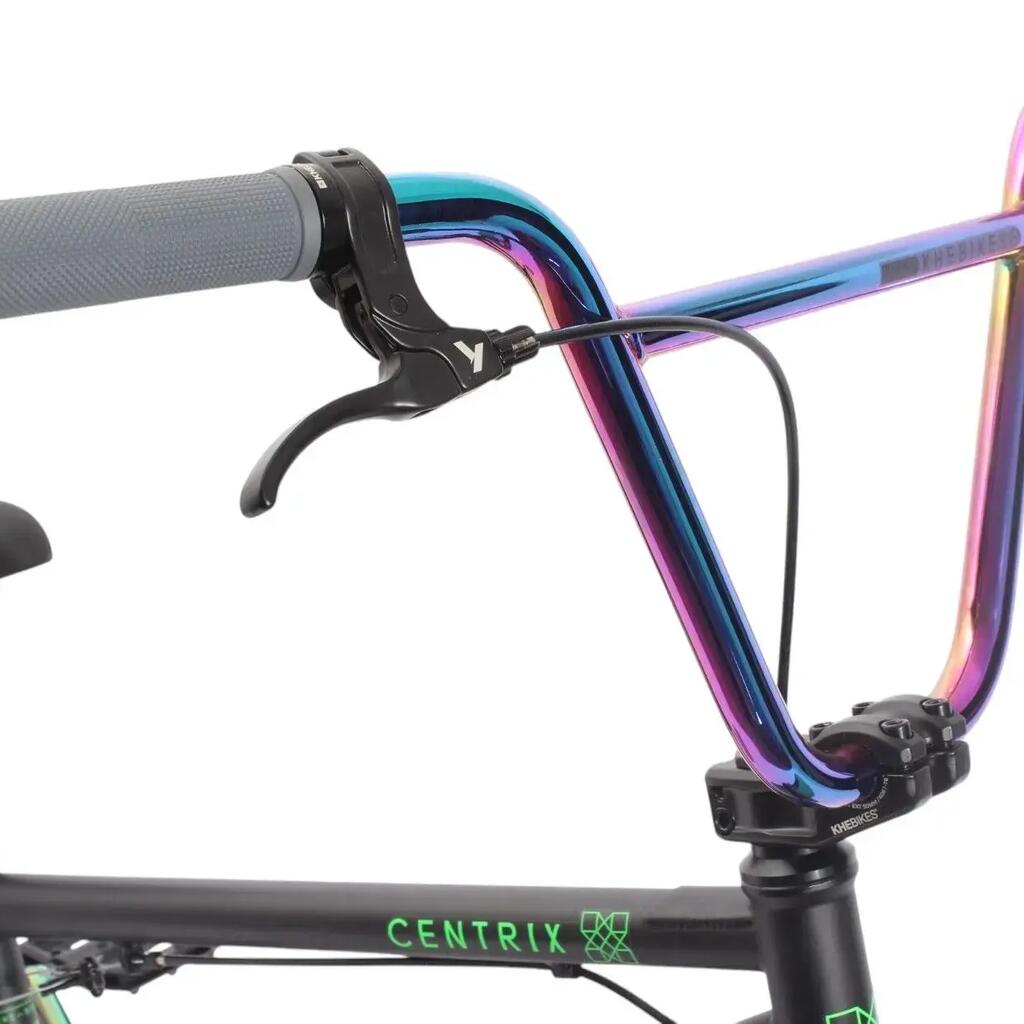

• 736 mm wide KHE HiTen handlebar with 9" rise

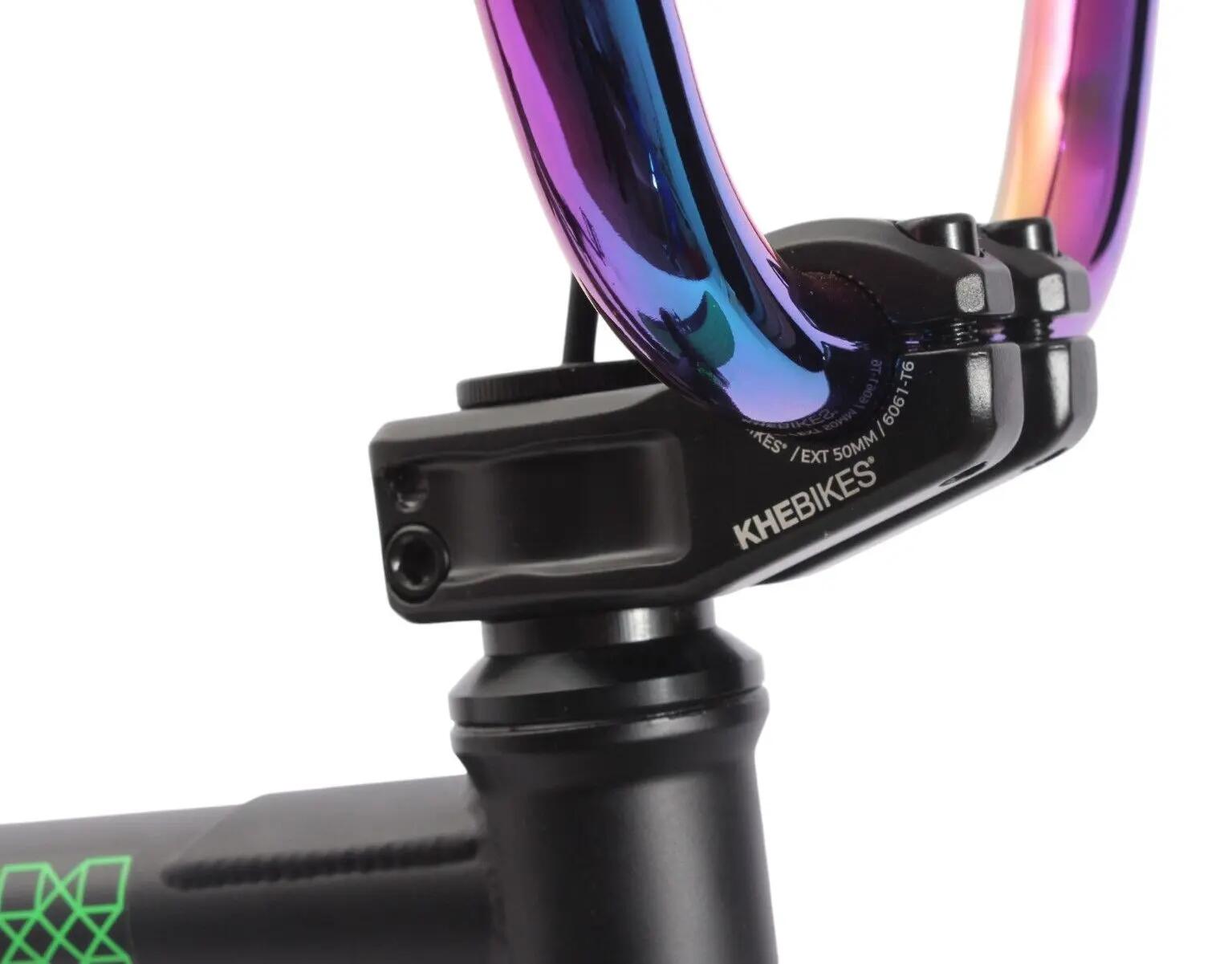

• KHE Top Loader stem (50 mm)
• Patented KHE AFFIX 360-degree rotor
• Lock-On grips with aluminium clamps
• Aluminium brake lever with hinge
Brakes & Wheels:

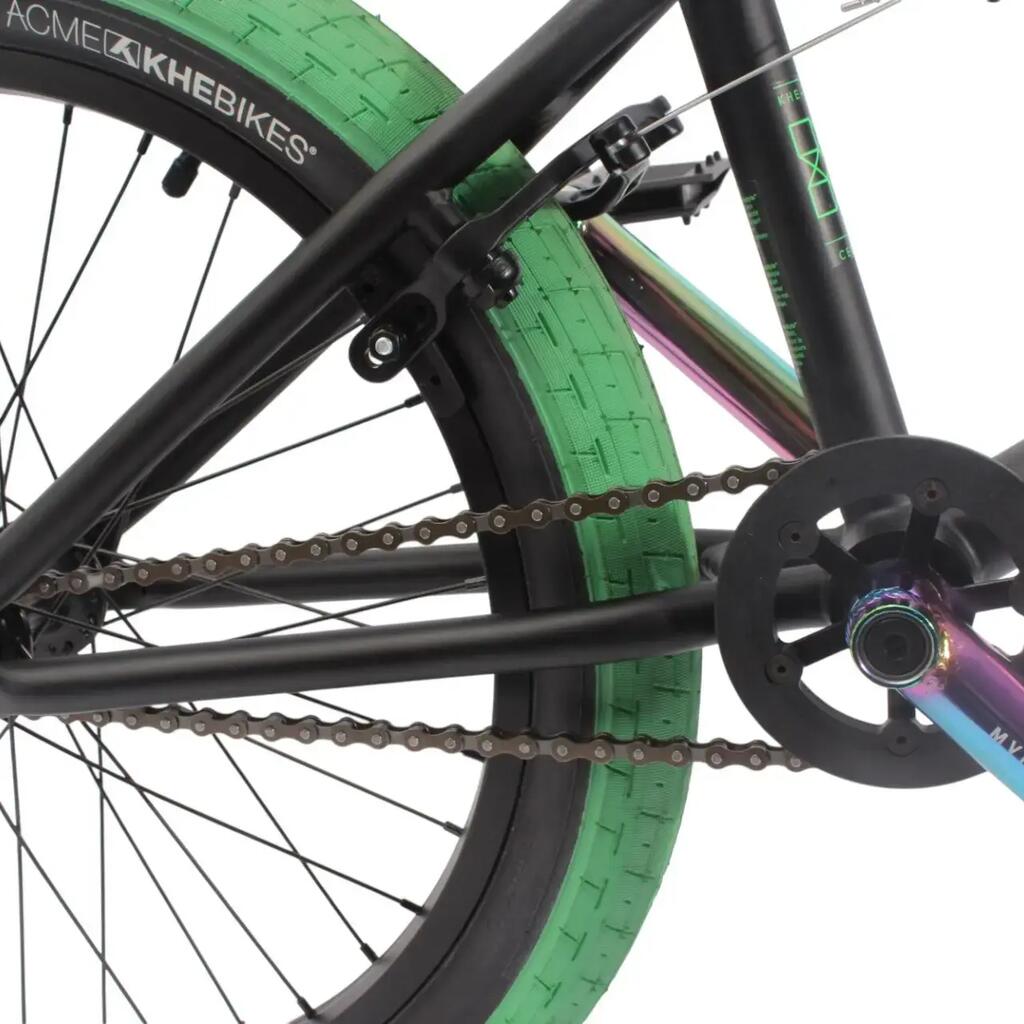

• KHE RADIUS aluminium U-Brake rear
• 20" double-wall aluminium rims

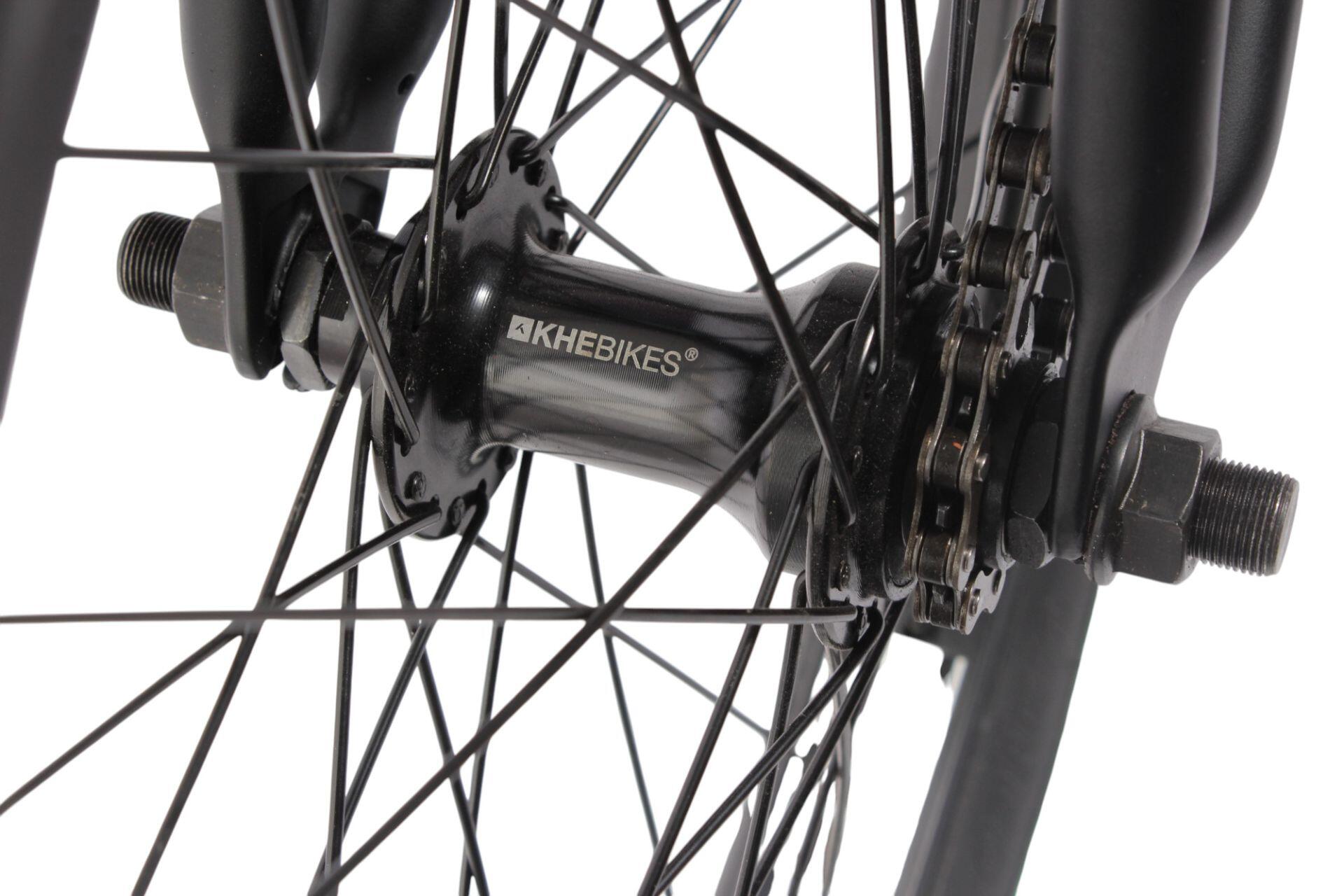

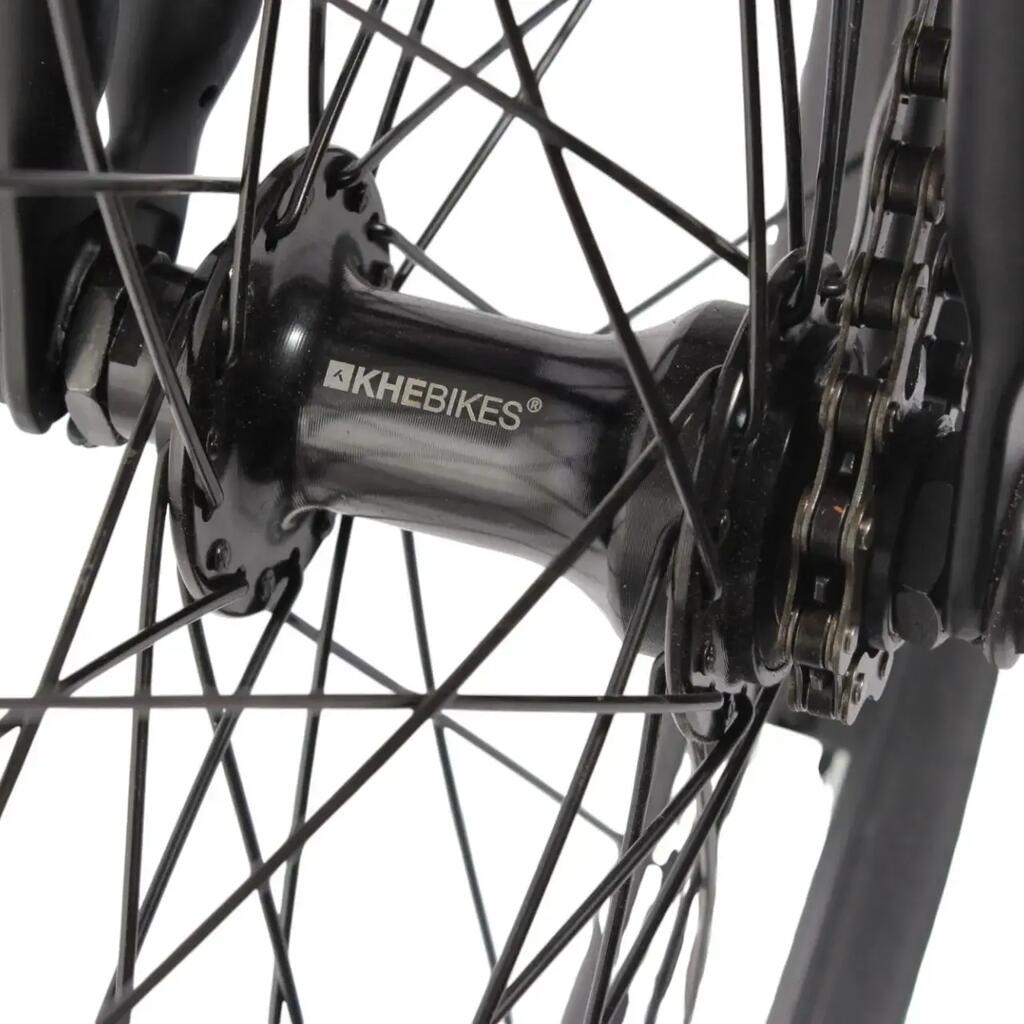

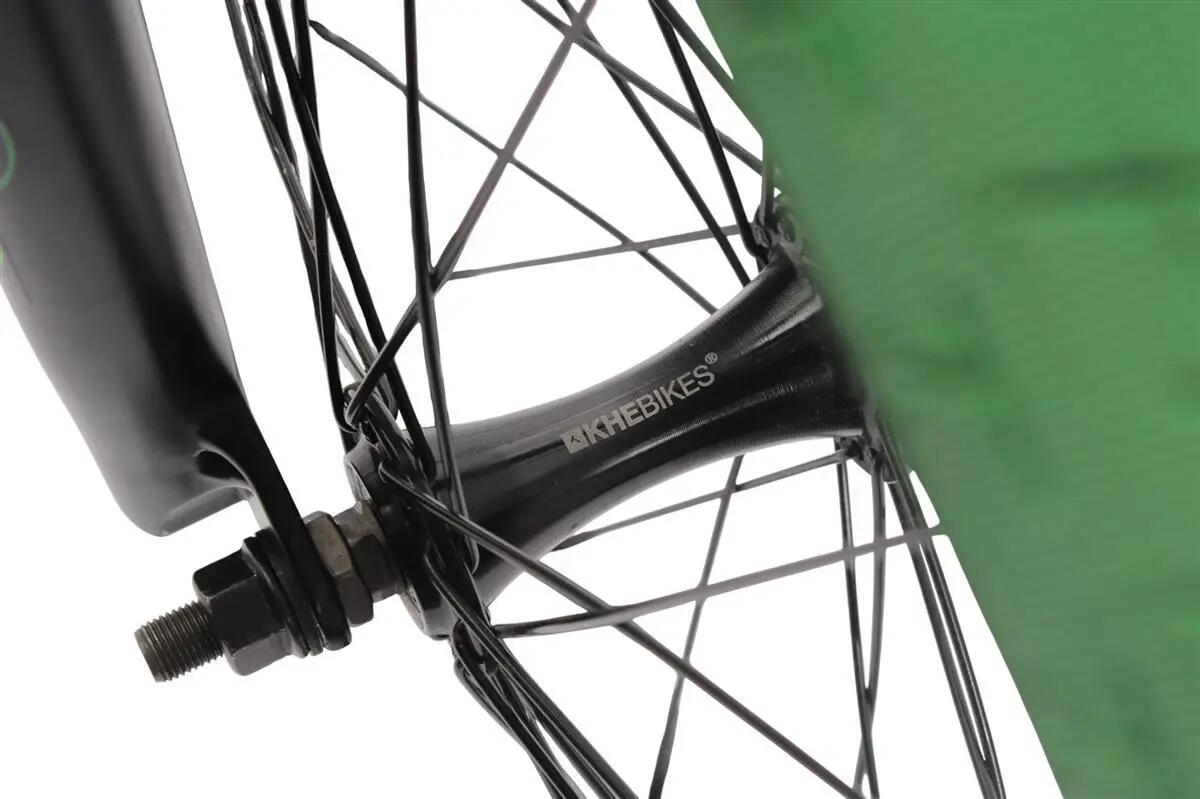

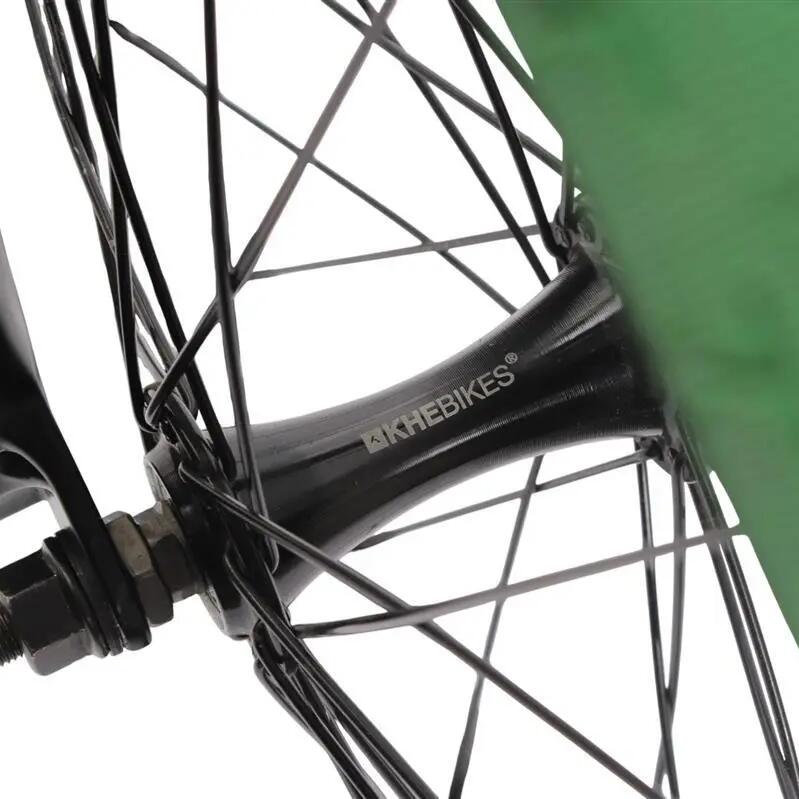

• Hubs with industrial bearings front and rear
• KHE ACME tyres 20 × 2.40"
• 10 mm front axle
• 14 mm rear axle
Design:
• Matt black frame
• Oil Slick handlebar

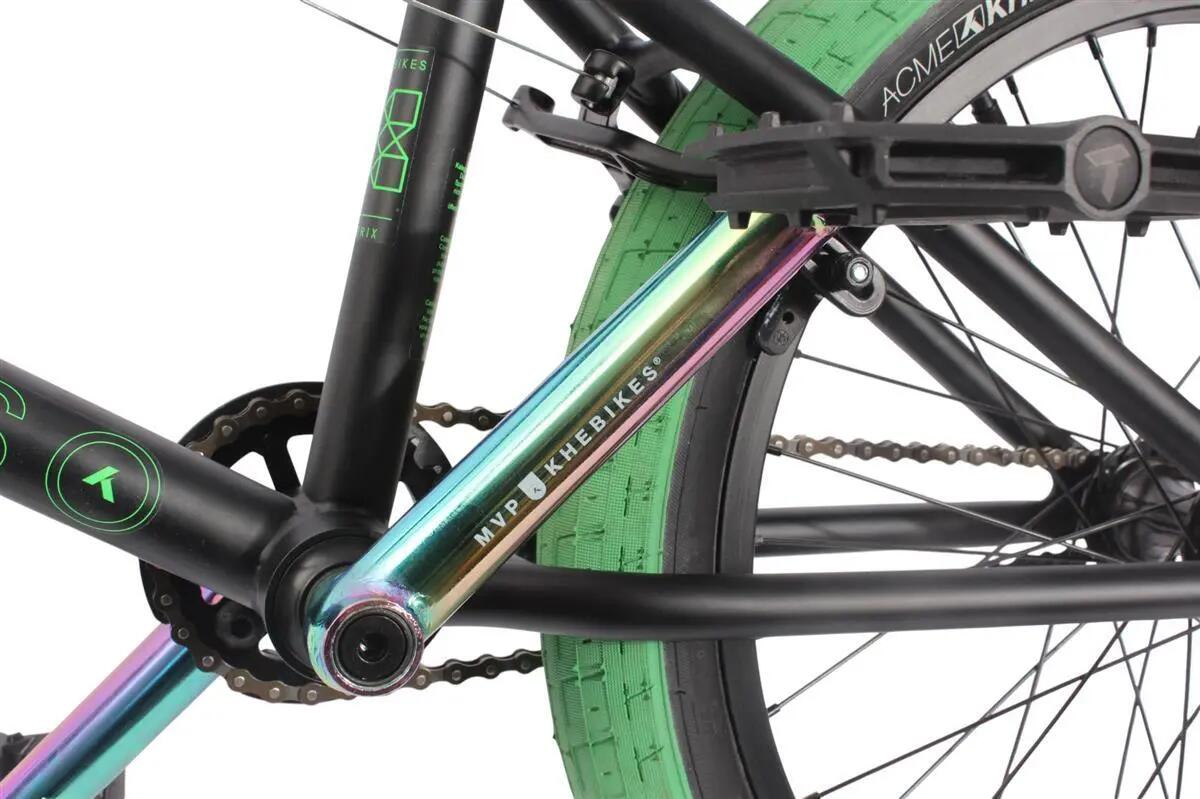

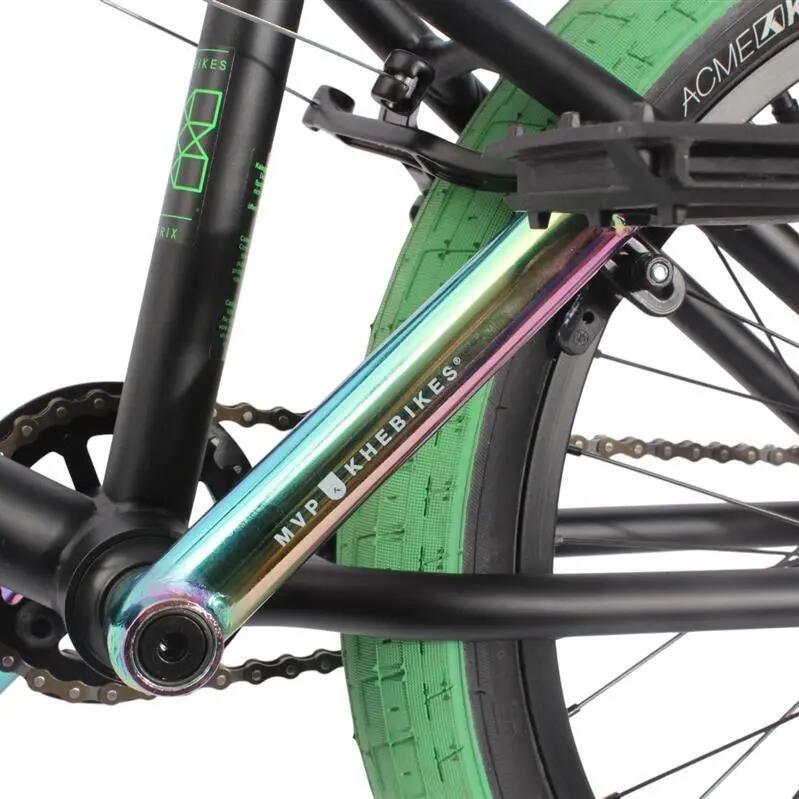

• Oil Slick crank
• Lock-On grips with KHEbikes laser logo
Technical Data
• Model: KHE CENTRIX
• Model year: 2025

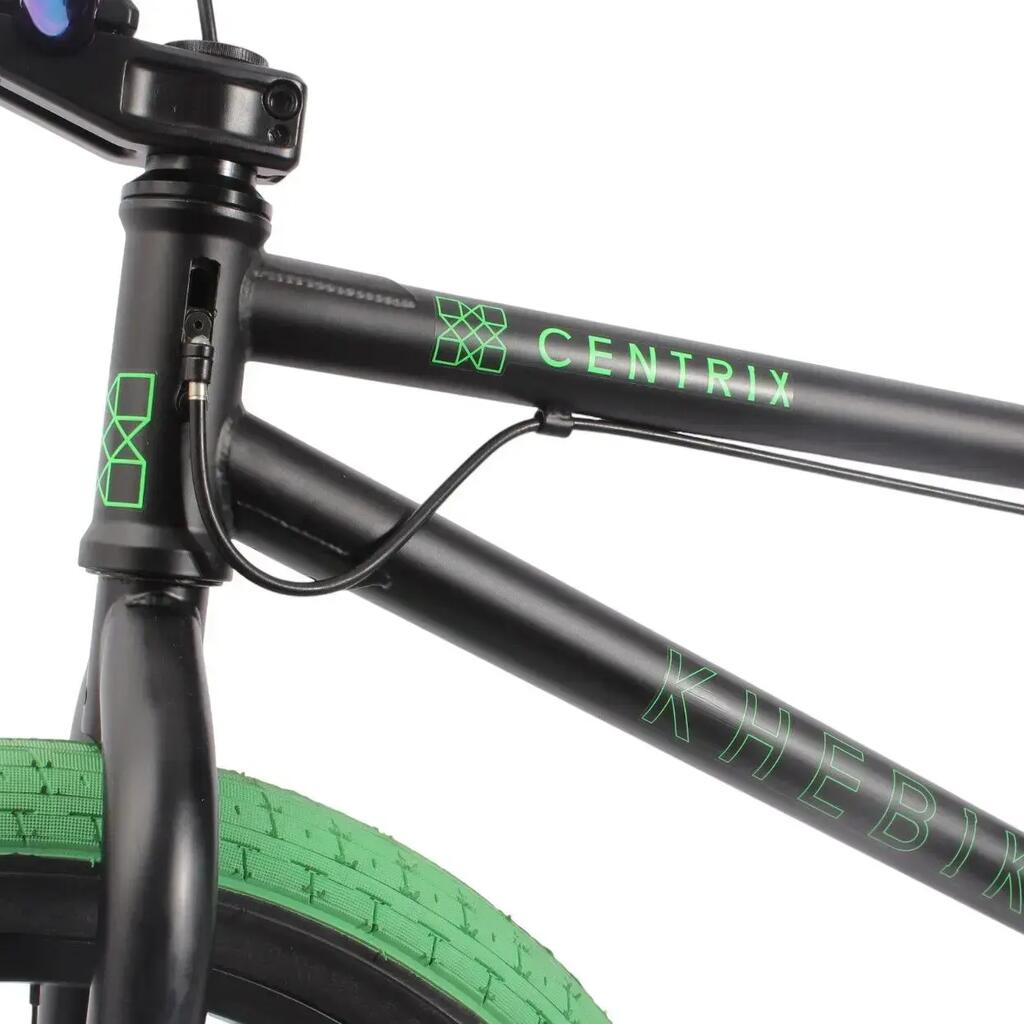

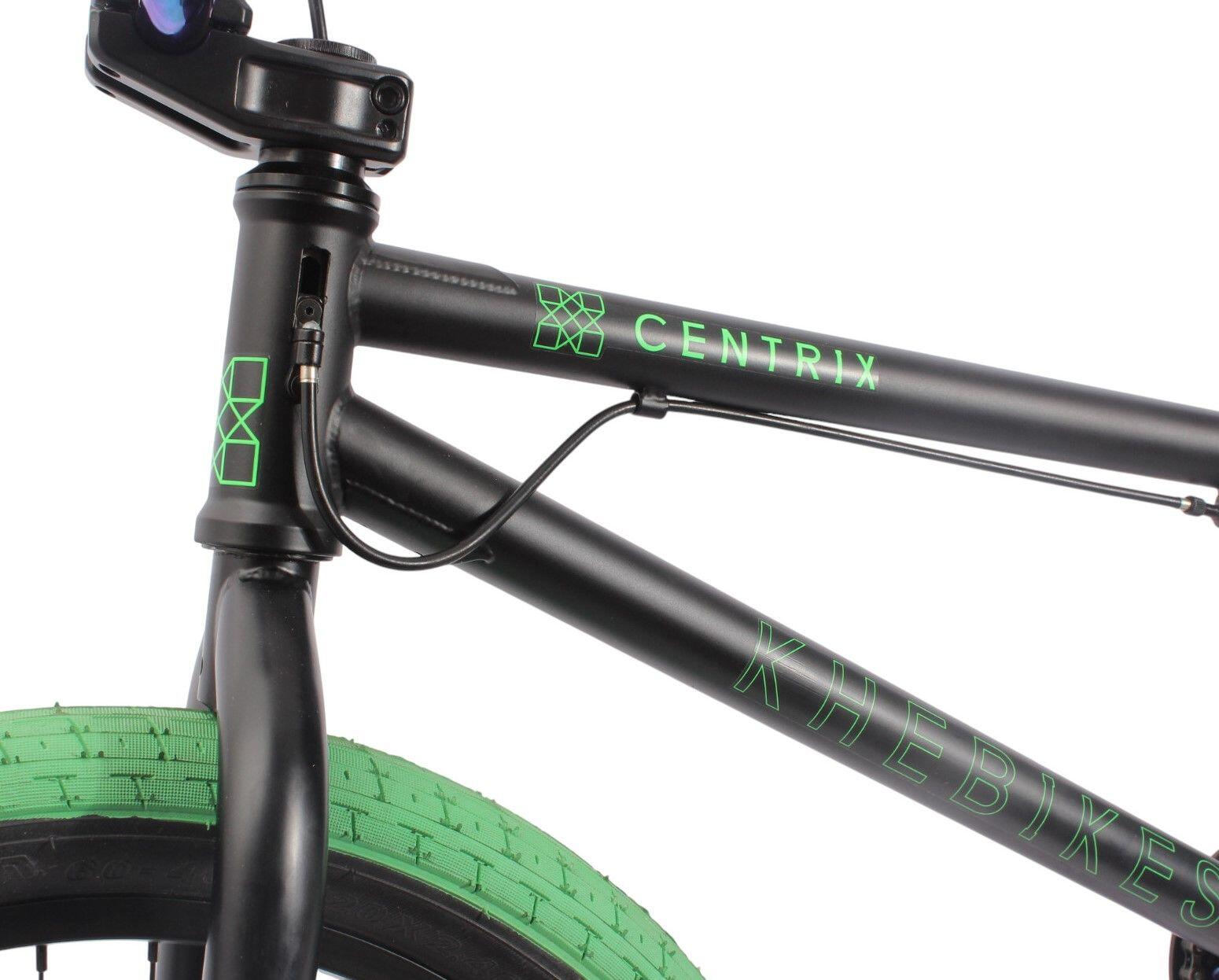

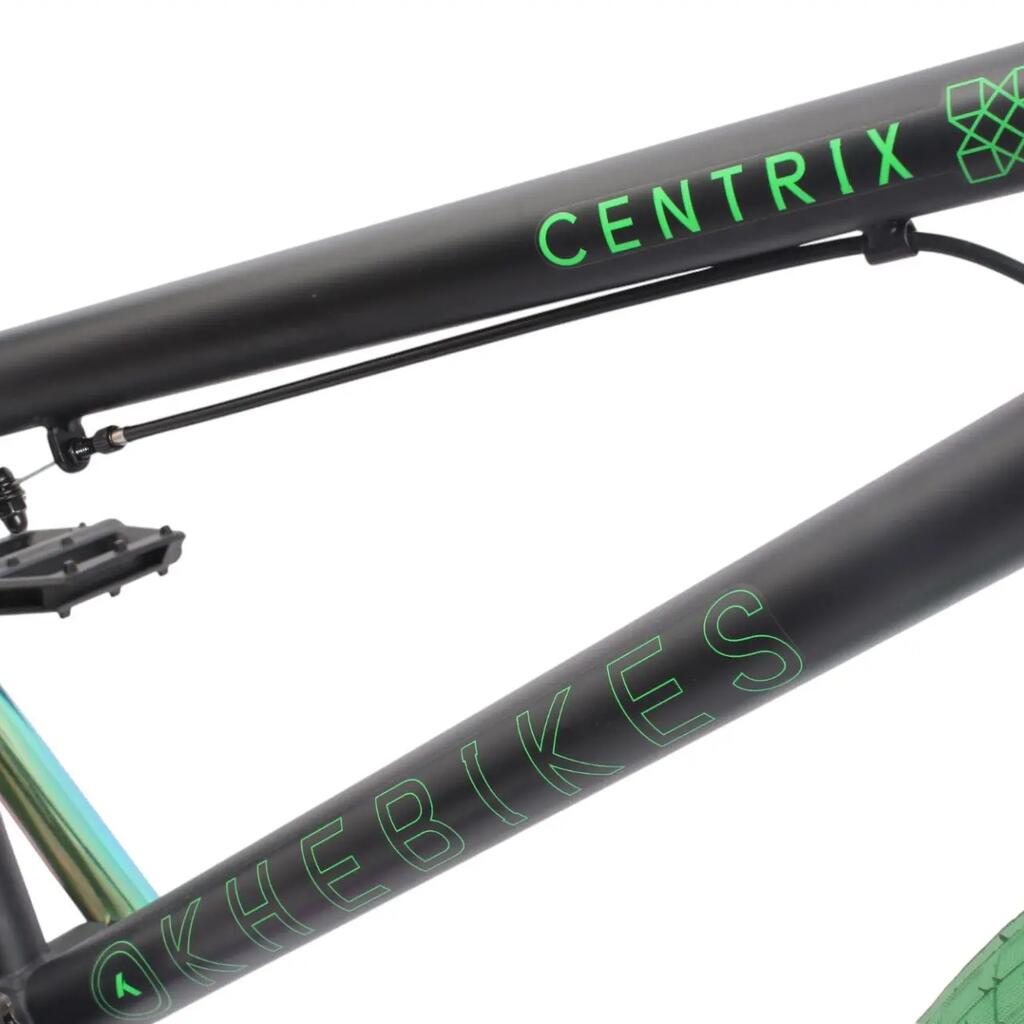

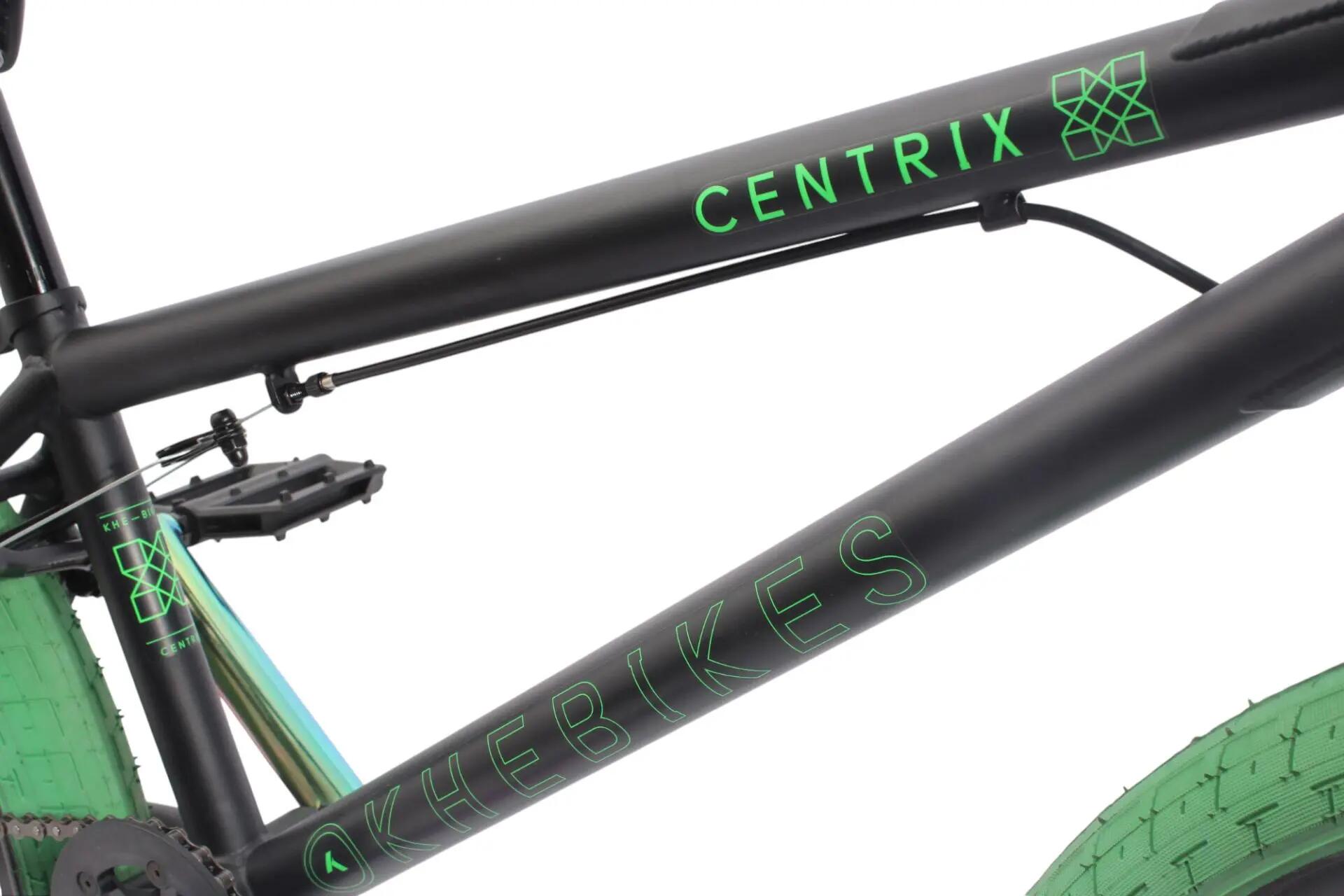

• Frame: KHE HiTen steel with 14 mm dropouts

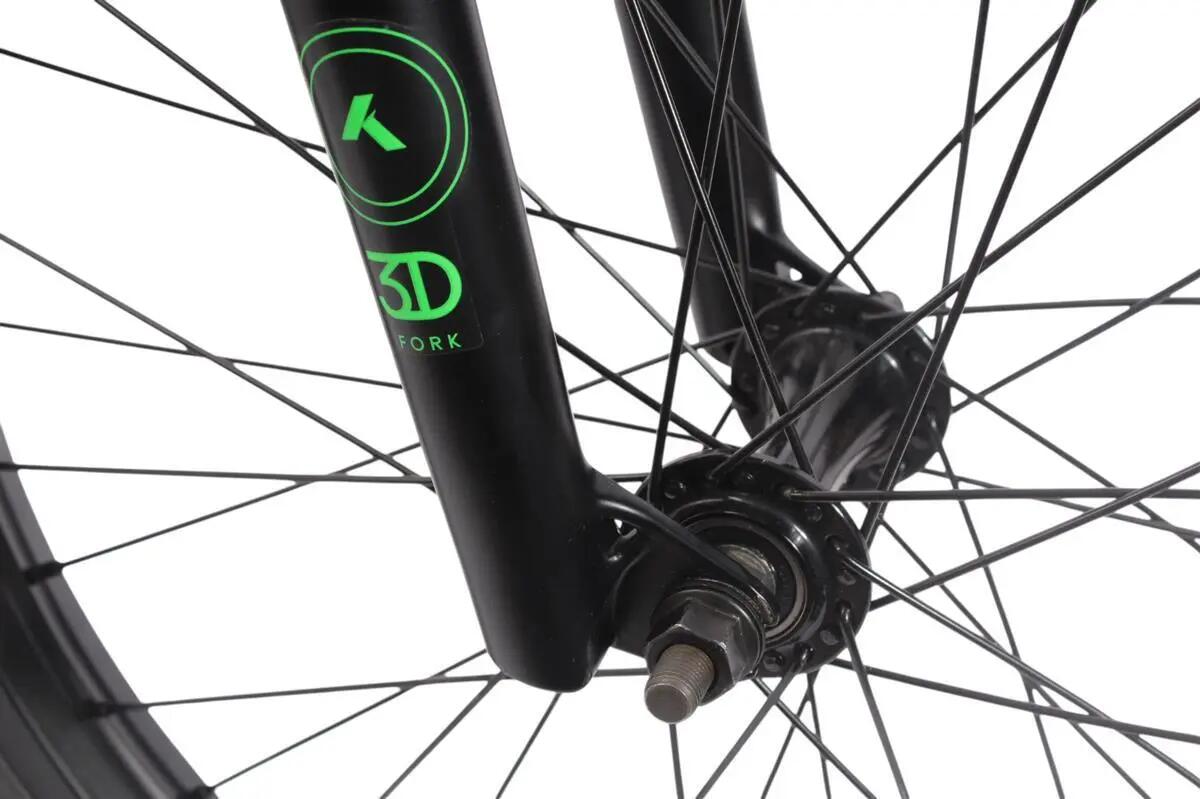

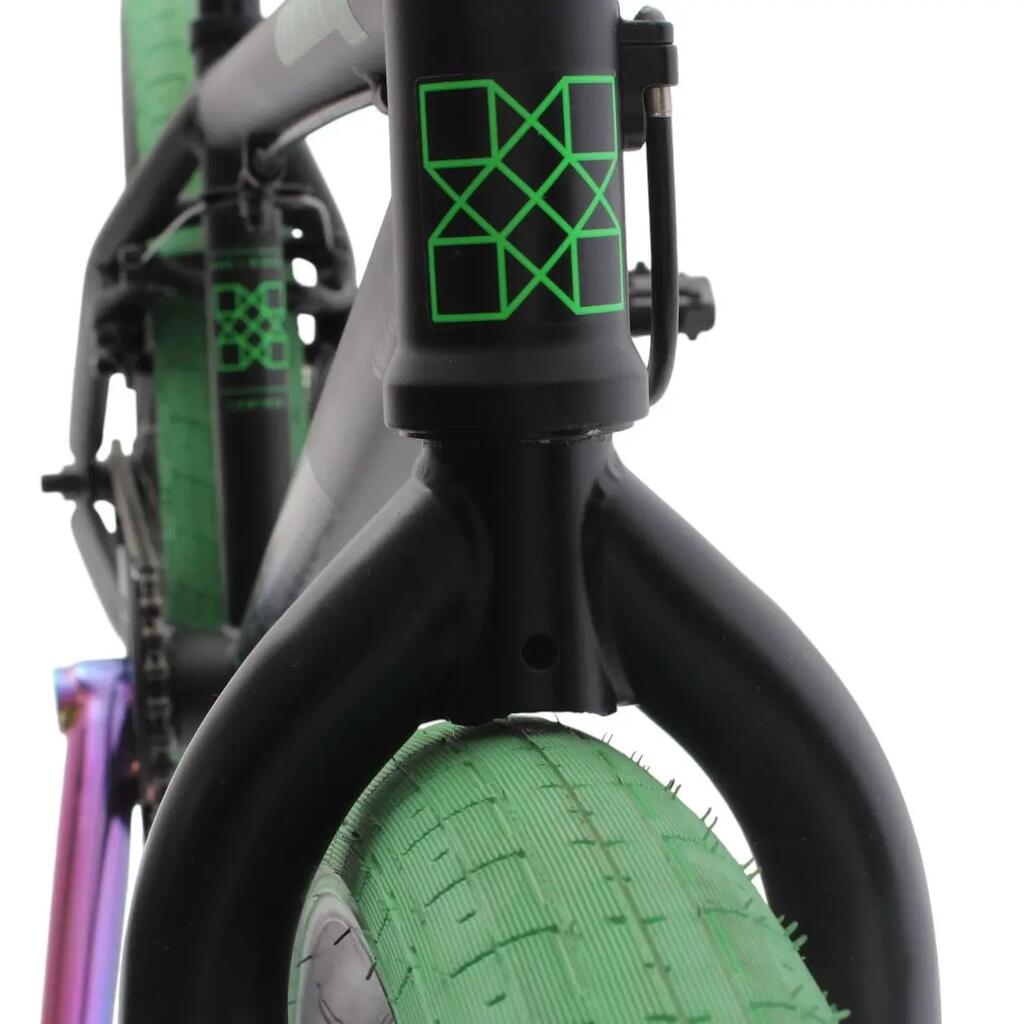

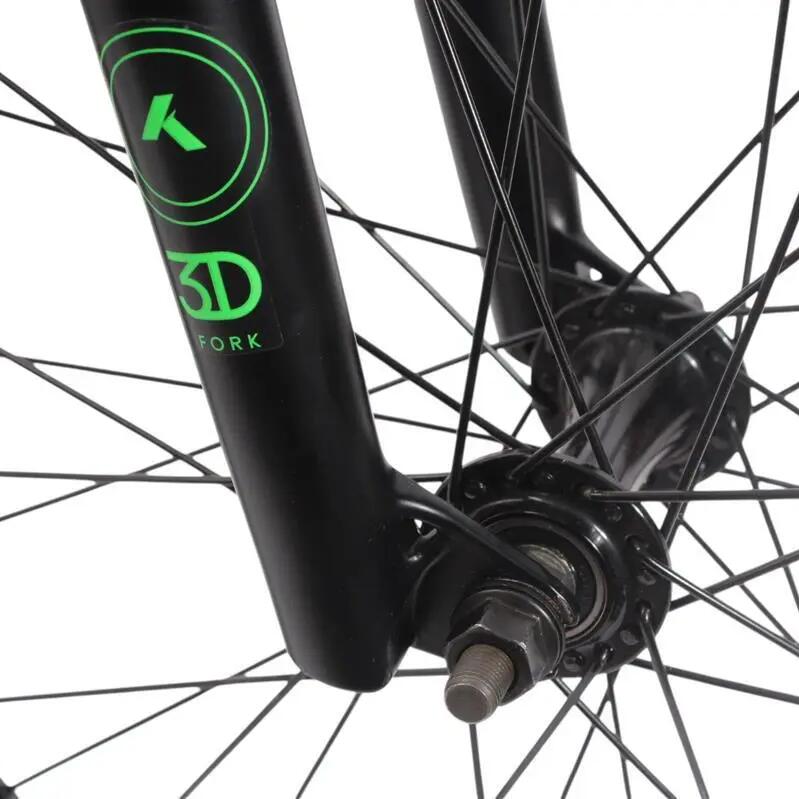

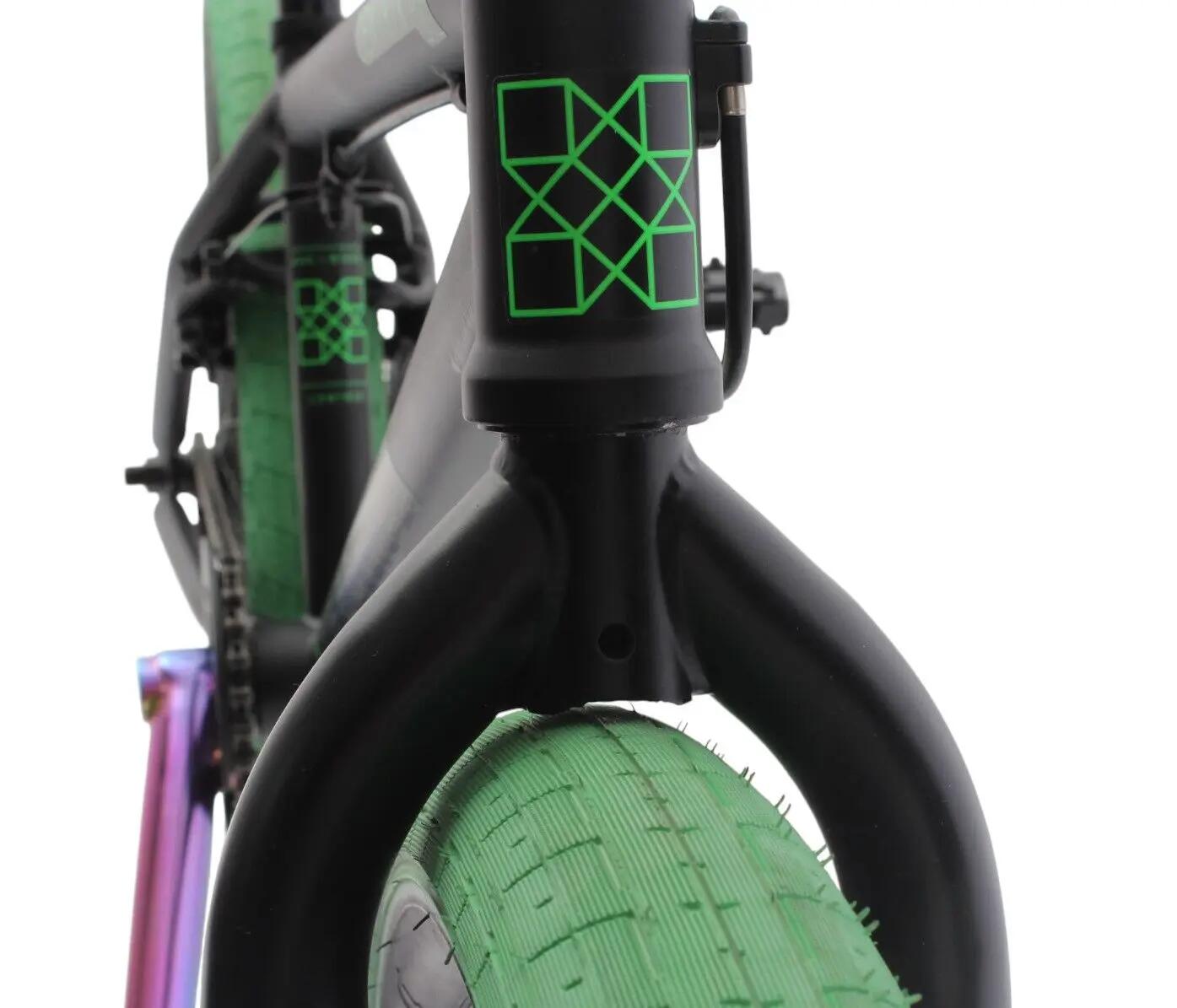

• Fork: KHE 1020 HiTen steel with 3D dropouts
• Top tube: 20.75" (527 mm)
• Chainstay: 336 mm
• Head angle: 75 degrees
• Seat angle: 71 degrees
• Fork offset: 27 mm
• Handlebar: KHE HiTen steel, 736 mm × 228 mm (29 × 9")

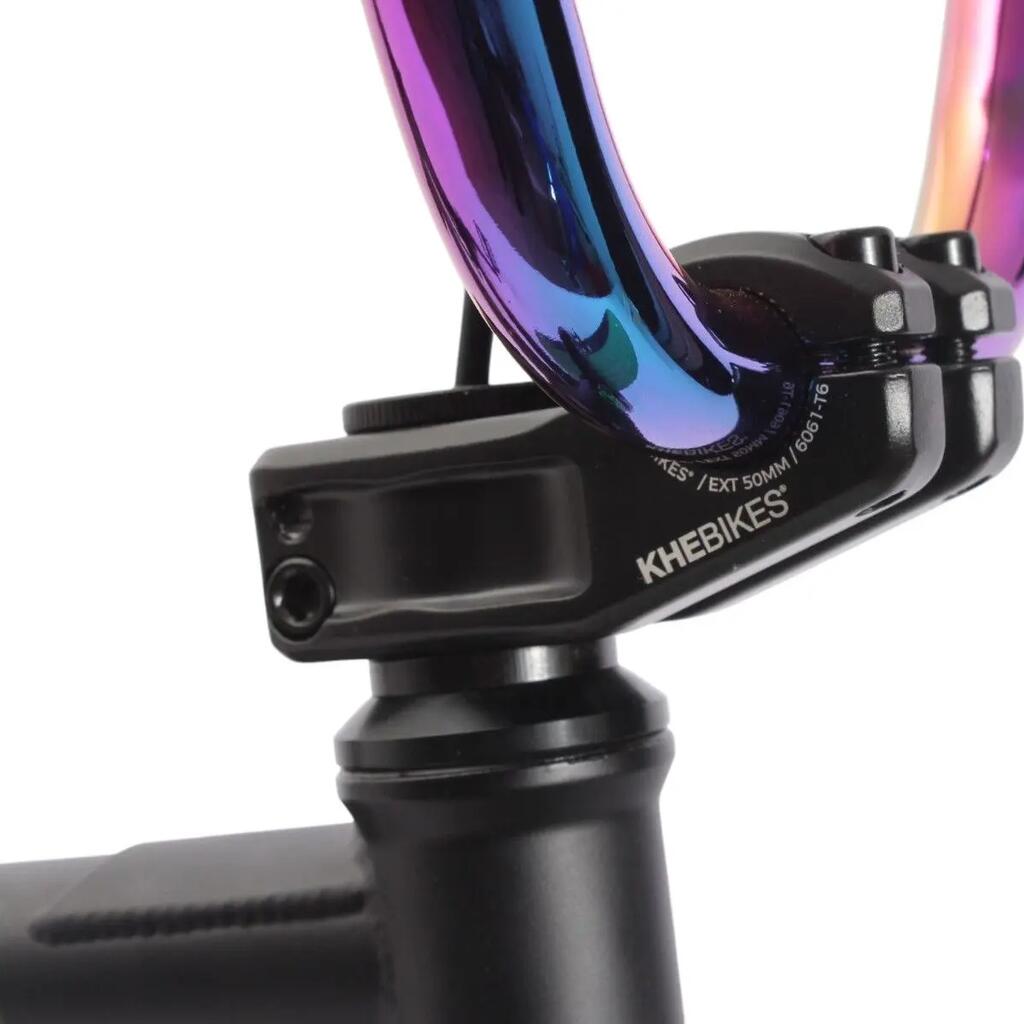

• Stem: KHE Top Loader (50 mm)
• Rotor: KHE AFFIX 360 degrees

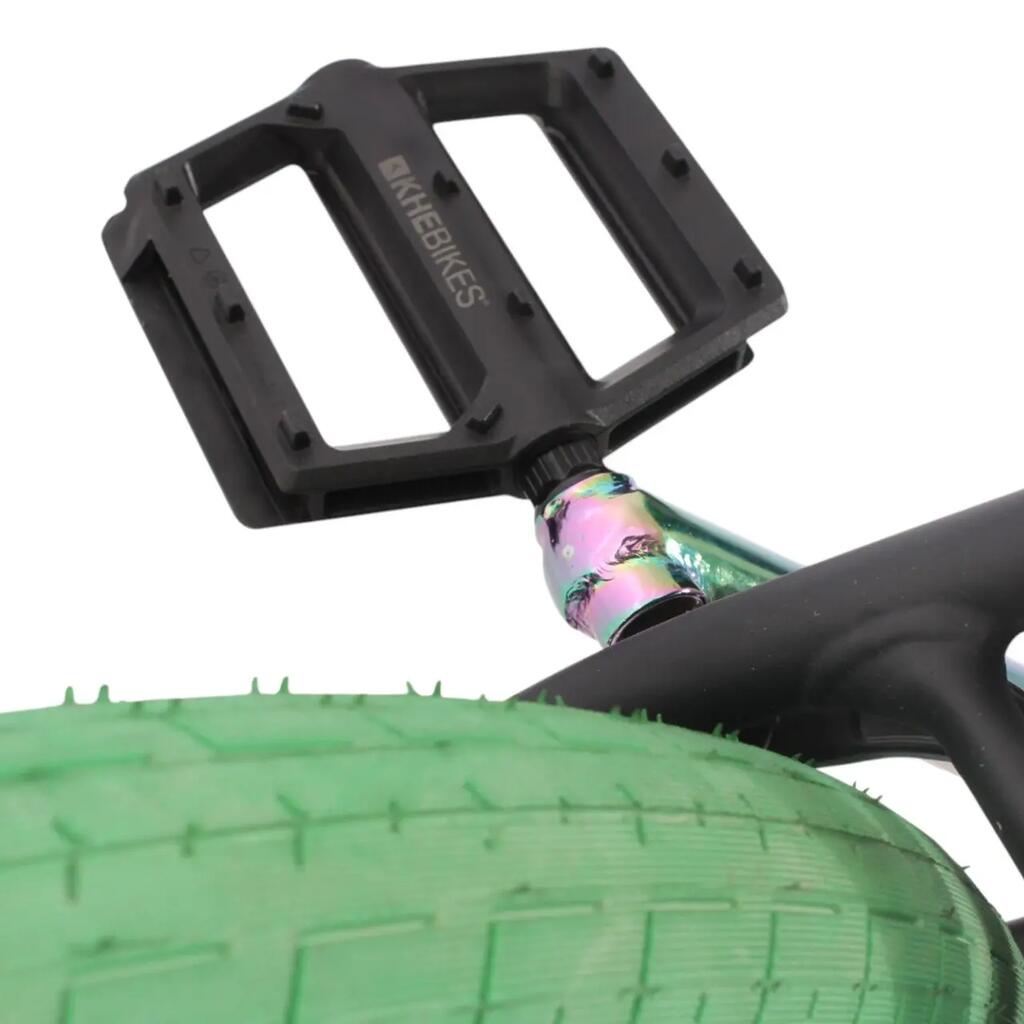

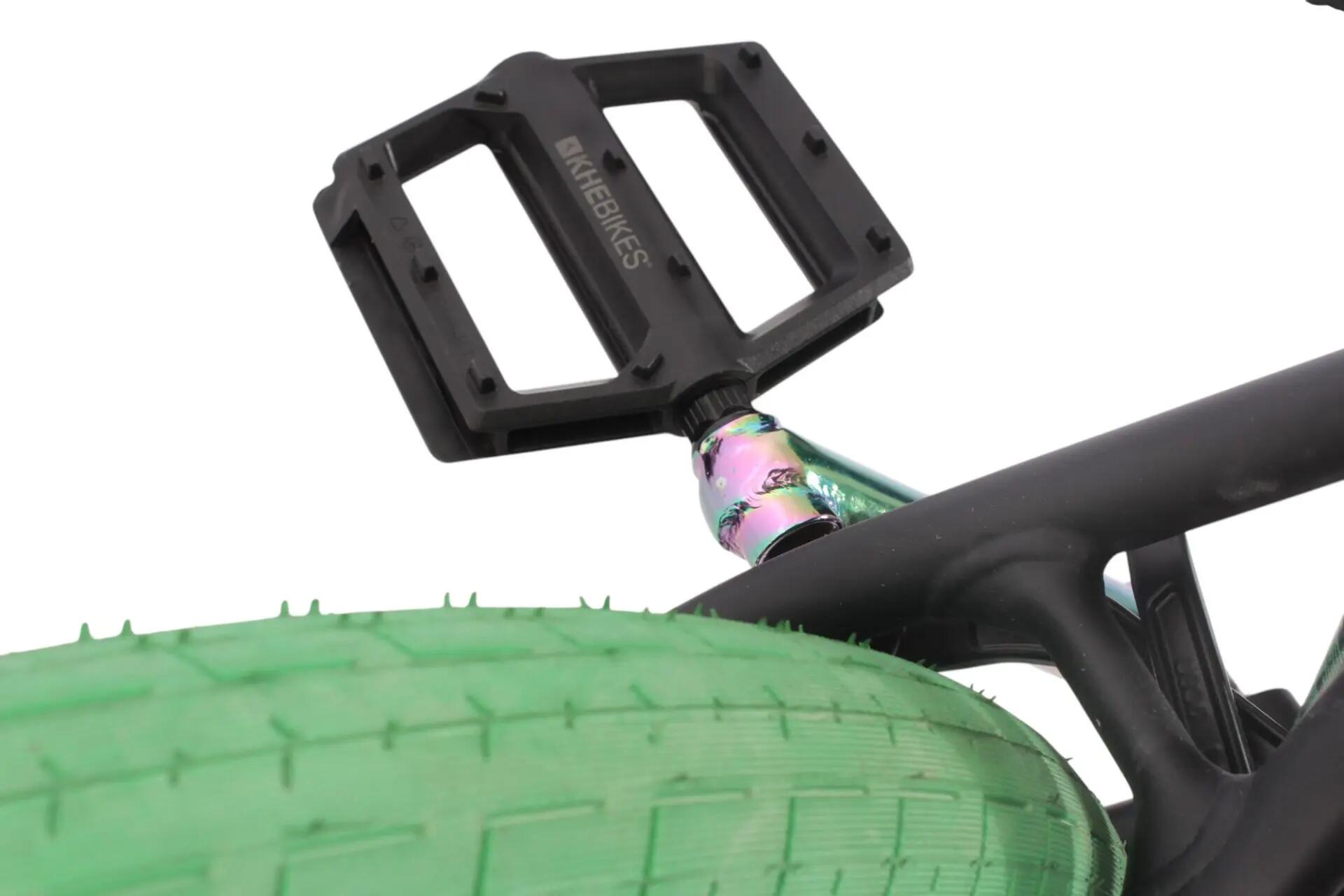

• Crank: 170 mm 3-piece CrMo hollow crank
• Crank axle: 19 mm CrMo
• Chainring: 25T steel with nylon Grindguard
• Bottom bracket: MID BB, sealed with industrial bearings
• Rear brake: KHE RADIUS aluminium U-Brake
• Hub type: Cassette

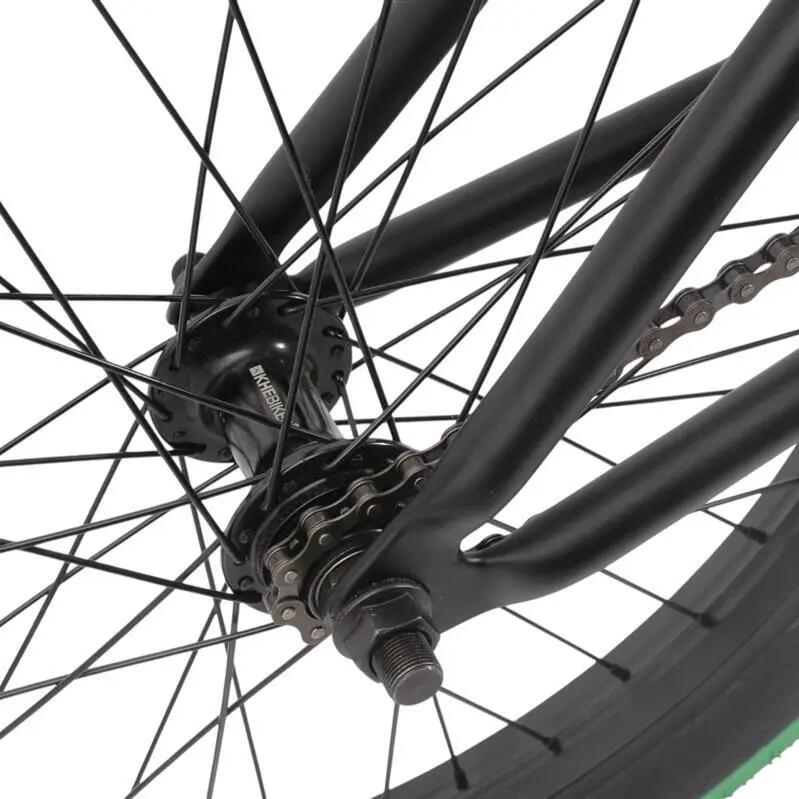

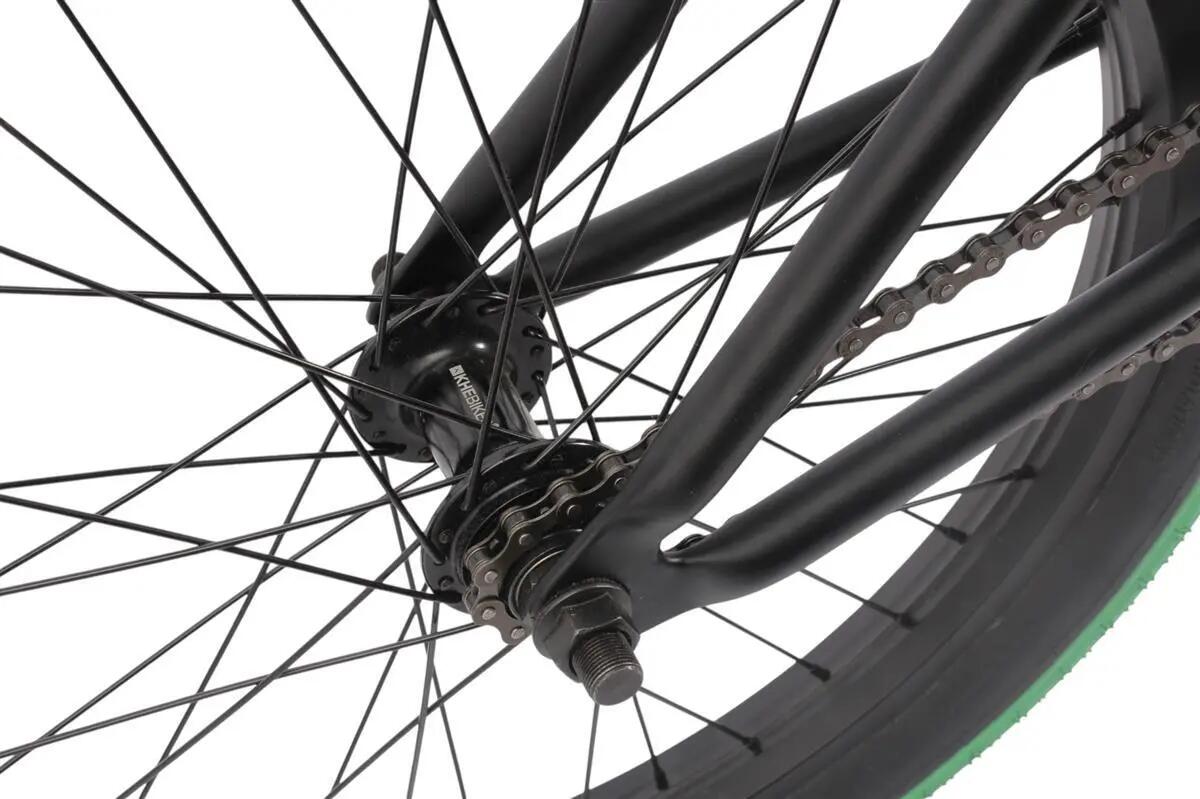

• Rear hub: 9T cassette, 14 mm axle, industrial bearings
• Rims: 20" double-wall aluminium, 36 hole
• Tyres: KHE ACME 20 × 2.40"
• Material: HiTen steel
• Colour: Matt Black
• Weight: 10.6 kg
Suitable for:
• Rider height: 145–185 cm
• Maximum rider weight: 100 kg
• Use: Street / Park / Pumptrack
Why choose the KHE CENTRIX 20" from KHEbikes:
✓ Striking Oil Slick components on handlebar and crank
✓ Patented KHE AFFIX 360-degree rotor for unrestricted handlebar rotations
✓ Robust 3D dropouts on frame and fork
✓ High-quality 3-piece CrMo hollow crank with 170 mm length
✓ 25T steel chainring with nylon Grindguard for additional protection during grinds
✓ Sealed MID BB bottom bracket with industrial bearings
✓ Strong double-wall aluminium rims with industrial-bearing hubs
✓ Only 10.6 kg total weight
Compatibility
• Front pegs: 10 mm
• Rear pegs: 14 mm
• Recommendation: KHE CNC Pro Pegs or KHE LASER Pro Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Important note: The bike is supplied with a pre-installed KHE RADIUS aluminium U-Brake on the rear wheel, but without a front brake. A compatible front brake is also available from Decathlon: KHE BMX Sidepull Brake Set.
