Product Description

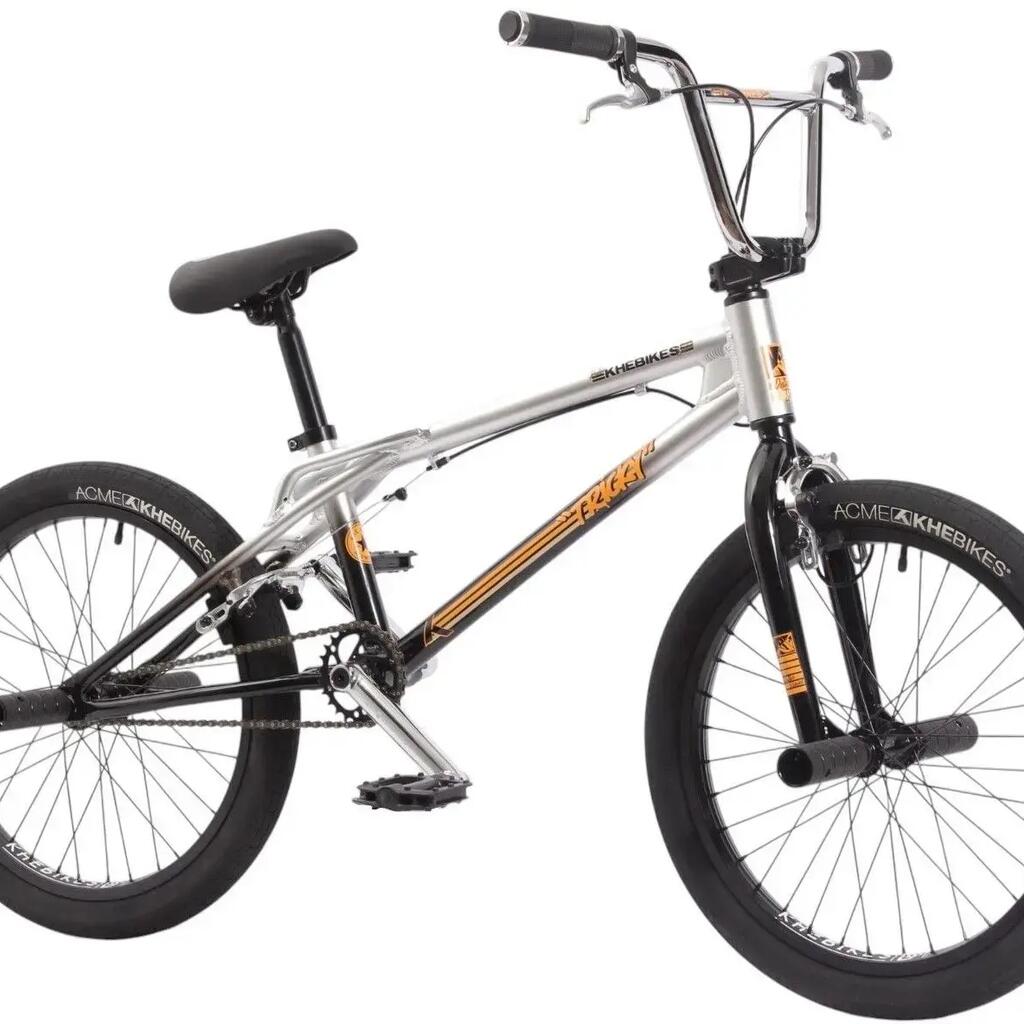

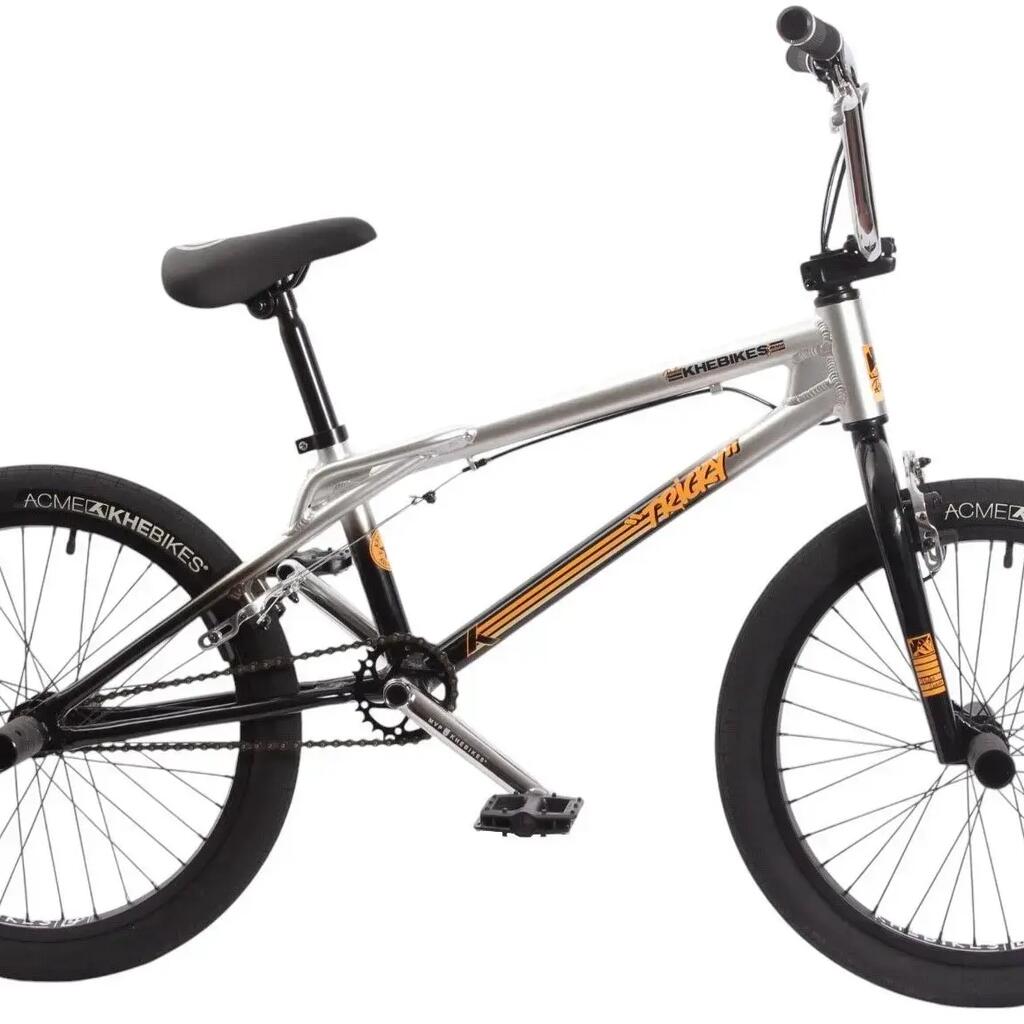

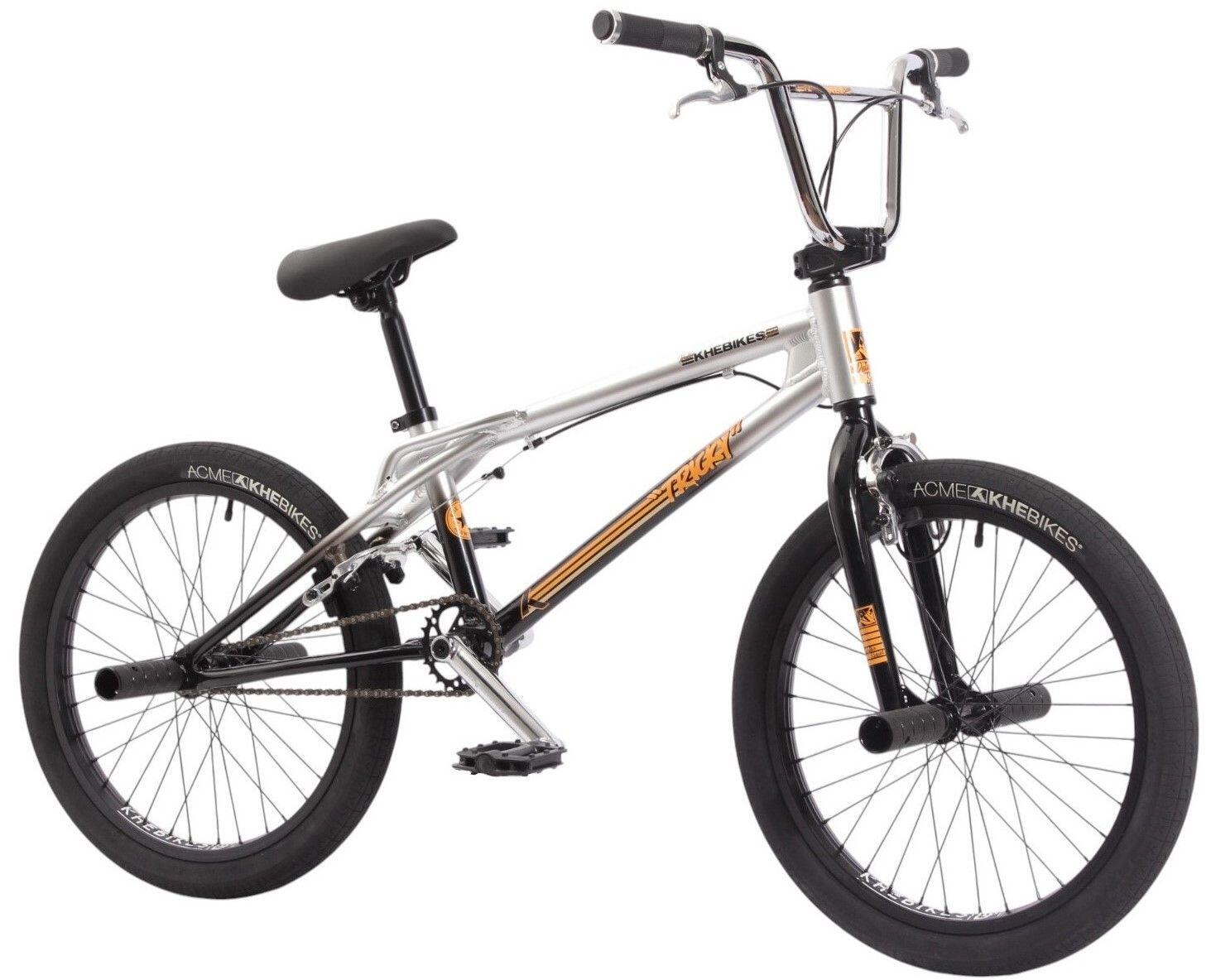

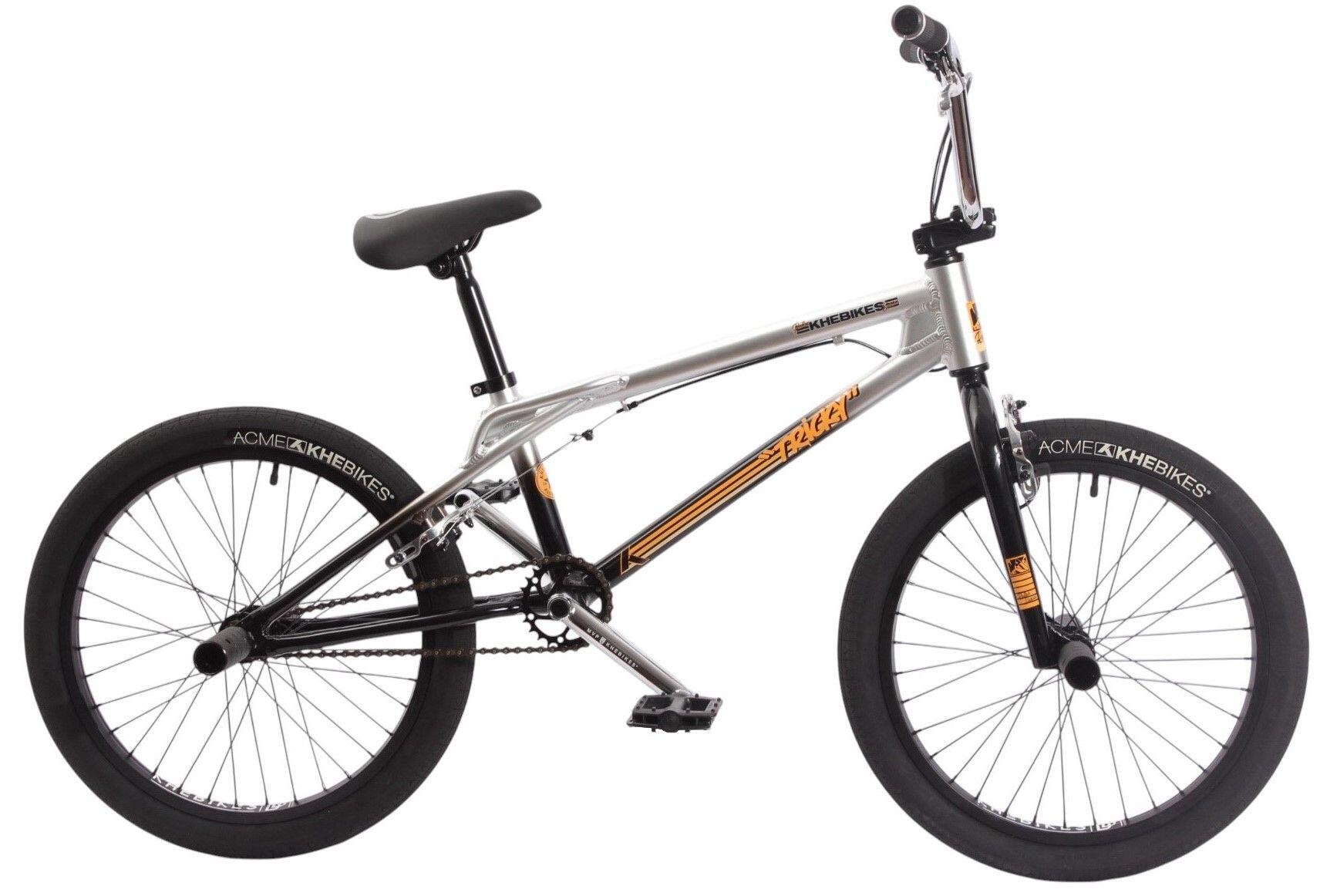

KHE TRICKY AL 20" BMX 2025 with Rotor & Pegs
The KHE TRICKY AL 20" is a versatile BMX for Flatland, Park and Pumptrack. The lightweight 6061 aluminium frame with integrated platform and compact geometry with a 19.7" top tube provide excellent agility and controlled handling. The patented KHE AFFIX rotor system allows 360-degree handlebar rotations. At only 10.9 kg, with two U-Brakes and two pairs of aluminium pegs, the TRICKY is particularly suitable for technical Flatland tricks and versatile BMX riding.
Equipment
Drivetrain:
• 3-piece 165 mm CrMo hollow crank
• 25T steel chainring
• Sealed EURO BB bottom bracket with industrial bearings
• YBN CN ST chain
• 9T cassette hub
Cockpit:

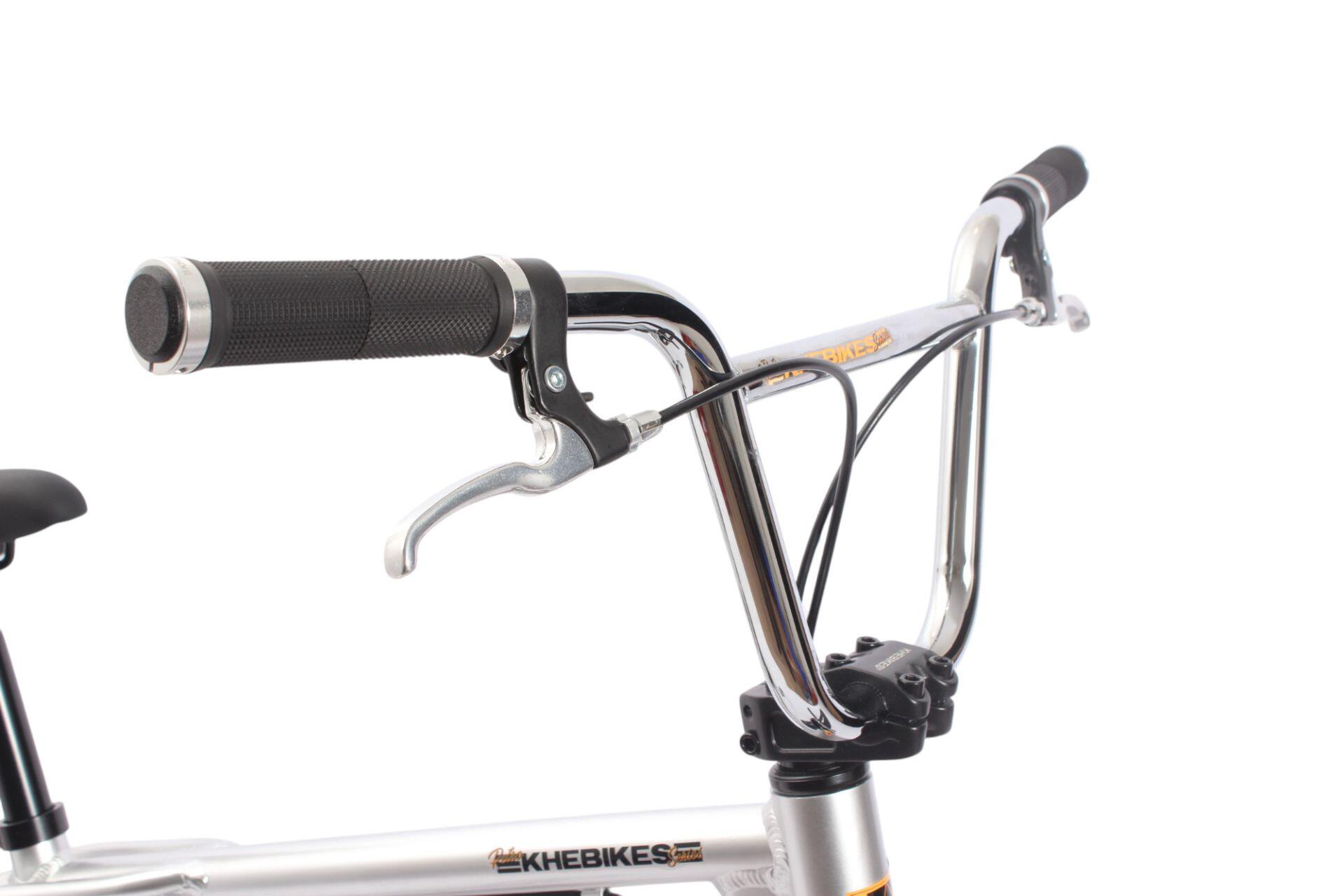

• KHE HiTen 8" handlebar
• KHE Top Loader stem (40 mm)

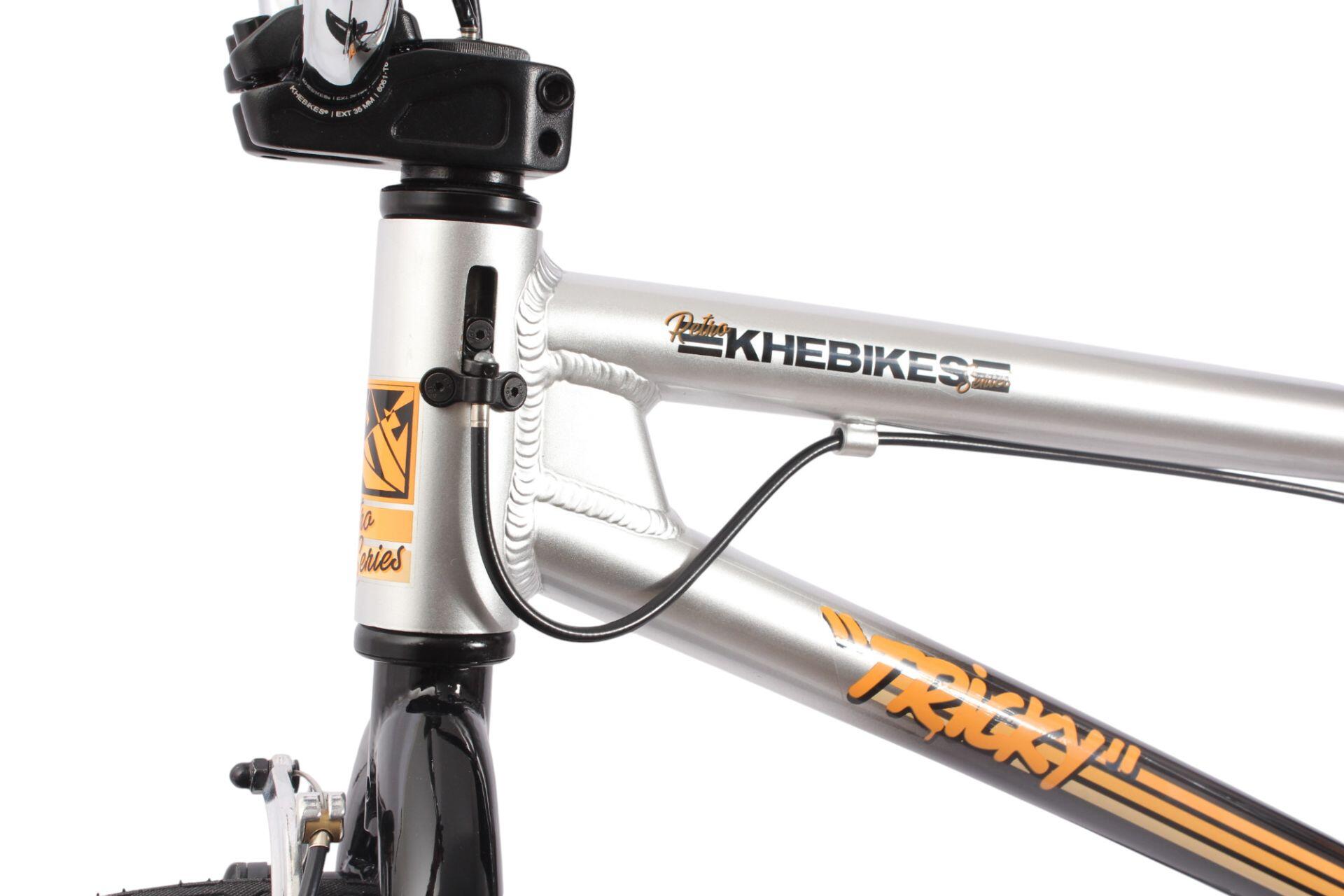

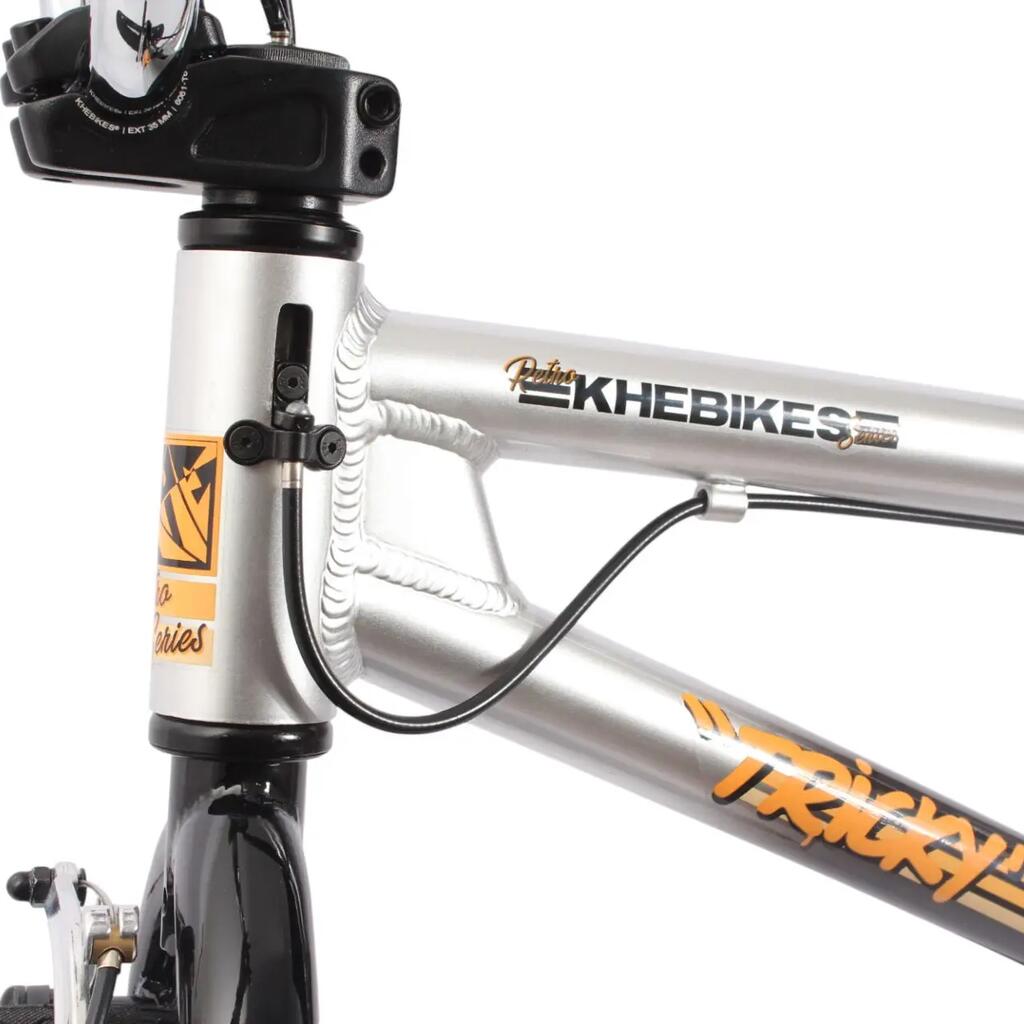

• KHE AFFIX 360-degree rotor system

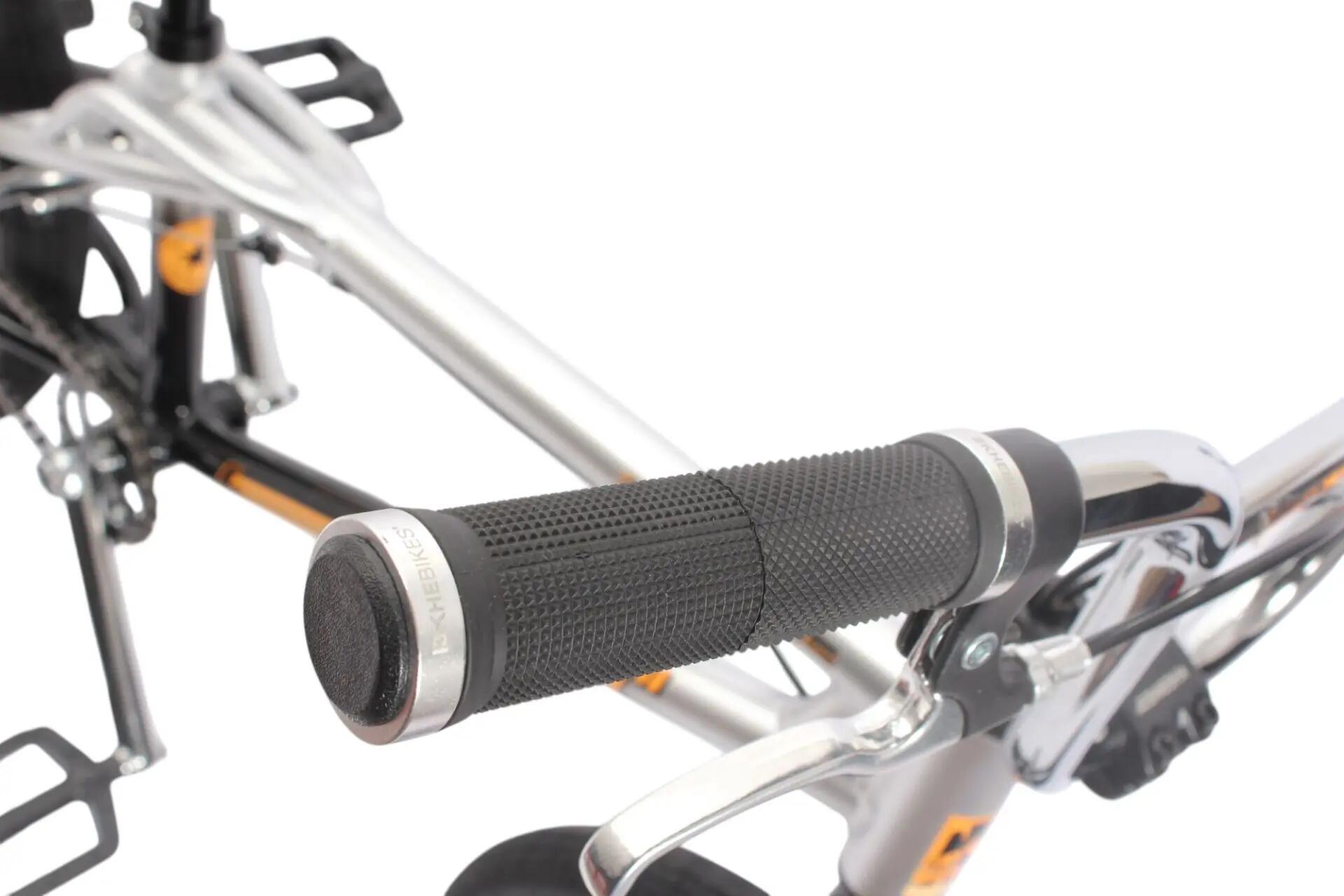

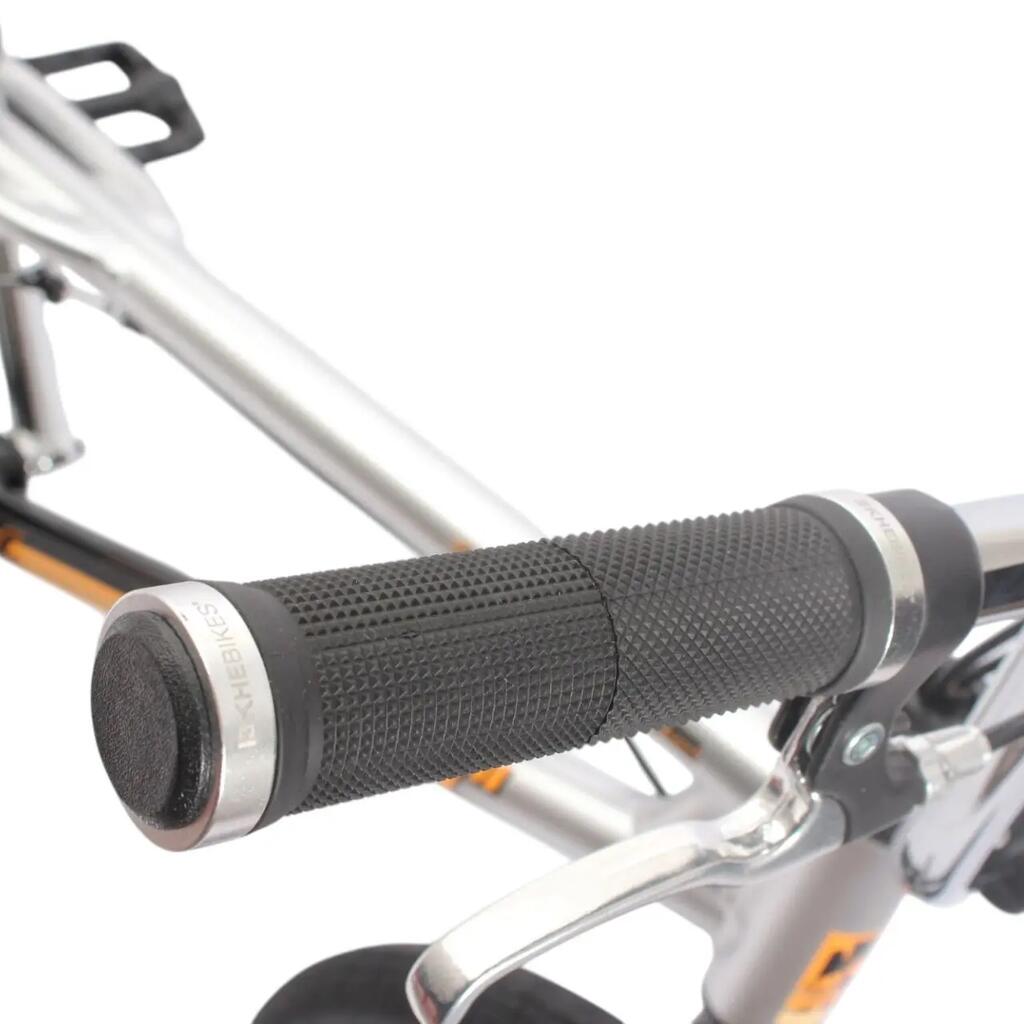

• Lock-On grips with aluminium clamps
• Aluminium brake lever with adjustment screw
Brakes & Wheels:

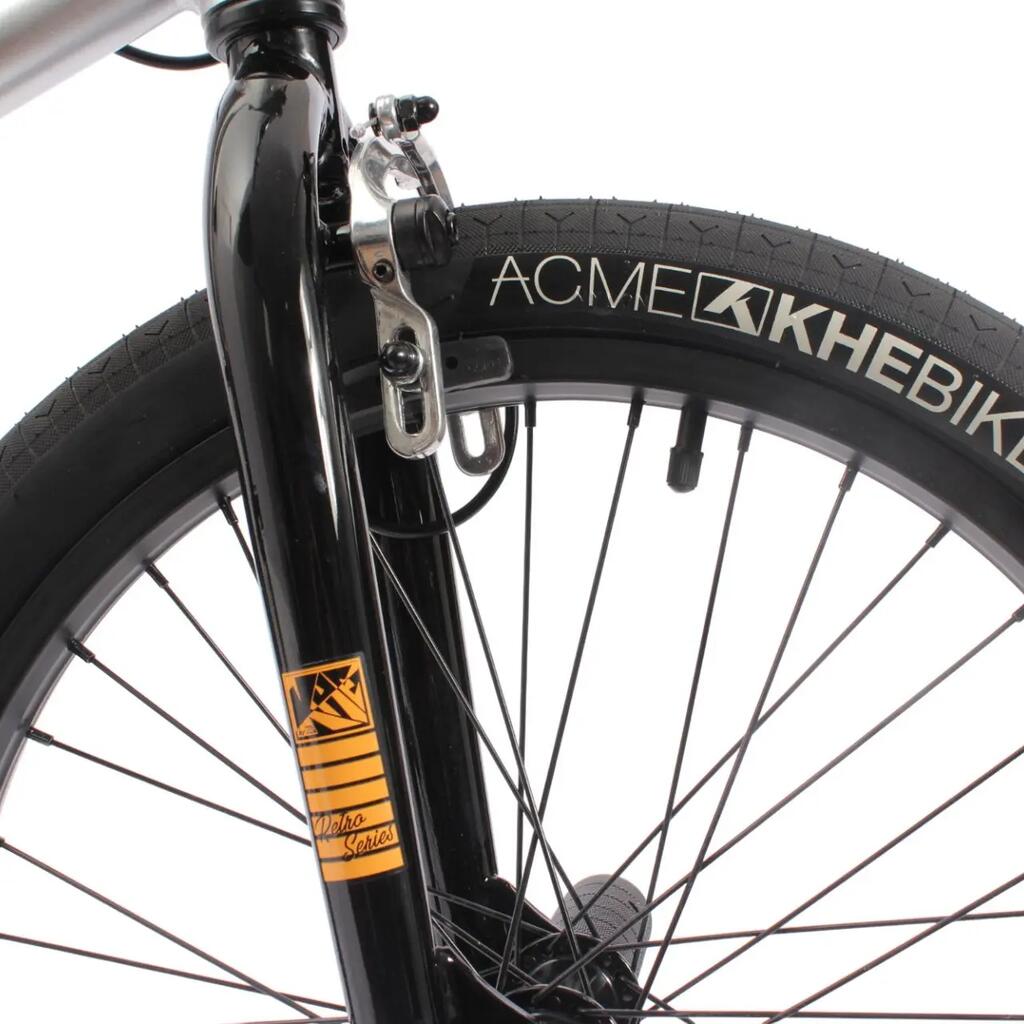

• KHE RADIUS aluminium U-Brake front and rear
• 20" double-wall aluminium rims
• Industrial-bearing hubs front and rear

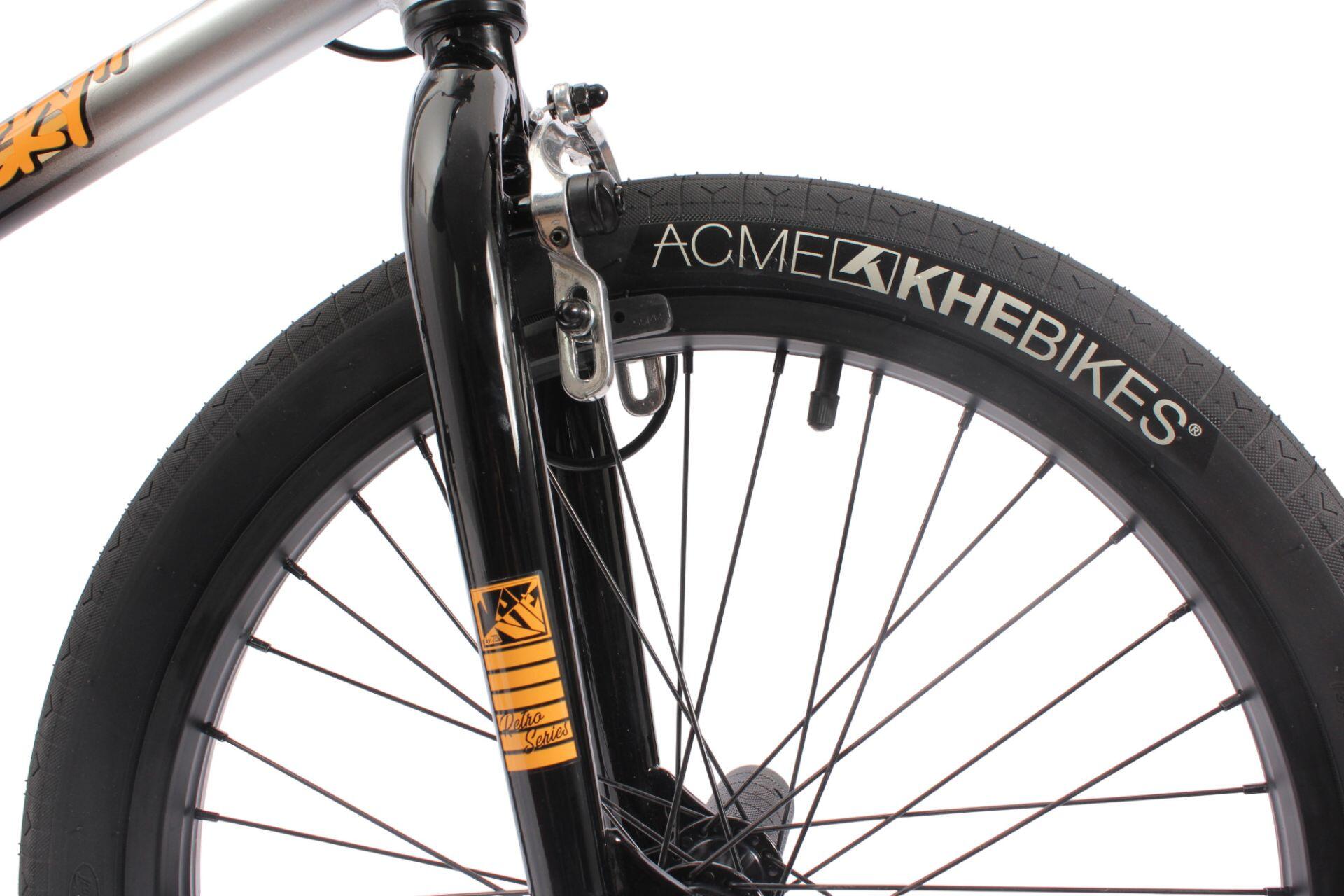

• KHE ACME tyres 20 × 1.95"
• 10 mm front axle
• 14 mm rear axle
Flatland Equipment:

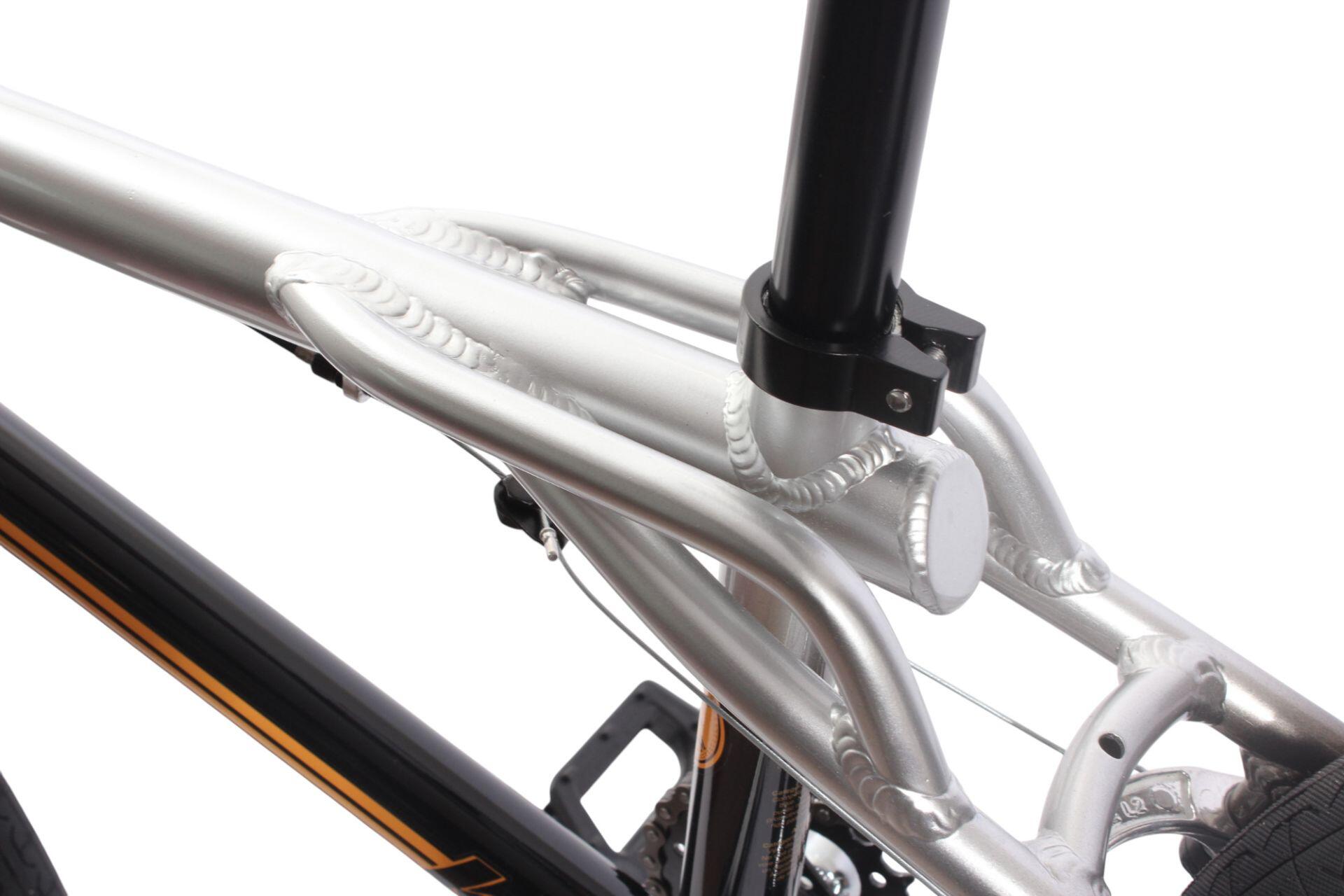

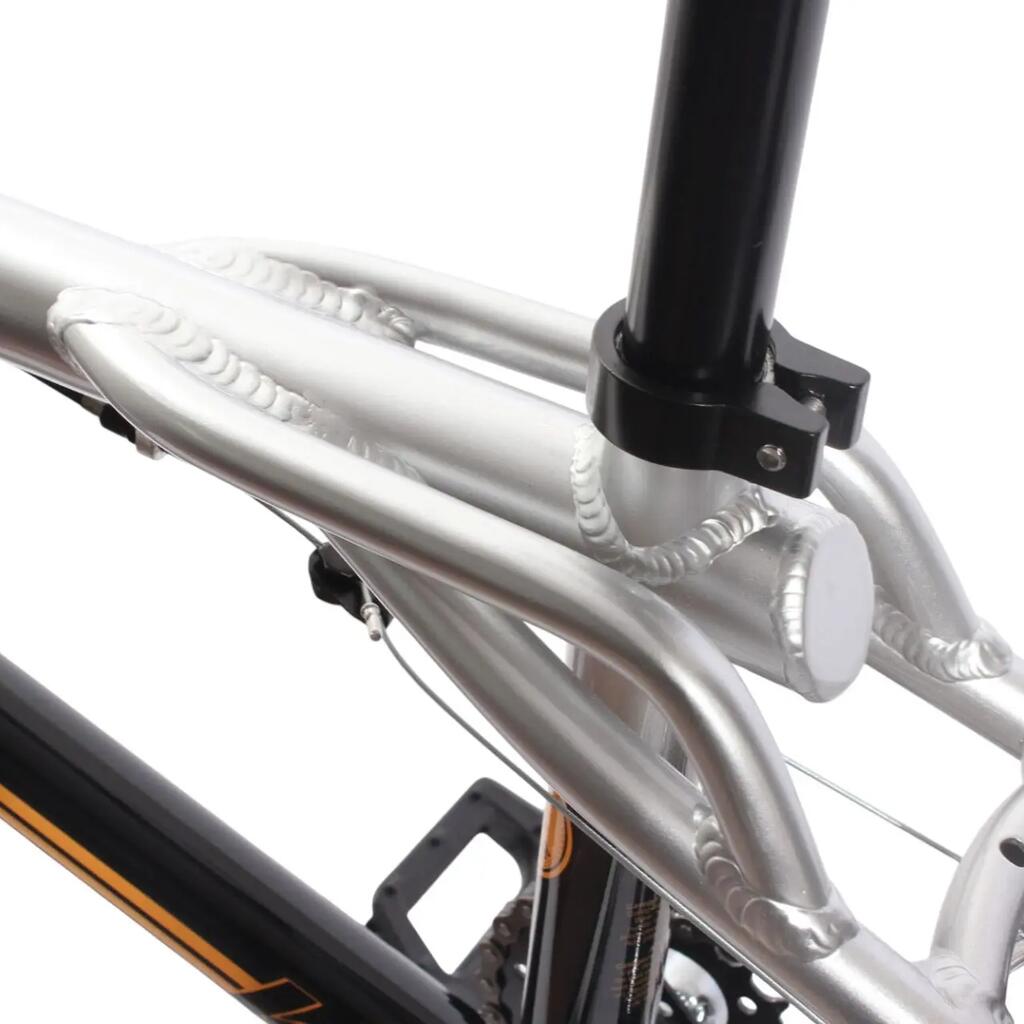

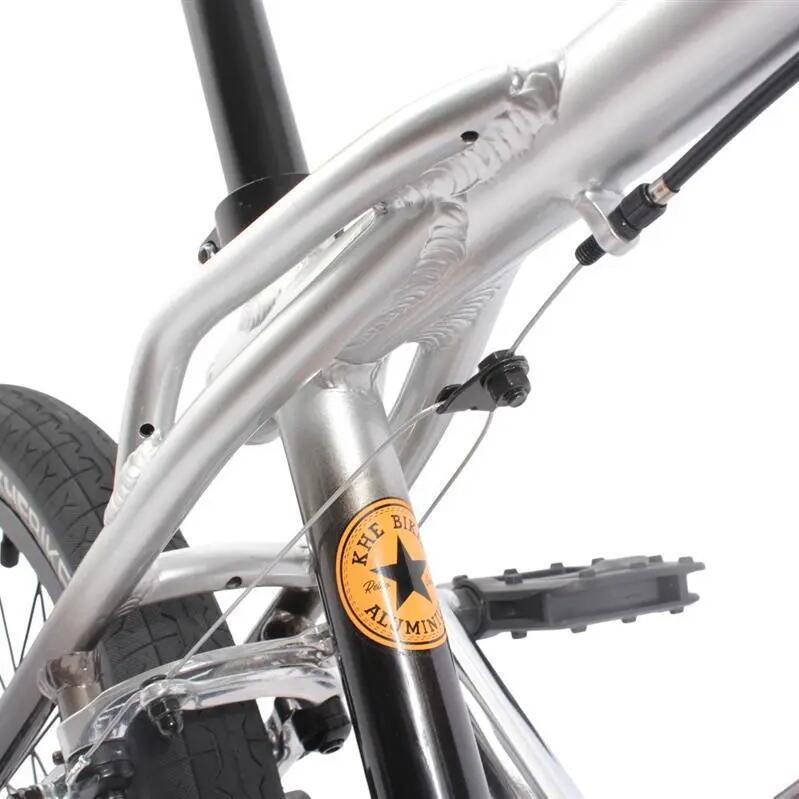

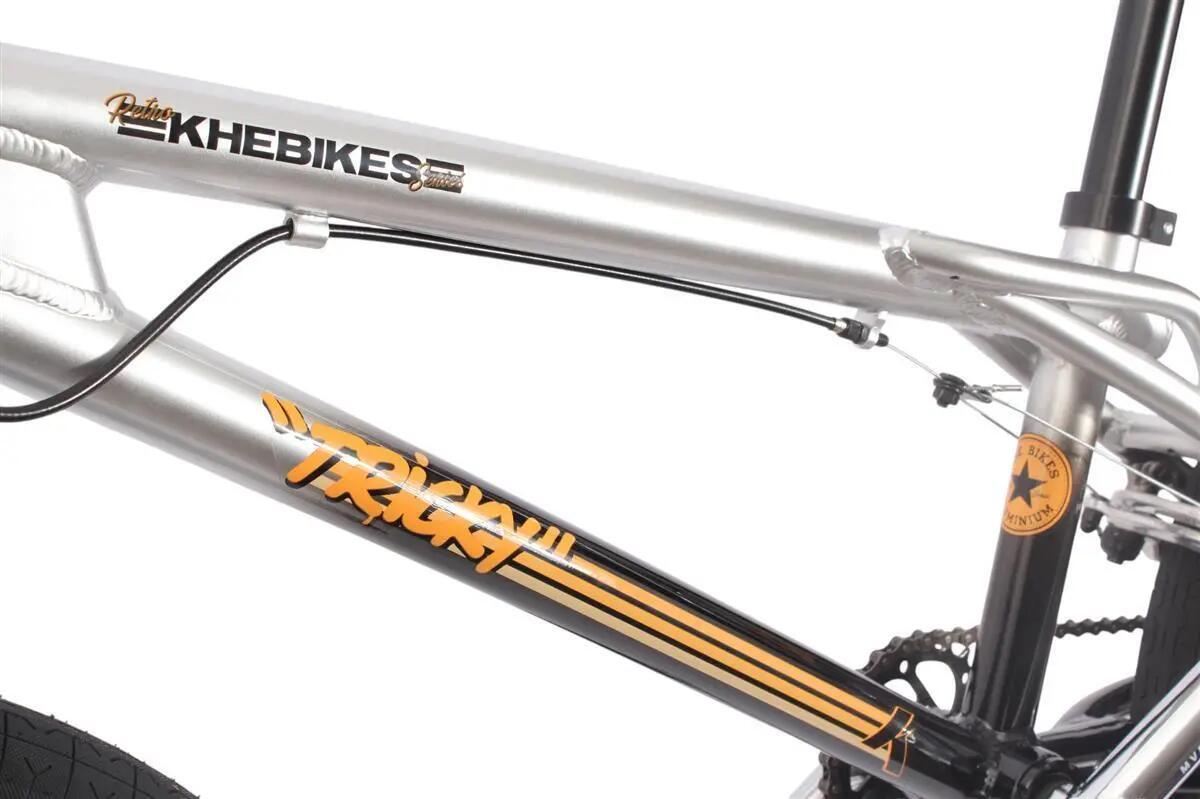

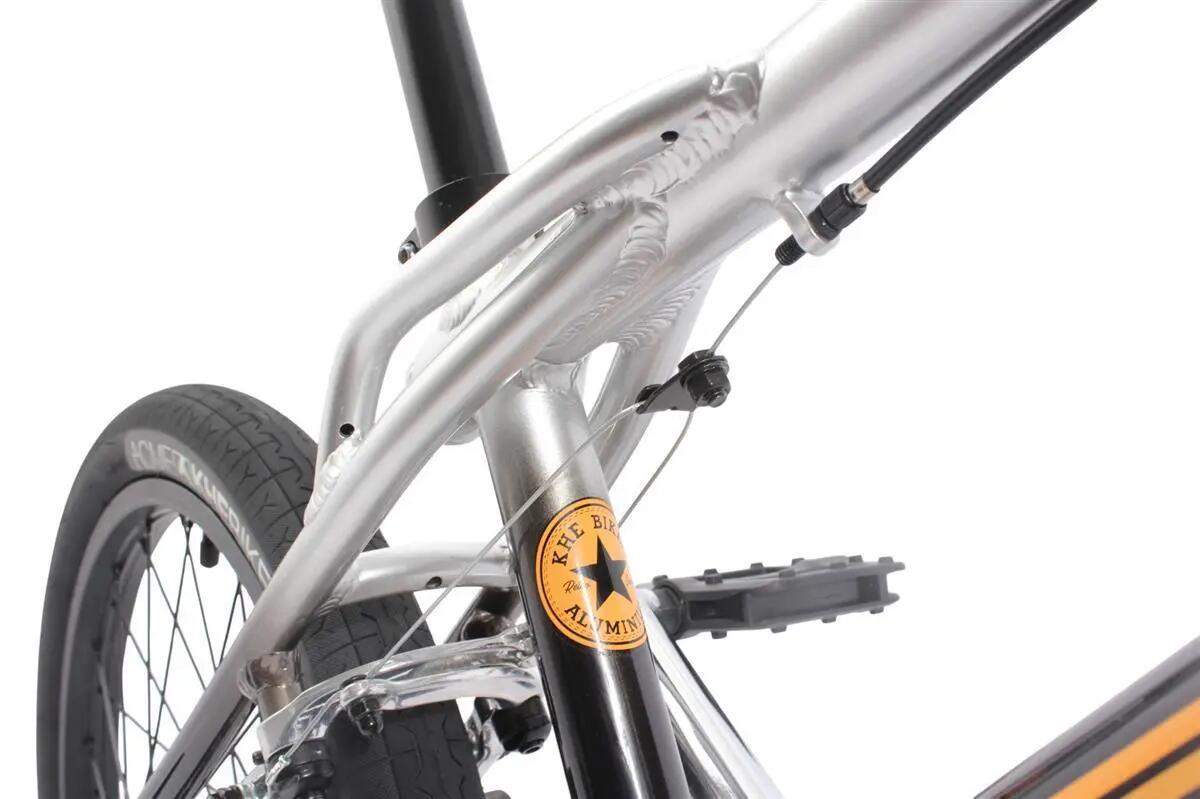

• 6061 aluminium frame with integrated platform
• Compact 19.7" top tube
• 362 mm chainstay
• Two pairs of aluminium pegs included
• Adjustable saddle with rails
• 300 mm seat post
Technical Data
• Model: KHE TRICKY AL
• Model year: 2025

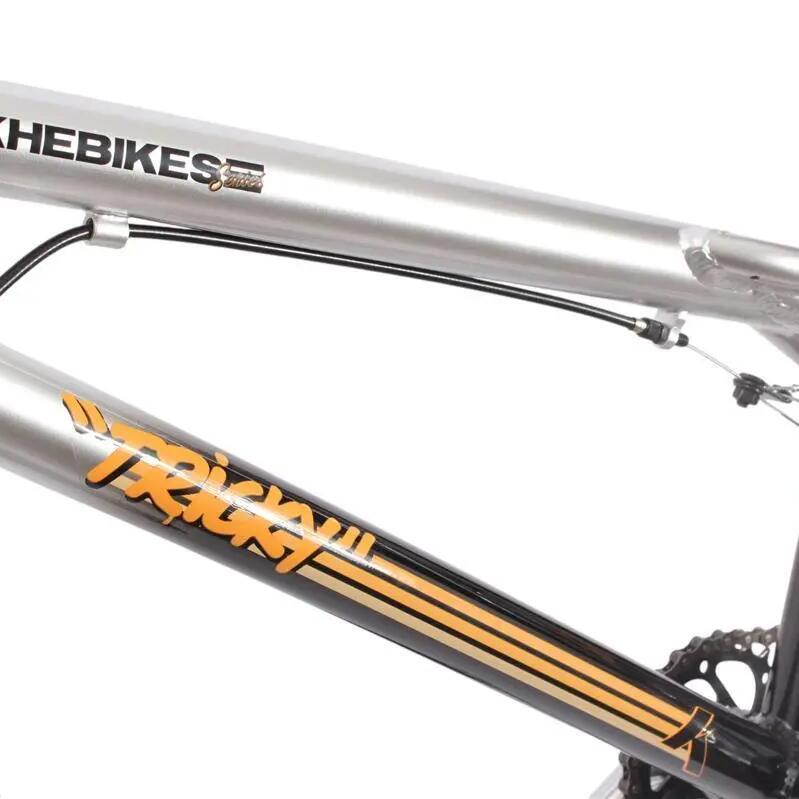

• Frame: KHE 6061 aluminium
• Fork: KHE 1020 HiTen steel with tapered fork legs
• Top tube: 19.7" (500 mm)
• Chainstay: 362 mm
• Head angle: 74.5 degrees
• Seat angle: 71 degrees
• Fork offset: 33 mm

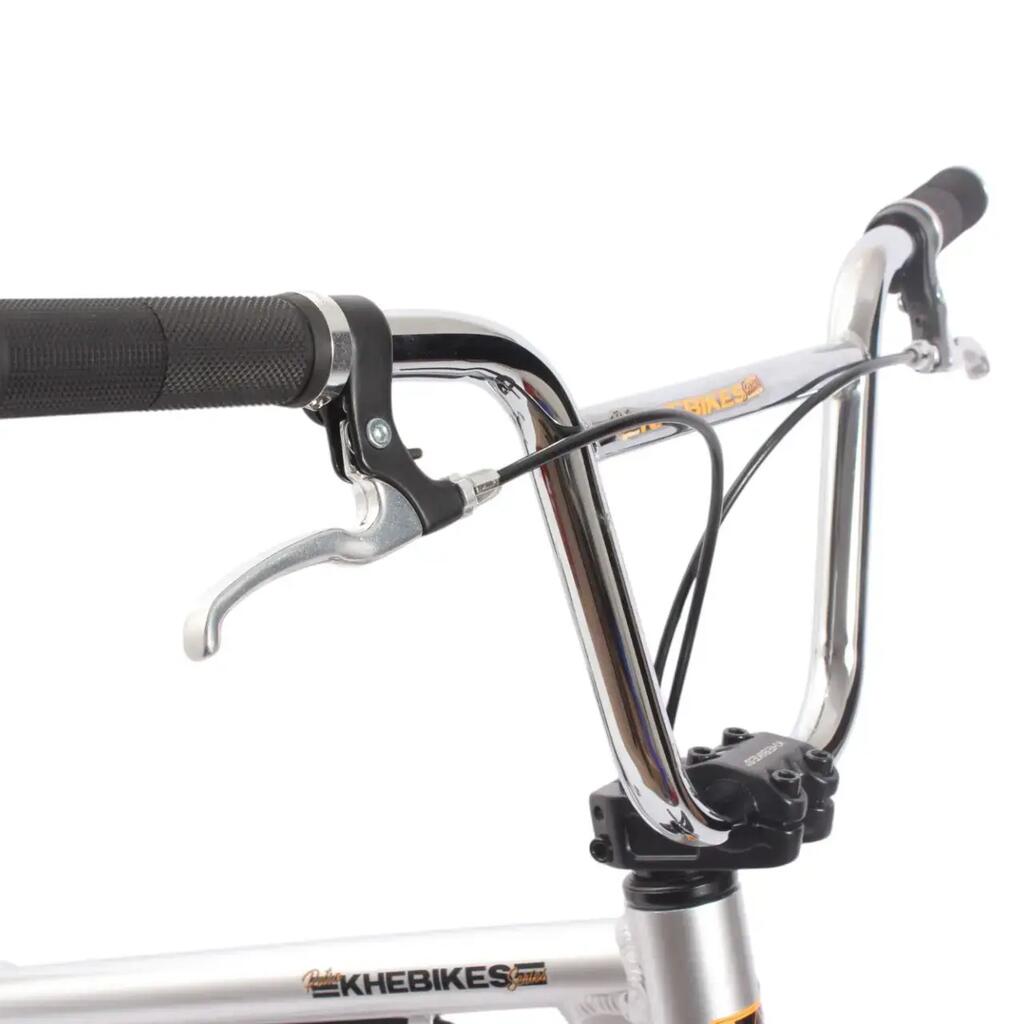

• Handlebar: KHE HiTen steel, 680 mm (26.8") wide × 203 mm (8") high
• Backsweep: 10 degrees
• Upsweep: 1 degree

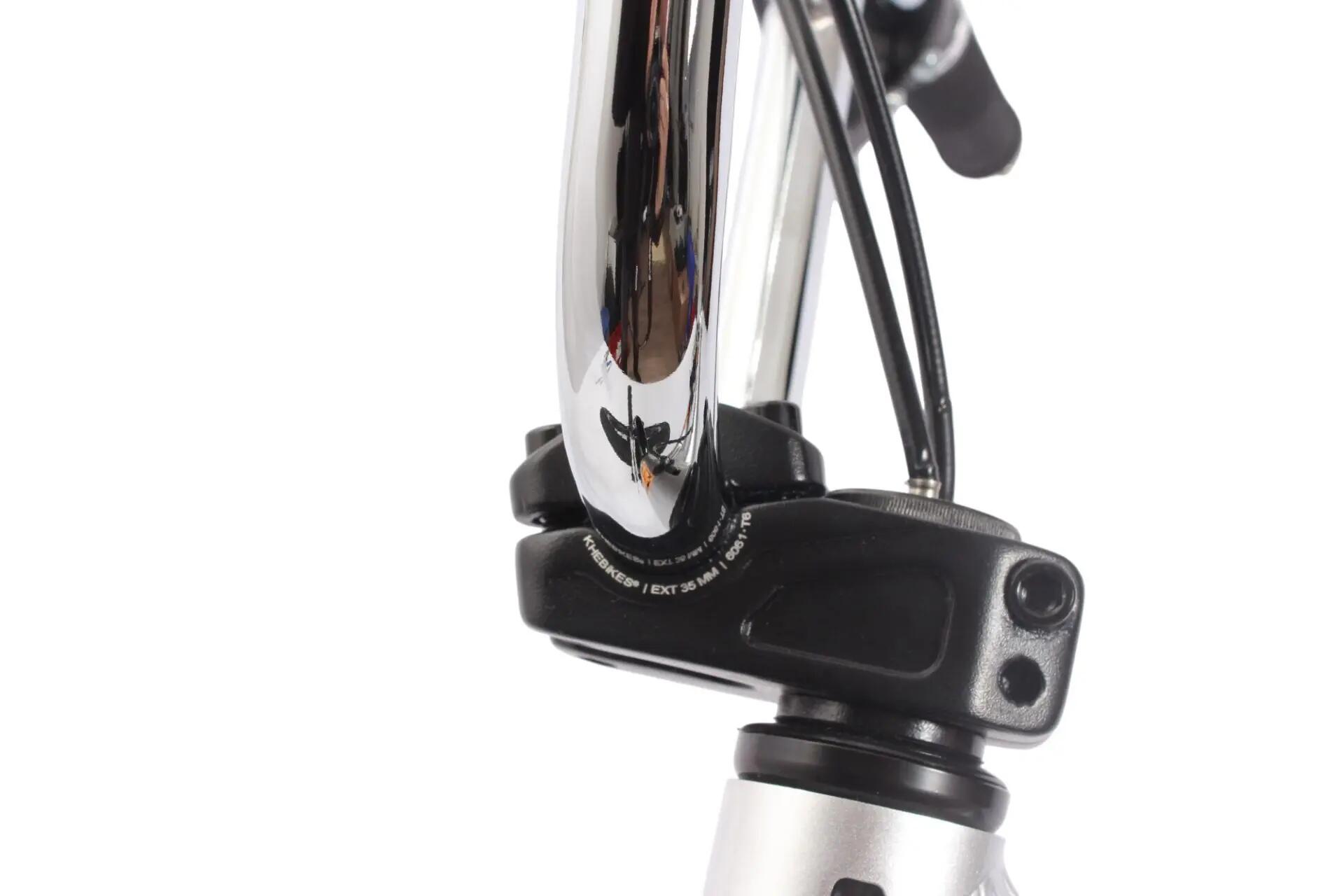

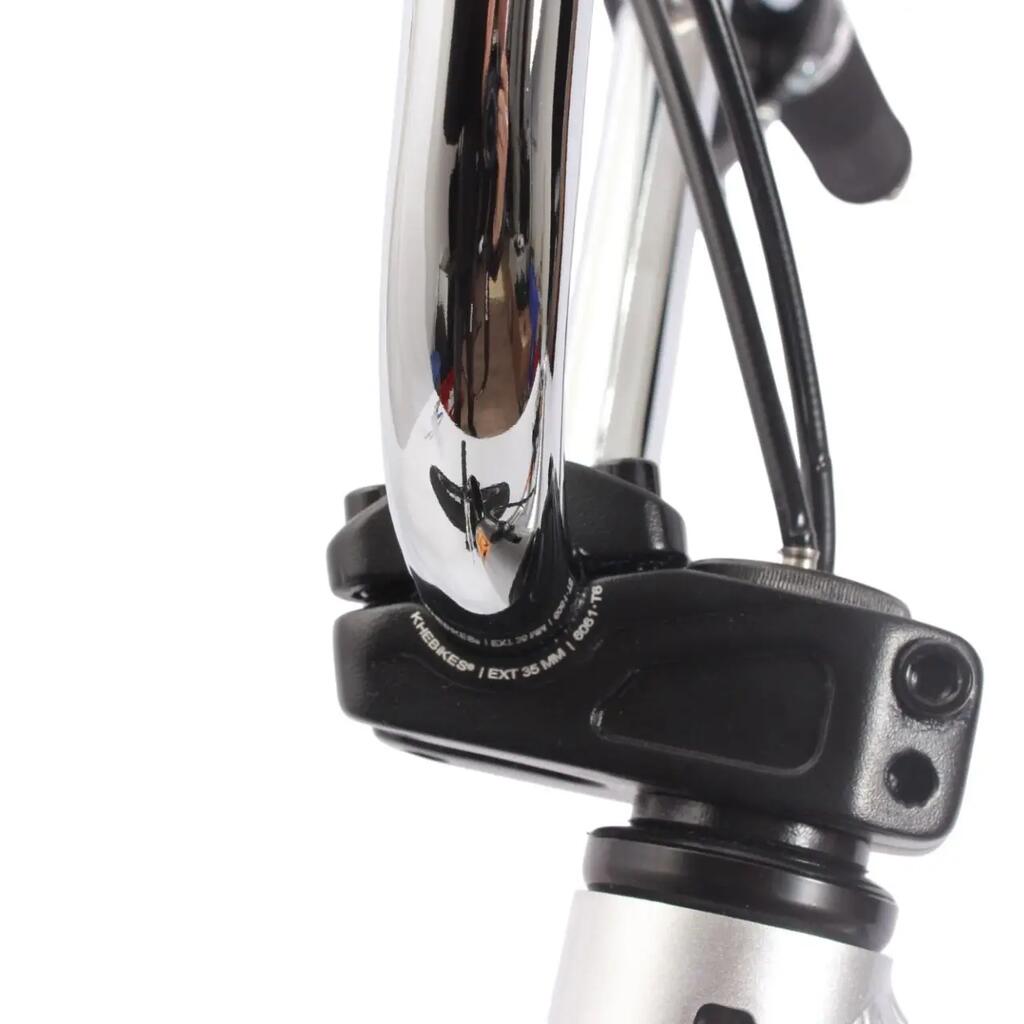

• Stem: KHE Top Loader (40 mm)
• Rotor: Patented KHE AFFIX 360-degree rotor

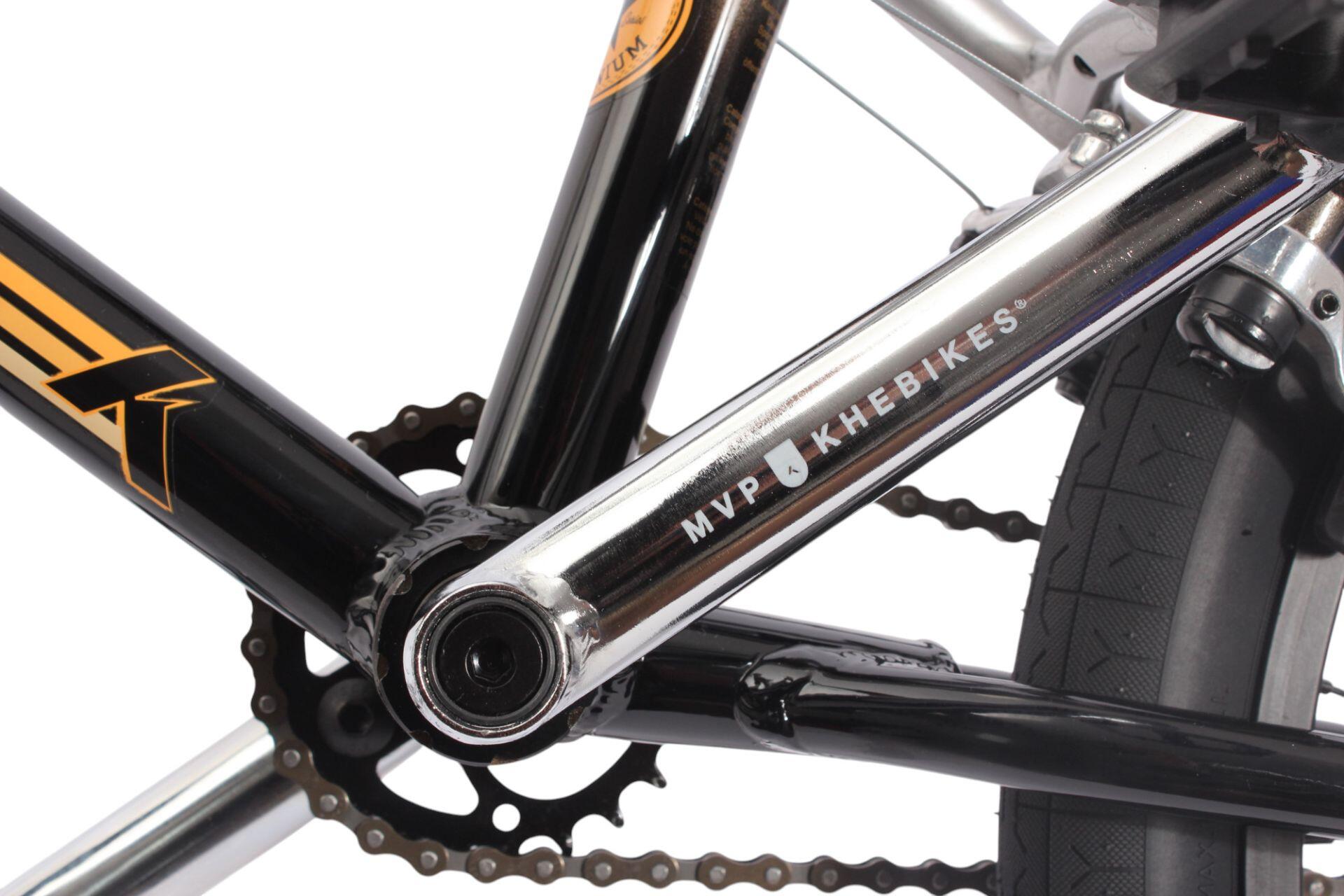

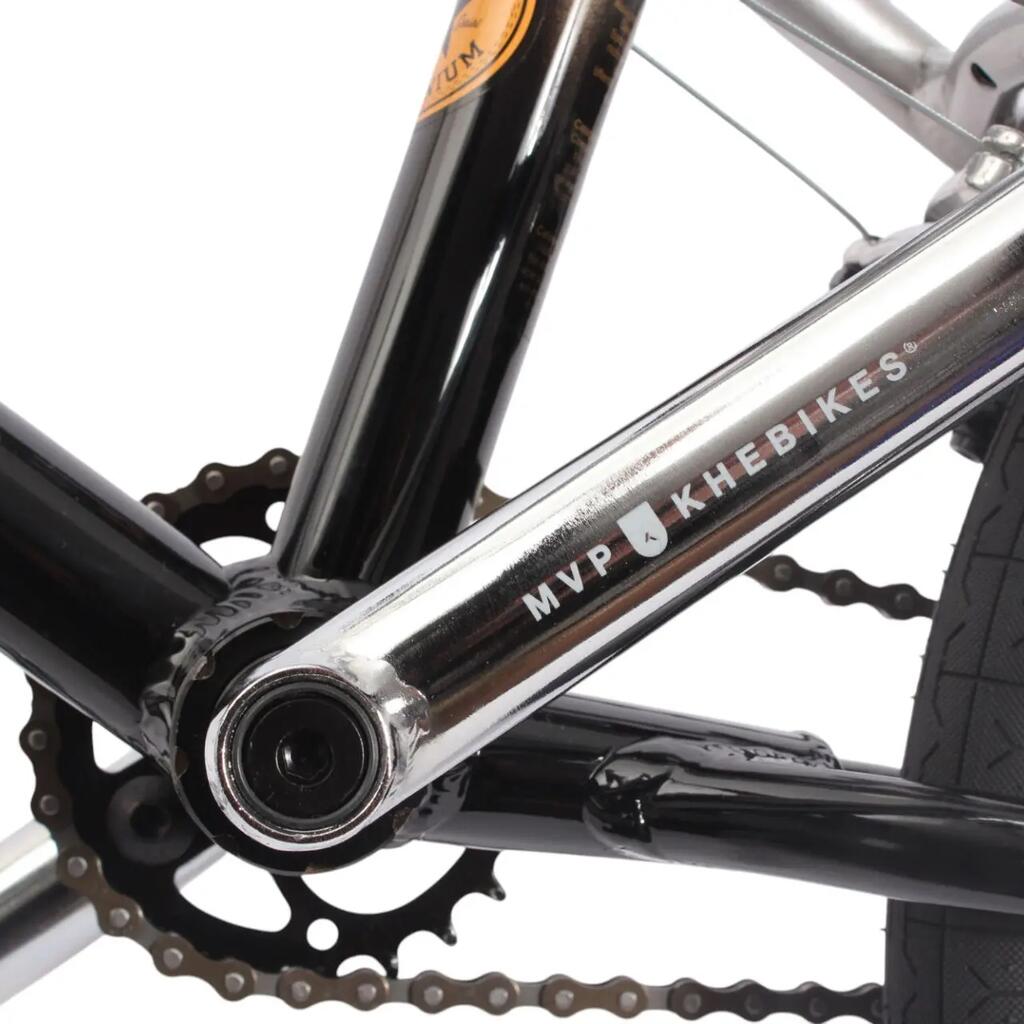

• Crank: 165 mm 3-piece CrMo hollow crank
• Crank axle: 19 mm CrMo
• Chainring: 25T steel
• Bottom bracket: EURO BB, sealed with industrial bearings
• Headset: AFFIX Loose Ball 1 1/8"

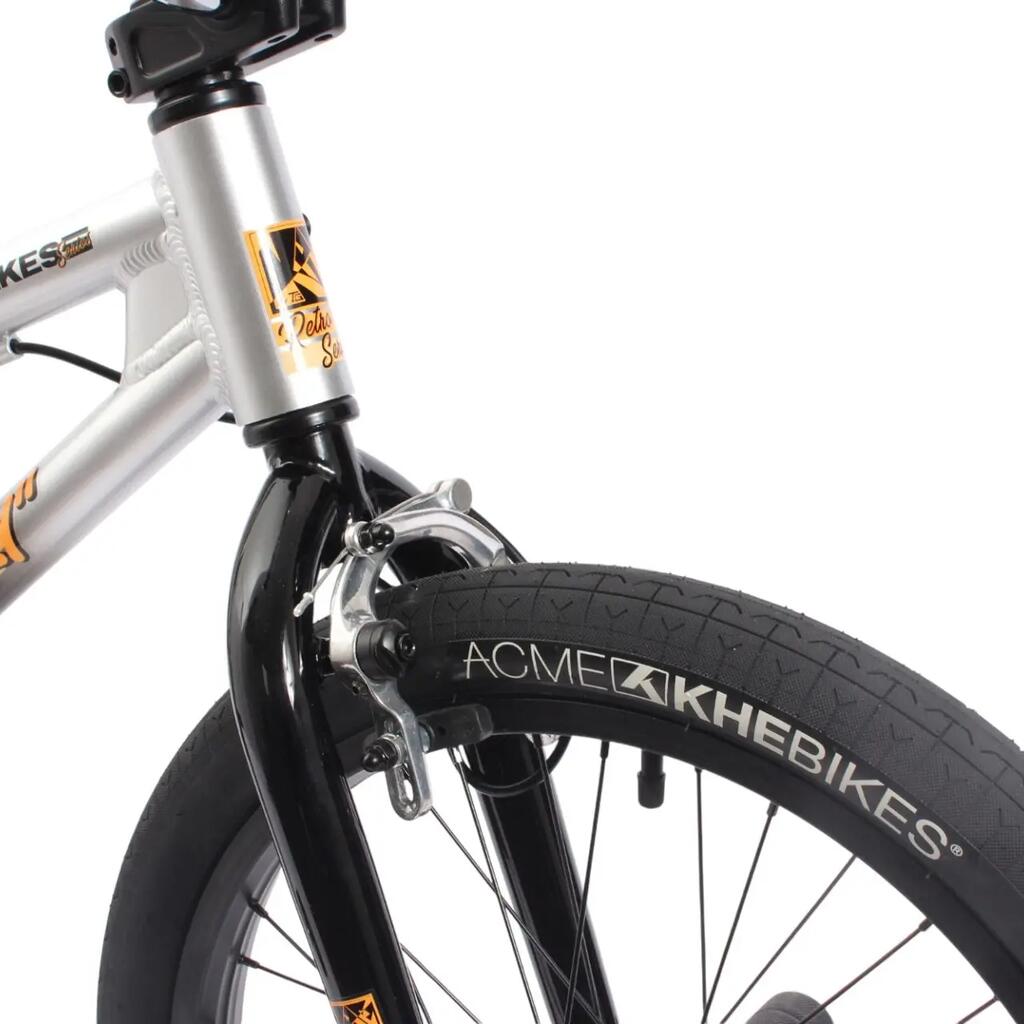

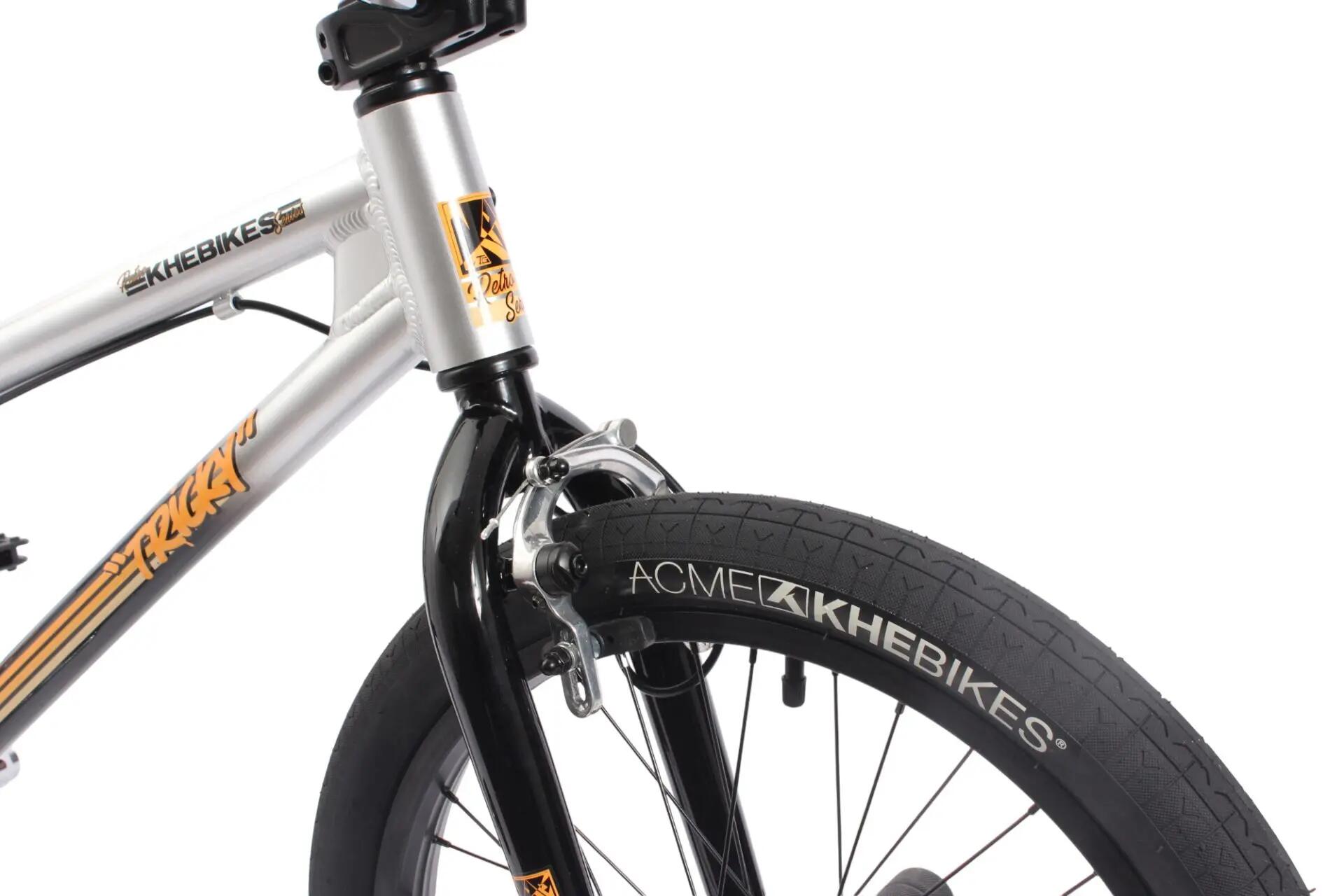

• Front brake: KHE RADIUS aluminium U-Brake
• Rear brake: KHE RADIUS aluminium U-Brake
• Hub type: Cassette
• Front hub: Aluminium, 10 mm axle, industrial bearings
• Rear hub: Aluminium, 9T cassette, 14 mm axle, industrial bearings
• Rims: 20" double-wall aluminium rims, 36 hole
• Tyres: KHE ACME 20 × 1.95"

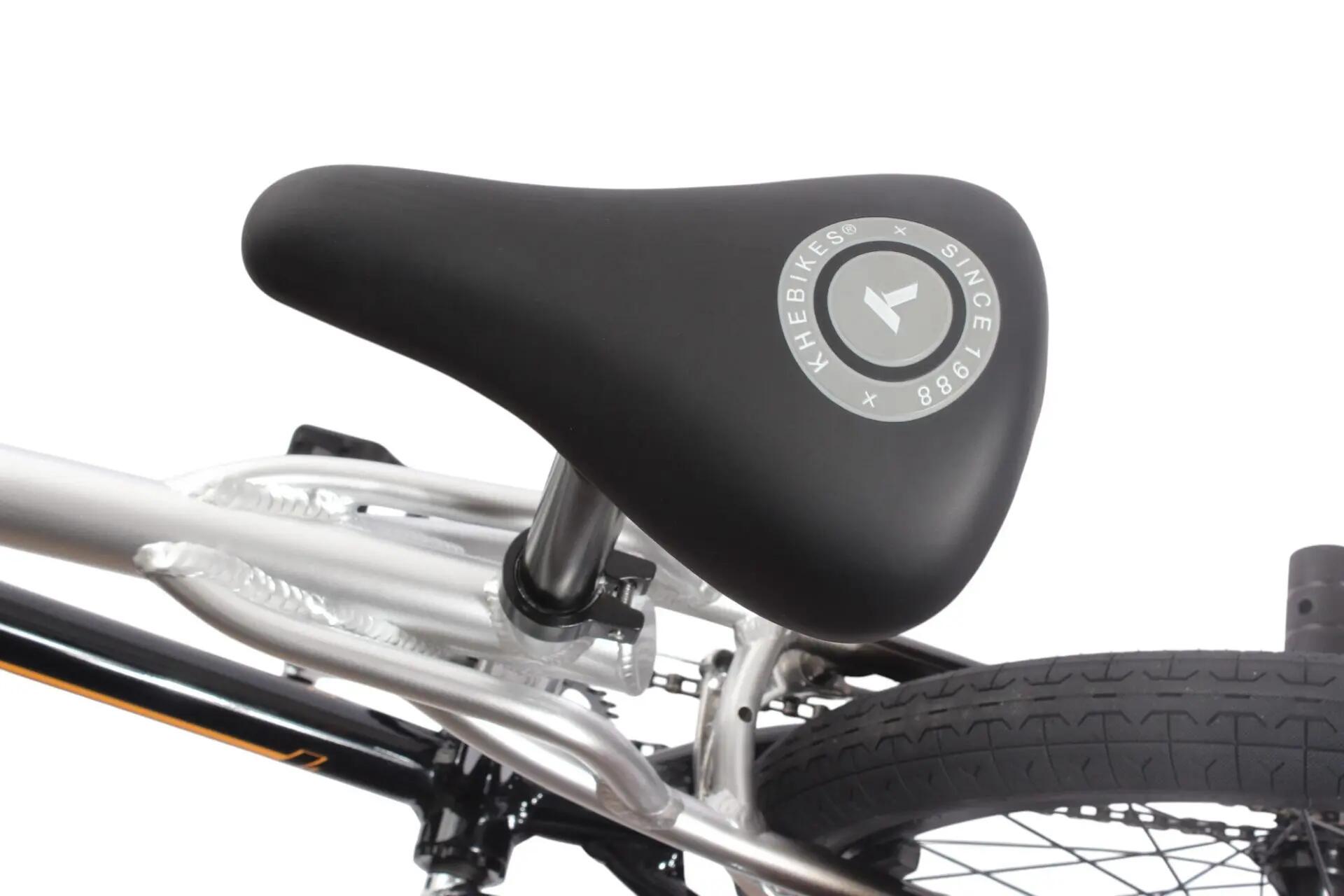

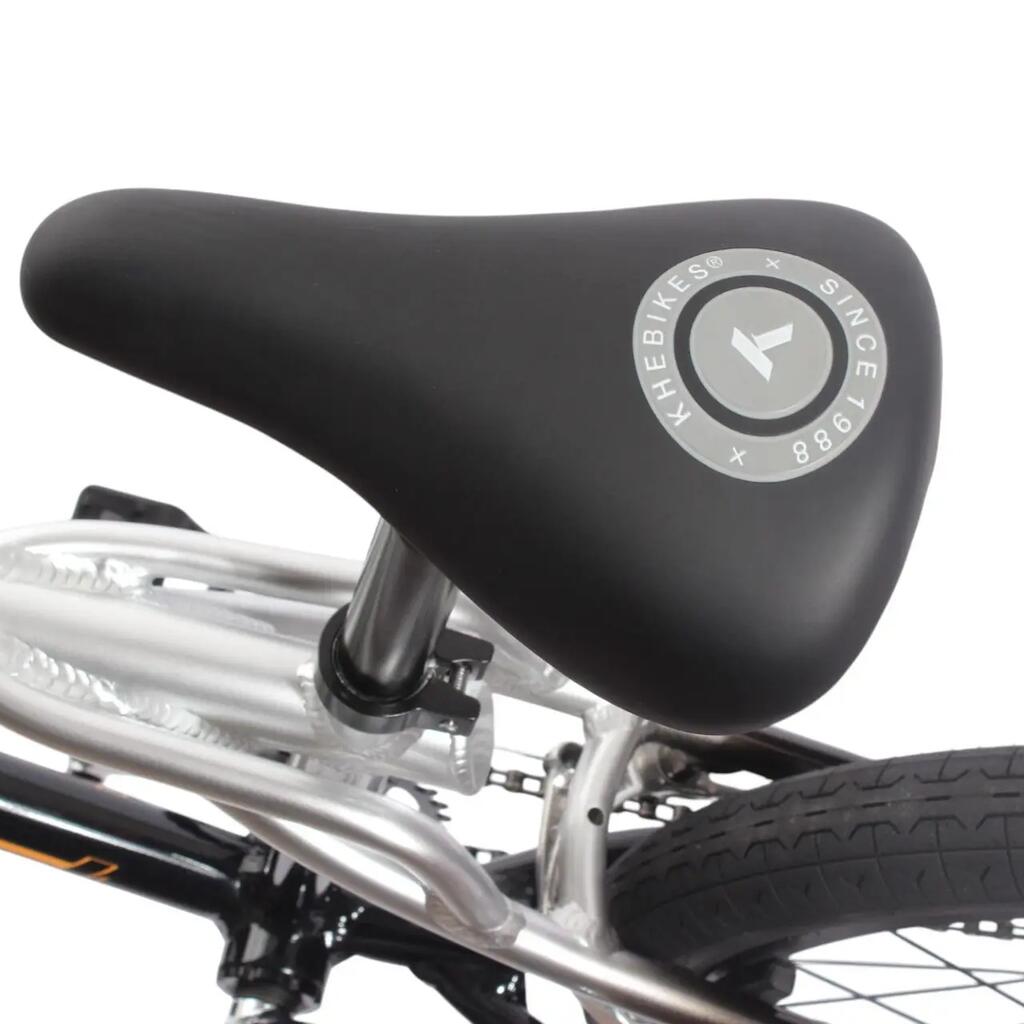

• Saddle: Padded, 210 × 140 mm, adjustable with rails
• Seat post: 27.2 × 300 mm
• Material: Aluminium
• Colour: Chrome Silver / Gloss Black
• Weight: 10.9 kg
Suitable for:
• Rider height: 140–185 cm
• Maximum rider weight: 95 kg
• Use: Flatland / Park / Pumptrack
Why choose the KHE TRICKY AL from KHEbikes:
✓ Lightweight aluminium frame with integrated Flatland platform
✓ Compact 19.7" geometry for agile handling
✓ Patented KHE AFFIX rotor for 360-degree handlebar rotations
✓ Reliable KHE RADIUS aluminium U-Brakes front and rear
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ Strong double-wall aluminium rims
✓ Two pairs of aluminium pegs already included
✓ Only 10.9 kg total weight
Compatibility

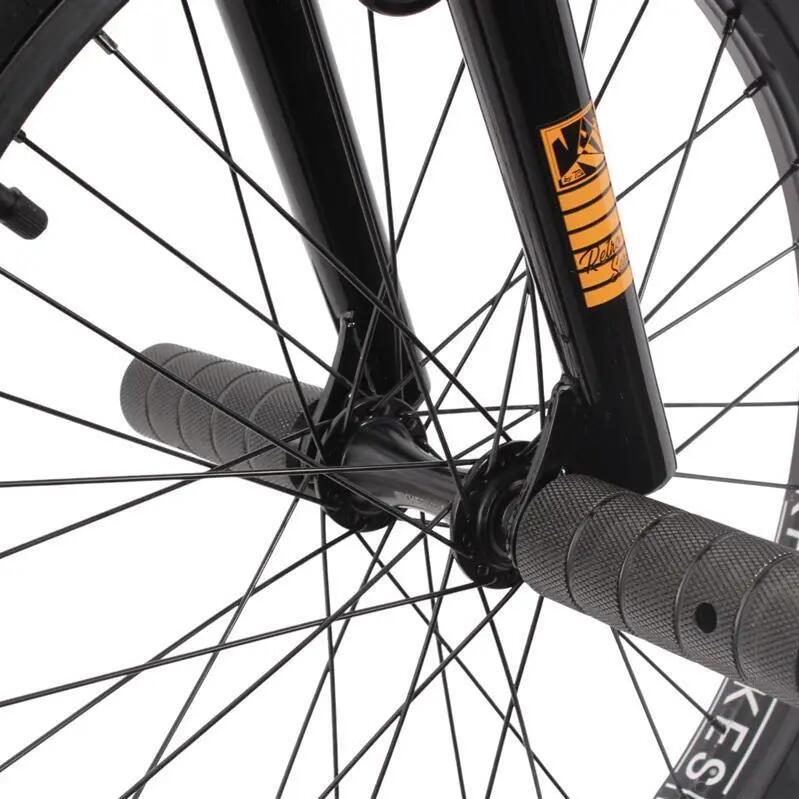

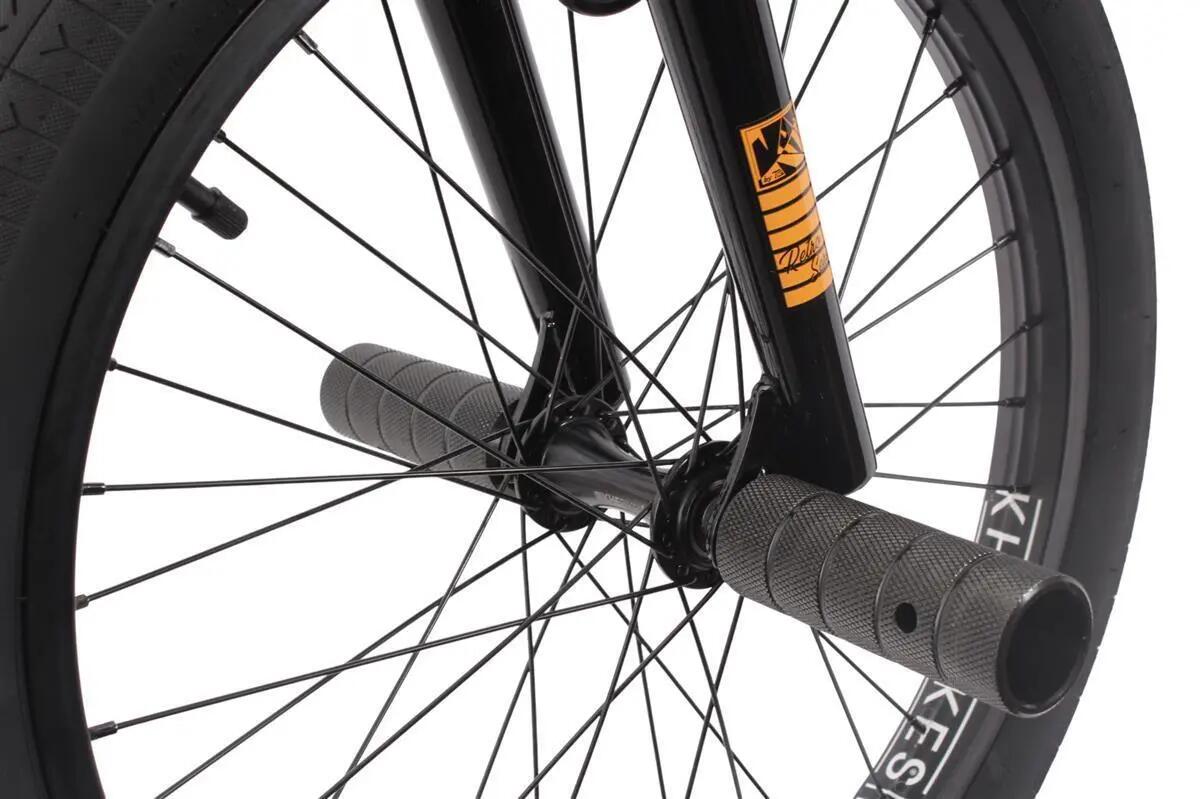

• Front pegs: 10 mm
• Rear pegs: 14 mm
• Pegs included: 2 pairs of aluminium pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Included: The KHE TRICKY AL is supplied with two pairs of aluminium pegs.
