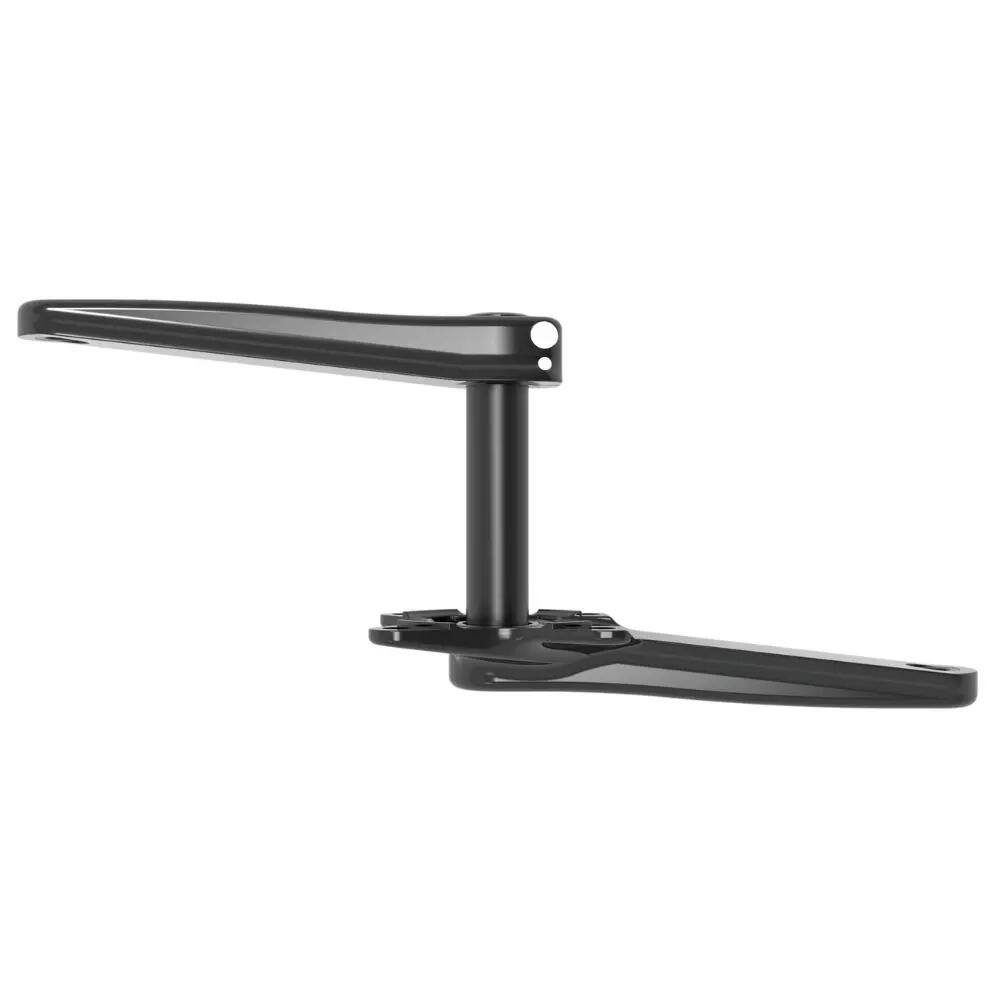

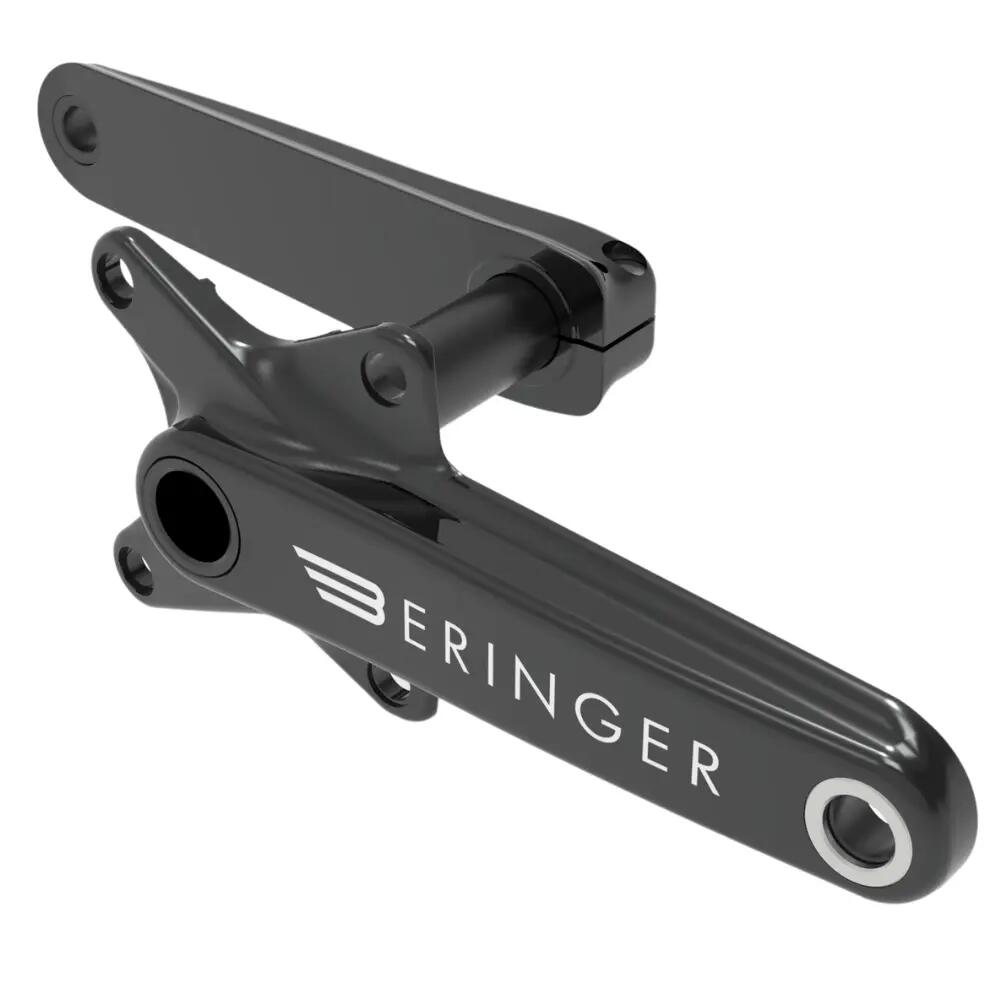

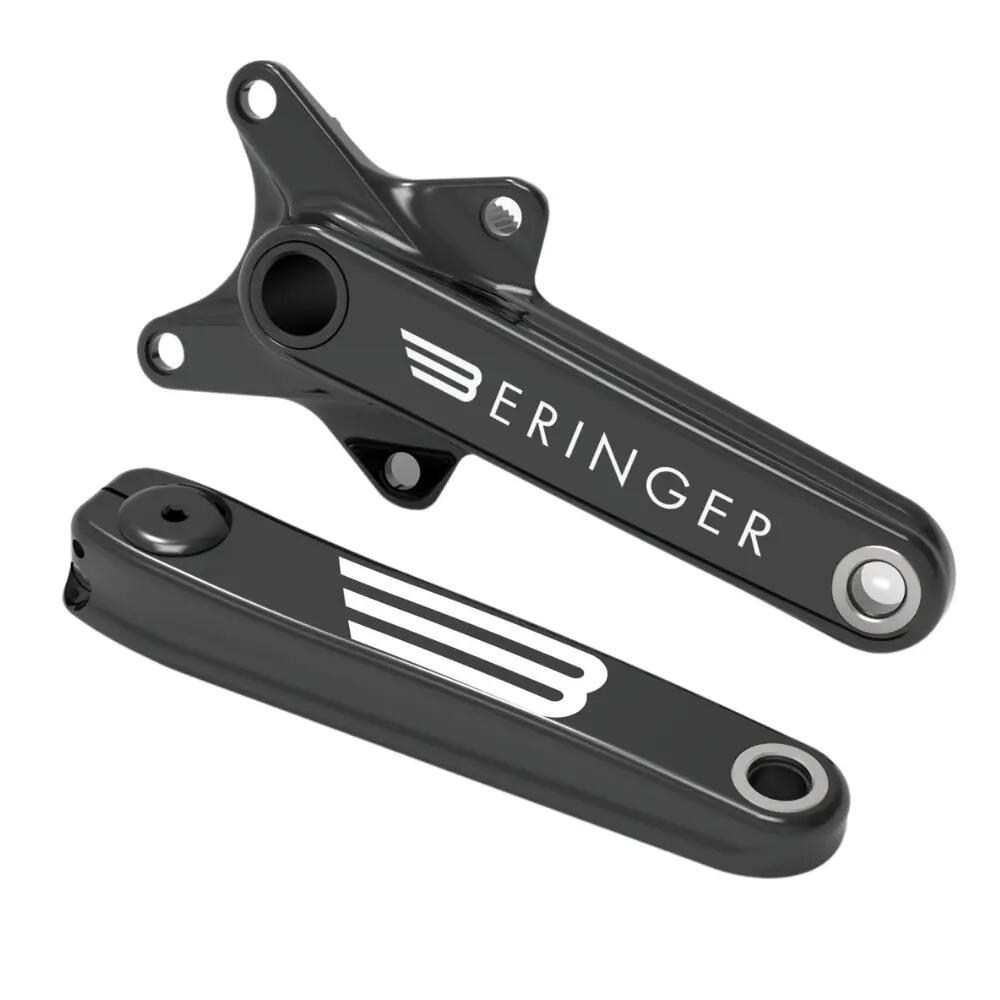

Children's crankset Beringer J2

Product Description

PEDALS BERINGER J2 JUNIOR The J2 version: On this new version, several aspects have been improved. Approximately 5% lighter, for a weight of 585g in size 155mm. The 24mm axle has been redesigned for greater rigidity and solidity during pedaling. A Q-Factor reduced to 154mm, for a better pedaling position and performance. Chainstay J2: 42.5mm to 43.5mm The Beringer Junior crankset is designed for BMX race racing. This crankset is the fruit of French machining expertise and technical knowledge of high-strength alloys. The hollow construction of its CNC-machined 6082 forged aluminum cranks and 24mm hollow CrMo steel axle provides excellent rigidity. This ensures optimum power transfer. The J2 features a brand-new crankset axle: a 24mm steel axle with 40 splines, including 1 coder. Its design makes for easy assembly with the adjustment screw, and a solid hold thanks to axial clamping, eliminating any play. The key features of this crankset are its light ultra weight, rigidity and durability. SIZES AVAILABLE :

• 155mm / 585g
• 160mm / 600g
• 165mm / 615g IN DETAIL:
• CNC-machined hollow cranks in 6082 forged aluminum
• Hollow CrMo integrated steel axle, diameter 24 mm - 40 splines
• 4-point crown mounting - 104 mm center distance
• Coating: color anodized
• Inserts & support washer for direct pedal screwing
• Laser-engraved logo for precise rendering
• Q-Factor: 154mm
• Chain line: 42.5mm to 43.5mm
• 2 spacers for a perfect fit
• 1 single coder for a better fit Supplied without 68mm bearing housing CRANKSET CONTENTS :
• Crank handle under left-side crankset assembly
• Crank with 4-point Spider attachment 104mm
• Support washers & inserts for direct pedal mounting
• 2 CHC M6xM16 screws for sub-assembly mounting
• 24mm axle - 40 splines with 1 specific coder + 2 spacers
