Solar panel charge controller Goal Zero 10A

Product Description

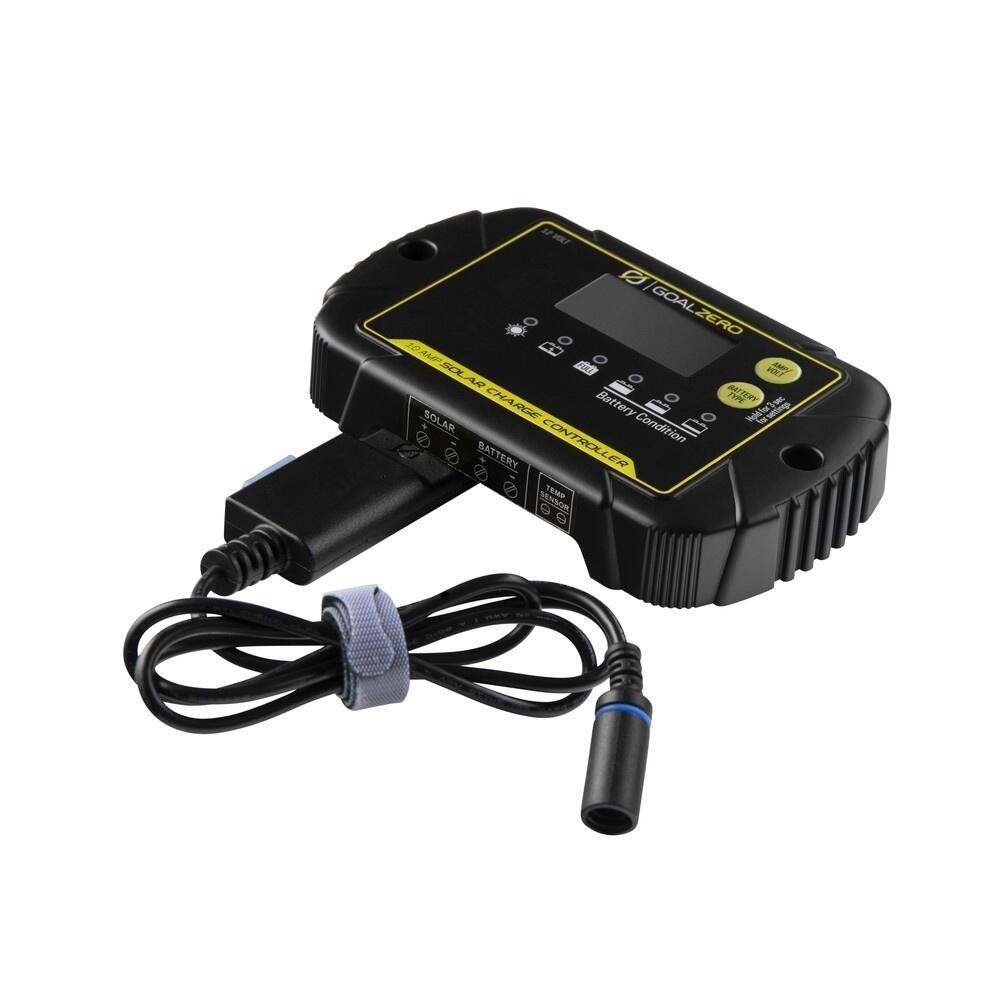

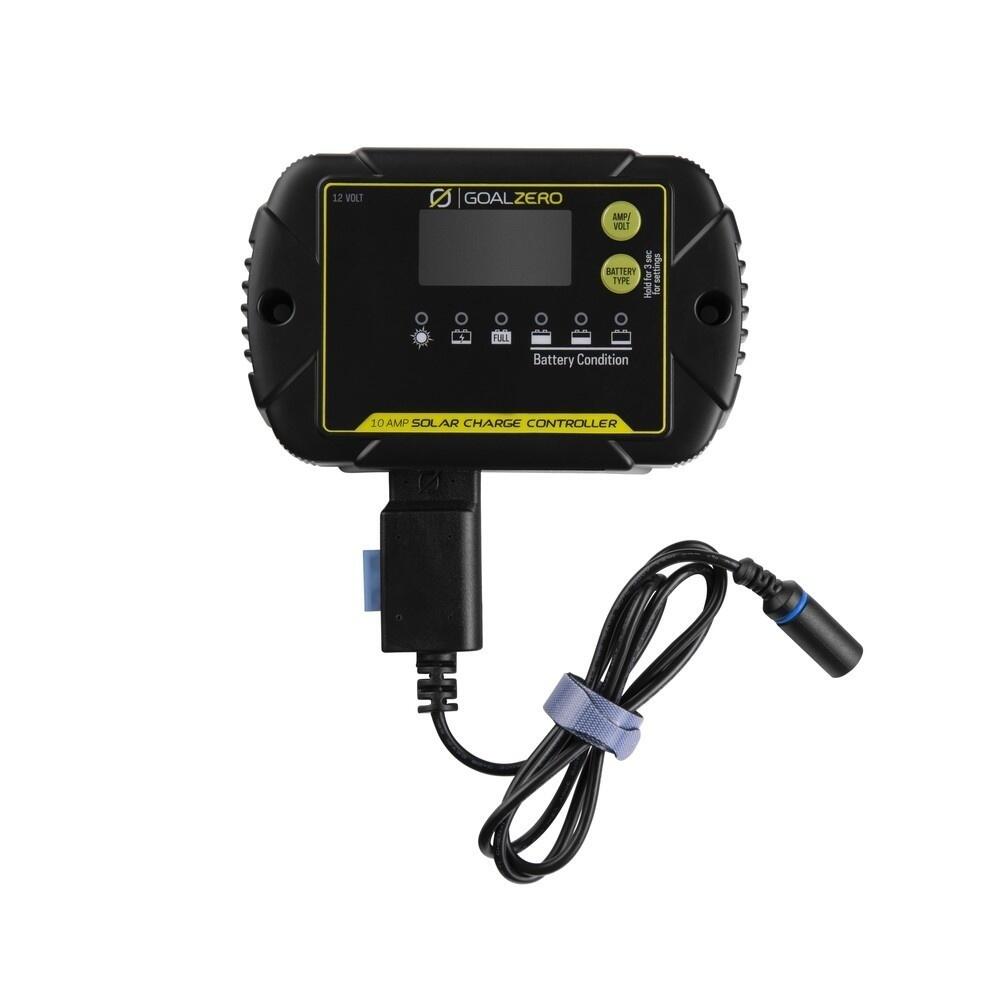

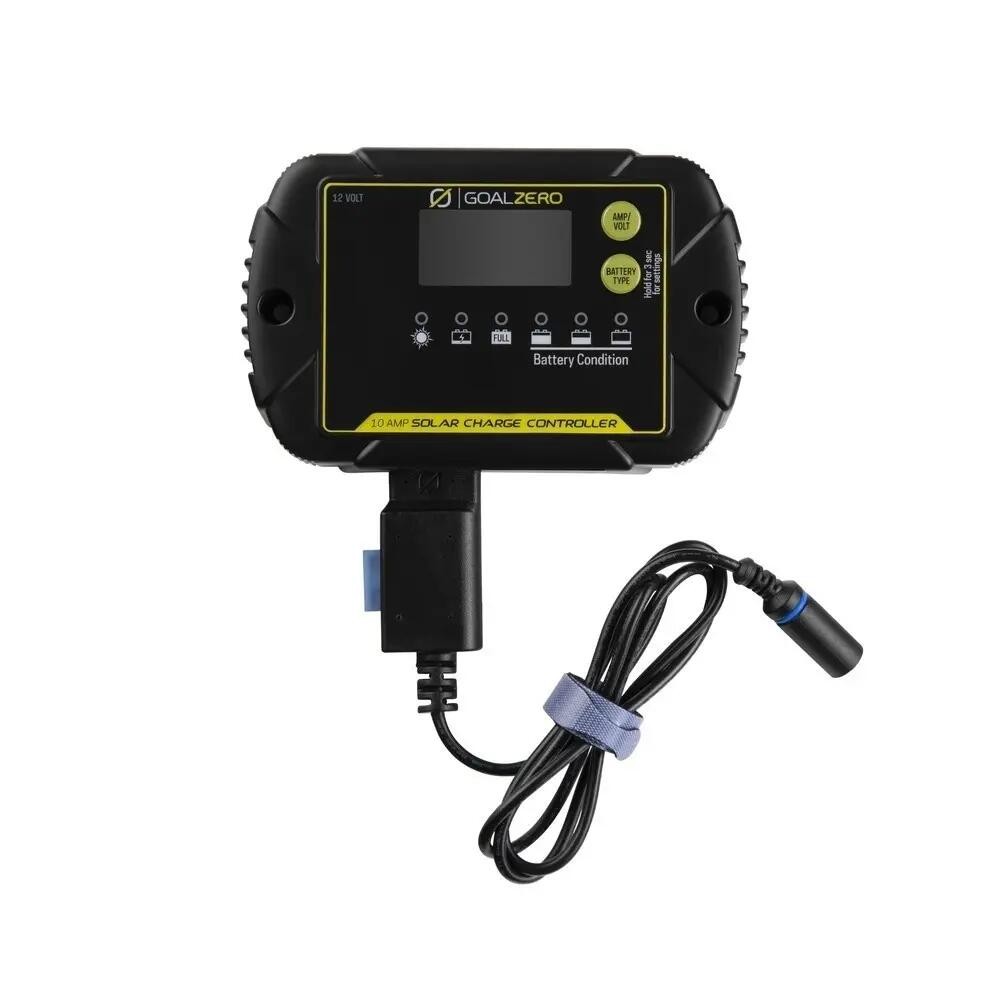

Monitor and regulate the solar input for your 12V batteries with the 10 Amp charge controller. Designed to fit perfectly with Goal Zero solar panels, the charge controller comes with a pre-installed 8 mm solar connector and an easy-to-read LED display. With an IP65 rating, the charge controller is weather-resistant and dustproof, providing protection against the elements during your off-grid adventures or outdoor activities. Designed to monitor and regulate the solar input for 12V batteries. For a solar charge of 100 watts and less, we recommend the 10 amp charge controller. For solar charging of more than 100 watts, we recommend the 20 Amp charge controller. The charge controller comes with an integrated 8 mm solar connector Goal Zero. To connect and charge a 12V battery, you need to purchase a Spade to SAE cable and additional cable adapters. We recommend either the SAE to ring terminal or the SAE to crocodile clip. Input/Output: M5 Input: Solar port (blue 8mm): 14-22V | 5V up to 10A Fuse: 15A replaceable Charge controller: PWM Rated solar panel amperage GZ-10: 10A Normal input voltage for solar panels: 15-22V Maximum solar panel voltage (no load output): 25V Lowest operating voltage on the solar or battery side: 8V minimum Charging features: Starting voltage at 25°C: 3-10V Charging voltage at 25°C: LTO Battery: 14.0V Gel Battery: 14.1V LiFePO4 Battery: 14.4V Charging voltage at 25°C: AGM Battery: 14.4V WET Battery: 14.7V Calcium Battery: 14.9V Equalization voltage at 25°C: WET or Calcium Battery-15.5V Float voltage at 25°C: Gel AGM WET Calcium Batteries-13.6V LTO and LiFePO4 Batteries-13.4V Battery temperature compensation coefficient: -24mV/°C
