Product Description

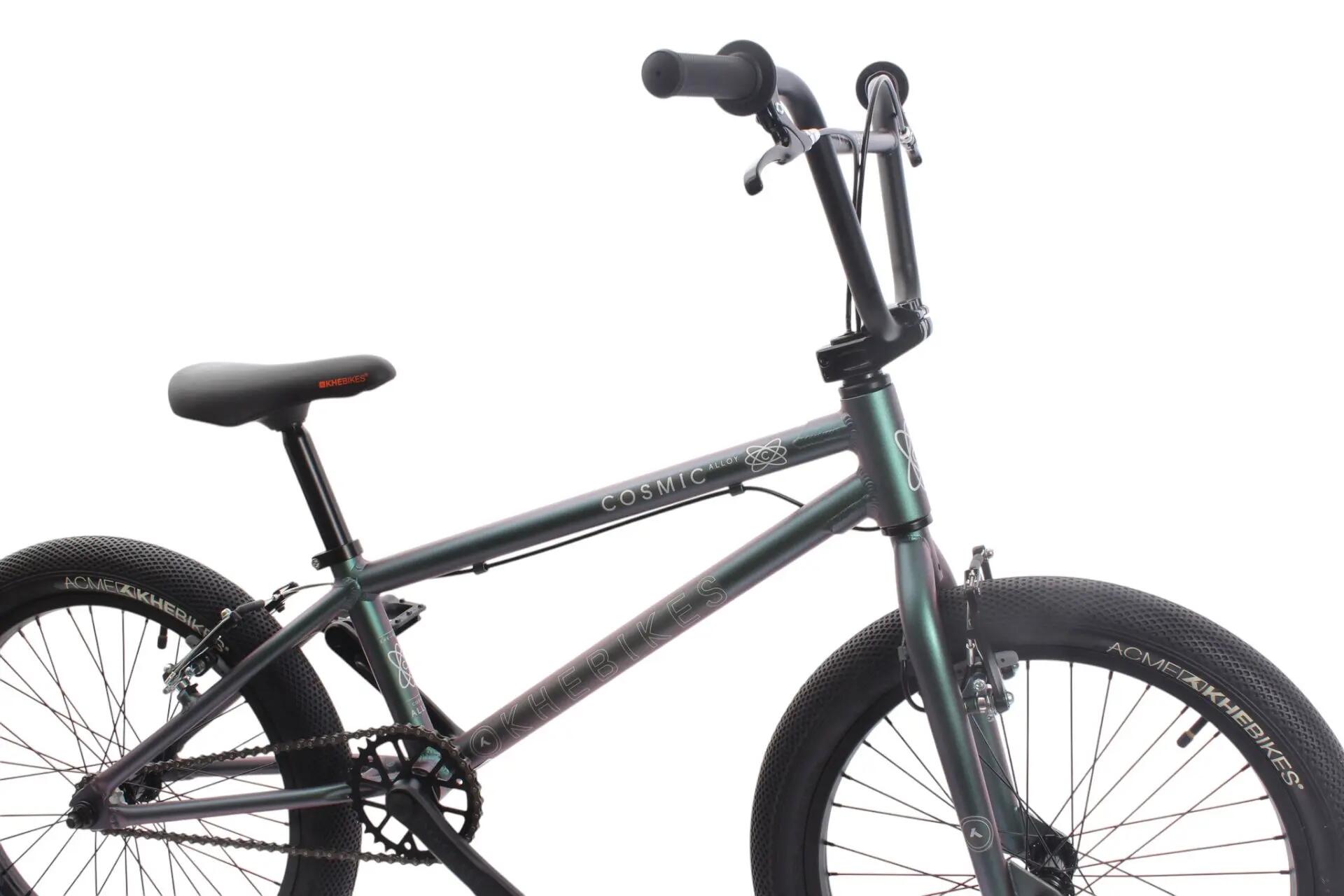

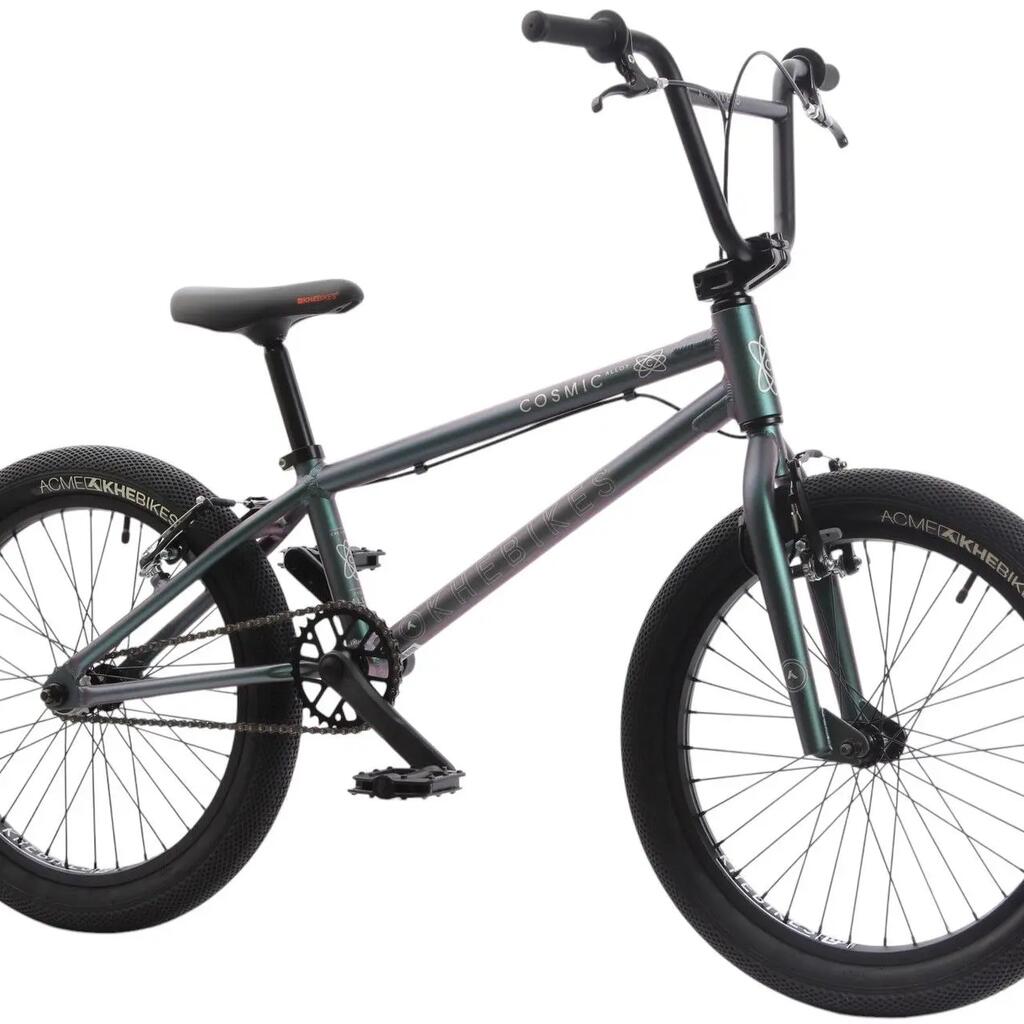

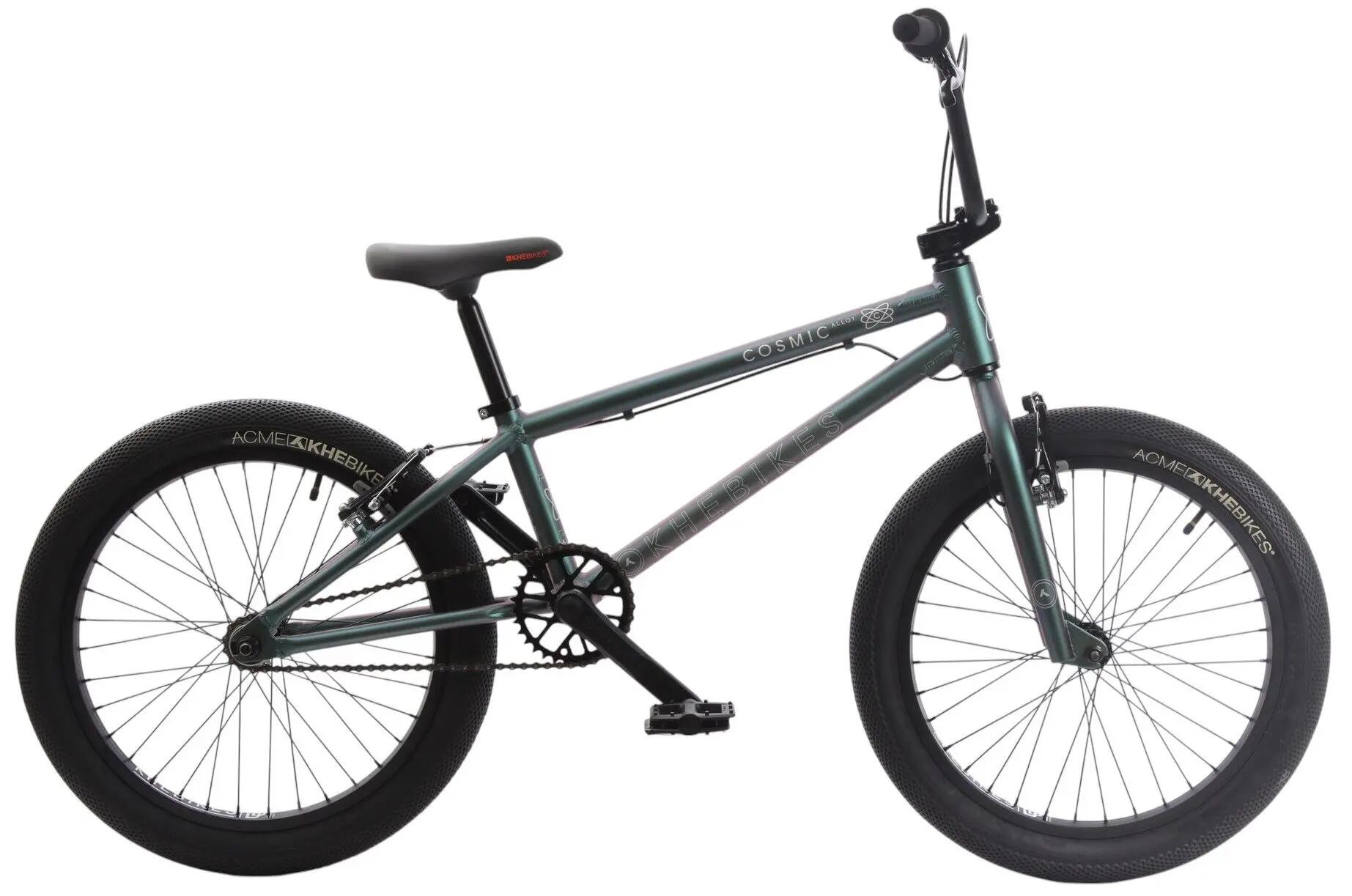

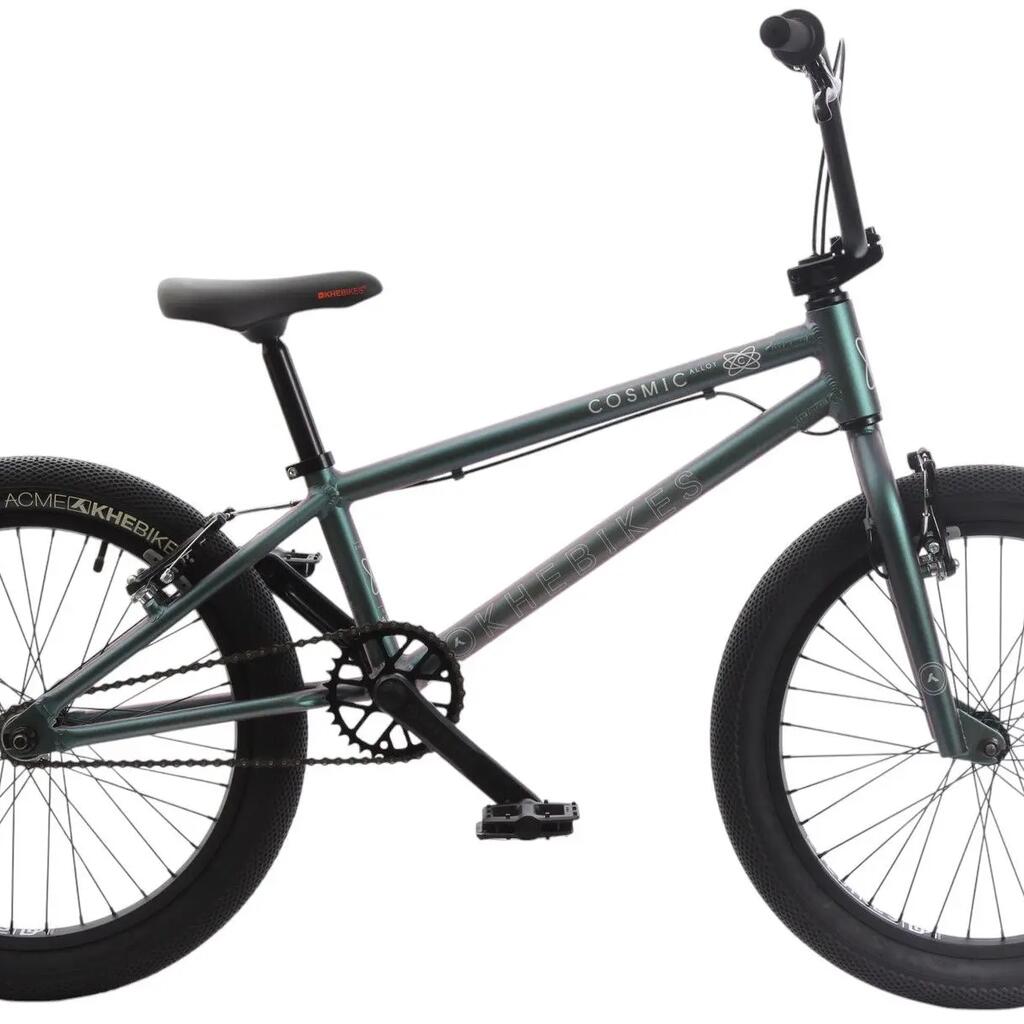

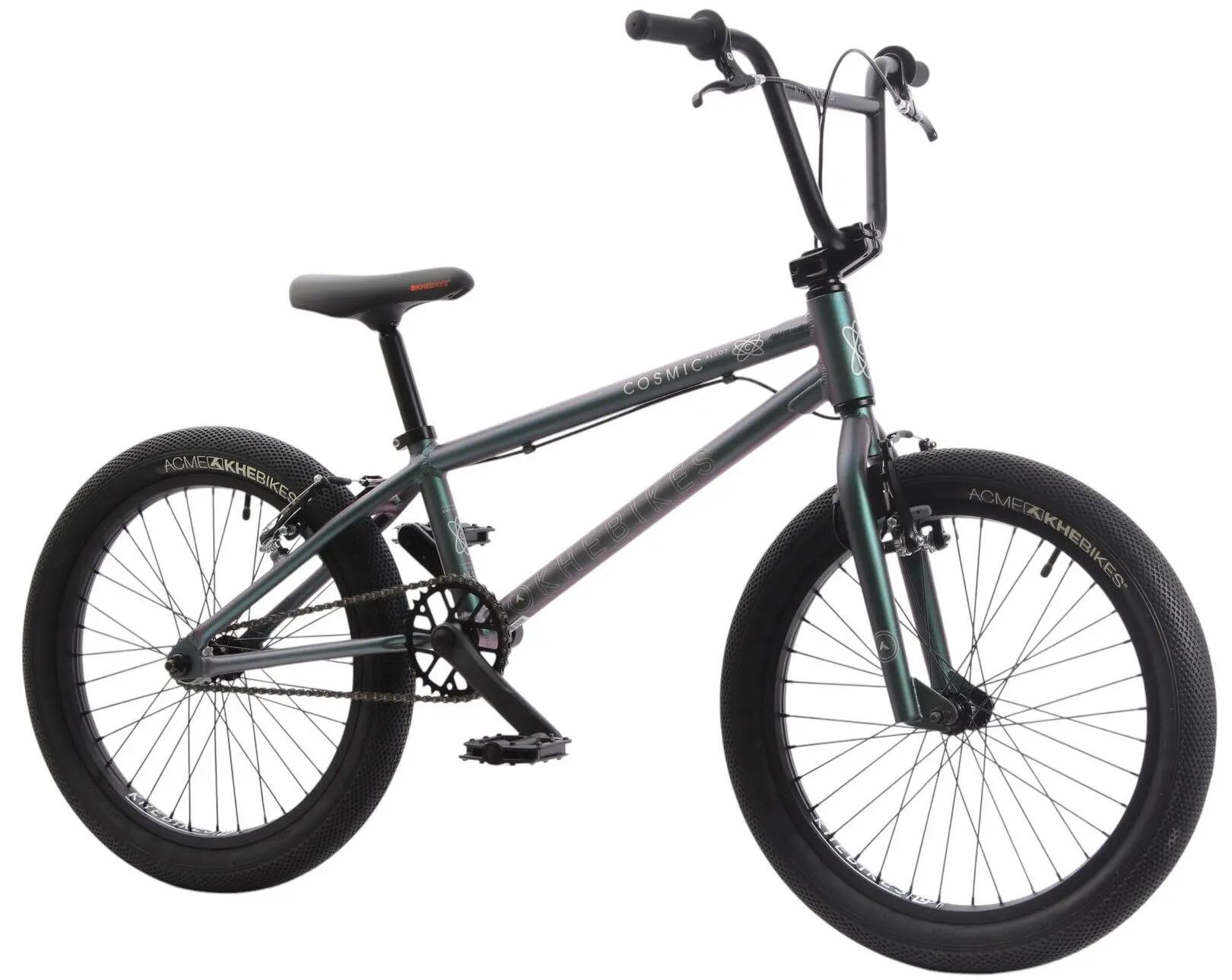

KHE COSMIC AL 20 Inch BMX Freestyle Bike 2025 Green FlipFlop
The KHE COSMIC AL 20 Inch is a lightweight and versatile BMX bike for beginners and is suitable for Park, Pumptrack, Street, BMX Race and Flatland. The lightweight 6061 aluminium frame, the patented KHE AFFIX rotor system and two aluminium V-Brakes provide a controlled riding feel. At only 23.4 lbs, the COSMIC AL offers a low overall weight and geometry designed for riders from 4'5"–5'7".
Equipment
Drivetrain:

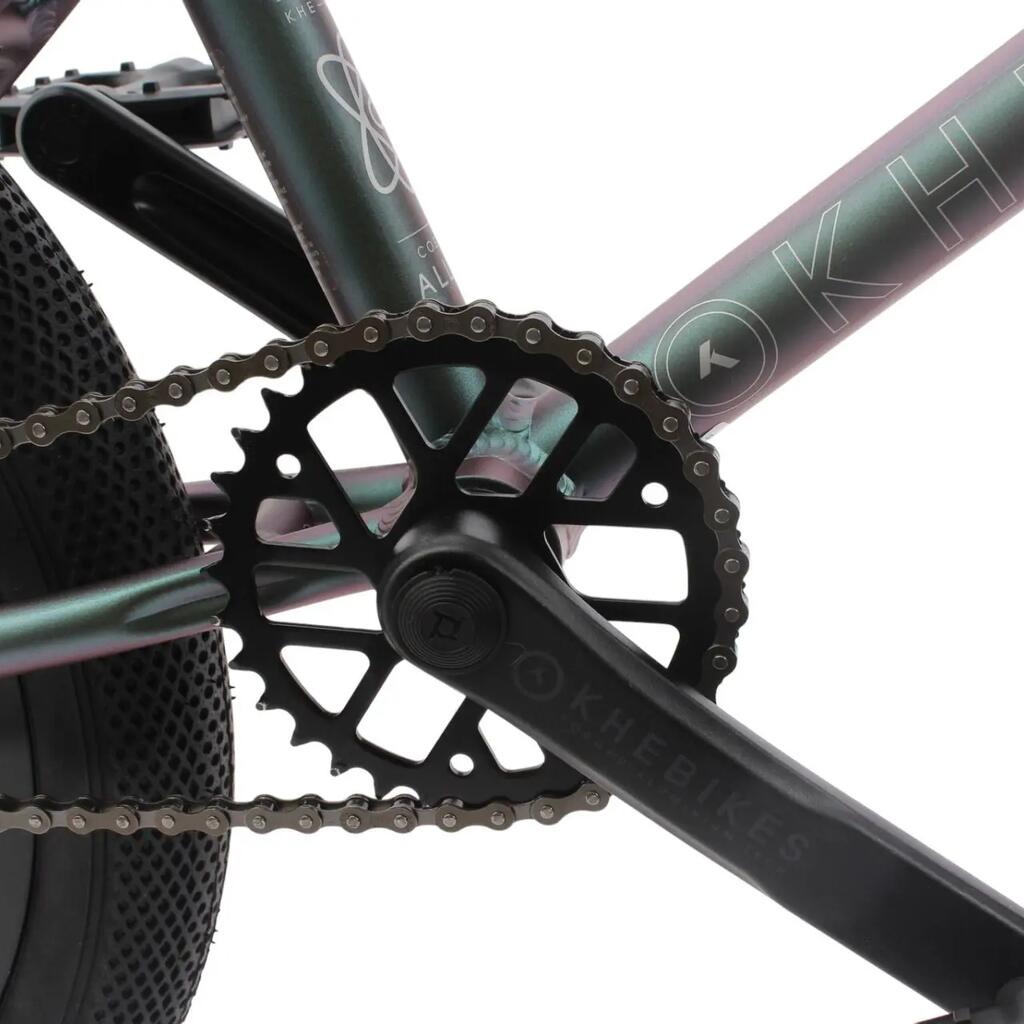

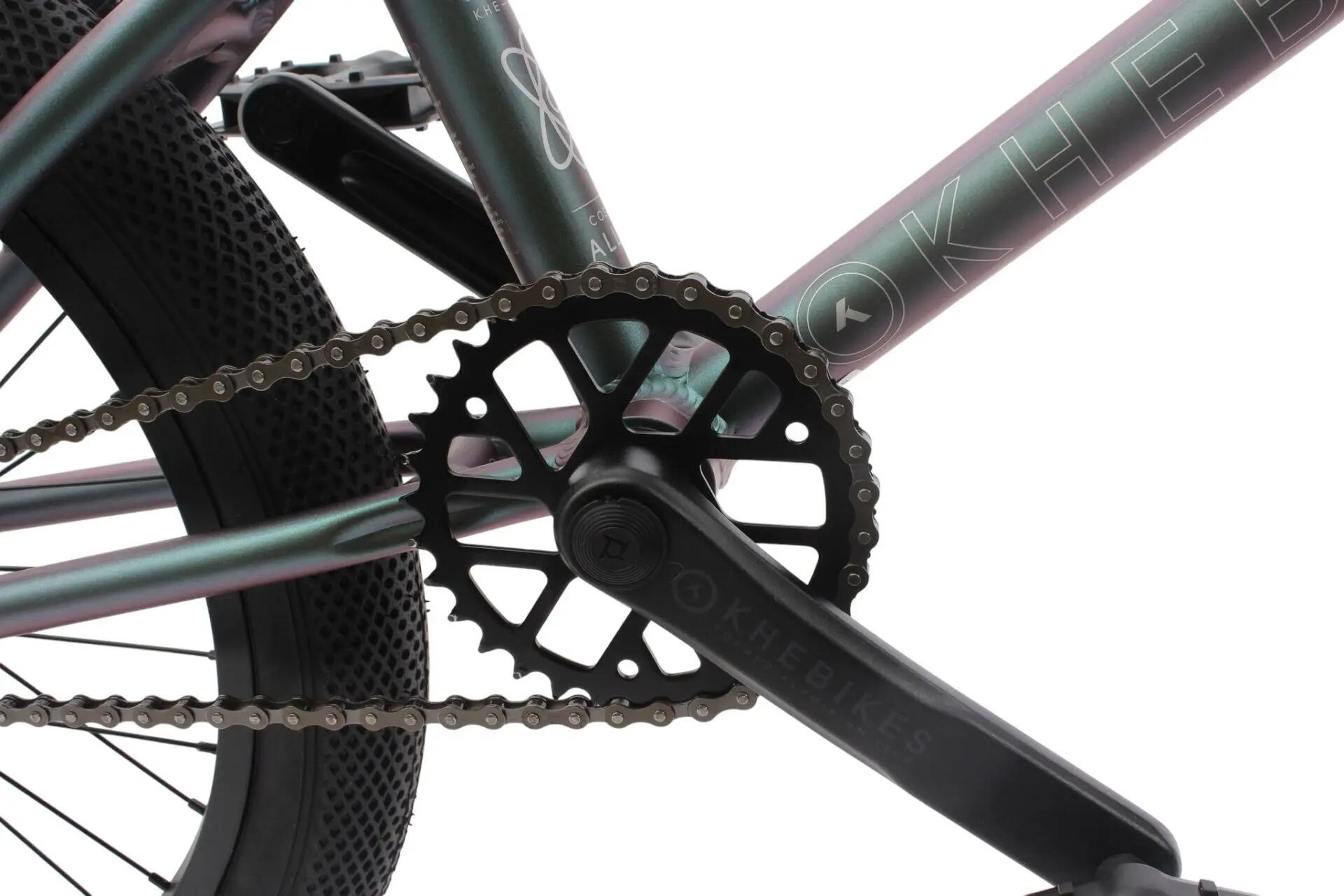

• 3-piece forged aluminium crank (6.50 inch)
• 32T steel sprocket
• Sealed EURO BB bottom bracket with industrial bearings
• YBN chain

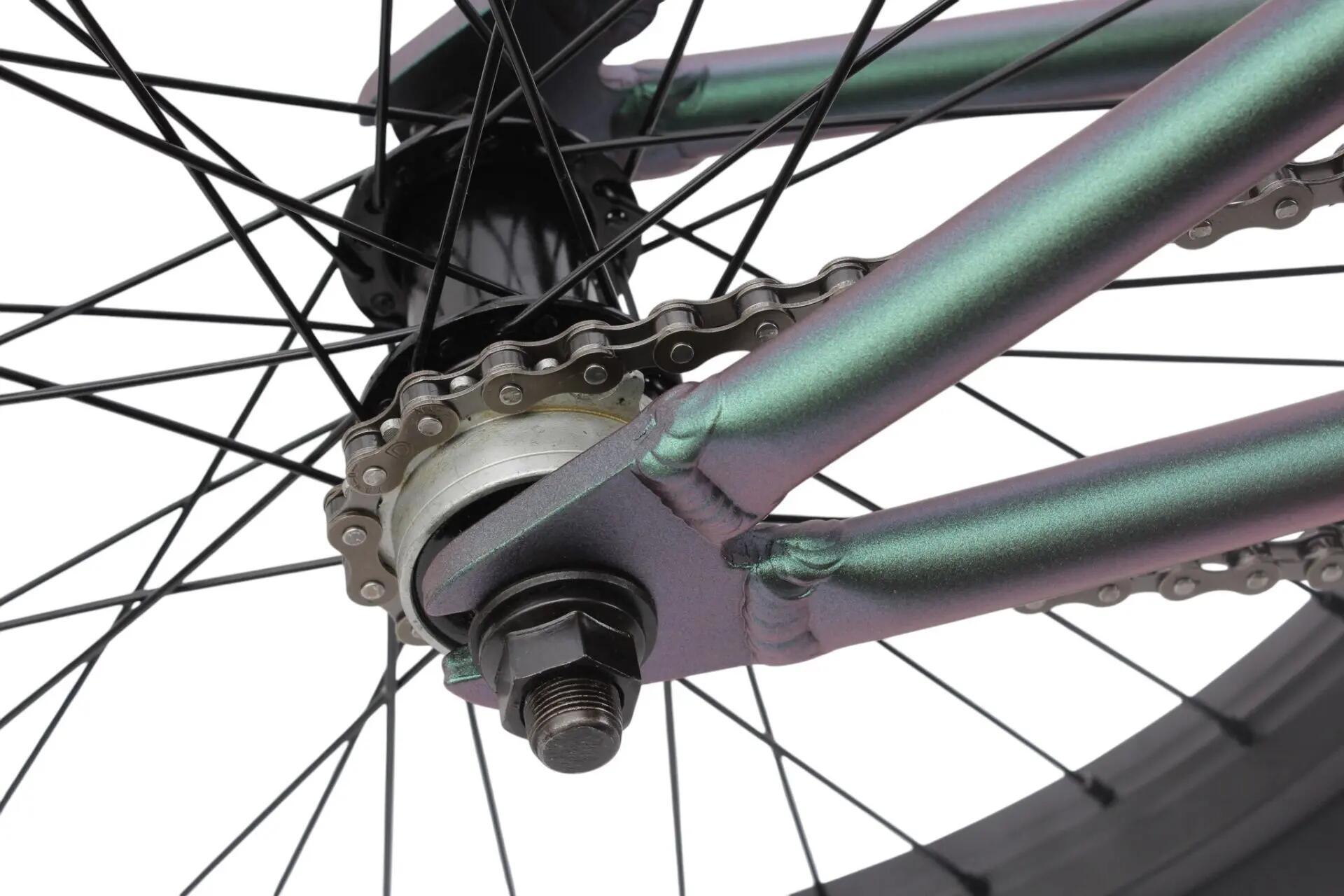

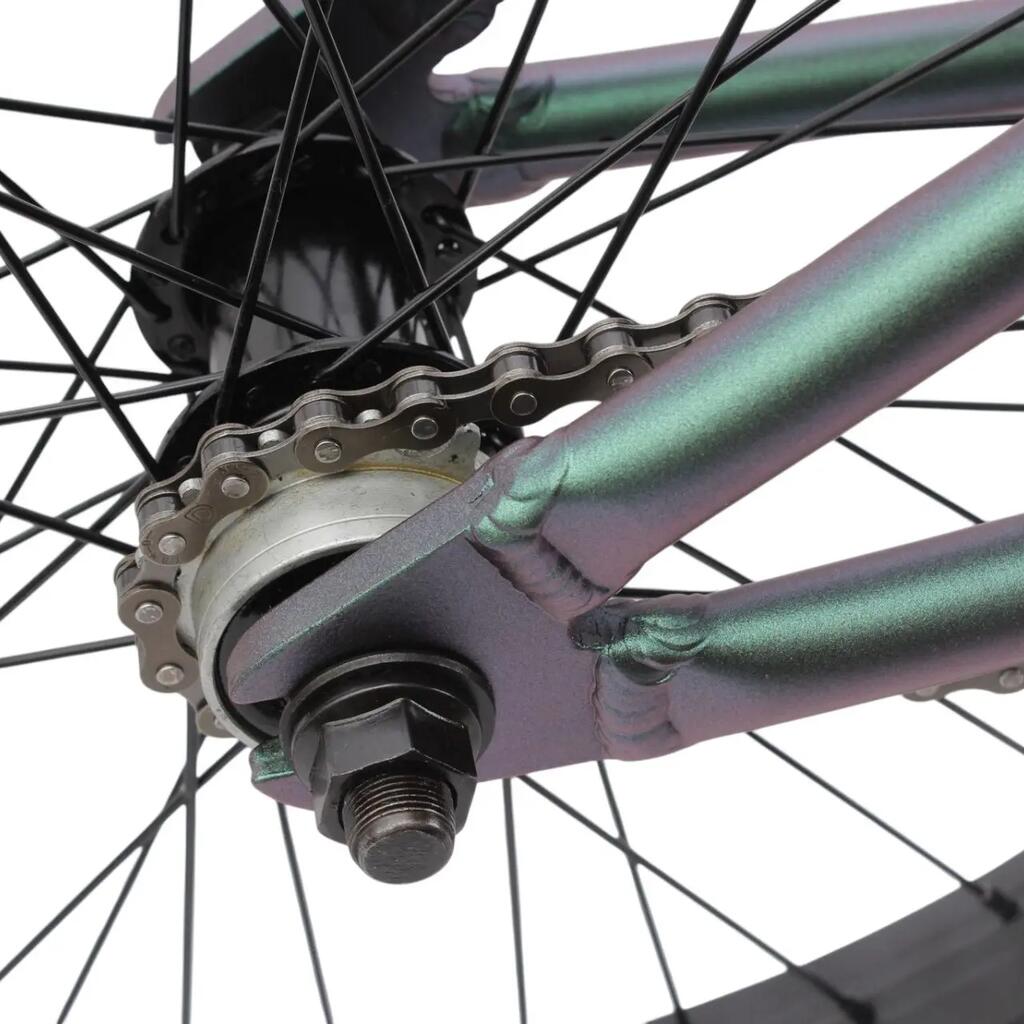

• 14T freewheel
Cockpit:

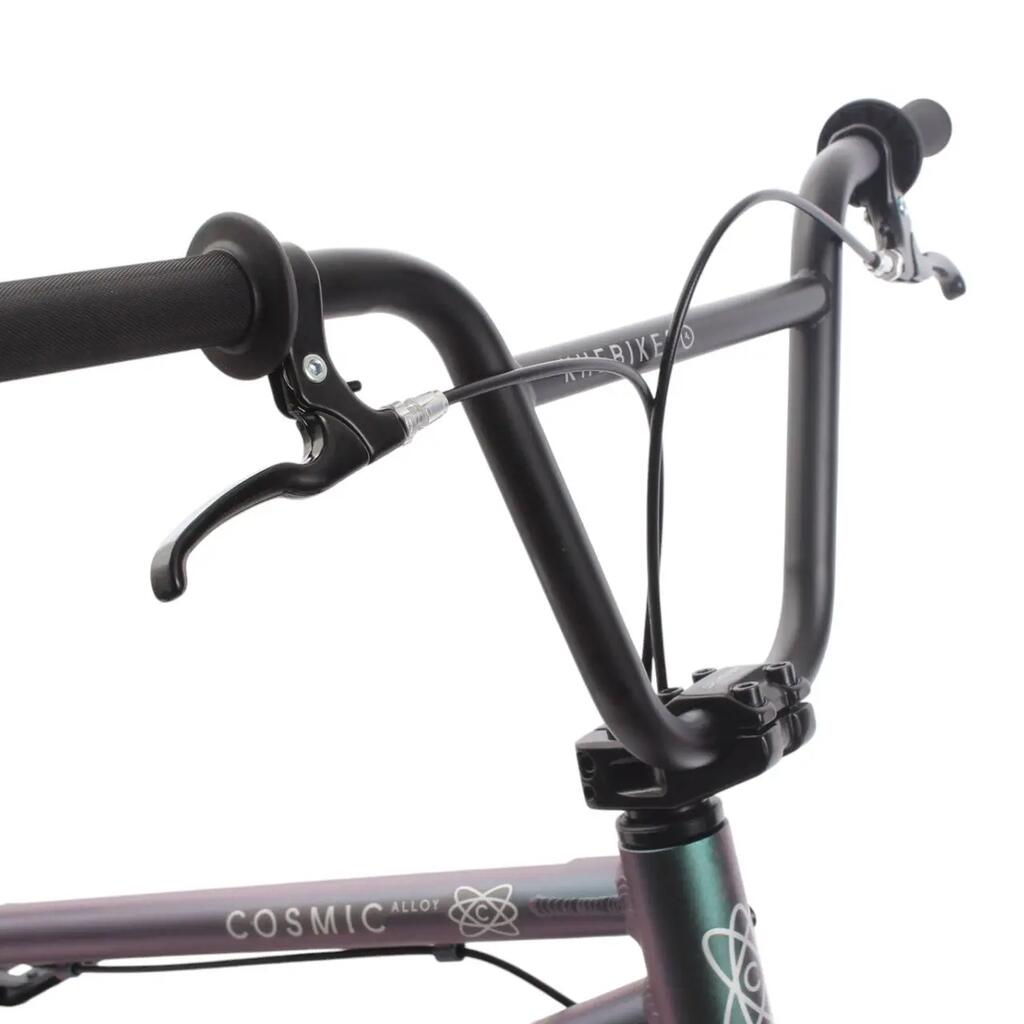

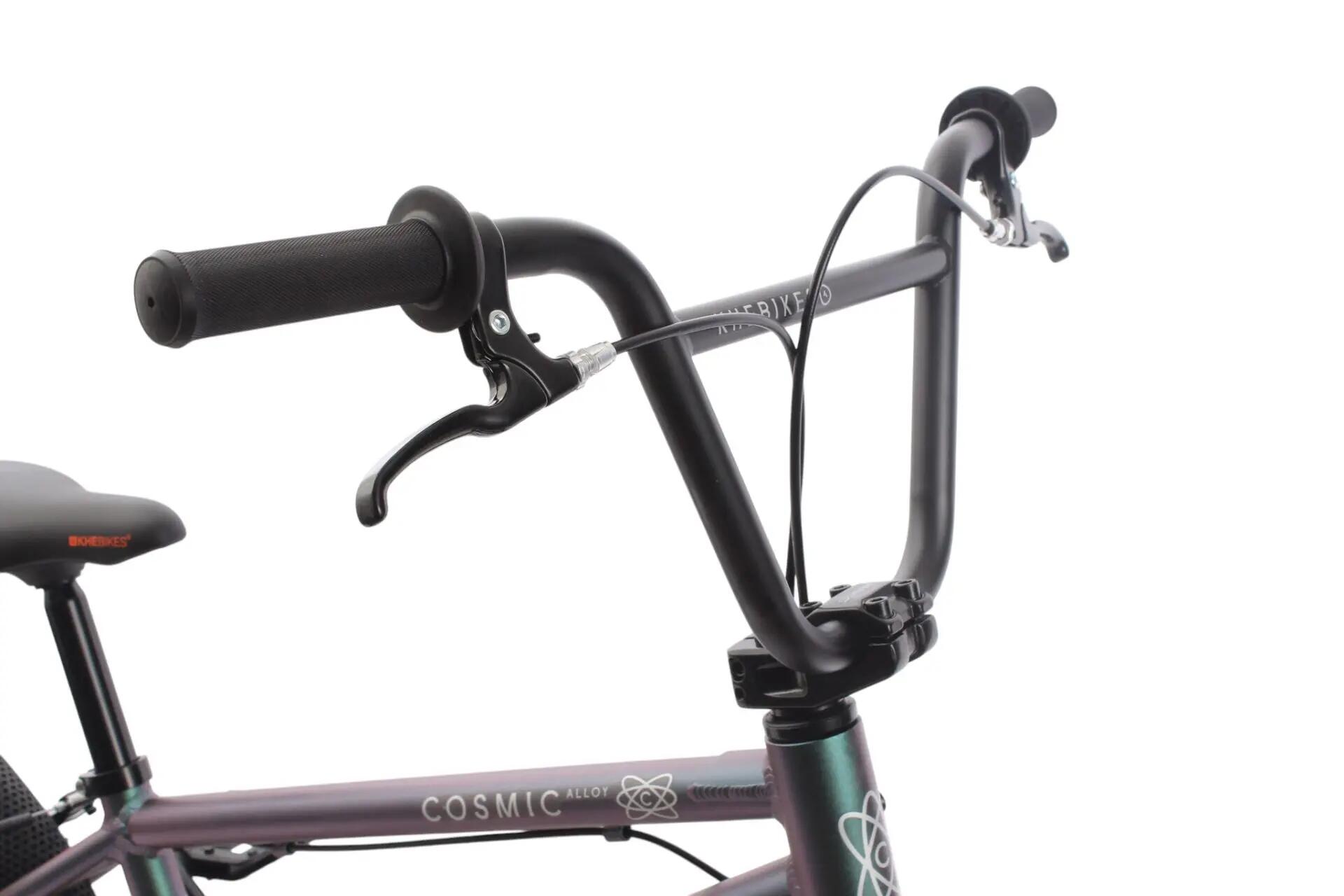

• 26.8 inch wide KHE HiTen handlebar with 8 inch height

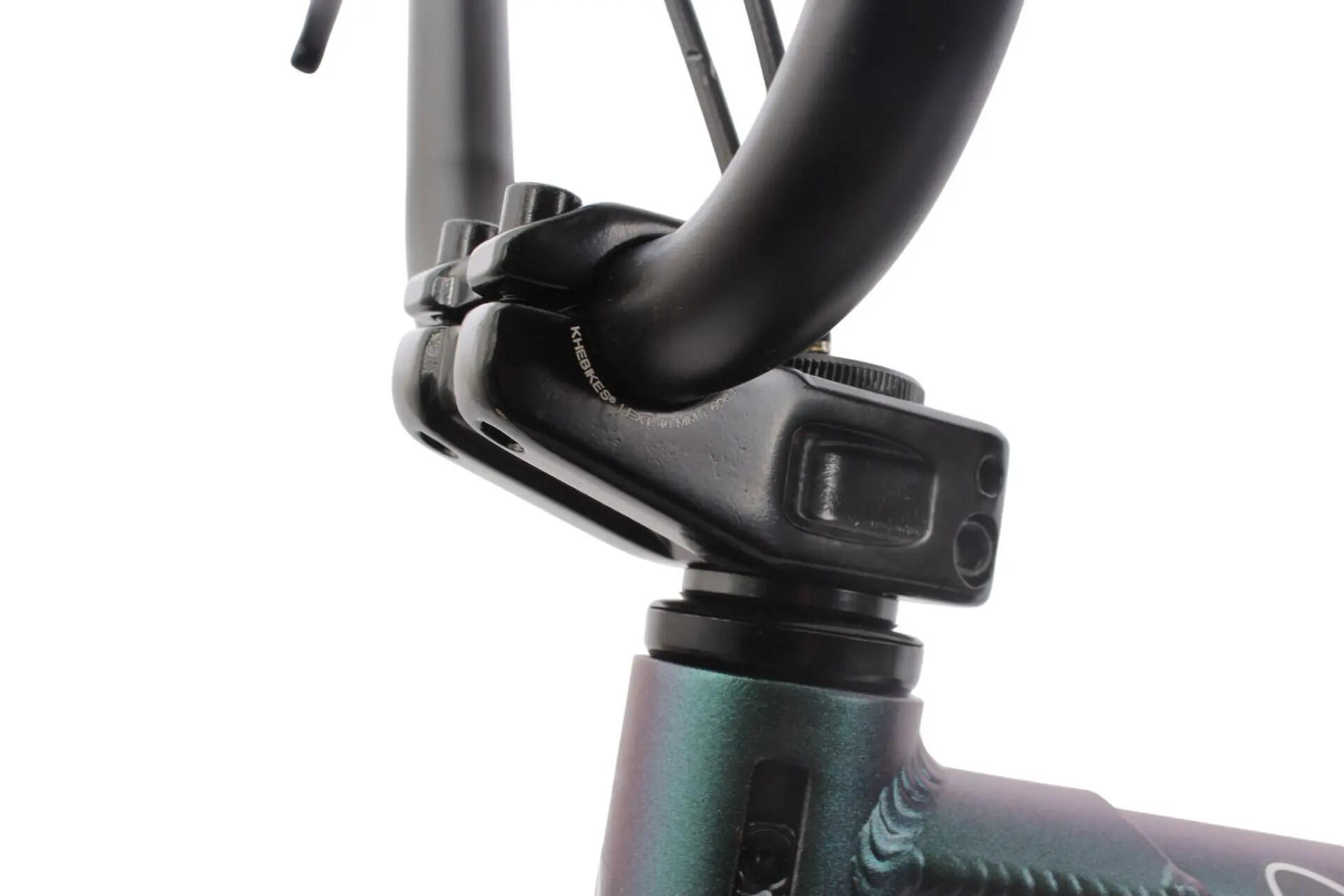

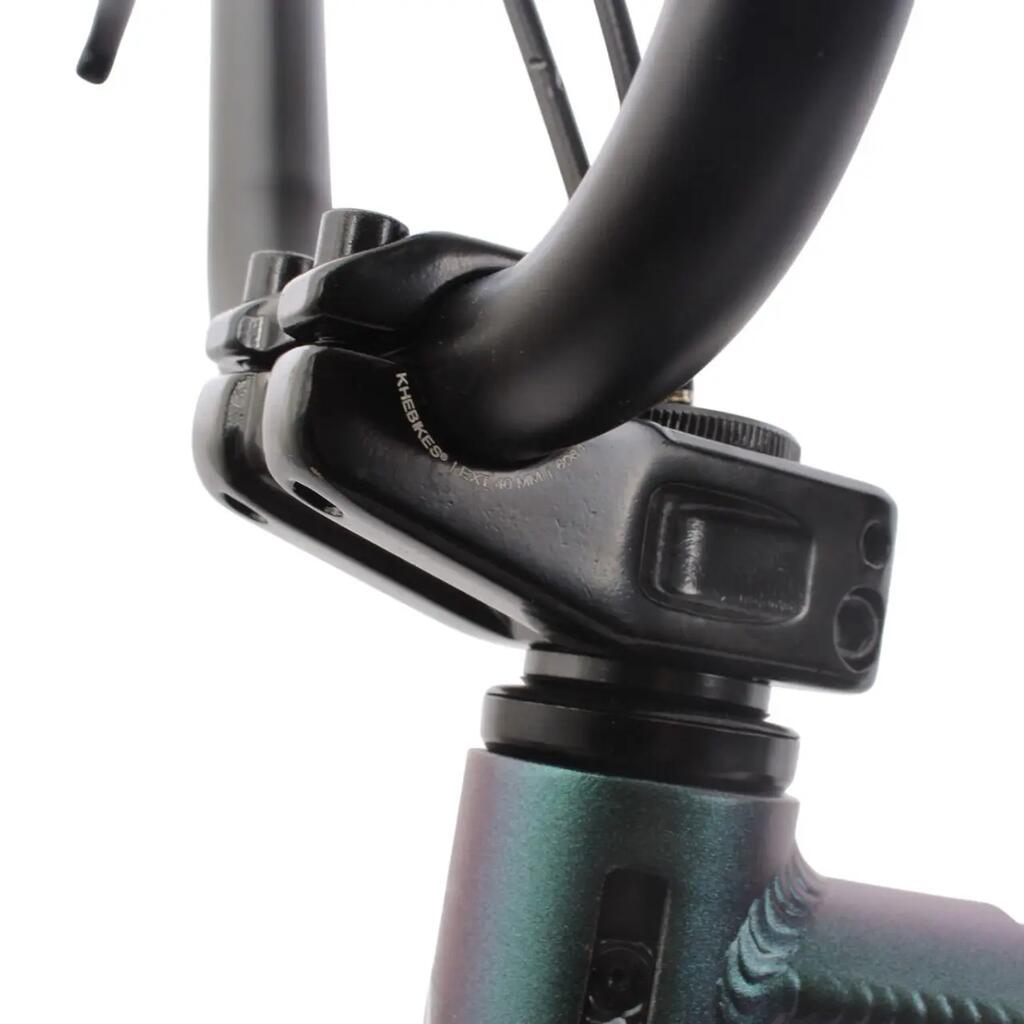

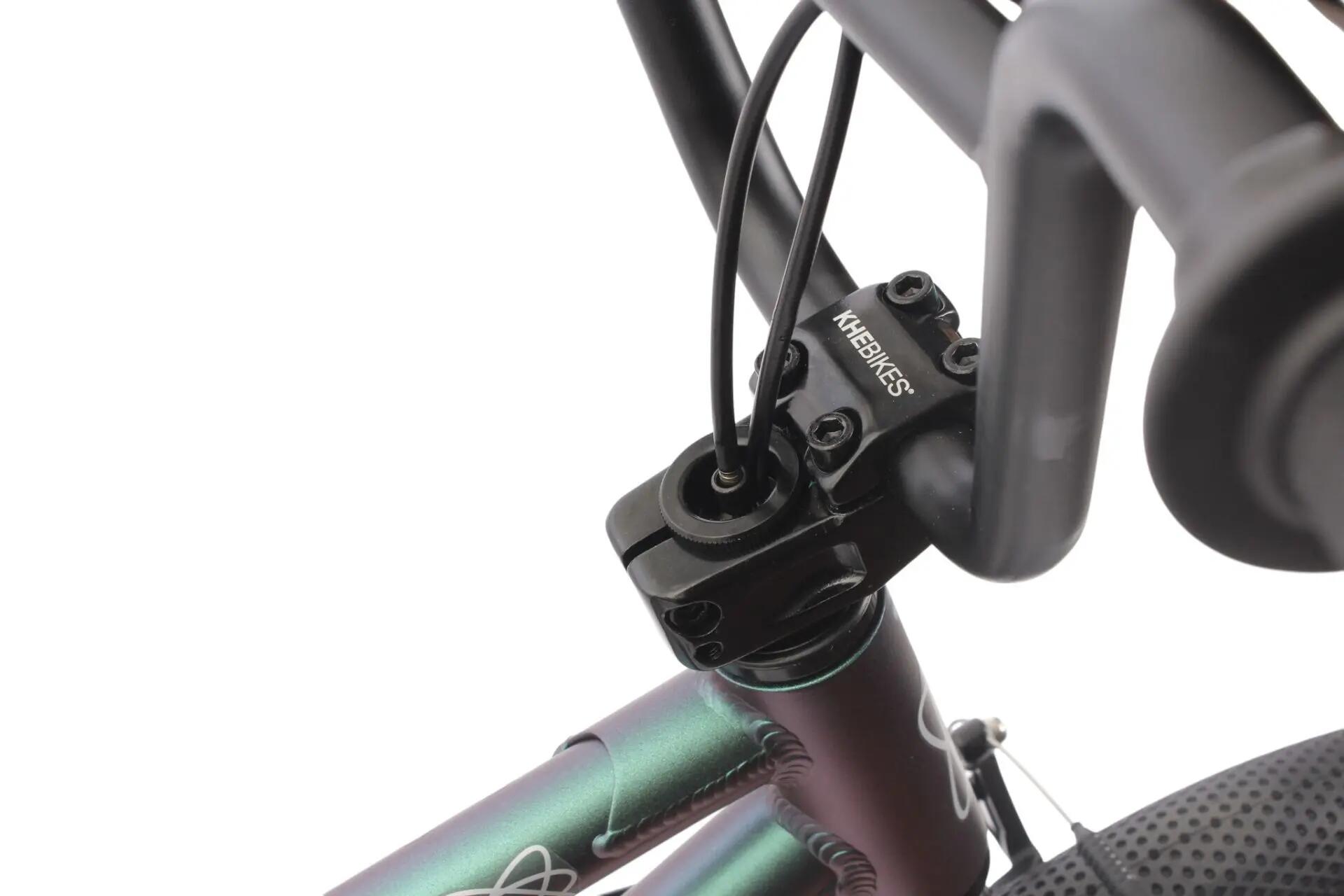

• KHE Top Loader stem (1.57 inch)

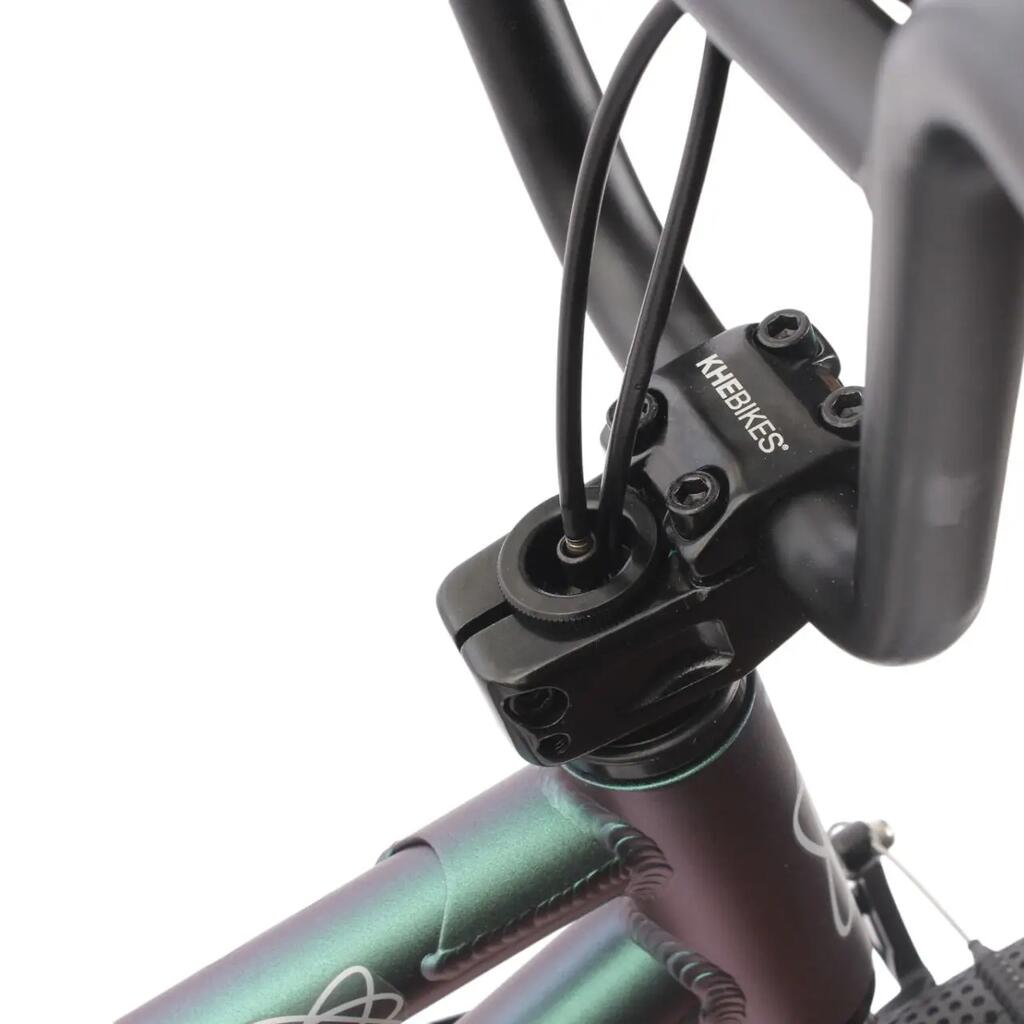

• Patented KHE AFFIX 360 degree rotor
• Aluminium brake lever with adjustment screw
Brakes & Wheels:

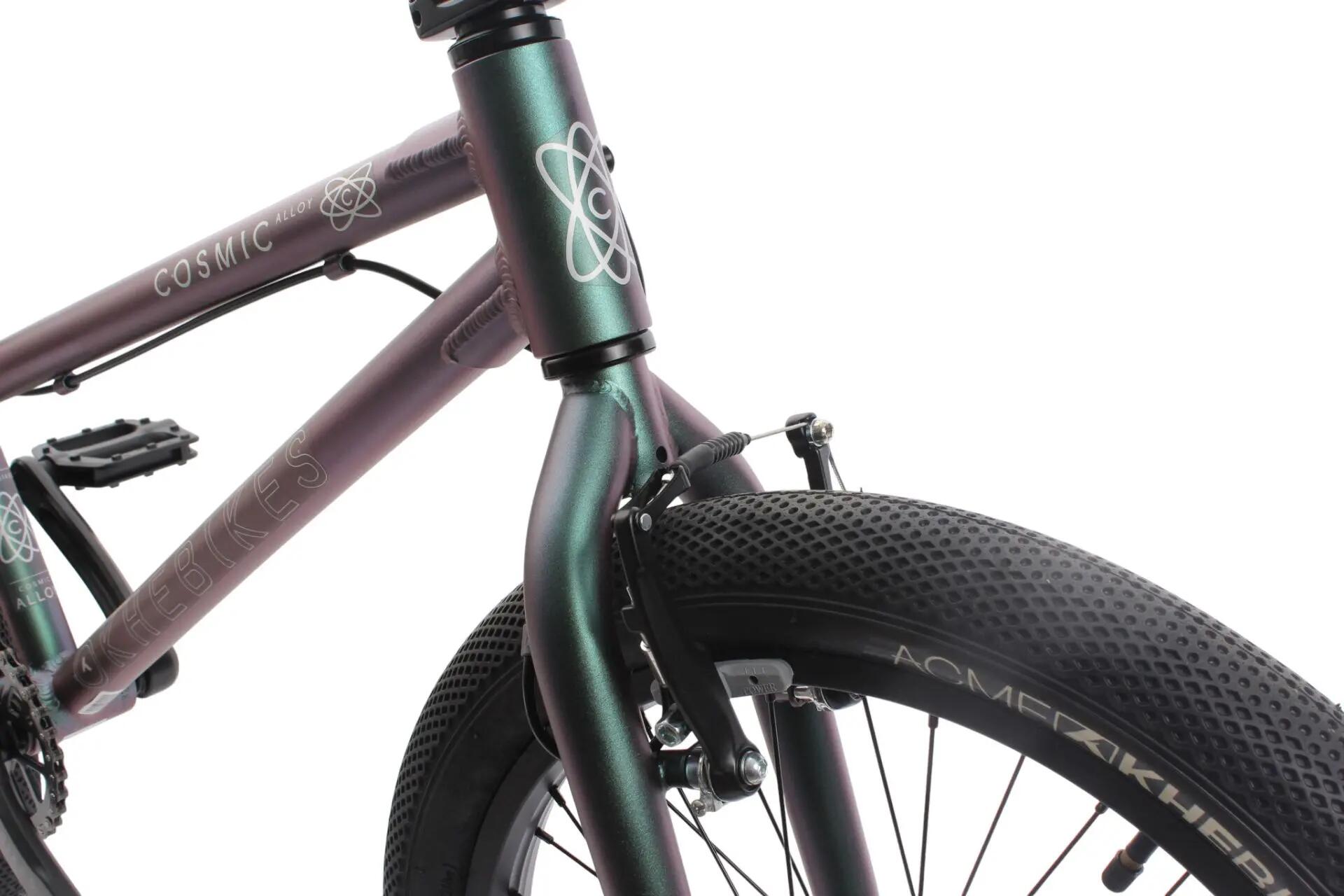

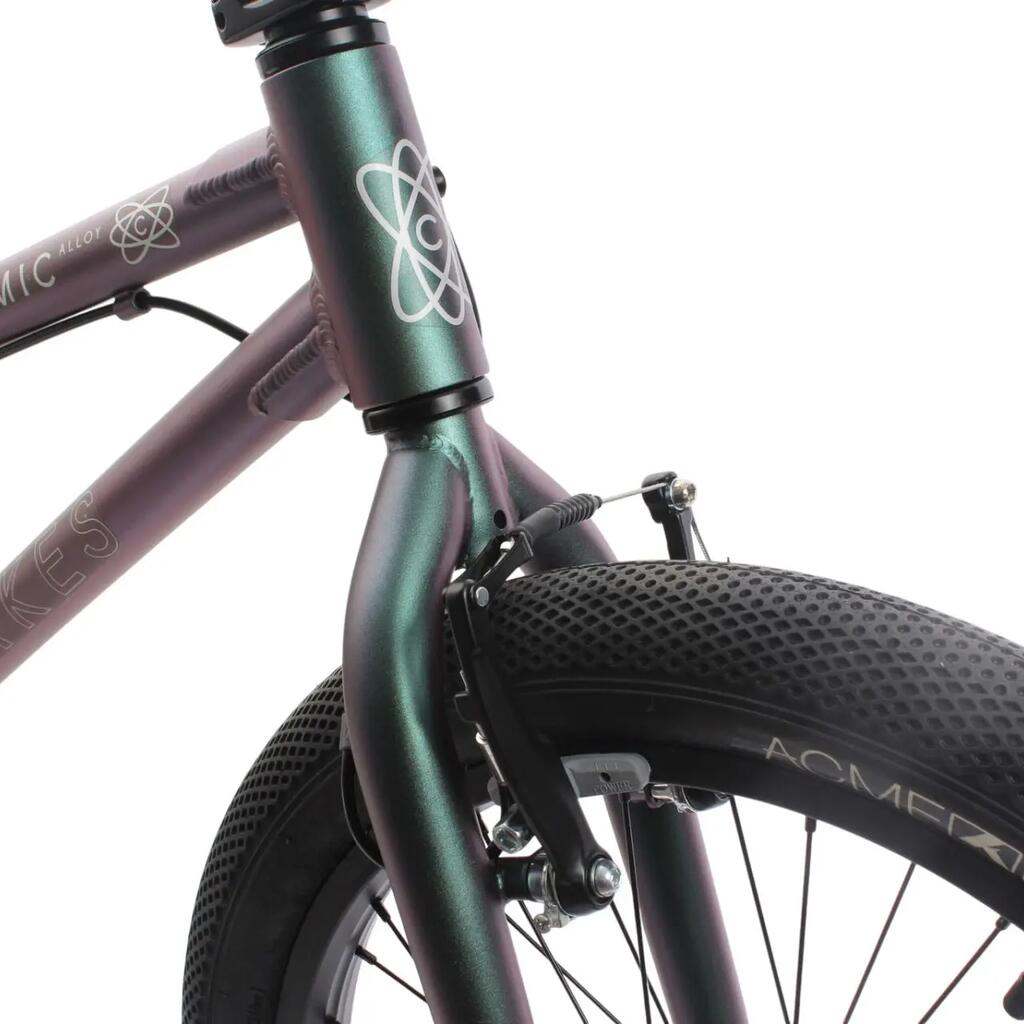

• 4.02 inch aluminium V-Brake front
• 4.02 inch aluminium V-Brake rear

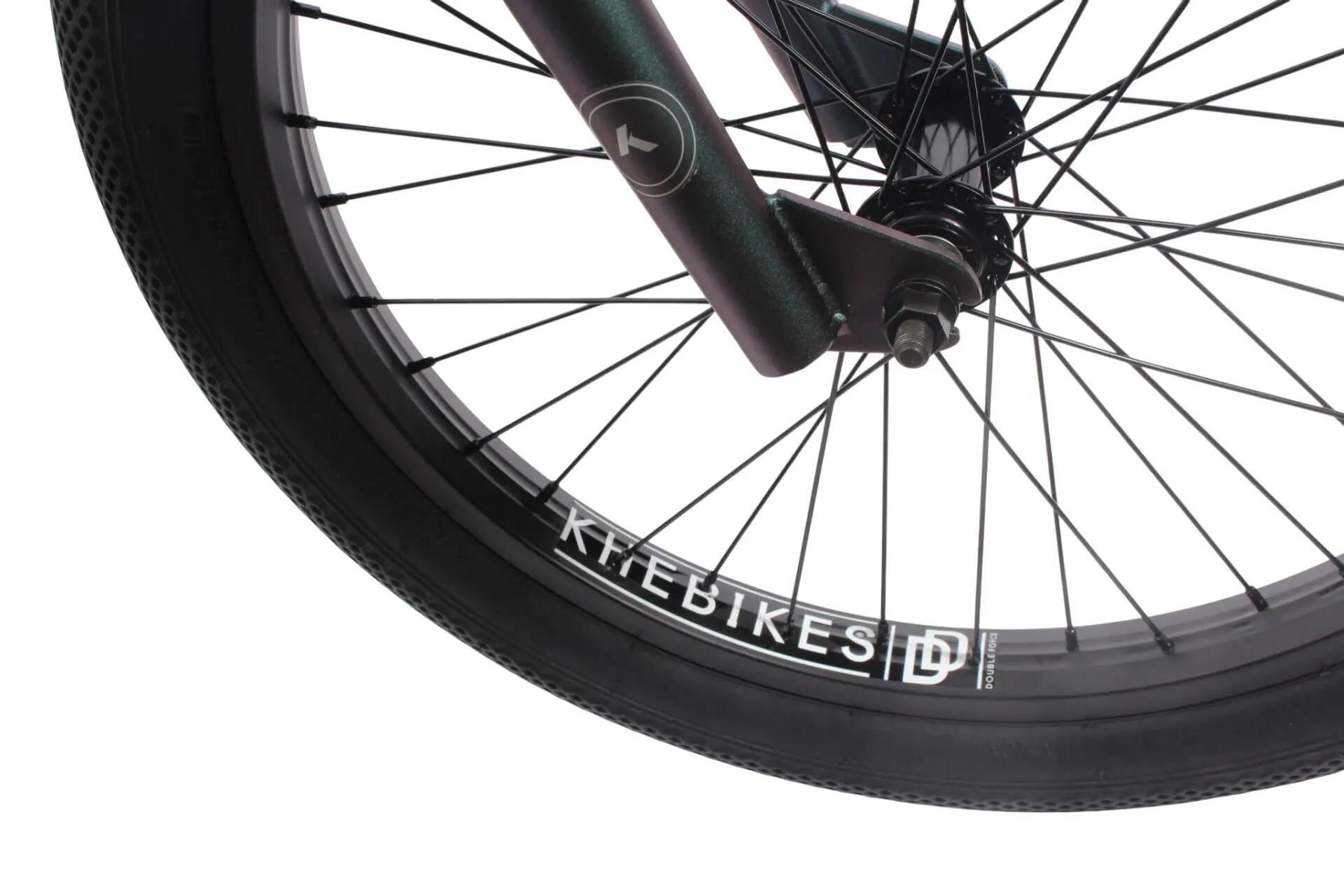

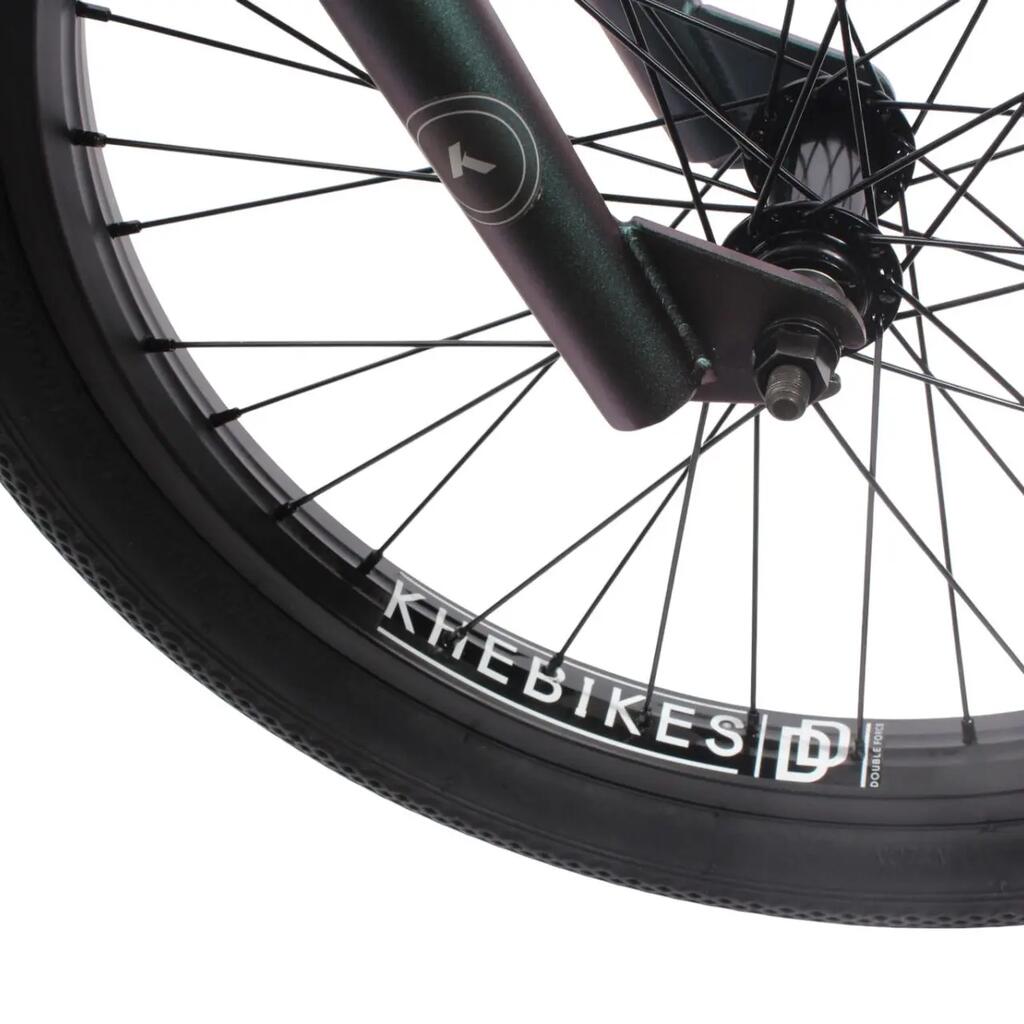

• 20 inch double-wall aluminium rims

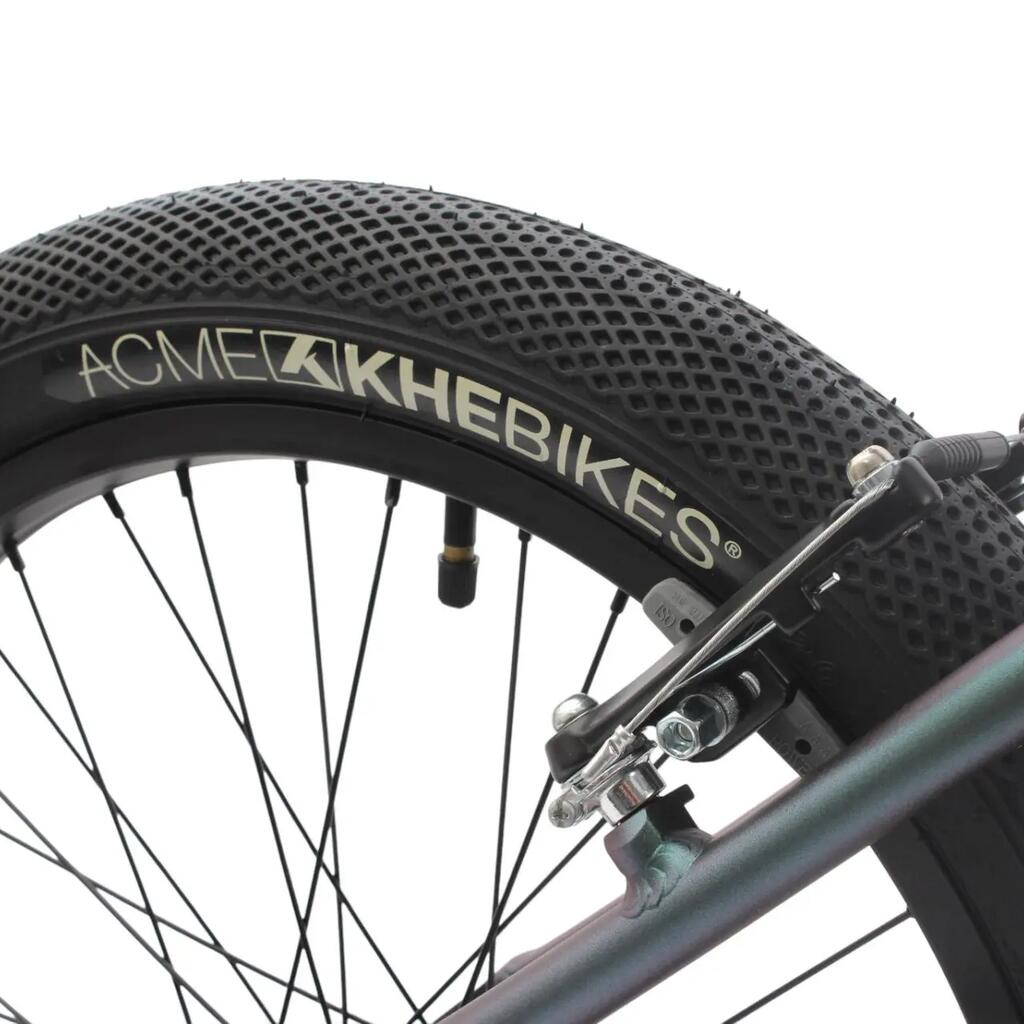

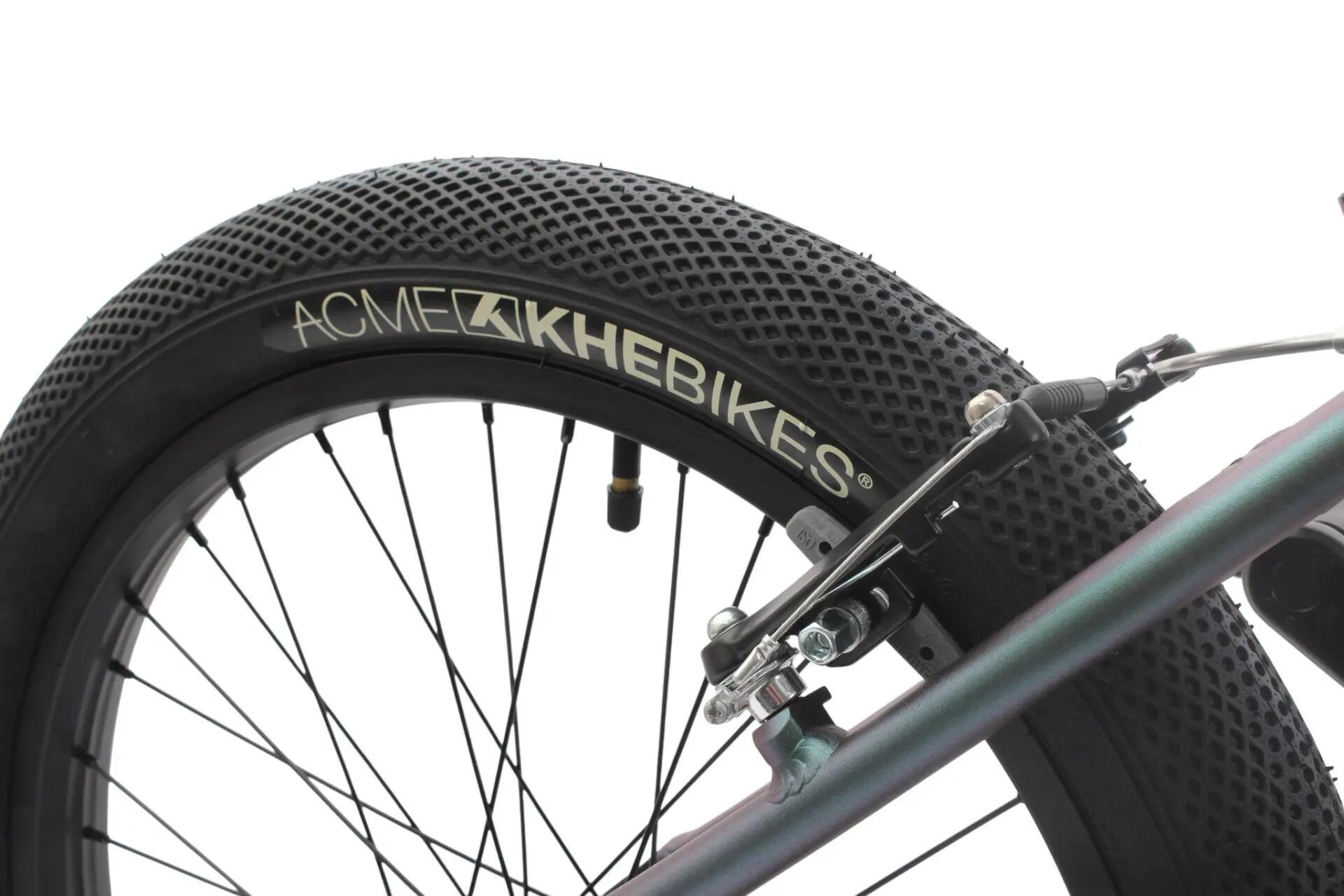

• KHE ACME tyres 20 × 2.40 inch
• 0.39 inch front axle
• 0.55 inch rear axle
Design:

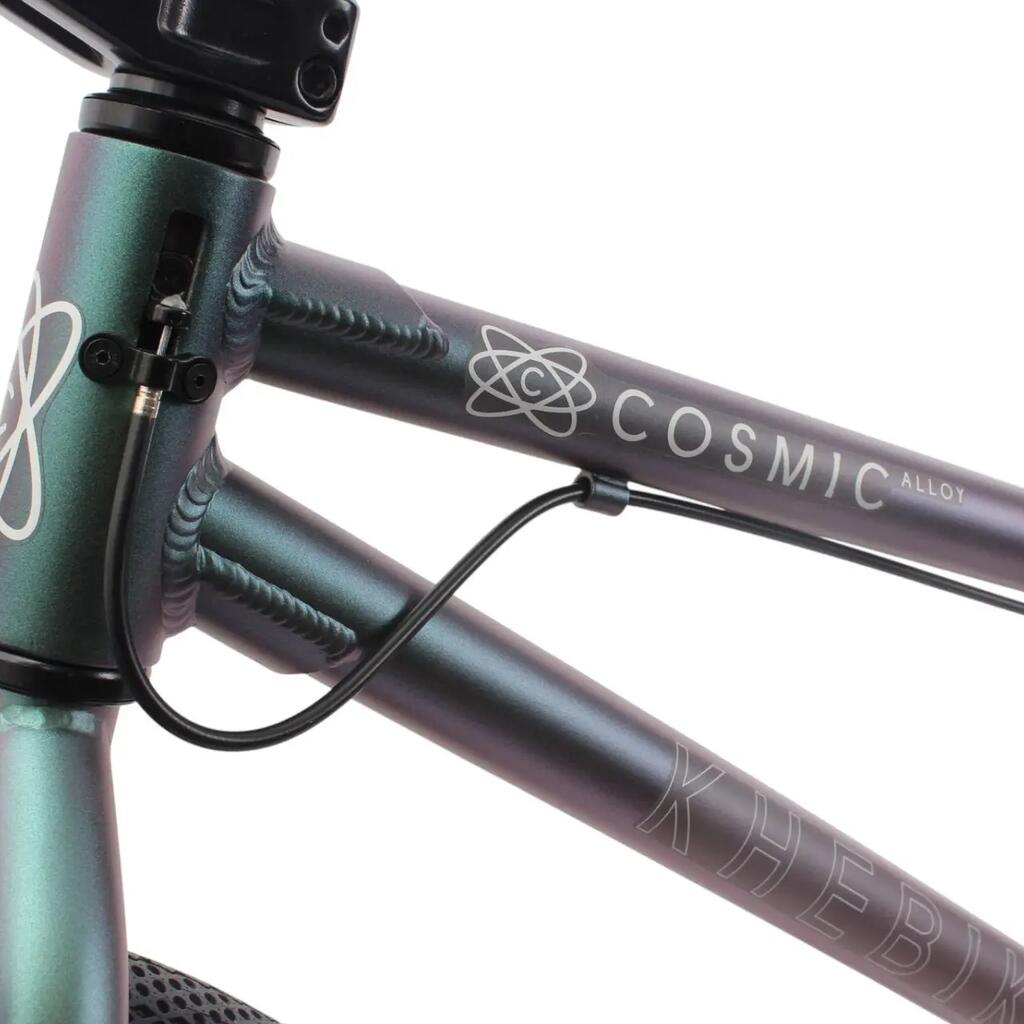

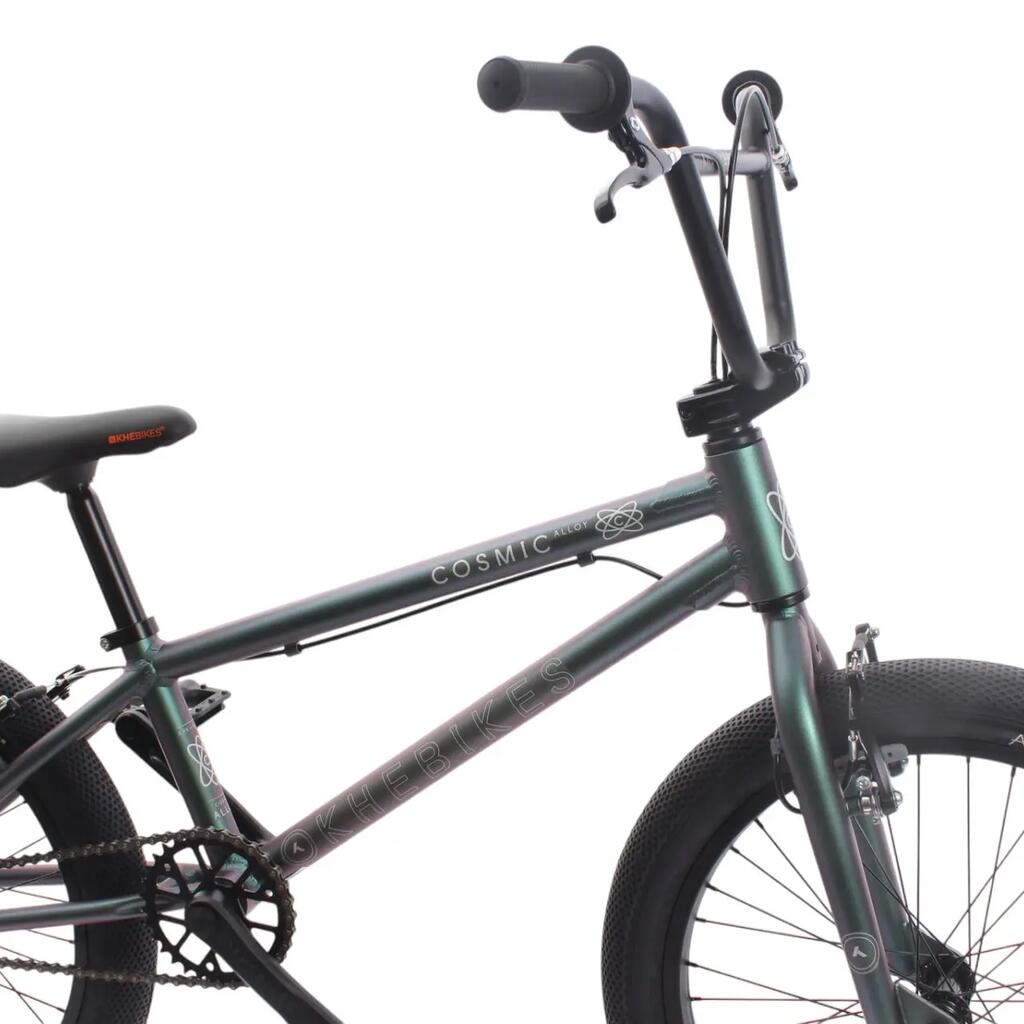

• Frame and fork in Green with FlipFlop effect
• Black brakes, stem, seat clamp and brake levers
• Black handlebar, tyres and grips

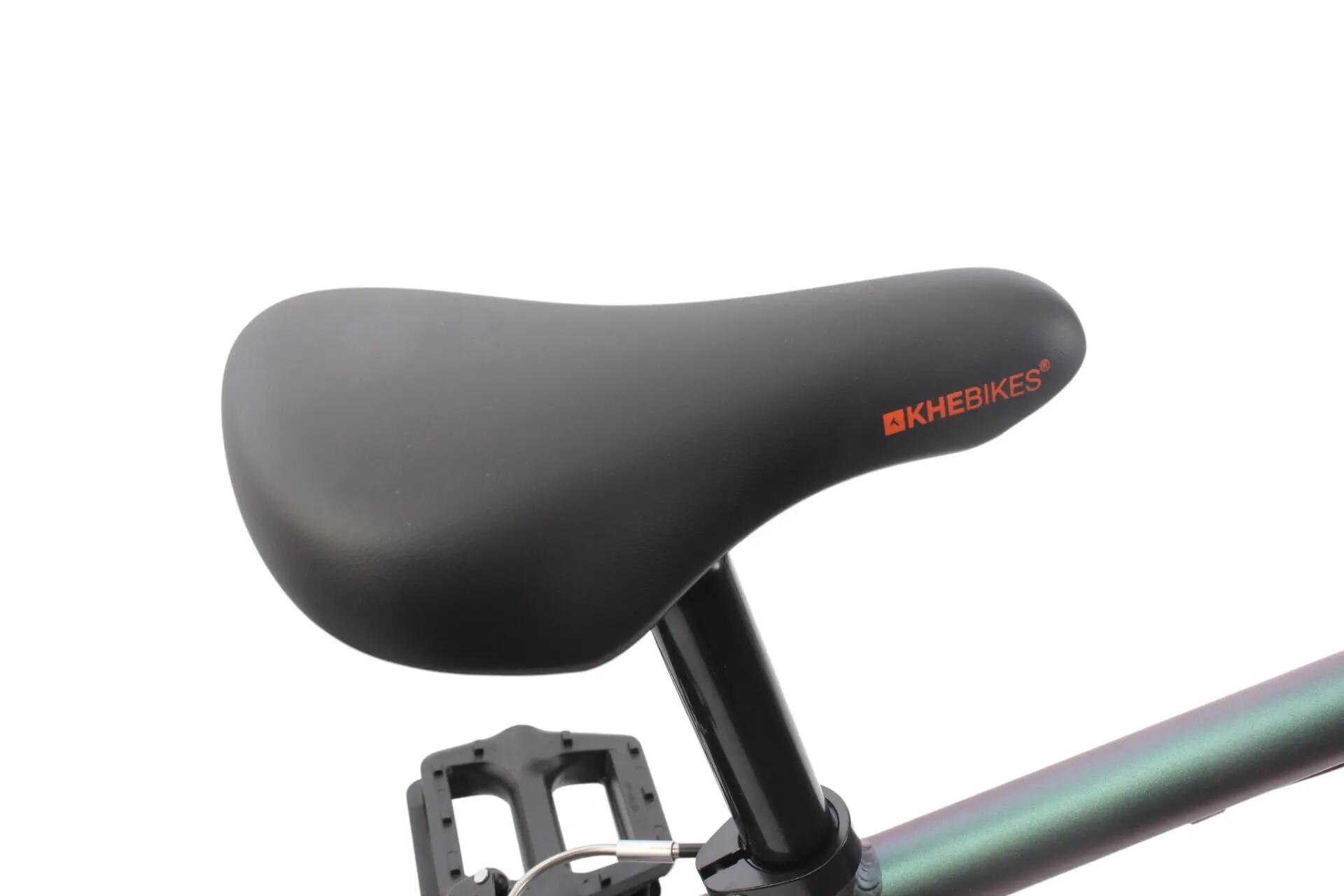

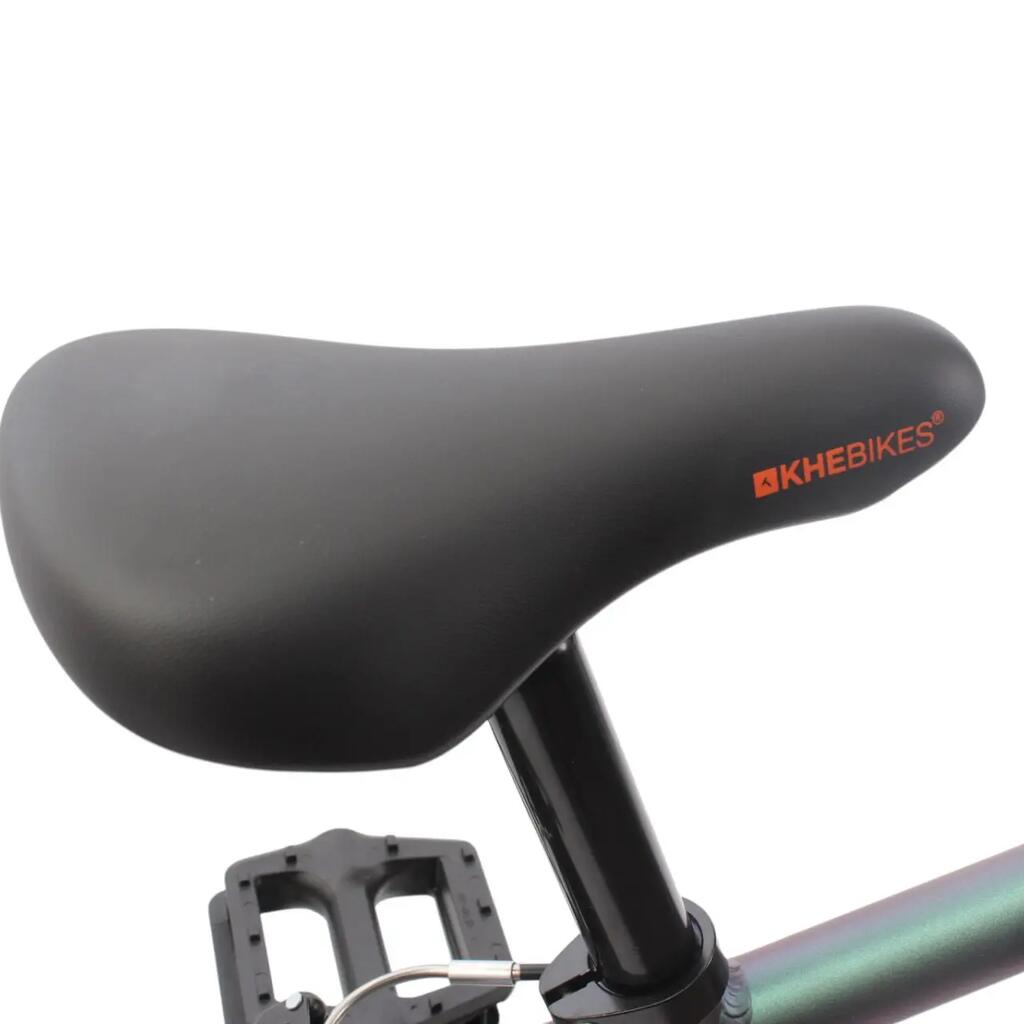

• Padded KHE saddle with embossed logo
Technical Data
• Model: KHE COSMIC AL
• Model Year: 2025

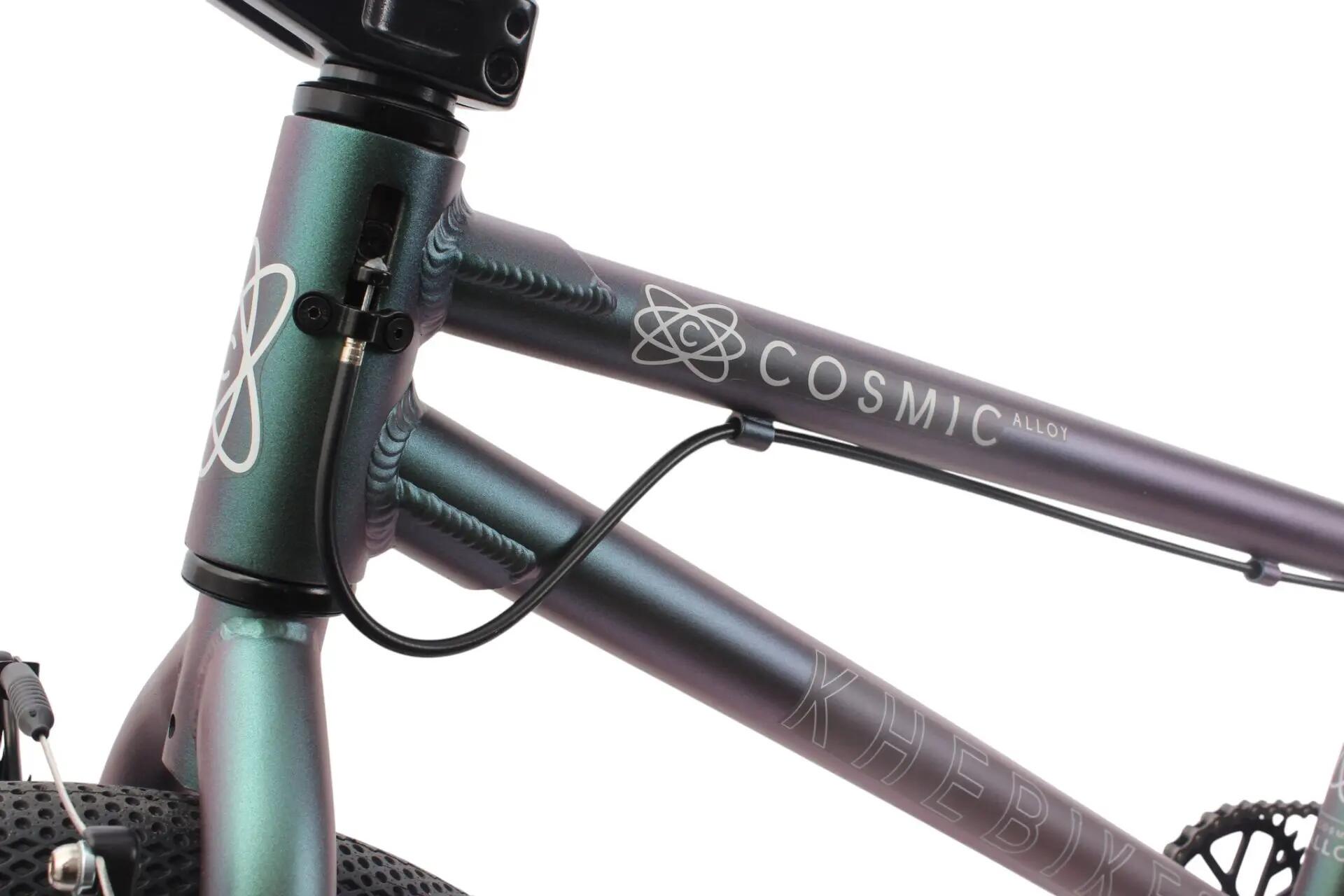

• Frame: KHE 6061 aluminium
• Fork: KHE 1020 HiTen steel
• Top Tube: 20 inch
• Handlebar: KHE HiTen steel, 26.8 inch wide × 8 inch high
• Stem: KHE Top Loader (1.57 inch)
• Rotor: KHE AFFIX 360 degree
• Crank: 6.50 inch, 3-piece, forged aluminium
• Sprocket: 32T steel
• Bottom Bracket: EURO BB, sealed and with industrial bearings
• Headset: AFFIX Loosball 1 1/8 inch
• Brake Type: Aluminium V-Brakes front and rear
• Hub Type: Freewheel
• Freewheel: 14T
• Rims: 20 inch double-wall aluminium
• Tyres: KHE ACME 20 × 2.40 inch
• Material: Aluminium
• Colour: Green
• Weight: 23.4 lbs
Suitable for:
• Rider Height: 4'5"–5'7"
• Maximum Rider Weight: 165 lbs
• Riding Style: Park / Pumptrack / Street / BMX Race / Flatland
Why choose the KHE COSMIC AL 20 Inch from KHEbikes:
✓ At only 23.4 lbs, especially lightweight for a 20 inch BMX including rotor
✓ Lightweight 6061 aluminium frame for agile and controlled handling
✓ Patented KHE AFFIX 360 degree rotor for unrestricted handlebar rotations
✓ V-Brakes front and rear for reliable and controlled braking
✓ Durable 3-piece aluminium crank with 32T steel sprocket
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ Wide KHE ACME 20 × 2.40 inch tyres for grip and control
✓ Eye-catching Green FlipFlop finish with black details
Compatibility
• Front Pegs: 0.39 inch
• Rear Pegs: 0.55 inch
• Recommendation: KHE COP ALU Pegs
Delivery & Notes
Delivery Condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-related components should be properly assembled and checked.
Note: The KHE COSMIC AL is already equipped with aluminium V-Brakes at the front and rear.
