Product Description

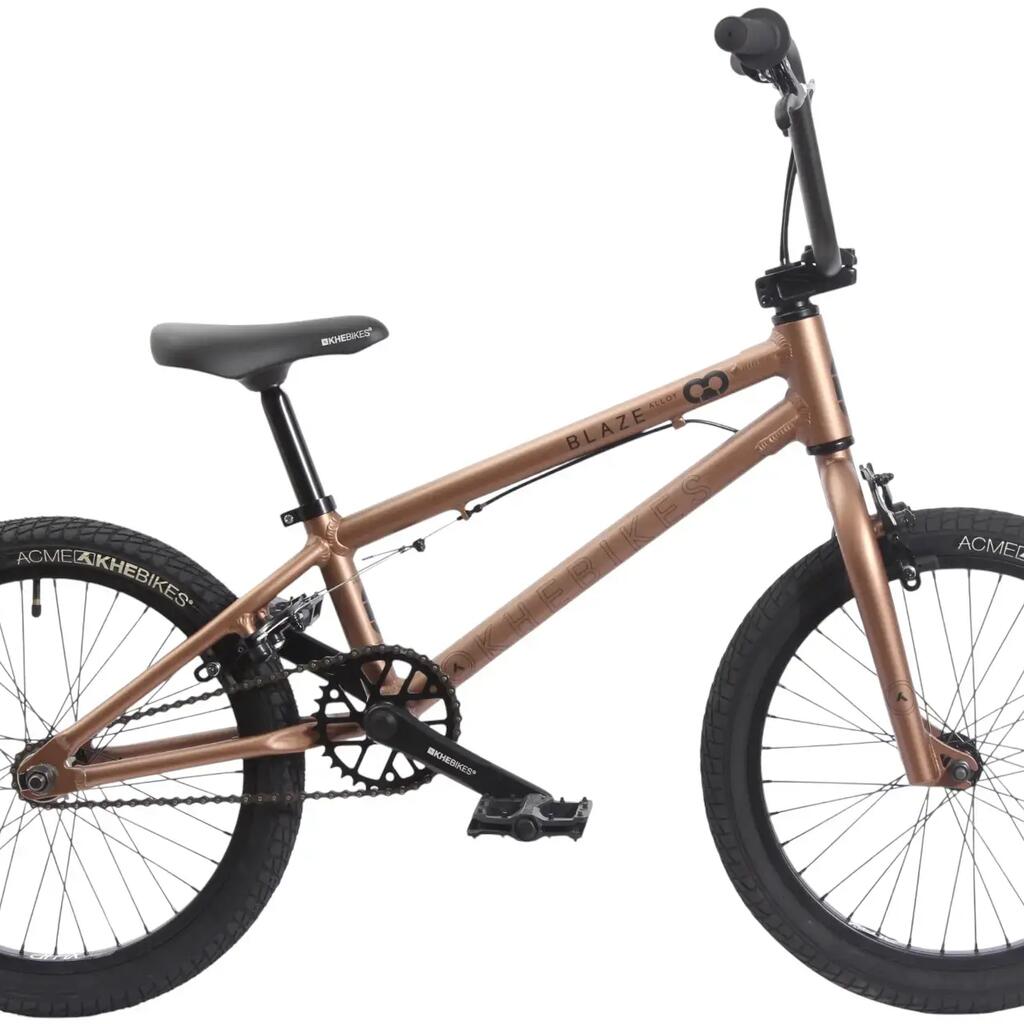

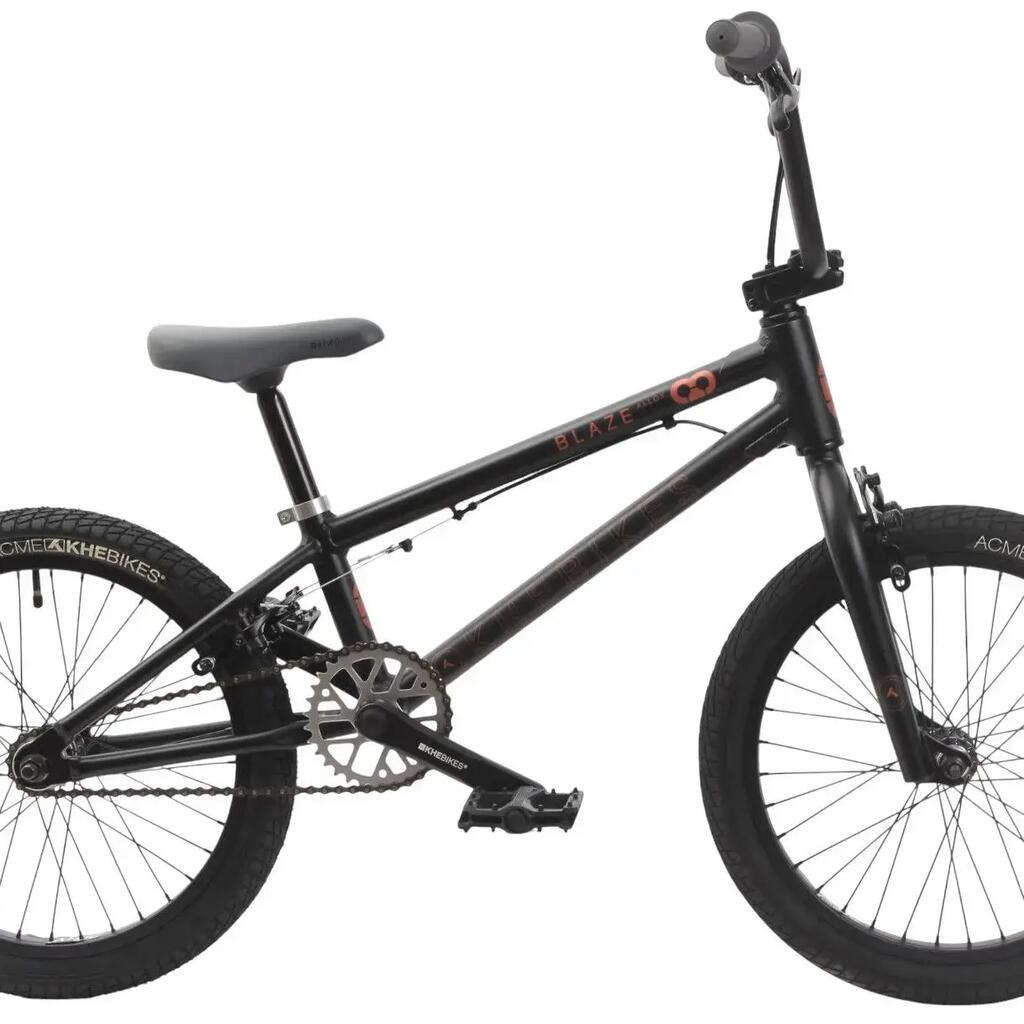

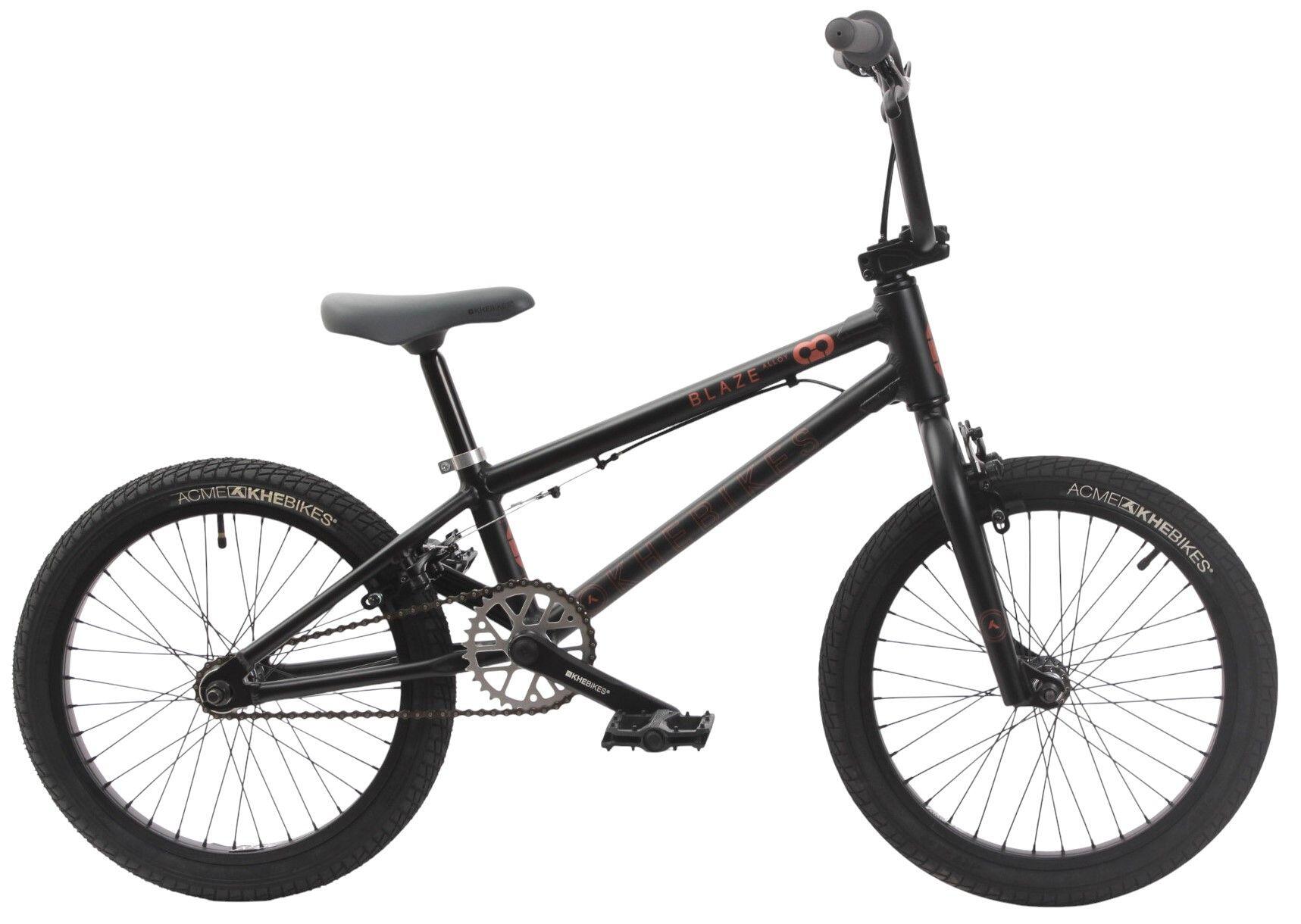

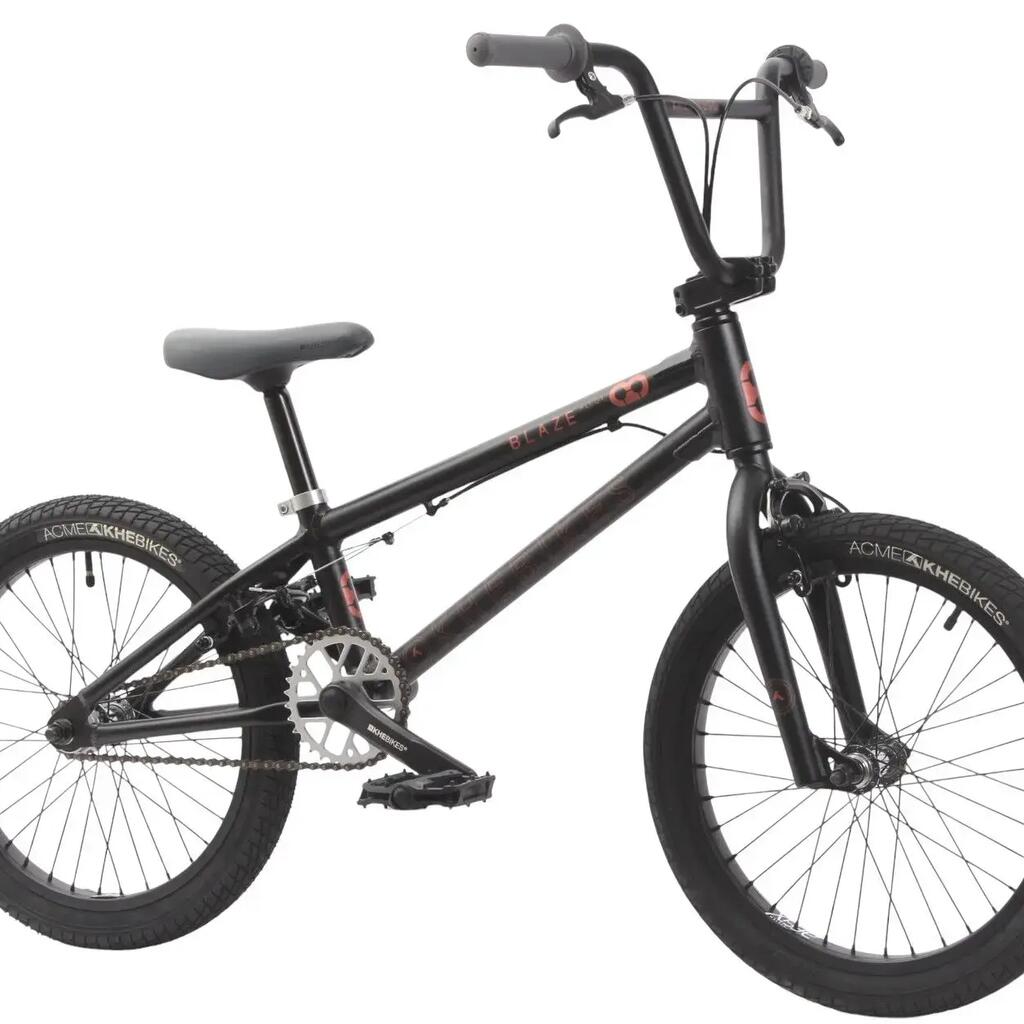

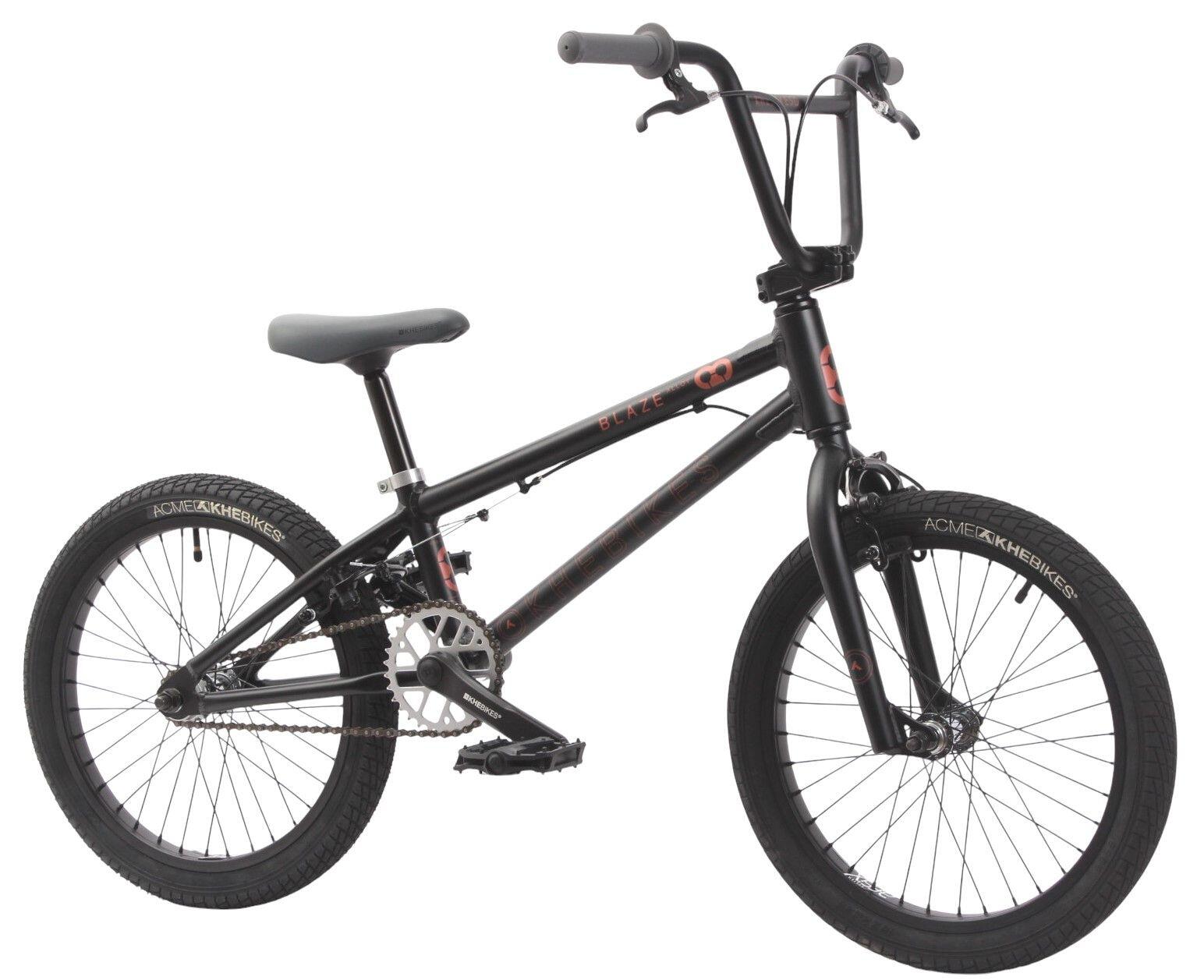

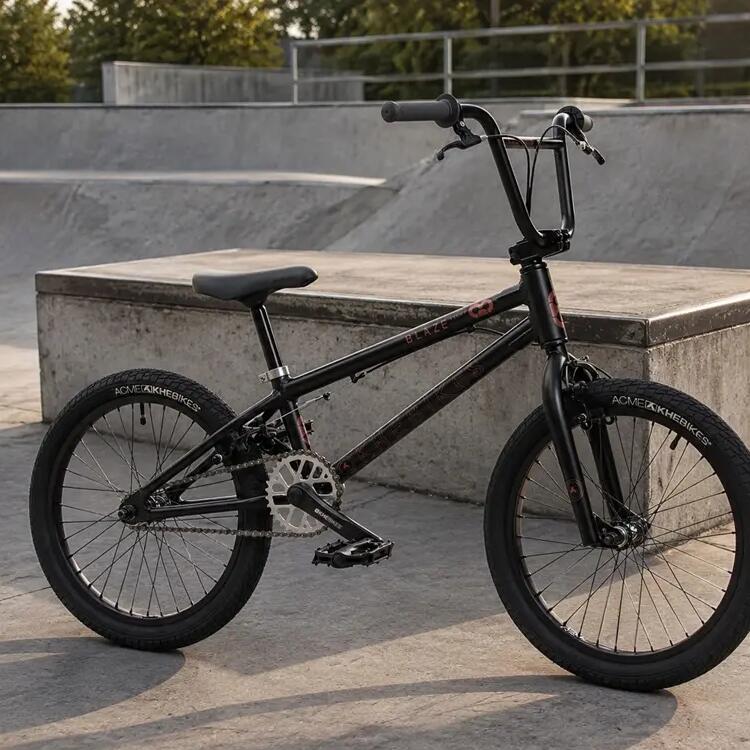

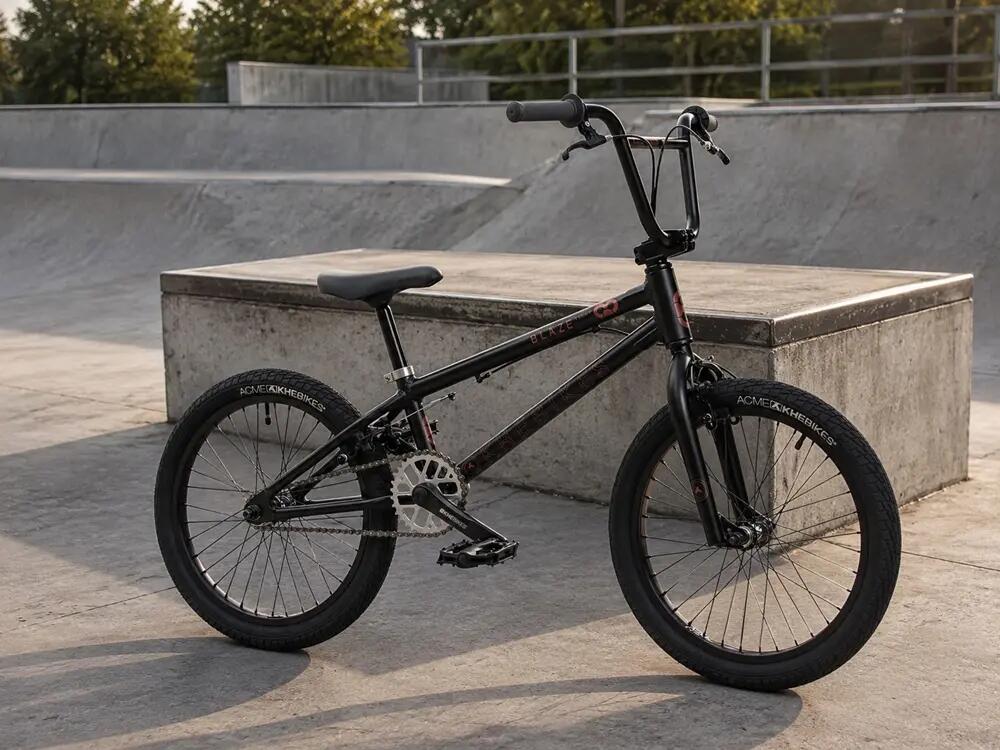

KHE BLAZE 18" BMX 2025 with Aluminium Frame
The KHE BLAZE 18" is a lightweight BMX for young riders and is suitable for Park, Street and Pumptrack. The 6061 aluminium frame with an 18" top tube provides compact geometry for controlled and agile riding. At only 9.3 kg, the BLAZE is particularly easy to handle. A sealed EURO BB bottom bracket, forged aluminium cranks, two KHE RADIUS U-Brakes and the patented KHE AFFIX rotor system complete a setup designed for beginners and more advanced young riders.
Equipment

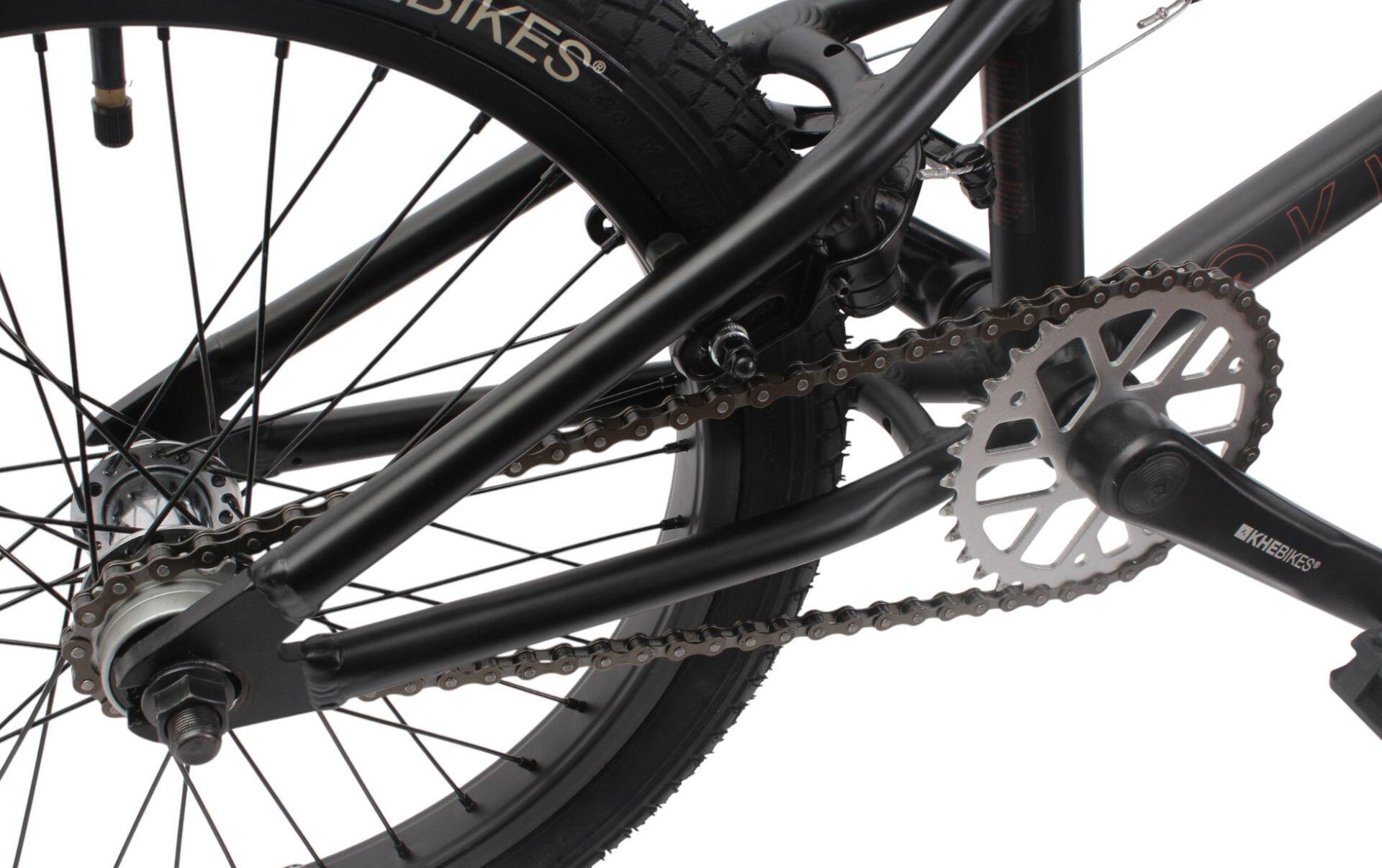

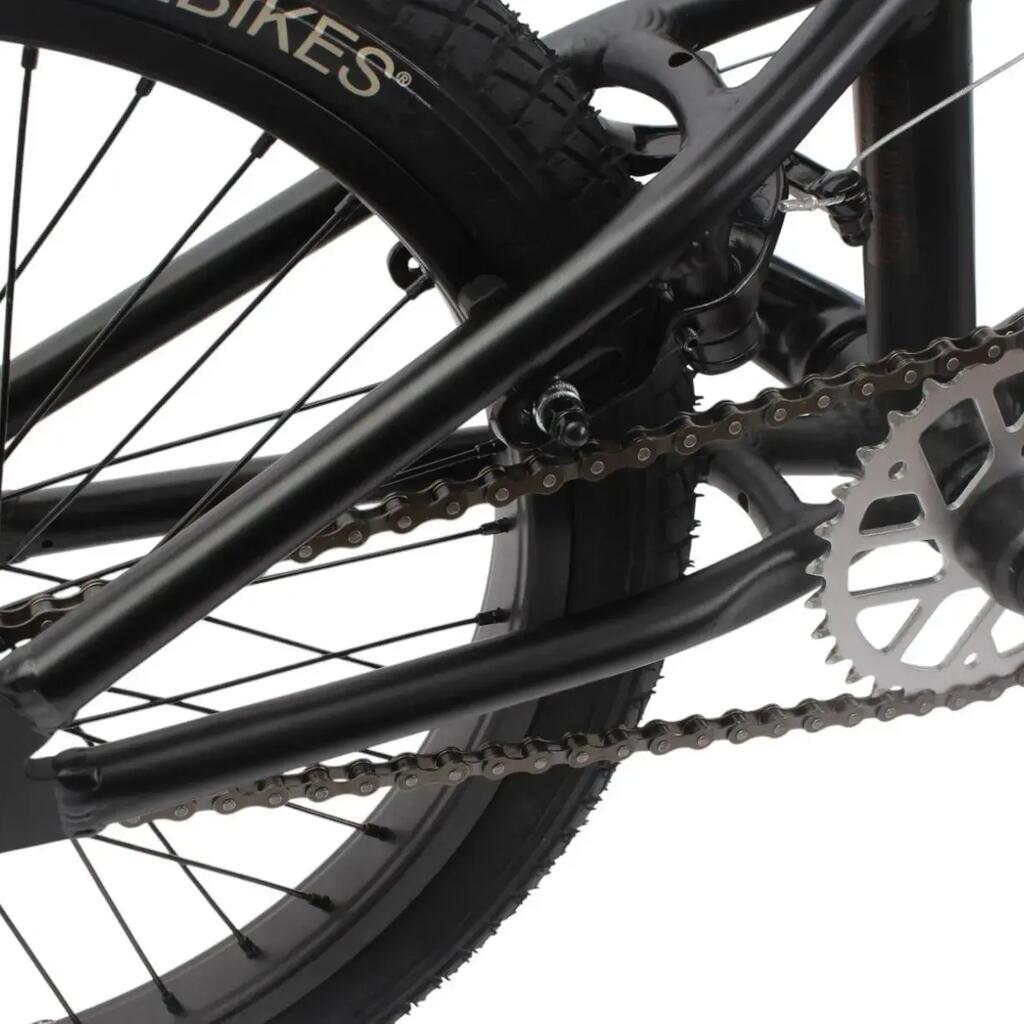

Drivetrain:
• 3-piece 152 mm aluminium crank
• 32T chainring
• Sealed EURO BB bottom bracket with industrial bearings
• YBN CN ST chain
• 14T freewheel
Cockpit:

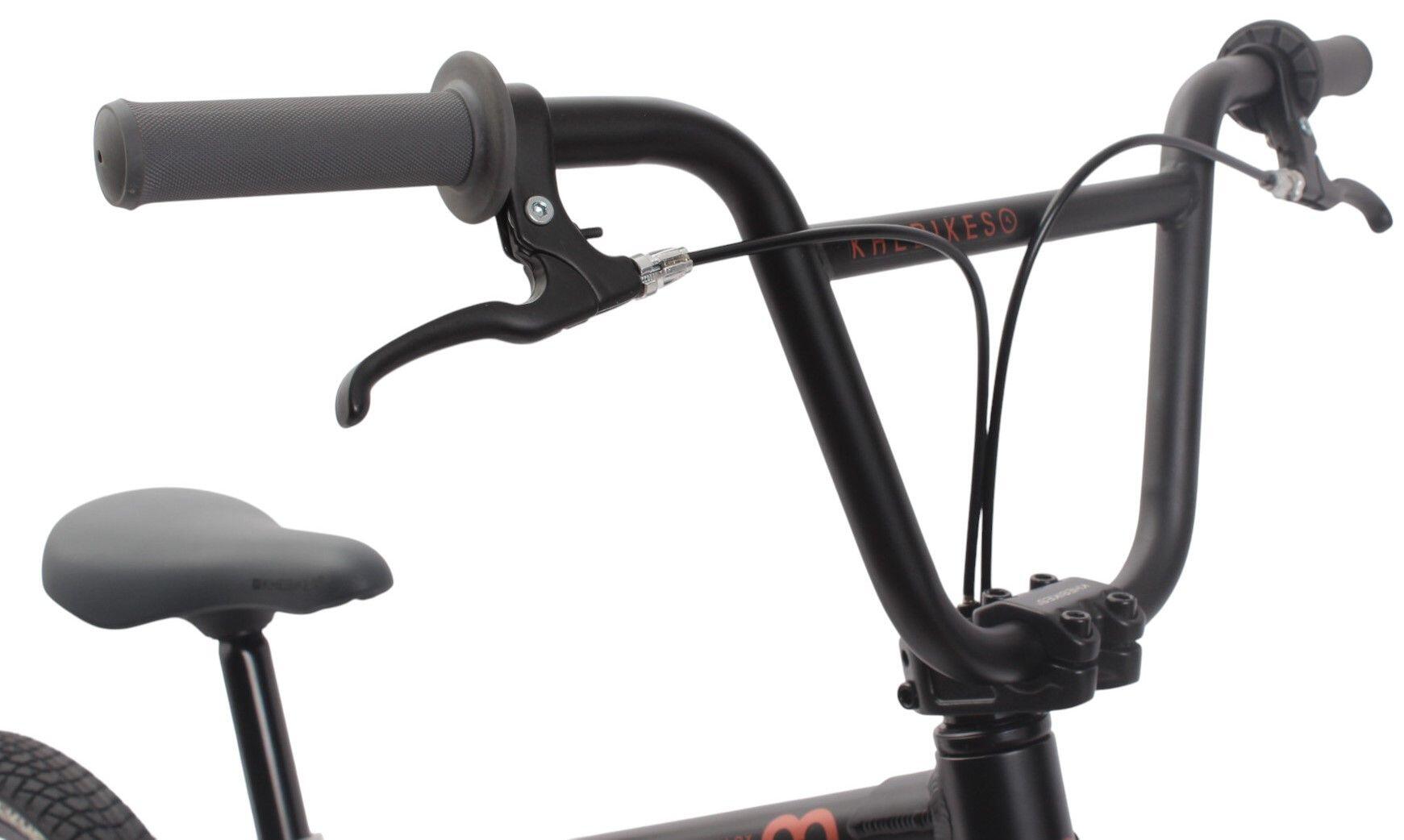

• KHE HiTen steel handlebar, 8" high
• 680 mm handlebar width

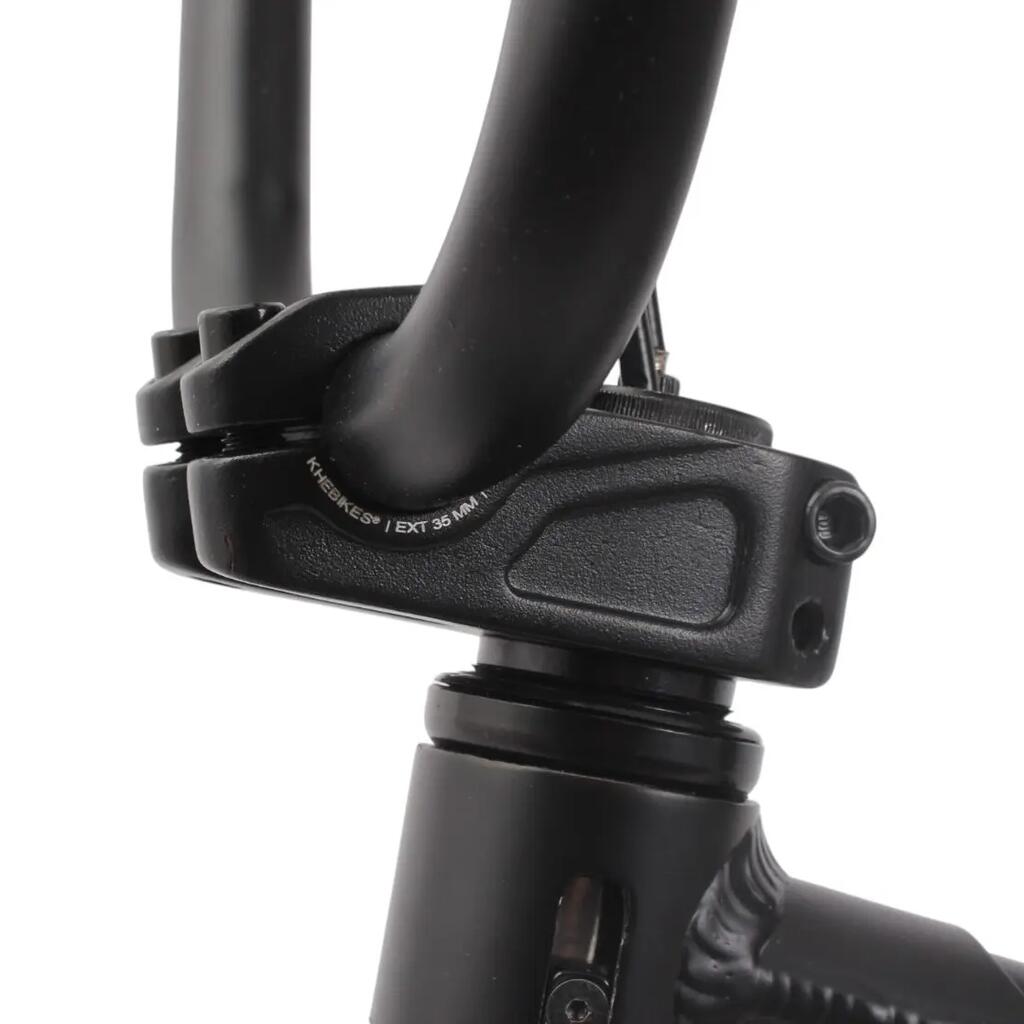

• KHE Top Loader stem (40 mm)

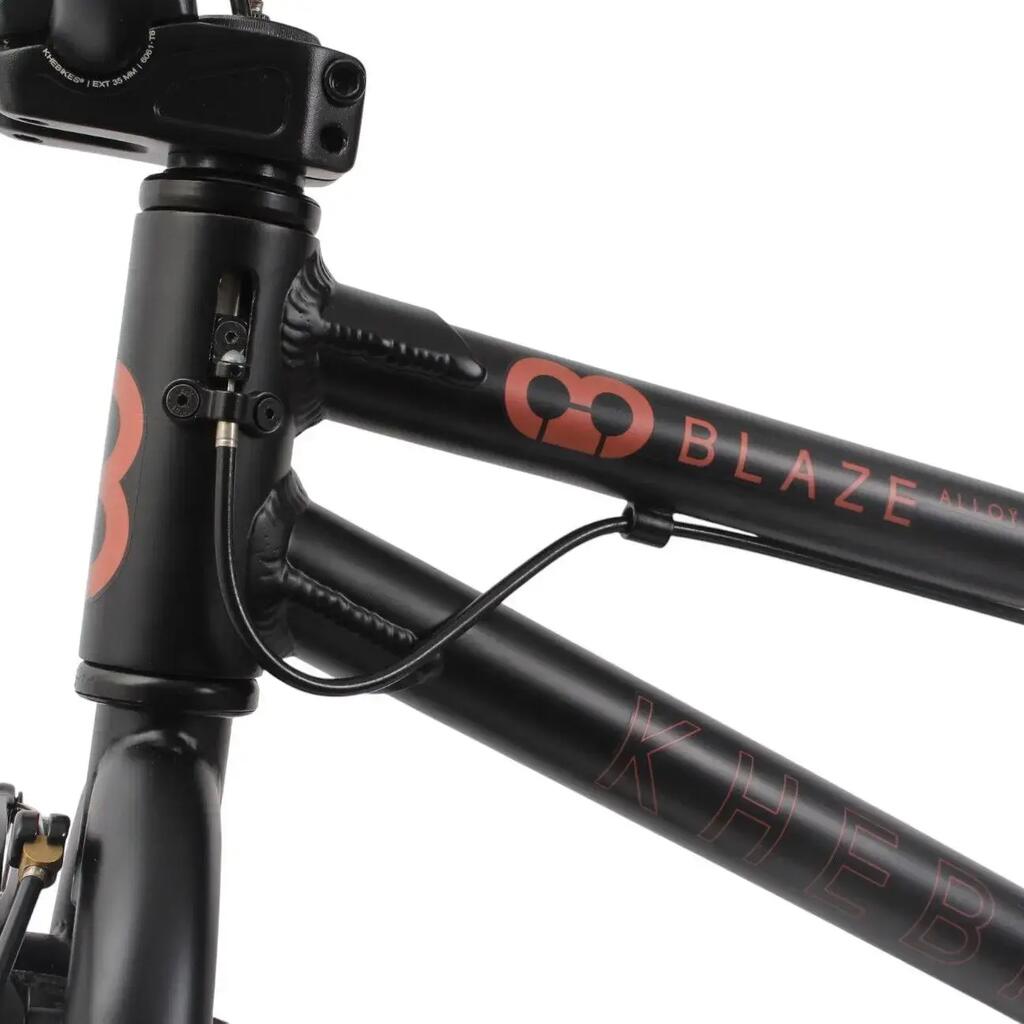

• KHE AFFIX rotor for 360-degree handlebar rotations

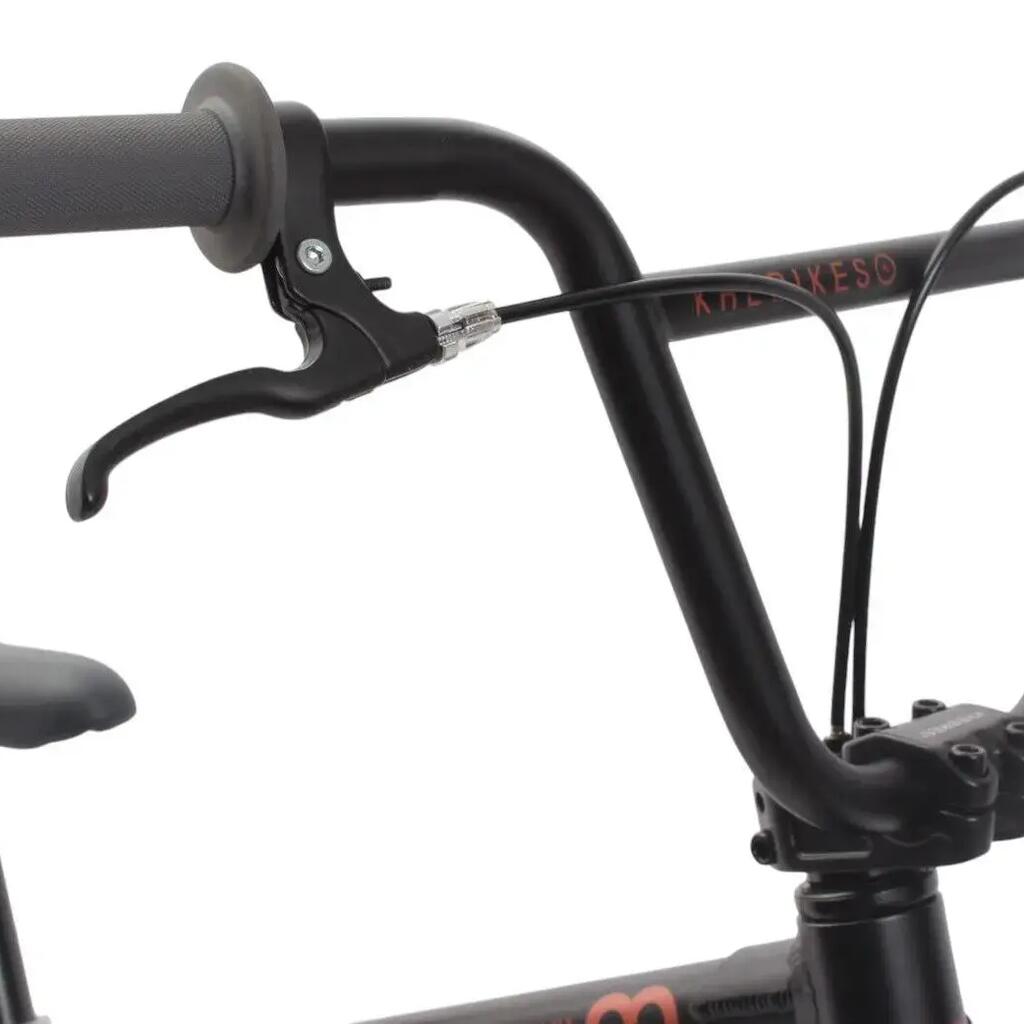

• Aluminium brake lever with adjustment screw
Brakes & Wheels:

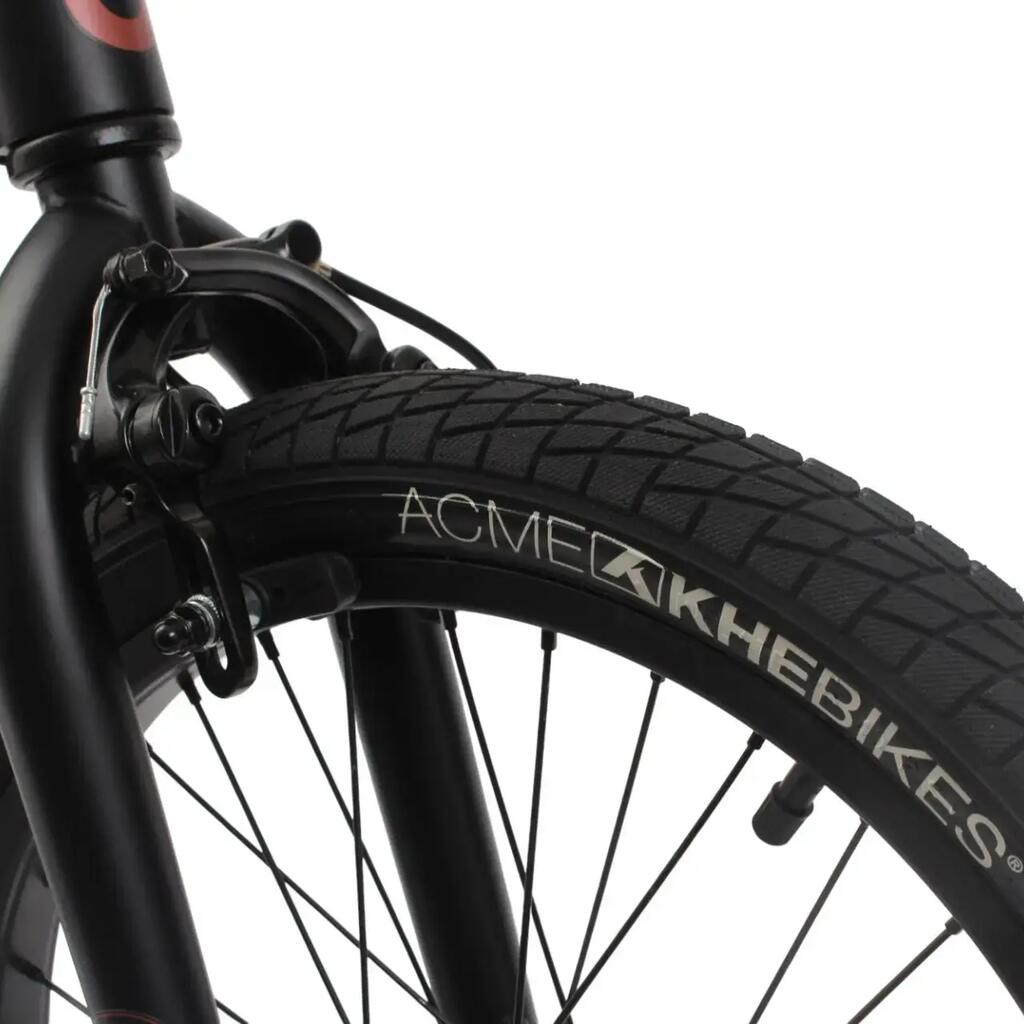

• KHE RADIUS aluminium U-Brake front and rear
• AFFIX 18" single-wall aluminium rims
• 36 holes
• KHE ACME tyres 18 × 2.125"
• 10 mm front axle
• 14 mm rear axle
Frame & Components:

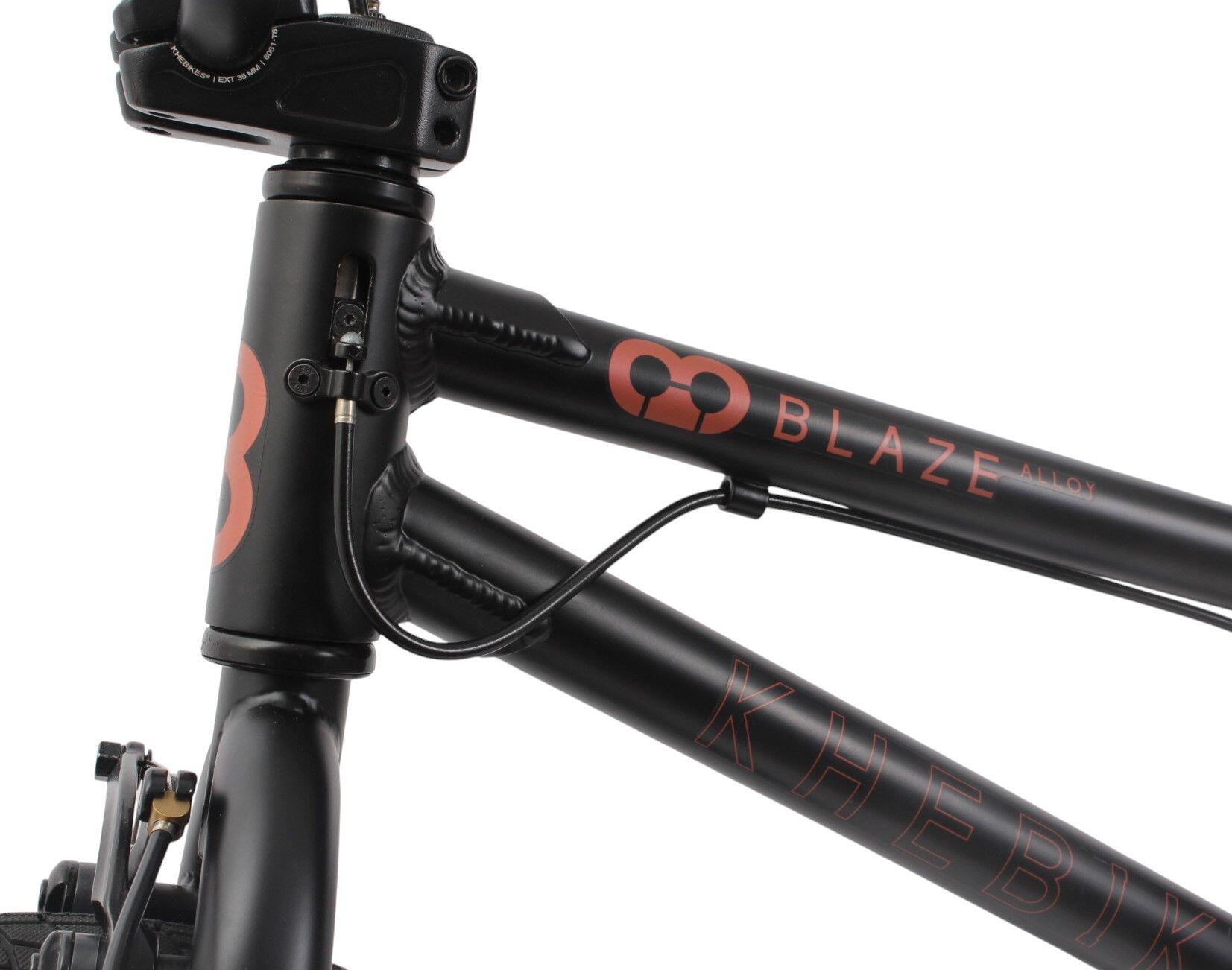

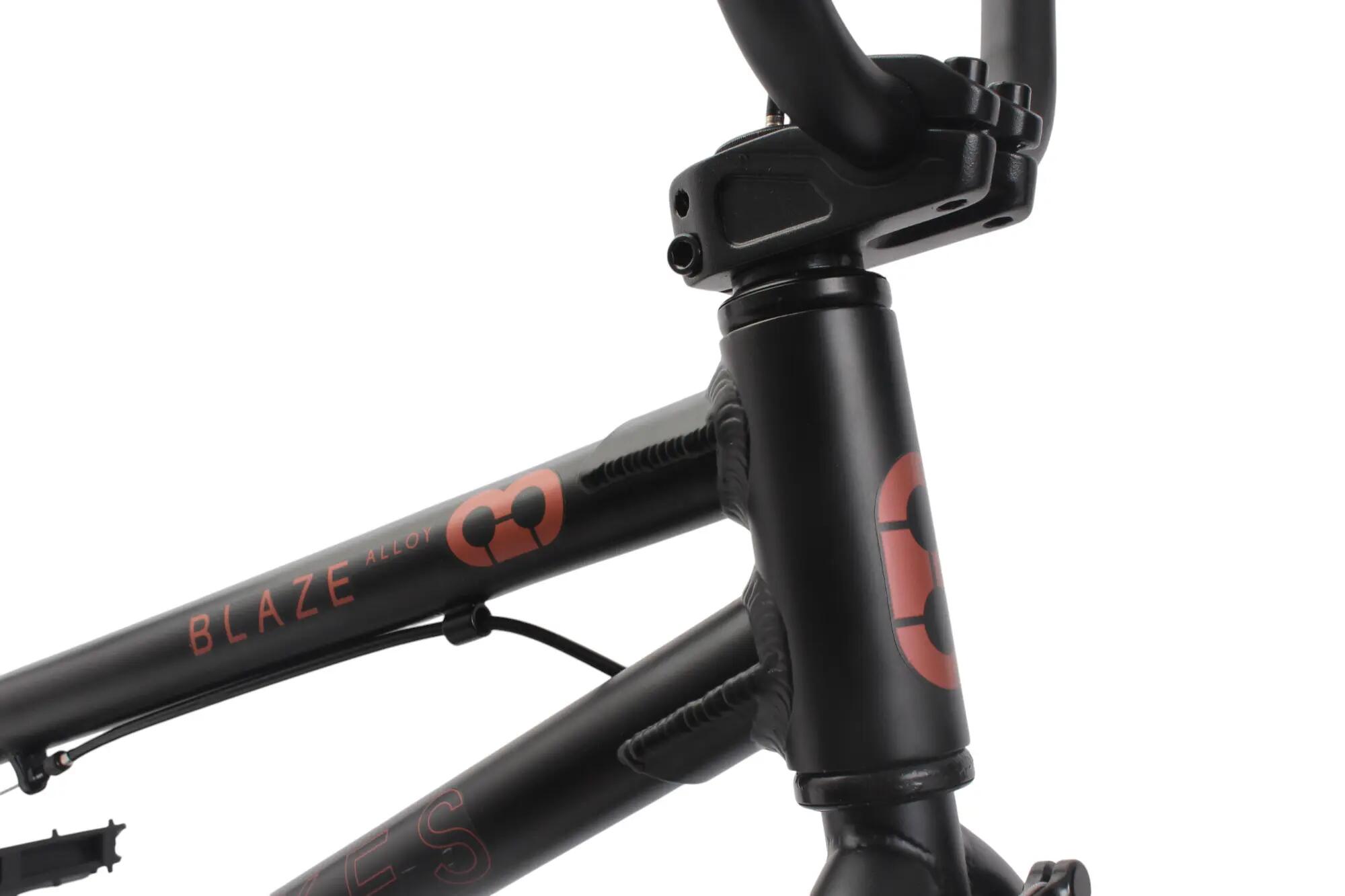

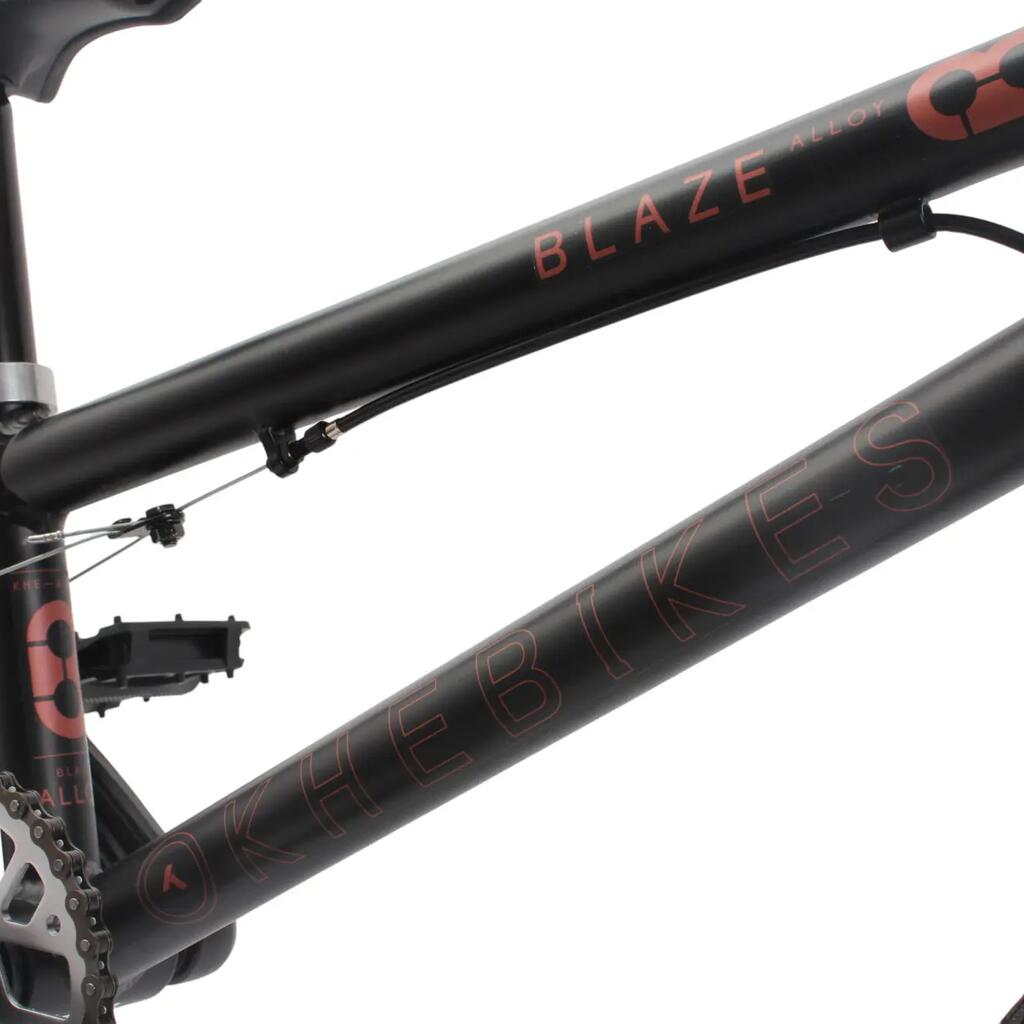

• KHE 6061 aluminium frame
• KHE 1020 HiTen steel fork
• Tapered fork tubes
• FEIMIN PVC pedals with 9/16" axle
• AFFIX 1 1/8" headset
Technical Data
• Model: KHE BLAZE
• Model year: 2025

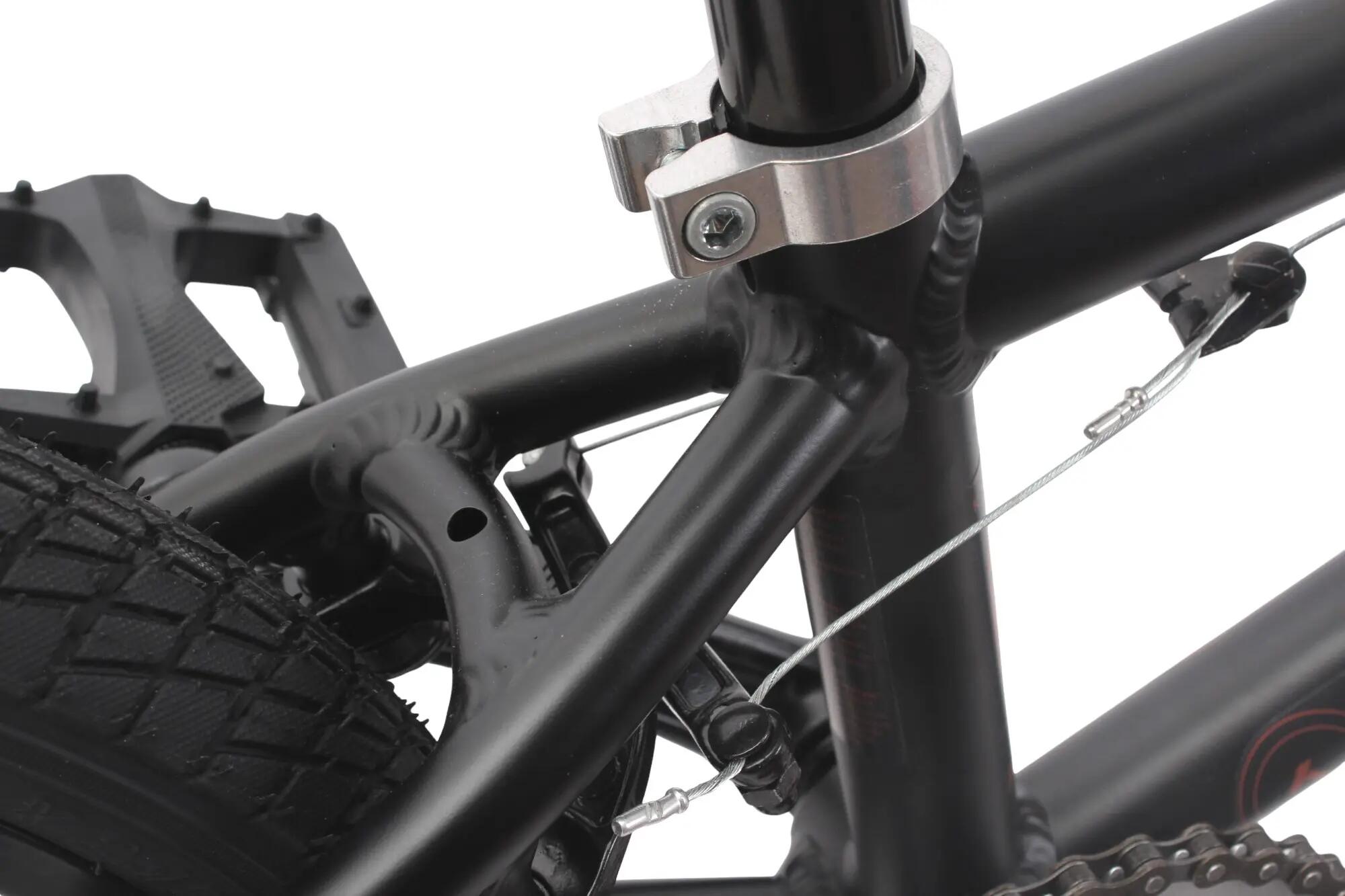

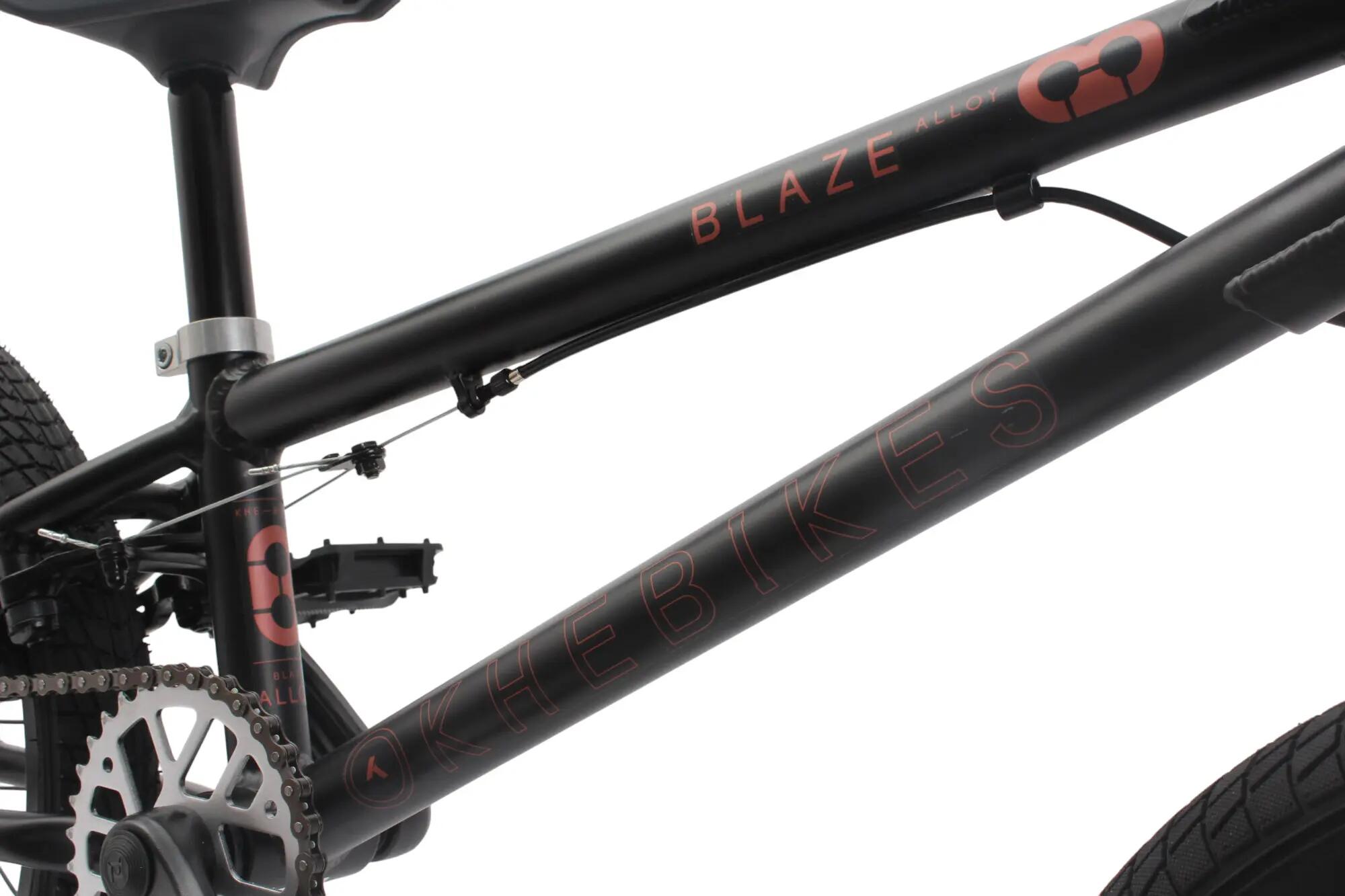

• Frame: KHE 6061 aluminium
• Fork: KHE 1020 HiTen steel
• Top tube: 18" (457 mm)
• Chainstay: 317 mm
• Head angle: 75 degrees
• Seat angle: 71 degrees
• Fork offset: 33 mm
• Handlebar: KHE HiTen steel, 680 mm (26.8") wide × 203 mm (8") high
• Backsweep: 10 degrees
• Upsweep: 1 degree

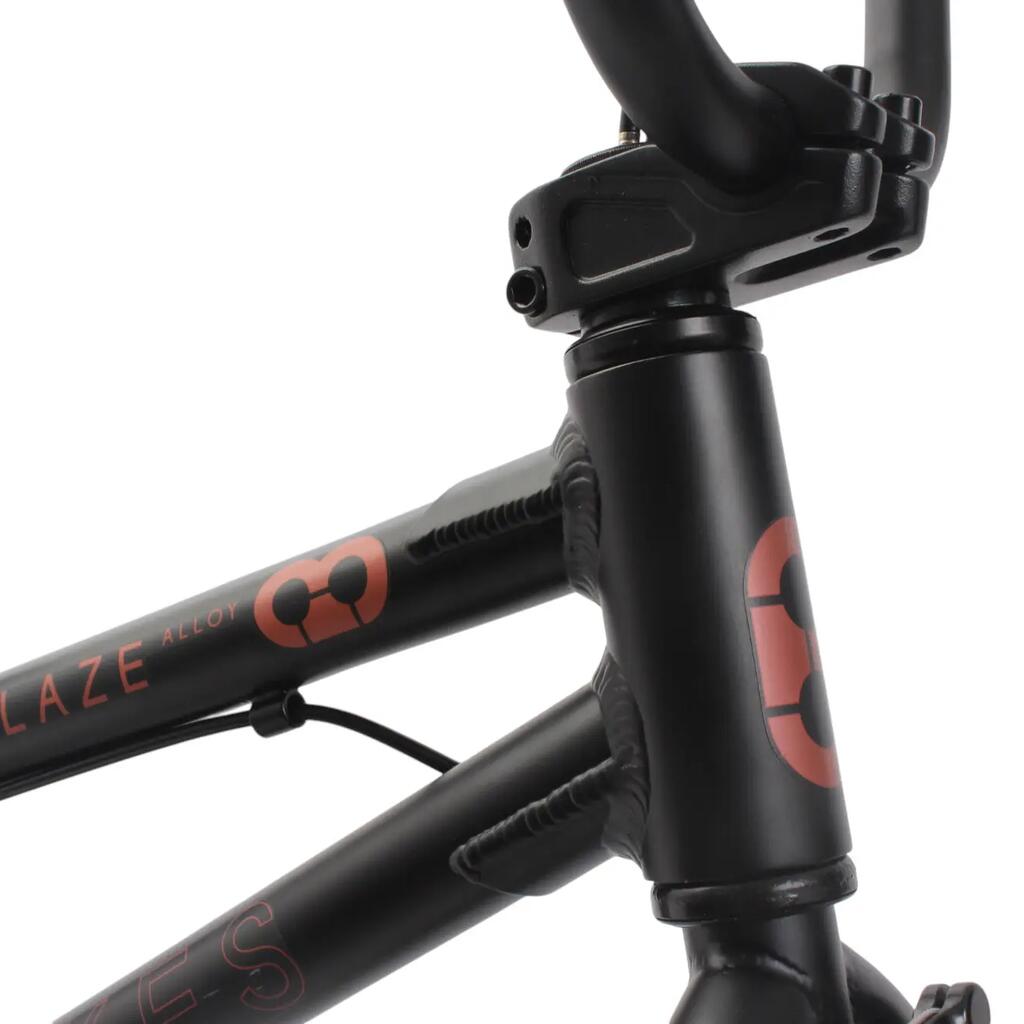

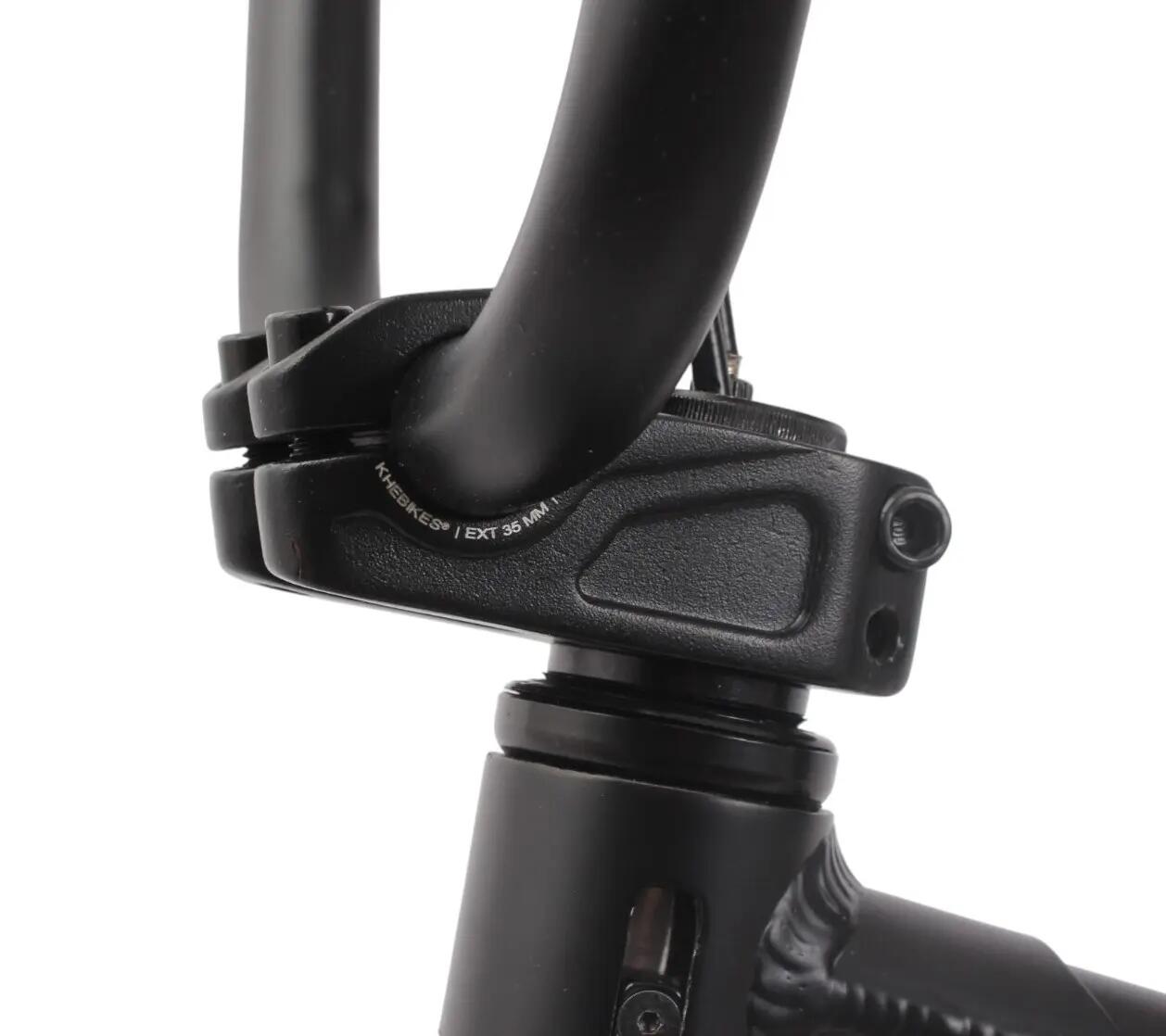

• Stem: KHE Top Loader, 40 mm
• Headset: AFFIX Loose Ball 1 1/8"
• Rotor: Patented KHE AFFIX 360-degree rotor

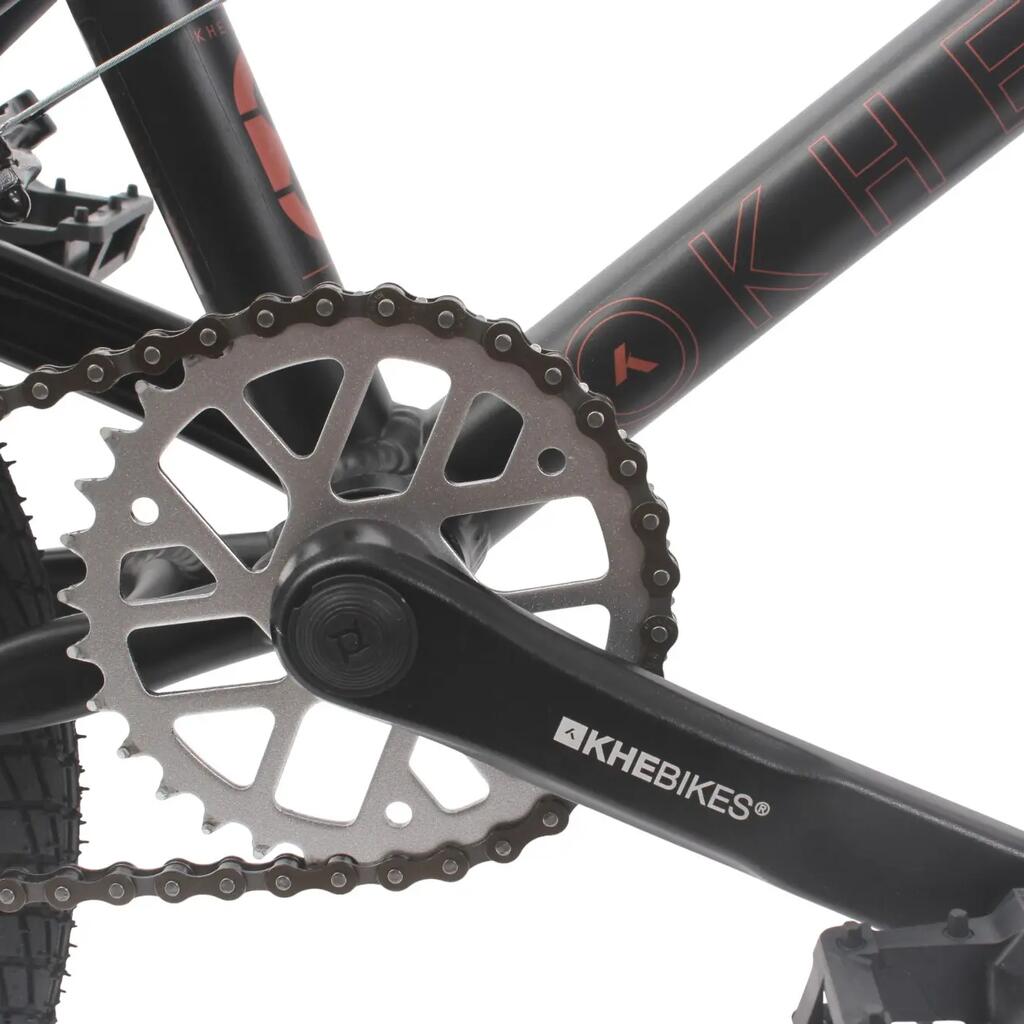

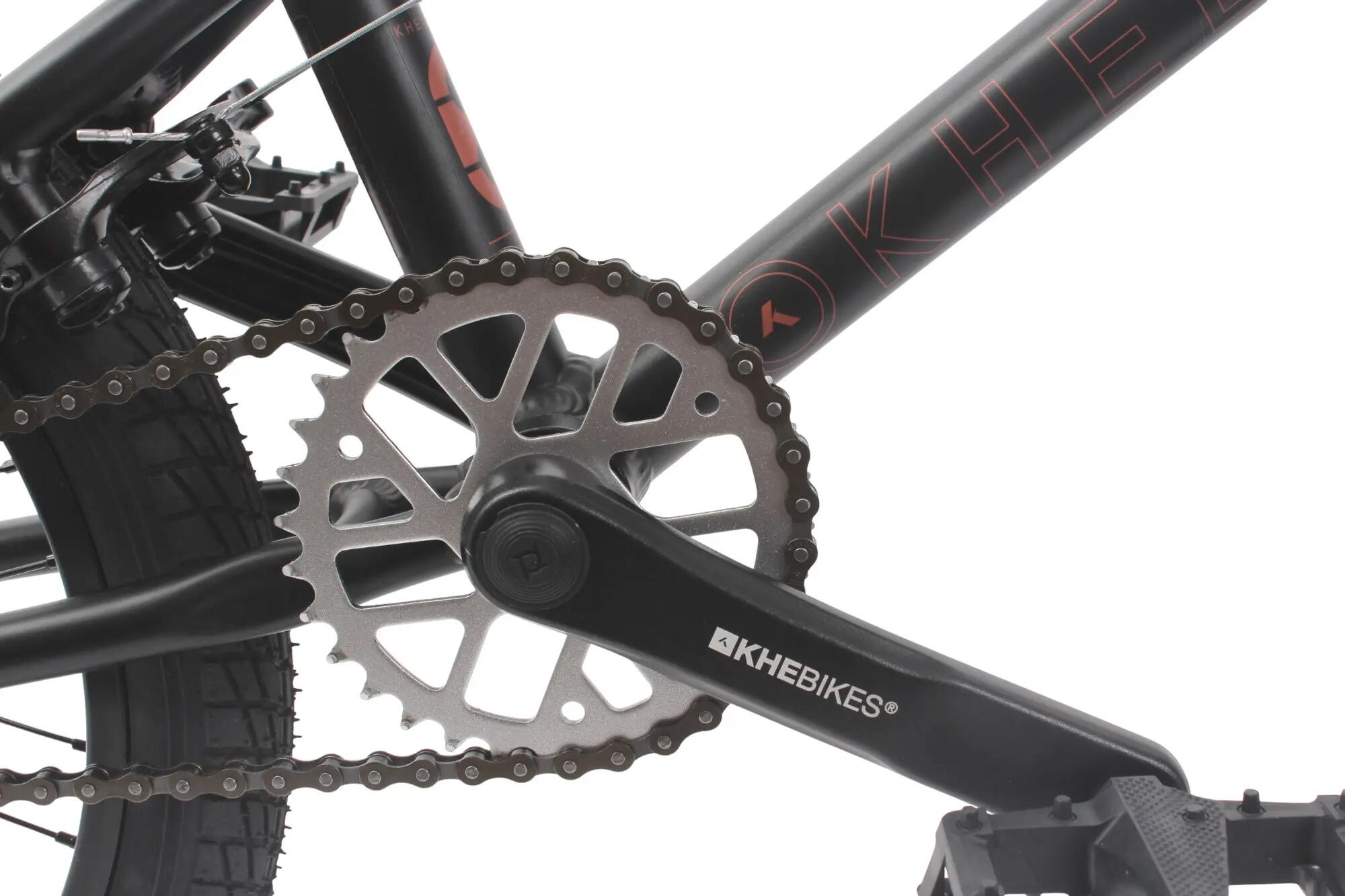

• Crank: KHE 3-piece, forged aluminium, 152 mm
• Bottom bracket: EURO BB, sealed with industrial bearings, BC1.37" × 24T, 68 / 116 mm
• Chainring: 32T
• Chain: YBN CN ST 1/2 × 1/8"
• Front brake: KHE RADIUS aluminium U-Brake
• Rear brake: KHE RADIUS aluminium U-Brake

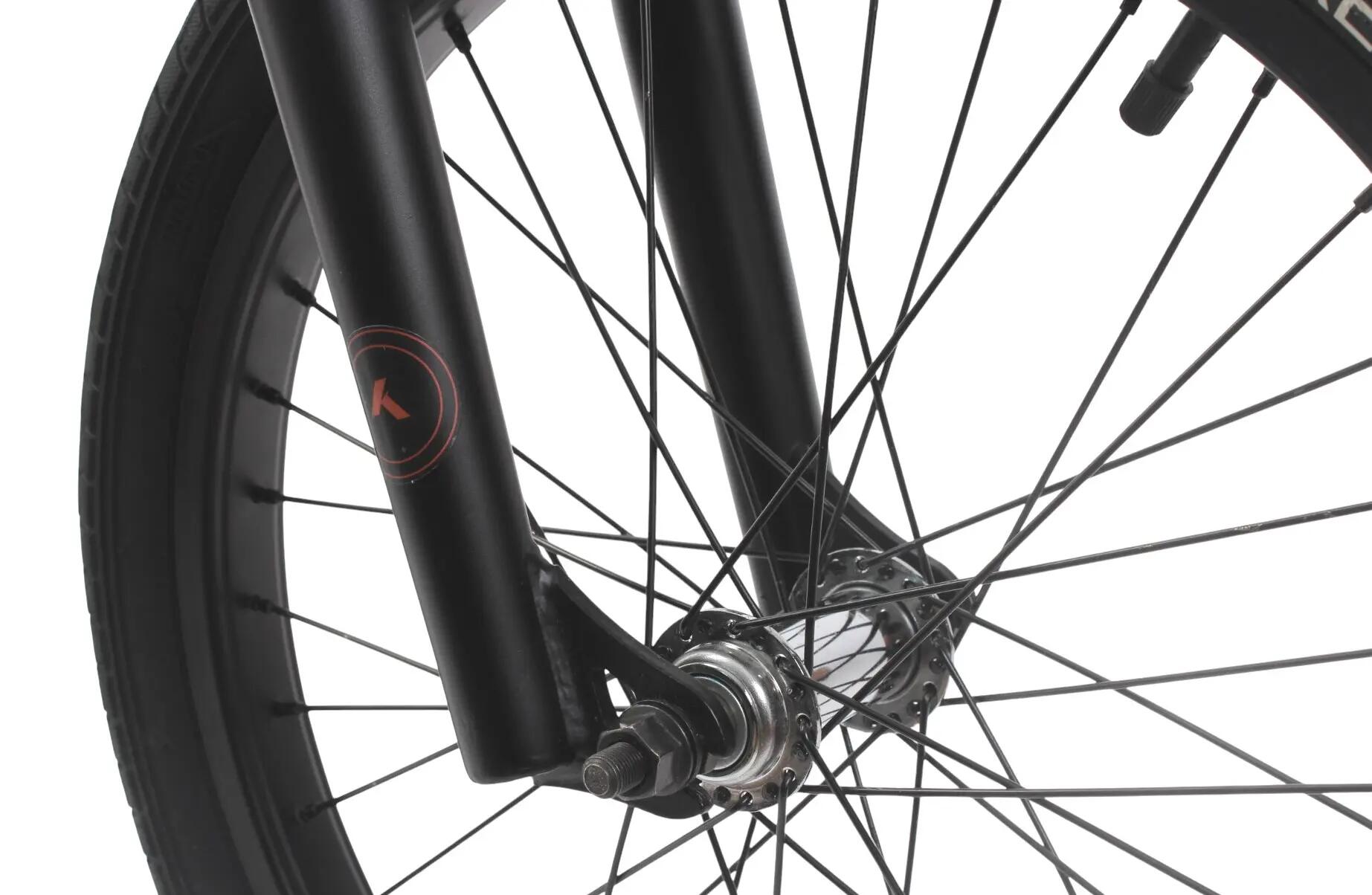

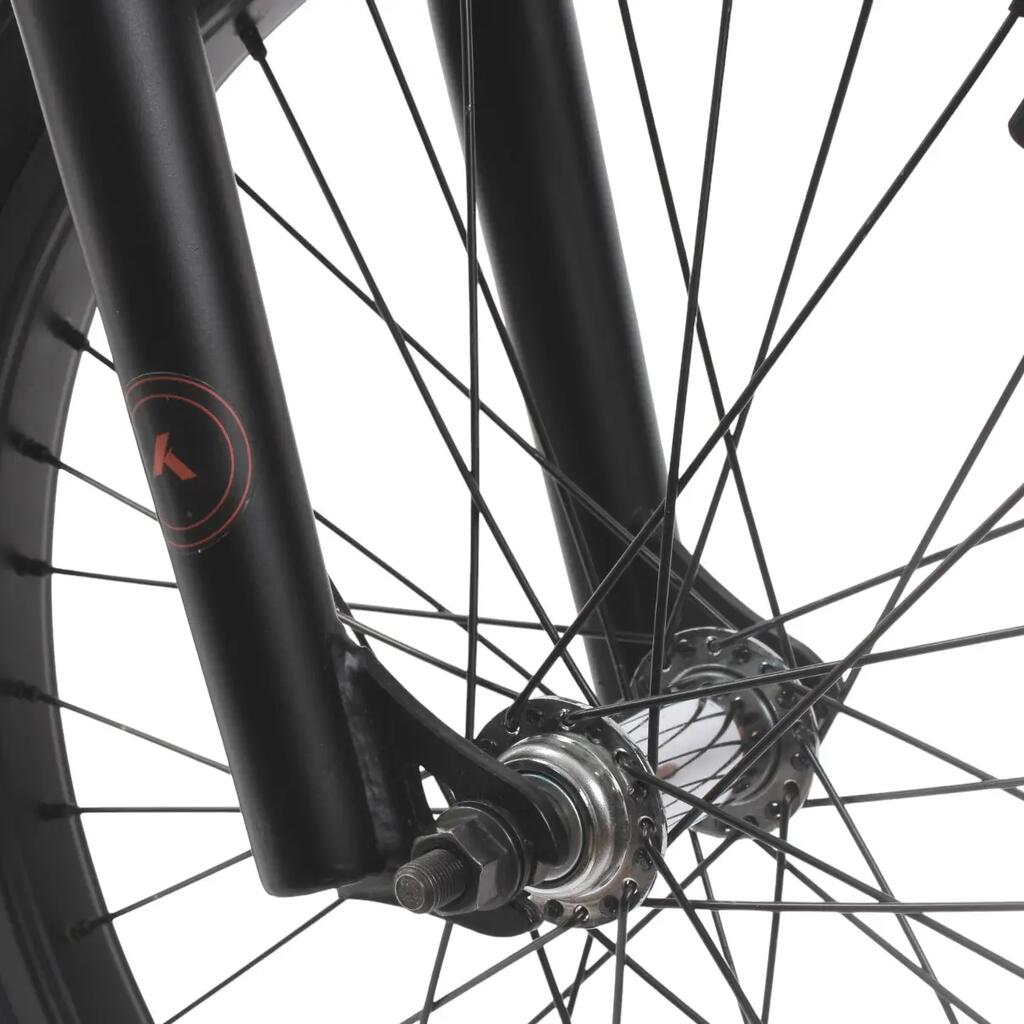

• Front hub: Aluminium, 10 × 155 mm axle, Loose Ball, 36 holes
• Rear hub: 14 × 170 mm axle, Loose Ball, M35 freewheel thread
• Hub type: Freewheel
• Freewheel: 14T
• Rims: AFFIX 18" single-wall aluminium, 36 holes

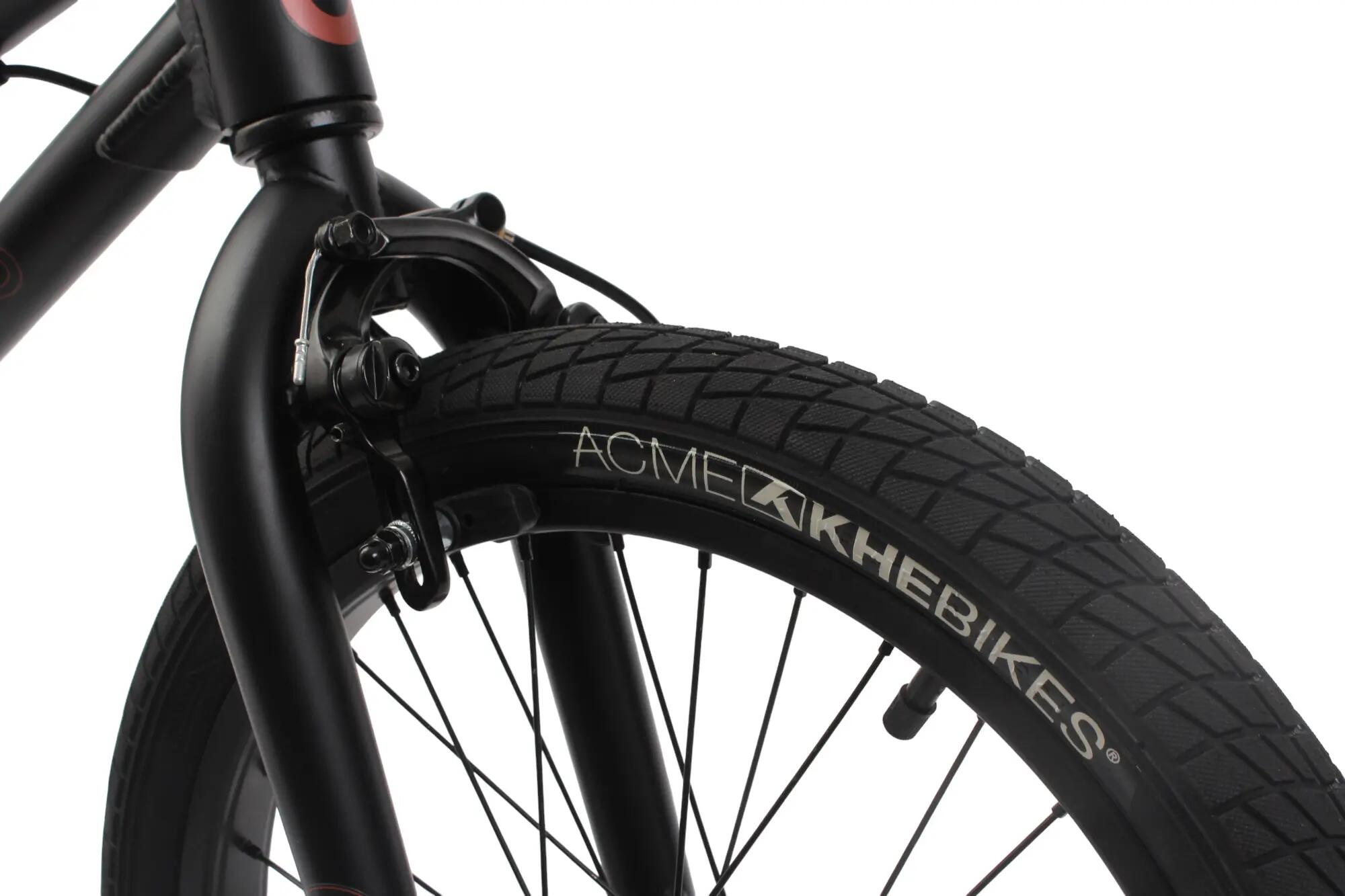

• Tyres: KHE ACME 18 × 2.125"
• Pedals: FEIMIN PVC, 9/16" axle
• Material: 6061 T6 aluminium
• Colour: Bronze
• Weight: 9.3 kg
Suitable for:
• Rider height: 125–145 cm
• Maximum rider weight: 70 kg
• Use: Park / Street / Pumptrack
Why choose the KHE BLAZE from KHEbikes:
✓ Only 9.3 kg total weight for easy and controlled handling
✓ Lightweight 6061 aluminium frame with compact 18" geometry
✓ Patented KHE AFFIX rotor system for 360-degree handlebar rotations
✓ Forged 3-piece aluminium crank
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ Two KHE RADIUS aluminium U-Brakes for reliable braking
✓ Wide KHE ACME 2.125" tyres for good grip
Compatibility
• Front pegs: 10 mm
• Rear pegs: 14 mm
• Recommendation: KHE COP Aluminium Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Brake system: The KHE BLAZE comes as standard with KHE RADIUS aluminium U-Brakes at the front and rear.
