Bicycle trailer adapter with frame clamp

Product Description

Description: Bike trailer adapter for thru-axle

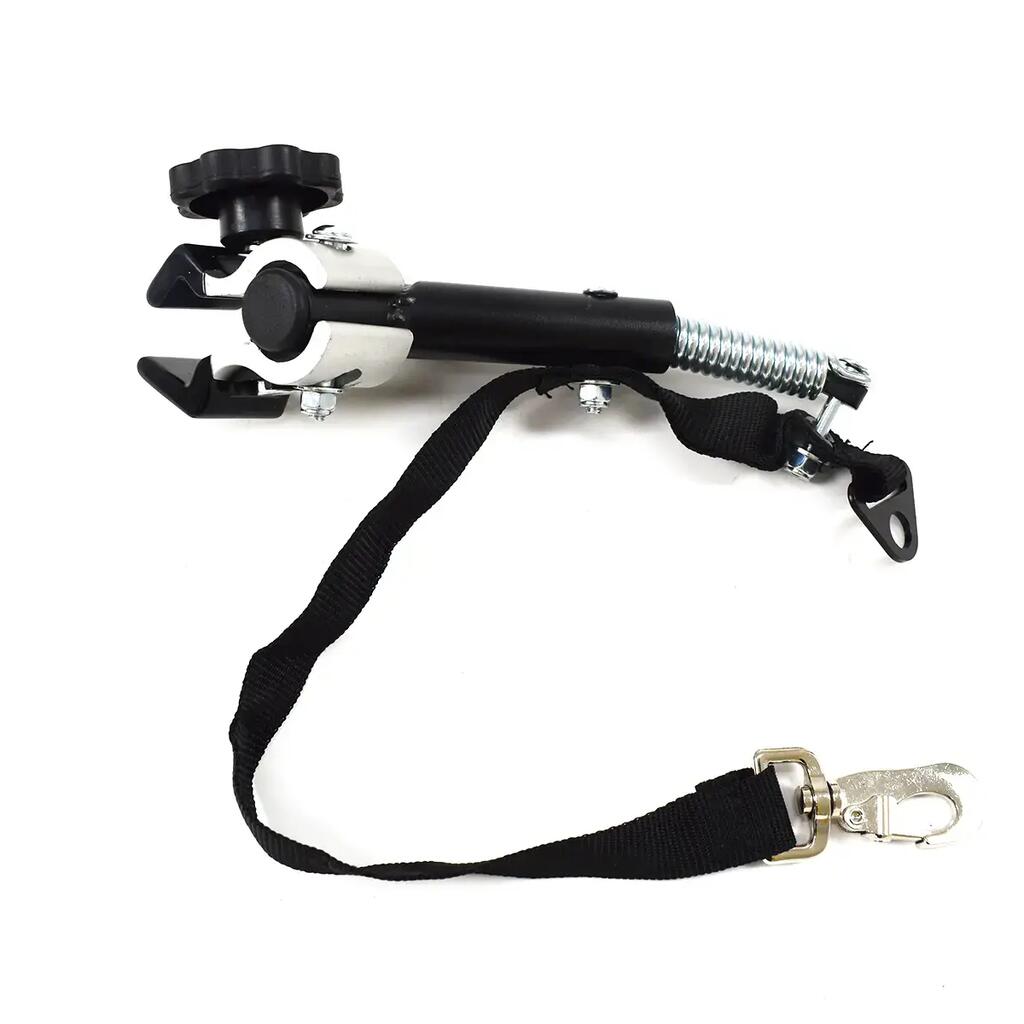

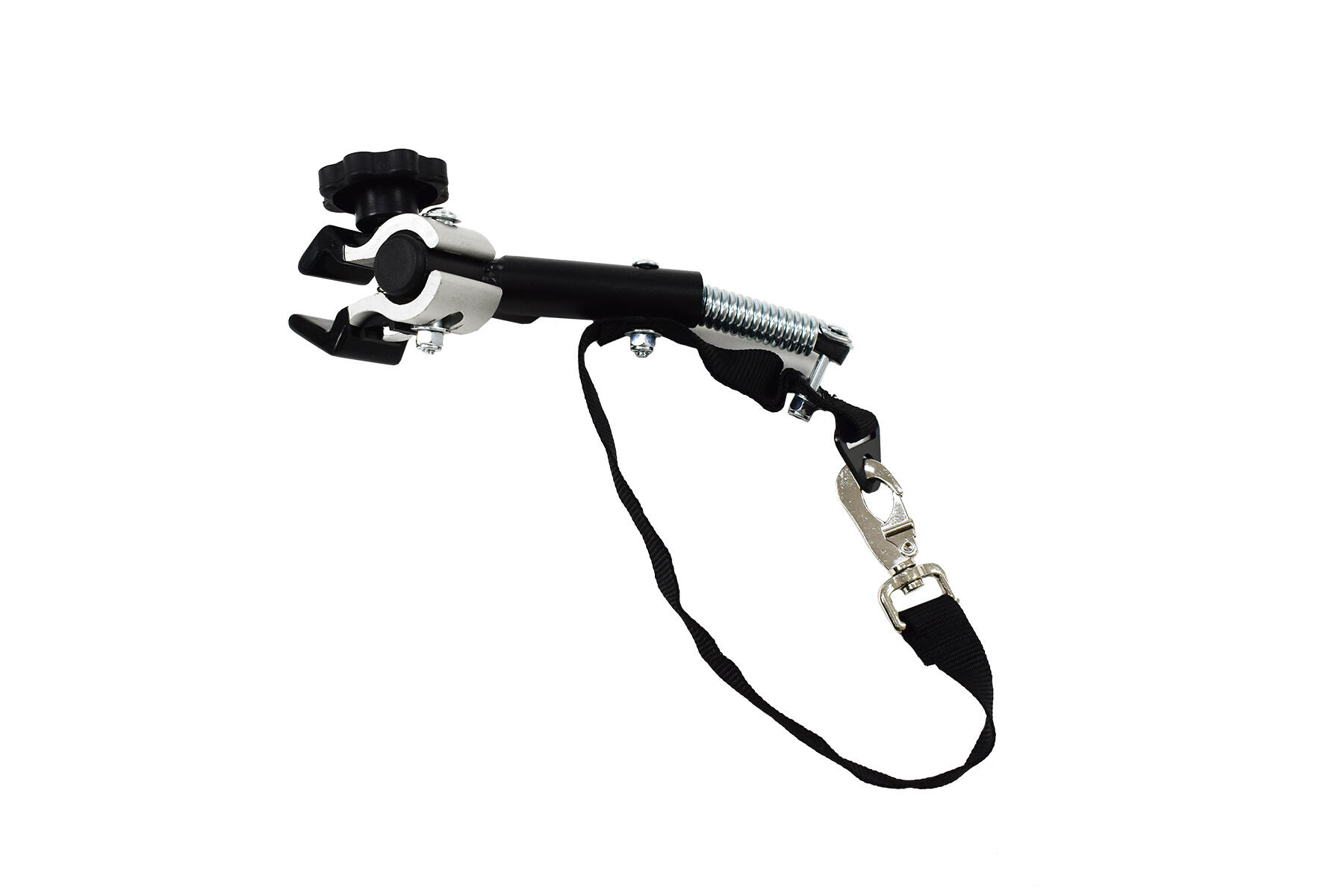

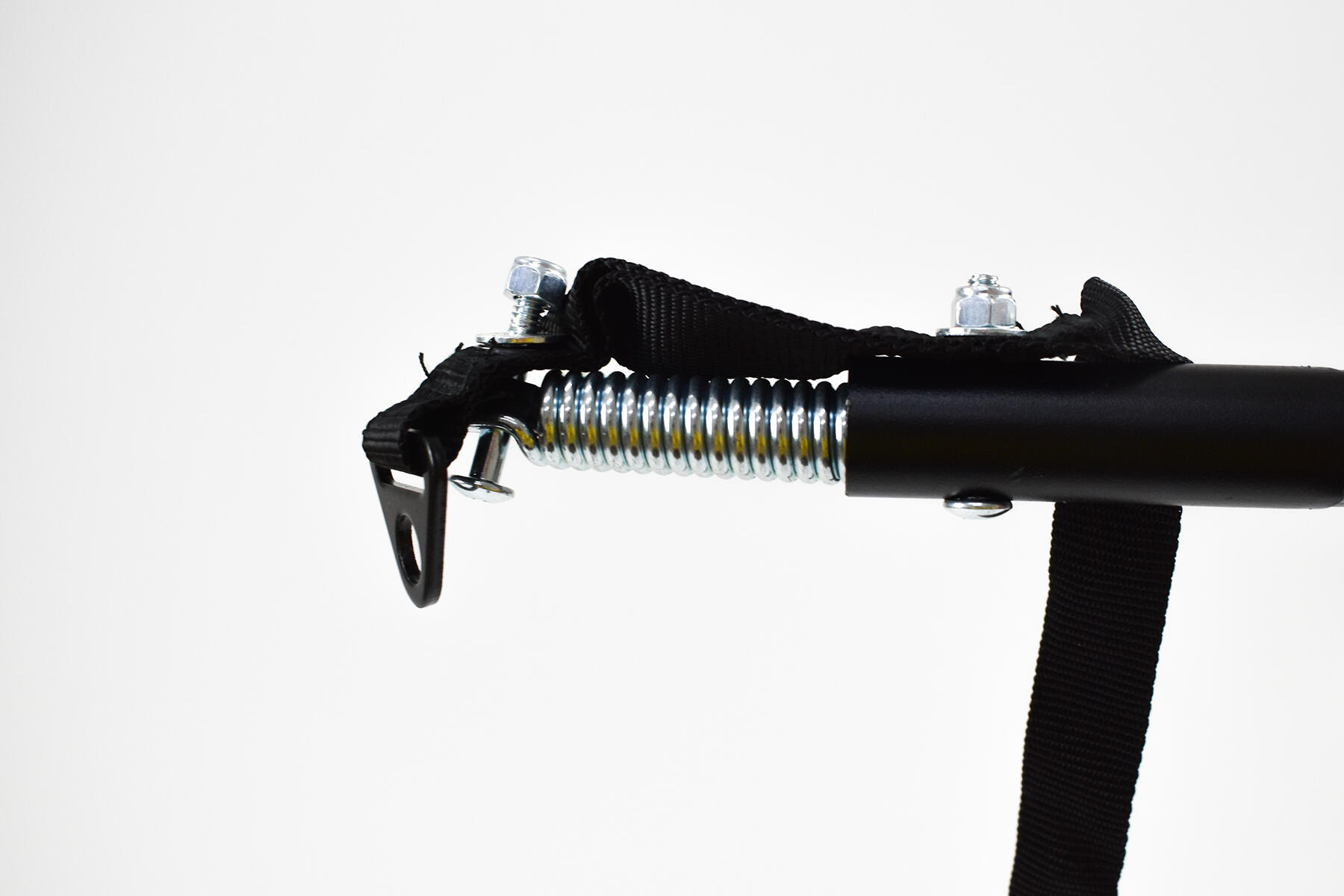

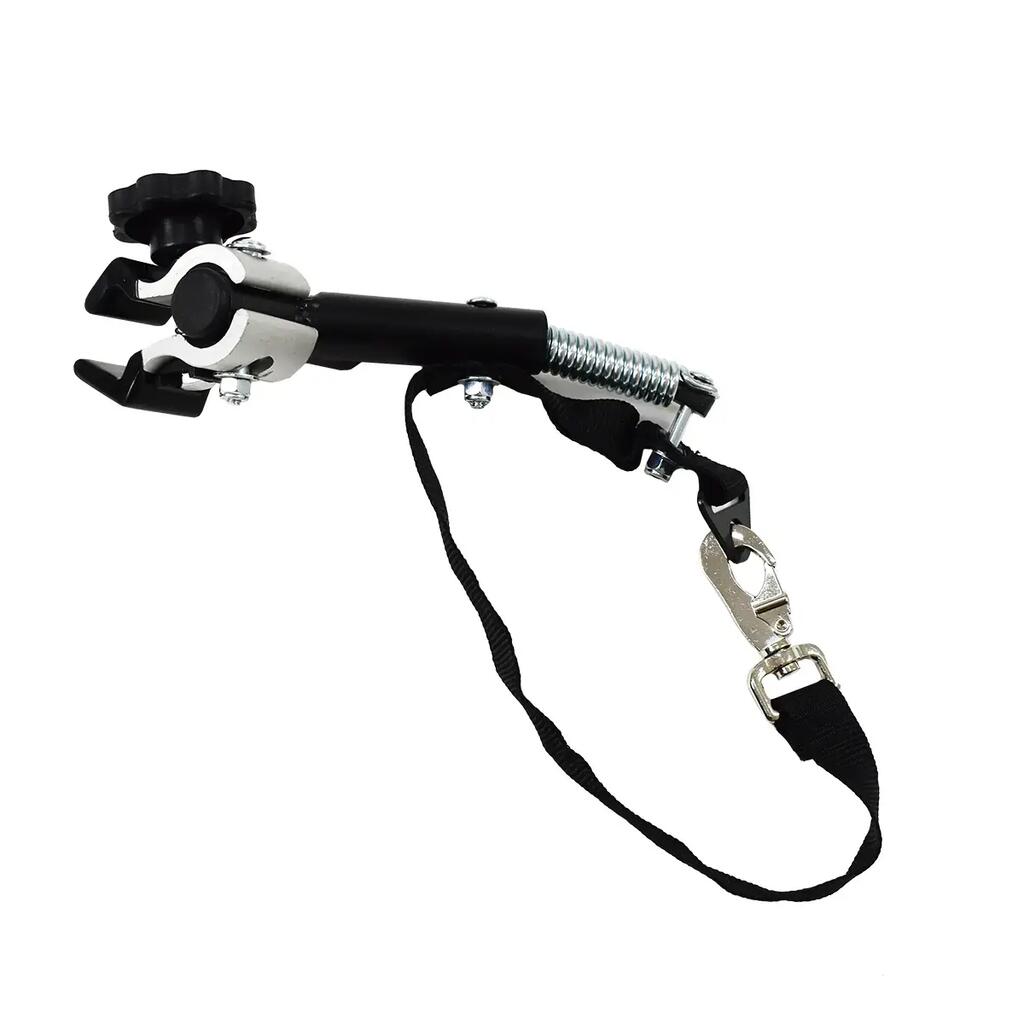

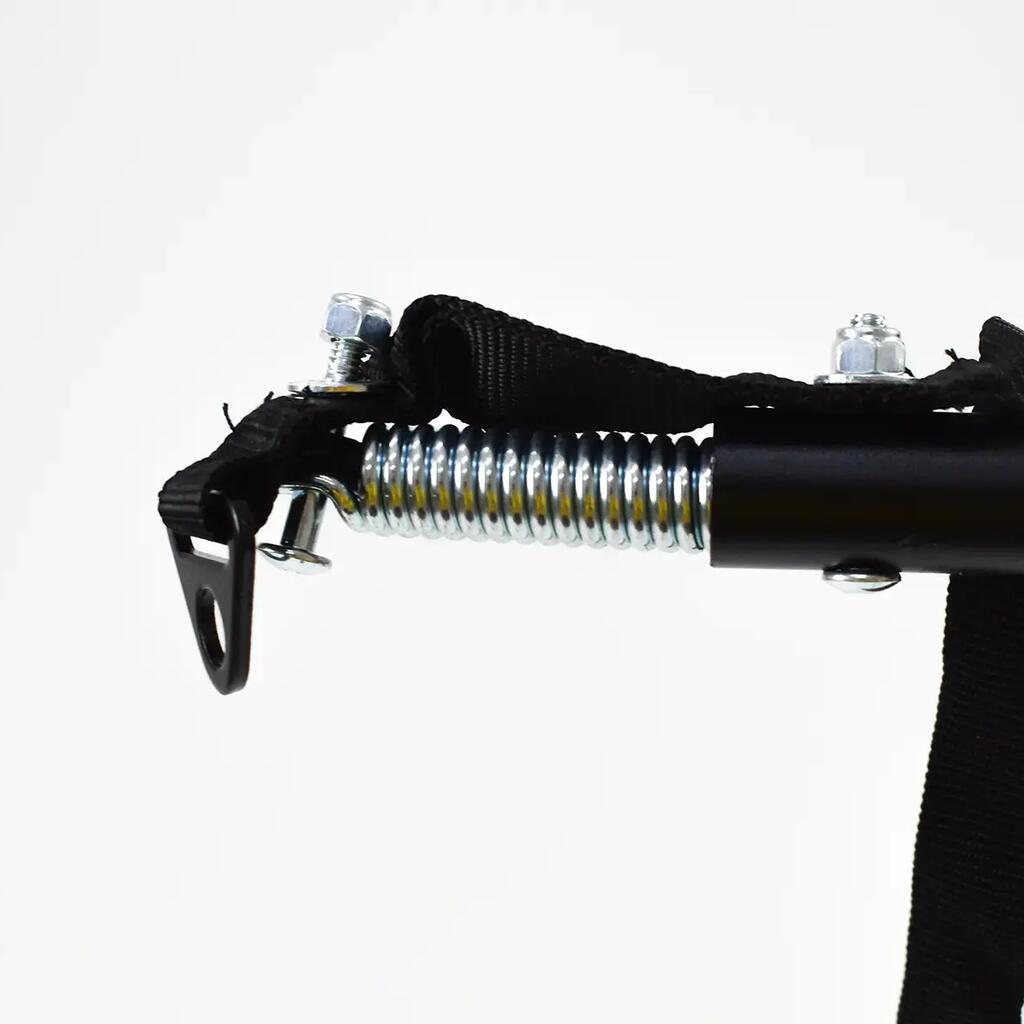

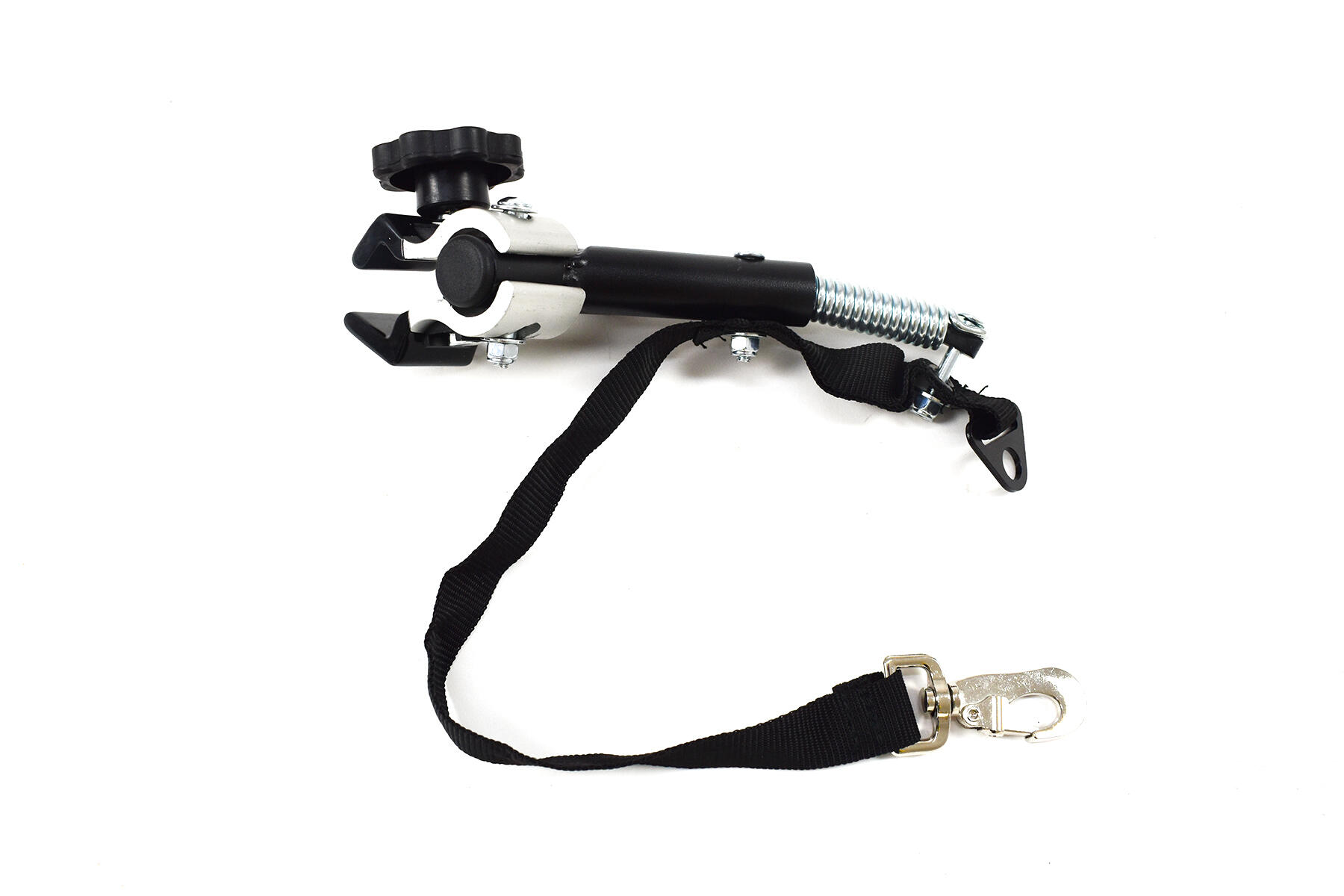

This adapter is an alternative for attaching a bike trailer when the rear wheel axle is too long or does not protrude, preventing the use of a conventional hitch. The spring part fits into the trailer drawbar (spring diameter 21 mm), and the clamp attaches to the frame (15 to 35 mm diameter). Take care during assembly not to pinch the brake cable or other moving parts. Compatible with STORAG trailers. Always attach the trailer's safety strap to the bicycle.

Feature(s)

Compatibility

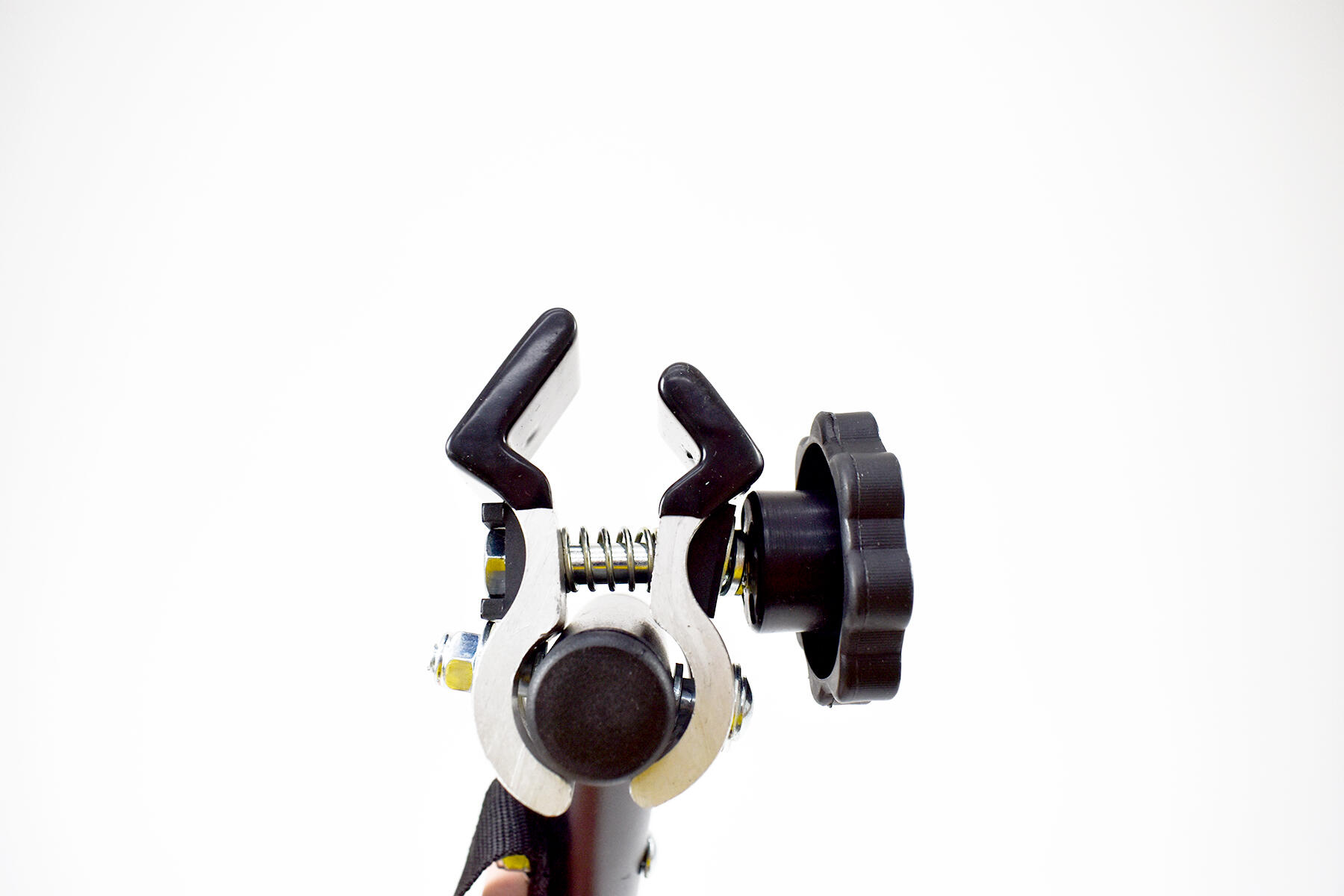

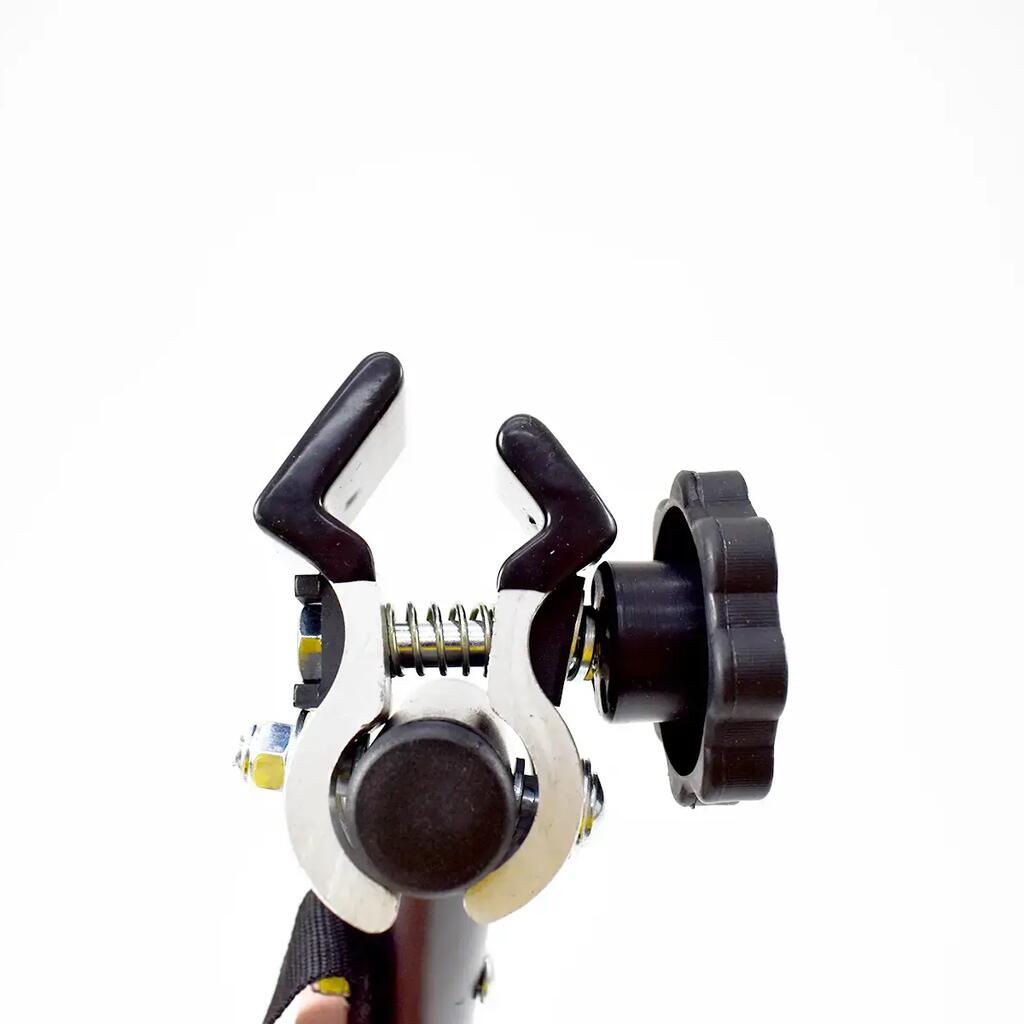

The attachment is compatible with frame base tubes with a minimum diameter of 15 mm and a maximum diameter of 35 mm. The end piece of the attachment arm is compatible with STORAG bicycle trailers.

Practical

The trailer attachment is compatible with bicycles equipped with a thru-axle or any other bicycle where attaching the trailer to the rear wheel axle is not possible.

Technical specifications

• Type: Frame-mounted bicycle trailer attachment with trailer arm end piece
• Jaw width: 40 mm
• Compatible with: frame base tubes with a minimum diameter of 15 mm and a maximum diameter of 35 mm.
• Manufacturer's reference: 6157
