Product Description
[Product Summary]

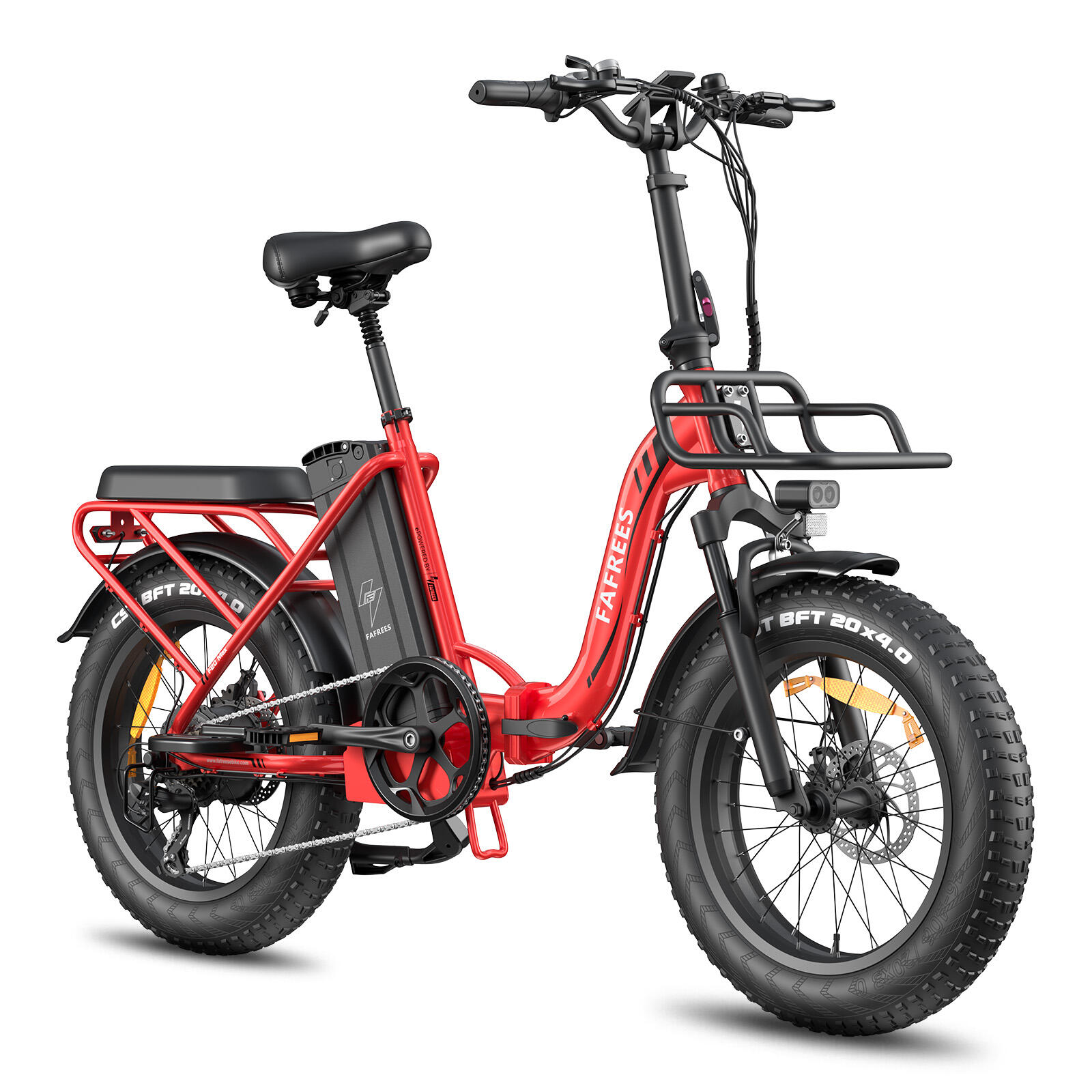

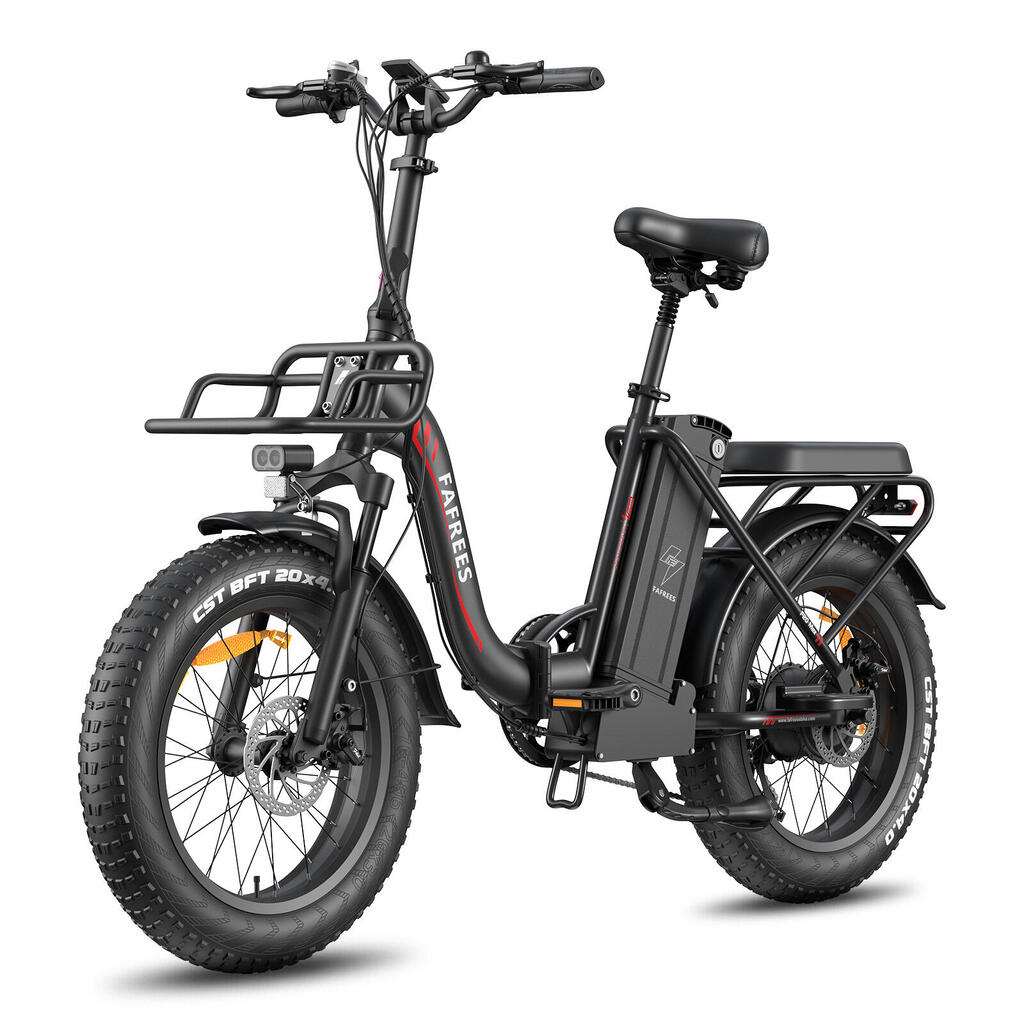

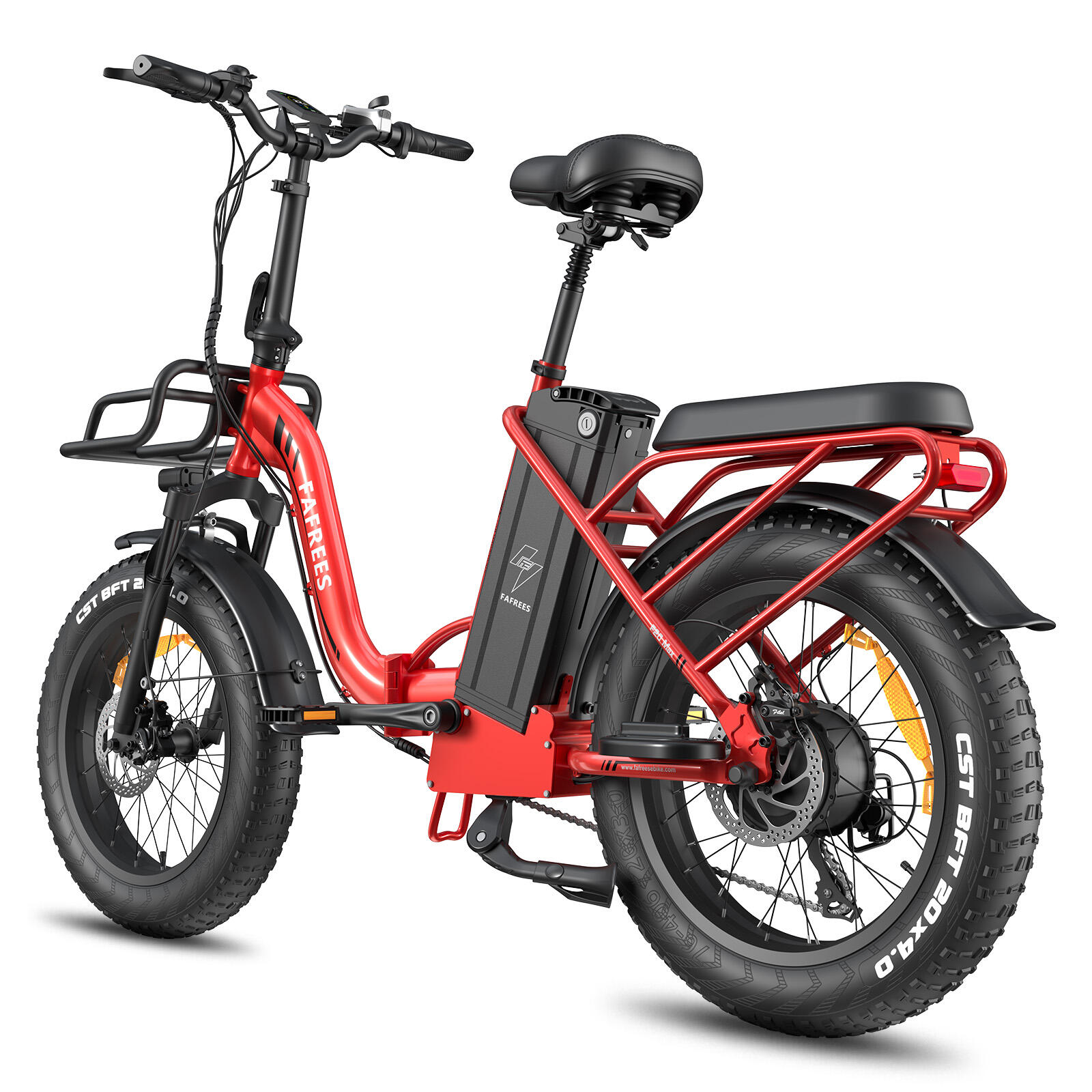

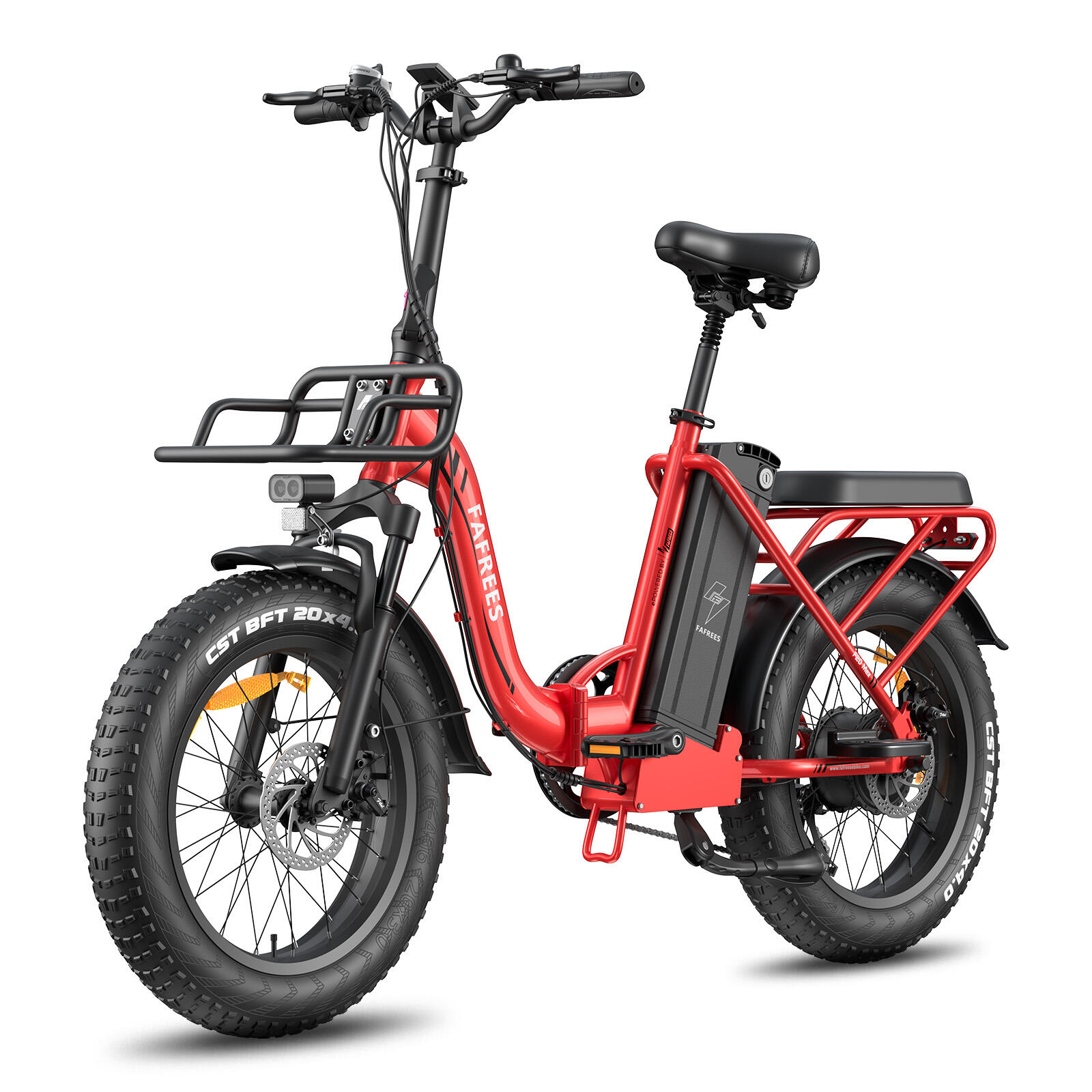

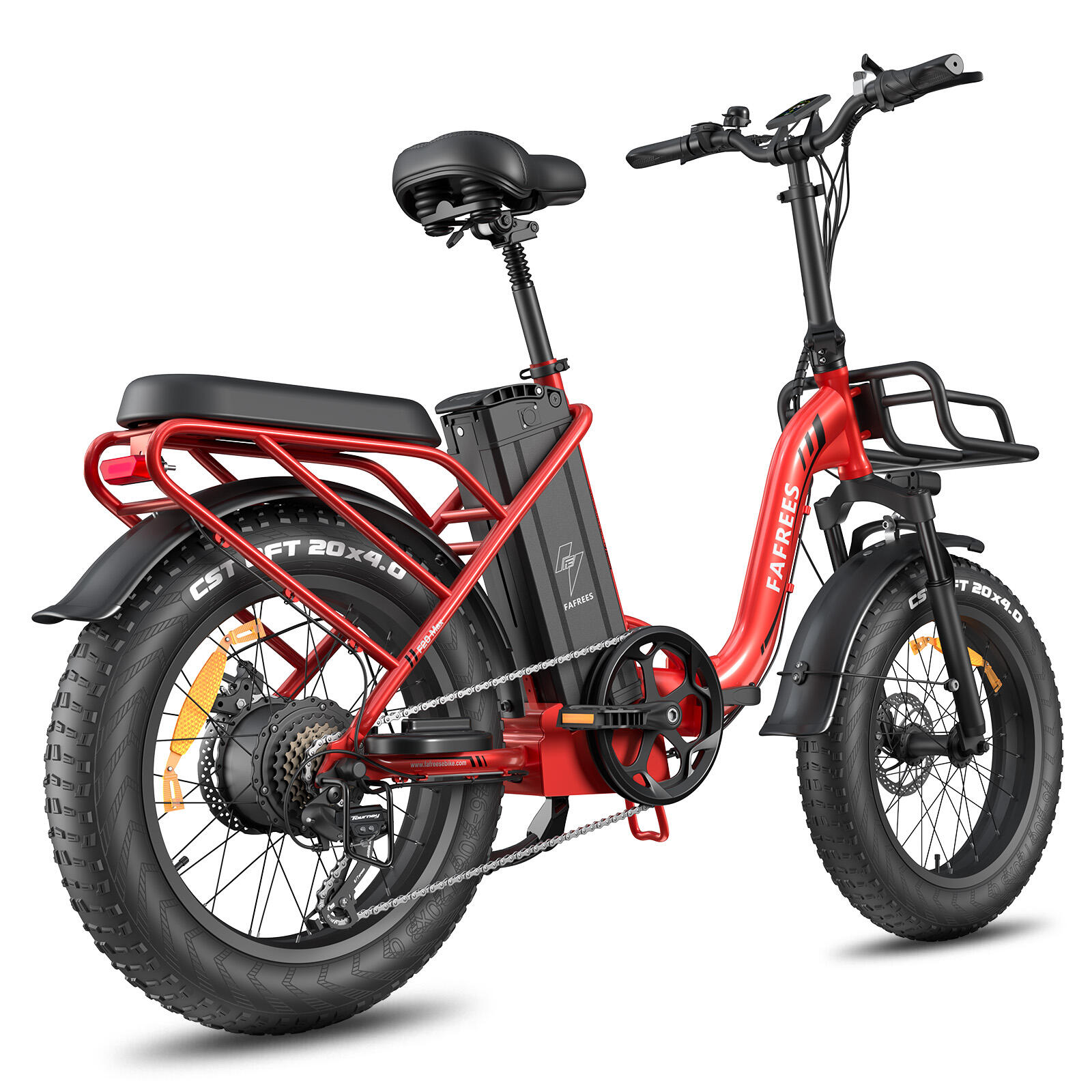

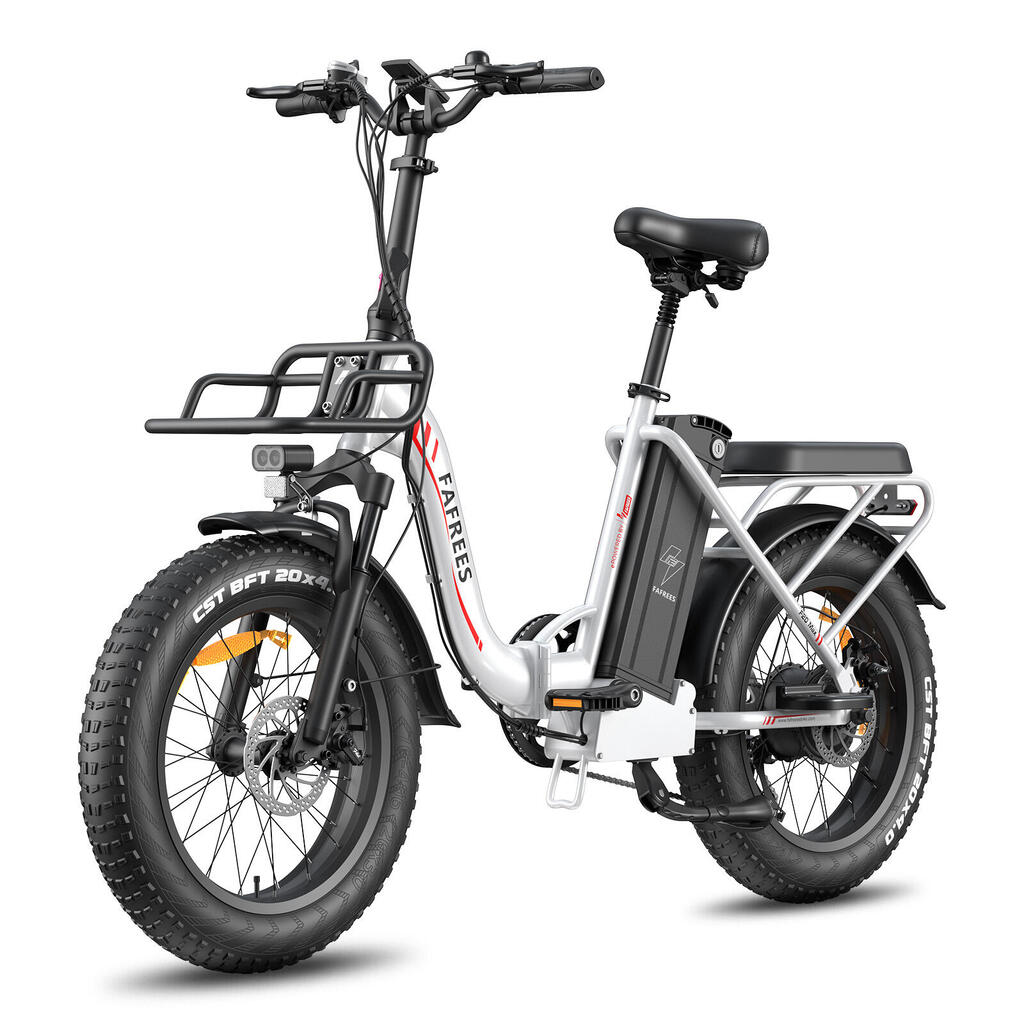

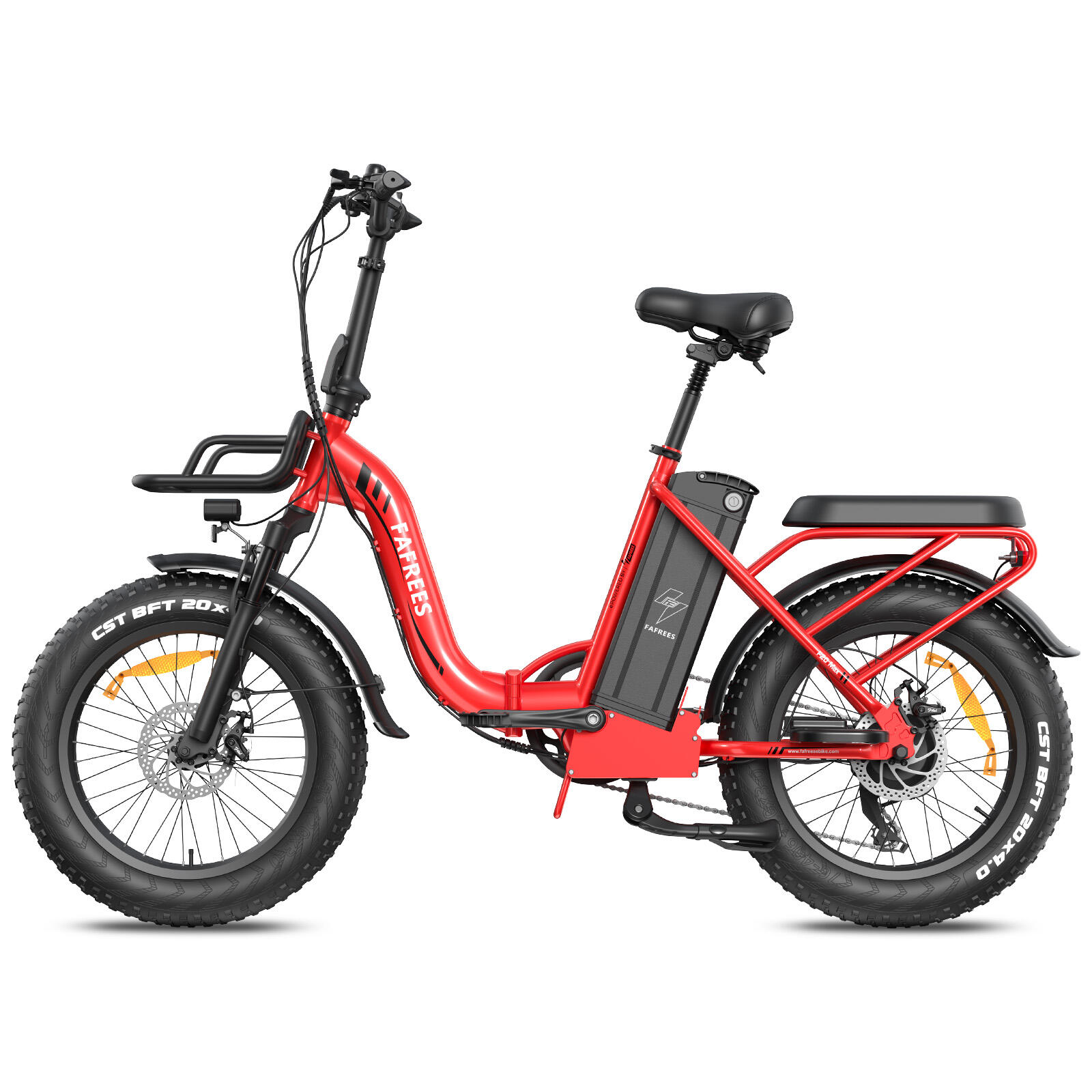

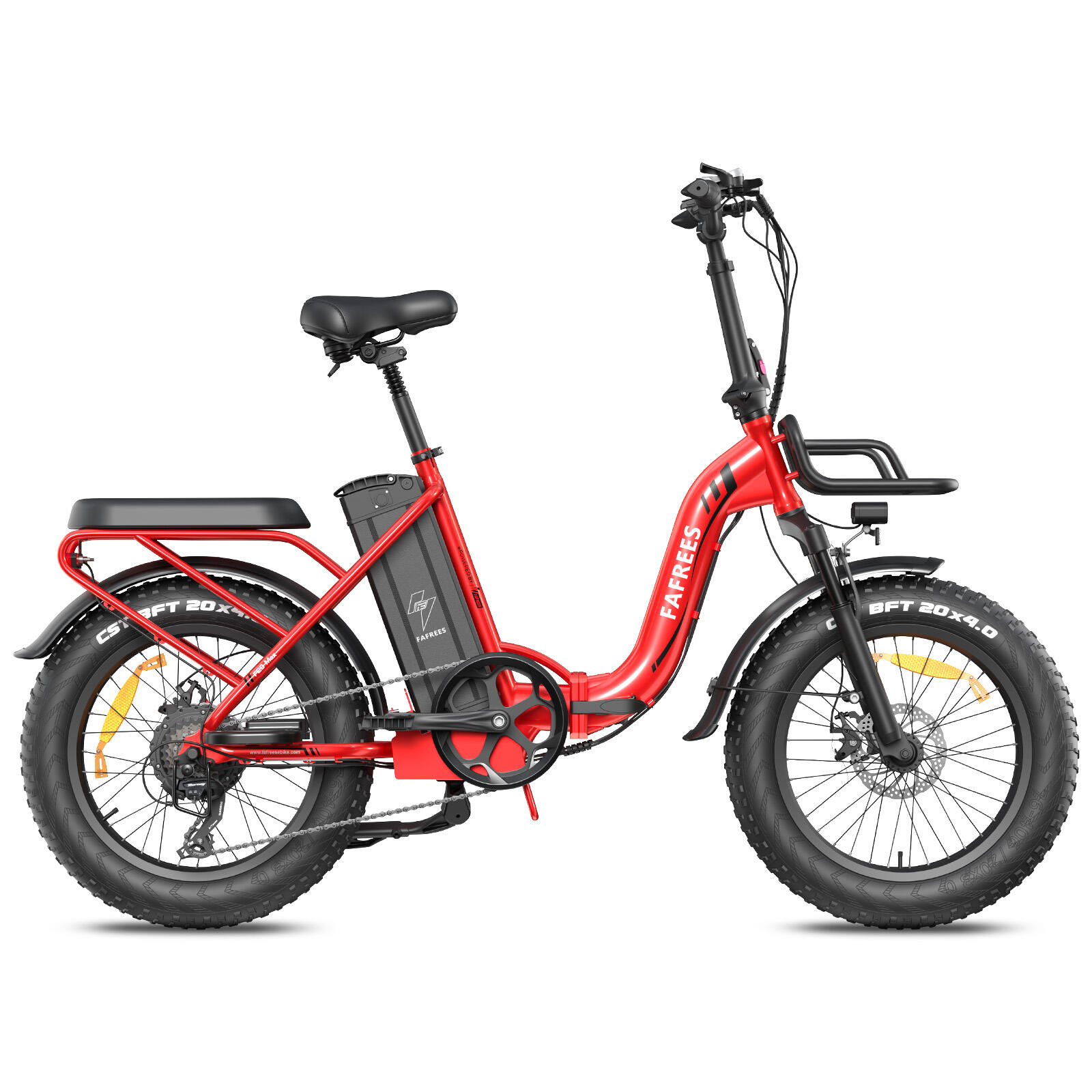

The FAFREES F20 MAX is a folding fat‑tire electric bike designed for all‑terrain adventure. It features comprehensive performance upgrades, including a large‑capacity battery and a powerful motor, aiming to deliver a superior riding experience. Whether for city commuting or off‑road exploration, its balanced configuration and convenient folding design meet your needs.
[Five Core Selling Points]
Ultra‑Long Range & High‑Quality Cells
Equipped with a 48V 30Ah ultra‑large‑capacity lithium battery (using LG 21700 cells), it delivers a maximum range of up to 150 km on a single charge – sufficient for long trips. The removable battery is easy to carry home for charging and includes an anti‑theft lock for added peace of mind.
Exceptional All‑Terrain Capability
Features 20×4.0‑inch CST fat tires for stronger traction, easily handling snow, sand, mud, gravel, and other complex surfaces. Combined with front and rear suspension (front fork 50 mm travel + seat post 15 mm travel), it effectively absorbs road bumps, significantly improving ride comfort on various terrains.
Safe & Reliable Braking and Transmission
Equipped with a SHIMANO 7‑speed transmission for precise, smooth shifting. Front and rear mechanical disc brakes with power‑cutoff brake levers provide efficient, fast braking response for your riding safety.
Convenient Folding & Human‑Centric Design
The low step‑through frame makes mounting and dismounting easy, and the adjustable handlebar and seat height accommodate riders 170‑200 cm tall. The bike folds for easy storage and transport. Additional practical features include an LCD smart display (with 6 km/h walk assist and cruise control), front/rear racks, front/rear lights, and a kickstand.
Three Riding Modes & Thoughtful Service
Offers three operating modes: pure electric (default top speed 6 km/h), pedal assist (PAS 0‑3 levels), and manual mode – freely switchable as needed. The “plug‑and‑play” wiring system makes maintenance, replacement, and repair of electrical components simple and convenient.
[Specifications]
Model: F20 Max
Unfolded dimensions: 172Ă—62Ă—125 cm
Folded dimensions: 95Ă—50Ă—75 cm
Packing dimensions: 99Ă—45Ă—81 cm
Tire size: 20Ă—4.0 inches
Net weight: 34.5 kg
Battery weight: 6.7 kg
Load capacity: 150 kg
Frame material: Aluminum alloy
Tire type: Pneumatic
Top speed (assist): 25 km/h
Top speed (pure electric): 6 km/h
Max range: 110‑150 km
Max climbing angle: 25°
Battery type: Lithium battery (LG 21700 cells)
Battery capacity: 30Ah / 1440Wh
Motor position: Rear drive
Max torque: 54 N·m
Charging time: approx. 10 hours
Charger input: 240V
Charger output: 54.6V / 3A
Front fork type: Suspension fork
Front fork travel: 50 mm
Rear suspension type: Suspension seat post
Rear suspension travel: 15 mm
Display type: LCD
Transmission: SHIMANO 7‑speed
Brake type: Mechanical disc brakes
Folding parts: Handlebar, frame, pedals
Water resistance: IPX3
