BMX bike KHE EVO 20 inch 23.4 lbs

Product Description

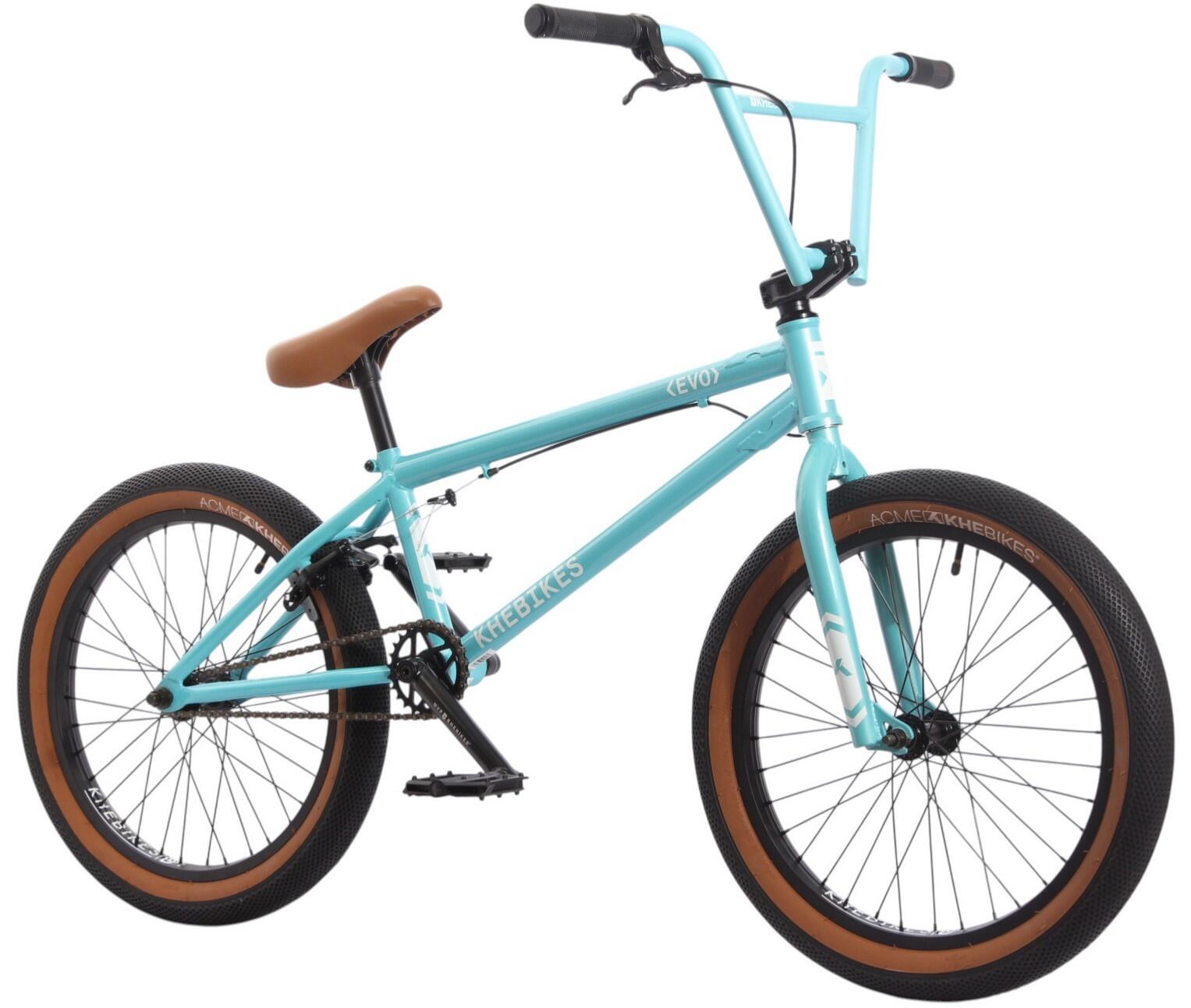

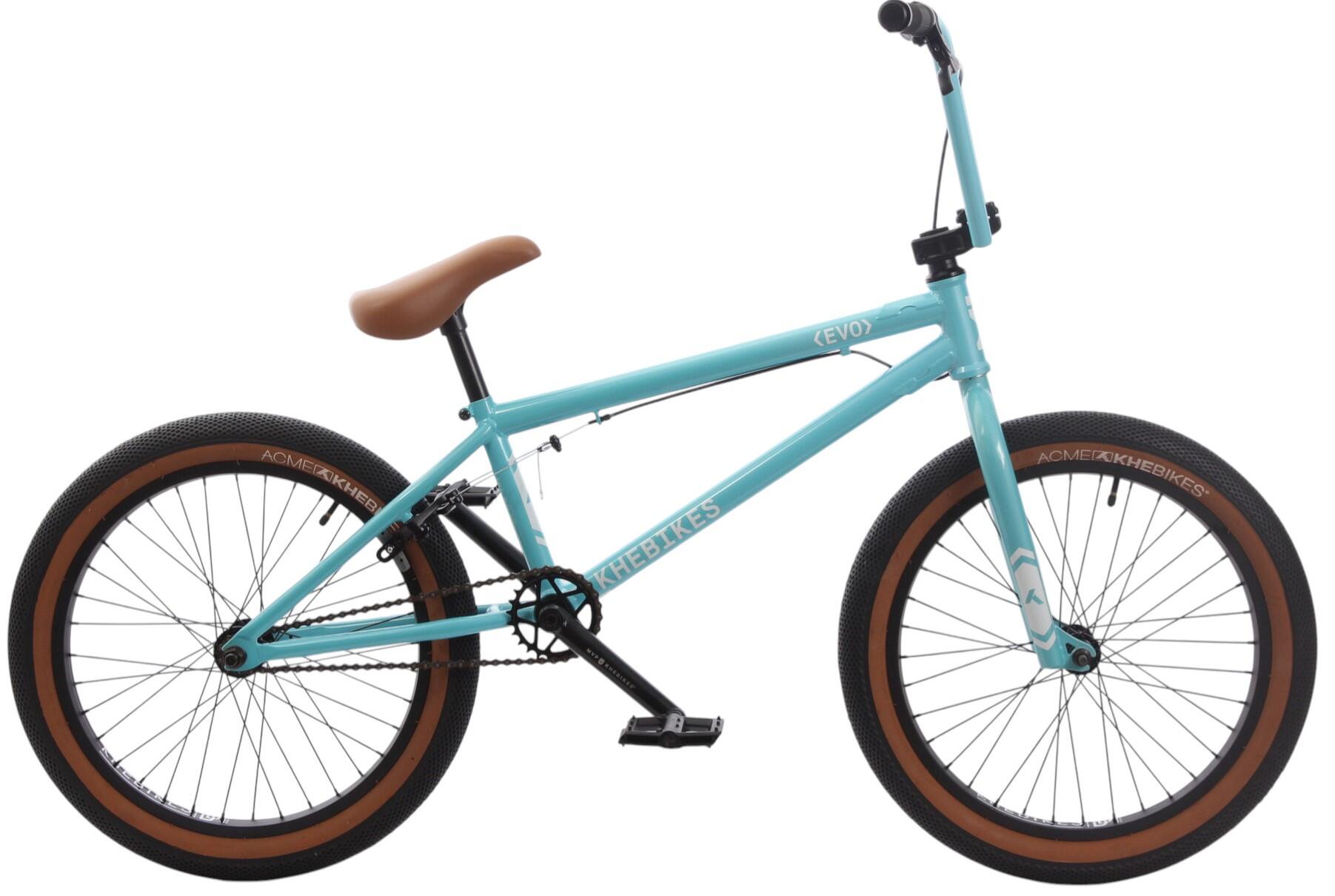

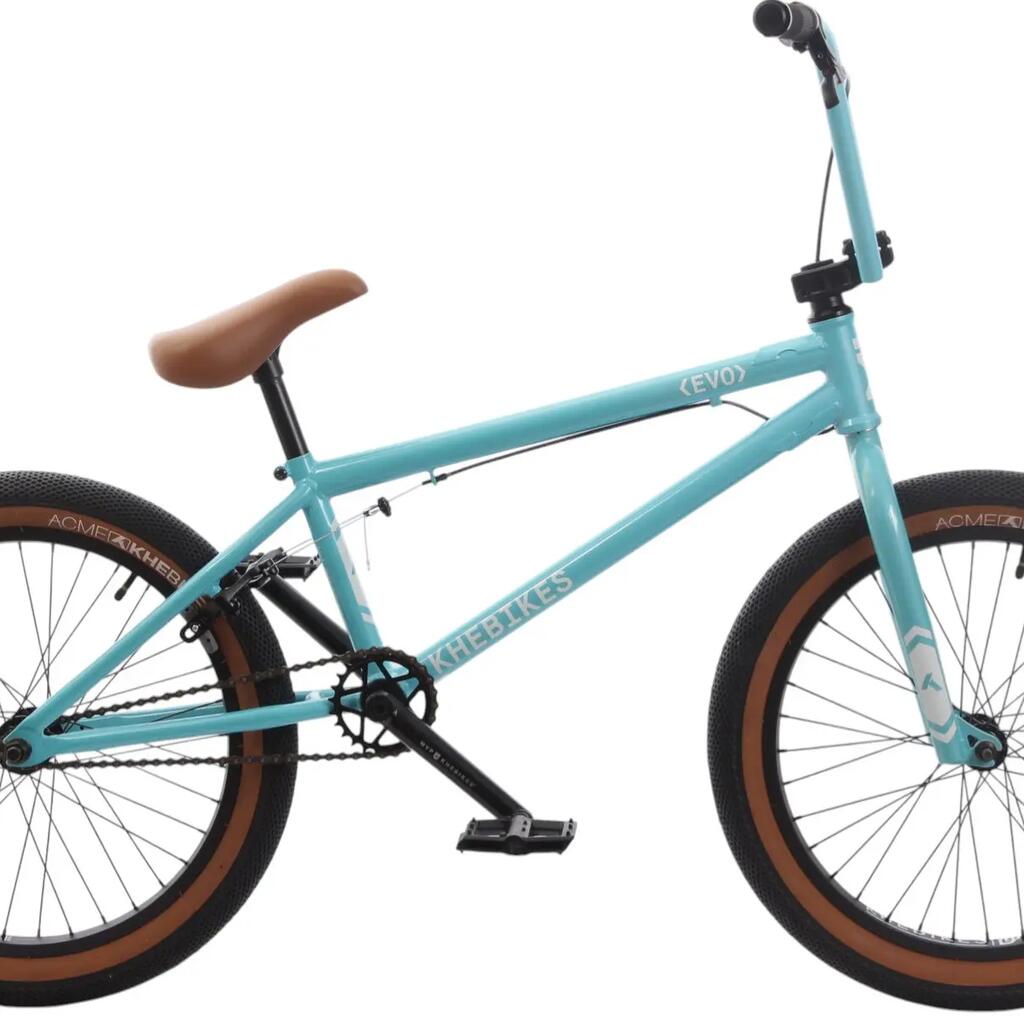

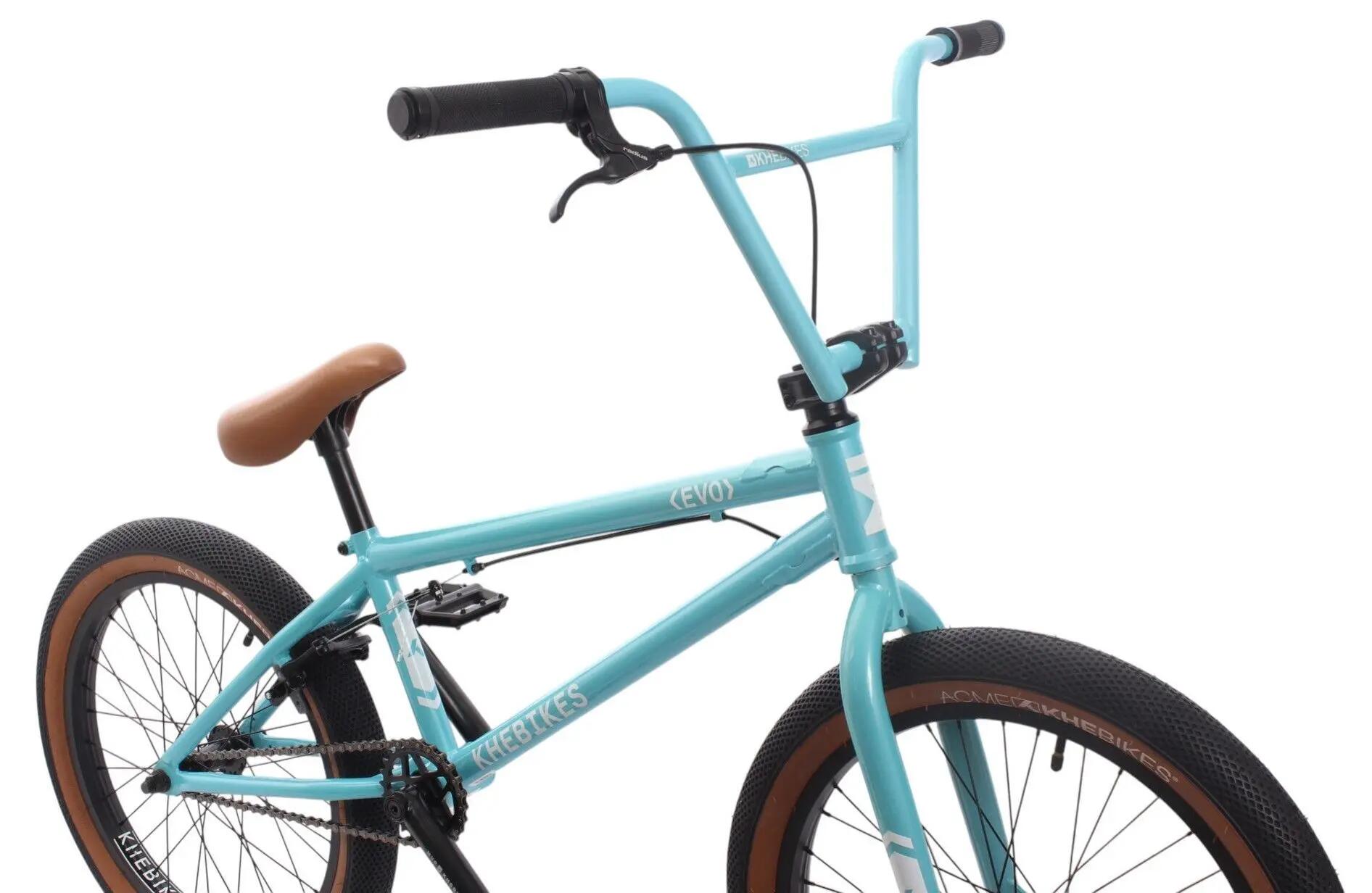

KHE EVO 20 Inch BMX Freestyle Bike 2025 with Rotor

The KHE EVO 20 Inch is a lightweight BMX bike for Street, Park and Dirt. The frame with main tubes made from CrMo 4130 steel, the 9 inch Multiple-Butted handlebar and the AFFIX rotor system provide direct handling and a high level of control during tricks. At only 23.4 lbs, the EVO offers a low overall weight despite the rotor system and durable BMX components.

Equipment

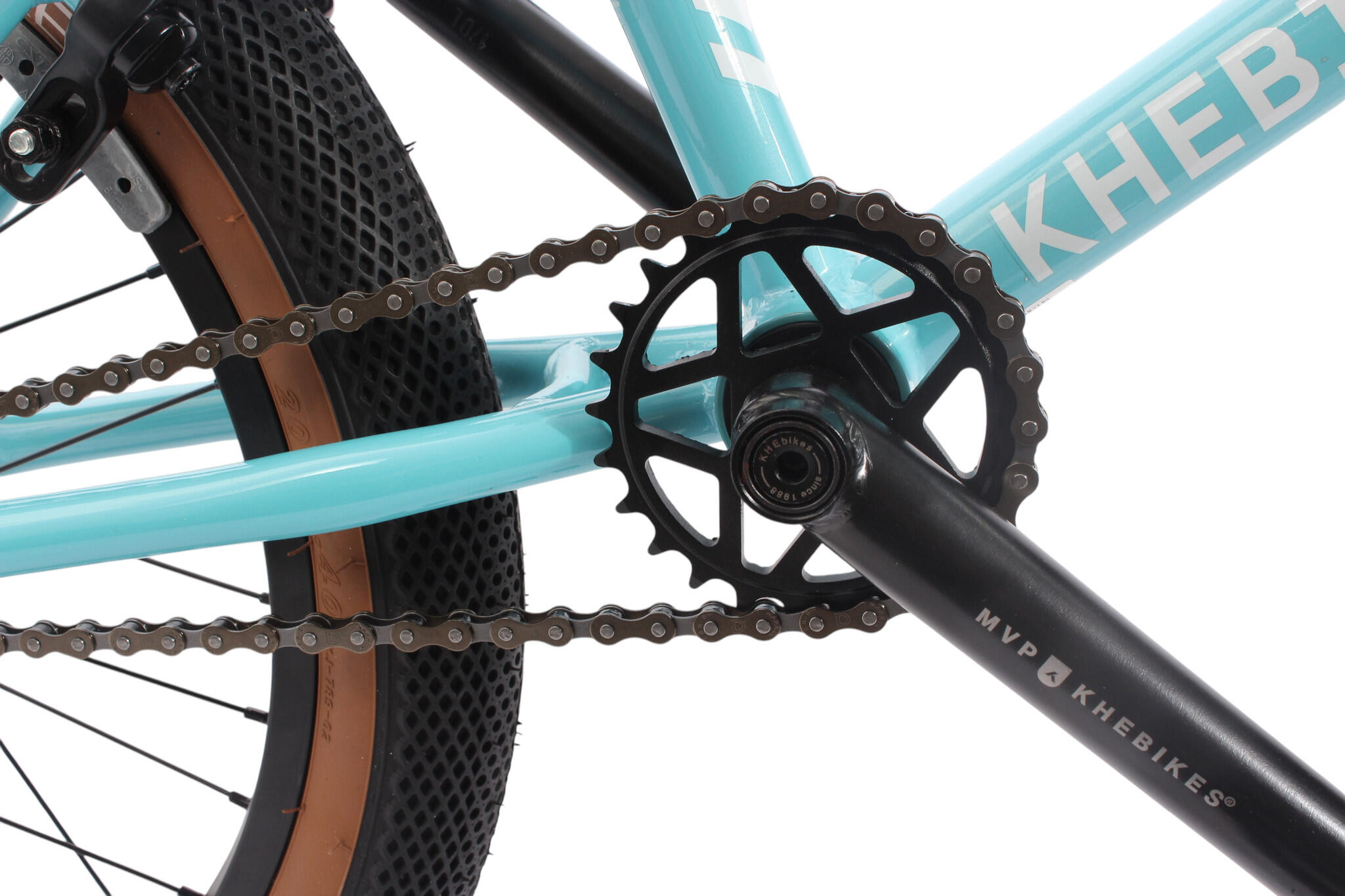

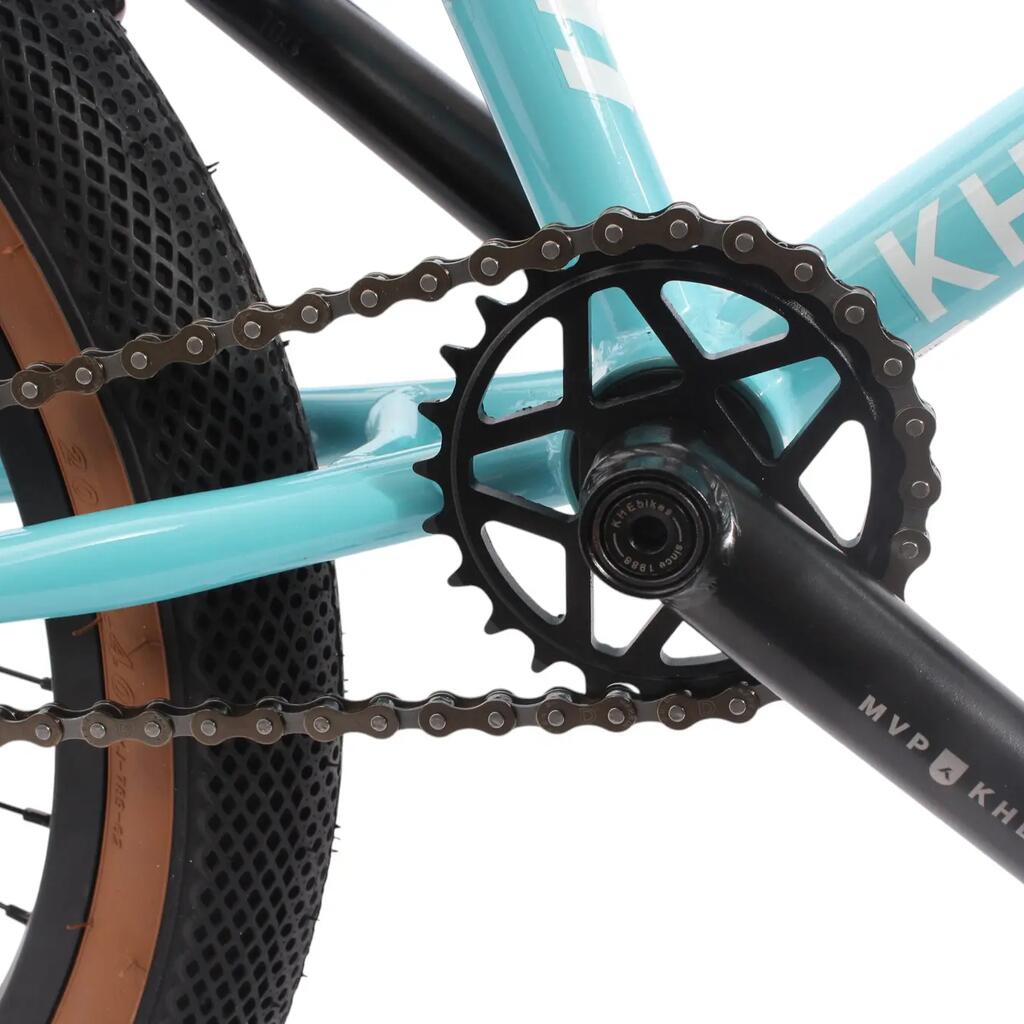

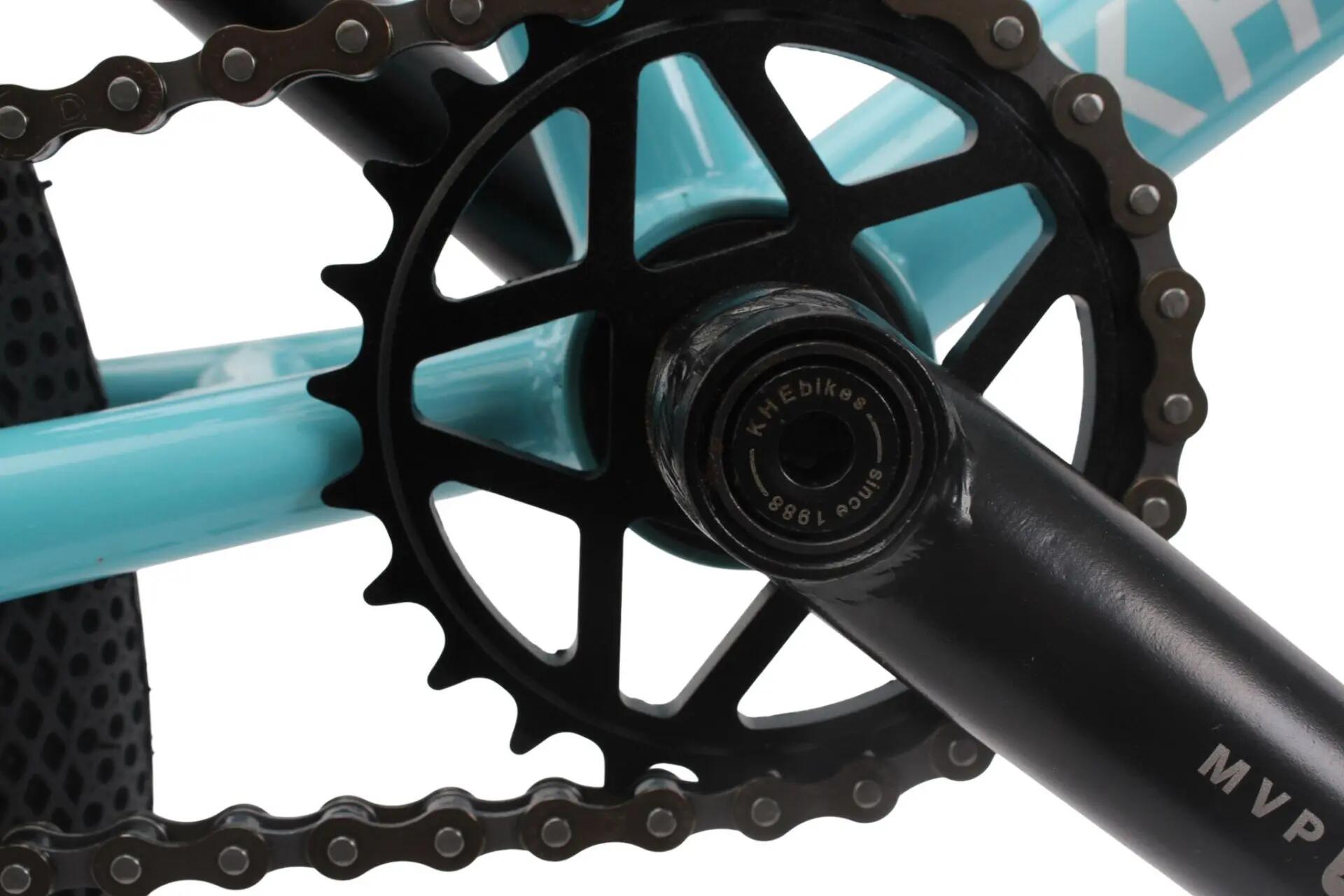

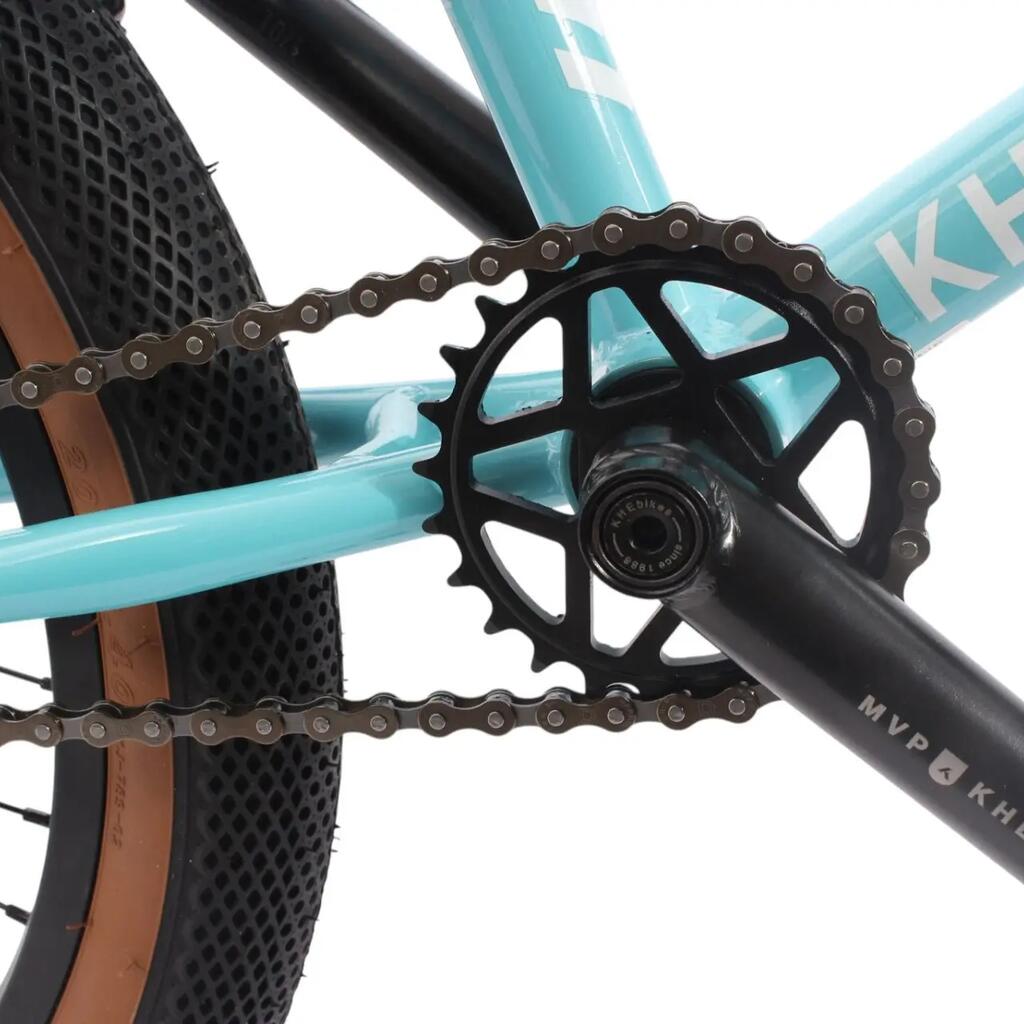

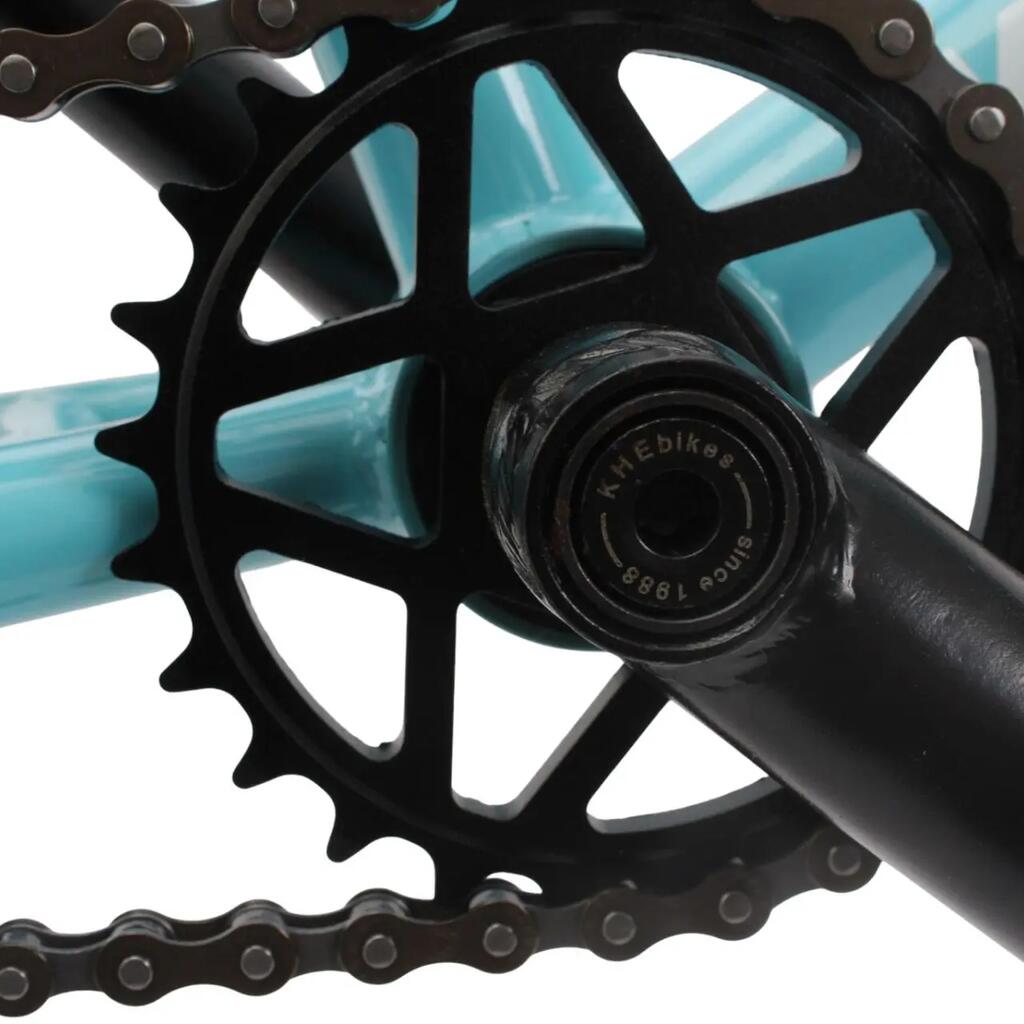

Drivetrain: • 3-piece 48-Spline CrMo hollow crank • 25T CNC aluminium sprocket • MID BB bottom bracket • KMC chain • 9T cassette hub

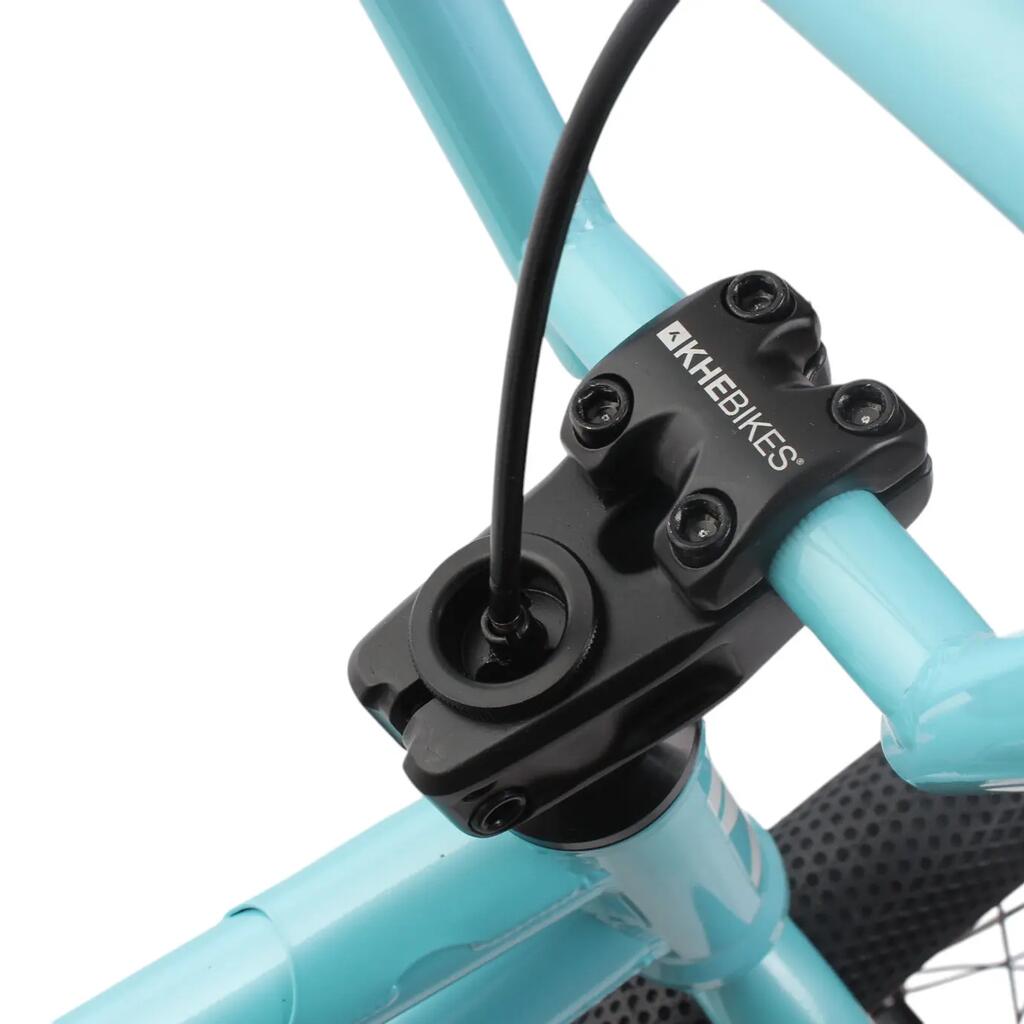

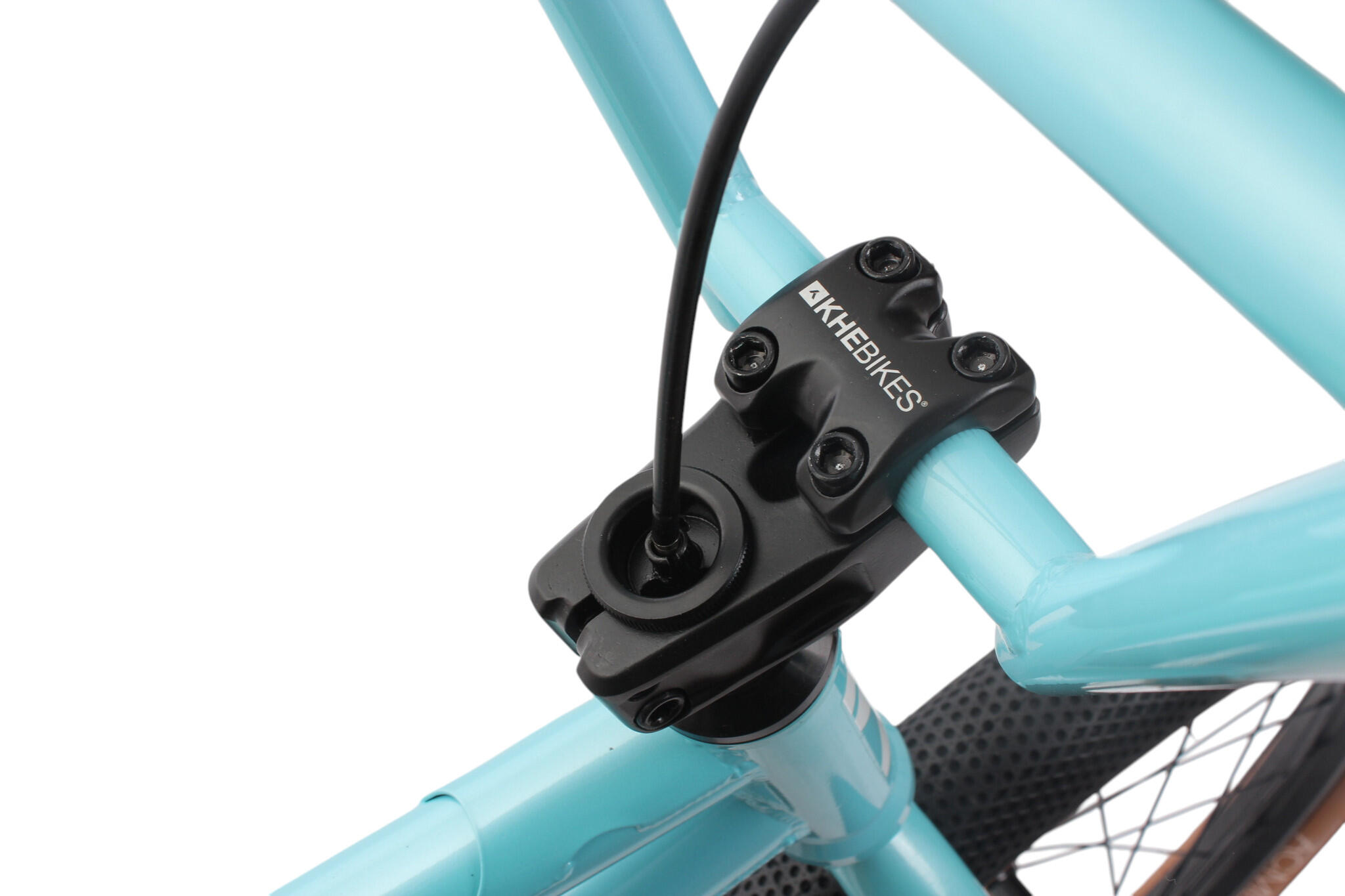

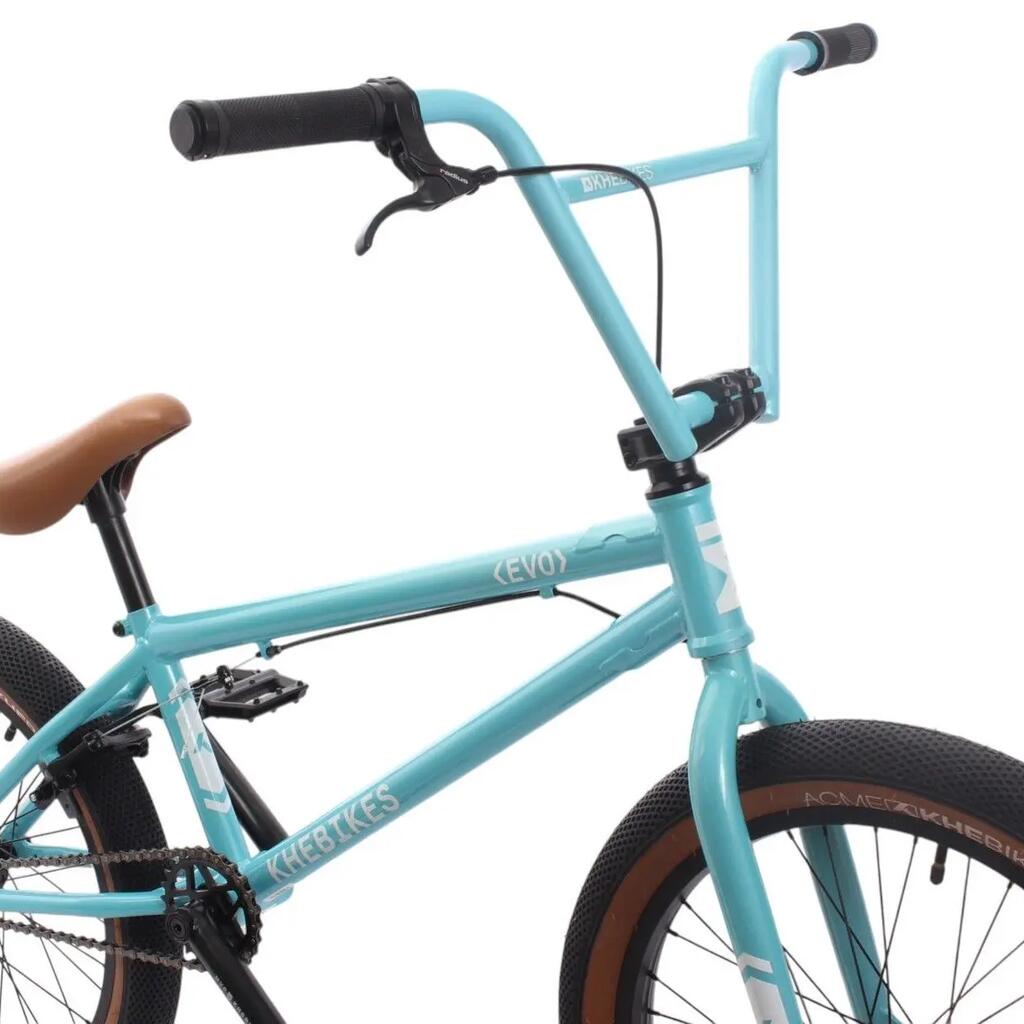

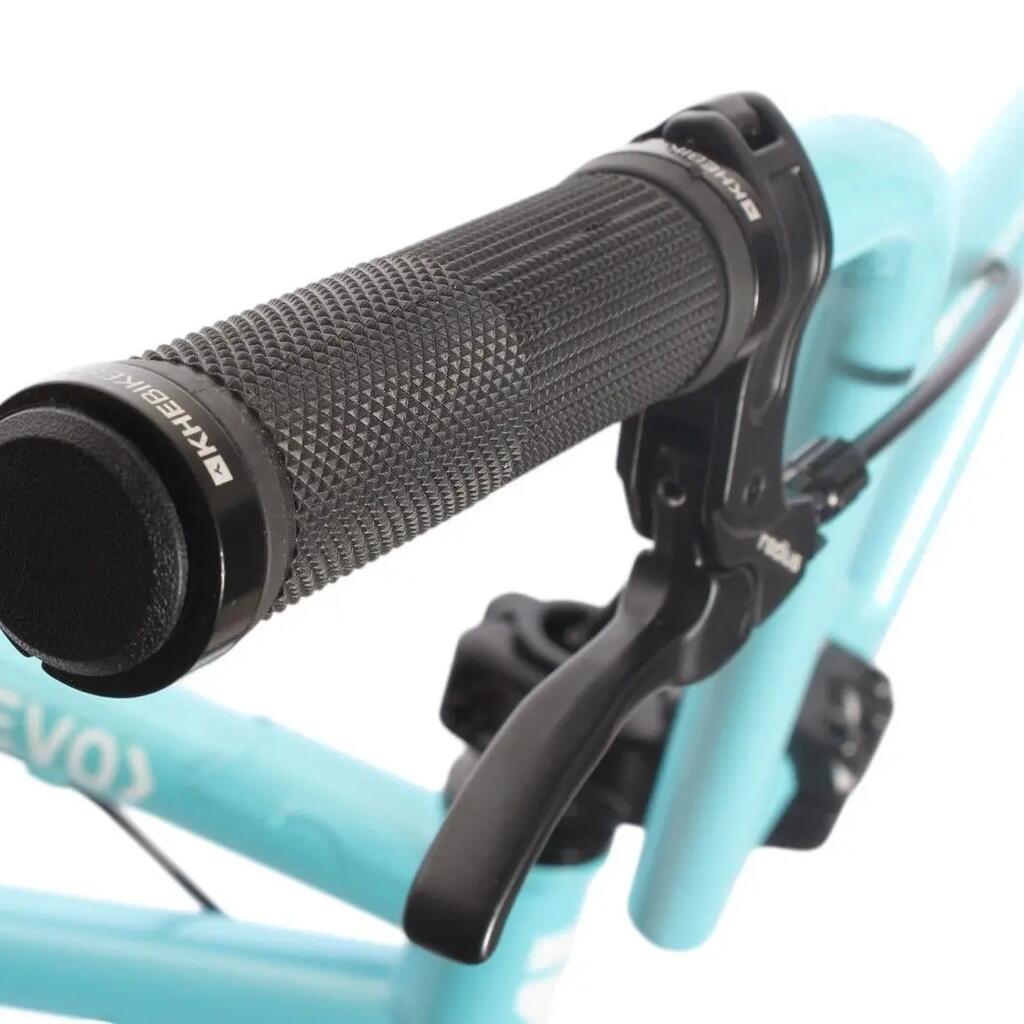

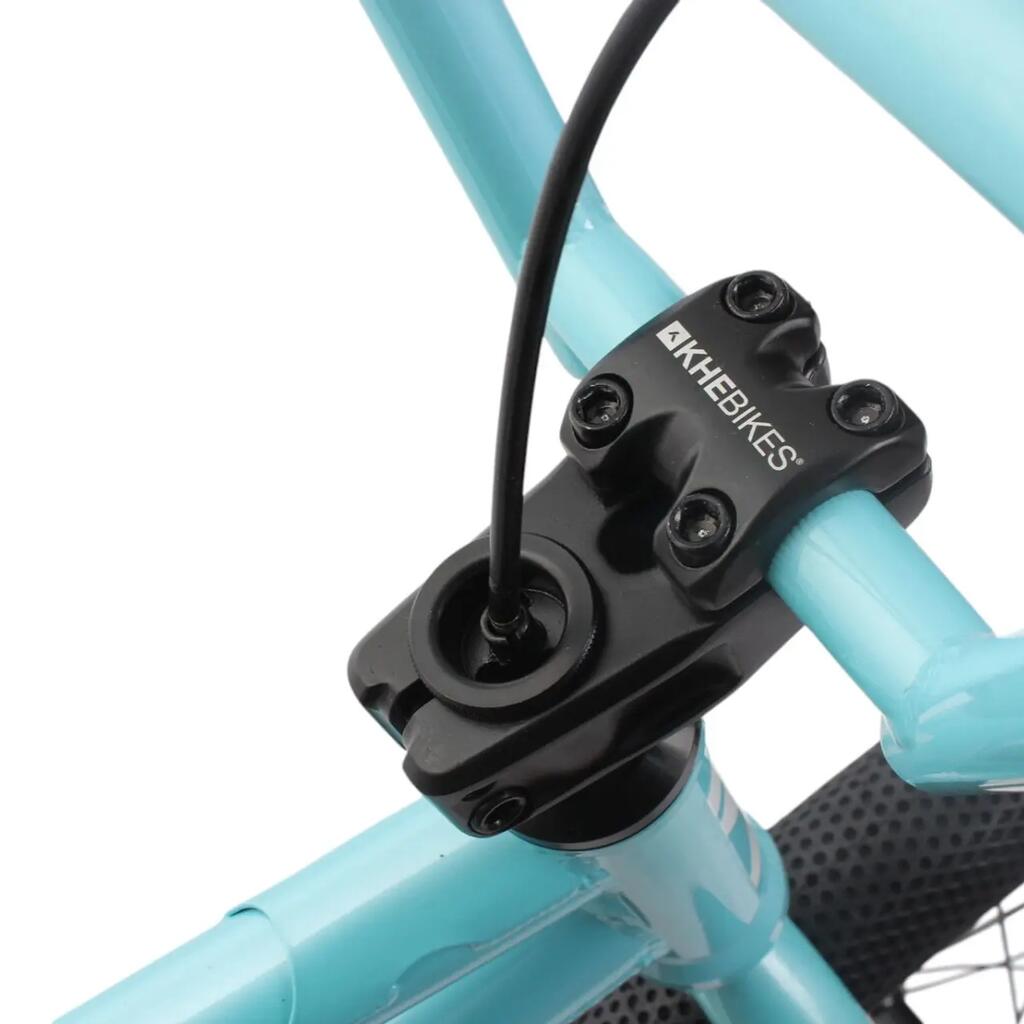

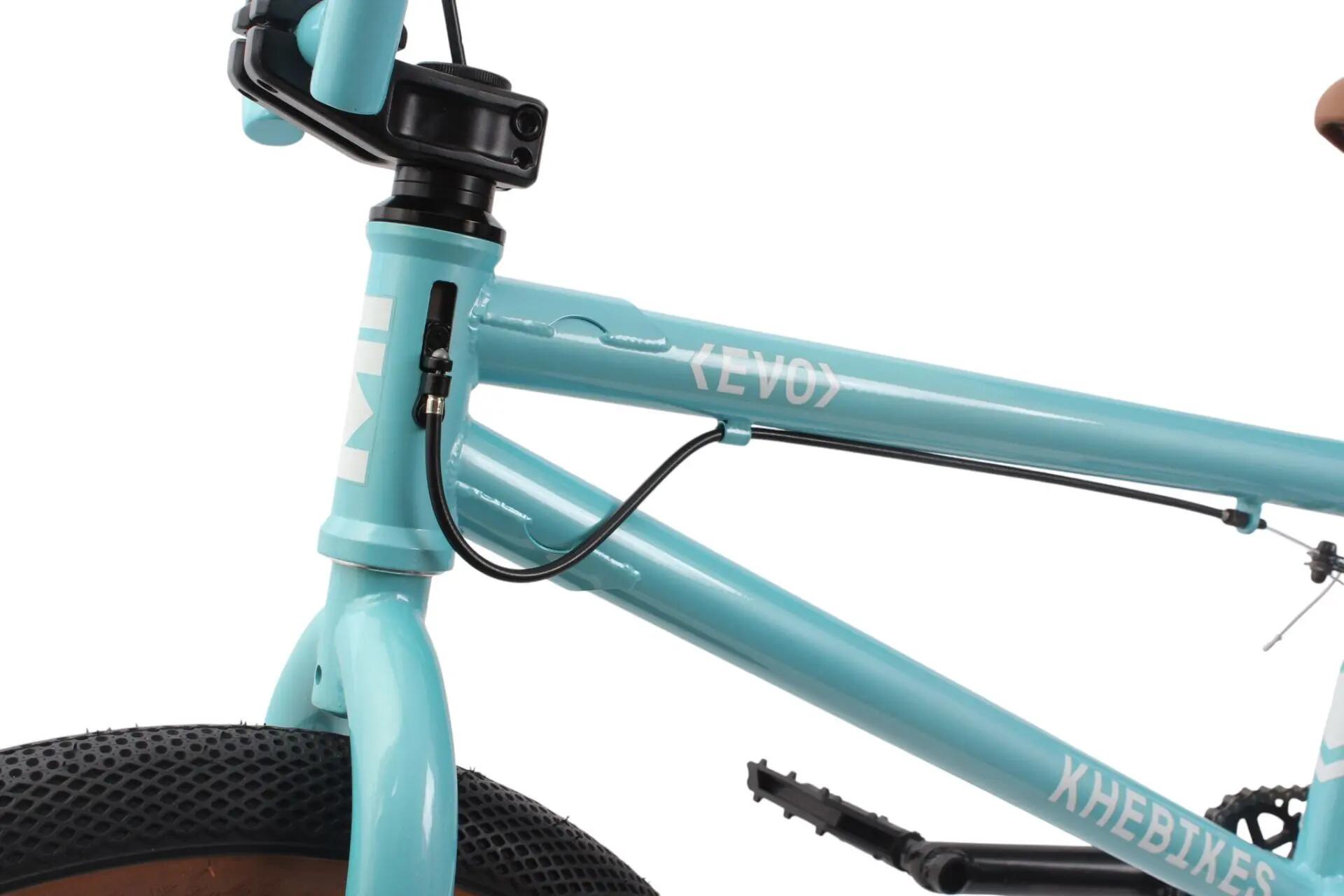

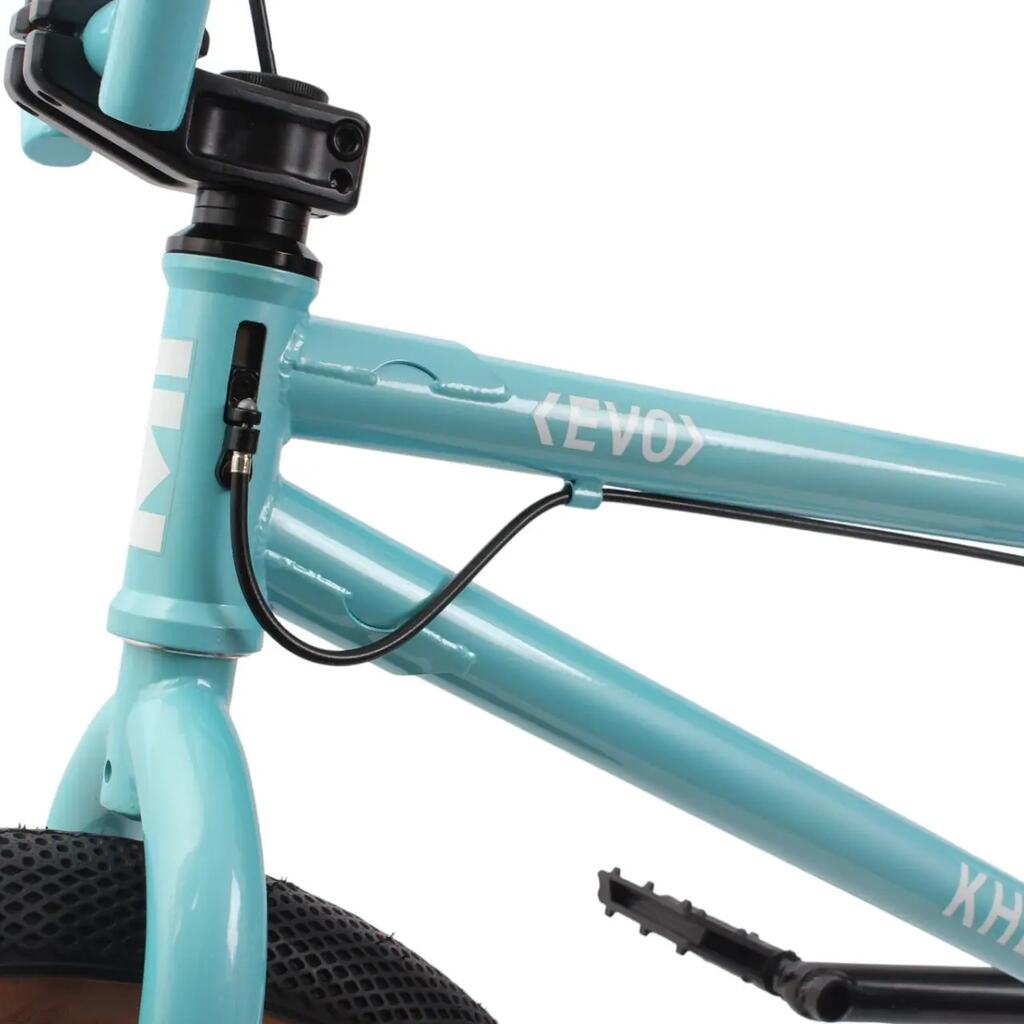

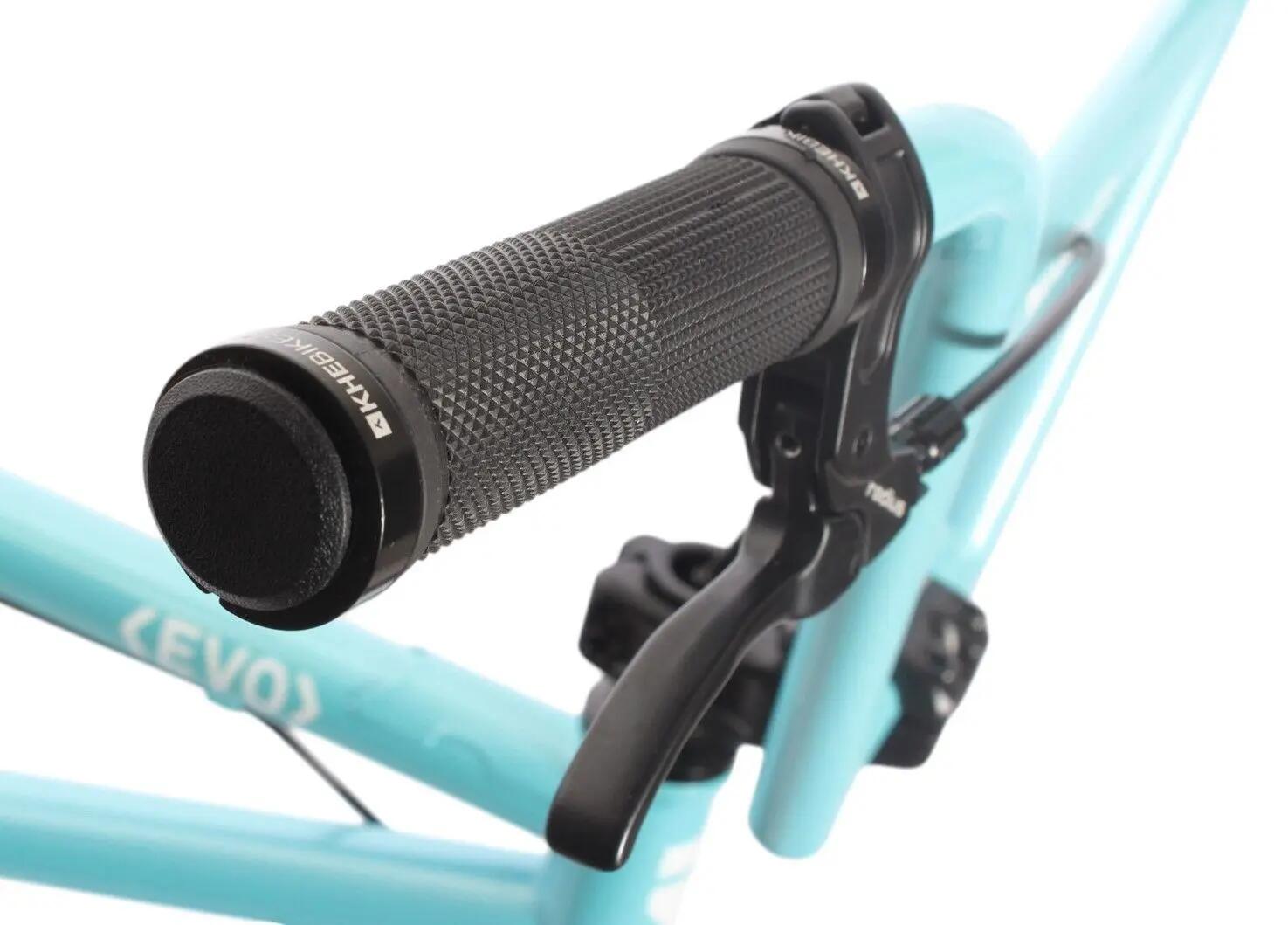

Cockpit: • KHE Multiple-Butted 4-Piece handlebar with 9 inch height • Top Loader stem • KHE AFFIX rotor system • Integrated headset with industrial bearings

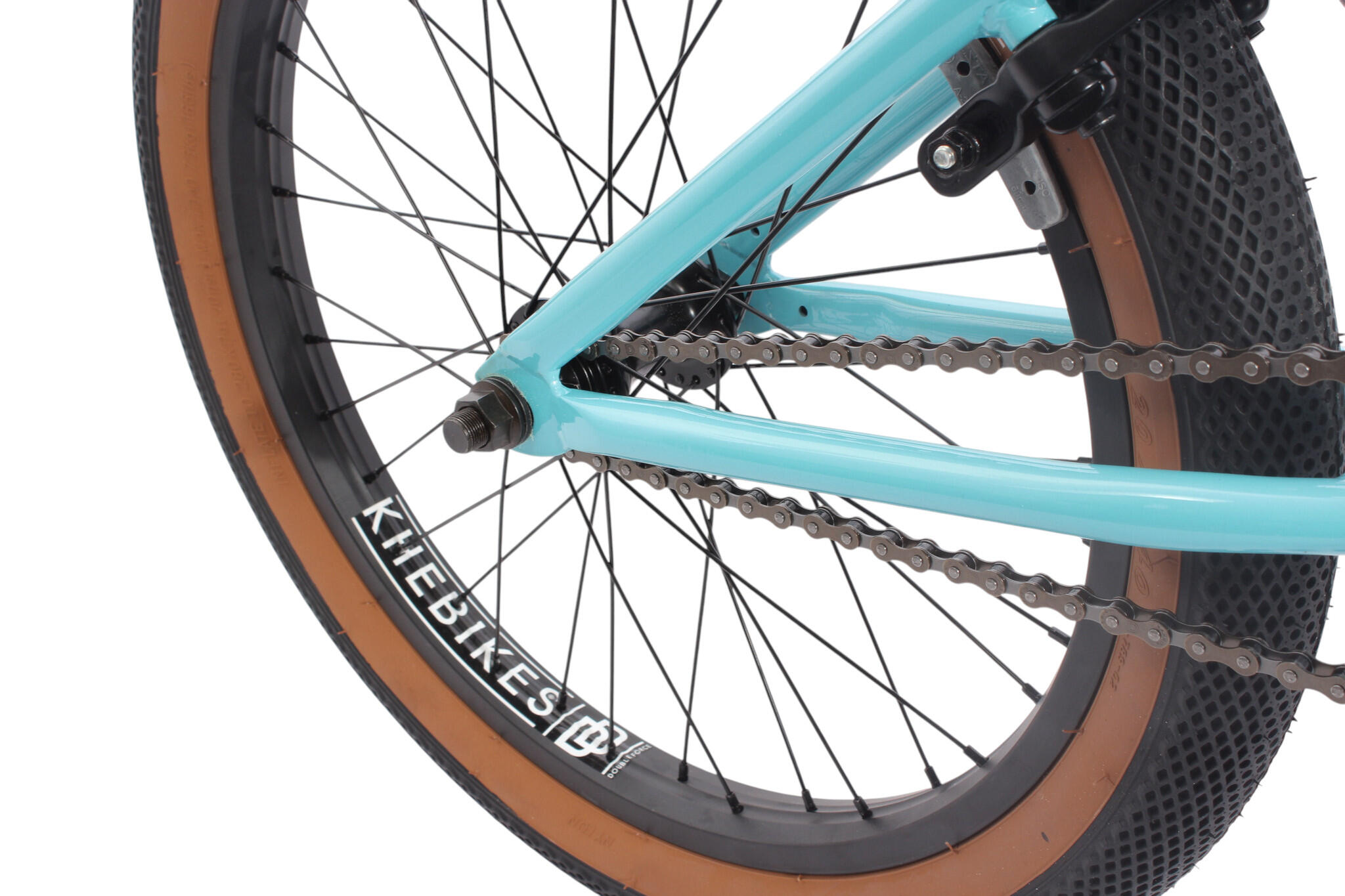

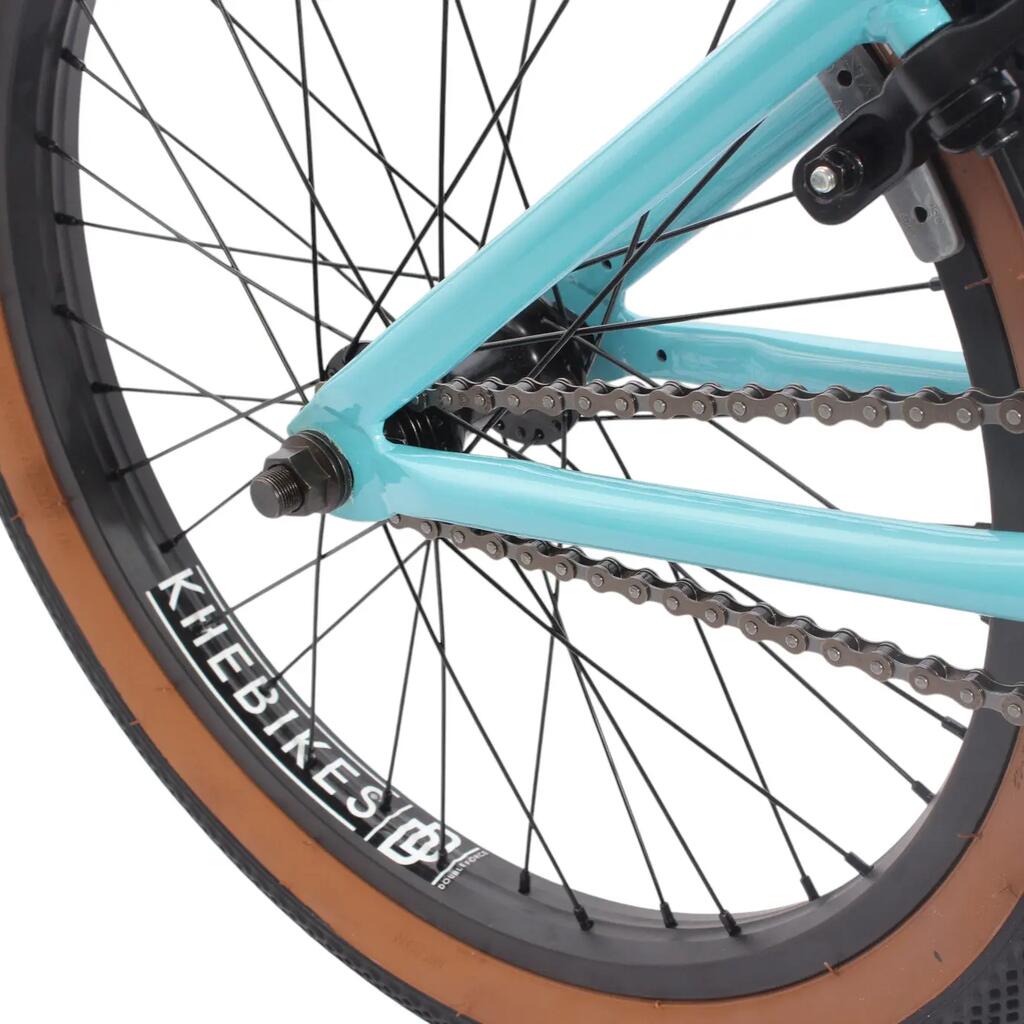

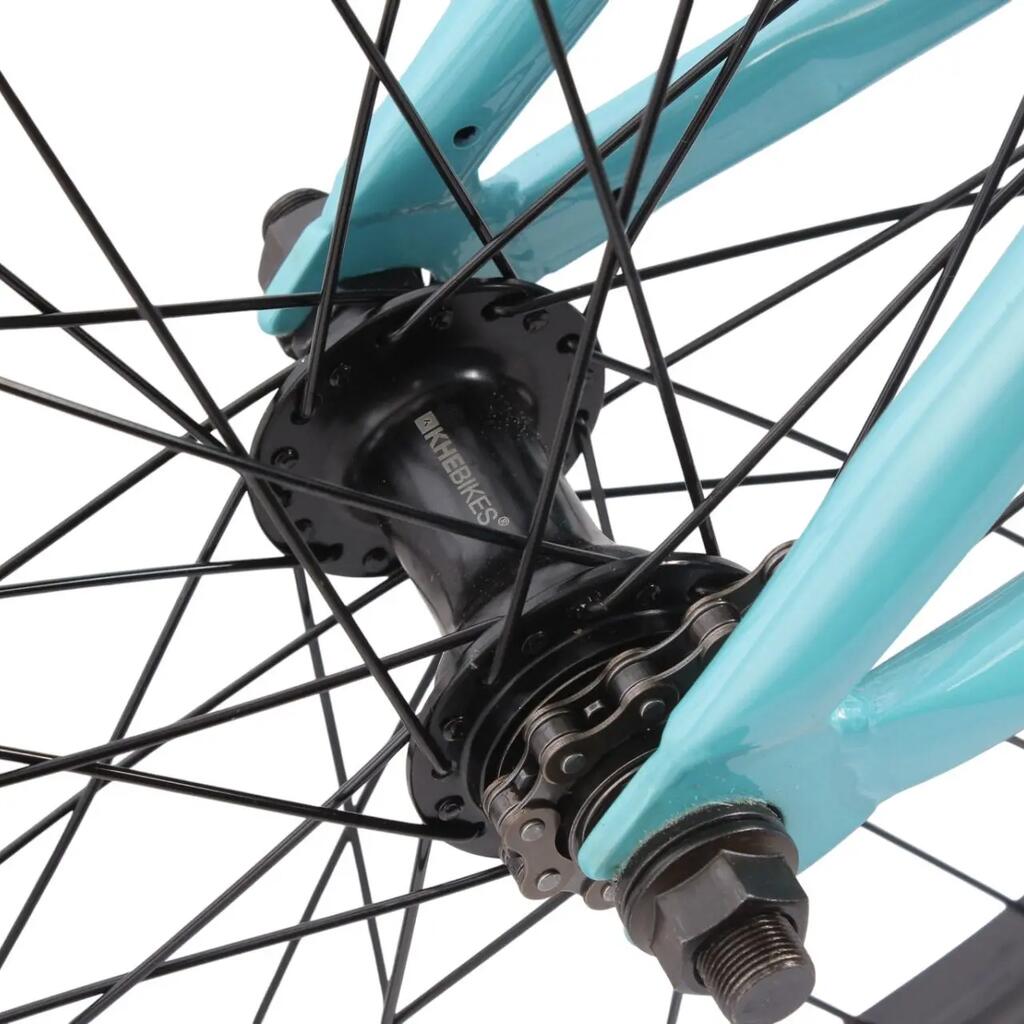

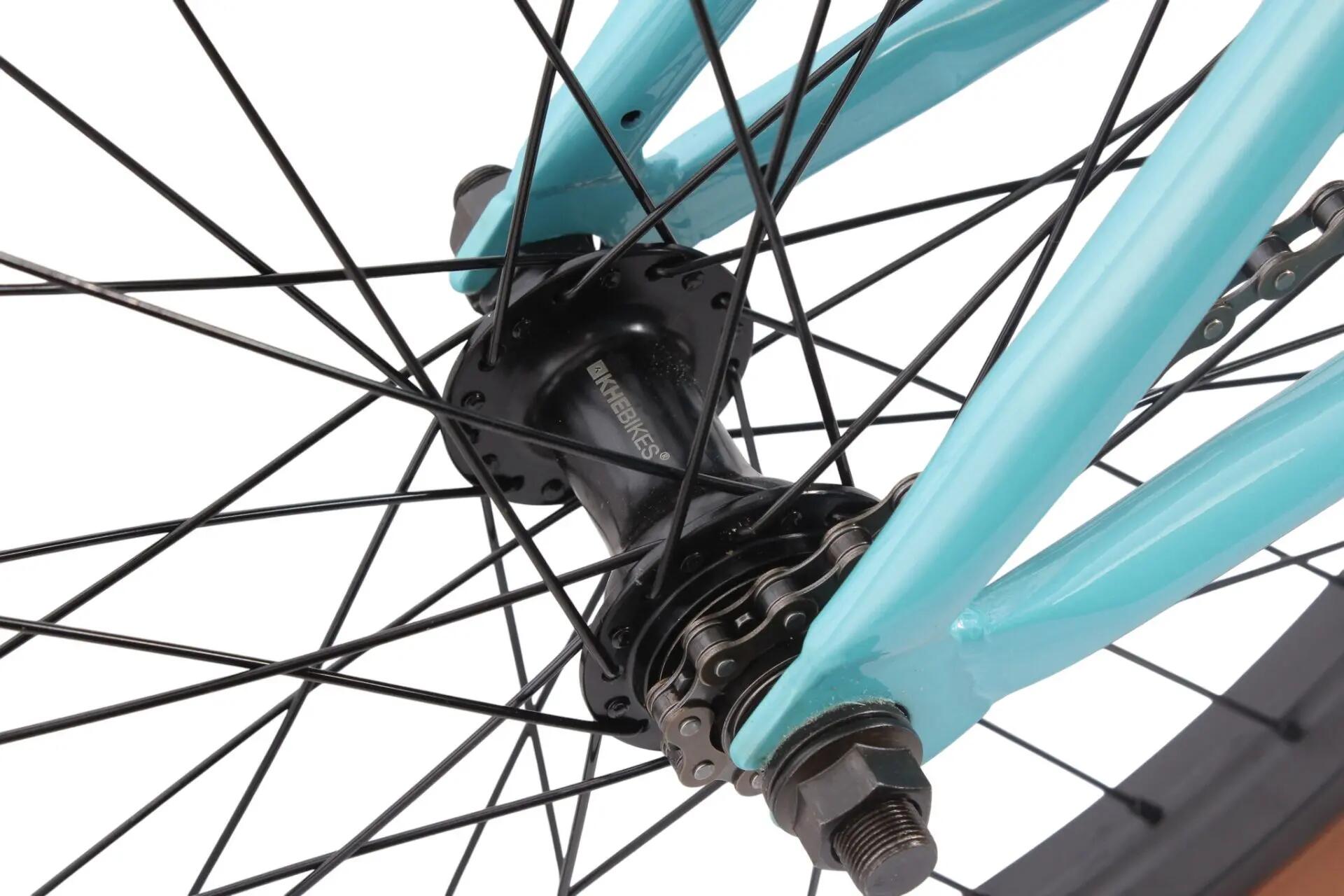

Brakes & Wheels: • KHE RADIUS aluminium U-Brake rear • KHE BIG400 double-wall rims • 1.38 inch wide rims • Precision-bearing front hub with 0.39 inch axle • 9T rear cassette hub with 0.55 inch axle • KHE ACME tyres 20 × 2.40 inch

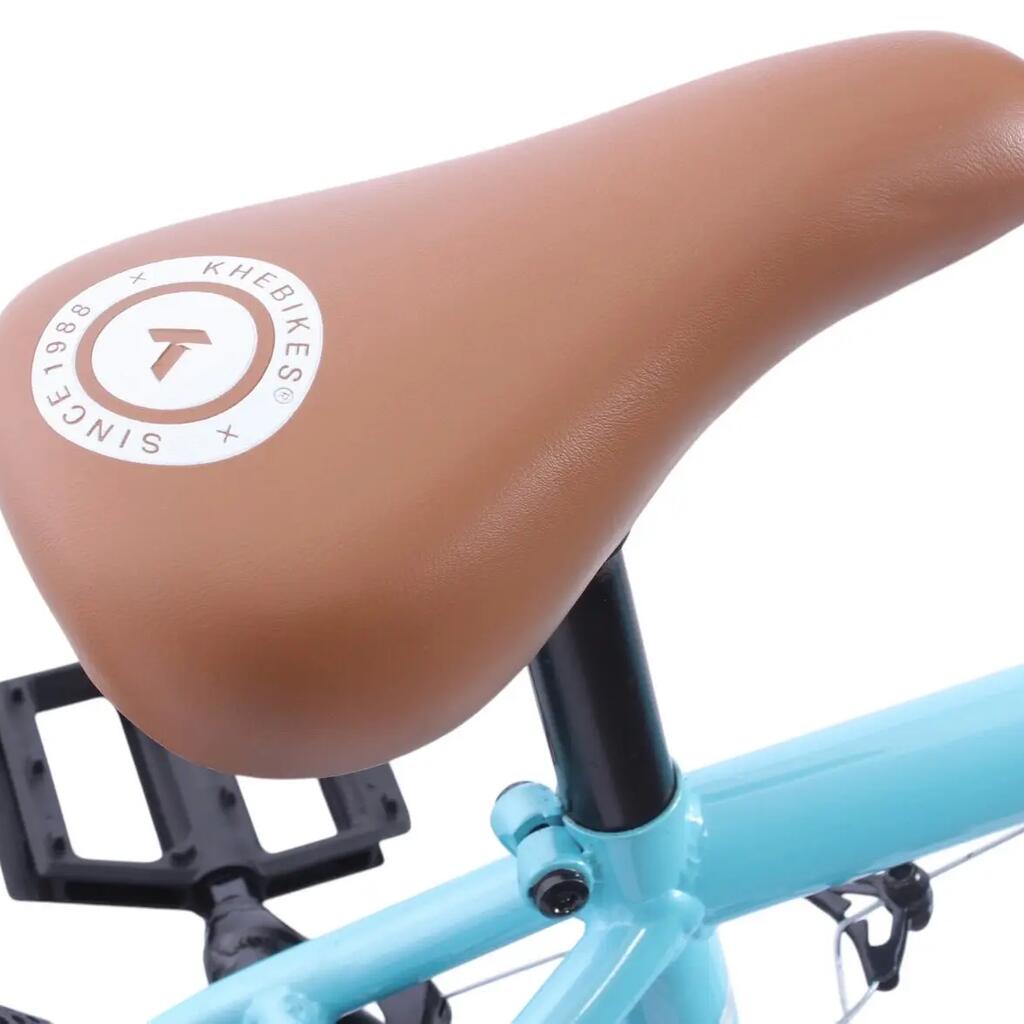

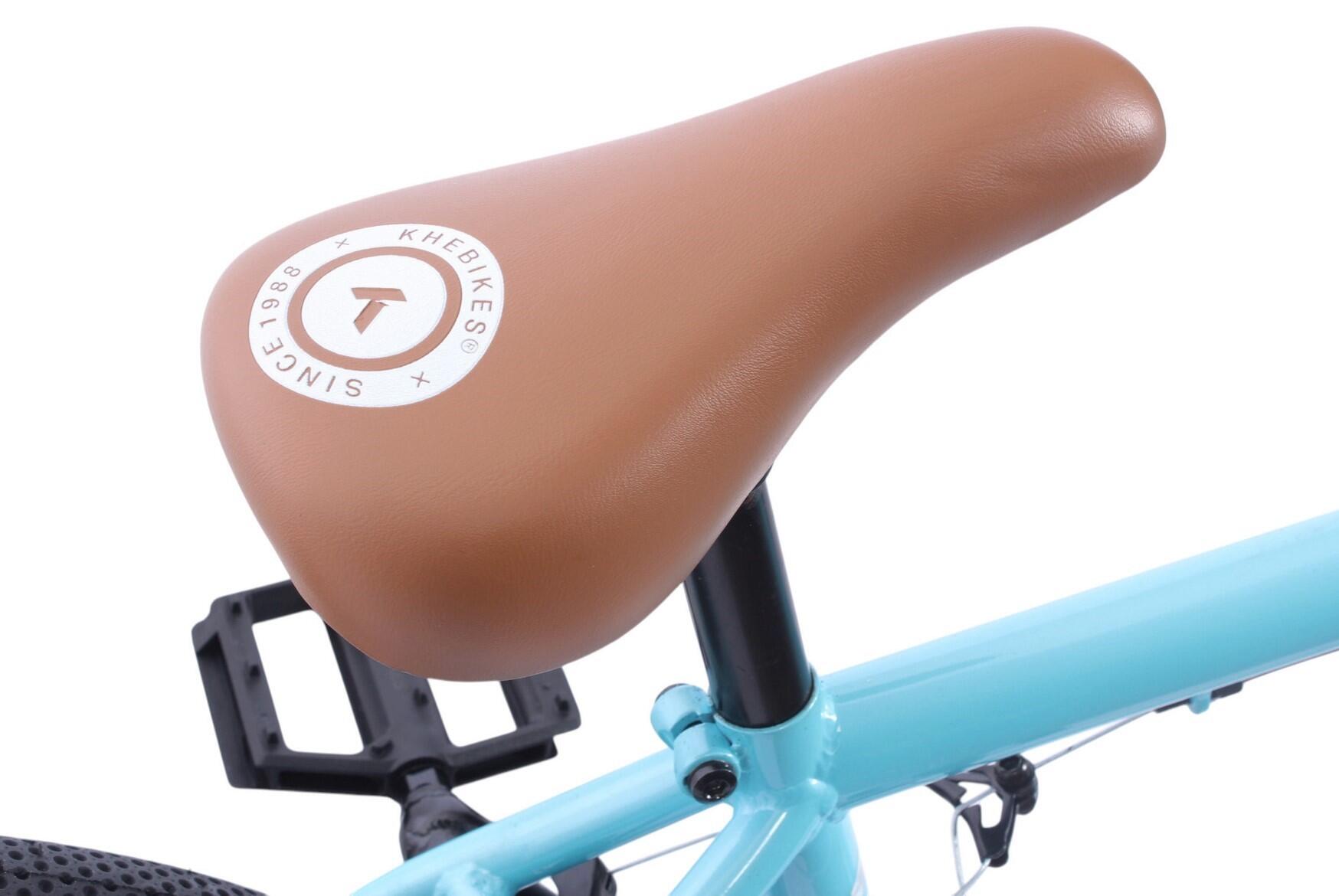

Design: • Frame, fork and handlebar in Blue • Matt black anodised double-wall rims • Black components • KHE ACME tyres with brown sidewalls and black tread • Brown padded KHE saddle

Technical Data

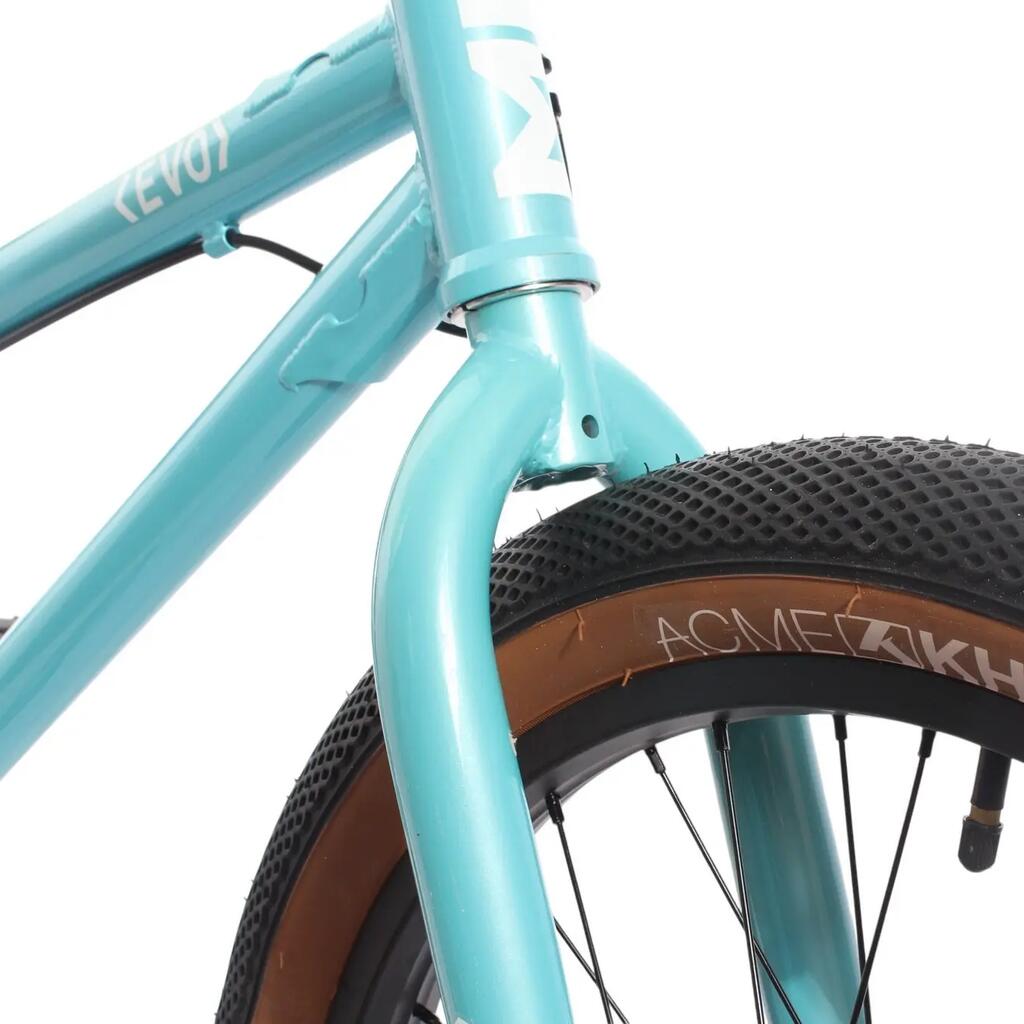

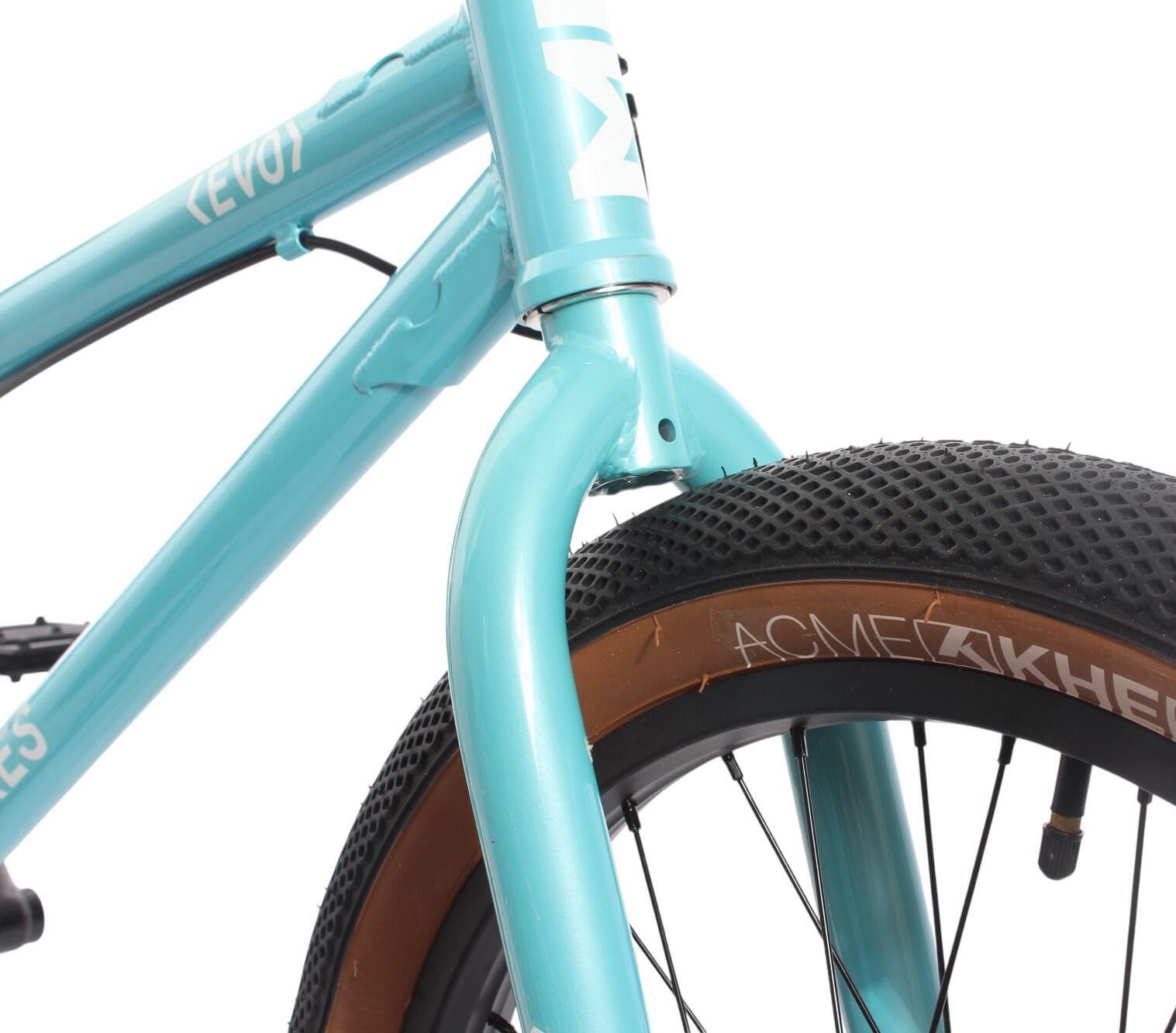

• Model: KHE EVO • Model Year: 2025 • Frame: Main tubes made from CrMo 4130 steel • Fork: CNC CrMo steel steerer tube • Top Tube: 20.6 inch • Handlebar: KHE Multiple-Butted 4-Piece, 9 inch • Stem: Top Loader • Rotor: KHE AFFIX • Crank: 3-piece 48-Spline CrMo hollow crank • Sprocket: 25T CNC aluminium • Bottom Bracket: MID BB • Headset: Integrated with industrial bearings • Brake Type: U-Brake • Rear Brake: KHE RADIUS aluminium U-Brake • Front Wheel: KHE BIG400, 1.38 inch rim, 0.39 inch axle • Rear Wheel: KHE BIG400, 1.38 inch rim, 9T cassette, 0.55 inch axle • Tyres: KHE ACME 20 × 2.40 inch • Material: 4130 CrMo • Wheel Size: 20 inch • Colour: Blue • Weight: 23.4 lbs

Suitable for:

• Rider Height: 4'11"–6'3" • Maximum Rider Weight: 265 lbs • Riding Style: Street / Park / Dirt

Why choose the KHE EVO 20 Inch from KHEbikes:

✓ Only 23.4 lbs total weight despite the rotor system ✓ Frame with main tubes made from CrMo 4130 steel for high stability ✓ 9 inch Multiple-Butted handlebar for controlled BMX handling ✓ 3-piece 48-Spline CrMo hollow crank for a durable drivetrain ✓ KHE BIG400 double-wall rims with precision-bearing hubs ✓ KHE AFFIX rotor system for barspins and 360 degree handlebar rotations ✓ Wide KHE ACME 20 × 2.40 inch tyres for grip and control ✓ Striking combination of blue frame and matt black rims

Compatibility

• Front Pegs: 0.39 inch • Rear Pegs: 0.55 inch

Delivery & Notes

Delivery Condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-related components should be properly assembled and checked.

Important Note: The bike is delivered with a pre-installed KHE RADIUS aluminium U-Brake at the rear, but without a front brake. A suitable front brake is also available from Decathlon: KHE BMX Sidepull Brake Set.
