Product Description

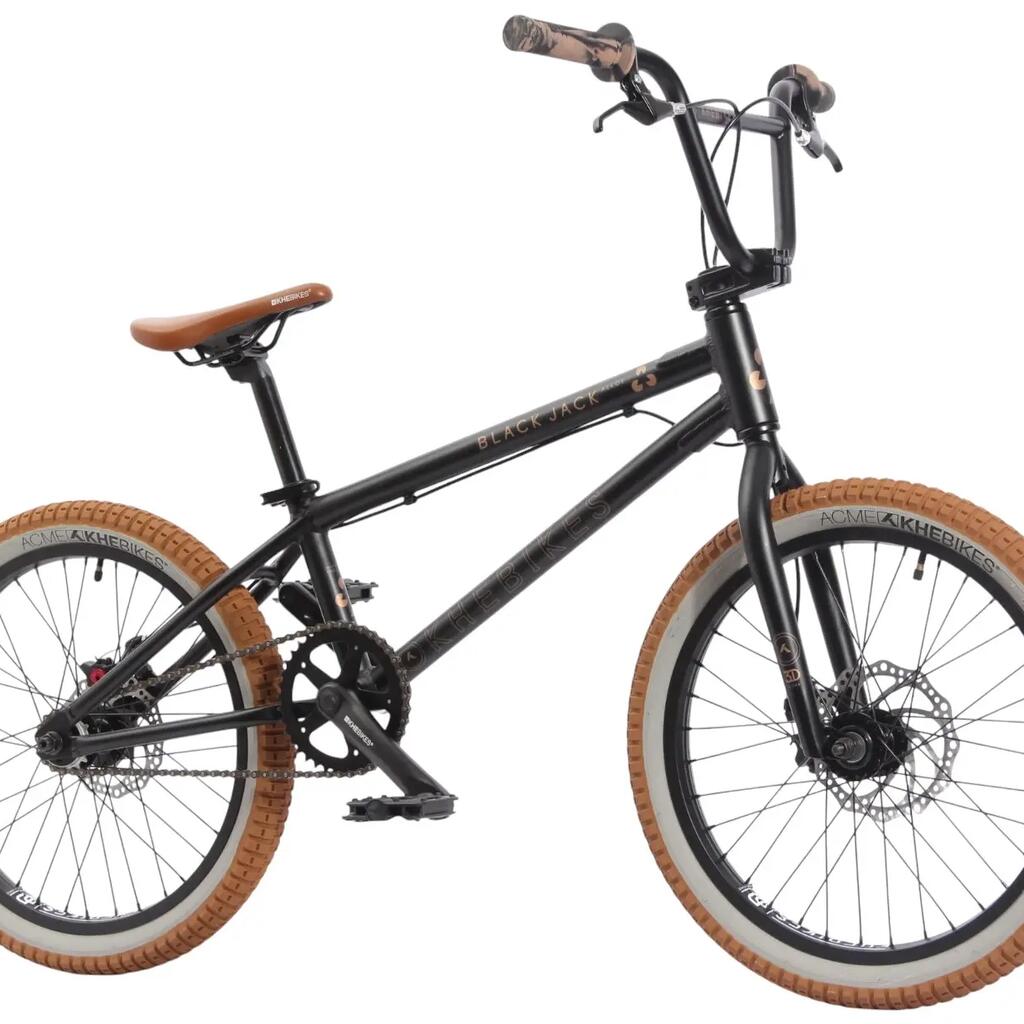

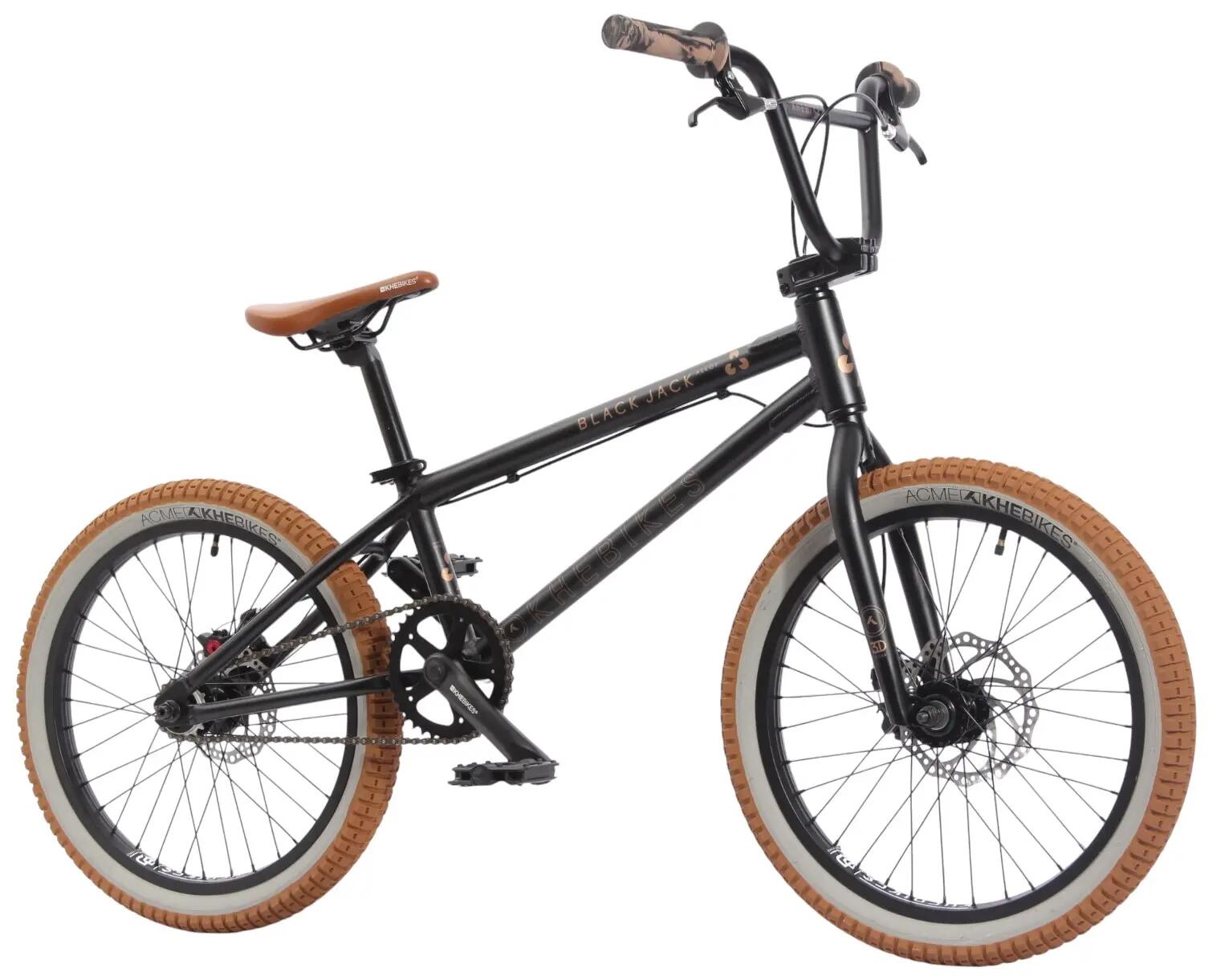

KHE BLACK JACK DISC AL 20 Inch BMX Freestyle Bike 2025
The KHE BLACK JACK DISC AL 20 Inch is a lightweight and versatile BMX bike for Pumptrack, Street and Park. The durable 6061 aluminium frame combines low weight with agile BMX geometry. Mechanical disc brakes at the front and rear, the patented KHE AFFIX rotor system and the peg-compatible 14 mm rear hub make the bike a versatile setup for different BMX riding styles.
Equipment
Drivetrain:

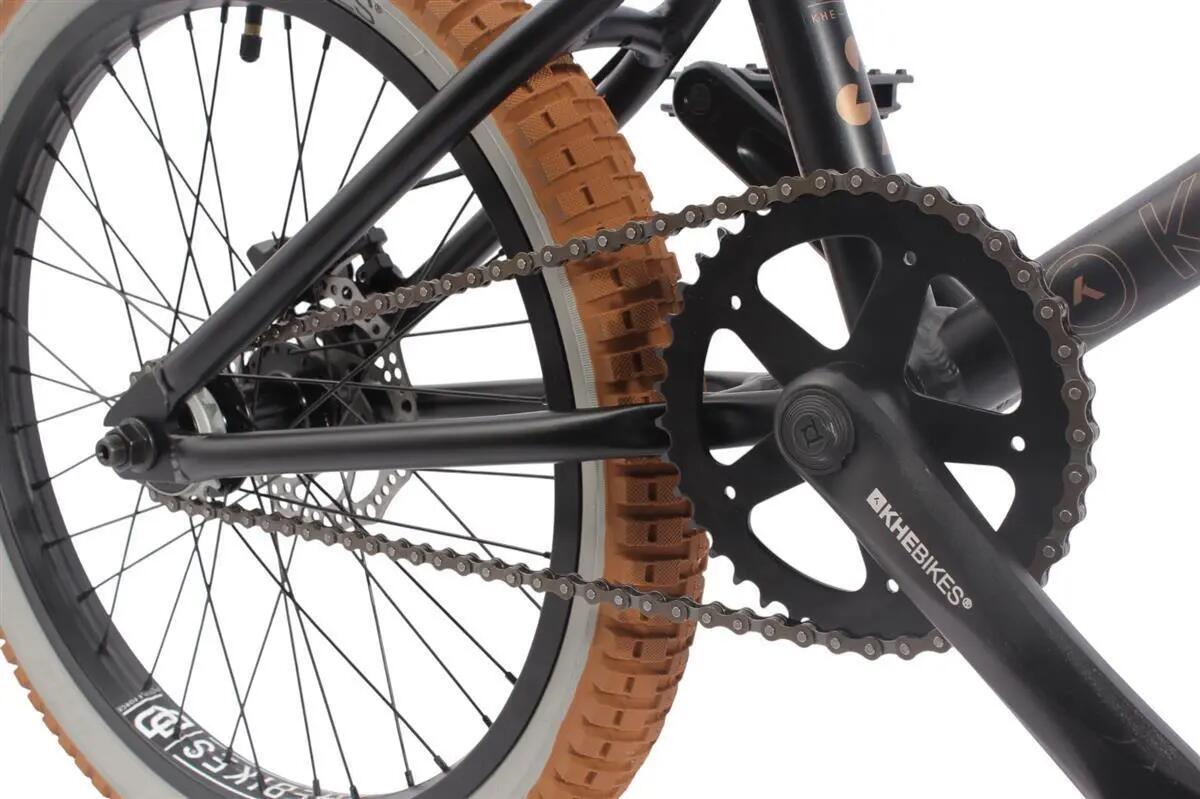

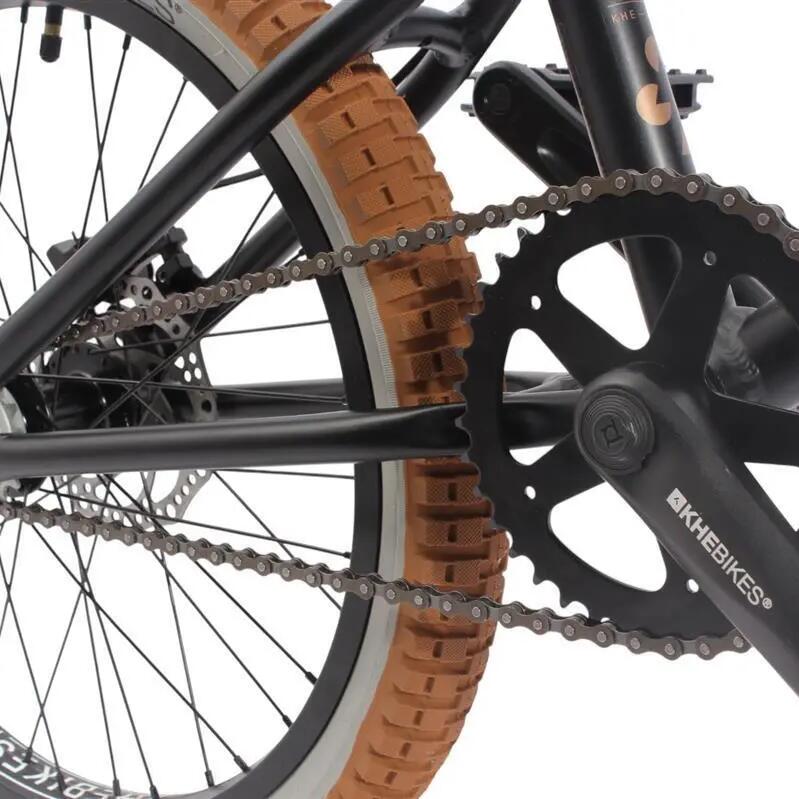

• 3-piece forged aluminium crank (165 mm)
• 38T steel sprocket
• YBN chain
• 16T freewheel
Cockpit:
• 680 mm wide KHE HiTen handlebar with 8 inch height

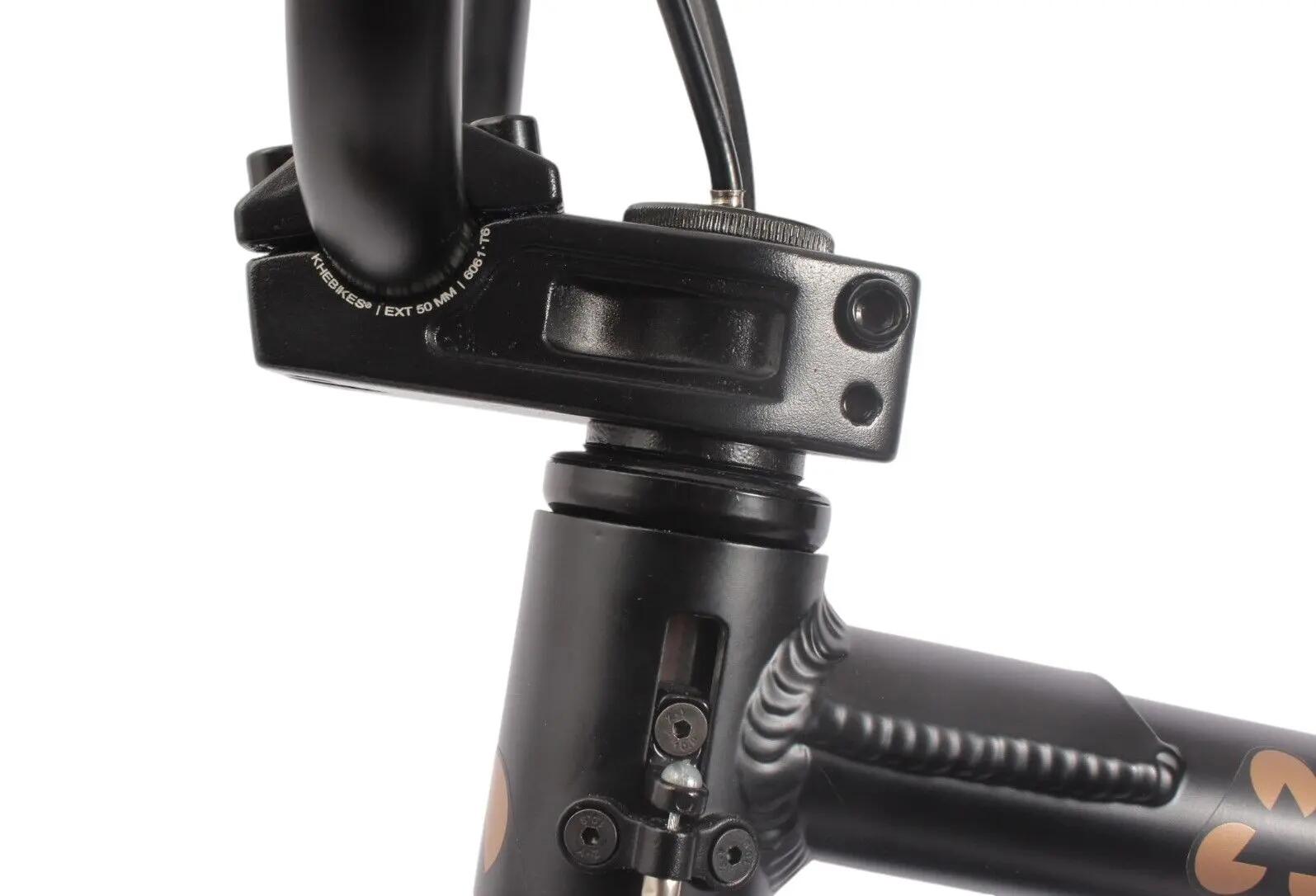

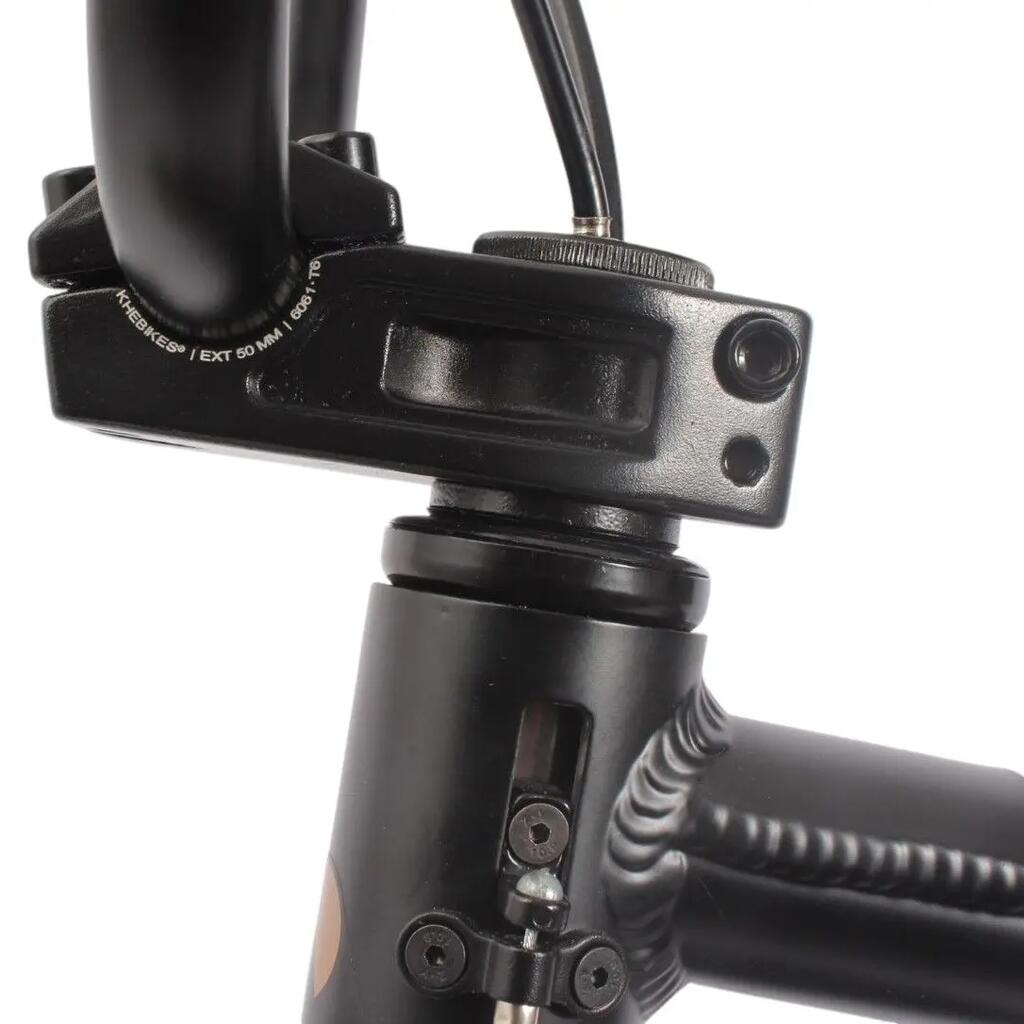

• KHE Top Loader stem (50 mm)
• Patented KHE AFFIX 360 degree rotor
• Propalm Mushroom Style grips
• Aluminium brake lever with adjustment screw
Brakes & Wheels:

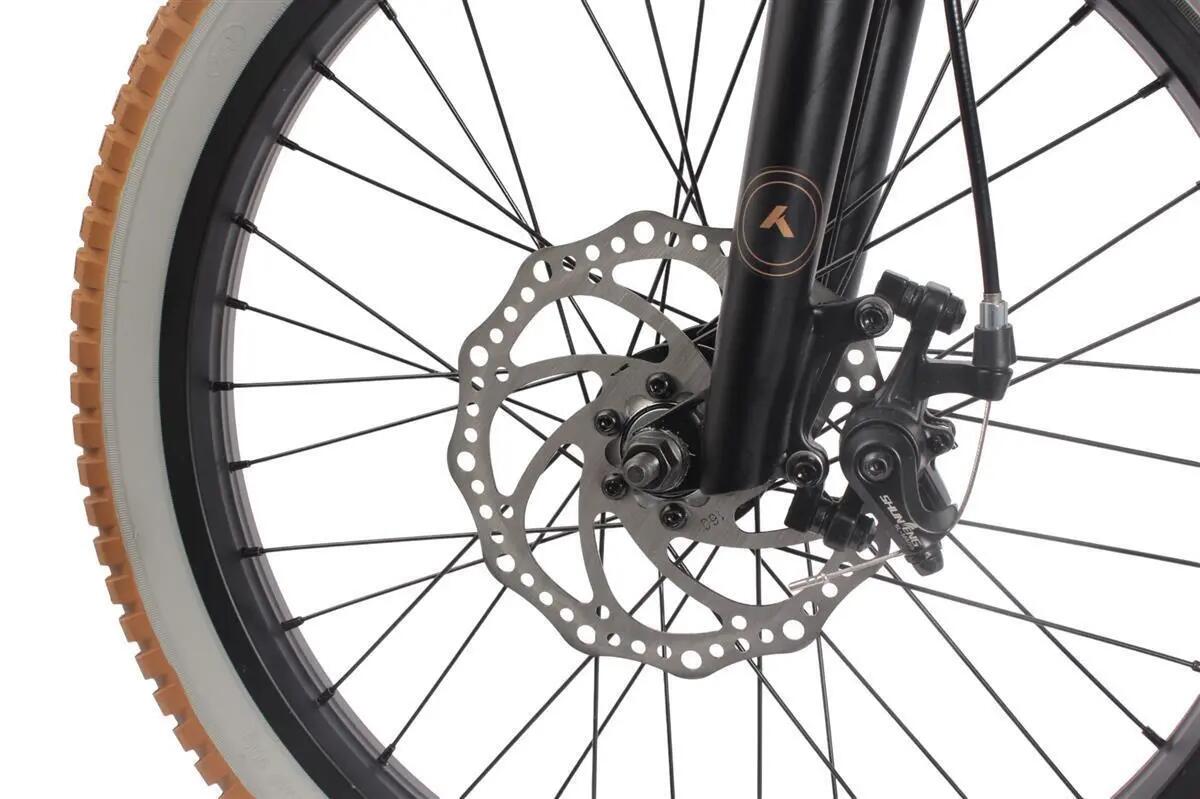

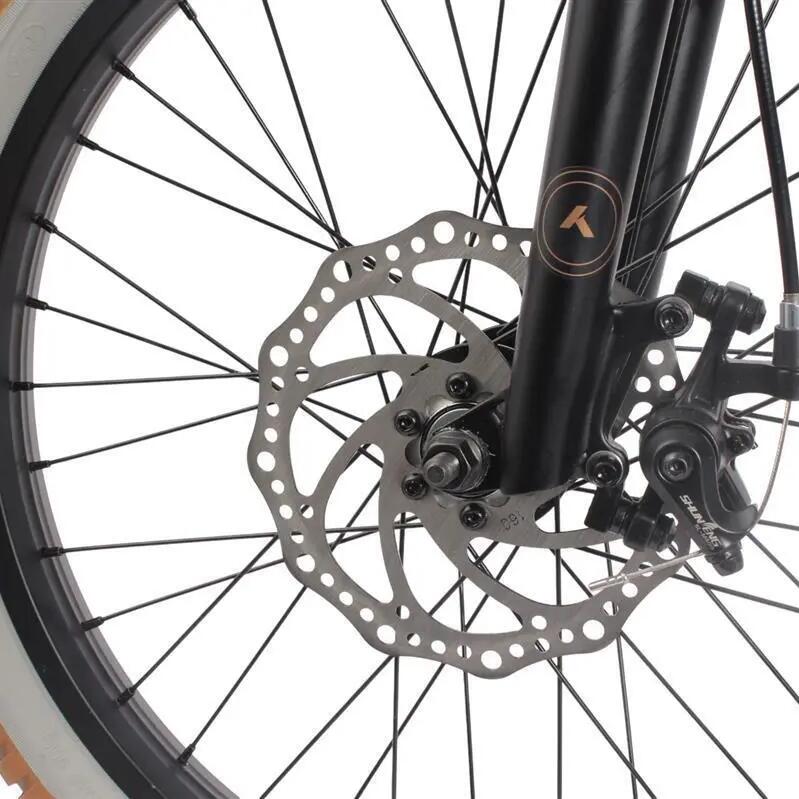

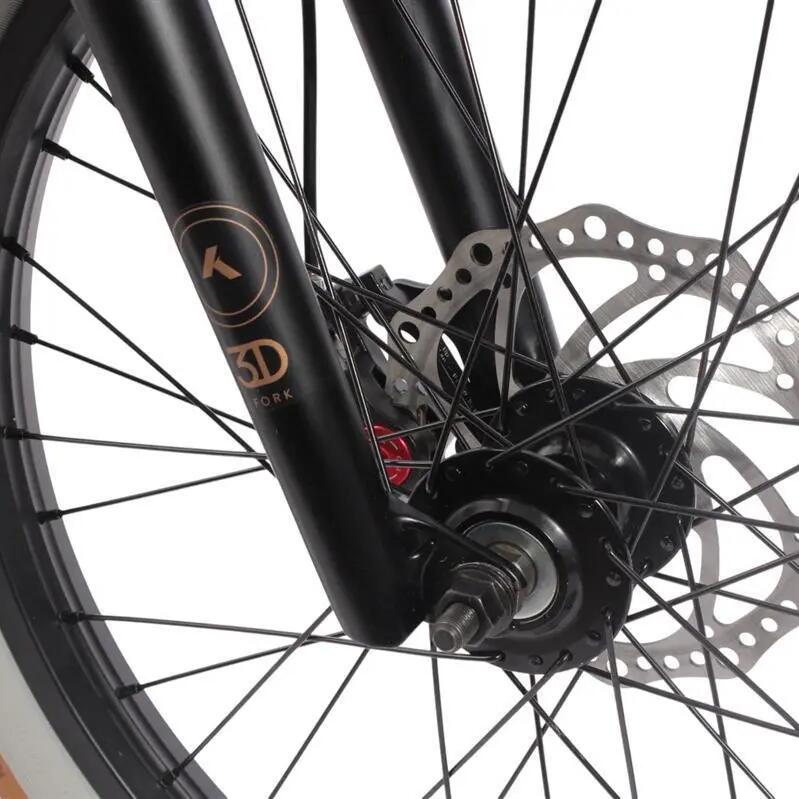

• Mechanical front disc brake with 160 mm rotor

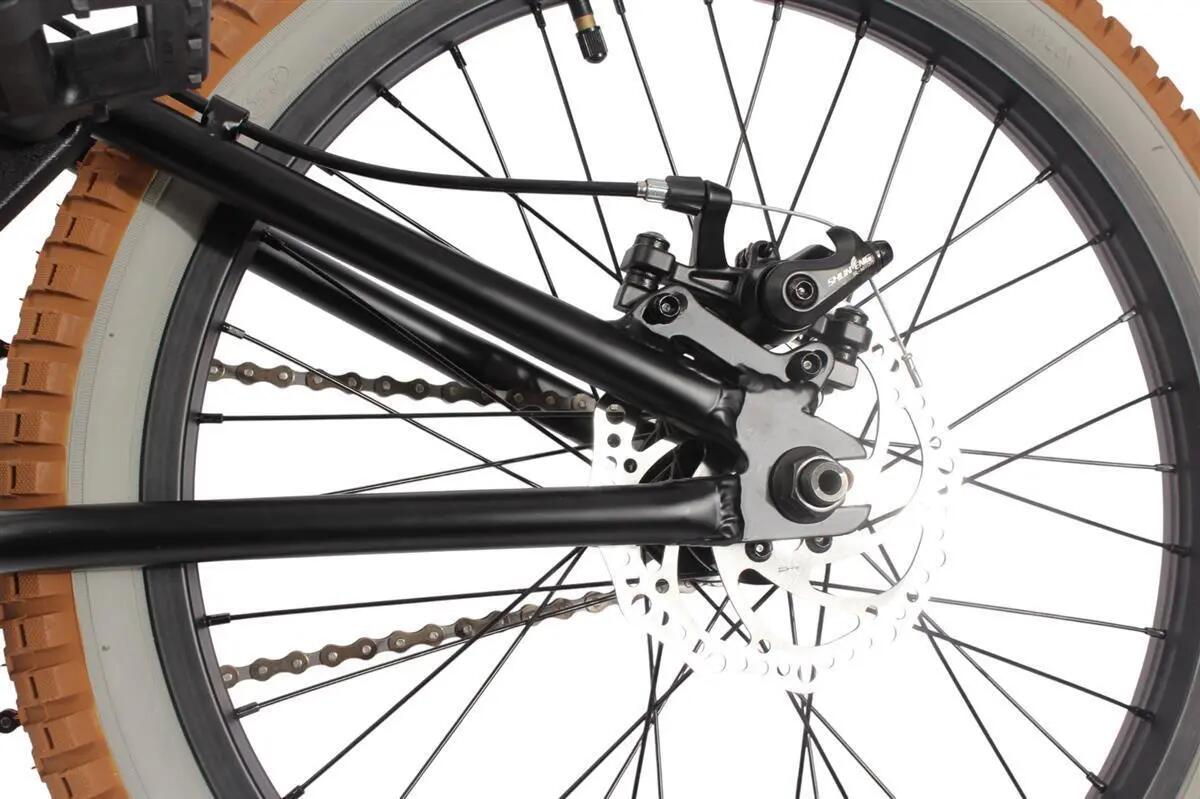

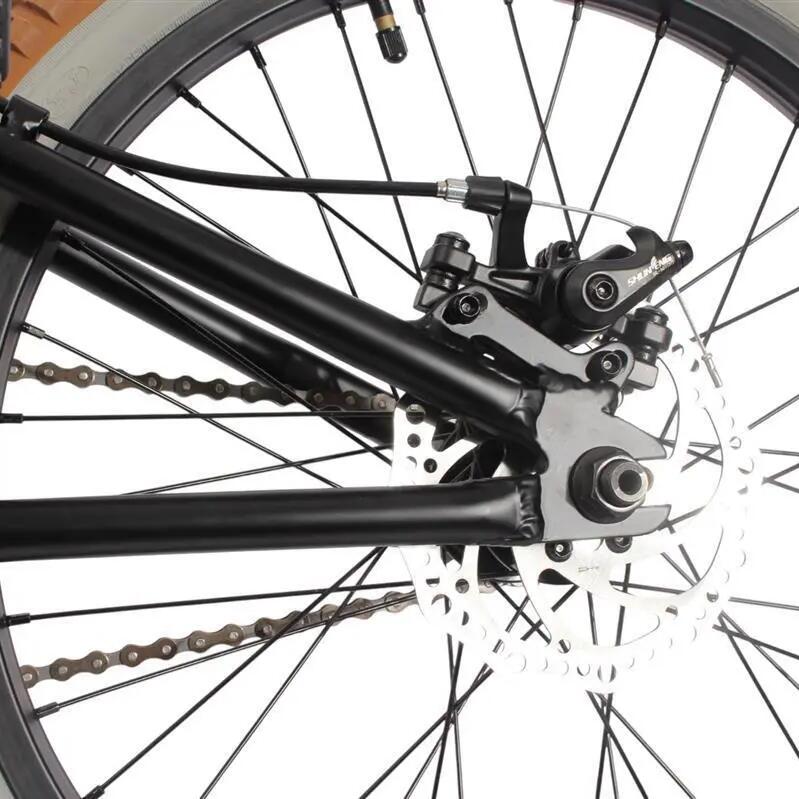

• Mechanical rear disc brake with 140 mm rotor
• 20 inch double-wall aluminium rims

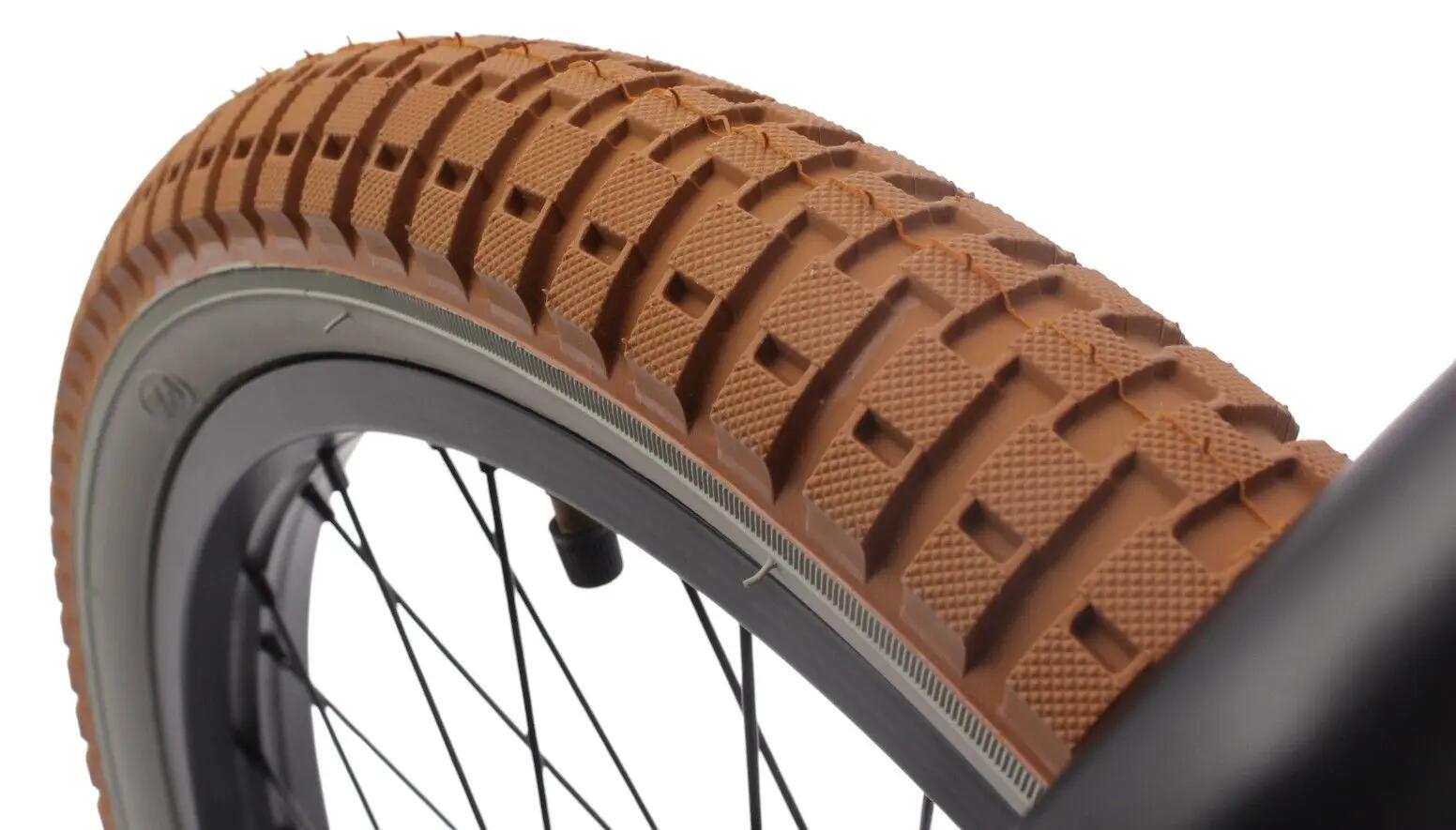

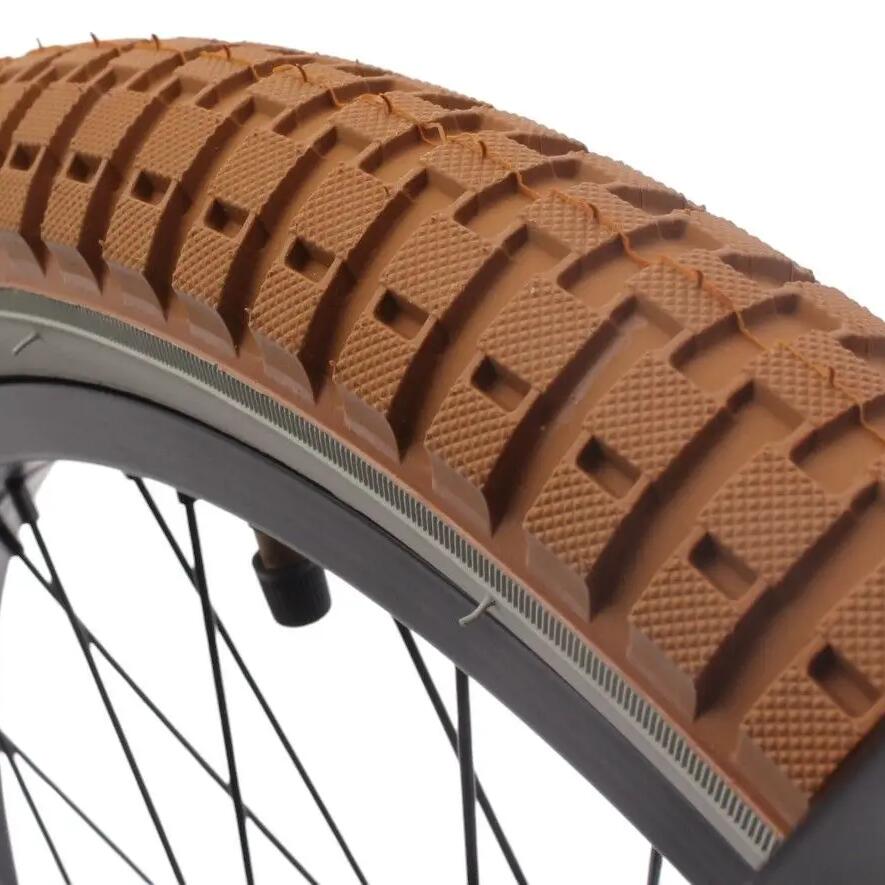

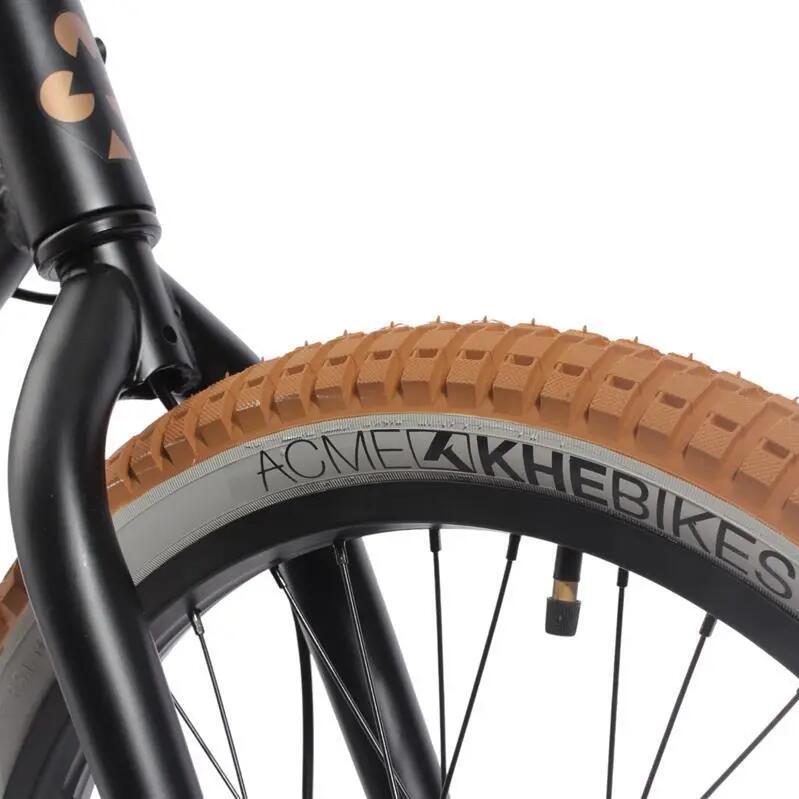

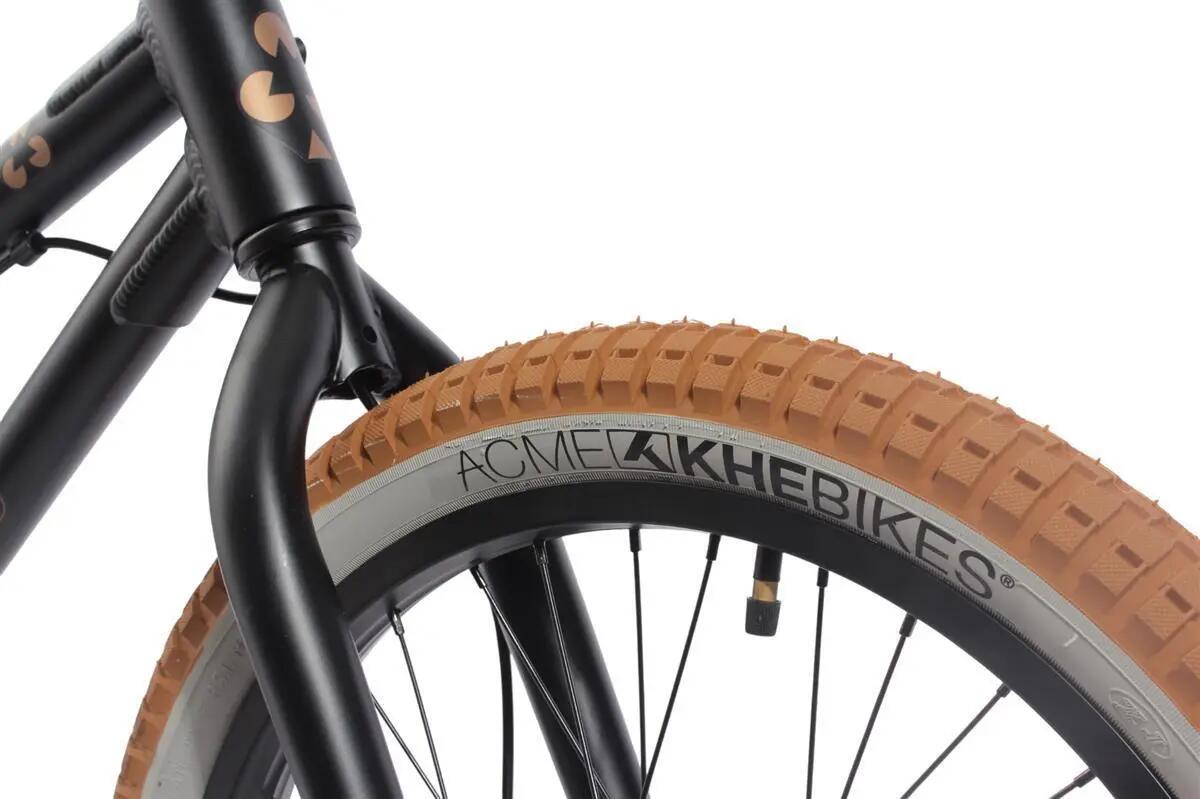

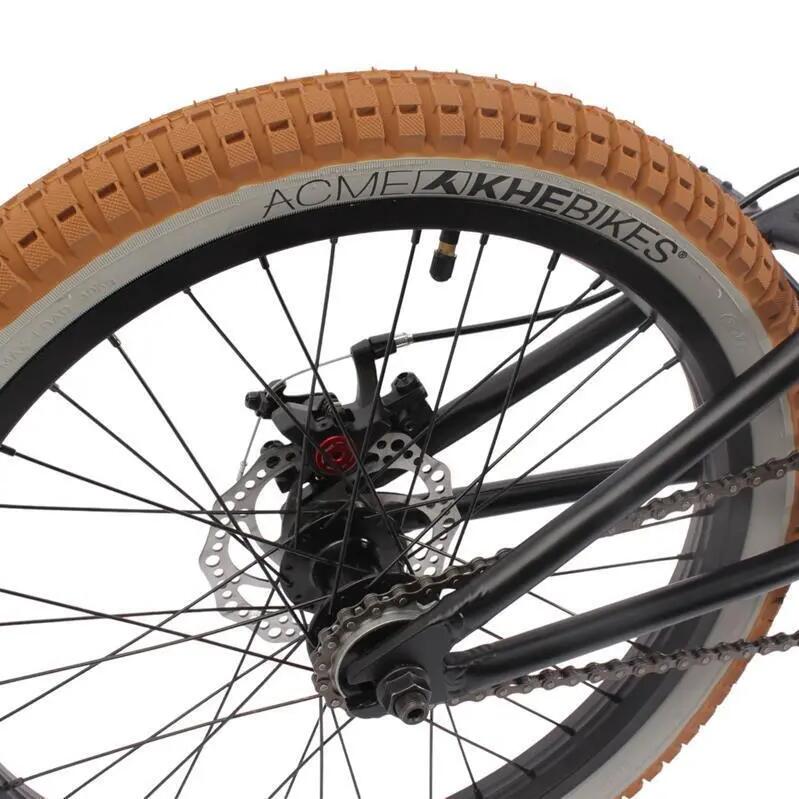

• KHE ACME DIRT tyres 20 × 2.20 inch
• Hubs with industrial bearings

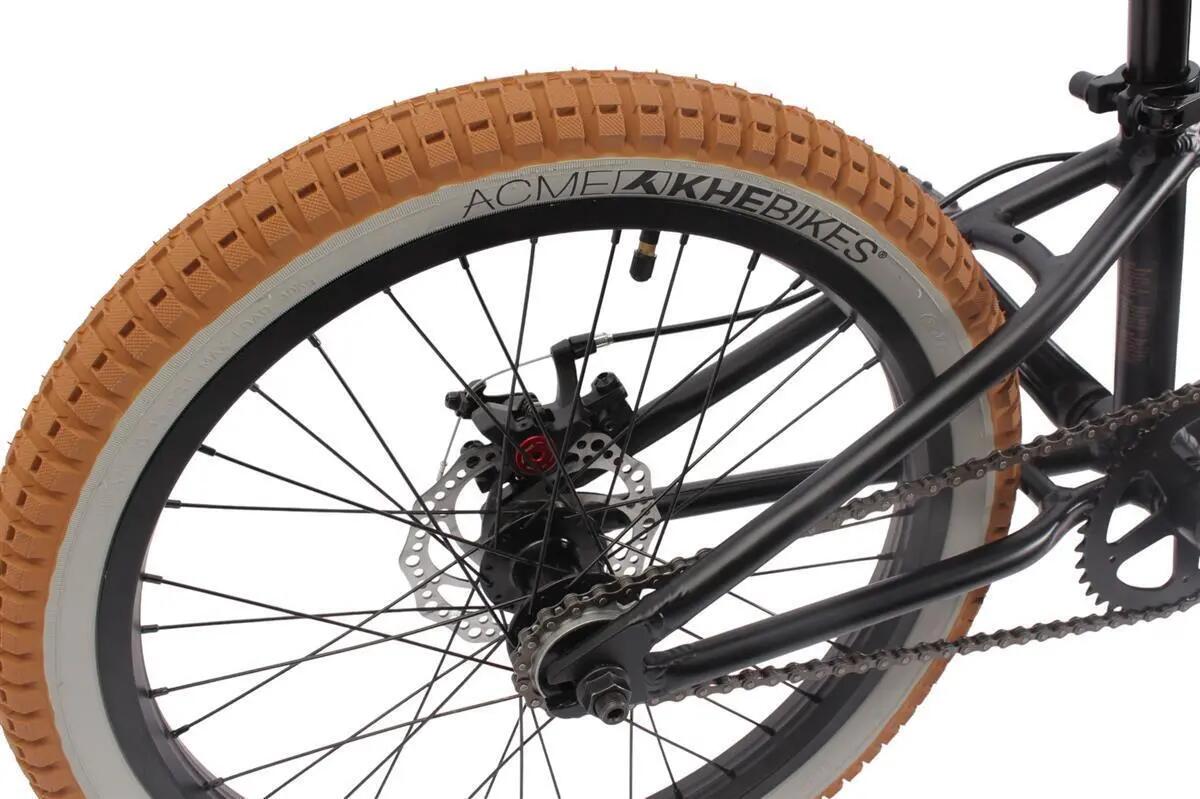

• Peg-compatible 14 mm disc rear hub
Design:
• Matt Black frame
• Two-Tone tyres

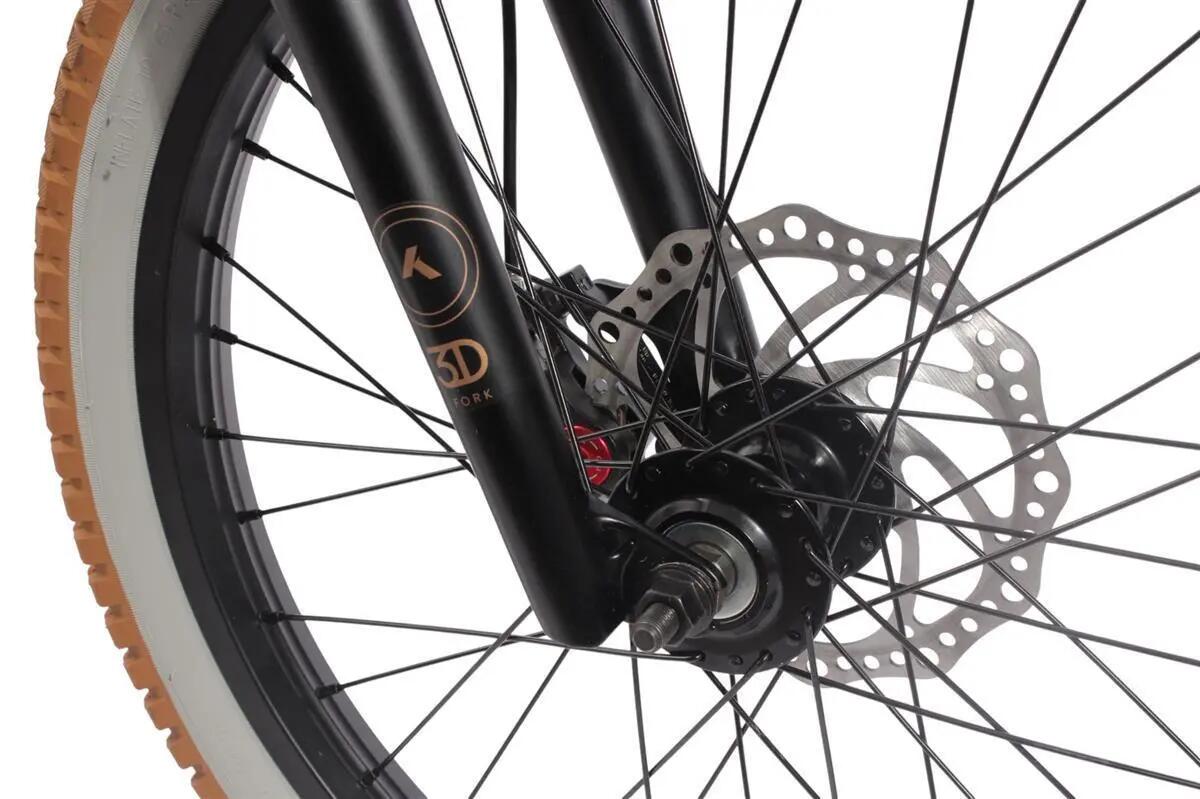

• Durable HiTen fork with 3D dropouts
• Padded saddle
Technical Data
• Model: KHE BLACK JACK DISC AL
• Model Year: 2025

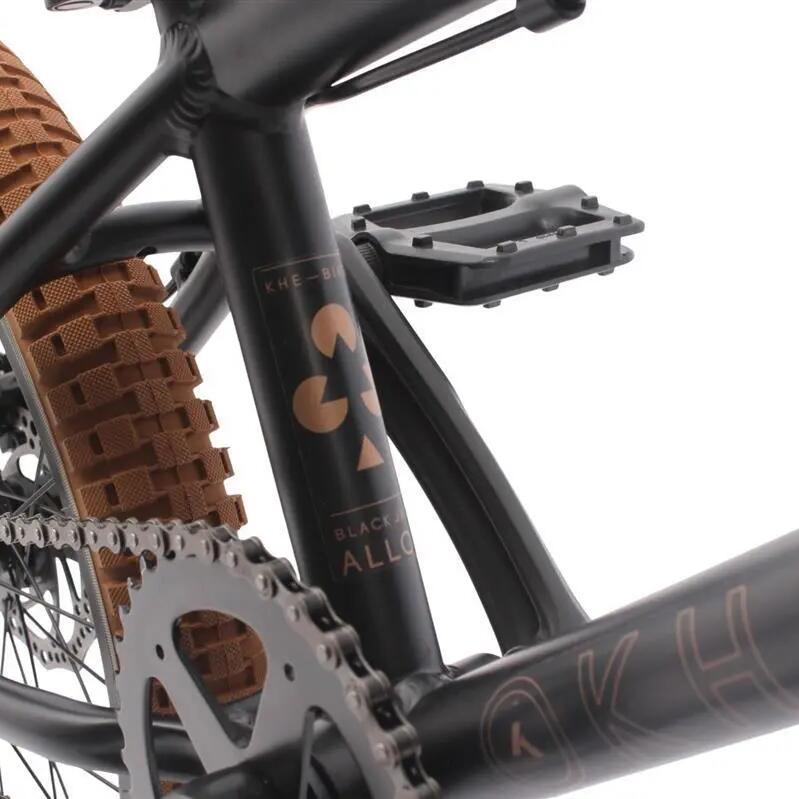

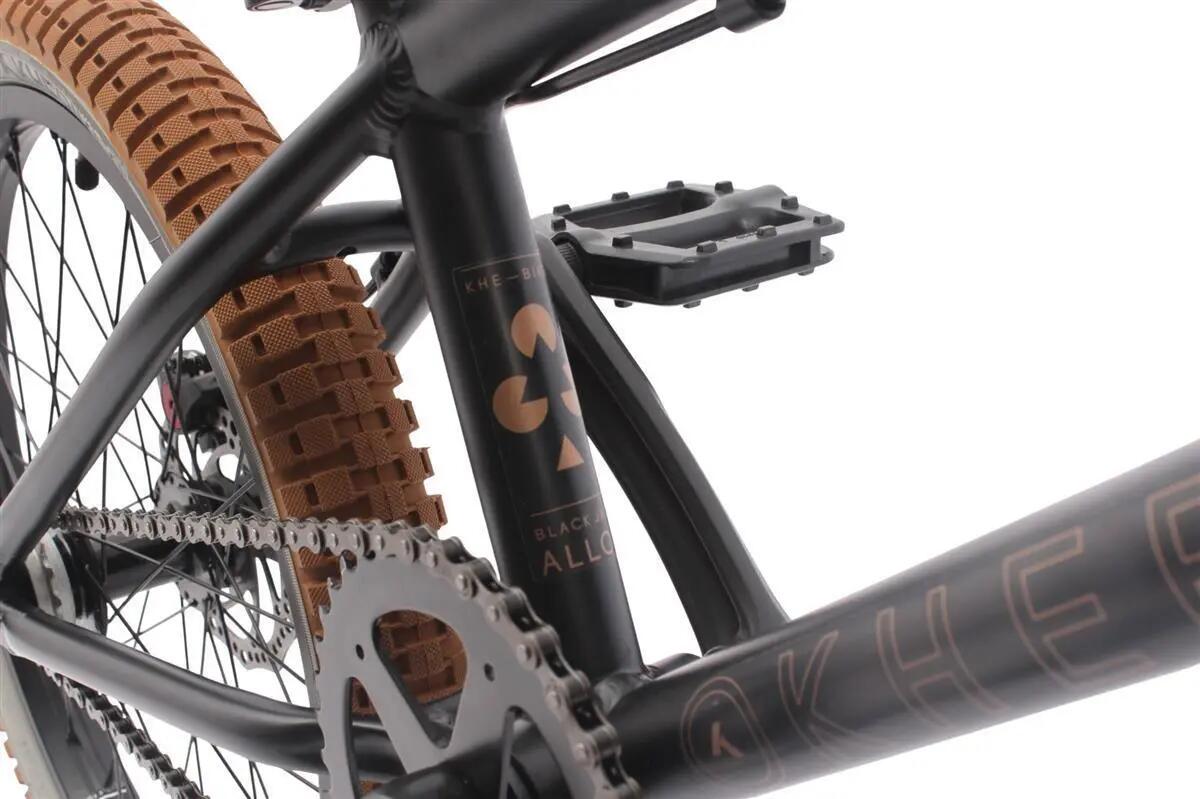

• Frame: KHE 6061 aluminium
• Fork: KHE 1020 HiTen steel with 3D dropouts
• Top Tube: 20.4 inch
• Handlebar: KHE HiTen steel, 26.8 inch wide × 8 inch high
• Stem: KHE Top Loader (1.97 inch)
• Rotor: KHE AFFIX 360 degree
• Crank: 6.5 inch, 3-piece, forged aluminium
• Sprocket: 38T steel
• Headset: Aheadset 1 1/8 inch
• Brake Type: Mechanical disc brakes
• Hub Type: Freewheel
• Freewheel: 16T
• Rims: 20 inch double-wall aluminium, 36 holes
• Tyres: KHE ACME DIRT 20 × 2.20 inch
• Frame Material: 6061 aluminium
• Colour: Matt Black
• Weight: 22 lbs
Suitable for:
• Rider Height: 4'7"–6'1"
• Maximum Rider Weight: 220 lbs
• Riding Style: Pumptrack / Street / Park / BMX Race
Why choose the KHE BLACK JACK DISC AL 20 Inch from KHEbikes:
✓ Lightweight 6061 aluminium frame for agile and controlled handling
✓ Powerful mechanical disc brakes at the front and rear
✓ Patented KHE AFFIX 360 degree rotor for unrestricted handlebar rotations
✓ Peg-compatible 14 mm disc rear hub with industrial bearings
✓ Durable 3-piece aluminium crank for reliable power transfer
✓ Double-wall aluminium rims for a stable wheel construction
✓ KHE ACME DIRT tyres for Pumptrack, Street and Park
Compatibility
• Front Pegs: 10 mm
• Rear Pegs: 14 mm
• Recommendation: KHE CNC Pro Pegs or KHE LASER Pro Pegs
Delivery & Notes
Delivery Condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-related components should be properly assembled and checked.
Note: The KHE BLACK JACK DISC AL is already equipped with mechanical disc brakes at the front and rear.
