Product Description

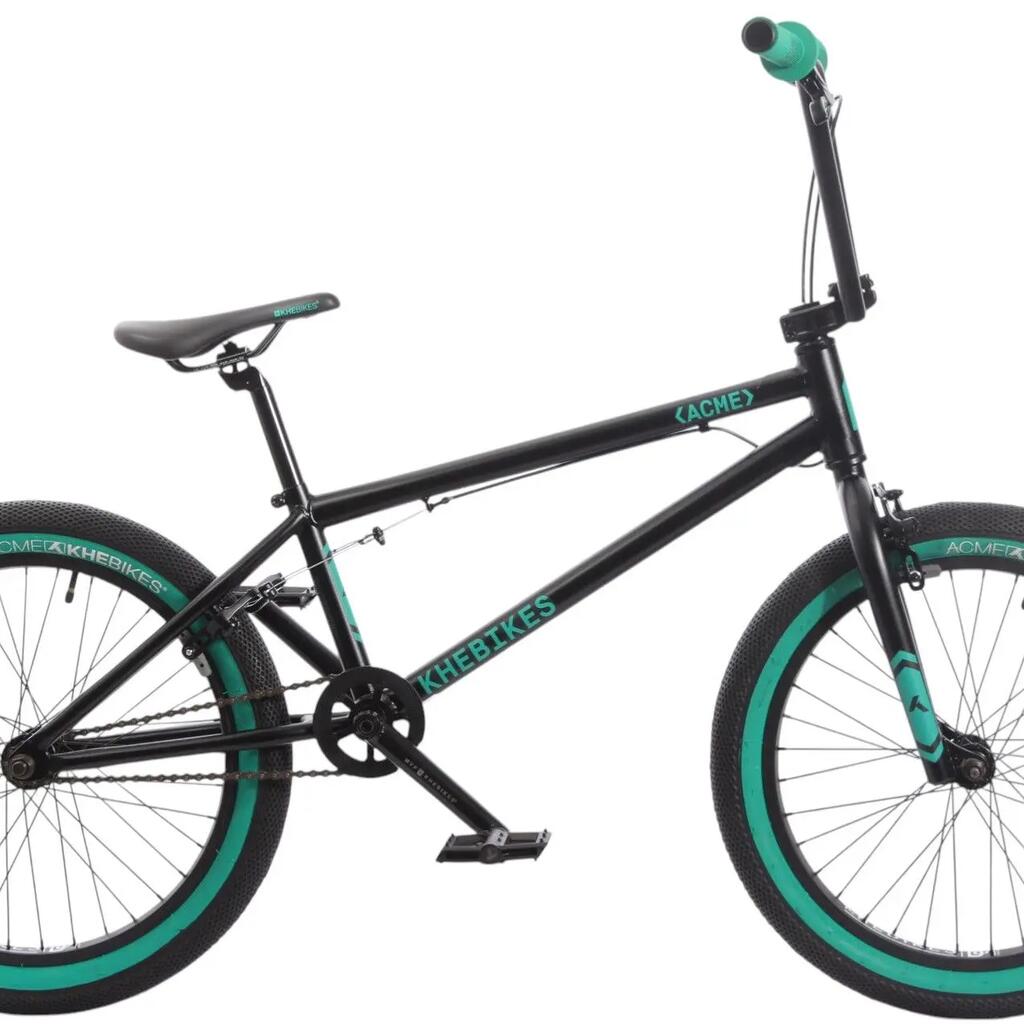

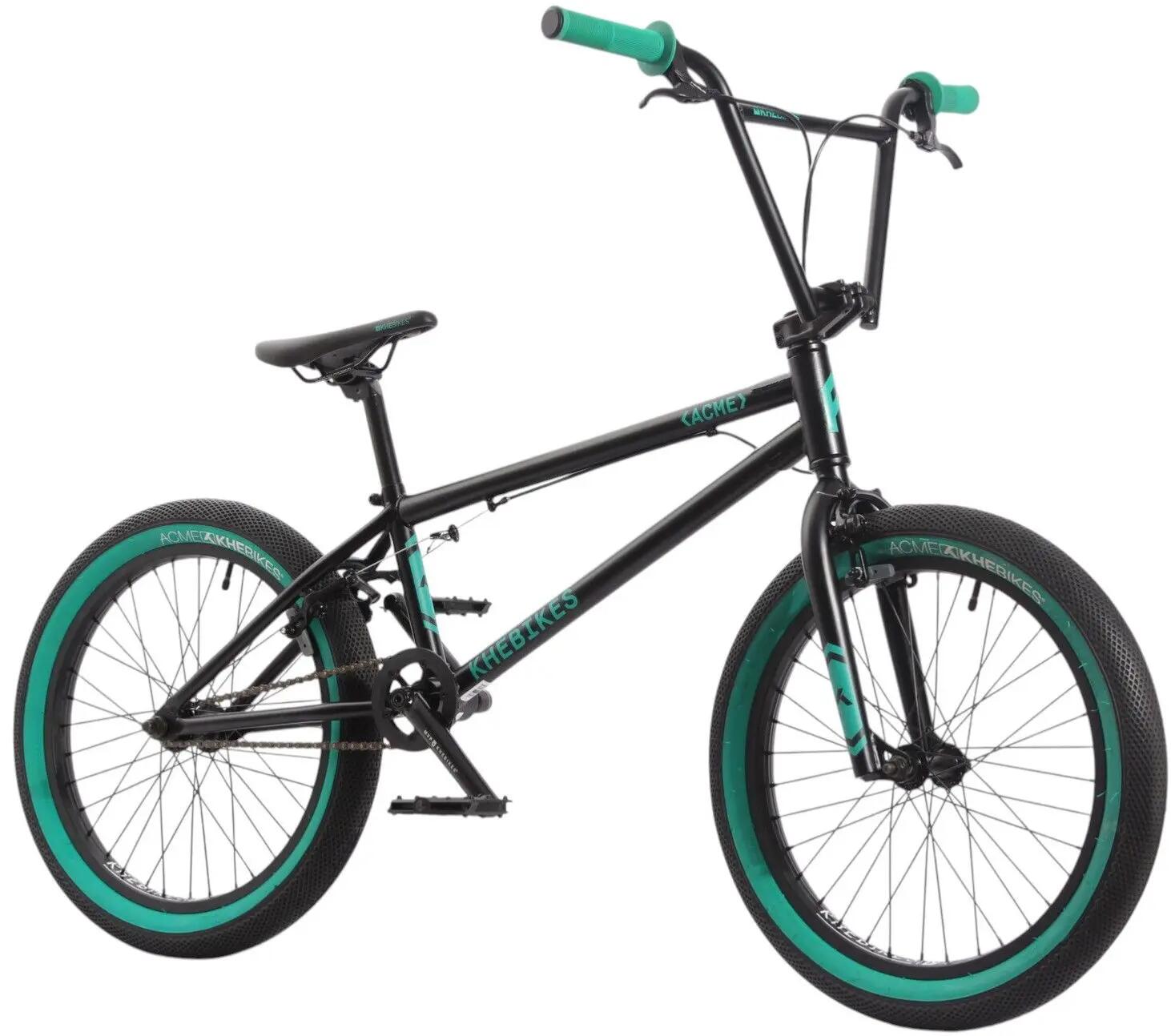

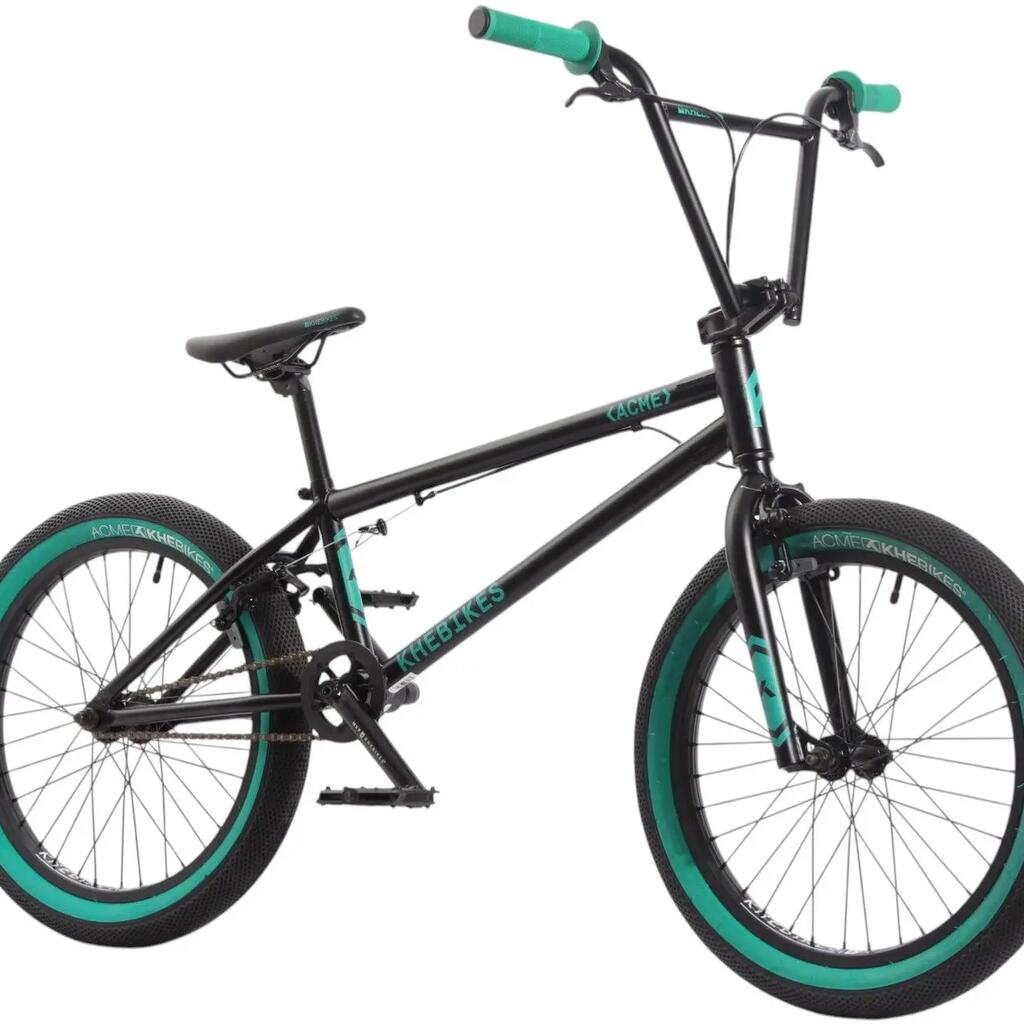

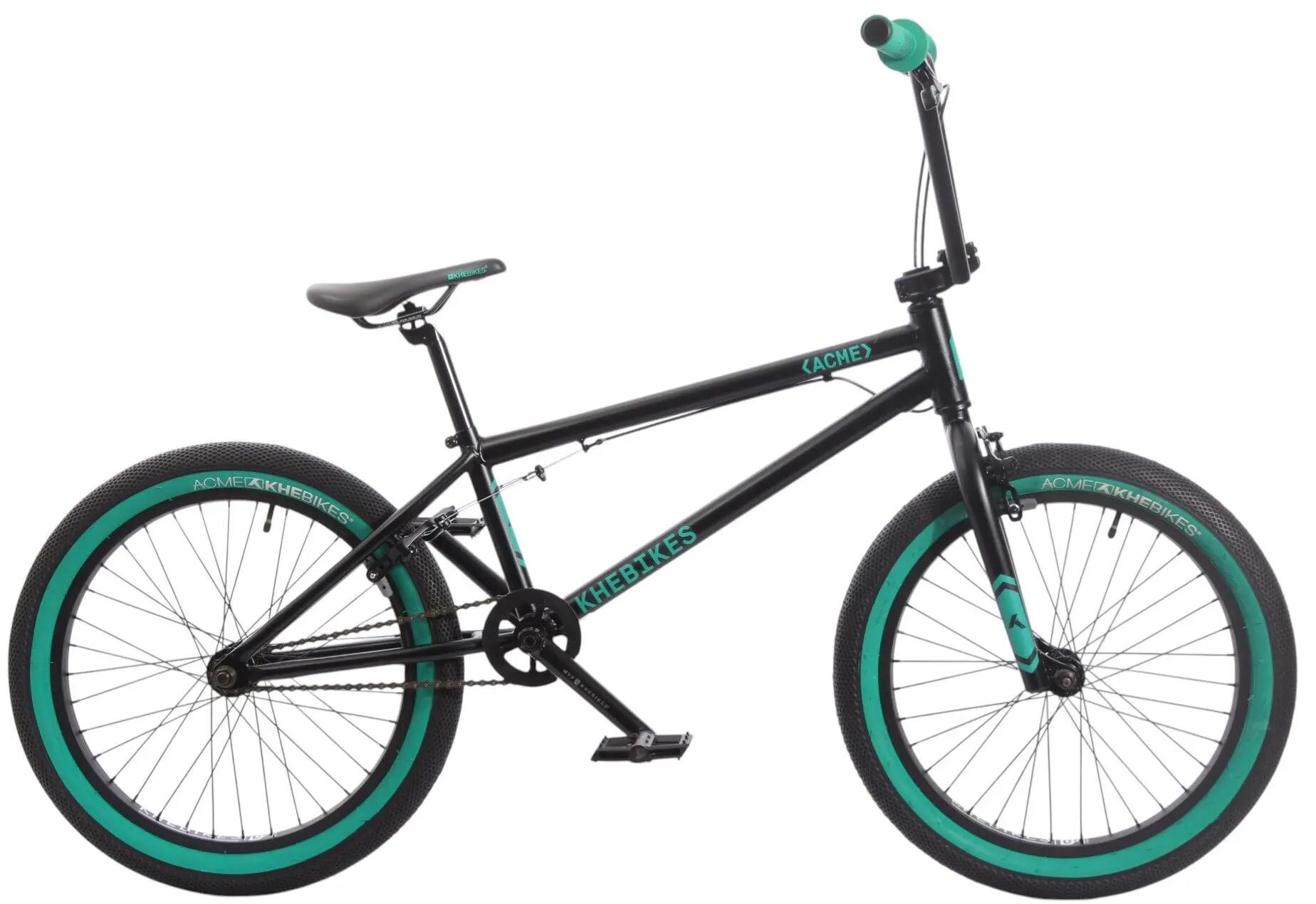

KHE ACME 20 Inch BMX Freestyle Bike 2025 for Tall Riders
The KHE ACME 20 Inch is a versatile BMX bike designed for tall and heavier riders, making it ideal for street, park, dirt and pump track riding. The extra-long frame combined with the 10-inch rise handlebar provides plenty of room and control for riders up to 205 cm (6'9") tall. Despite its durable HiTen steel construction, rotor system and front & rear U-brakes, the BMX weighs only 11.1 kg (24.5 lbs).
Equipment
Drivetrain:

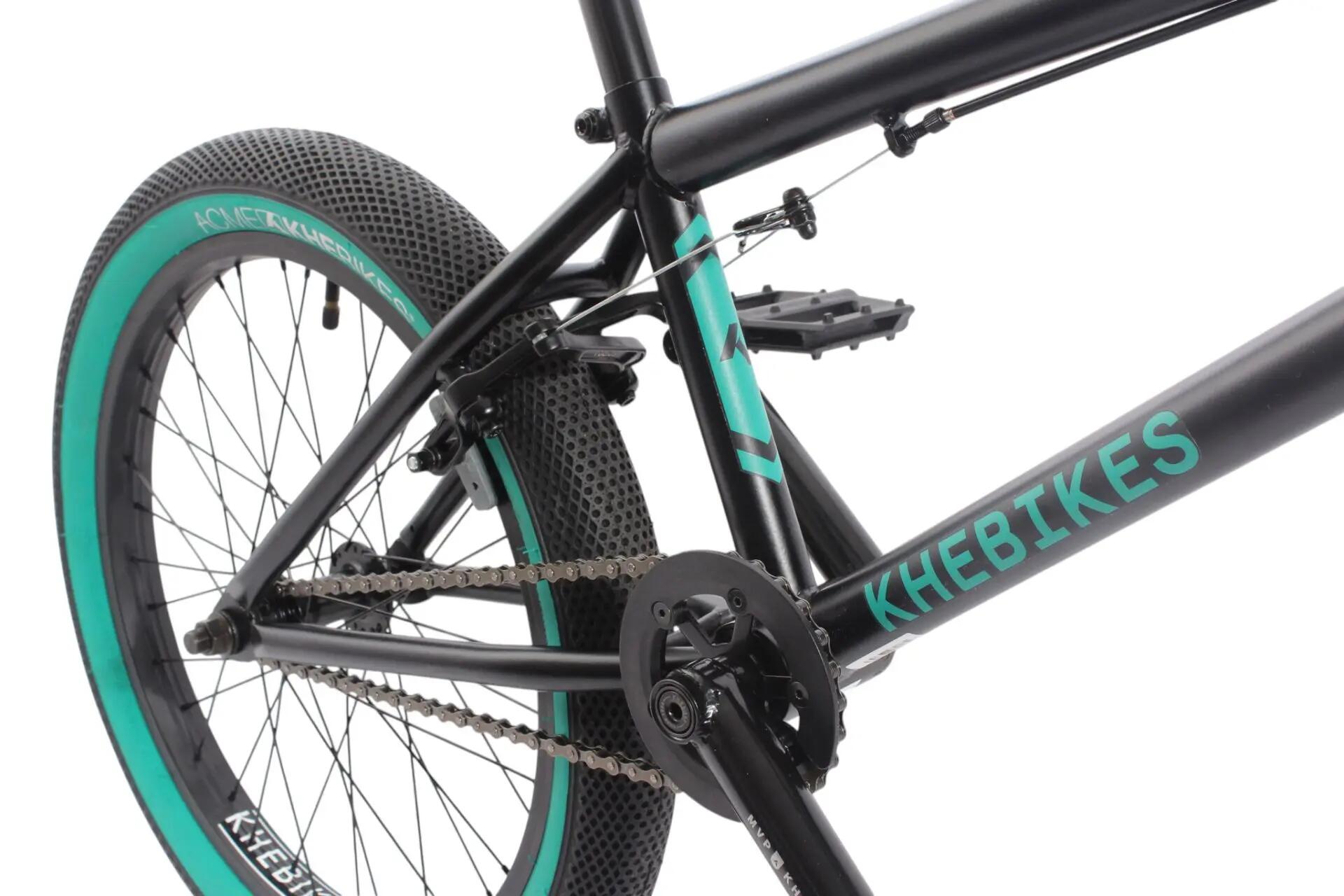

• 3-piece 170 mm CrMo hollow crank
• 25T steel sprocket with nylon grind guard
• Sealed MID BB bottom bracket with industrial bearings
• YBN chain

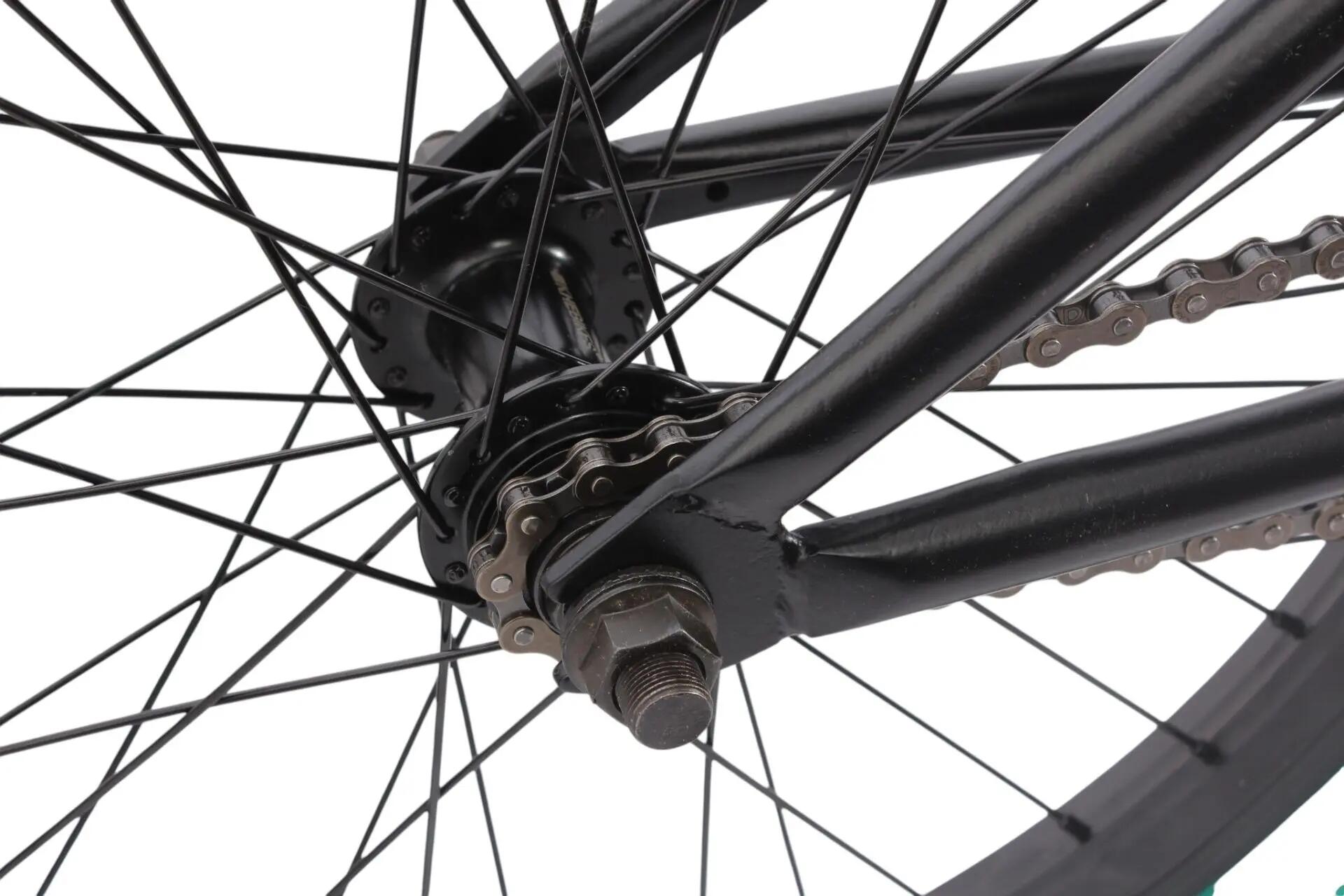

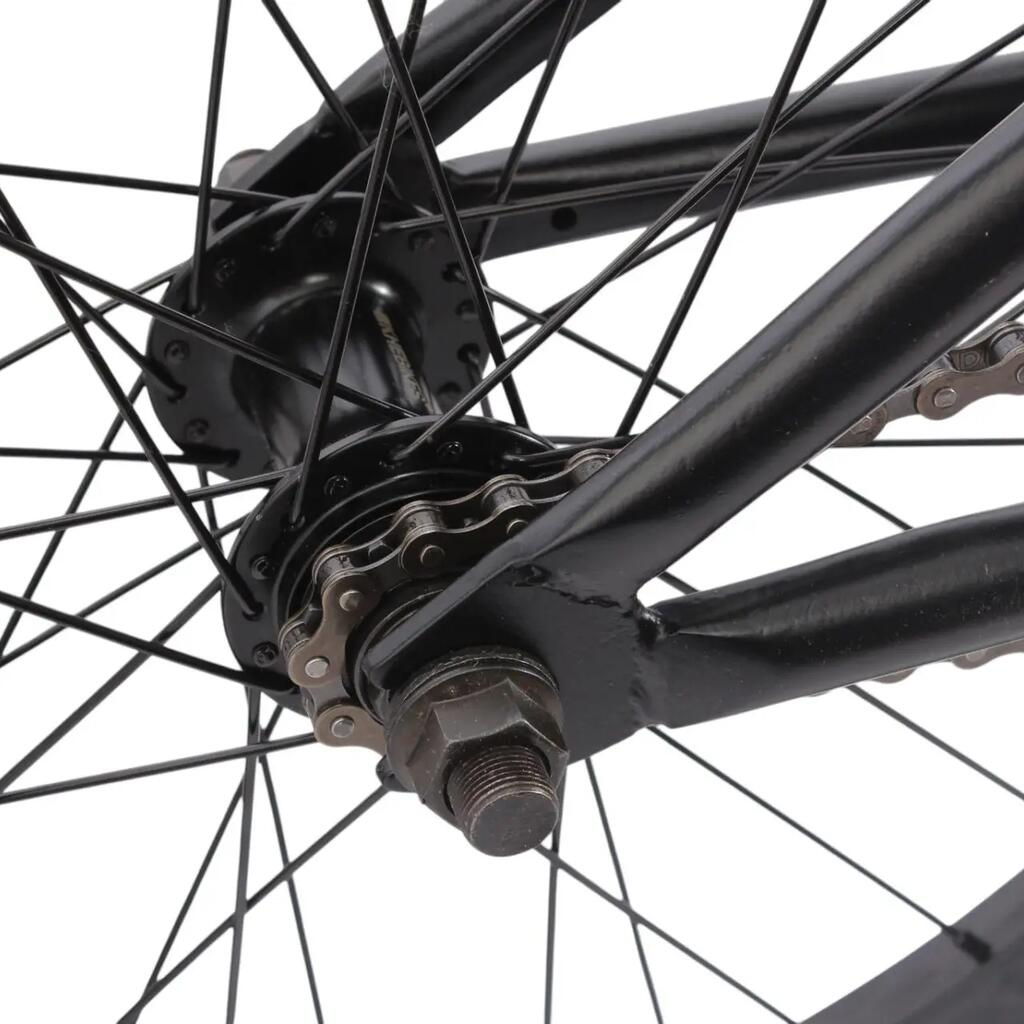

• 9T cassette hub
Cockpit:
• 750 mm (29.5") wide KHE handlebar with 10" rise

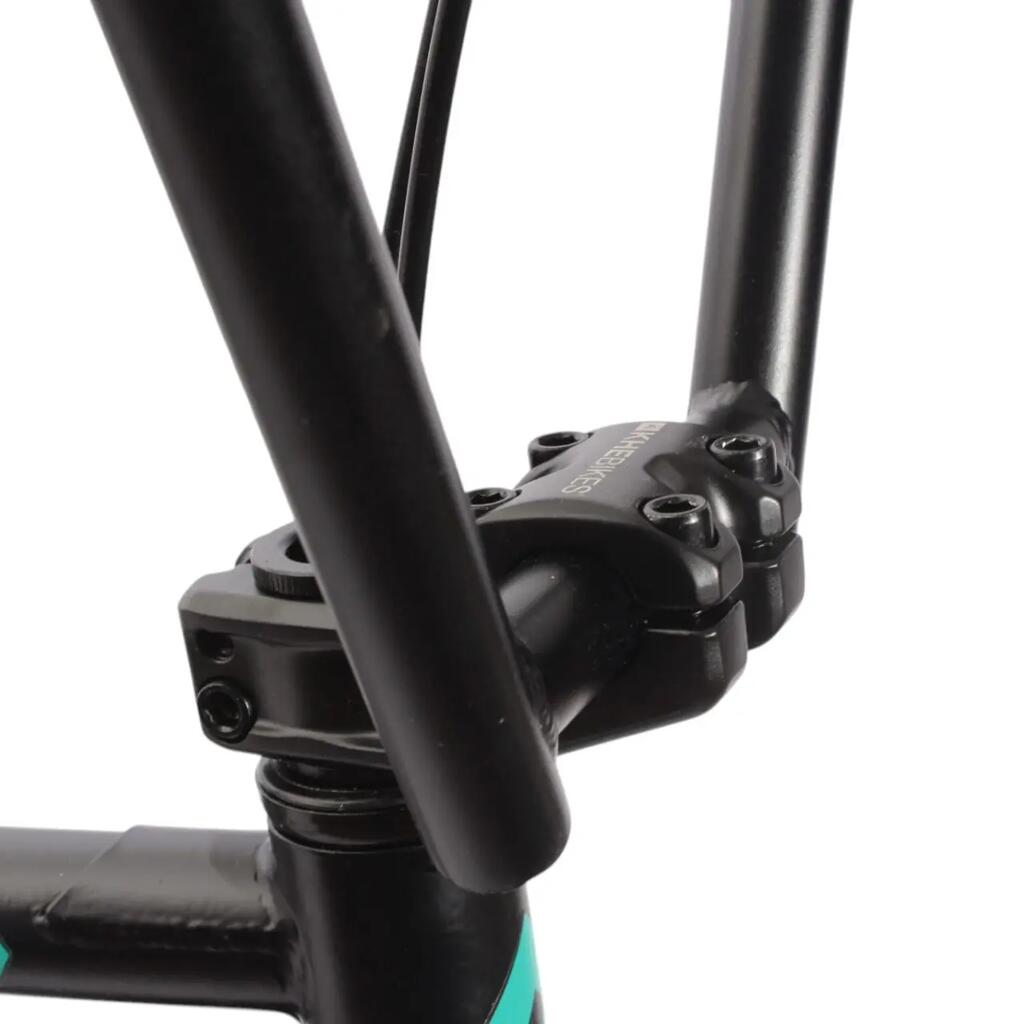

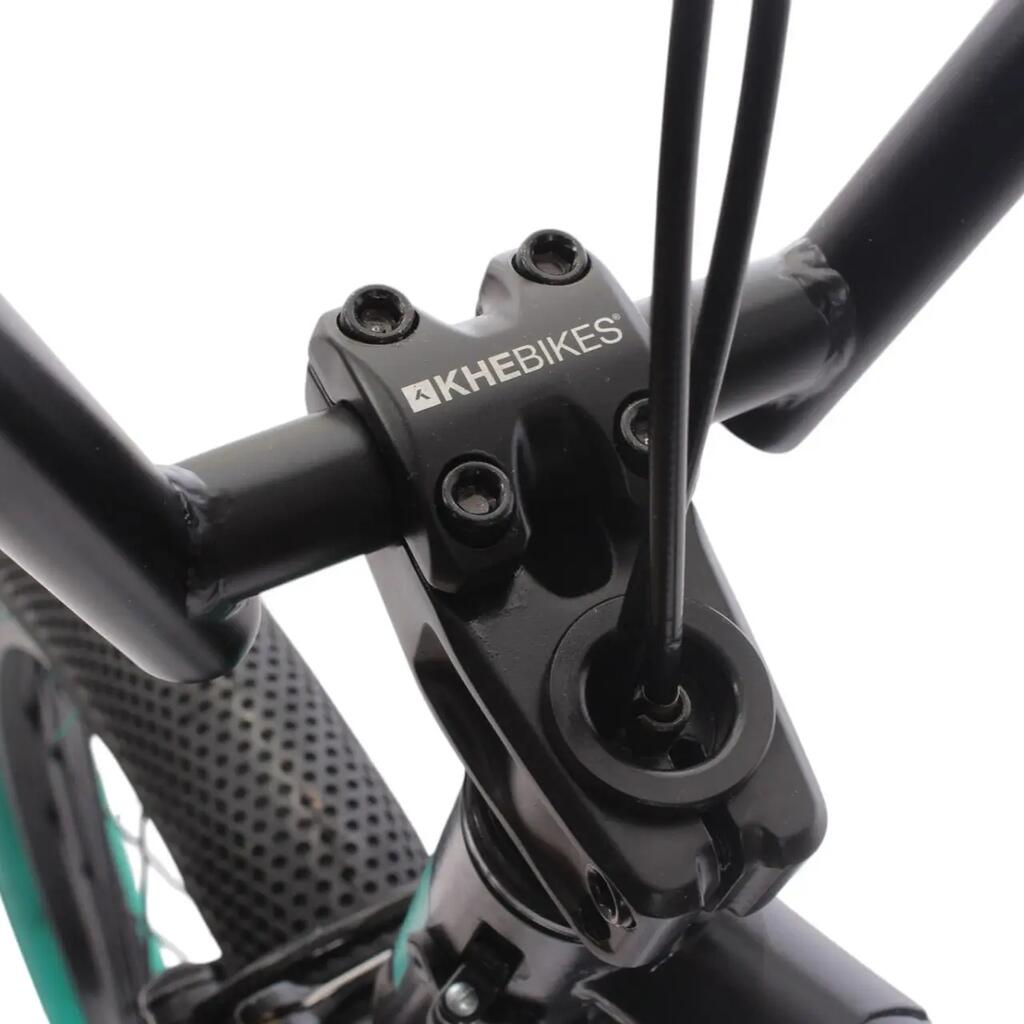

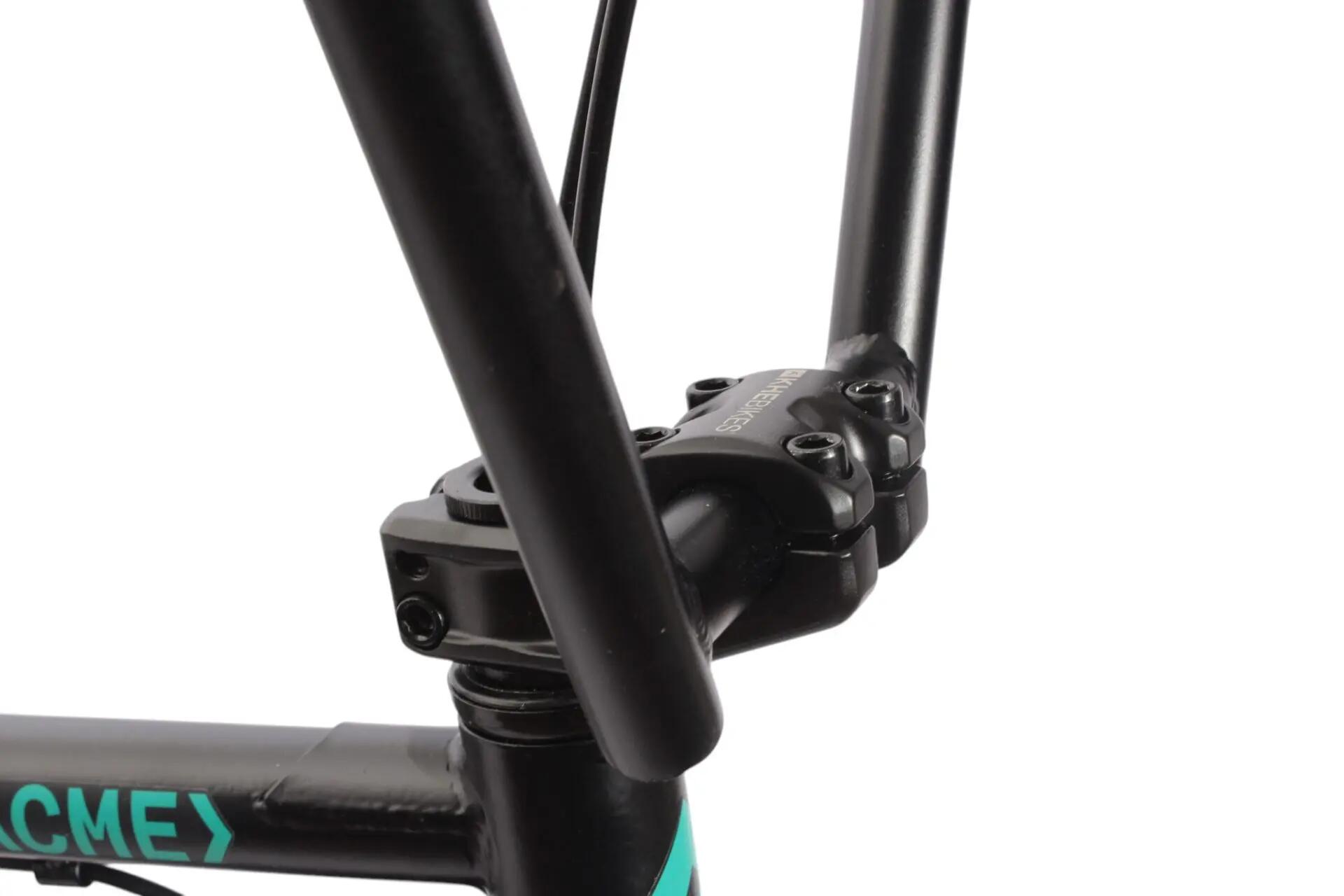

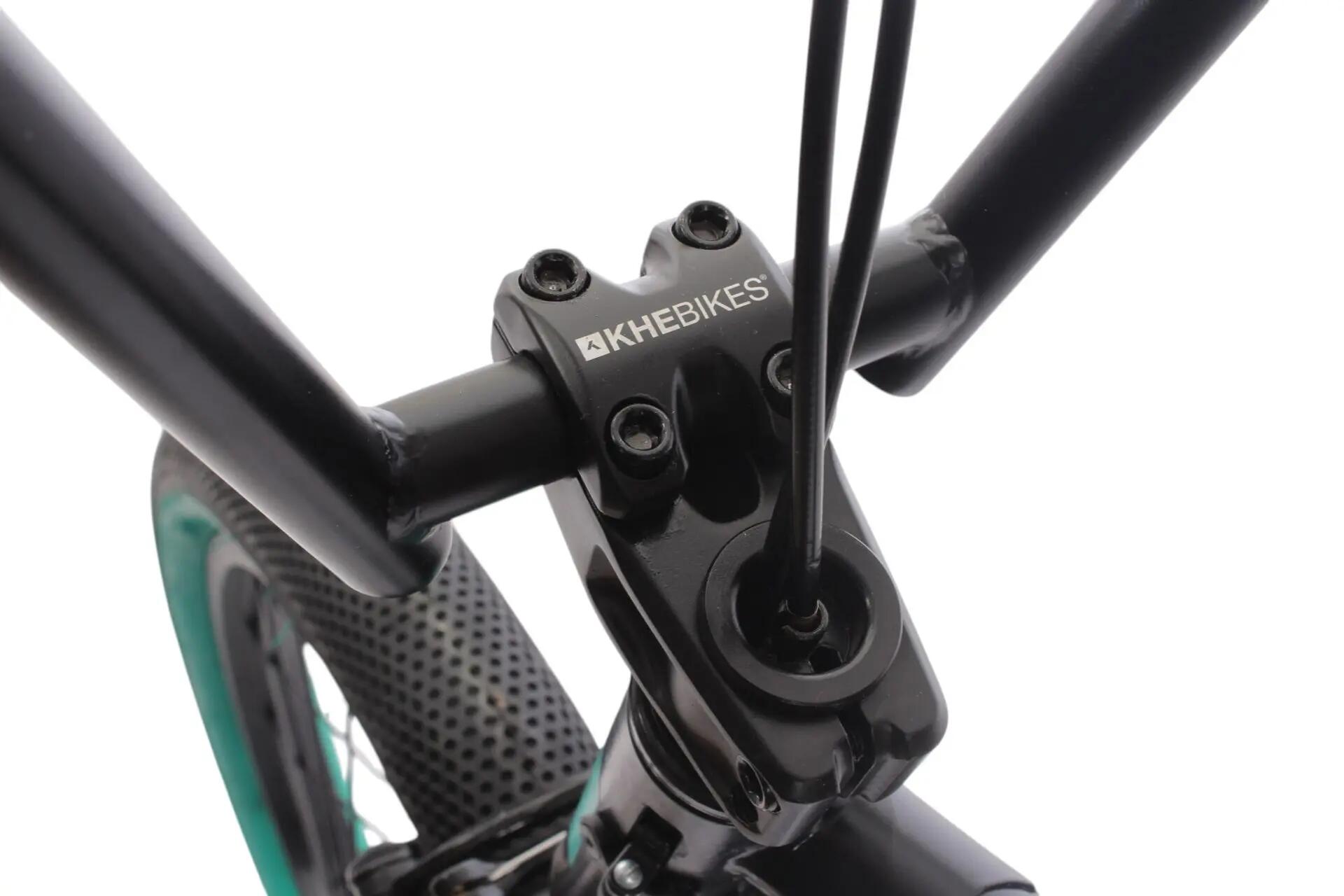

• KHE Top Load stem (50 mm / 2")
• Patented KHE AFFIX 360-degree rotor

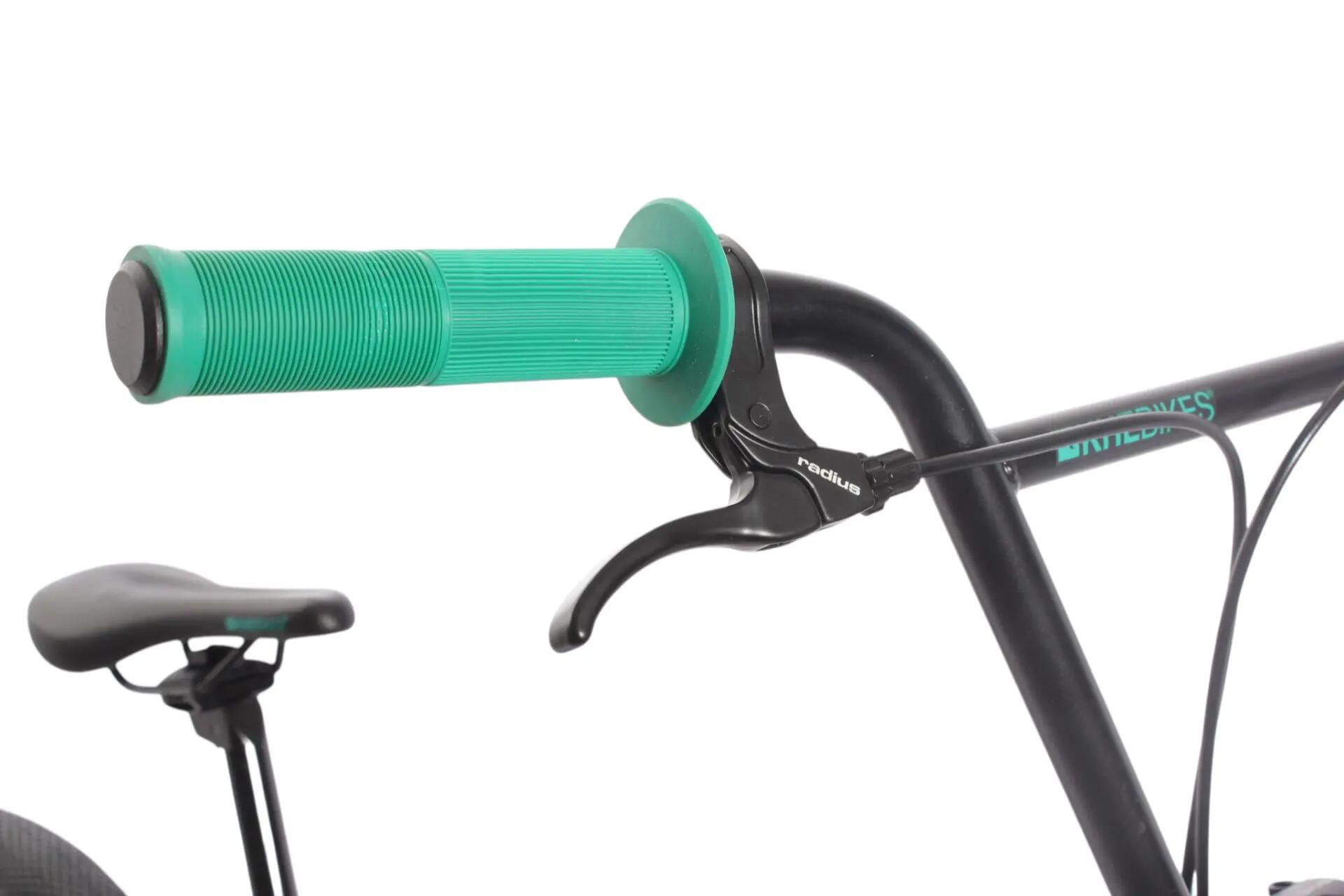

• Propalm Mushroom Style grips

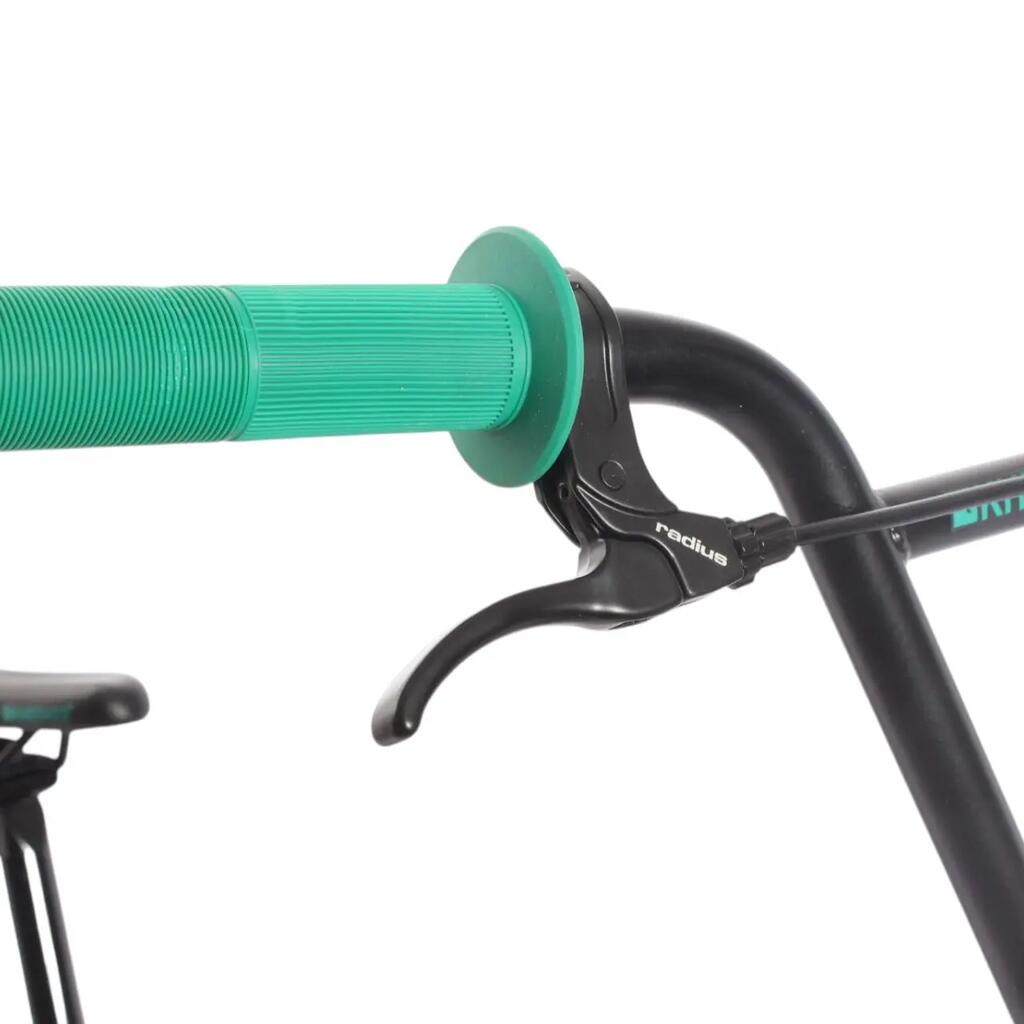

• Aluminium brake lever with hinge clamp
Brakes & Wheels:

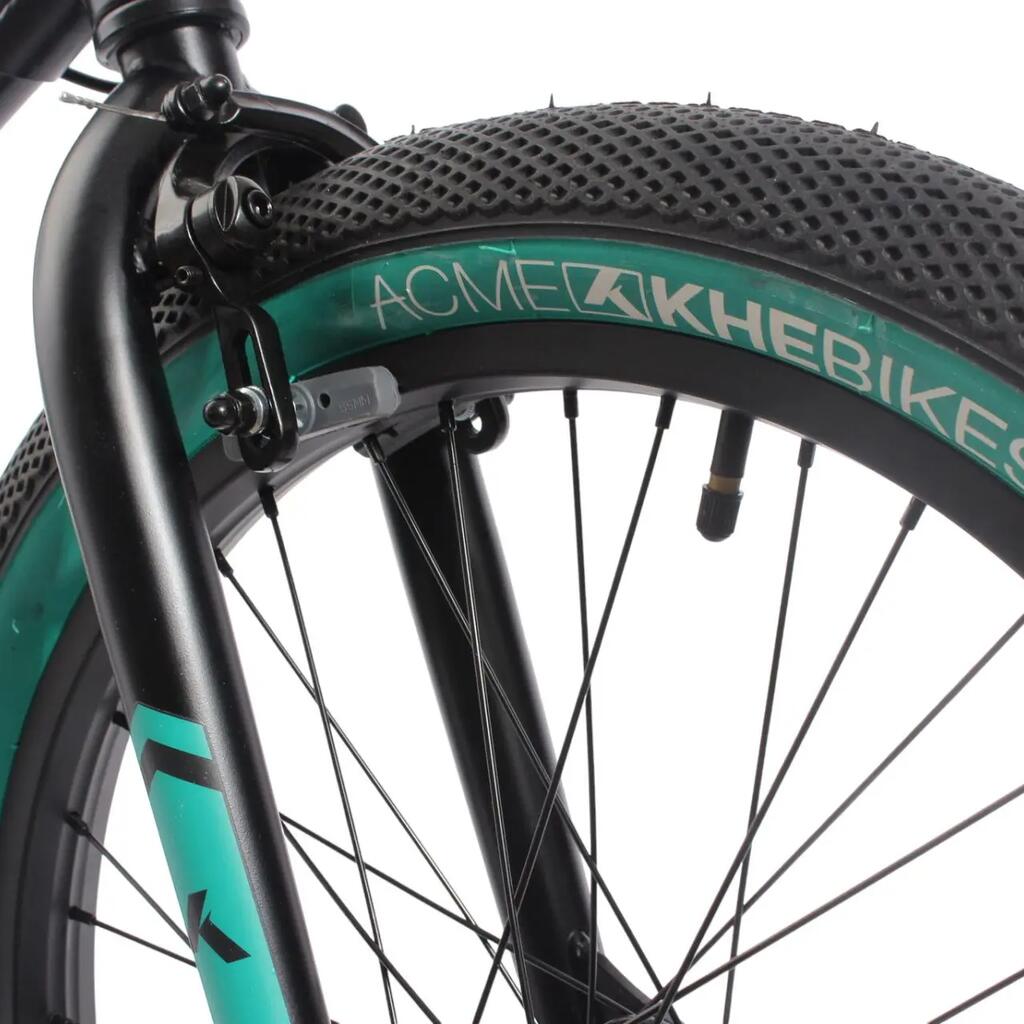

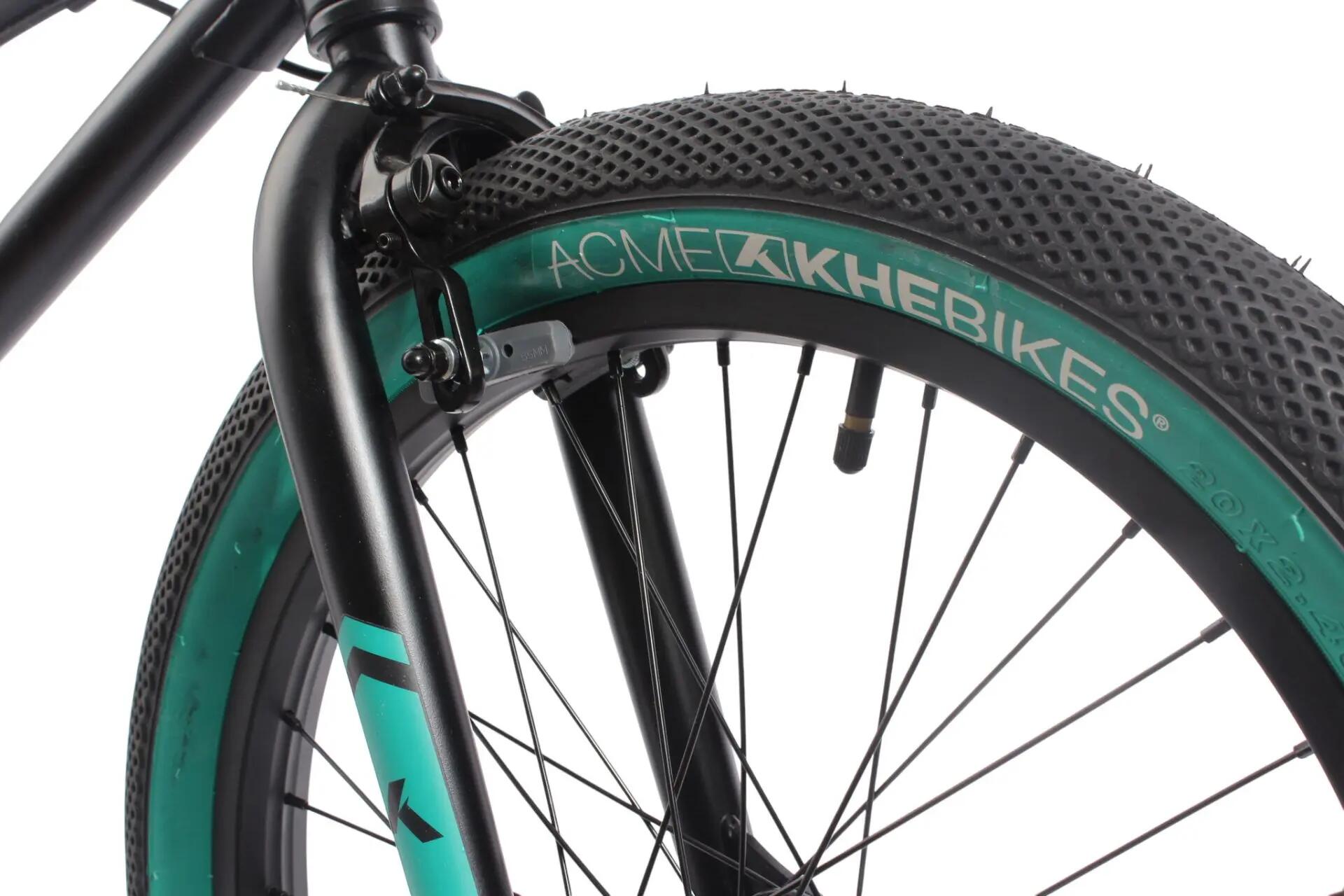

• KHE RADIUS aluminium U-brake front

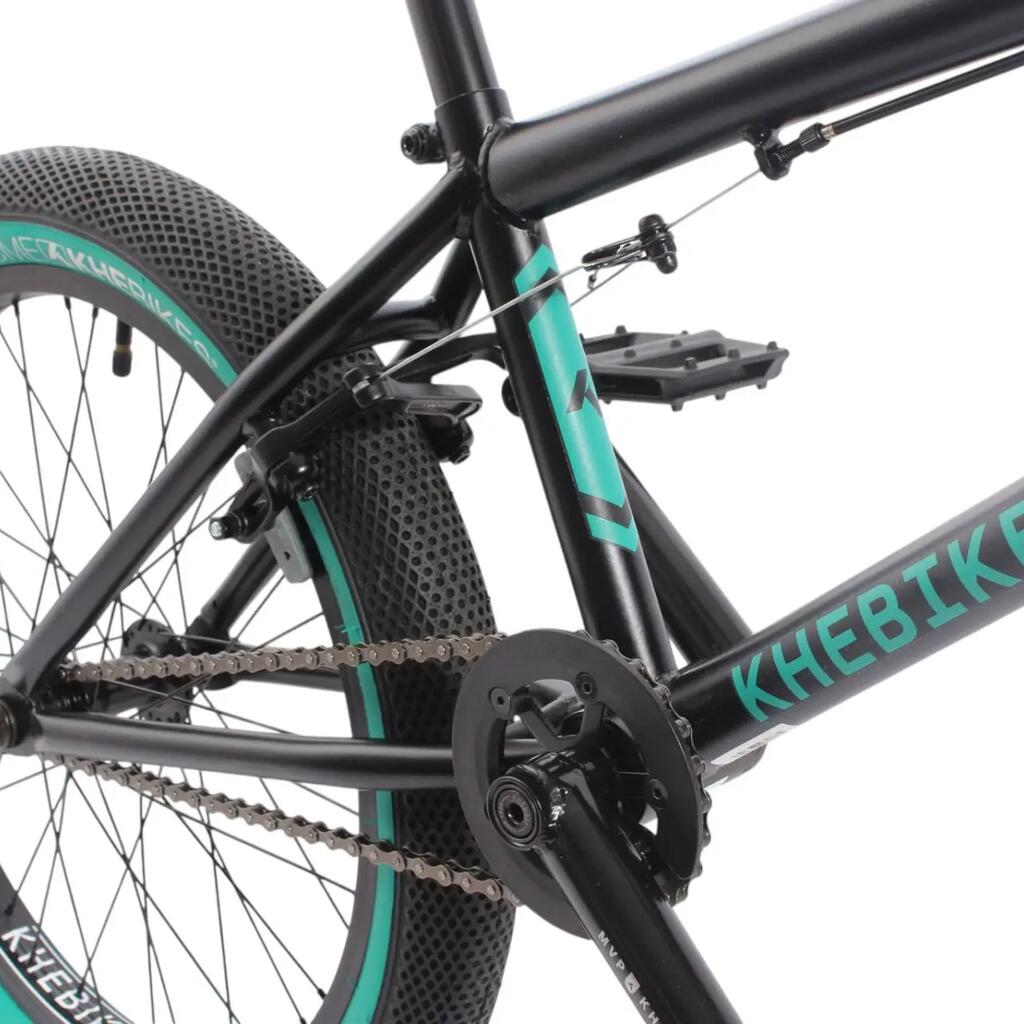

• KHE RADIUS aluminium U-brake rear
• 20-inch double-wall aluminium rims
• KHE ACME tyres 20 × 2.40"
• Sealed bearing hubs
Design:
• Frame, fork and handlebar in matt black
• KHE ACME tyres with turquoise sidewalls
• Turquoise flanged grips

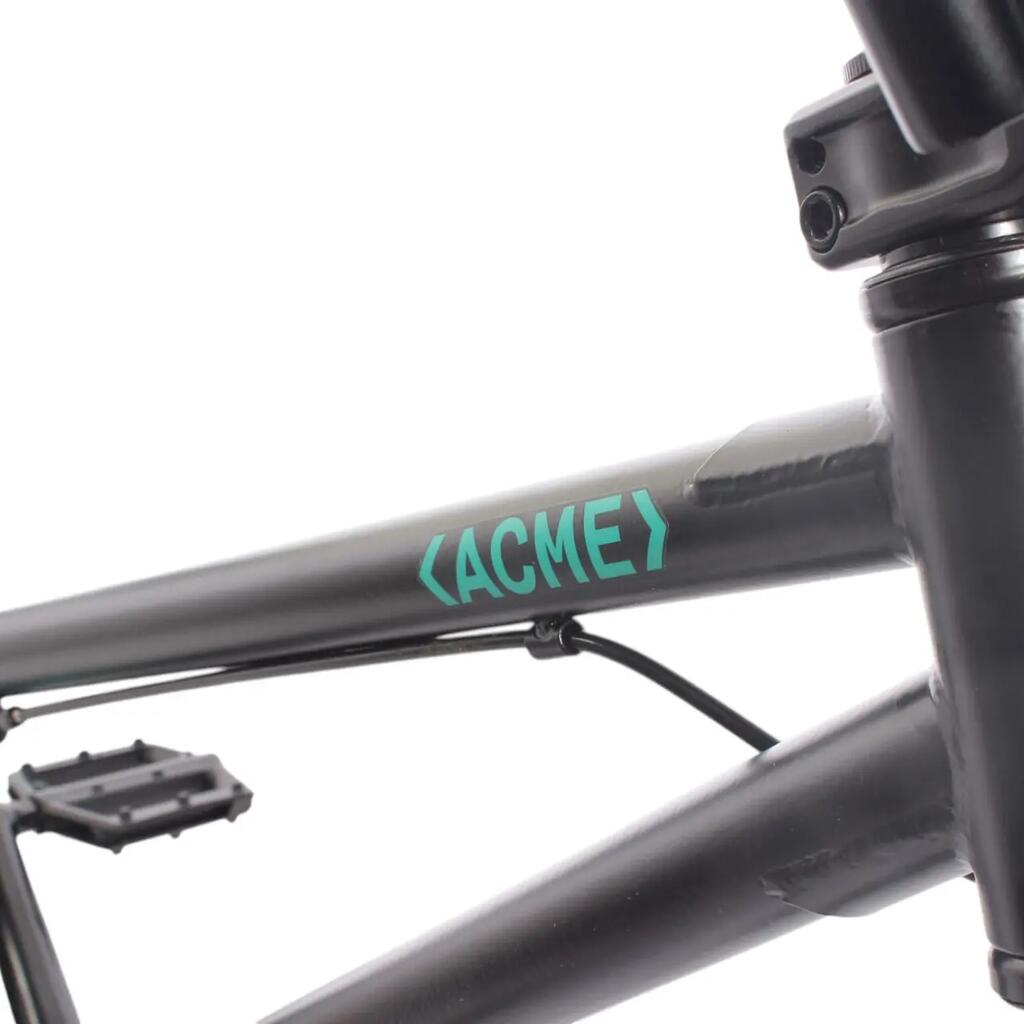

• Turquoise frame decals

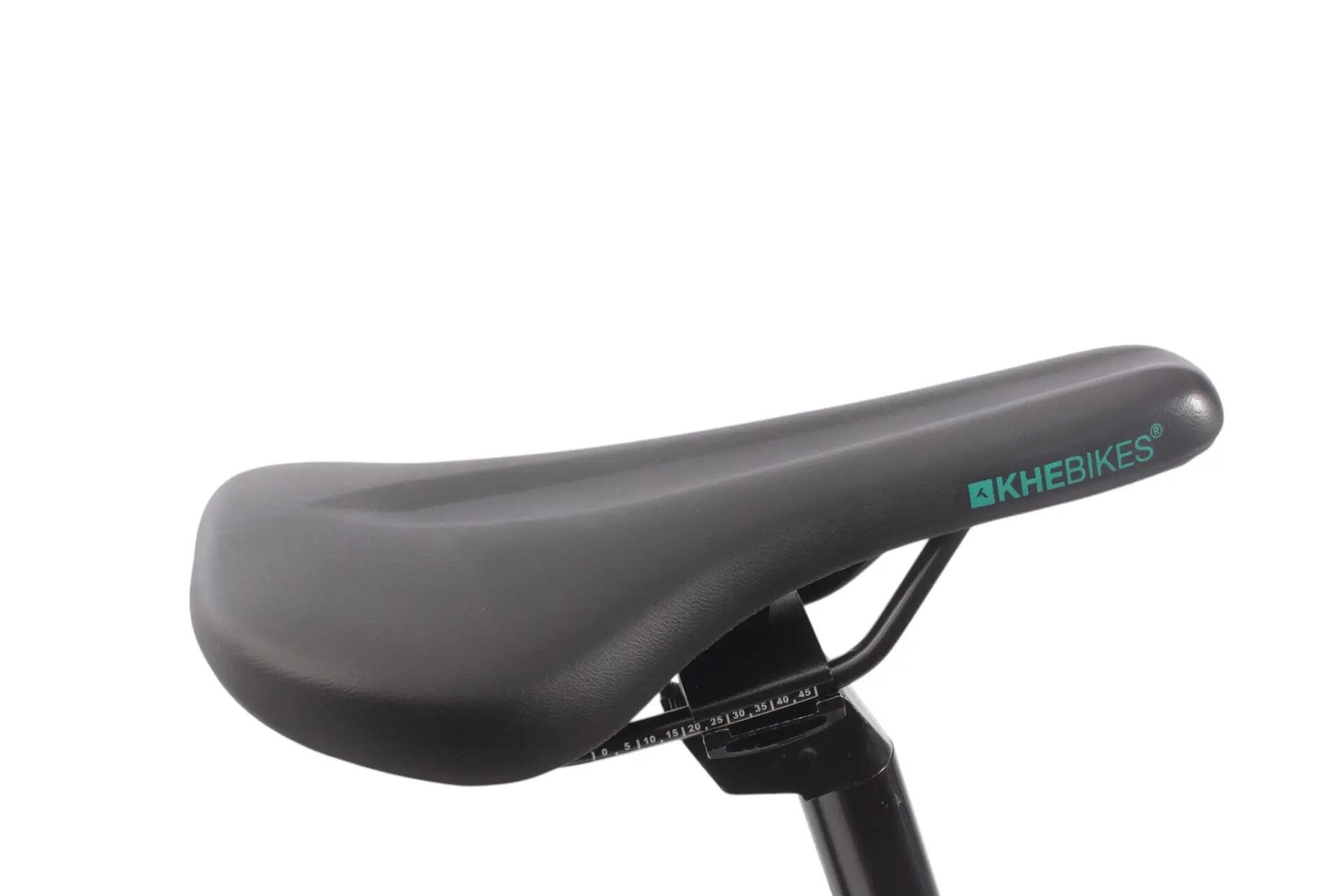

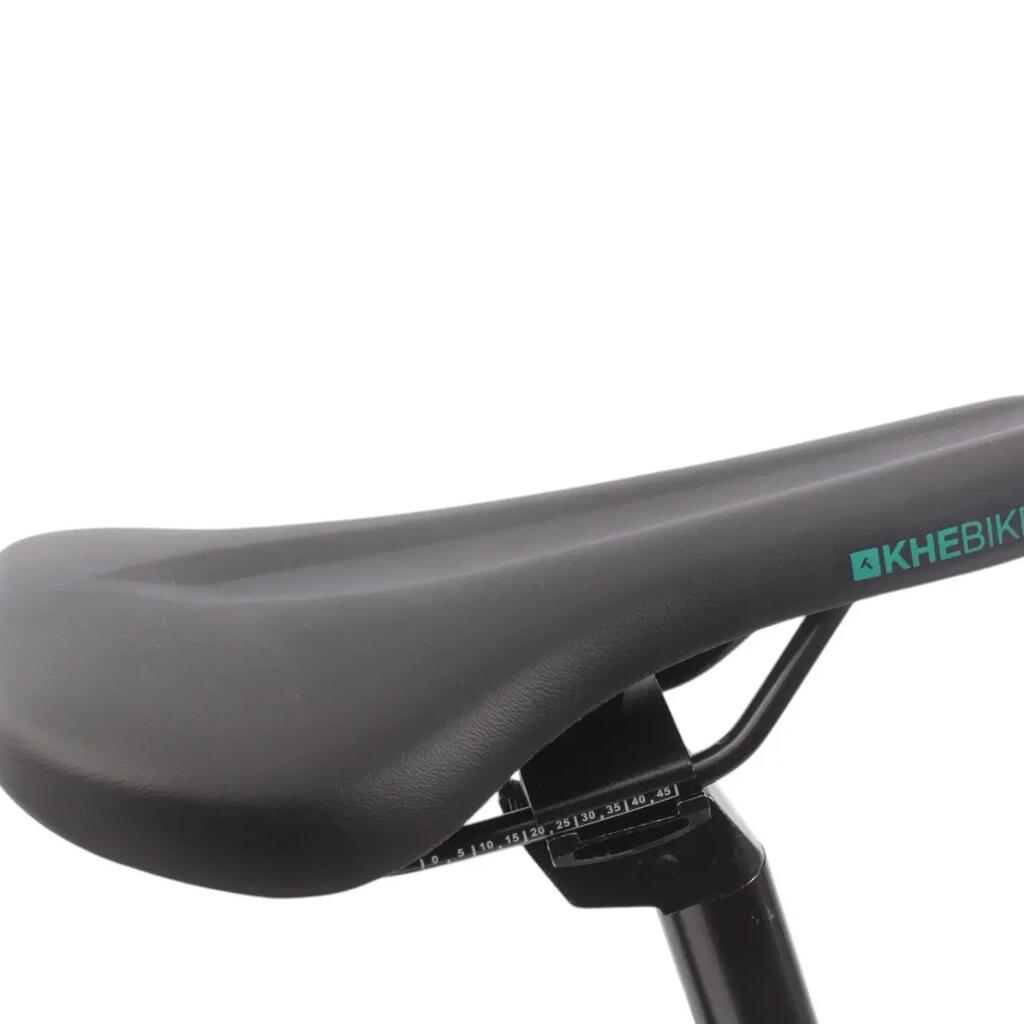

• Padded saddle with turquoise KHE logo
Technical Specifications
• Model: KHE ACME
• Model Year: 2025
• Frame: HiTen steel
• Fork: KHE 1020 HiTen steel

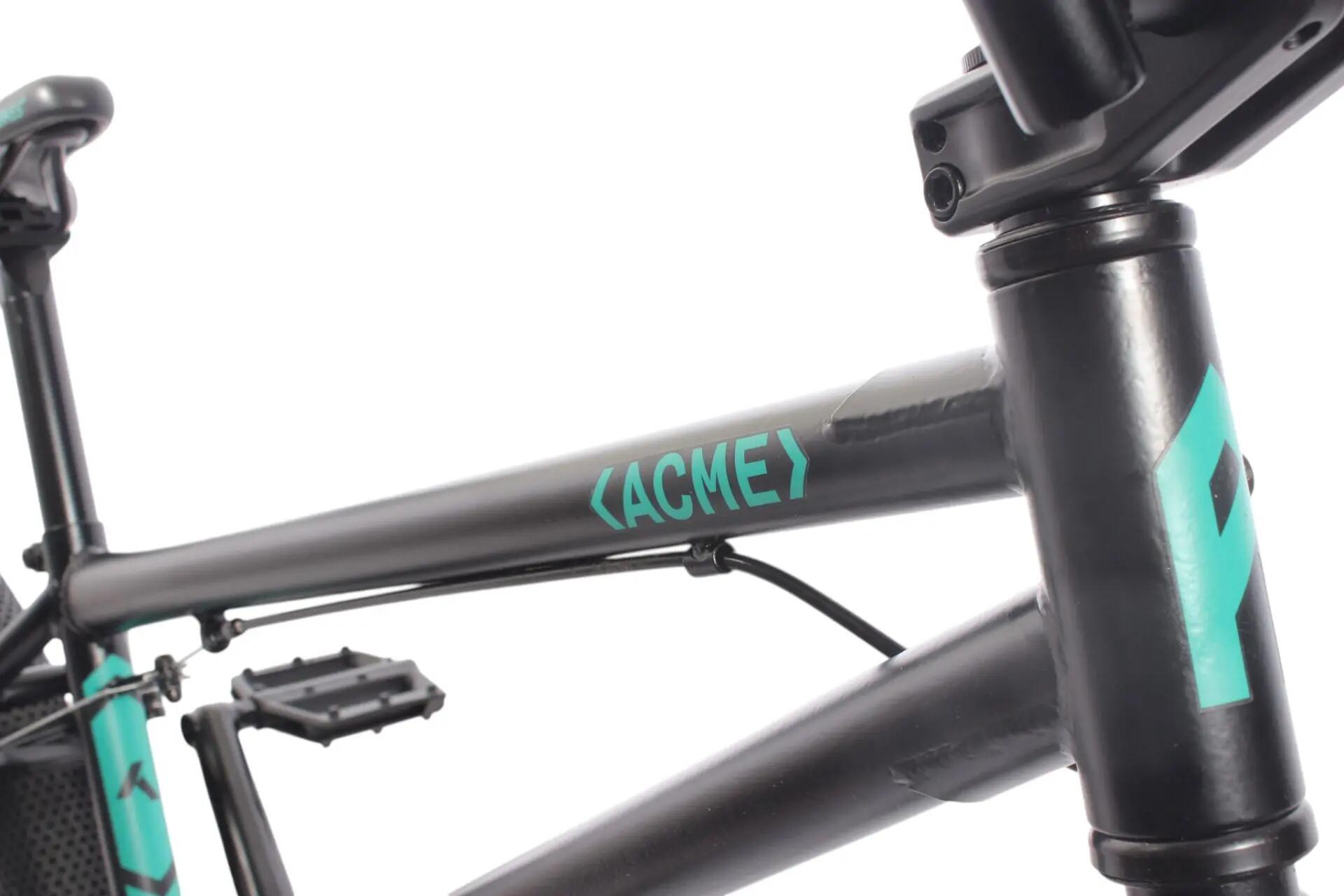

• Top Tube: 21.5" (540 mm / 21.3")
• Handlebar: 750 mm (29.5") wide × 254 mm (10") rise
• Stem: KHE Top Load (50 mm / 2")
• Rotor: KHE AFFIX 360°
• Crank: 170 mm 3-piece CrMo hollow crank
• Sprocket: 25T with nylon grind guard
• Bottom Bracket: Sealed MID BB with industrial bearings
• Headset: AFFIX Loosball 1 1/8"
• Hub Type: Cassette
• Rims: 20" double-wall aluminium, 36H
• Tyres: KHE ACME 20 × 2.40"
• Material: HiTen steel
• Colour: Matt black
• Weight: 11.1 kg (24.5 lbs)
Suitable for
• Rider Height: 175–205 cm (5'9"–6'9")
• Maximum Rider Weight: 130 kg (287 lbs)
• Riding Style: Street / Park / Dirt / Pump Track
Why choose the KHE ACME 20 Inch from KHEbikes?
✓ Specifically designed for tall riders up to 205 cm (6'9") and 130 kg (287 lbs)
✓ Extra-long 21.5" top tube for more room and control
✓ 10" rise handlebar for ergonomics tailored to taller riders
✓ 3-piece CrMo hollow crank with sealed MID BB bottom bracket
✓ Nylon grind guard protects the sprocket during grinds
✓ Patented KHE AFFIX 360° rotor with front and rear U-brakes
✓ Only 11.1 kg (24.5 lbs) despite the long frame and premium equipment
Compatibility
• Front Pegs: 10 mm
• Rear Pegs: 14 mm
• Recommended: KHE CNC PRO Pegs or KHE LASER PRO Pegs
Delivery & Notes
Delivery Condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components must be correctly assembled and checked.
Note: The KHE ACME is equipped with KHE RADIUS aluminium U-brakes at the front and rear.
