Product Description

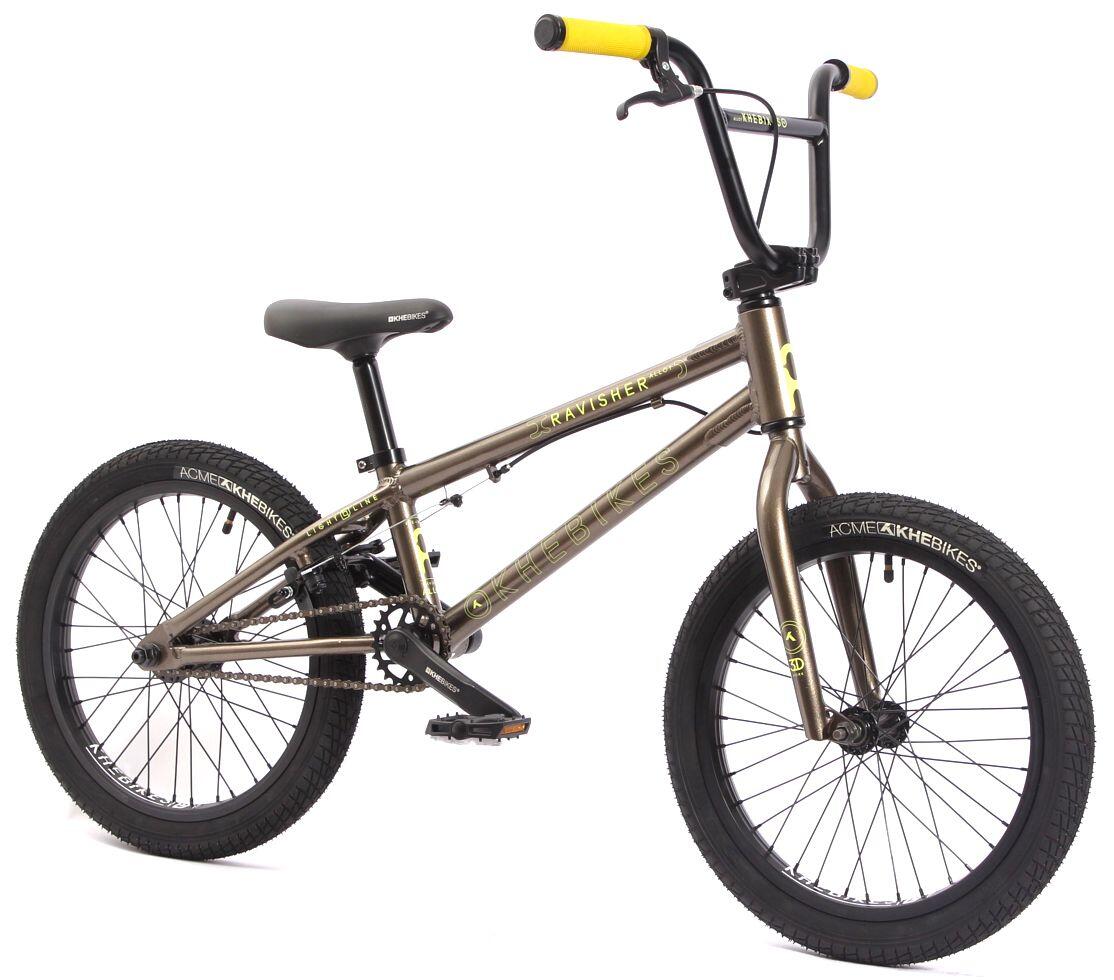

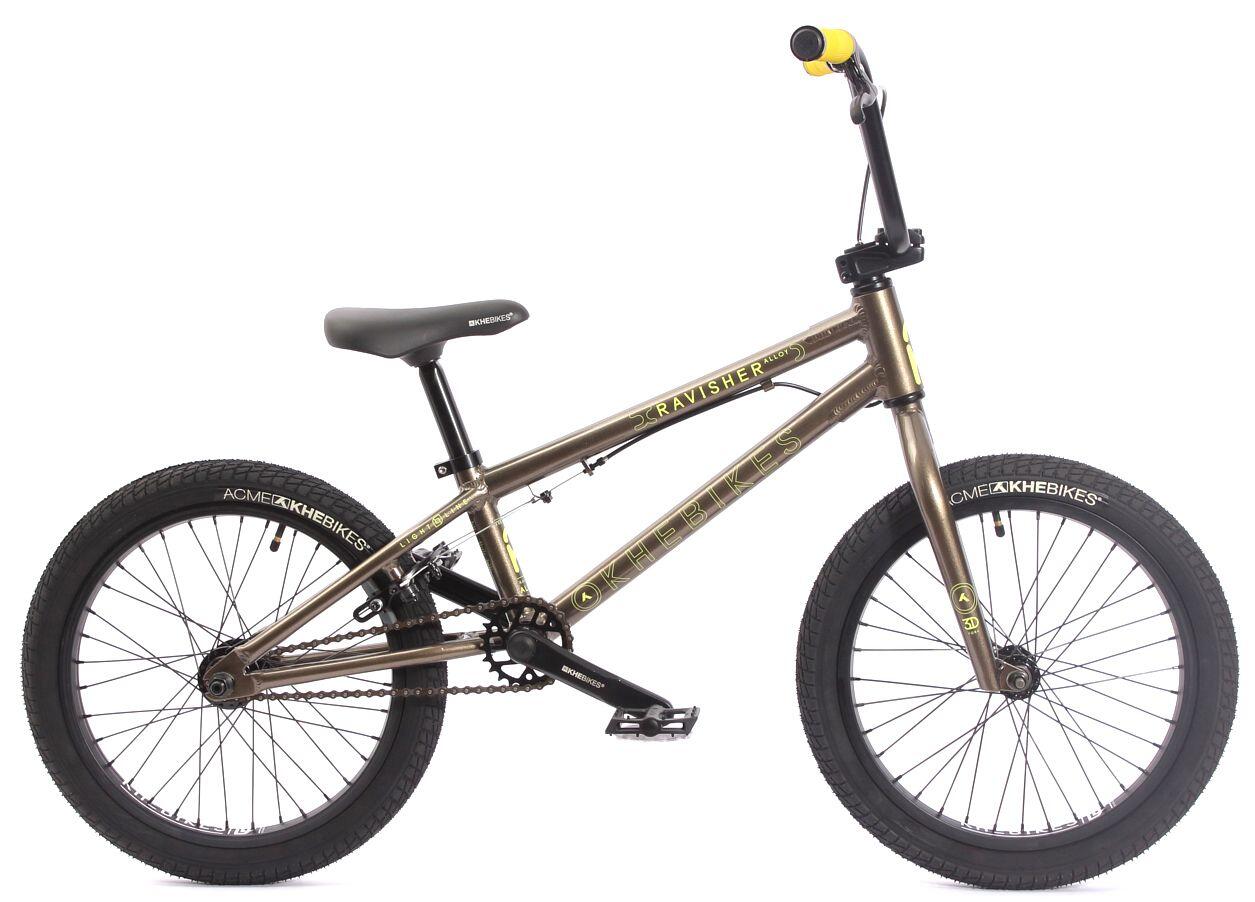

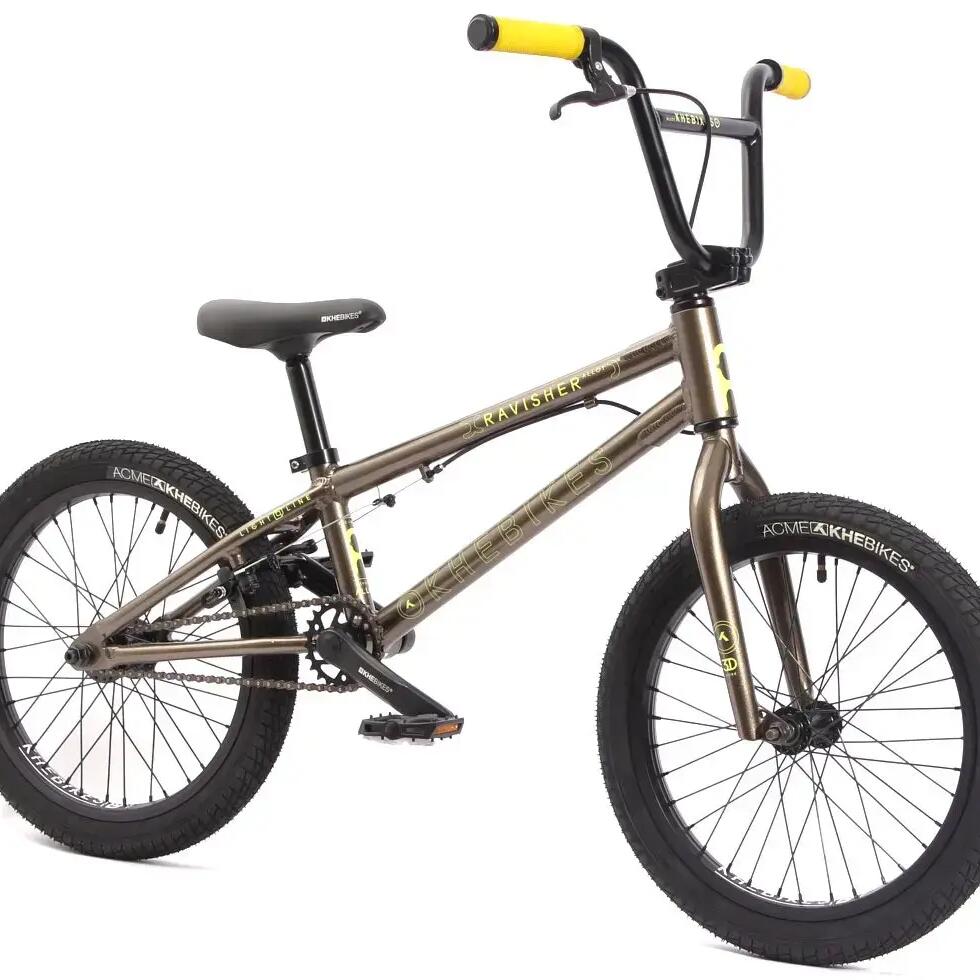

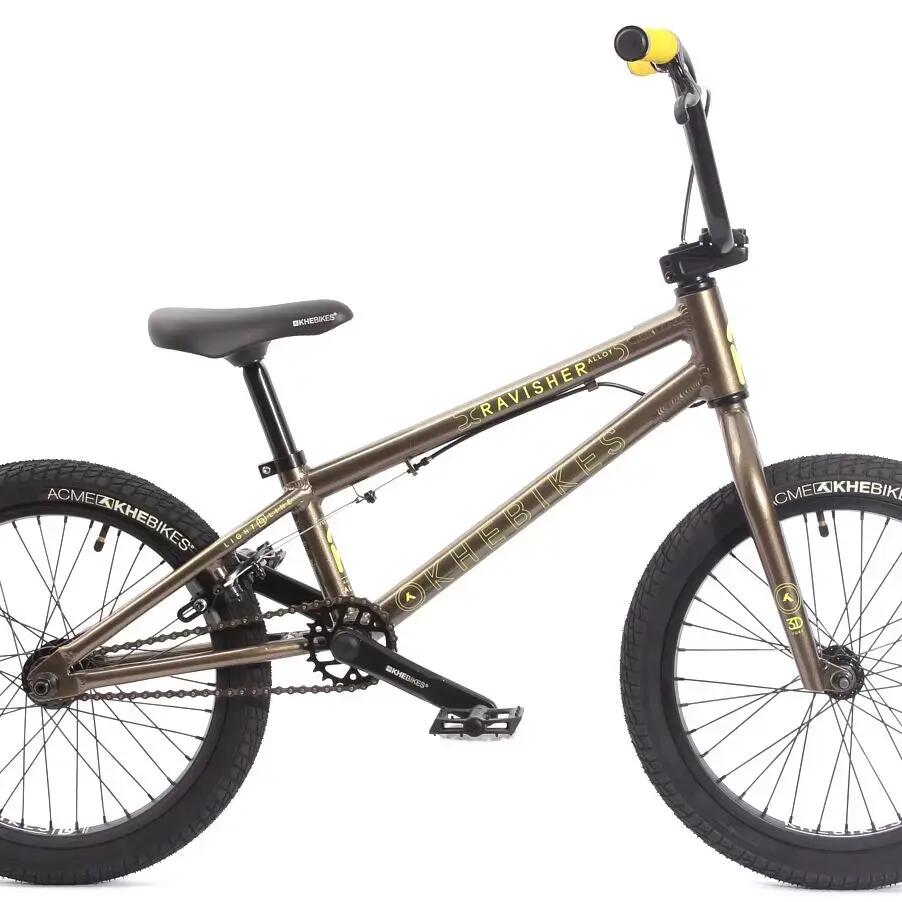

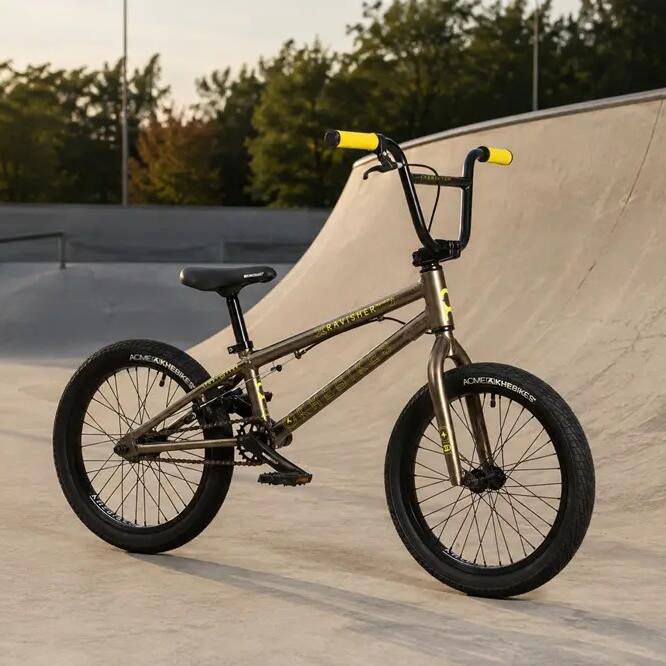

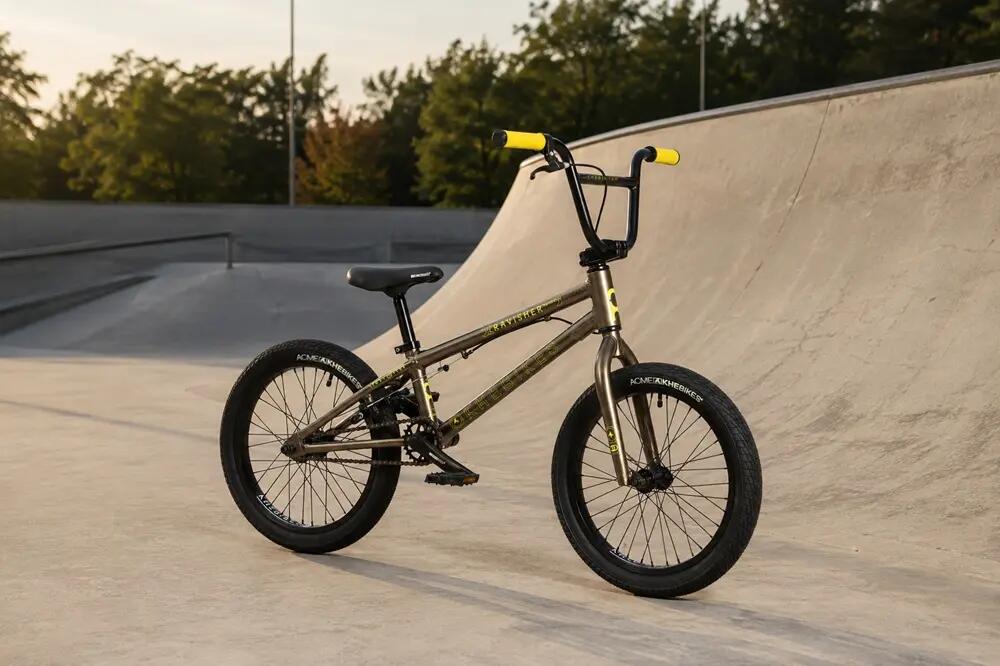

KHE RAVISHER LL FC 18" BMX 2025 with Freecoaster
The KHE RAVISHER LL FC 18" is an exceptionally lightweight BMX for Park, Street, Flatland and Pumptrack. The KHE Greyhound Freecoaster hub allows backward rolling without the cranks turning, making it ideal for technical tricks and fakie manoeuvres. A lightweight aluminium frame, 640 mm wide aluminium handlebar and compact 18" geometry provide agile handling. At only 8.8 kg, with the patented KHE AFFIX rotor system and a 23/9 gear ratio, the RAVISHER LL FC offers an outstanding setup for advanced young BMX riders.
Equipment

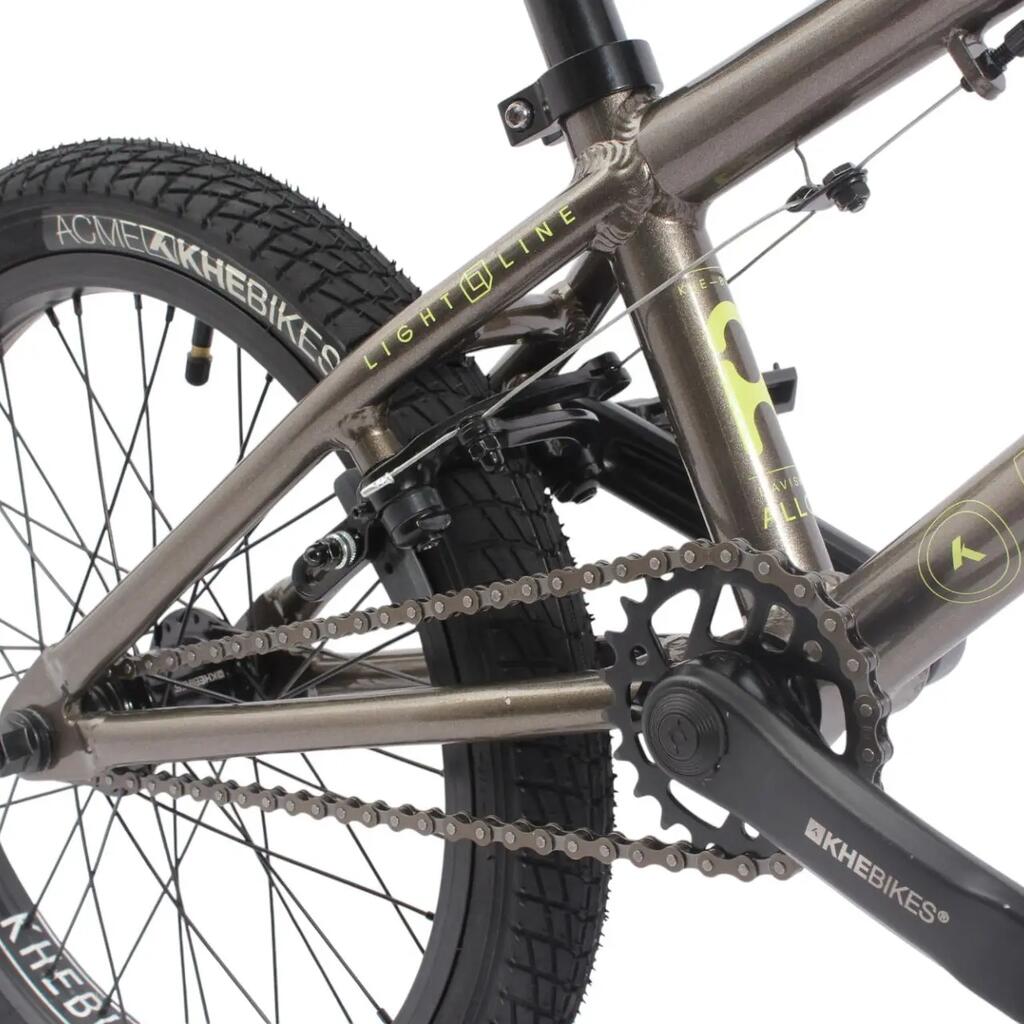

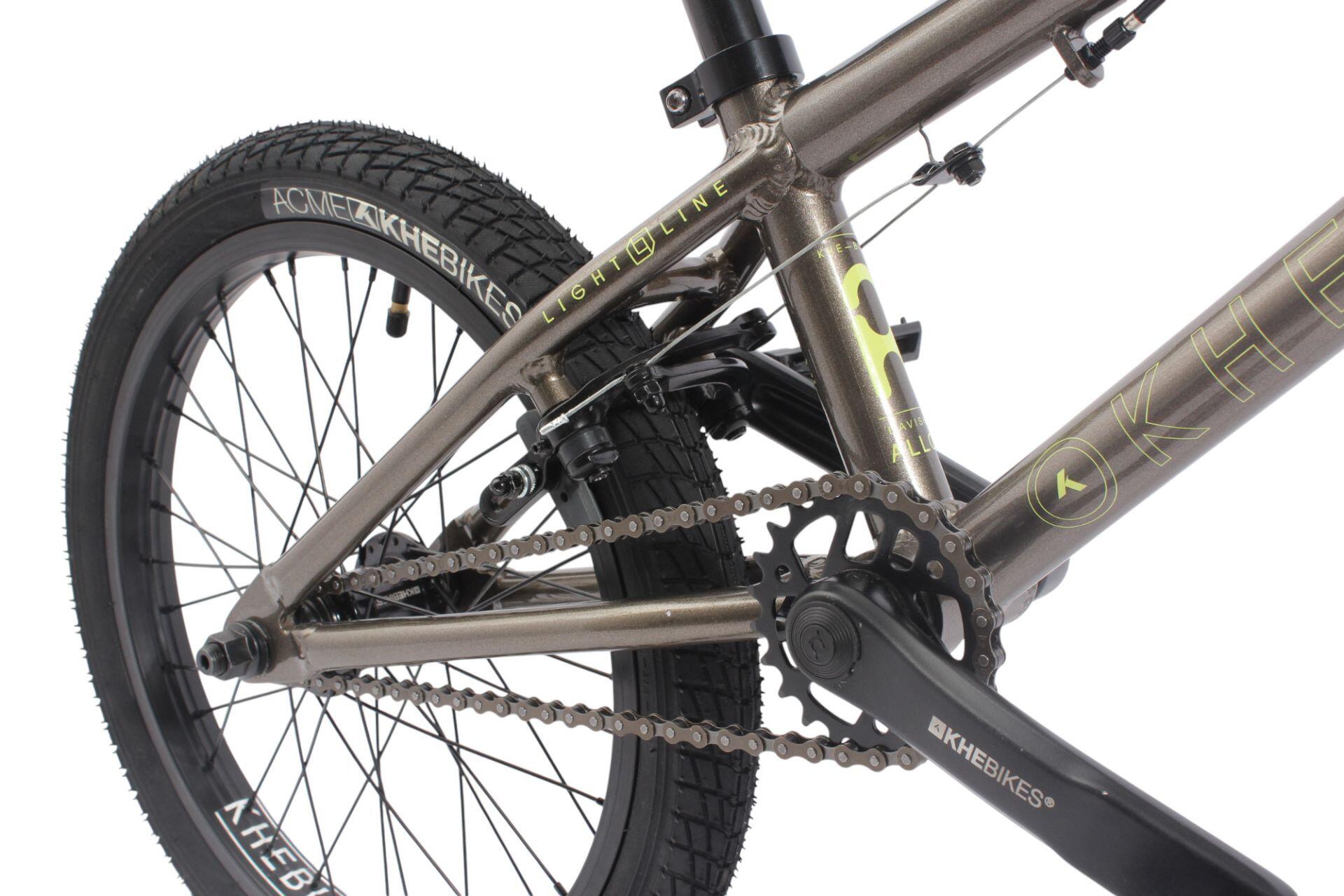

Drivetrain:
• KHE Greyhound Freecoaster
• 3-piece 152 mm aluminium crank
• 23T steel chainring

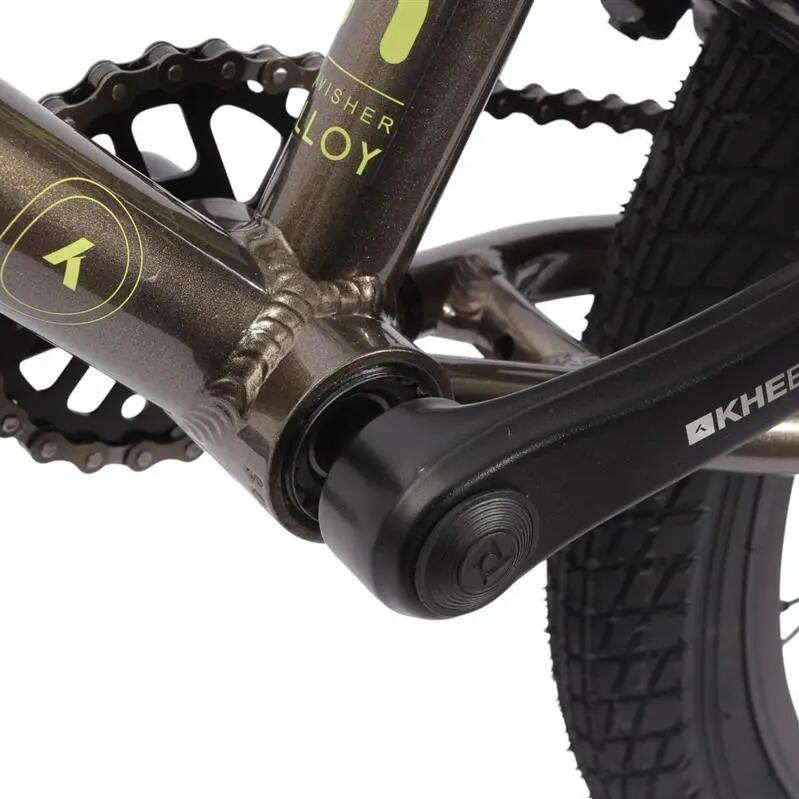

• Sealed EURO BB bottom bracket with industrial bearings
• YBN CN ST chain
• 9T Freecoaster hub
Cockpit:

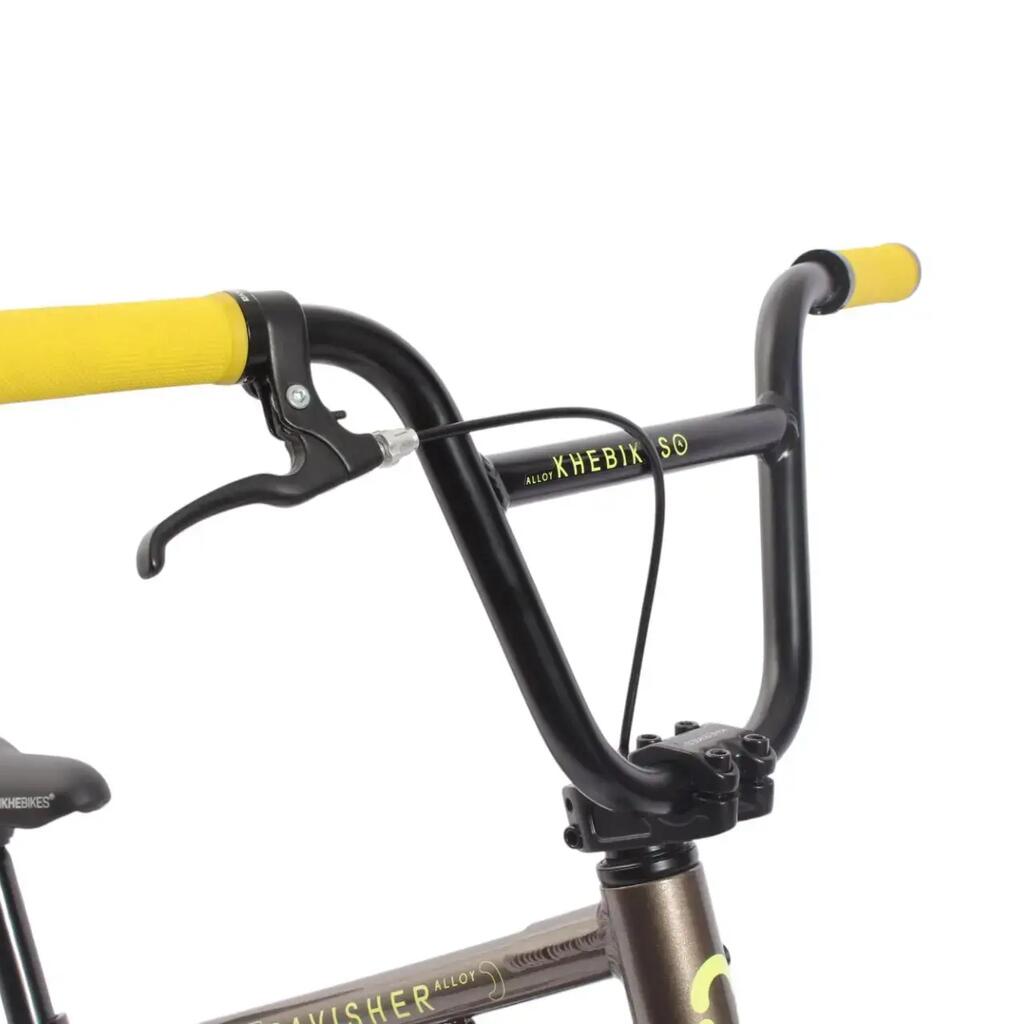

• KHE aluminium handlebar, 640 mm wide and 7.9" high

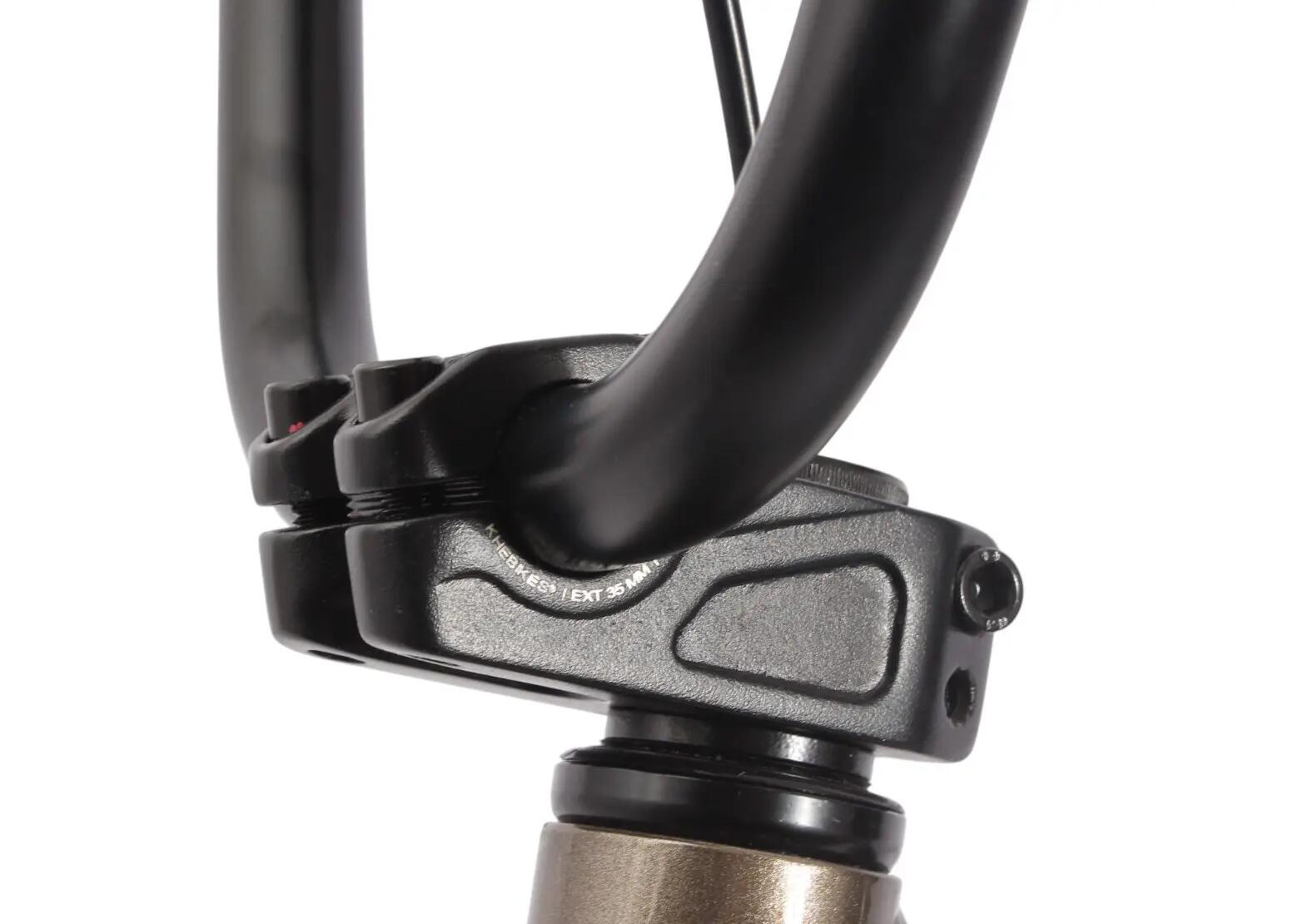

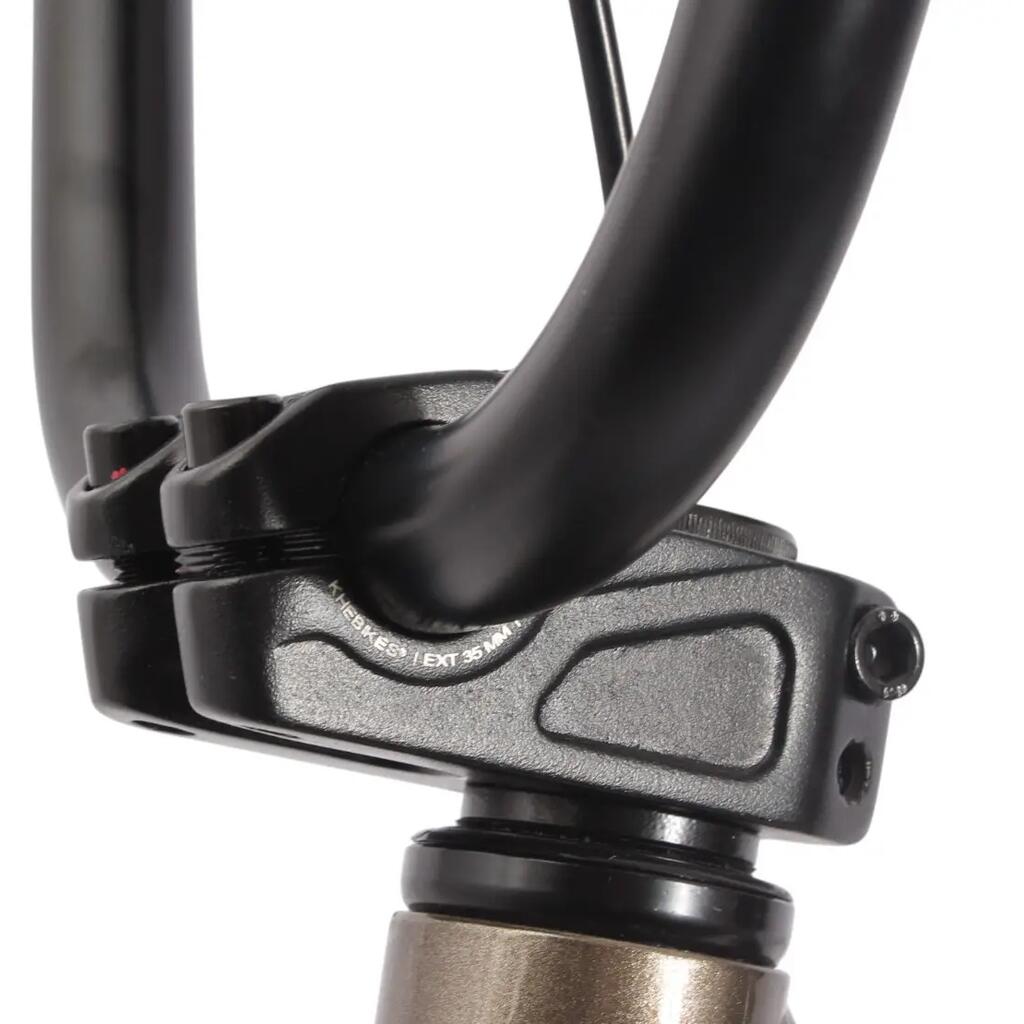

• KHE Top Loader stem (40 mm)
• Patented KHE AFFIX 360-degree rotor

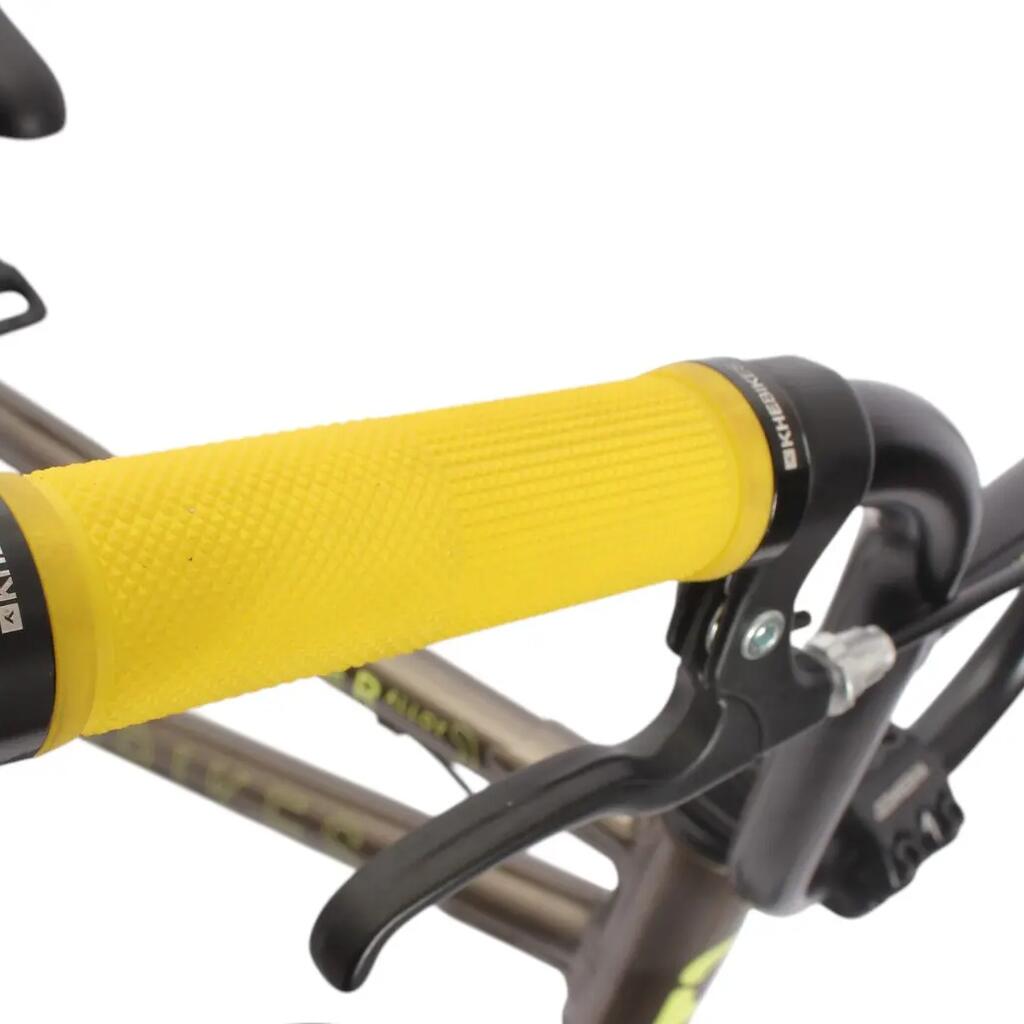

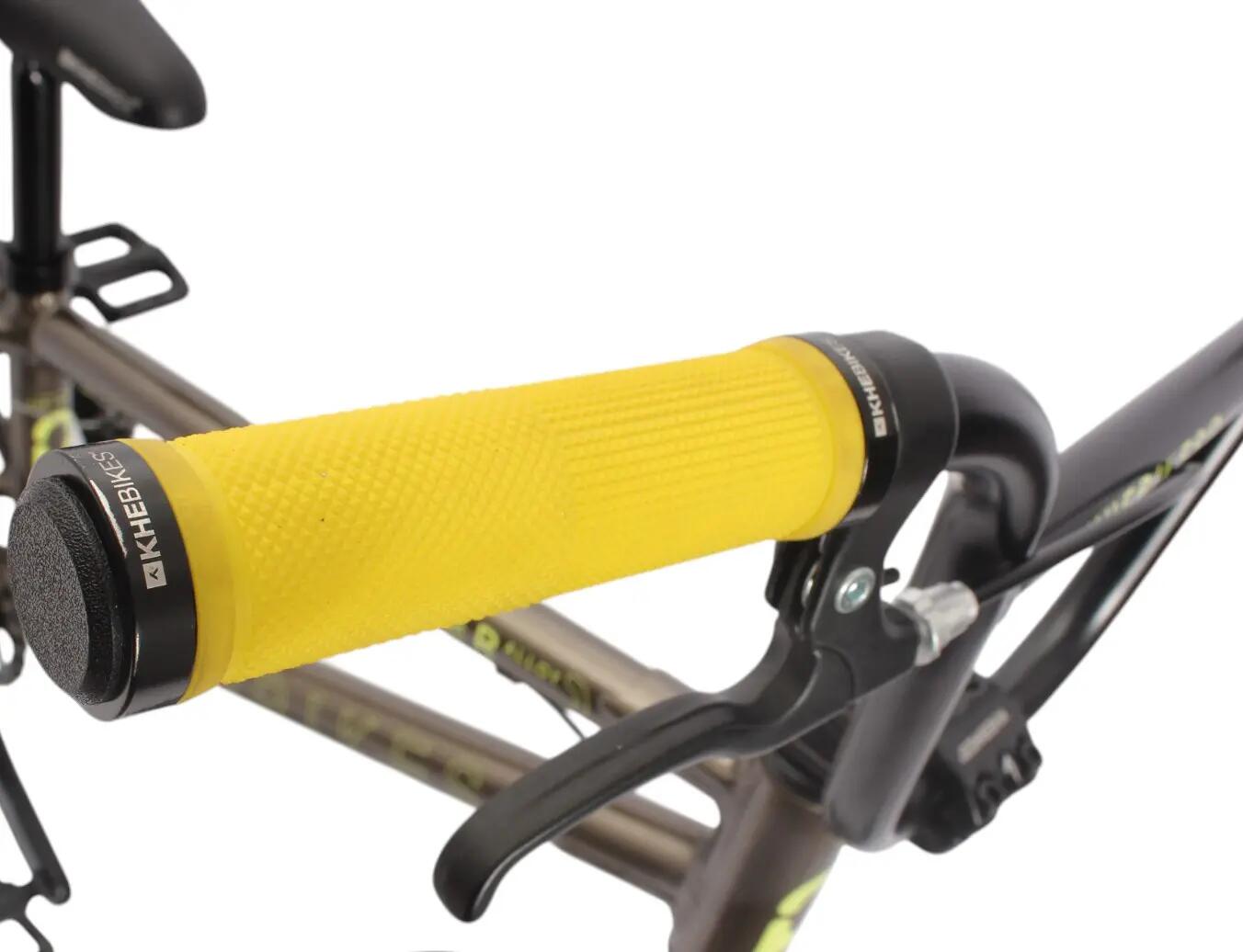

• Aluminium brake lever with adjustment screw
Brakes & Wheels:
• KHE RADIUS aluminium U-Brake rear
• Sidepull brake front
• KHE DD 18" double-wall aluminium rims

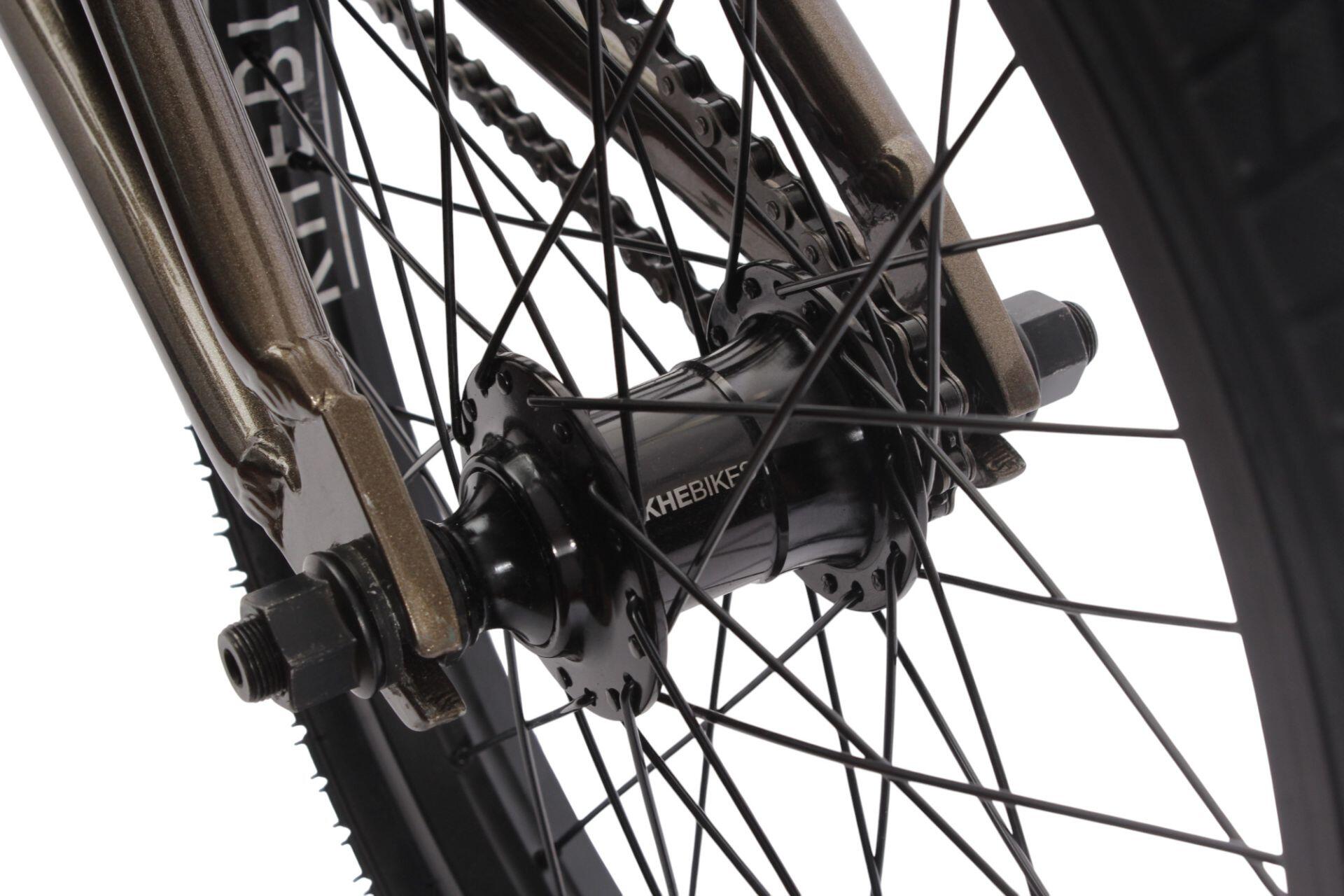

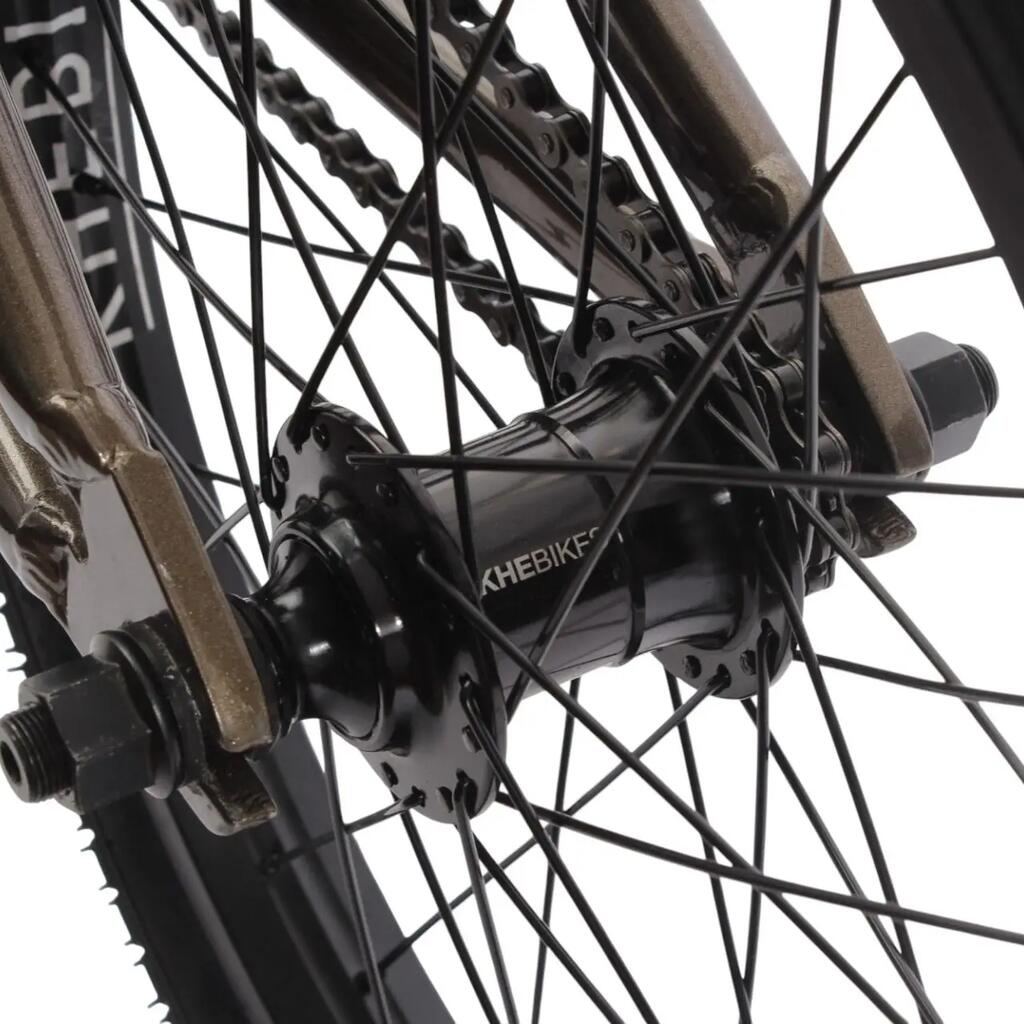

• Industrial-bearing front hub
• KHE Greyhound Freecoaster rear hub

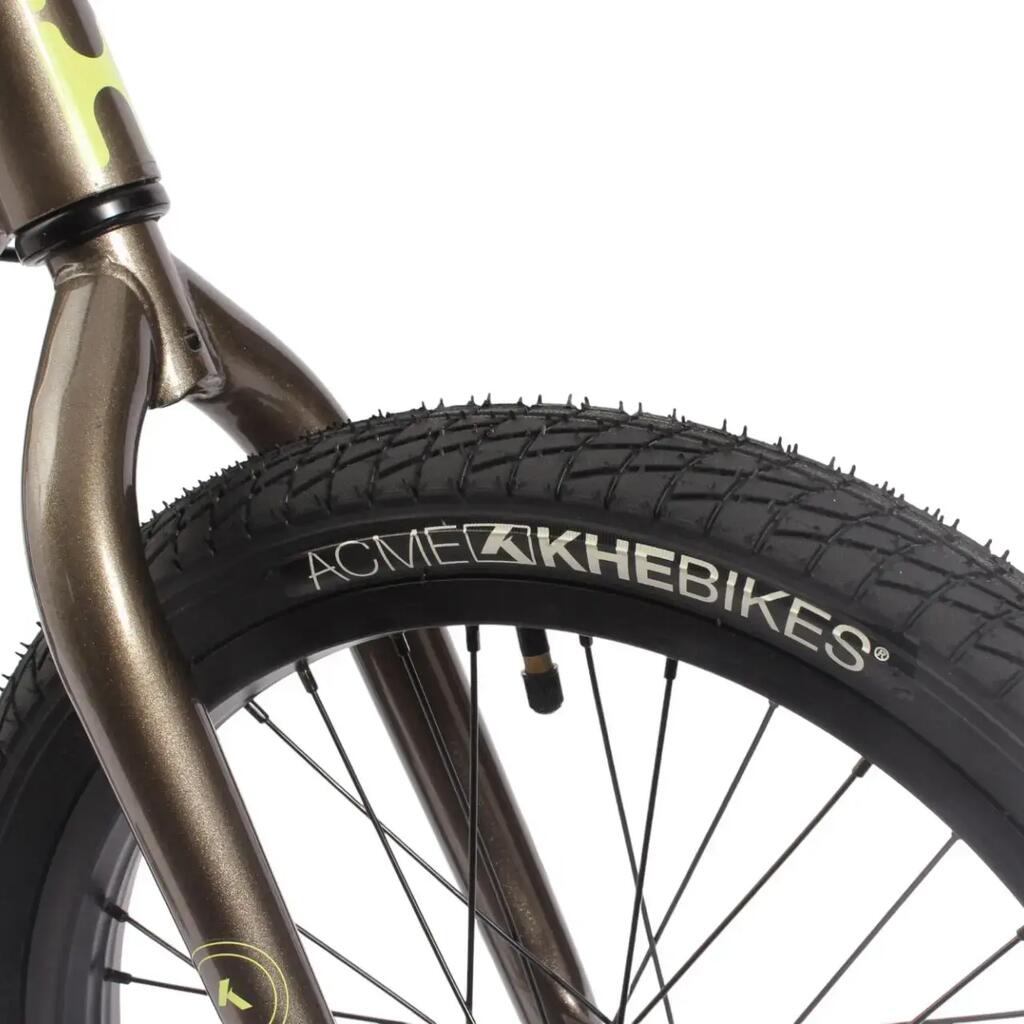

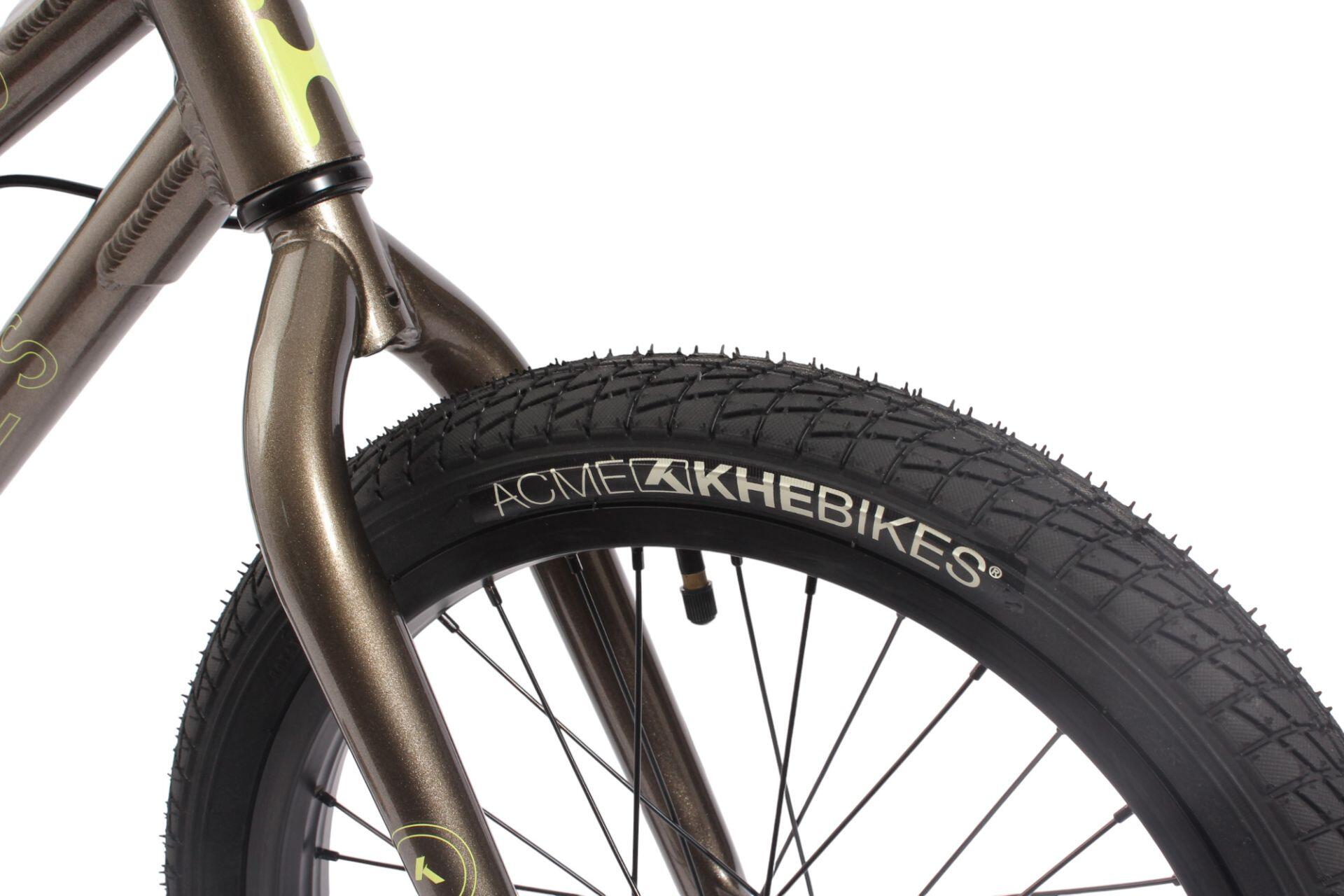

• KHE ACME tyres 18 × 2.125"
• 10 mm front axle
• 14 mm rear axle
Frame & Components:

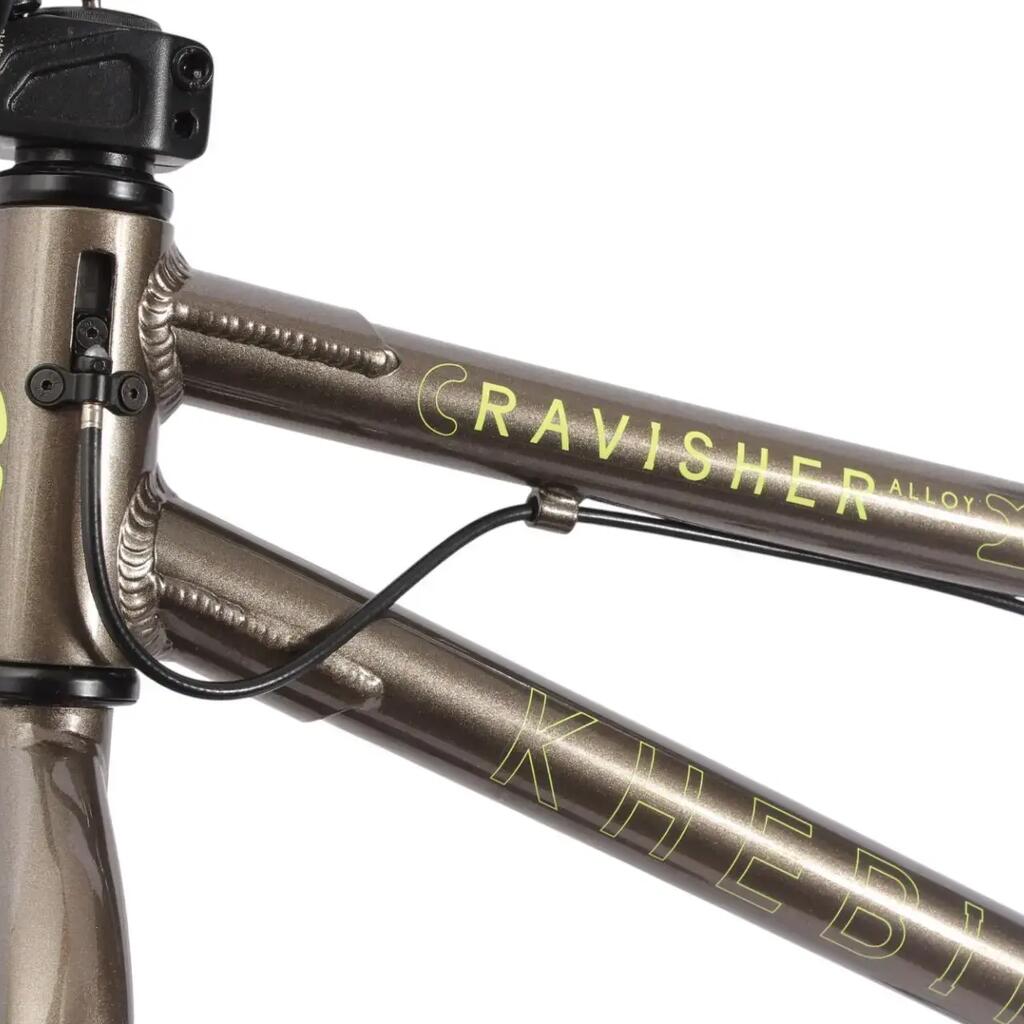

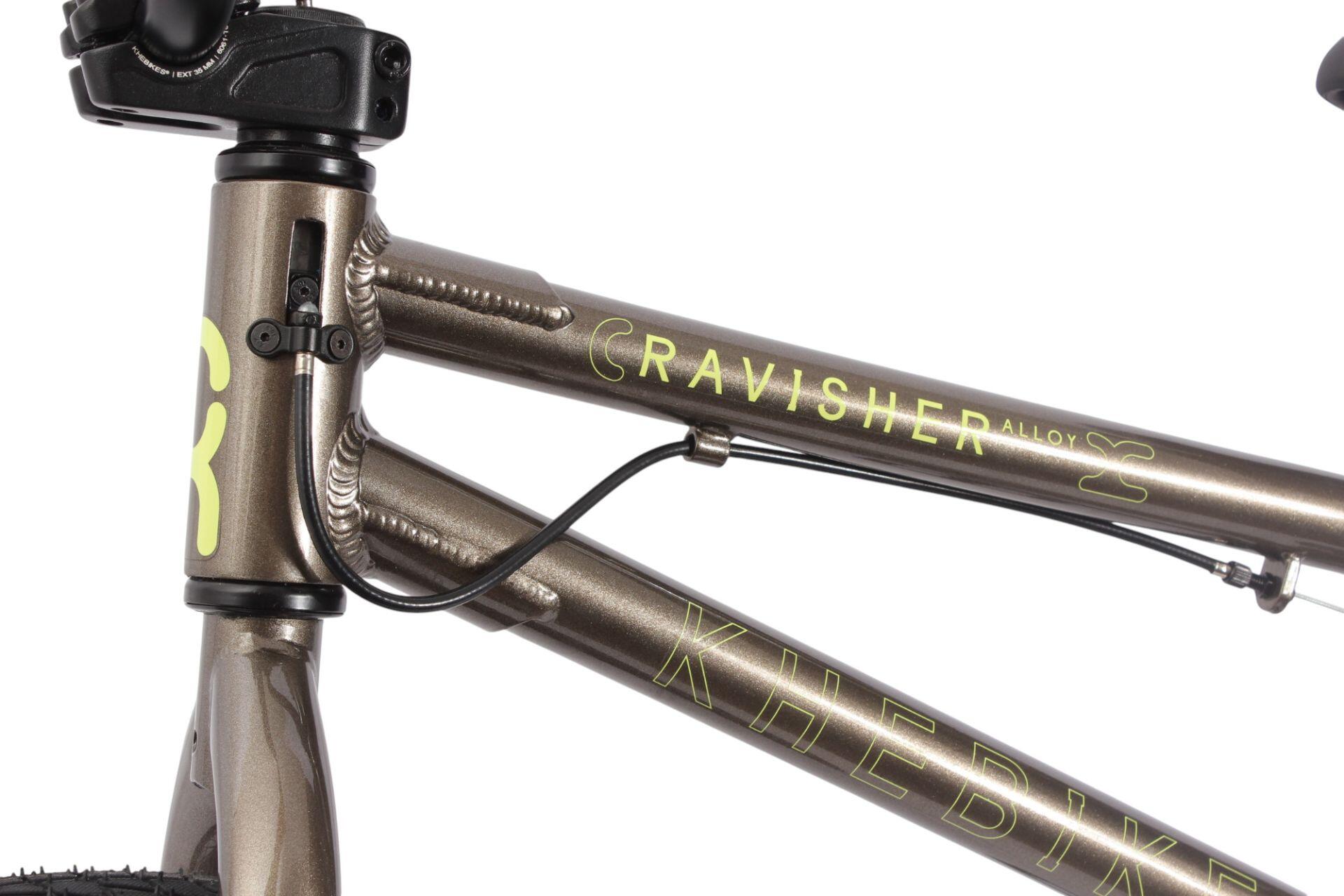

• Lightweight aluminium frame
• KHE 1020 HiTen steel fork

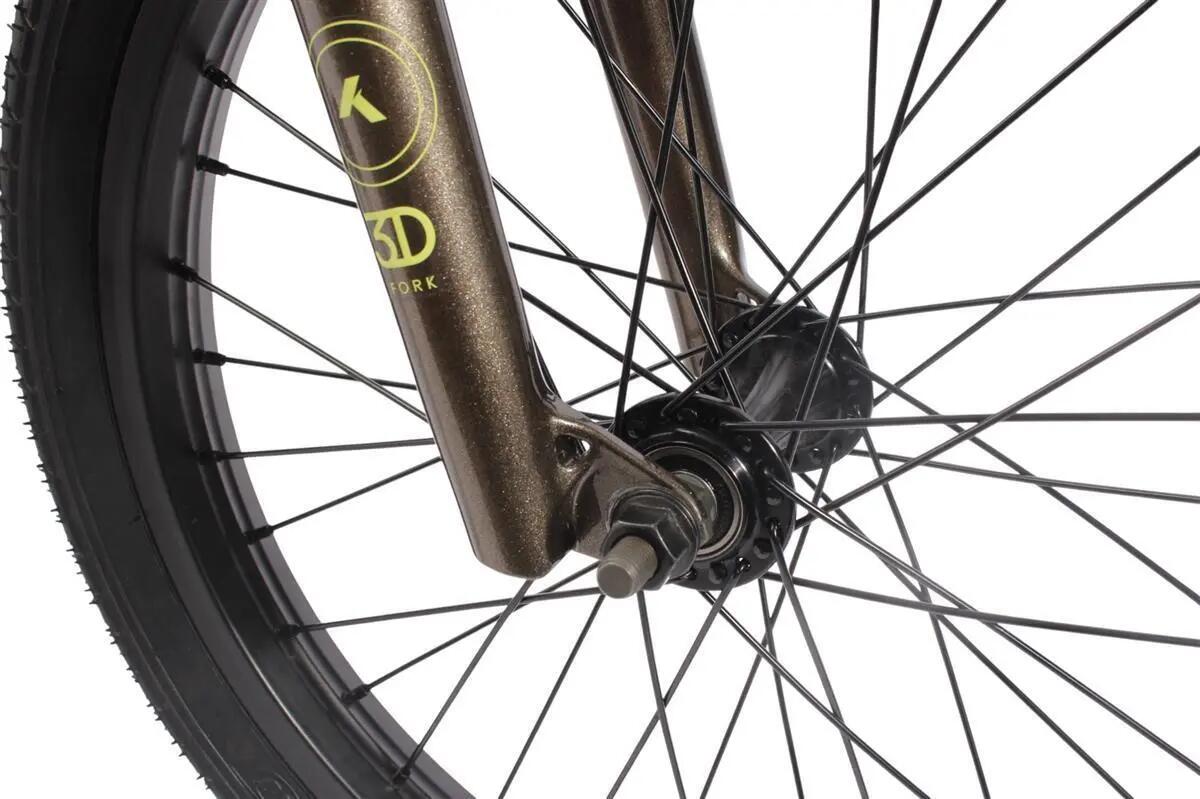

• 3D dropouts on the fork
• Aluminium handlebar
• Padded KHE saddle
• Integrated seat post
Technical Data
• Model: KHE RAVISHER LL FC
• Model year: 2025
• Frame: Aluminium
• Fork: KHE 1020 HiTen steel with 3D dropouts
• Top tube: 18" (457 mm)
• Chainstay: 311 mm
• Head angle: 75 degrees
• Fork offset: 27 mm

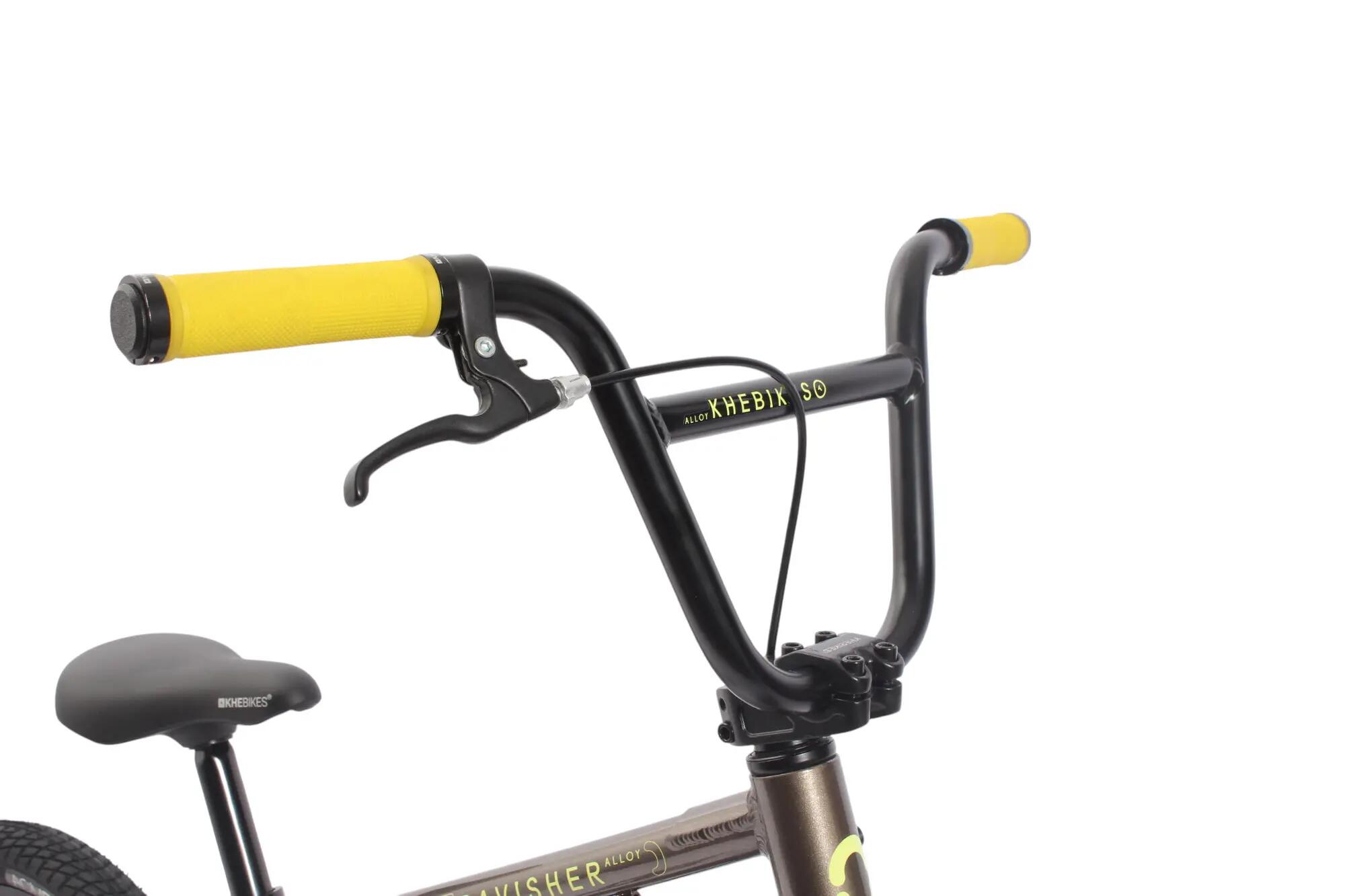

• Handlebar: KHE aluminium, 640 mm wide × 200 mm (7.9") high
• Backsweep: 10 degrees
• Upsweep: 1 degree

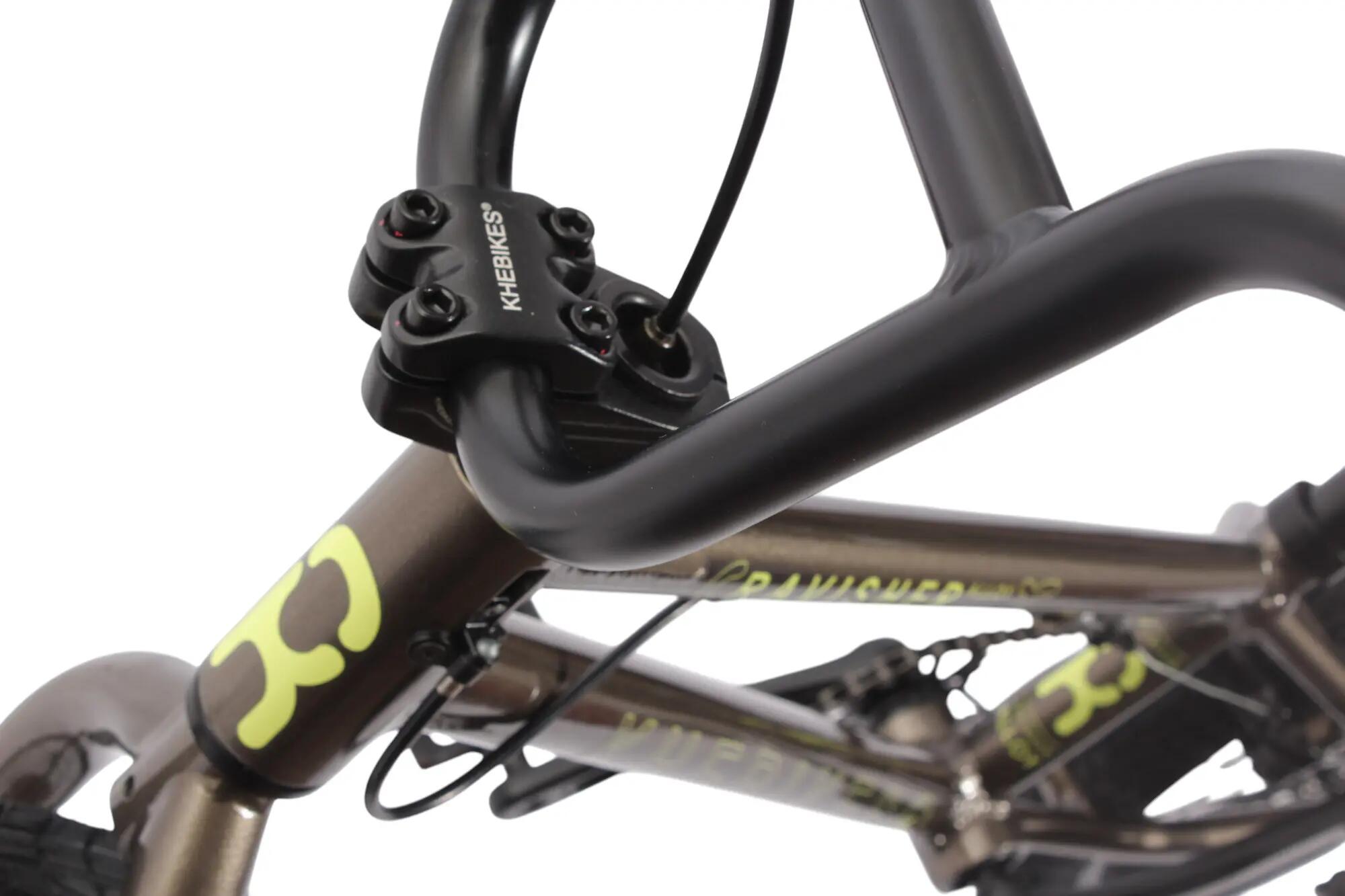

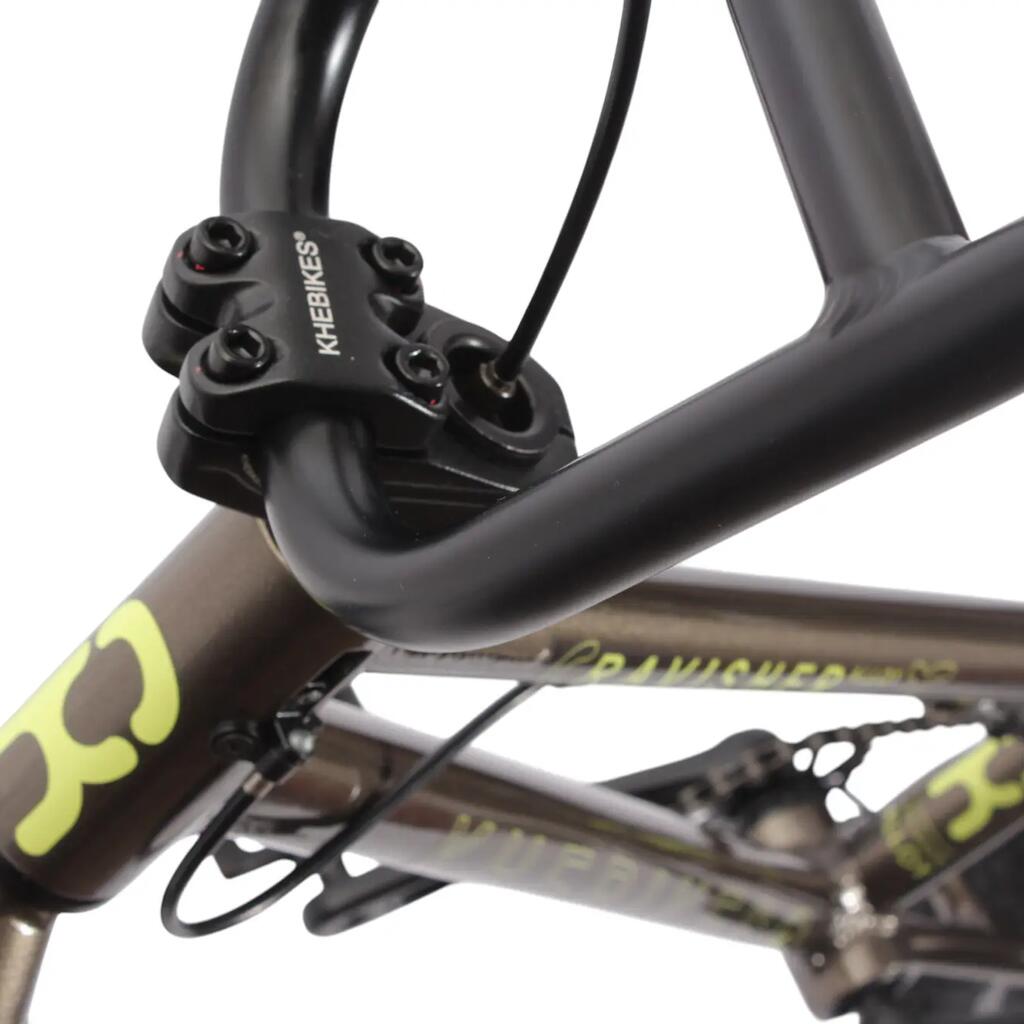

• Stem: KHE Top Loader, 40 mm
• Headset: AFFIX Loose Ball 1 1/8"
• Rotor: Patented KHE AFFIX 360-degree rotor

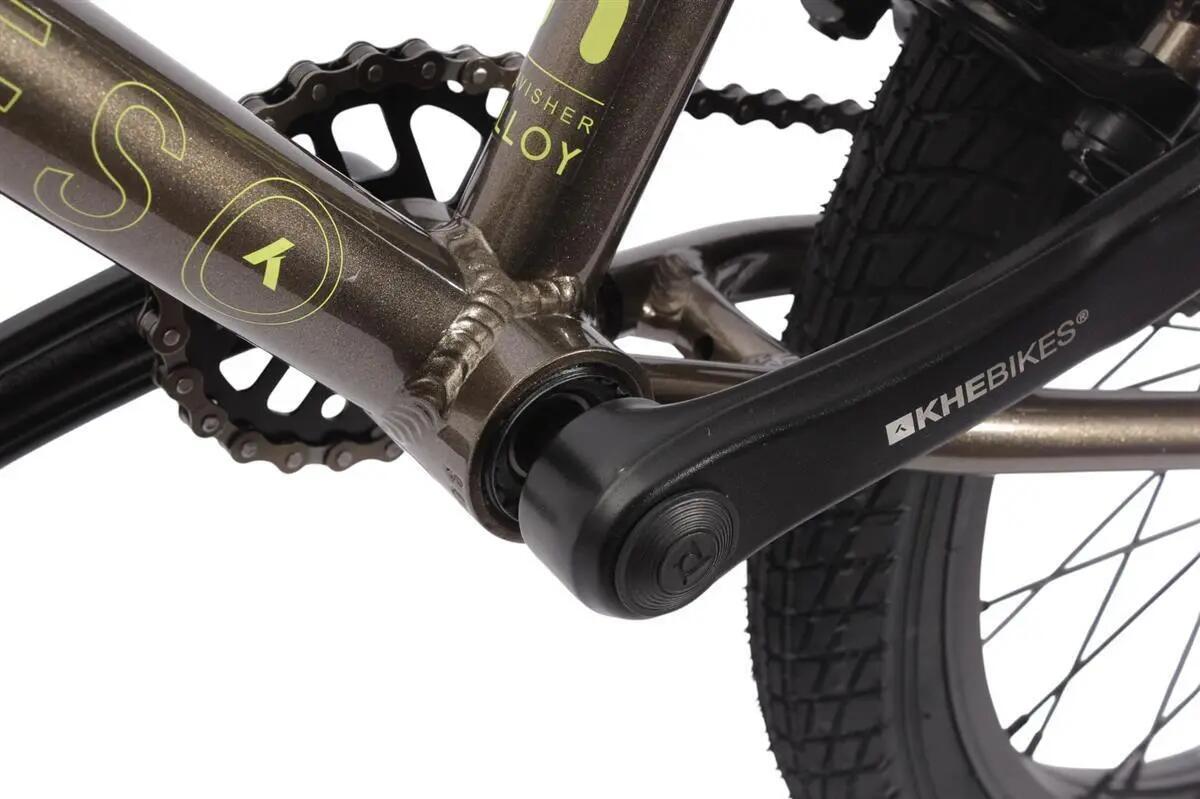

• Crank: KHE 3-piece forged aluminium, 152 mm
• Bottom bracket: EURO BB, sealed with industrial bearings, BC1.37" × 24T, 68 / 116 mm
• Chainring: 23T steel
• Chain: YBN CN ST 1/2 × 1/8"
• Gear ratio: 23/9
• Front brake: Sidepull, pre-installed
• Rear brake: KHE RADIUS aluminium U-Brake

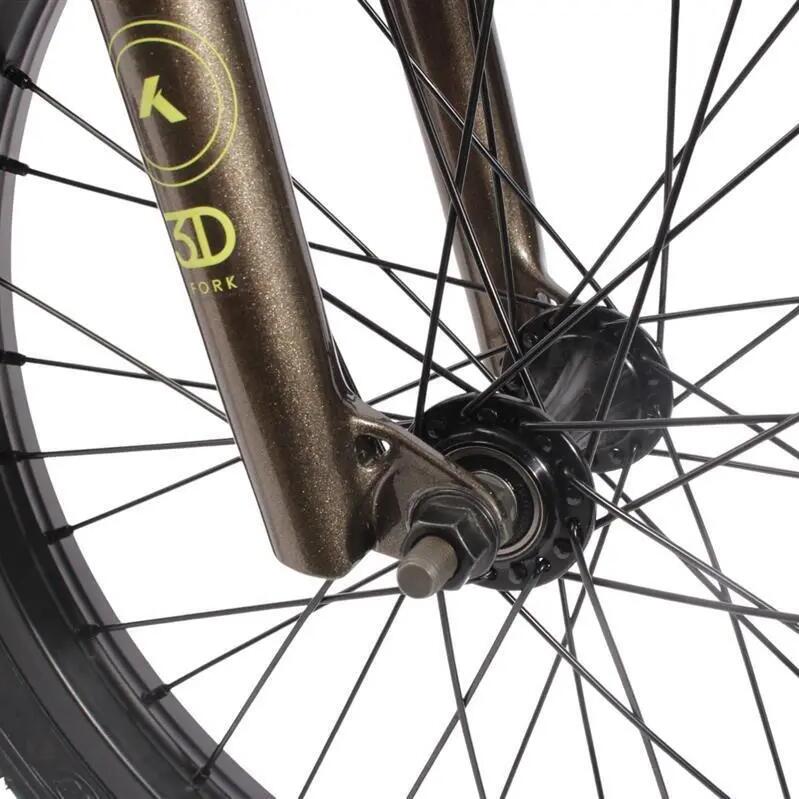

• Front hub: Aluminium, 10 × 155 mm axle, industrial bearings
• Rear hub: KHE GREYHOUND Freecoaster 9T, 14 × 170 mm axle, industrial bearings, 36 hole
• Hub type: Freecoaster
• Rims: KHE DD 18" double-wall aluminium, 36 hole

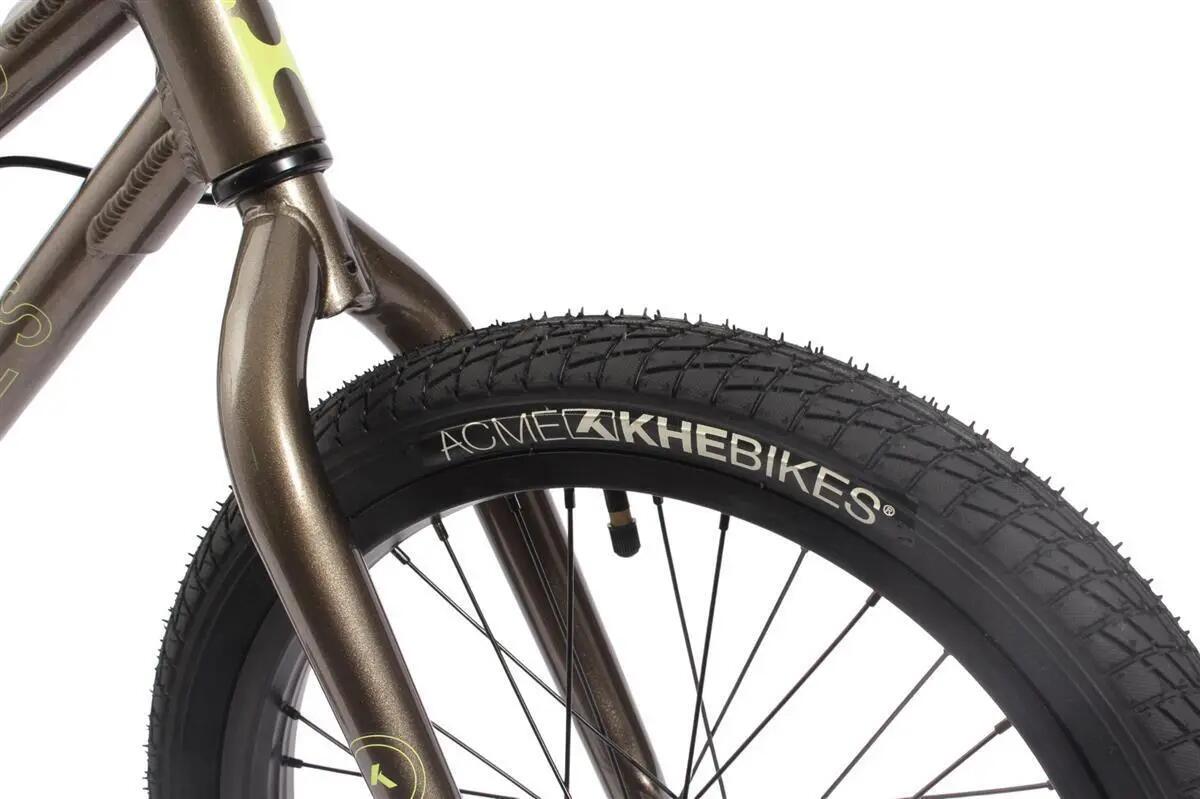

• Tyres: KHE ACME 18 × 2.125"

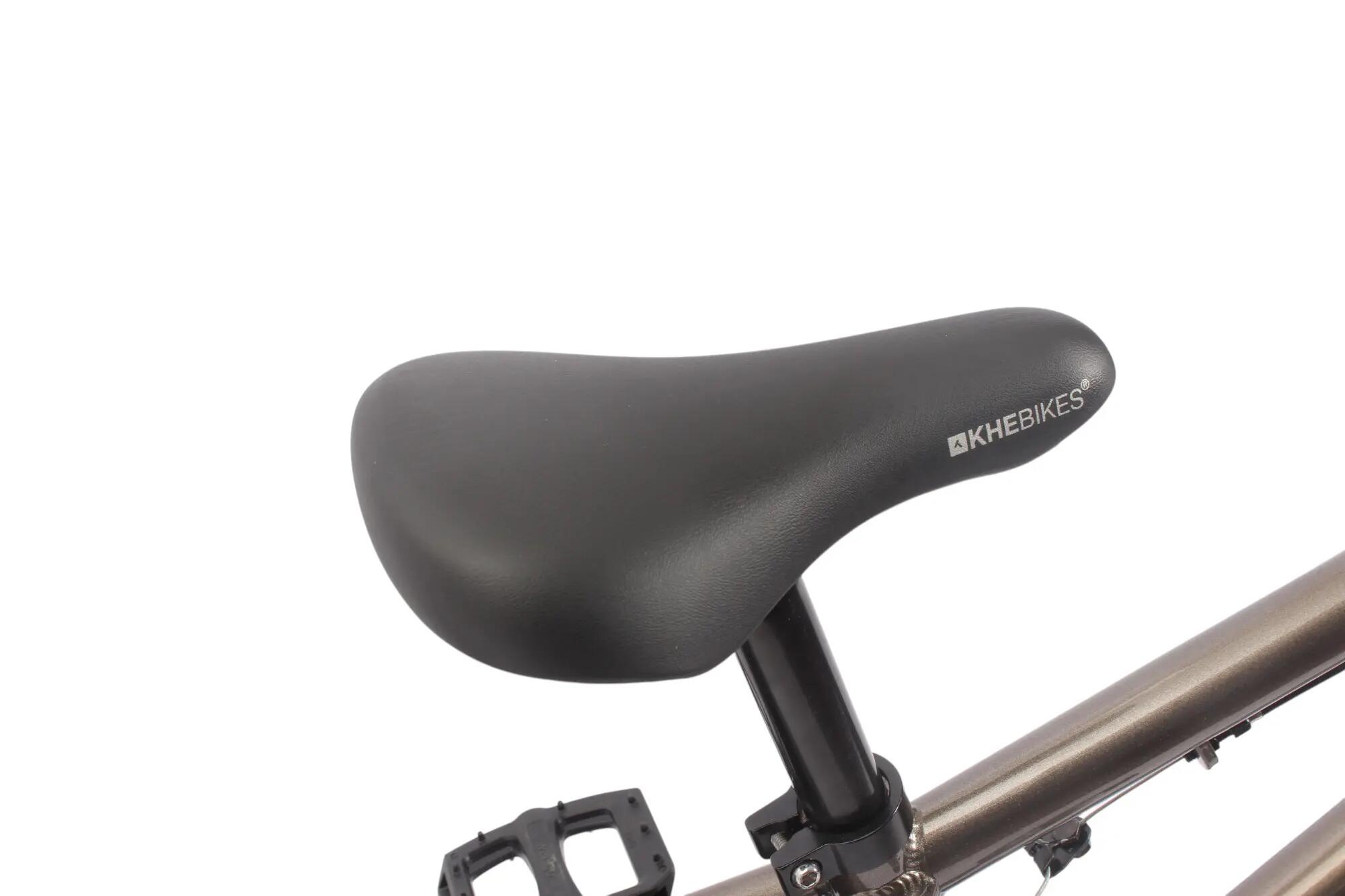

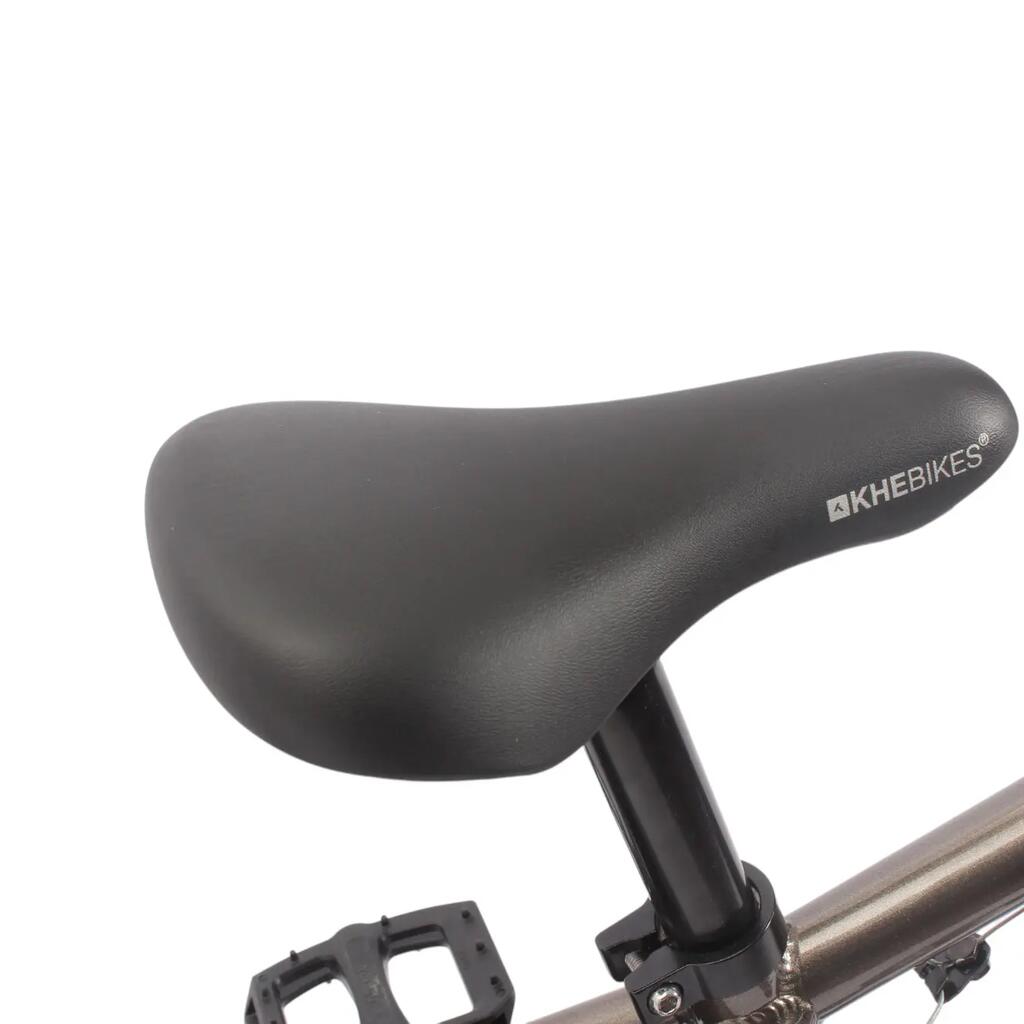

• Saddle: Padded, 210 × 140 mm
• Seat post: 27.2 × 250 mm, integrated with saddle
• Material: Aluminium
• Colour: Anthracite
• Weight: 8.8 kg
Suitable for:
• Rider height: 125–145 cm
• Maximum rider weight: 75 kg
• Use: Park / Street / Flatland / Pumptrack
Why choose the KHE RAVISHER LL FC from KHEbikes:
✓ KHE Greyhound Freecoaster for backward rolling without the cranks turning
✓ Exceptionally lightweight aluminium frame
✓ Lightweight KHE aluminium handlebar for agile handling
✓ Patented KHE AFFIX rotor for 360-degree handlebar rotations
✓ Sealed EURO BB bottom bracket with industrial bearings
✓ Forged 3-piece aluminium crank
✓ Strong KHE DD double-wall aluminium rims
✓ Only 8.8 kg total weight
Compatibility
• Front pegs: 10 mm
• Rear pegs: 14 mm
• Recommendation: KHE COP Aluminium Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Brake system: The KHE RAVISHER LL FC is supplied with a pre-installed Sidepull brake at the front and a KHE RADIUS aluminium U-Brake at the rear.
