BMX bike aluminium TRICKY AL red 20 inch 24.0 lbs

Product Description

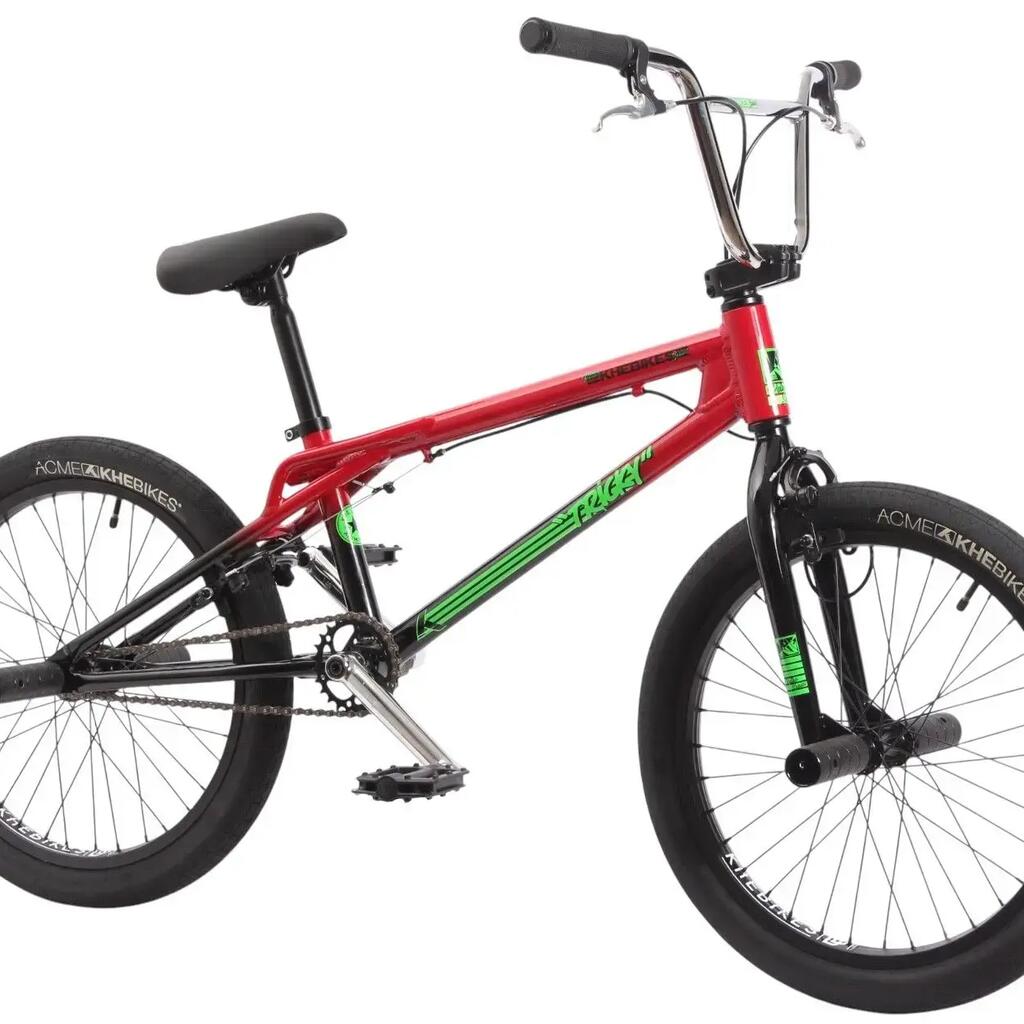

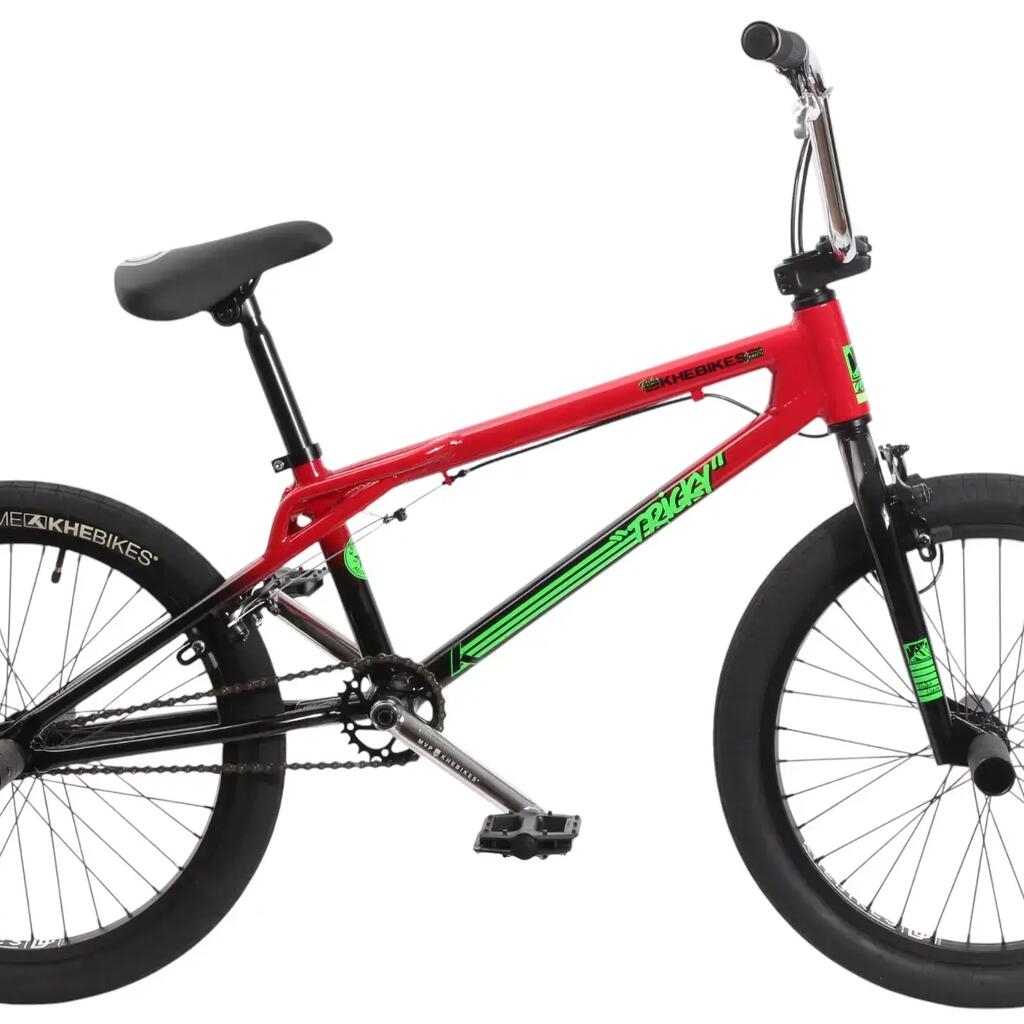

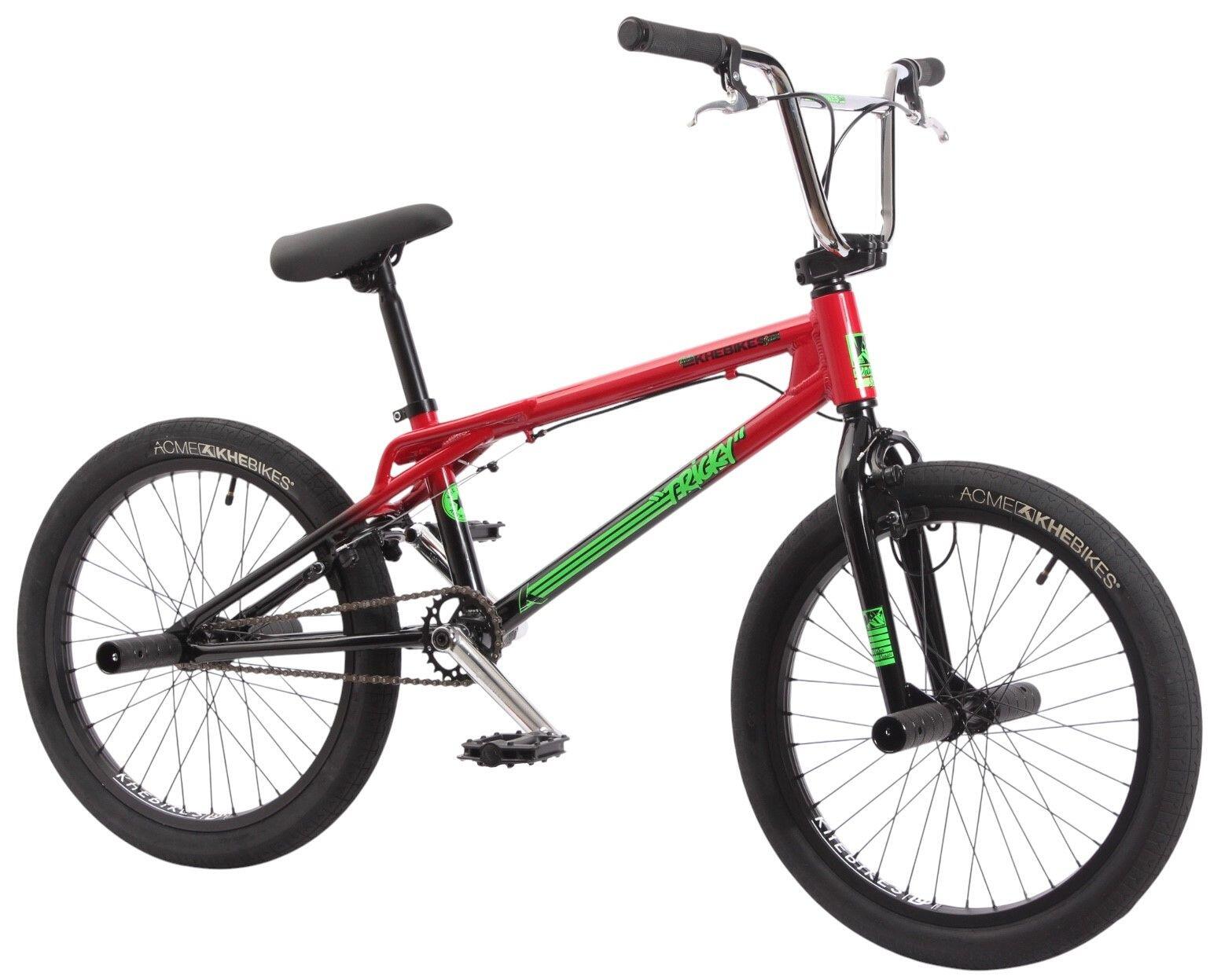

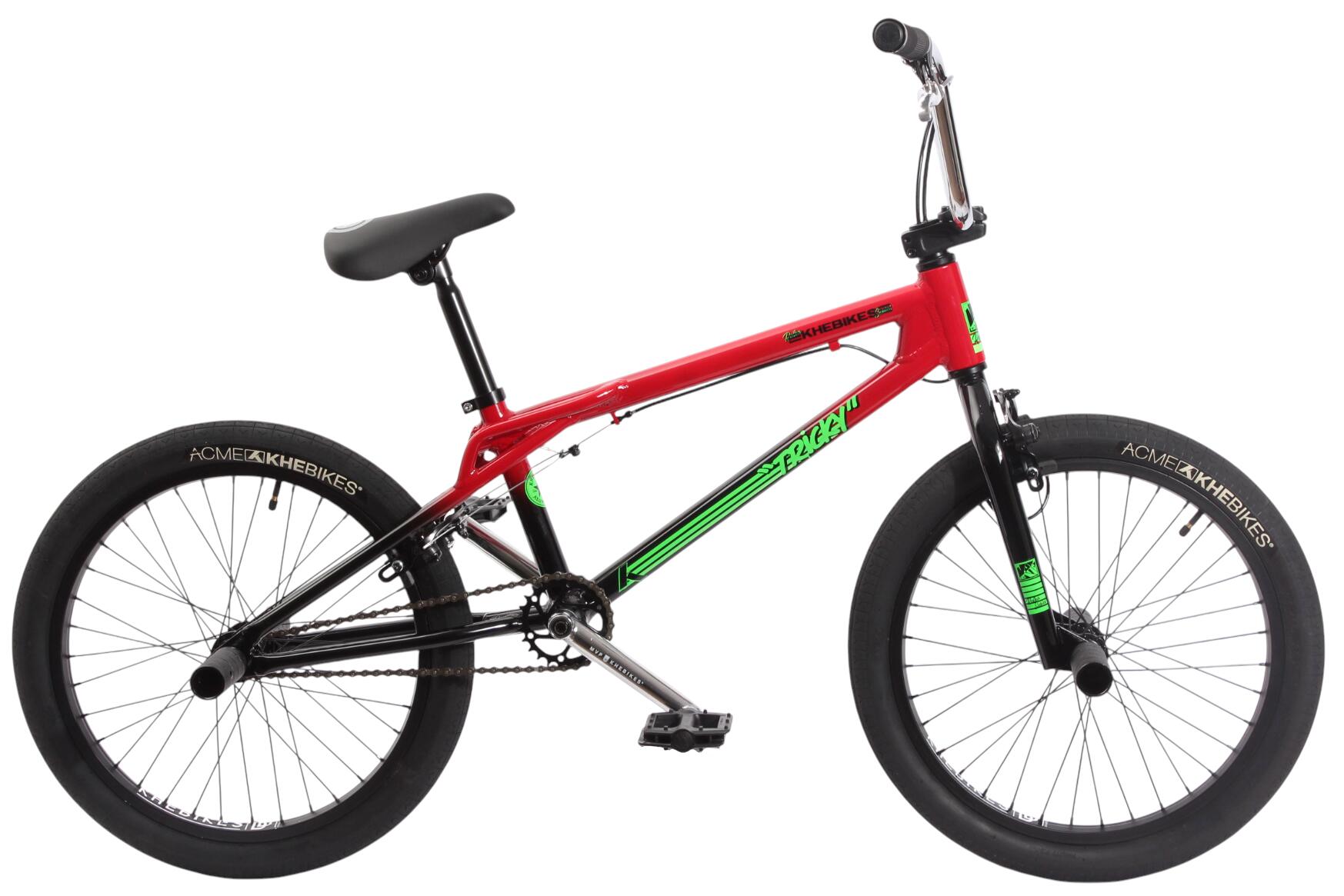

KHE TRICKY AL 20" BMX 2025 with Rotor & Pegs

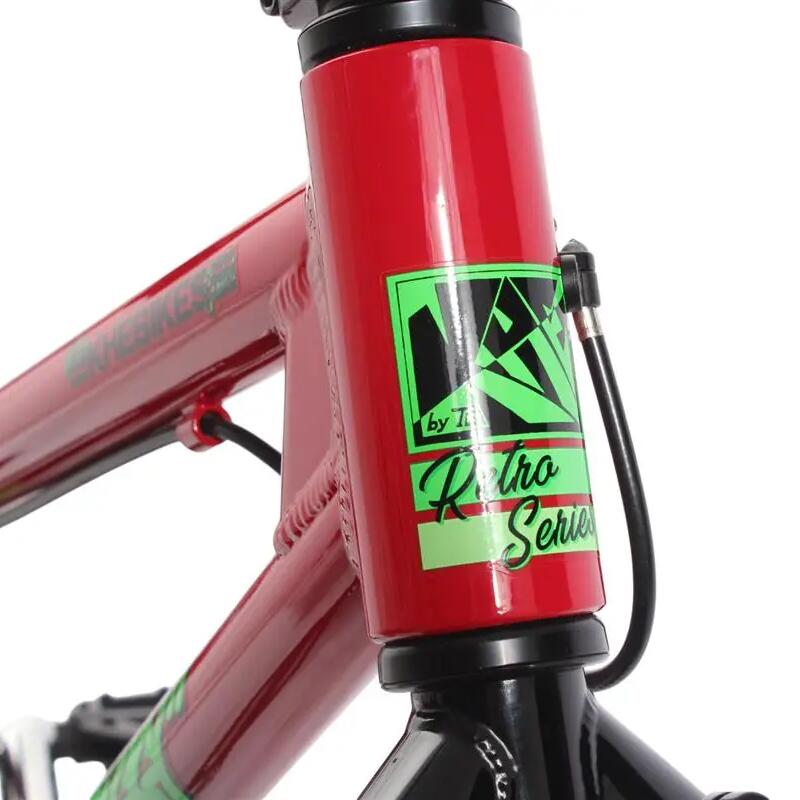

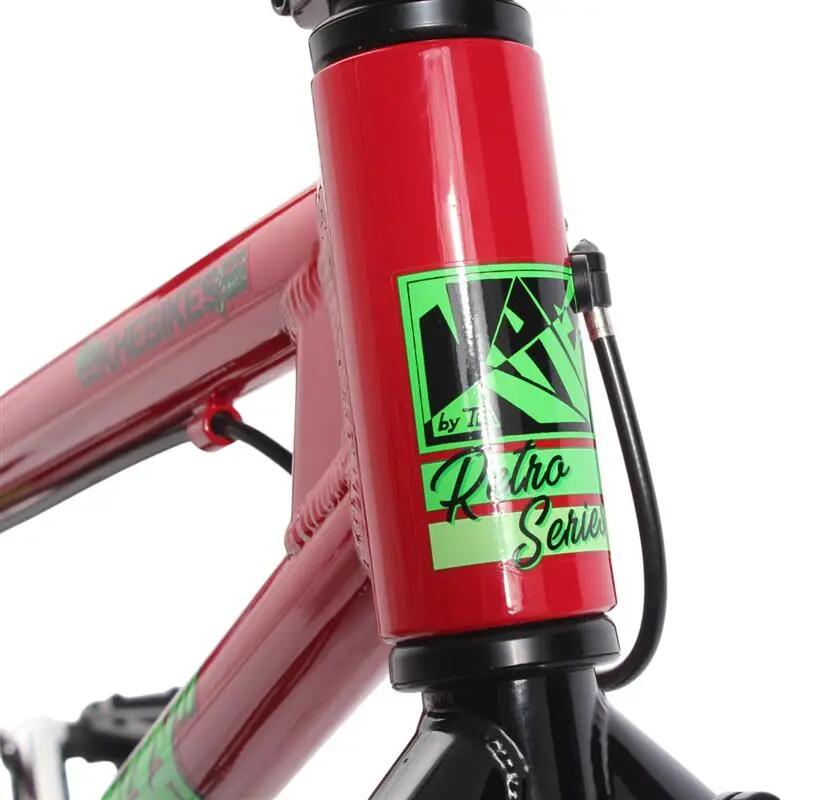

The KHE TRICKY AL 20" is a versatile BMX for Flatland, Park and Pumptrack. The lightweight 6061-T6 aluminium frame with integrated platform and compact geometry with a 19.7" top tube provide agile and controlled handling. The patented KHE AFFIX rotor system allows 360-degree handlebar rotations. Weighing only 10.9 kg and supplied with two pairs of aluminium pegs, the TRICKY is especially suitable for technical tricks and versatile BMX riding.

Equipment

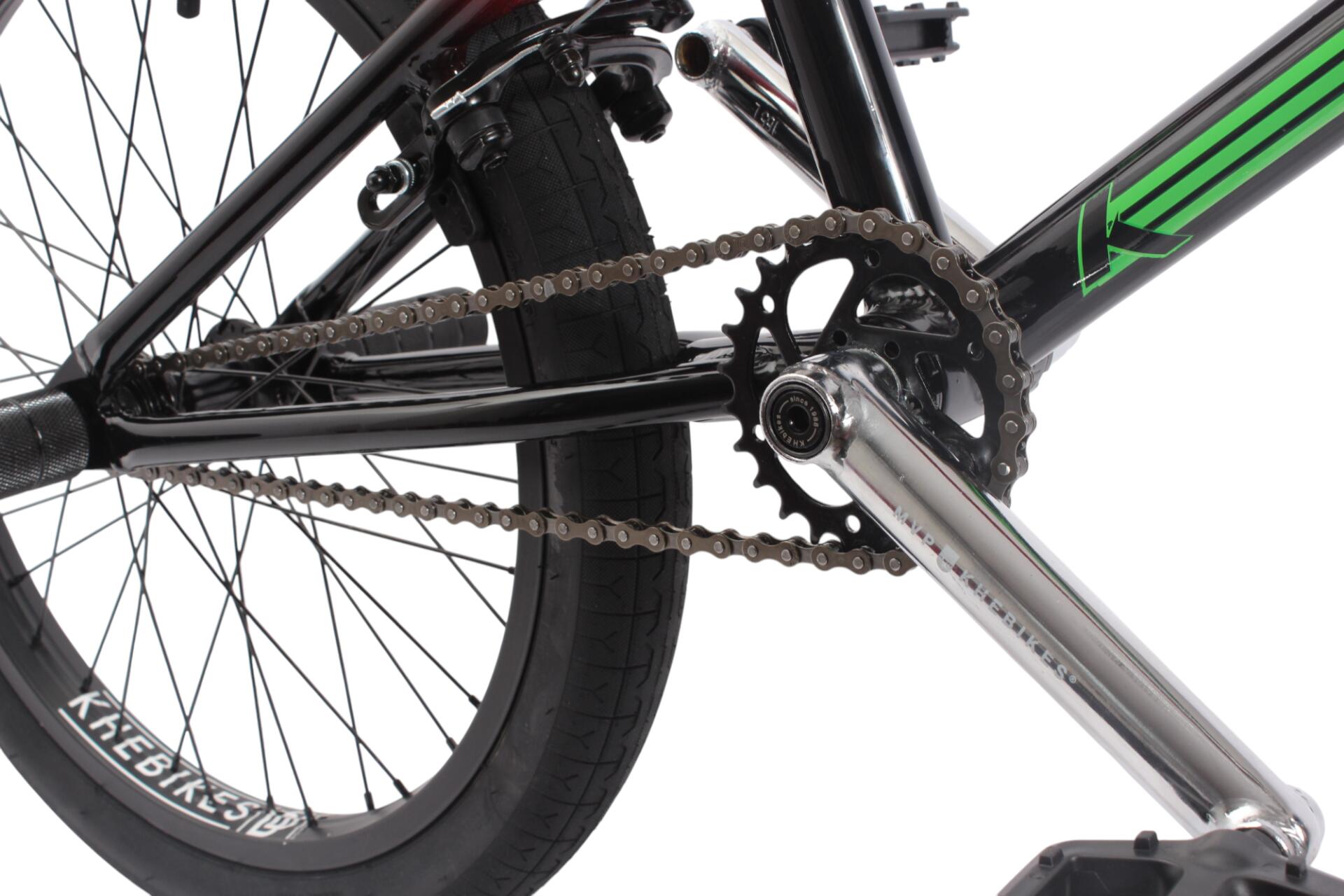

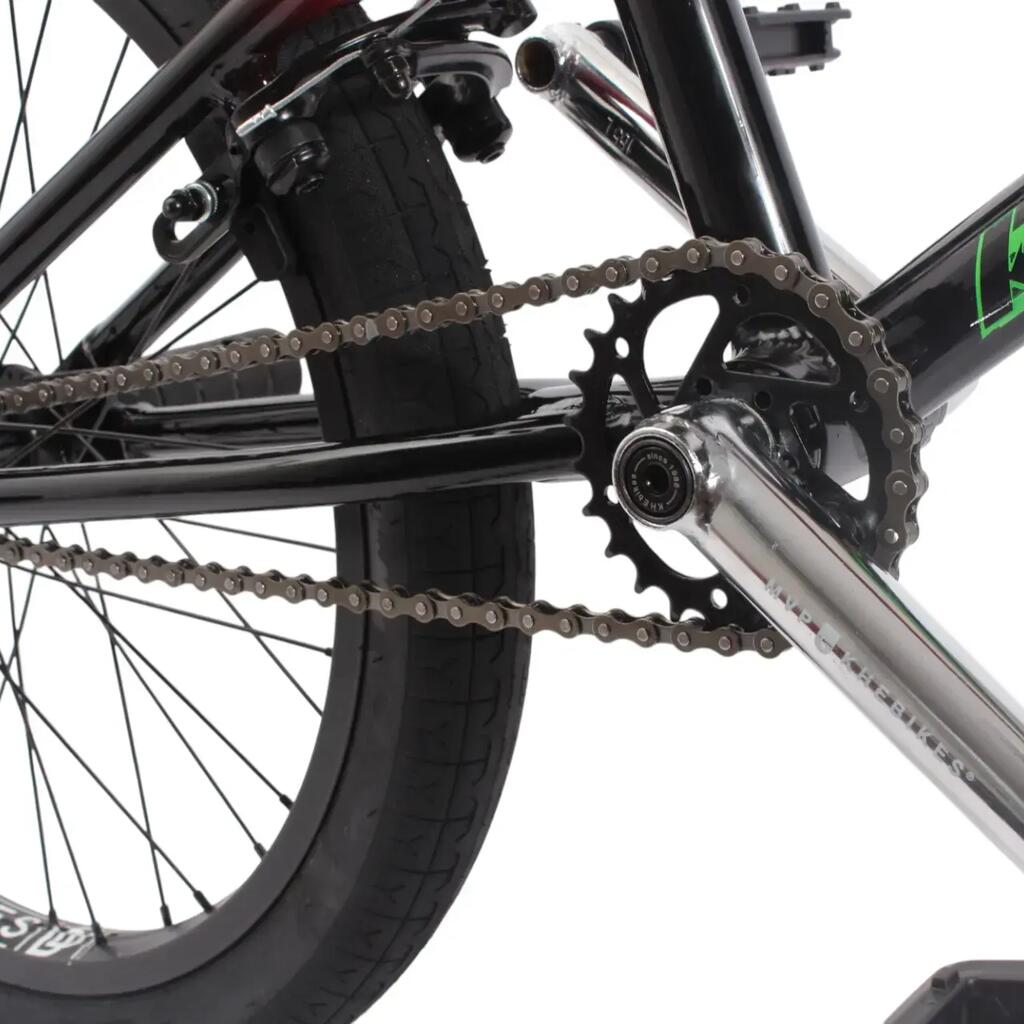

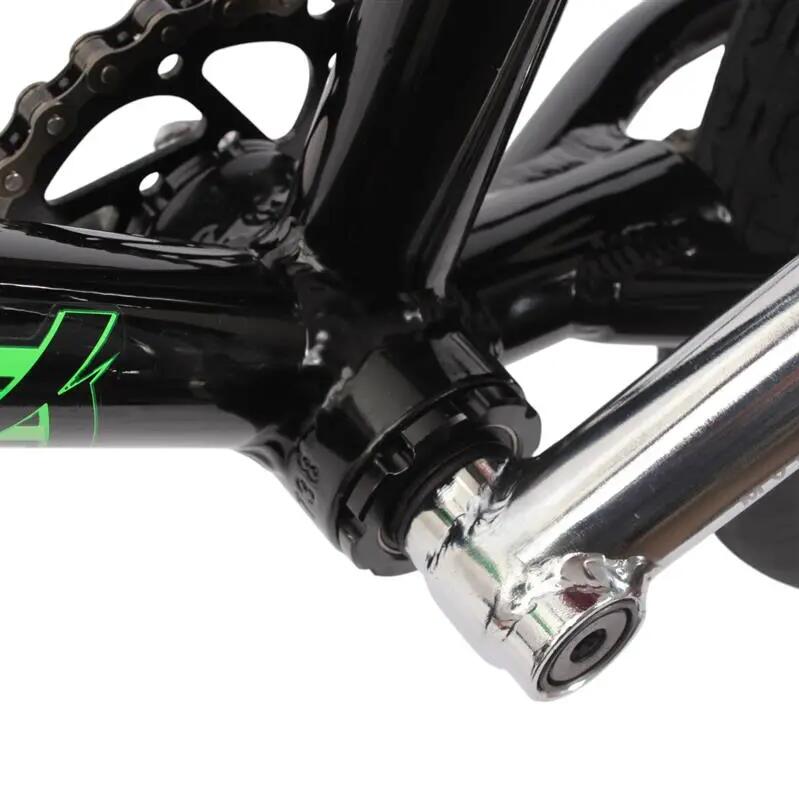

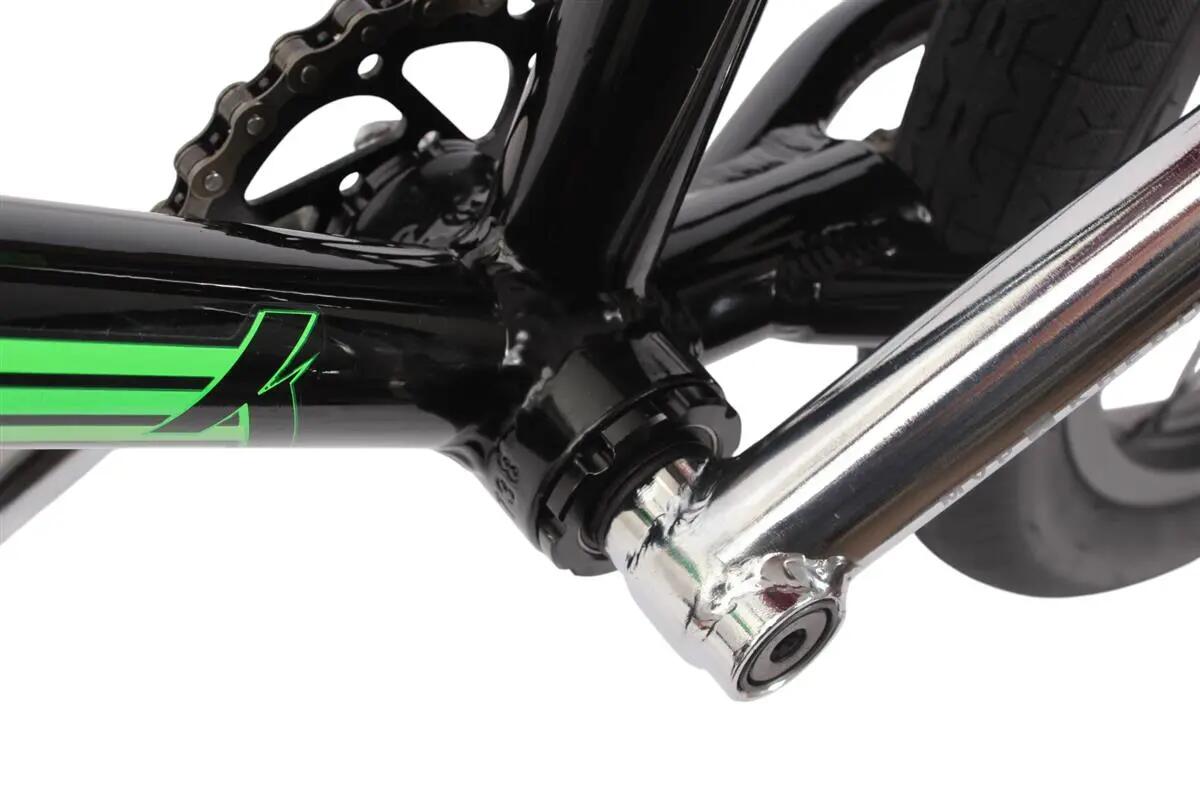

Drivetrain: • 3-piece 165 mm CrMo hollow crank • 25T steel chainring • Sealed MID BB bottom bracket with industrial bearings • 19 mm CrMo crank axle • YBN CN ST chain • 9T cassette hub

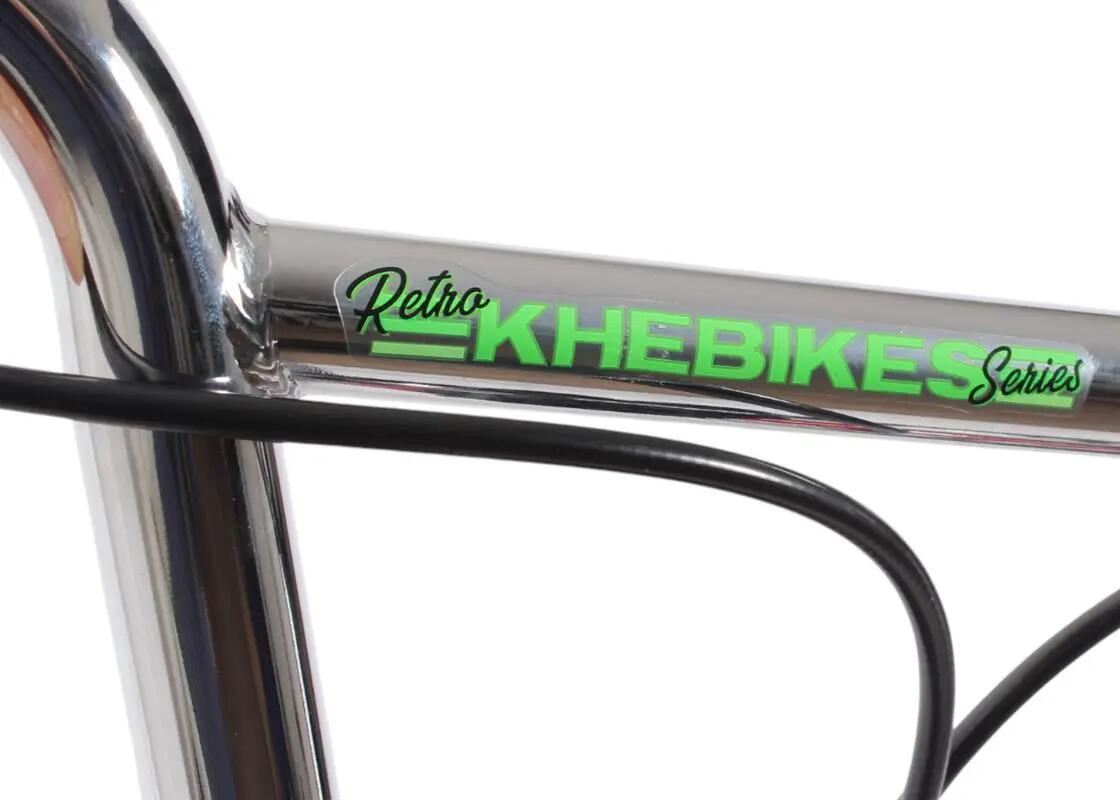

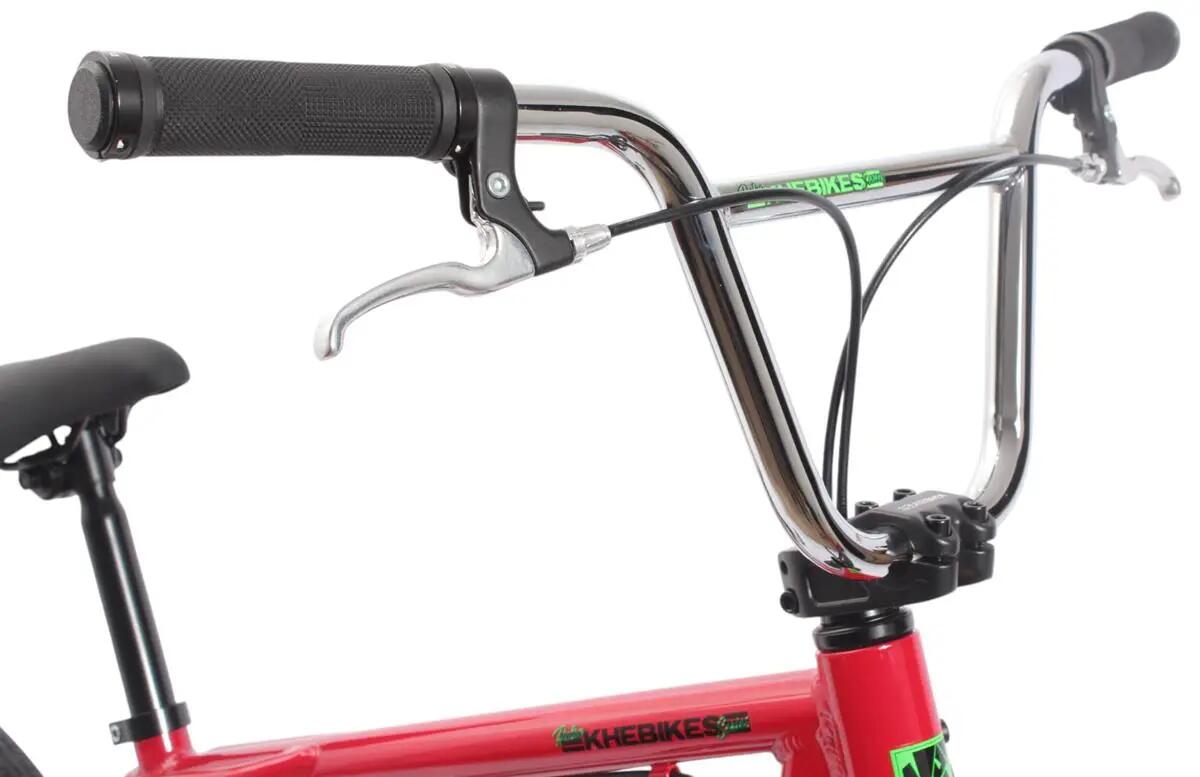

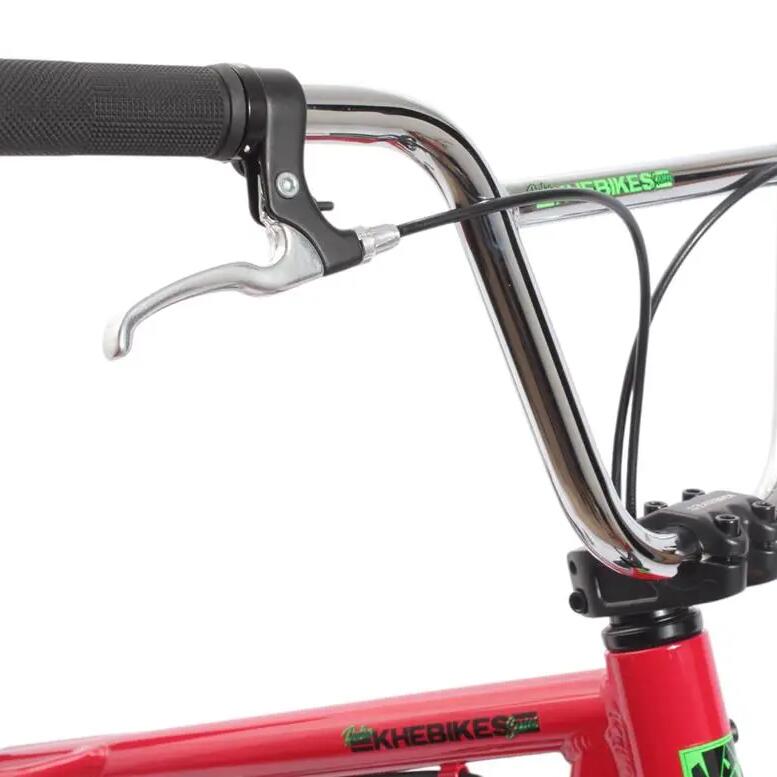

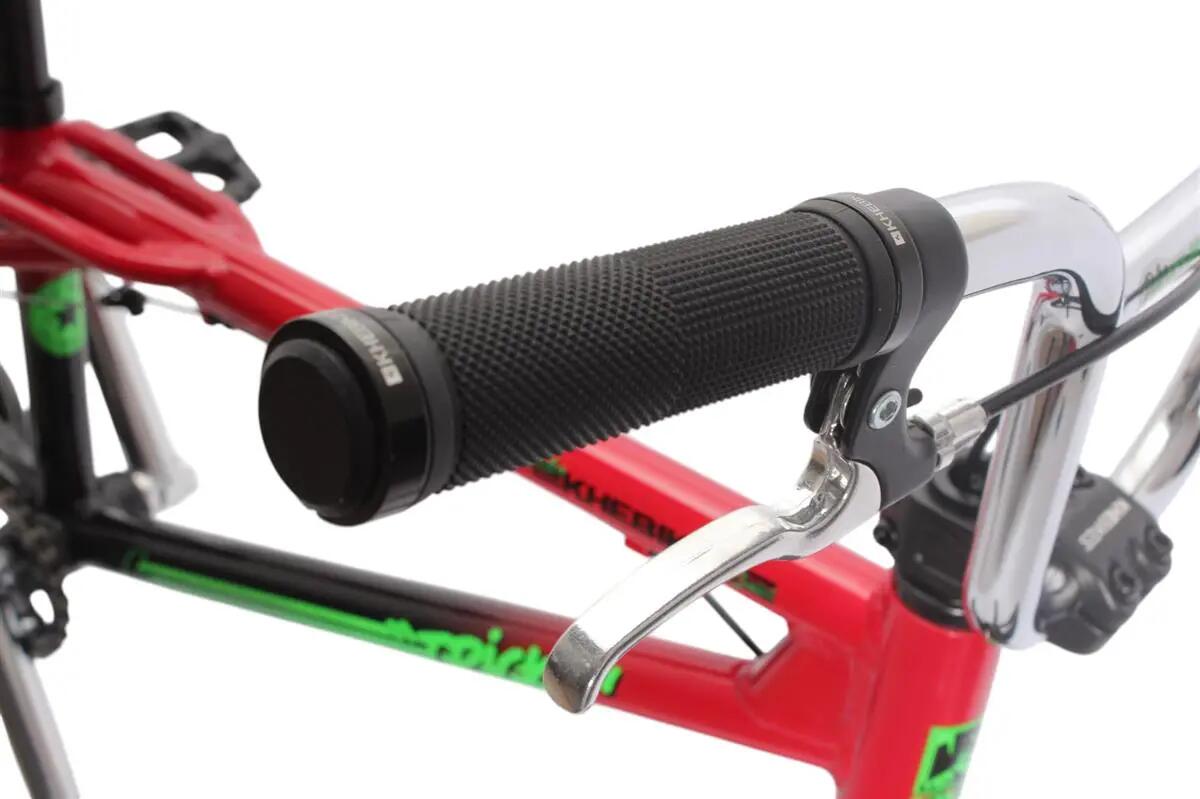

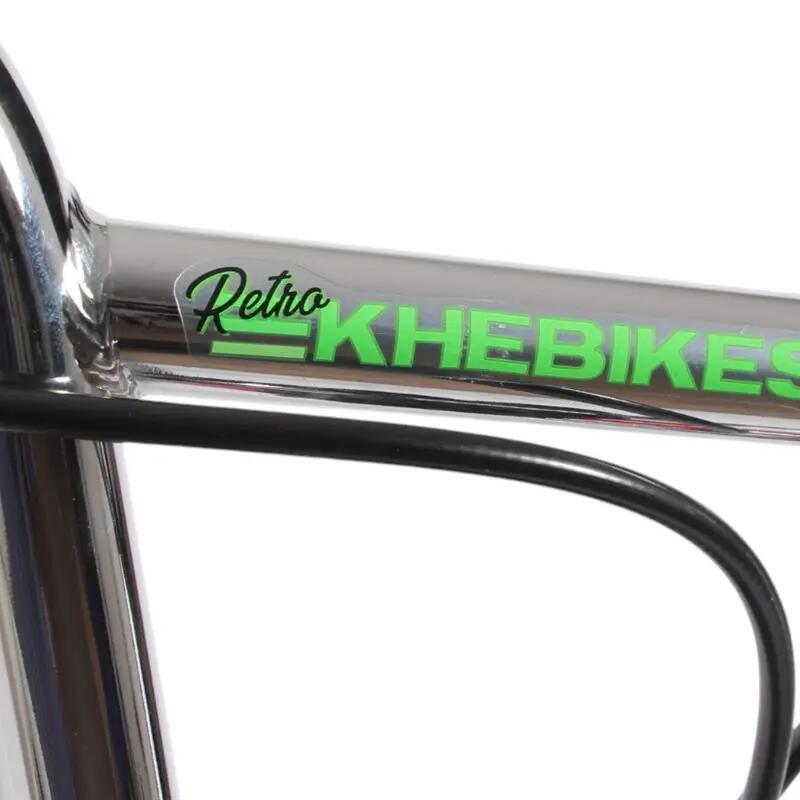

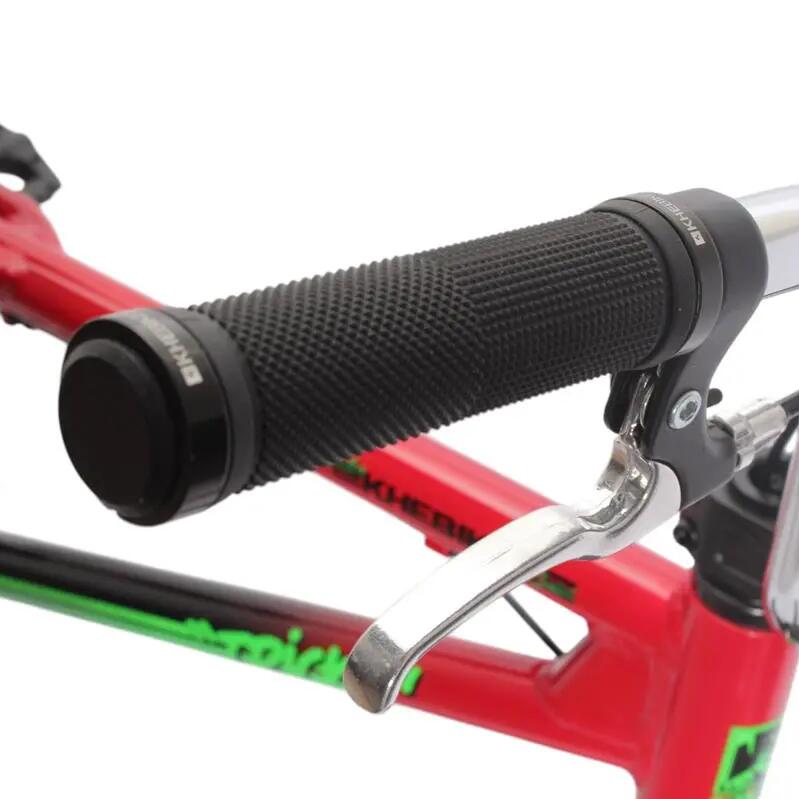

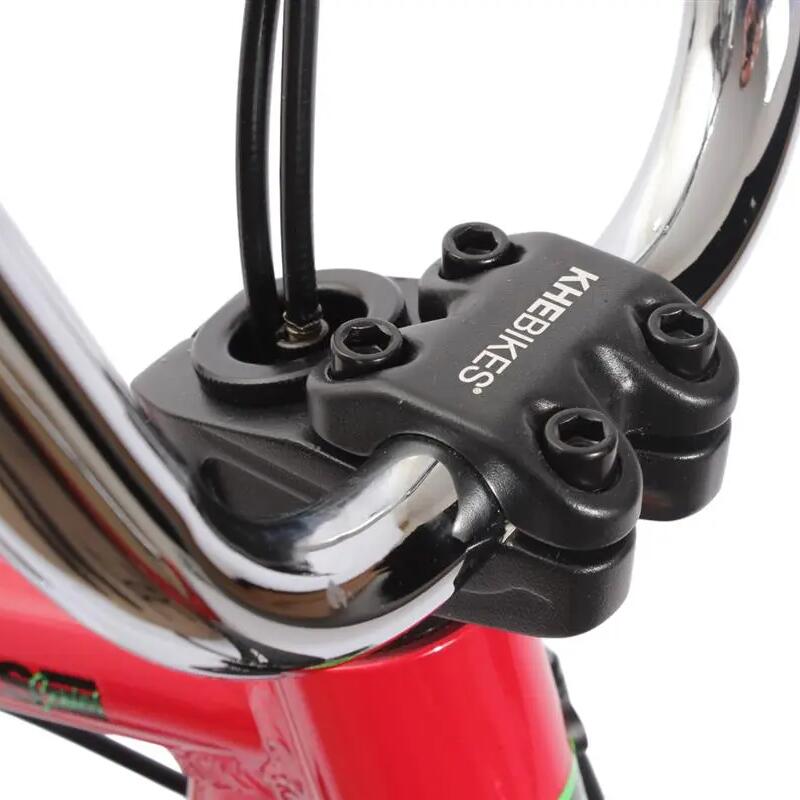

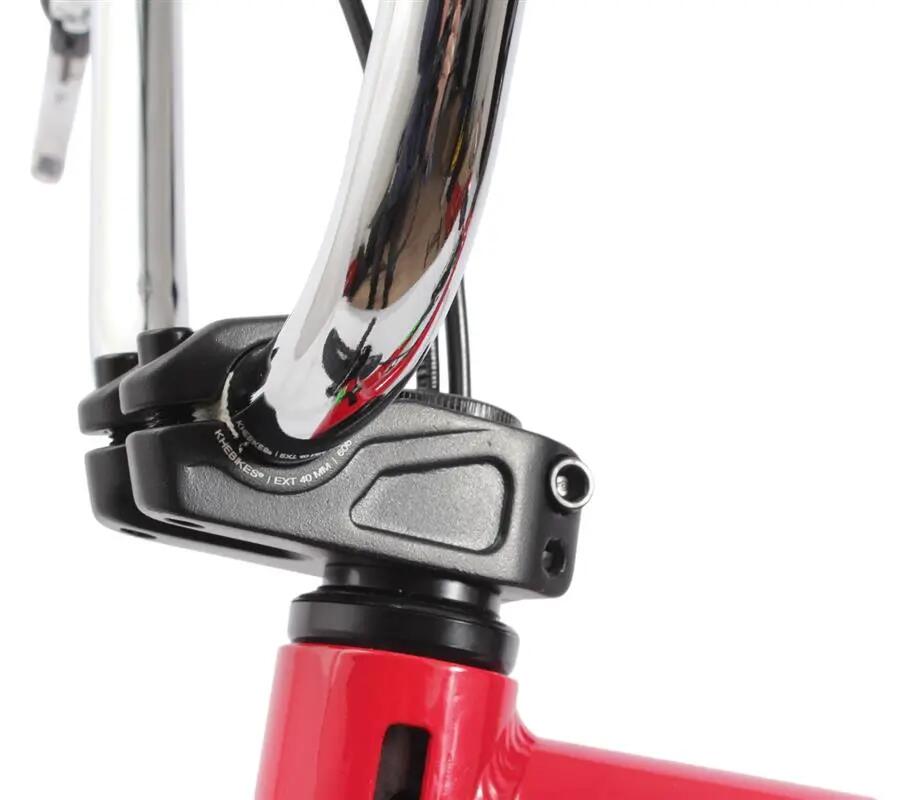

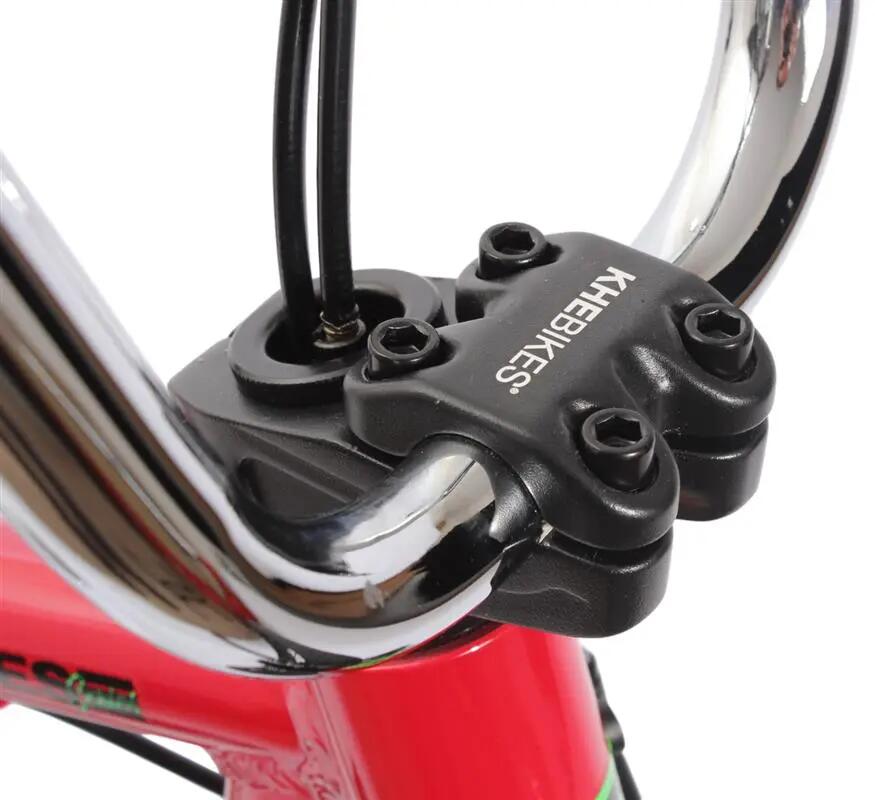

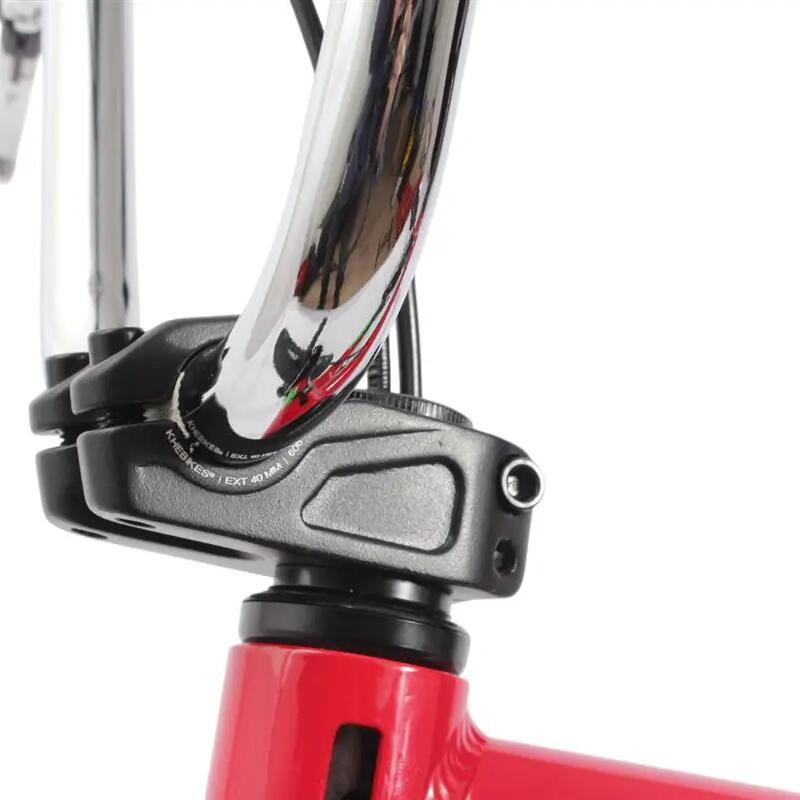

Cockpit: • KHE HiTen 8" handlebar • KHE Top Loader stem (40 mm) • KHE AFFIX 360-degree rotor system • Lock-On grips with aluminium clamps • Aluminium brake lever with adjustment screw

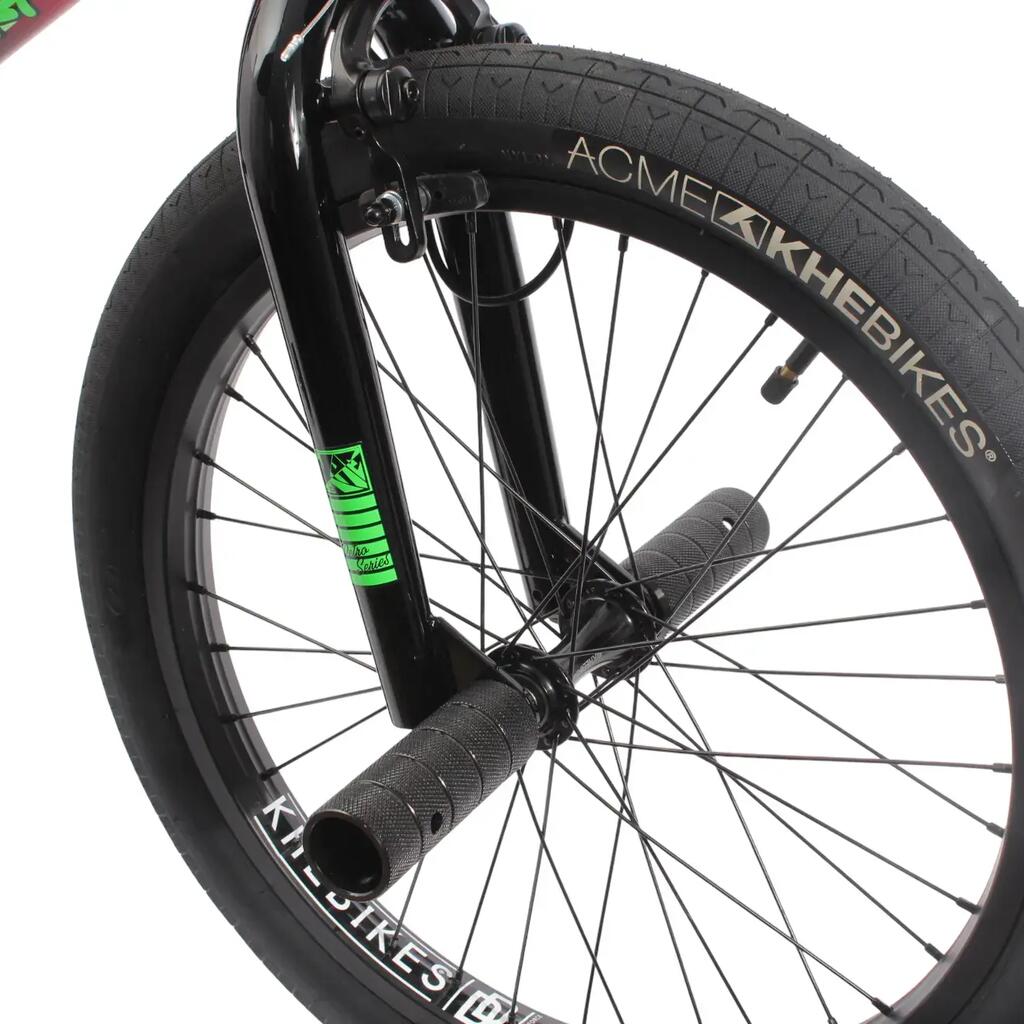

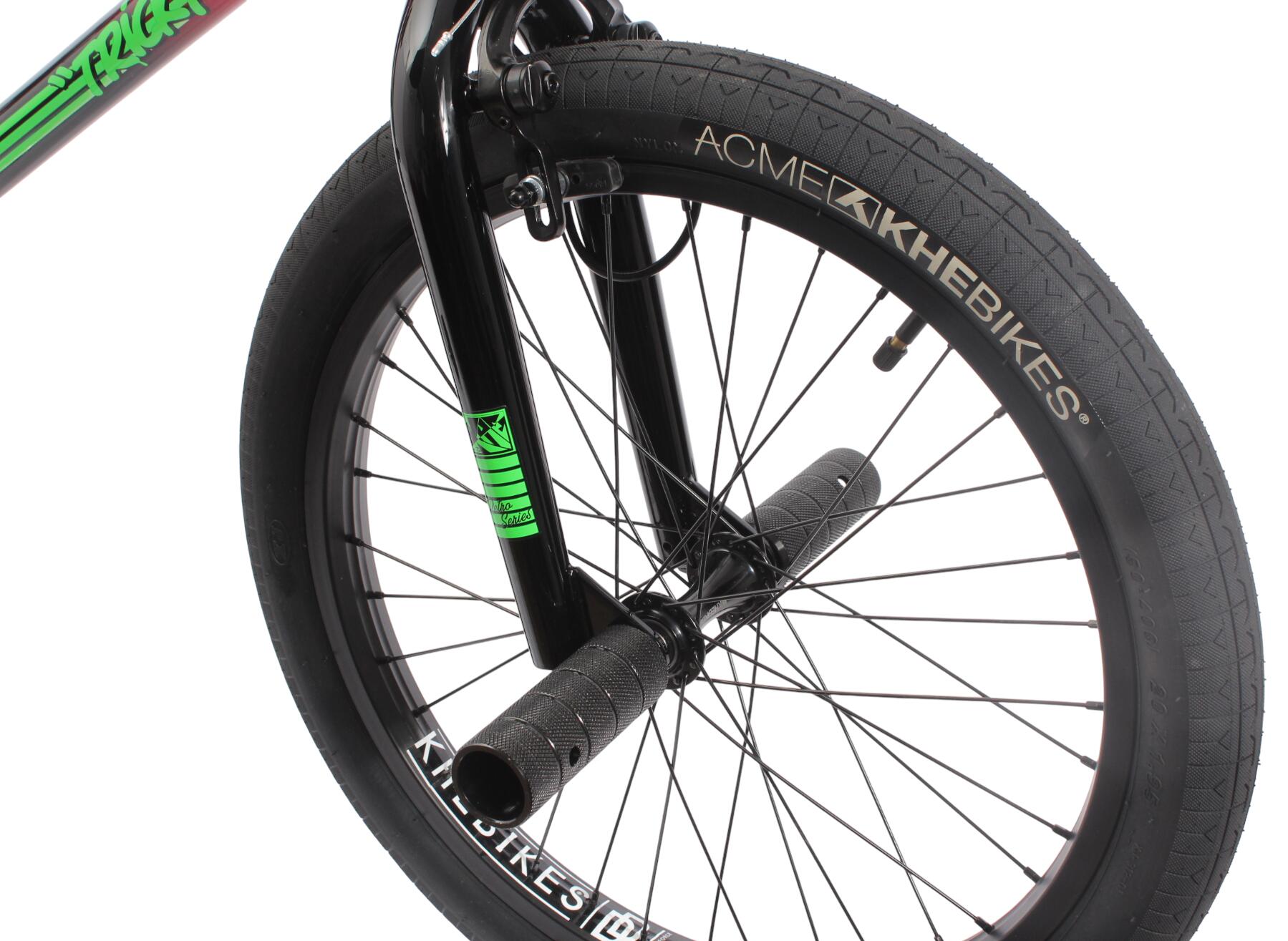

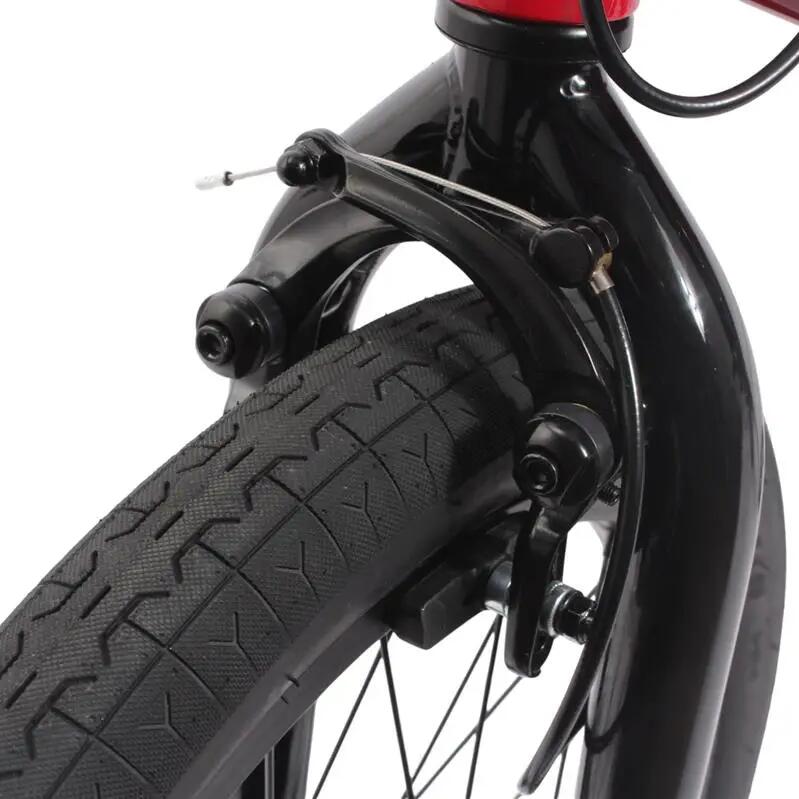

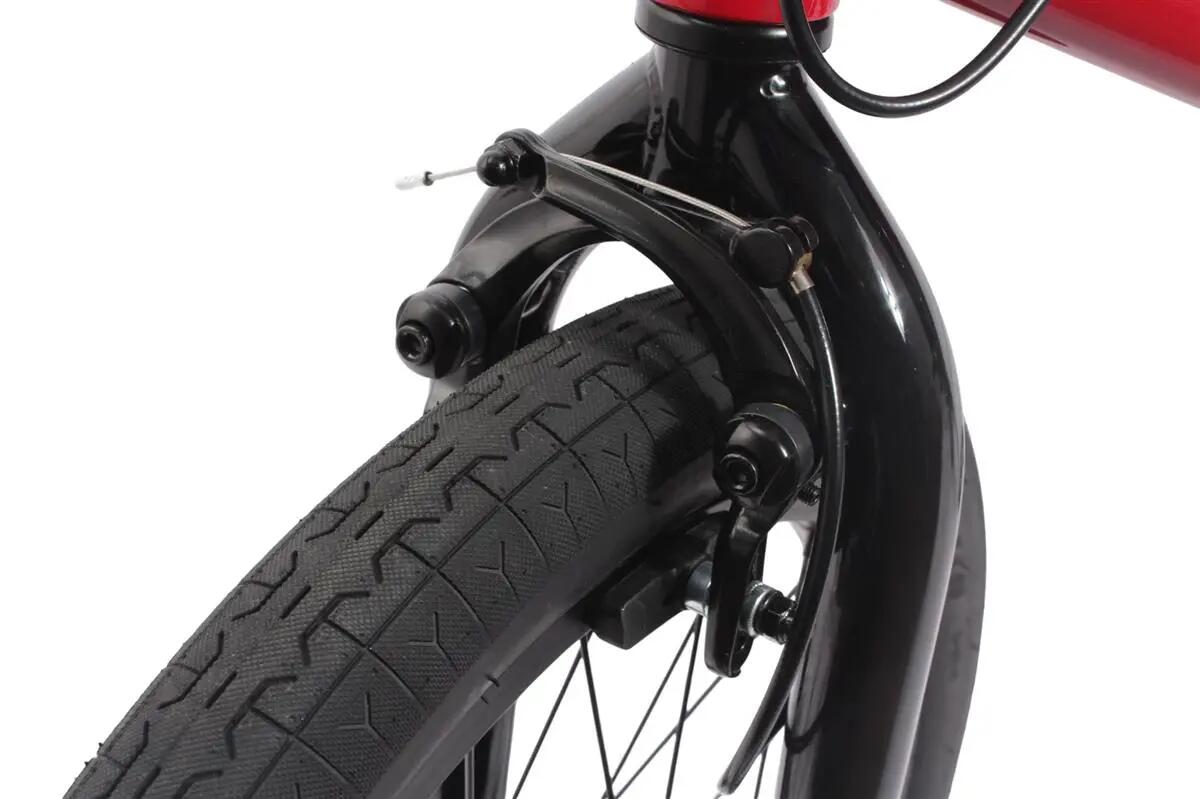

Brakes & Wheels: • KHE RADIUS aluminium U-Brake front and rear • 20" double-wall aluminium rims • Industrial-bearing hubs front and rear • KHE ACME tyres 20 × 1.95" • 10 mm front axle • 14 mm rear axle

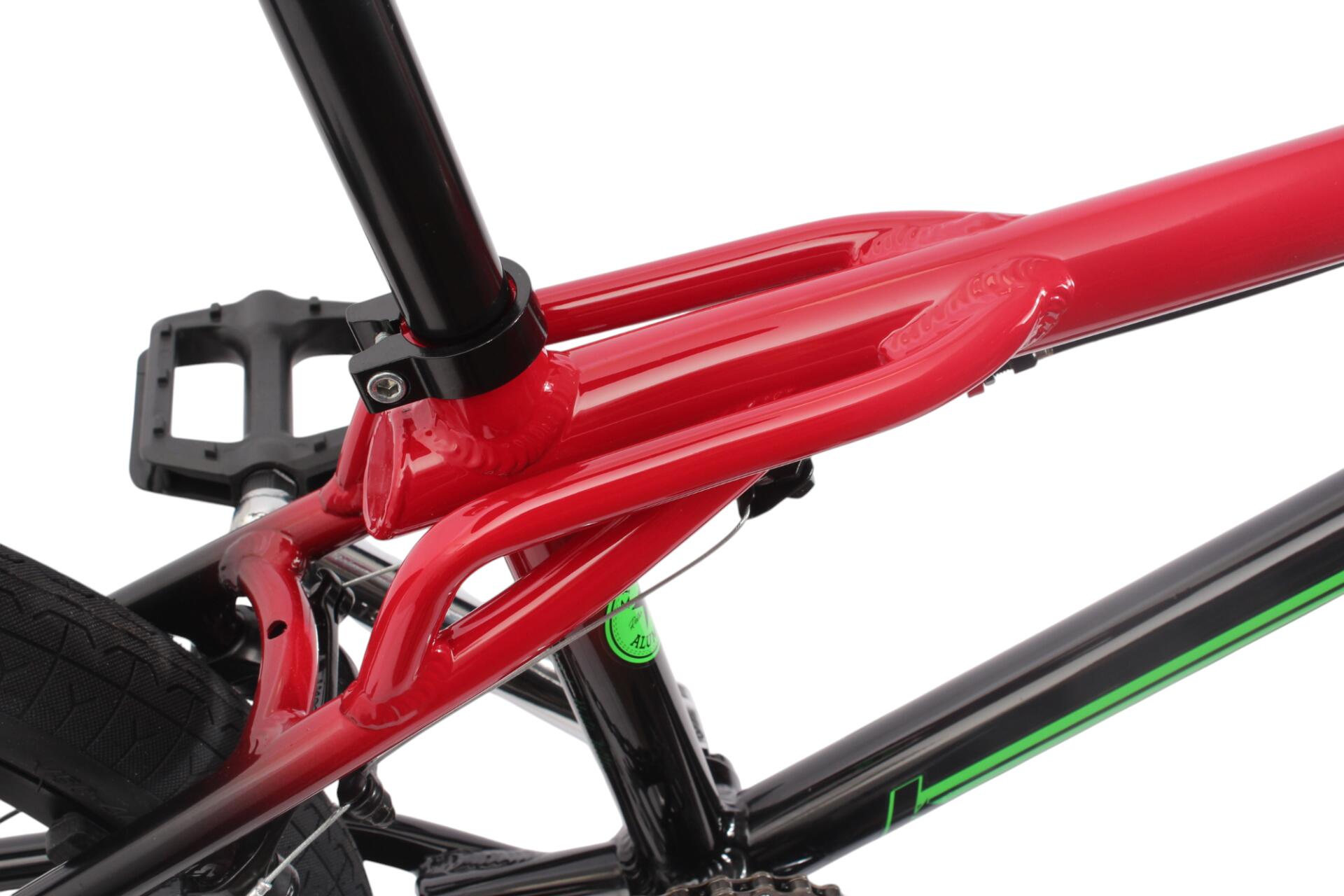

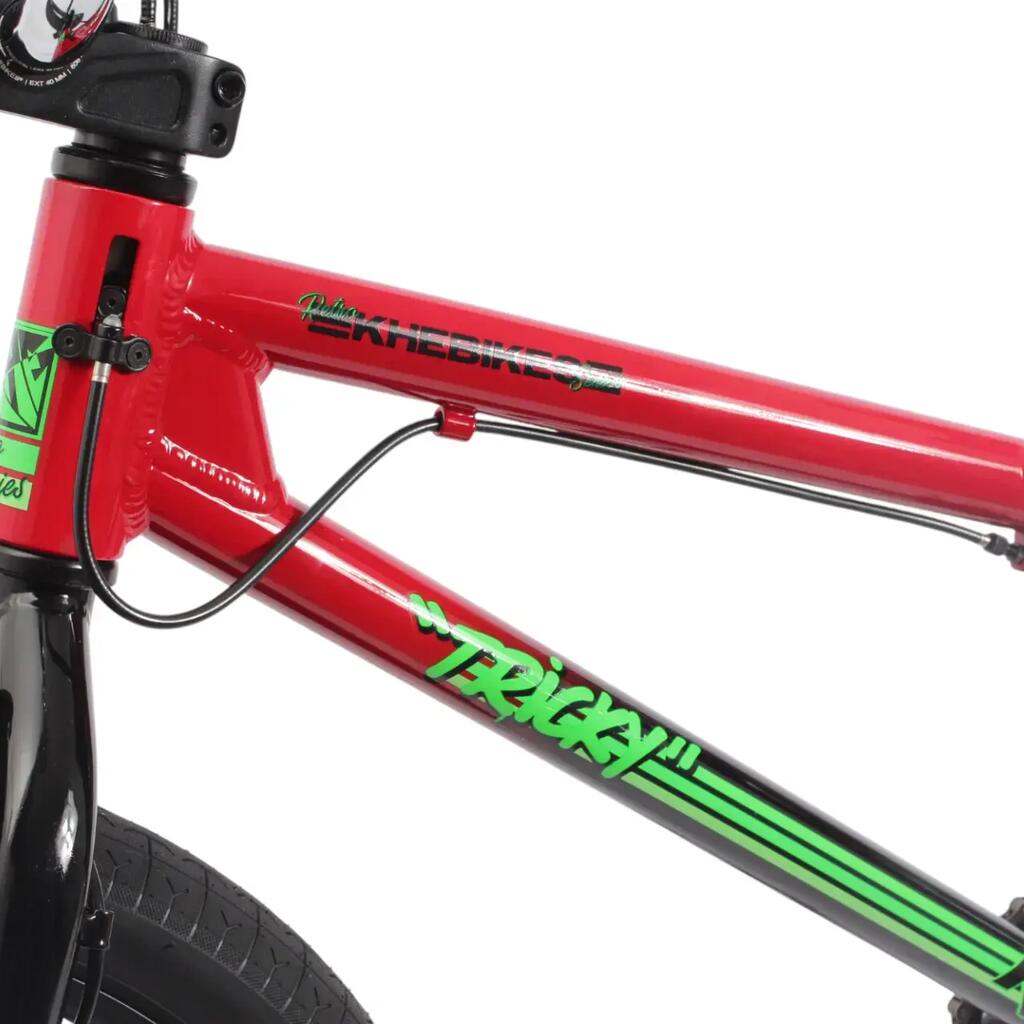

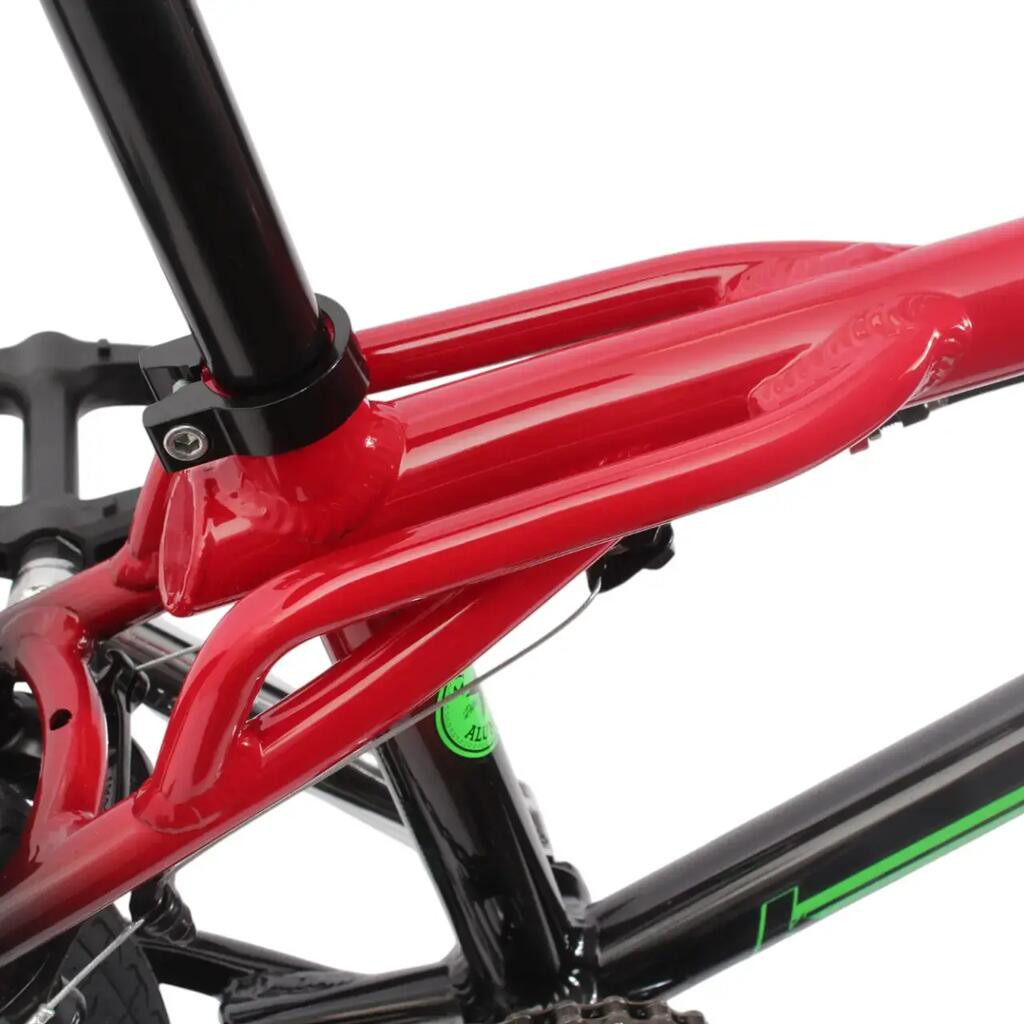

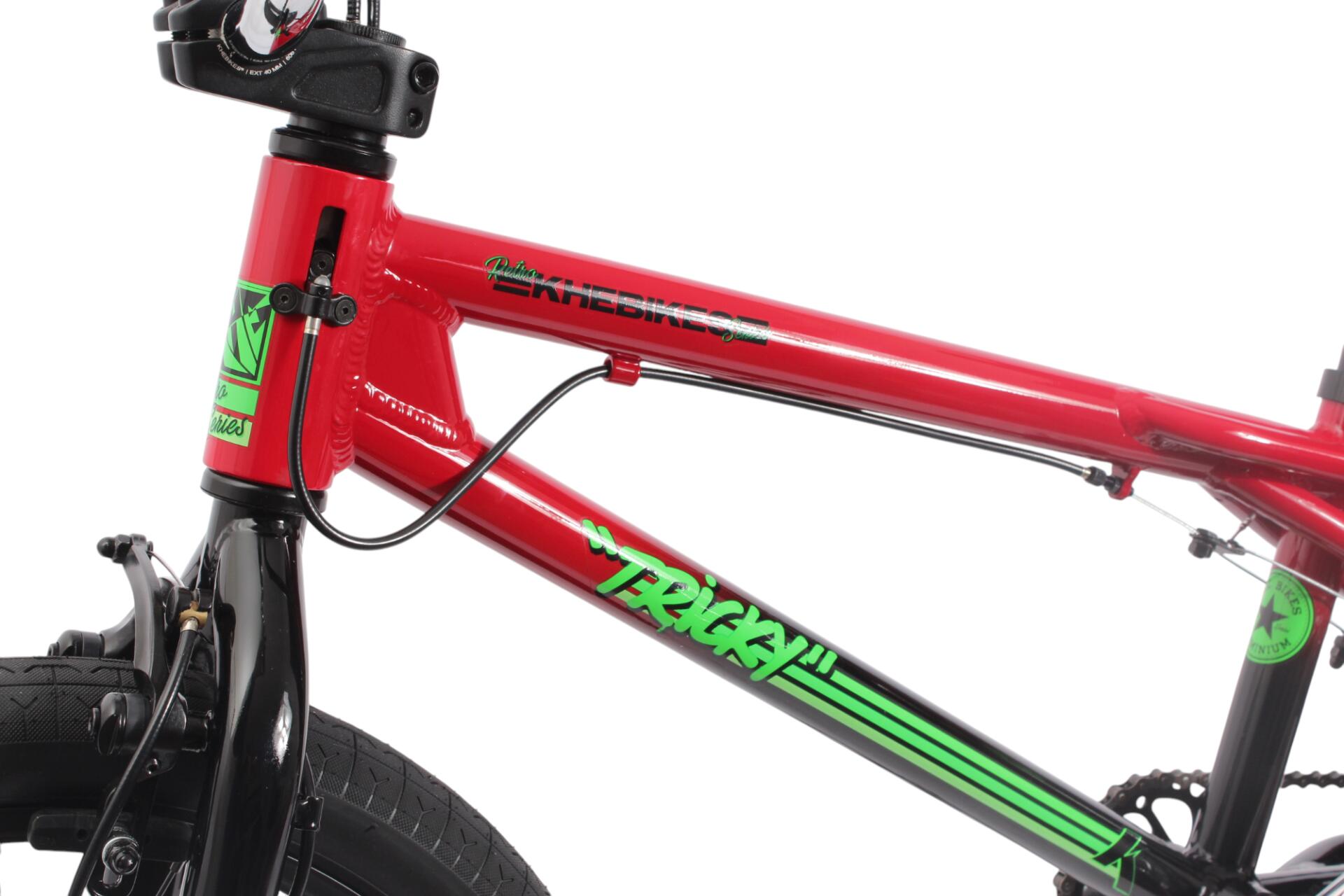

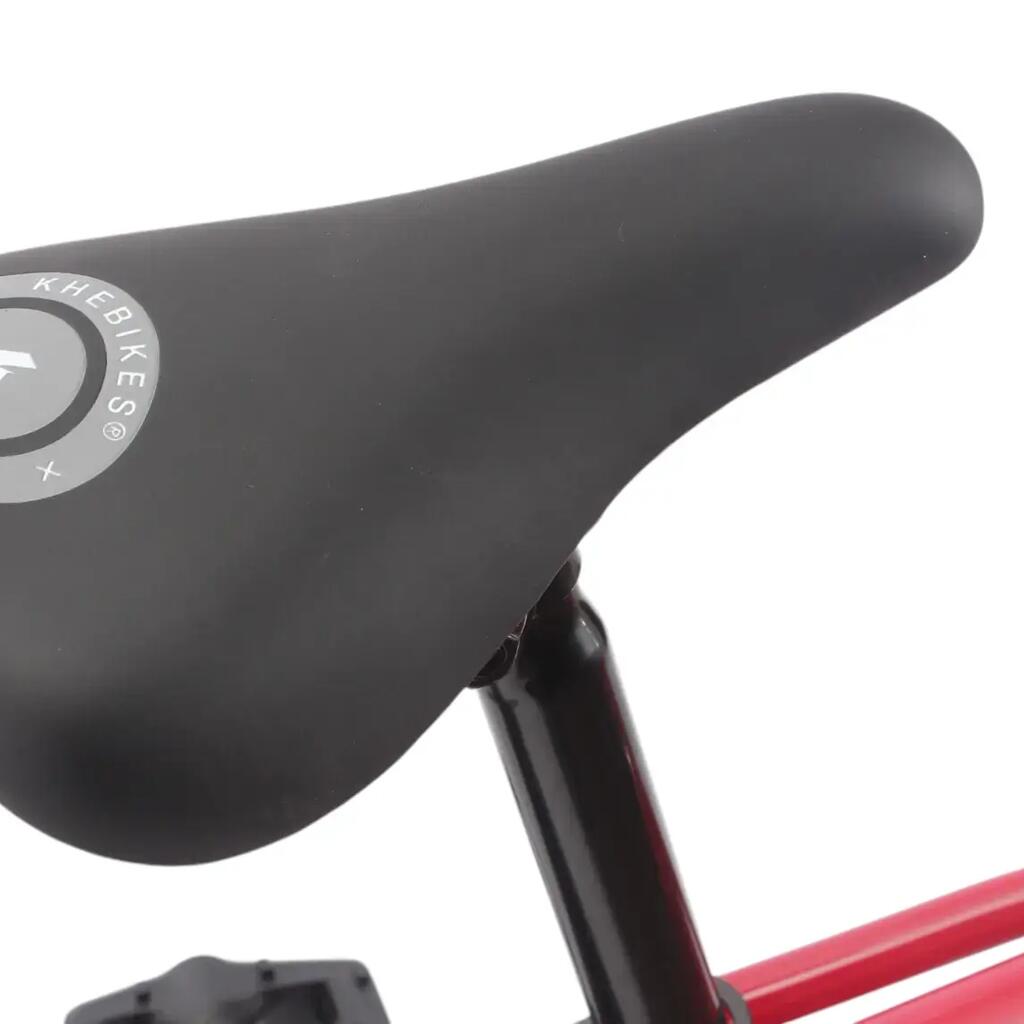

Flatland Equipment: • 6061-T6 aluminium frame with integrated platform • Compact 19.7" top tube • 362 mm chainstay • Two pairs of aluminium pegs included • Adjustable saddle with rails • 300 mm aluminium seat post

Technical Data

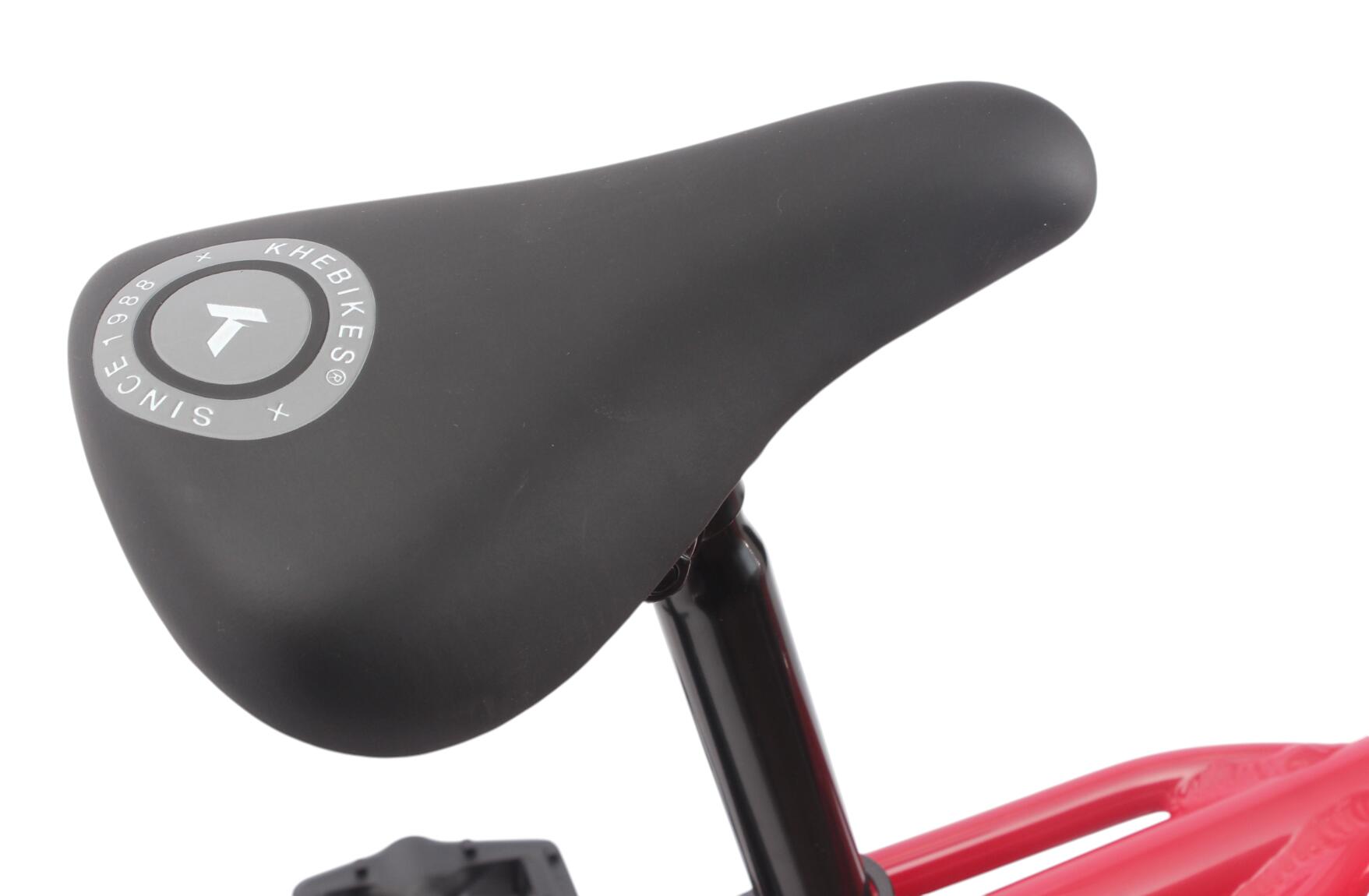

• Model: KHE TRICKY AL • Model year: 2025 • Frame: KHE 6061 aluminium • Fork: KHE 1020 HiTen steel with tapered fork legs • Top tube: 19.7" (500 mm) • Chainstay: 362 mm • Head angle: 74.5 degrees • Seat angle: 71 degrees • Fork offset: 33 mm • Handlebar: KHE HiTen steel, 680 mm (26.8") wide × 203 mm (8") high • Backsweep: 10 degrees • Upsweep: 1 degree • Stem: KHE Top Loader (40 mm) • Rotor: Patented KHE AFFIX 360-degree rotor • Crank: 165 mm 3-piece CrMo hollow crank • Crank axle: 19 mm CrMo • Chainring: 25T steel • Bottom bracket: MID BB, sealed with industrial bearings • Headset: AFFIX Loose Ball 1 1/8" • Front brake: KHE RADIUS aluminium U-Brake • Rear brake: KHE RADIUS aluminium U-Brake • Hub type: Cassette • Rear hub: 9T cassette, 14 mm axle, industrial bearings • Front hub: Aluminium, 10 mm axle, industrial bearings • Rims: 20" double-wall aluminium rims, 36 hole • Tyres: KHE ACME 20 × 1.95" • Saddle: Padded, 210 × 140 mm, rail-adjustable • Seat post: 27.2 × 300 mm • Material: 6061 T6 aluminium • Weight: 10.9 kg

Suitable for:

• Rider height: 140–185 cm • Maximum rider weight: 95 kg • Use: Flatland / Park / Pumptrack

Why choose the KHE TRICKY AL from KHEbikes:

✓ Lightweight 6061-T6 aluminium frame with integrated platform ✓ Compact 19.7" geometry for agile handling ✓ Patented KHE AFFIX rotor for 360-degree handlebar rotations ✓ KHE RADIUS aluminium U-Brakes front and rear ✓ Sealed MID BB bottom bracket with industrial bearings ✓ Strong double-wall aluminium rims ✓ Two pairs of aluminium pegs already included ✓ Only 10.9 kg total weight

Compatibility

• Front pegs: 10 mm • Rear pegs: 14 mm • Pegs included: 2 pairs of aluminium pegs

Delivery & Notes

Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.

Included: The KHE TRICKY AL is supplied with two pairs of aluminium pegs.
