Product Description

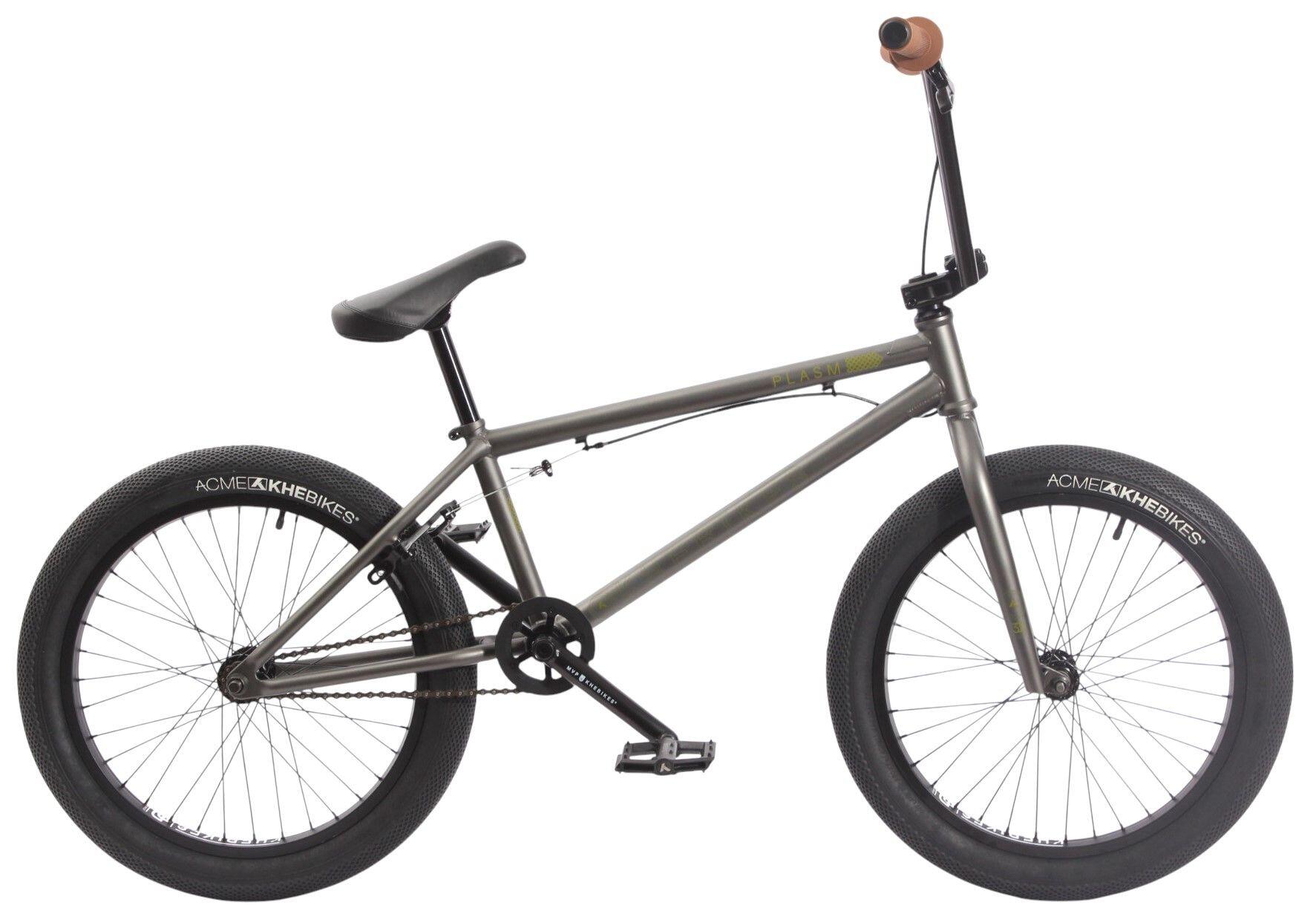

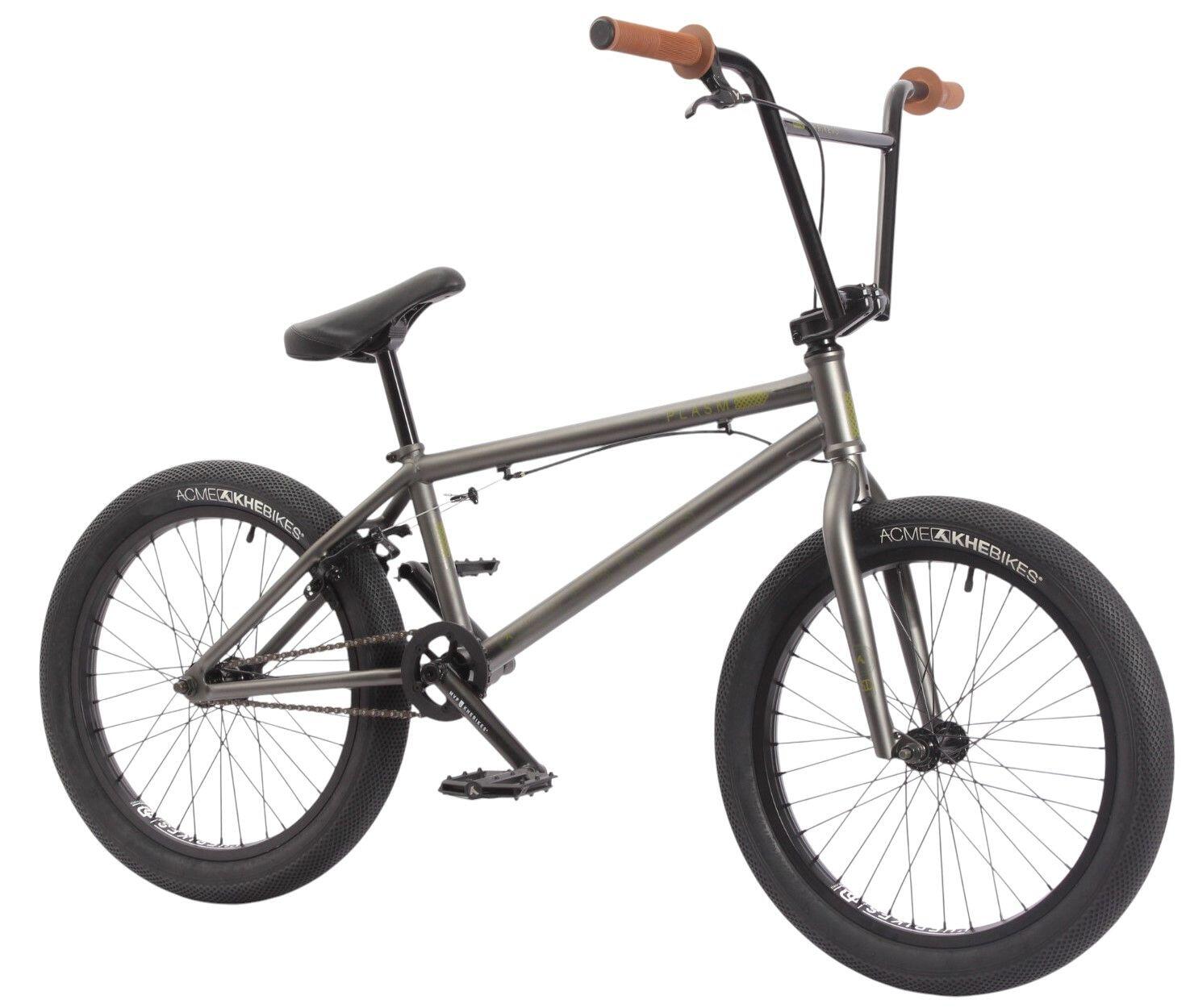

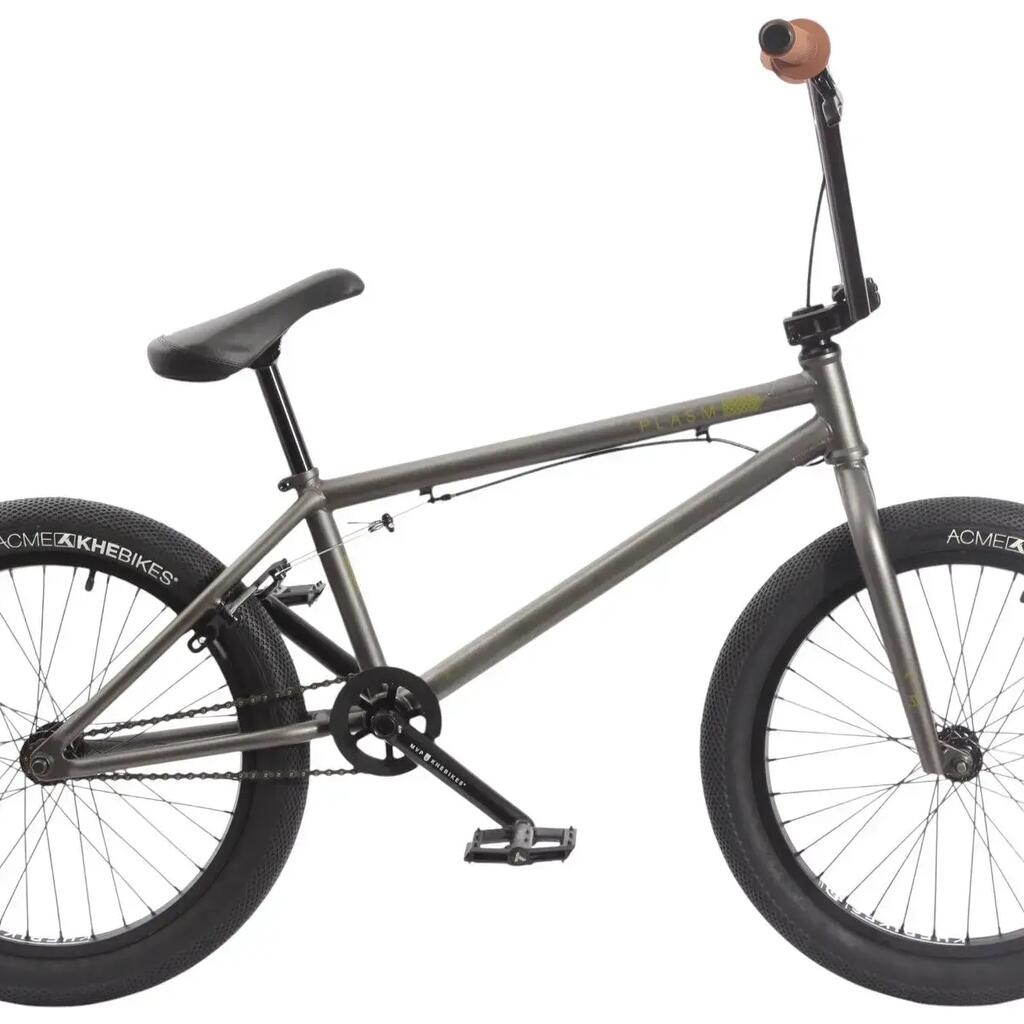

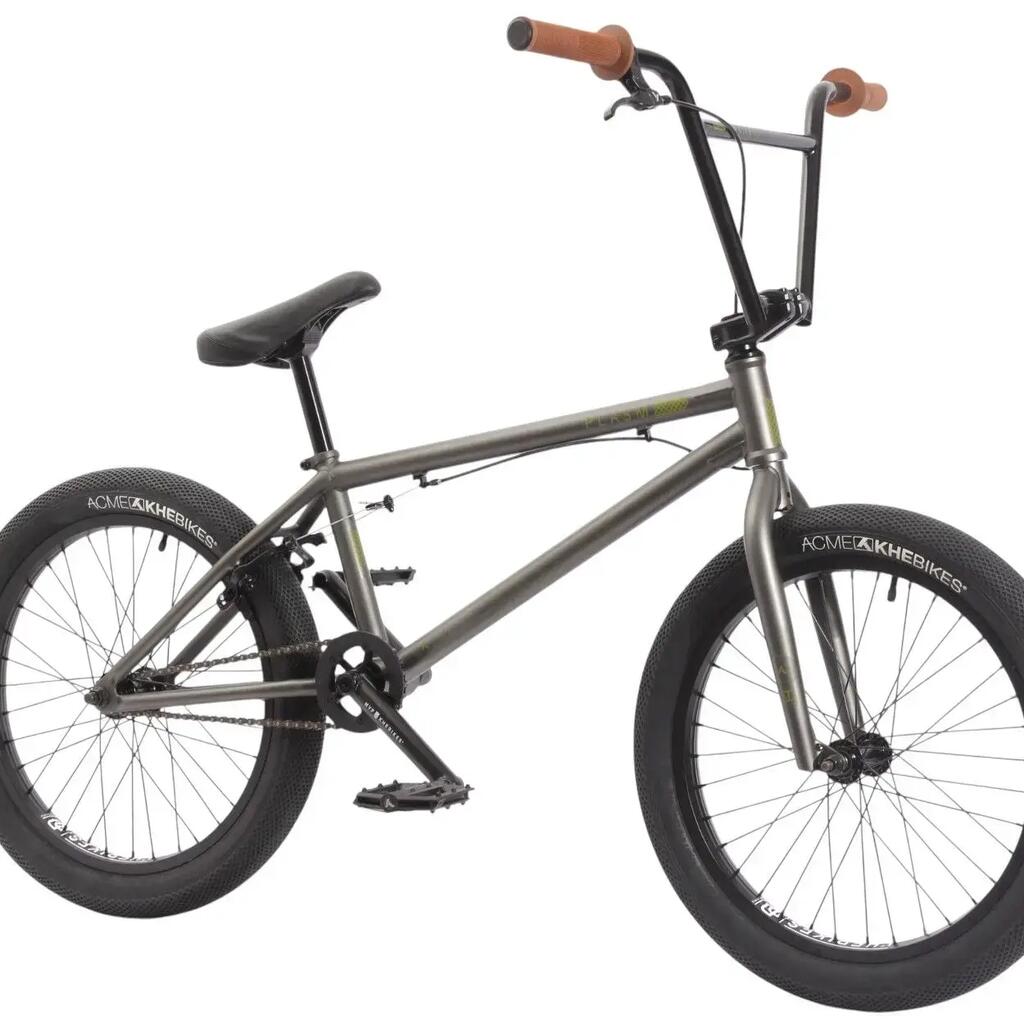

KHE PLASM XL 20" BMX Freestyle Bike 2025 for Tall Riders
The KHE PLASM XL 20" is a BMX designed for tall riders and is suitable for Park, Street and Pumptrack. The long HiTen steel frame with a 21.5" top tube and 10" high handlebar provide geometry designed for rider heights of 170–205 cm. Weighing only 10.9 kg, with the patented KHE AFFIX rotor system, a 3-piece CrMo hollow crank and wide 2.40" tyres, the PLASM XL combines controlled handling with robust Freestyle equipment.
Equipment
Drivetrain:

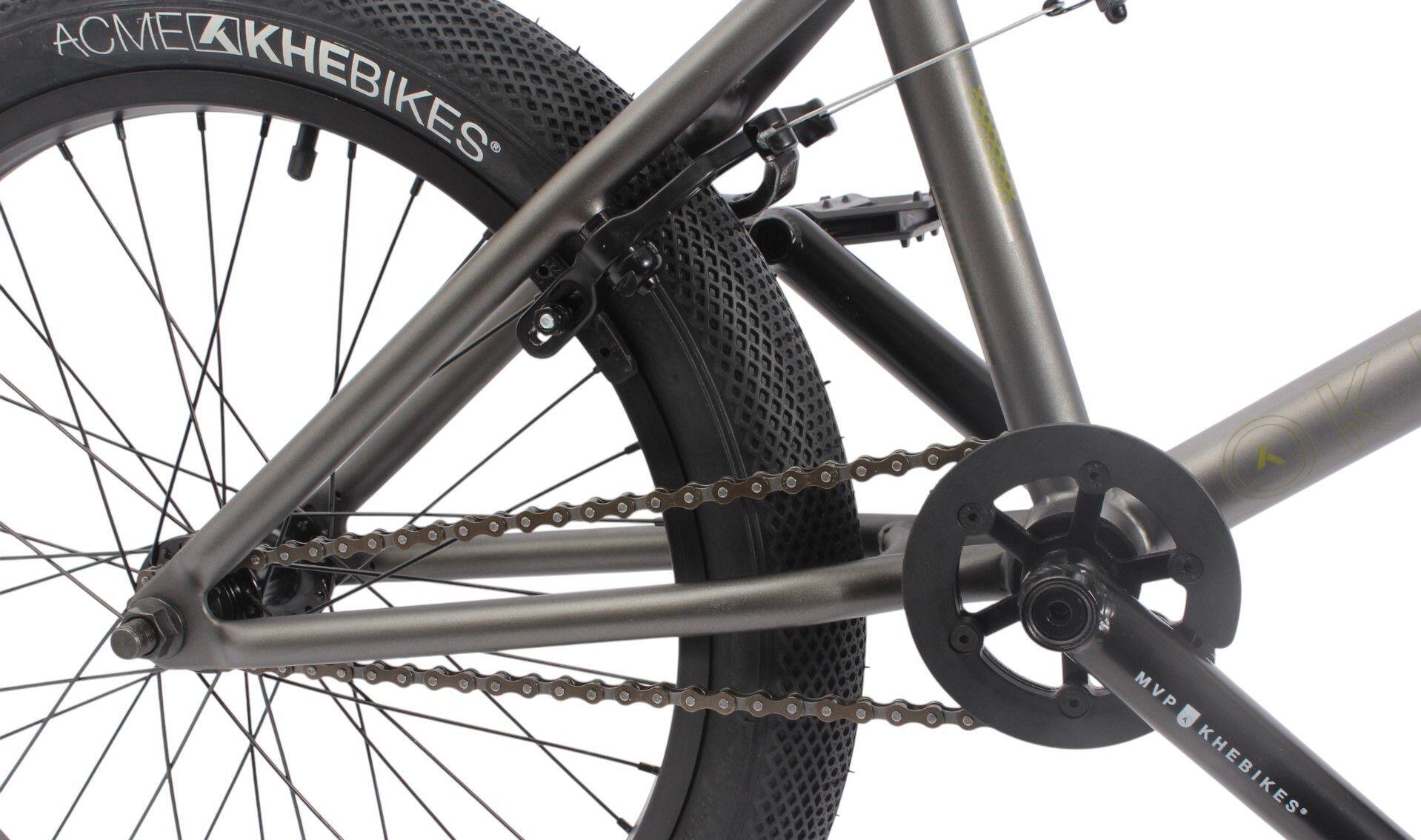

• 3-piece 170 mm CrMo hollow crank

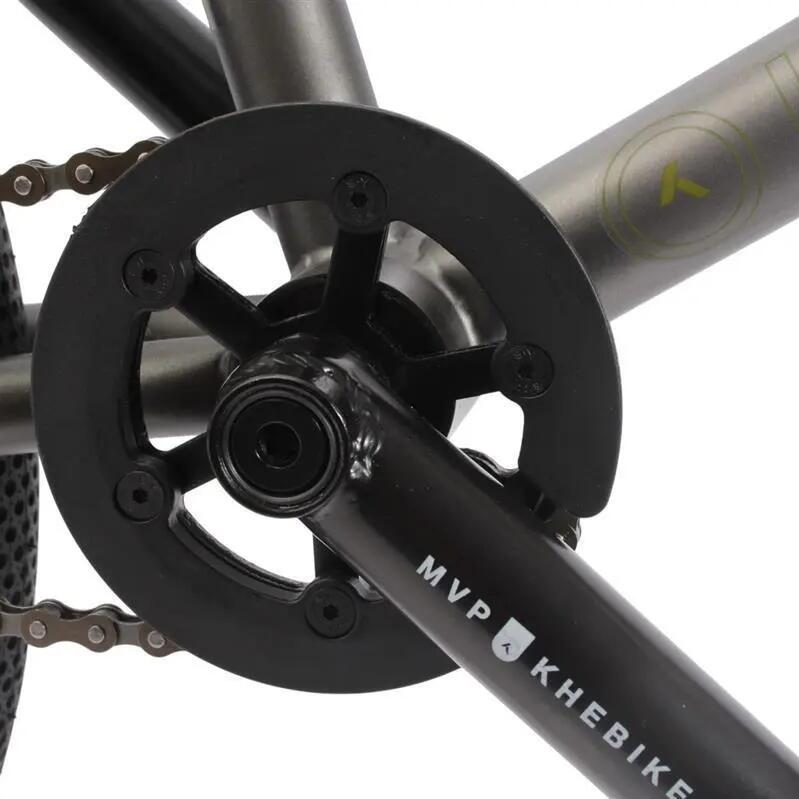

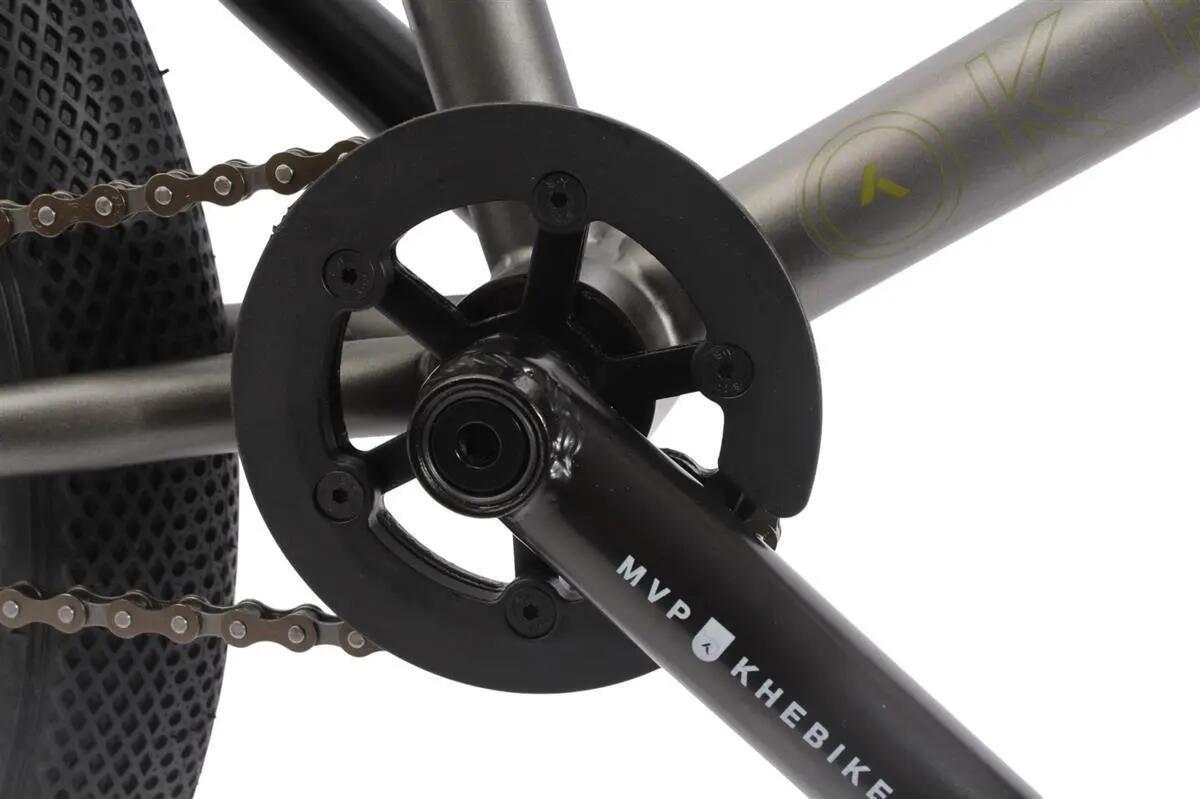

• 25T steel chainring with nylon Grindguard
• Sealed MID BB bottom bracket with industrial bearings
• YBN chain
• 9T cassette hub
Cockpit:

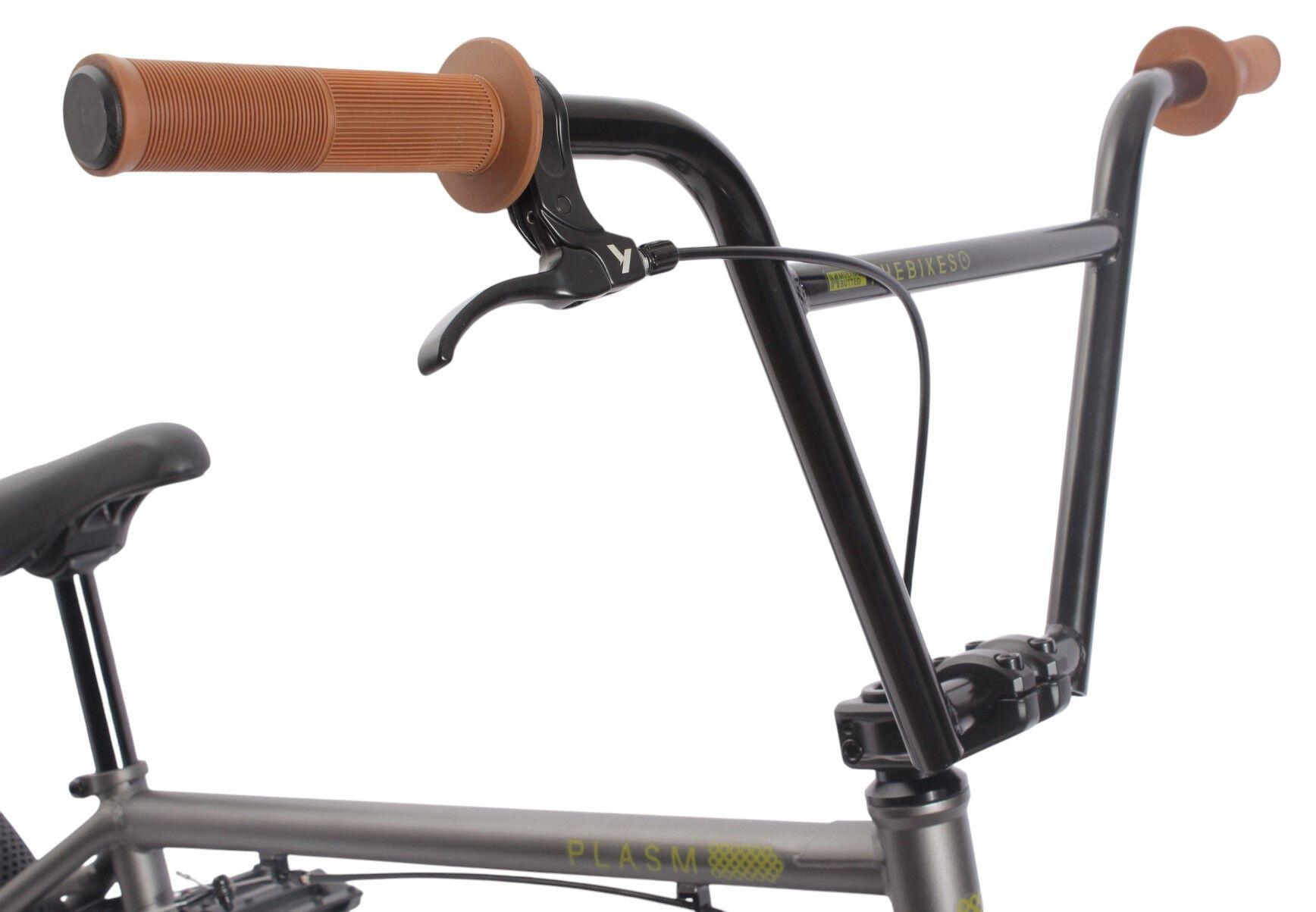

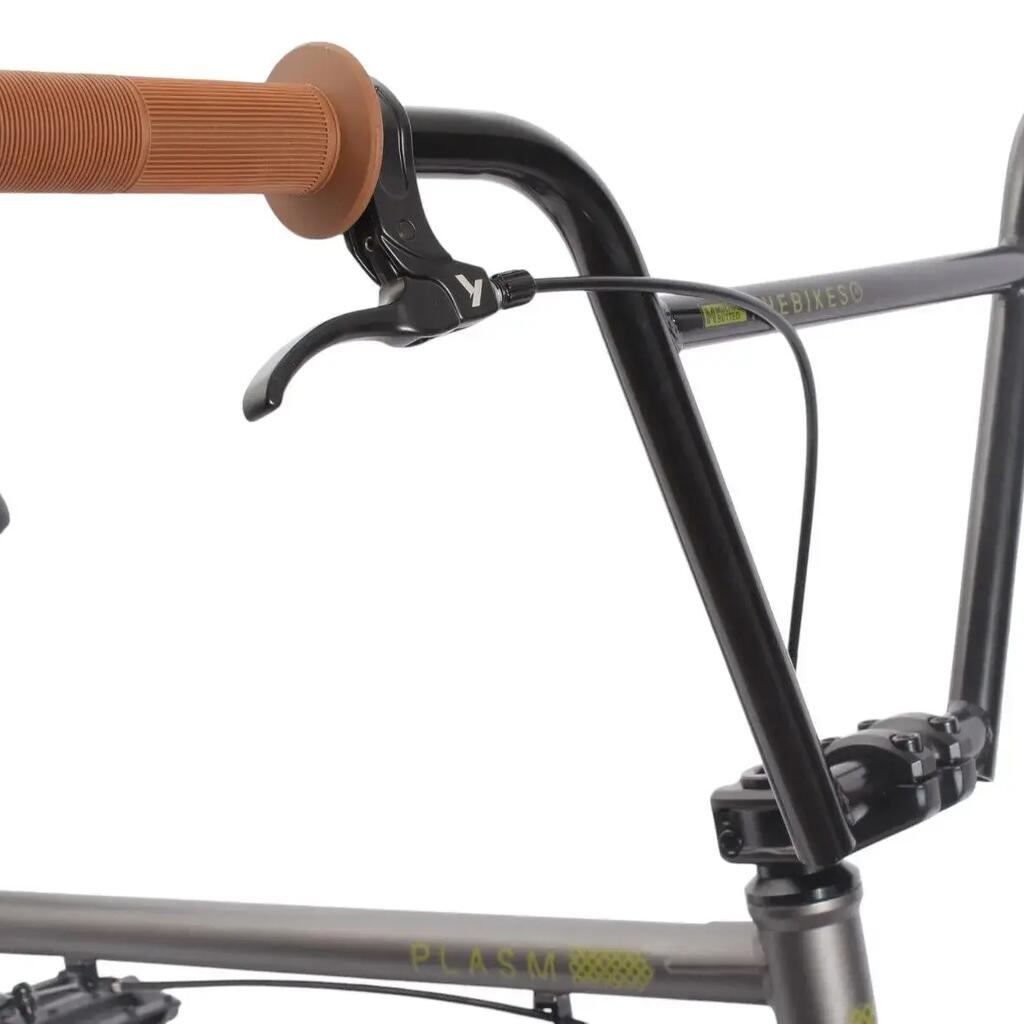

• 750 mm wide KHE 4-piece handlebar with 10" rise

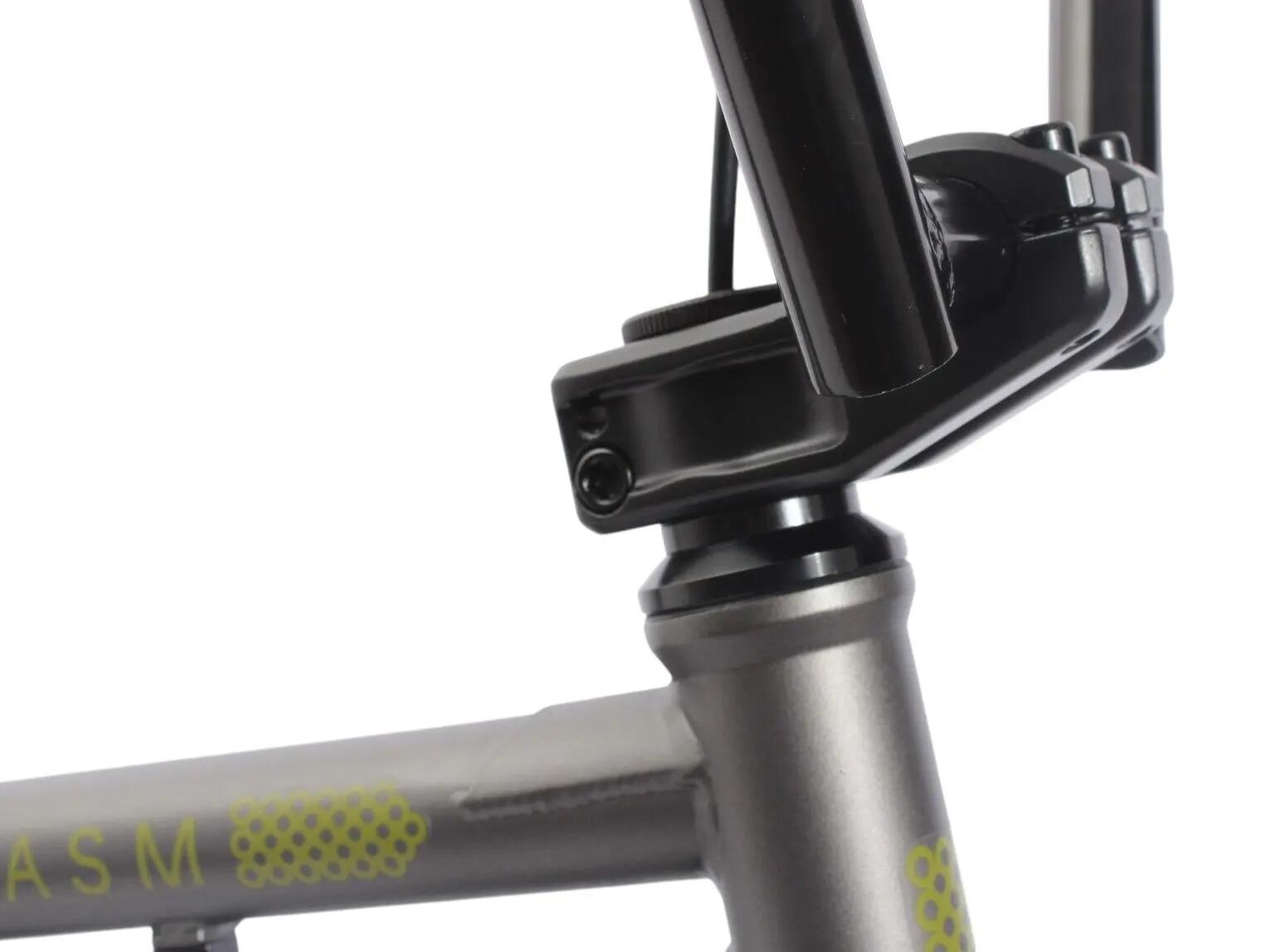

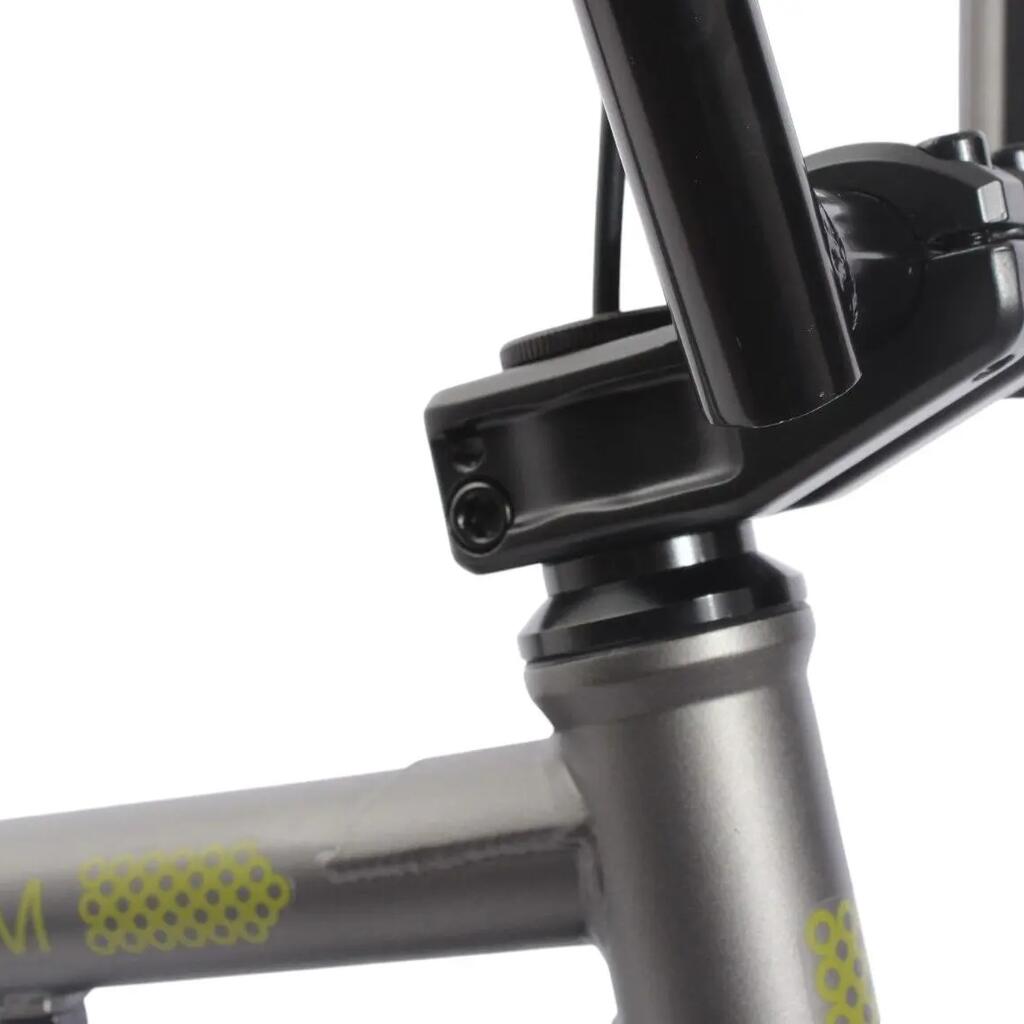

• KHE Top Loader stem (50 mm)
• Patented KHE AFFIX 360-degree rotor
• Propalm Mushroom Style grips
• Integrated headset with industrial bearings
Brakes & Wheels:

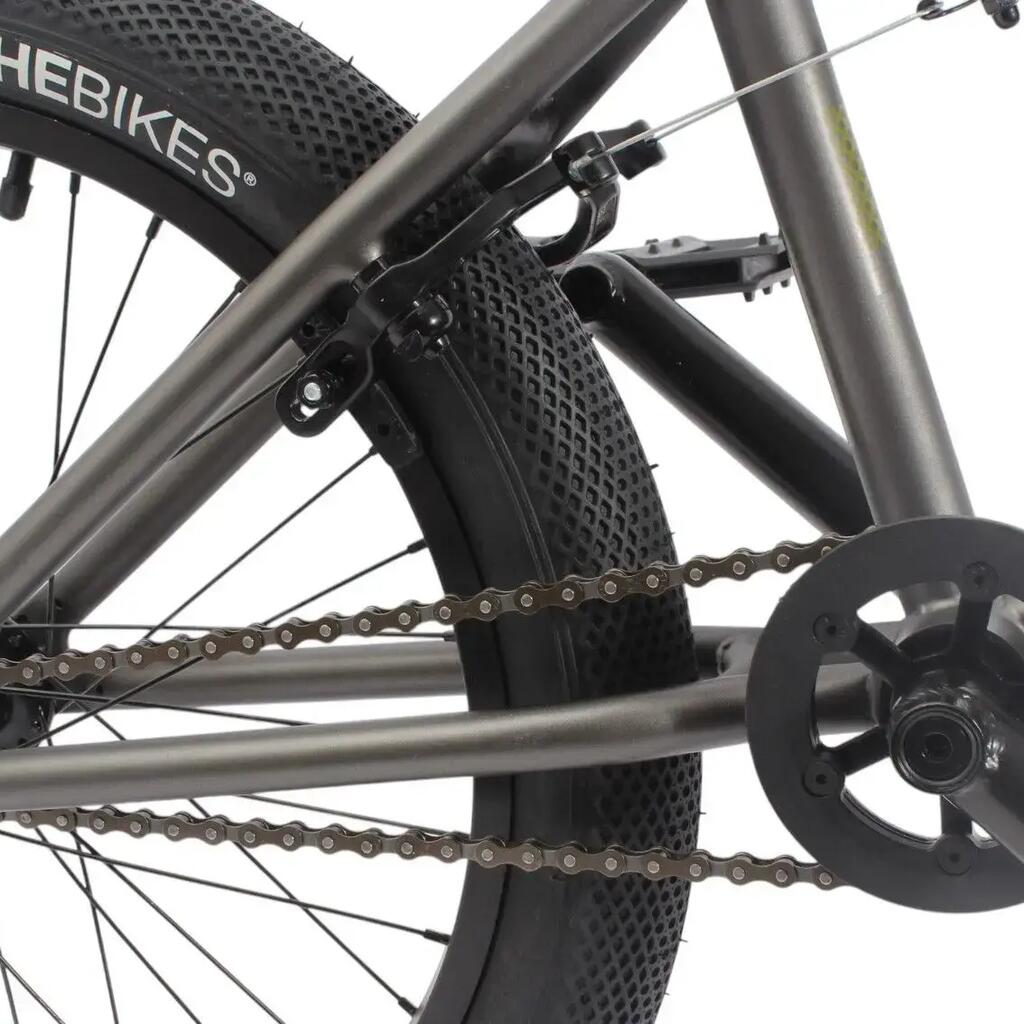

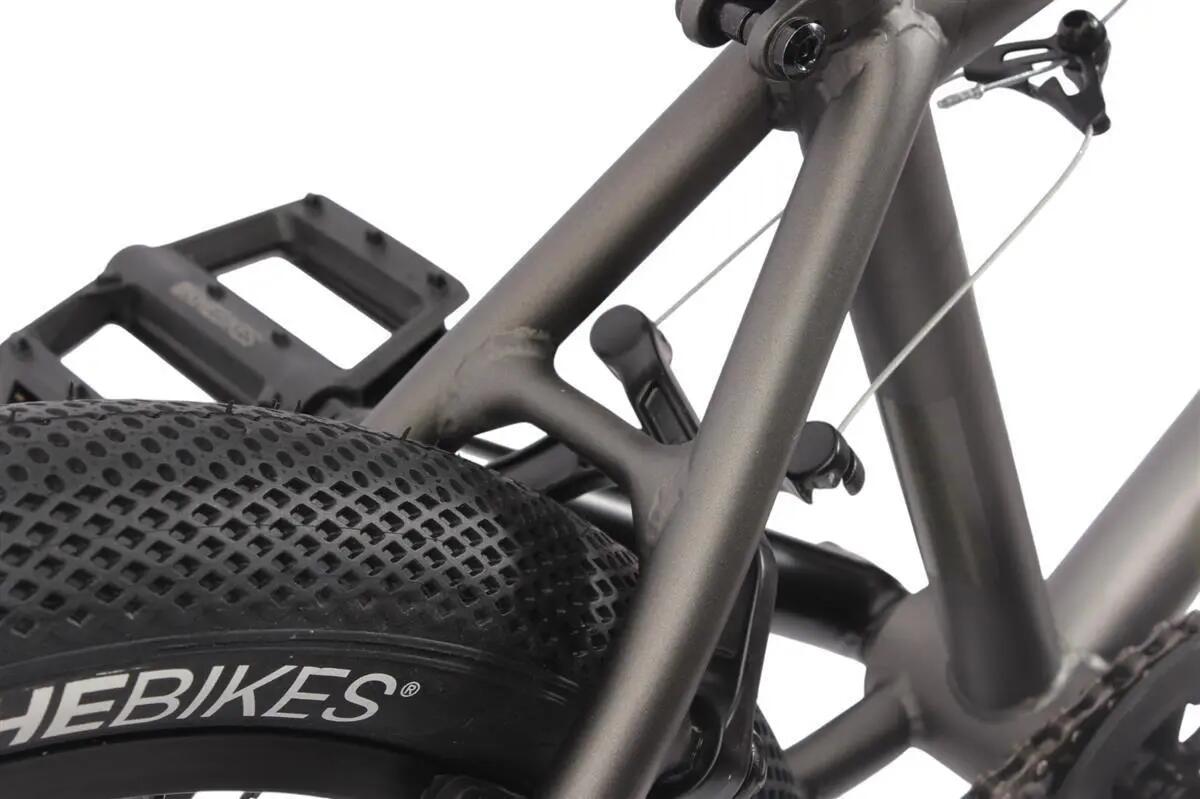

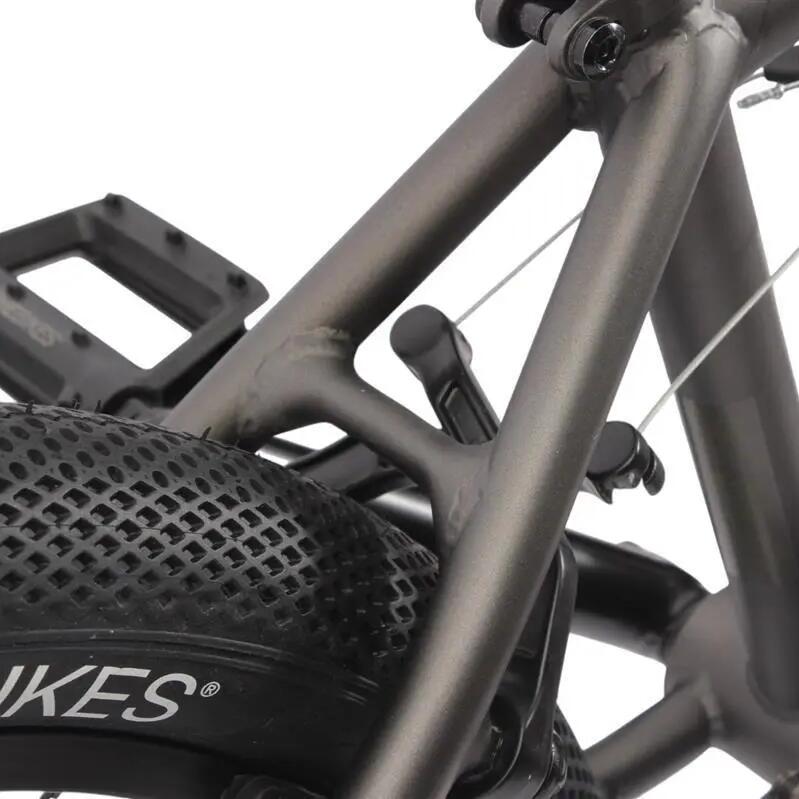

• KHE RADIUS aluminium U-Brake rear
• 20" double-wall aluminium rims
• Hubs with industrial bearings front and rear
• KHE ACME tyres 20 × 2.40"

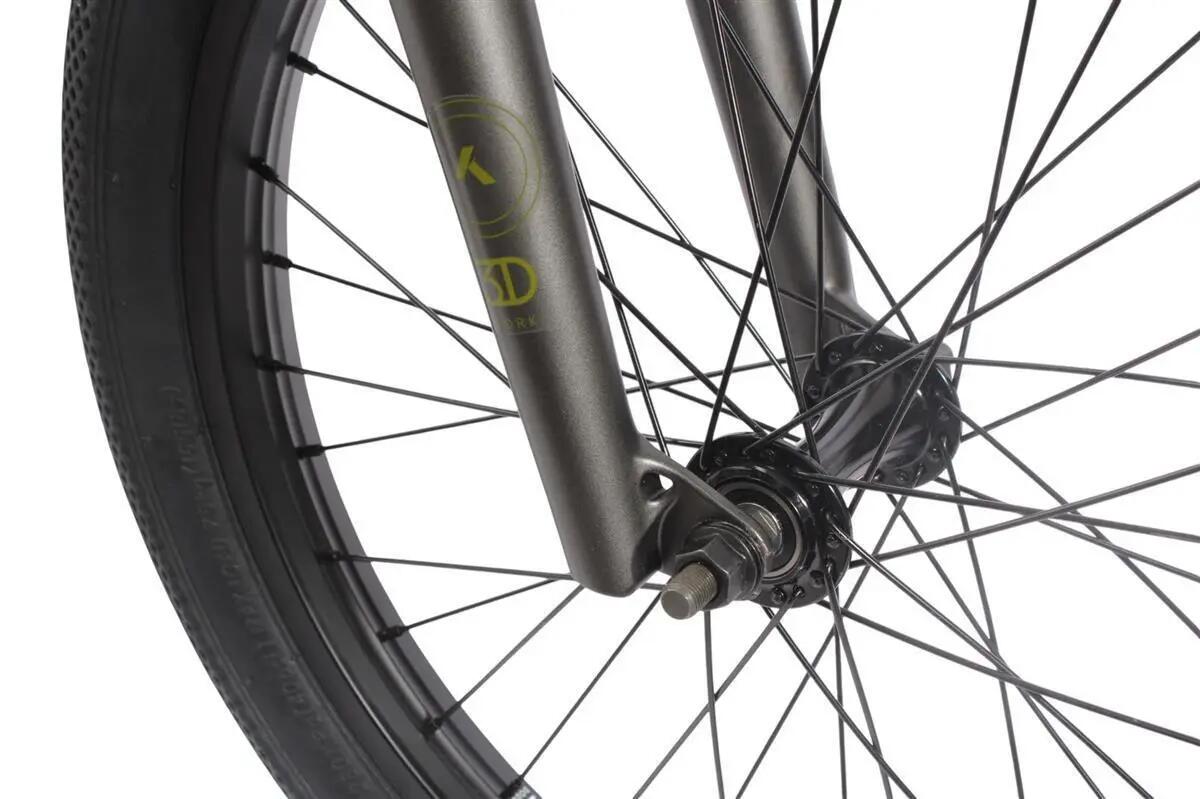

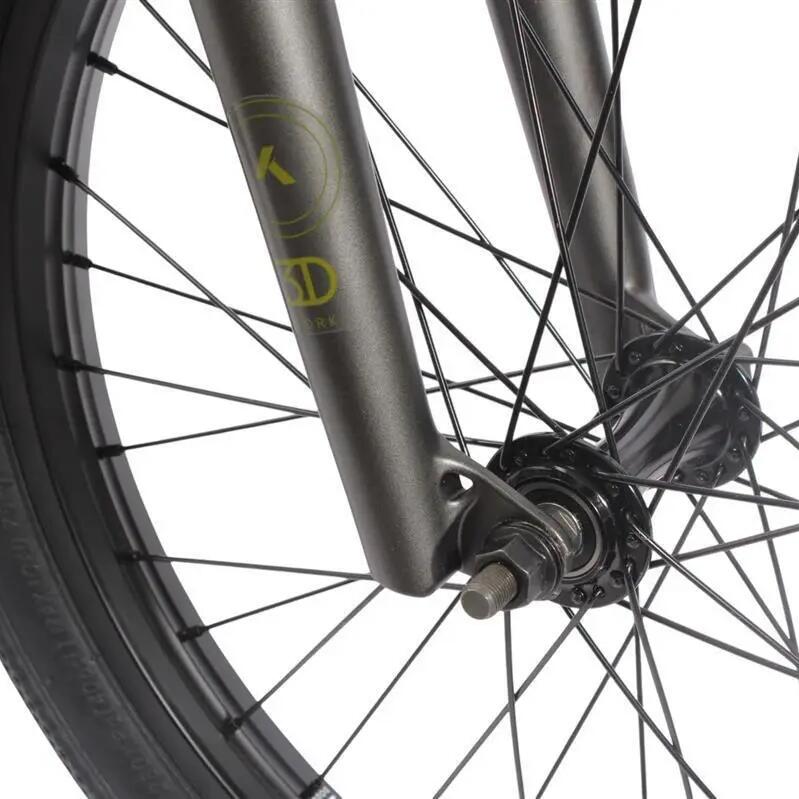

• 10 mm front axle
• 14 mm rear axle
Saddle:

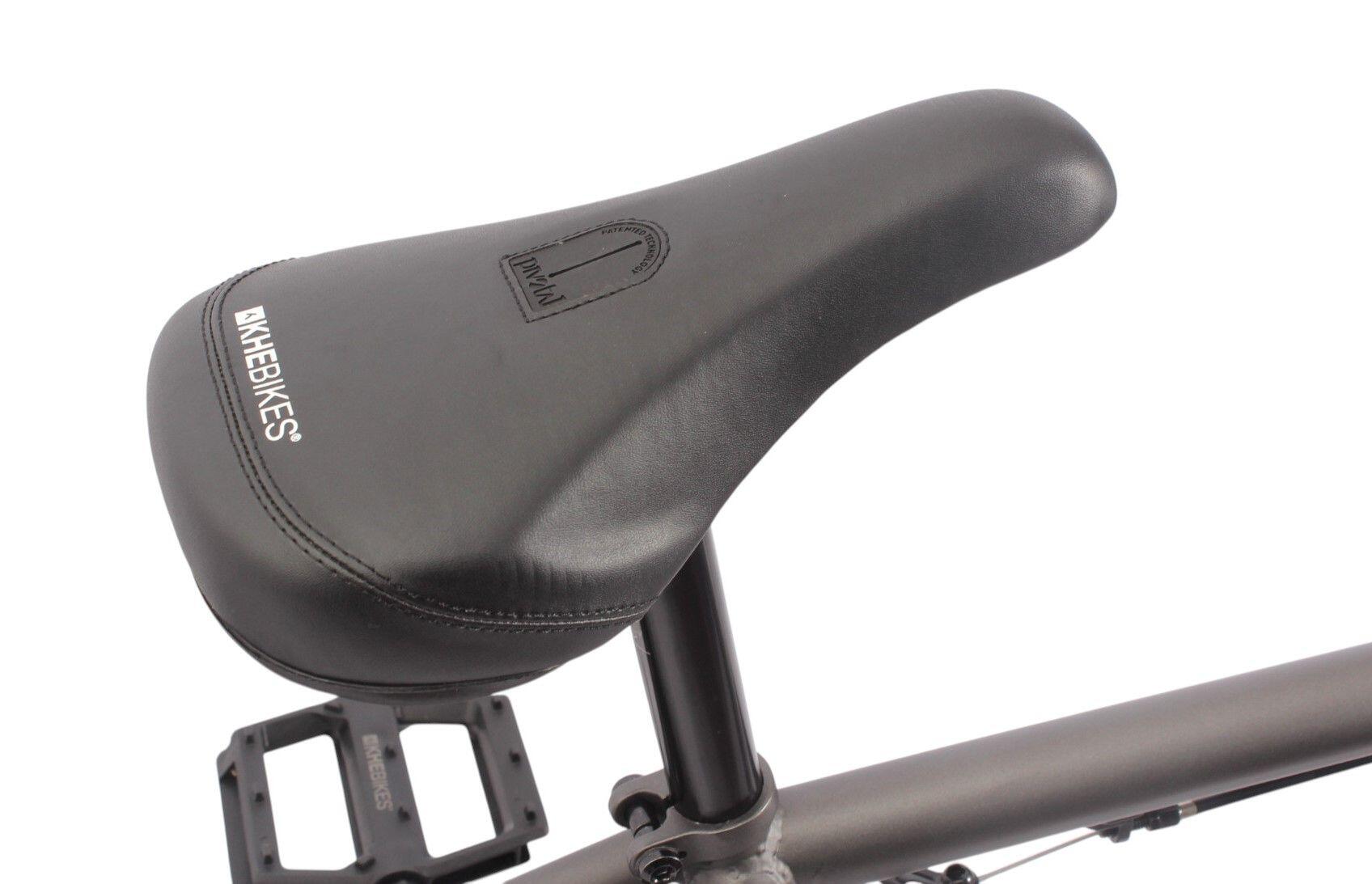

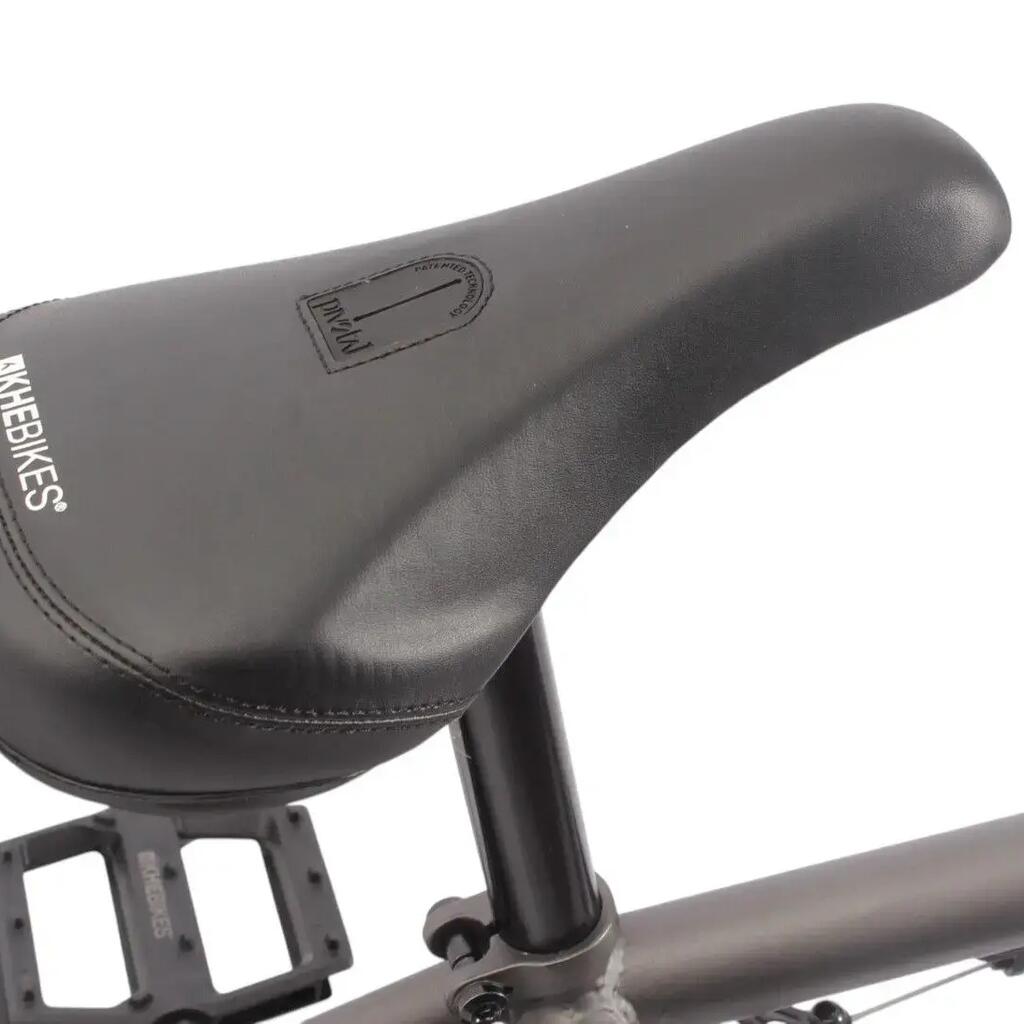

• Padded KHE PIVOTAL saddle
• Patented Pivotal clamping system
• Extra-long KHE PIVOTAL seat post, 300 mm length
Technical Data
• Model: KHE PLASM XL
• Model year: 2025

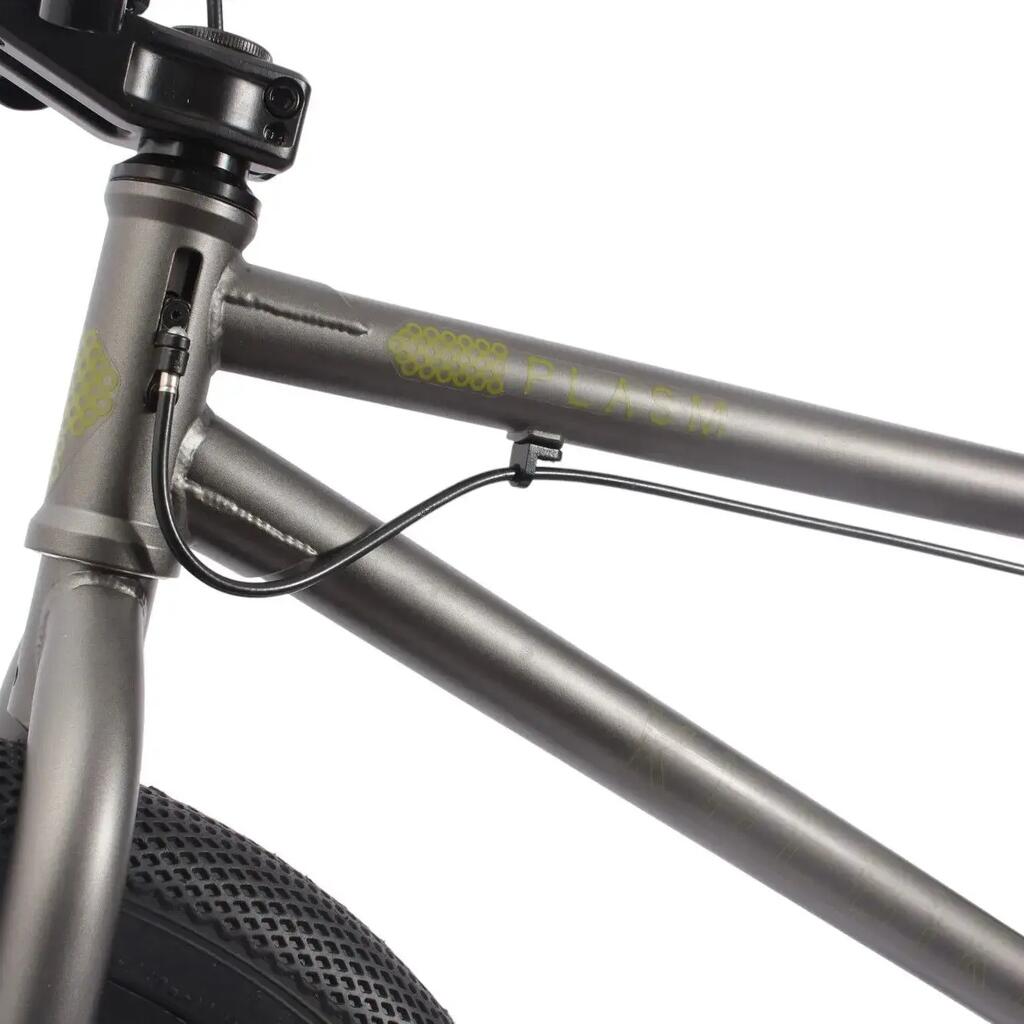

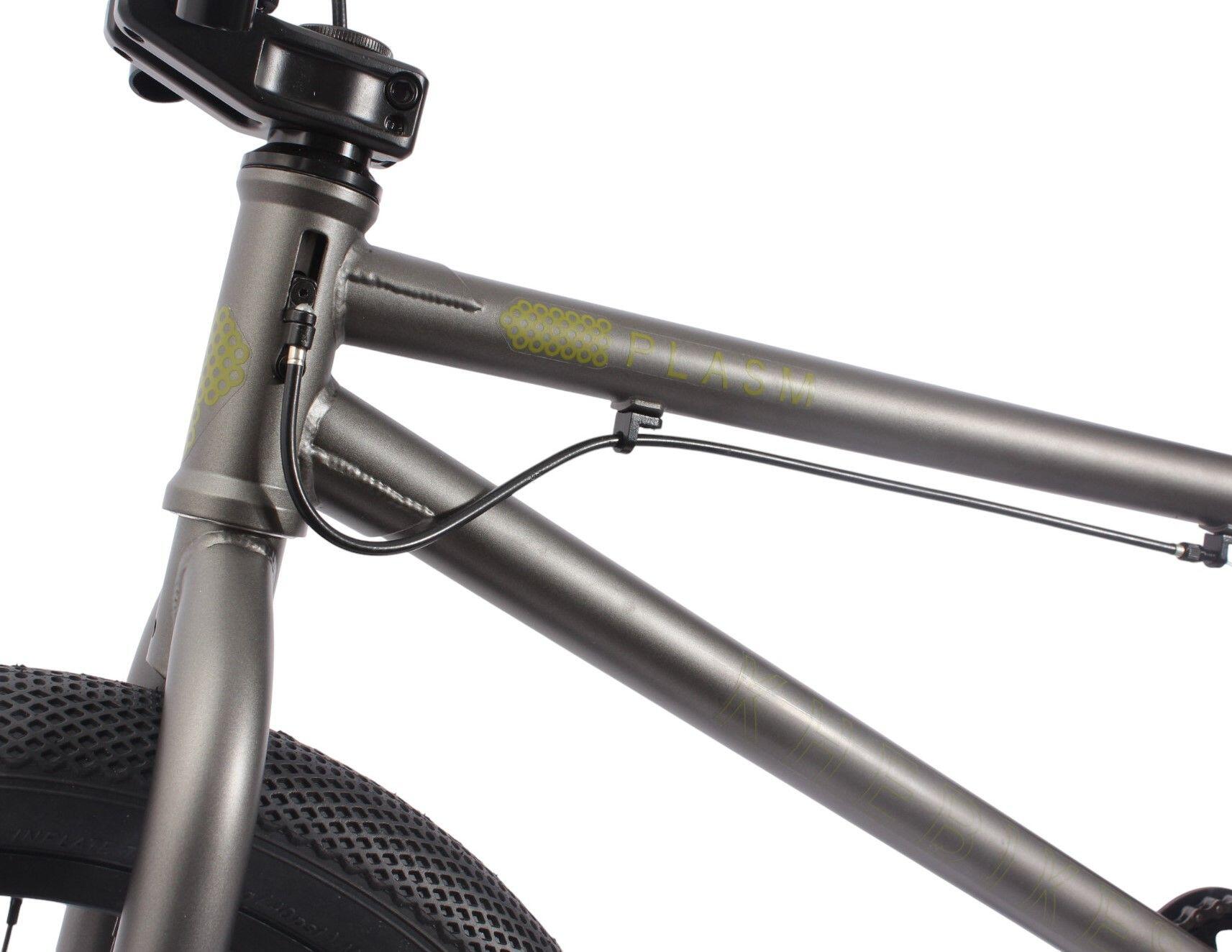

• Frame: KHE HiTen steel with 14 mm dropouts

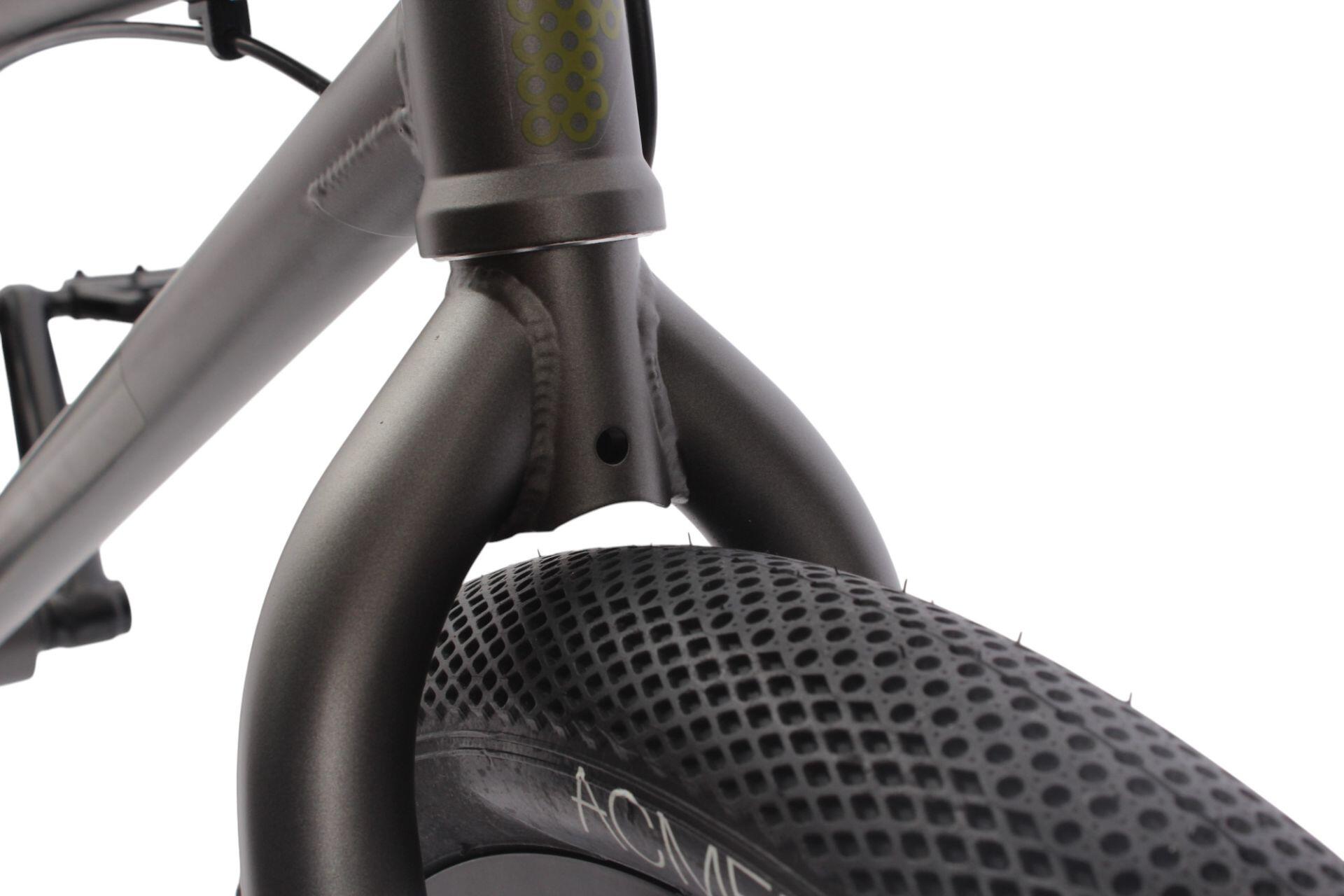

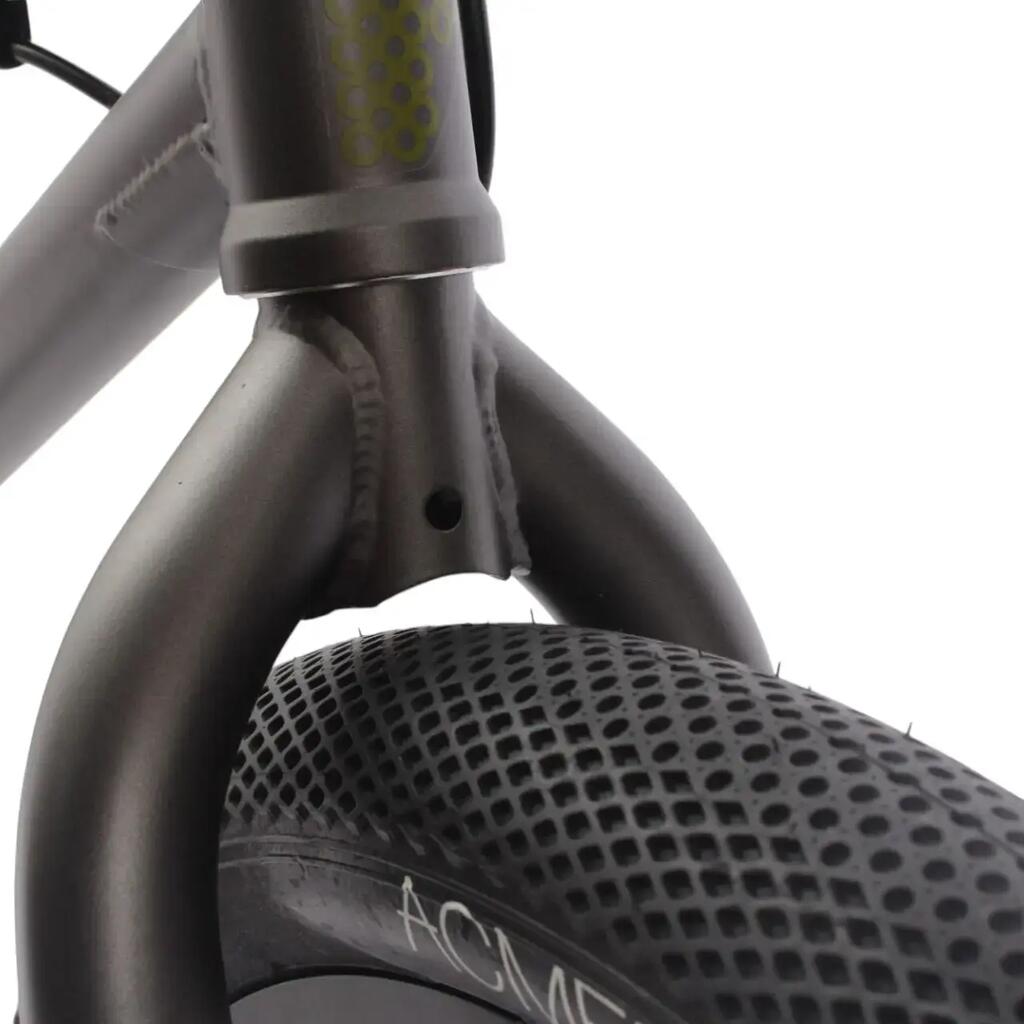

• Fork: KHE 1020 HiTen steel with 3D dropouts
• Top tube: 21.5" (540 mm)
• Chainstay: 349 mm
• Head angle: 75 degrees
• Seat angle: 71 degrees
• Handlebar: KHE 4-piece, 750 mm wide × 254 mm (10") high
• Stem: KHE Top Loader (50 mm)
• Rotor: KHE AFFIX 360 degrees
• Crank: 170 mm 3-piece CrMo hollow crank
• Chainring: 25T steel with nylon Grindguard
• Bottom bracket: MID BB, sealed with industrial bearings
• Headset: Integrated with industrial bearings
• Hub type: Cassette

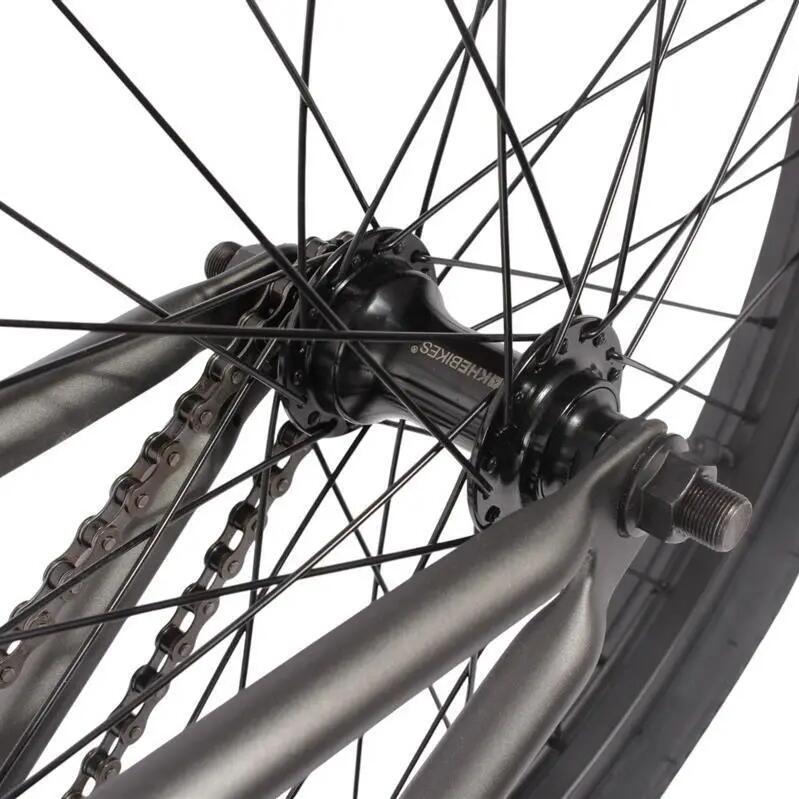

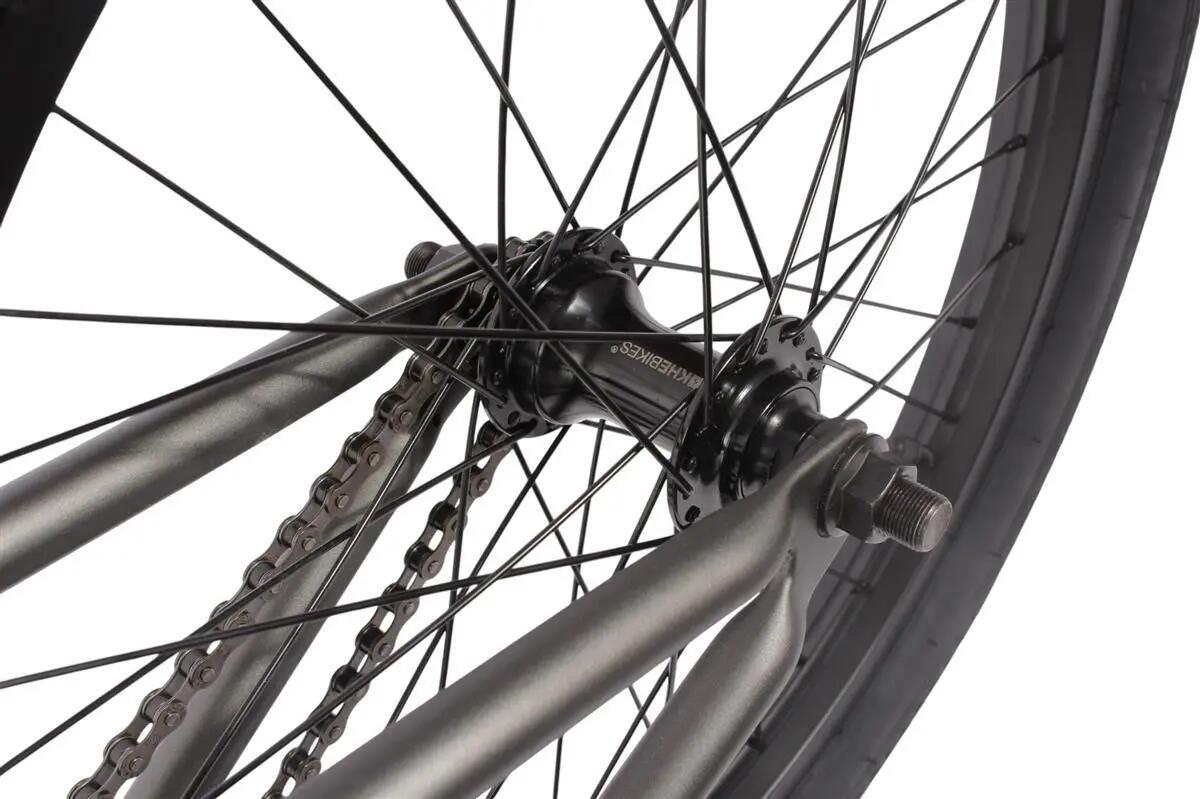

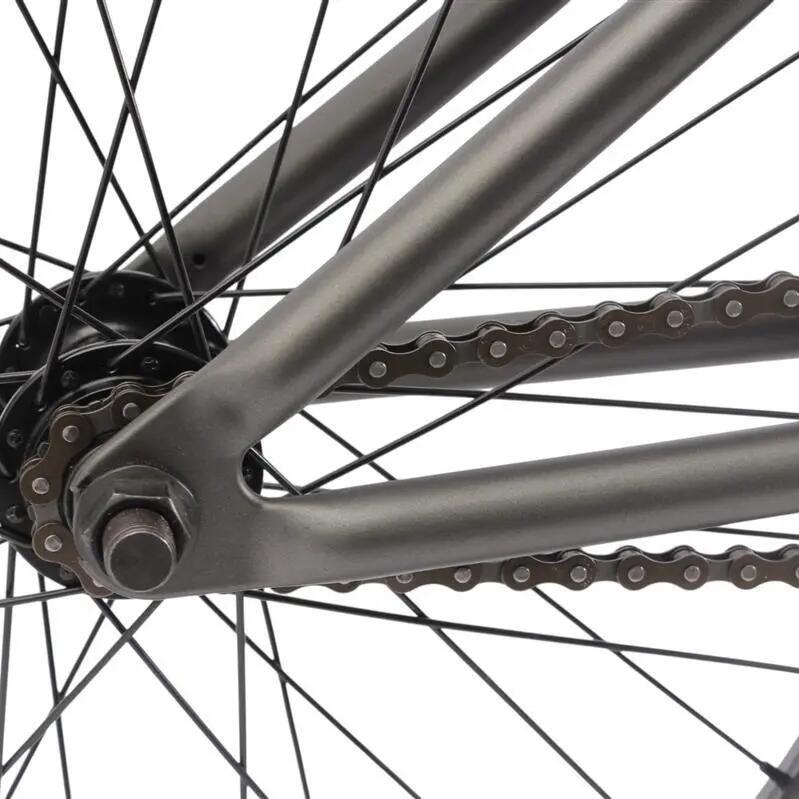

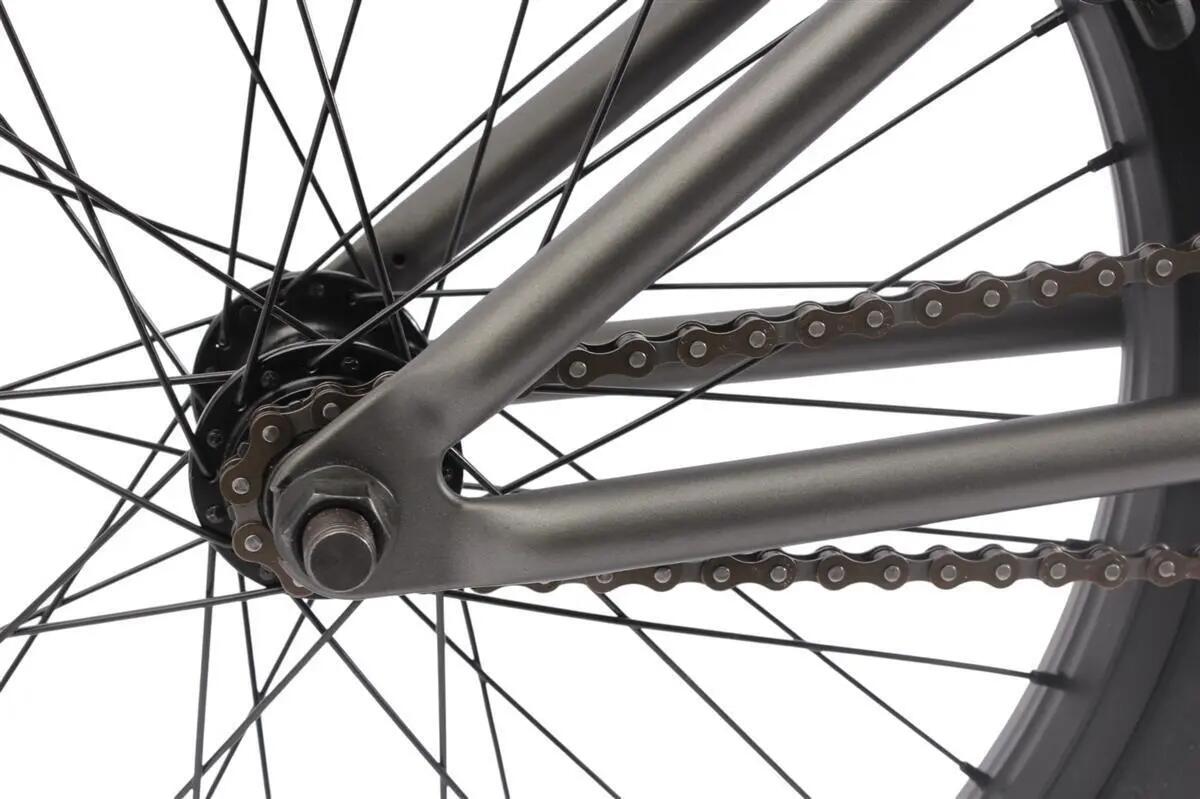

• Rear hub: 9T cassette, 14 mm axle, industrial bearings
• Rims: 20" double-wall aluminium, 36 hole
• Tyres: KHE ACME 20 × 2.40"
• Material: HiTen steel
• Colour: Matt Anthracite
• Weight: 10.9 kg
Suitable for:
• Rider height: 170–205 cm
• Maximum rider weight: 120 kg
• Use: Park / Street / Pumptrack
Why choose the KHE PLASM XL 20" from KHEbikes:
✓ Extra-long 21.5" top tube for tall BMX riders
✓ 10" high and 750 mm wide handlebar for an adapted riding position
✓ Patented KHE AFFIX 360-degree rotor for unrestricted handlebar rotations
✓ Robust 3-piece CrMo hollow crank with 170 mm length
✓ 25T chainring with nylon Grindguard for additional protection when grinding
✓ Extra-long 300 mm KHE PIVOTAL seat post
✓ Wide KHE ACME 20 × 2.40" tyres for grip and control
✓ Only 10.9 kg total weight
Compatibility
• Front pegs: 10 mm
• Rear pegs: 14 mm
• Recommendation: KHE CNC Pro Pegs or KHE LASER Pro Pegs
Delivery & Notes
Delivery condition: The BMX is delivered approximately 90% pre-assembled. Before the first ride, all safety-relevant components should be professionally assembled and checked.
Important note: The bike is supplied with a pre-installed KHE RADIUS aluminium U-Brake on the rear wheel, but without a front brake. A compatible front brake is also available from Decathlon: KHE BMX Sidepull Brake Set.
