Product Description
LUGGAGE RACK MOUNTING SYSTEM
COMPATIBLE LUGGAGE RACKS
Fits luggage racks 120-175 mm wide
Luggage rack dimensions only: Round tubes, Ø 10-22 mm
For luggage racks with a minimum load capacity of 27 kg, according to ISO 11243-2016
Tool-free installation; easily attaches to the luggage rack by turning a knob. Perfect for daily commutes or for storing the seat at the end of the day.
PROHIBITED - Using non-compliant luggage racks can endanger your child.
Load racks with "mousetrap" type fixings positioned above the support will prevent the correct installation of the seat clamps. Rack with elastic bands; the clamps can be damaged due to continuous elastic pressure.
Mounts the seat clamps on vertical bars.
Mounts the seat clamps on asymmetrical racks.
Mounts the seat clamps on oval, square, or triangular tubes.
STABILITY AND SAFETY
Turn the knob to attach and detach the seat from the rack.
Tool-free installation; install the seat in seconds, ready to use right out of the box.
Adjustable position; the seat can be moved forward or backward on the rack for a better fit according to the child's/bike's size.
For 24-29" wheels.
SAFETY
Adjustable 5-point safety harness.
Child-resistant safety buckle for easy installation and removal.
Additional safety strap for attaching to the frame.
Wide foot protection prevents contact with the wheel.
Rear reflective sticker for increased visibility.
COMFORT
Armrest shape for comfortable hand placement. Child
Comfortable shoulder pads
Ergonomic shape for helmet use, preventing the child's head from being pushed forward
Height-adjustable safety harness with up to 2 positions
Footrests adjustable to up to 4 positions
Waterproof cover for added comfort and easy cleaning
CHILD
Maximum child weight: 22 kg / 48.5 lb
Maximum child height: 110 cm / 43.31 in
Recommended age: 9 months to 6 years
Weight and height are key criteria
OTHER FEATURES
Small luggage compartment, maximum load 1 kg / 2.2 lb
Ideal for diapers, small toys, wipes, keys, or smartphones
Design inspired by the automotive industry
The luggage rack is not included with the seat

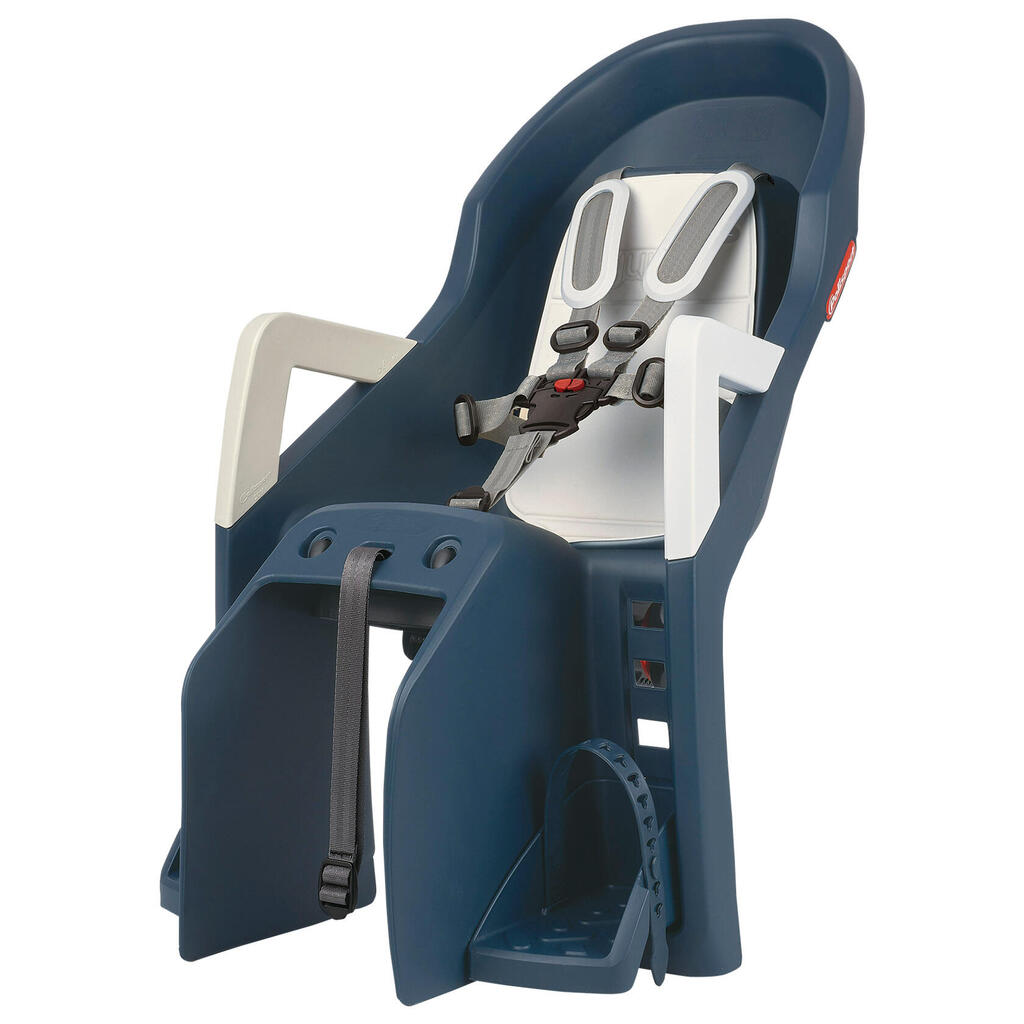

SEAT
Seat weight: 3.049 kg
Seat dimensions: Width 413 x Height 685 x Depth 595 mm
Standards: Compliant with TÃœV GS EN 14344-2022
Compatible with e-bikes and pedelecs up to 25 km/h.
AWARDS
Winner of an iF Design Award
Winner of a Taipei Cycle Award
