Product Description
Product Overview
The KAISDA K201 electric bicycle features dual battery long-term endurance, multi-mode riding, and high load-bearing capacity. It is built with an aluminum alloy frame and focuses on urban commuting and short distance commuting scenarios. The overall structure of the vehicle is stable, with a maximum load capacity of 150kg, suitable for a wide range of people, supporting multiple gear assist and throttle modes, with comprehensive and practical configuration, to meet the daily high-frequency travel and short distance commuting needs with stable performance and excellent endurance.
Dual battery long endurance, flexible power mode
Equipped with a 36V dual battery configuration, the hidden battery and rear battery each have 10.4AH, providing outstanding range performance. Driving at a speed of 25km/h, the pure electric range is 70-80km, and the power assisted mode range is 80-90km (affected by factors such as weight and road conditions). Charging only takes 4-5 hours, making energy replenishment efficient and completely eliminating range anxiety. Supports 1-5 power assist mode+throttle mode, with no function in 0 gear, slowest in 1 gear and fastest in 5 gear. It can be flexibly switched according to riding needs, with a maximum output torque of 40Nm and stable power output, suitable for different riding rhythms.
Aluminum alloy frame, stable and high load-bearing capacity
The frame is made of aluminum alloy material, which is sturdy, corrosion-resistant, and balances stability and texture. The net weight is 33KG and the gross weight is 40KG, with a solid structure that is not easily deformed. The maximum load-bearing capacity is 150kg, which is suitable for more body types and greatly improves practicality. The overall size design of the vehicle is reasonable, with a length of 166cm, handlebar width of 72cm, adjustable seat height of 84-100cm, handlebar to ground height of 112cm, and a relaxed riding posture; The packaging box size is 140 * 26 * 74CM, which is convenient for transportation. The body cannot be folded, and the stability is more prominent.
Safe braking, easy and worry free operation

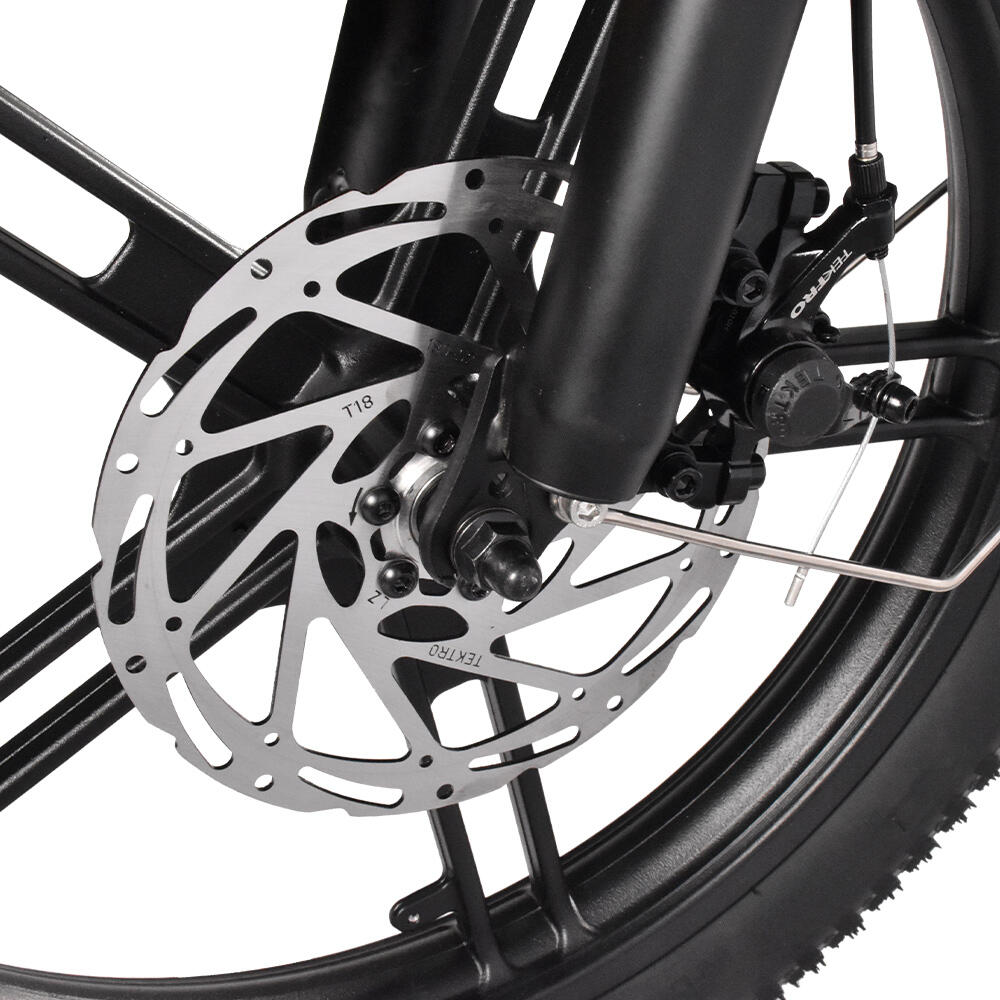

Equipped with a mechanical disc brake system, both the front and rear brakes are supported by large brackets, providing sensitive and reliable braking with strong braking force. It can quickly and smoothly decelerate during emergency braking, ensuring all-round cycling safety. Using 20 * 3.0 inch tires with an optimal tire pressure of 200kpa, it has excellent grip and smooth riding without slipping. The left handle controls the front brake and the right handle controls the rear brake. The operation logic is clear, easy to use, and does not require complex learning. It is convenient and efficient for daily use.
Practical details and wide adaptability
The dual battery design balances battery life and convenience, with hidden and rear mounted configurations that do not take up too much space and are aesthetically pleasing. The aluminum alloy frame is durable and easy to maintain, requiring no complex maintenance, and remains stable even after long-term high-frequency use. All dimensions conform to ergonomics, providing high riding comfort. The high load-bearing design is suitable for different groups of people, whether it is daily commuting or short distance travel, providing a stable and convenient riding experience with outstanding cost-effectiveness.
[Product Parameters]
Model: KAISDA K201
Speed mode: 1-5 power assist mode+throttle mode, 0 gear has no function
Speed gear: 1st gear is the slowest, 5th gear is the fastest
Top speed (km/h): 25km/h
Pure electric range (km): ranging from 25km/h to 70-80km/h depending on individual weight, road conditions, weather, and maximum speed
Maximum range of assistance (km): From 25km to 80-90km, depending on the person's weight, road conditions, weather, maximum speed, gear stepping force and frequency
Frame material and process: Aluminum alloy material
Packaging box size: 140 * 26 * 74CM
Vehicle dimensions: "Vehicle length 166 * handlebar width 72 * seat to ground 84-100cm
Handlebar to ground 112cm“
Folding size: 92 * 46 * 114cm
Net weight (KG): 33kg
Gross weight (KG): 40kg
Maximum weight capacity of the vehicle (KG): 150kg
Maximum output torque: 40
Battery capacity (AH): Hidden battery 10.4AH, rear battery 10.4AH
Rated voltage (V): 36V
Charging time (H): 4-5 hours
Brake: Mechanical disc brake
Front brake (type): large bracket
Rear brake (type): large bracket
Can it be folded: No
Right handle function: rear brake
Left handlebar function: front brake
Tire size: 20 * 3.0 inches
Best tire pressure KPA: 200kpa
