Product Description
Product Introduction

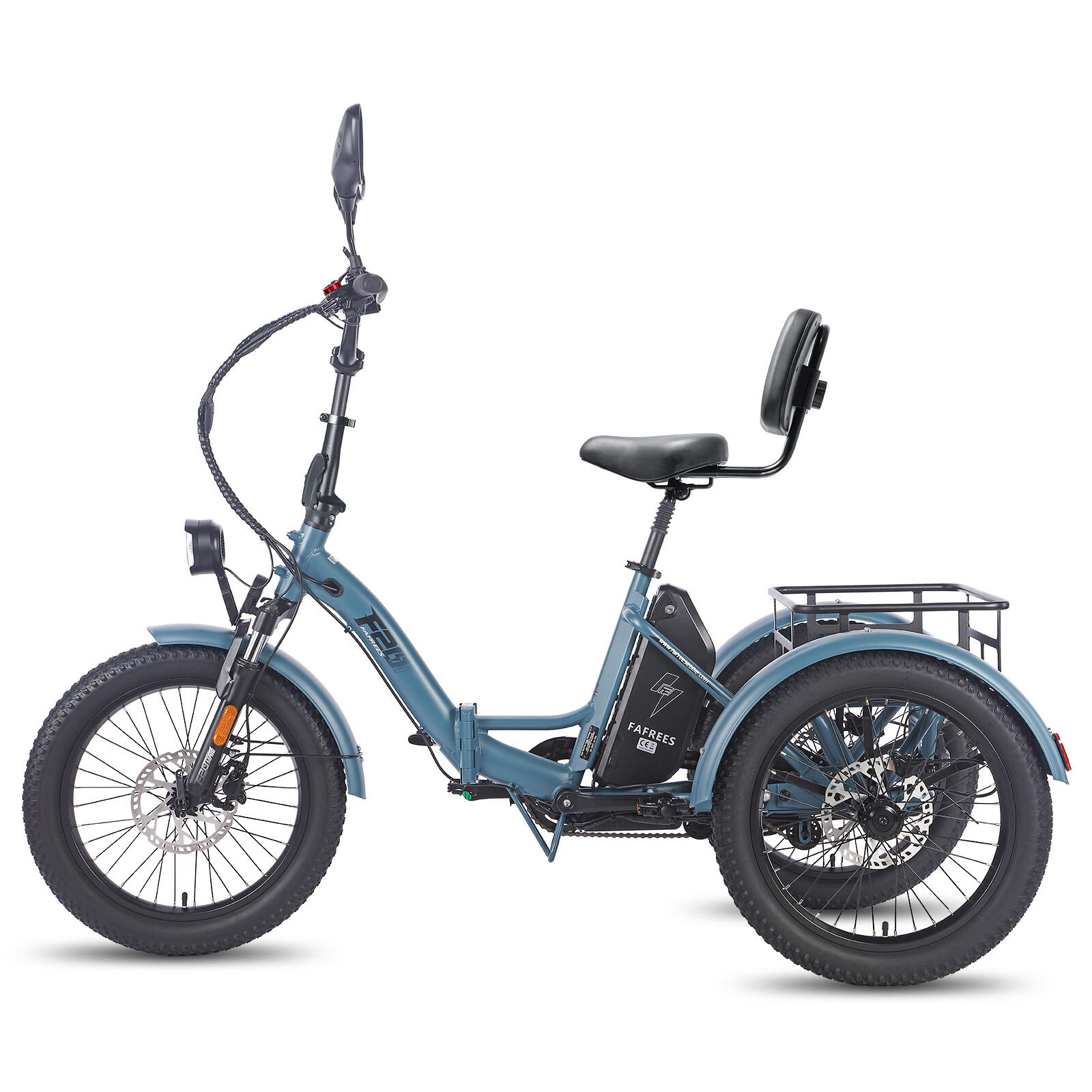

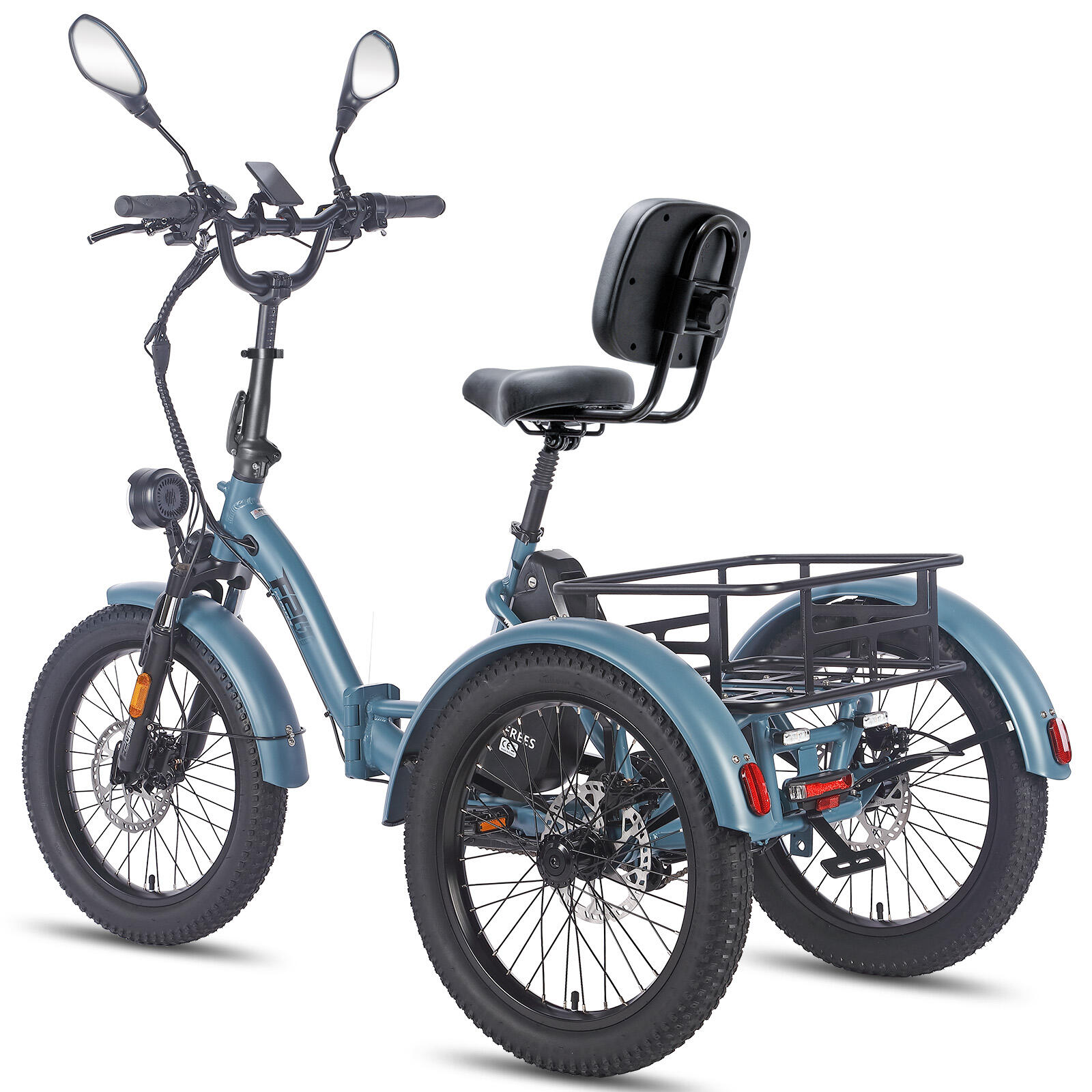

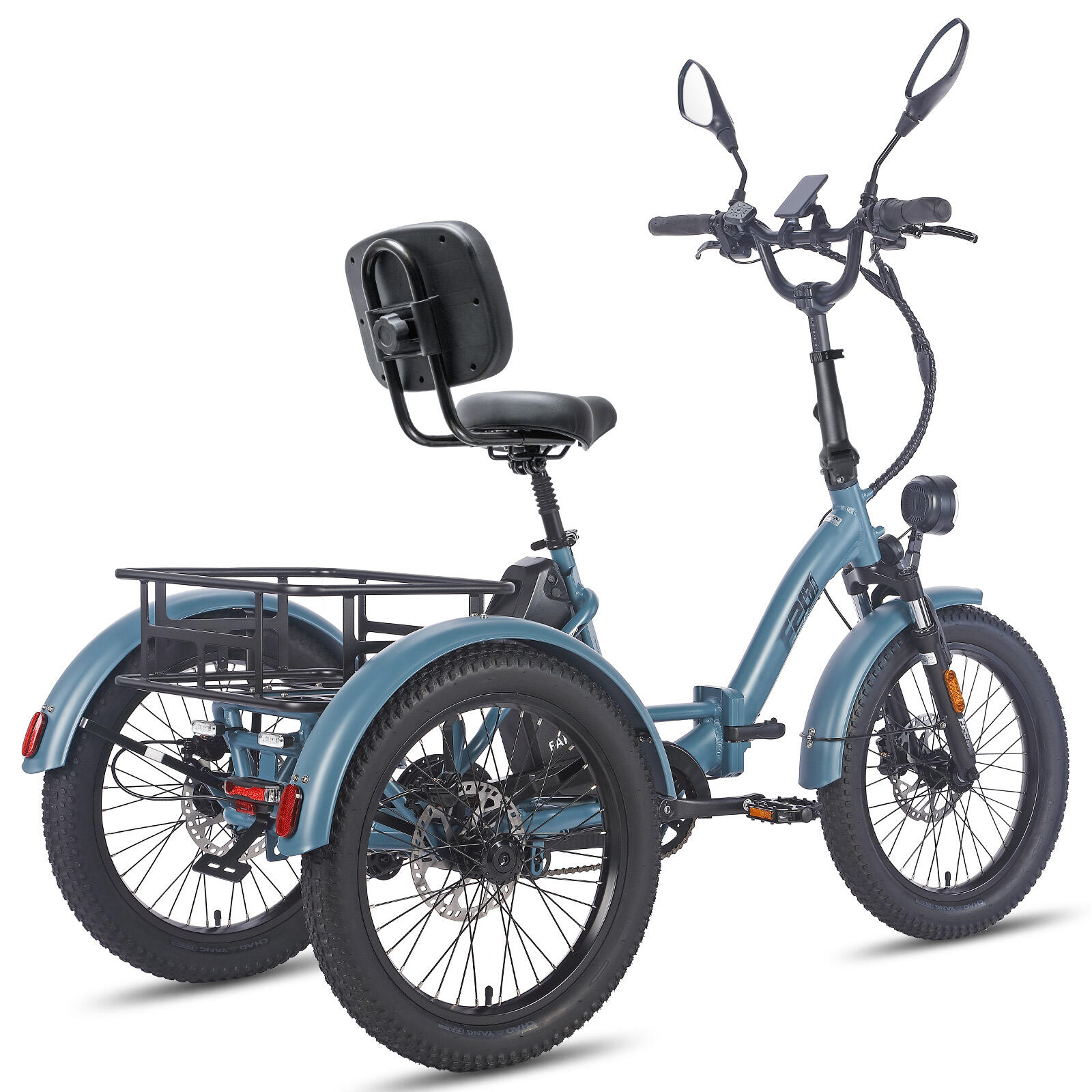

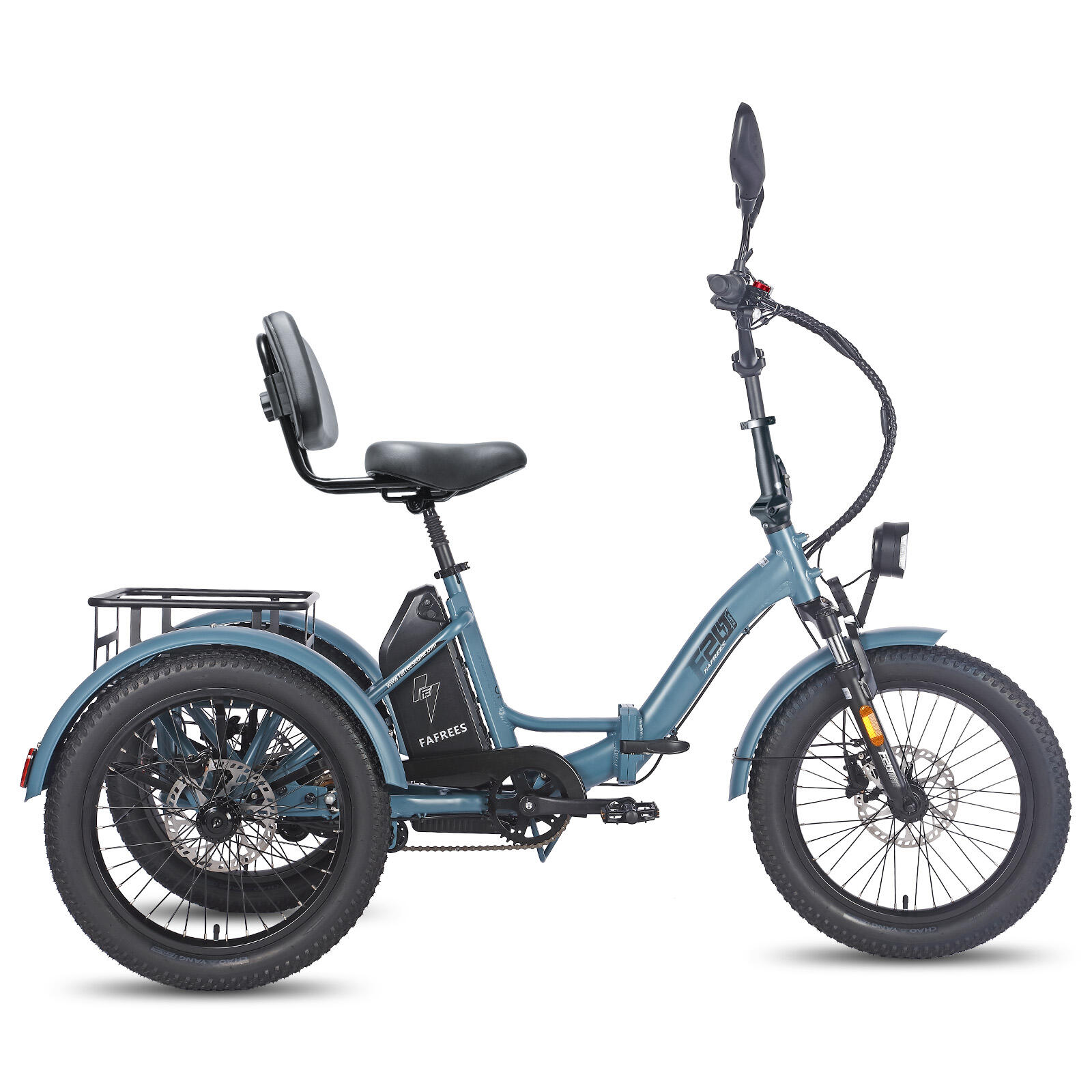

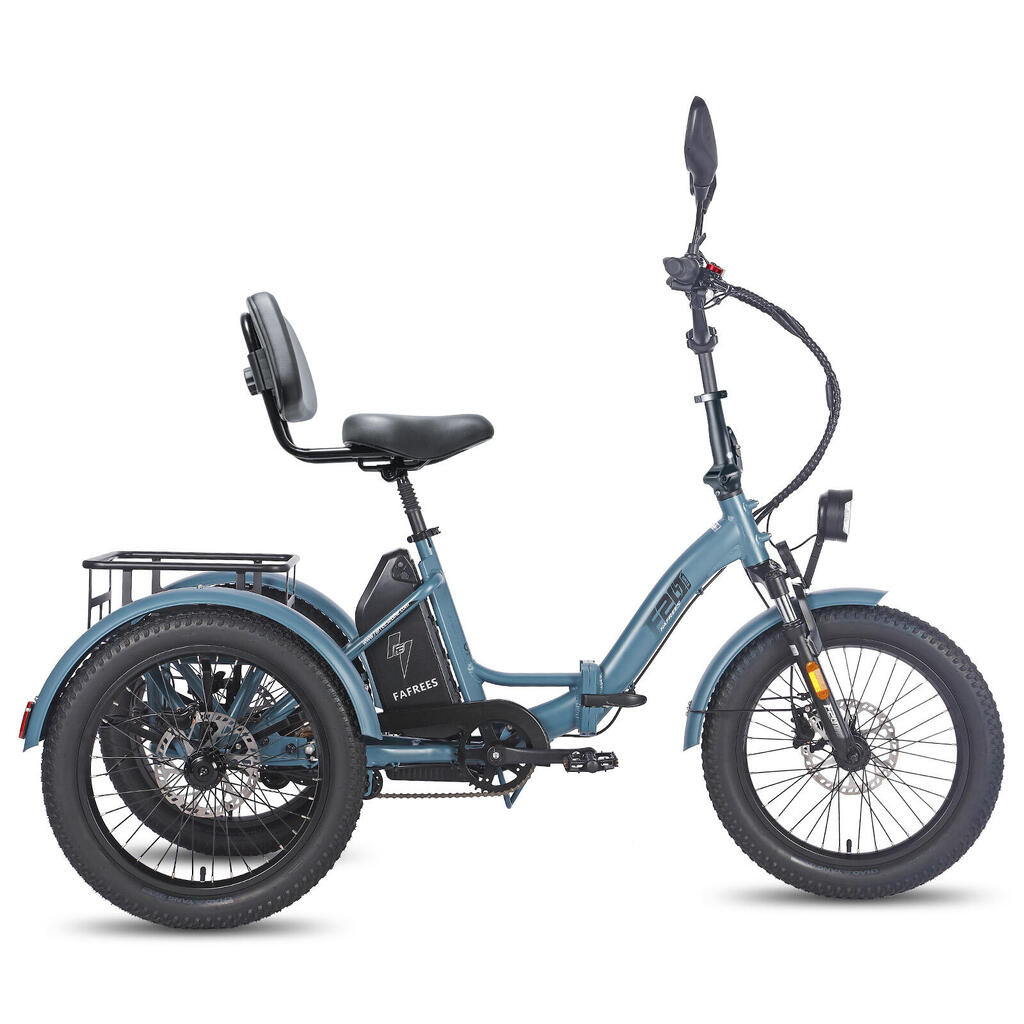

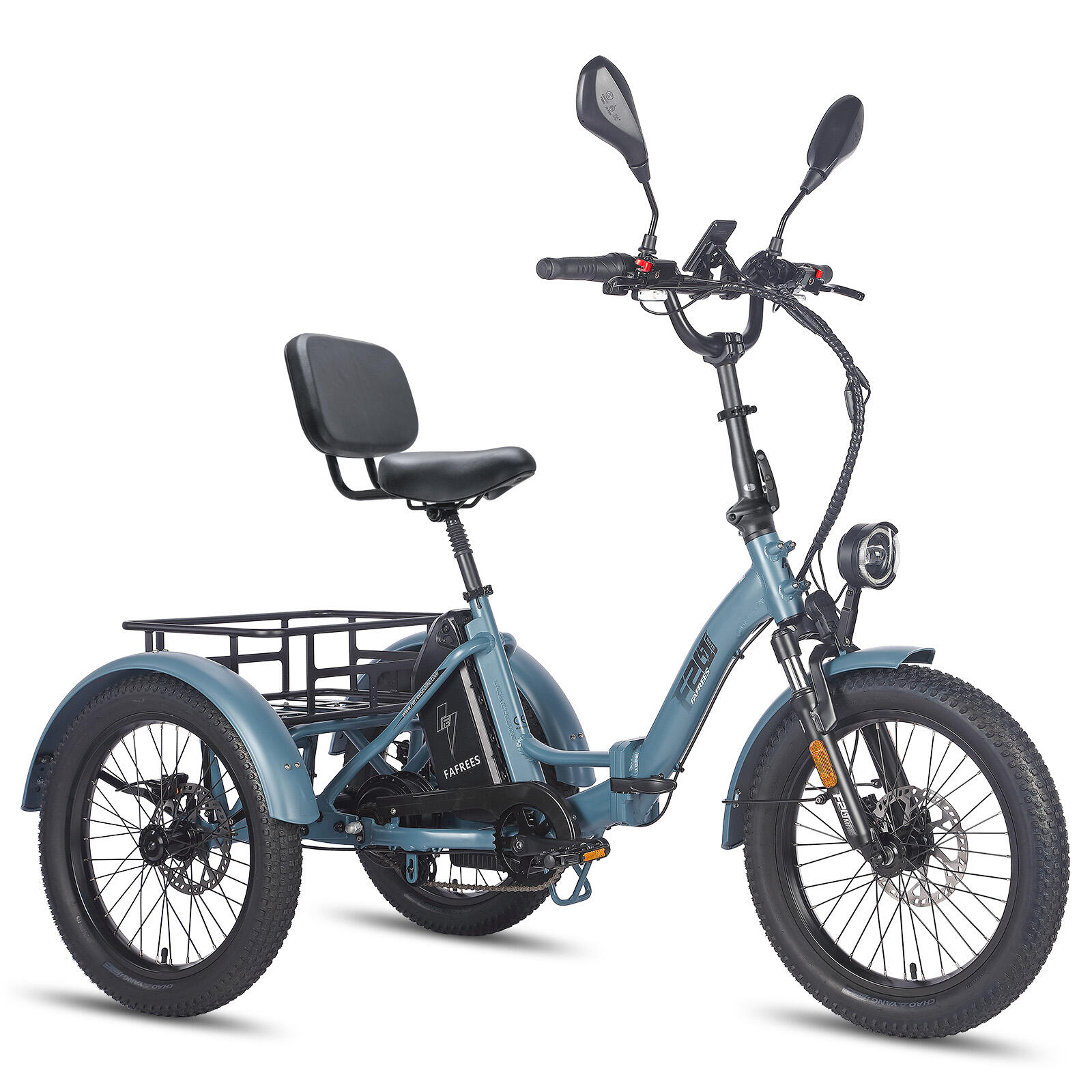

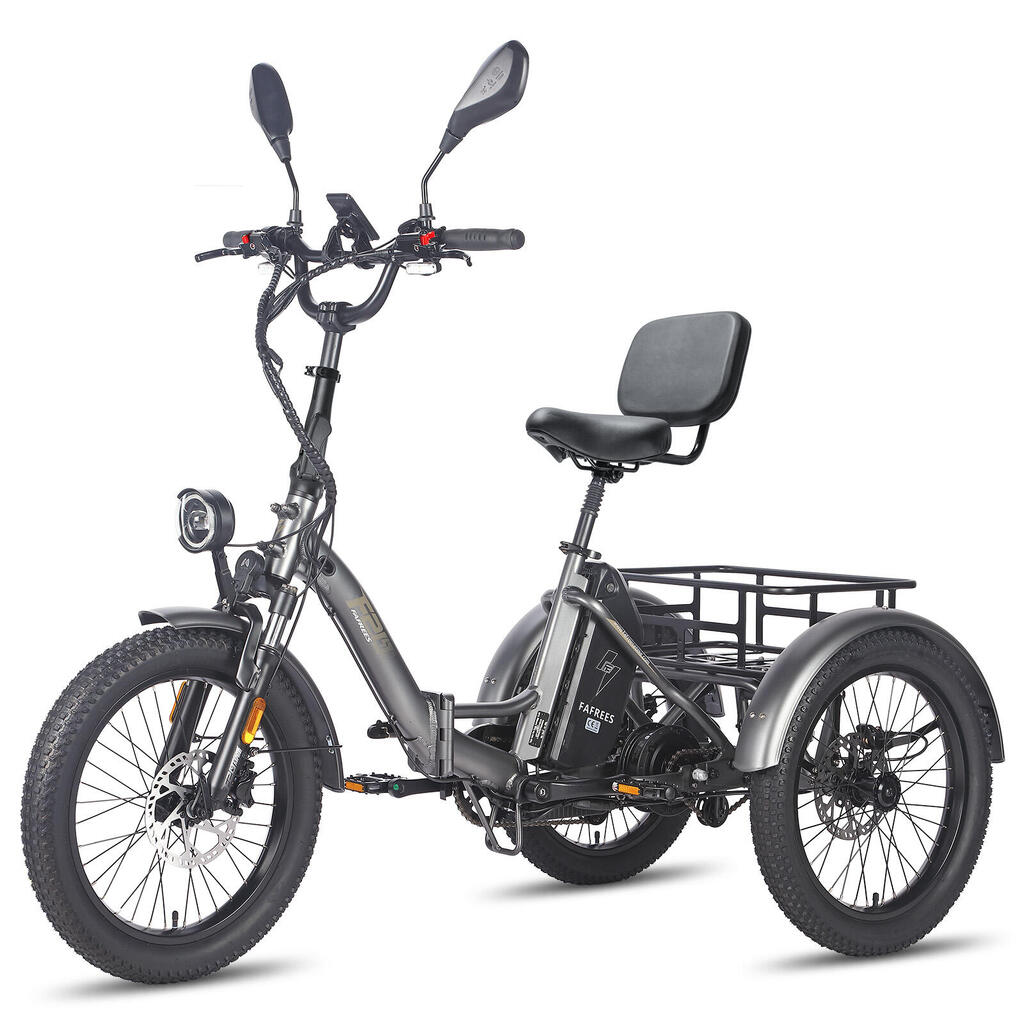

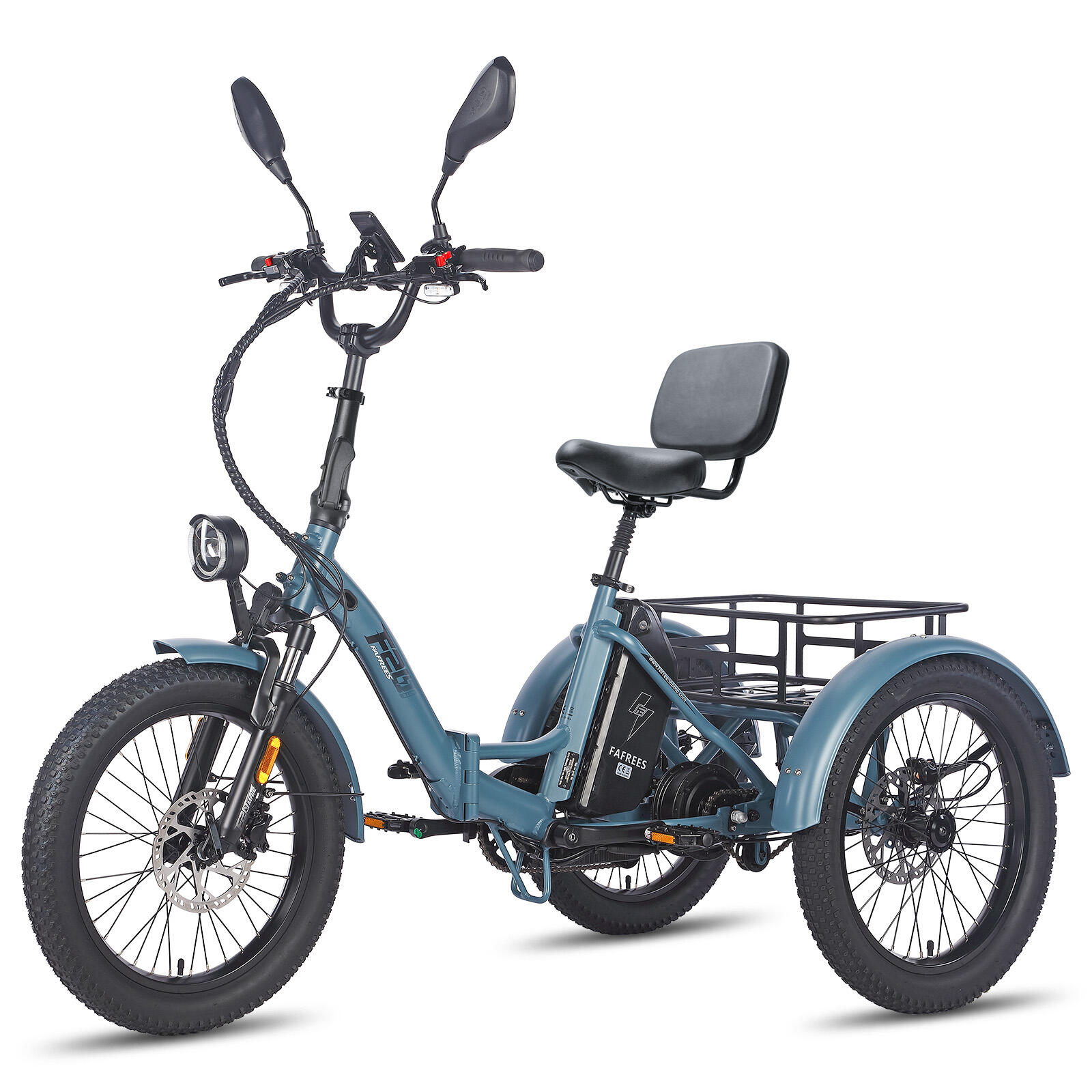

FAFREES F20 Mate 23.45Ah certified electric tricycle, featuring long endurance, high load capacity, and convenience, suitable for multi scenario travel. Adopting an aluminum alloy frame that balances stability and lightweight, equipped with professional shock absorption and reliable braking, it is easy to operate and can meet the needs of daily commuting, short distance connections, etc. It is a high-performance and highly practical commuting equipment.
Convenient folding, widely adaptable
Adopting a foldable design, the product size is 174 × 74 × 116cm, and after folding, it becomes 100 × 74 × 82cm, which is convenient for storage and vehicle transportation; The handlebar can be adjusted to a height of 109-116cm, and the seat can be adjusted to a height of 82-106cm, suitable for people with a height of 160-200cm. It has a super large load-bearing capacity of 180kg, meeting the needs of carrying people and goods. The foot pedal is 9cm away from the ground, and the riding posture is comfortable.
Powerful power, ultra long endurance
Equipped with a 48V 23.45Ah high-capacity battery (1125.6Wh), the pure electric mode has a range of 70-90km, the power assisted mode has a range of 95-120km, and the charging time is 7-8 hours; Rear drive, maximum torque of 65 Nm, top speed of 25 km/h, maximum climbing angle of 15 °, stable power output, suitable for various road conditions in cities.
Comfortable riding, multiple protections
Equipped with a shock-absorbing front fork (with a stroke of 35mm) and a shock-absorbing seat tube (with a stroke of 15mm), effectively filtering out road bumps; 20 x 3.0 inch inflatable tires provide strong grip and smooth riding; IPX5 waterproof rating, can withstand moderate rain, protect core components, and enhance durability.
Professional configuration, safe and worry free
Adopting hydraulic disc brakes, with sensitive braking and good heat dissipation, ensuring safe riding; No variable speed system, simple and easy to operate; The aluminum alloy frame is lightweight and sturdy, with a net weight of 43kg, a packaging weight of 57.5kg, and a battery weight of 5.3kg. It is easy to move and suitable for daily high-frequency use scenarios.
[Product Parameters]
Model: FAFREES F20 Mate 23.45Ah Certified
Product type: Electric tricycle
Product size: 174 * 74 * 116 centimeters
Folding size: 100 * 74 * 82 centimeters
Packaging size: 101.5 * 76 * 74 centimeters
Tire size: 20 * 3.0 inches
Foot to ground distance: 9 centimeters
Suitable for riding height: 160-200 centimeters
Net weight: 43 kilograms
Packaging weight: 57.5 kilograms
Maximum load capacity: 180 kilograms
Frame material: Aluminum alloy
Top speed: 25 kilometers per hour
Maximum range of assist mode: 95-120 kilometers
Maximum range in pure electric mode: 70-90 kilometers
Maximum climbing angle: 15 °
Battery capacity: 48V 23.45Ah/1125.6Wh
Maximum torque: 65 N · m
Charging time: 7-8 hours
Brake type: hydraulic disc brake
Waterproof rating: IPX5
