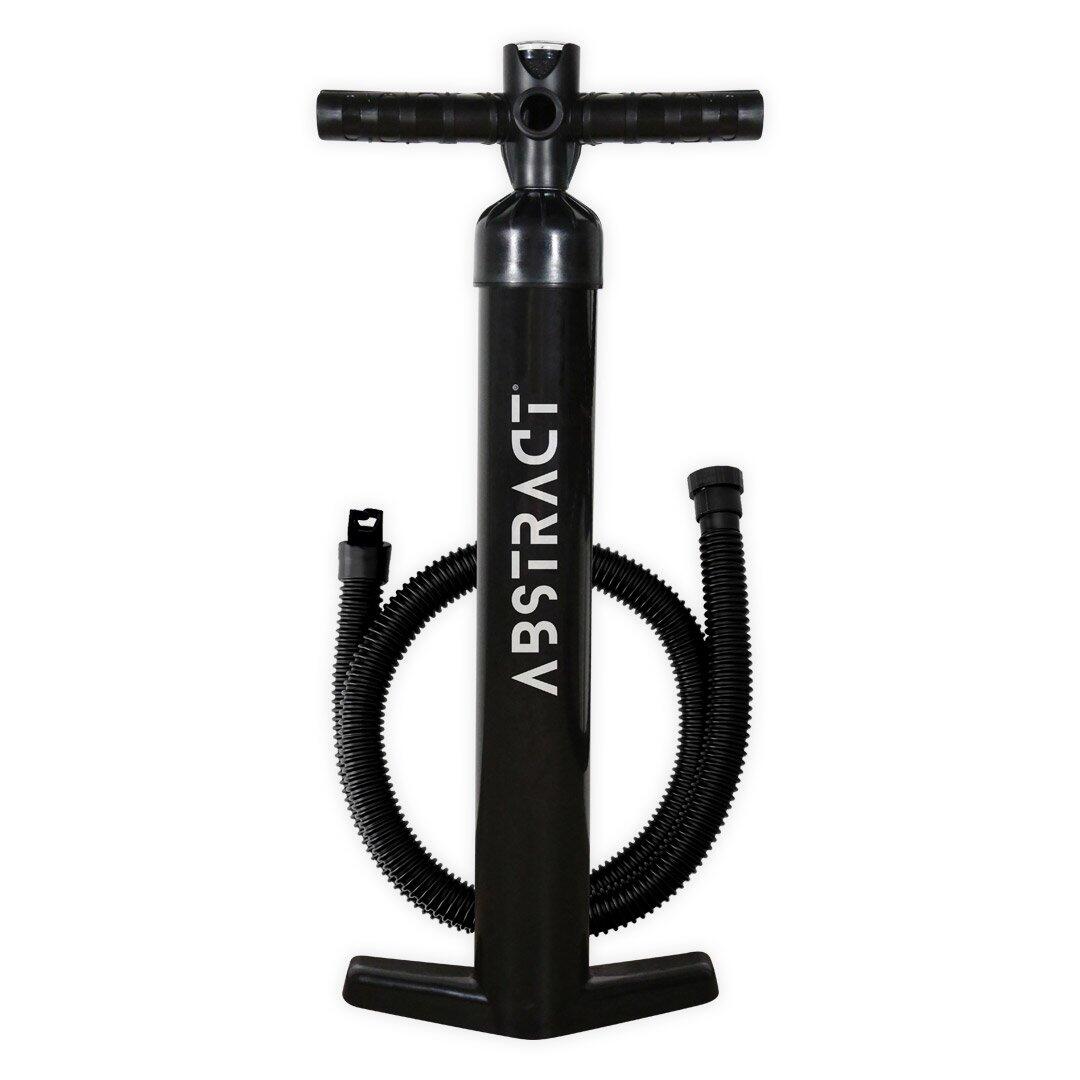

High-Pressure Double Action SUP/Kayak Pump 0-29 PSI

Product Description

High-Pressure Double Action Stand Up Paddle & Kayak Pump 0-20 PSI — Abstract

Inflate 2x faster with double action technology

The Abstract high-pressure pump is equipped with double action technology: it pushes air both when pulling up and pushing down the piston, allowing inflation up to twice as fast as a standard single-action pump. The result: your SUP board or inflatable kayak is ready for the water in just a few minutes, without exhausting yourself.

How does the double action system work?

The secret lies in the red plug:

• Red plug inserted: double action mode, the pump inflates when pulling up AND pushing down the piston — ideal from 0 to 10 PSI
• Red plug removed: single action mode, the pump inflates only when pushing down — easier beyond 10 PSI when resistance increases

Versatile, ergonomic and compact

It inflates (INFLATE) and deflates (DEFLATE) your craft thanks to its dual outlet system. Its wide footrests provide maximum stability while pumping, and its ergonomic handles help reduce fatigue.

Technical specifications

• Action type: double action with red plug (0-10 PSI) / single action without red plug (10-20 PSI)
• Maximum pressure: 20 PSI / 1.4 Bar
• Integrated pressure gauge: accurate from 2 PSI, range 2-20 PSI
• Outlets: inflation (INFLATE) and deflation (DEFLATE)
• Hose: durable, clip-on connection
• Footrests: wide, reinforced honeycomb structure
• Handles: ergonomic
• Dimensions: 62 x 25 x 10 cm
• Weight: 1.2 kg
• Origin: French brand

Composition

• Body: PVC
• Hose: ultra-flexible PVC, rotating connector
• Footrests: reinforced honeycomb PVC
• Pressure gauge: glass and metal
• Handles: ergonomic PVC

Instructions for use

1. Place the pump on a flat and stable surface
2. Ensure the hose is connected to the INFLATE outlet
3. Check that the valve spring is in the raised position and connect the hose to your craft's valve
4. Insert the red plug — volume and pressure mode (0 to 10 PSI)
5. Pump until approximately 10 PSI
6. Remove the red plug — high-pressure mode (10 to 20 PSI)
7. Finish inflating to the recommended pressure (13 to 15 PSI for a Stand Up Paddle)

Storage advice

• Do not step on the pump or hose
• Clean off sand after each use, as it may damage the seals
• Store in a dry place, protected from moisture
