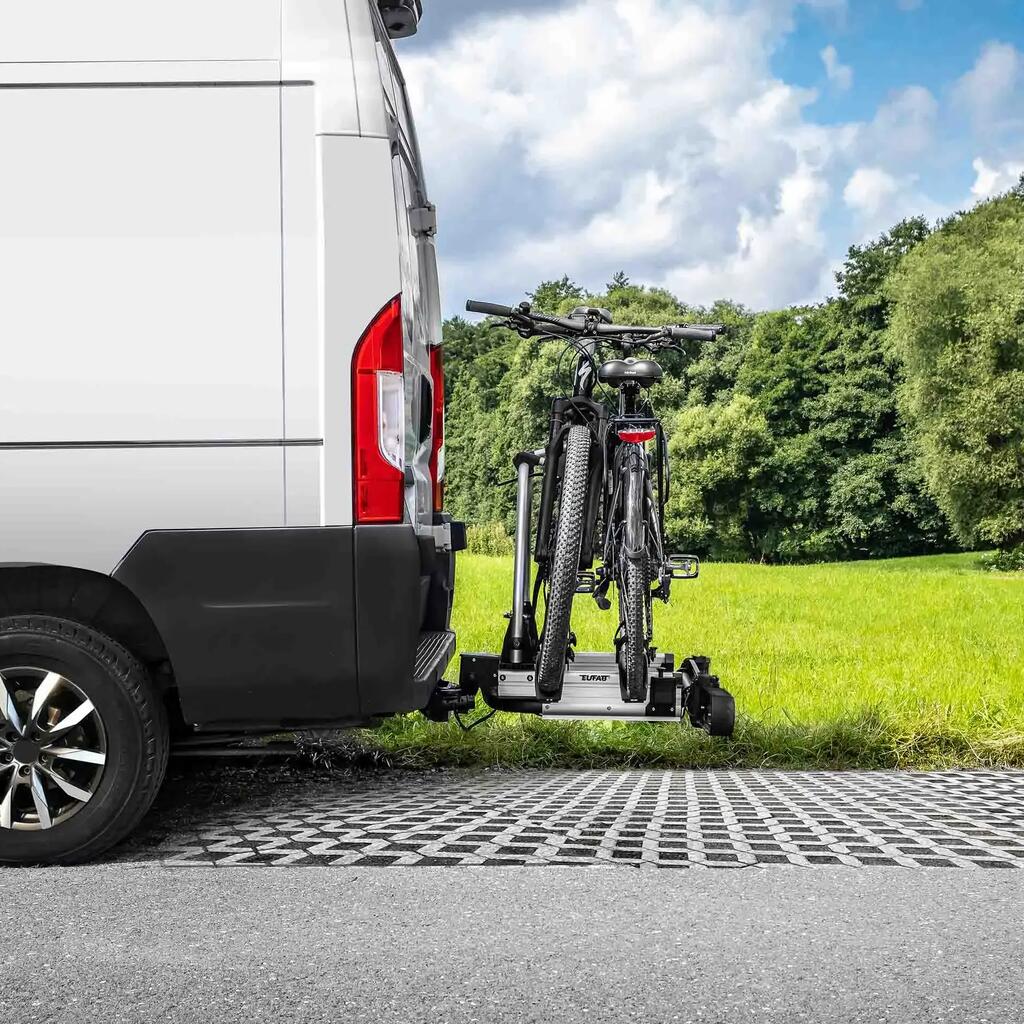

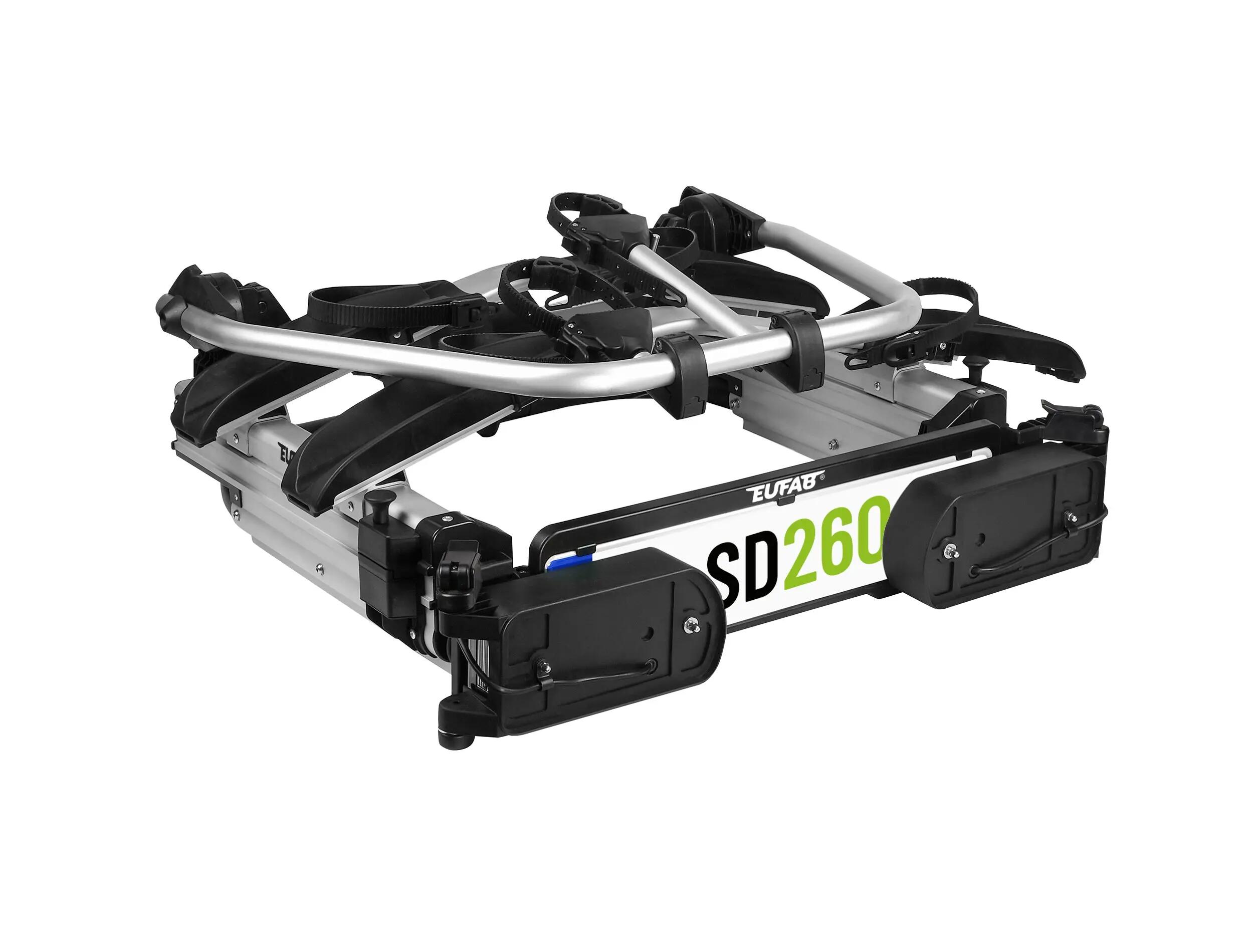

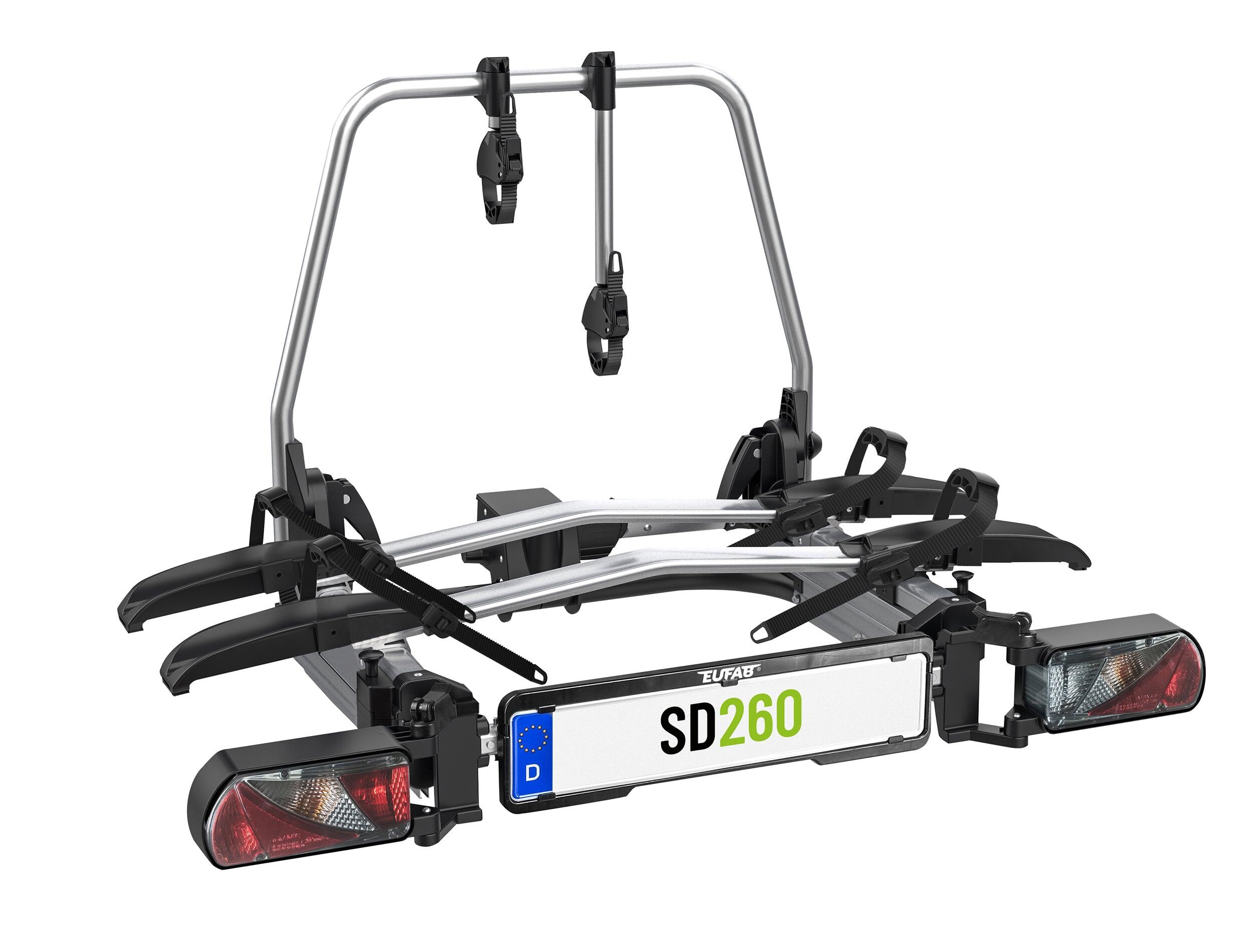

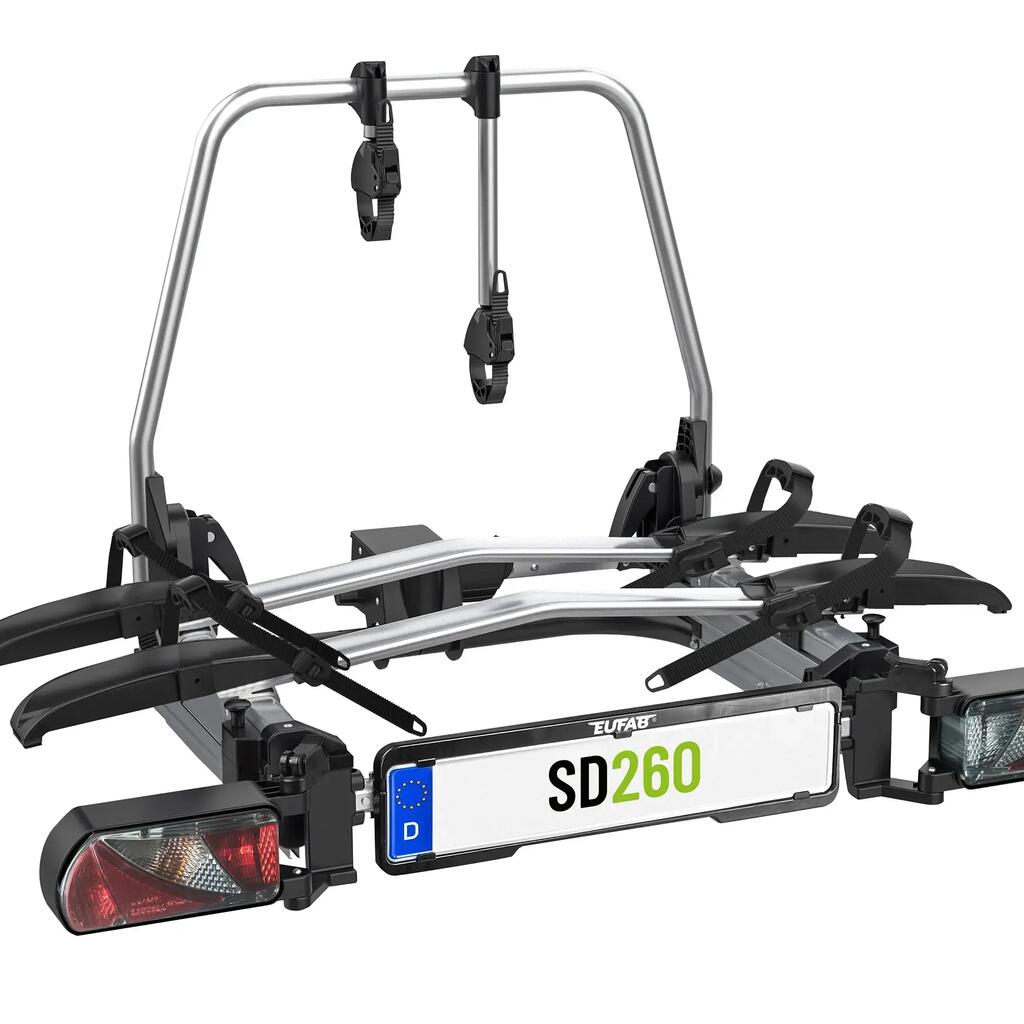

EUFAB SD260 platform mount, for vans with rear doors.

Product Description

Towbar bike carrier for 2 bikes, specially designed for cars, vans and campervans with wing doors, featuring quick-release fasteners and locks
Description
Further information on the EUFAB SD260 bike carrier for 2 bikes, specially designed for vans with wing doors: The EUFAB SD260 platform bike carrier for 2 bikes for tow bars. Suitable for transporting bikes on tow bars, suitable for vans and campervans, family MPVs, high-roof estate cars with tailgate doors and, of course, for saloon cars.

• Compatible with e-bikes.
• Maximum load per rail: 30 kg.
• Lockable frame holder, specially designed for sensitive frames.
• Quick and easy to assemble with a quick-release system.
• Also suitable for large bikes and bikes with a Y-frame.
• Suitable for almost all types of tow bars.

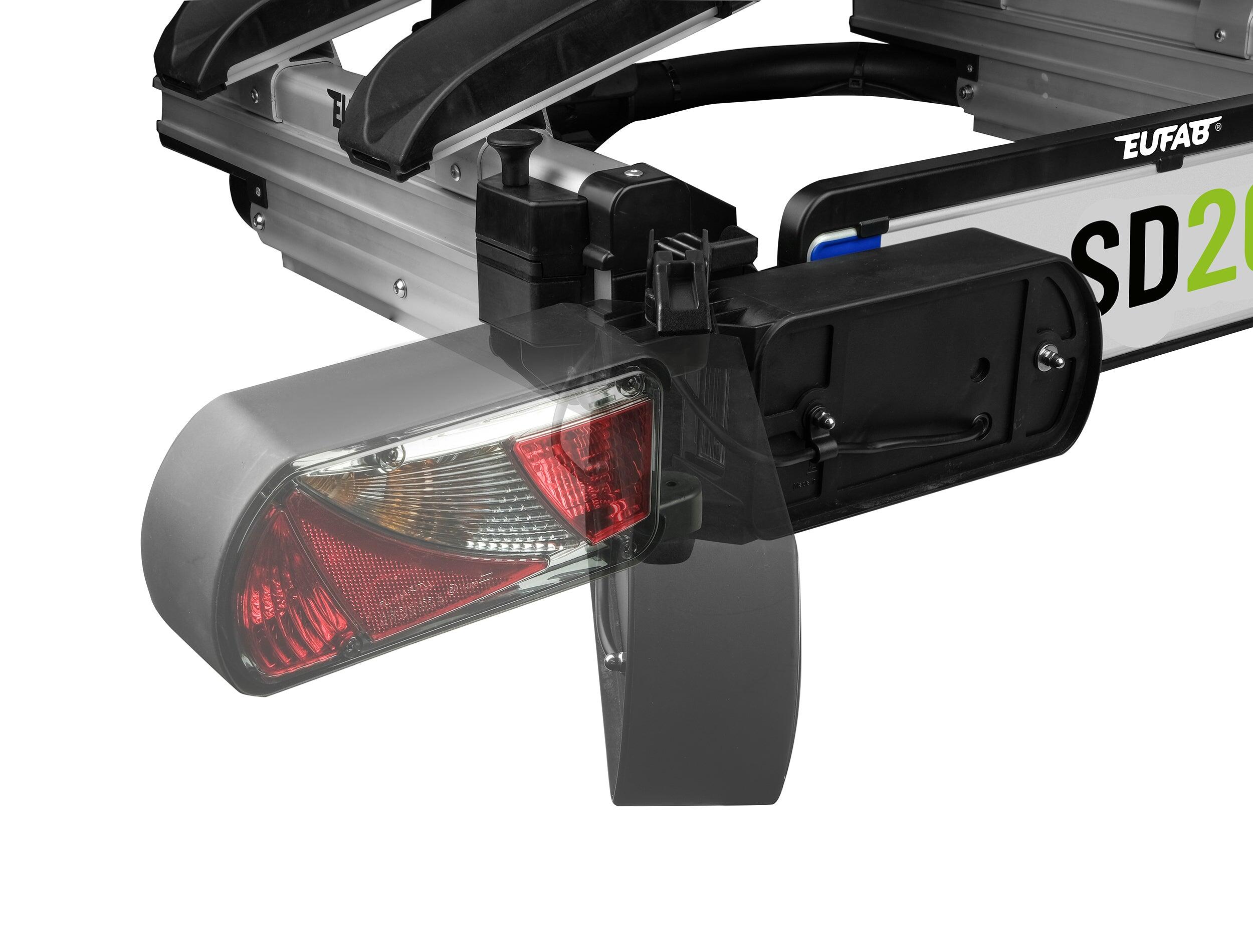

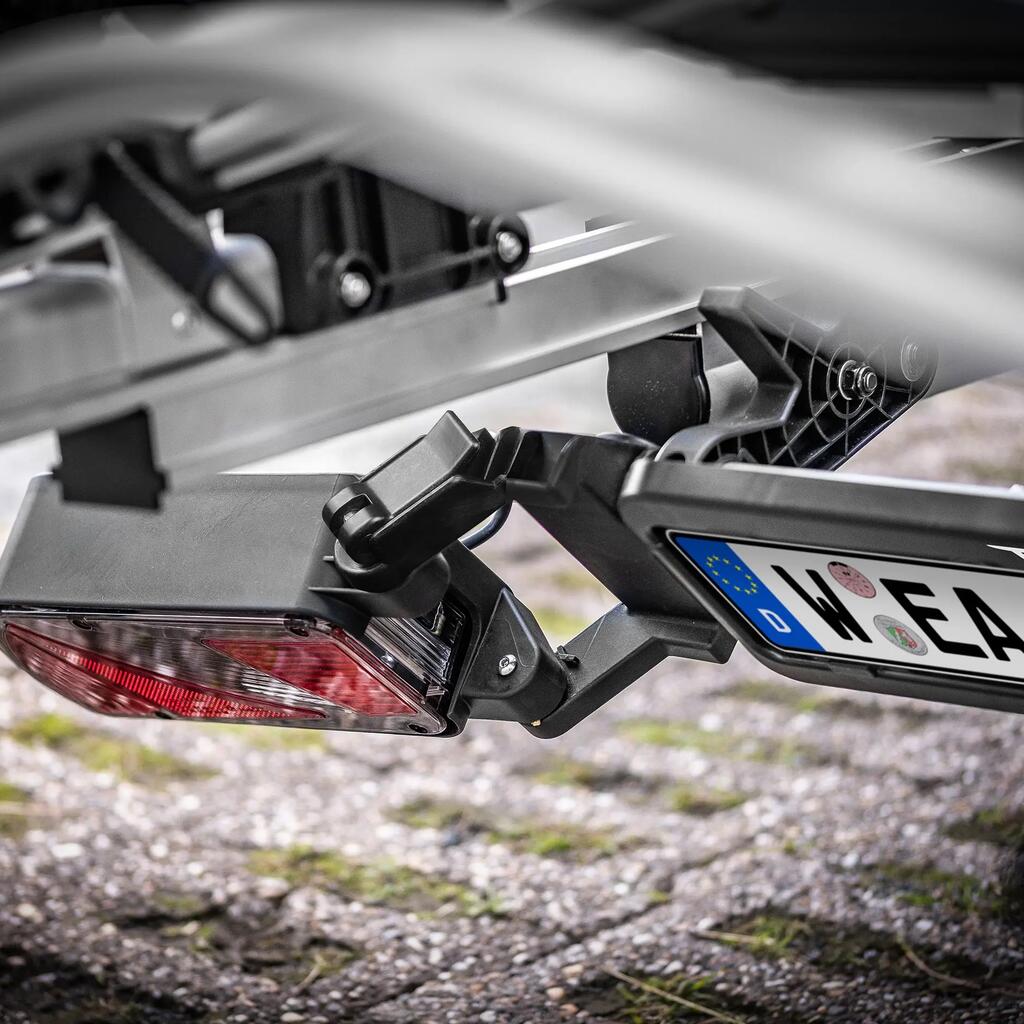

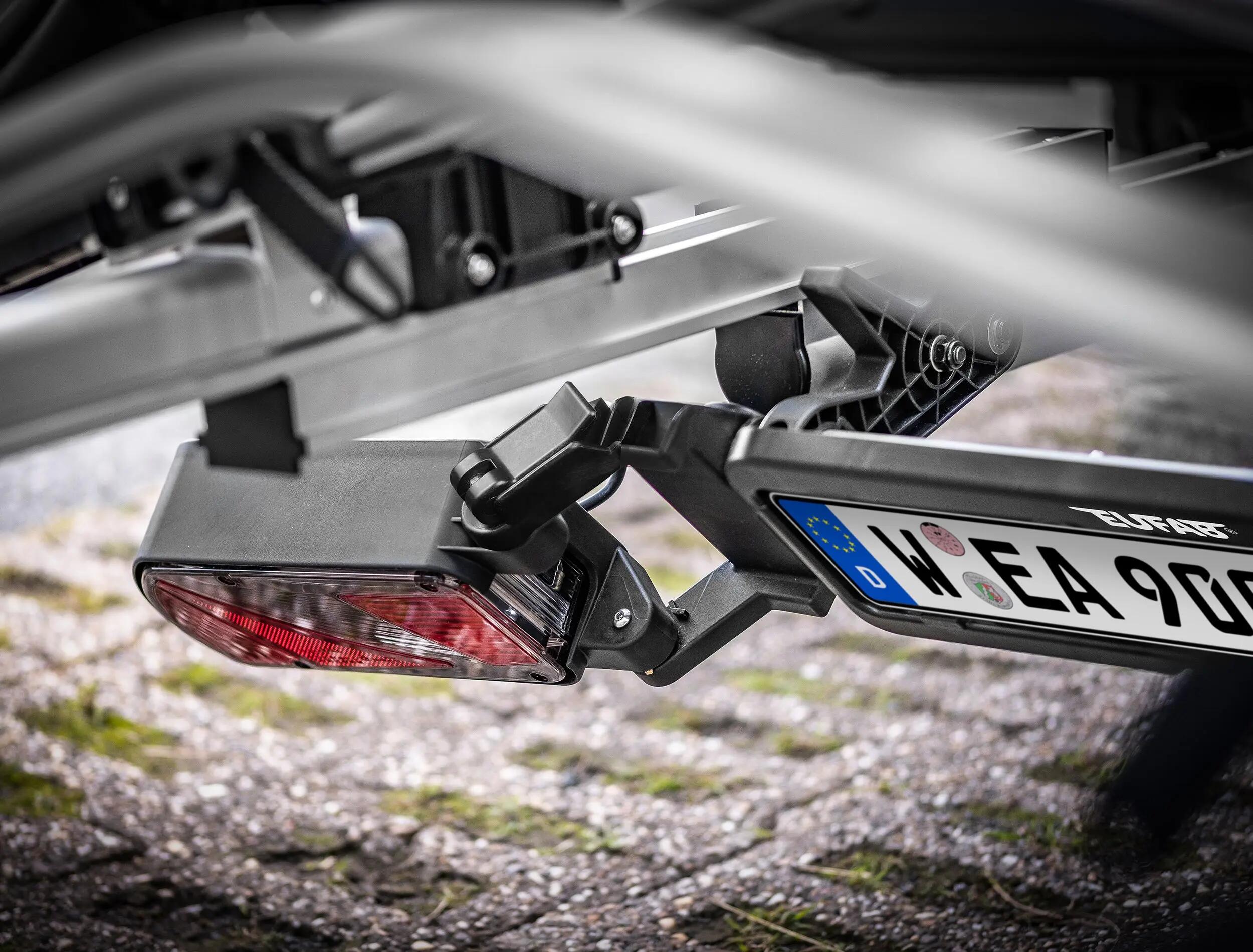

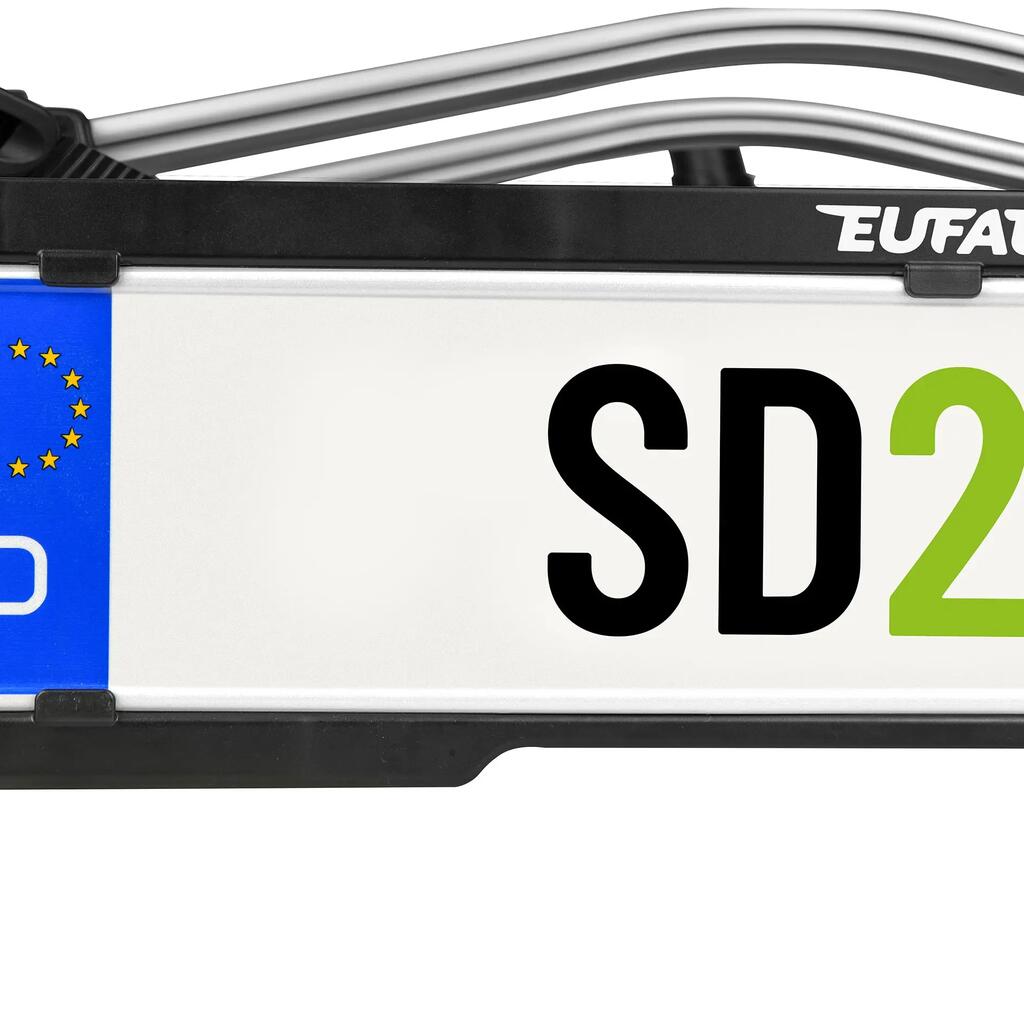

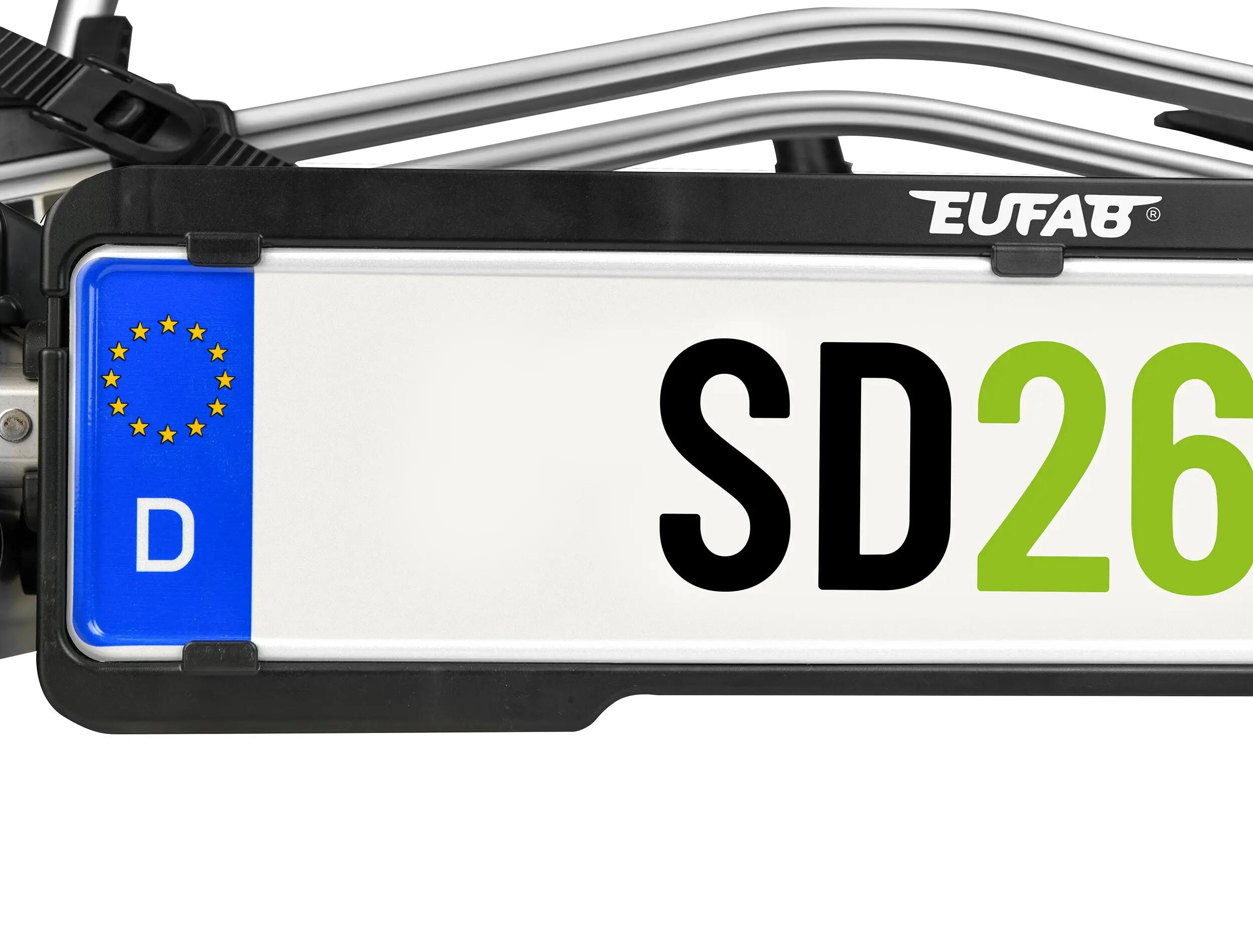

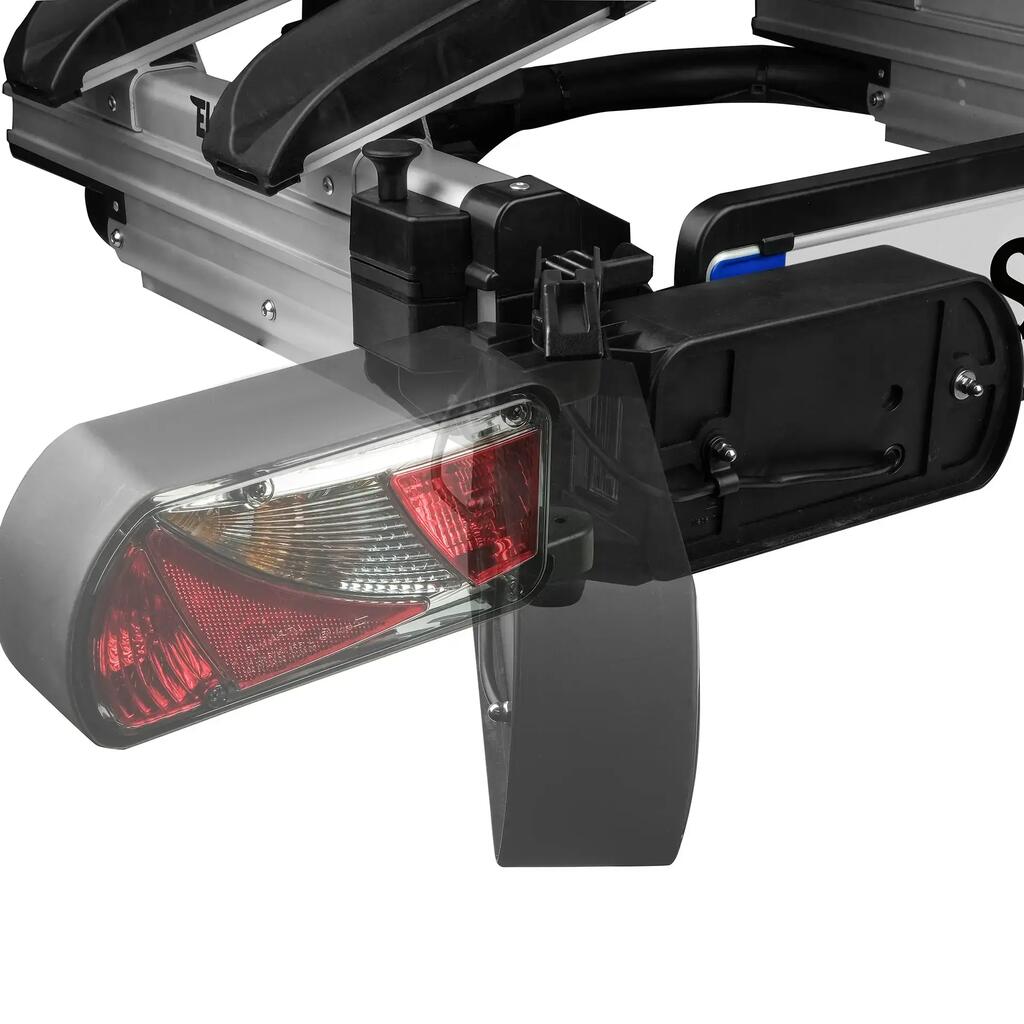

• With an adjustable number plate holder, also suitable for use in Austria.
• Compact storage format. To fit the Eufab SD260 bike carrier on a van, the tow bar must be fitted at least 2.7 cm from the bottom edge of the doors.
• French technical support and after-sales service.
  Features
  TECHNICAL SPECIFICATIONS OF THE SD260 BIKE RACK FOR 2 BIKES:

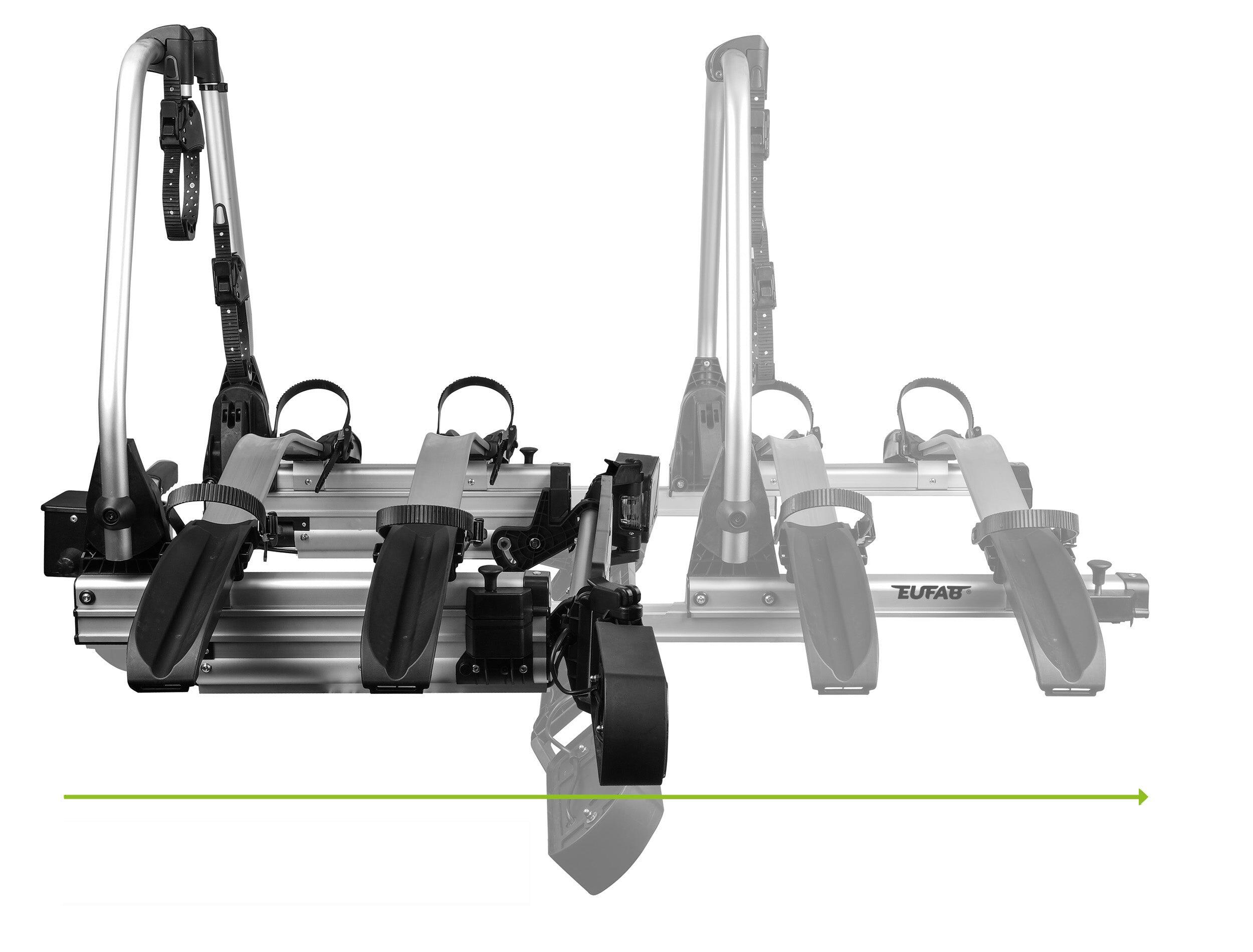

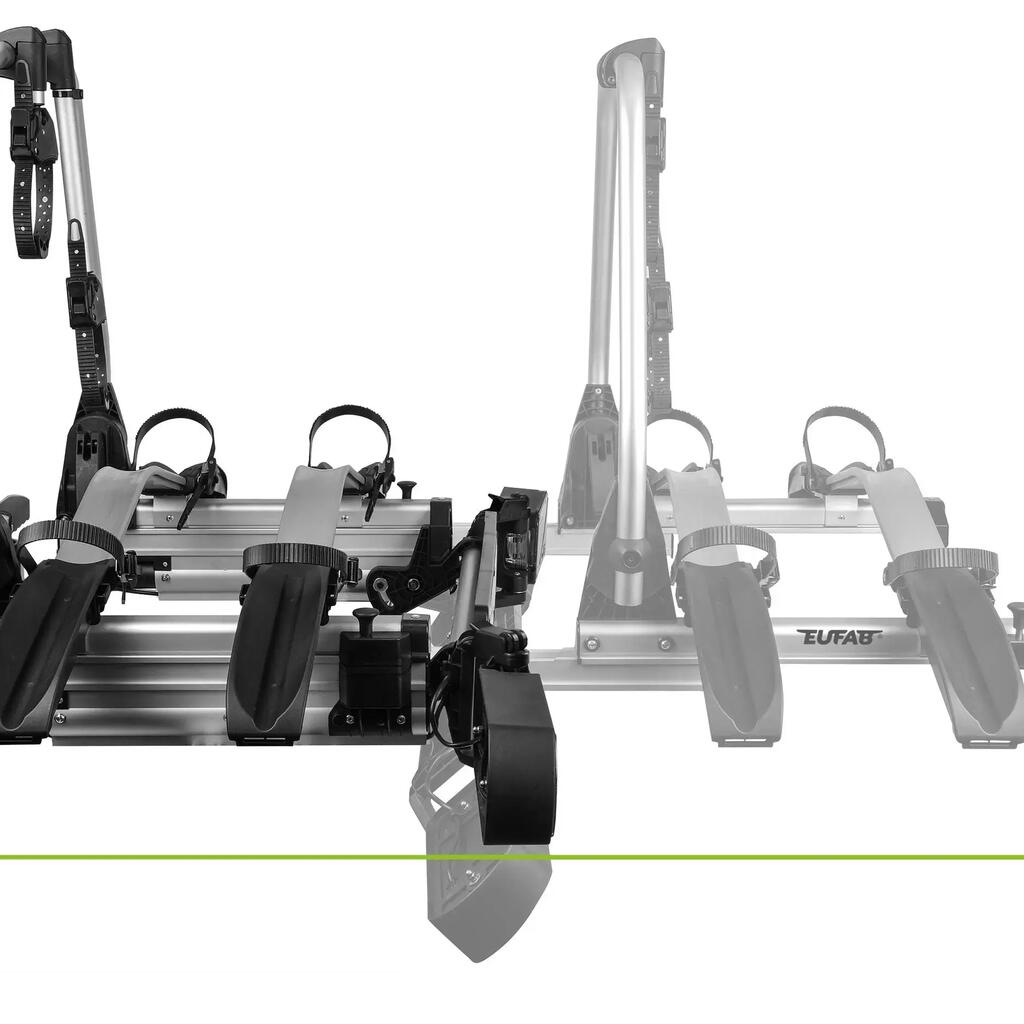

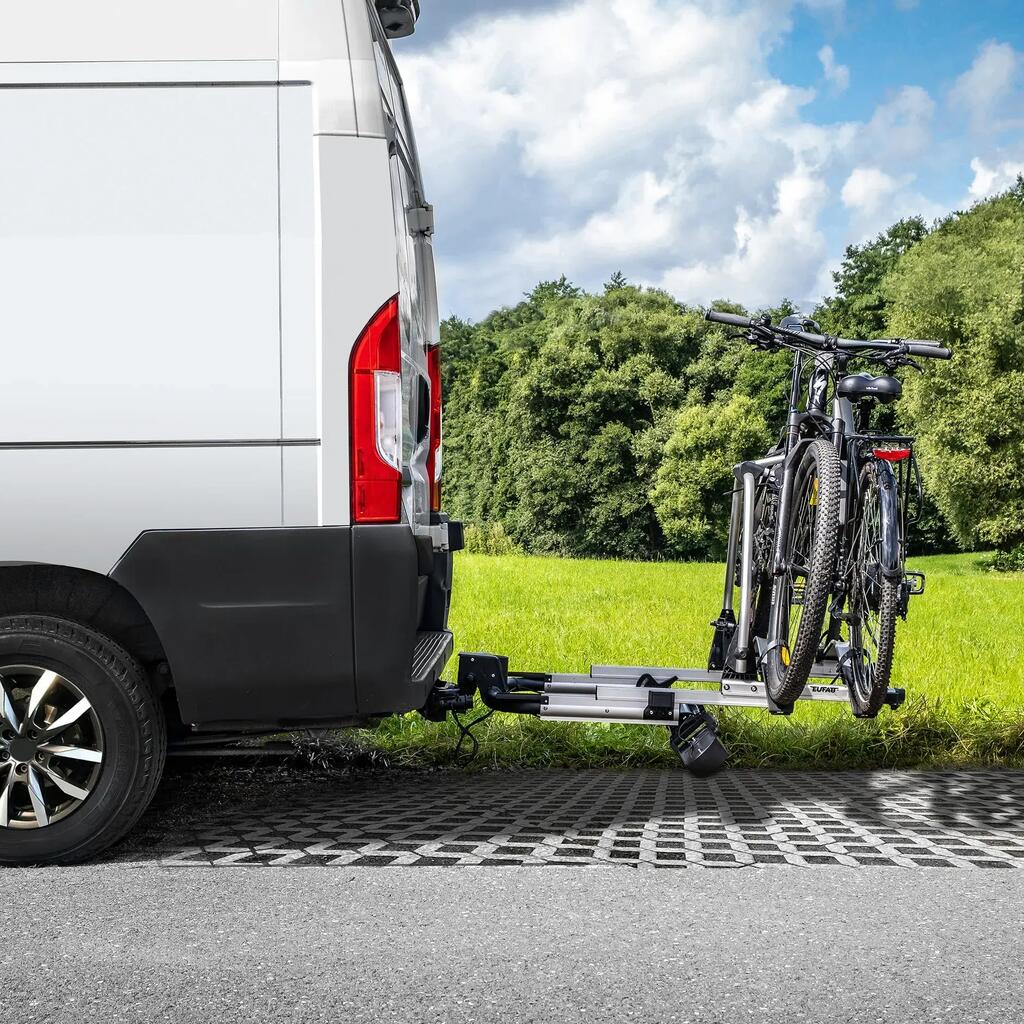

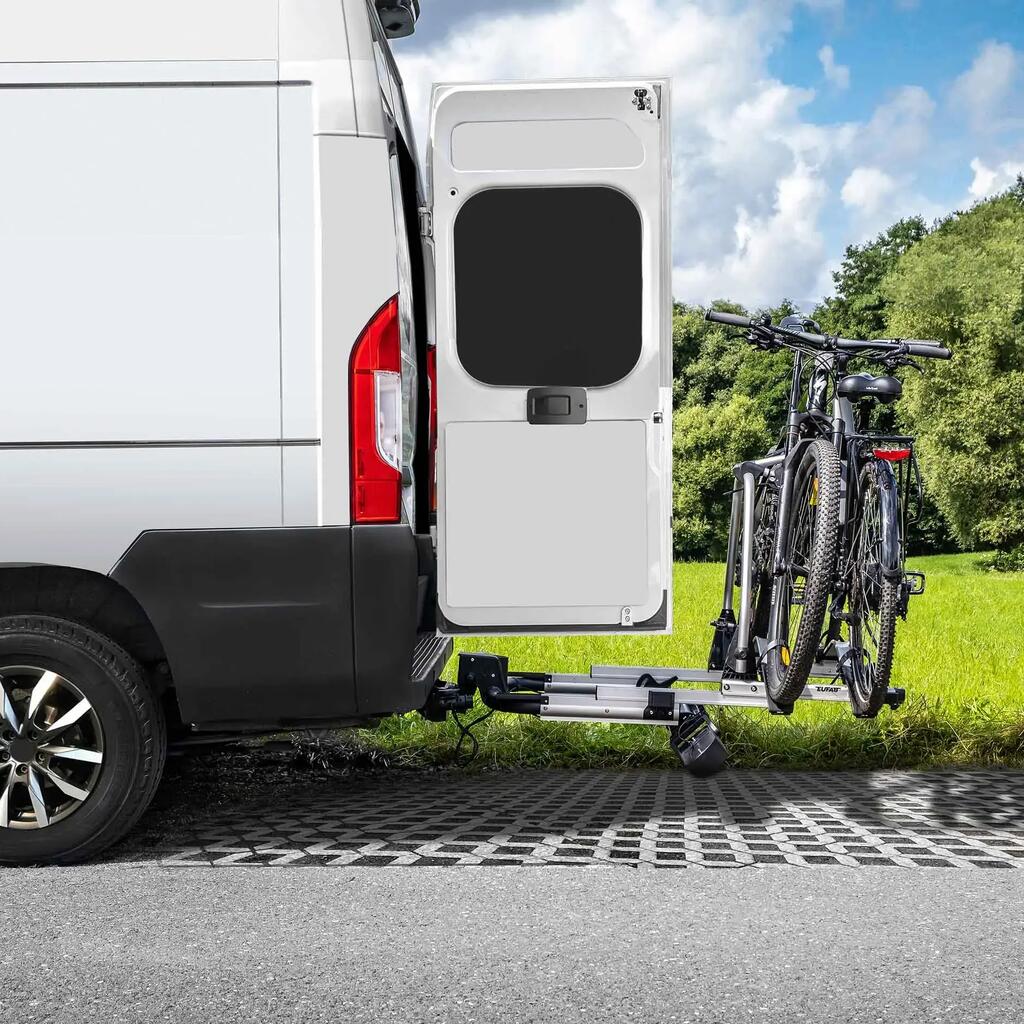

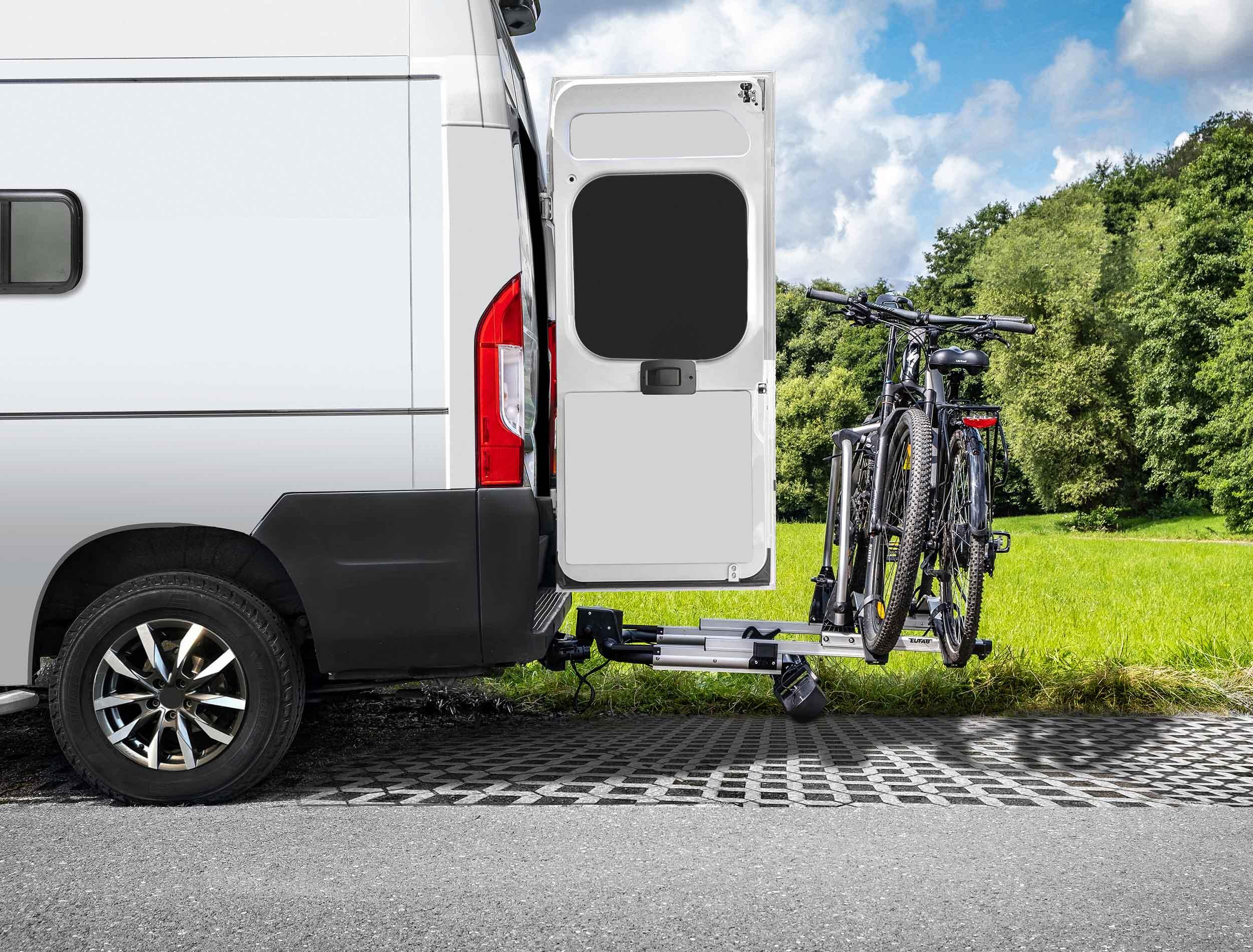

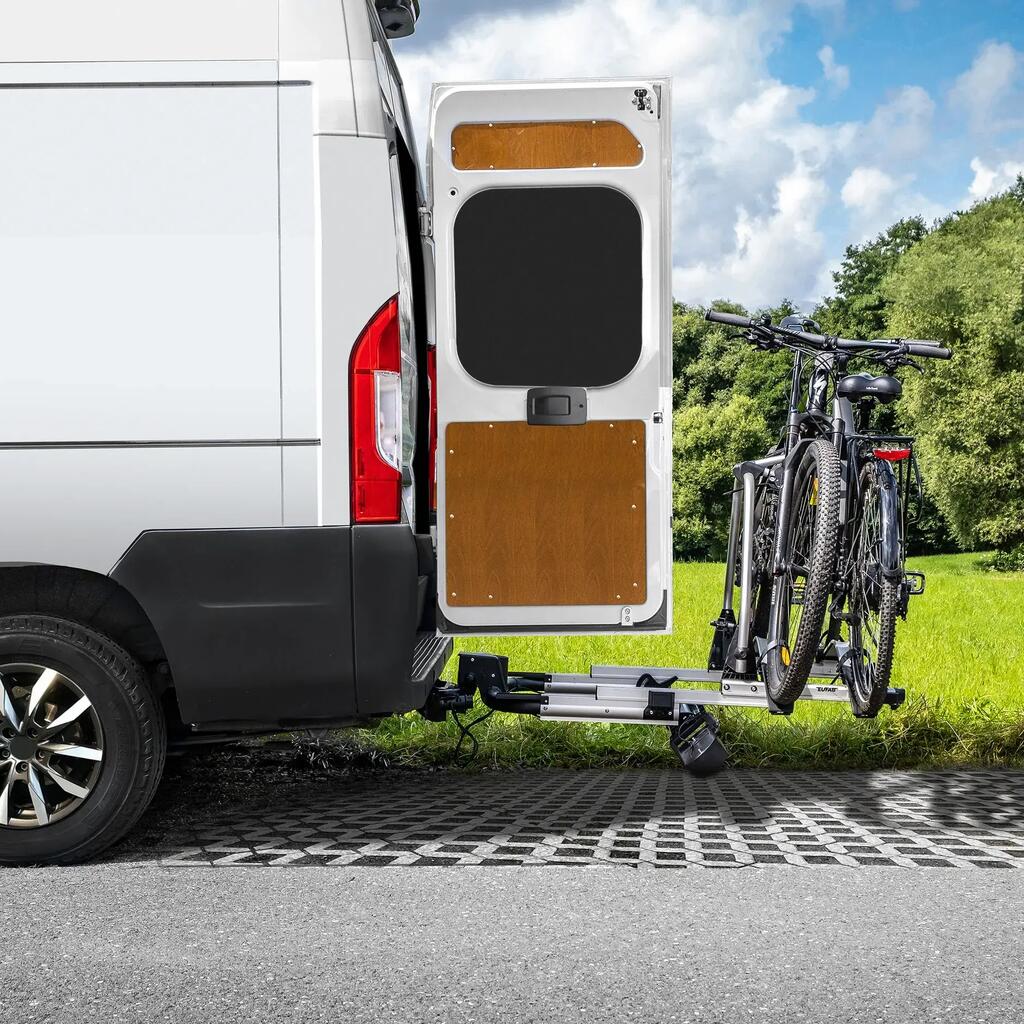

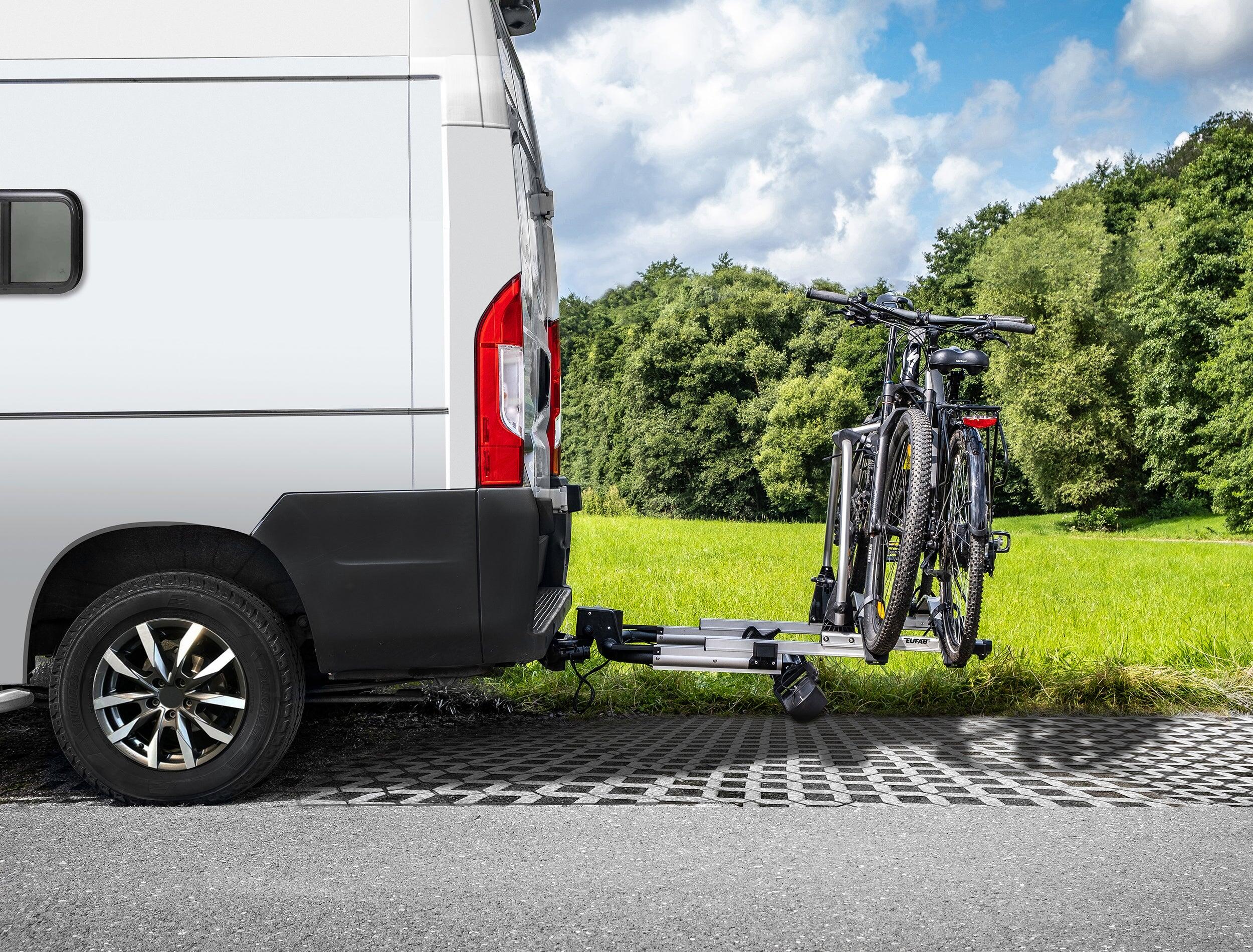

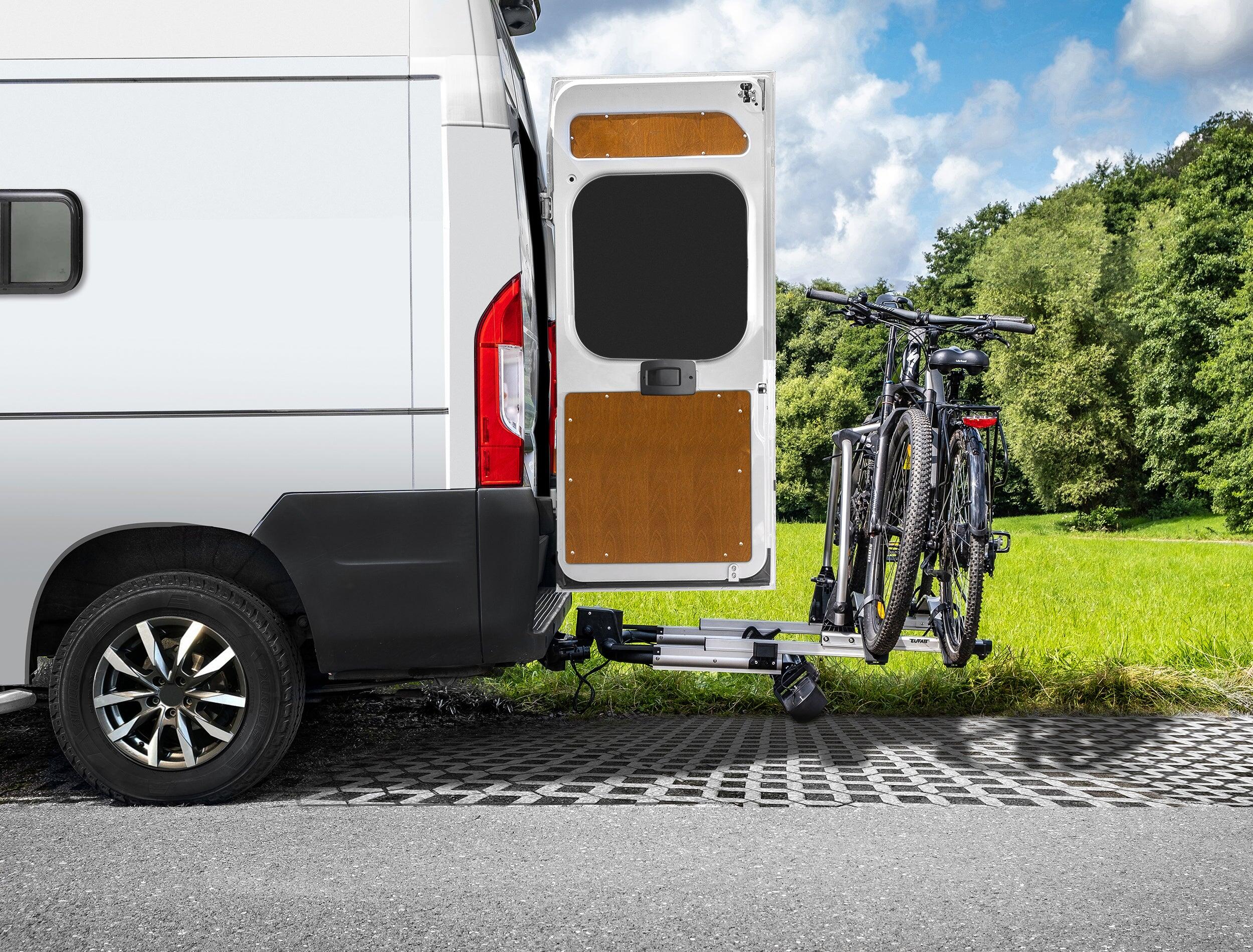

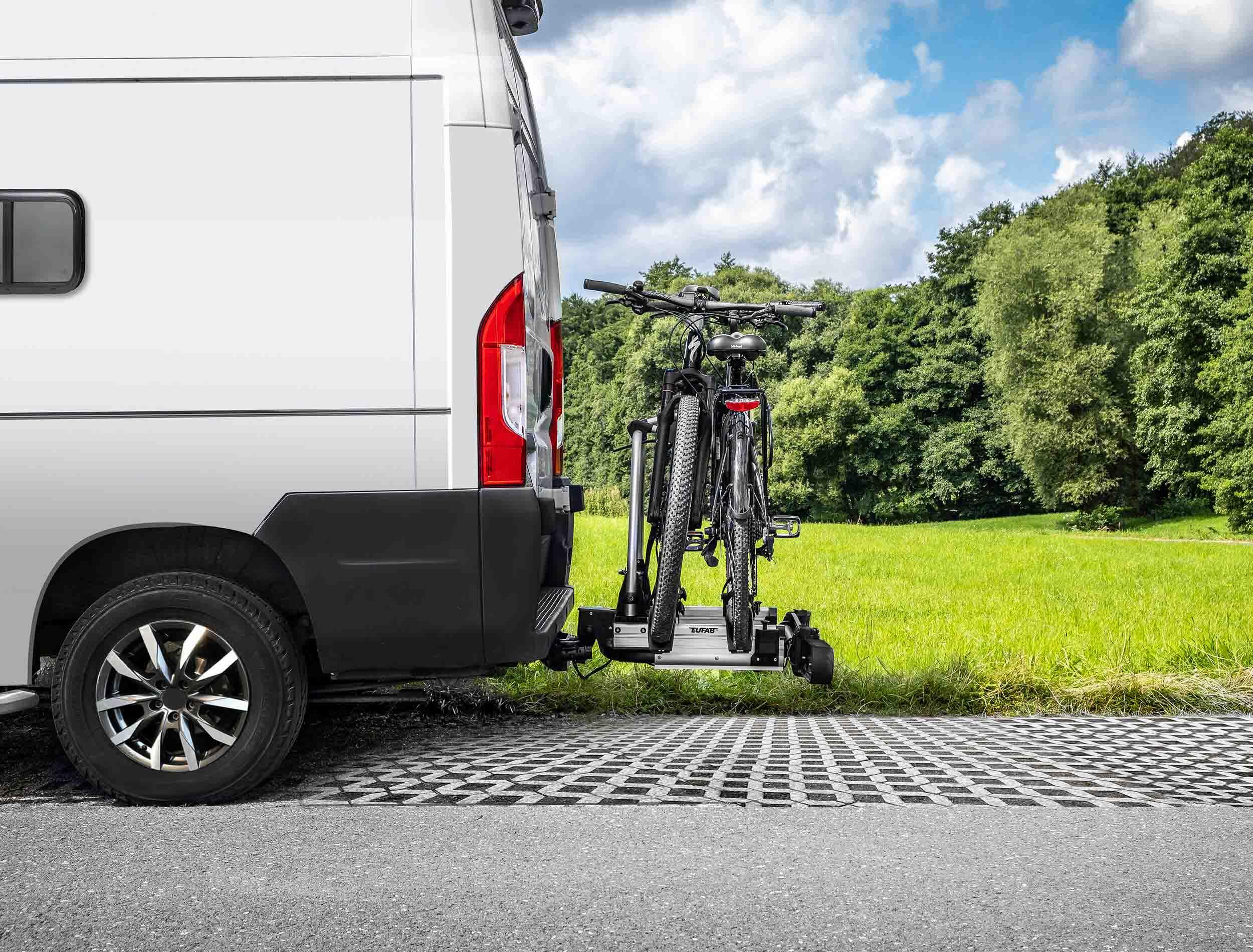

• Extendable: Sliders with a clearance of approximately 70 cm allow the doors to be opened (see installation conditions).

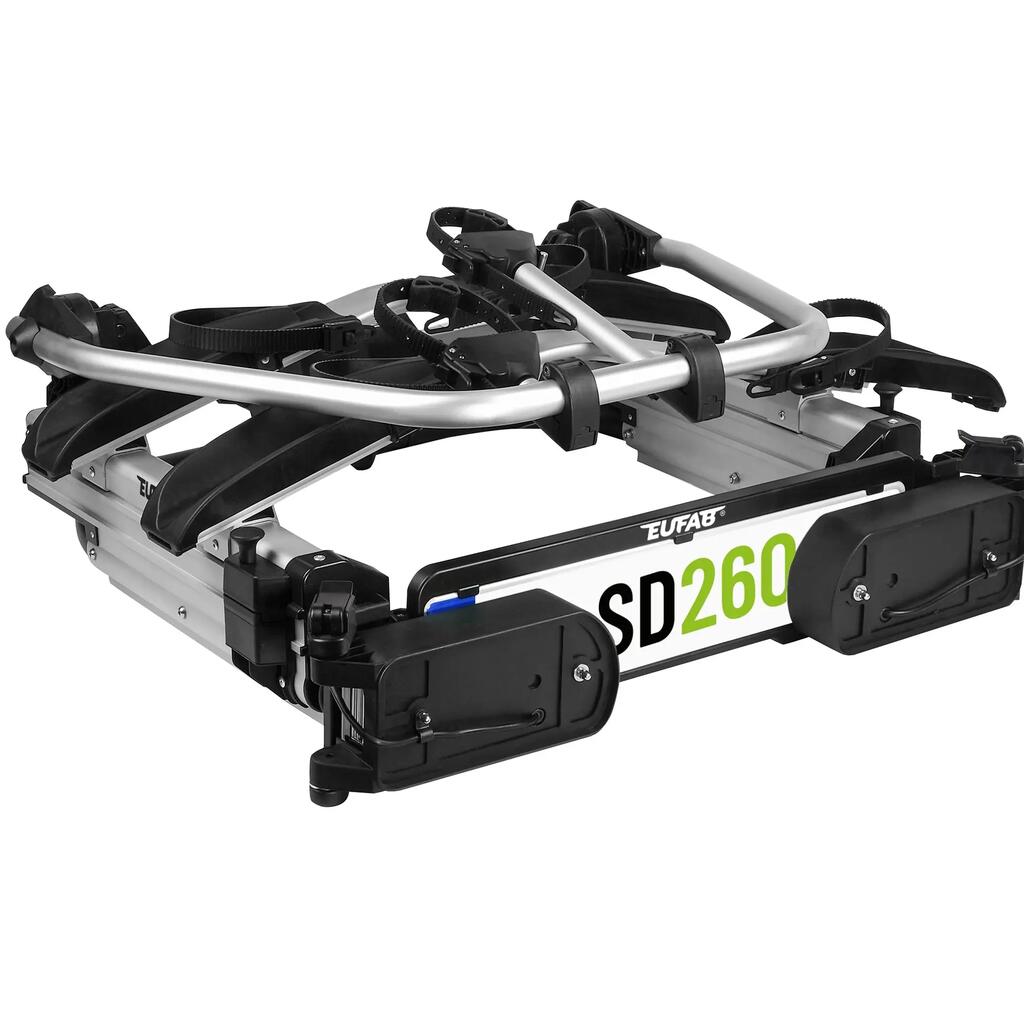

• Dimensions (when the bike rack is not extended): approximately 108 x 75 x 60 cm
• Anti-theft frame brackets: YES.
• Quick-release fastening with padlock: YES.
• Bike securing: Removable frame holder, lockable with pins.
• Rail type: Sturdy aluminium rails with plastic wheel supports.
• Distance between rails: approx. 24 cm.
• Bicycle wheelbase: max. 130 cm.
• Maximum tyre width on the rail: up to 3.25 inches.
• Connection socket: 13-pin with constant current.
• Materials: Aluminium / Plastic / Steel.
• Weight: approx. 20.5 kg.
• Maximum load capacity: 60 kg.
• EU-approved.
• Brand: EUFAB.
  Requirements for fitting the Eufab SD260 bike rack to a van:
• The tow bar must be at least 2.7 cm from the bottom edge of the doors.
• The distance between the bumper and the tow bar must be at least 3.5 cm.
• The rails of the Eufab SD260 bike rack extend 70 cm rearwards. To allow the doors to open fully, they must have a maximum width of 70 cm plus the distance between the edge of the vehicle and the centre of the tow bar.
  Warning: As stated in the instructions, bicycles must not be covered whilst on the bike rack, and child seats and baskets must be removed so as not to increase air resistance.
  Accessories
  This accessory is not included with the Eufab SD260 bike carrier, but can be added to your kit:
• Access ramp (part number 11640)
• Storage bag (part number 11636)
• Adapter for connecting the bike carrier (13-pin) to a vehicle’s 7-pin harness (part numbers 1009, 1008, 10013).
  About the EUFAB brand
  EUFAB is a German brand of car accessories that has specialised in the design and production of bike racks for tow bars since 1993. EUFAB is always striving for innovative design and was the first bike carrier brand to offer a quick-release system for bike carriers. With an annual production of over 250,000 bike carriers, the German brand EUFAB has an established reputation. EUFAB aims to offer a wide range of bike racks that are safe, reliable and affordable.
