Product Description

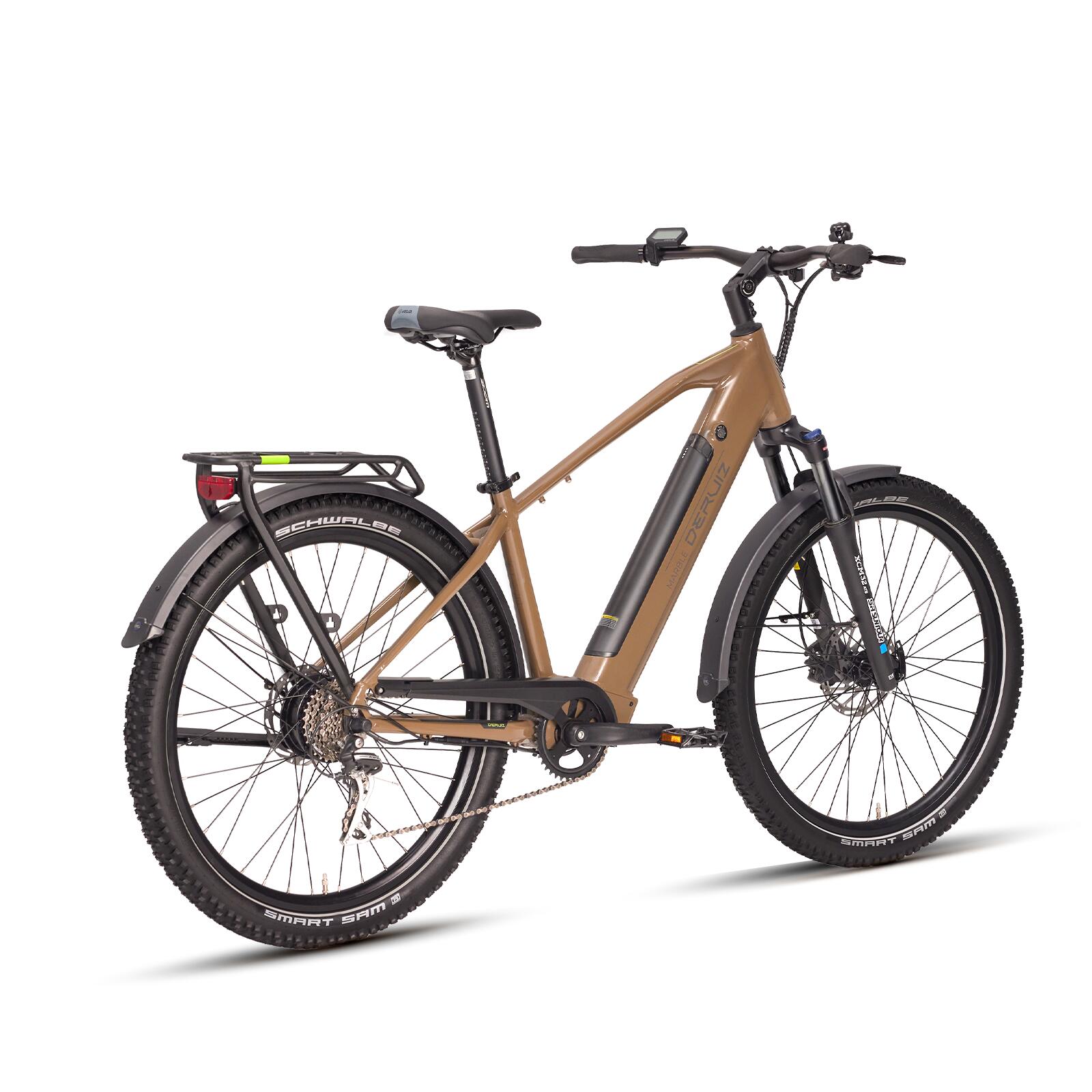

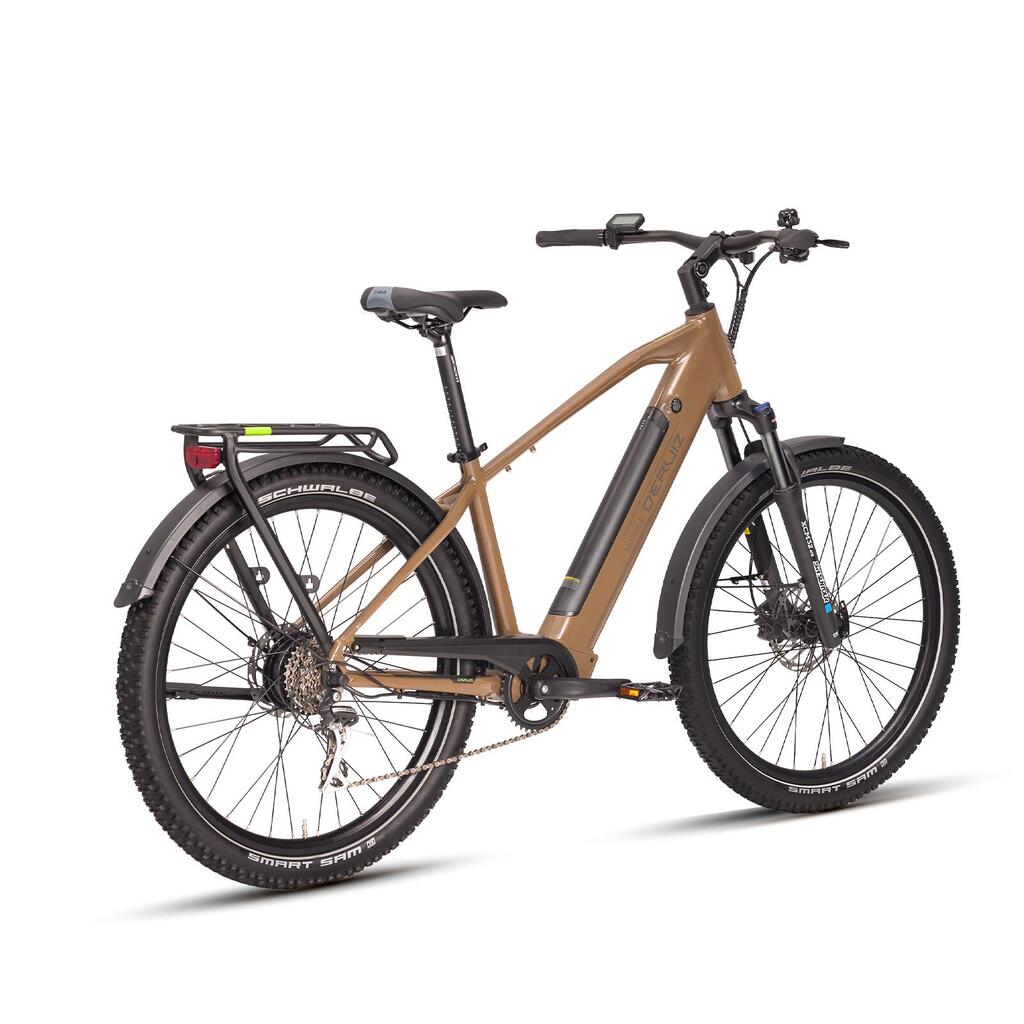

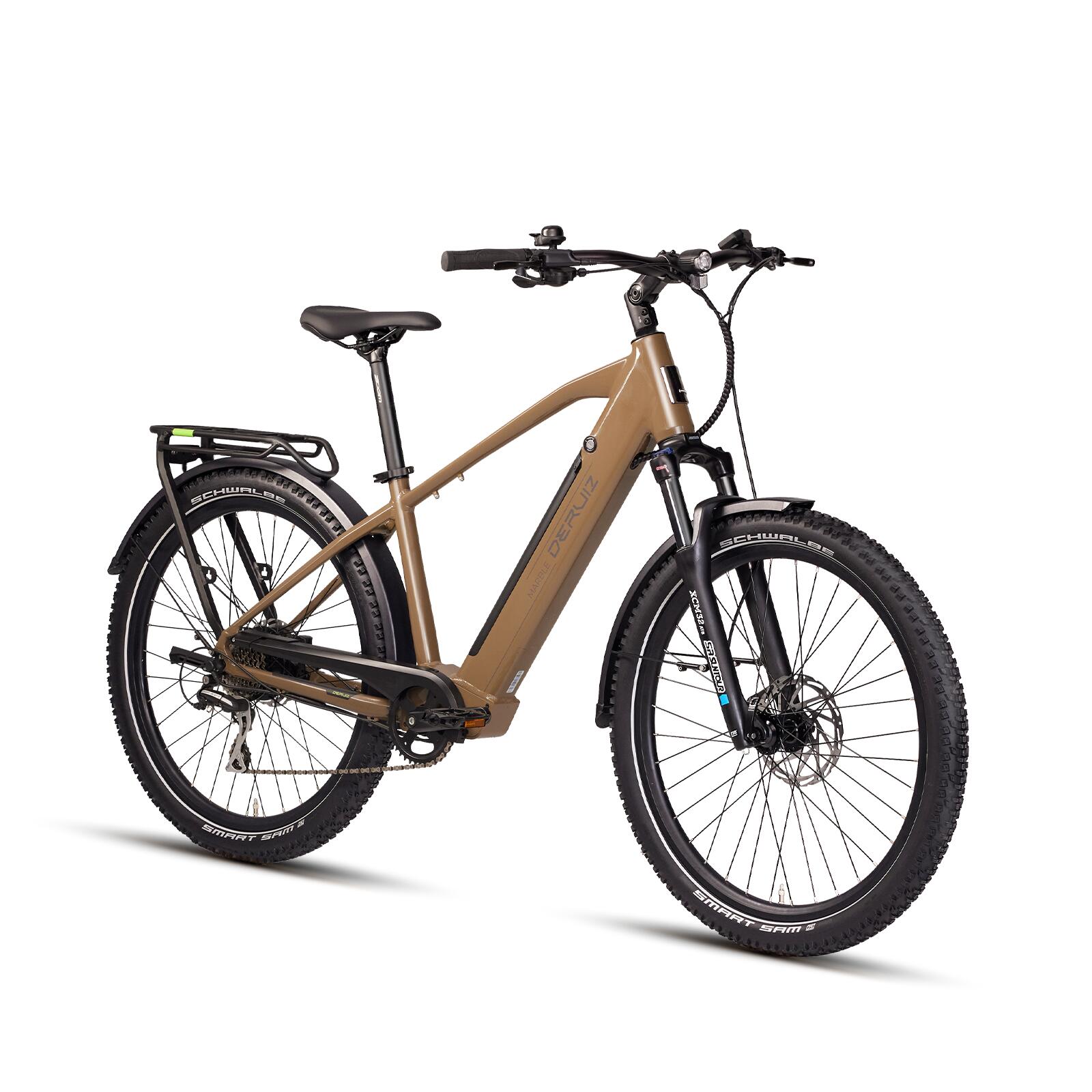

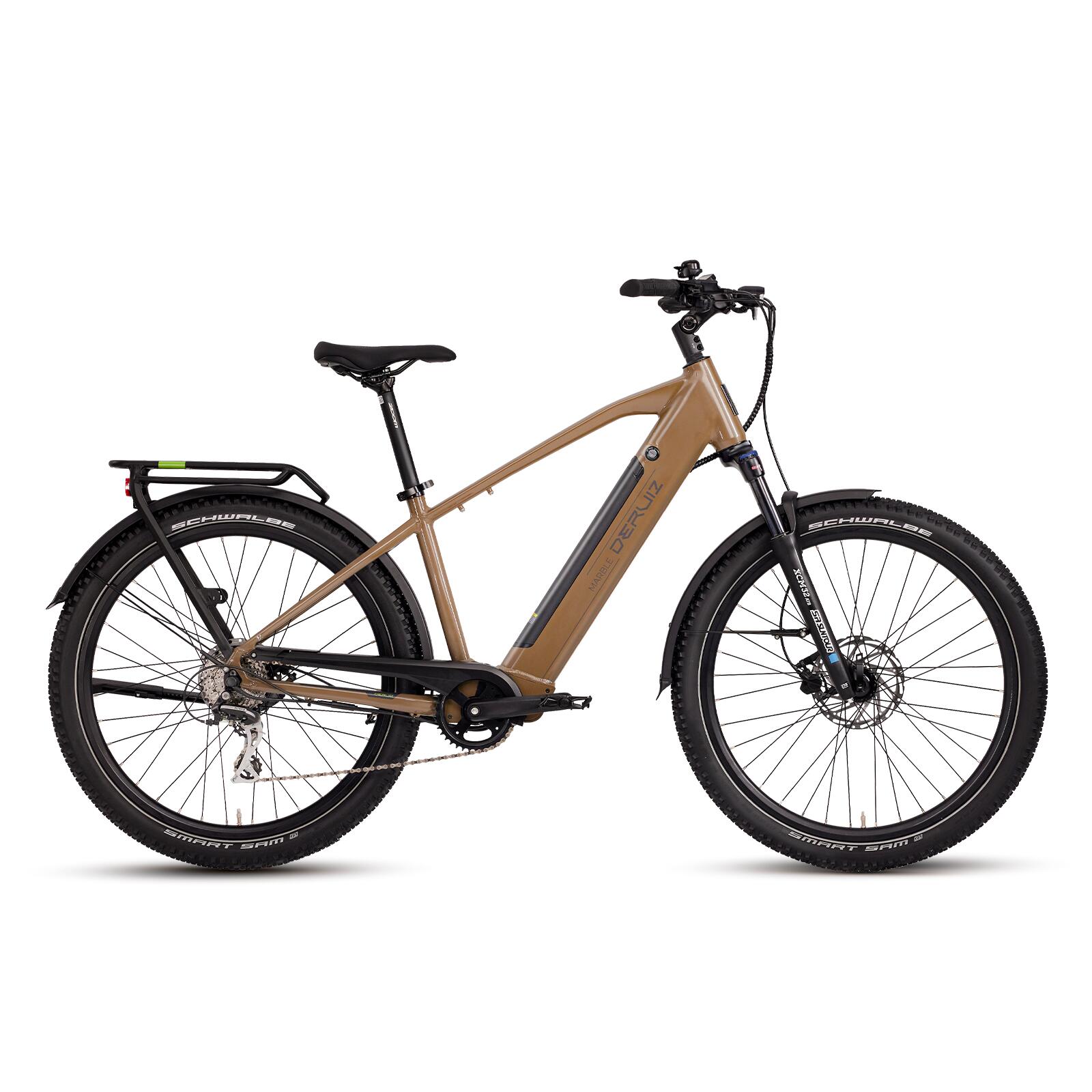

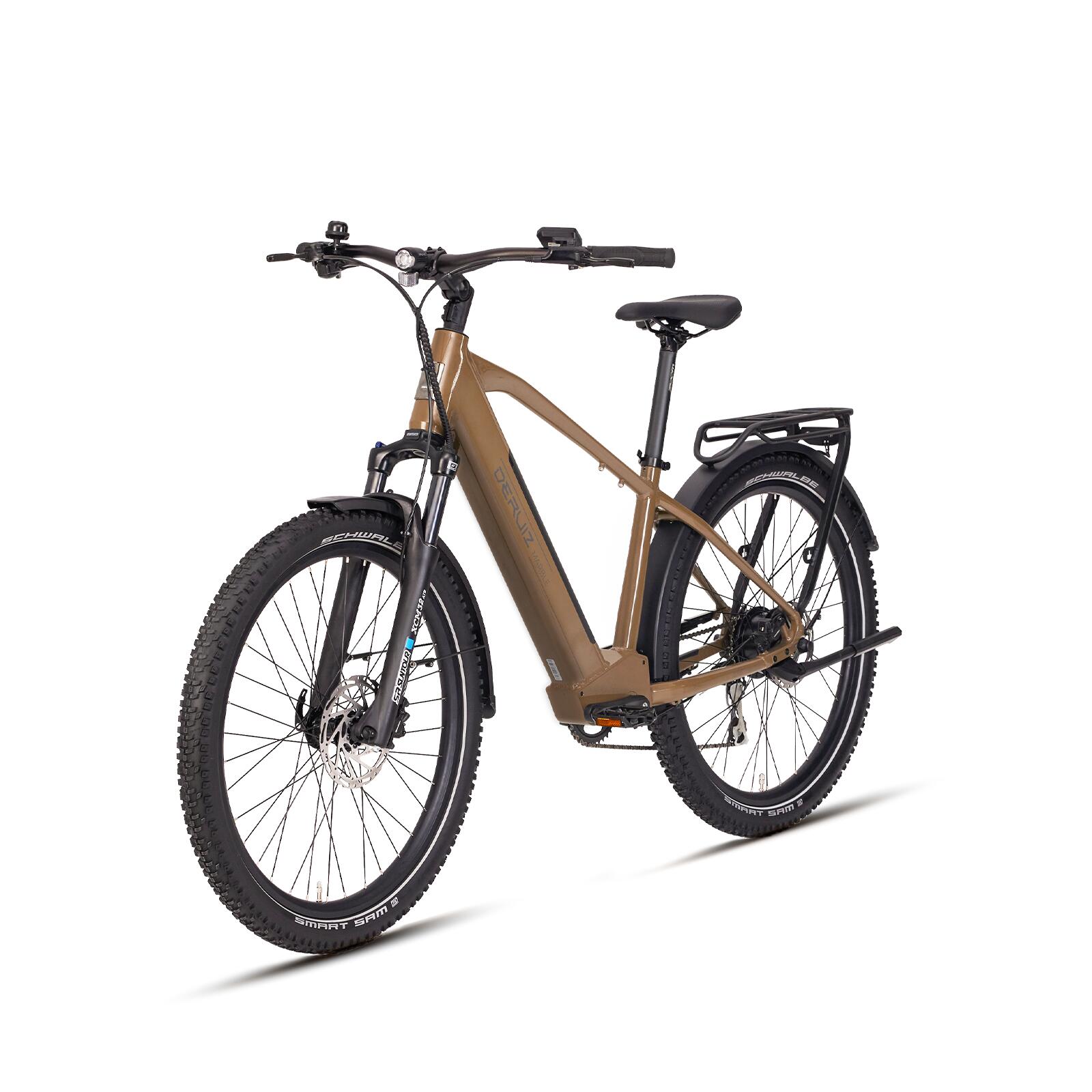

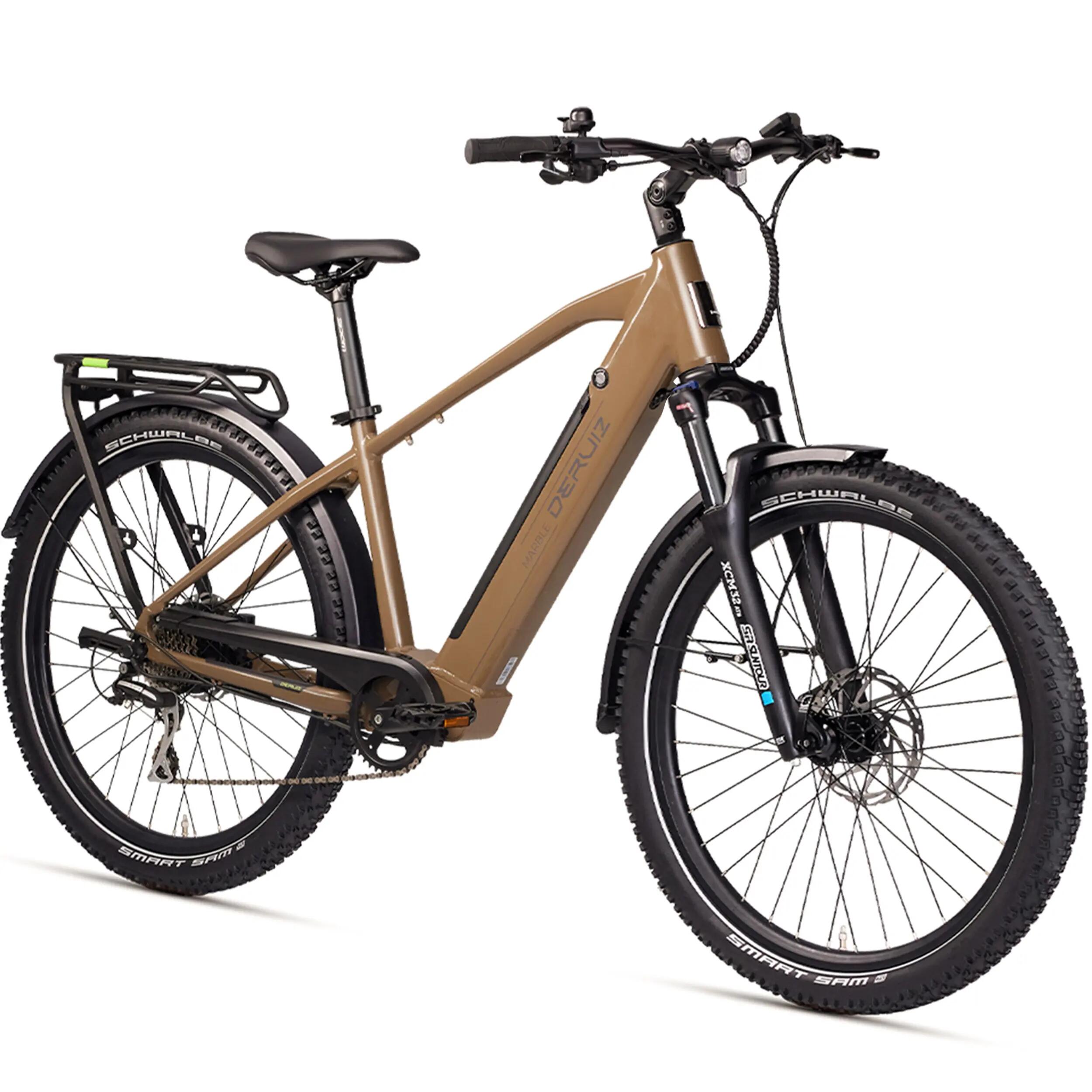

DERUIZ Marble SUV β Versatile SUV E-Bike for City & Off-Road
Highlights
55 Nm rear motor with torque sensor β powerful and assistance
48 V / 644 Wh battery β range up to 161 km
28β³ MTB tires (2.35β³) β high comfort, grip and stability
100-lux front light (StVZO-certified) β strong illumination and enhanced safety
Robust diamond frame β durable and reliable
Description
The Marble SUV from DERUIZ combines the flexibility of a city e-bike with the stability of an MTB. Whether for daily commuting, weekend tours or riding on gravel and forest trails β the Marble SUV is designed for a wide variety of routes and riding conditions.
The powerful 48 V rear motor with up to 55 Nm torque, combined with the sensitive torque sensor, delivers smooth and assistance. Especially when starting and climbing, the system provides a direct and controlled riding experience.
The wide 28-inch MTB tires (2.35β³) offer secure grip and excellent riding comfort on asphalt, cobblestones and unpaved roads. The robust diamond frame supports safe and comfortable riding in everyday use and on longer tours.
With the integrated 644 Wh battery, the Marble SUV achieves a range of up to 161 km, making it ideal for longer rides and daily commuting.
The StVZO-certified 100-lux front light ensures strong illumination in darkness and increases road safety.
The equipment is completed by a modern color LCD display with intuitive operation and app connectivity. Riding data, battery status and system settings can be conveniently accessed at any time.
The Marble SUV from DERUIZ stands for modern mobility, high comfort and reliable performance β in the city and beyond paved roads.
Technical Specifications
Frame
Material: Aluminium 6061
Size: One size (43 cm)
Frame type: Diamond frame
Fork / Suspension
Suspension fork: SR Suntour XCM32 ATB
Travel: 100 mm
Features: Hydraulic lockout, e-bike ready, disc brake mount
E-Bike System
Motor: Deruiz rear motor / 250 W / 48 V / 55 Nm torque
Sensors: Torque sensor / cadence sensor / 5 assistance levels / walk assist
Battery: 48 V / 644 Wh battery / range up to 161 km
Display: Deruiz color LCD display with Bluetooth
Charger: Deruiz 48 V / 2 A charger
Front light: 100 lux (StVZO-certified)
Rear light: BΓΌchel Edge (StVZO-certified)
Drivetrain & Brakes
Brake system: Tektro HD-T275 hydraulic disc brakes β 180 mm front / 160 mm rear
Shifter: Shimano Altus SL-M315-8R Rapidfire
Rear derailleur: Shimano Acera RD-M360 SGS / 8-speed
Cassette: Shimano Acera CS-HG41-8 / 11β32 teeth
Crankset: Wheel Top / 38 teeth / 170 mm crank arms
Cockpit
Handlebar: Deruiz comfort bar / 740 mm / 25Β° backsweep / 30 mm rise
Stem: Deruiz comfort stem (Γ 31.8 mm) / adjustable
Grips: Deruiz ergonomic comfort rubber grips
Headset: Upper IS 52 / 28.6 mm β Lower ZS 56 / 30 mm
Wheels
Front hub: Quick release 115 mm
Rear hub: Integrated rear motor
Rims: 36 holes / ETRTO 584 Γ 24.7 mm
Tires: Schwalbe Smart Sam / K-Guard / 60-584 (27.5 Γ 2.35)
Equipment
Seatpost: Γ 31.6 Γ 350 mm / two-bolt clamp
Saddle: Velo Ergo saddle with soft center
Pedals: Wellgo B249 / aluminium / sealed bearings / reflectors
Kickstand: Adjustable side stand
Mudguards: Aluminium / 66 mm wide (front & rear)
Front rack: Only mountable on models with four mounting holes on the head tube
Rear rack: Semi-integrated Deruiz rear rack / load capacity up to 25 kg
Product Information
Maximum permitted weight: 170 kg
Color: Light Truffle Brown
Net weight (without battery): 22.33 kg
Net weight (complete bike): 26.39 kg
Packaging size: 1,540 Γ 250 Γ 860 mm
