Product Description

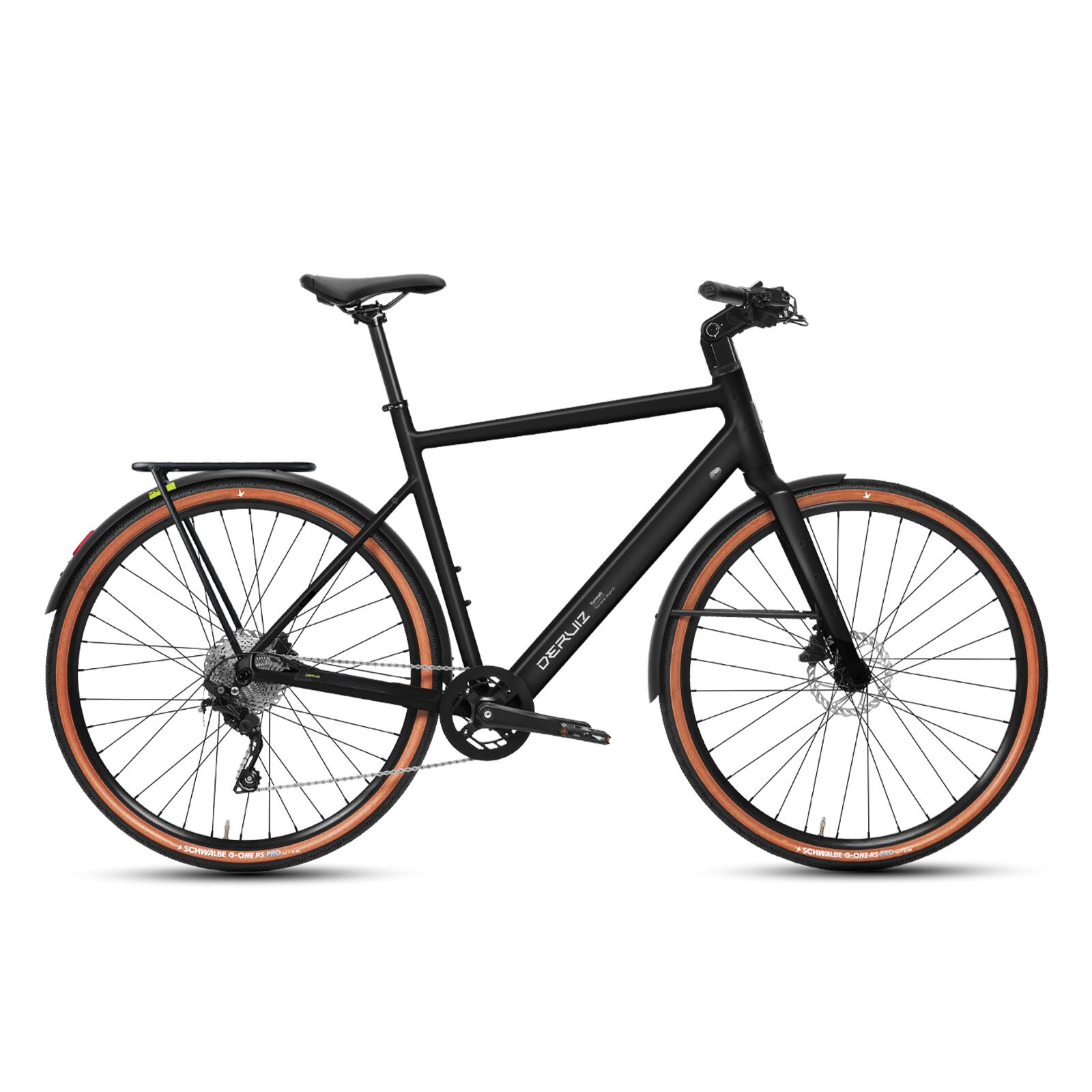

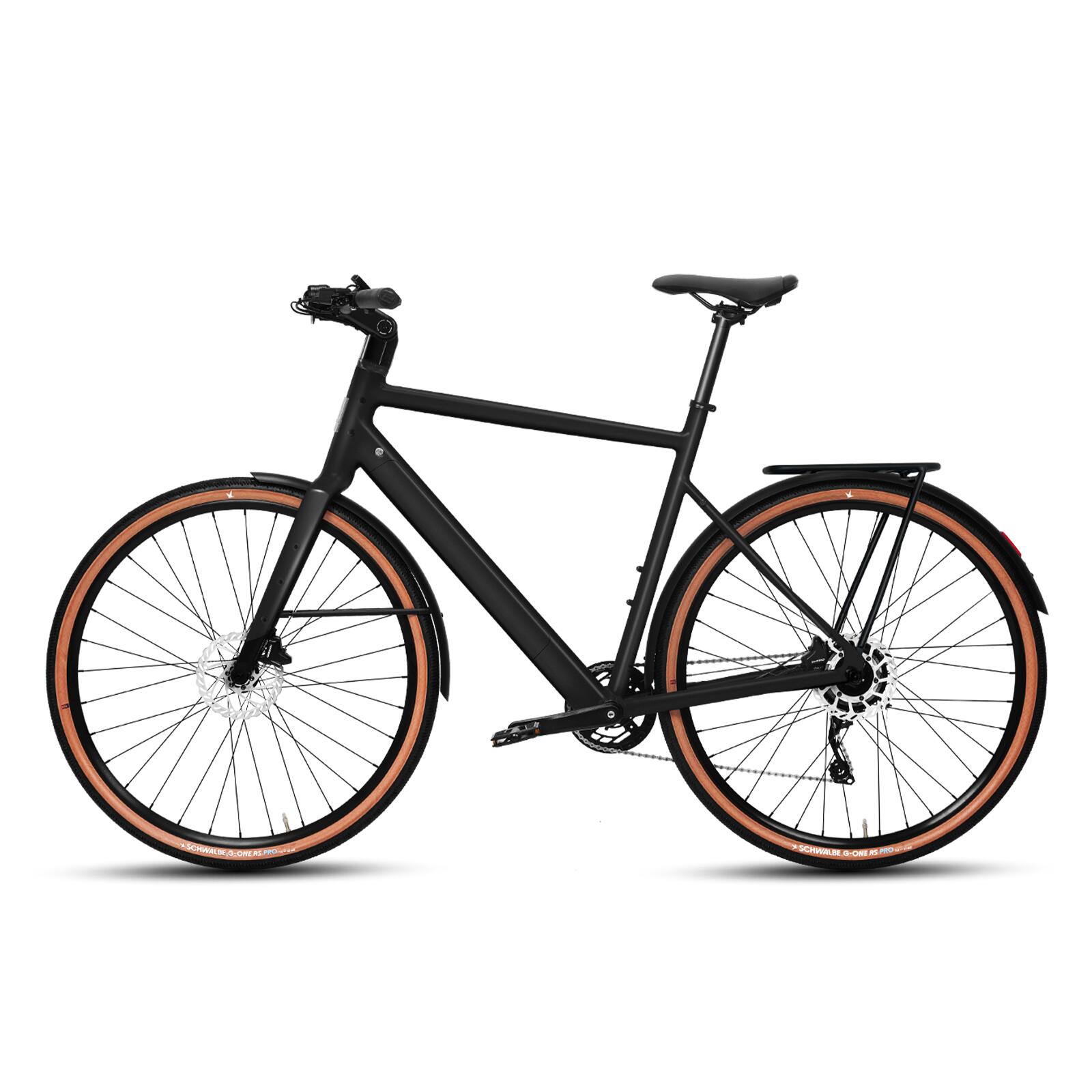

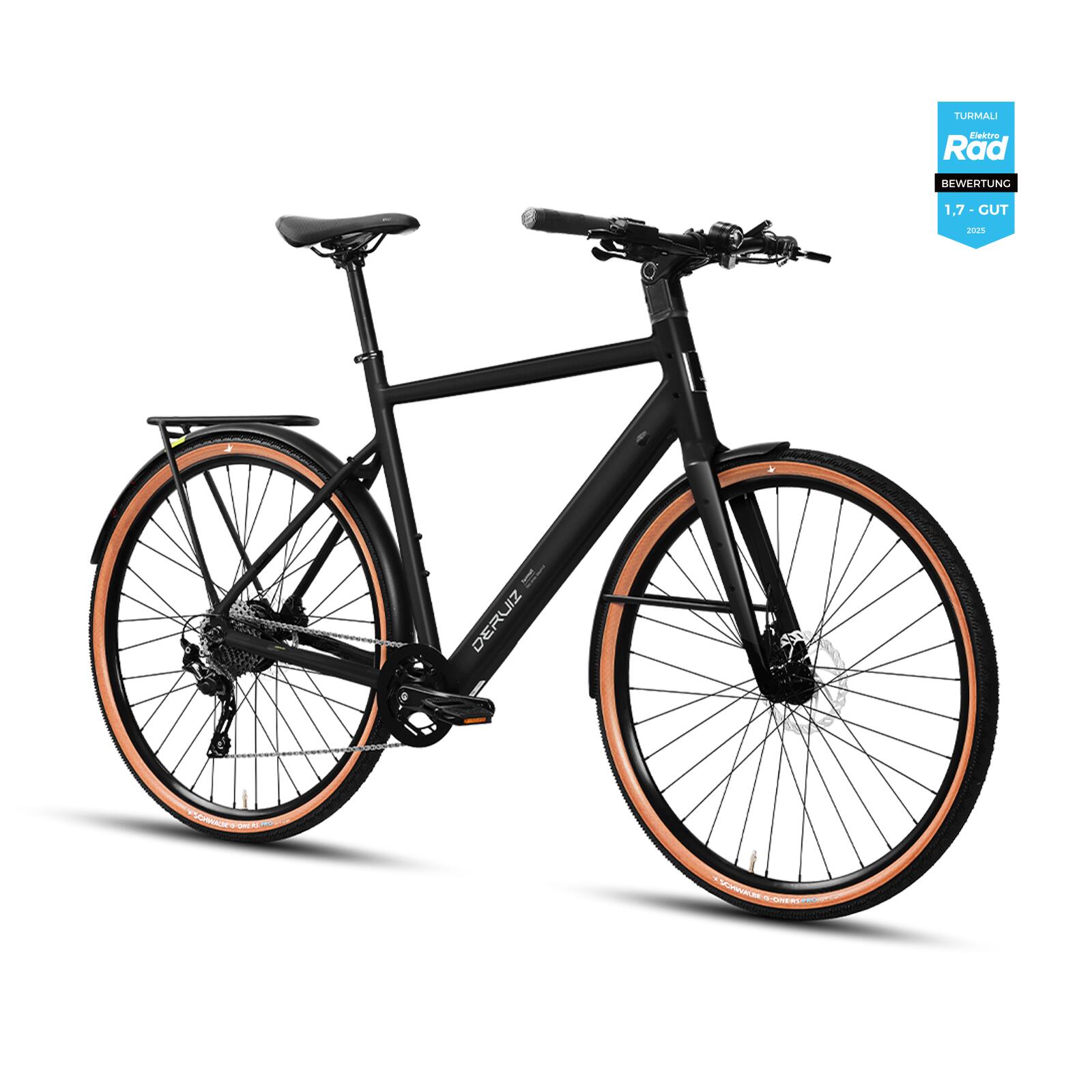

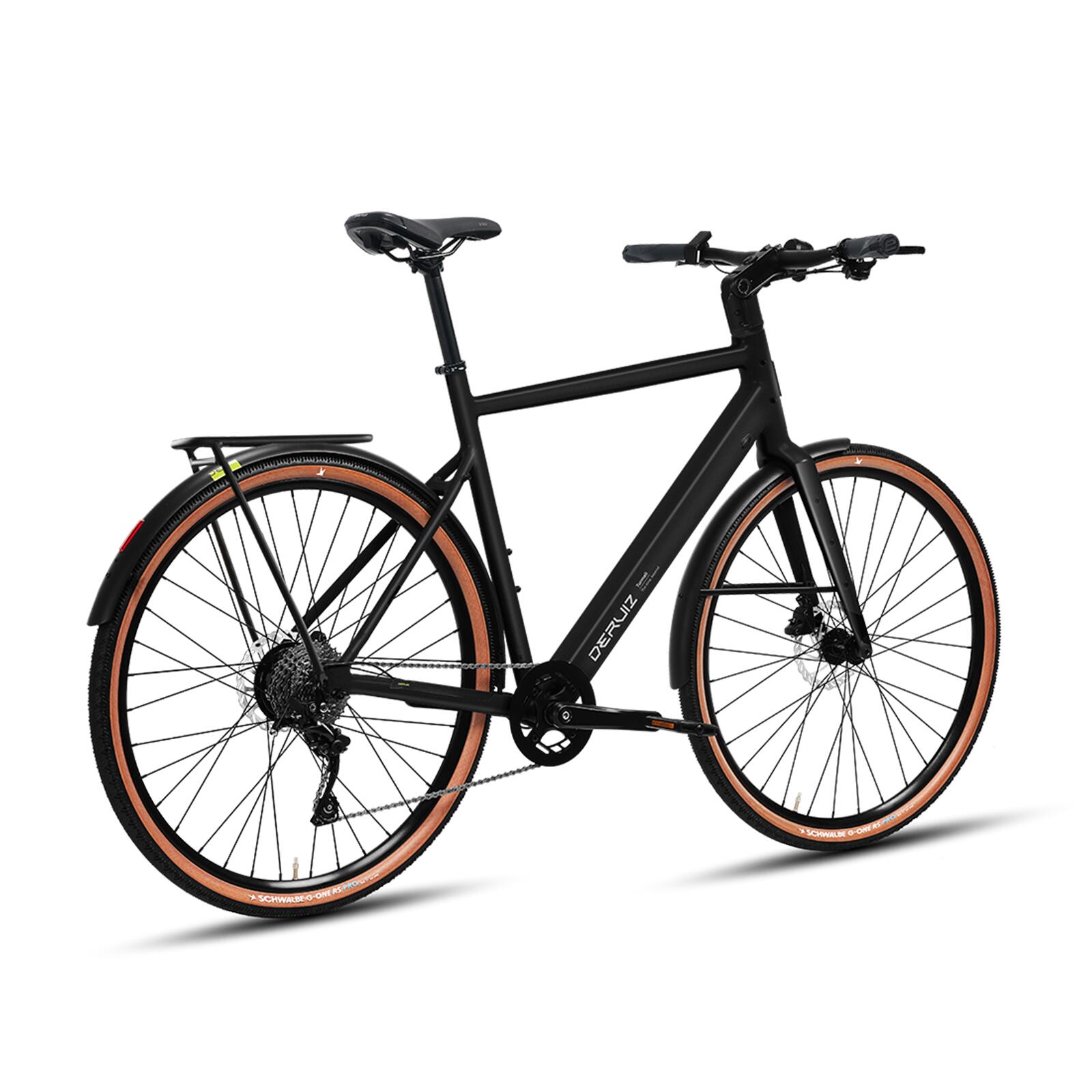

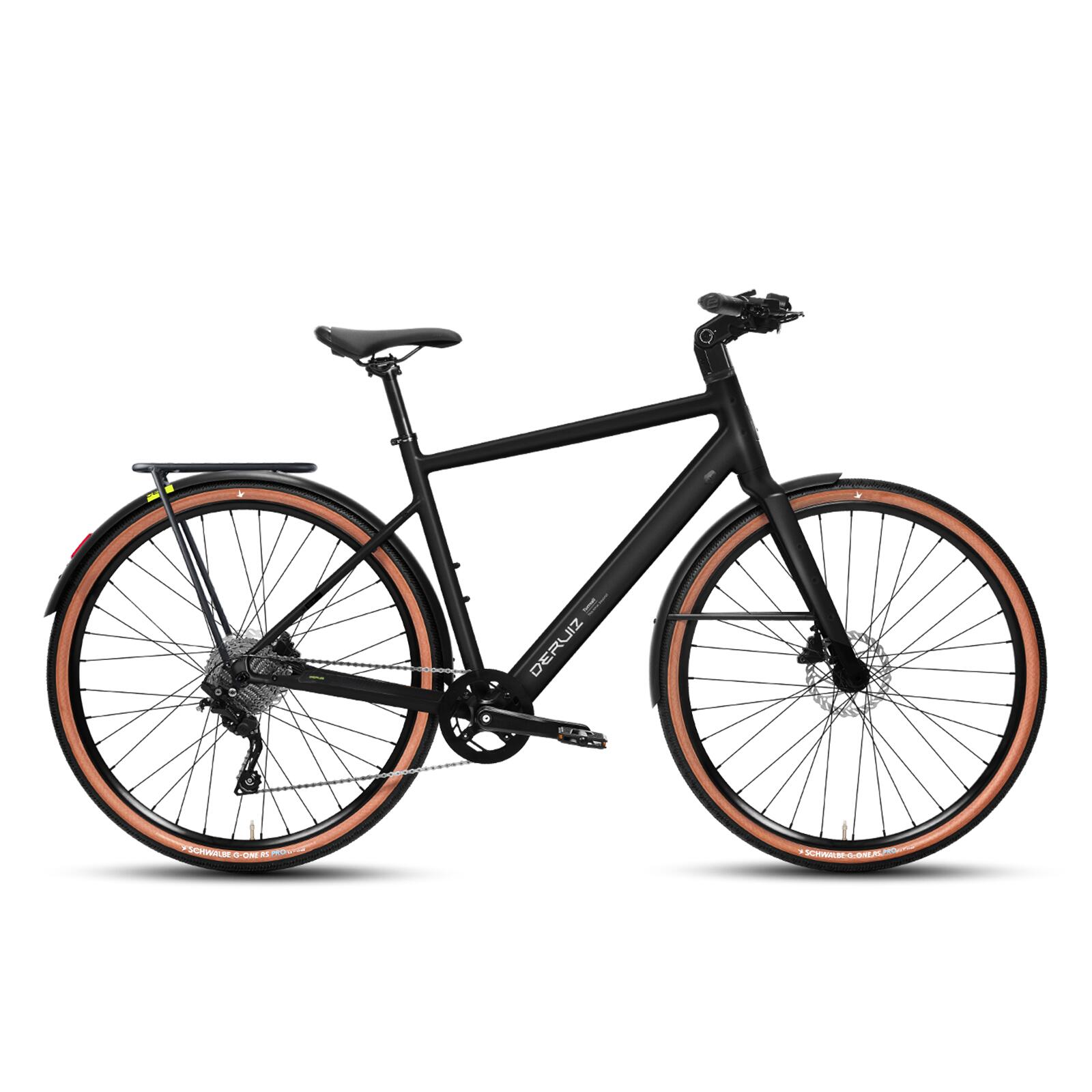

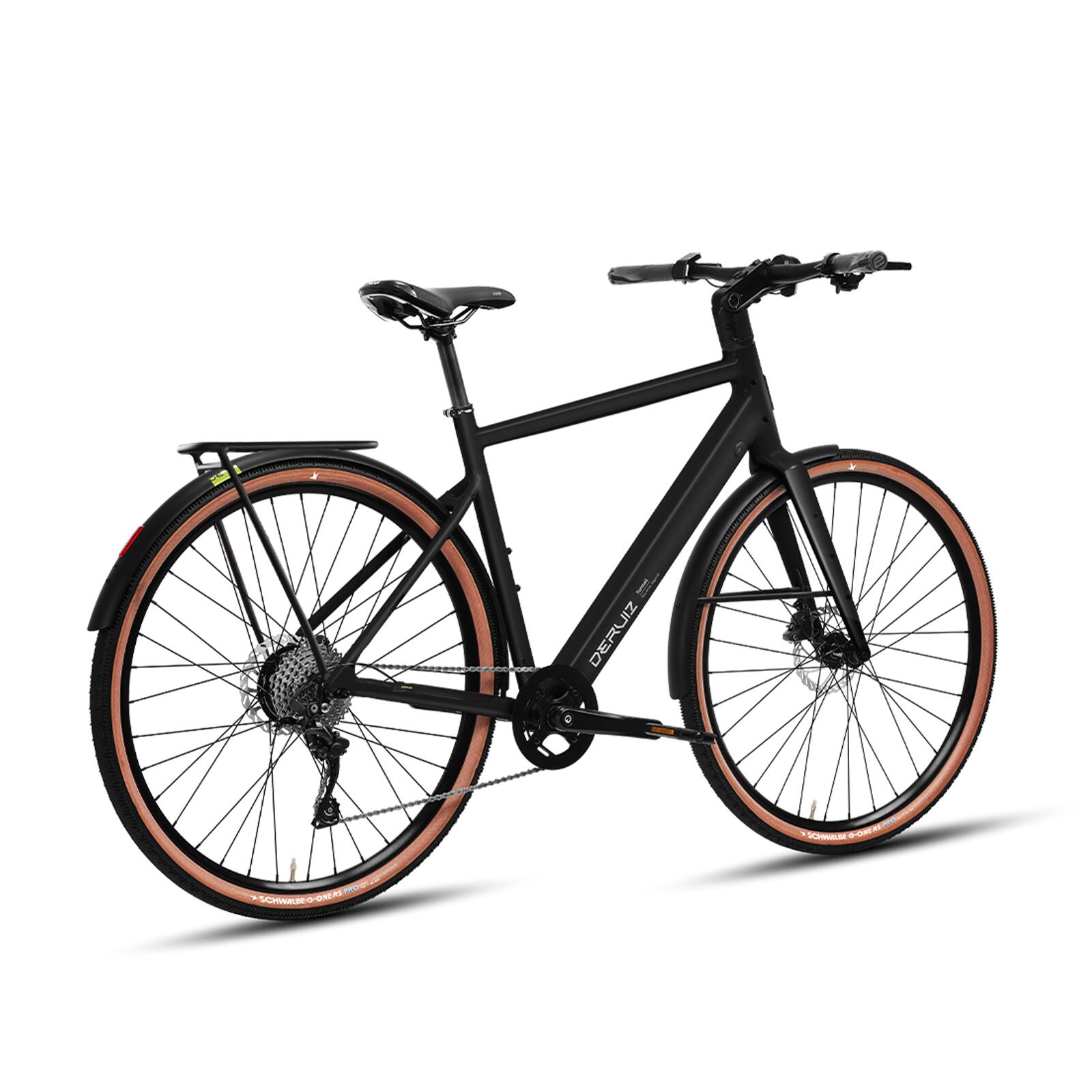

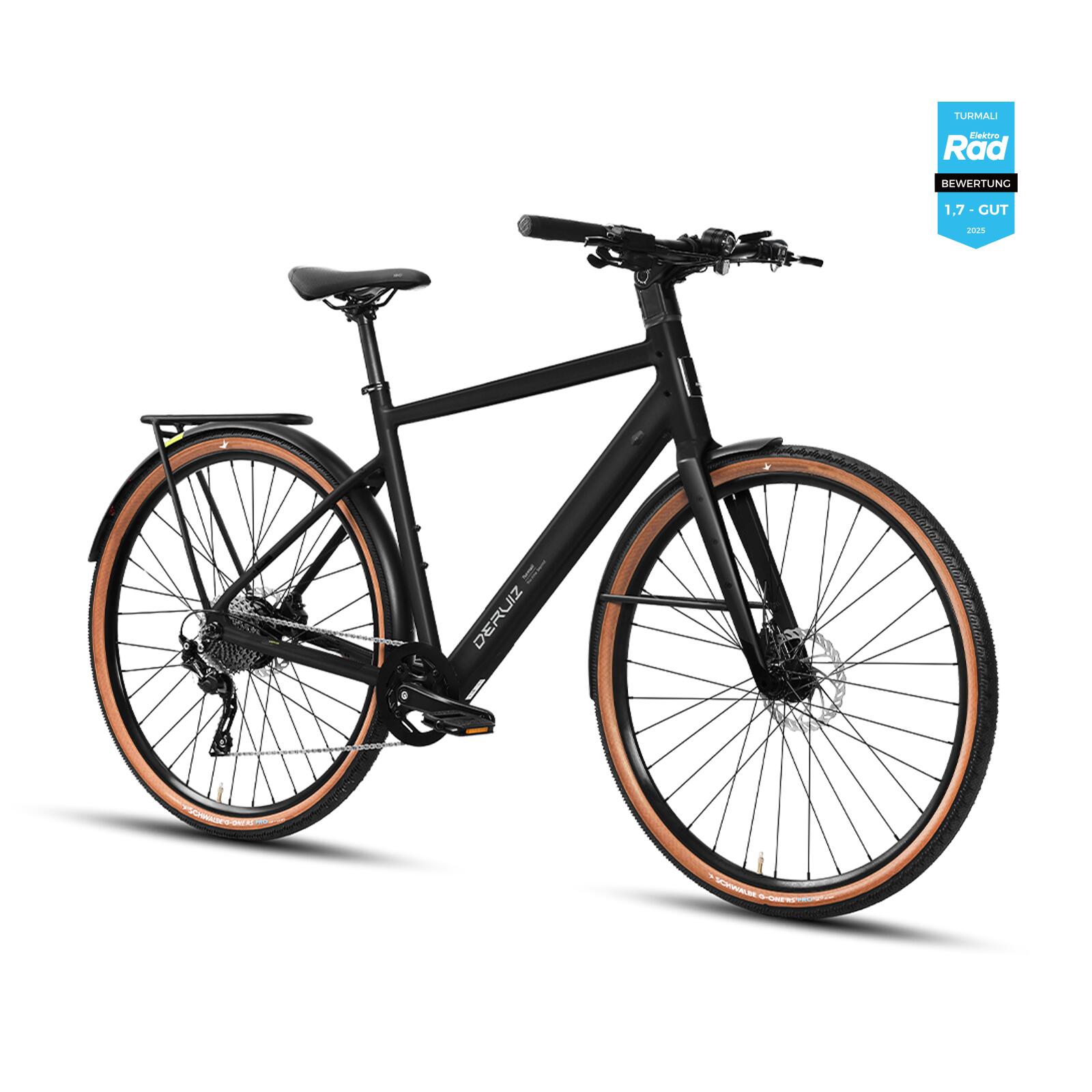

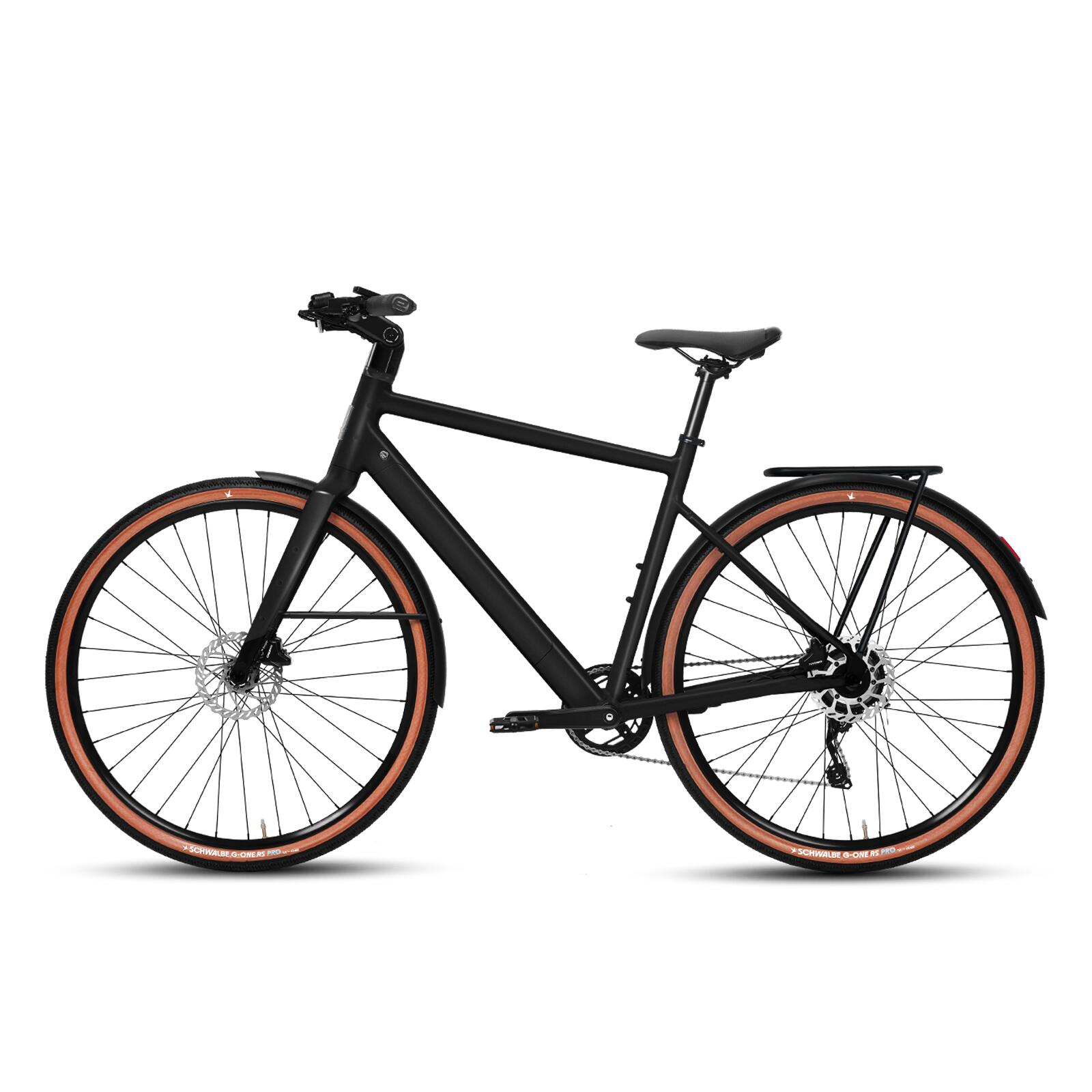

DERUIZ Turmali L (58 cm) – Sporty Urban E-Bike with Powerful MIVICE Motor & Shimano Deore 10-Speed
Turmali (Chain Drive)
The Shimano Deore 10-speed (11–36 teeth), combined with the MIVICE rear hub motor (40 Nm torque), provides direct and powerful assistance in city traffic. Whether asphalt, cobblestones, or gravel paths – the Turmali always delivers a safe and stable riding experience.
Sporty & Comfort-Oriented Fit
The Turmali M/L stands for sporty yet comfortable riding and is available in two perfectly matched frame sizes: M (52 cm) and L (58 cm). The classic diamond frame ensures stability, dynamism, and elegant lines – ideal for riders with a sporty seating position.
Smartly Integrated Battery
The 360 Wh battery is elegantly integrated into the downtube, splash-proof, and lockable. It can be easily removed and fully charged in approx. 2.5 hours – for maximum everyday usability.
Intuitive Display
The colorful Deruiz display combines design and functionality in a compact form. All important functions such as lights, assist levels, and walk assist can be easily controlled via button – ensuring full control in daily use.
Smart Connected with the Deruiz E-Bike App
The Deruiz E-Bike App connects your bike via Bluetooth to your smartphone. It displays range, GPS position, and ride data in real time and provides a complete overview of your tours.
Model Overview (Chain Drive)
The Shimano Deore 10-speed drivetrain (11–36 teeth) provides precise shifting and handles steep climbs with ease. Combined with the torque sensor, power is efficiently transferred, supporting energy-saving riding on long distances.
Technical Data – Turmali (Chain & Belt Drive)
Frame
Material: Aluminum 6061
Sizes: M (52 cm) / L (58 cm)
Frame type: Diamond frame
Fork / Suspension
Fork: Deruiz aluminum fork
Flat-mount disc brake mount, thru axle 12 × 100 mm
E-Bike System
Drive Unit
Belt drive: MIVICE M070 rear hub motor / 250 W / 36 V / 35 Nm
Chain drive: MIVICE M080 rear hub motor / 250 W / 36 V / 40 Nm
Sensor System
Cadence & torque sensor
5 assistance levels (0–5)
Walk assist
Battery
36 V / 360 Wh
Range: up to 110 km
Charging time: approx. 2.5 hours
Display & Charger
Deruiz color LCD with Bluetooth
Deruiz 36 V / 4 A charger
Lighting
Belt drive: 120 lux (StVZO-certified)
Chain drive: 2 × 70 lux (StVZO-certified)
Rear light: integrated into mudguards (StVZO-certified)
Gearing & Brakes
Belt Drive
Drive: GATES Carbon Drive CDN belt / 118 teeth / black
Chainring: GATES CDX 55T / 170 mm crank arms
Rear cog: GATES CDX 20T / 9-spline
Chain Drive
Shifter: Shimano Deore SL-M6000-R Rapidfire Plus
Rear derailleur: Shimano Deore RD-M6000-SGS, 10-speed
Cassette: Shimano Deore CS-HG50-10, 11–36 teeth
Crankset: 38 teeth (narrow-wide), 170 mm
Brake System
TEKTRO HD-R285 hydraulic disc brakes
160 mm front / 160 mm rear
Cockpit
Handlebar: Deruiz comfort bar, 680 mm, 15° backsweep
Stem: Deruiz comfort stem (Ø 31.8 mm) with SP-Connect mount (optional)
Grips: ERGOTEC EG Ambition, black
Headset: IS 52 / 28.6 mm – IS 52 / 39.8 mm
Wheels
Front hub: thru axle 100 mm
Rear hub: integrated hub motor
Rims: 32 / 36 holes, ETRTO 622 × 17.9 mm
Tires: SCHWALBE G-One RS, Super Race, V-Guard, 45-622 (700 × 45C)
Equipment
Seat post: Ø 28.6 × 350 mm, two-bolt clamp
Saddle: Selle Royal Vivo 1405HRN
Pedals: YH-120 urban pedals with anti-slip grip & reflectors
Kickstand: adjustable length
Mudguards: aluminum, 58 mm wide
Rear Rack
Belt drive: optionally retrofittable
Chain drive: integrated, load capacity 15 kg
Product Information
Permissible total weight: 160 kg
Colors:
Belt drive: Signature Black, Black Opal, Yves Klein Blue

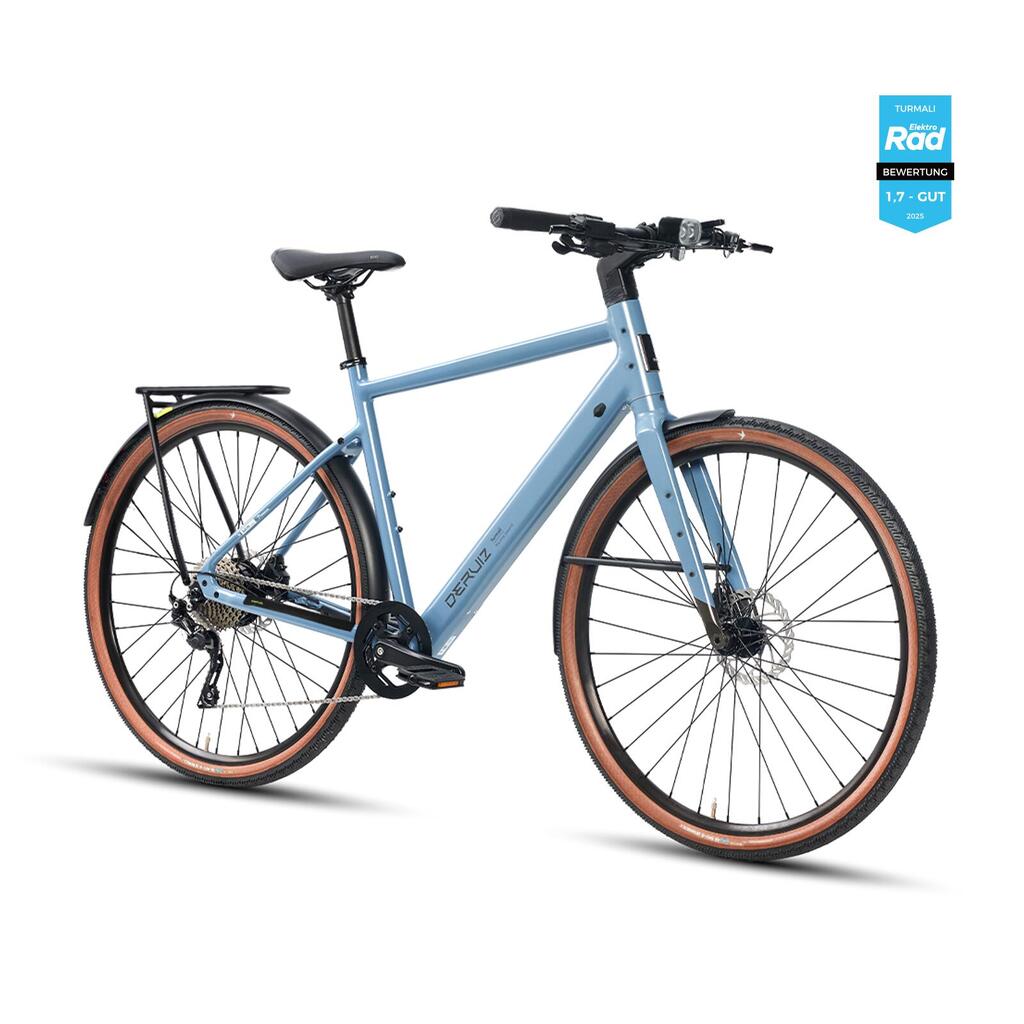

Chain drive: Signature Black, Airy Blue
Weight
Net weight without battery:
Belt drive: 15.75 kg
Chain drive: 17.66 kg
Net weight:
Belt drive: 18.4 kg
Chain drive: 20.4 kg
Gross weight:
Belt drive: 24.9 kg
Chain drive: 26.8 kg
Packaging size: 1480 × 230 × 810 mm
