Hydraulic brake piston reset tool cycling – aluminium 7075 – 2 and 4 piston

Product Description

Hydraulic brake piston reset tool – TOOPRE TL-233

Simplify the servicing of your hydraulic disc brakes with the TOOPRE TL-233. Designed to push pistons back evenly and in a controlled manner, this tool allows you to prepare efficiently for the installation of new brake pads while greatly reducing the risk of damaging components.

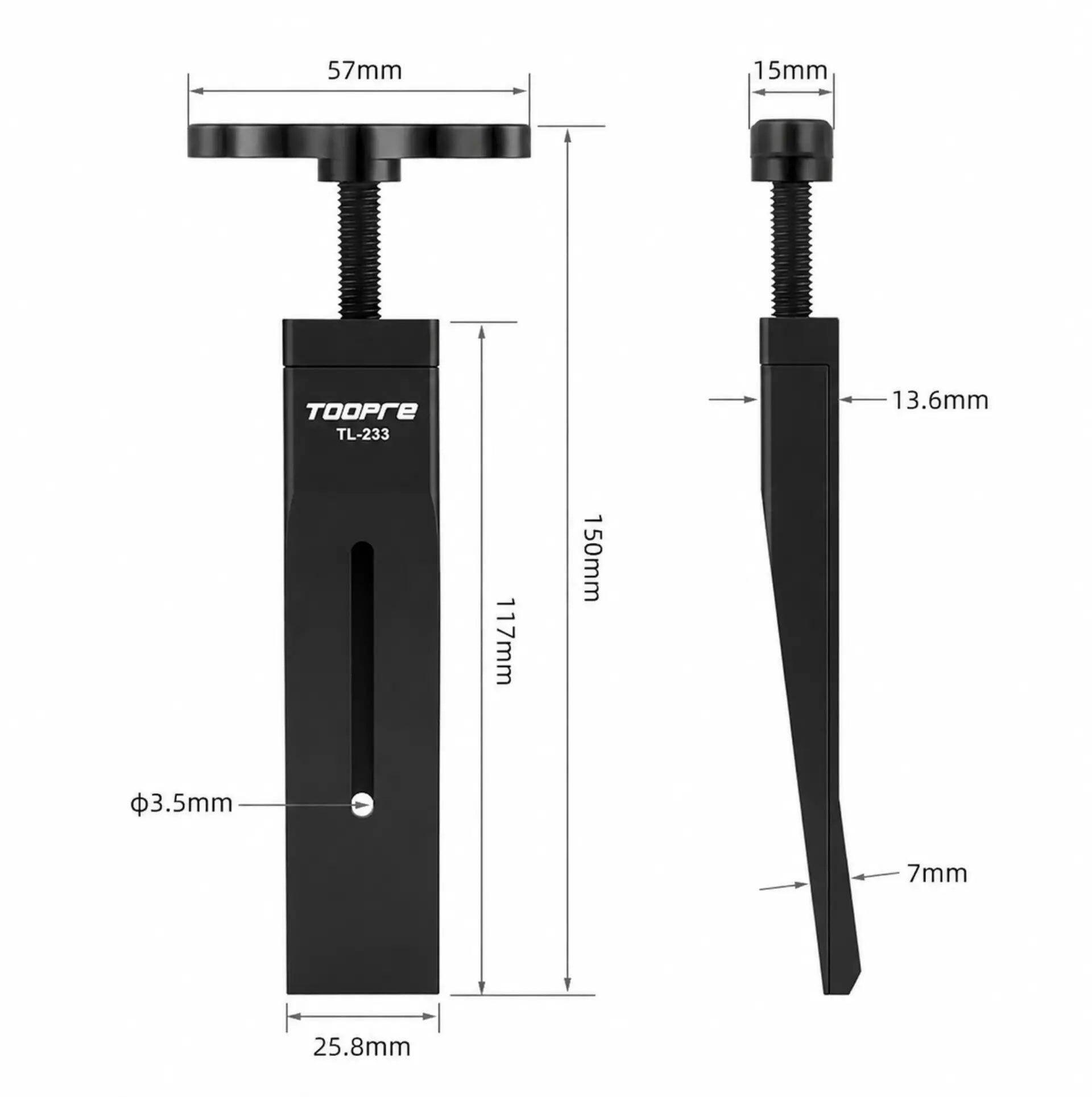

Technical Specifications

• Product: Hydraulic brake piston reset tool
• Model: TL-233
• Colour: Black
• Material: 7075 aluminium alloy
• Screw: M8 × 59.5 mm
• Opening travel: approx. 7 to 12.6 mm
• Compatibility: 2 and 4 piston hydraulic callipers
• Total length: 150 mm
• Usable length: 117 mm
• Handle width: 57 mm
• Body width: 25.8 mm
• Head thickness: 7 mm
• Upper width: 15 mm

Key Features

• Even piston retraction: Pushes pistons back without applying excessive force to the calliper body.
• Fits 2 and 4 piston callipers: Suited to the vast majority of modern hydraulic brake systems.
• Broad compatibility: Works with a wide range of Shimano, SRAM, Magura, Hope and other compatible brake brands.
• Progressive adjustment: The dial allows precise, controlled spreading of the pistons.
• High-strength 7075 aluminium: Excellent rigidity, lightweight construction and long-lasting durability.
• Simplified servicing: Ideal when replacing brake pads or carrying out general maintenance operations.
• Safe to use: Minimises the risk of marking or damaging piston surfaces during retraction.
• Workshop-grade format: A robust tool designed for professional mechanics and demanding home users alike.

Compatibility

• Shimano hydraulic brakes
• SRAM hydraulic brakes
• Magura hydraulic brakes
• Hope hydraulic brakes
• 2 piston callipers
• 4 piston callipers

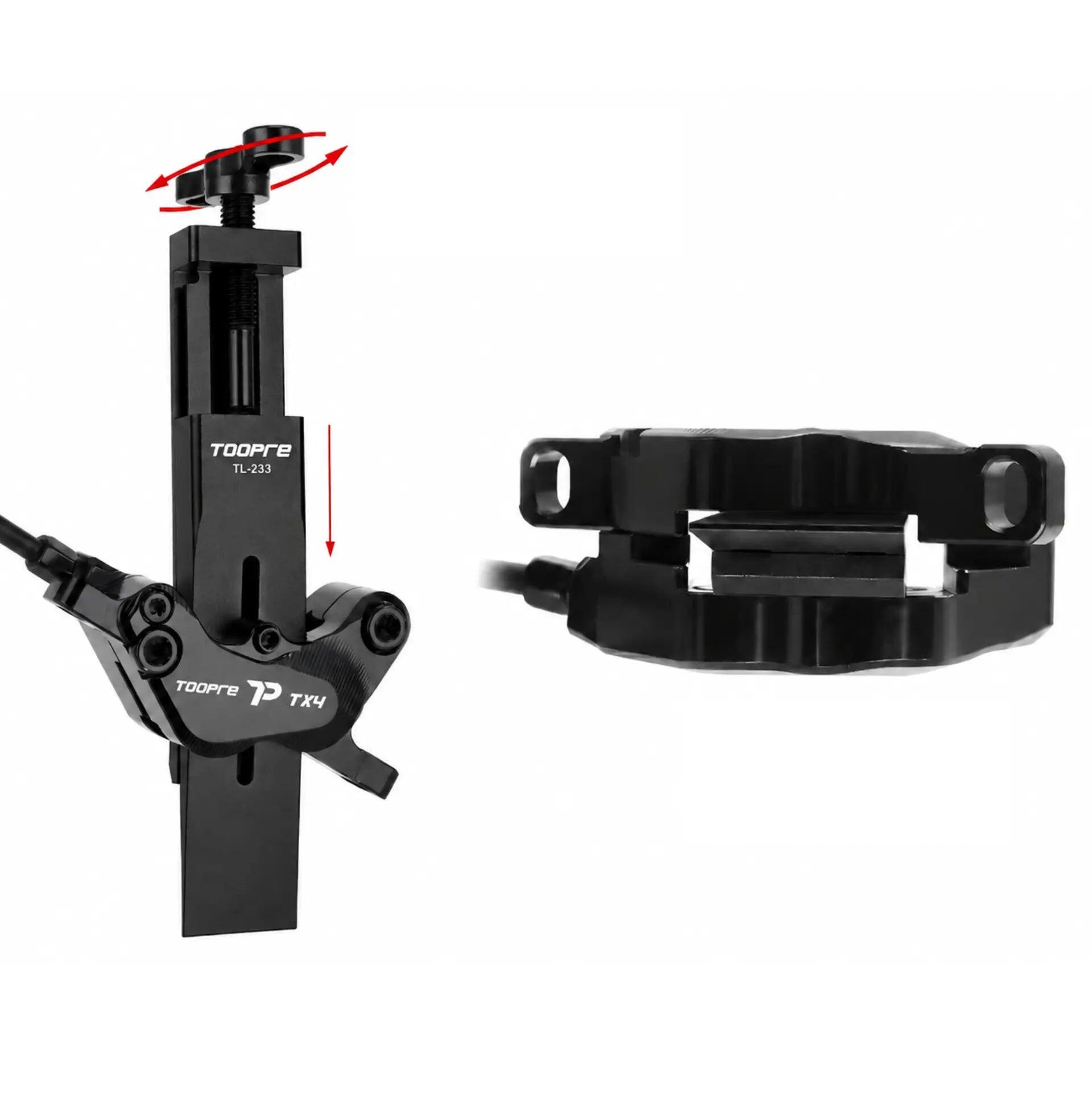

How to Use

• Remove the brake pads and retaining pins.
• Insert the tool into the brake calliper.
• Align the tool correctly between the pistons.
• Turn the dial clockwise to gradually spread the pistons apart.
• Once the pistons are fully retracted, turn the dial anticlockwise to release the tool.
• Refit the brake pads, then remove the tool.

Pack Contents

• 1 × TOOPRE TL-233 hydraulic brake piston reset tool

An essential tool for hydraulic brake servicing, enabling precise and even repositioning of pistons when replacing pads or performing maintenance work.
