Product Description

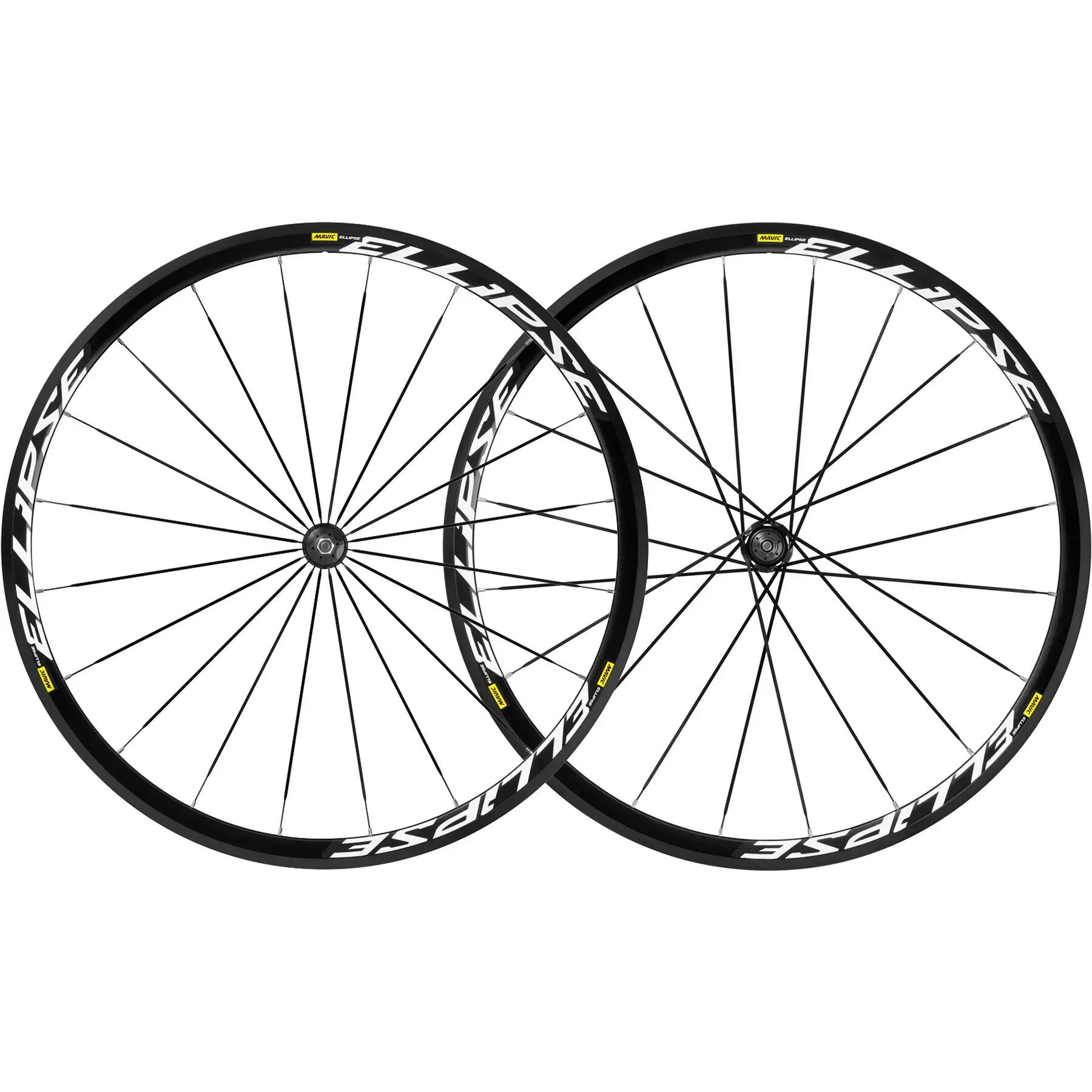

Made with welded aluminium rims that are 30 mm high for better strength, this pair of track wheels offers undeniable aerodynamic advantages and unwavering reliability.
Versatile enough for racing and daily training, the rims are designed to accommodate standard tyres. The strong profile provides maximum rigidity to the wheel. The ultra-aero straight spokes attached to the robust cartridge bearings ensure a great connection between the rim and the hub.

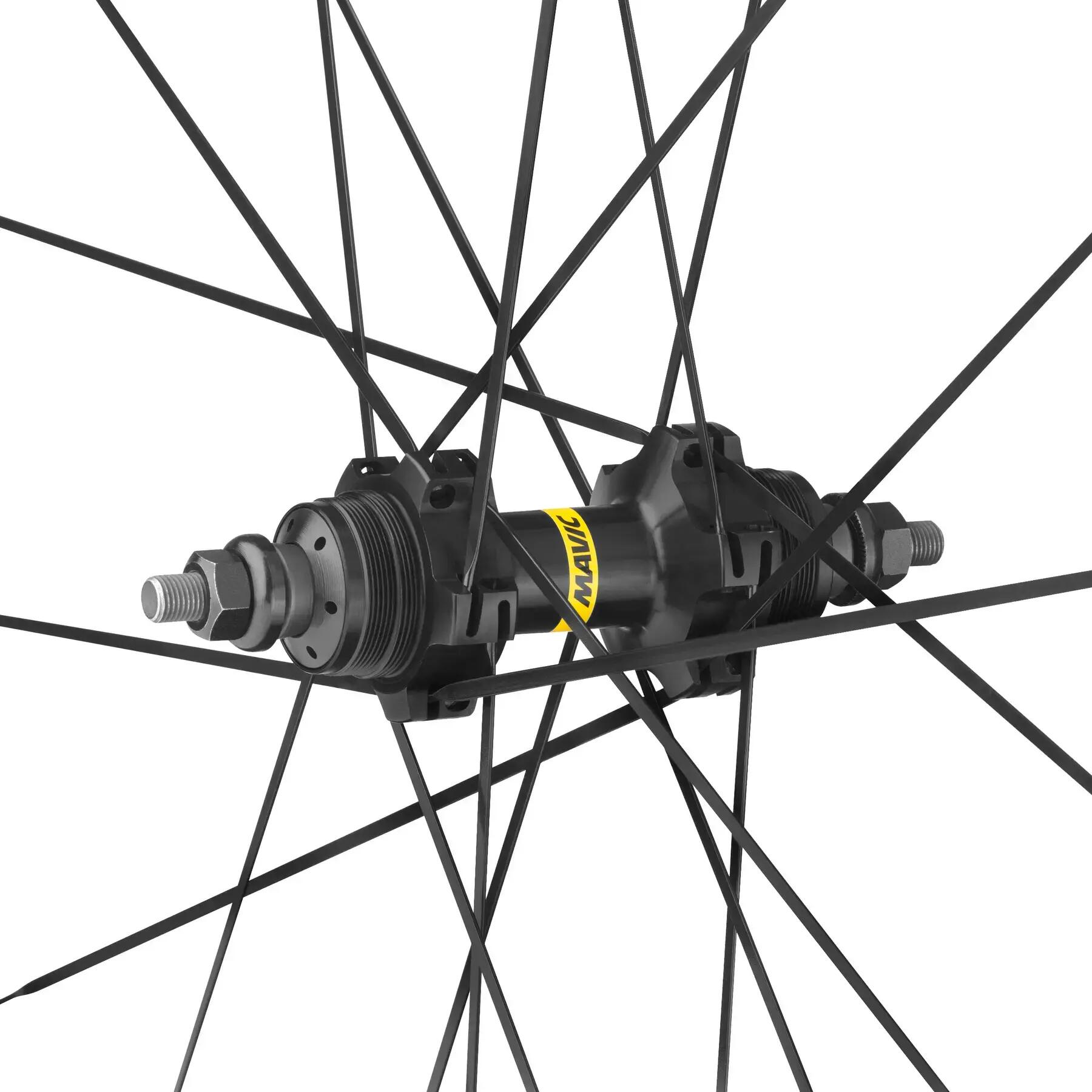

The double-sided rear hub allows for two sprockets to be fitted on the same wheel, making gear changes quicker and easier.
Enjoy consistent aerodynamic benefits during training and racing.
Welded aluminium rim of 30 mm high for unparalleled aerodynamics.
Low spoke count (20 at the front and rear).
Ultra-aero spokes.
Quick accelerations, maximum power transfer and low rolling resistance.
Optimised front and rear profile for incredible rigidity.
QRM+ cartridge bearings for maximum rolling efficiency.
Simple and quick tyre and gear changes.
“Flip-flop” rear hub for adapting gear ratios for the track.
Easy tyre change thanks to the clincher rims.
Rim
Material: Maxtal
Height: 30 mm
ETRTO size: 622x15C
Tyre: inner tube
Joint: SUP welding technique
Internal width: 15 mm
Drilling: traditional (front/rear 20 holes)
Supplied with
User guide
Rim tape not mounted on the wheel
Sprocket locknut + wheel locknut
Multifunction adjustment key with the rear wheel

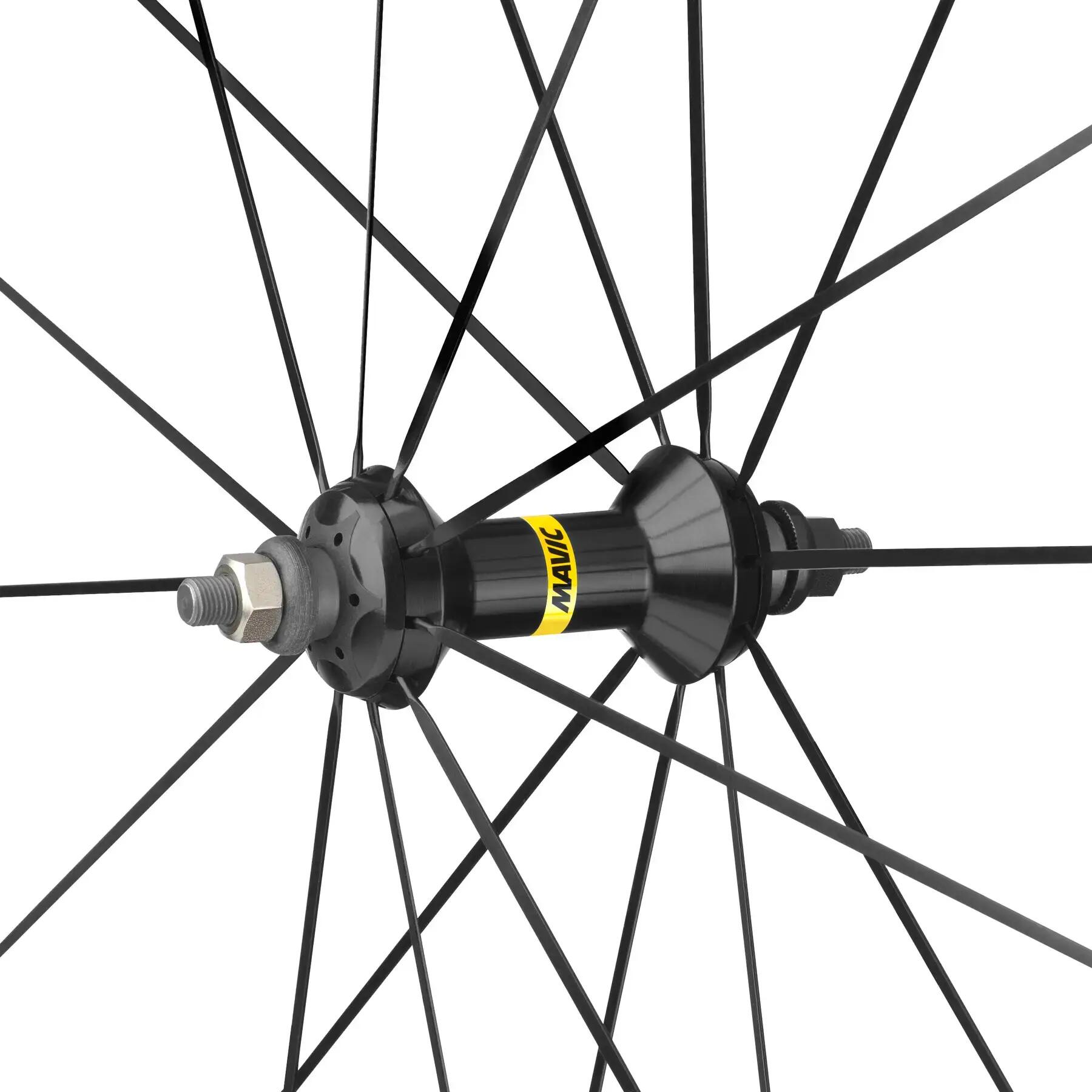

Hubs
Axle size: front 9x100 / rear 9x120
Axle material: steel
Body material: aluminium
Sprocket thread: 1.37x24TPI
Lock ring thread: left hand M33x1
Bearing technology: QRM+ automatic adjustment - sealed cartridge
Spokes
Shape: straight, extra-flat, tapered (front and rear)
Material: steel
Lacing: crossed 2 (front and rear)
Nipples: steel, ABS, colourless
Intended use
ASTM category 1: road only
Maximum weight supported by the wheels: must not exceed 120 kg (including bike weight)
Maximum tyre size: width 32mm - max pressure 8Bar/115PSI
Minimum tyre size: width 23mm - max pressure 9Bar/130PSI
