Product Description

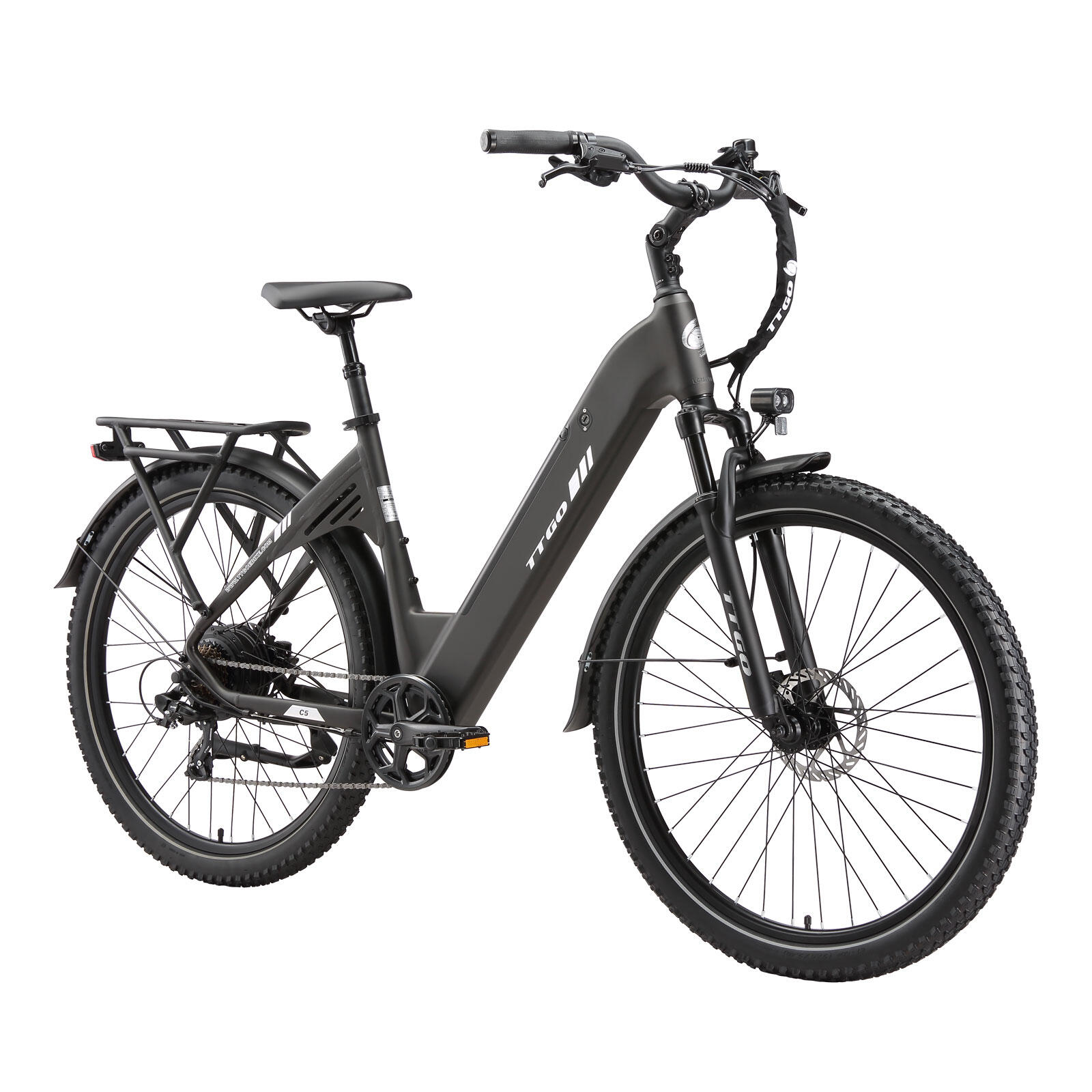

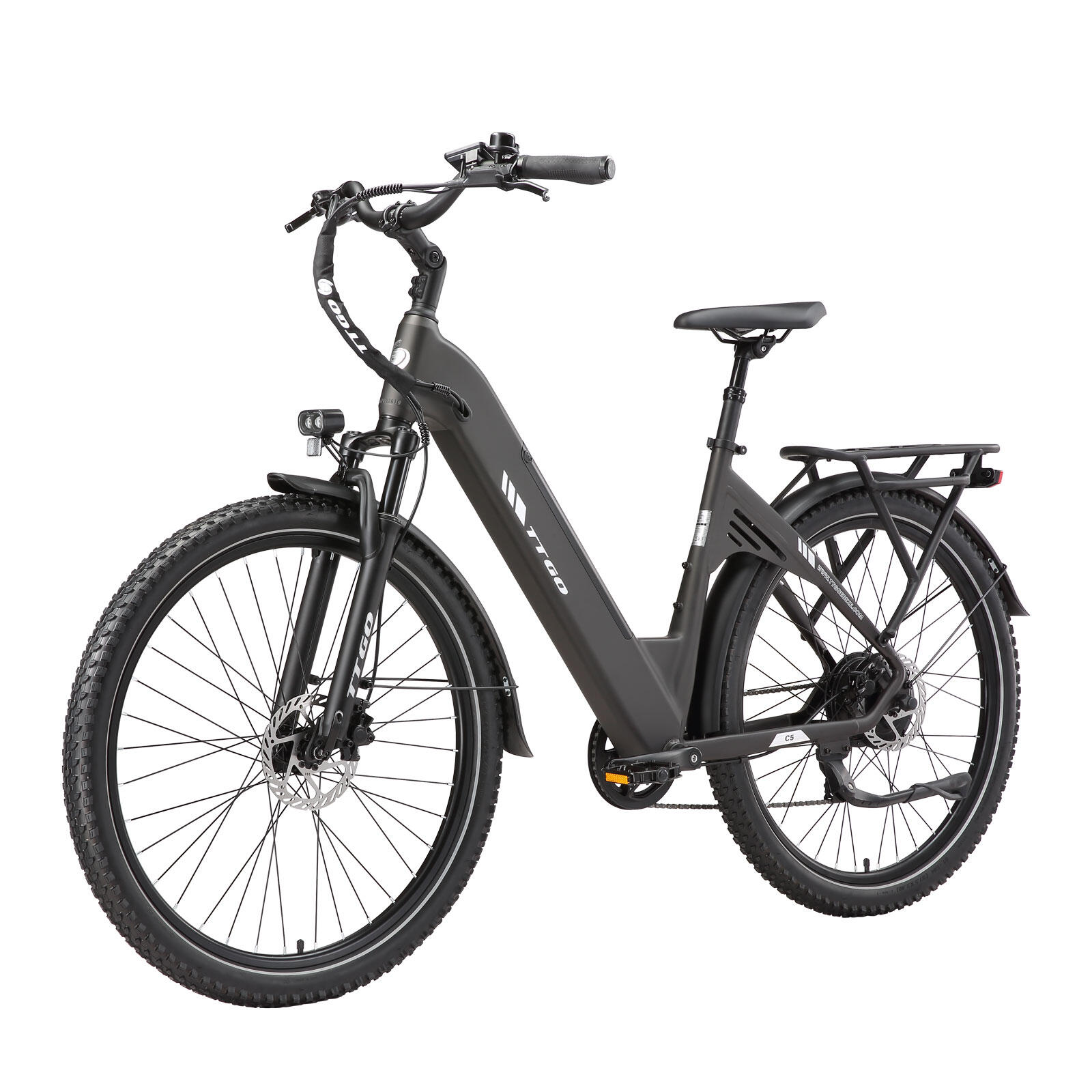

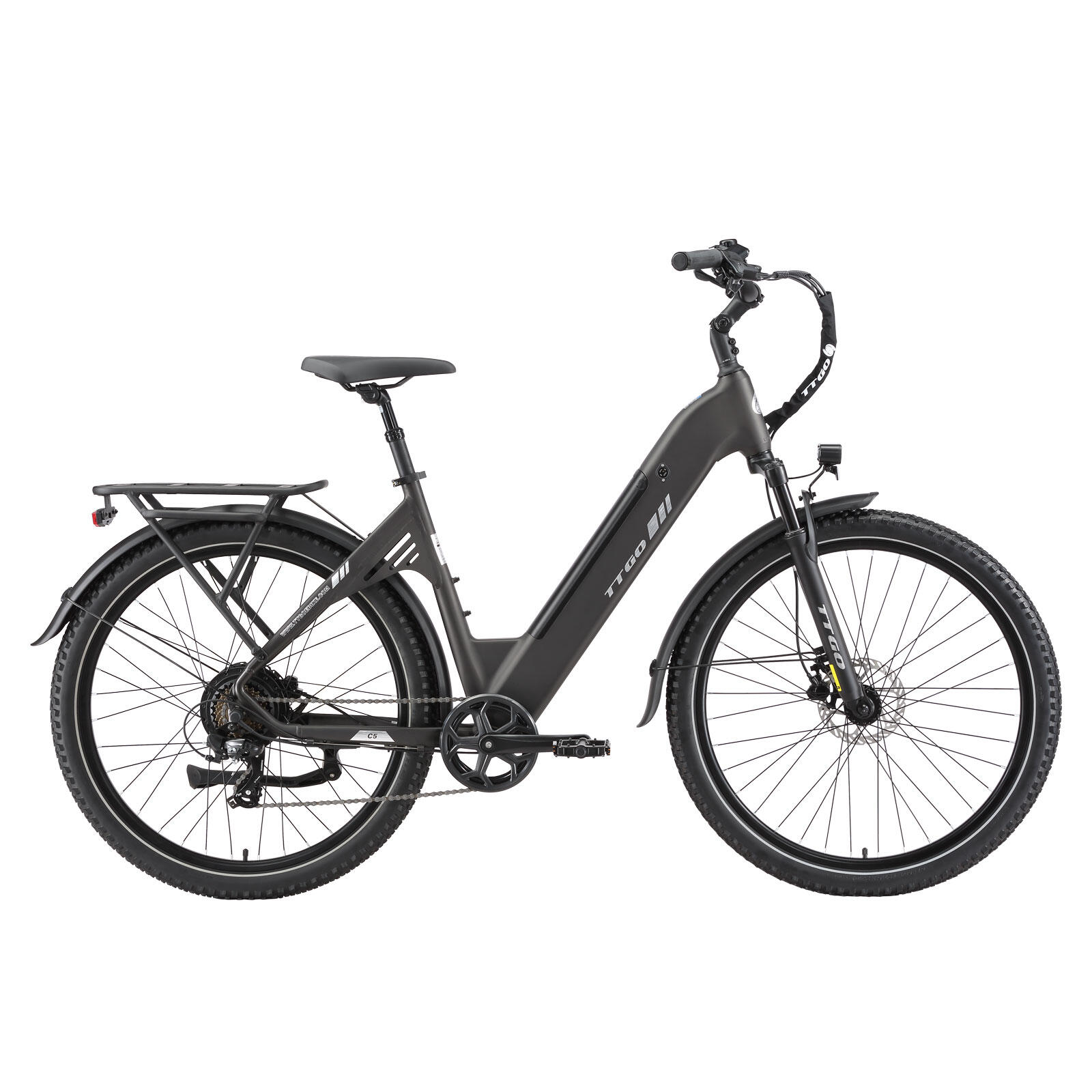

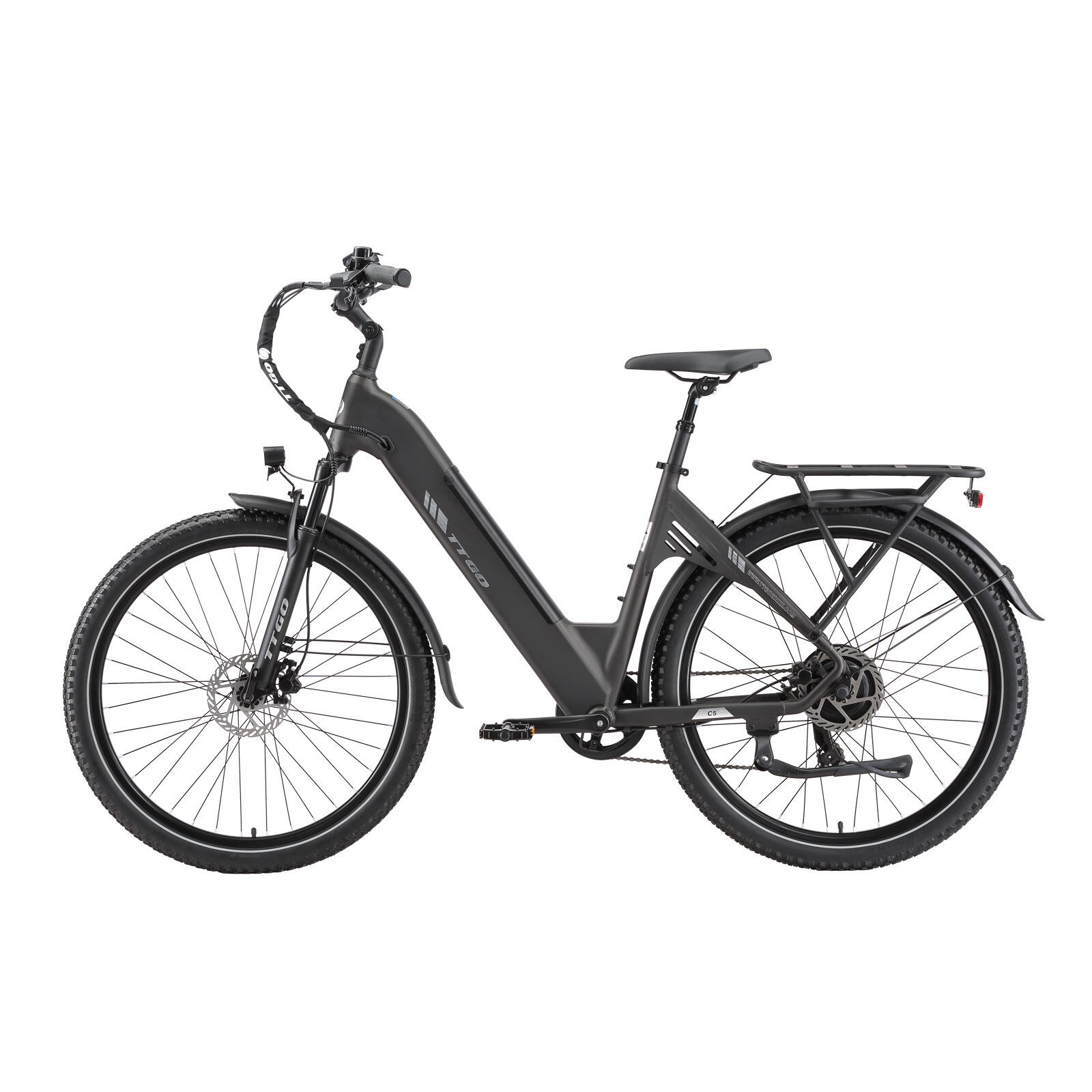

[TTGO C5 Electric Assist Bike: Precision Craftsmanship, Enjoy 100km Range]

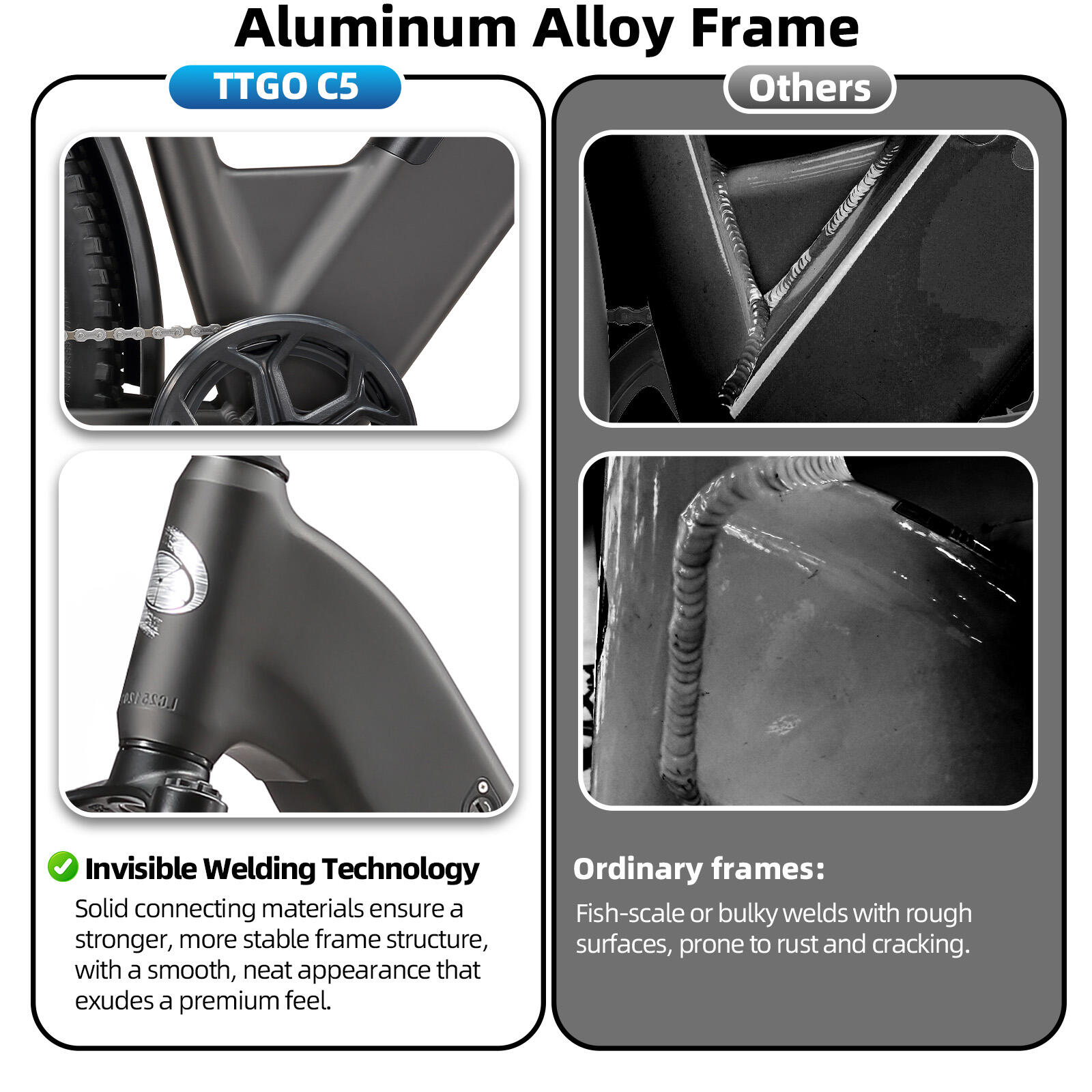

The TTGO C5 is a premium electric assist bike that combines powerful performance, long range, and excellent craftsmanship. Equipped with a 48V 250W motor and a 648Wh battery, it offers an assisted range of 90‑110 km, ideal for urban commuting and countryside exploration. From the 6061 aluminum alloy frame with invisible welding to the Shimano 7‑speed drivetrain, every detail reflects reliability and quality.
[Powerful Motor, Effortless Climbing]
The 48V 250W rear motor delivers a peak torque of 70 N·m and a 30° climbing angle, easily handling steep slopes and mountain roads. The top speed of 25 km/h complies with regulations for safe and worry‑free riding.
[Long Range, Freedom to Explore]

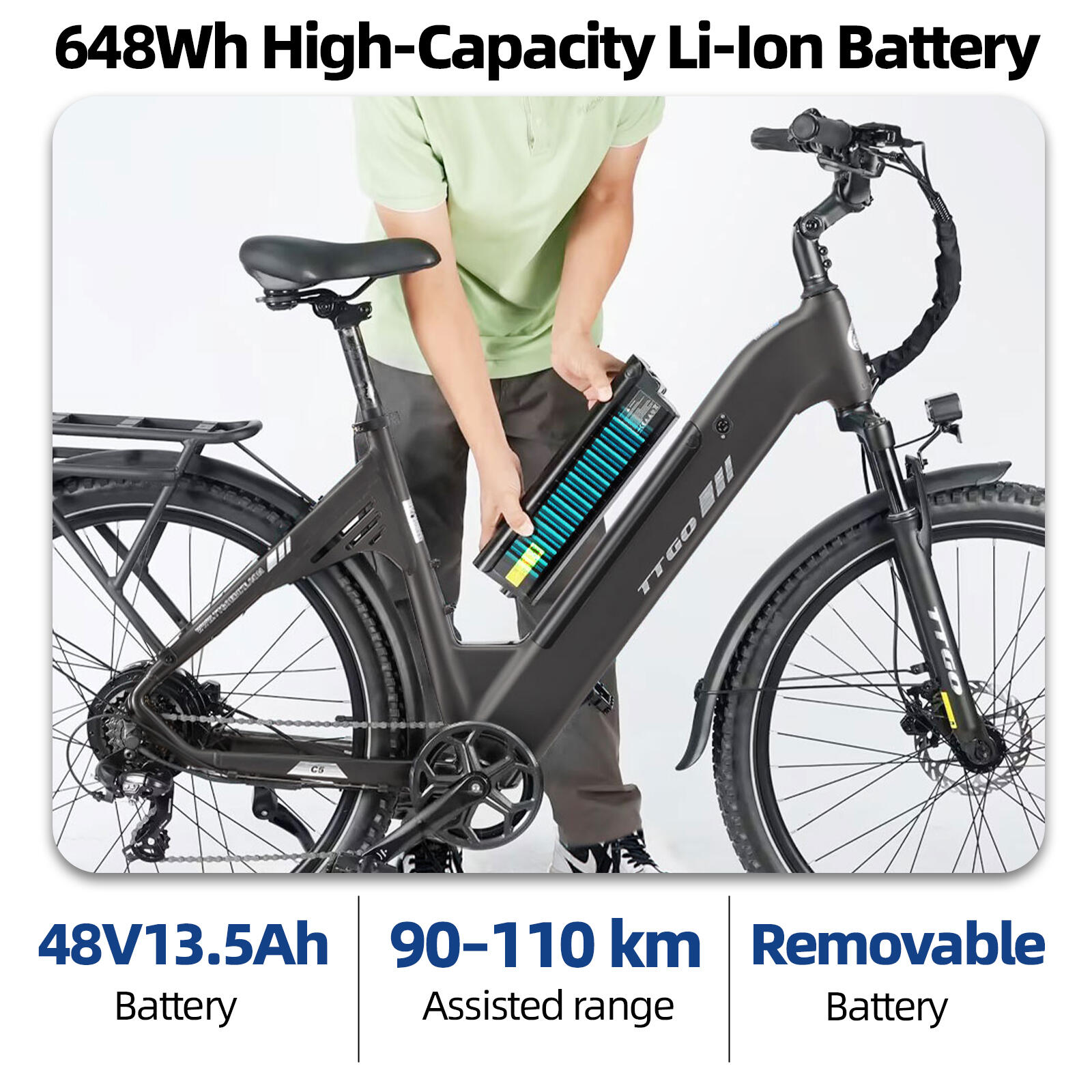

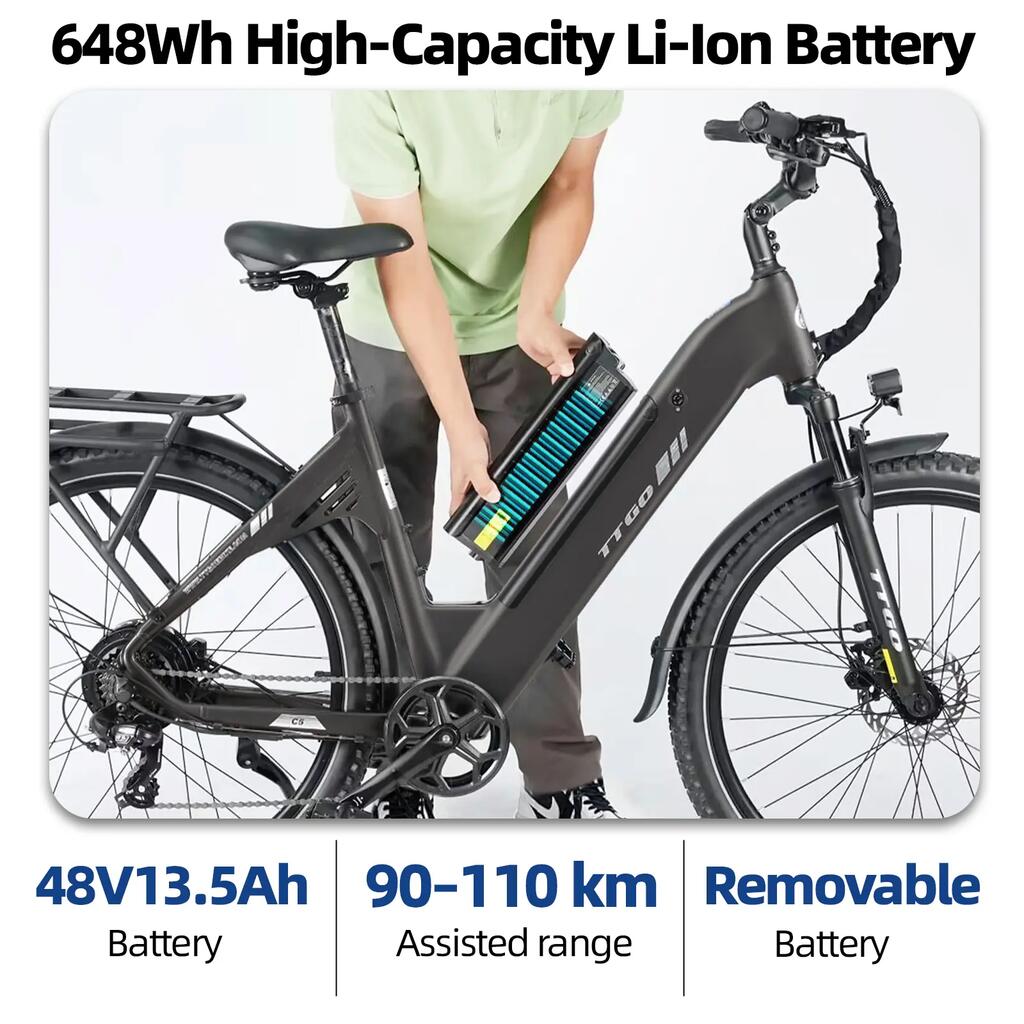

The removable 48V 13.5Ah lithium battery offers an assisted range of 90‑110 km. Lightweight and portable, it can be charged at home or in the office – eliminating range anxiety.
[Safety and Terrain Control]

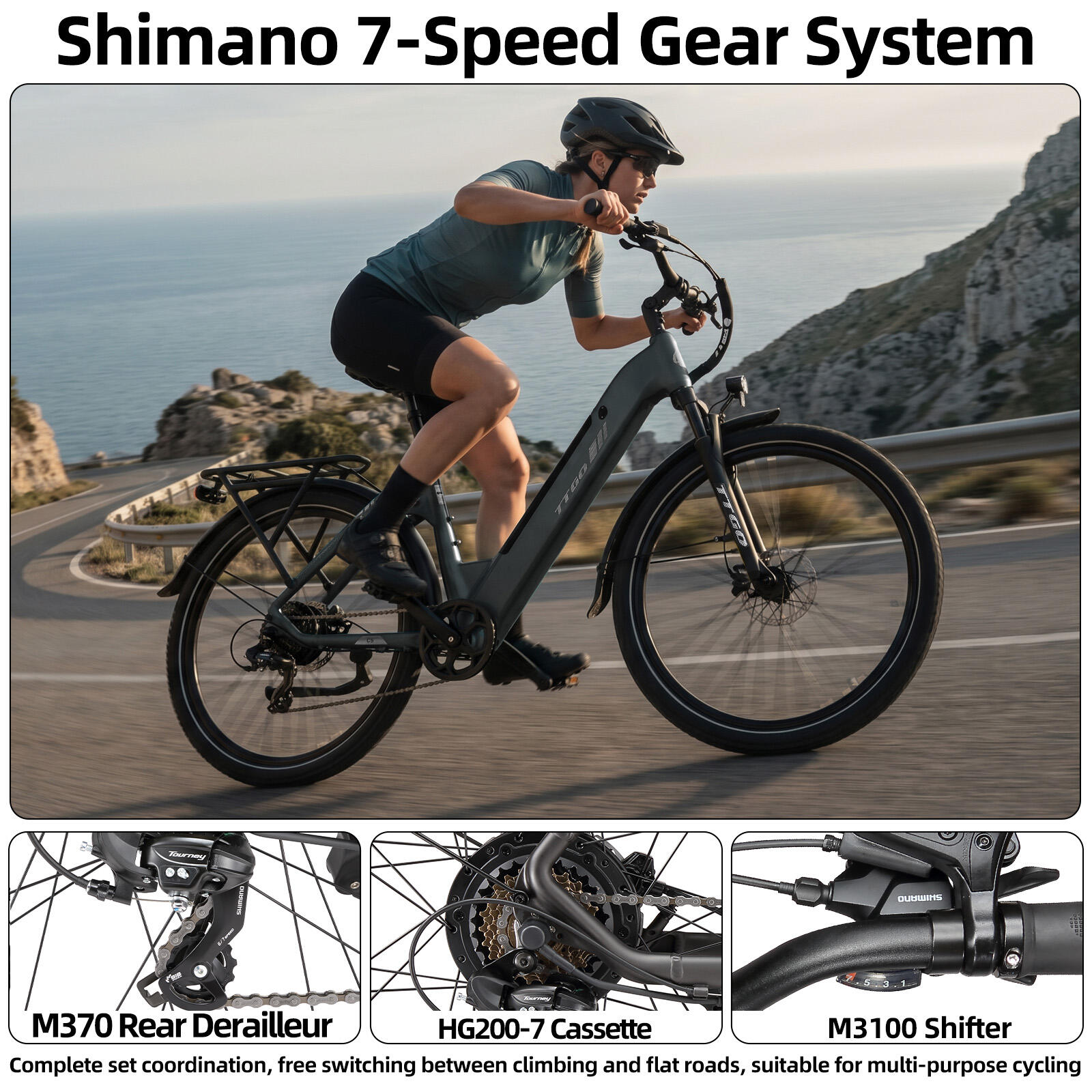

The 27.5 × 2.4 CST tires with reflective strips, paired with an aluminum suspension fork, provide grip and comfort. The hydraulic disc brake system delivers immediate stopping power, and the Shimano 7‑speed drivetrain (M370 derailleur, M3100 shifter) enables precise gear changes.
[Comfort and Ergonomics]

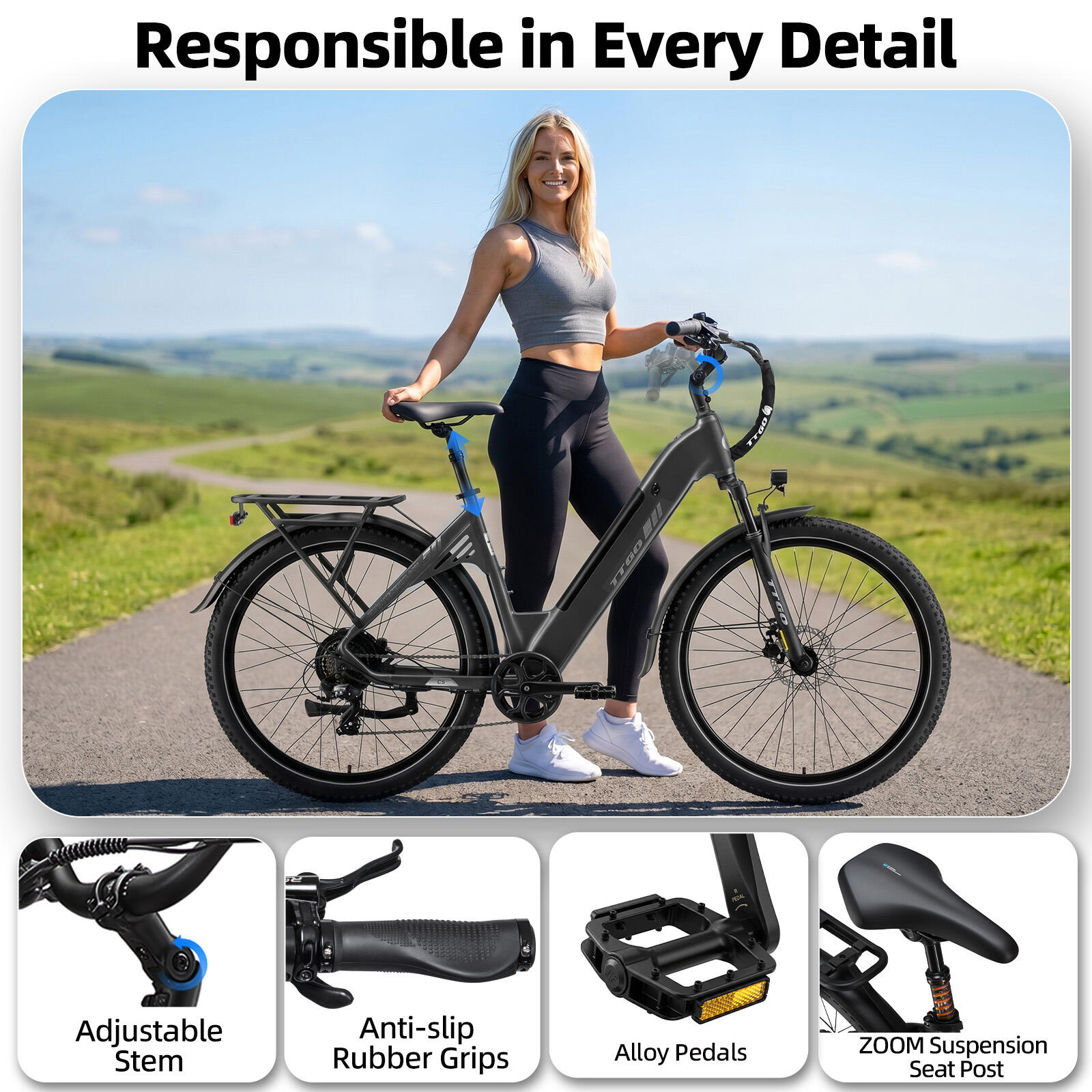

The adjustable stem, non‑slip rubber grips, aluminum pedals, and ZOOM suspension seat post effectively reduce fatigue on long rides. With a net weight of 26 kg and a 125 kg load capacity, it balances lightness and robustness.
[Smart Display, Premium Finish]

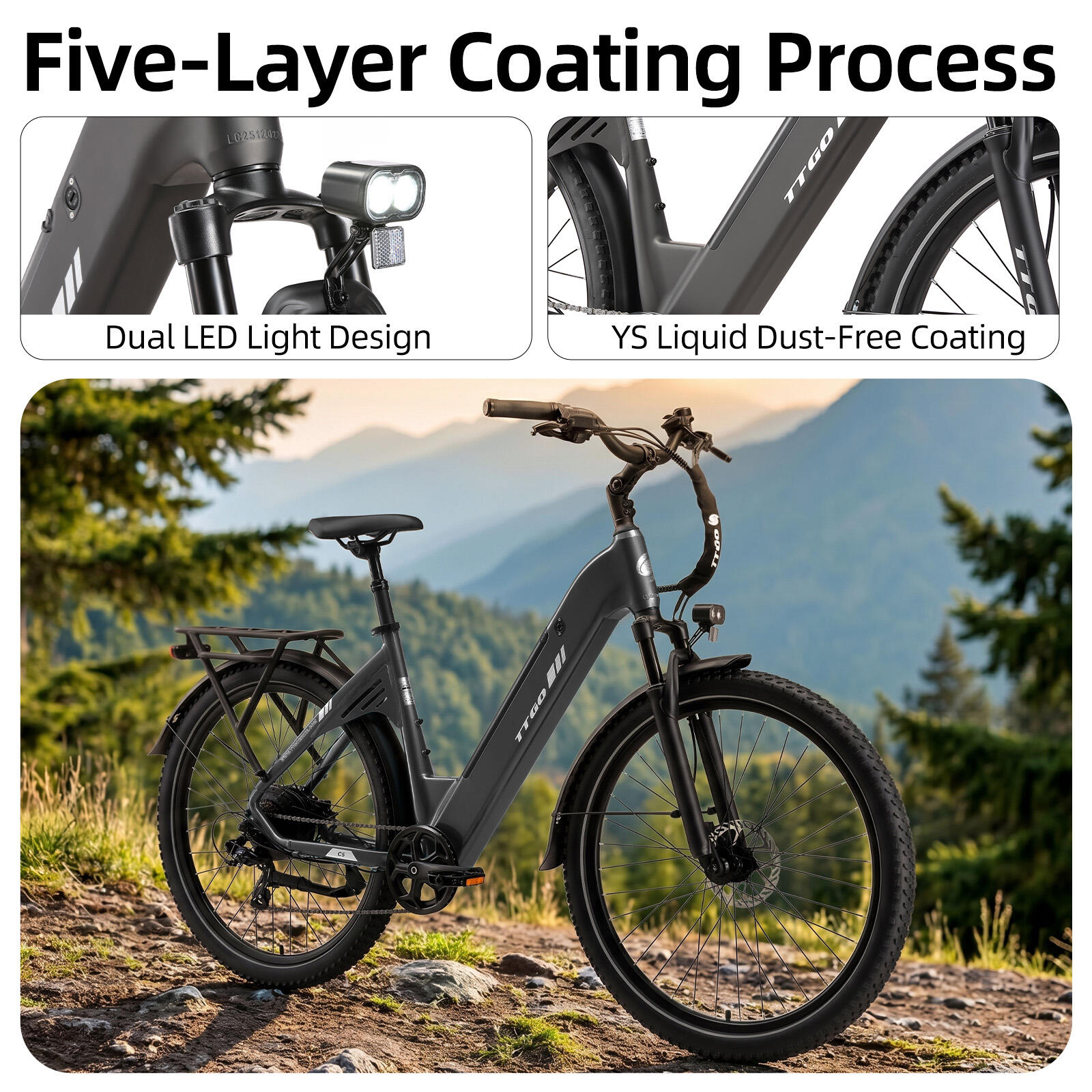

The bright color LCD display (IPX6) shows real‑time battery status, speed, assist level, and total mileage. The five‑layer paint finish and dual LED lights improve nighttime visibility; the frame with invisible welding has a smooth, precise surface.
[Specifications]
Frame: 27.5" 6061 aluminum, invisible welding
Fork: Suspension fork
Tires: Cheng Shin 27.5" × 2.4
Brakes: Hydraulic disc brakes
Drivetrain: Shimano 7‑speed (M370, HG200‑7, M3100)
Seat post: ZOOM suspension
Stem: Adjustable
Motor: 48V 250W, torque 70 N·m
Battery: 48V 13.5Ah (648Wh), removable
Sensor: Speed sensor
Display: LCD color, IPX6
Charger: 54.6V 2A
Top speed: 25 km/h
Assisted range: 90‑110 km

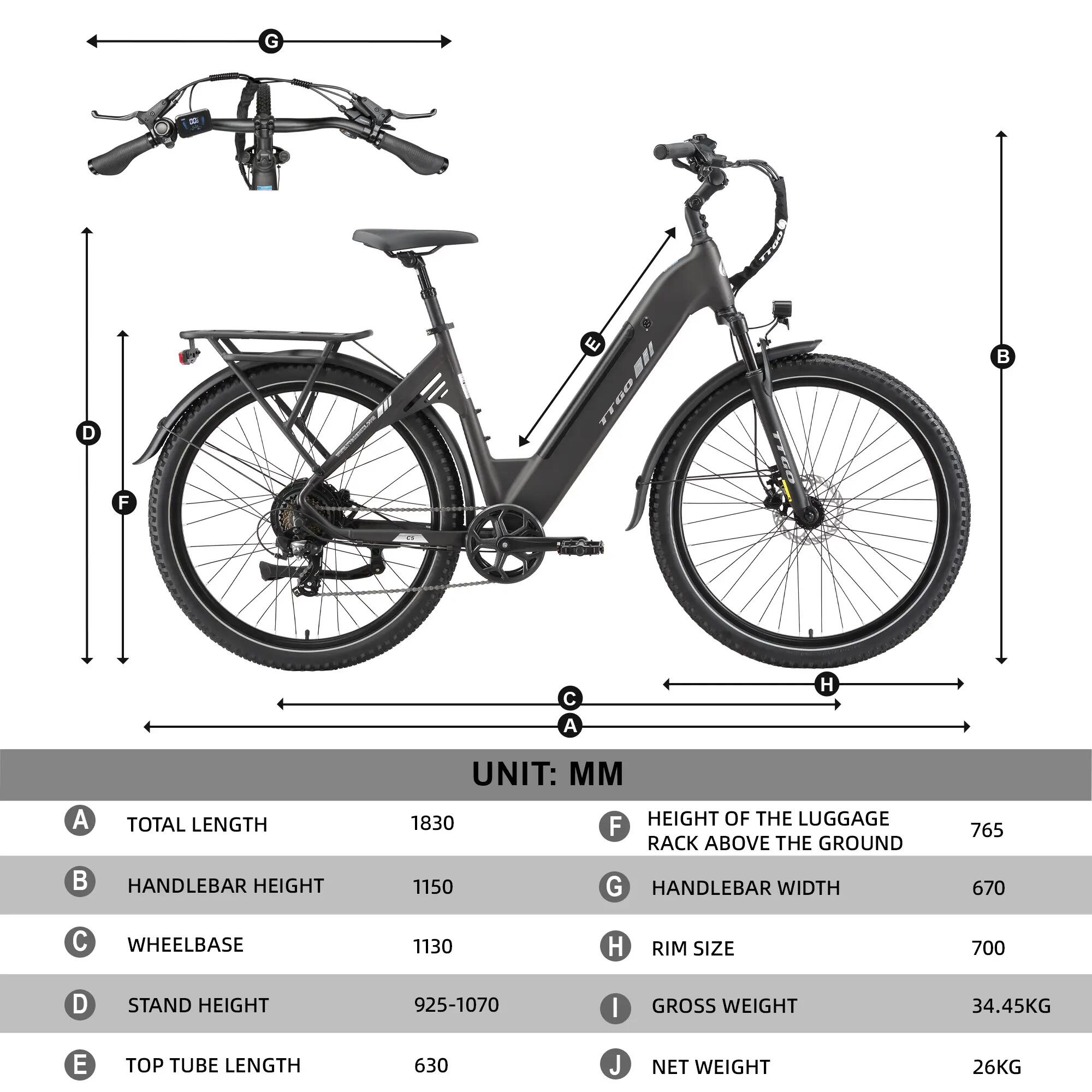

Overall dimensions: 1830 × 670 × 1150 mm
Wheelbase: 1130 mm
Rim size: 700 mm (27.5")
Stem height: 925‑1070 mm
Top tube length: 630 mm
Rack height: 765 mm
Net/Gross weight: 26 kg / 34.45 kg
Max load: 125 kg
Carton dimensions: 148 × 24.5 × 80 cm
