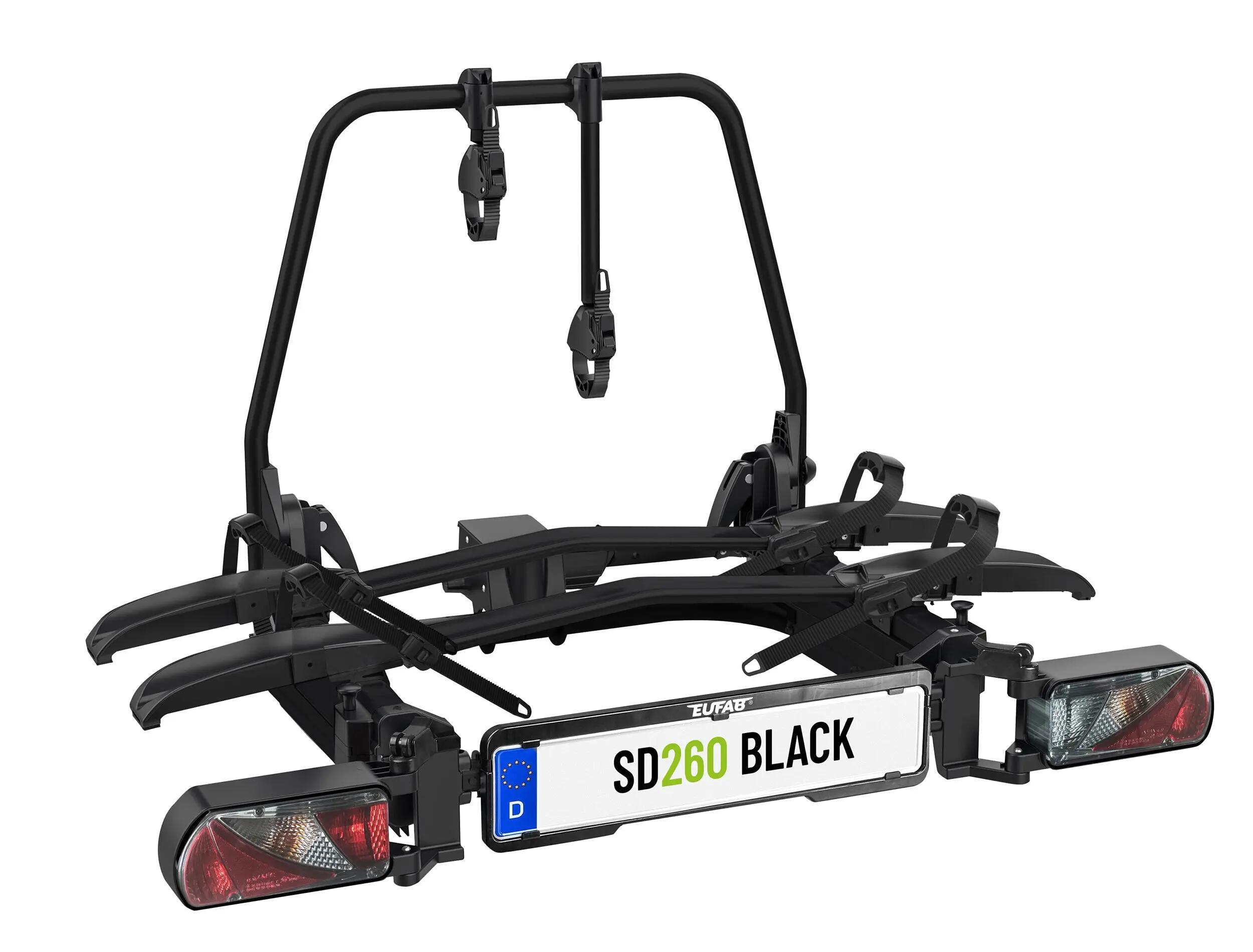

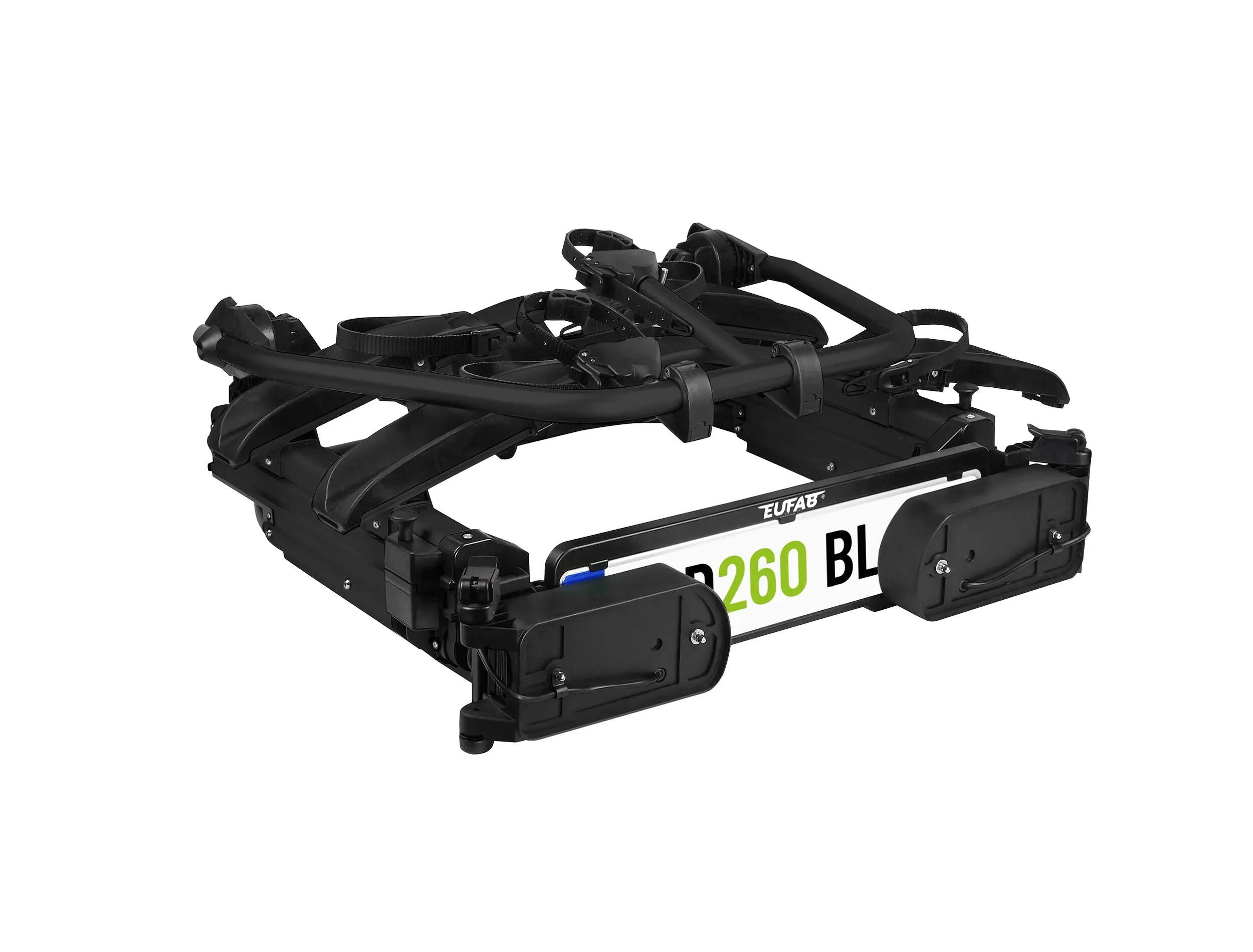

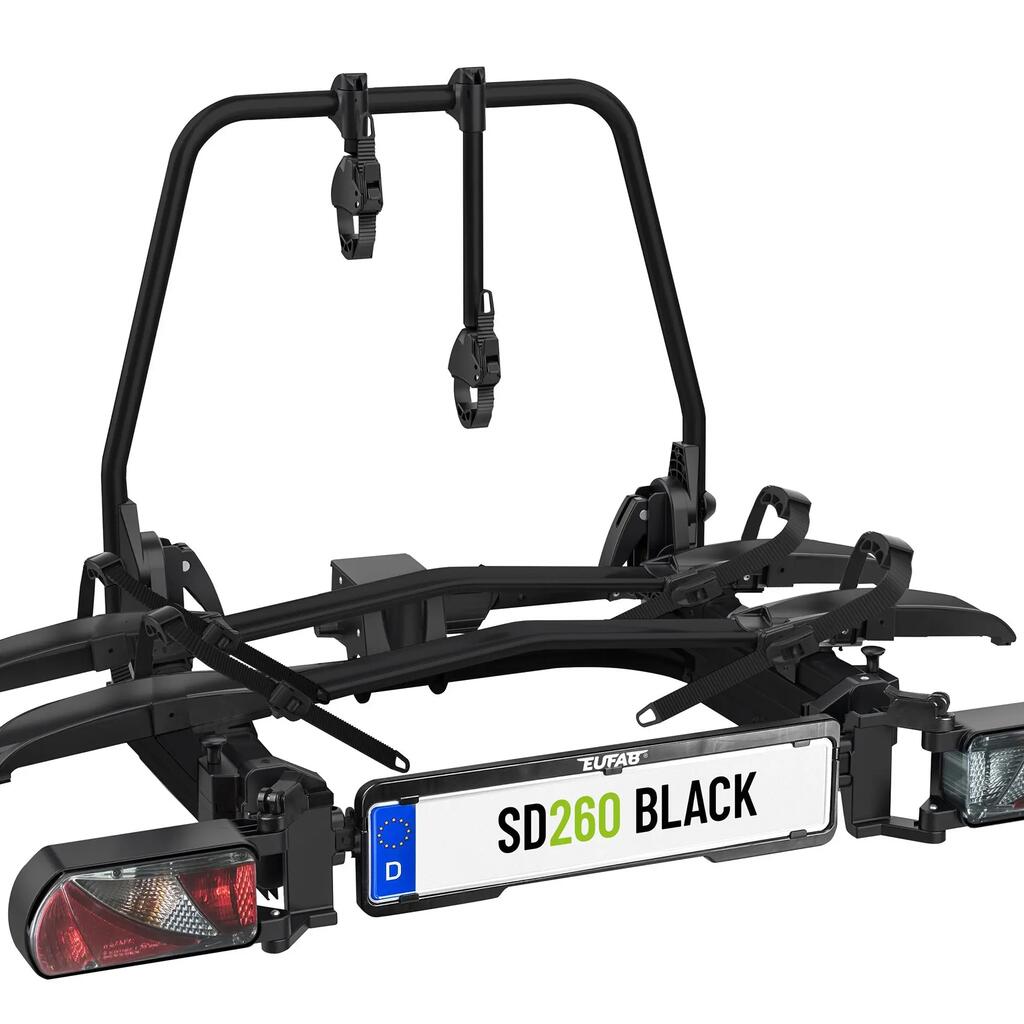

EUFAB SD260 Platform Support (Black), for vans with rear doors.

Product Description

Towbar bike carrier for 2 bikes, specially designed for cars, vans and motorhomes with rear doors, featuring quick-release fasteners and locksDescription**

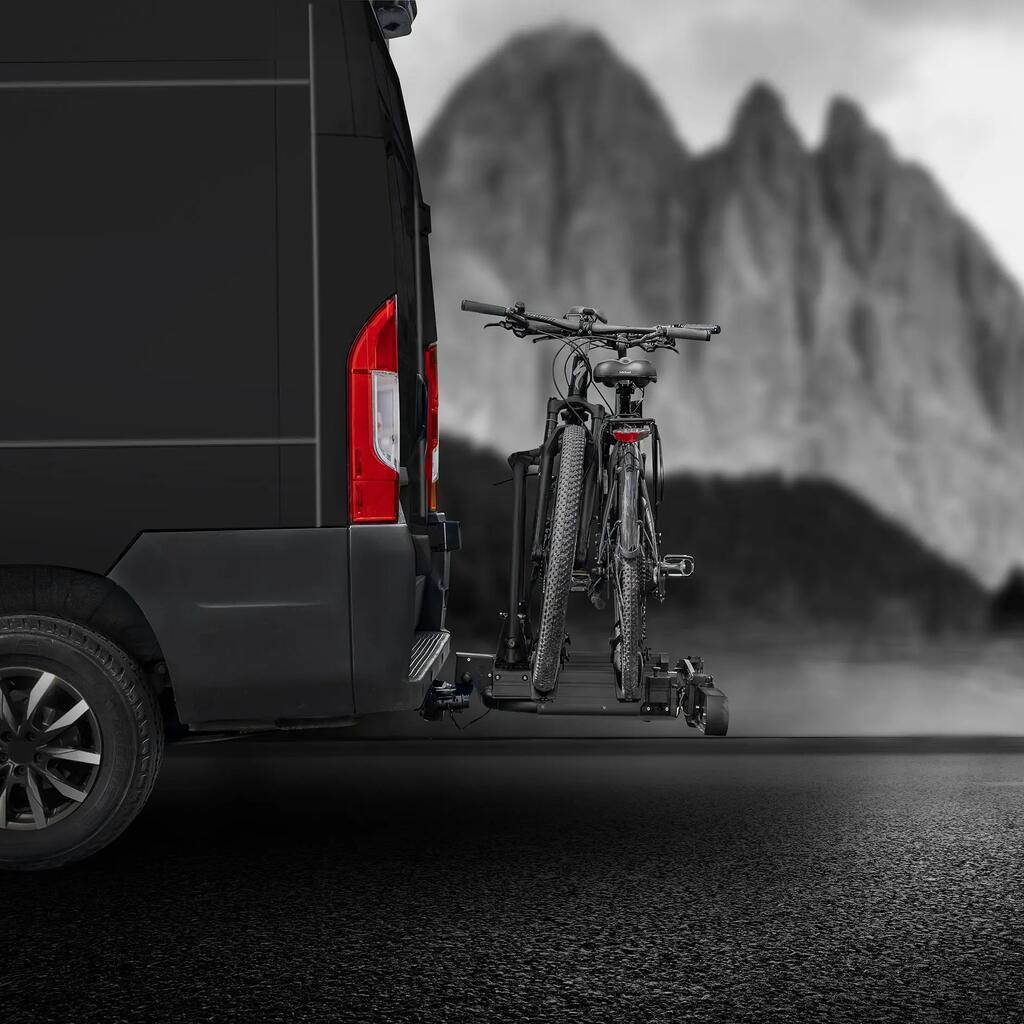

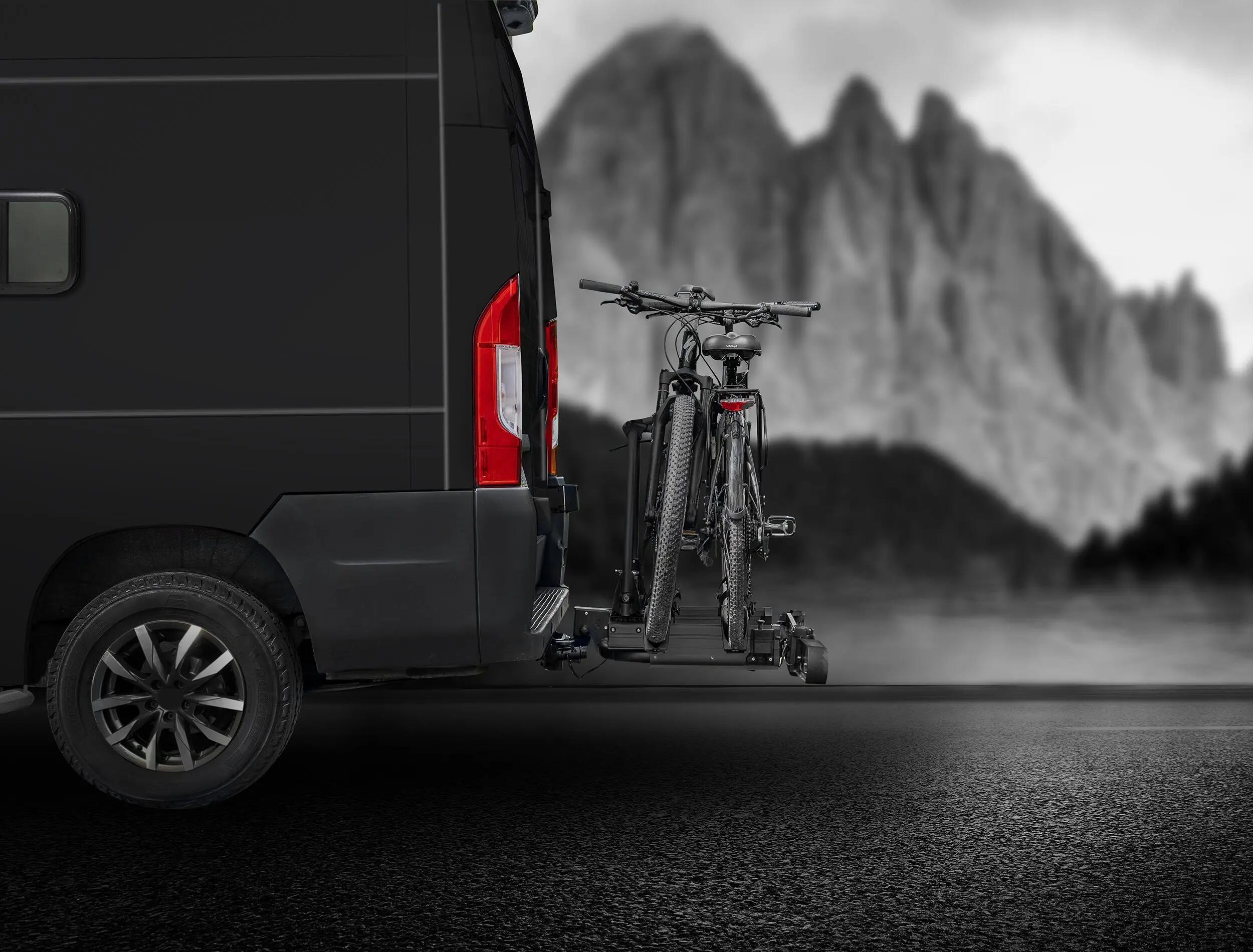

More information about the EUFAB SD260 BLACK platform bike carrier for 2 bikes, specially designed for vans with rear doors: The EUFAB SD260 BLACK is a platform bike carrier for 2 bikes that mounts on the tow bar. It is suitable for transporting bikes on tow bars, perfect for vans and motorhomes, people carriers, break cars, and of course, saloon cars. This bike carrier combines functionality, stability and aesthetics in an exceptional design to make cycling even more enjoyable. The boot is accessible without having to remove the bike carrier. Enjoy the convenience of accessing your luggage at any time.

• Compatible with e-bikes.

• Maximum load per rail: 30 kg.

• Removable frame mount with straps, specially designed for delicate frames.

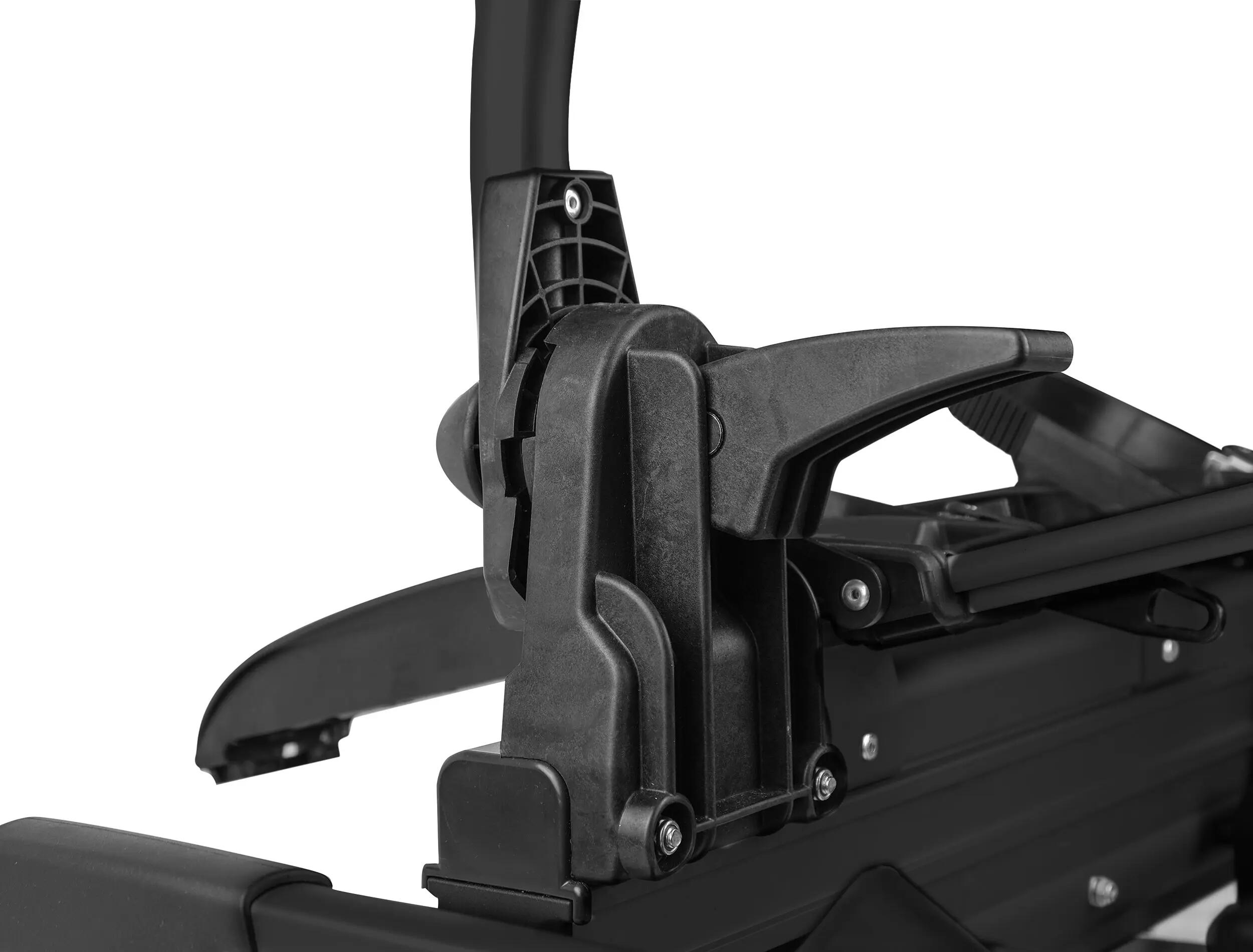

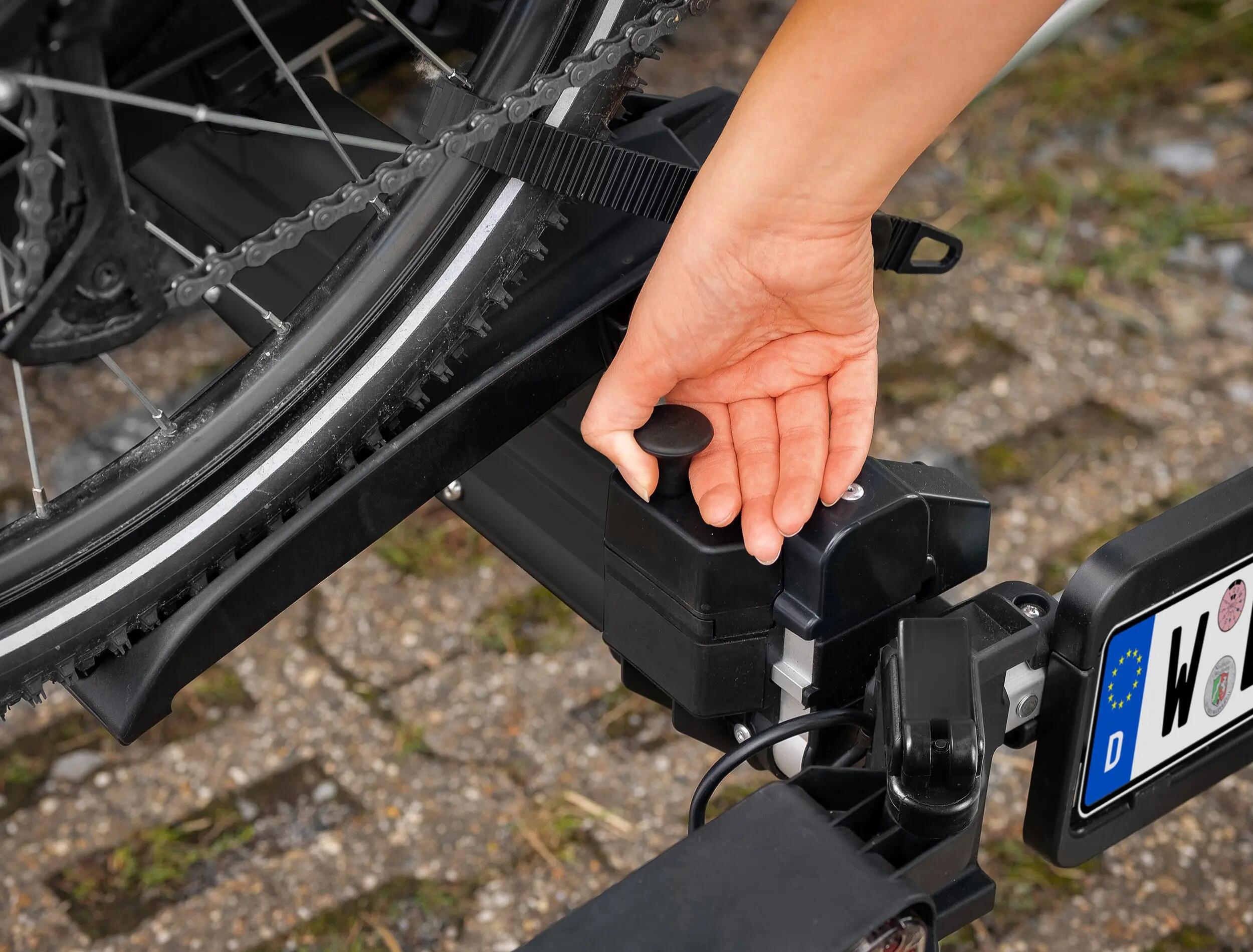

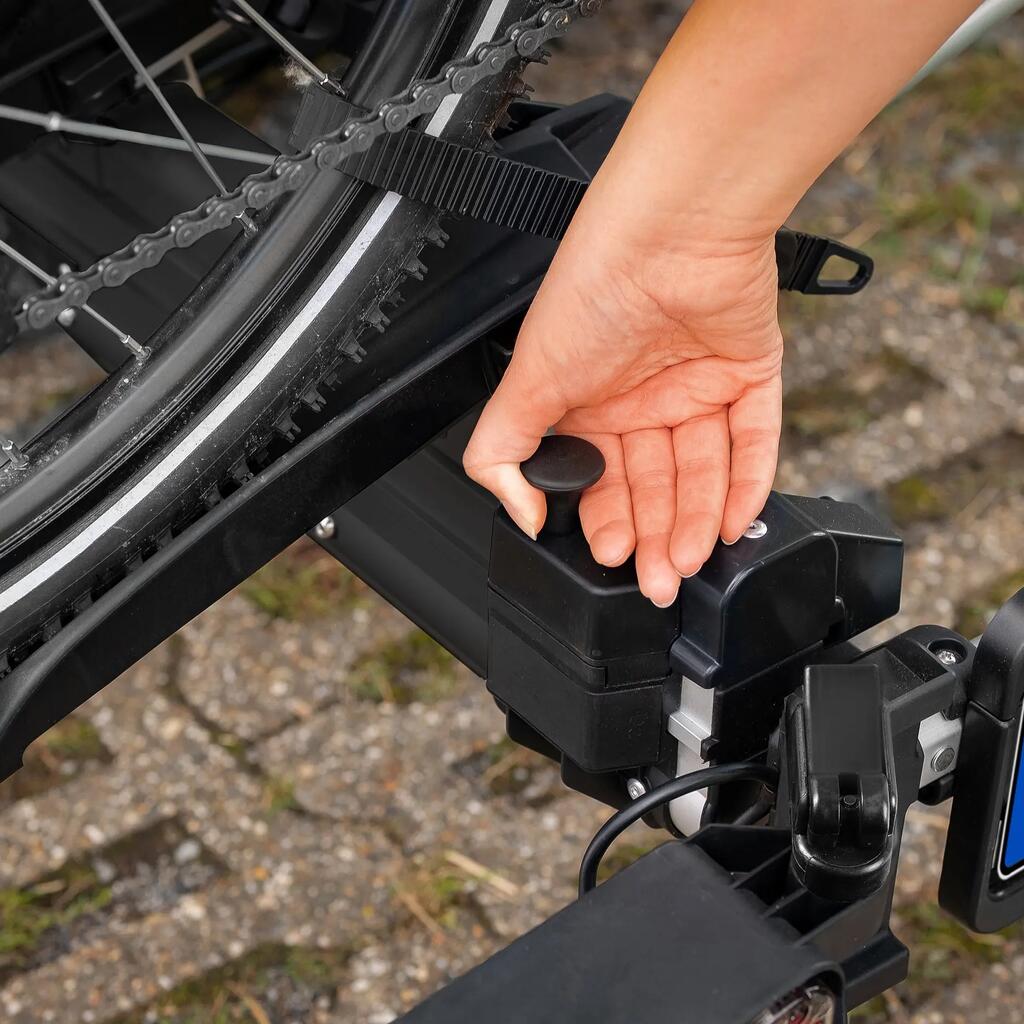

• Quick and easy to fit with a quick-release system.

• Also suitable for large bikes and bikes with a Y-frame.

• Suitable for almost all types of tow bars.

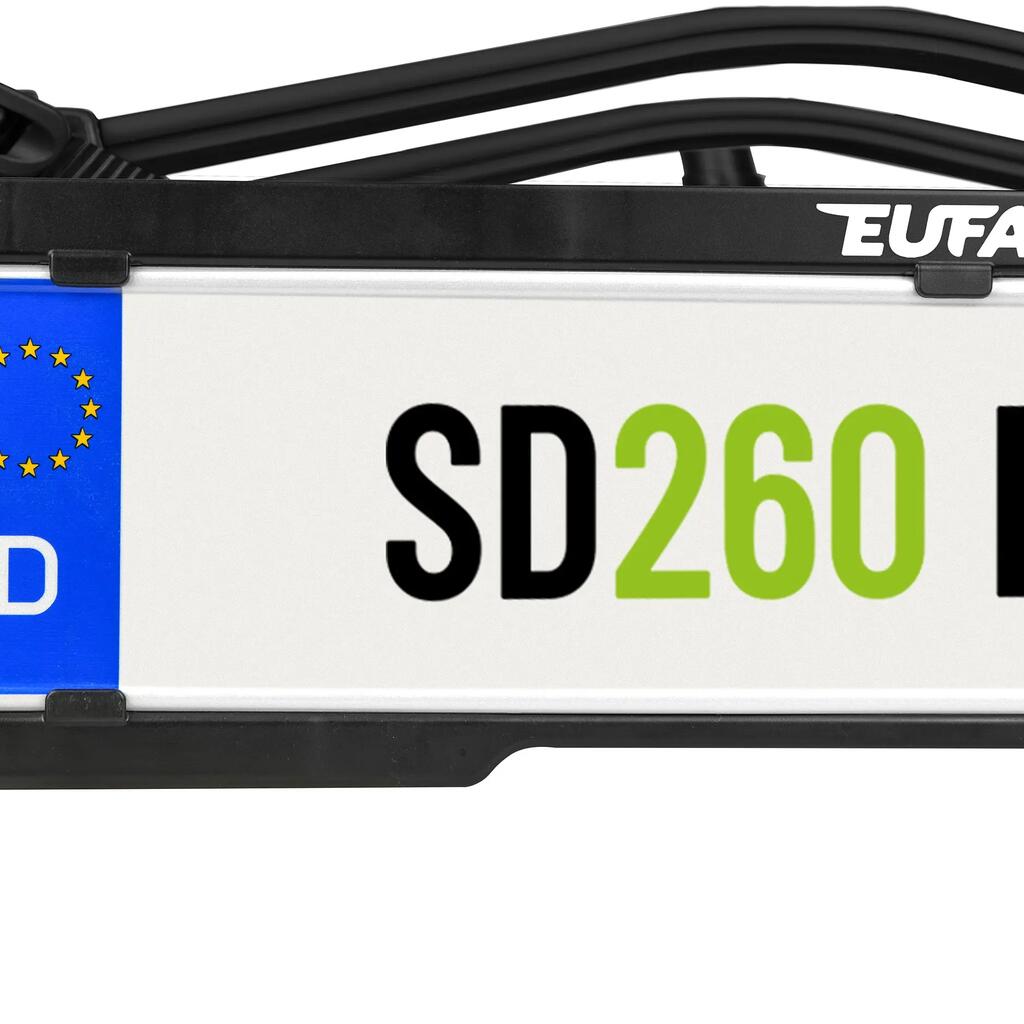

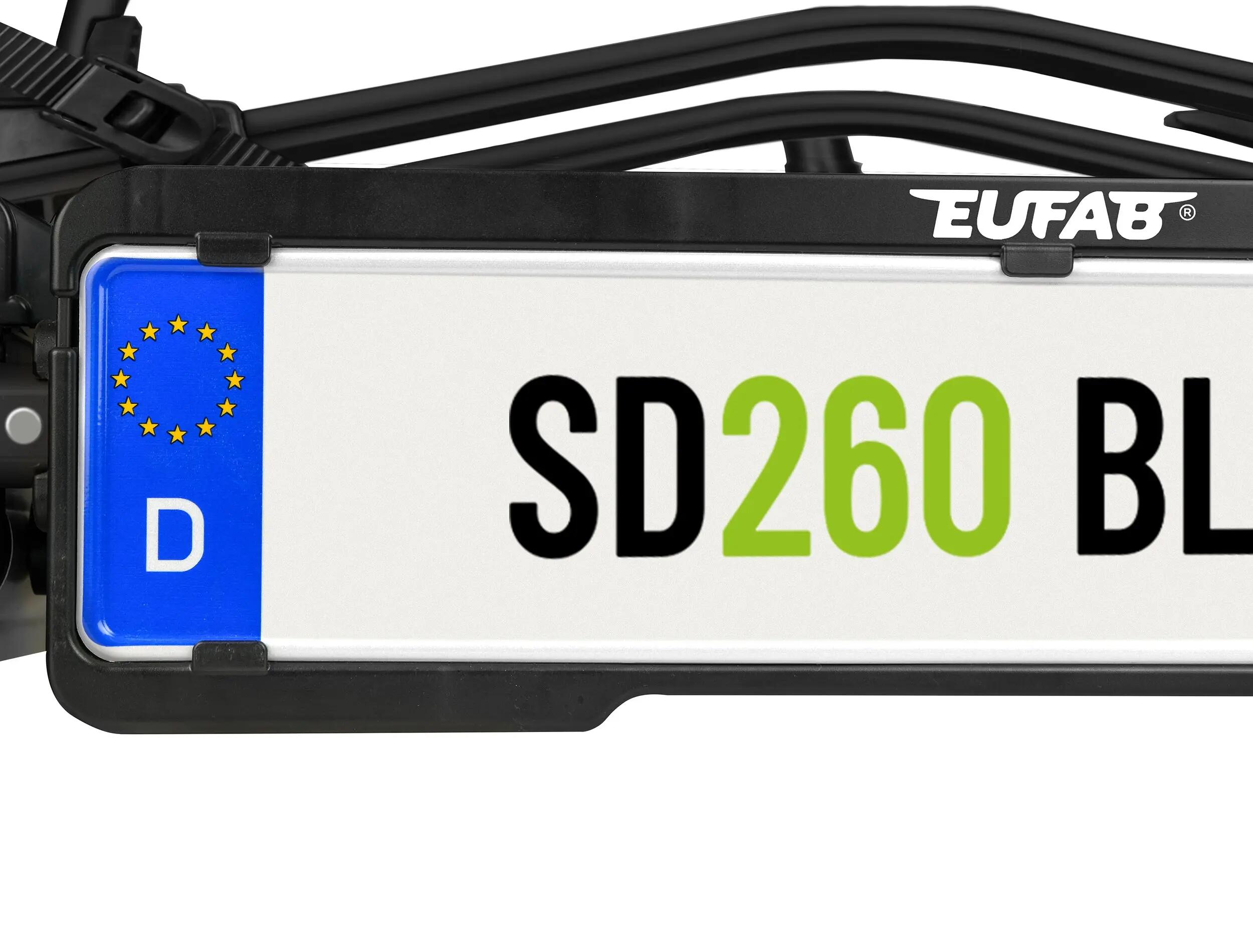

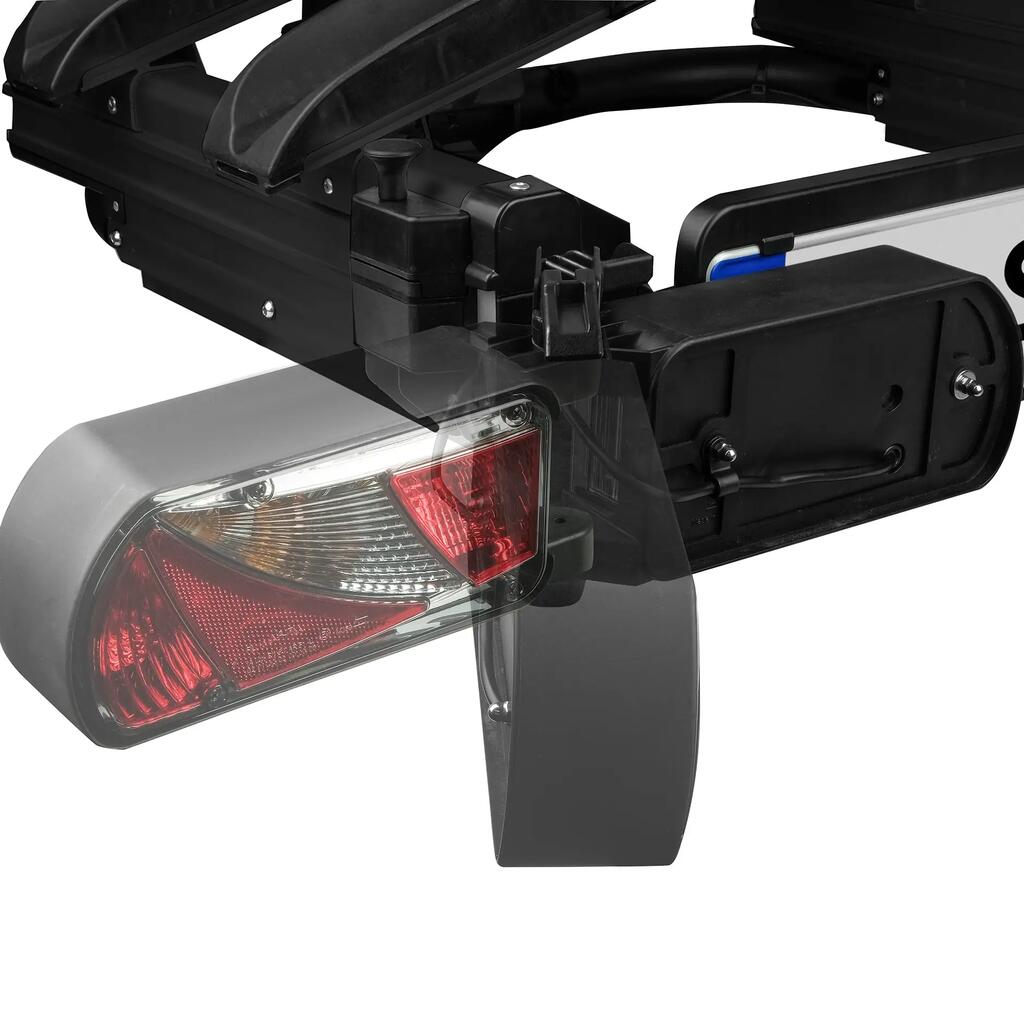

• With adjustable number plate holder.

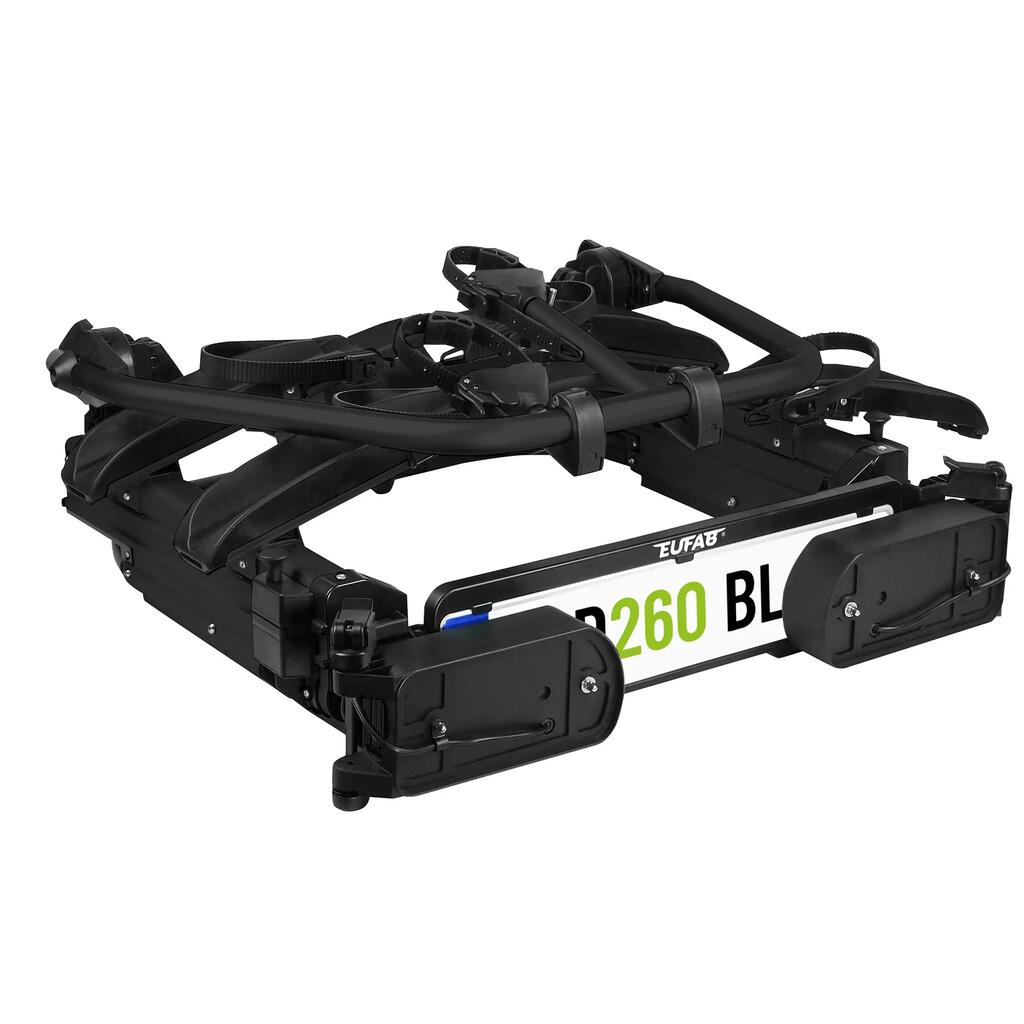

• Compact size for storage. French technical and after-sales service team.
  Features
  TECHNICAL SPECIFICATIONS OF THE EUFAB SD260 BLACK BIKE RACK FOR 2 BIKES:

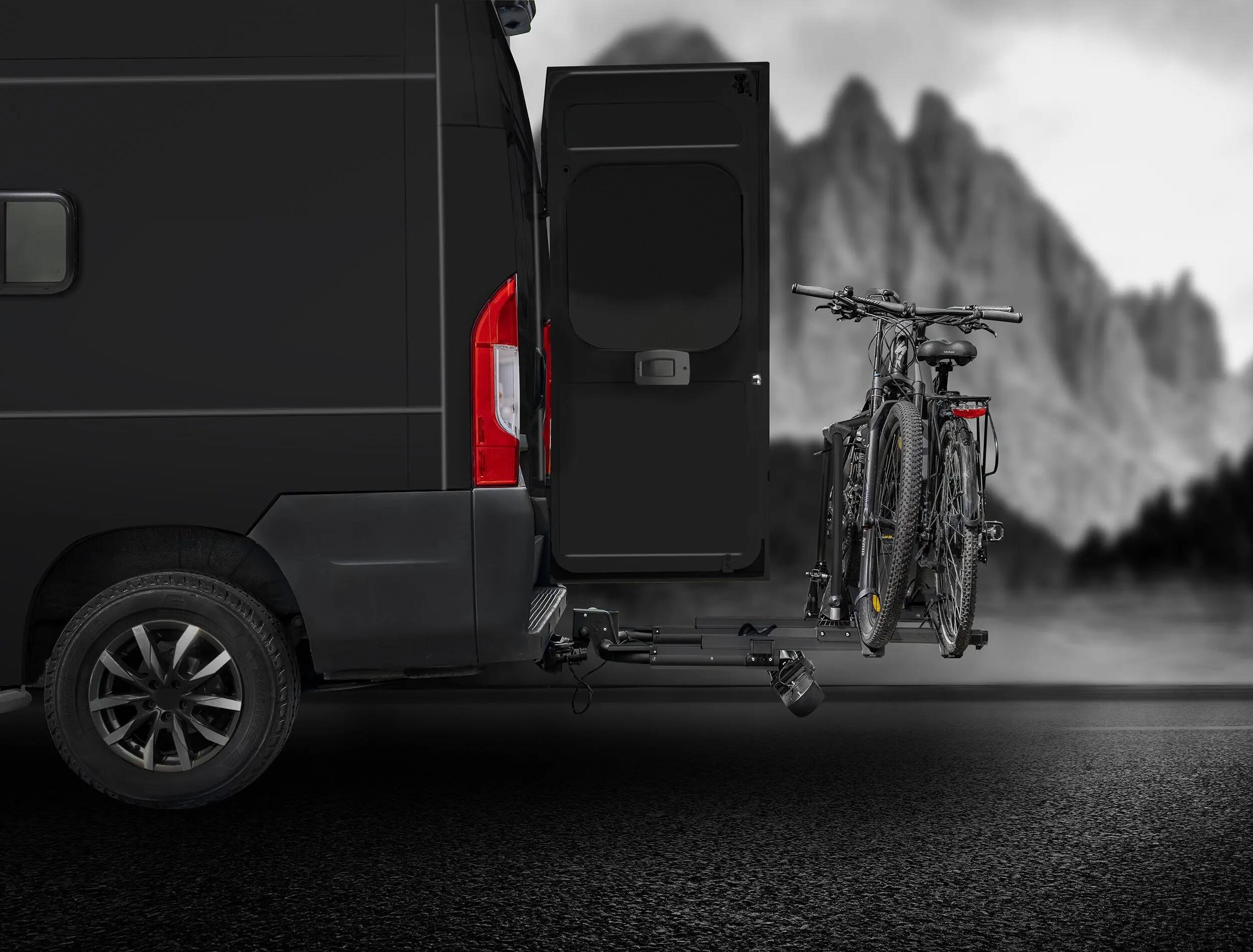

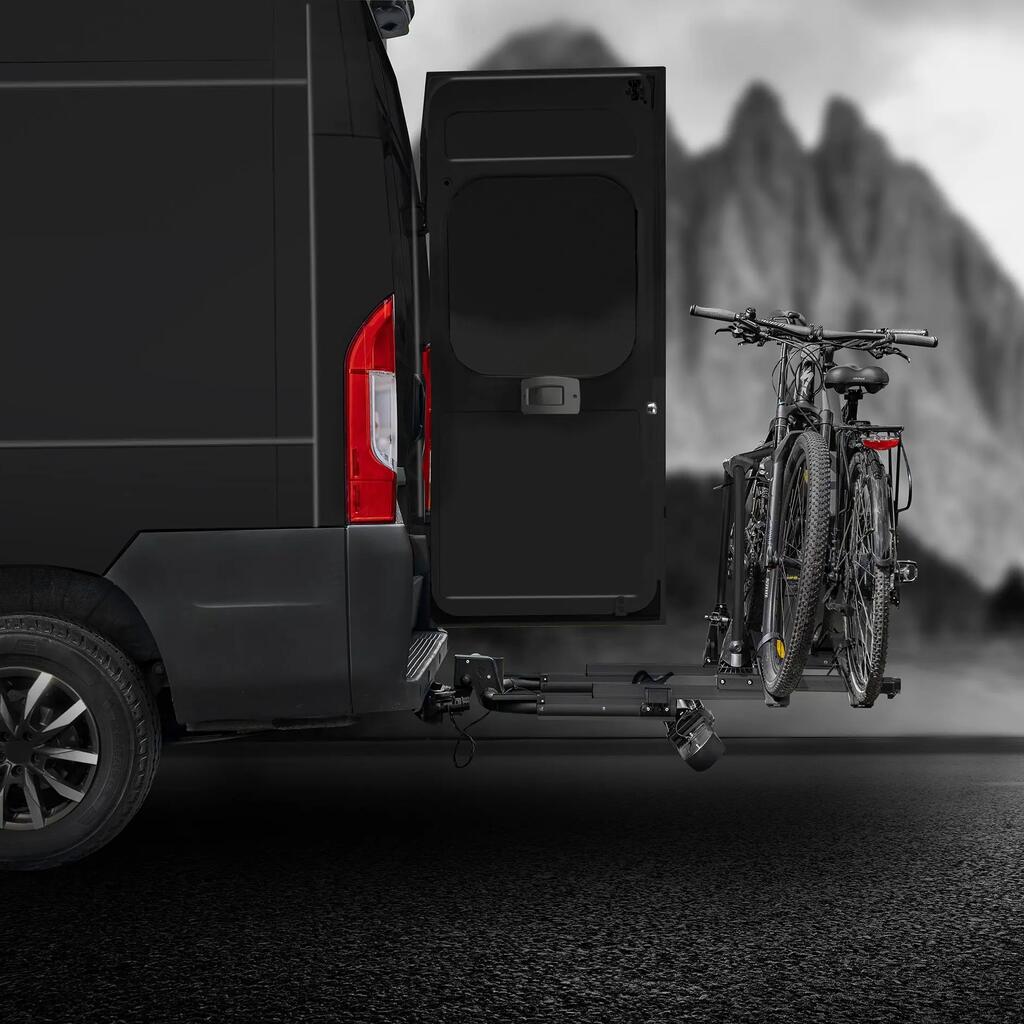

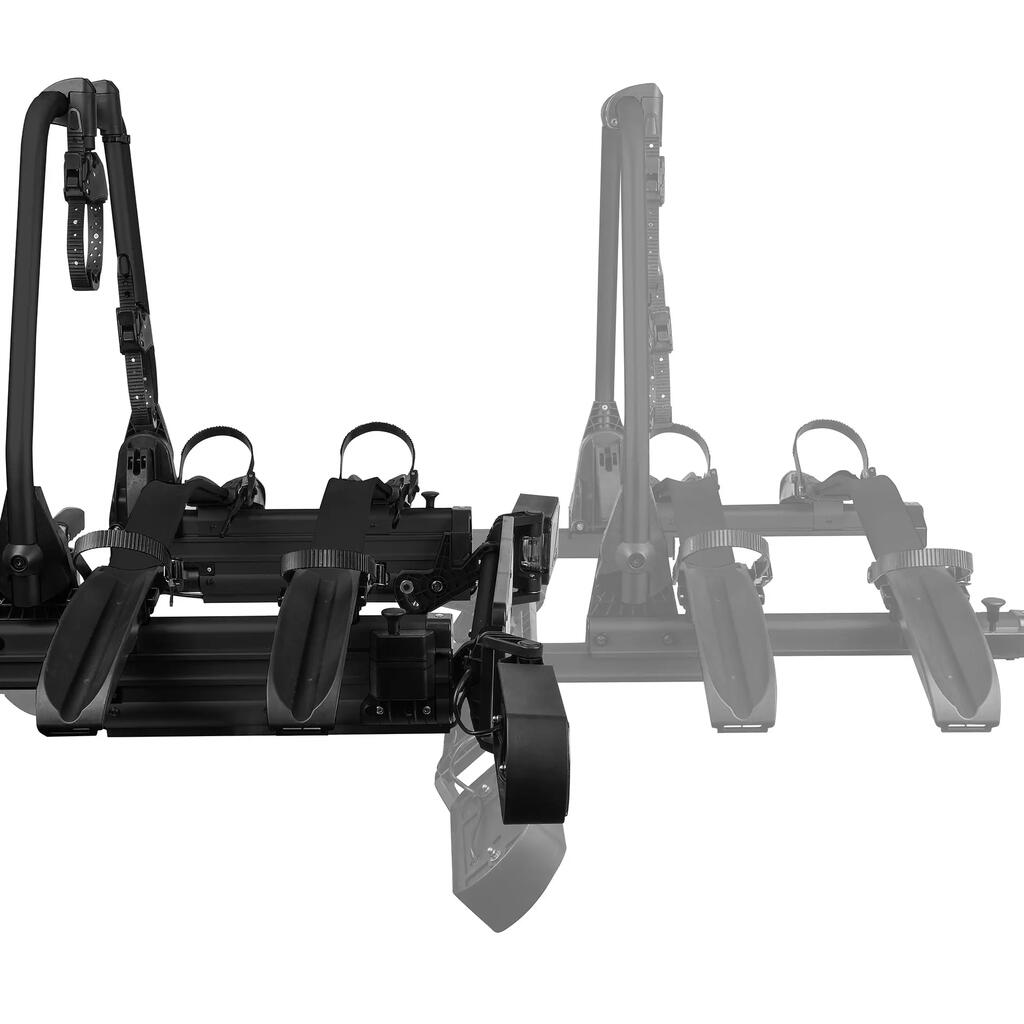

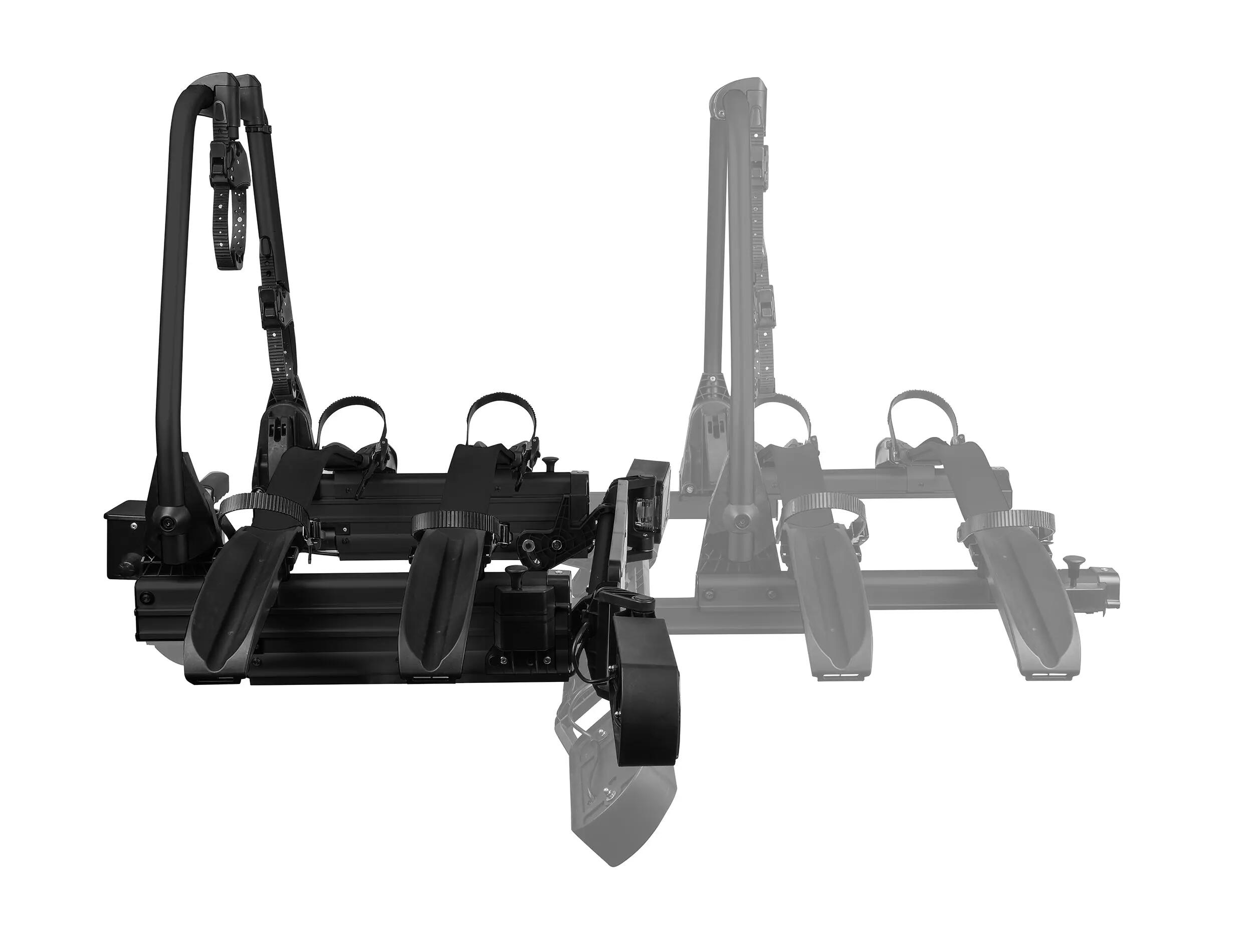

• Extendable: The rails with a travel of approximately 70 cm allow the doors to be opened (see assembly instructions).

• Dimensions (when the bike rack is not extended): approx. 108 x 75 x 60 cm / When extended: approx. 130 x 77 x 81 cm.

• Anti-theft protection on frame mounts: YES.

• Quick-release lock: YES.

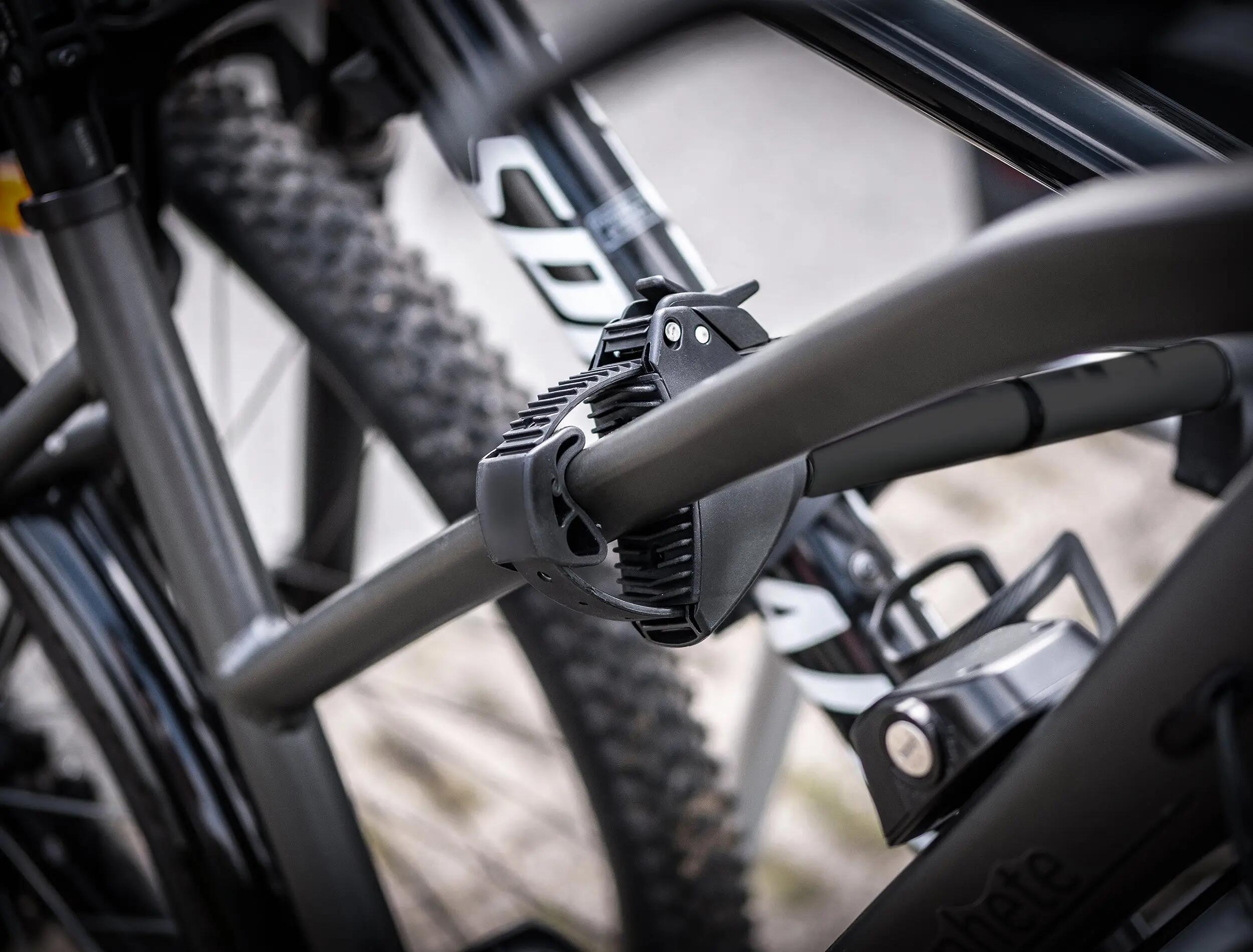

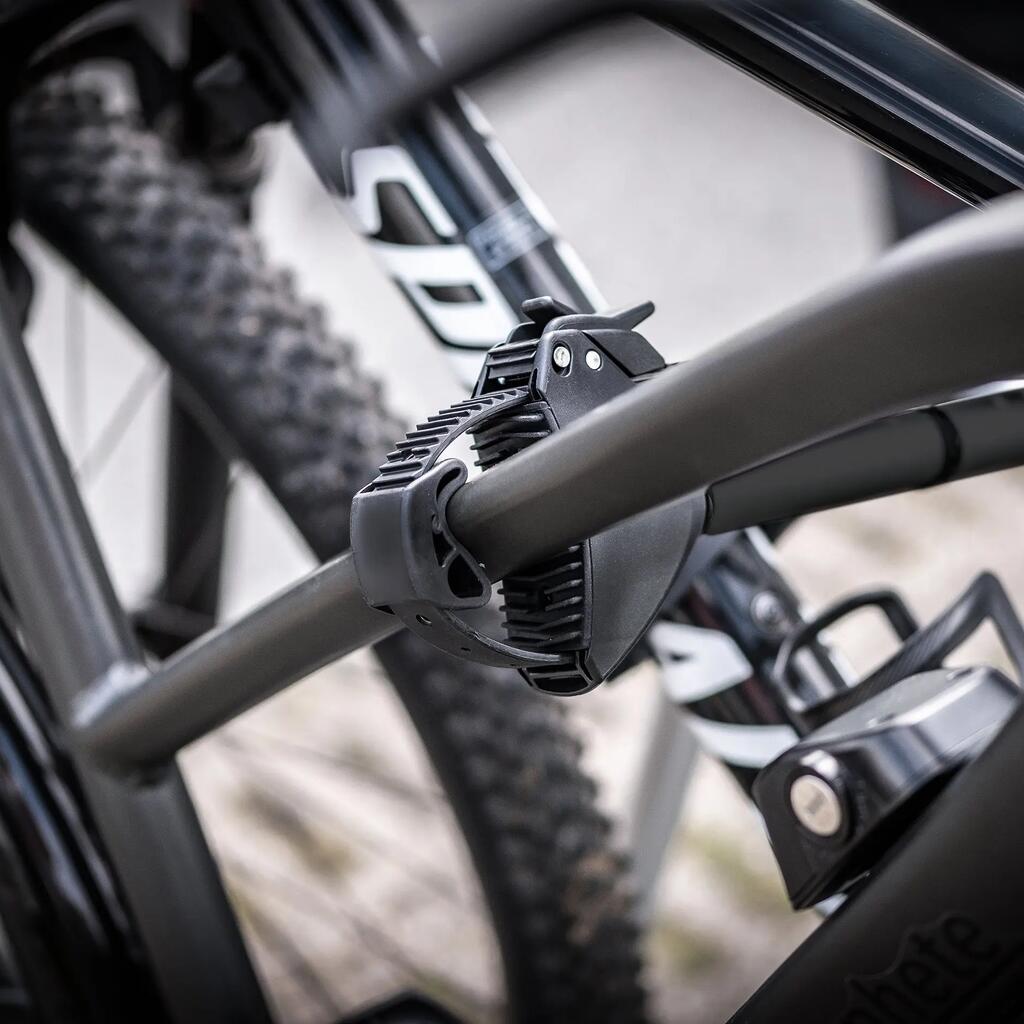

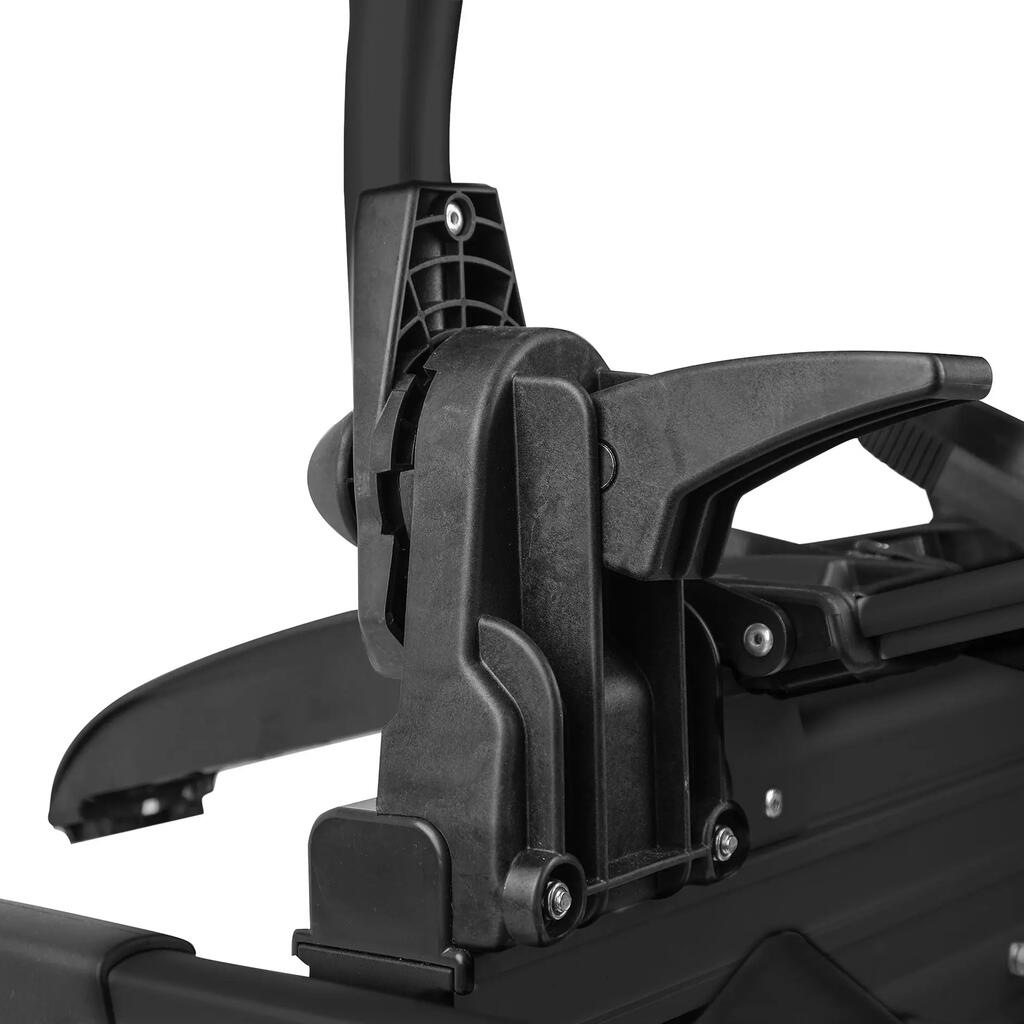

• Bike securing: Removable, lockable frame clamp with bolt.

• Rail type: Sturdy aluminium rails with plastic wheel supports.

• Distance between rails: approx. 24 cm.

• Wheelbase of bicycles: max. 130 cm.

• Maximum tyre width on the rail: up to 3.25 inches.

• Plug: 13-pin DC plug.

• Materials: Aluminium / Plastic / Steel.

• Unladen weight: approx. 20.5 kg.

• Maximum load: 60 kg.

• EU approval.

• Brand: EUFAB. Installation requirements for the EUFAB SD260 bike carrier on a van:

• The towbar pin must be at least 2.7 cm from the bottom edge of the doors.

• The distance between the bumper and the towbar pin must be at least 3.5 cm.

• The guides on the EUFAB SD260 bike carrier extend 70 cm rearwards. To allow the doors to open fully, they must not exceed a maximum width of 70 cm plus the distance between the edge of the vehicle and the centre of the towbar pin.
  Please note: As stated in the instructions, bicycles must not be covered whilst on the bike rack, and child seats and baskets must be removed so as not to increase air resistance.
  Accessories

• Loading ramp (Ref. 11640).

• Storage bag (Ref. 11636).

• Adapter for connecting the bike carrier (13-pin) to a vehicle’s 7-pin harness (Ref. 1009, 1008, 10013).
  About the EUFAB brand
  EUFAB is a German brand of car accessories which, since 1993, has specialised in the design and production of bike racks for tow bars. EUFAB is always striving for innovative design and was the first bike carrier brand to offer a quick-release system for bike carriers. With an annual production of over 250,000 bike carriers, the German brand EUFAB has an established reputation. EUFAB aims to offer a wide range of bike racks that are safe, reliable and affordable.
