Product Description
FAFREES F20 Mate
A tricycle that carries loads, climbs slopes, and fits into tight corners – more convenient than a car, more capable than a two‑wheeler. The F20 Mate isn't a weekend cruiser – it's a workhorse that gets the job done. Daily hauling, market stall supplies, school runs, parcel pick‑ups – it doesn't pick its work, doesn't pick its road, just loads up and goes.
65N·m torque – climbs slopes even when fully loaded
Rear‑drive motor with 65N·m peak torque and 15° max climb angle. Garage exits, overpasses, gentle inclines – no run‑up needed, steady speed even with a full load. Torque delivery is direct – responsive starts at traffic lights, confident hill climbing even with cargo.
1125.6Wh large battery – 70‑90km pure electric range
23.45Ah lithium battery, total energy 1125.6Wh. Pure electric range 70‑90km, assisted range 95‑120km. For daily short‑distance deliveries of 10‑20km, two charges a week are enough; for longer trips, you won't need to search for outlets along the way. The battery is removable – take it home to charge, full in 7‑8 hours. IPX5 waterproofing – rain won't stop your work.
Rear cargo box + front basket – carries it all
Rear cargo box measures 48×36×16cm – perfect for daily groceries, parcel pick‑ups, or tool bags. The front basket keeps small items within easy reach. Total load capacity 180kg – carrying a passenger or cargo, handled with ease.
Hydraulic disc brakes + three‑wheel stability – stops firmly even when loaded
Front and rear hydraulic disc brakes deliver direct, progressive stopping power – squeeze and it stops, predictable. The three‑wheel design is more stable than two‑wheelers – no fishtailing under heavy braking, no slipping on wet roads. Parking brake keeps the trike from rolling on slopes.

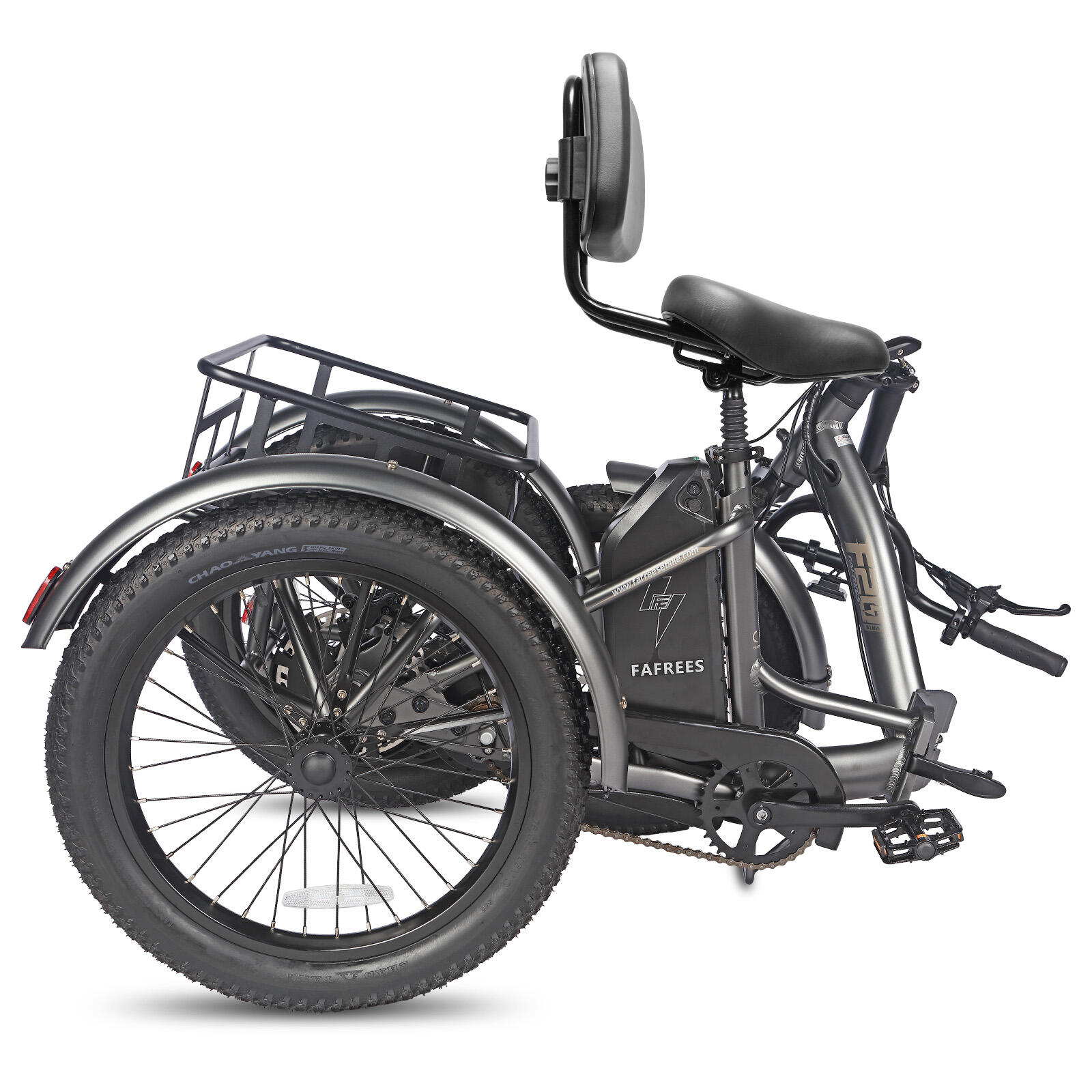

Foldable frame – storage without hassle
Handlebar height 109‑116cm and seat height 82‑106cm adjustable – fits riders 160‑200cm. The frame folds down to 100×74×82cm – fitting easily into warehouses, corners, or freight elevators. Net weight 43kg. The suspension fork filters out bumps, and the suspension seatpost absorbs road vibrations – even fully loaded, the ride stays smooth.
LCD display + five riding modes
LCD screen shows speed, battery level, mileage, and gear. 0‑5 assist levels – pure electric, assist, and human modes switch freely. Cruise control – on long delivery routes, your right hand gets a break.
Product parameters
Brand: FAFREES
Model: F20 Mate (23.45Ah version)
Unfolded size: 174×74×116cm
Folded size: 100×74×82cm
Handlebar height (adjustable): 109‑116cm
Seat height (adjustable): 82‑106cm
Package size: 101.5×76×74cm
Tyre: 20×3.0″
Pedal‑ground clearance: 9cm
Suitable height: 160‑200cm
Net weight: 43kg
Package weight: 57.5kg
Battery weight: 5.3kg
Max load: 180kg
Frame material: Aluminium alloy
Tyre type: Pneumatic
Max climb angle: 15°
Max torque: 65N·m
Drive type: Rear drive
Battery type: 18650 lithium‑ion
Rated voltage: 48V
Input voltage: 54.6V
Battery capacity: 23.45Ah / 1125.6Wh
Undervoltage protection: 40V
Overcurrent protection: 20A
Charger input: 180‑240V
Charger output: 54.6V 3A
Charging time: 7‑8 hours
Pure electric range: 70‑90km
Assisted range: 95‑120km
Fork type: Suspension fork
Fork travel: 35mm
Rear shock: Suspension seatpost
Rear shock travel: 15mm
Brakes: Front and rear hydraulic disc brakes
Display: LCD
Cruise control: Yes
Assist levels: 0‑5
Folding parts: Frame, handlebar
Lighting: Headlight, taillight
Riding modes: Human/assist/pure electric
Waterproof rating: IPX5
Operating temperature: -20~40℃
