Product Description
Compact folding design

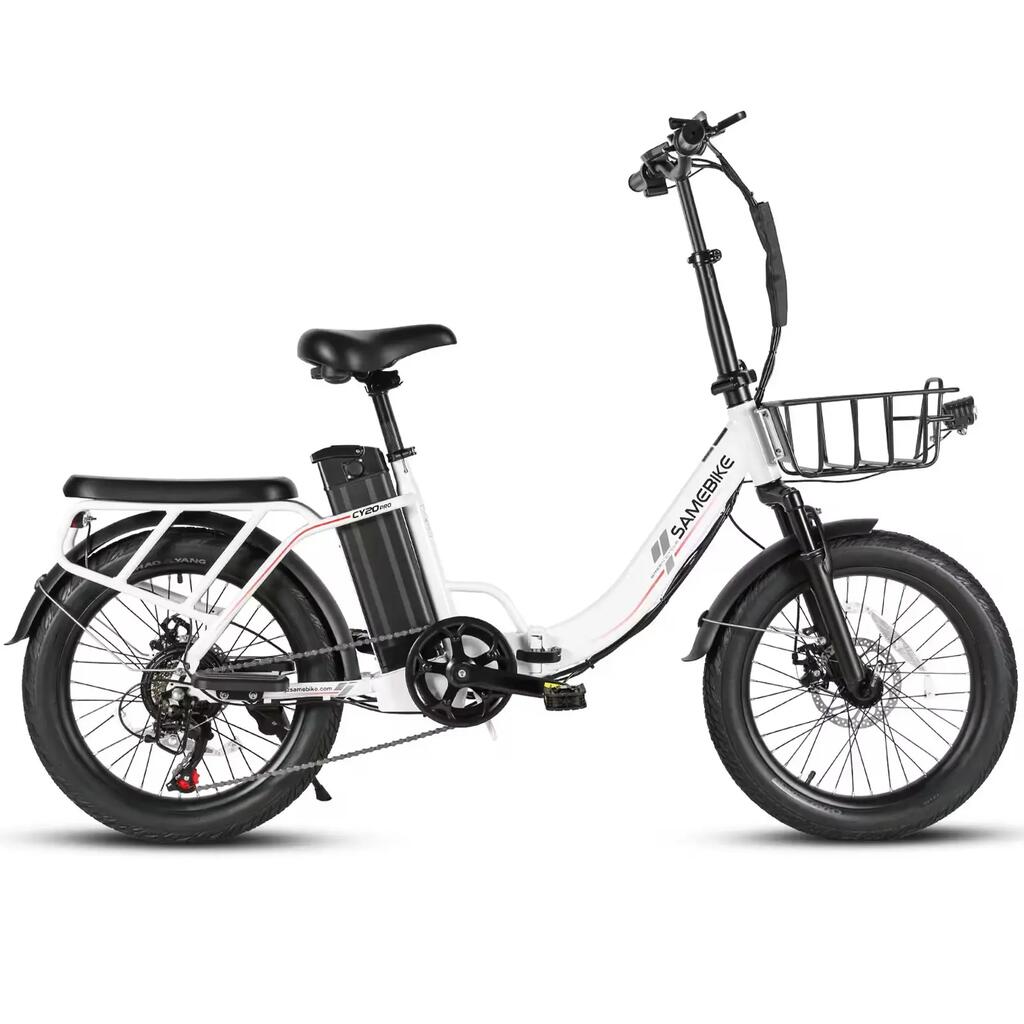

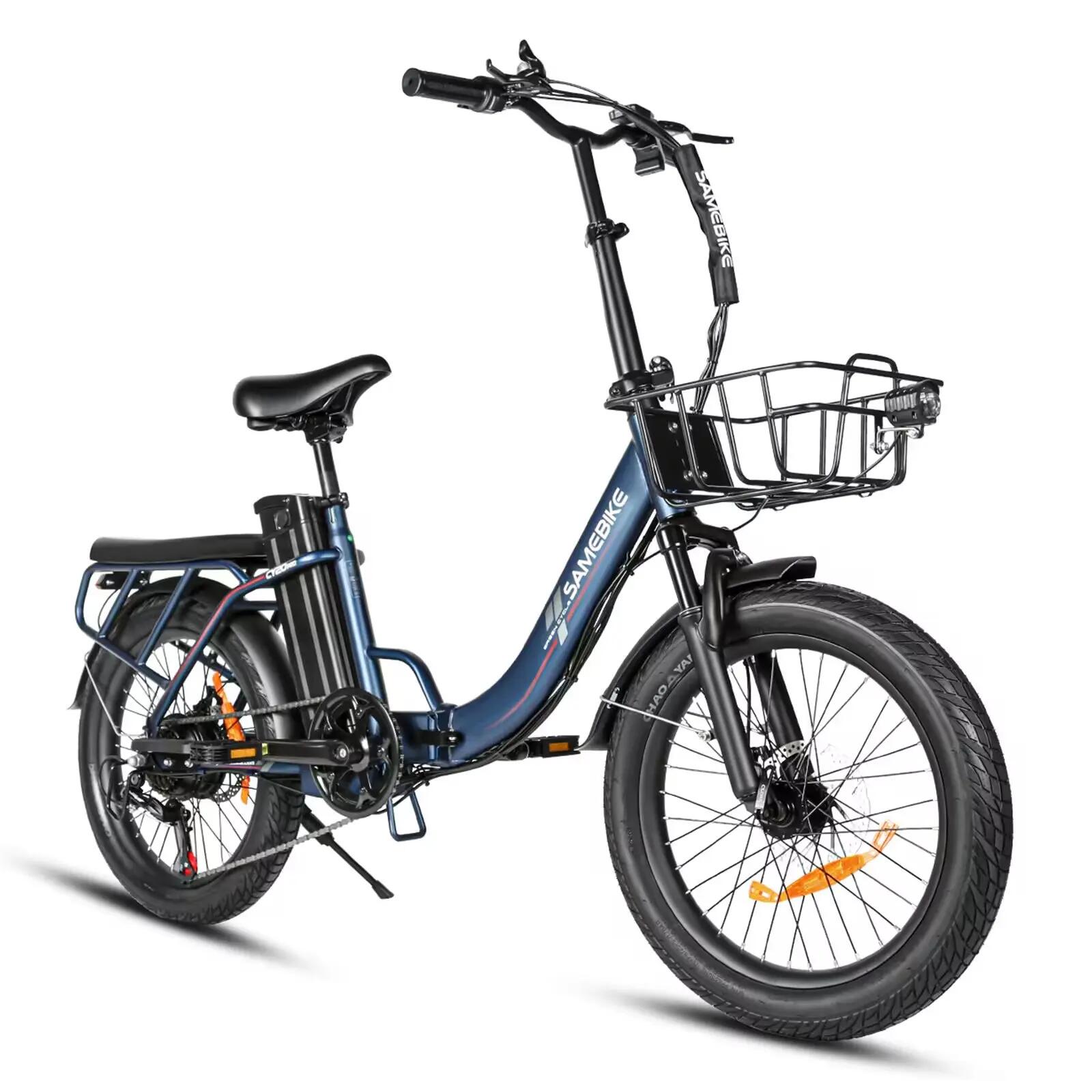

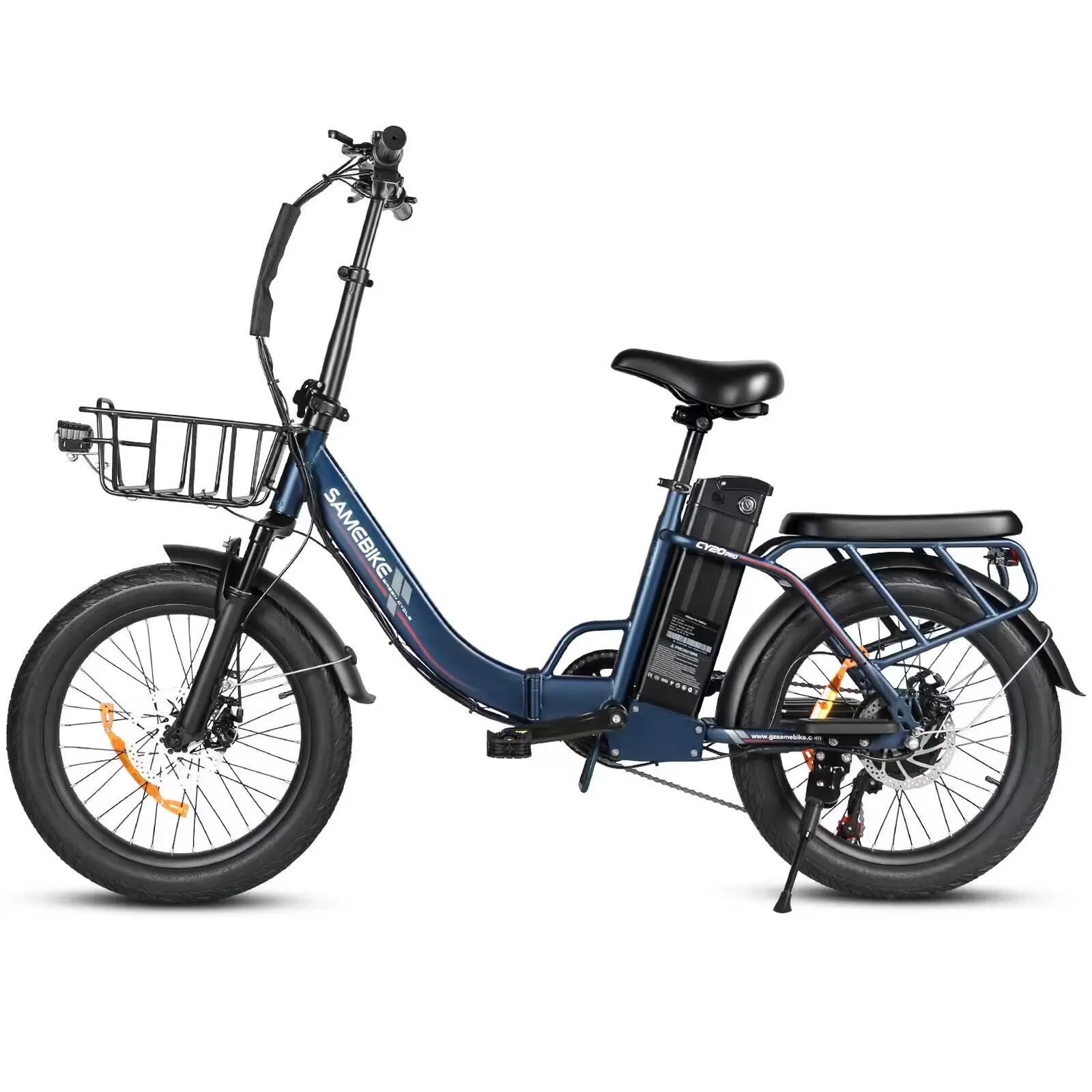

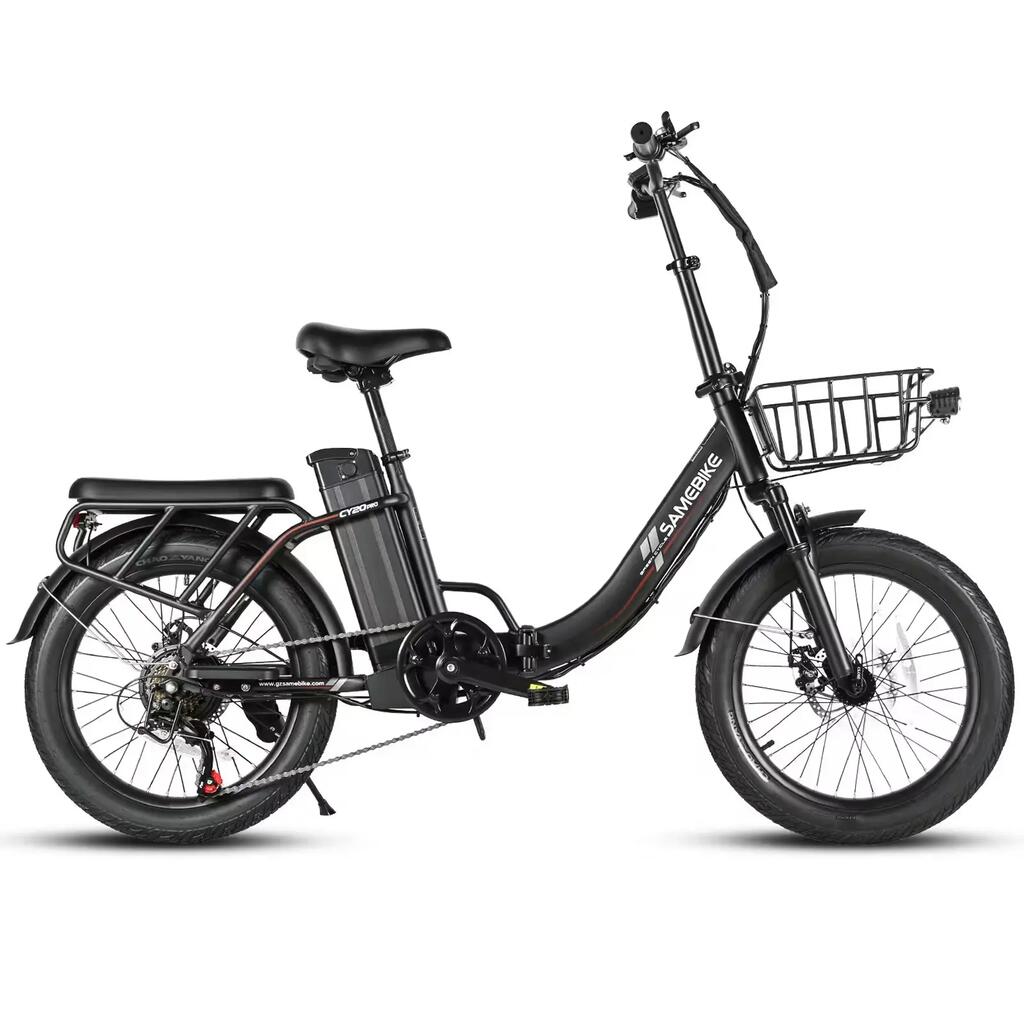

The CY20 Pro is a folding electric bike designed for urban commuting, everyday travel and convenient storage. Its frame and adjustable handlebar can be folded, allowing the bike to be stored in a car boot or a limited storage space. The folded dimensions are 880 x 490 x 700mm without the front basket.
250W motor with 50+Nm torque
The 250W brushless rear-wheel motor delivers smooth pedal assistance and up to 50+Nm of torque. The maximum assisted speed is limited to 25km/h. Under suitable riding conditions, the bike can handle gradients of up to 25°.
Removable 624Wh battery
The seat-integrated 48V 13Ah battery is removable for convenient charging at home or in the office. It provides an assisted range of approximately 50–100km. Maximum range is measured in PAS level 1 with a 75kg rider on a flat road and may vary according to load, terrain, weather and assistance level.
Dual suspension and wide tyres

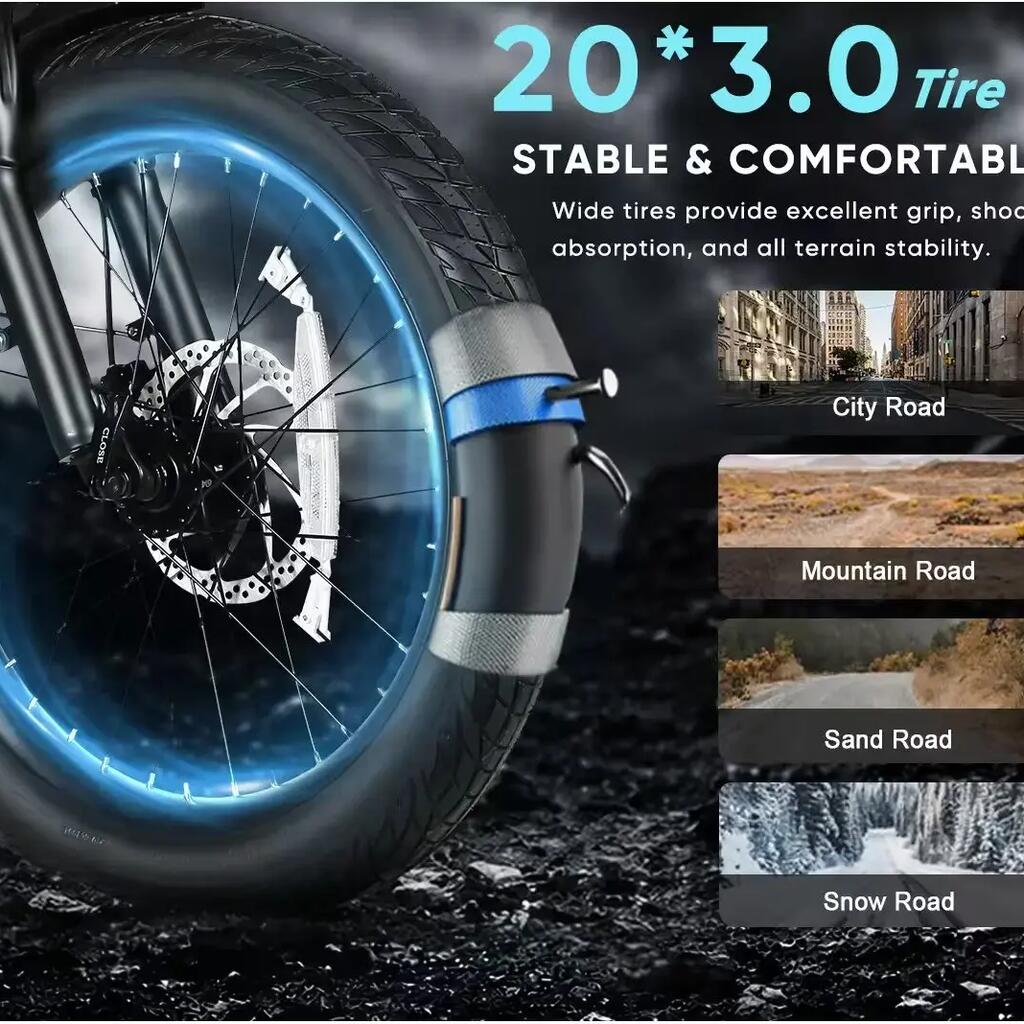

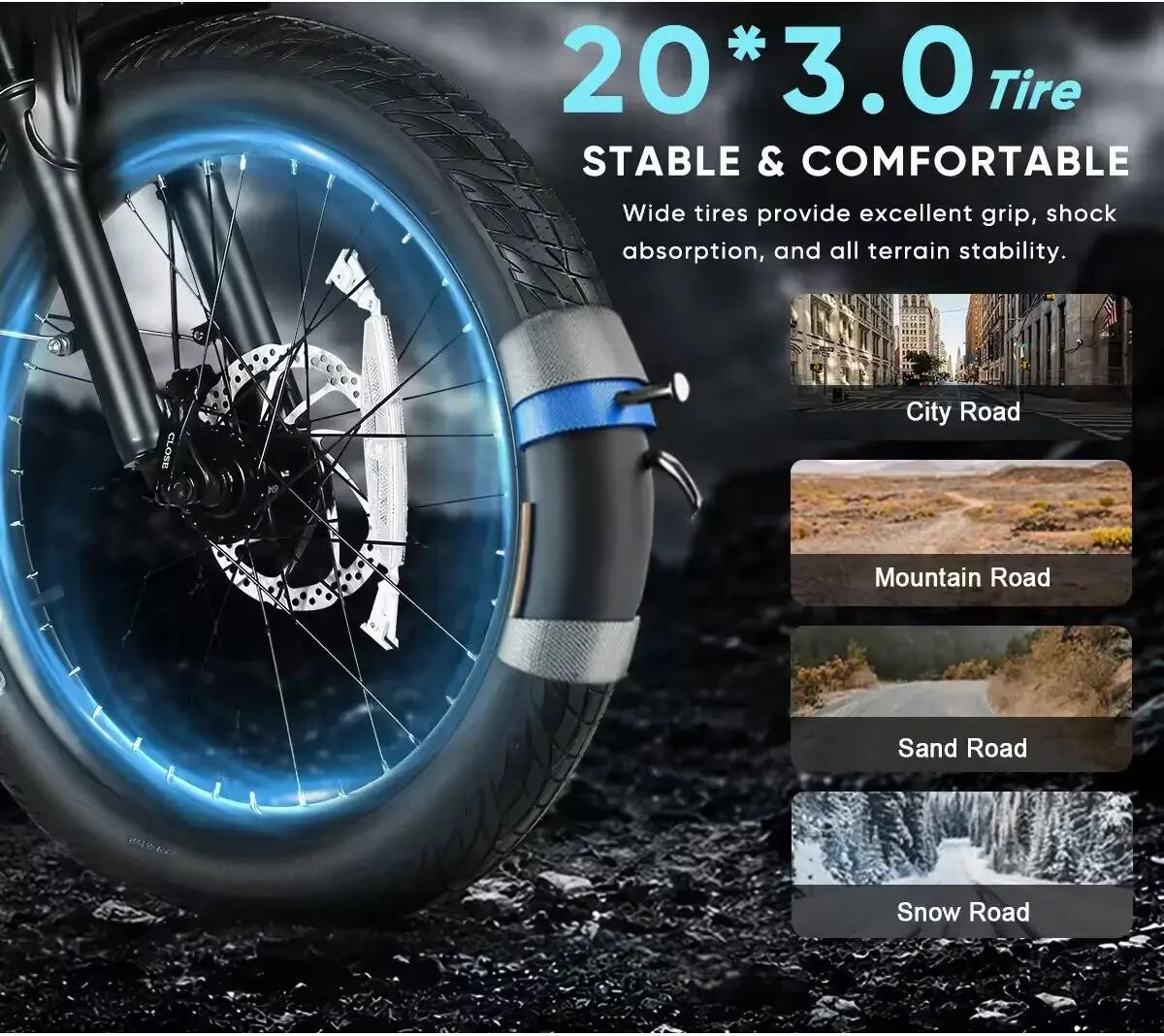

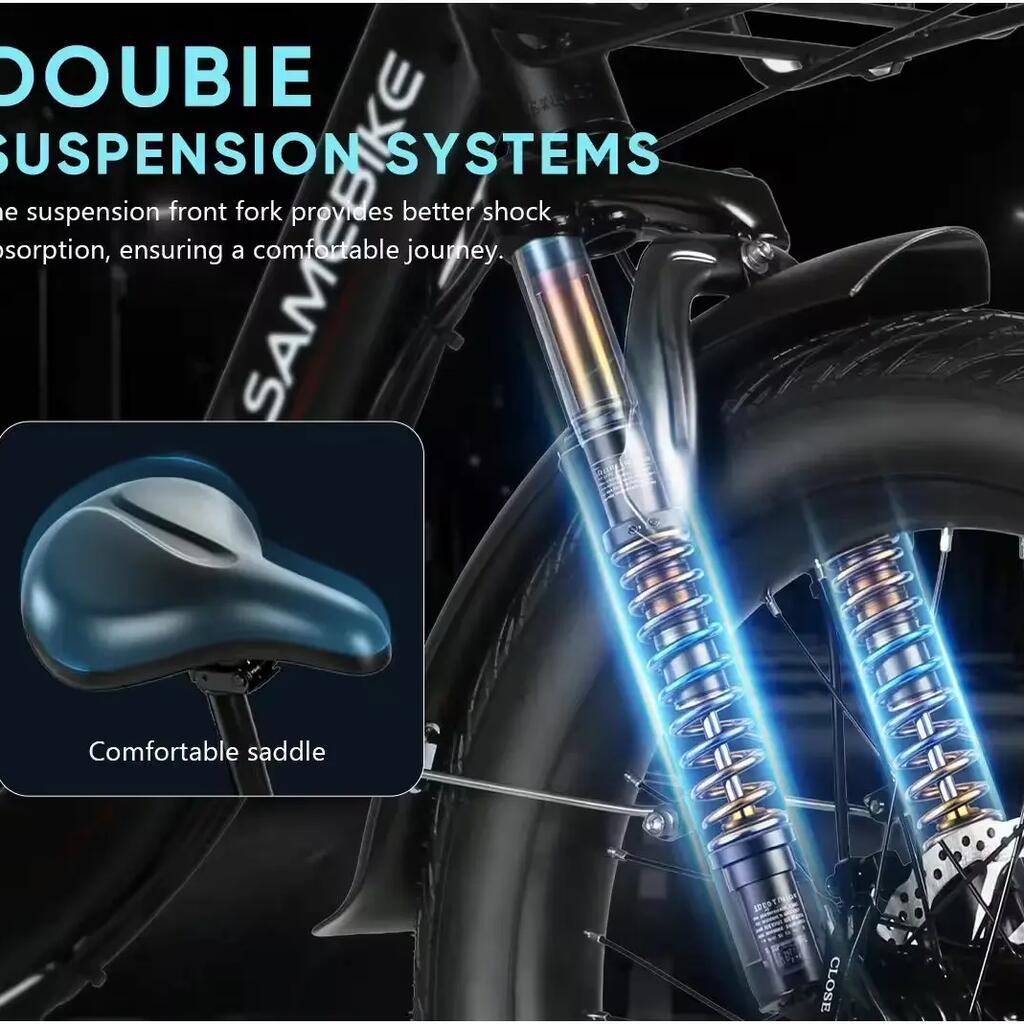

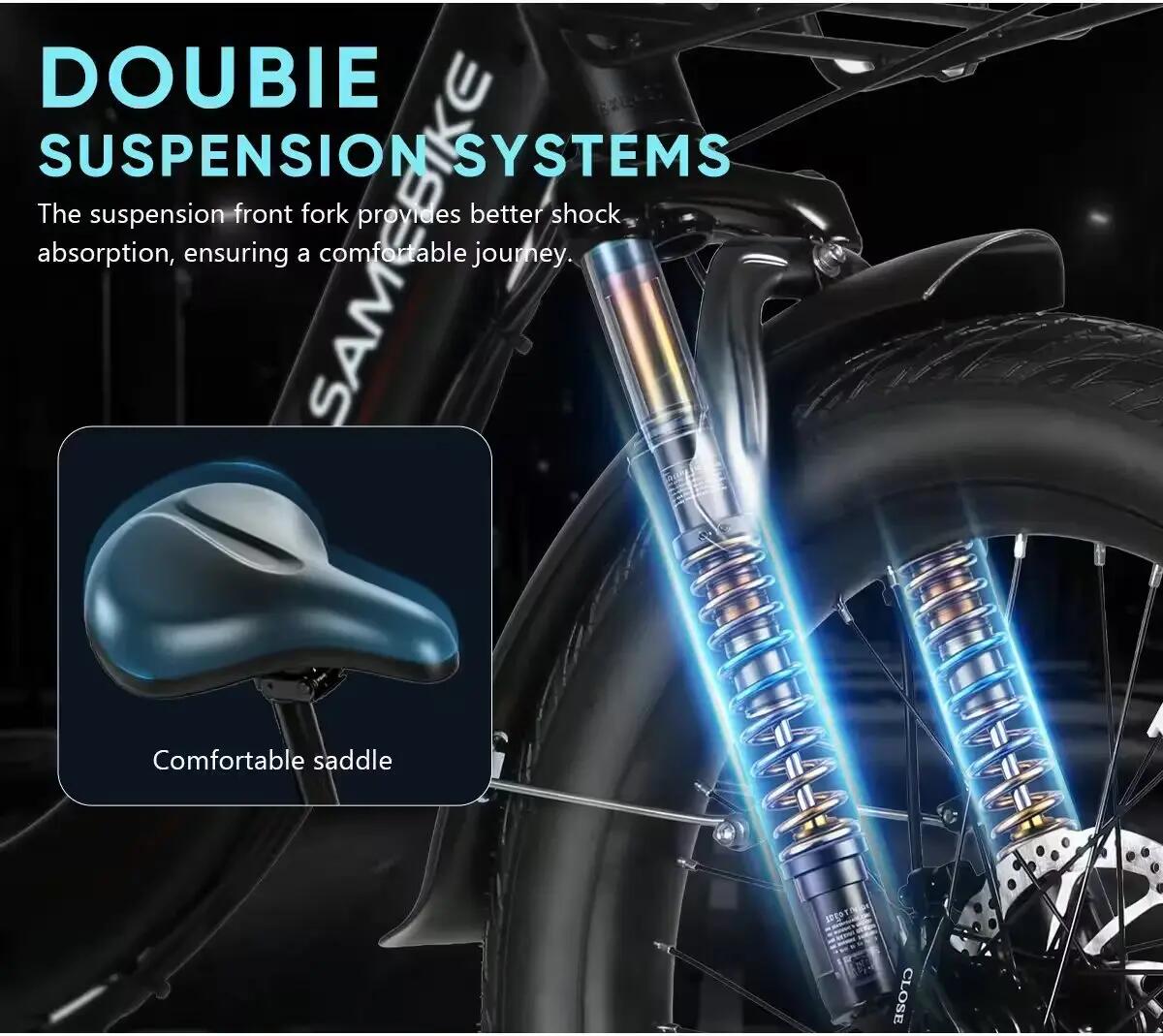

The front suspension fork and seat suspension help reduce vibrations on uneven surfaces. The 20 x 3.0-inch tyres provide additional stability and feature reflective side strips for improved visibility.
Reliable braking and lighting

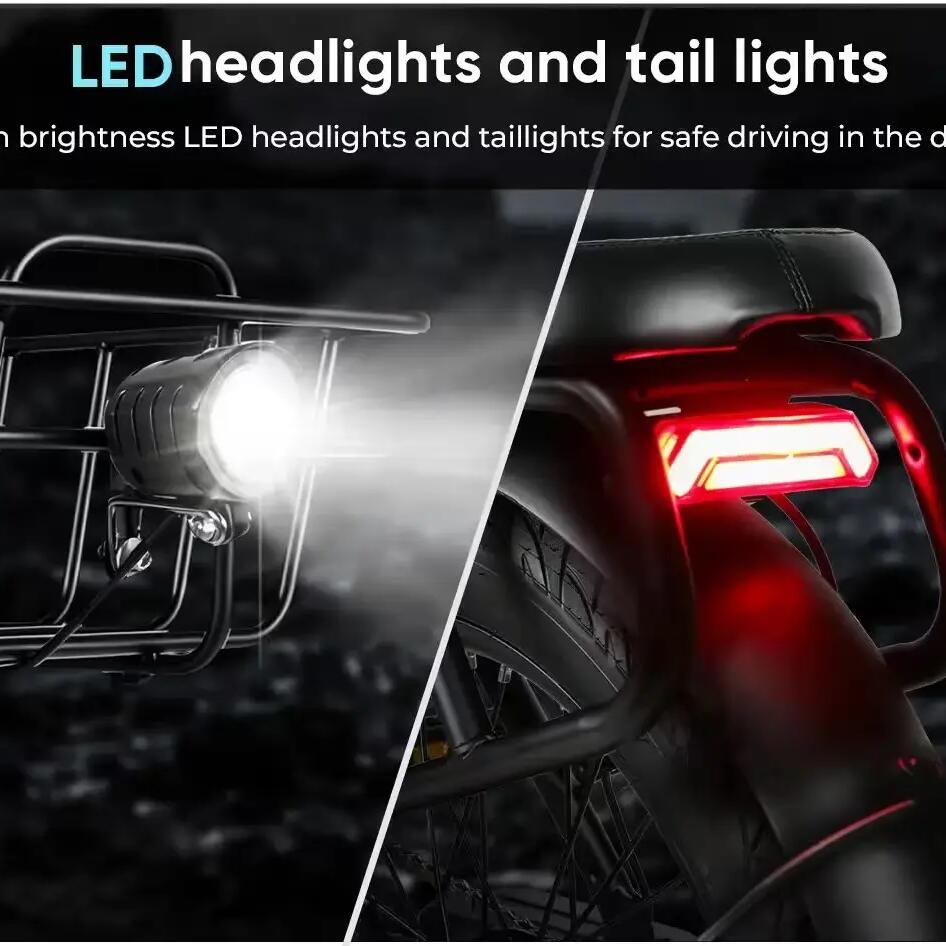

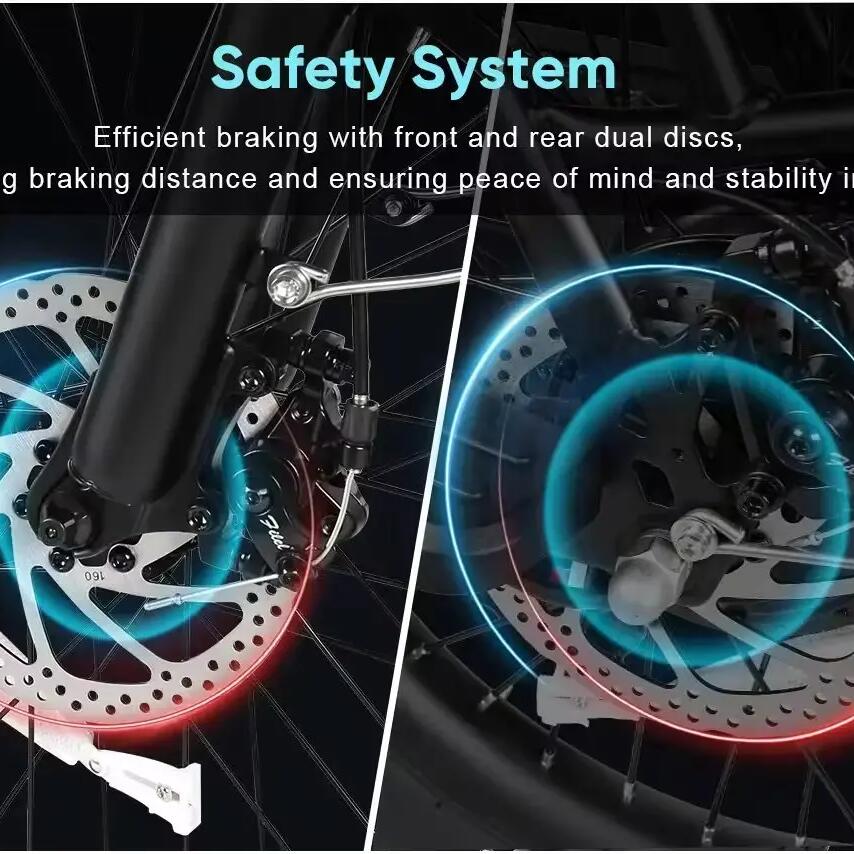

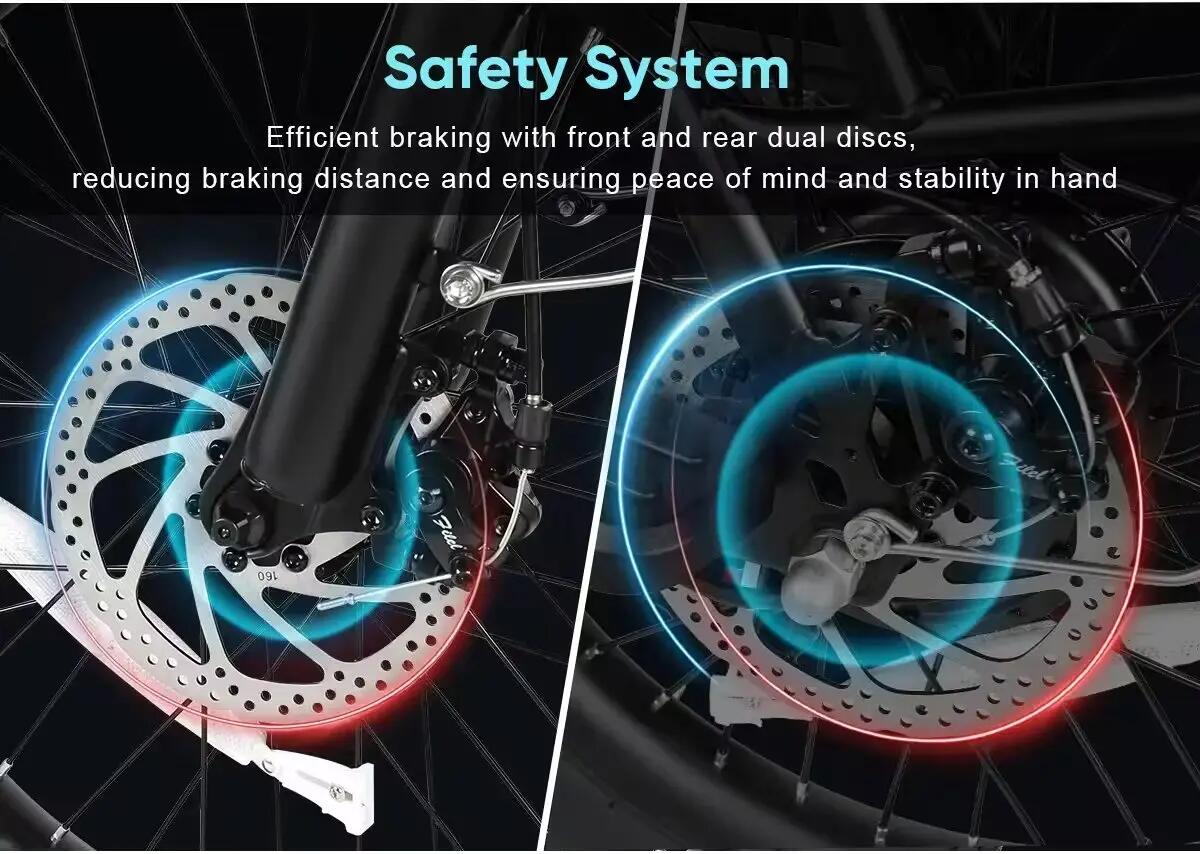

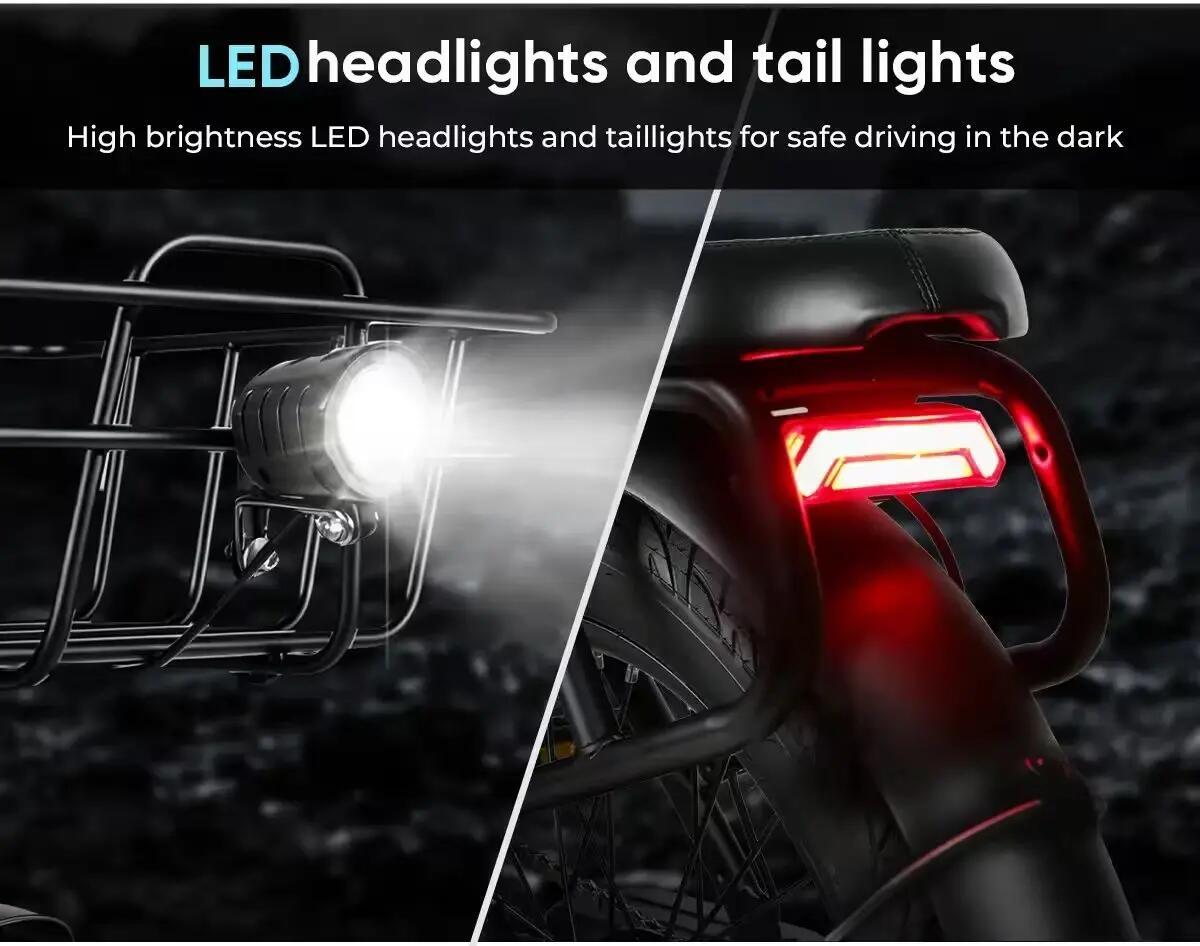

Front and rear 160mm mechanical disc brakes provide controlled stopping power. LED front and rear lights improve visibility during daily commuting and low-light rides.

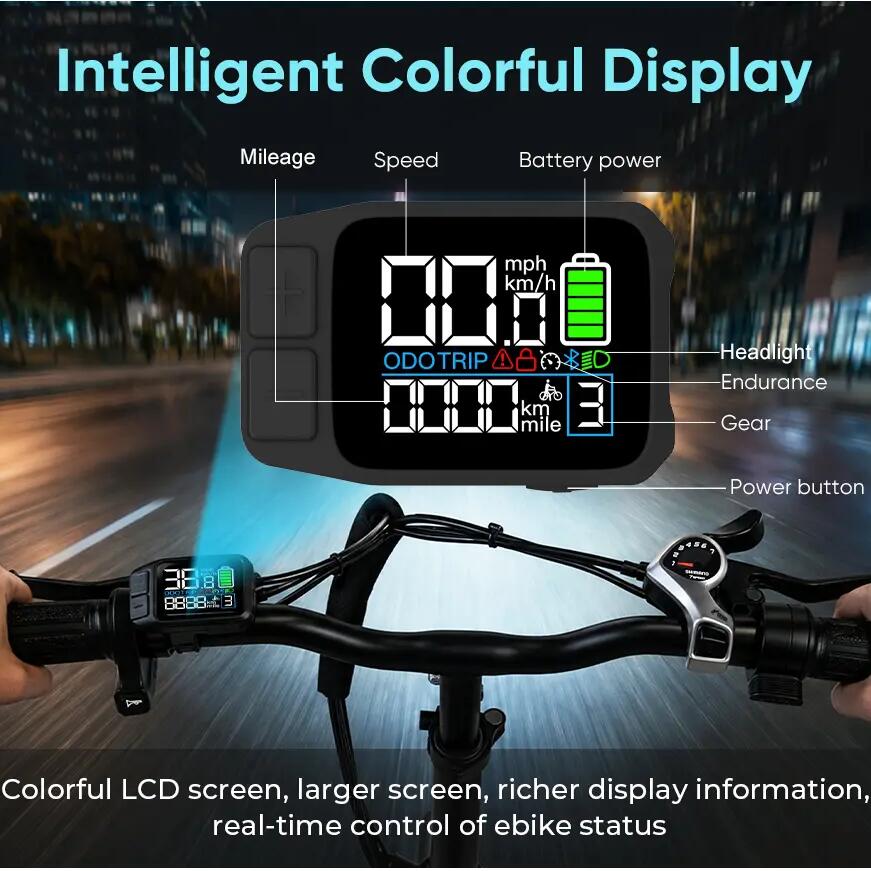

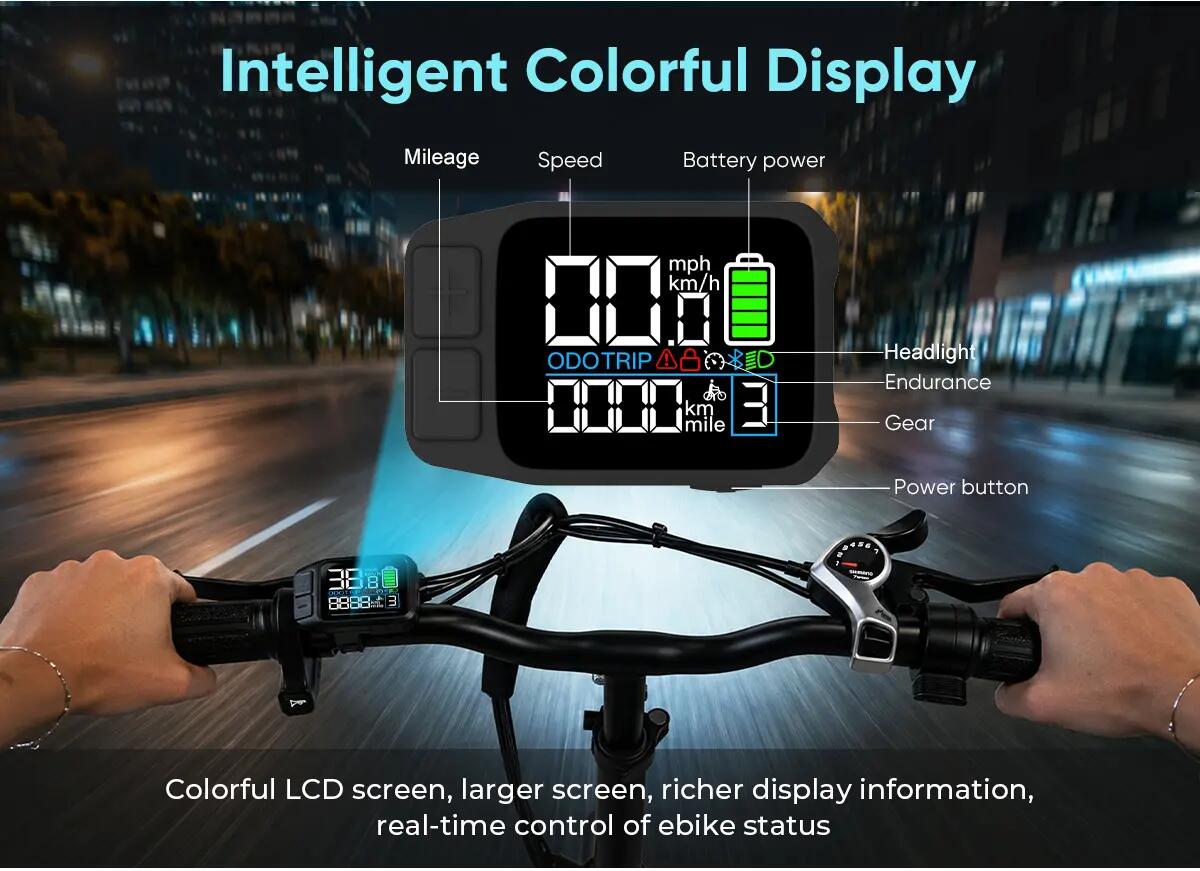

The colour LCD displays speed, battery level and travel information. Five pedal-assistance levels and smart APP control allow the rider to monitor and adjust the riding experience.
Specifications:
Motor: 250W brushless rear-wheel motor
Torque: 50+Nm
Battery: Removable 48V 13Ah, 624Wh
Assisted range: 50–100km
Maximum assisted speed: 25km/h
Tyres: 20 x 3.0 inches
Gears: Shimano 7-speed
Brakes: Front and rear 160mm mechanical disc brakes
Suspension: Front fork and seat suspension
Assistance: 5 levels
Display: Colour LCD
Connectivity: Smart APP control
Lights: LED front and rear lights
Frame: High-carbon steel
Charging time: 4–6 hours
Weight: 31kg
Maximum load: 150kg
Product dimensions: 1720 x 600 x 1220mm
Folded dimensions: 880 x 490 x 700mm
