Product Description
【Powerful 100Nm Mid-Drive Motor for Efficient Performance】
The Mivice X700 mid-drive motor delivers 100Nm of torque, ensuring powerful acceleration and effortless hill climbing. This mid-drive system provides better weight distribution and greater energy efficiency, making it ideal for urban commutes and extended rides.
【Ultra-Fast 8A Charging with Samsung Battery】
The 48V 15Ah (720Wh) Samsung battery supports fast 8A charging, fully recharging in just 2 hours. It retains 80% of its capacity after 800 cycles, translating to a lifespan of approximately 80,000 km. The advanced Battery Management System (BMS) optimizes charging and ensures real-time monitoring for safety and longevity.
【Smart Anti-Theft with IoT & GPS Tracking】
The ENGWE IoT module integrates GPS tracking, 4G connectivity, and motion detection, providing real-time alerts to safeguard the bike against theft. Through the ENGWE App, users can monitor their bike’s location, receive security notifications, and track their rides remotely.
【160km Extended Range with High-Efficiency Pedal Assist】
The large-capacity 720Wh battery provides a maximum range of up to 160km on PAS mode, making long-distance rides worry-free. In real-world conditions, it achieves 140km (PAS 1), 110km (PAS 3), and 96km (PAS 5), offering customizable riding efficiency based on user preference.

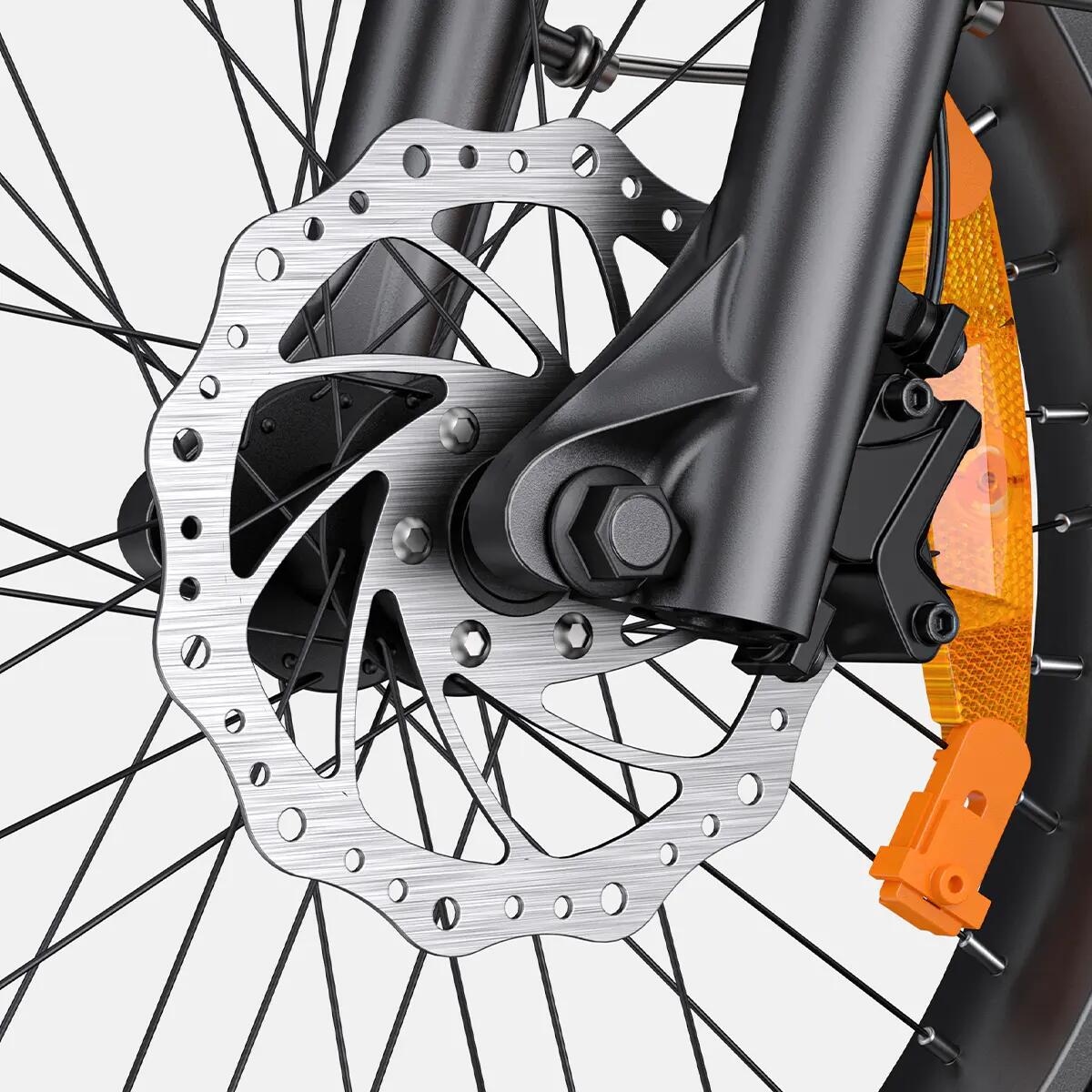

【Full Suspension & Hydraulic Brakes for Maximum Comfort & Safety】
The hydraulic front fork with adjustable lockout and 30mm rear suspension travel absorb up to 90% of road vibrations, ensuring a smooth ride on city streets and uneven terrain. The hydraulic dual-piston brakes with 180mm rotors provide powerful, responsive stopping power, enhancing safety during high-speed rides.
【Specifications】
Model:L20 3.0 Pro
Frame Material:6061 Aluminum Alloy
Frame Style:Step-Through Design Compact, Full Suspension
Motor:Mivice X700 Mid-Drive, 48V
Max Torque:100Nm
Battery:48V 15Ah (720Wh), Samsung 21700 Cells With BMS-Internal
Pedal Assist:5 Levels
Lab Tested Range:160 Km(Fully Charged)
Real-World Range:140 Km(PAS 1)110 Km(PAS 3)96 Km(PAS 5)
Fork:Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum
Rear Suspension:30mm Travel
Tires:20″ × 3.0″ Urban Hybrid Tires
Puncture Protection:3mm Anti-Puncture Layer
Wheels:20-Inch, 12-Gauge Spokes, 36-Hole, Double-Wall Aluminum
IOT:ENGWE IOT Module With GPS, 4G & Bluetooth
Assist System:Torque Sensor
Display:3.5″ LCD Color Display, ENGWE-Designed, Mid-Position
ENGWE App:App Control Available
Charger:54.6V 8A Output
Front Light:30 Lux With Integrated E-Horn
Rear Light:Automatically Brightens When Braking Or Shaking
Brake Type:Hydraulic, Dual-Piston
Disc Rotor:180mm Front & Rear
Chain:KMC E8S Anti-Rust, 112 Links
Chainring:48T
Crank:170mm
Rear Derailleur:Shimano Tourney RD-TY300, 7-Speed
Shifter:Shimano SL-M315-7R
Cassette:7-Speed, 14T-28T
Pedals:Boron Steel, Non-Foldable
Saddle:ENGWE Soft Saddle
Seat Post:10-Level Adjustable
Handlebars:680mm Width
Stem:Foldable
Seat Clamp:Quick-Release
Waterproof Ratings: IPX7(Waterproof Wiring)IPX6(Display & Lights)IPX5(Motor & Controller)IPX4(Battery Box)
Terrain:Tarmac Roads & Bicycle Routes/Country Roads & Paved Trails
Rider Height:155cm – 190cm
Max Load Capacity:150kg
Bike Weight:32.8 Kg
Gross Weight:Approx. 42kg
Package Size:1442764 cm
Folded Size:1025378 cm
Unfolded Size:17278110 cm
【In the Box】
E-Bike1
Battery1
Charger1
Pedals2
Front & Rear Fenders1
Rear Rack1
Bike Kickstand1
Assembly Tools1
User Manual*1
