Product Description
Dual Batteries with 170km Range
The M1 carries two lithium batteries – a 48V 15.6Ah main pack and a 48V 13Ah secondary pack – that together deliver up to 170 km of range in PAS 1 mode. You can ride for days without plugging in, making it a serious long-distance machine. A 250W brushless motor with 65 Nm of torque pushes you to a top speed of 25 km/h, and the EN15194 certification means it meets European standards for electric bicycles.
20×4.0 Fat Tires Built for the City
The 20-inch fat tires are designed to run quietly on urban roads while still giving you plenty of grip on gravel paths and park trails. Their wide footprint soaks up bumps and cracks, so your ride stays smooth and planted whether you are commuting across town or taking a short detour off the pavement.

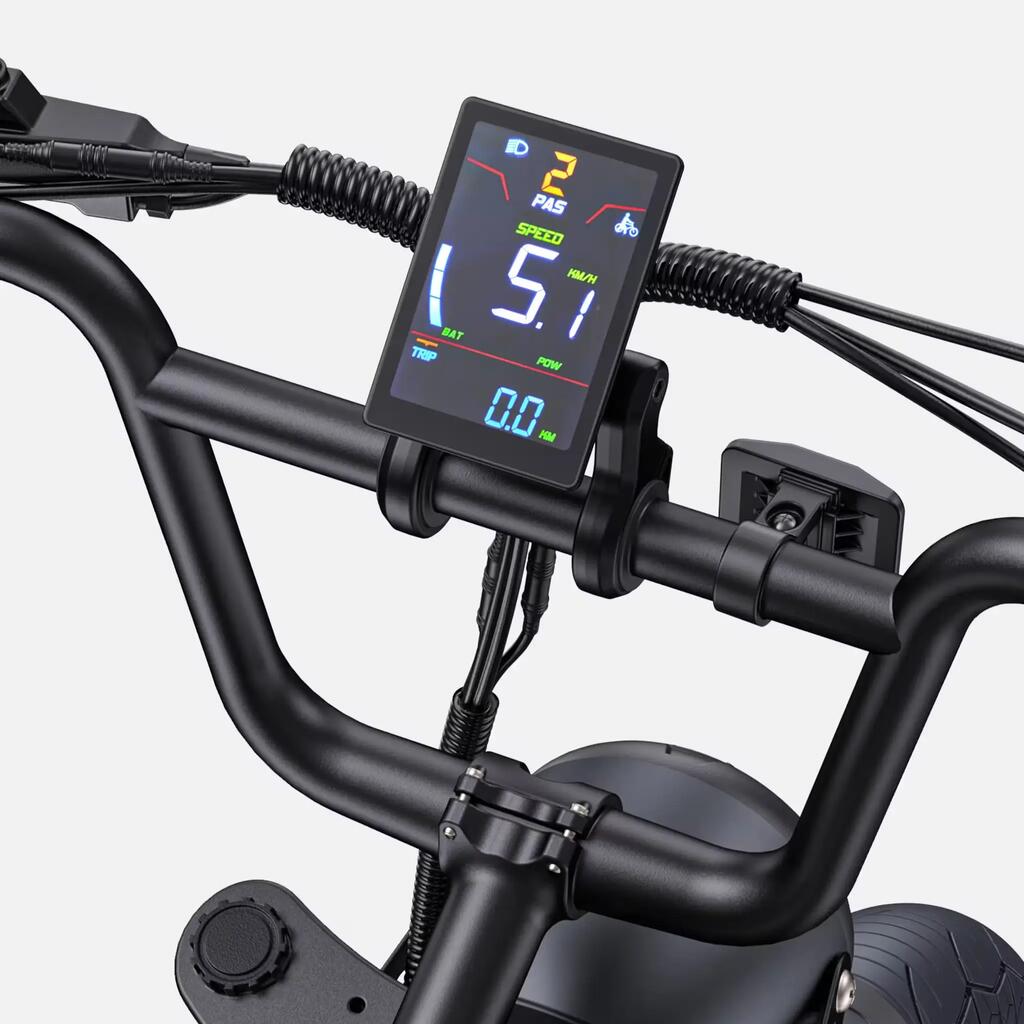

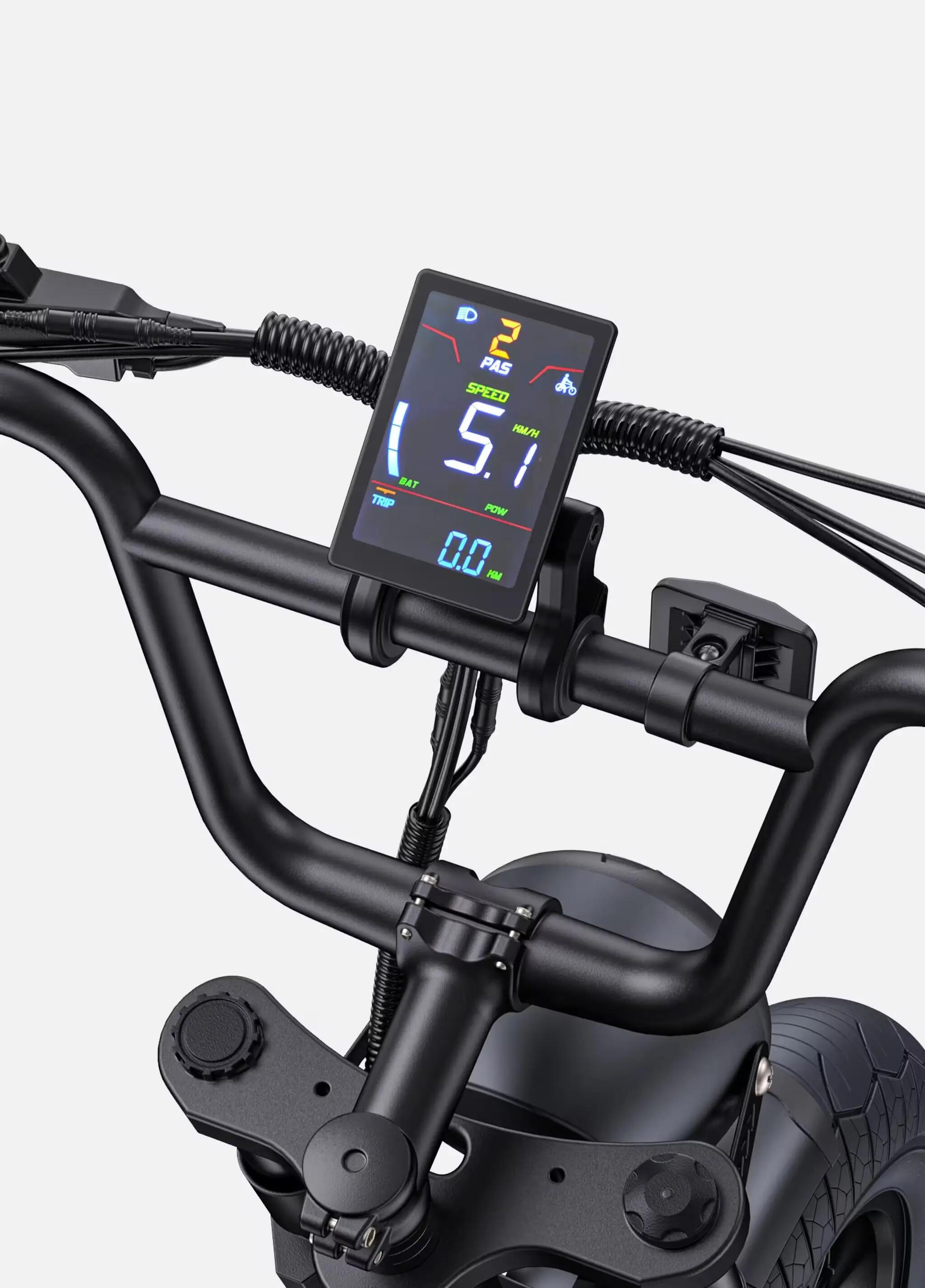

Full-Color LCD Display
A vibrant colour screen sits in the middle of the handlebar, showing speed, battery level, distance, and assist mode at a glance. The high‑contrast layout stays readable in bright sunlight and at dusk, so you always know exactly where you stand.
Shimano 7‑Speed Drivetrain
Seven well‑spaced gears let you spin up steep hills or cruise at speed on the flat. The Shimano derailleur shifts cleanly under load, and the gear range works with the motor to tackle gradients without drama.
Dual Seat and Full Suspension
A long dual seat gives you room for a passenger, making the M1 a practical choice for shared rides. Front and rear suspension soak up bumps from both ends, keeping the journey plush for rider and passenger alike.
Specification
Material: 6061 Aluminium Alloy Frame
Motor: 48V 250W Brushless Motor
Torque: 65 Nm
Sensor: Speed Sensor
Brake: Hydraulic Disc Brakes 160 mm
Drivetrain: Shimano 7‑speed
Suspension: Double Suspension
Display: LCD Color Display
Speed: 25 km/h
Tires: 20 x 4.0 Fat Tires
Lights: Front & Rear Light, Brake light & Turn signals
Dual Batteries Version Mileage: 170 km (In PAS Mode 1, with 75kg rider and no other load)
Dual Batteries Version: 48V 13Ah Lithium‑Ion Battery x1, 48V 15.6Ah Lithium‑Ion Battery x1
Charging Time: About 6‑8 hours
Dual Batteries Version Bike Weight: 43 kg
Dual Batteries Version Gross Weight: 53 kg
Maximum load: 150 kg
Suitable height: 160‑190 cm
Package size: 138 x 30 x 87.5 cm
Bike size: 169.8 x 72 x 113.5 cm
Package Contents
1 x M1 E‑bike
1 x 48V 13Ah Lithium‑Ion Battery
1 x 48V 15.6Ah Lithium‑Ion Battery
1 x 48V 2Ah Battery Charger
1 x Assembly Tools
1 x User Manual
