Product Description

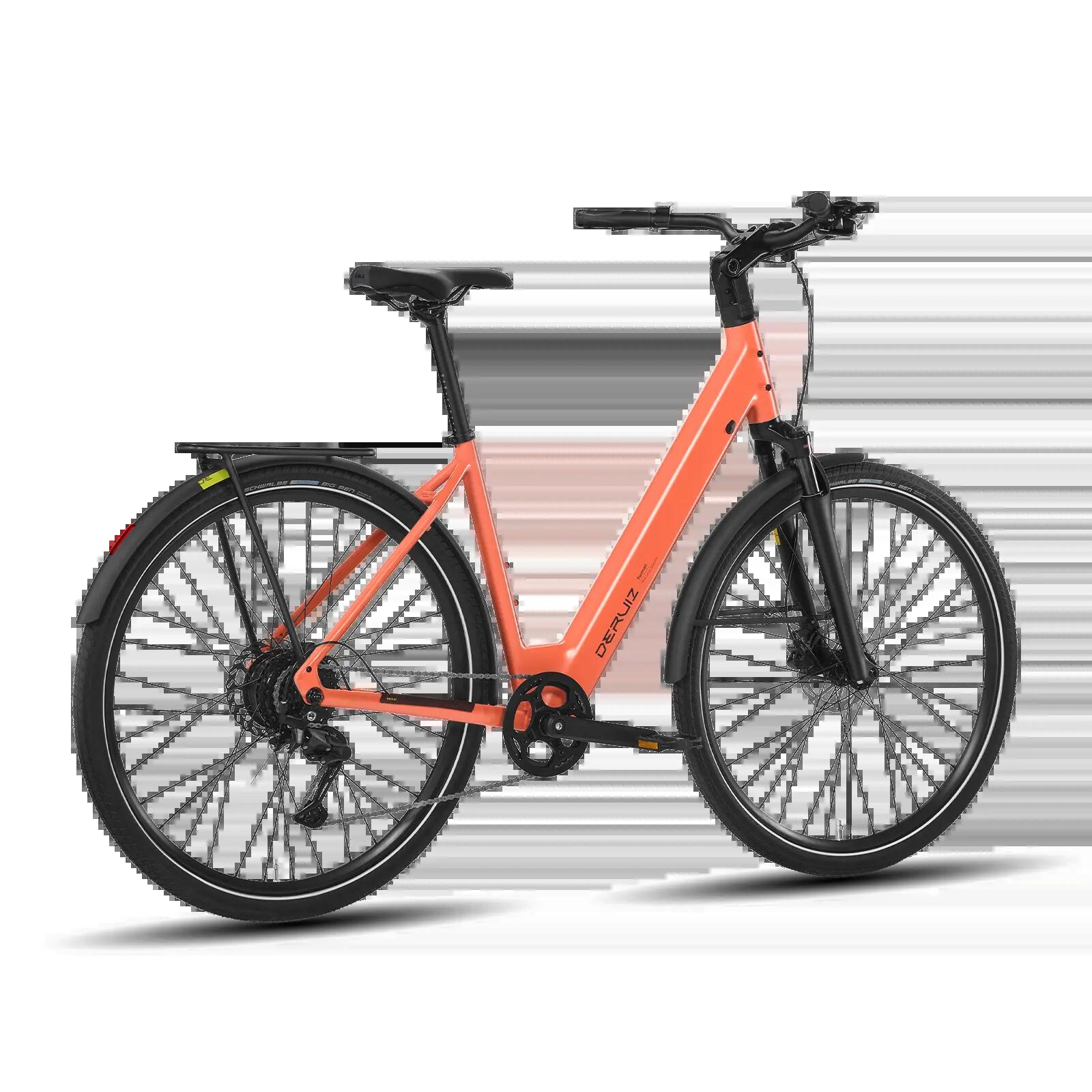

DERUIZ Turmali Comfort
Chain Drive – Comfortable Step-Through E-Bike for Everyday Use
The DERUIZ Turmali Comfort combines a comfortable step-through design with modern urban styling, making it ideal for commuting, city rides and relaxed weekend tours.
Comfortable Step-Through Design
The low step-through frame makes mounting and dismounting easy. The SR Suntour NEX-E25-700C suspension fork with 63 mm travel absorbs bumps on asphalt, cobblestones and light paths. The adjustable stem with 0–90° rise allows a flexible riding position from sporty to upright.
Motor Assistance
The MIVICE M080 rear hub motor delivers 250 W and 40 Nm of torque. The combined cadence and torque sensor provides smooth and responsive assistance adapted to your riding style.
Up to 110 km Range
The integrated 360 Wh battery offers up to 110 km of range. It is lockable, splash-resistant and removable for convenient charging at home, in the office or on the go.
9-Speed Gearing & Hydraulic Brakes
The Shimano CUES 9-speed drivetrain provides versatile gearing for city riding and climbs. TEKTRO HD-T275 hydraulic disc brakes with 160 mm discs deliver reliable and controlled braking performance.
Comfort & Practical Equipment
Schwalbe Big Apple V-Guard tyres, an ergonomic VELO saddle, ERGOTEC grips and non-slip pedals ensure comfortable riding. The integrated rear rack supports up to 15 kg. The 80-lux front light and integrated rear light are both StVZO-certified.
APP & Bluetooth
The DERUIZ colour display with Bluetooth and the DERUIZ E-Bike App for iOS and Android provide access to riding data, assistance levels, lighting, walk assist and route recording. The integrated SP-Connect mount allows convenient smartphone use.
Clean Urban Design
Internally routed cables create a clean appearance and complement the modern design of the DERUIZ Turmali Comfort.
Technical Data
Frame
• Material: Aluminium 6061
• Size: One size, 48.5 cm
• Frame type: Step-through, unisex
Fork & Suspension
• Suspension fork: SR Suntour NEX-E25-700C
• Travel: 63 mm
• Features: Hydraulic lockout, disc brake mount, e-bike compatible
E-Bike System
• Motor: MIVICE M080 rear hub motor, 250 W, 36 V, 40 Nm
• Sensor system: MS-S200 combined cadence and torque sensor
• Assistance levels: 5
• Walk assist: Yes
• Battery: 36 V / 360 Wh
• Range: Up to 110 km
• Charging time: Approx. 2.5 hours
• Display: DERUIZ colour LCD with Bluetooth
• Charger: DERUIZ 36 V / 4 A
• Front light: 80 lux, StVZO-certified
• Rear light: Integrated into the mudguards, StVZO-certified
Gearing & Brakes
• Shifter: Shimano CUES ASLU40009RC
• Rear derailleur: Shimano CUES ARDU3020SGS, 9-speed
• Cassette: Shimano CUES ACSLG3009136, 11–36 teeth
• Crankset: 38 teeth, Narrow-Wide, 170 mm
• Brake system: TEKTRO HD-T275 hydraulic disc brakes
• Brake discs: 160 mm front / 160 mm rear
Cockpit
• Handlebar: DERUIZ Comfort Swallow-Bar, 640 mm wide, 35° backsweep, 21 mm rise
• Stem: DERUIZ Comfort stem, Ø 31.8 mm, adjustable, rise 0–90°
• Smartphone mount: Integrated SP-Connect mount
• Smartphone adapter: Available separately
• Grips: ERGOTEC EG Ambition, black
• Headset: Top IS 52 / 28.8 mm, bottom IS 52 / 39.8 mm
Wheels & Tyres
• Front hub: Thru axle, 100 mm
• Rear hub: Integrated rear hub motor
• Rims: 36 holes, ETRTO 622 × 17.9 mm internal width
• Tyres: Schwalbe Big Apple V-Guard, 50-622 (28 × 2.0")
Equipment
• Seatpost: Ø 28.6 × 350 mm, two-bolt clamp
• Saddle: VELO S6792
• Pedals: FP-936ZU Urban pedals with non-slip grip and reflectors
• Kickstand: Adjustable-length side stand
• Mudguards: Aluminium, 58 mm wide, front and rear
• Rear rack: Integrated, load capacity up to 15 kg
App & Connectivity
• DERUIZ E-Bike App for iOS and Android
• Connection: Bluetooth
• Functions: Range, assistance levels, lighting, walk assist and route recordings
• Download: QR code available
Weight & Dimensions
• Permitted total weight: 160 kg
• Net weight without battery: 20 kg
• Net weight including battery: 21.8 kg
• Gross weight: 35.5 kg
• Packaging size: 1465 × 230 × 860 mm
Colours

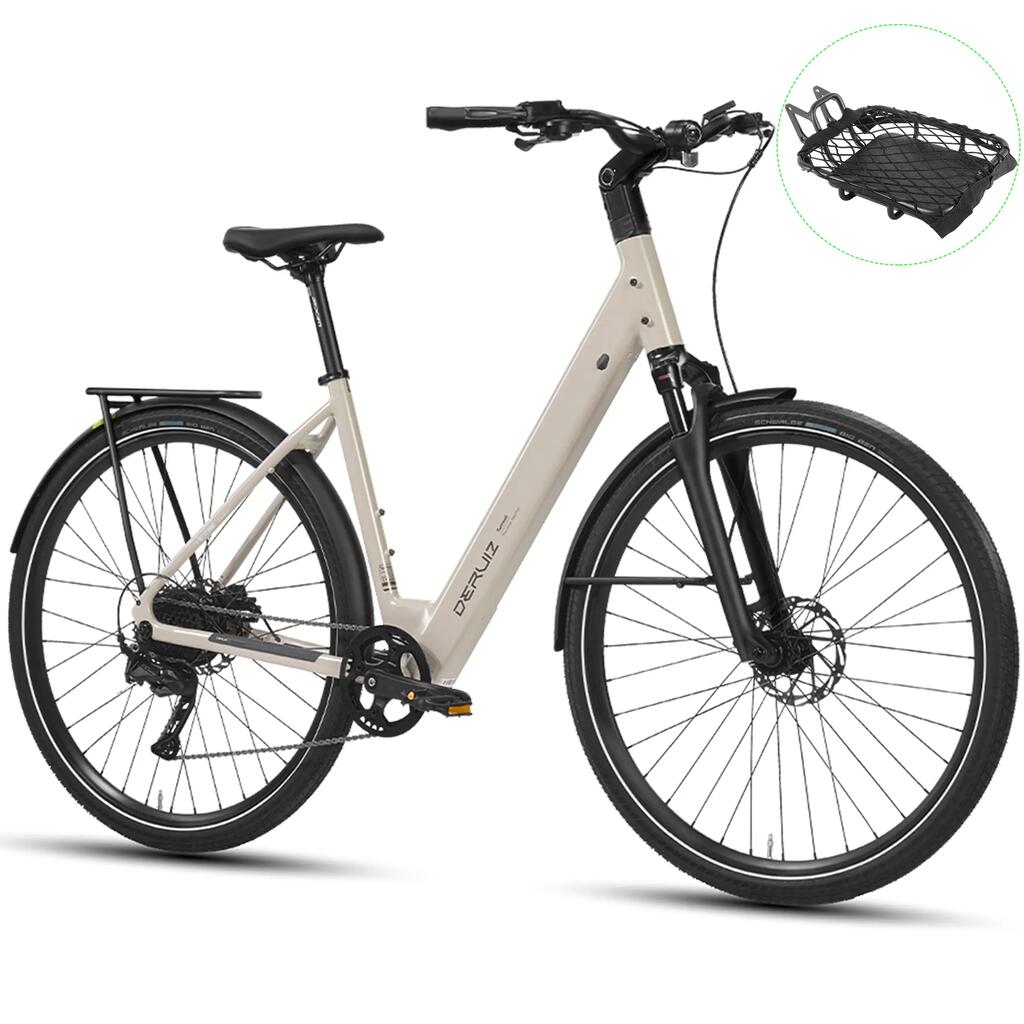

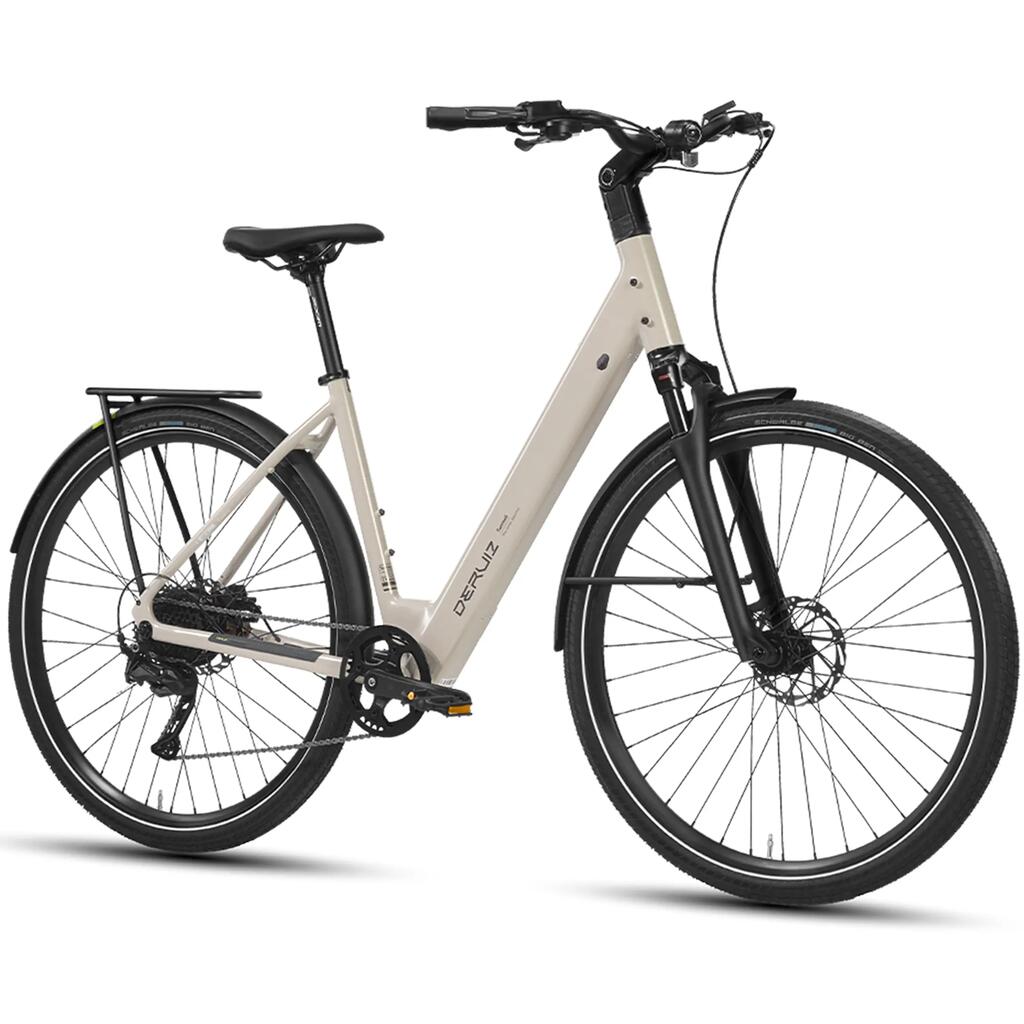

• Almond White

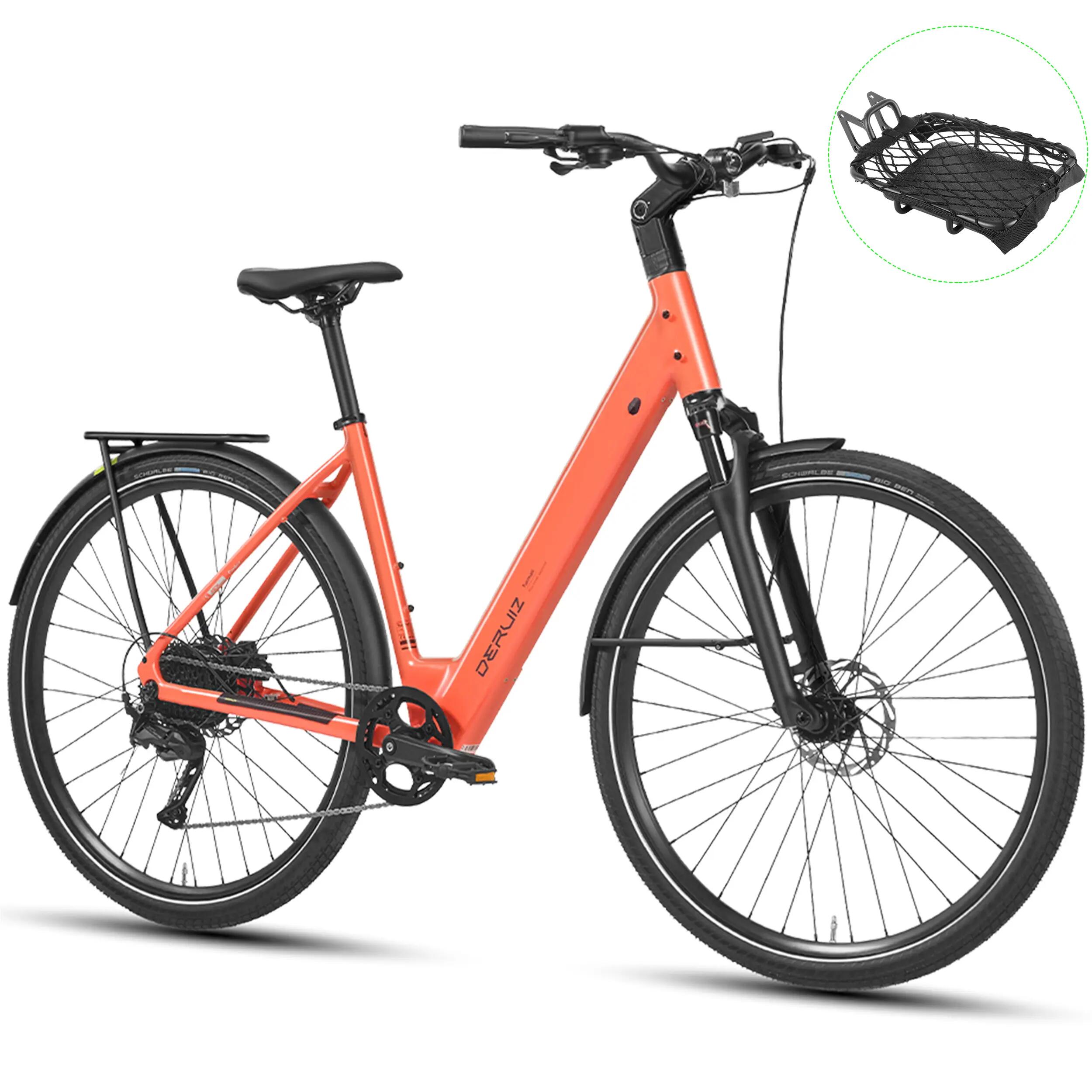

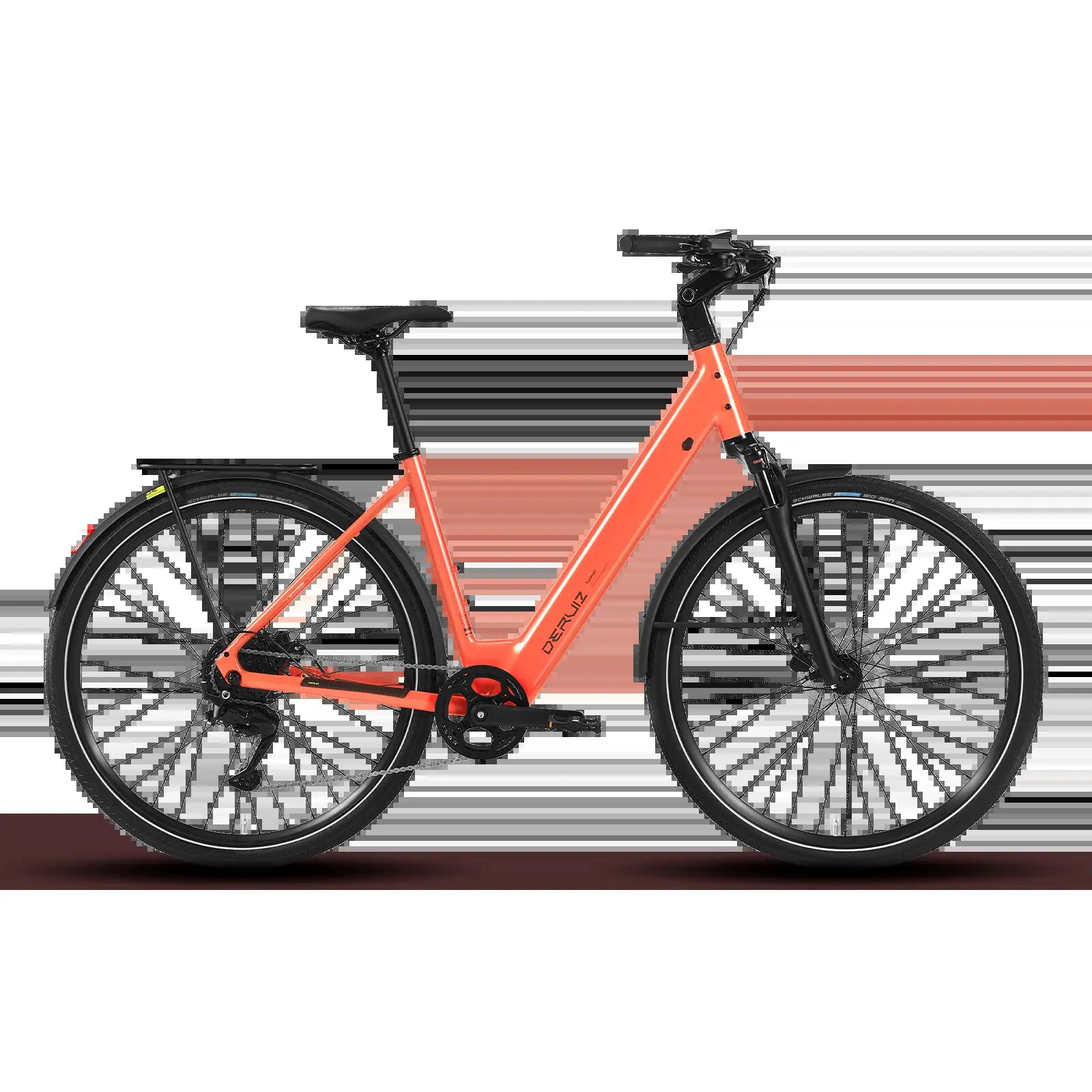

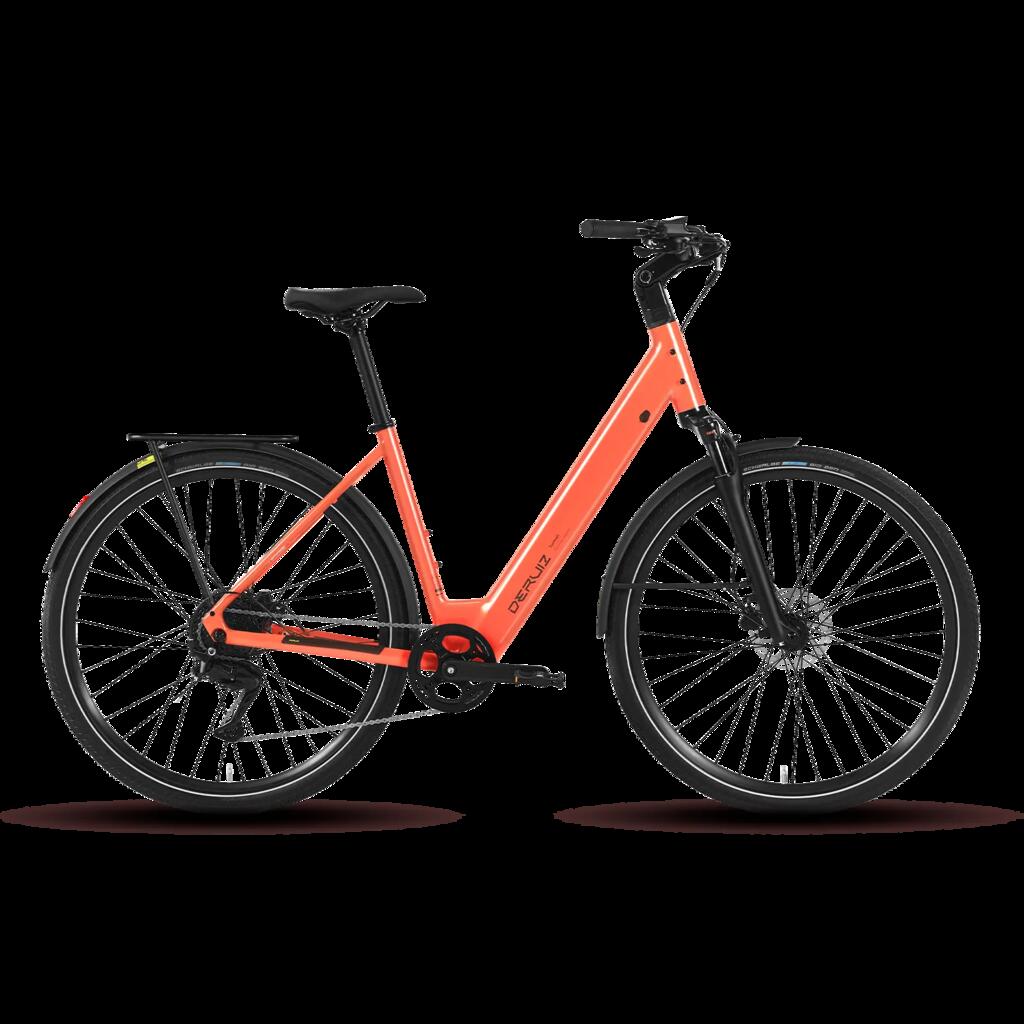

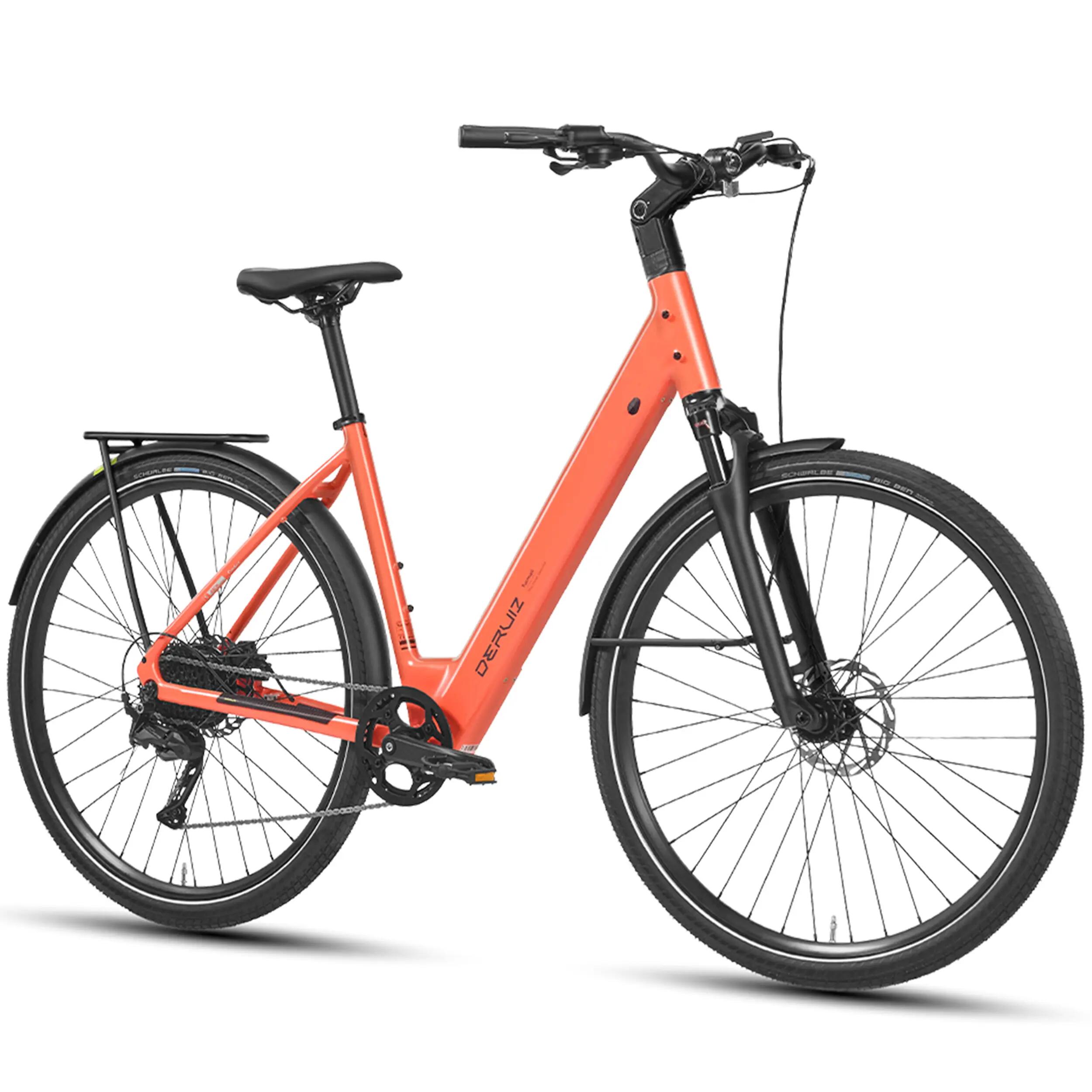

• Golden Hour Orange
