Product Description

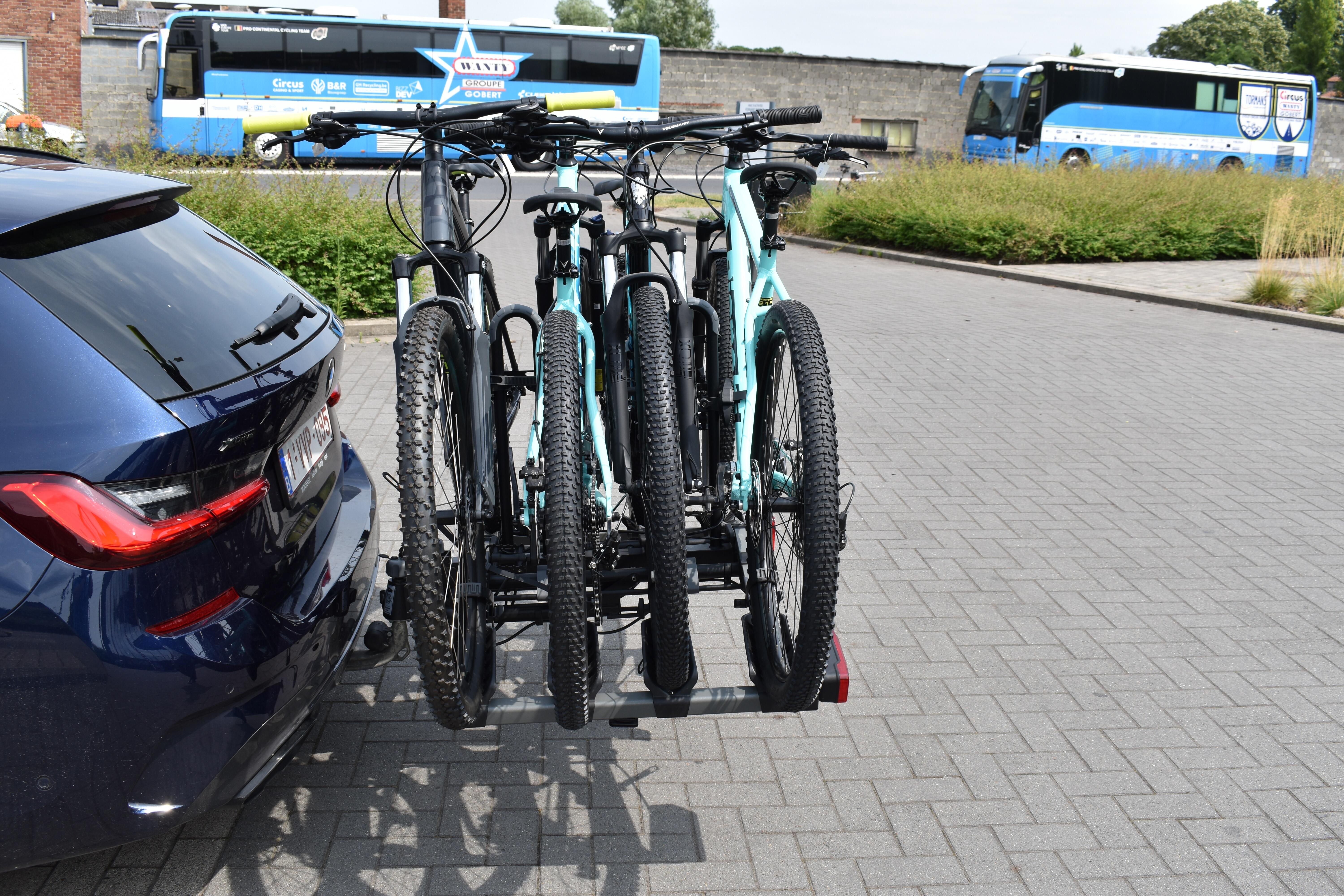

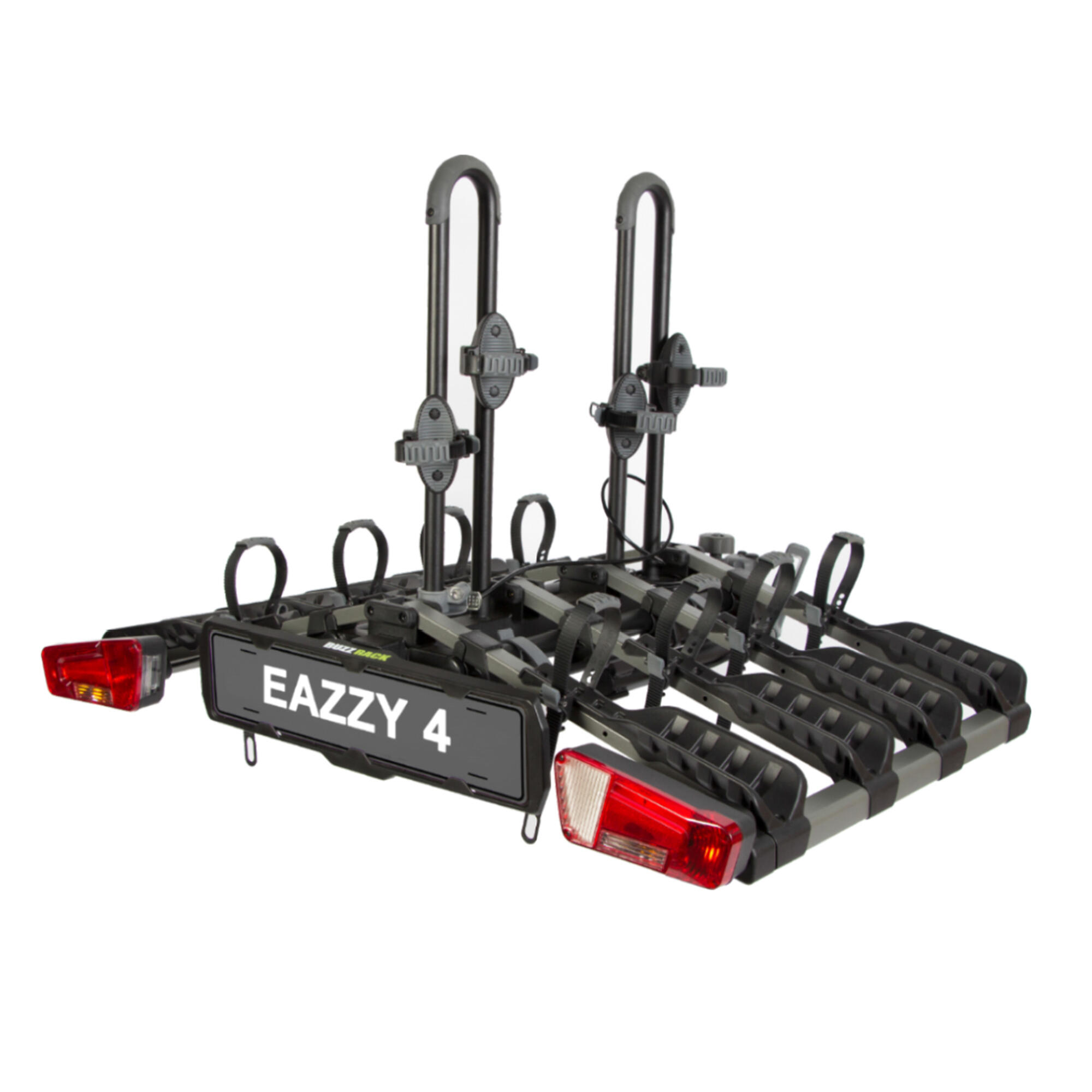

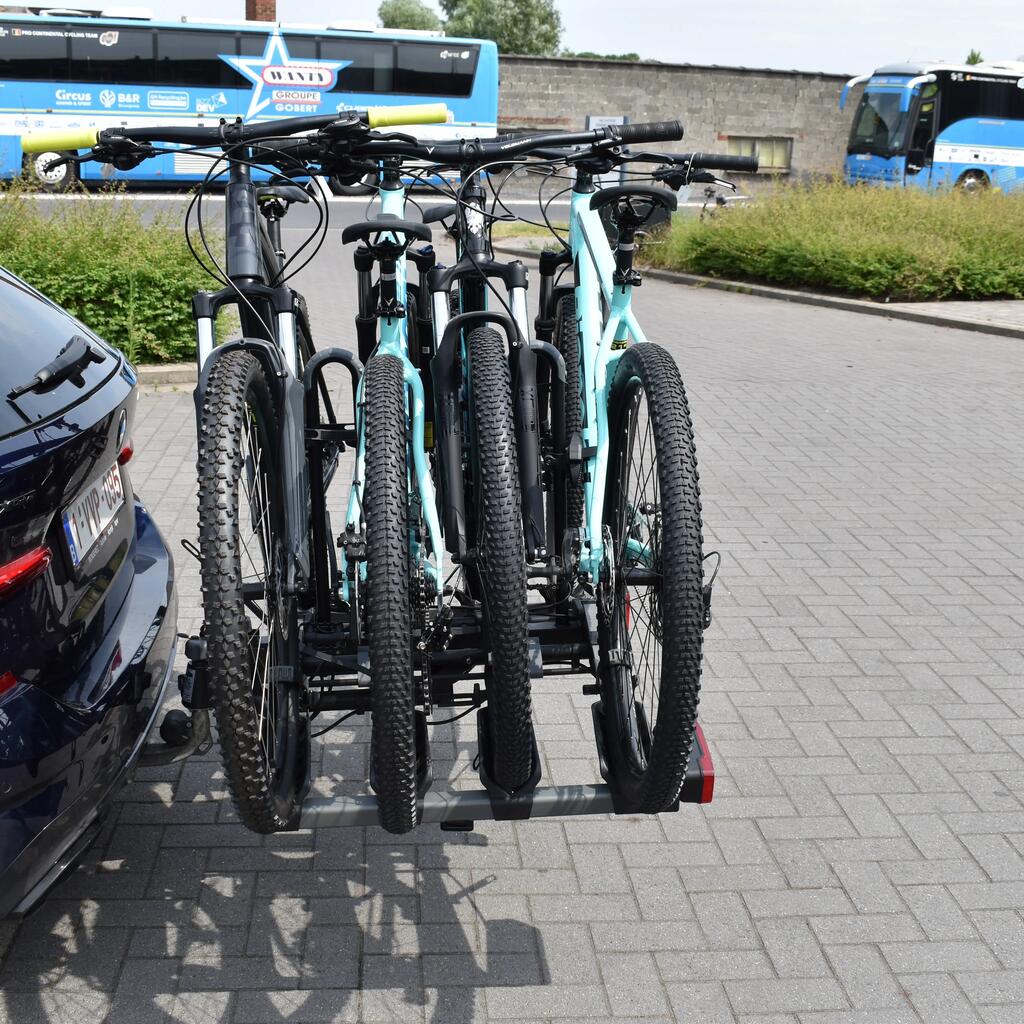

EAZZY 4 - Folding Platform Bike Rack for 4 Bikes
The Eazzy 4 fits all types of 50 mm tow balls (standard and swan neck). You can carry up to 4 bikes, adult or child, with a maximum weight of 20 kg per bike. The quick-release ratchet straps and unique cradle design make loading the bikes quick and easy. Its anti-corrosion treatment and high-quality welding ensure exceptional durability. Delivered fully assembled, just attach the lights and the rack is ready to use.
Features

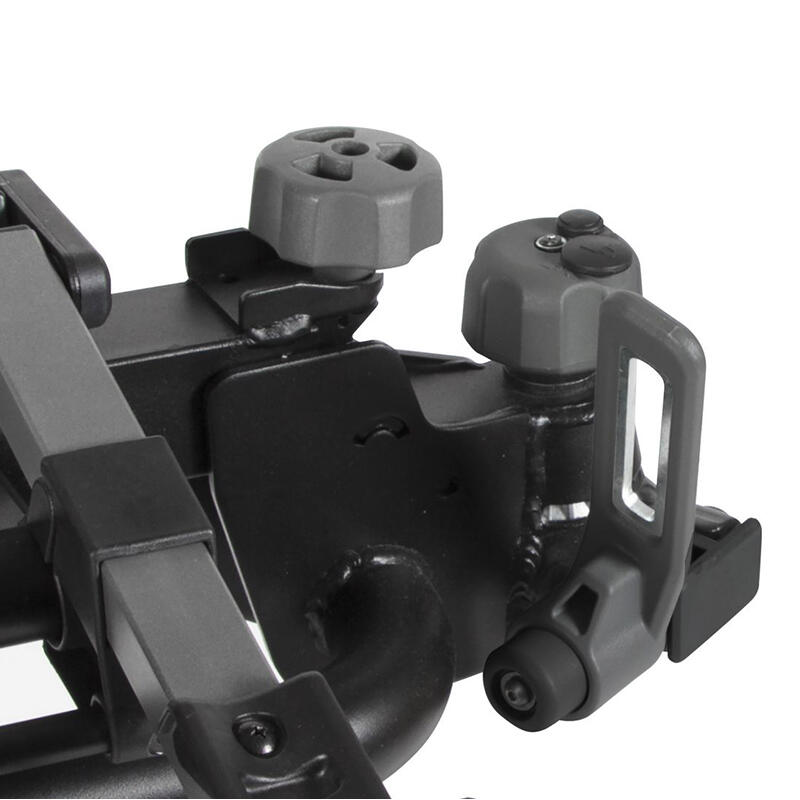

- TOW BALL ATTACHMENT
The patented conical fixing system fits all ISO 50 mm tow balls. Simple, fast, and secure.
The system can be locked and secured with a locking button.
This system meets the highest safety standards.
- WHEEL SUPPORTS
The wheel supports fit all wheelbases, even very small children’s bikes.
Secured with a locking button.

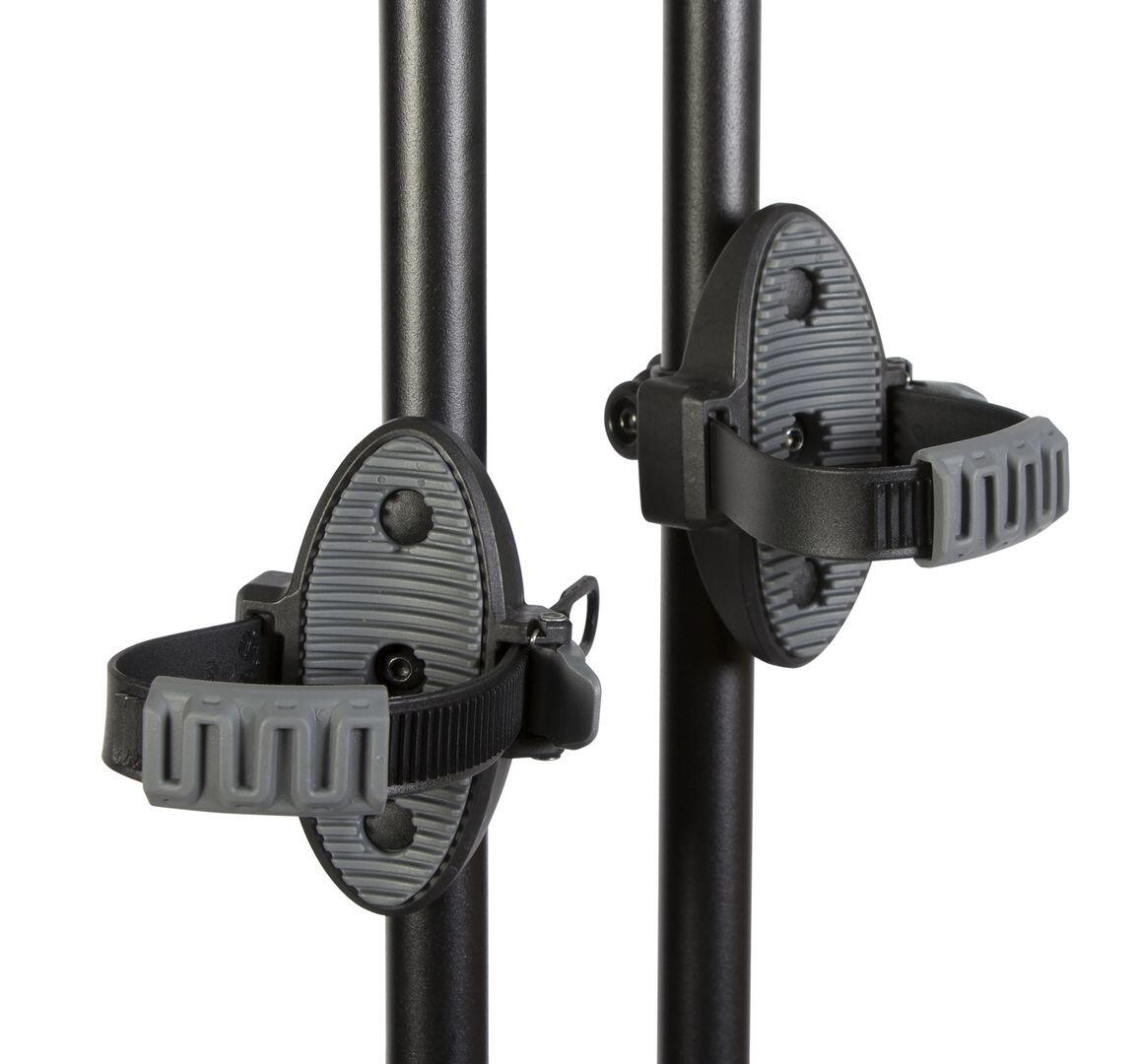

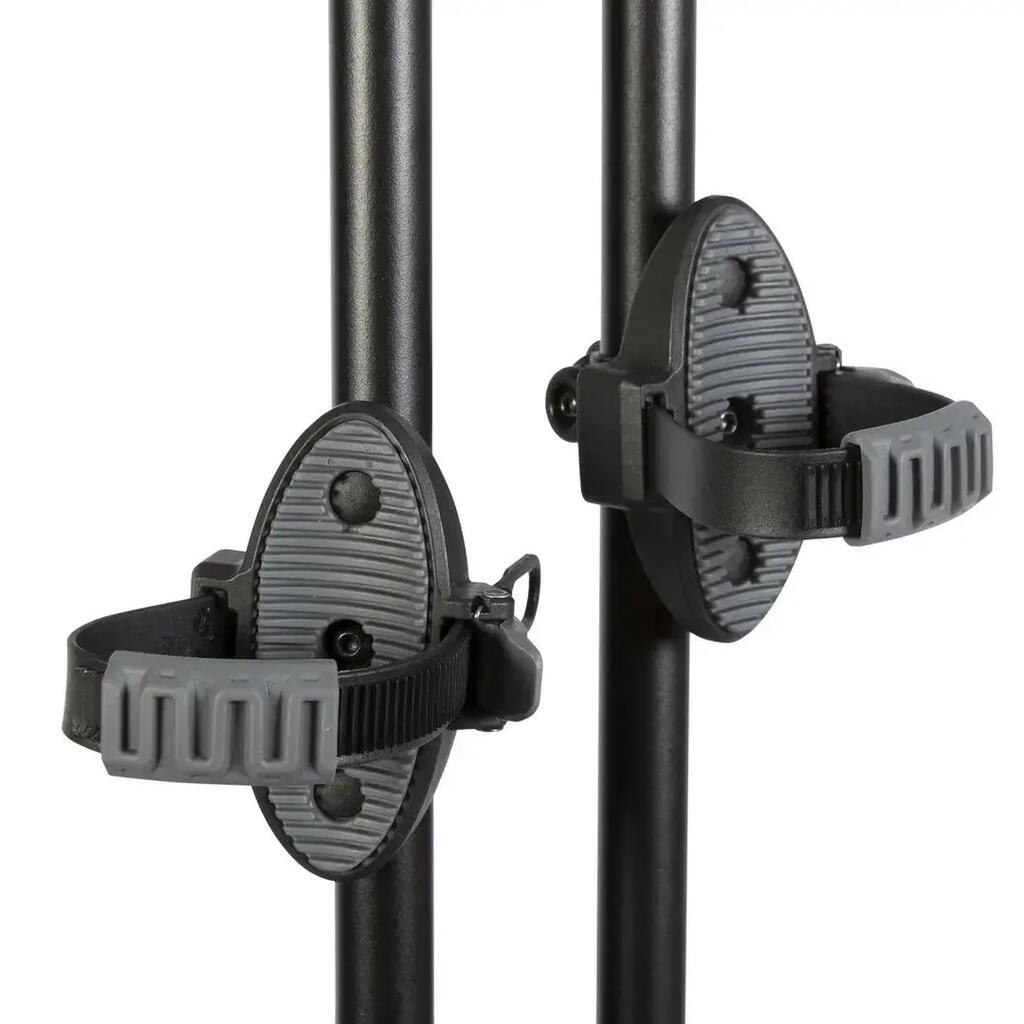

- BIKE FRAME CRADLES
The padded cradles rotate 360° to fit all frame tube shapes. The ratchet straps are quick and easy to use.

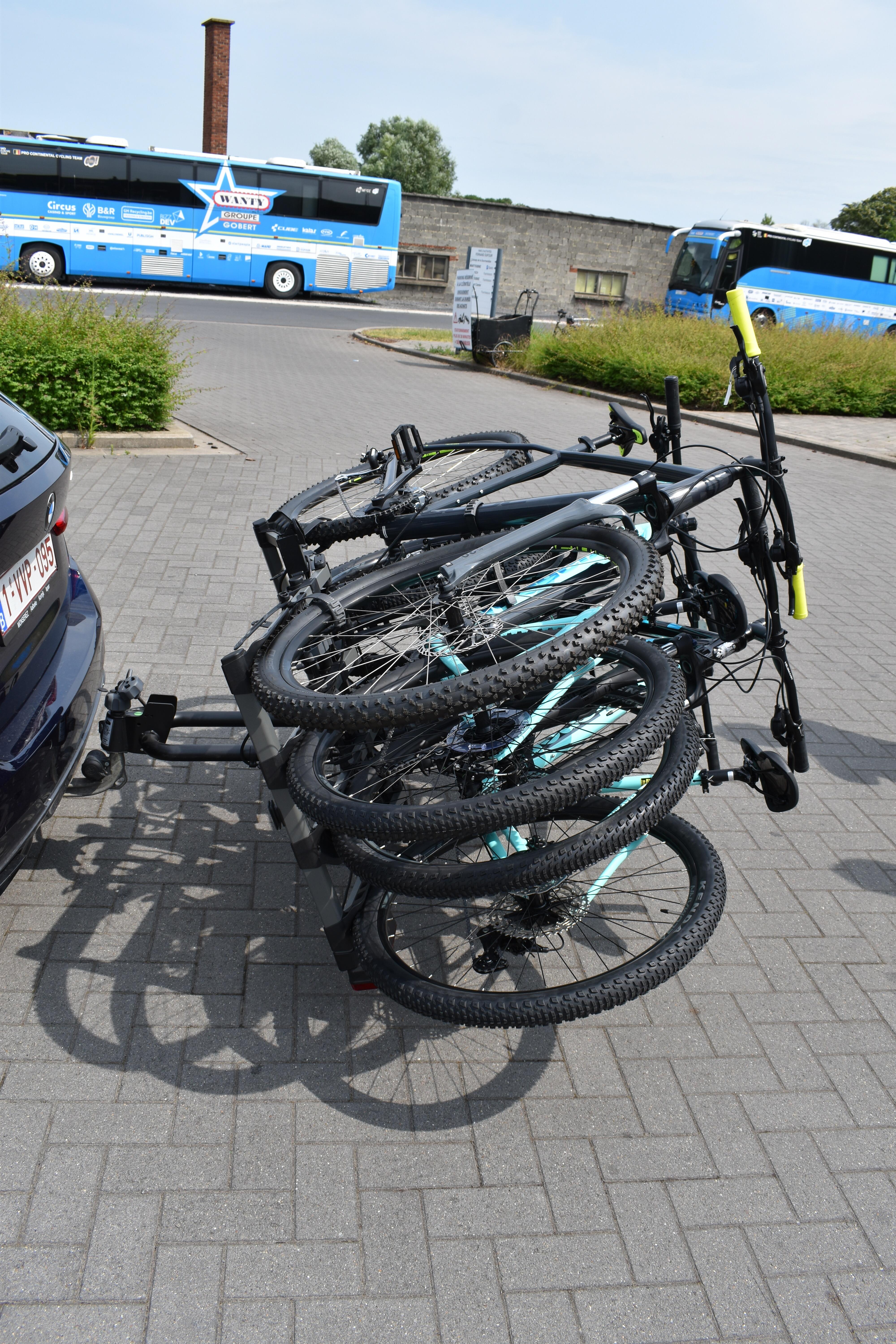

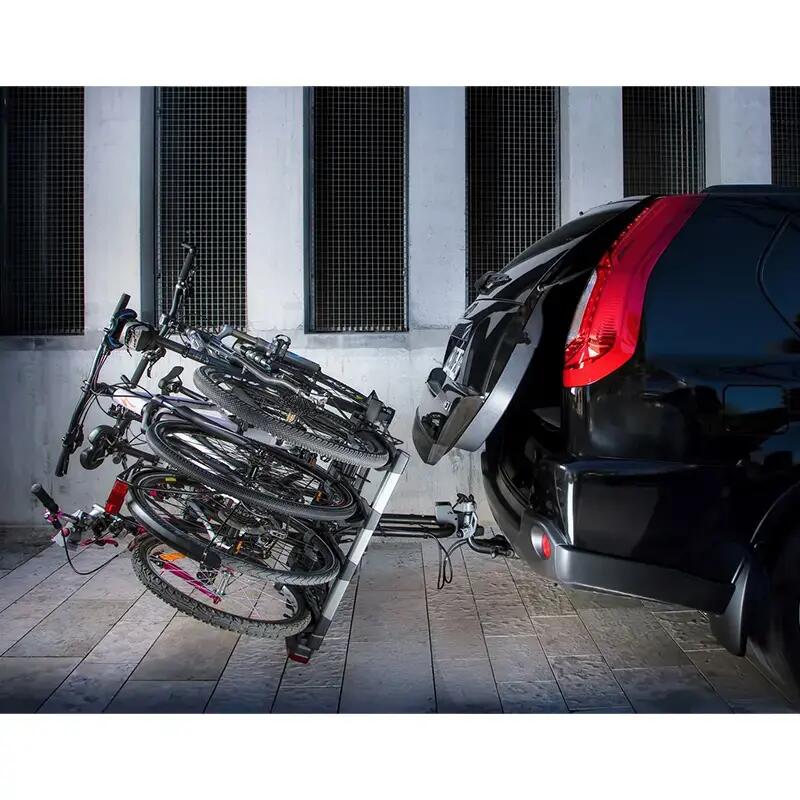

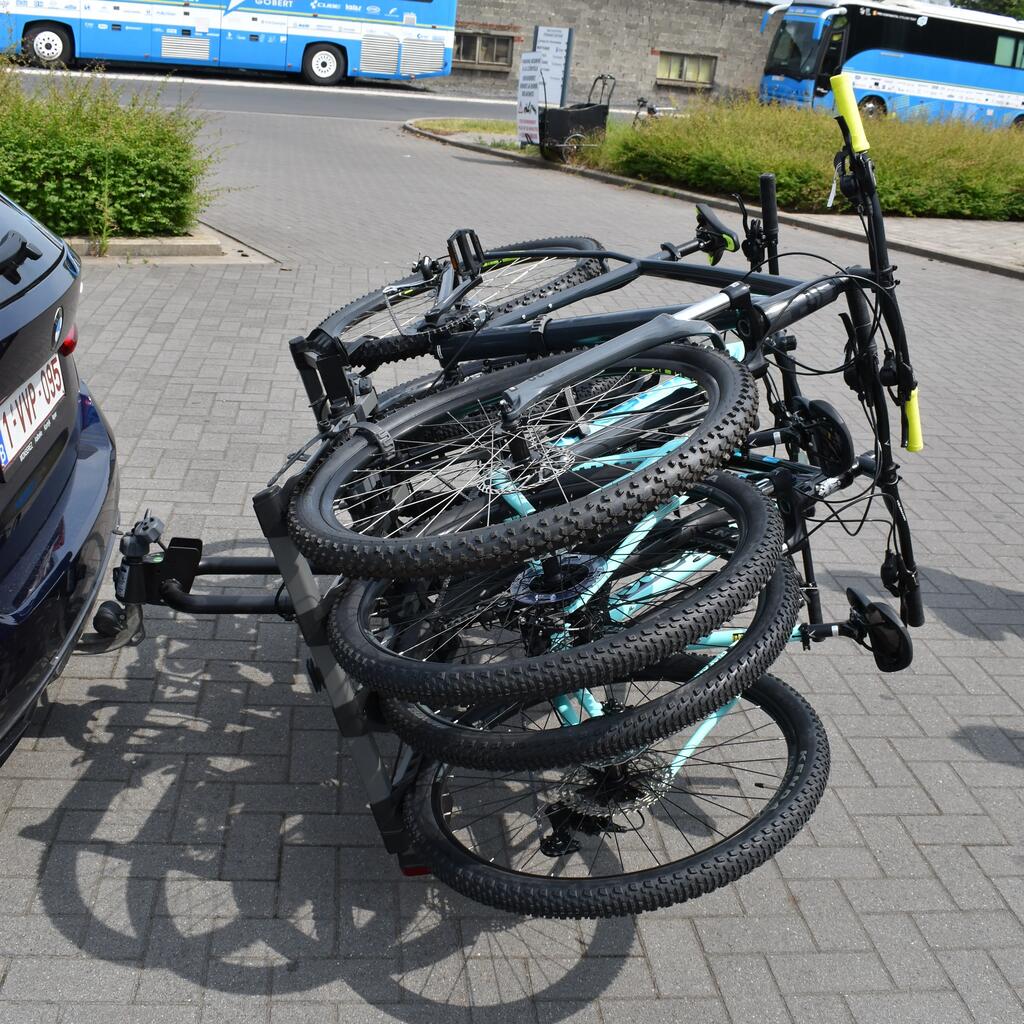

- TILTING
Very easy to tilt, well balanced during tilting, and tilts far enough to allow access to the car boot.
- LOCKING CABLE
The Eazzy 4 comes with a built-in locking cable.
- LIGHTS
Equipped with 6-function lights and a 13-pin plug.
- SIZE

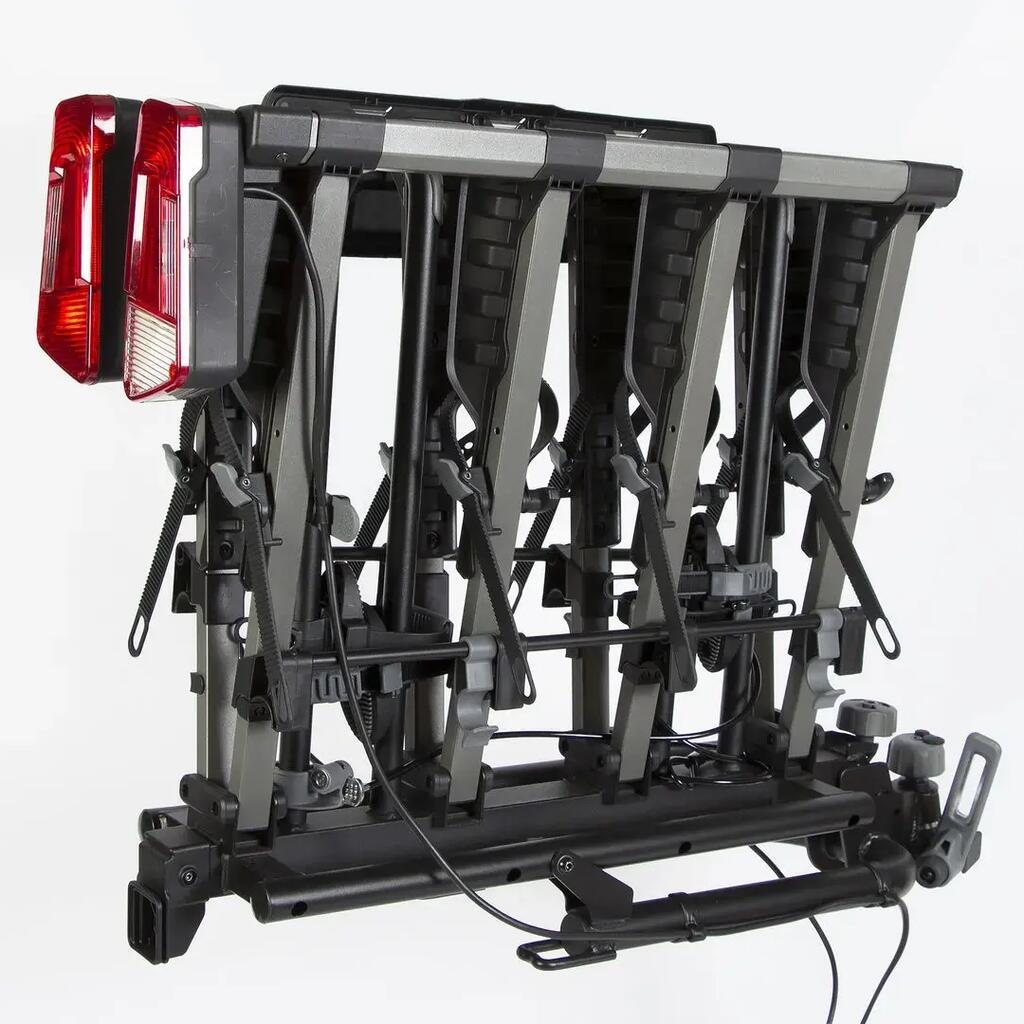

The Eazzy 4 has been made more compact to fit most car boots and for easy storage.
Technical Specifications
|---|---|
|Max number of bikes|4|
|Dimensions (Width x Depth)|113 x 92 cm (measured from the centre of the towball mount to the outer edge of the number plate holder)|

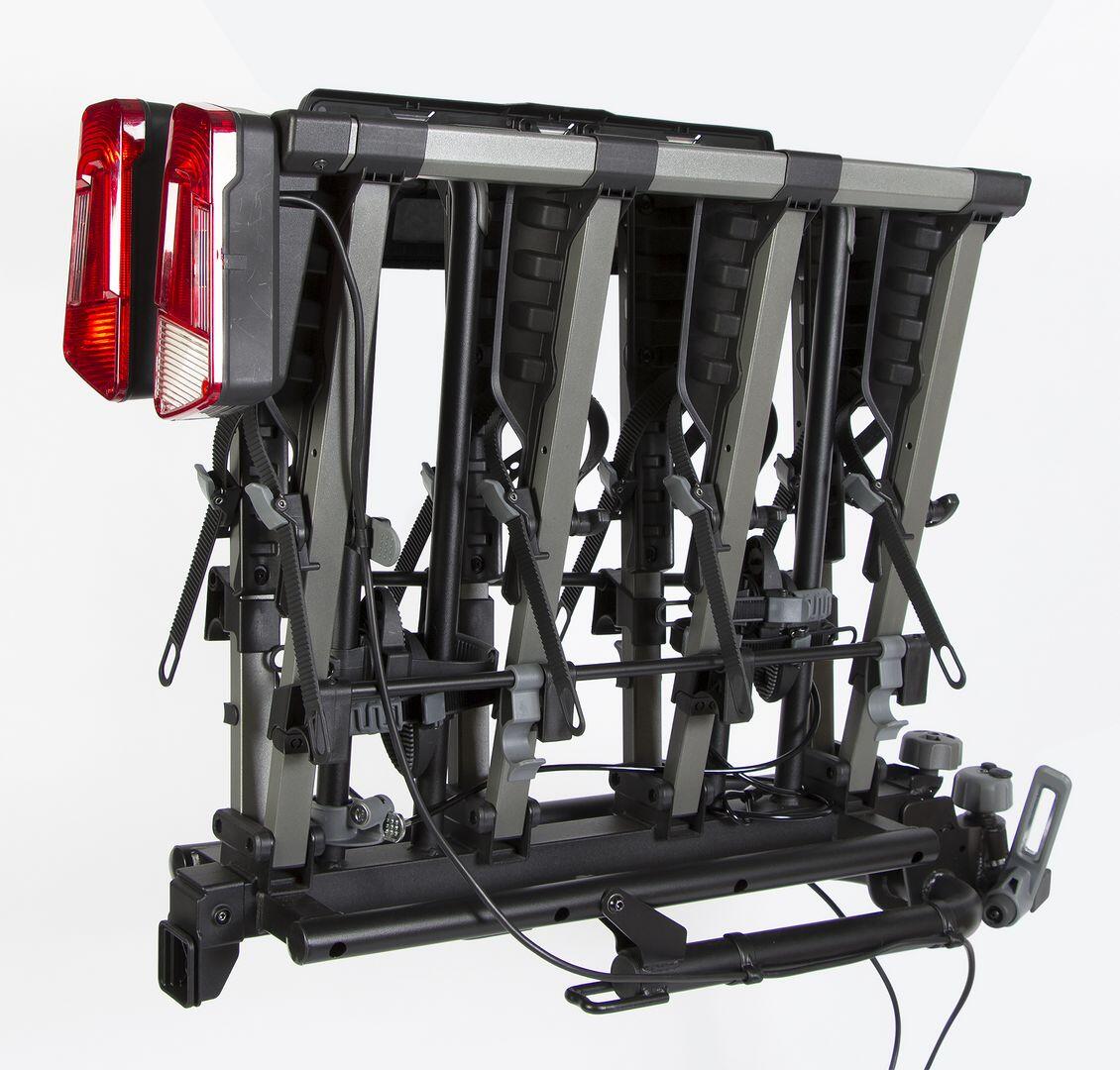

|Folded dimensions|25 x 92 cm|
|Weight|19.7 kg|
|Max wheelbase accepted|up to 119 cm in 29"|
|Max tyre section|3.25"|
|Max frame diameter|75 mm|
|E-Bike compatible|No|
|Max load|60 kg|
|Max weight per bike|20 kg|
|Boot access / Tiltable|Yes|
|Folding|Yes|
|Lighting|Yes|
|Frame protection|Yes|
|Towball compatible|Yes|
|Swan neck / Detachable ball compatible|Yes|
|FIX4BIKE compatible|Yes|
|Towball lock|Yes|
|Bike lock|Yes|
|Adjustable wheel support|No|
|Anti-corrosion treatment|Yes|
|Lighting plug type|13-pin|
|Standard|XP R-18 904-4|
|---|---|
The maximum load you can carry is also determined by the nose weight of your towbar; check that this is not exceeded before use.
Requires a clearance of 65 mm between the towball centre and the rear of the vehicle.
Does not allow tailgate opening for van-type vehicles (VW Transporter, Citroën Berlingo, Peugeot Partner, Renault Master, ...).
