Product Description

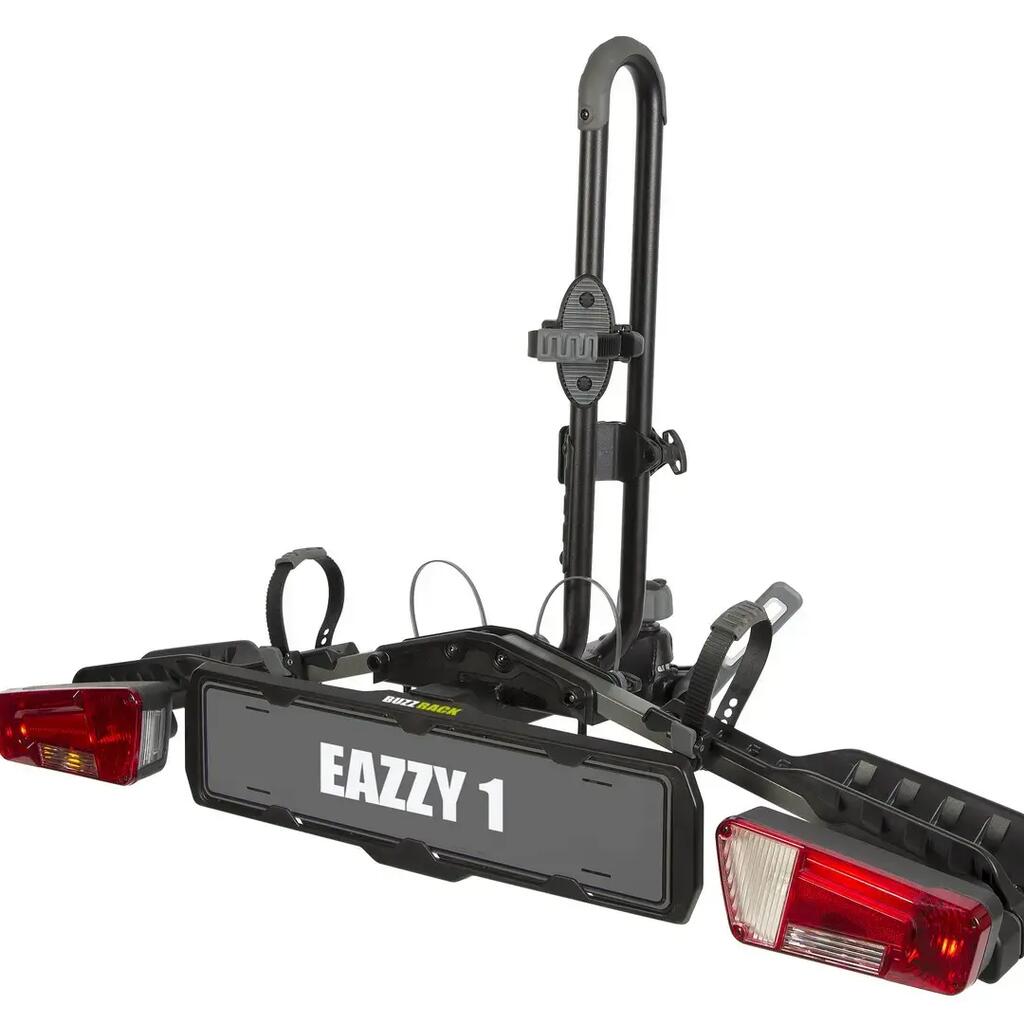

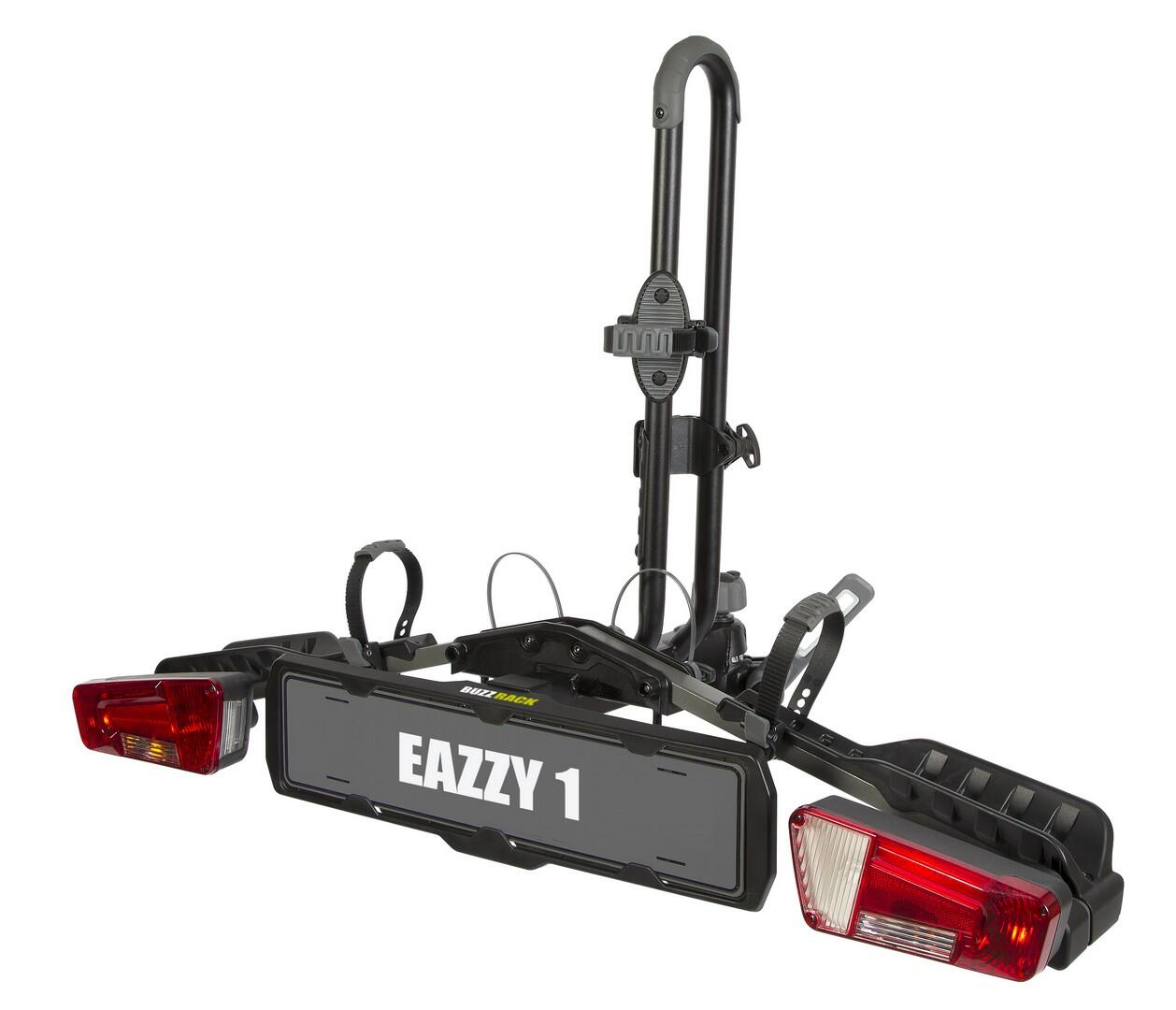

Description: Eazzy 1 – Folding bike rack for 1 bike
The Eazzy 1 fits all types of 50 mm tow balls (standard and swan neck). You can carry 1 adult or child bike with a maximum weight of 20 kg. The quick-release ratchet strap and the unique cradle design make loading bikes quick and easy. Its anti-corrosion treatment and high-quality welding ensure exceptional durability. Delivered fully assembled – just attach the lights and it’s ready to use.
Features

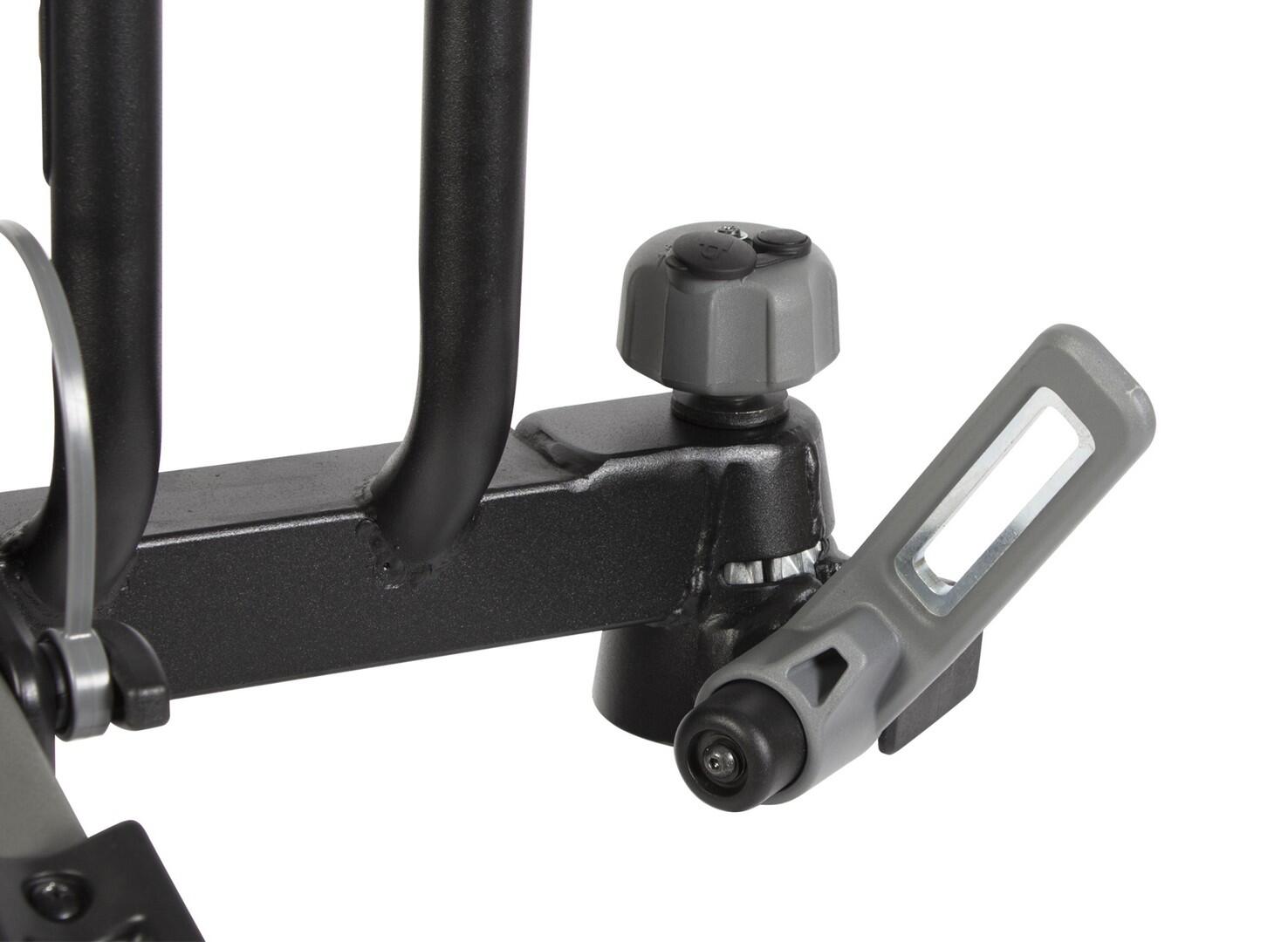

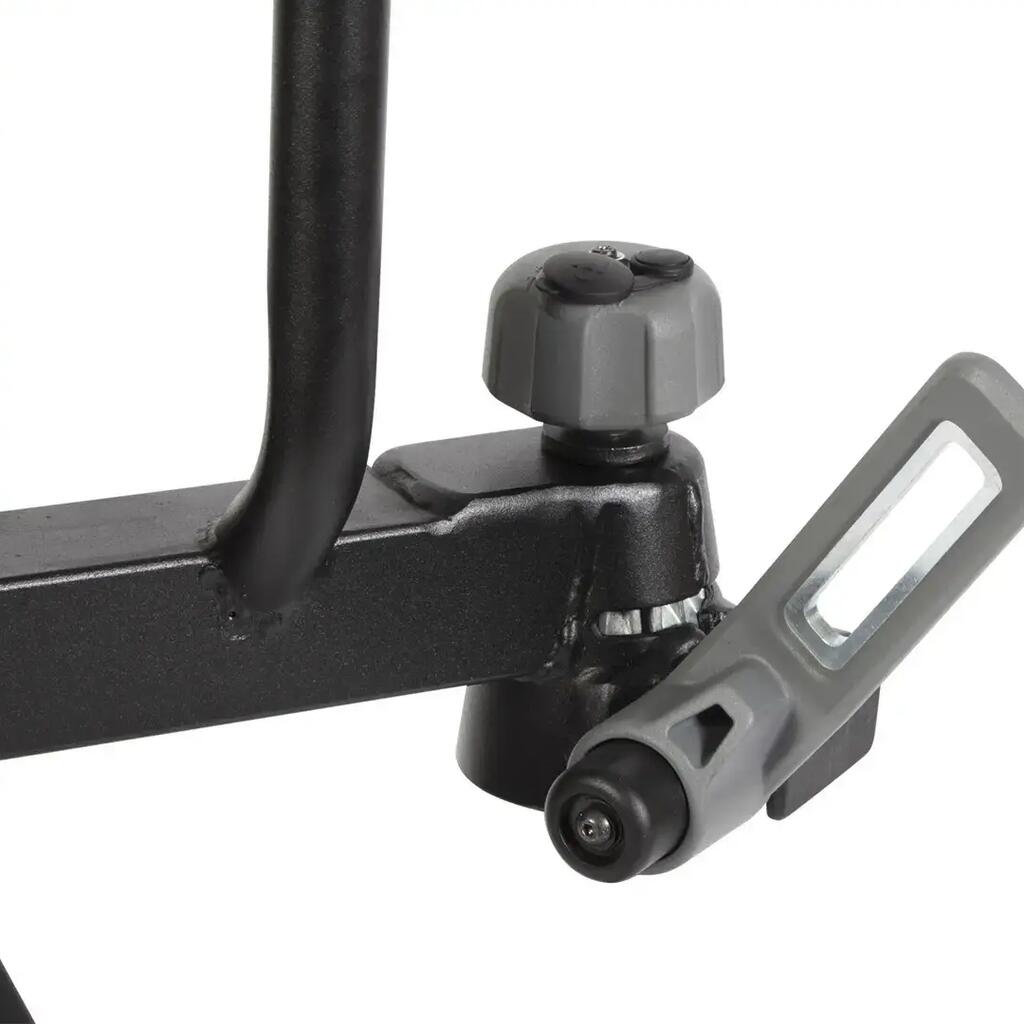

TOW BALL ATTACHMENT
The patented conical fixing system fits all ISO 50 mm tow balls. Simple, fast, and secure.
The system can be locked and secured with the locking button.
This system is one of the few that meets the highest safety standards.

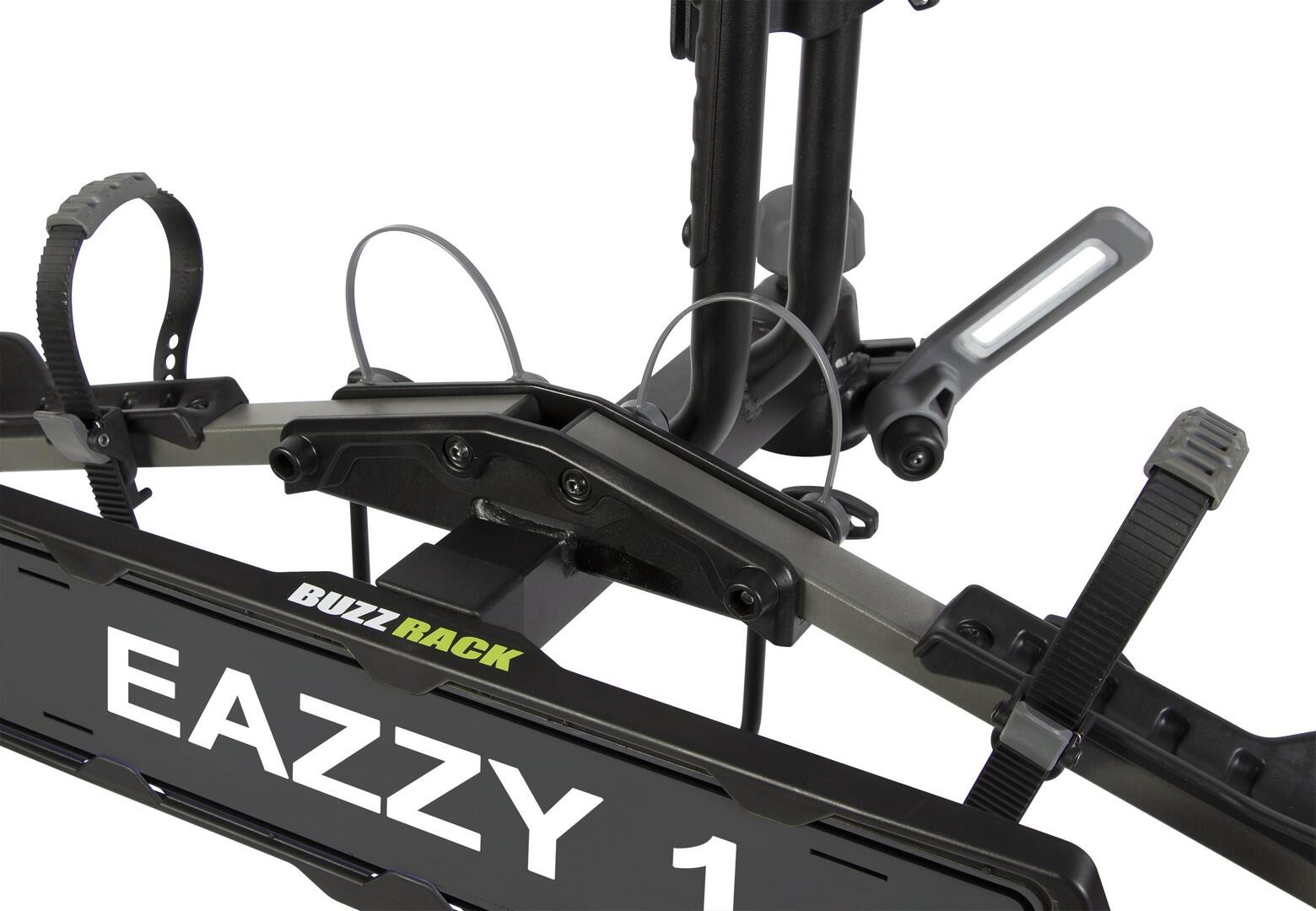

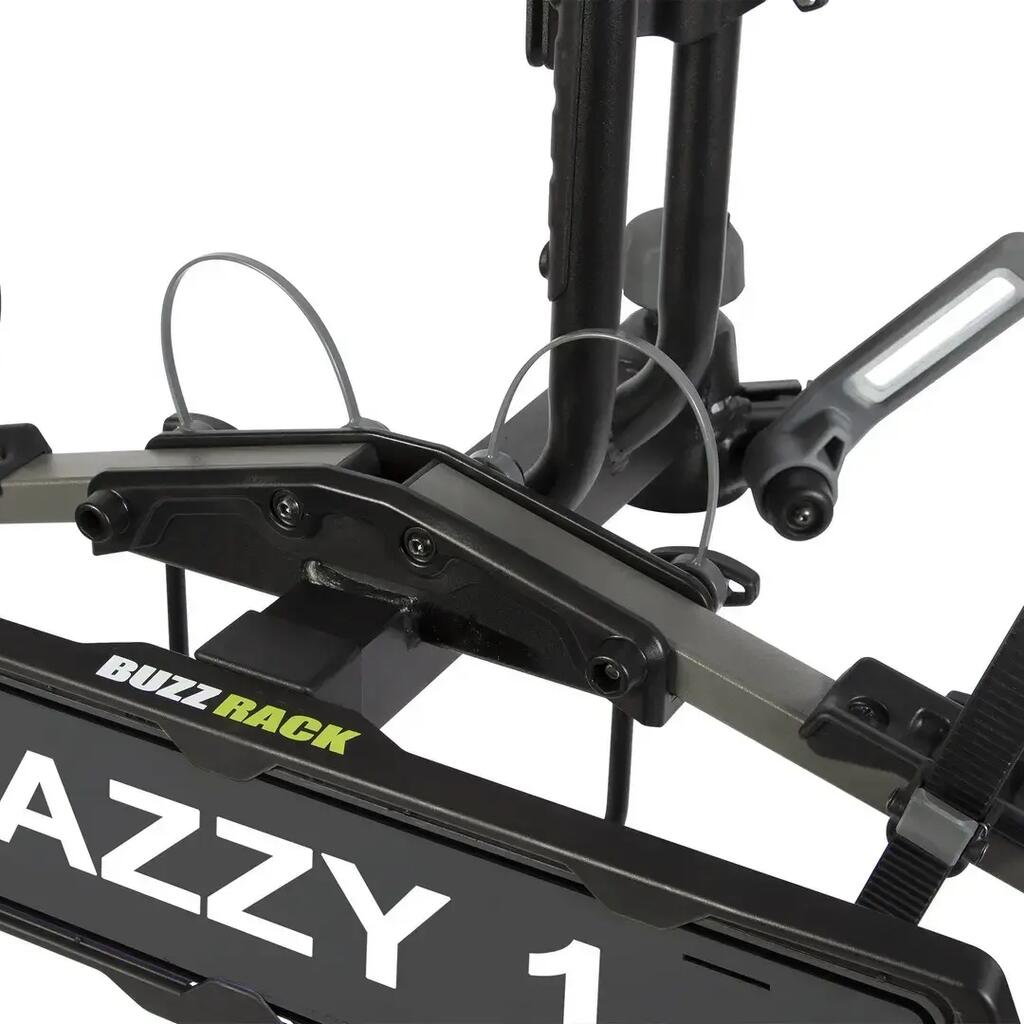

WHEEL SUPPORTS
Wheel supports fit all wheelbases, even very small children's bikes.
Secured with a locking button.

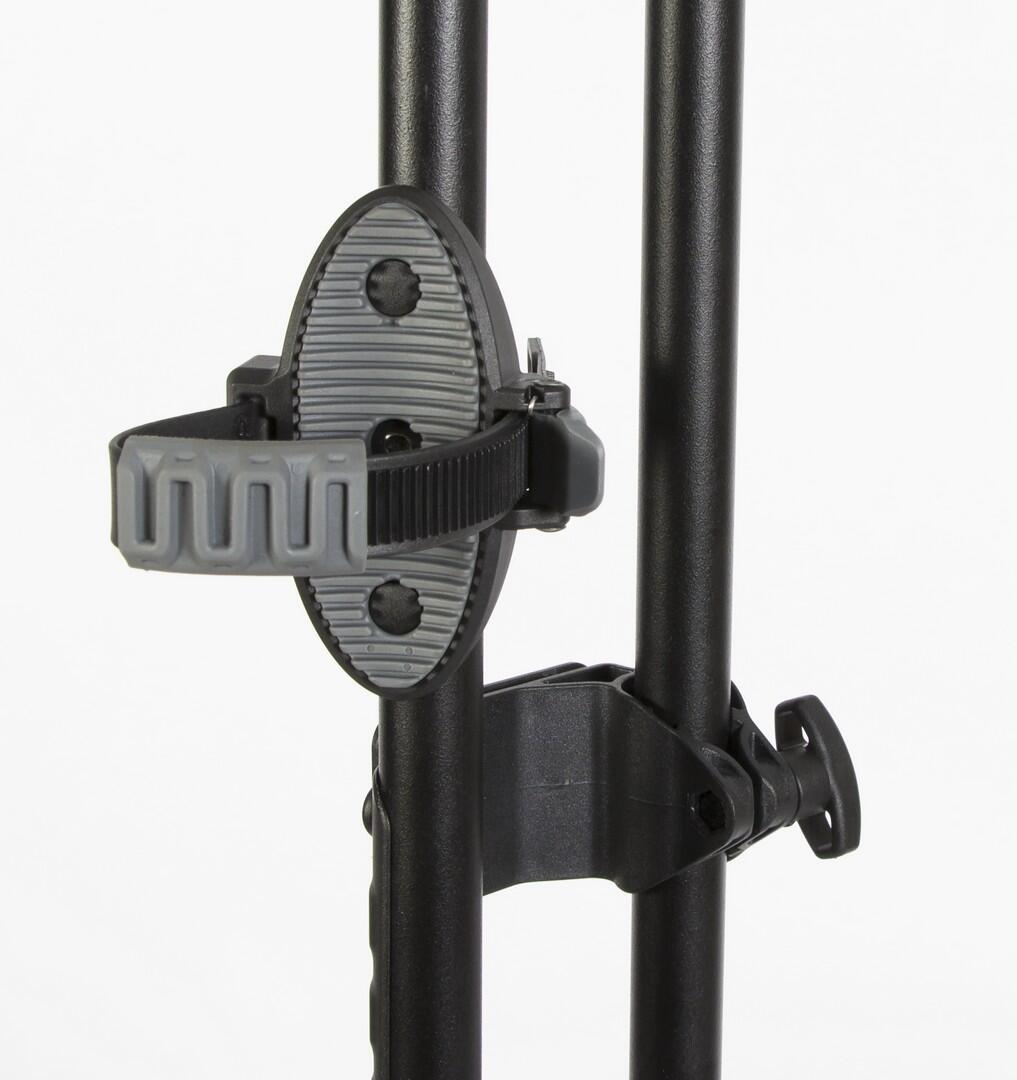

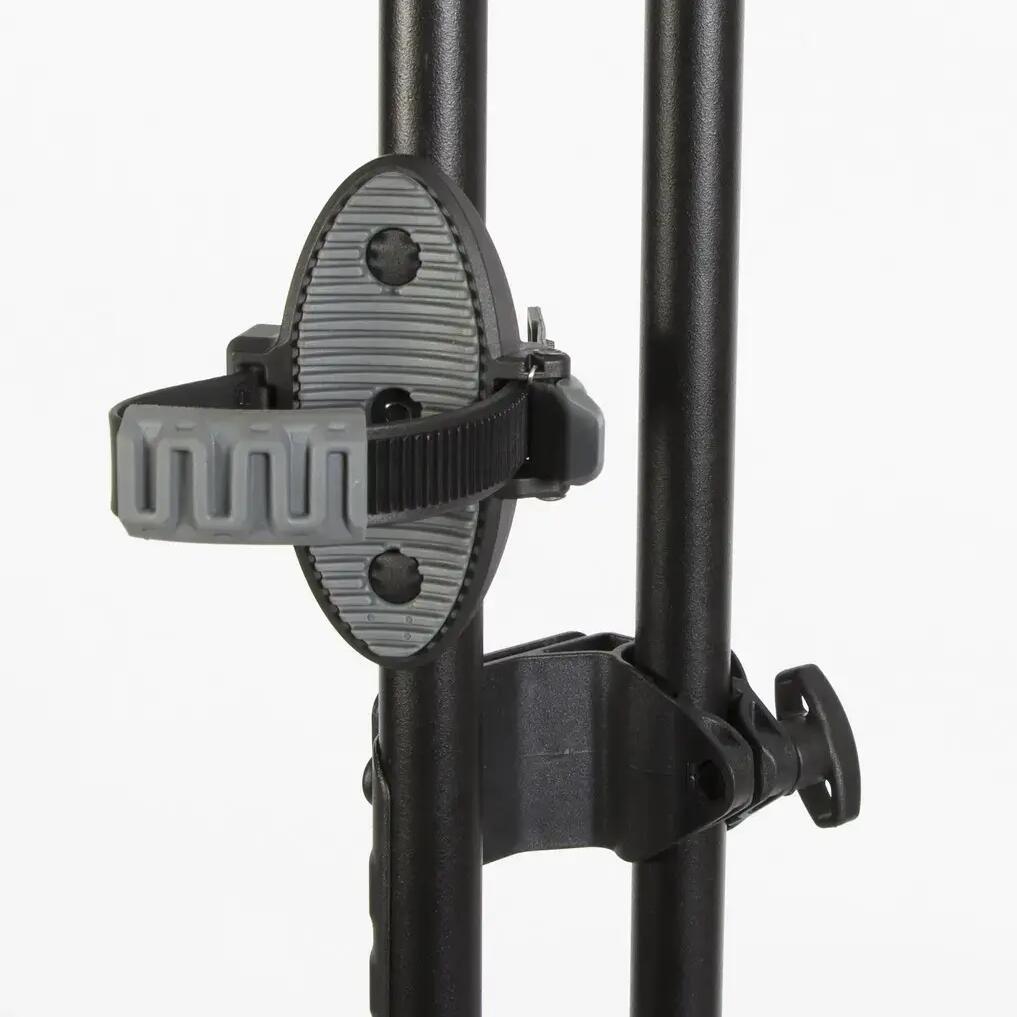

BIKE FRAME CRADLE
The padded cradle rotates 360 degrees to fit all frame tubes. The ratchet straps are easy and quick to use.
LOCKING CABLE
The EAZZY 1 is equipped with a locking cable.
LIGHTS
Equipped with 6-function lights and a 13-pin plug.

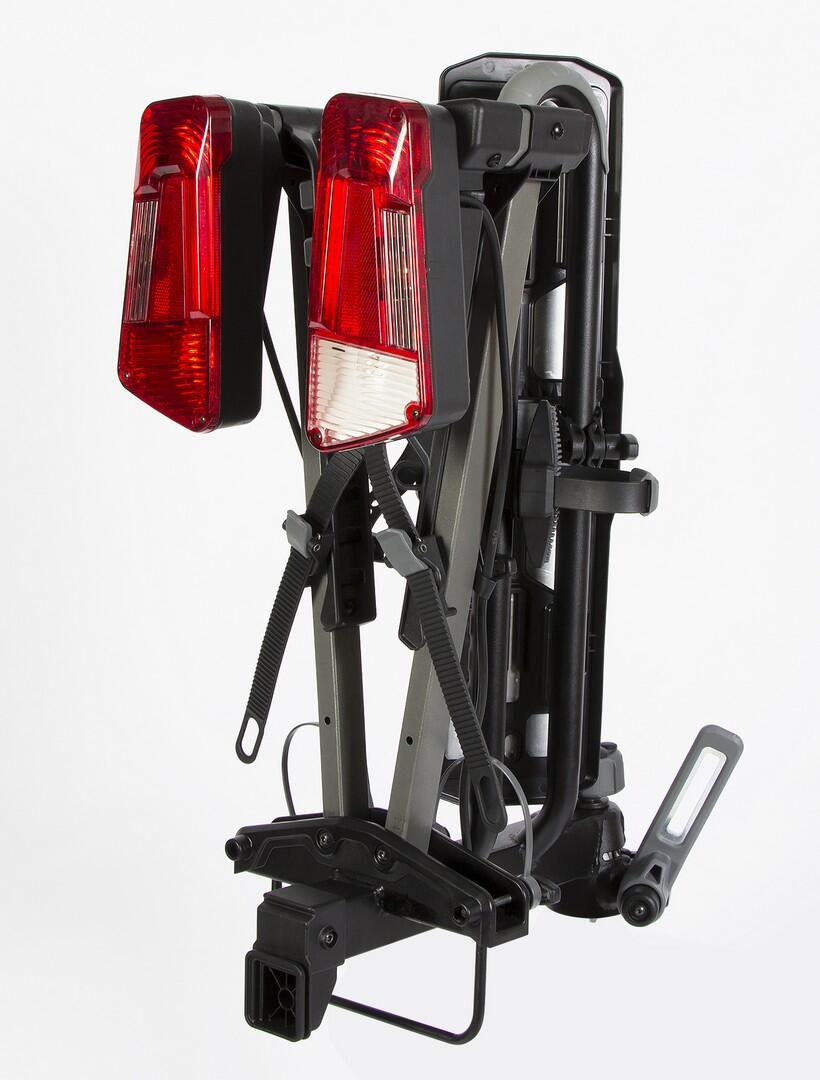

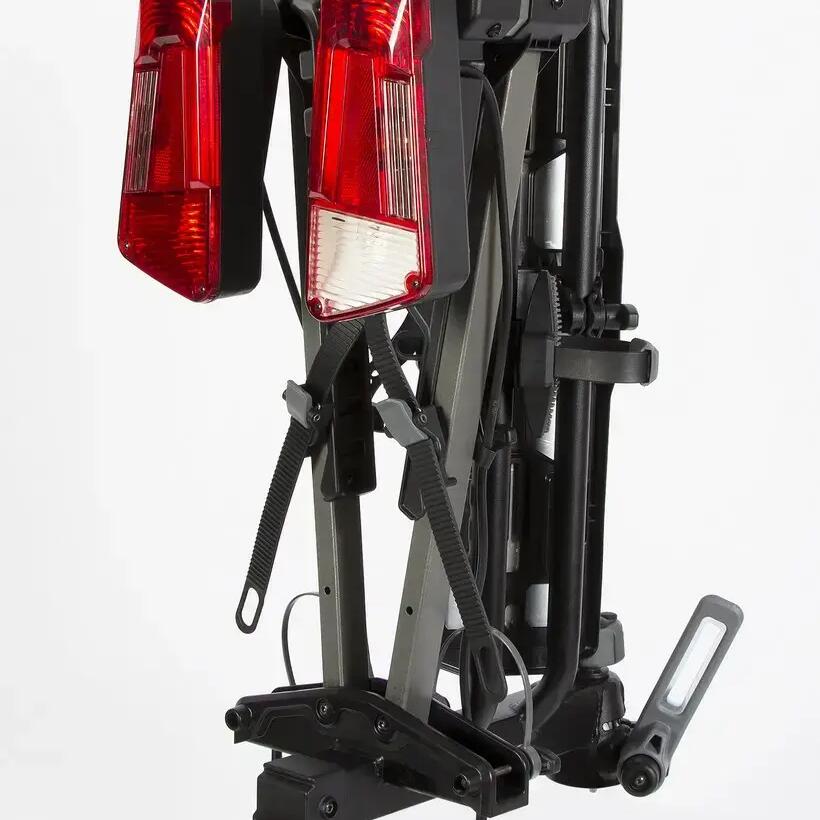

SIZE
The EAZZY 1 has been made more compact to fit most car boots and is easy to store.
Technical specifications
- Max number of bikes: 1
- Fits towball: yes
- Fits swan neck / detachable ball: yes
- Compatible with FIX4BIKE: yes
- Dimensions (width x depth): 109 x 44 cm
(measured from the centre of the towball mount to the outer edge of the number plate holder)
- Folded dimensions: 24 x 44 cm
- Weight: 7.3 kg
- Max load: 20 kg
- Max weight per bike: 20 kg
- Max bike size: up to 119 cm wheelbase in 29"
- Max frame diameter: Ø 75 mm
- Max tyre width: 3.25"
- Tilting: no
- Anti-corrosion protection: yes
- Integrated light board: yes
- Light board plug type: 13-pin
- Towball lock: yes
- Bike lock: yes
- Standards: XP R-18 904-4
The maximum permissible load is also determined by the nose weight of the towbar; you must check that this is not exceeded before use.
Requires a clearance of 65 mm between the centre of the towball and the rear of the vehicle.
Does not allow tailgate opening on van-type vehicles (VW Transporter, Citroën Berlingo, Peugeot Partner, Renault Master, ...).
