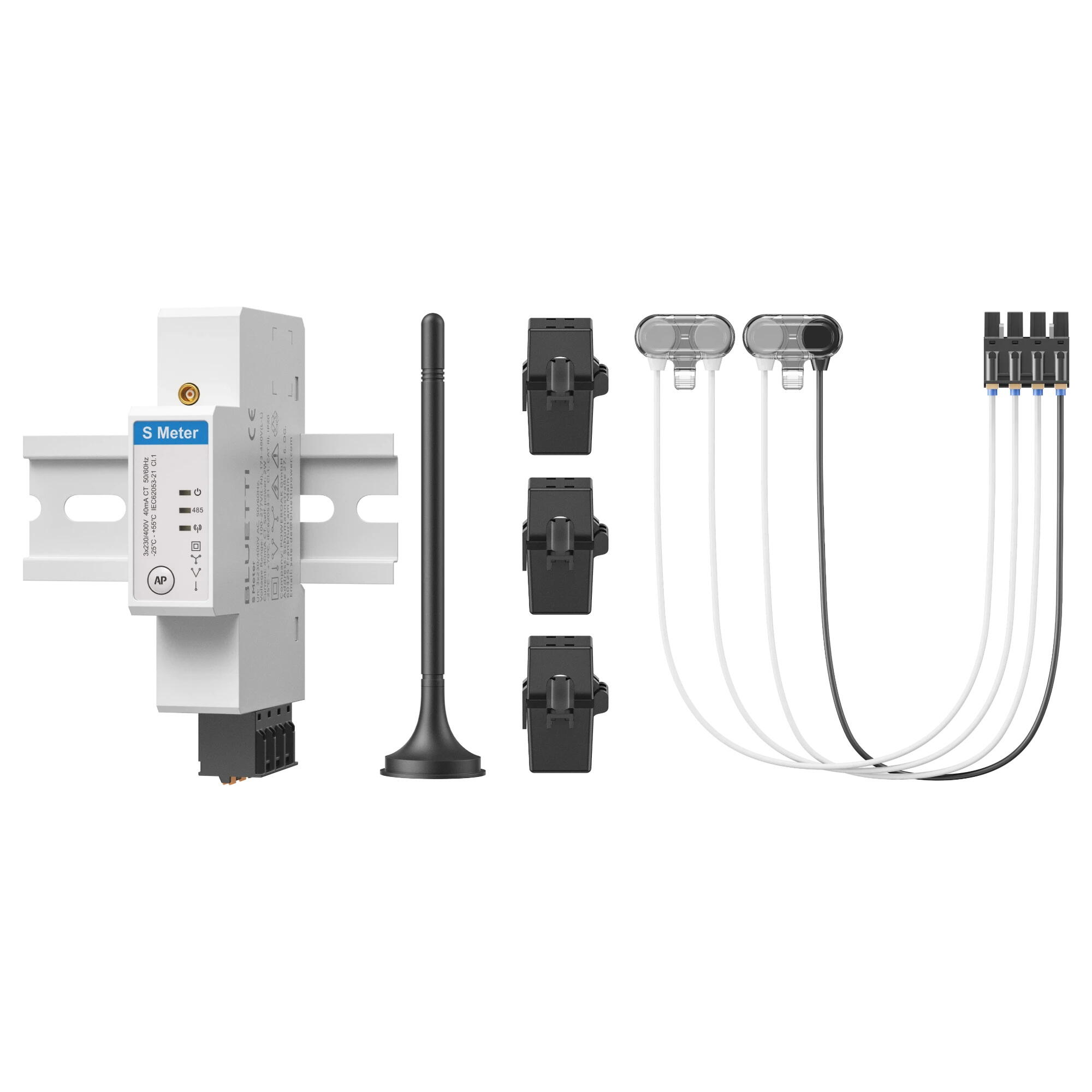

BLUETTI S Meter Smart Energy Meter for Balco, Real-Time Power Monitoring,3-Phase

Product Description

S Meter helps your Balco system understand how much power your home needs, so more solar energy is used where it matters most.

• World’s First Magnetic Design: Magnetic wiring makes self-installation quick and easy, saving extra electrician costs.
• Smart Monitoring to Prevent Grid Feed-In: An essential add-on for the Balco series, S Meter monitors your home appliances’ power needs in real time, helping Balco distribute energy
• precisely, power your home first, and prevent grid feed-in.
• Real-Time Data Feedback: With updates as fast as 100ms via Wi-Fi or 50ms via RS485, S Meter quickly detects power changes and helps Balco adjust energy supply faster.
• Flexible Load Measurement: Supports both 3-phase systems and three independent single-phase circuits, making it suitable for more home energy setups.

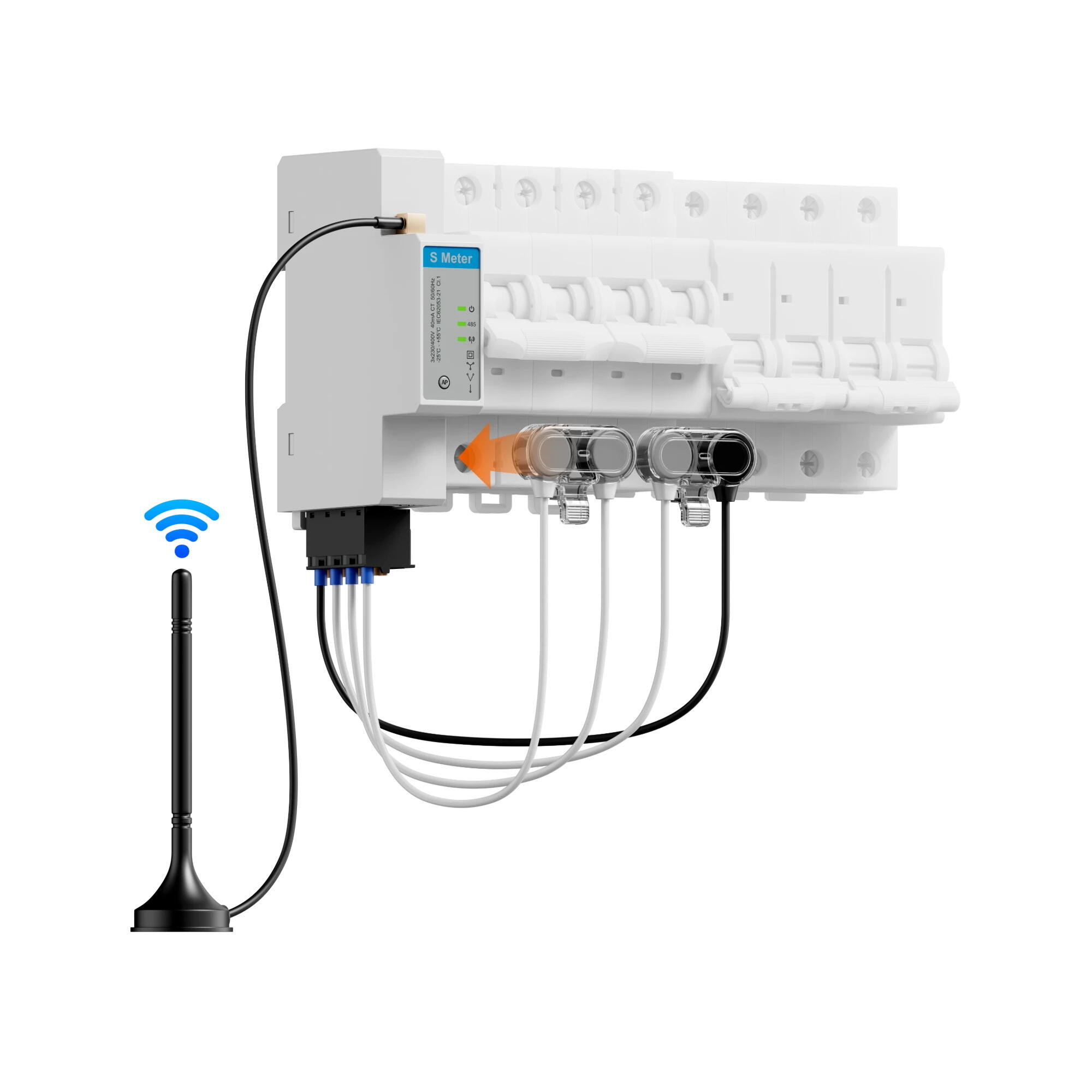

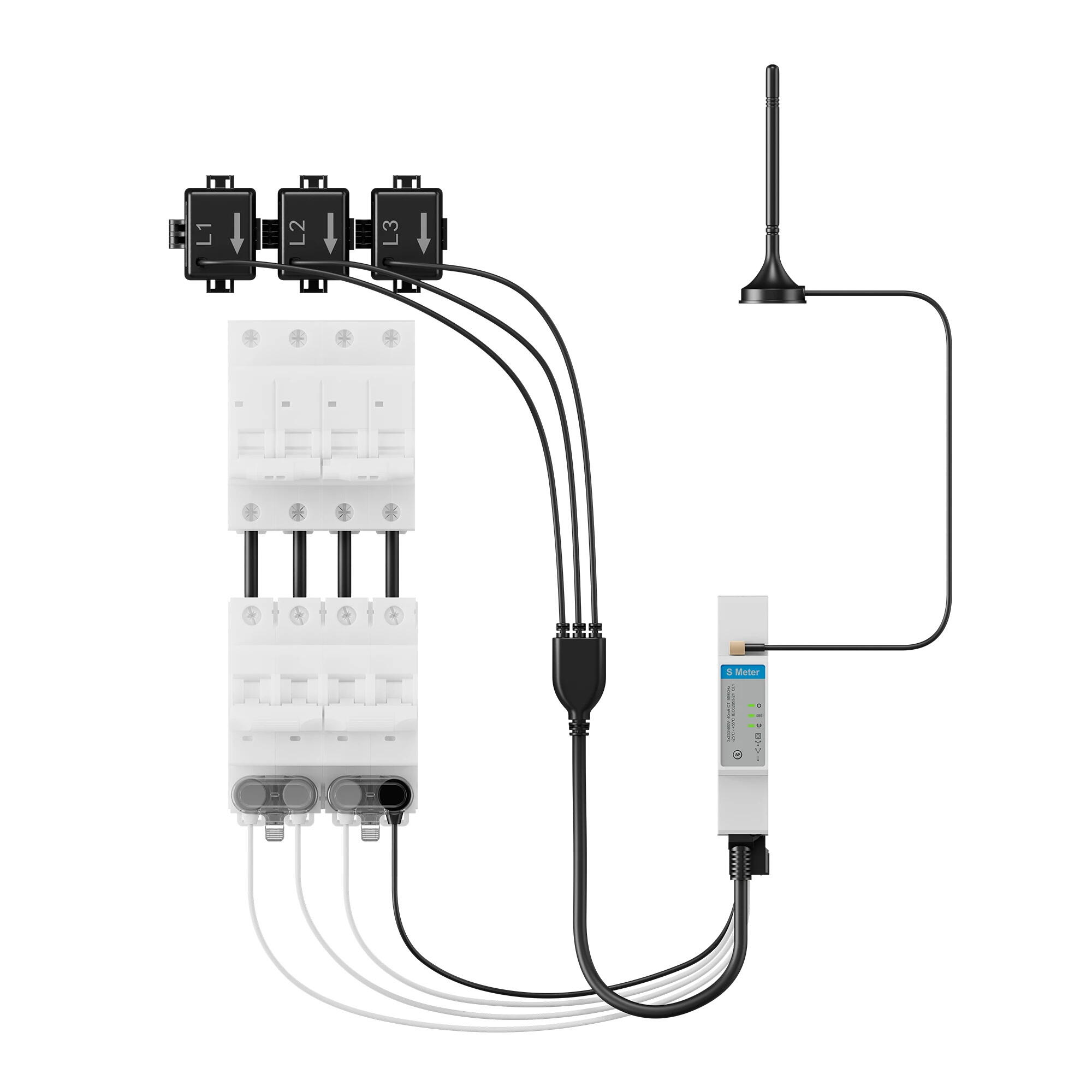

World’s First Magnetic Design

Set up S Meter yourself without professional installation, reducing complex wiring and extra electrician costs.

Smart Monitoring, Zero Energy Waste

S Meter tracks your home’s power needs in real time, helping Balco supply the right amount of energy first and store the excess for later.

Key Tech

Maximum Current : 120A
Type of Measurement : RMS Including Harmonics on
Three Phase AC System (3P, 3P+N)
Frequency : ±0,2%
Data Update Rate
Active Power:
Channel 1: 50ms(RS485), 100mS(Wi-Fi)
Channel 2: 100mS(RS485), 150mS(Wi-Fi)
Current Inputs
Require an External Current Transformer for Insulation
Response Time : <50 ms
RF Band : 2,4 GHz to 2,5 GHz
Max. RF Power : <20 dBm
Wi-Fi Protocol : 802,11 b/g/n
Wi-Fi Range
Up to 30m / 100ft indoors and 50m / 160ft
outdoors (Depends on local conditions)
IP Degree of Protection
(IEC 60529) IP51 Front Display / IP20 Whole Meter
Mounting : DIN Rail 35mm
Material of Meter Case : Self-extinguishing UL 94 V-0
Weight≈100g
Dimensions (L×W×H) : 94,5*19*68,5mm
Operating Temperature
-40℃ ~ +70℃
Storage Temperature
-40℃ ~ +80℃
Operating Humidity : ≤90% Non-condensing
Storage Humidity : ≤95% Non-condensing
