Product Description
[Vehicle positioning]

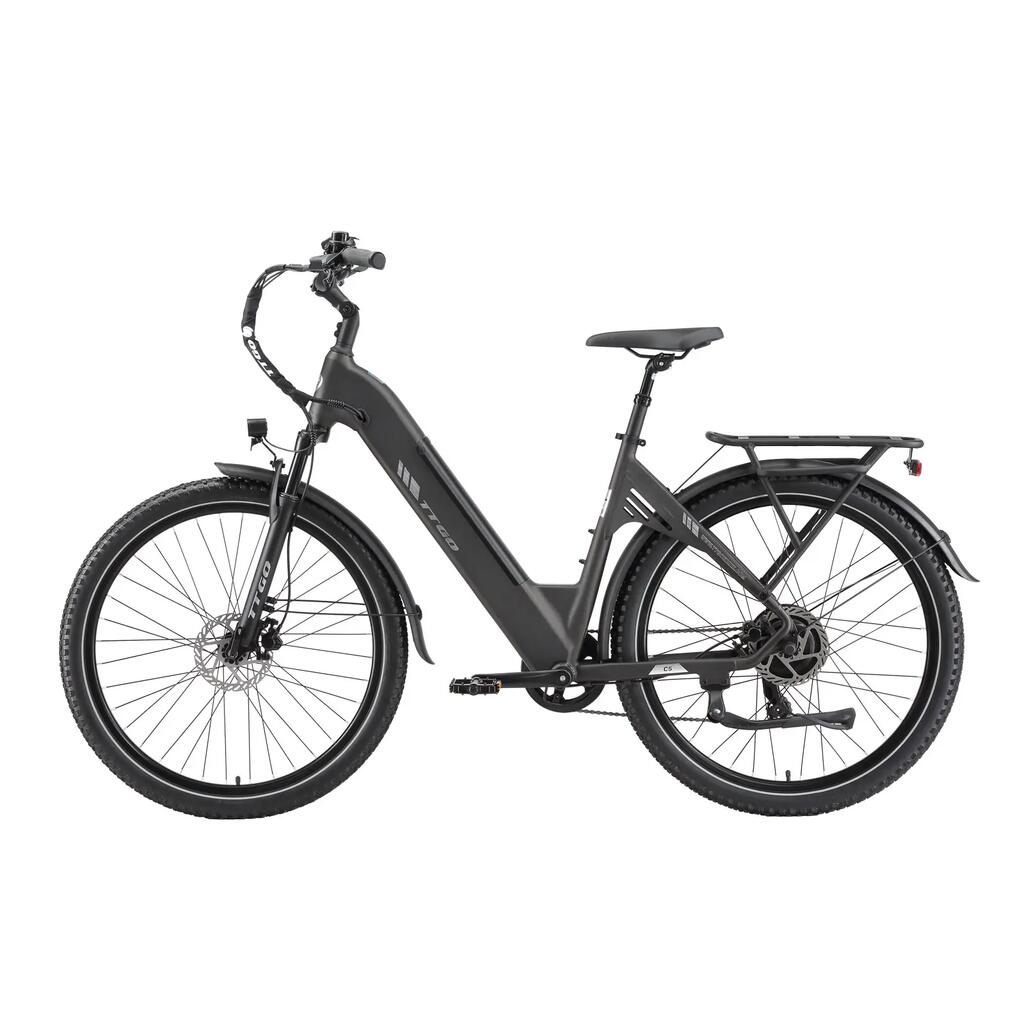

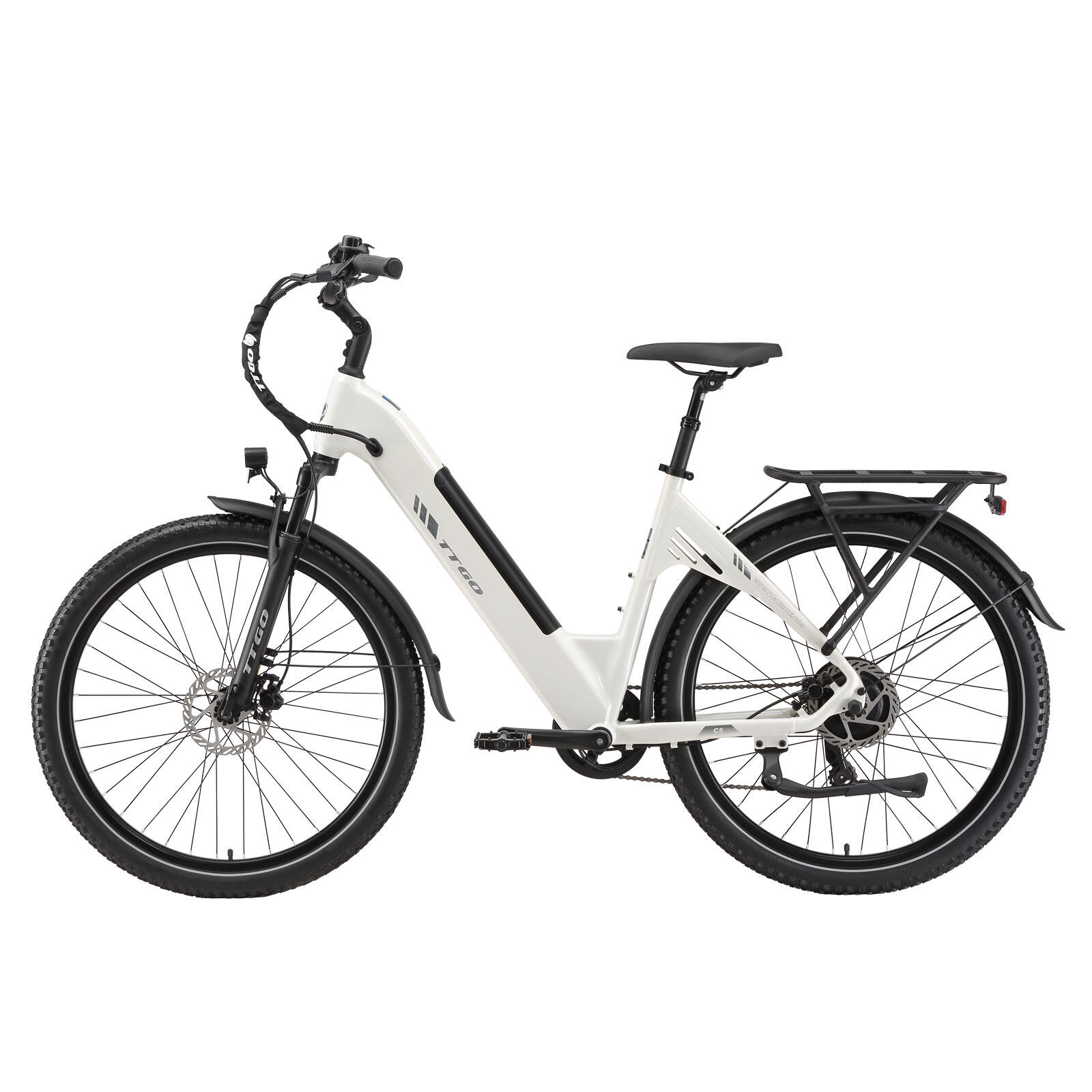

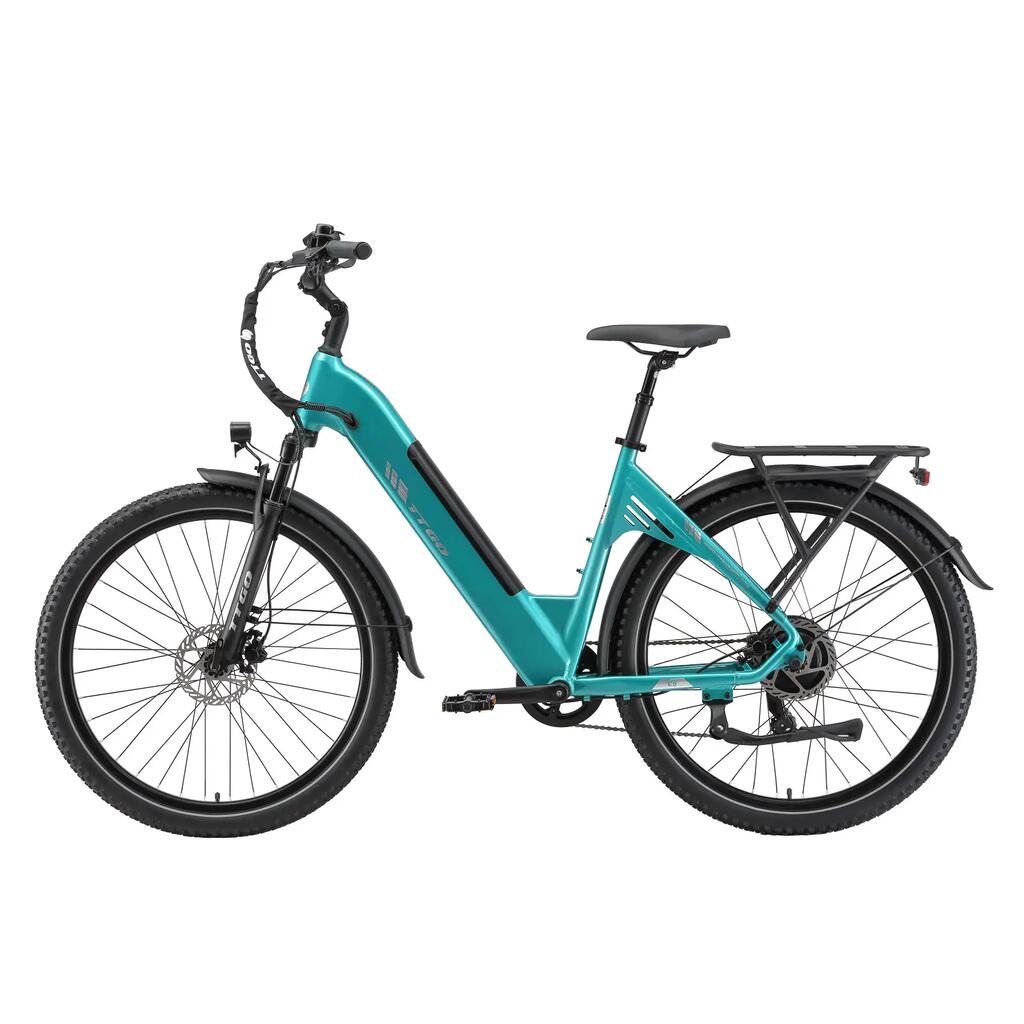

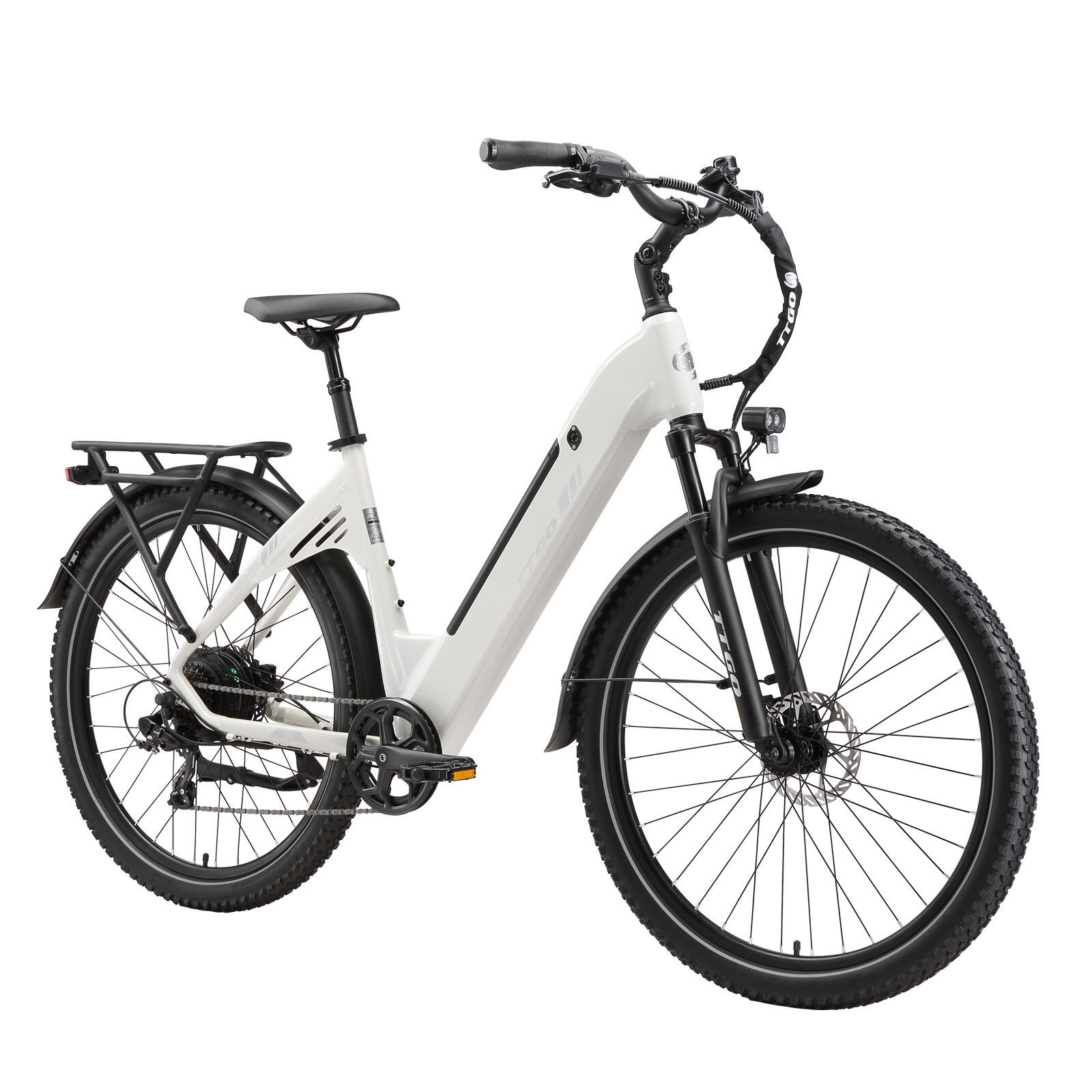

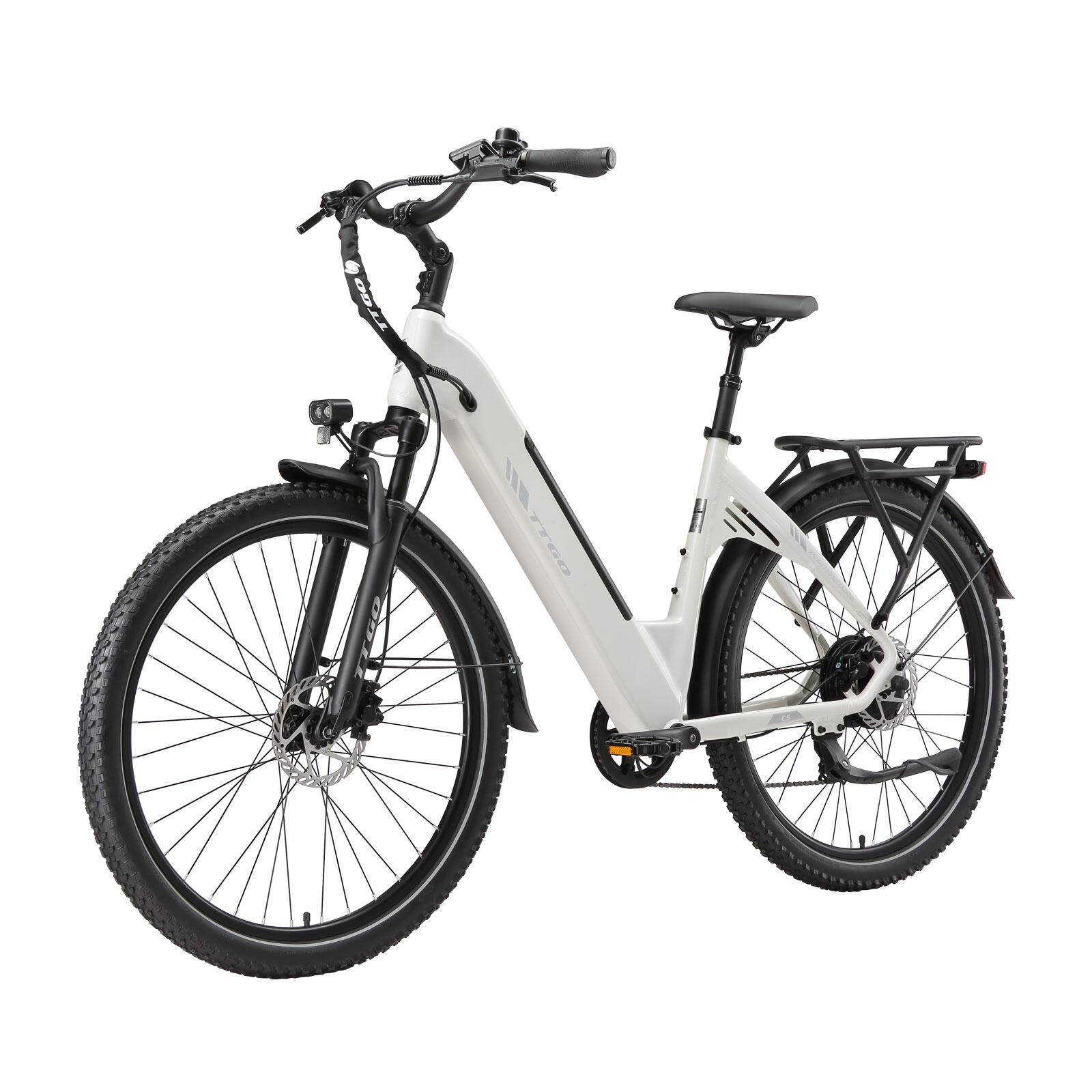

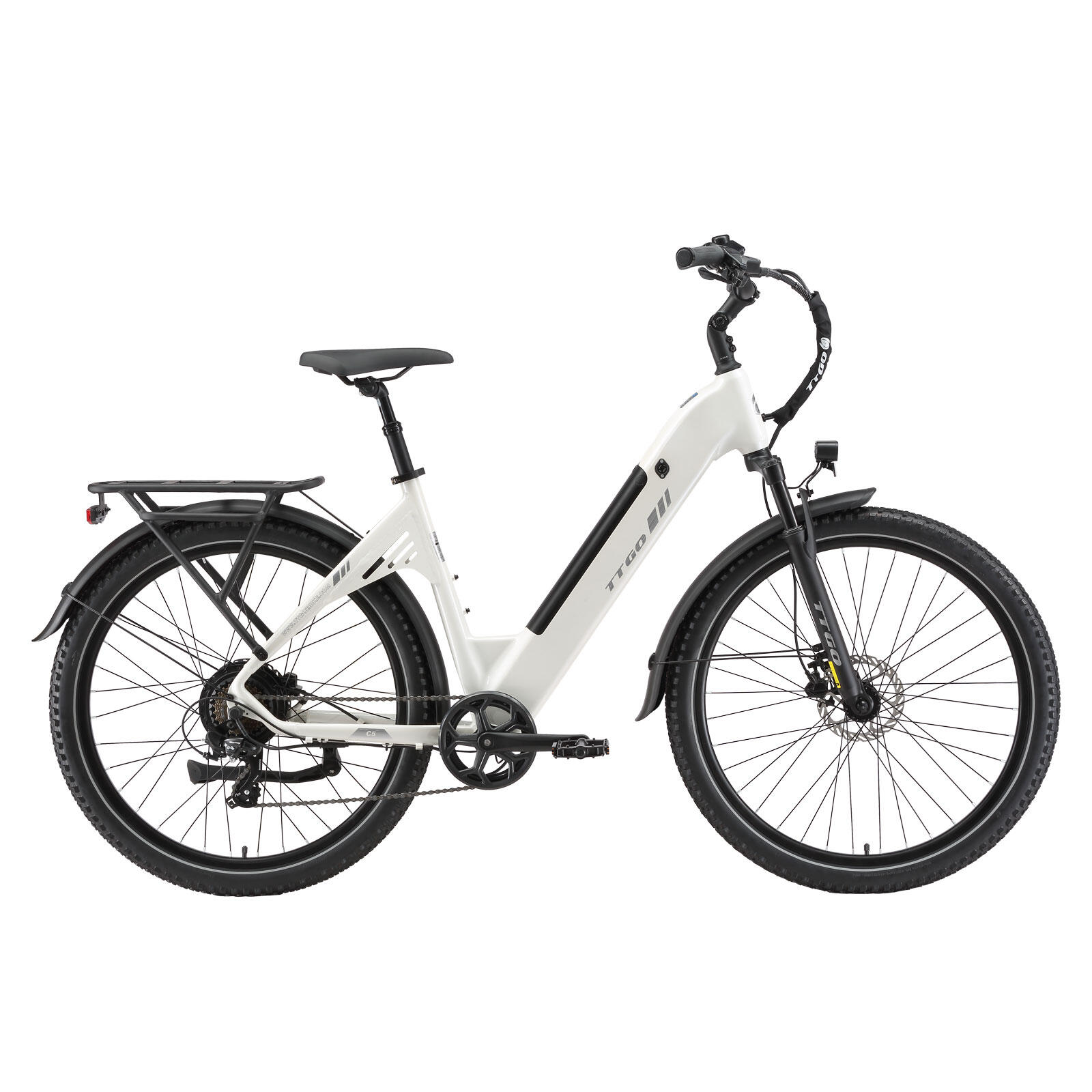

TTGO C5 is an electric bicycle with 27.5 x 2.4-inch tires. 6061 aluminum alloy frame, rear wheel motor drive, speed sensor provides assistance. The height of the riser can be adjusted to accommodate different heights. The net weight of the vehicle is 26kg, the gross weight of the packaging is 34kg, and the dimensions of the cardboard box are 148 × 24.5 × 80cm. The maximum load-bearing capacity is 125kg.
[Battery and Range]
The battery specification is 48V 13.5Ah, with a capacity of 648Wh, equipped with a 54.6V 2A charger, and can be fully charged in about 6.5-7 hours per charge. Tested range in assist mode is 90-110 kilometers, with a maximum speed of 25 km/h depending on the rider's weight, road conditions, and remaining battery.
[Power and Climbing]
The rated power of the rear motor is 250W, with a maximum torque of 70N. m. The maximum climbing angle is not specified, and the 70N. m torque is relatively high among vehicles in the same class, providing sufficient power for starting and uphill driving. Equipped with Shimano 7-speed mechanical transmission, downshifting on uphill is effortless, while upshifting on level roads increases speed. The instrument is equipped with an LCD display, which allows for clear viewing of information such as speed, battery level, and gear position.
[Shock absorption and braking]
The front fork is a shock-absorbing fork that filters out road vibrations. The seat tube is a ZOOM shock-absorbing seat tube, with an unspecified stroke, which can alleviate rear wheel bumps and improve riding comfort. Front and rear hydraulic disc brakes have strong braking force, linear feel, and reliable performance on wet and slippery roads. 27.5 × 2.4-inch tires balance passability and rolling efficiency.
[Tire and Size]
The tires are new 27.5 × 2.4 inch inflatable tires with good grip. Adjustable riser design, suitable for riders of different heights. The overall weight of the vehicle is relatively light (26kg), making transportation and daily use more convenient. Compact packaging size, convenient for storage and transportation.
[Product Parameters]
Product model: TTGO C5
Frame: 27.5 "aluminum alloy, 6061
Front fork: shock absorption
Tire: Zhengxin tire 27.5 " 2.4
Brake: oil brake
Transmission: Shimano 7s
Seat tube: ZOOM shock absorber seat tube
Riser: Adjustable
Battery: 48V13.5AH
Motor: 48V250W,
Torque: 70NM
Sensor: Speed
Instrument: LCD
Charger: 54.6V2A
Speed: 25KM/H
Assisted driving range: 90-110KM
Carton size: 148 24.5 * 80cm
Net weight/gross weight: 26KGS/34KGS
Maximum load-bearing capacity: 125kg
