Product Description

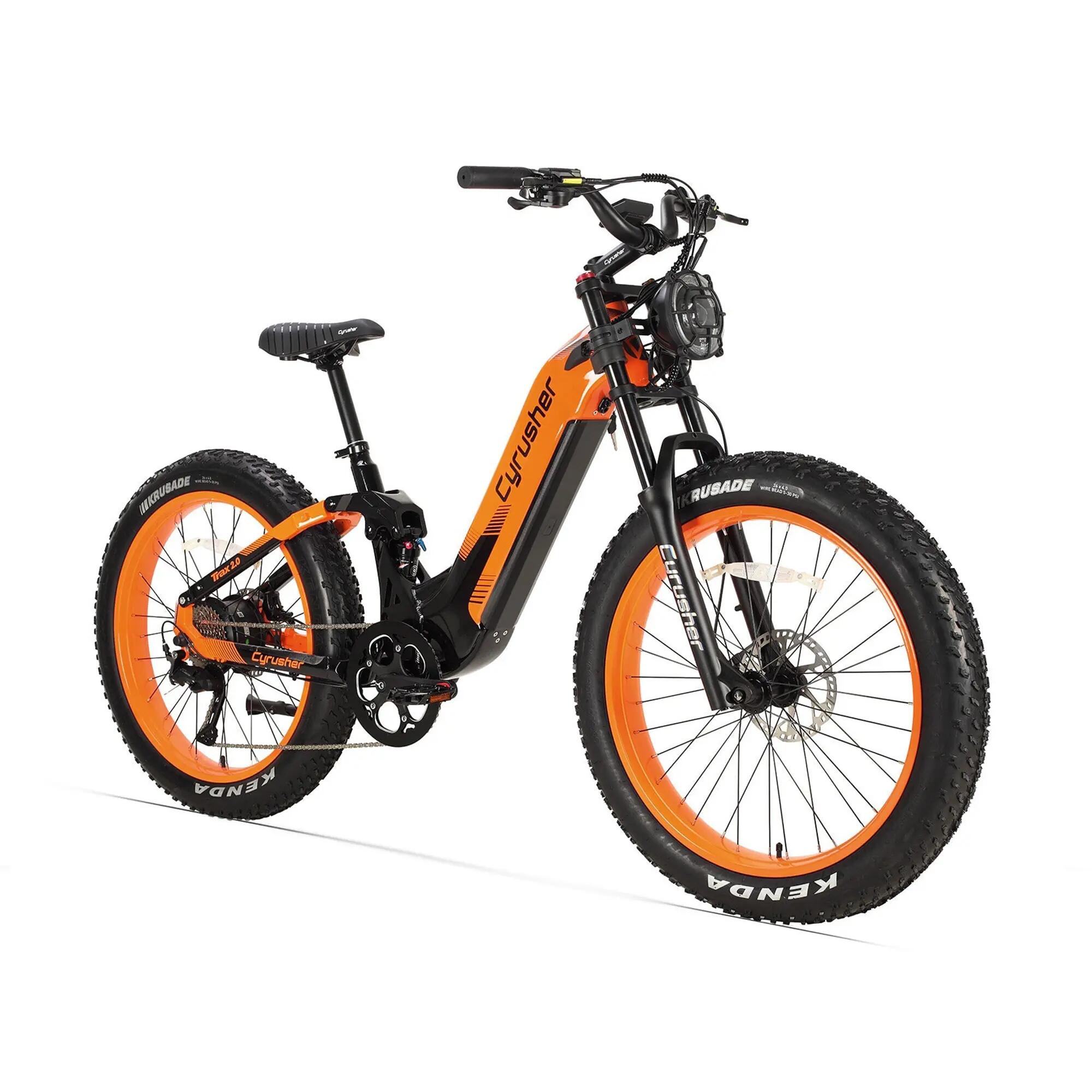

Four-Bar Full Suspension for Rougher Routes

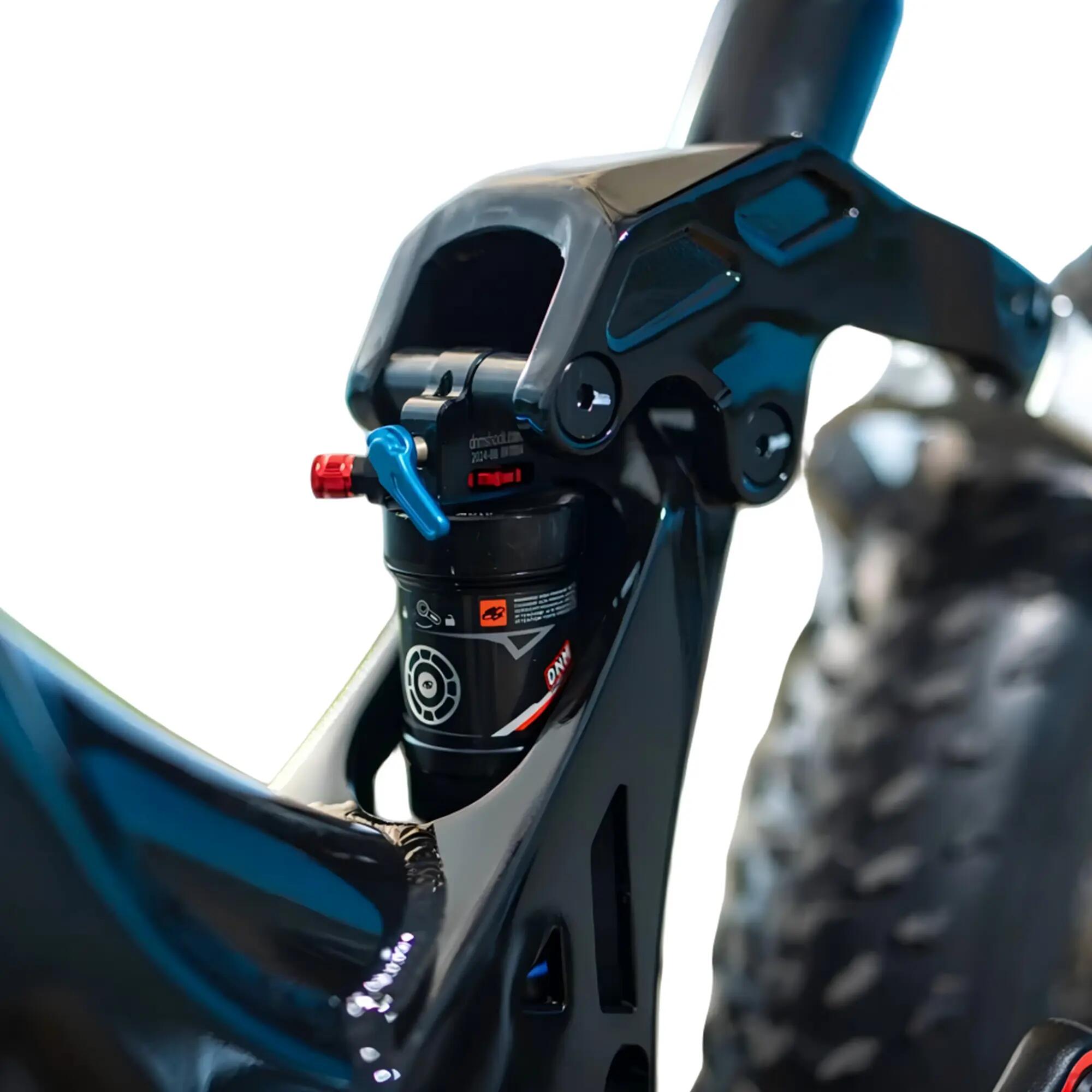

Trax 2.0 uses a four-bar suspension frame designed to keep the bicycle composed across broken roads, gravel, trails and changing terrain. A 60mm hydraulic dual-crown front fork works with the DNM AO-38RC 190 × 50mm rear air shock to reduce repeated impacts while maintaining control.
250W Bafang Motor with 95Nm Torque

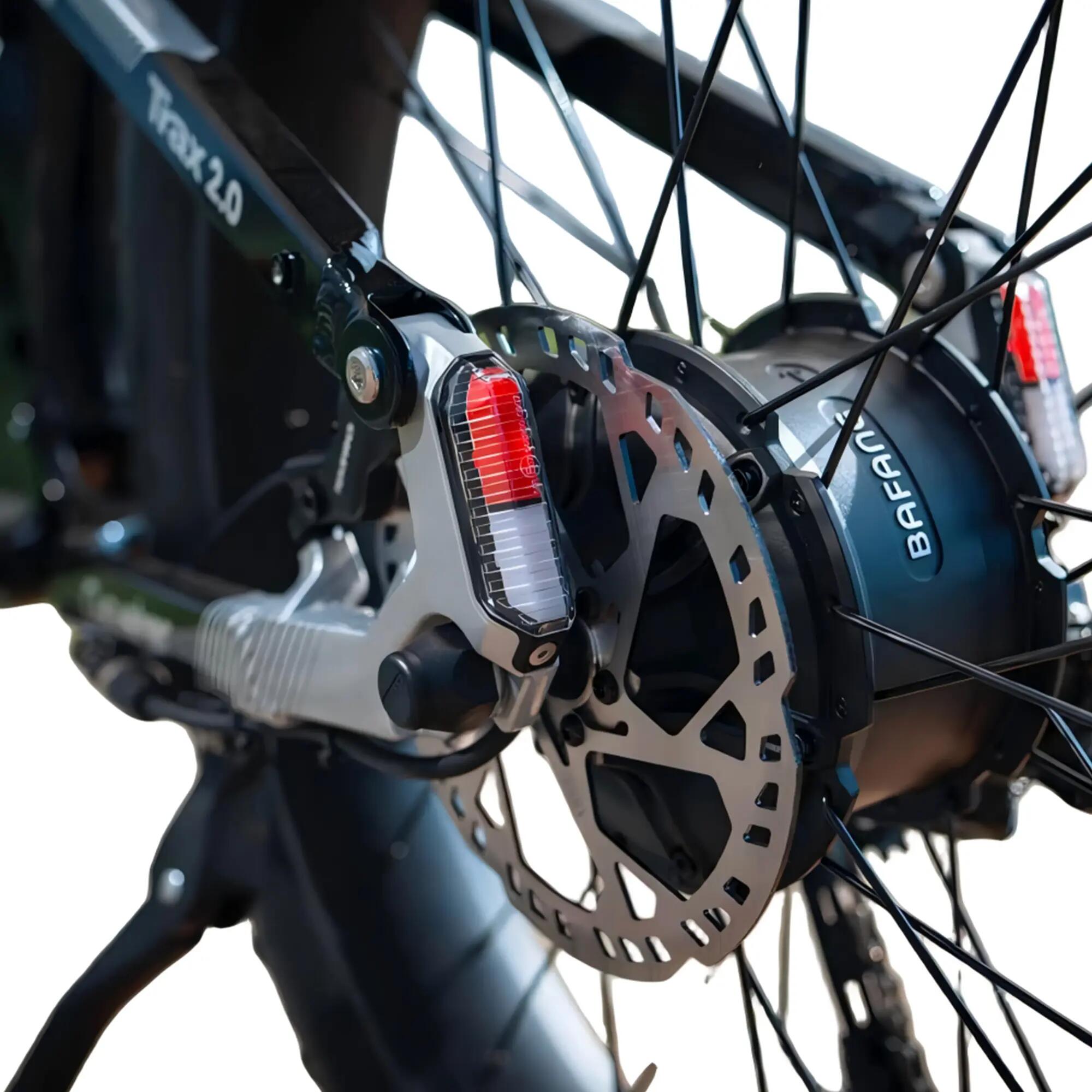

The 52V 250W Bafang brushless rear hub motor delivers up to 95Nm of torque, providing strong assistance for starts, climbs and demanding sections. The torque sensor measures pedal force and adjusts motor support according to rider input for a direct and precise response.
52V 20Ah Battery with up to 120km Range
The removable 52V 20Ah battery provides an assisted range of up to 120km under favourable conditions. A 52V 3A charger reduces typical charging time to approximately 5–7 hours. Actual range varies with rider weight, terrain, temperature, tyre pressure, assistance level and riding style.
Kenda Wide Tyres and Four-Piston Hydraulic Brakes

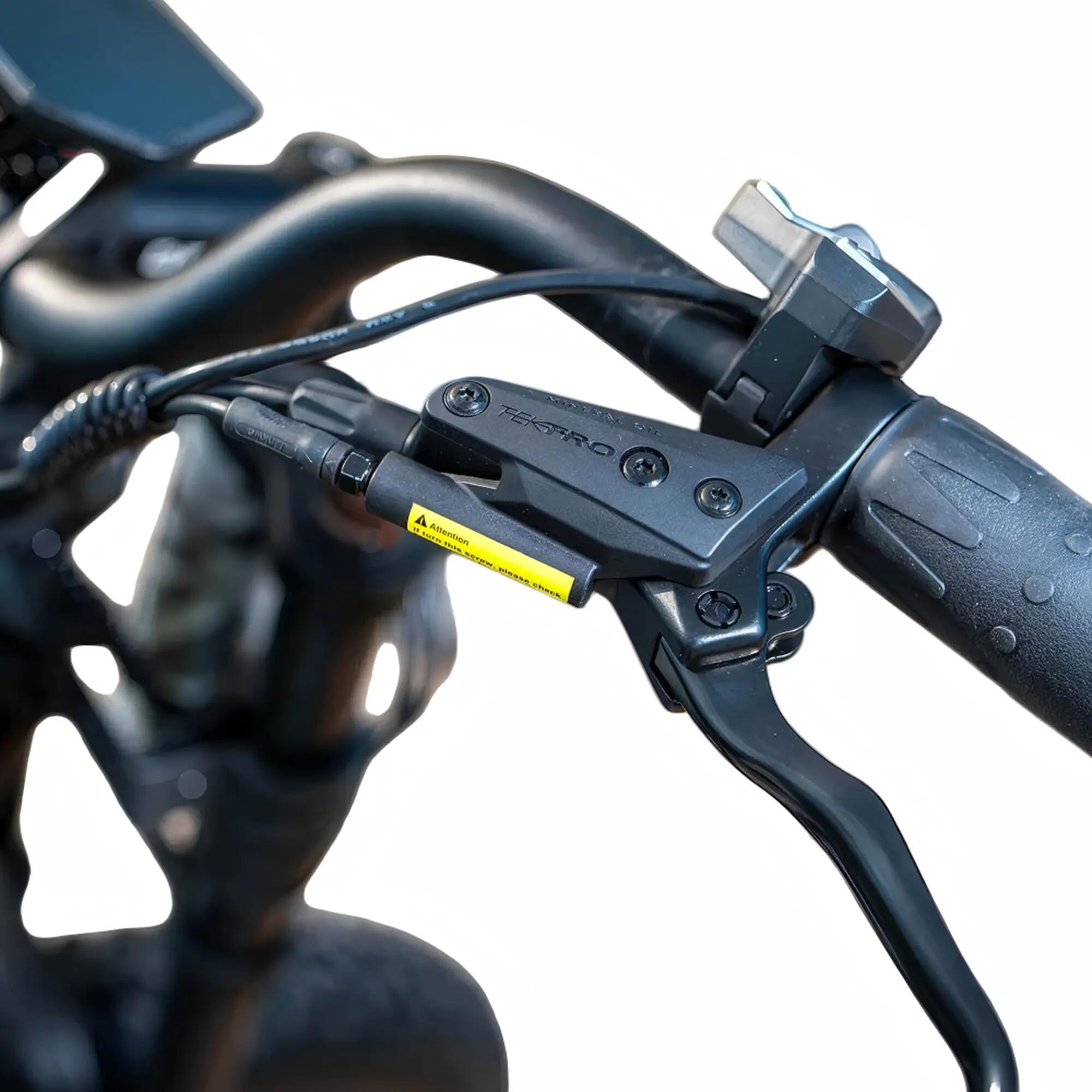

Kenda 26" × 4.0" puncture-resistant wide tyres provide a large contact area for grip and stability on loose and uneven surfaces. Tektro HD-E3940 four-piston hydraulic disc brakes provide strong, controllable braking for descents, changing conditions and heavier loads.
Shimano 9-Speed Drivetrain
The Shimano 9-speed drivetrain offers a broad selection of mechanical gears for climbs, flatter sections and changing terrain. Combined with the electric assistance system, it allows the rider to select an appropriate balance between cadence, effort and motor support.
Upgraded Lighting and Rider Controls

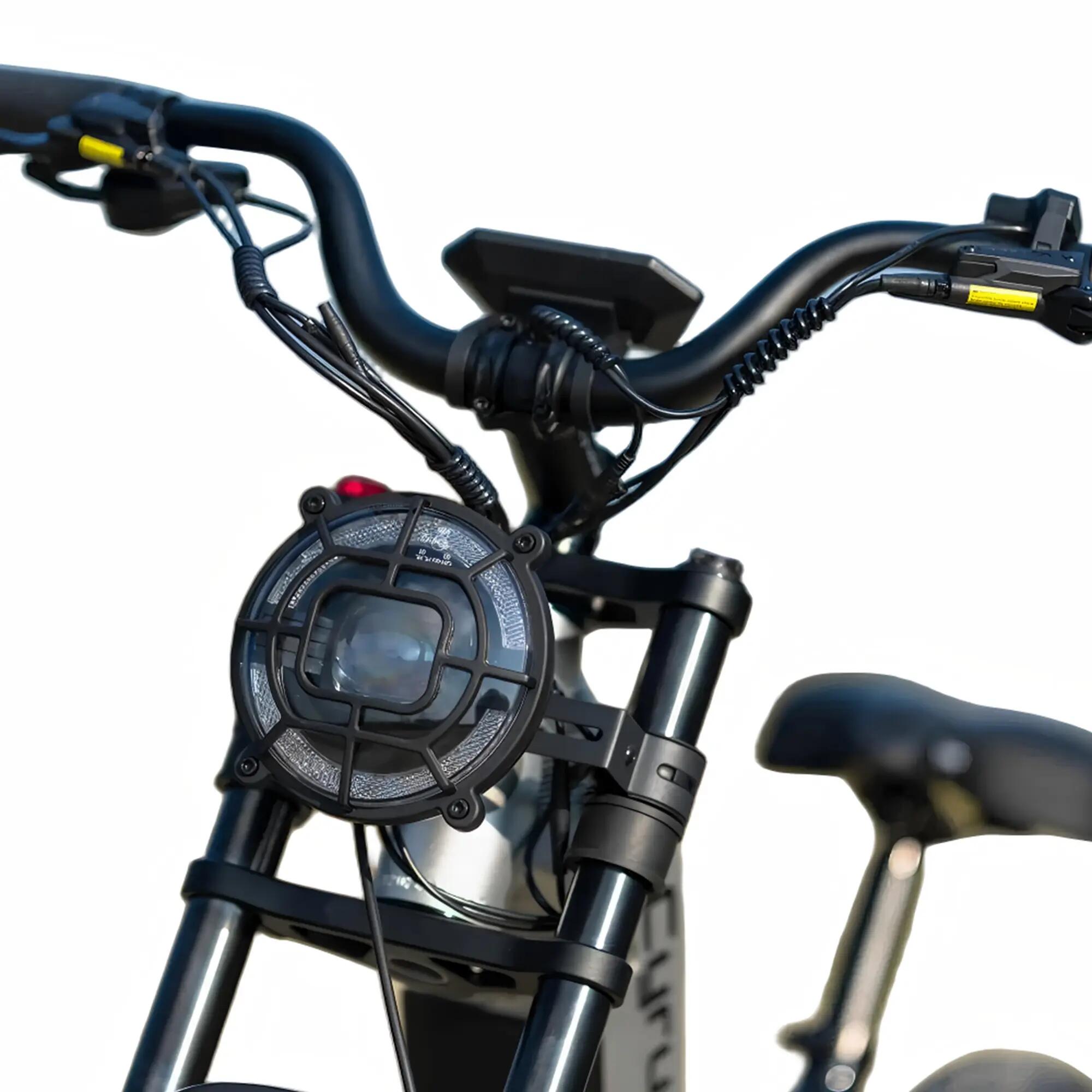

A 3.7-inch colour LCD keeps speed, battery and riding information clearly visible. The high-output front LED light includes an integrated horn, while the rear light incorporates turn signals to improve communication with other road users. Trax 2.0 weighs approximately 39.6kg with the battery and supports up to 150kg.
Specifications
Model: Trax 2.0
Battery: Removable 52V 20Ah
Charger: 52V 3A
Charge Time: 5–7 hours
Battery Lifetime: 800 charges
Assist Speed: Up to 25 km/h
Range: Up to 120km under favourable conditions
Motor: 52V 250W Bafang Brushless Rear Hub Motor
Maximum Torque: 95Nm
Sensor: Torque Sensor
Tires: Kenda 26" × 4.0" Puncture-Resistant Wide Tires
Display: 3.7" Colour LCD
Brakes: Tektro HD-E3940 Four-Piston Hydraulic Disc Brakes
Crankset: 170mm Forged 52T Alloy
Chain: KMC Stainless Steel
Gearing: Shimano 9-Speed
Front Suspension: Hydraulic Dual-Crown Fork, 60mm Travel
Rear Suspension: DNM AO-38RC Air Shock, 190 × 50mm
Frame: 6061 Aluminum Alloy Four-Bar Suspension Frame
Kickstand: 6061 Aluminum
Rims: Aluminum Alloy
Saddle: Breathable Ergonomic Sport Cushion Seat
Seat Post: 33.9mm, Adjustable Height
Front Light: High-Output LED with Integrated Horn
Rear Light: Integrated Turn Signals
Weight with Battery: 39.6kg
Weight without Battery: 33.3kg
Maximum Payload: 150kg
Suitable Rider Height: 170–200cm
Package Contents
1 × Trax 2.0 Electric Bicycle
1 × 52V 20Ah Battery
1 × 52V 3A Battery Charger
1 × Tool Kit
1 × User Manual
