Product Description

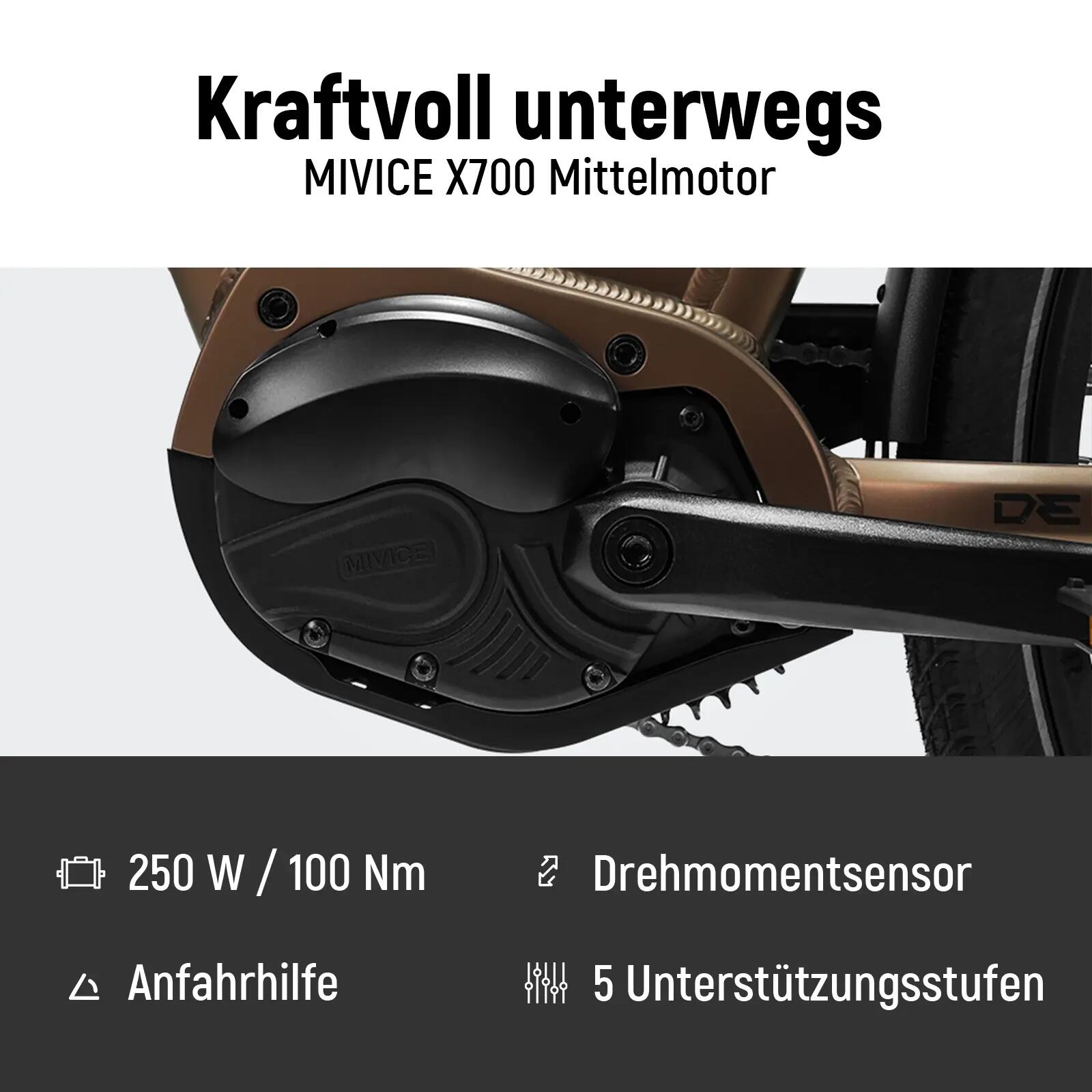

- Powerful Mivice X700 Mid-Drive Motor

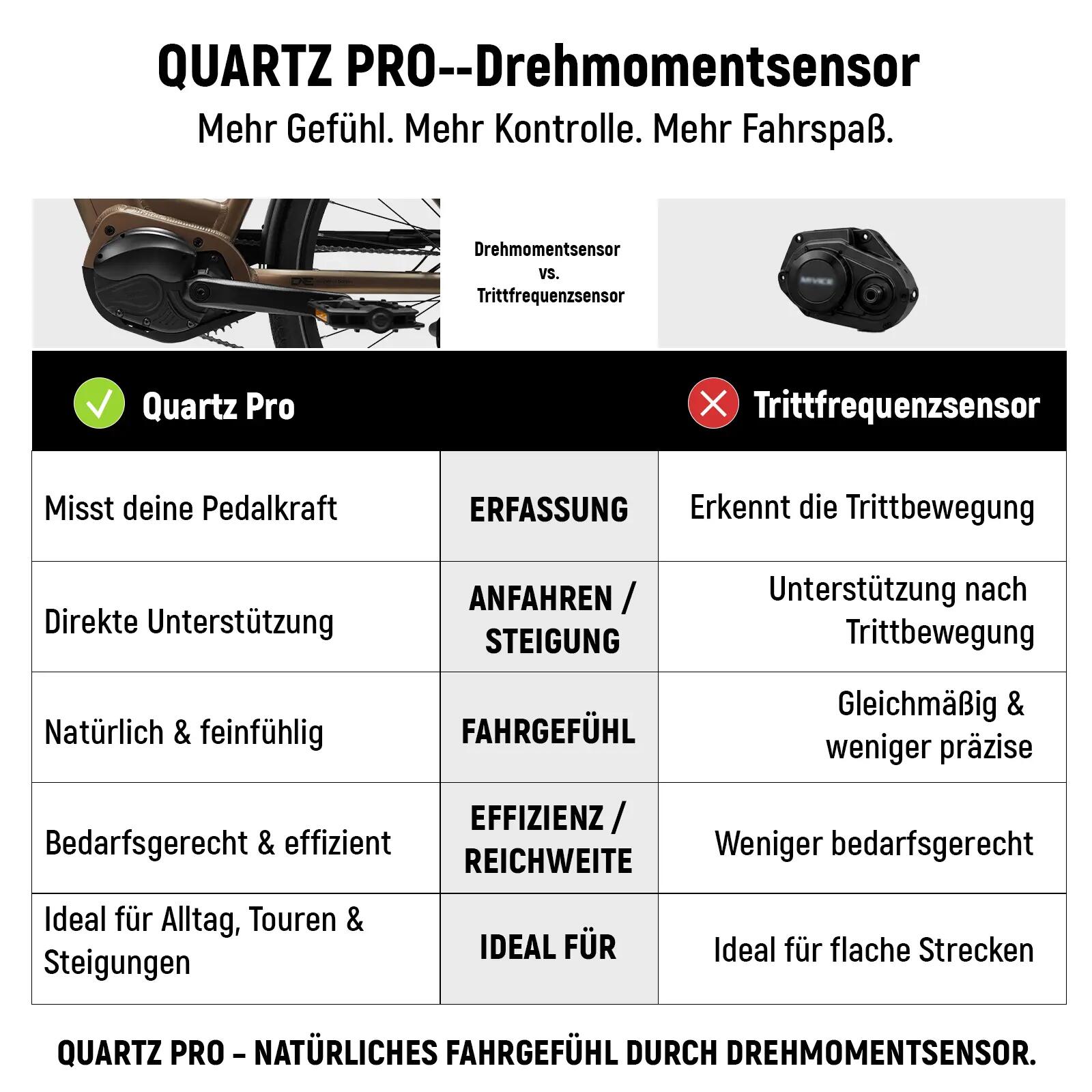

The Mivice X700 mid-drive motor delivers 100 Nm of torque for powerful and responsive assistance. The integrated torque sensor detects your pedaling force in real time and automatically adjusts motor support. Whether starting, climbing hills, or carrying luggage, the Quartz Pro provides smooth and controlled assistance.

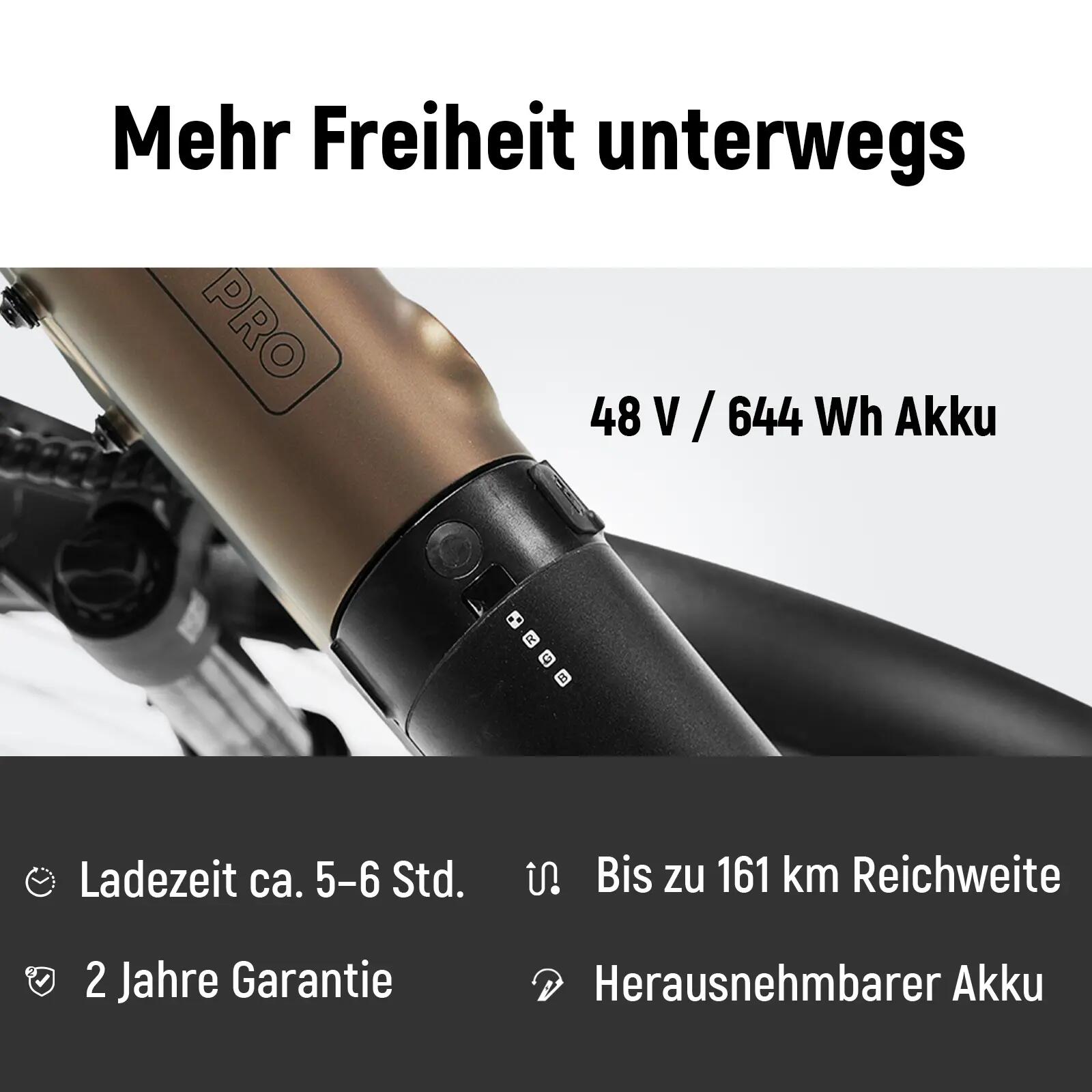

- Up to 161 km Range & Removable Battery
The 48V 644Wh battery offers a range of up to 161 km, making the Quartz Pro ideal for daily commuting, longer cycling tours, and relaxed weekend rides. The removable battery can be easily taken out and conveniently charged away from the bike.

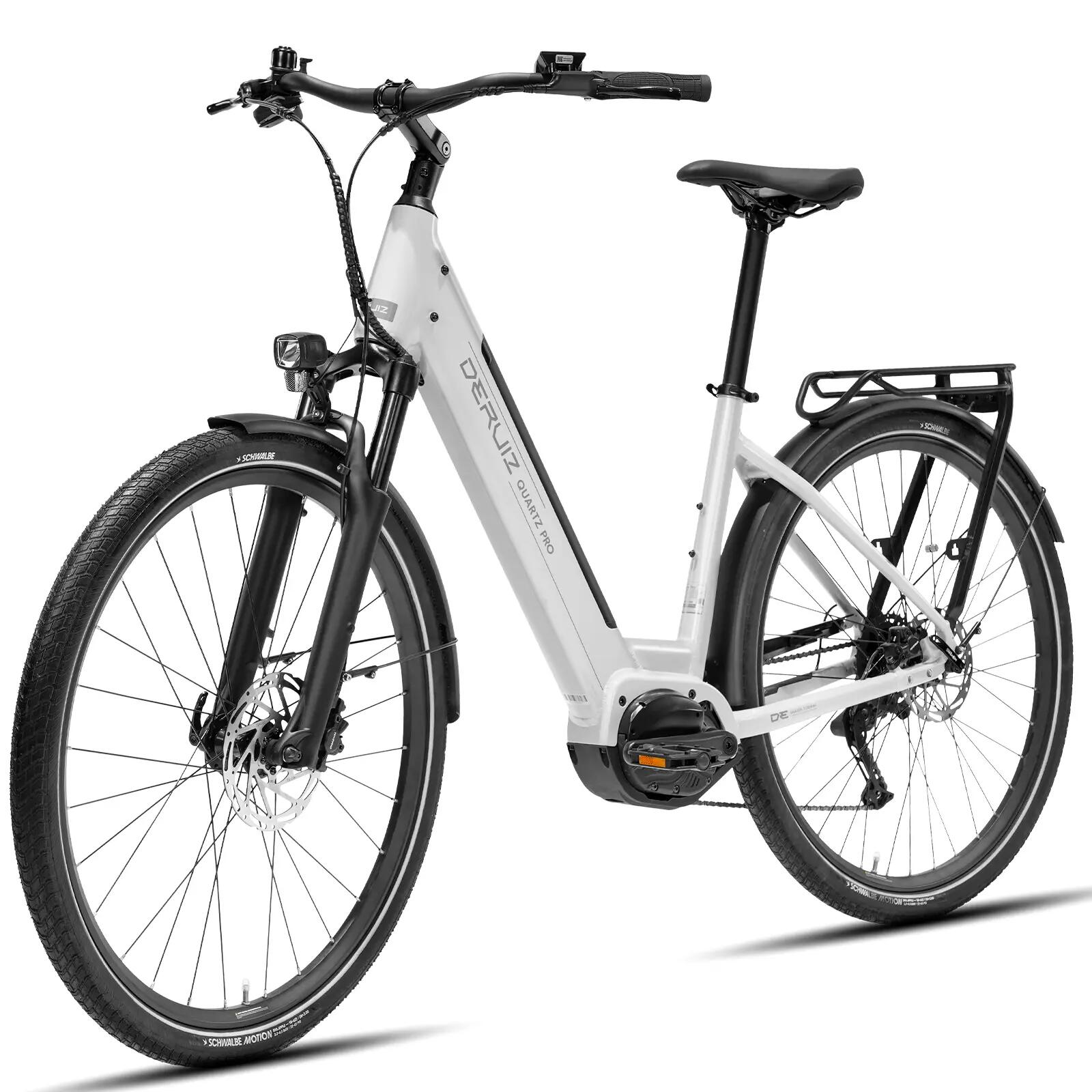

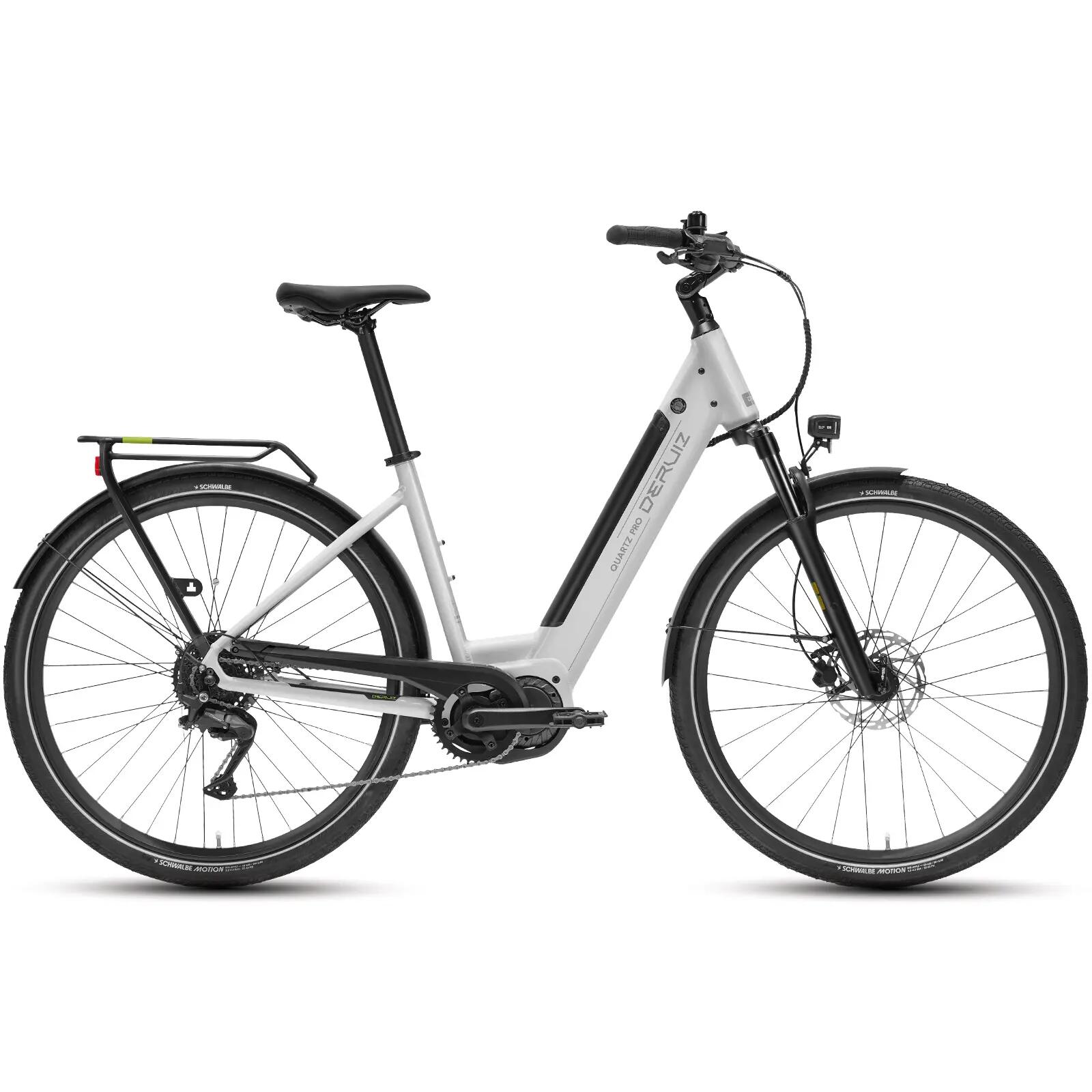

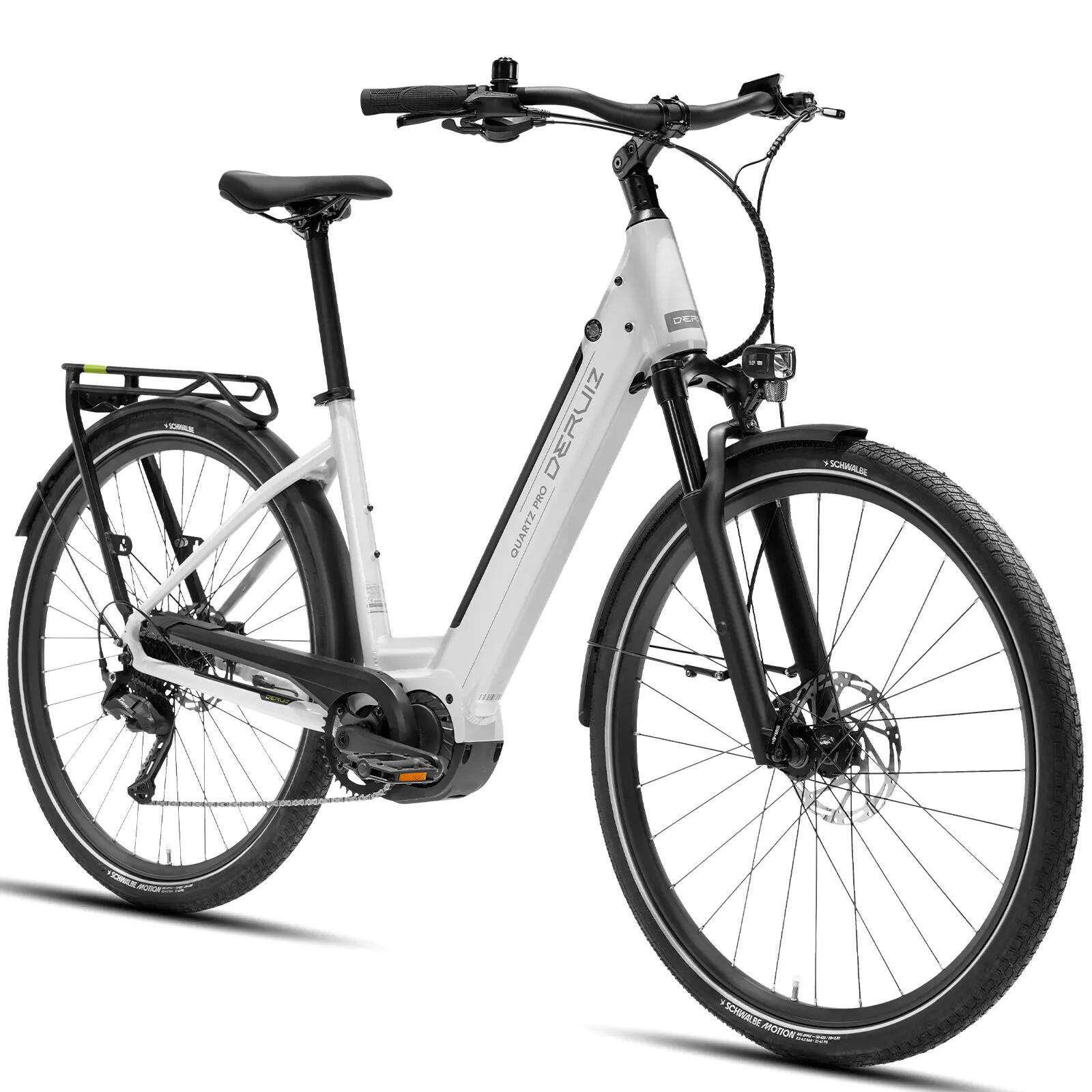

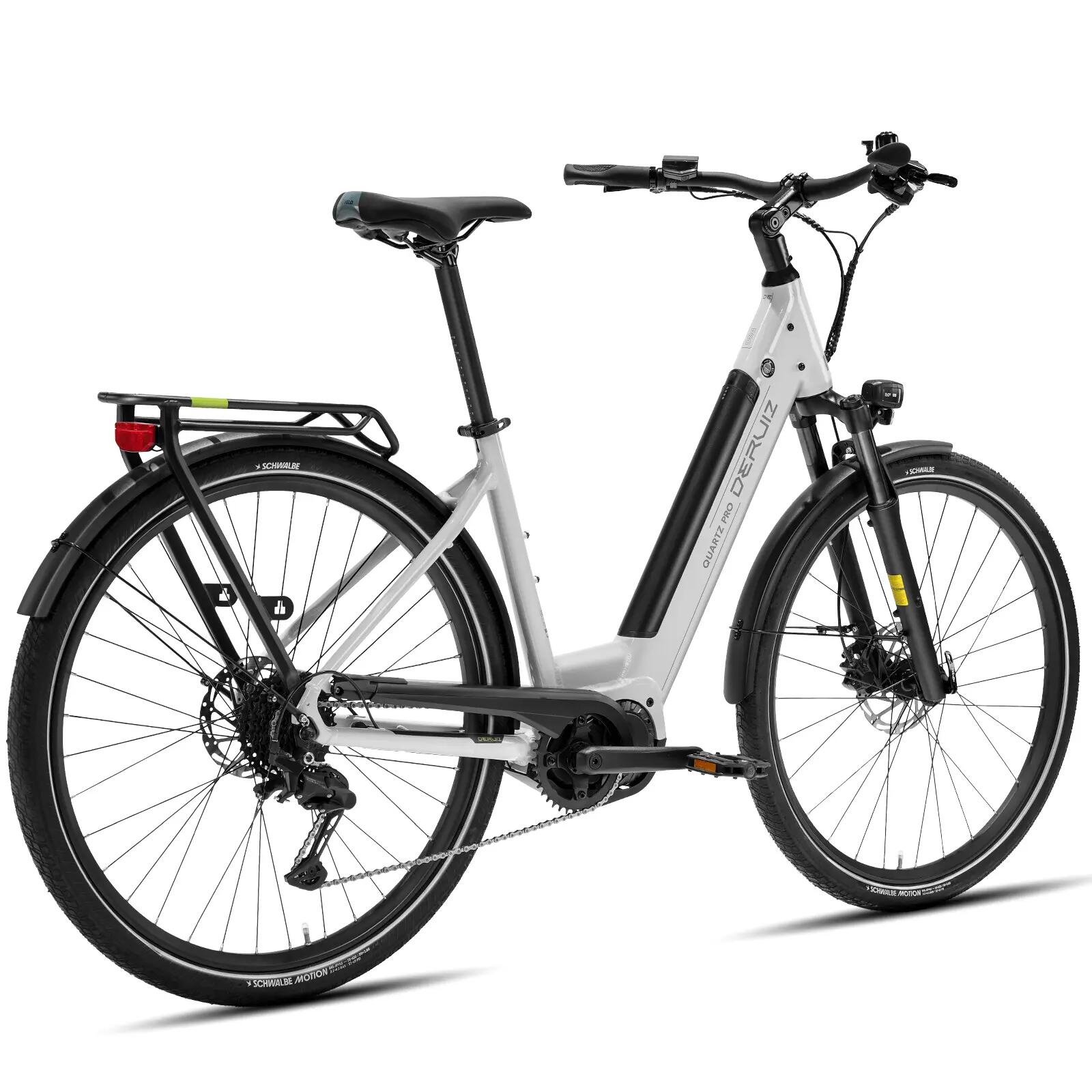

- Comfortable Step-Through Design
The 6061 aluminium step-through frame makes mounting and dismounting particularly easy. With a 47 cm frame height and an upright riding position, the Quartz Pro combines comfortable handling, stable control, and a modern design – ideal for urban traffic and frequent stops.

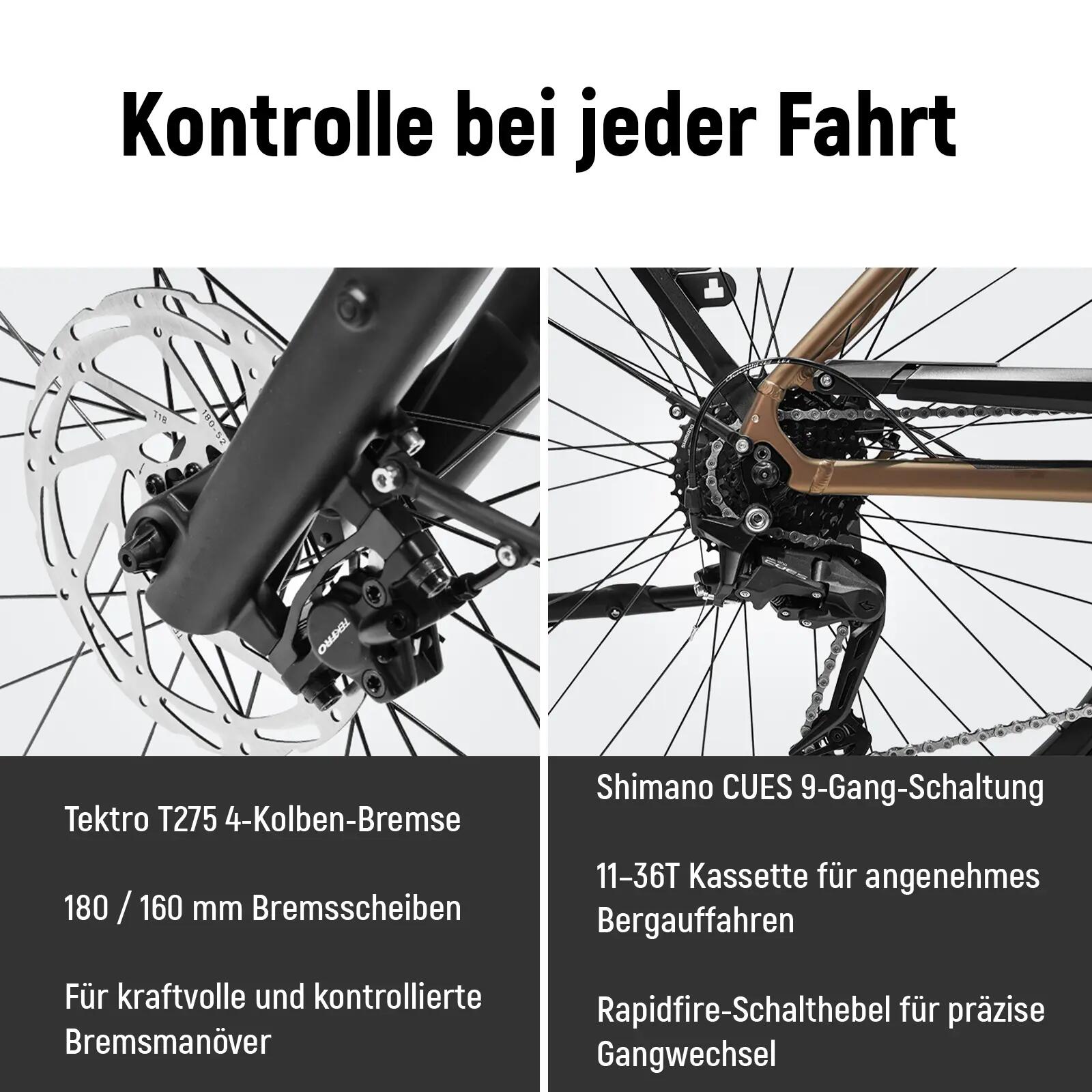

- Shimano CUES 9-Speed & Hydraulic Disc Brakes
The Shimano CUES 9-speed drivetrain offers precise shifting and a versatile gear range for flat roads and climbs. Tektro HD-T275 hydraulic disc brakes with 180 mm front and 160 mm rear rotors provide reliable braking performance and precise control.
- Smart Features & Practical Everyday Equipment

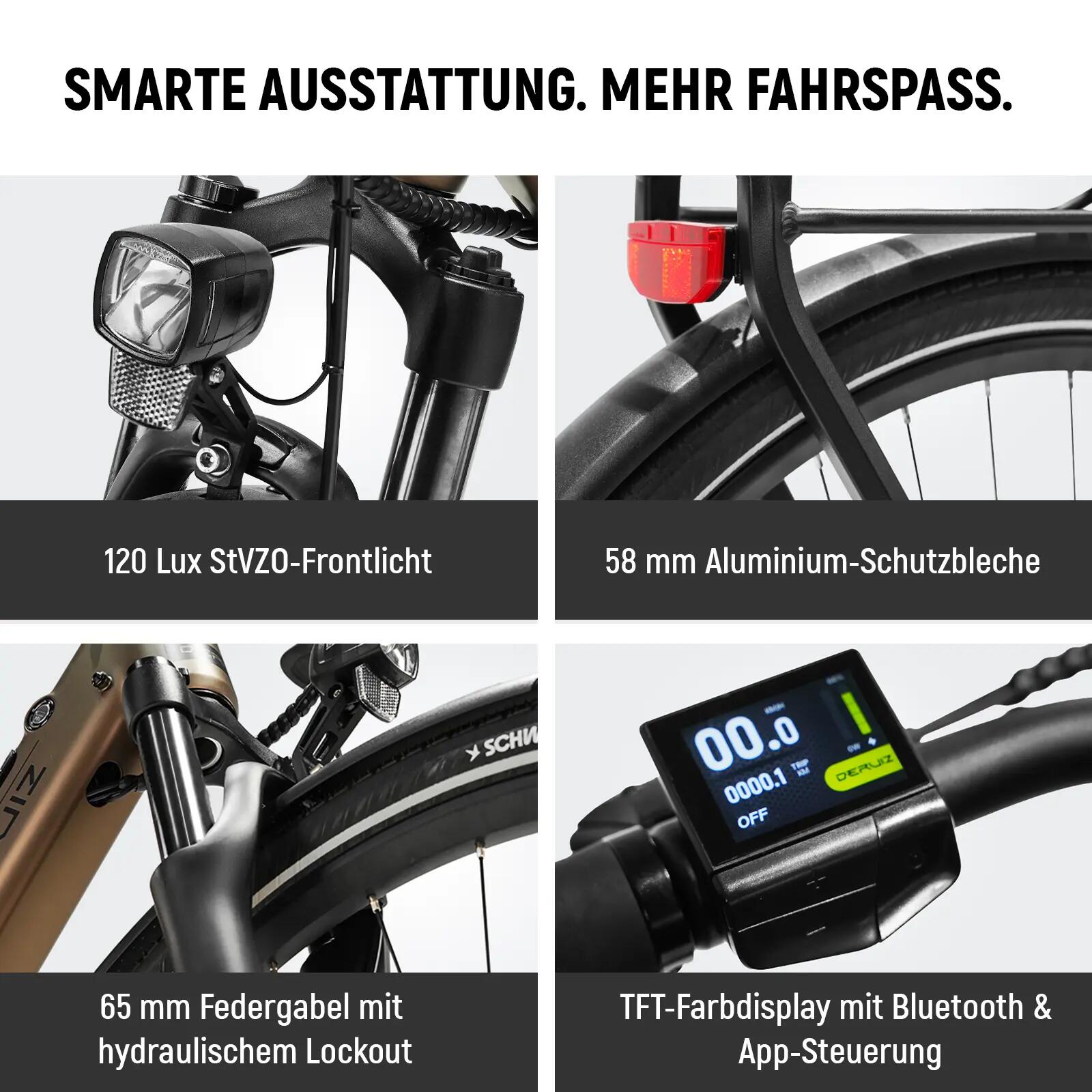

The TFT colour display with Bluetooth connects to the DERUIZ E-Bike App and shows riding data, battery level, range, and system settings. Schwalbe Big Apple 28 × 2.0 tyres with puncture protection ensure comfortable riding, while the 25 kg rear rack, 120 Lux StVZO-certified lighting, mudguards, and adjustable kickstand make the Quartz Pro well equipped for everyday use.
TECHNICAL DATA
Frame
Material: Aluminium 6061
Frame Size: One size (47 cm)
Frame Type: Step-through
Fork / Suspension
Suspension Fork: DERUIZ RAY-PRO 700C suspension fork with 65 mm travel, hydraulic lockout, and disc brake mounting points
E-Bike System
Motor: Mivice X700 mid-drive motor / 250 W / 48 V / 100 Nm torque
Sensor System: Torque sensor / 5 assistance levels / walk assist
Battery: 48 V / 644 Wh battery / range up to 161 km
Display: DERUIZ TFT colour display with Bluetooth
Charger: DERUIZ 48 V / 2 A charger
Front Light: 120 Lux (StVZO certified)
Rear Light: BÜCHEL Edge (StVZO certified)
Gears & Brakes
Brake System: Tektro HD-T275 hydraulic disc brakes – 180 mm front / 160 mm rear
Shifter: Shimano CUES SL-U4000-9C Rapidfire system
Rear Derailleur: Shimano CUES RD-U3020, 9-speed
Cassette: Shimano CUES CS-LG300-9, 11-36T
Crankset: 38 teeth Narrow-Wide chainring, 170 mm
Cockpit
Handlebar: DERUIZ Comfort Swallow Bar / 640 mm width / 44° backsweep / 25 mm rise
Stem: Comfort stem Ø 31.8 mm with 30° angle
Grips: DERUIZ ergonomic rubber grips
Headset: Upper IS 52, lower ZS 56
Wheels
Front Hub: Quick release 115 mm, disc brake mount
Rear Hub: Quick release (not suitable for trailers)
Rims: Double-wall aluminium rims, 700C 28 holes / 36 holes

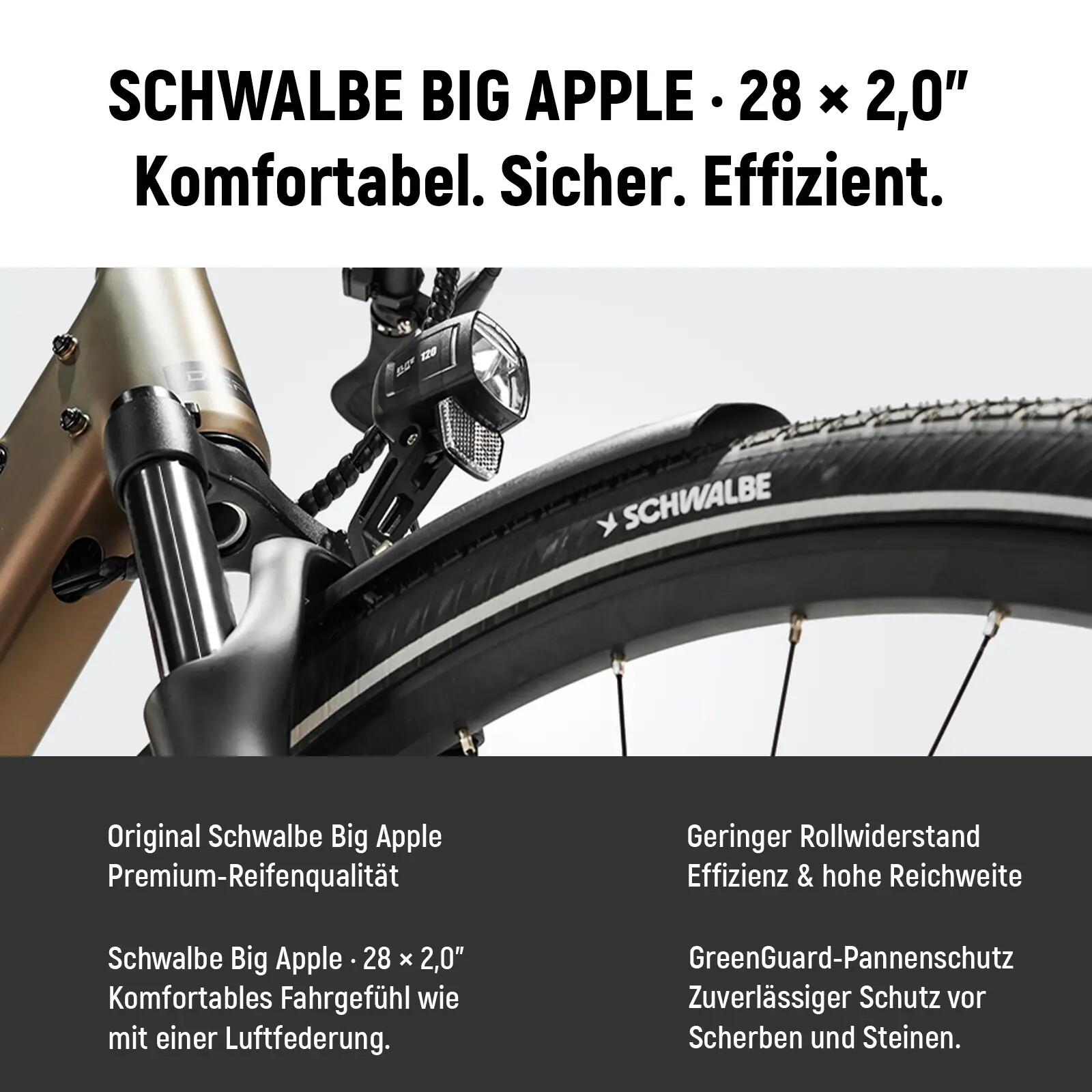

Tyres: Schwalbe Big Apple 50-622 (28 × 2.0) with reflective strips and puncture protection
Equipment
Seat Post: Ø 31.6 × 350 mm / quick-release seat post
Saddle: Velo VL-6581, black, steel rails, without saddle clamp, rails with scale marking
Pedals: B249 city pedals with reflectors
Kickstand: Adjustable-length side stand
Mudguards: DERUIZ Urban Style aluminium mudguards / 58 mm width
Rear Rack: Semi-integrated DERUIZ rear rack / load capacity up to 25 kg (ISO 11243:2023)
Product Information
App: DERUIZ E-Bike App for iOS & Android (QR code available for download)
Maximum Permitted Total Weight: 160 kg (including e-bike)

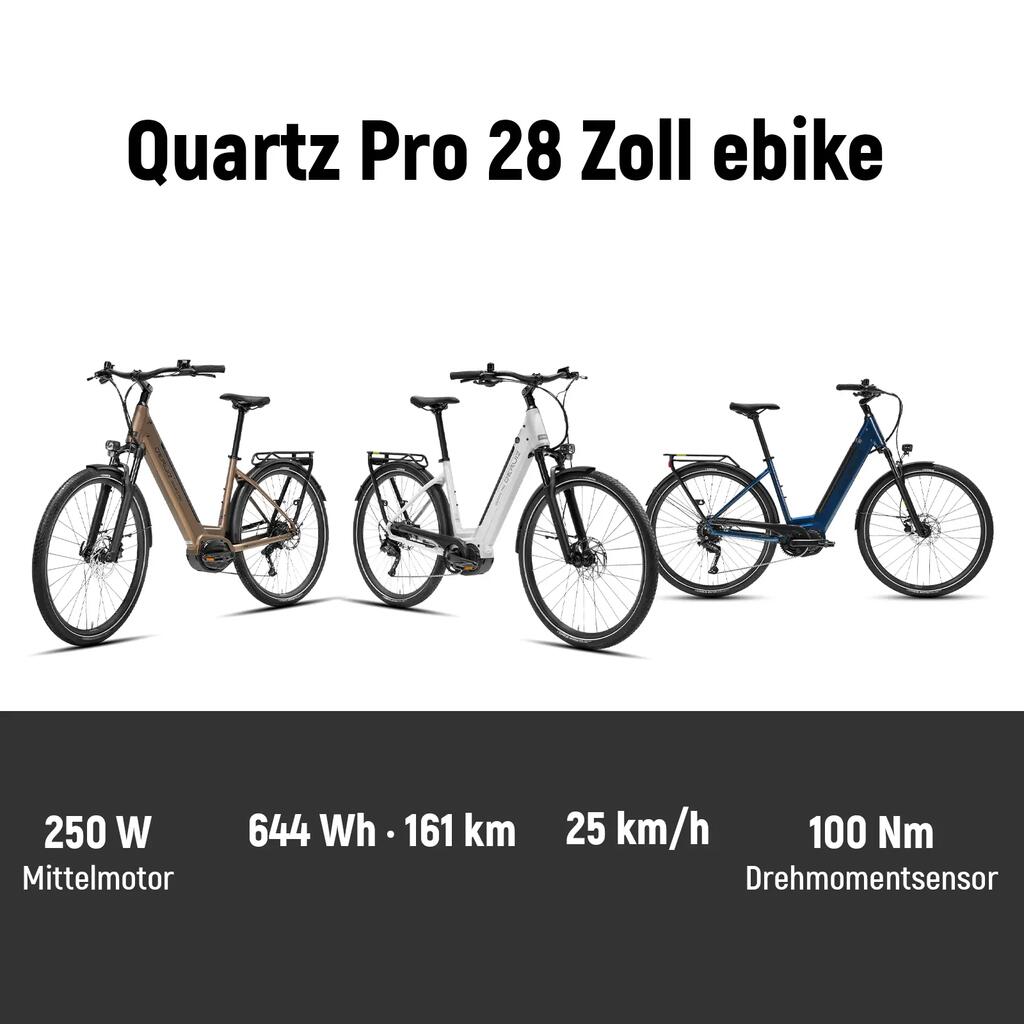

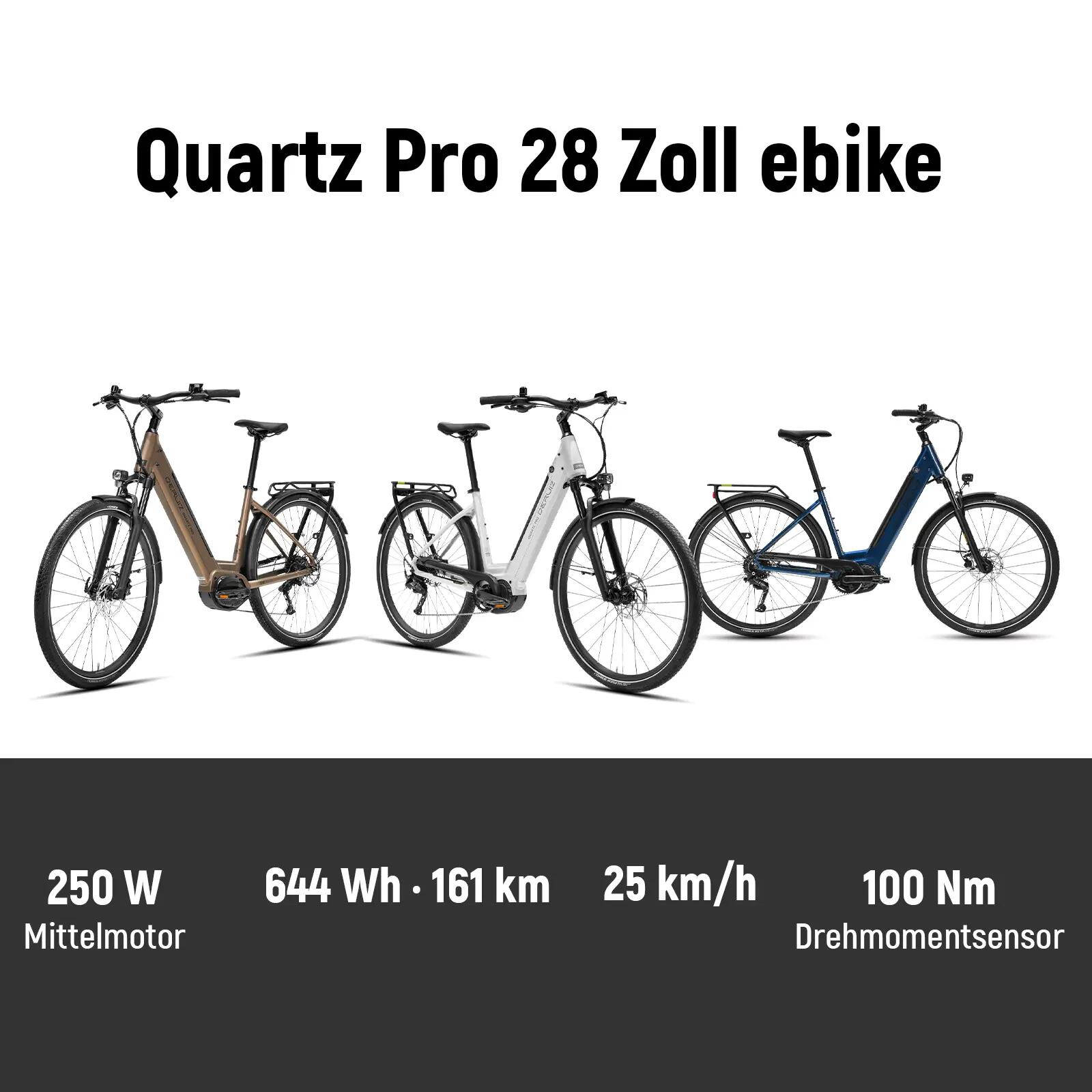

Colours: Moonbeam / Matte Bronze / Slate Blue
Net Weight without Battery: 21.5 kg
Net Weight: 26.2 kg
Packaging Size: 1520 × 250 × 870 mm
