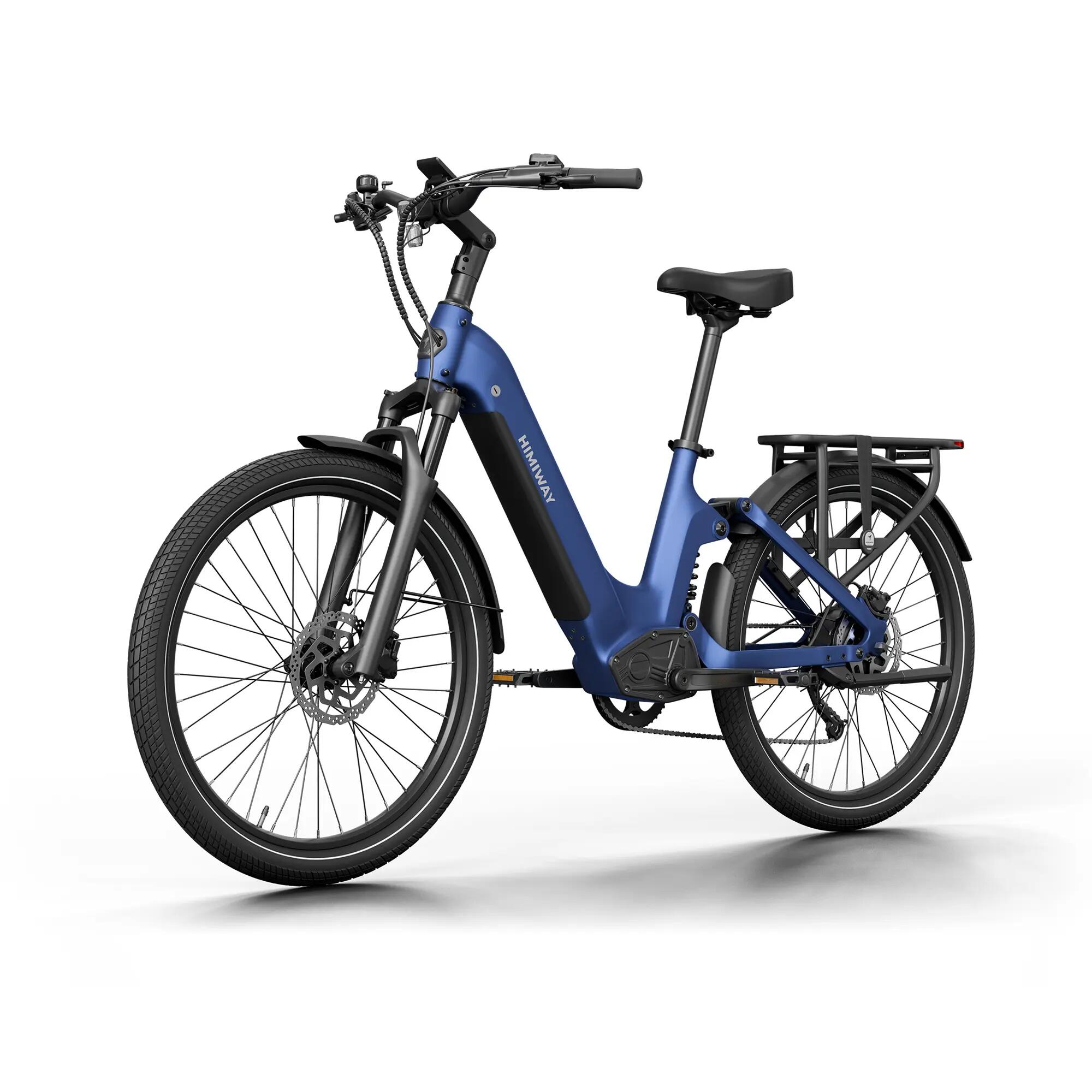

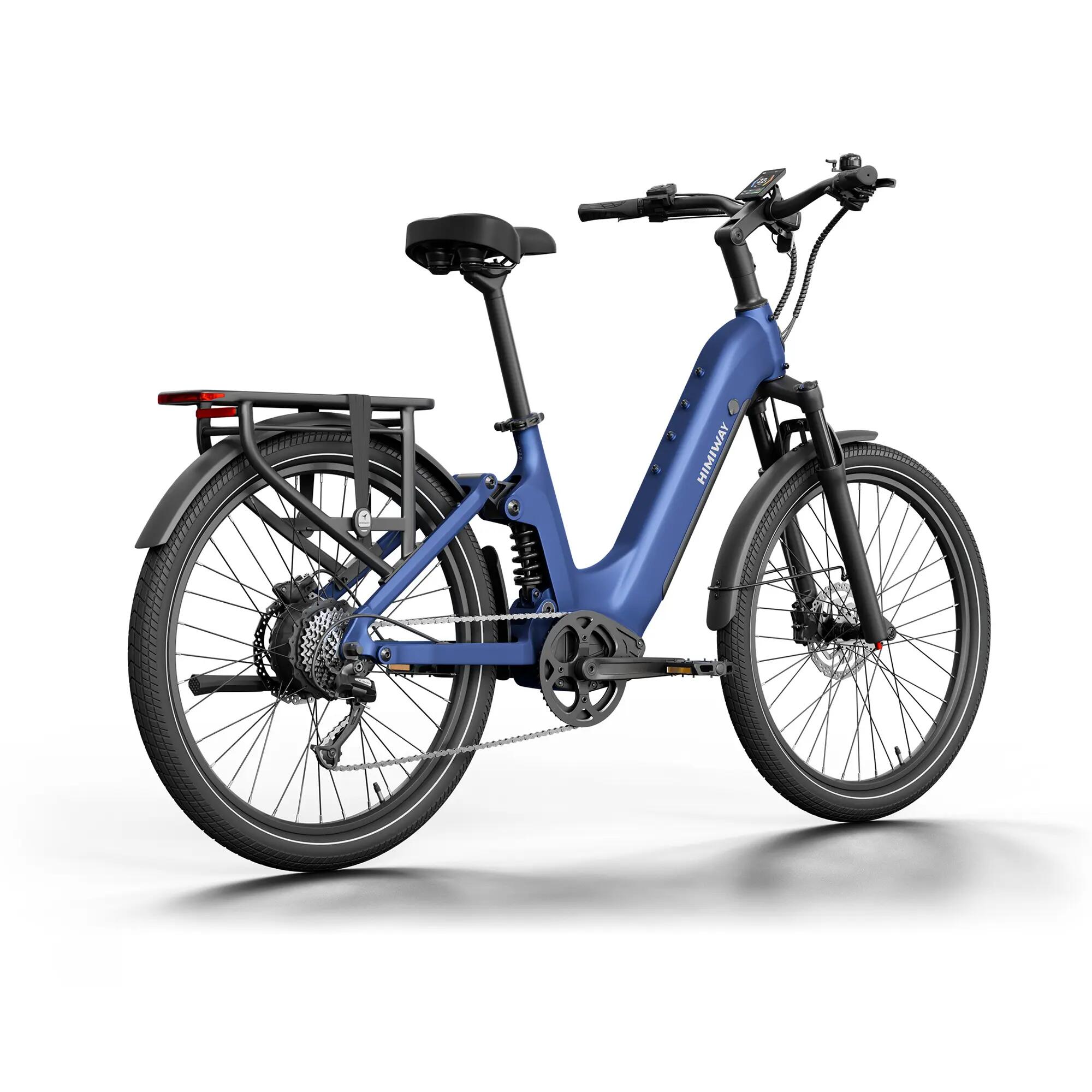

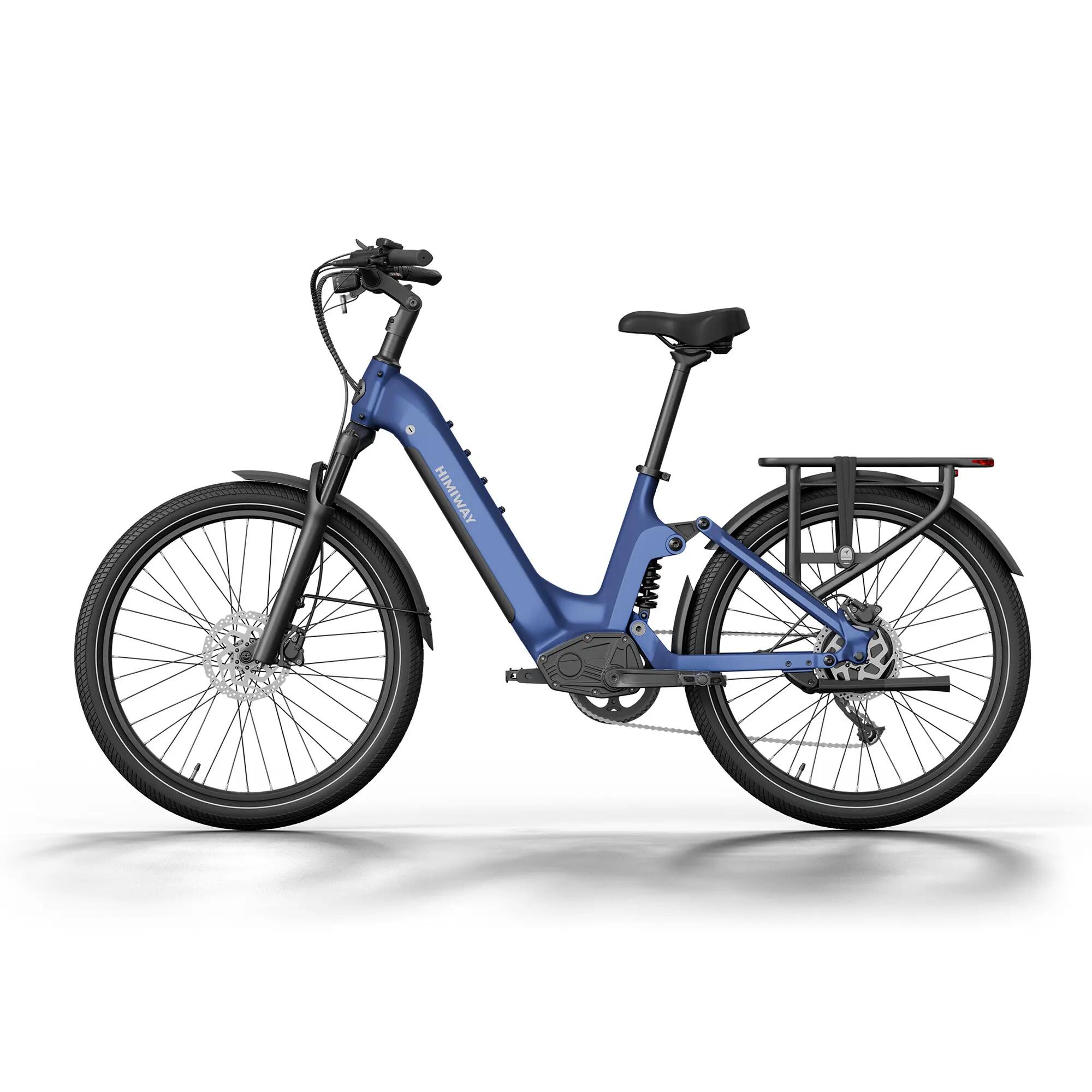

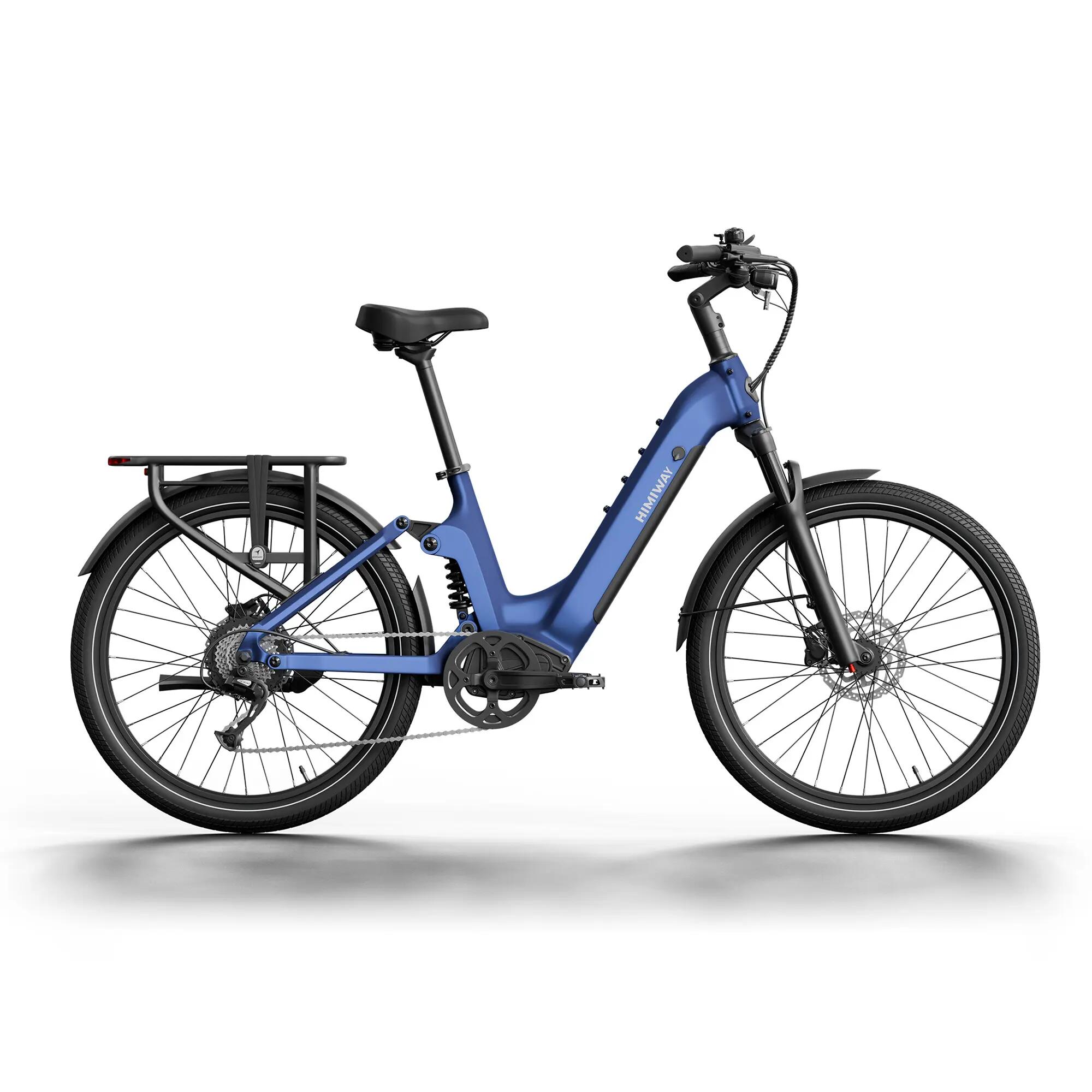

A7 Full-Suspension Urban Electric Bike 48V 15Ah 70Nm 200kg Payload

Product Description

Full Suspension Built Around City Comfort

A7 takes a different approach to the everyday city bike. Instead of relying only on larger tyres to absorb rough streets, it combines a hydraulic front fork with 120mm travel and lockout with a four-link rear suspension providing 90mm travel. Potholes, broken asphalt, paving stones and gravel sections are better isolated from the rider, making the bike especially suitable for longer daily commutes.

Two Sensor Modes for Two Different Riding Styles

The assistance system can switch between torque sensing and cadence sensing. Torque mode responds to the pressure applied to the pedals for more precise support when accelerating or climbing, while cadence mode provides steadier assistance once pedalling begins. Automatic assistance and five selectable levels give riders additional control over how the 250W system behaves.

200kg Capacity and a Rack Made for Real Utility

A7 is not designed only for light commuting. Its maximum permitted payload reaches 200kg, while the MIK HD-compatible rear rack supports up to 54kg. This makes the platform particularly useful for groceries, panniers, cargo boxes and compatible child-carrying solutions where permitted. Full-coverage mudguards and a rear-mounted kickstand add everyday practicality.

70Nm Rear Drive with a 720Wh Battery

The 48V 250W rear hub motor delivers up to 70Nm of torque, giving useful support for stop-start traffic, hills and heavier loads. A 48V 15Ah battery provides 720Wh capacity using Samsung/LG 21700 cells certified to UL 2580. Assisted range is approximately 60–80km depending on load, terrain, temperature and assistance level, while the 48V 2A charger supports regular overnight charging.

Adjustable Cockpit Instead of a Fixed Riding Position

The 0–60° adjustable alloy stem allows the handlebar angle and height to be adapted for a more upright or more forward riding position. A memory-foam comfort saddle, ergonomic locking grips and 680mm alloy handlebar further support long urban rides without forcing every rider into the same setup.

Connected Display, Strong Braking and Integrated Lighting

The 3.5-inch high-brightness colour display includes Bluetooth and an adjustable viewing angle. SHIMANO MT200 hydraulic disc brakes use 180mm rotors front and rear, with alloy brake levers incorporating motor cut-off. A 120-lux/500-lumen adjustable front LED and frame-integrated rear light with brake, steady and flashing functions complete the urban equipment. The bike is rated IPX5, while the battery is rated IPX6.

Specifications

Model: A7 Type: Full-Suspension Urban Electric Bike Frame: 6061 Aluminium Motor: 48V 250W Rear Hub Motor Maximum Torque: 70Nm Maximum Assisted Speed: 25 km/h Adjustable Speed Range: 6–25 km/h Battery: 48V 15Ah / 720Wh Battery Cells: Samsung/LG 21700, UL 2580 Certified Battery Protection: IPX6 Charger: 48V 2A Assisted Range: Approx. 60–80km Sensor: Switchable Torque / Cadence Sensor Pedal Assistance: Automatic Assistance + 5 Levels Walk Assistance: 3–6 km/h Front Suspension: Hydraulic Spring Fork, 120mm Travel, Lockout Front Fork Adjustment: Adjustable Rebound Front Axle: 15 × 110mm Thru Axle Rear Suspension: Four-Link Suspension, 90mm Travel Suspension Type: Full Suspension Gearing: SHIMANO 8-Speed Freewheel: 8-Speed, 13–32T Chainring: 44T Crankset: 170mm Aluminium Alloy Brakes: SHIMANO MT200 Hydraulic Disc Brakes Brake Rotors: 180mm Front + Rear Brake Levers: Aluminium Alloy with Motor Cut-Off Tyres: Innova 27.5 × 2.4" E-Bike Tyres with Reflective Strips Rims: Double-Wall Aluminium Rims Front Hub: Aluminium Hub with Industrial Bearings, 15 × 110mm Display: 3.5" High-Brightness Colour Display Connectivity: Bluetooth Handlebar: Aluminium Alloy, 680mm Stem: Aluminium Alloy, Adjustable 0–60° Grips: Ergonomic Locking Grips Saddle: Ergonomic Memory-Foam Comfort Saddle Seat Post: Aluminium Alloy, 31.6mm Front Light: Integrated 120 Lux / 500 lm LED Rear Light: Integrated Brake Light with Steady / Flashing Modes Mudguards: Full Coverage Front + Rear Rear Rack: MIK HD-Compatible Alloy Rack Rear Rack Capacity: 54kg Pedals: Alloy Pedals with Reflectors Kickstand: Rear-Mounted Aluminium Alloy Whole-Bike Water Resistance: IPX5 Weight Including Battery: 38kg Maximum Payload: 200kg Total Length: 190cm Handlebar Width: 68cm Wheelbase: 120cm Wheel Diameter: 71cm Standover Height: 51cm

Package Contents

1 × A7 Electric Bicycle 1 × 48V 15Ah Battery 1 × 48V 2A Charger 1 × Tool Kit 1 × User Manual
