Product Description
[Aluminum alloy sturdy frame]

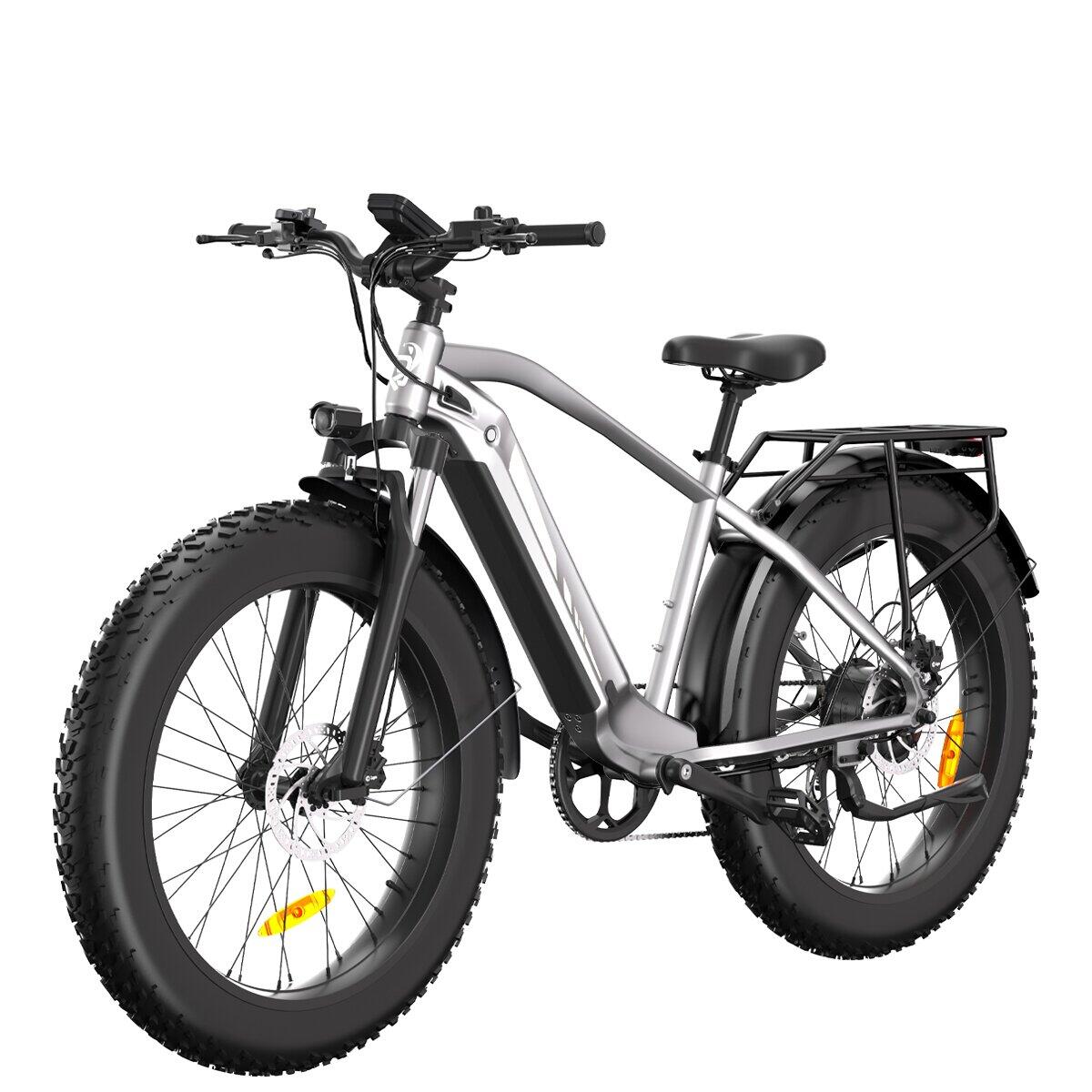

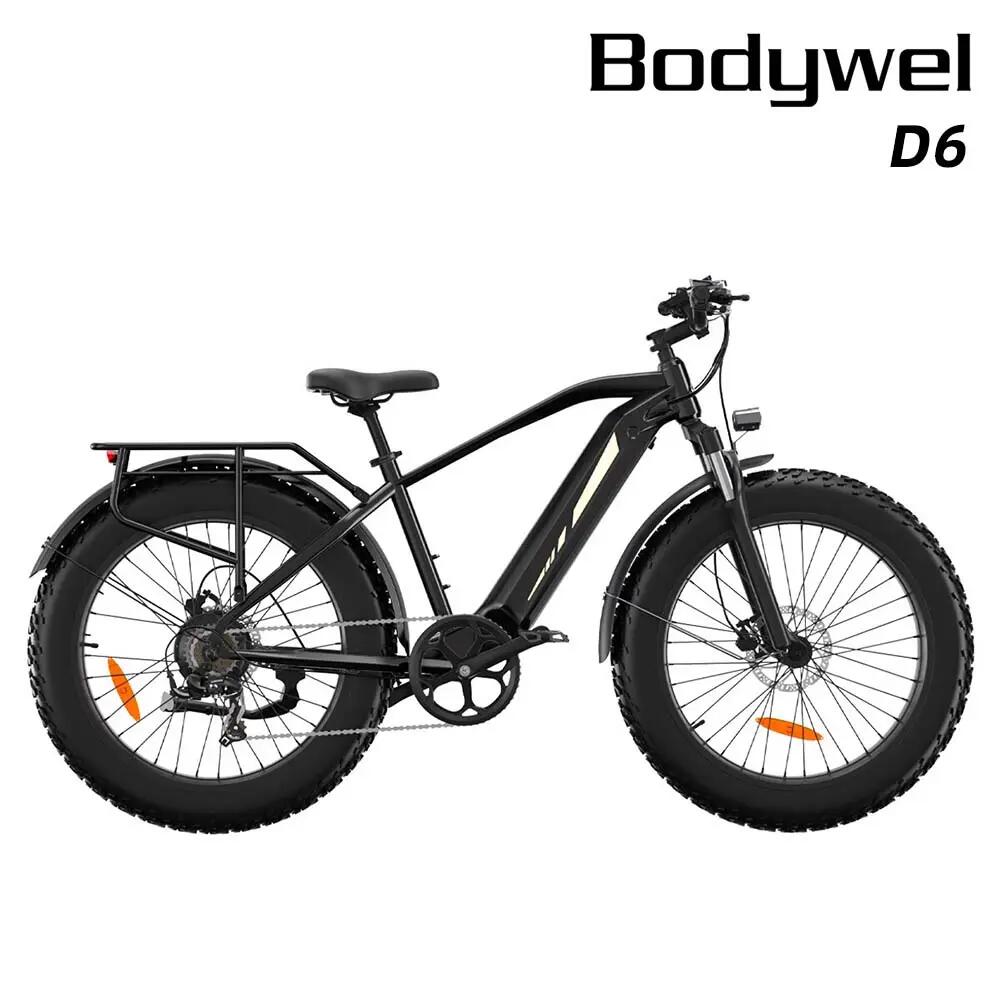

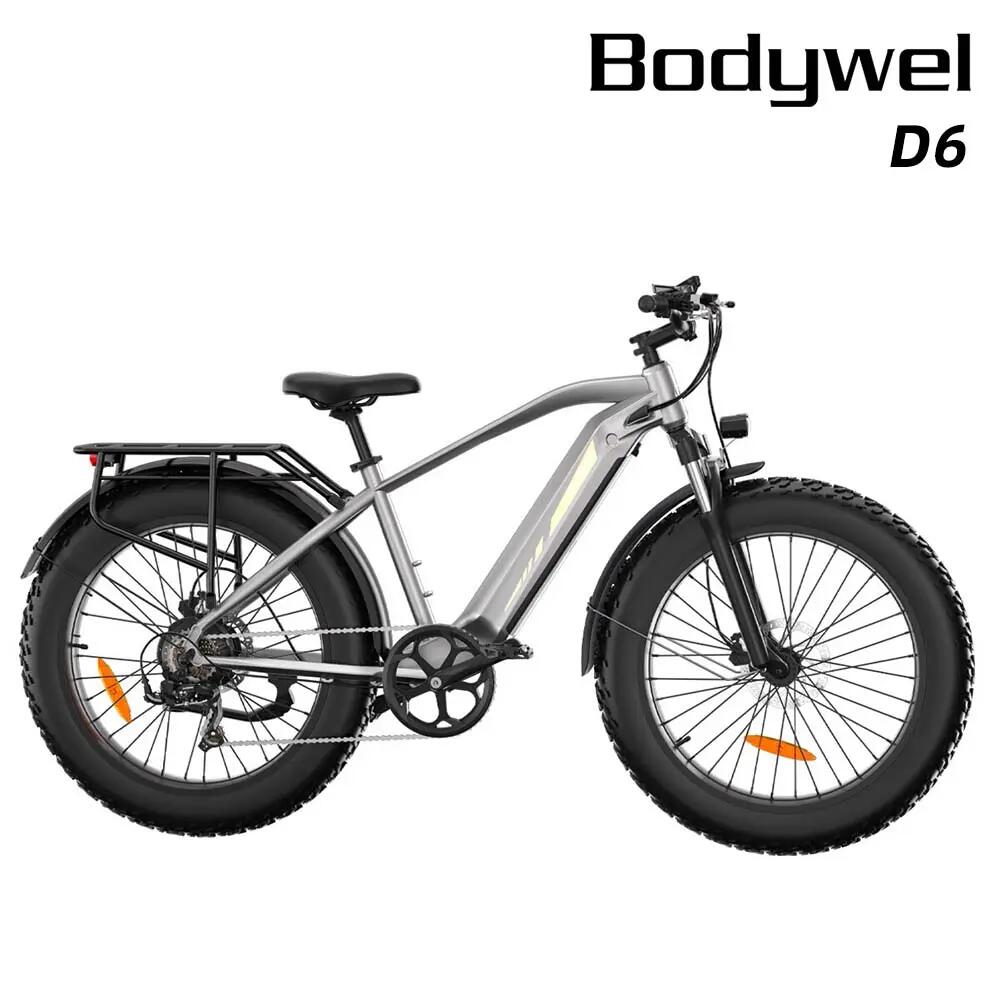

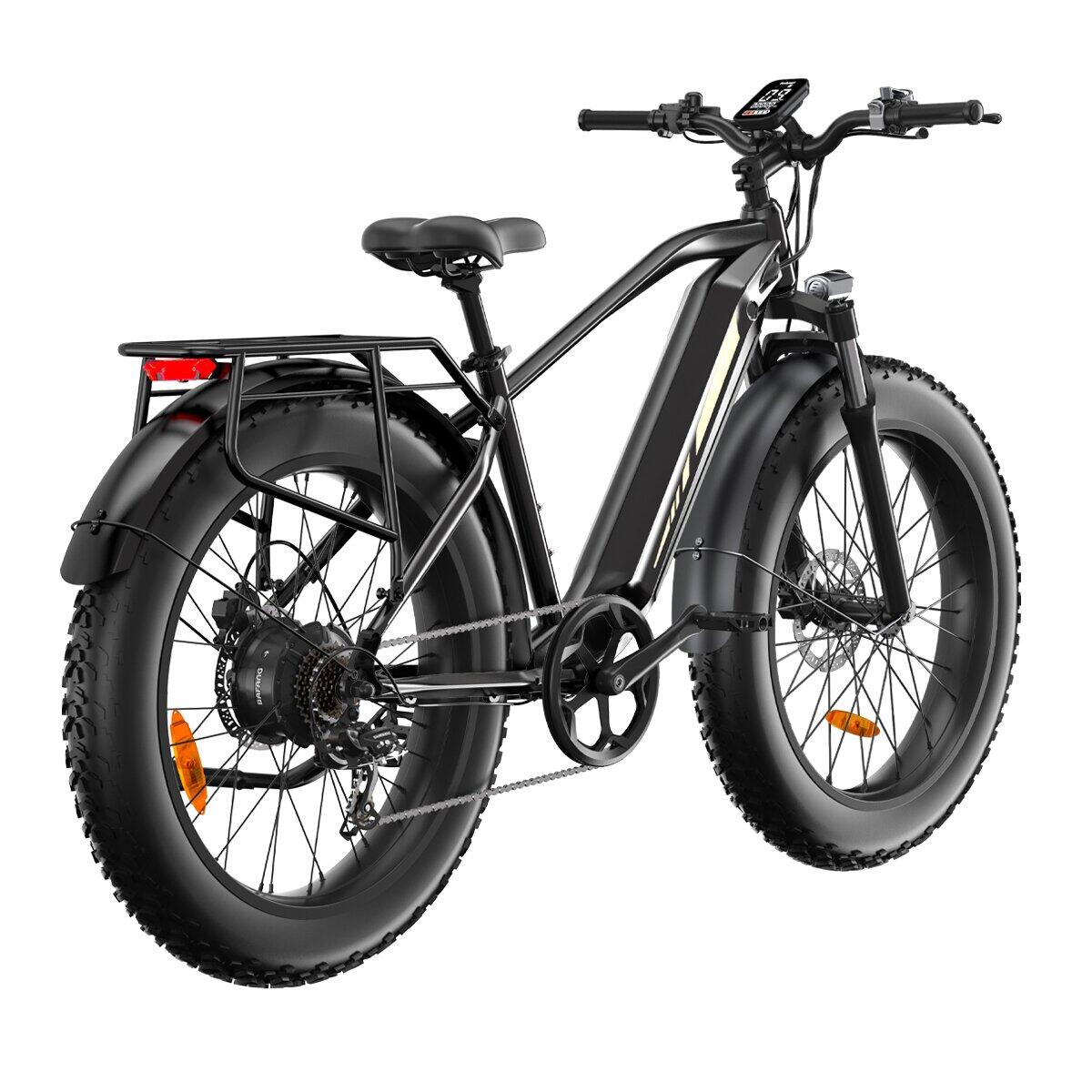

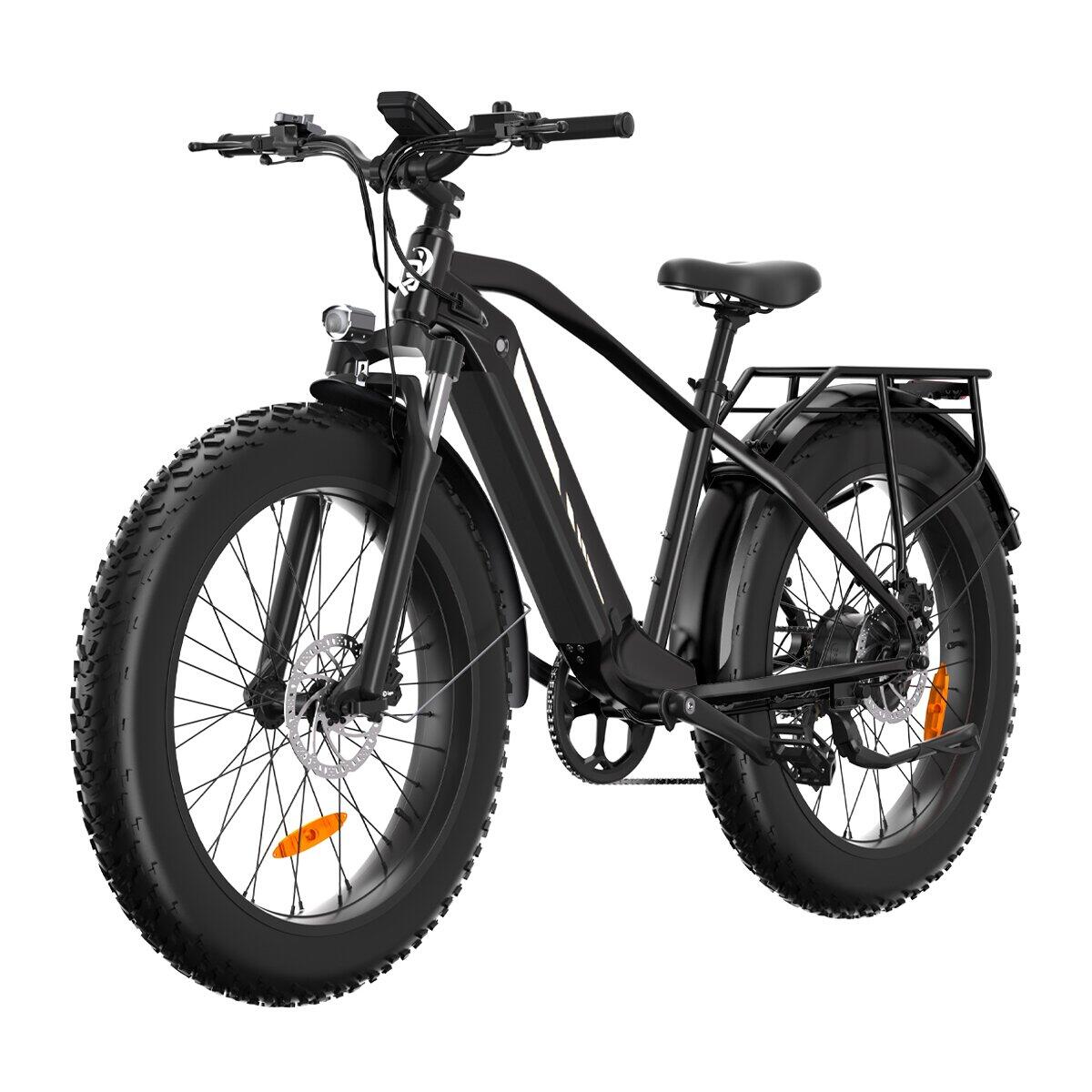

The Bodywel D6 all terrain electric assisted bicycle adopts an aluminum alloy frame, which has strong rigidity and reasonable weight control. The net weight of the vehicle is 34kg, and the maximum load capacity can reach 150kg, with excellent load-bearing capacity. The overall size of the vehicle is 19070106cm, with a solid and stable body structure, suitable for off-road, suburban exploration, and long-distance travel. The large body provides a stable riding experience and can cope with various complex outdoor scenes.
[Ultra long power assisted endurance]
The car is equipped with a 48V15Ah detachable lithium battery, which can be fully charged in just 6.5 hours. It is easy to disassemble and has flexible charging methods. Relying on speed sensors to achieve pure pedal assisted driving, with no throttle design and five gear assisted adjustment, the maximum assisted speed is 25km/h. The PAS pedal can assist in a range of 65-120km, with a powerful climbing ability of 30 °, making it easier to face steep slopes and mountain roads, suitable for long-distance outdoor cycling.
[Wide tire improves passability]
Equipped with adjustable hydraulic shock absorber front fork, the shock absorption can be adjusted according to road conditions to effectively absorb vibrations caused by potholes and gravel roads, greatly improving off-road riding comfort. Equipped with 26 × 4.0-inch wide tires, the tire surface has a larger contact area with the ground, strong grip, and excellent anti slip performance. It has good off-road performance on sandy, dirt, and mountain roads, making it the core configuration for outdoor off-road riding.
IPX5 waterproof and reliable
Five speed power assisted graded speed regulation, gradually increasing from 13km/h to 25km/h. Riders can freely switch the power assistance intensity according to their physical strength and road conditions. The whole vehicle has reached IPX5 waterproof level, which can resist rainwater spray. In the event of outdoor rainfall, there is no need to worry about circuit failure. It is suitable for changing outdoor environments and reduces concerns about outdoor cycling.
[Outdoor travel preferred]
The whole vehicle is designed for all terrain riding needs, balancing power, load capacity, and shock absorption performance. There is no throttle, relying on pedaling to trigger assistance, and the riding experience is naturally controllable. Whether it's off-road in the mountains, long-distance trips in the countryside, or heavy cargo transportation, the Bodywel D6 can stably output power, making it an outstanding wide tire off-road electric bicycle.
[Product Parameters]
Product model: Bodywel D6
Battery: 48V15Ah detachable battery
Sensor: speed sensor
Shock absorption: Adjustable hydraulic shock absorber front fork
Tire: 26 4.0 inches
Material: Aluminum alloy
Waterproof rating: IPX5
Maximum climbing: 30 °
Pedal Assist (PAS) Range: 65-120km
Power assisted gear speed: 1/13km/h, 2/16km/h, 3/19km/h, 4/22km/h, 5/25km/h
Charging time: 6.5 hours
Net weight: 34kg
Gross weight: 44.2kg
Maximum load capacity: 150KG
Vehicle size cm: 190 70 * 106cm
Packaging size cm: 158x36x85.5cm
Is there a throttle: No throttle
