Product Description
[Lightweight Folding Design]

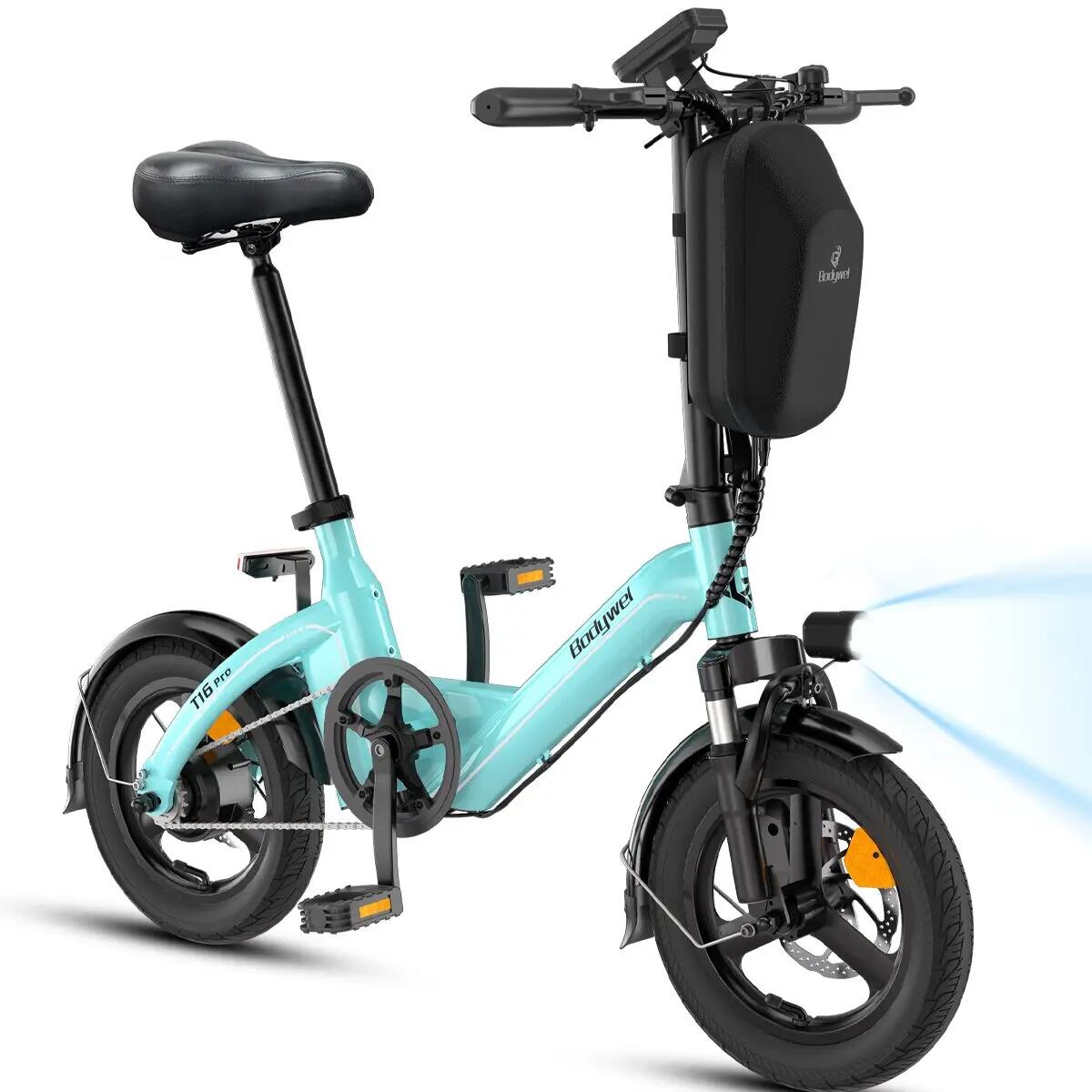

Bodywel T16PRO is designed for short distance urban commuting, with a net weight of only 20.8kg. It is equipped with foldable vertical pipes and foldable foot pedals, making it compact and easy to fit into the trunk, elevator, or indoor corners after folding. The seat height supports adjustment of 76-99cm, suitable for people over 155cm, with a maximum load capacity of 85kg. The compact body is flexible to operate, making it convenient for commuting and short distance commuting. It is a lightweight choice for daily commuting.
[Stable assistance for battery life]
The car is equipped with a 36V10Ah (360Wh) non removable lithium battery, paired with a 42V 2A charger, which only takes 5 hours to fully charge. Under the pedal assist mode, the range can reach 25-45 kilometers, with three levels of assist speed regulation and a maximum assist speed of 25km/h. The throttle free design relies on the speed sensor to output smooth power, with a torque of 35N · m to meet daily cycling needs. The 15 ° climbing ability is suitable for urban gentle slope sections, meeting the needs of daily commuting, grocery shopping and short distance travel.

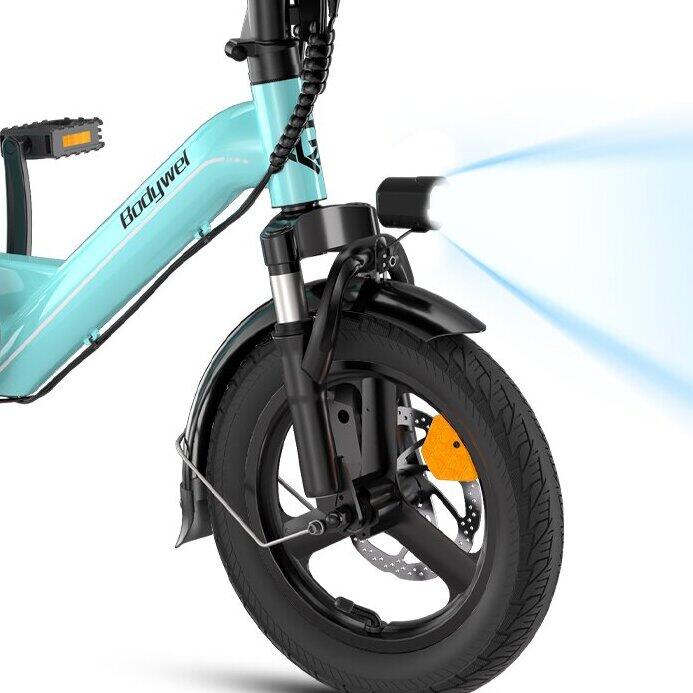

Comfortable mechanical shock absorption
The wheels are made of magnesium aluminum alloy integrated rims, paired with 14 2.5-inch inner and outer tires. The recommended tire pressure is 240-310kpa, and the wheel set is sturdy and not easily deformed. Equipped with a mechanical shock absorber fork, it can cushion slight bumps on the road surface and improve riding comfort. The vehicle comes standard with PVC plastic fenders, which can block mud and water splashes during rainy days, keep clothes clean, and are suitable for urban paved road cycling scenes.
[Fully illuminated]
The vehicle is equipped with a 4.5-inch LED color APP display screen, which allows for intuitive viewing of speed, battery level, mileage and other information while riding. It supports APP interconnection and facilitates recording of riding data. The vehicle comes with wired headlights and taillights, which enhance recognition during nighttime cycling. IPX4 waterproof rating, there is no need to worry about electrical appliances getting damp during daily light rain riding, and commuting is not limited by changing weather conditions.
[Safe and stable braking]

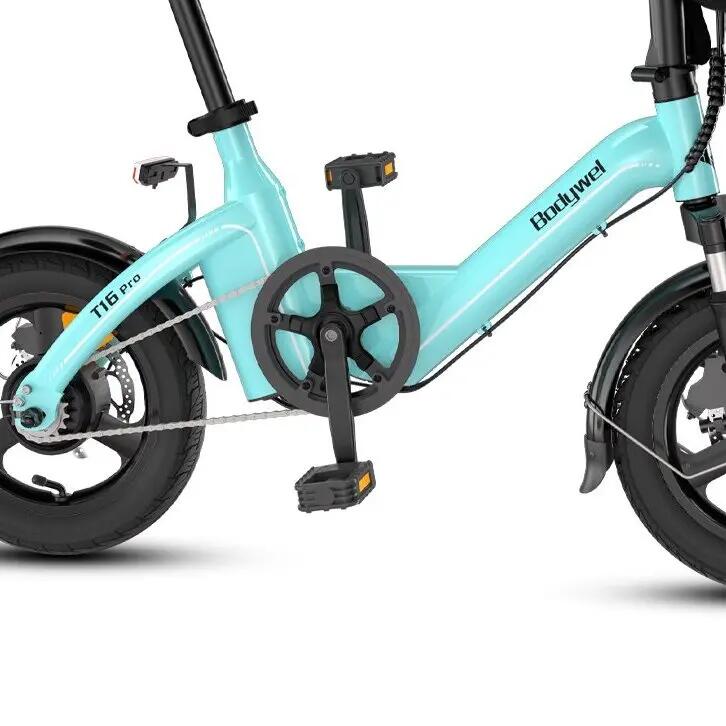

Adopting a single speed transmission structure, the 44 tooth disc is paired with a single speed flywheel, which has a simple structure, low failure rate, and easy maintenance. The steel alloy handlebars and iron seat bars have a sturdy structure, and the overall design leans towards simplicity and practicality. The whole vehicle does not have an accelerator and relies solely on pedal assistance for driving. The riding rhythm is controllable and suitable for beginners to ride, balancing portability, storage, and practicality for urban commuting.
[Product Parameters]

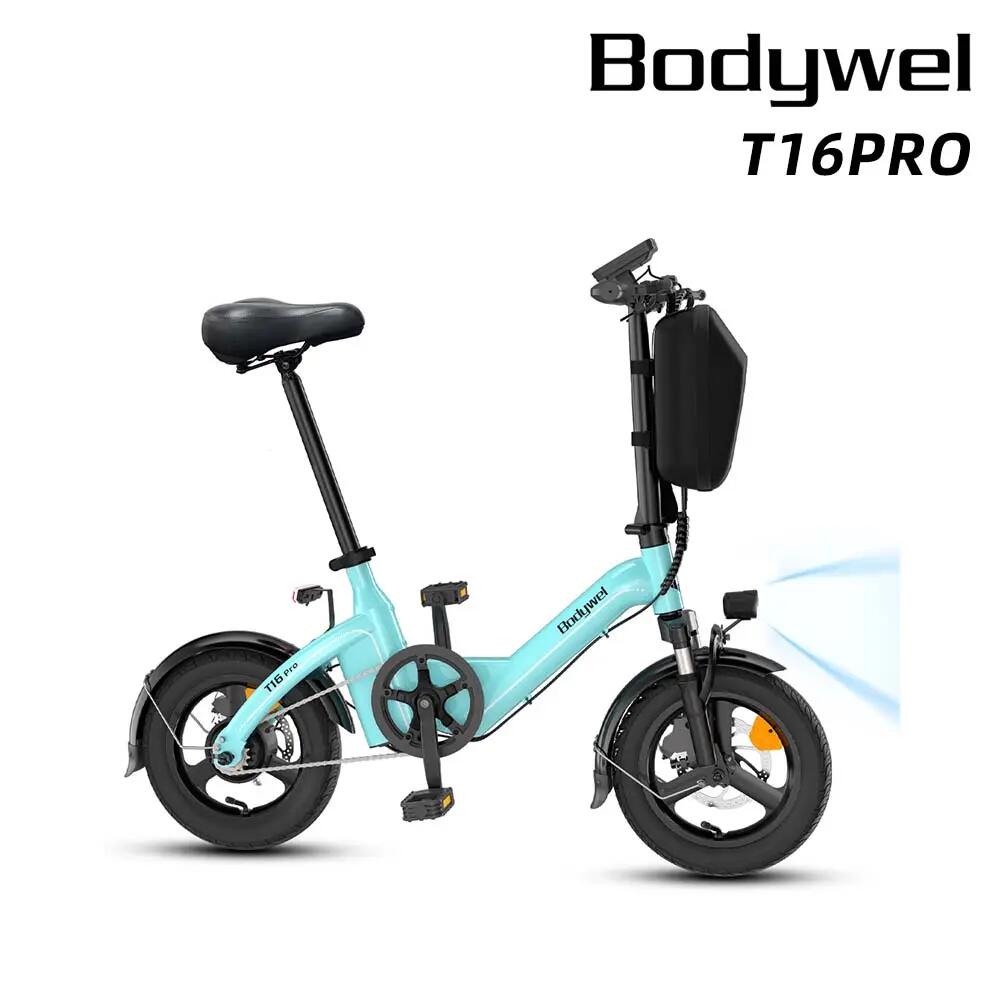

Model: Bodywel T16PRO
Battery: 36V10Ah, 360Wh lithium battery, non removable
Torque: 35N. m torque
Instrument: 4.5-inch LED color APP display screen
Sensor: speed sensor
Charger: 42V2A
Input voltage: 100-240V
Controller: 36V speed sensor
Lamp: wired headlights and taillights
Transmission: single speed
Shock absorption: mechanical shock absorption front fork
Dental disc: 150MM 44 teeth
Pedal: Folding plastic
Flywheel: Single speed flywheel
Handlebars: steel alloy
Seat pole size: Iron 33.9MM 580MM
Saddle: with clamp
Wheel: magnesium aluminum alloy integrated wheel rim
Internal and external tires: 14 2.5 inches
Tire pressure: 240-310kpa
Fenders: Standard PVC plastic mudguard
Vertical pipe: Foldable toothed vertical pipe
Waterproof rating: IPX4
Maximum climbing: 15
Pedal Assist (PAS) Range: 25-45 kilometers
Power assisted gear speed: 1/13km/h, 2/18km/h, 3/25km/h
Charging time: 5 hours
Net weight loaded: 20.8kg
Gross weight loaded: 24.7kg
Vehicle dimensions: 130 58 99
Folding size of the whole vehicle: 130 24 61cm
Vehicle packaging size: 111 21 51cm
Handlebar height: 97cm
Seat height: 76-99cm
Suitable height: 155cm or above
Maximum load capacity: 85kg
Is there a throttle: No throttle
