Product Description
[Portable and easy to store]

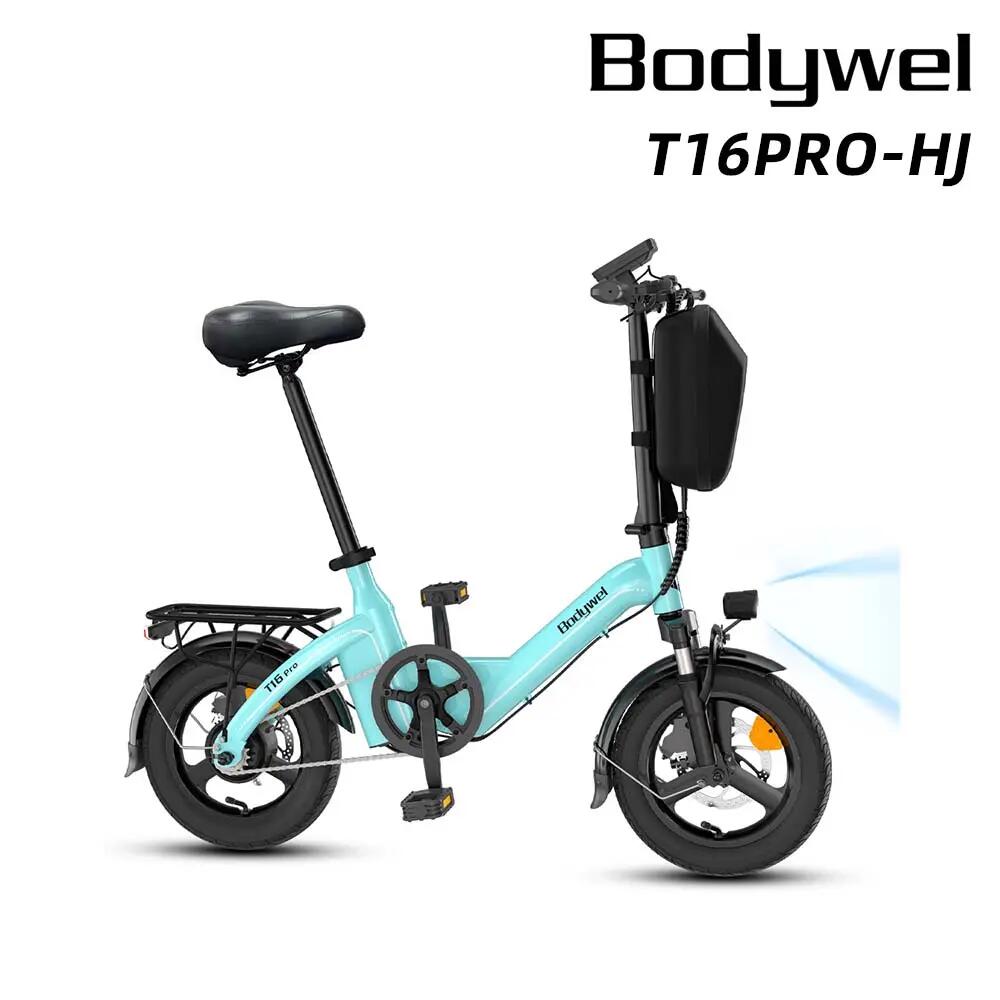

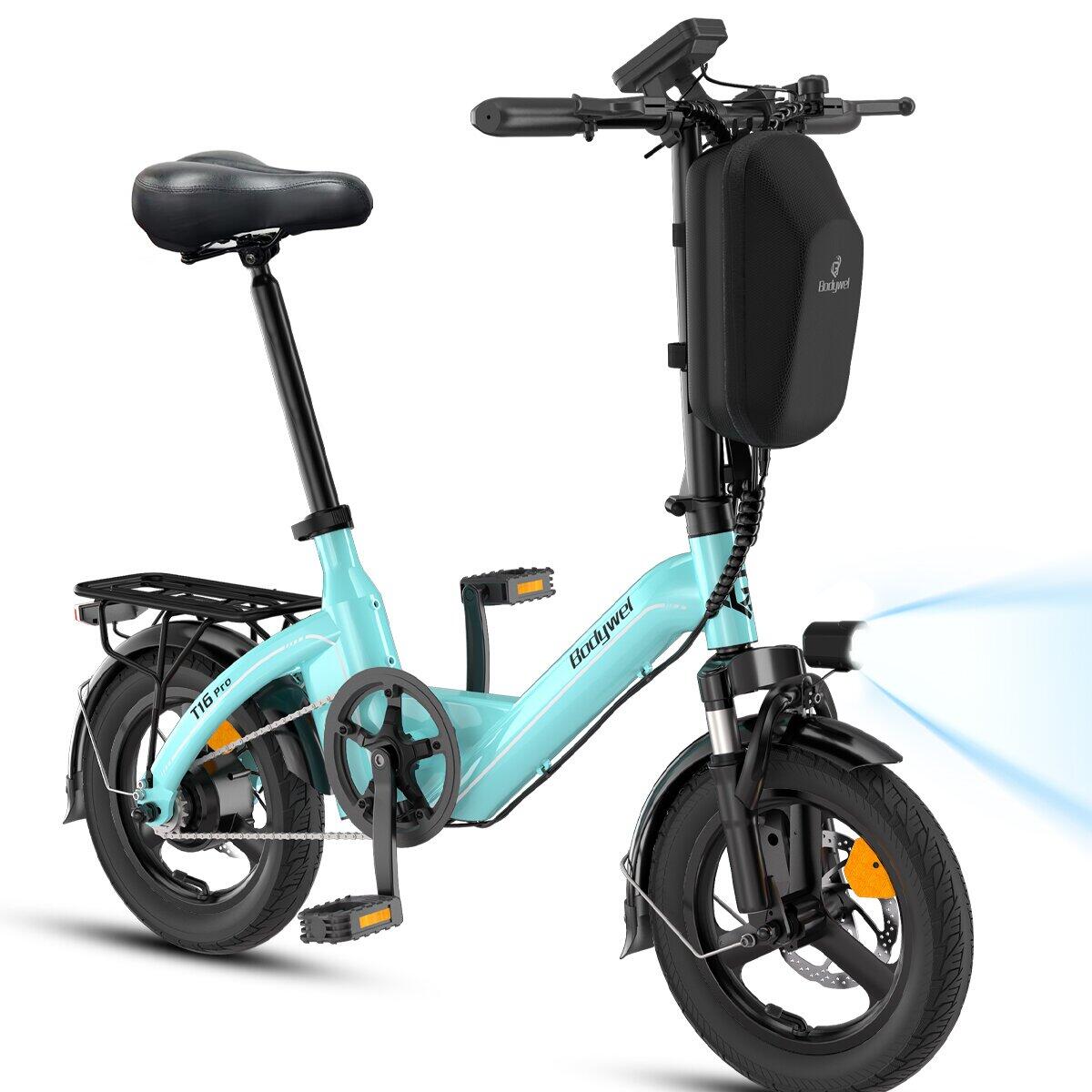

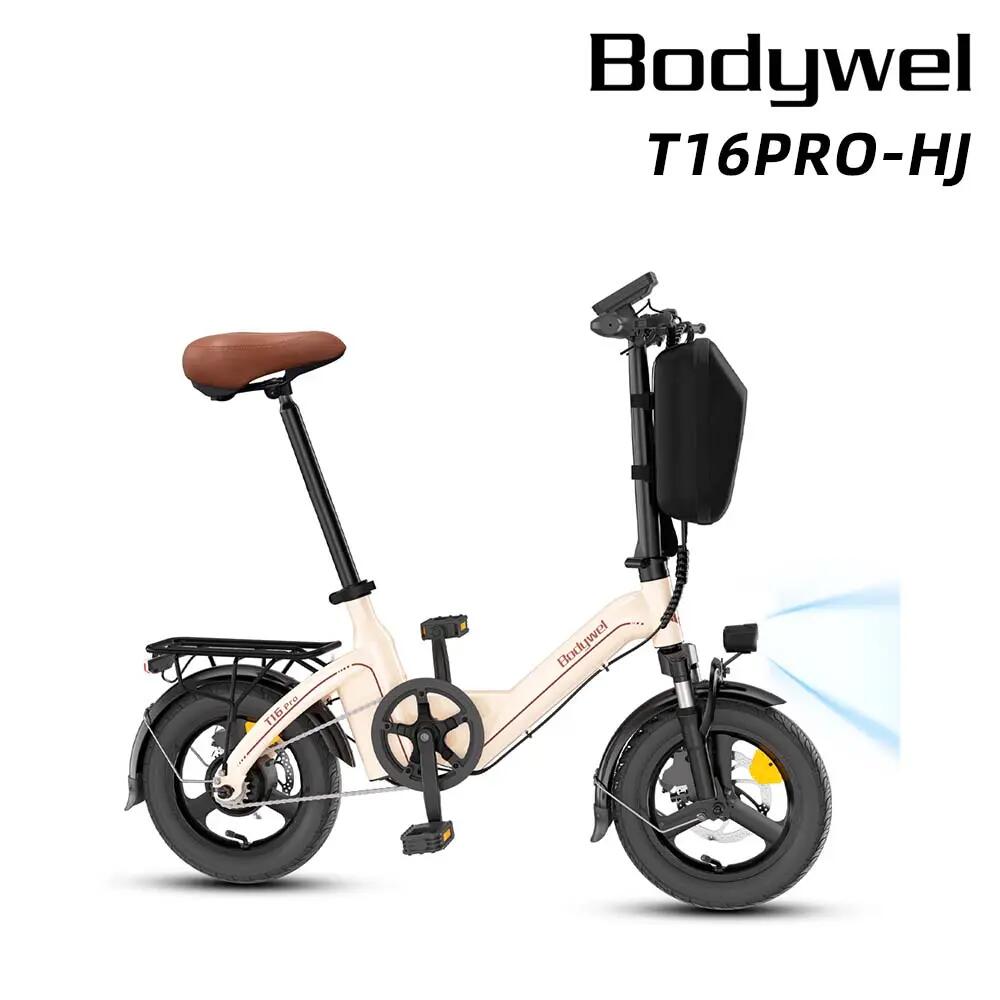

Bodywel T16PRO-HJ is a folding electric bicycle designed specifically for short distance urban commuting. With a net weight of only 20.8kg, it is equipped with a foldable stand pipe and foldable plastic pedals. After folding, it has a compact size and does not take up space for storage, making it easy to place in homes, elevators, or car trunks. The seat height can be adjusted between 76-99cm, suitable for riders over 155cm, with a maximum load capacity of 85kg. The compact and flexible body makes it easy to navigate through urban streets and alleys.
[Stable and worry free battery life]
The vehicle is equipped with a 36V10Ah (360Wh) non removable lithium battery, paired with a 42V 2A charger, which can be fully charged in just 5 hours. Relying on speed sensors to provide pedal assistance, with a torque of 35N · m, three levels of assistance are set, with a maximum assist speed of 25km/h, and no throttle design. PAS assisted range can reach 25-45 kilometers, with a 15 degree climbing ability sufficient to handle urban gentle slopes and meet short distance travel needs such as commuting and daily shopping.
[Comfortable riding with shock absorption]

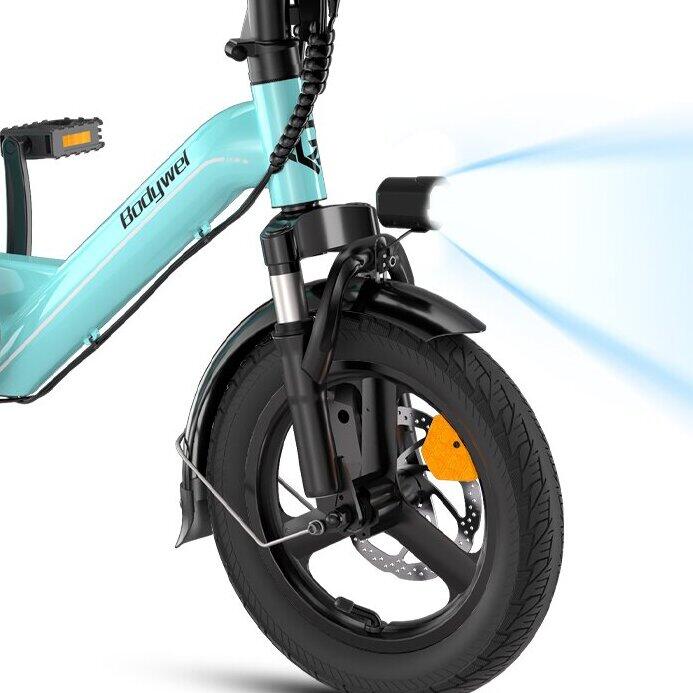

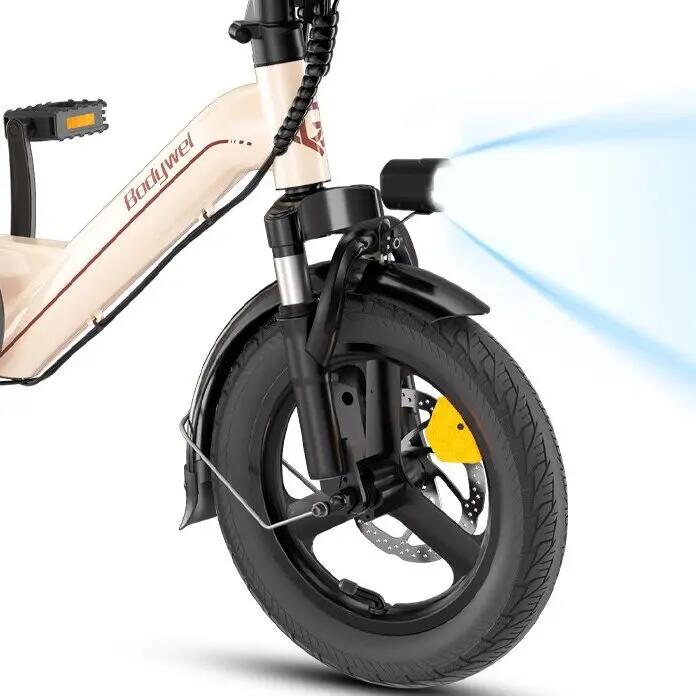

Adopting magnesium aluminum alloy integrated wheels, paired with 14 × 2.5-inch inner and outer tires, recommended tire pressure of 240-310kpa, the wheel set is sturdy and impact resistant. Equipped with a mechanical shock absorber front fork, effectively filtering out small bumps on the road surface and improving riding comfort on paved roads. The factory comes standard with PVC plastic fenders, which can block mud and water splashes in rainy days, keep clothes clean, and are more suitable for urban road scenes.
[Lighting and Waterproof Enhancement]

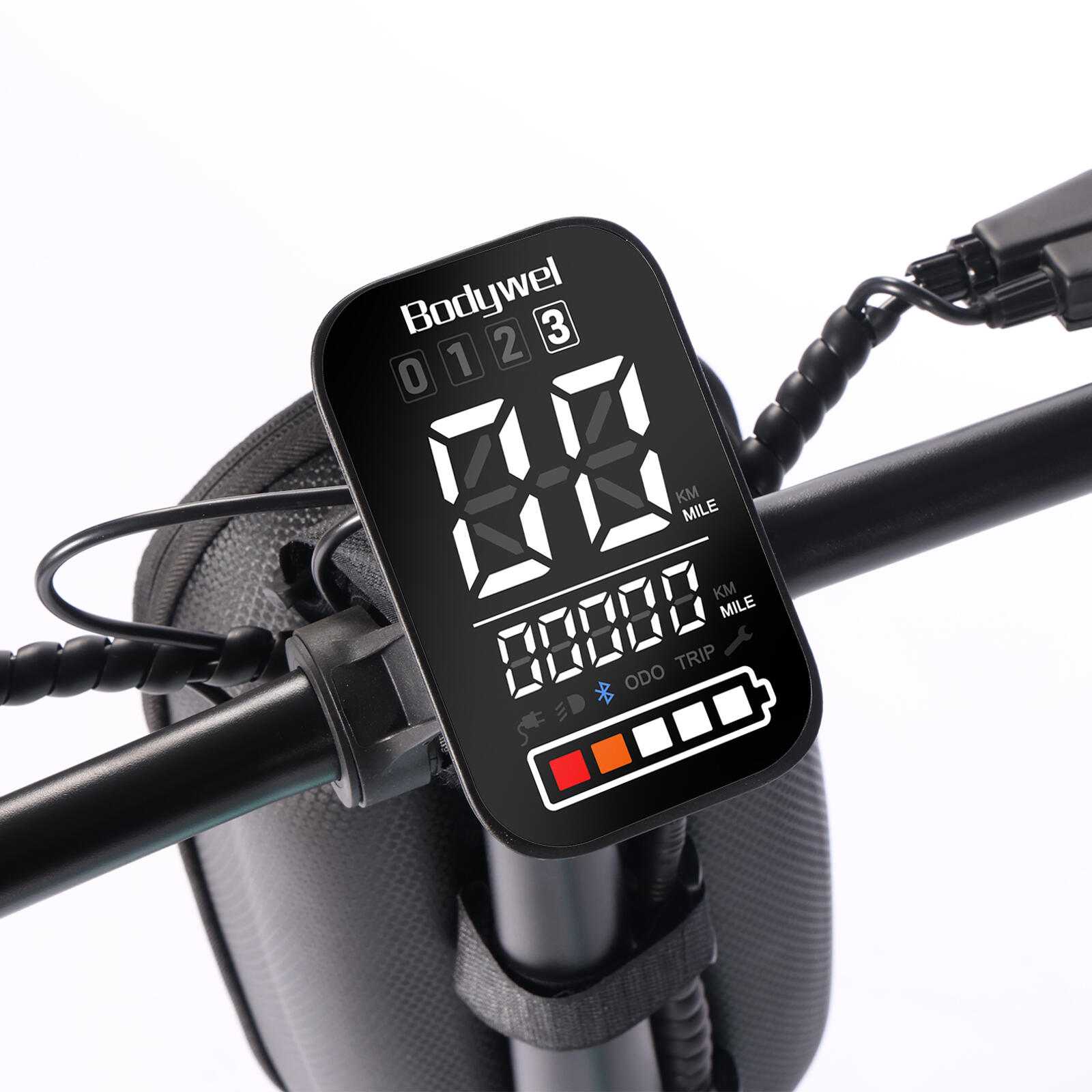

Equipped with a 4.5-inch LED color APP display screen, cycling data is clear and visible, supports APP connection, and can record cycling information. Equipped with wired headlights and taillights, it enhances safety during nighttime cycling. The whole machine has reached IPX4 waterproof level, which can withstand daily light rain. Short distance cycling in sudden rainy weather does not need to worry about circuit damage, and commuting is not affected by small weather changes.
[Simple and reliable maintenance]

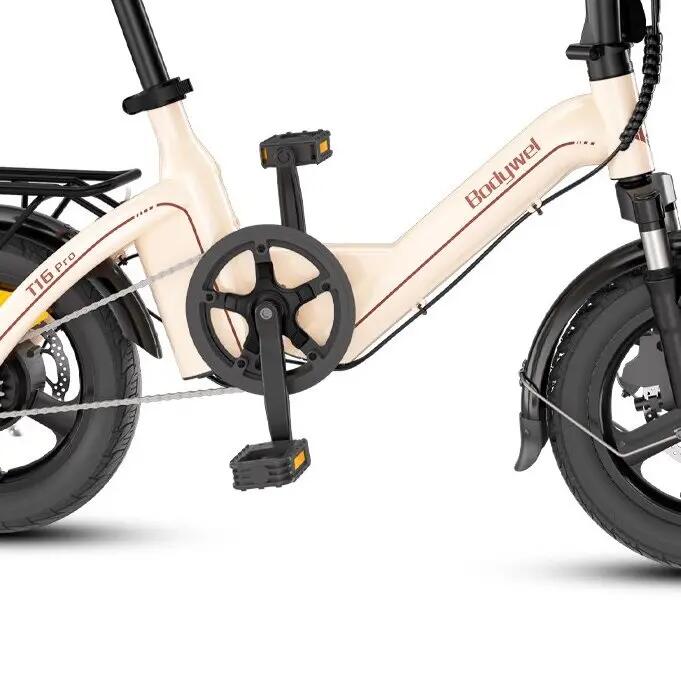

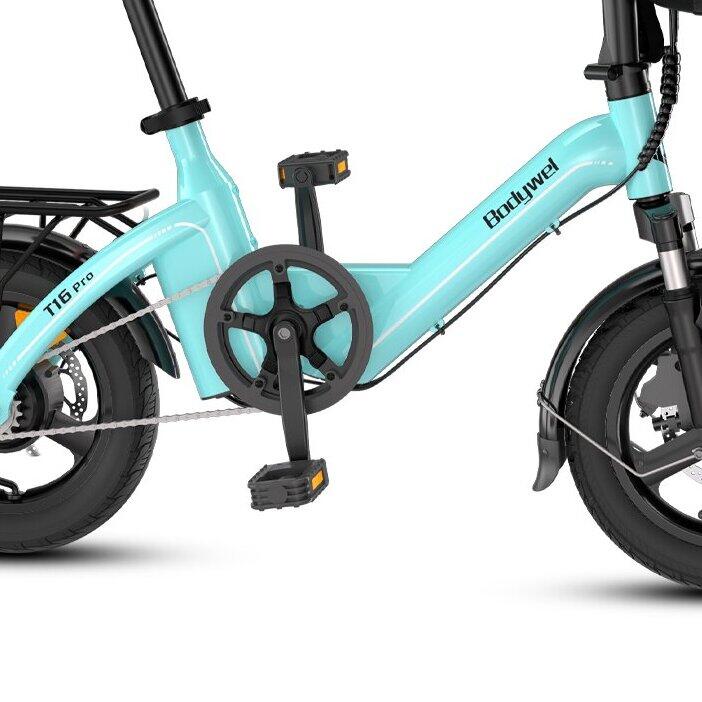

Adopting a single speed transmission system, paired with a 44 tooth disc and a single speed flywheel, the structure is streamlined, the probability of failure is low, and post maintenance is simple. The steel alloy handlebars and iron seat bars are stable and durable, and the whole vehicle is driven by pedal assistance. The riding rhythm is controllable, and the threshold for getting started is low. The overall focus is on being lightweight and practical, making it a cost-effective folding electric scooter for short distance urban commuting.
[Product Parameters]
Model: Bodywel T16PRO-HJ
Battery: 36V10Ah, 360Wh lithium battery, non removable
Torque: 35N. m torque
Instrument: 4.5-inch LED color APP display screen
Sensor: speed sensor
Charger: 42V2A
Input voltage: 100-240V
Controller: 36V speed sensor
Lamp: wired headlights and taillights
Transmission: single speed
Shock absorption: mechanical shock absorption front fork
Dental disc: 150MM 44 teeth
Pedal: Folding plastic
Flywheel: Single speed flywheel
Handlebars: steel alloy
Seat pole size: Iron 33.9MM 580MM
Saddle: with clamp
Wheel: magnesium aluminum alloy integrated wheel rim
Internal and external tires: 14 2.5 inches
Tire pressure: 240-310kpa
Fenders: Standard PVC plastic mudguard
Vertical pipe: Foldable toothed vertical pipe
Waterproof rating: IPX4
Maximum climbing: 15
Pedal Assist (PAS) Range: 25-45 kilometers
Power assisted gear speed: 1/13km/h, 2/18km/h, 3/25km/h
Charging time: 5 hours
Net weight loaded: 20.8kg
Gross weight loaded: 24.7kg
Vehicle dimensions: 130 58 99
Folding size of the whole vehicle: 130 24 61cm
Vehicle packaging size: 111 21 * 51cm
Handlebar height: 97cm
Seat height: 76-99cm
Suitable height: 155cm or above
Maximum load capacity: 85kg
Is there a throttle: No throttle
